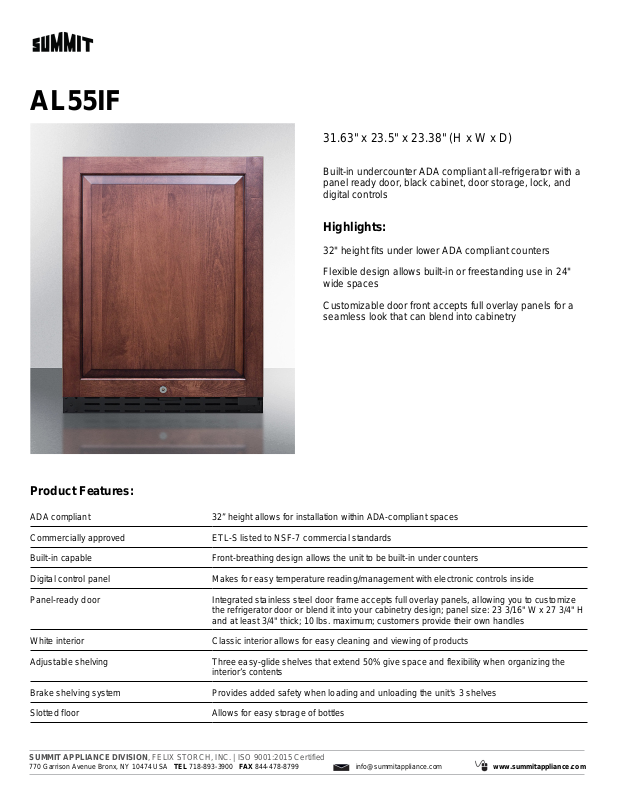

Summit AL55IF Specifications

AL55IF

31.63" x 23.5" x 23.38" (H x W x D)

Built-in undercounter ADA compliant all-refrigerator with a
panel ready door, black cabinet, door storage, lock, and
digital controls

Highlights:

32" height fits under lower ADA compliant counters
Flexible design allows built-in or freestanding use in 24"

wide spaces
Customizable door front accepts full overlay panels for a

seamless look that can blend into cabinetry

Product Features:

ADA compliant 32” height allows for installation within ADA-compliant spaces
Commercially approved ETL-S listed to NSF-7 commercial standards
Built-in capable Front-breathing design allows the unit to be built-in under counters
Digital control panel Makes for easy temperature reading/management with electronic controls inside
Panel-ready door Integrated stainless steel door frame accepts full overlay panels, allowing you to customize

the refrigerator door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H

and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
White interior Classic interior allows for easy cleaning and viewing of products
Adjustable shelving Three easy-glide shelves that extend 50% give space and flexibility when organizing the

interior’s contents
Brake shelving system Provides added safety when loading and unloading the unit's 3 shelves
Slotted floor Allows for easy storage of bottles

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

AL55IF Specifications:

Overview

Height of Cabinet 31.63" (80 cm)
Width 23.5" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 4.2 cu.ft. (119 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 98.0 lbs. (44 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Sabbath Mode Yes
Door Swing RHD
Reversible Factory Reversible
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and

Refrigerant Type R600a
Refrigerant Amount 1.23oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 46ºF

ETL-C

Exterior

Dimensions

Interior Height 23.5" (60 cm)
Interior Width 19.0" (48 cm)
Interior Depth 17.25" (44 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 19.0" (48 cm)
Compressor Step Depth 5.0" (13 cm)
