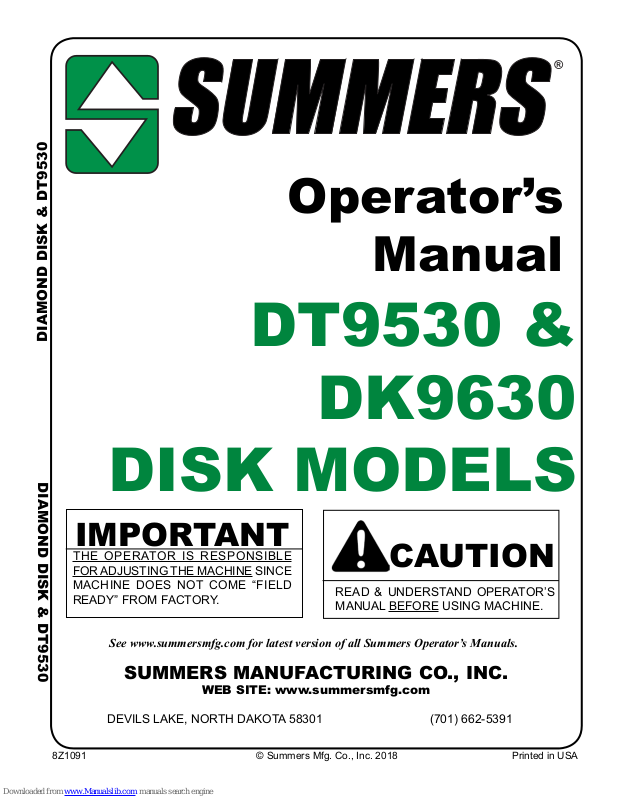

Summers DT9530, DK9630 Operator's Manual

®

Operator’s

Manual

DIAMOND DISK & DT9530

DIAMOND DISK & DT9530

DISK MODELS

IMPORTANT

THE OPERATOR IS RESPONSIBLE
FOR ADJUSTING THE MACHINE SINCE
MACHINE DOES NOT COME “FIELD
READY” FROM FACTORY.

DT9530 &

DK9630

CAUTION

READ & UNDERSTAND OPERATOR’S
MANUAL BEFORE USING MACHINE.

See www.summersmfg.com for latest version of all Summers Operator’s Manuals.

SUMMERS MANUFACTURING CO., INC.

WEB SITE: www.summersmfg.com

DEVILS LAKE, NORTH DAKOTA 58301 [phone]

8Z1091 © Summers Mfg. Co., Inc. 2018 Printed in USA

Warranty

Summers warrants only products of its manufacture against operational failure caused by defective materials
or workmanship which occur during normal use within 36 months from the date of purchase by the end user from
Summers’ dealer.

Summers’ obligation is to replace free of charge any part of any product that Summers inspection shows to be
defective excluding transportation charges to Devils Lake, ND and return and also excluding all transportation costs
from Summers’ dealer to the dealer’s customer and all other costs such as removal and installation expense.

Summers shall not be liable for loss of time, manufacturing costs, labor, material, loss of prots, consequential

damages, direct or indirect, because of defective products whether due to rights arising under the contract of sale or
independently thereof, and whether or not such claim is based on contract, tort or warranty.

Written permission for any warranty claim return must be rst obtained from authorized Summers’ personnel.

All returns must be accompanied with a complete written explanation of claimed defects and the circumstances of
operational failure.

Written warranty for all component parts used in the manufacture of Summers products is available upon request.

Warranty of such component parts will be determined by said component manufacturer upon their inspection of the
claimed defective part.

This express warranty is the sole warranty of Summers. There are no warranties, which extend beyond the war­ranty herein expressly set forth. The sales for products of Summers under any other warranty or guarantee express

or implied is not authorized. This warranty voids all previous issues.

SUMMERS MANUFACTURING CO. INC.

DEVILS LAKE, NORTH DAKOTA 58301

01/16

Publish Date: 8/27/2018

GENERAL INFORMATION

This book is composed of four basic sections: Safety, Assembly, Operation and Maintenance, and Parts. The As­sembly Section provides complete instructions for the proper assembly of your Summers DIAMOND DISK &
DT9530. The Operation Section provides information for the proper operation and maintenance of your Summers
DIAMOND DISK & DT9530. A complete parts breakdown is provided in the Parts Section.

Parts are referenced in each drawing with the Summers Manufacturing Part Number. Use this Part Number when ordering
replacement parts from your Summers dealer. See back section of manual for description of each Part Number.

Reference to “Right” and “Left” in this book is determined when the machine is viewed from the rear.

It is the policy of this company to improve its products whenever possible and practical to do so. We reserve the right to
make changes or improvements in the design or construction of parts at any time without incurring the obligation to install
such changes on products previously delivered.

Summers Manufacturing Company, Inc. strongly recommends that each DIAMOND DISK & DT9530 Operator
READ and UNDERSTAND the Operator’s Manual before using the machine. In addition, this Operator’s Manual
should be REVIEWED at least ANNUALLY thereafter.

Scan code to the right for the latest version of all Summers Operator’s Manuals.

SECTION CONTENTS

Section 1: SAFETY

Section 2: ASSEMBLY INSTRUCTIONS

Section 3: OPERATION, MAINTENANCE AND SPECIFICATIONS

Section 4: PARTS

Section 5: PART NUMBERS & DESCRIPTIONS

OWNER REGISTER

Name ________________________________ Size _____________________________________

Address ______________________________ Serial Number _____________________________

City __________________________________

(located by the hitch piece)

State/Prov. ____________________________ Date Purchased ____________________________

Mail Code _____________________________ Dealer ___________________________________

i

TABLE OF CONTENTS

SECTION 1 - SAFETY

Safety-Alert Symbol & General Safety Practices................................................................................................. 1-1

Safety Decals ..............................................................................................................................................1-2 - 1-8

SECTION 2 - ASSEMBLY

General Assembly Safety Practices .................................................................................................................... 2-1

General Assembly - All Units ...................................................................................................................... 2-2 – 2-3

16’ Units ....................................................................................................................................................2-4 – 2-10

21’ Units .................................................................................................................................................. 2-11 – 2-19

25’-28.5’ Units .........................................................................................................................................2-20 – 2-28

SECTION 3 - OPERATION & MAINTENANCE

Start-Up ............................................................................................................................................................... 3-1

Hydraulic Operation and Maintenance ................................................................................................................ 3-1

Field Operation .......................................................................................................................................... 3-2 – 3-3

Storage, Troubleshooting and Dimensions.................................................................................................3-4 – 3-5

Bolt Torque Specications ................................................................................................................................... 3-6

SECTION 4 - PARTS

Depth Control Hydraulics............................................................................................................................ 4-1 – 4-2

Main Frame ........................................................................................................................................................ 4-3

25’ - 28.5’ Wing .................................................................................................................................................... 4-4

21’ Hydraulics Wing Lift ...................................................................................................................................... 4-5

25’ - 28.5 Hydraulics Wing Lift ............................................................................................................................ 4-6

Hydraulic Rear Coulter ........................................................................................................................................ 4-7

Gang Layouts ......................................................................................................................................... 4-8 -– 4-11

Rear Coulter Gang ................................................................................................................................. 4-12 – 4-13

Gang Components ............................................................................................................................................ 4-14

Mounted Rolling Basket.......................................................................................................................... 4-15 – 4-18

Mounted Harrow ..................................................................................................................................... 4-19 – 4-22

8K9250 Wing Weight Package .......................................................................................................................... 4-23

Light Kit ............................................................................................................................................................. 4-24

Hub and Axle Components ............................................................................................................................... 4-25

Mounted Attachment Components ........................................................................................................ 4-26 – 4-28

8K1850 - Acre Meter.......................................................................................................................................... 4-29

SECTION 5 - PART NUMBERS & DESCRIPTIONS ................................................................................ 5-1 – 5-3

ii

SECTION 1 - SAFETY

SAFETY-ALERT SYMBOL

This symbol is used to denote possible danger and
care should be taken to prevent bodily injury.
This symbol means:

ATTENTION! BECOME ALERT!

YOUR SAFETY IS INVOLVED!

Denition of each Signal Word used in conjunction with the Safety-Alert symbol.

indicates an imminently hazardous situation which, if not avoided, will result in death or

DANGER

serious injury. This signal word is to limited to the most extreme situations.

indicates a potentially hazardous situation which, if not avoided, could result in death or

WARNING

CAUTION

1. READ AND UNDERSTAND Operator’s Manual before using machine. Review at least annually thereafter.

2. VERIFY all safety devices and shields are in place before using machine.

3. KEEP hands, feet, hair and clothing away from moving parts.

4. STOP engine, place all controls in neutral, set parking brake, remove ignition key and wait for all mov­ing parts to stop before servicing, adjusting or maintaining.

5. BE CAREFUL when working around high pressure hydraulic system.

6. DO NOT ALLOW RIDERS.

1. ONLY TOW at a safe speed. Use caution when making corners and meeting trafc.

serious injury.

indicates a potentially hazardous situation which, if not avoided, may result in minor

or moderate injury. It may also be used to alert against unsafe practices.

GENERAL SAFETY PRACTICES

SAFETY DURING TRANSPORT

2. USE safety chain between tractor drawbar and implement hitch when transporting on public roads.

3. ALWAYS use transport locks when transporting on public roads.

4. COMPLY with local lighting, marking and oversize regulations when transporting on highways.

5. FREQUENTLY check for trafc from rear, especially during turns.

1-1

SECTION 1 - SAFETY

SAFETY DECALS

A. KEEP SAFETY DECALS CLEAN.

B. REPLACE missing or unreadable decals. New decals are available from your Summers dealer by ordering

correct part number (PN) located on decal.

C. Locations shown on Page 1-6.

1. TRANSPORT LOCK WARNING DECAL (PN 8Z0075)

WARNING

REMOVE TRANSPORT LOCK(S) BEFORE LOWERING MACHINE.
IF LOCK(S) DO NOT REMOVE FREELY, INSURE THAT
CYLINDERS ARE COMPLETELY FILLED WITH HYDRAULIC
FLUID AND ARE SUPPORTING THE LOAD TO BE LOWERED.

8Z0075

2. GENERAL CAUTION DECAL (PN 8Z0276)

1. Read and understand Operator’s Manual before using machine.

2. For Sprayers:
a. Read and follow chemical manufacturers’ WARNINGS, instructions and procedures before
using.
b. Use recommended personal protective equipment to reduce or eliminate chemical contact.
c. Never run pump dry.

3. Verify all safety devices and shields are in place before using machine.

4. Keep hands, feet, hair and clothing away from moving parts.

5. Stop engine, place all controls in neutral, set parking brakes, remove ignition key and wait for
all moving parts to stop before servicing, adjusting, maintaining or unplugging.

6. Be careful when working around high pressure hydraulic system.

7. Do not allow riders.

8. Check all wheel bolts DAILY for tightness.

9. Refer to Operator’s Manual for periodic and annual maintenance.

10. For Towed Implements, DO NOT EXCEED 20 MPH.

3. REPHASING CYLINDERS DECAL (PN 8Z0340)

IMPORTANT

TO REPHASE CYLINDERS, RAISE
MACHINE AND MAINTAIN HYDRAULIC
PRESSURE TEN SECONDS AFTER
CYLINDERS ARE FULLY EXTENDED.
QUICKLY RETRACT CYLINDERS AT
LEAST 1/2”. REPHASING SHOULD BE
DONE EVERY HOUR OF OPERATION TO
MAINTAIN UNIFORM TILLAGE DEPTH.

CAUTION

8Z0276

8Z0340

1-2

SECTION 1 - SAFETY

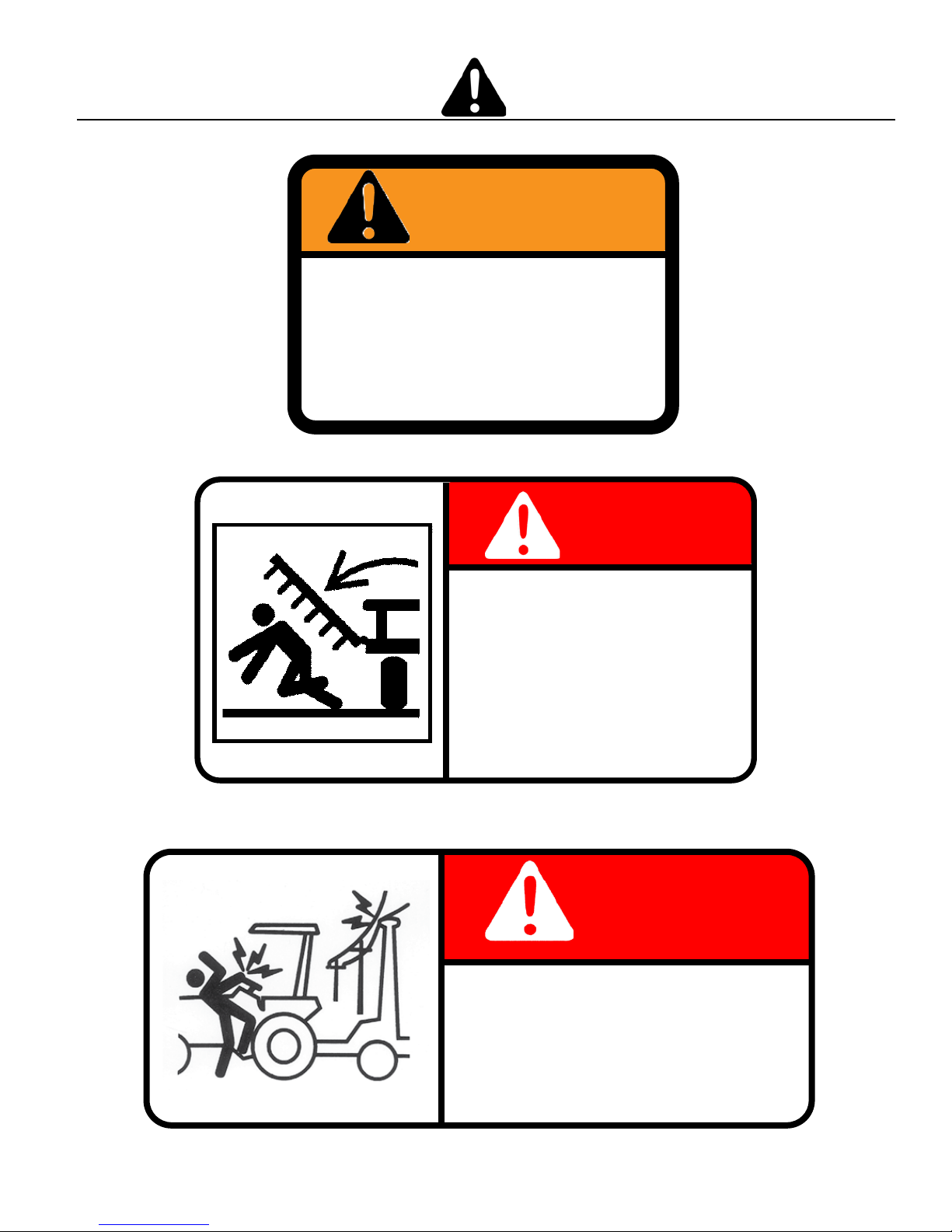

4. INSTALLING CYLINDER LOCKS DECAL (PN 8Z0342)

WARNING

TO AVOID INJURY
INSTALL CYLINDER
LOCKS BEFORE
TRANSPORTING OR
SERVICING MACHINE.

5. STAYING CLEAR OF WINGS DECAL (PN 8Z0344)

6. ELECTROCUTION DANGER DECAL (PN 8Z0346)

8Z0342

DANGER

TO AVOID INJURY OR DEATH
STAND CLEAR OF MACHINE
WHEN WINGS ARE BEING
RAISED AND LOWERED.
MECHANICAL OR HYDRAU­LIC FAILURE CAN ALLOW
WINGS TO FALL RAPIDLY.

8Z0344

DANGER

TO AVOID INJURY OR DEATH
DO NOT CONTACT
ELECTRICAL LINES.

8Z0346

1-3

SECTION 1 - SAFETY

7. PINCH POINT DECAL (PN 8Z0087)

FRAME PINCH POINT HAZARD

To prevent serious injury or death from crushing:

• Stay away from frame hinge area when folding
wings.

• Keep others away.

• Do not fold wings when bystanders are present.

8. SUMMERS DECAL (8Z0204)

DANGER

KEEP AWAY

8Z0087

®

9. GANG BEARING GREASE (PN 8Z0350)

*GREASE GANG BEARINGS EVERY 20 HOURS.*

GREASE AT MID DAY OR END OF DAY WHEN
BEARINGS ARE AT OPERATING TEMPERATURE.
ADD 3 STROKES OF CHEVRON ULTRA-DUTY EP
NLGI 2 OR EQUIVALENT. ROTATE GANG 2 TO 3
REVOLUTIONS. ADD THREE MORE STROKES.
GREASE ALL ZERKS ON MACHINE BEFORE
EXTENDED STORAGE PERIOD.

10. AMBER REFLECTOR (PN 8Z0800)

IMPORTANT

8Z0350

1-4

SECTION 1 - SAFETY

11. RED-ORANGE REFLECTOR (PN 8Z0805)

12. RED REFLECTOR (PN 8Z0810)

13. DK9630 DECAL (8Z2255)

13. DT9530 DECAL (8Z2290)

SAFETY LIGHT OPERATION

The Summers Safety Light Kit is equipped with a 7 pin connector. To protect 7 pin connector, store

in dust cap (8K8067) when not attached to towing vehicle.

1-5

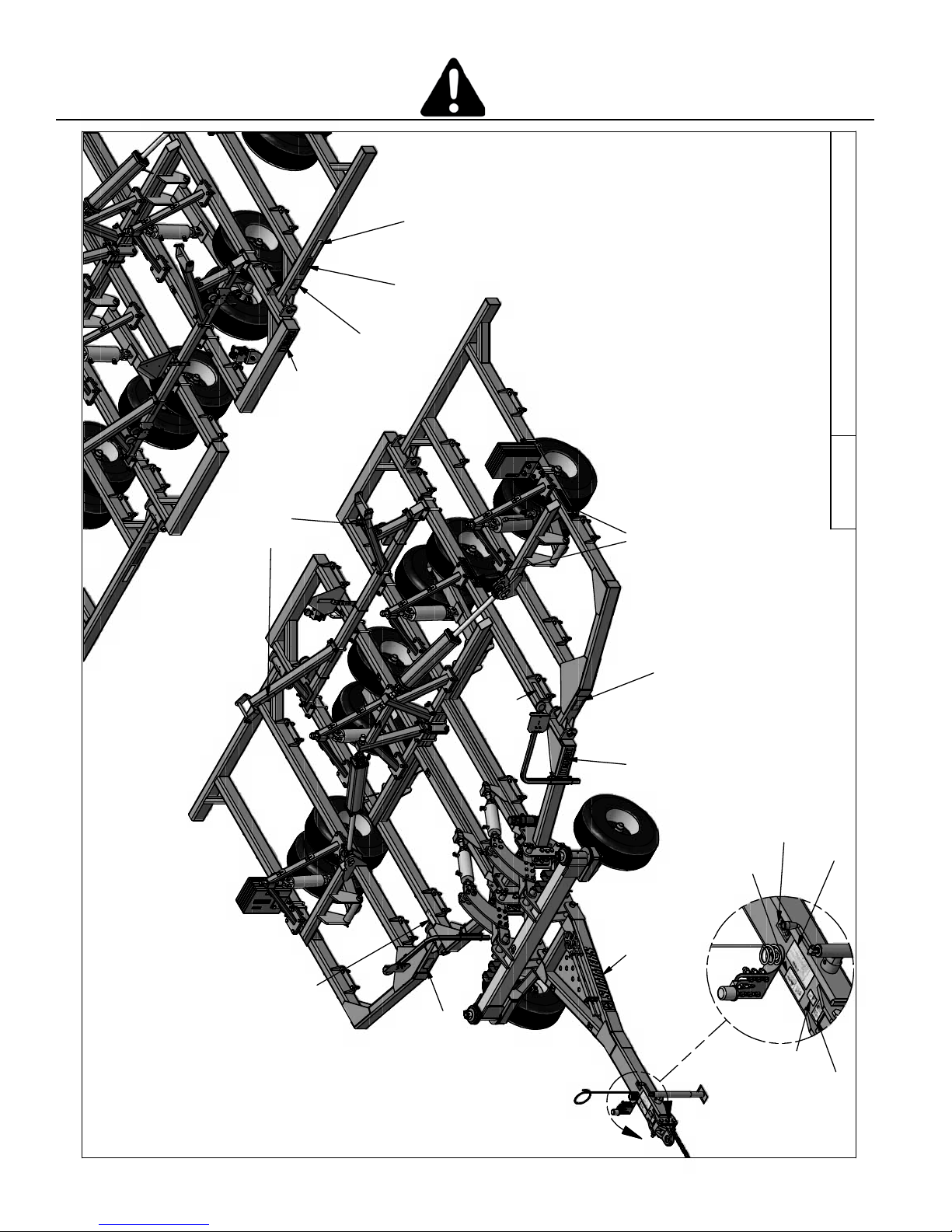

FEMA DECAL

(NO PN)

SECTION 1 - SAFETY

8Z0805

8Z0810

8Z0344

8Z0075

8Z2290

DT9530 DECAL

8Z0202T

3.5" SUMMERS DECAL

8Z0344

8Z0800

8Z2290

8Z0346

8Z0055

SERIAL PLATE

DT9530 DECAL

DECAL LOCATIONS.iam

9/3/2013

8Z0276

8Z0087

8Z0344

1-6

8Z0204

5.5" SUMMERS DECAL

B

8Z0100

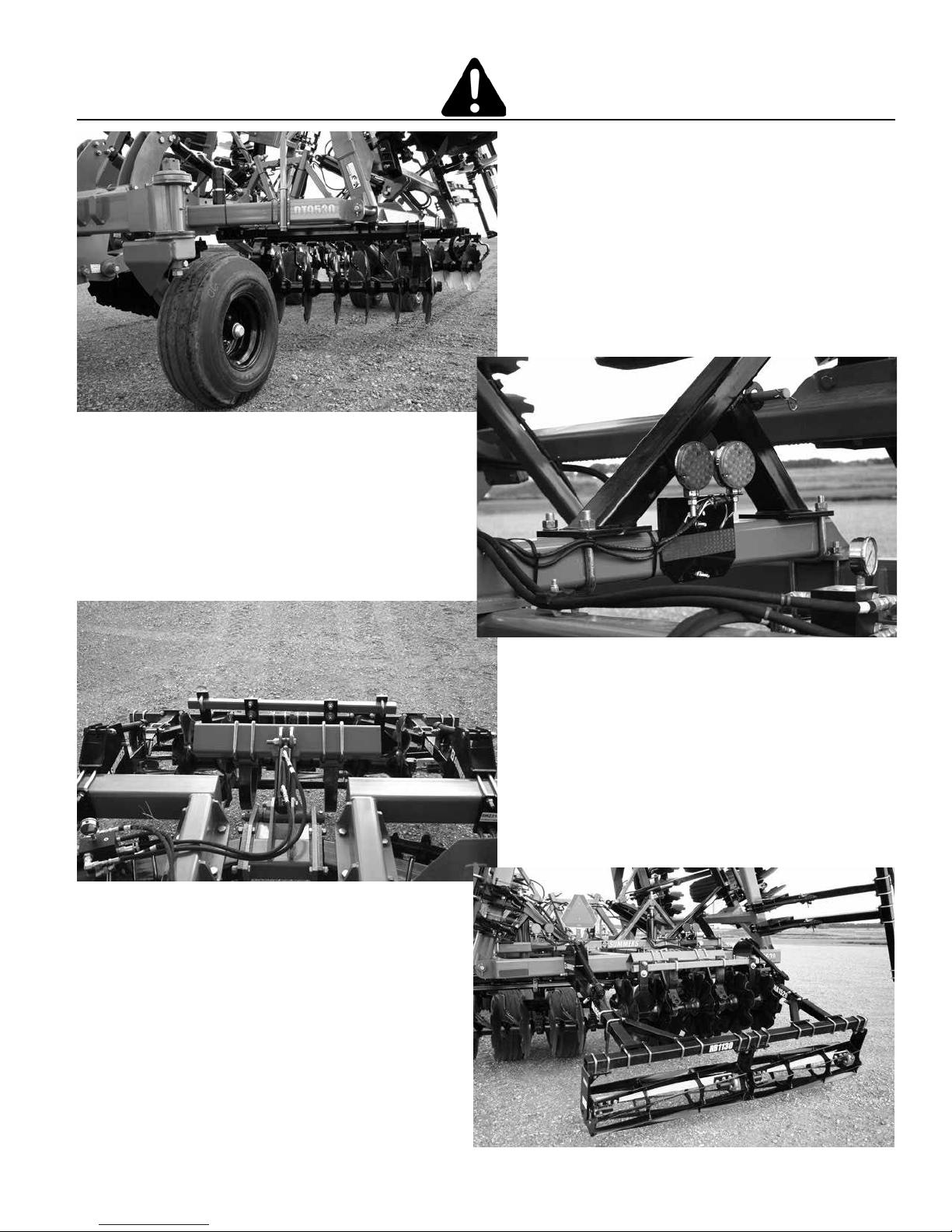

SECTION 1 - SAFETY

Front Left Caster

Rear Center

Rear Lights

Rear

1-7

SECTION 1 - SAFETY

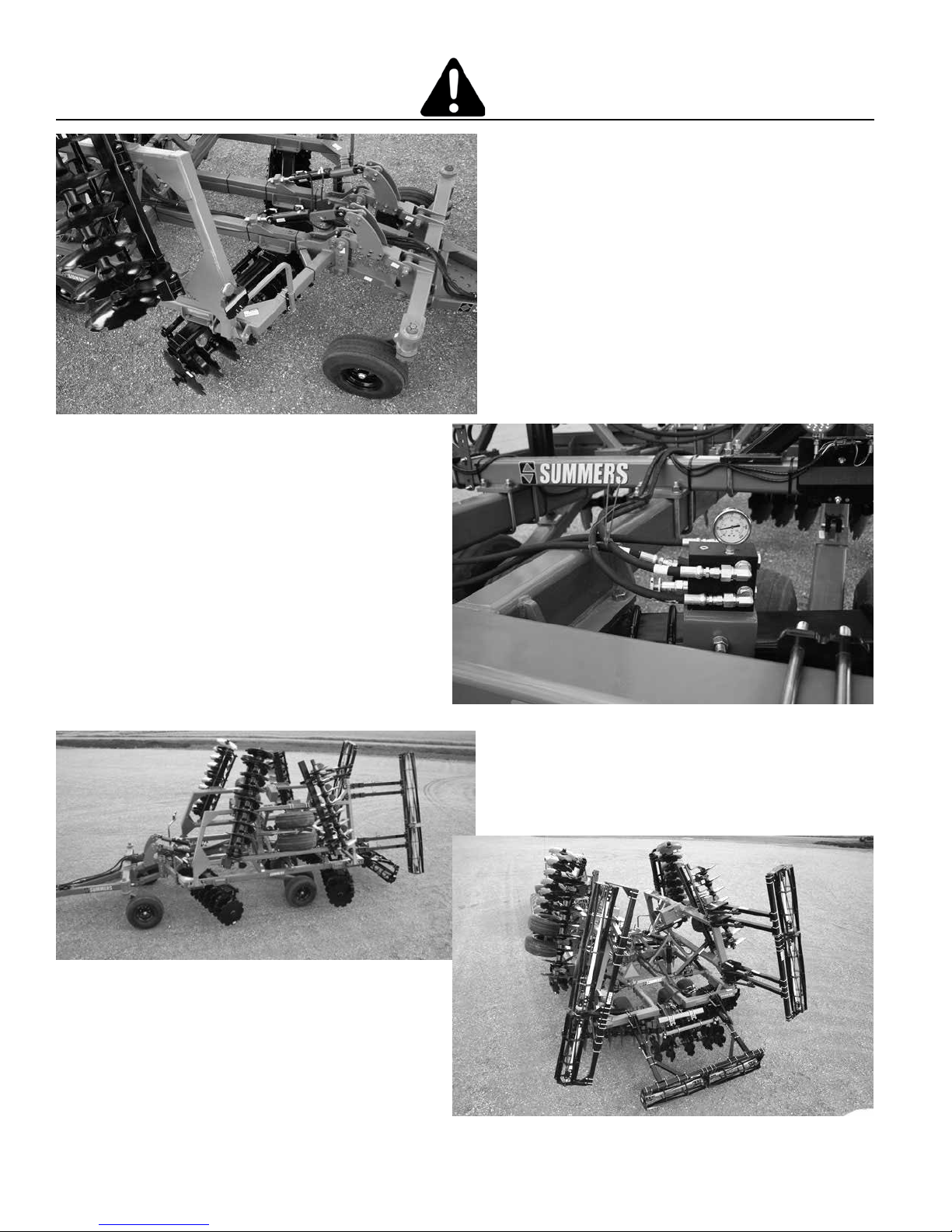

Front

Side View

Rear Coulter Gang Hyd. Valve

Rear View

1-8

SECTION 2 - ASSEMBLY

GENERAL ASSEMBLY SAFETY PRACTICES

YOU ARE RESPONSIBLE
for the safe assembly of the
machine.

DO NOT ALLOW CHILDREN

or other unauthorized persons

within the assembly area.

WEAR PERSONAL
PROTECTIVE EQUIPMENT
which includes a hard hat,
eye protection, work gloves
and steel toed boots with slip
resistant soles.

BLOCK UP ANY RAISED PART
of the machine. Be sure machine
is stable after blocking.

ALWAYS INSPECT LIFTING
CHAINS AND SLINGS for
damage or wear.

BE SURE LIFTING DEVICE
IS RATED TO HANDLE THE
WEIGHT.

STOP ENGINE, place all
controls in neutral, set parking
brakes, remove ignition key and
wait for all moving parts to stop
before servicing or adjusting.

DO NOT MODIFY the equipment
or substitute parts in any way.

Unauthorized modication may

impair the function and/or safety
of the machine.

USE SUITABLE LIFTING
DEVICE for components which
could cause personal injury.

BE SURE PRESSURE IS
RELIEVED from hydraulic
circuits before servicing or
disconnecting from tractor.

USE EXTREME CARE when
assembling, servicing or
adjusting.

2-1

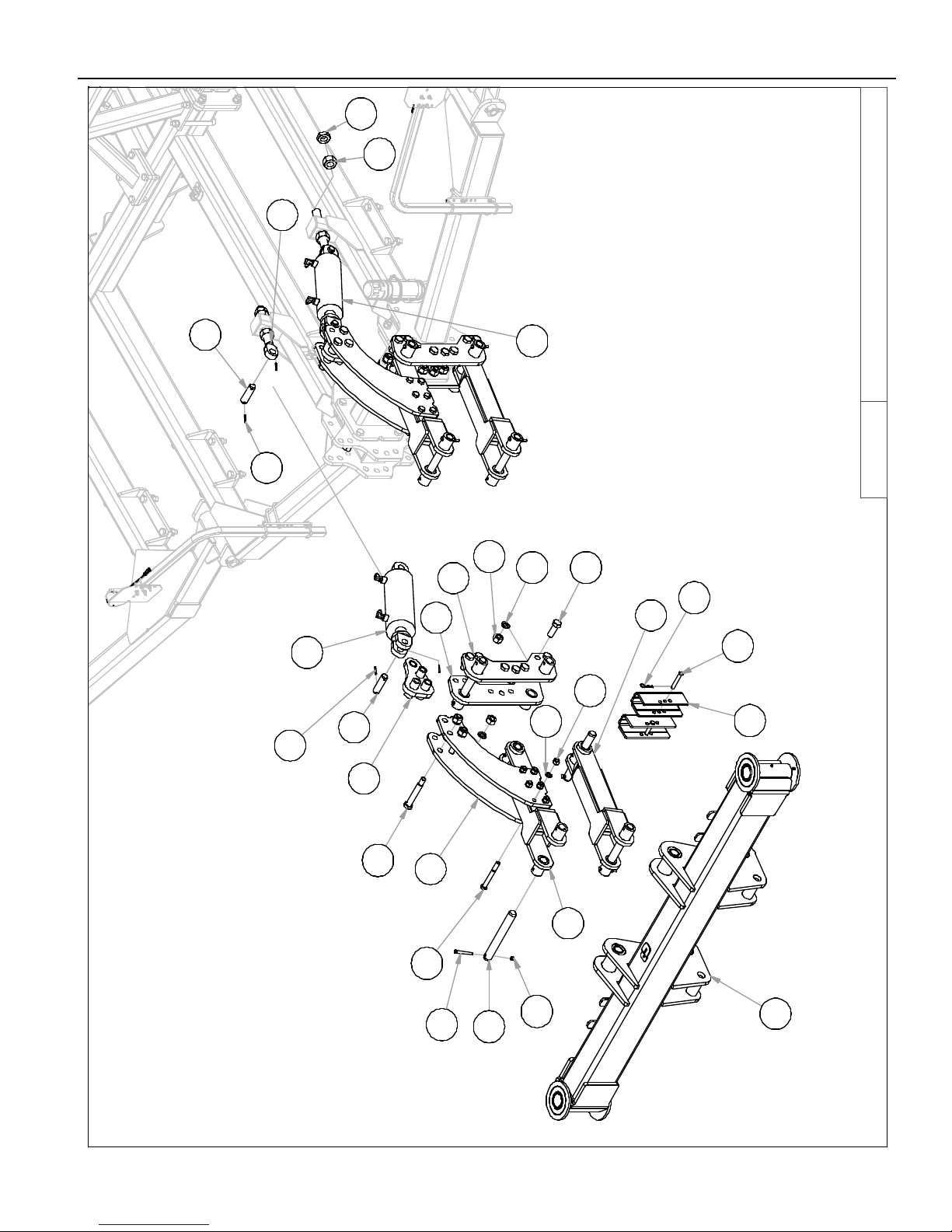

SECTION 2 - ASSEMBLY

ASSEMBLY INSTRUCTIONS FOR 16 FT. - 28.5 FT.

Refer to illustrations and follow these steps when assembling.

The machine should be placed in an area that allows ample room for assembly in the eld position.

CAUTION: For safety purposes, always block equipment while working on it.

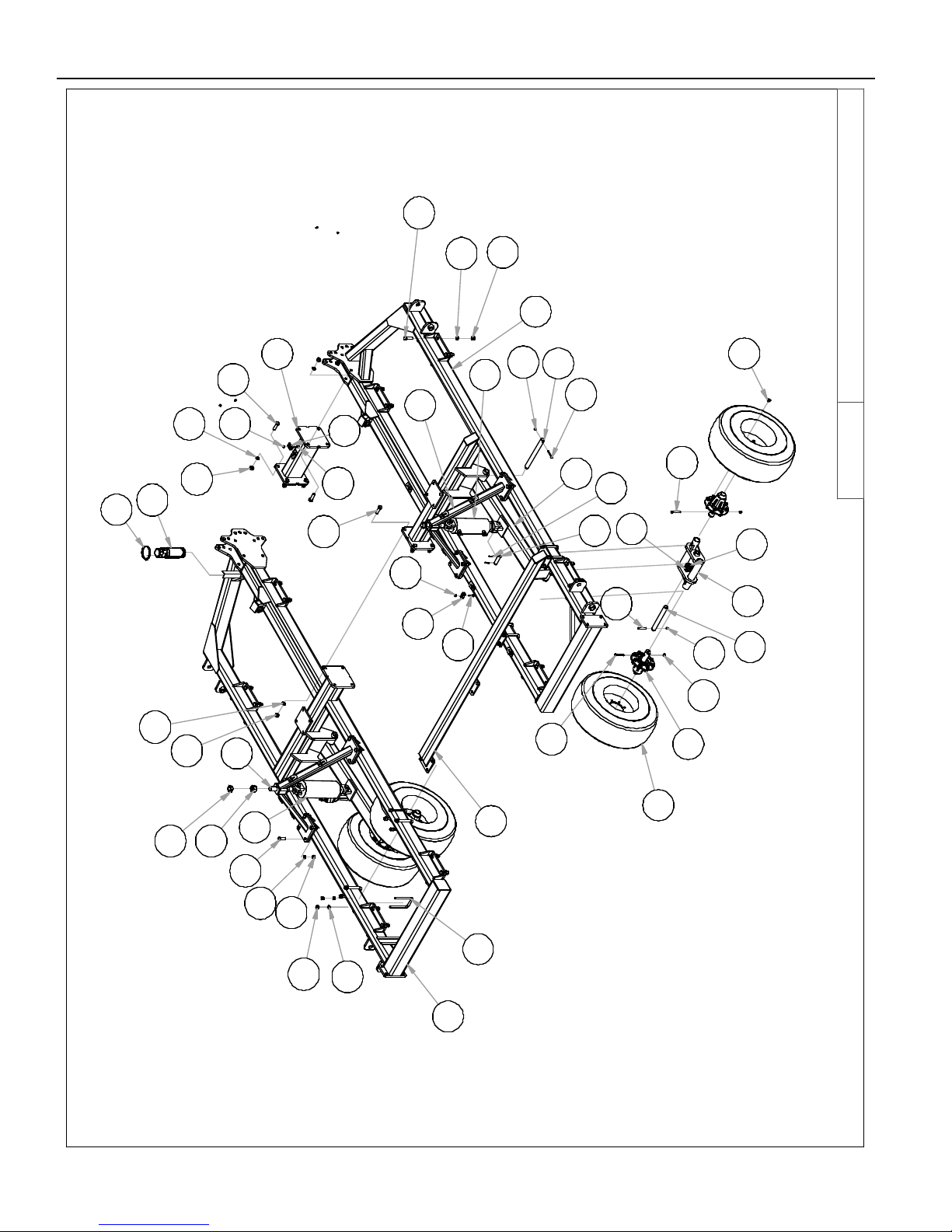

MAIN FRAME:

Refer to pages 2-4 thru 2-28 and Parts Section when assembling main frame.

Place left and right center frames on stable supports approximately 3 feet off oor. Bolt center frames together using

front splice tube and rear cross tube.

LIFT ARMS

Install lift arm assemblies on center and wings using 1-1/2” dia. x 15-1/2” pins and secure with 7/16” x 3-1/2” bolts and
locknuts.

WALKING TANDEM ASSEMBLIES (Rear Center Only)

Check inside surface of walking tandem assemblies (8T4132). A 3-3/4” diameter surface around the 1-1/2” dia. pivot hole
must be smooth and burr-free. Remove any welding spatter or roughness prior to further assembly. Install snap rings
(8K1920) past grooves of lower pivot tube on the rear center lift arm assemblies. Install V-seal over lower pivot tubes
until solid side is against snap ring. Protect lip of V-seal during assembly.

Install walking tandem assemblies to the bottom of rear center liftarms. Mount so axle closest to the center of machine
is towards rear. Insert pivot pin (8T3620) through walking tandem assembly and lift arm. Retain with 7/16” x 3-1/2” bolts
and locknuts. Push V-seal against walking tandem assembly and secure by placing snap ring into groove.

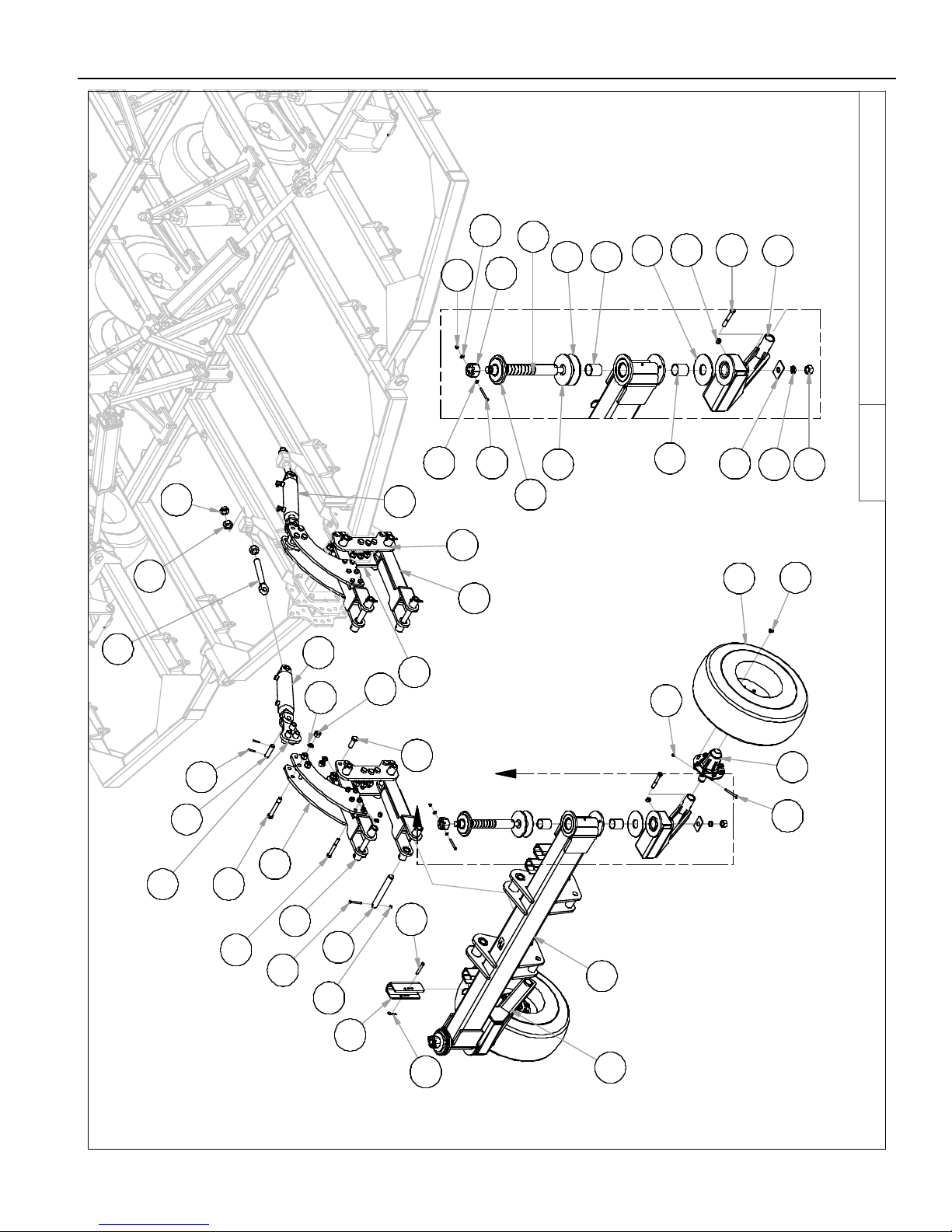

WHEELS

Insert axle and hub assemblies. Apply good quality anti-seize to axles before inserting into receiver tubes. Retain with
1/2 x 3-3/4” bolts and locknuts in outside position. Install wheel and tire assemblies, retain with 5/8” wheel nuts (torque
required: 240 ft-lbs).

A-FRAMES

Mount A-Frame assemblies above lift arm assemblies as shown.

Install the adjustable cylinder bolts next. Set nuts so bolts are in the middle of the adjustment. Insure that cylinder attach
holes are aligned when eye bolts are tightened. These will be readjusted later.

WING LOCKS

Install Locks on rear cross tube, slide as far away from center as possible, tighten hardware.

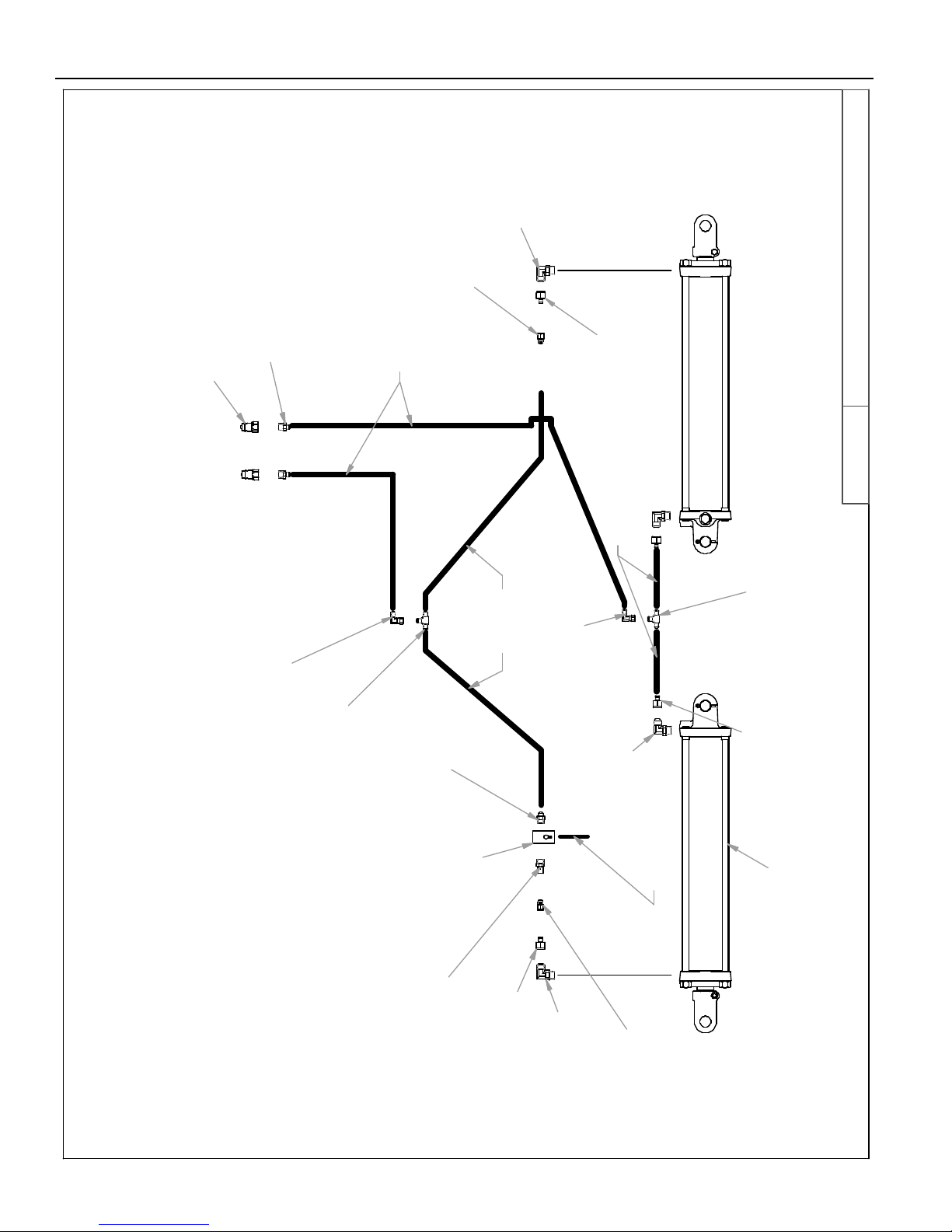

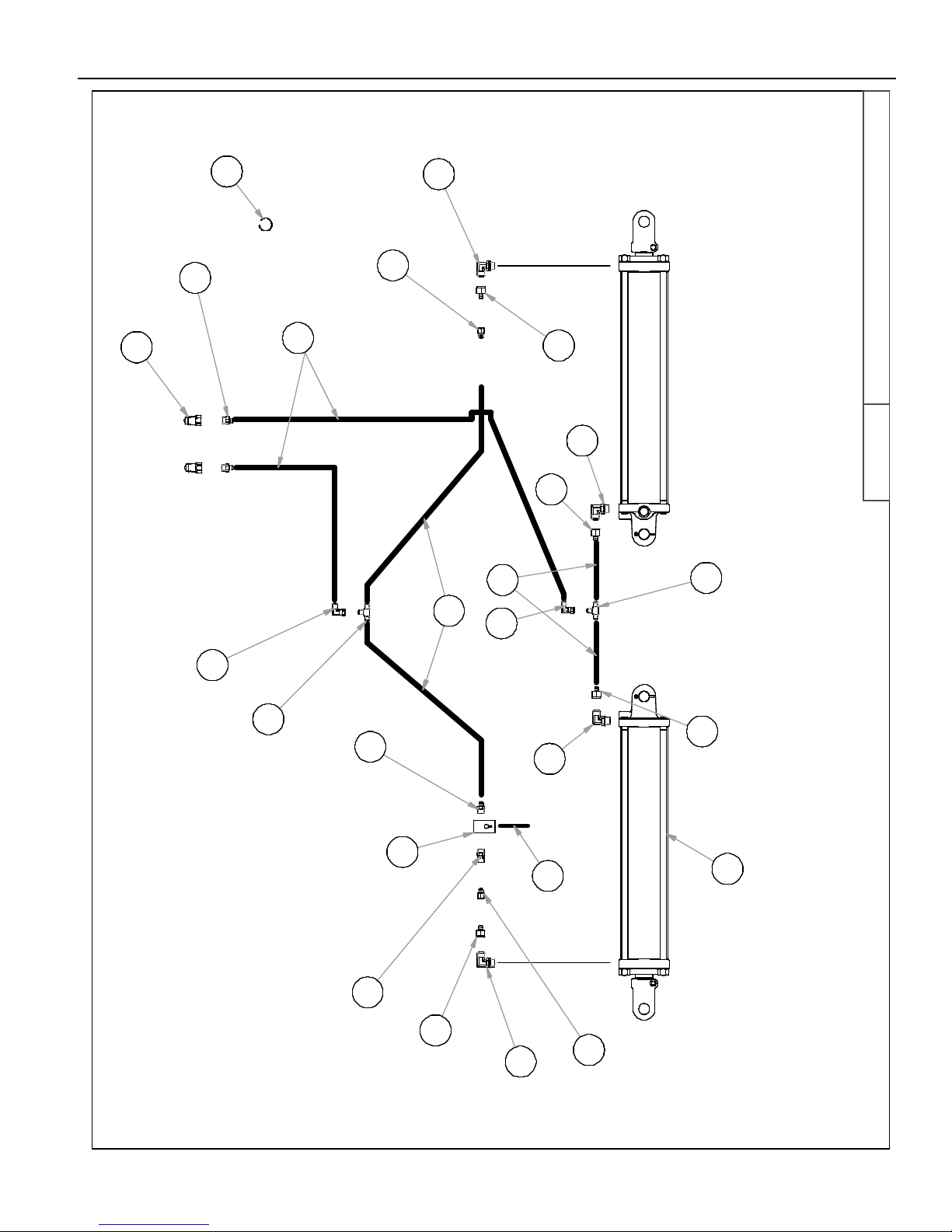

MAIN LIFT HYDRAULIC SYSTEM

Refer to page 4-1 or 4-2 when assembling the main lift hydraulic system.

Attach cylinders to adjustment bolts and lift arms as shown. Note the different sized cylinders. Cylinders must be in their
proper location. Install all ttings into cylinders. Route hoses as shown. Use clamps provided to secure hoses to frame.

Tighten hose hold-down clamps enough to retain hoses but loose enough that clamps can be turned by hand. Hydraulic

hoses will expand and shorten when pressurized. Tighten all ttings.

IMPORTANT: Allow enough hose at hinge points to avoid pinching or stretching the hose.

2-2

SECTION 2 - ASSEMBLY

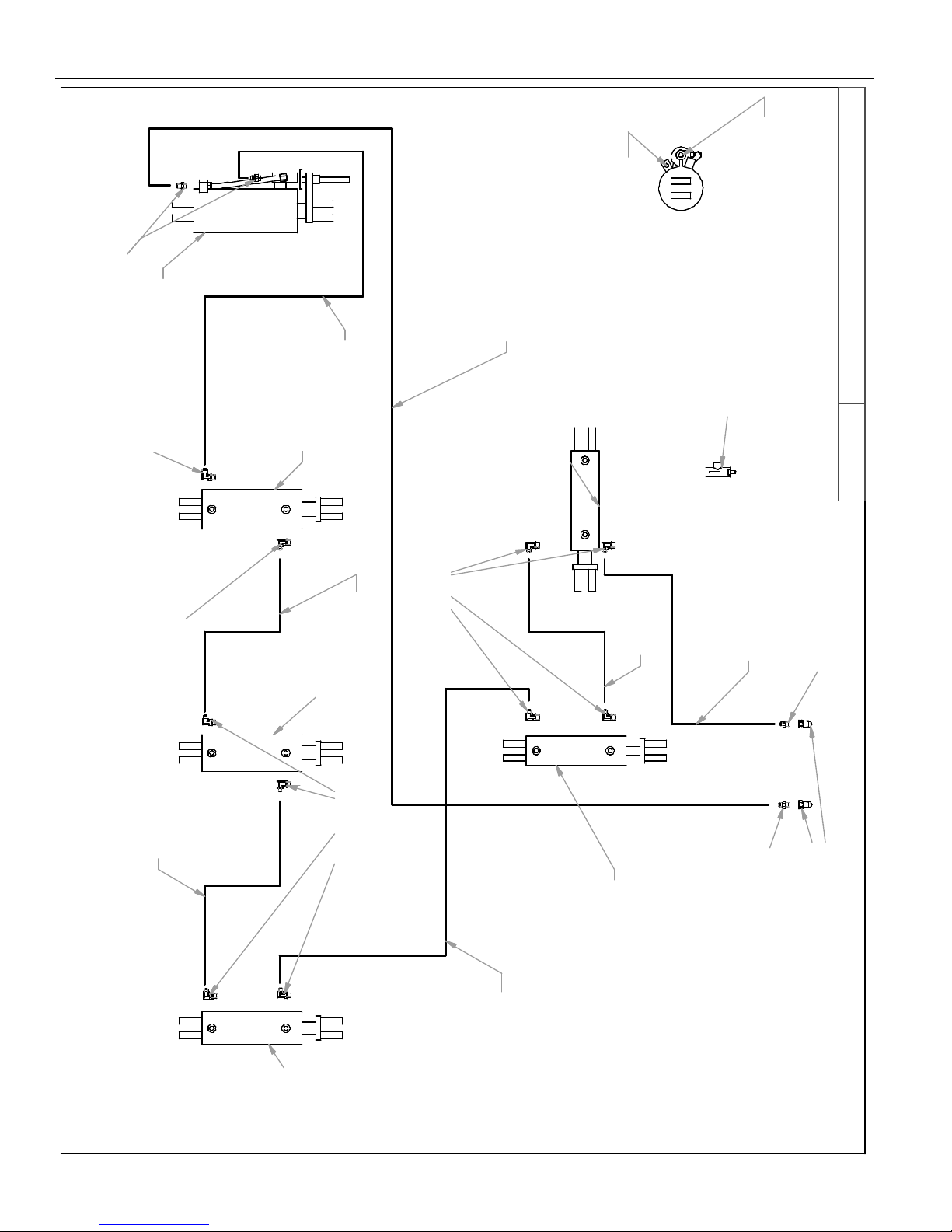

WING LIFT HYDRAULIC SYSTEM

Refer to page 4-5 or 4-6 when assembling the wing lift system. Mount lift cylinders to adjustment bolts and route hoses
as shown. NOTE: CYLINDER PORTS MUST BE FACING DOWN. Fill lift cylinders with oil before attaching lift linkage.

Position adjustment bolts by starting end nuts so they are ush with bolt. Once lift cylinders have been lled with oil and

cycle smoothly, connect wing lift linkage. Adjust eye bolts after gangs have been mounted.

CAUTION: Stand clear whenever raising or lowering wings.

HITCH

Attach hitch using (2) 1-1/2” dia. x 10-5/8” pins and secure with 7/16” x 3-1/2” bolts and locknuts.

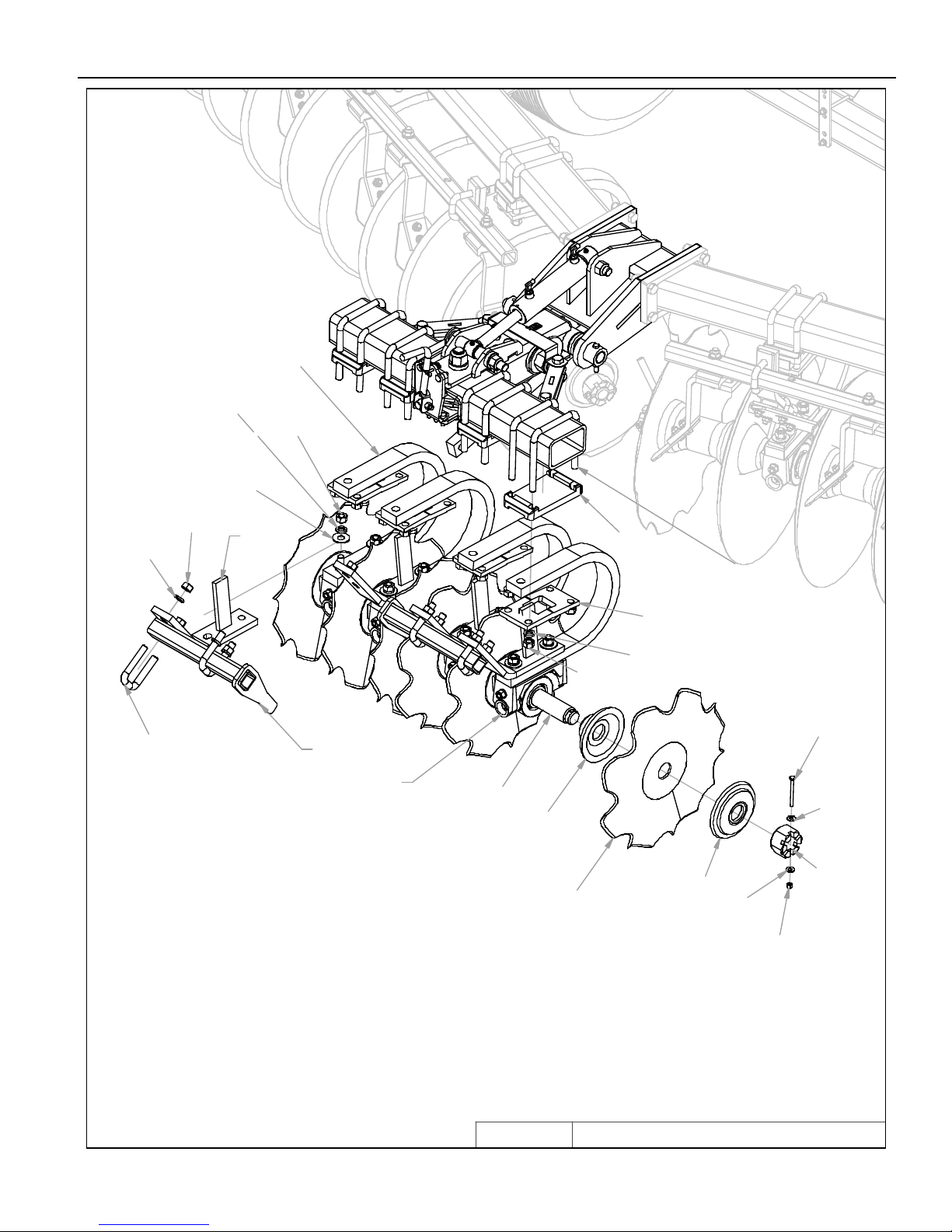

GANG MOUNTING

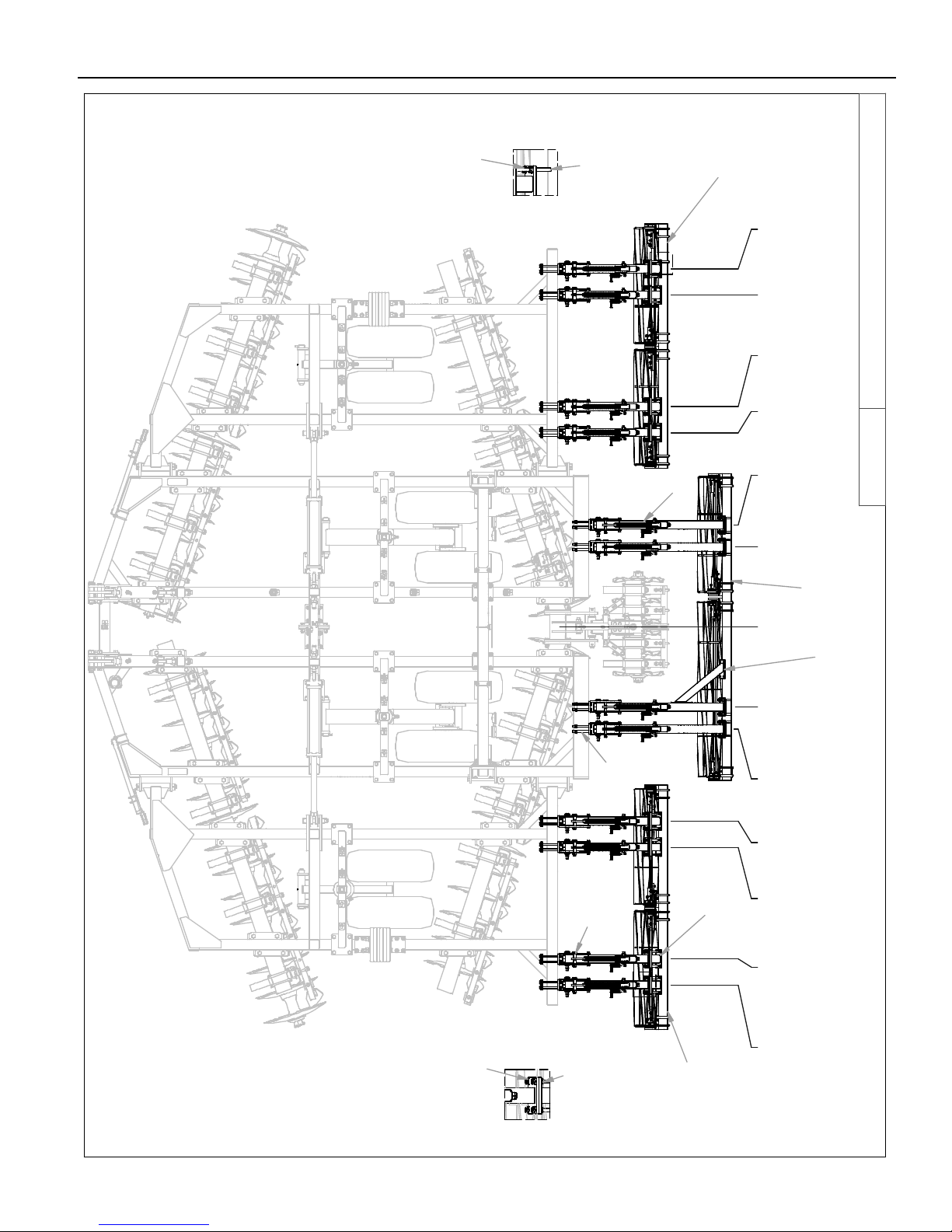

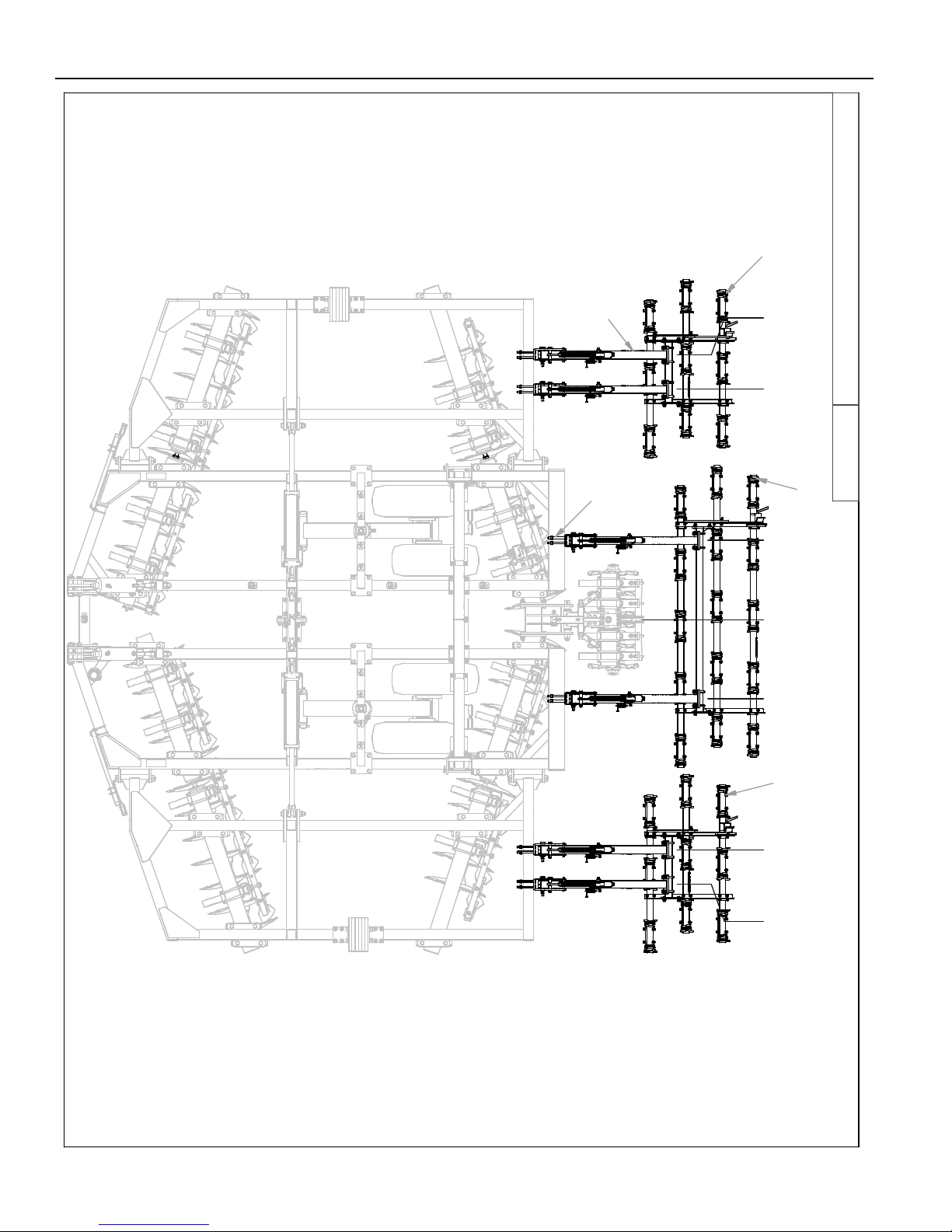

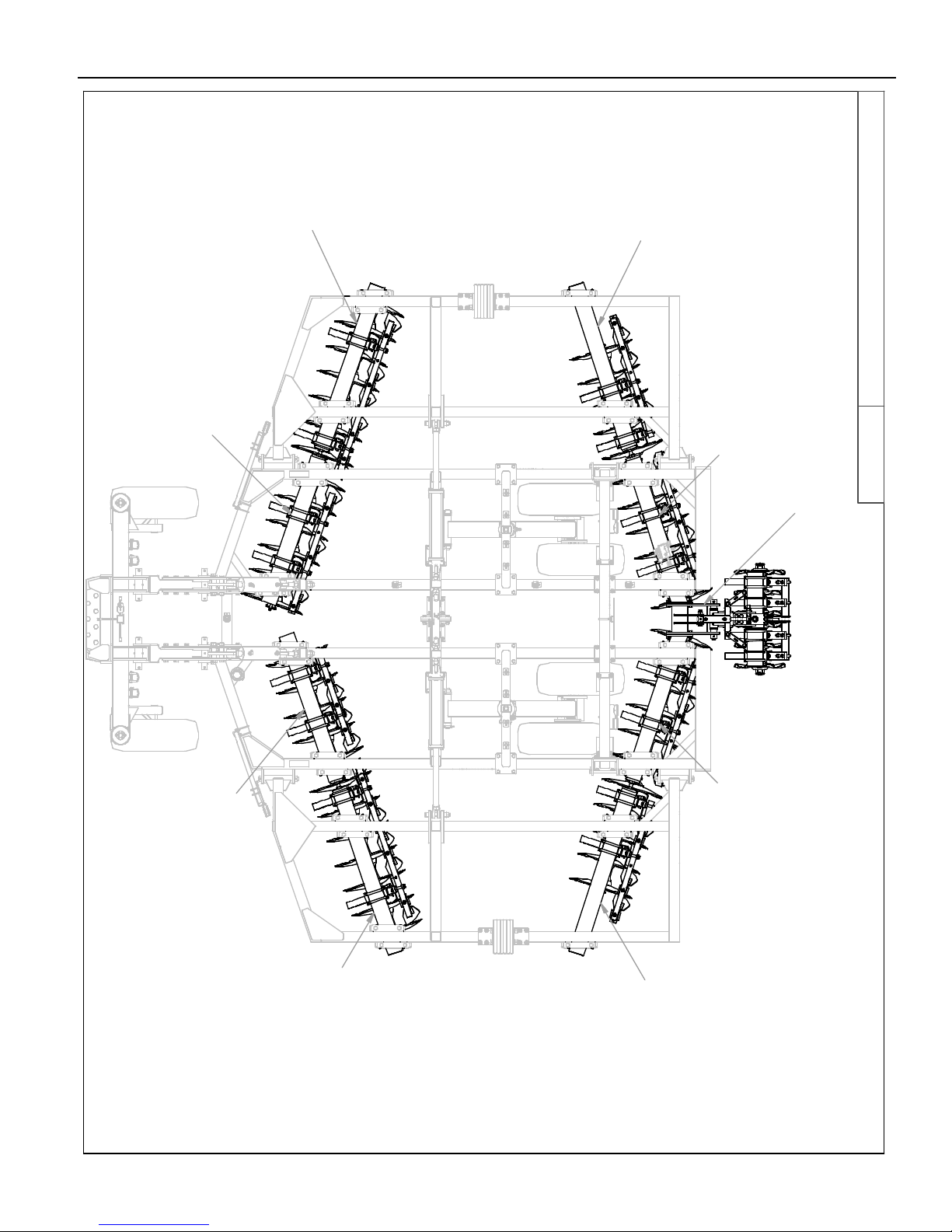

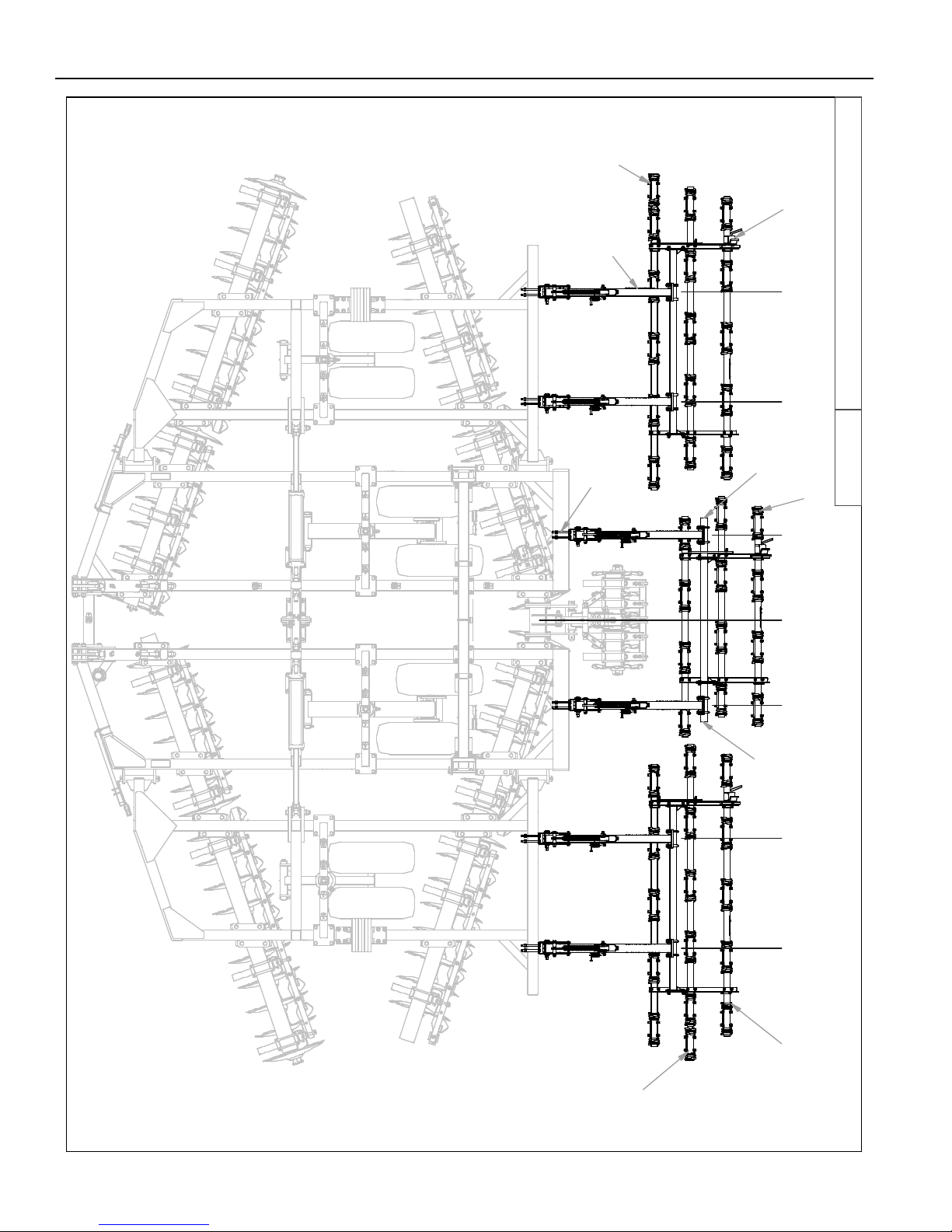

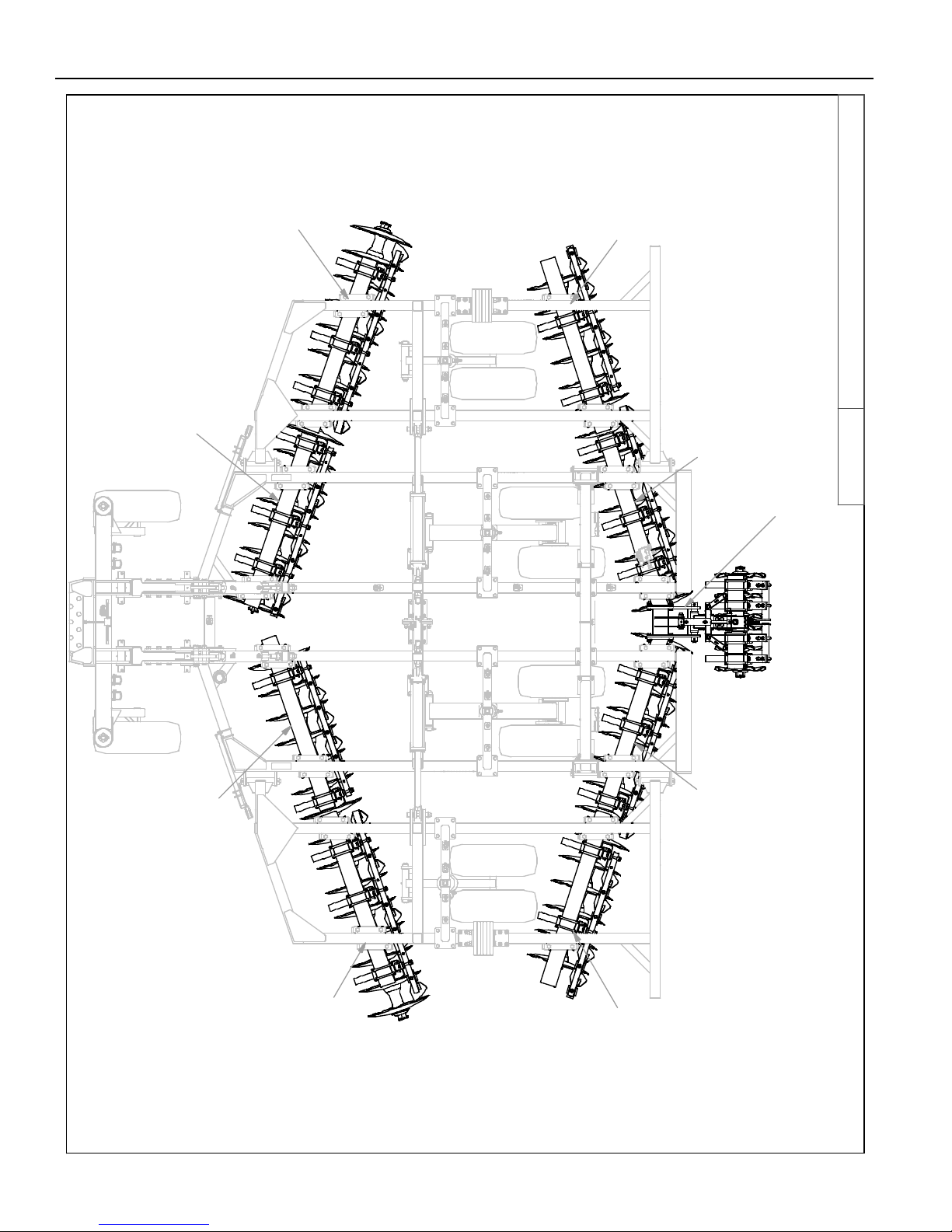

Refer to gang layout on page 4-8 through 4-11.

On Diamond Disk position gangs so notched blades are located at rear center of disk.

Start from the center and work towards the outside when hanging gangs. Lift gang up to the frame close to the correct
location.Secure with 7/8” x 3” bolts, lock washers and locknuts.

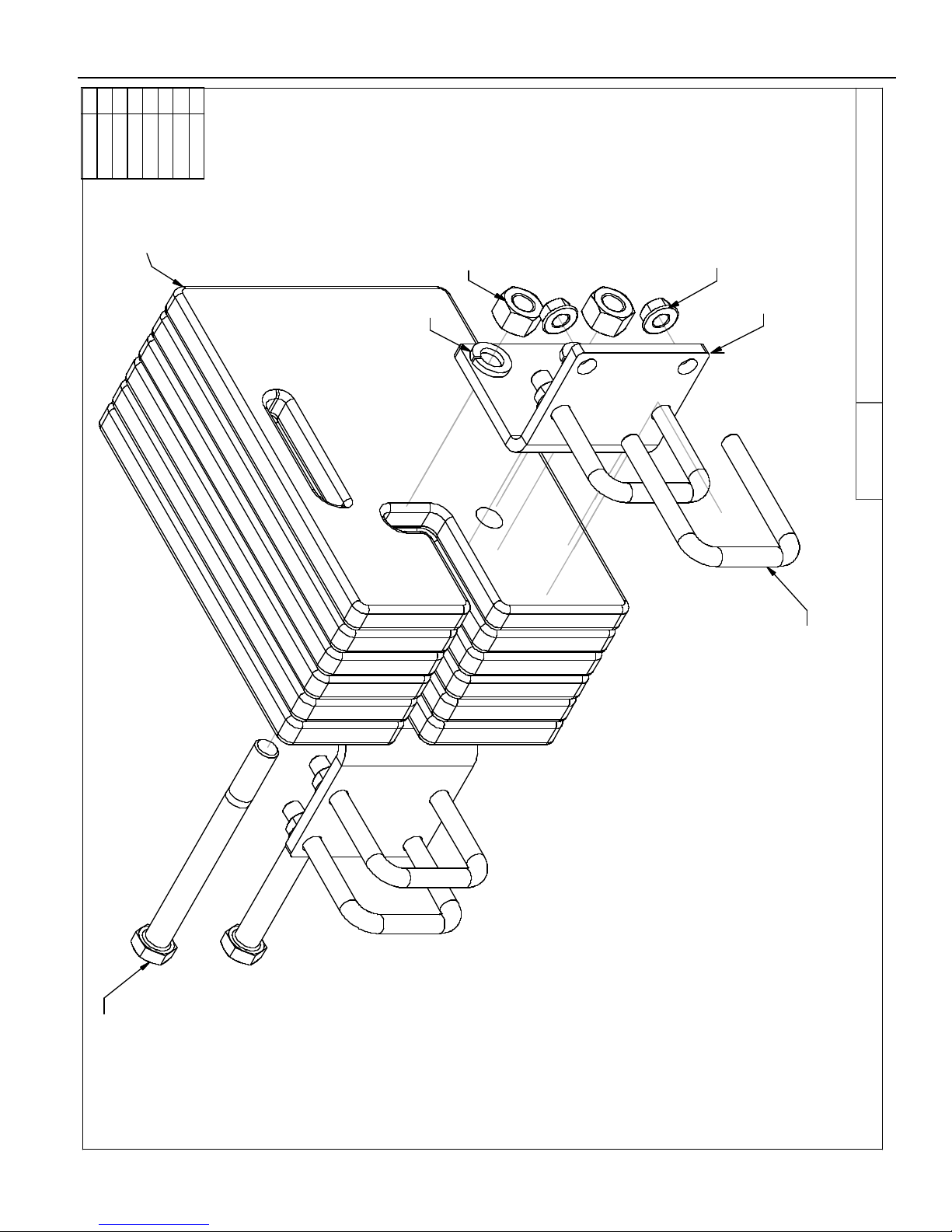

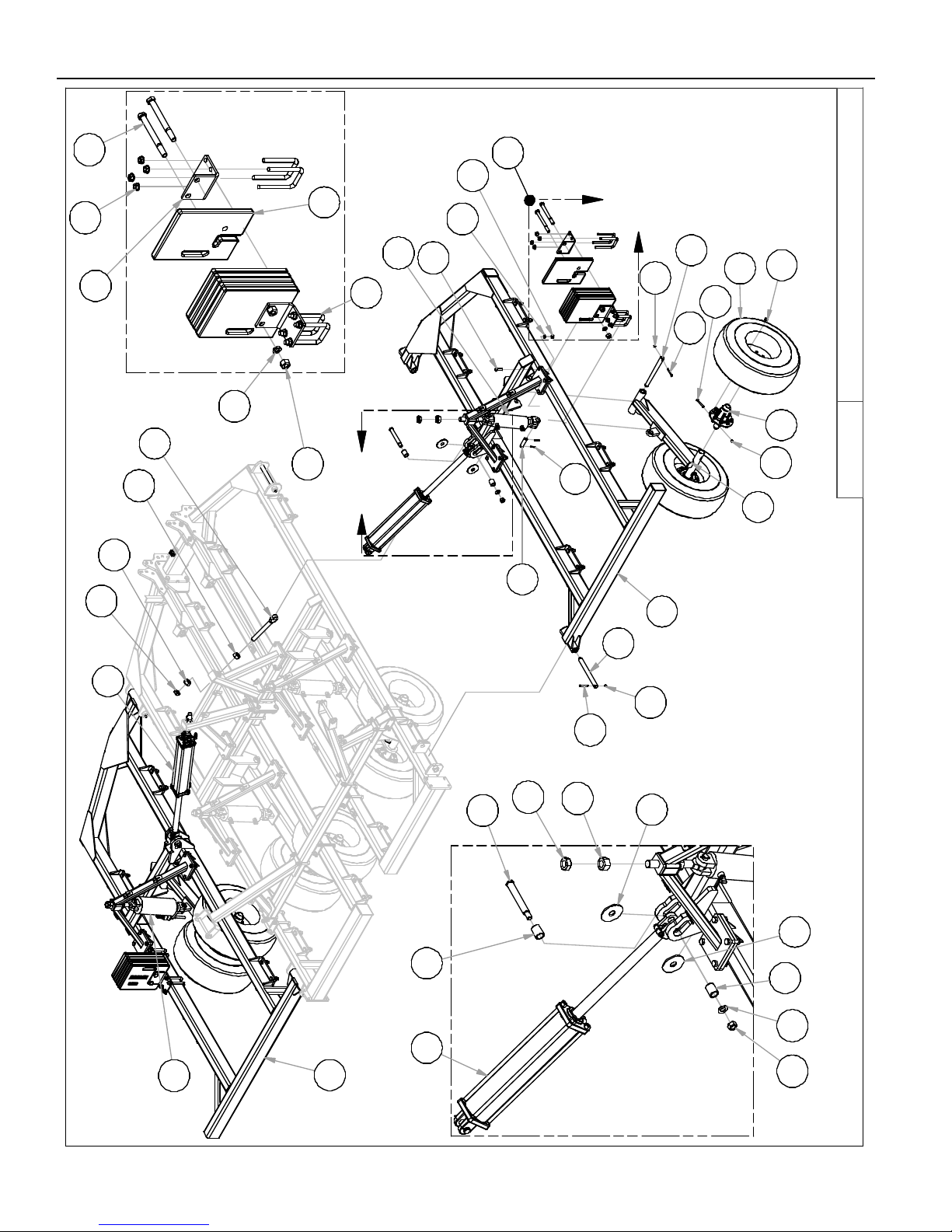

MOUNTING WEIGHT PACKAGE

Mount weight packages on outside of wings in location that will not interfere with disk gang or tire travel. Install 1/2 weight
packages (6 suitcase weights with mounting angles and hardware) by positioning mounting angles 8-1/2” apart. Secure
with 3/4” U-bolts, lockwashers and nuts. Fully tighten hardware on one mounting angle. Hand tighten mounting hardware
on second mounting angle, this must be free to slide. Insert one 1” x 10-1/2” bolt through both mounting angles, turn 1”

nut onto this bolt until threads are ush with outside of nut. Spread mounting angles as much as 1” bolt and nut will allow.

Lift suitcase weights (8K9230) into position, slide slotted hole of weight over 1” bolt. Continue to slide weight past corner
of slot until it reaches the end of the slot, at this location the hole without slot will line up with the second hole in the
mounting angles. Repeat procedure with remaining suitcase weights. Insert second 1” x 10- 1/2” bolt through angles
and weights. Secure second 1” bolt with lockwasher and nut, fully tighten. When second 1” bolt is tight, remove the nut

from rst bolt and add the lockwasher. Fully tighten all remaining nuts.

Caution: Each suitcase weight (8K9230) weighs 70#, use extreme care when handling them.

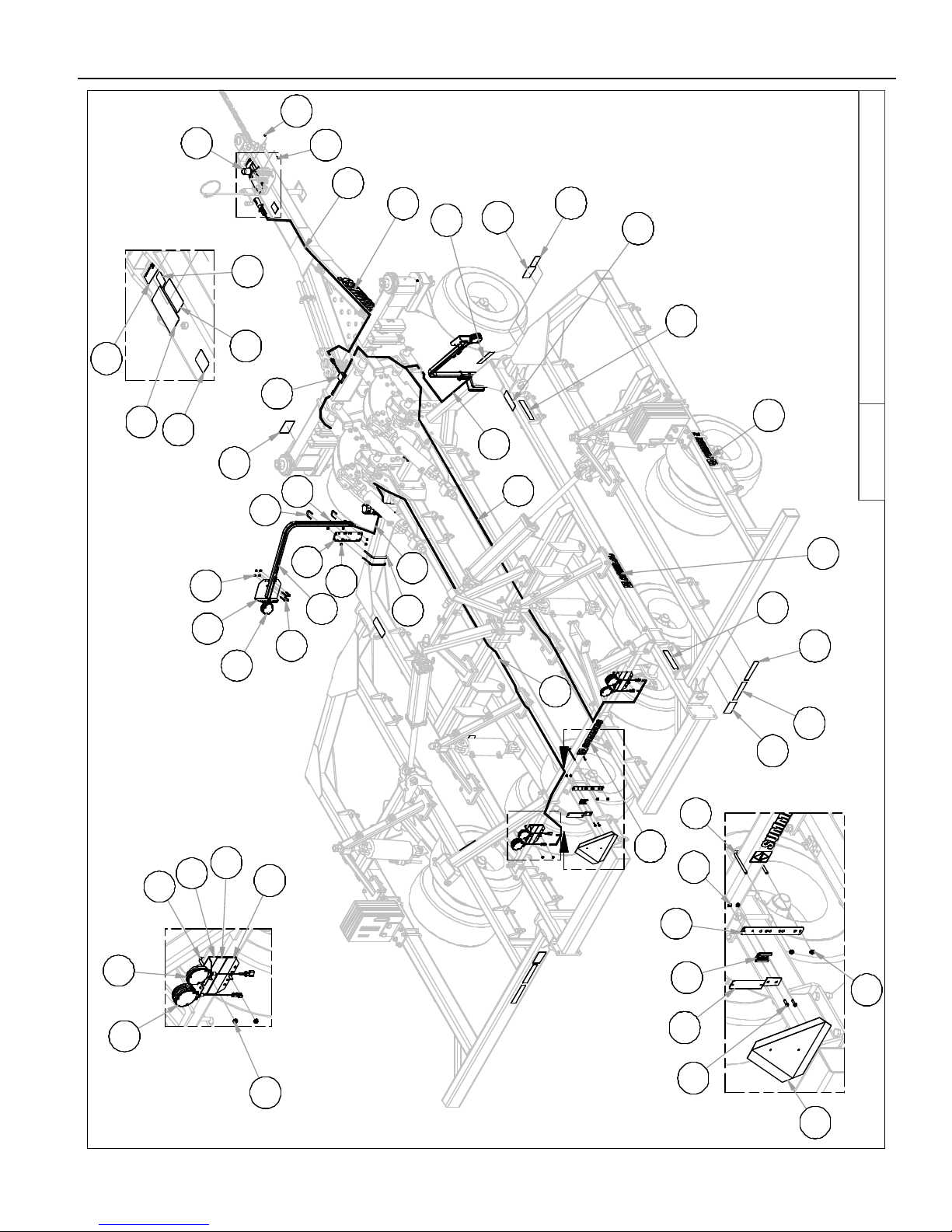

SAFETY

Install SMV mounting bracket at machine center. Install remaining decals at locations shown on page 1-6. Install Safety
Light Kit, refer to breakdown on page 4-24.

MOUNT REAR ATTACHMENT (OPTIONAL)

See Page 4-15 or 4-22.

2-3

SECTION 2 - ASSEMBLY

109

121

129

38

40

109

41

113

129

121

154

3

88

137

109

113

88

94

137

117

50

103

35

71

104

19

52

103

59

53

97

96

117

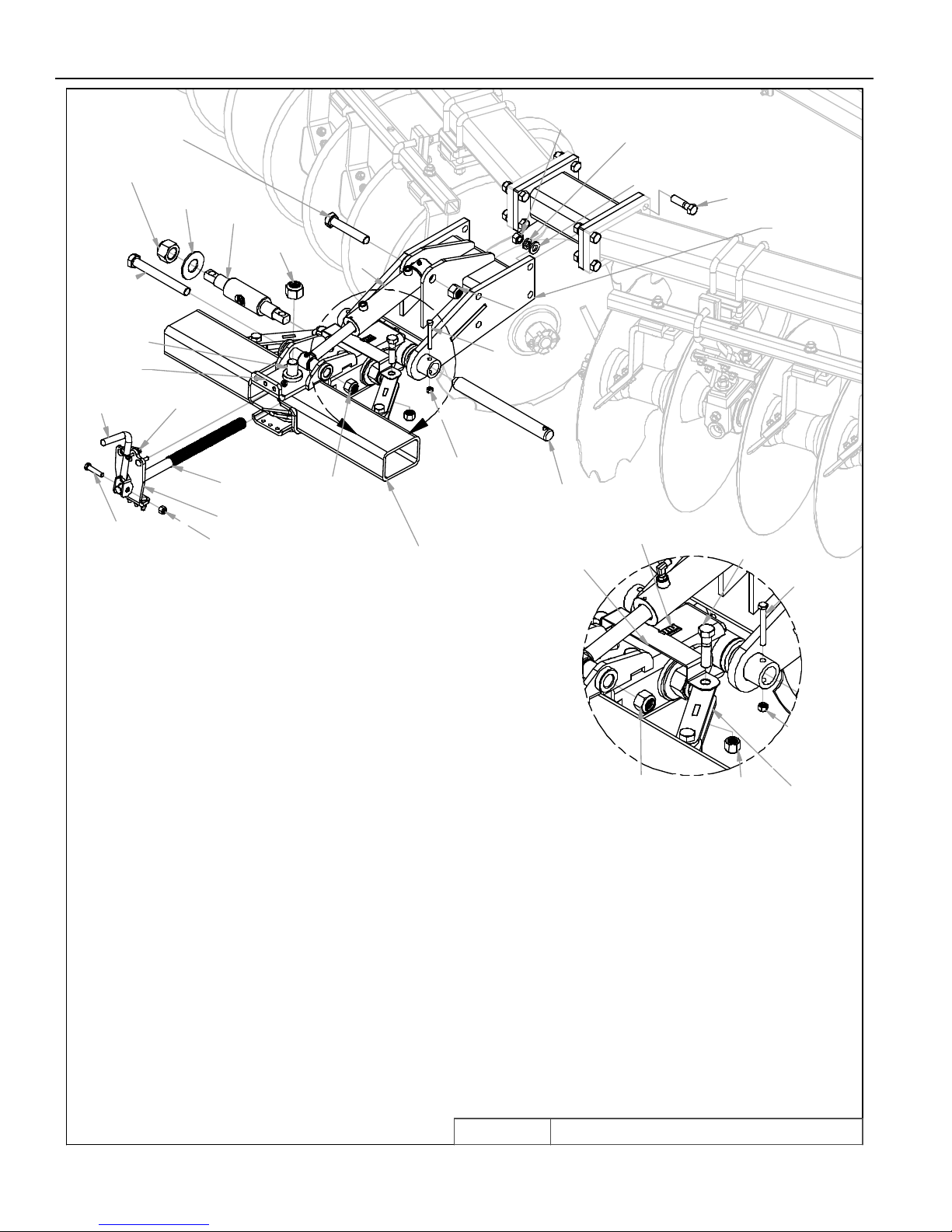

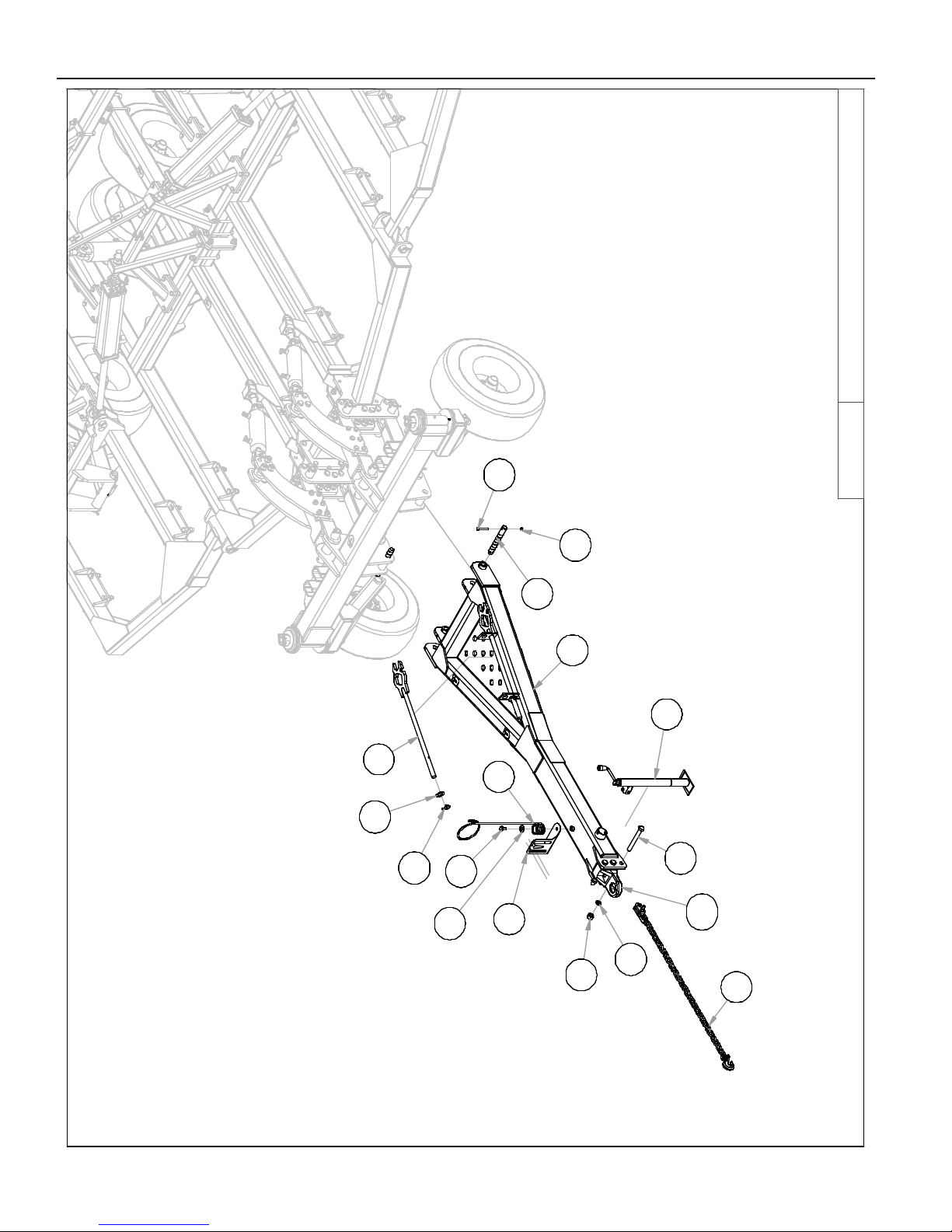

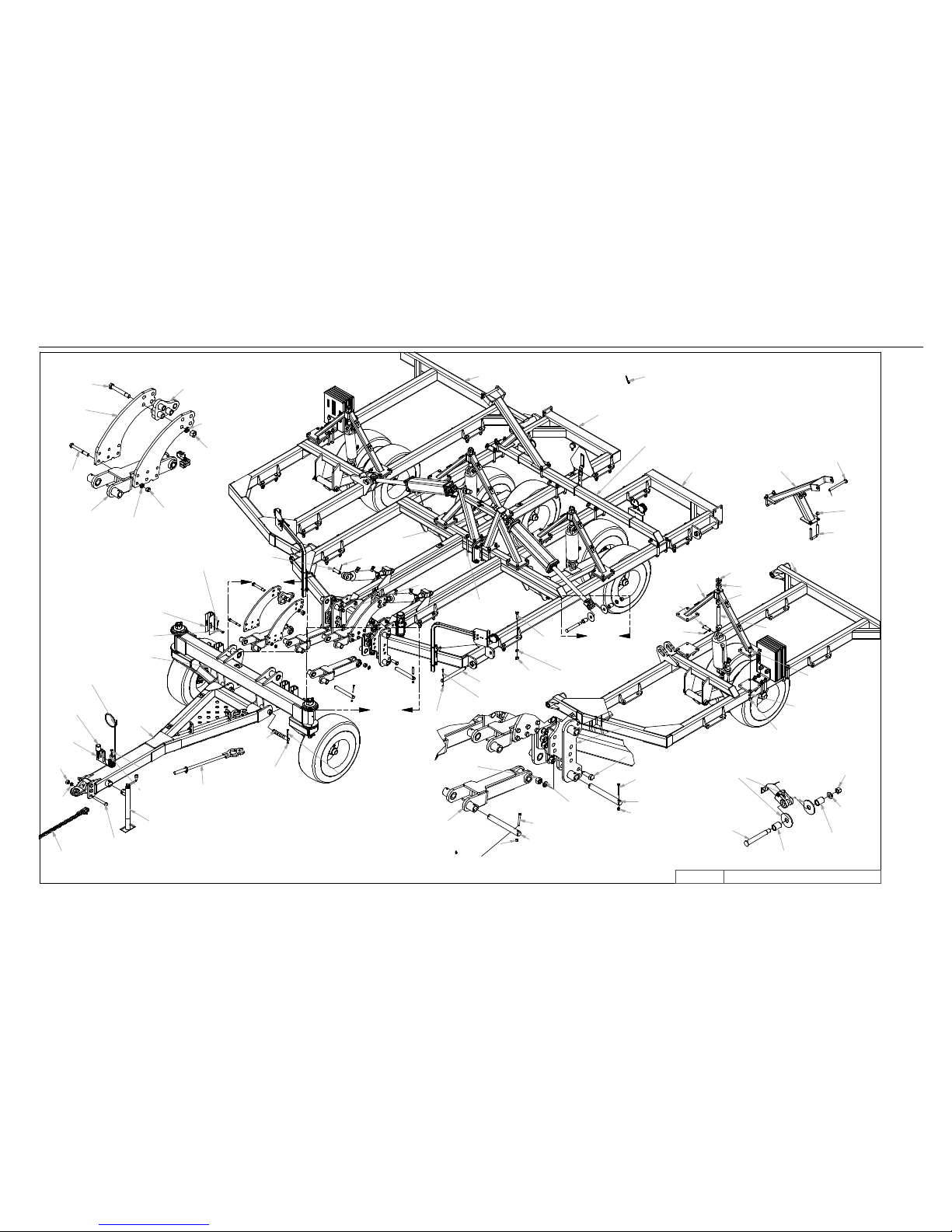

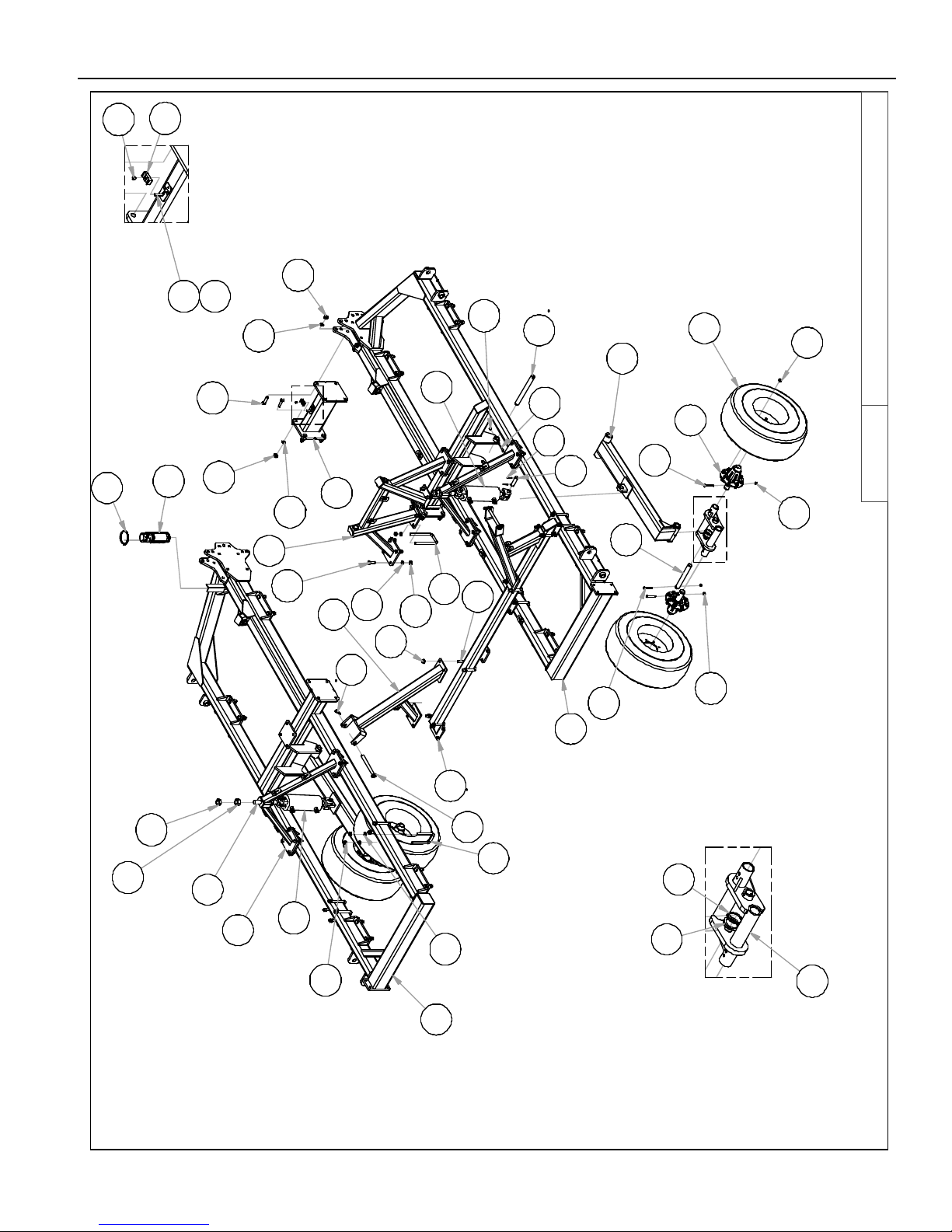

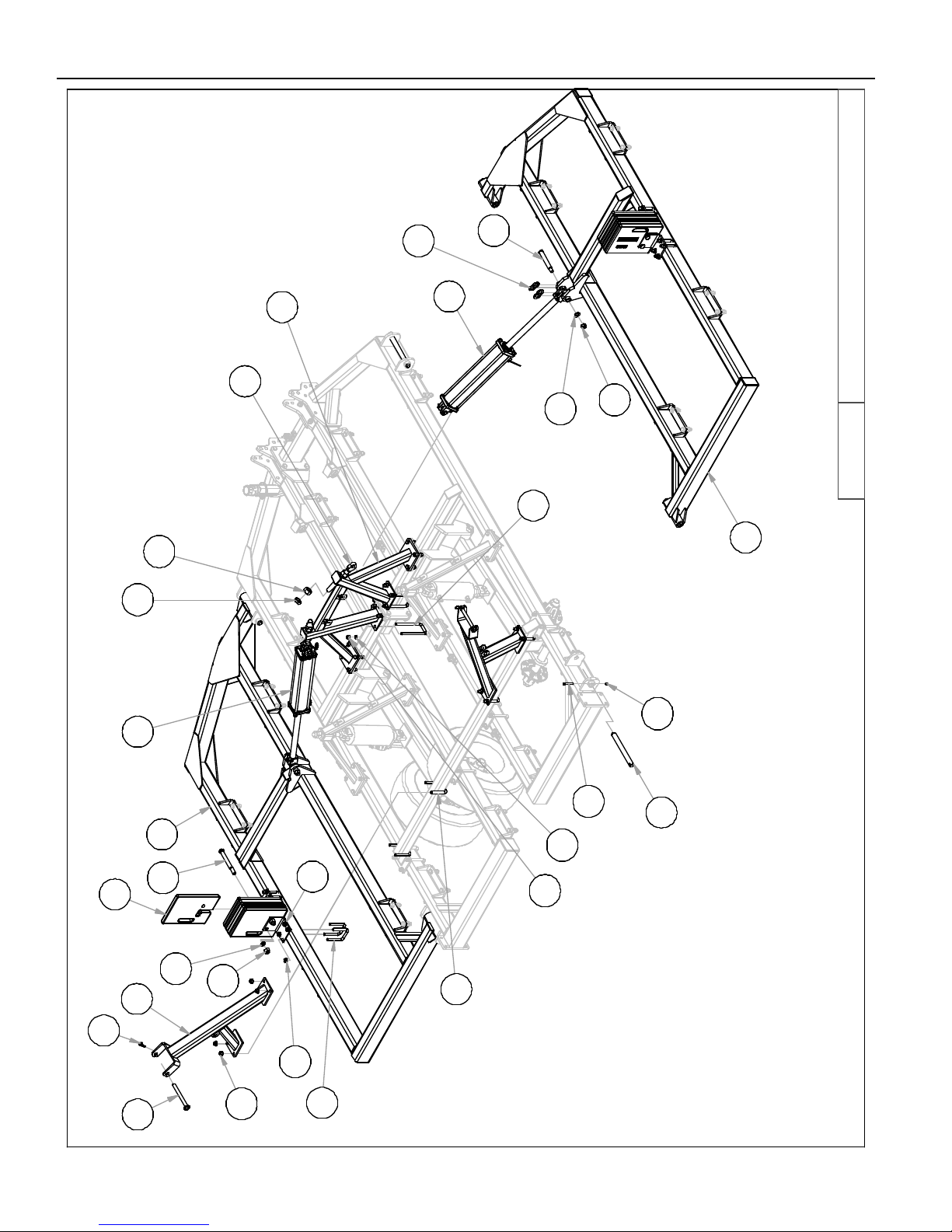

FRAME PKG 16' N-DSK3/10/2015

8K3516.iam/

129

125

121

124

51

118

104

95

106

128

119

119

128

39

13

37

34

58

2-4

SECTION 2 - ASSEMBLY

51

92

29

43

122

FRAME PKG 16' N-DSK3/10/2015

8K3516.iam/

133

113

125

71

117

98

72

74

118

110

119

128

136

43

72

11

34

12

46

48

47

123

131

104

42

124

45

29

93

19

108

44

10

111

126

100

55

2

96

103

107

120

130

134

74

1

59

58

2-5

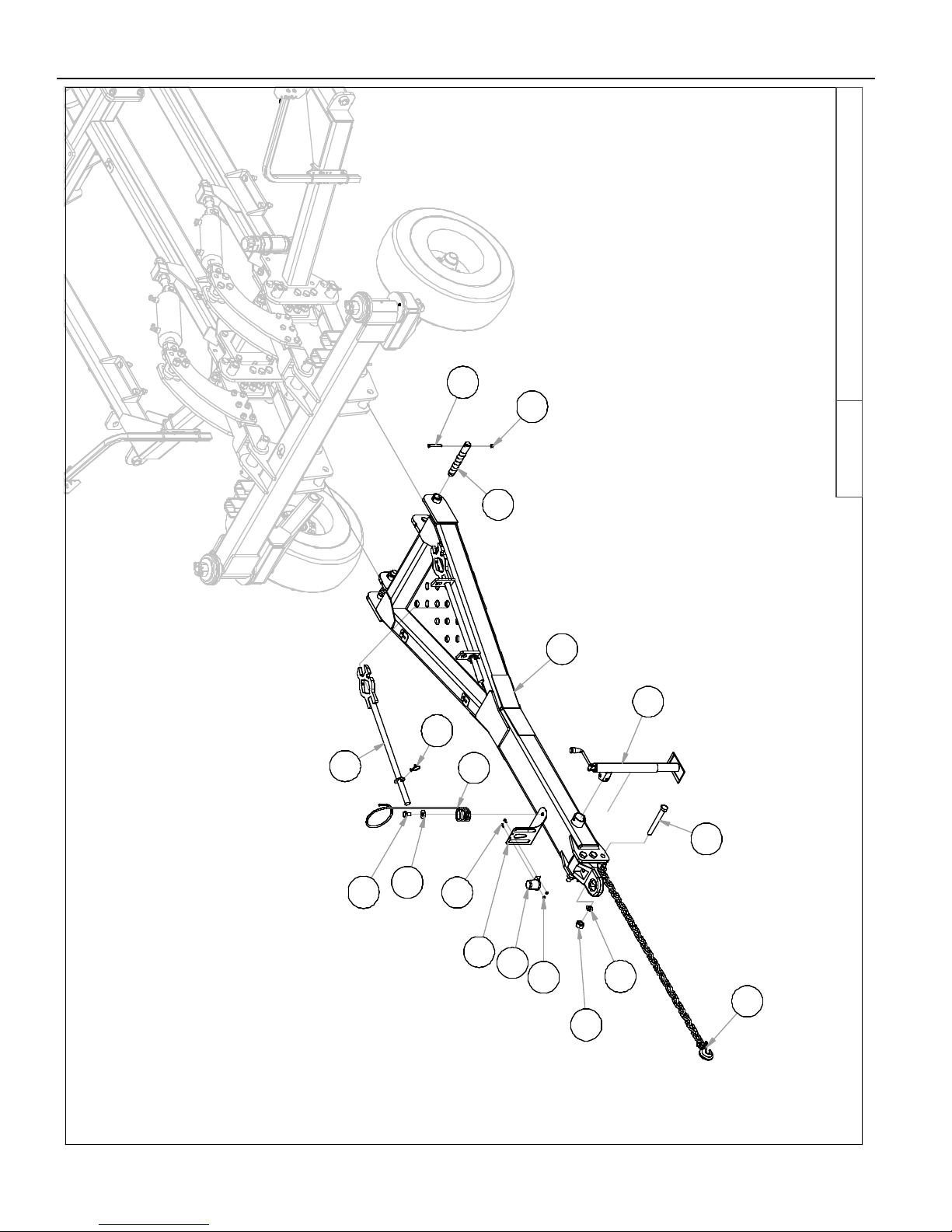

SECTION 2 - ASSEMBLY

103

117

49

FRAME PKG 16' N-DSK3/10/2015

8K3516.iam/

54

36

18

136

17

112

132

105

99

16

64

116

130

14

122

2-6

102

114

SECTION 2 - ASSEMBLY

99

64

254

257

66

C

FRAME PKG 16' N-DSK3/10/2015

256

261

253

DE TAIL C

SCALE 1 / 16

259

115

263

73

63

70

264

67

255

8K3516.iam/

62

67

60

114

70

264

61

73

115

67

4

255

D

62

266

5

68

265

DETA IL B

SCALE 1 / 16

B

115

70

85

86

5

DETAI L D

SCALE 1 / 16

67

114

87

2-7

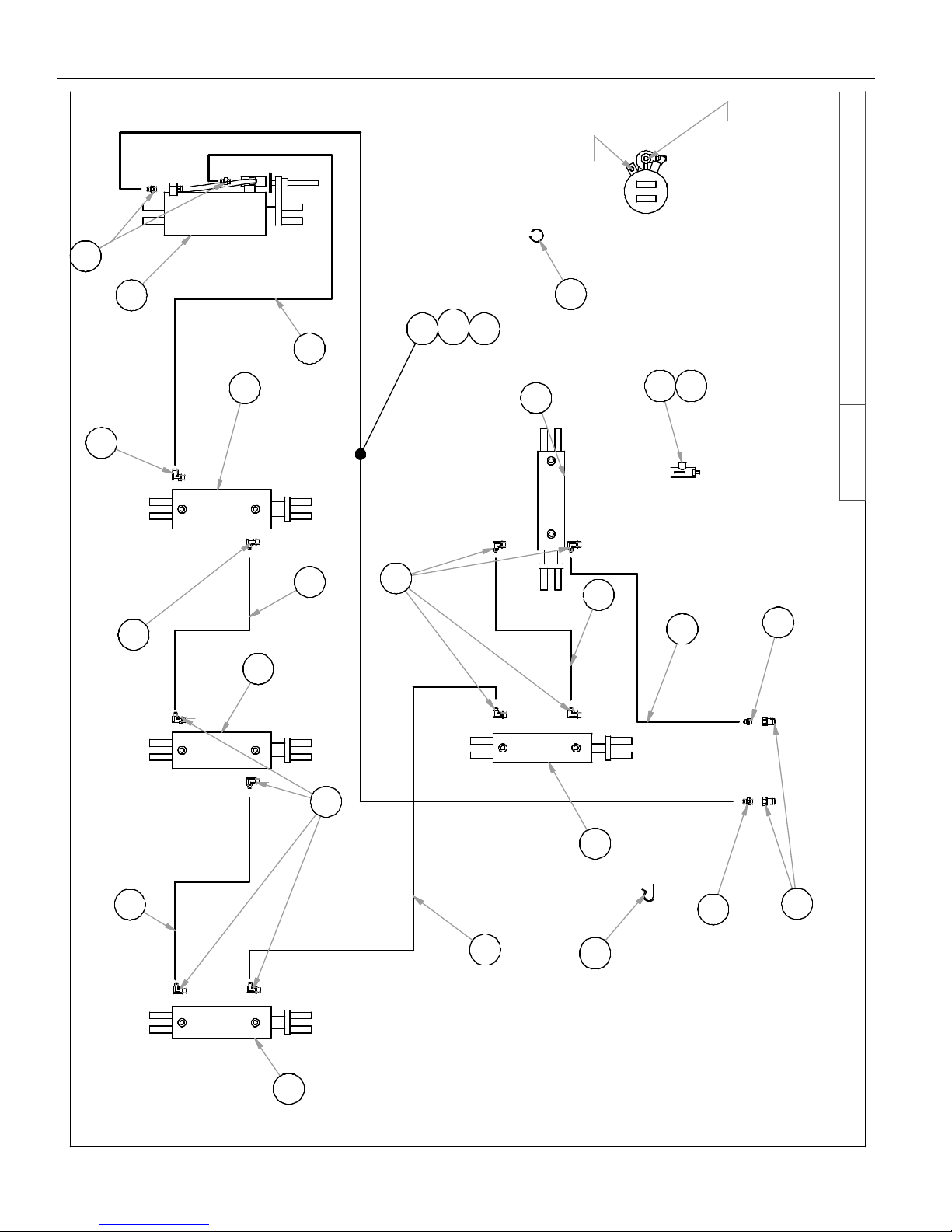

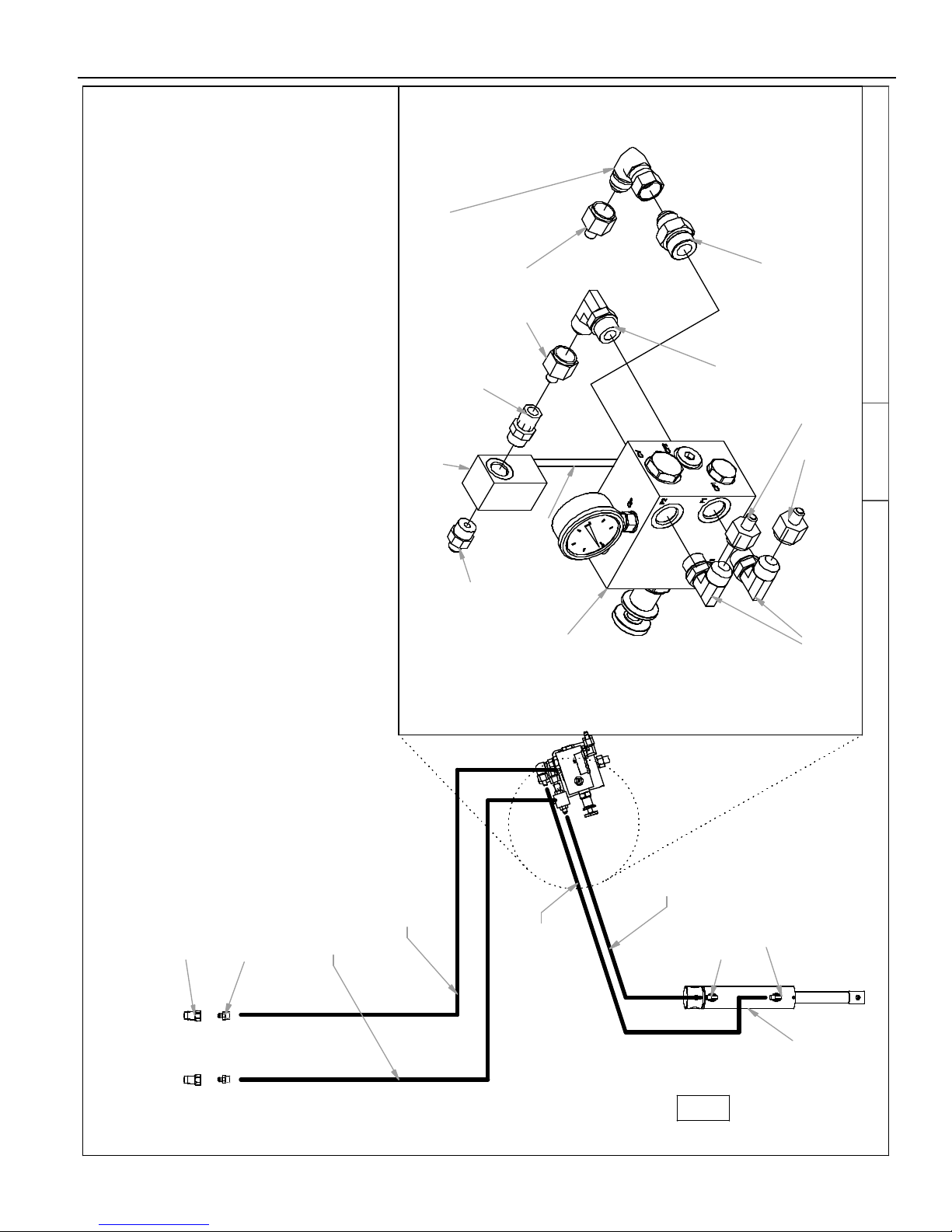

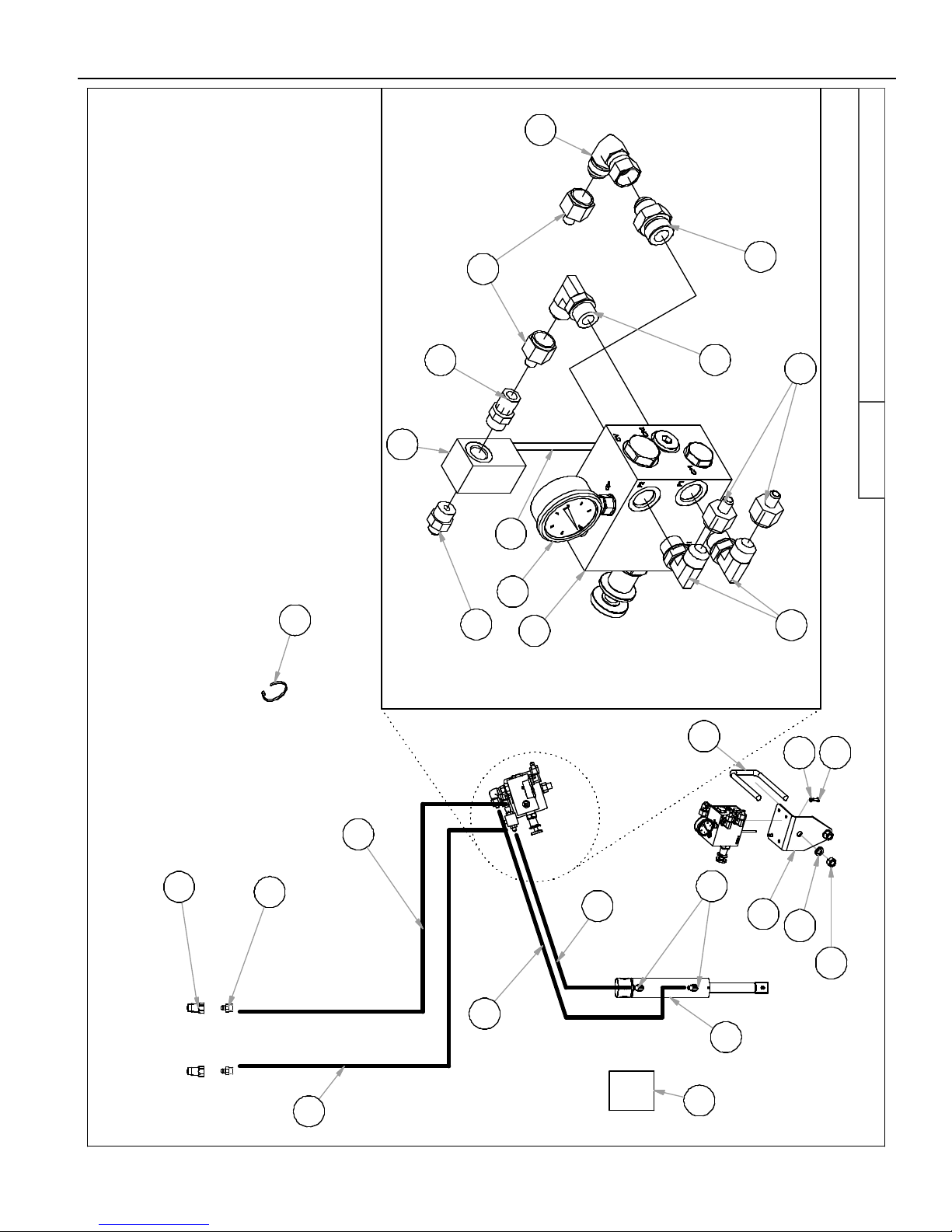

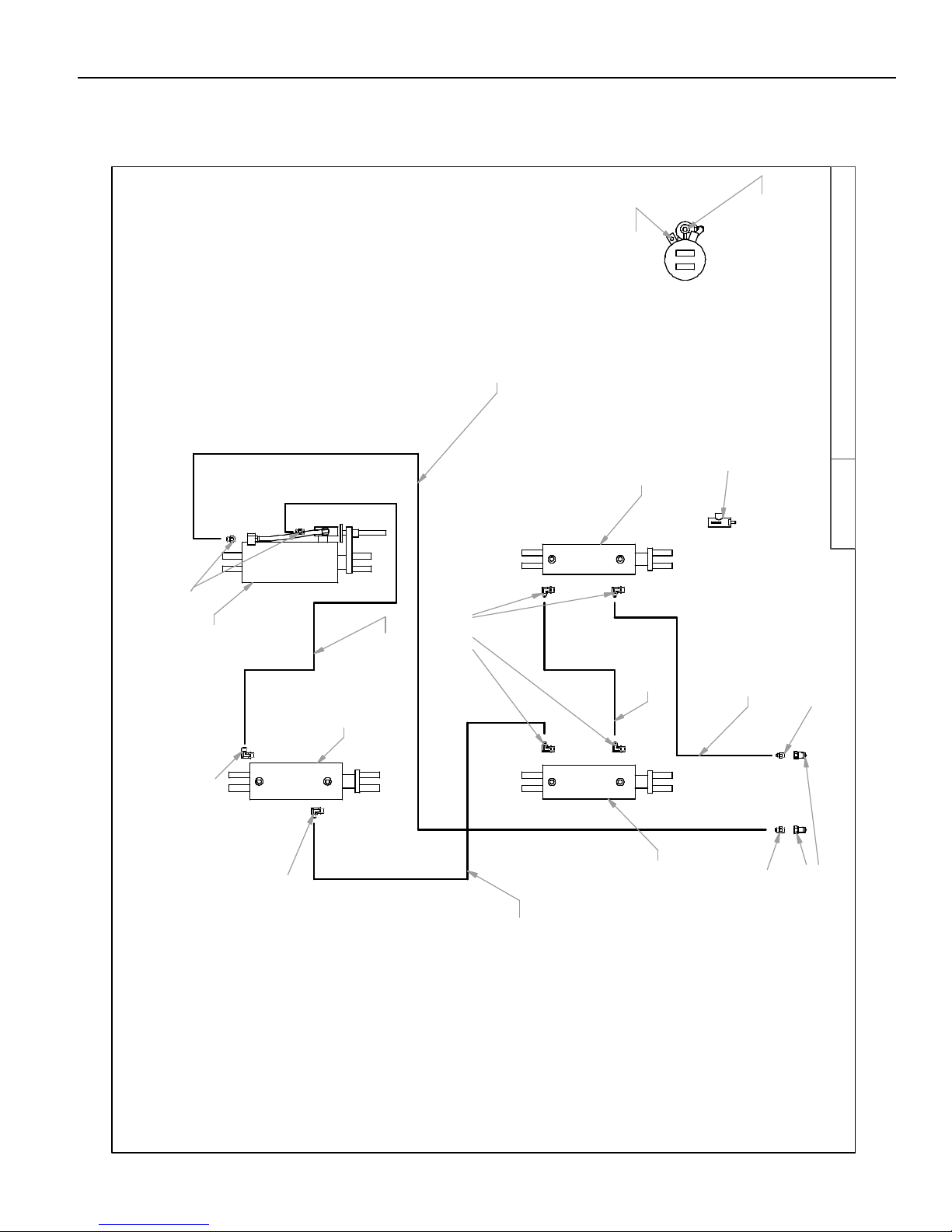

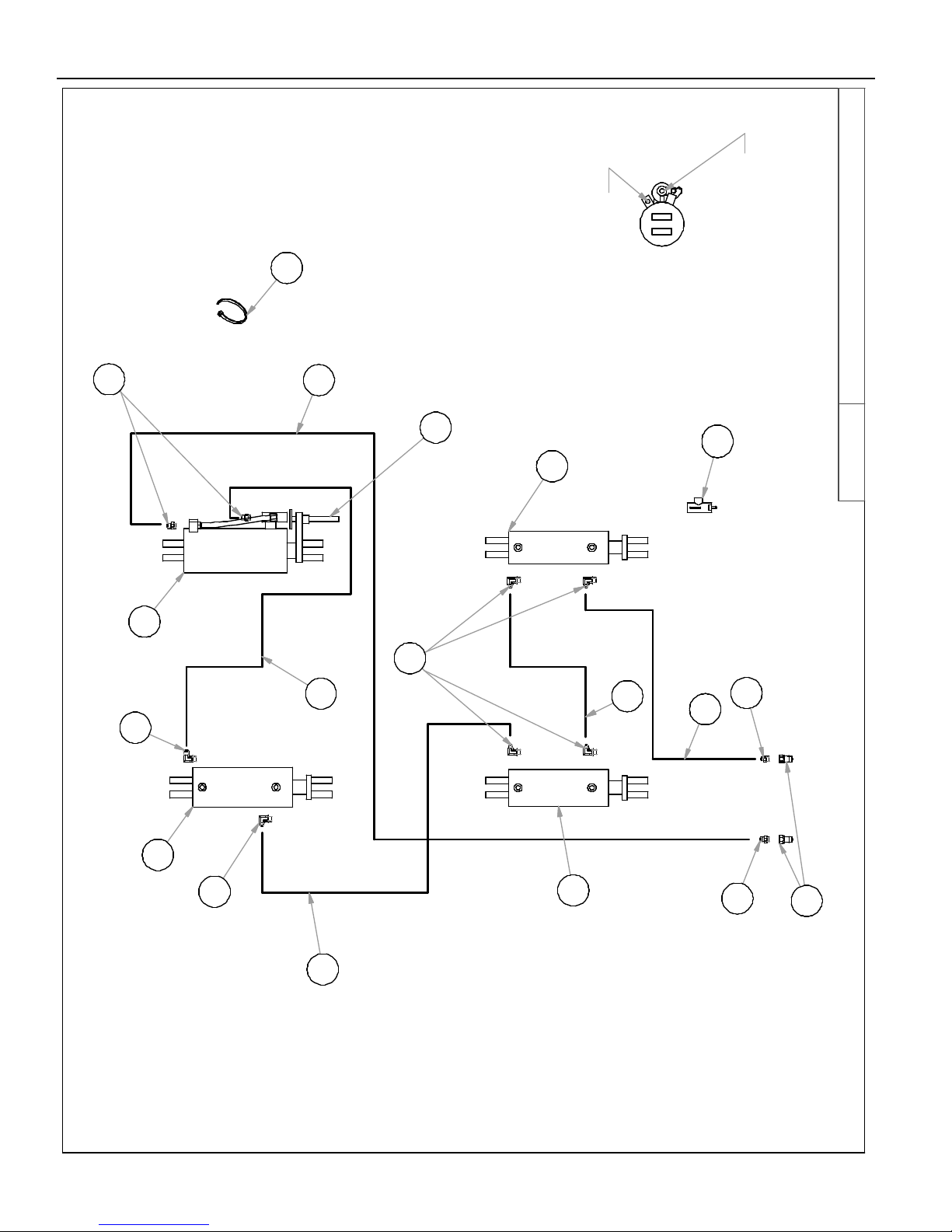

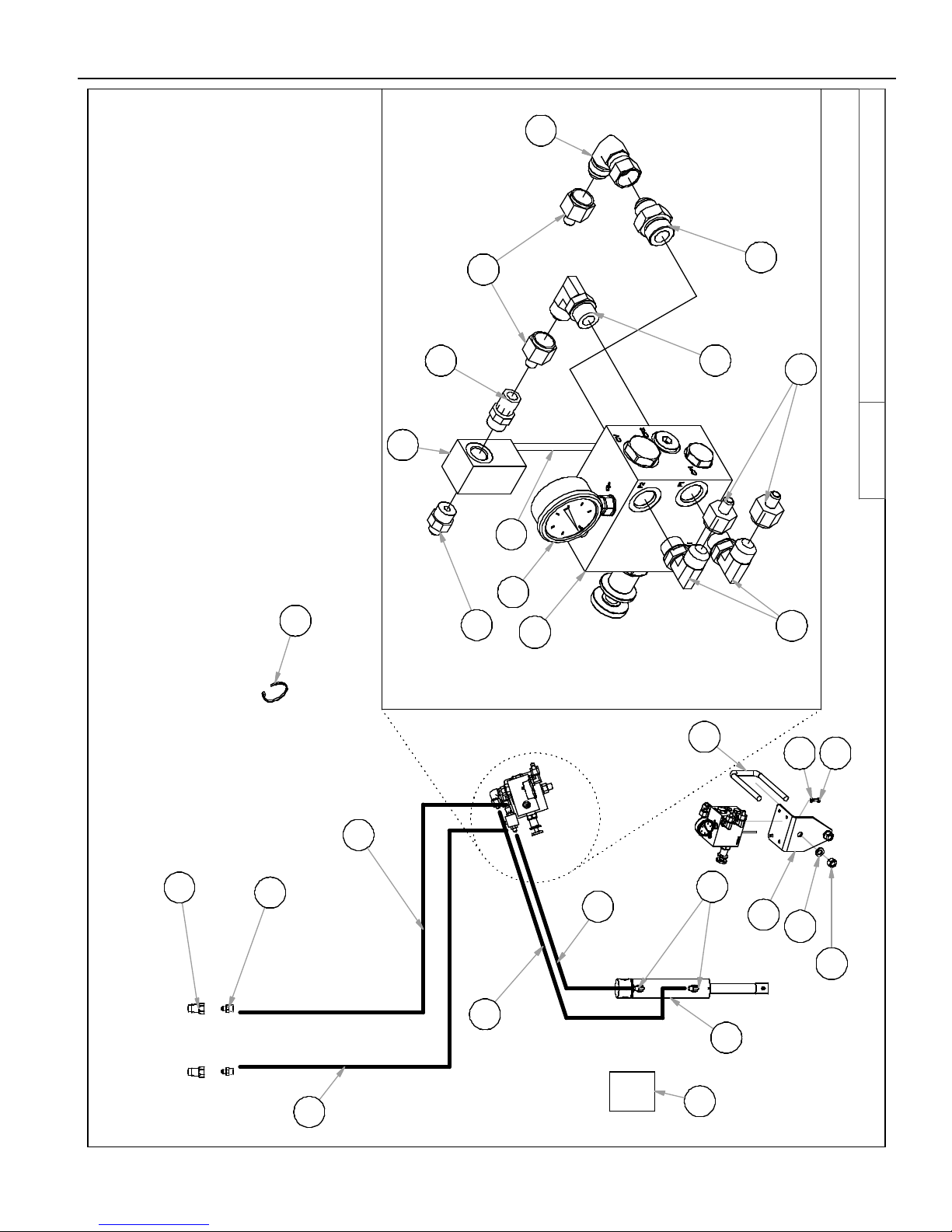

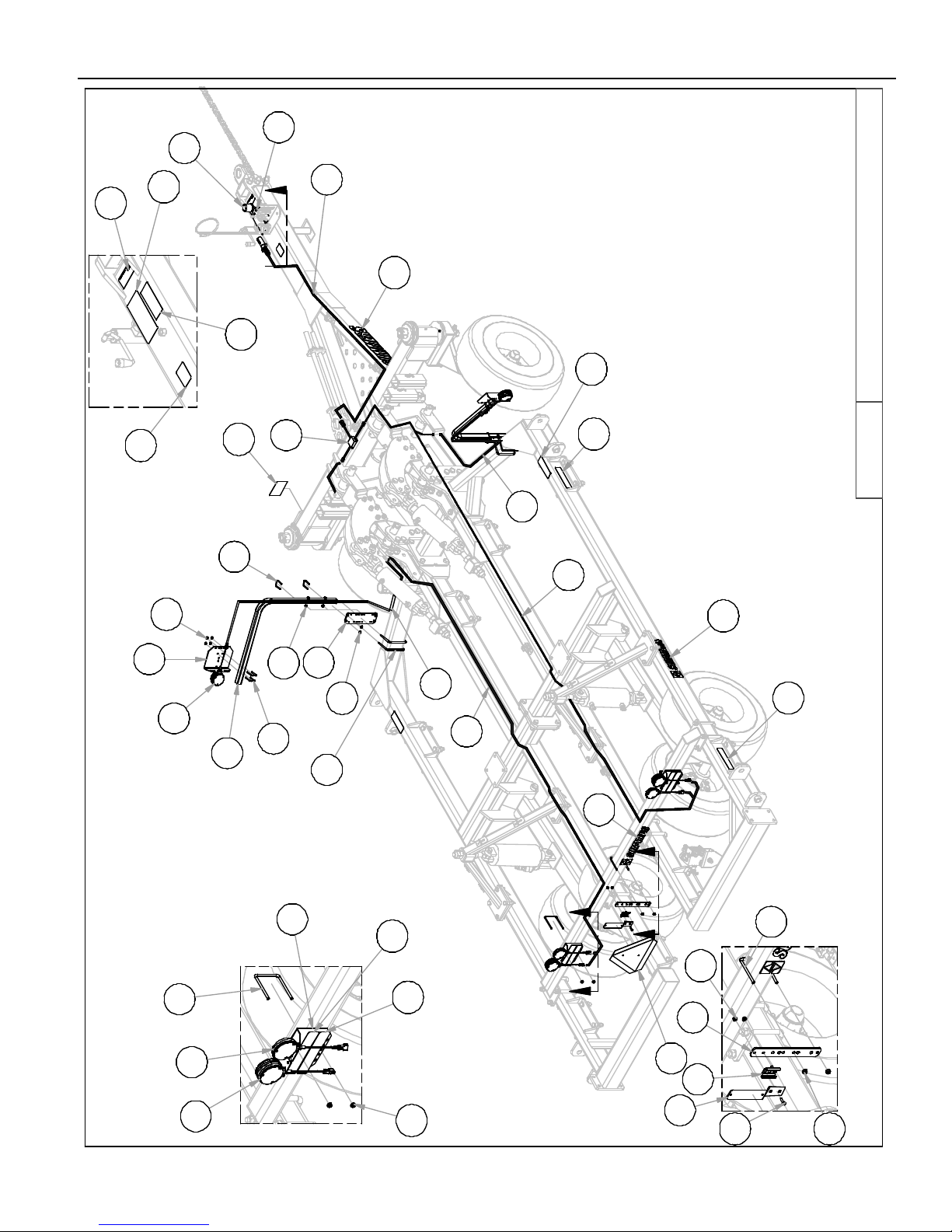

DEPTH CONTROL HYDRAULICS

SECTION 2 - ASSEMBLY

24

TO 94

21

83

91

92

95

29

95

TOP VIEW

90

TO TRACTOR

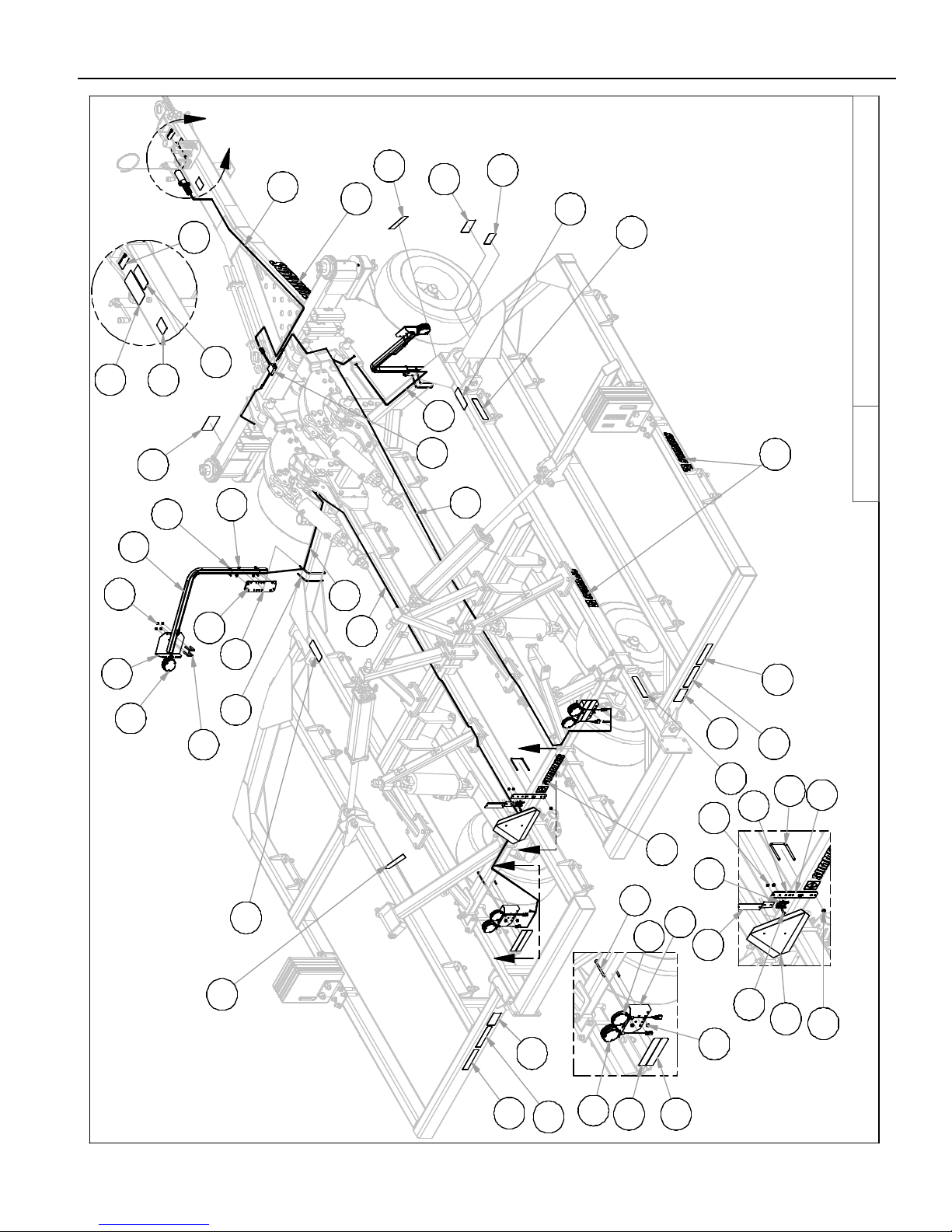

FRAME PKG 16' N-DSK3/10/2015

8T1060.iam/

30

94

29

82

79

93

78

23

24

89

15

80

2-8

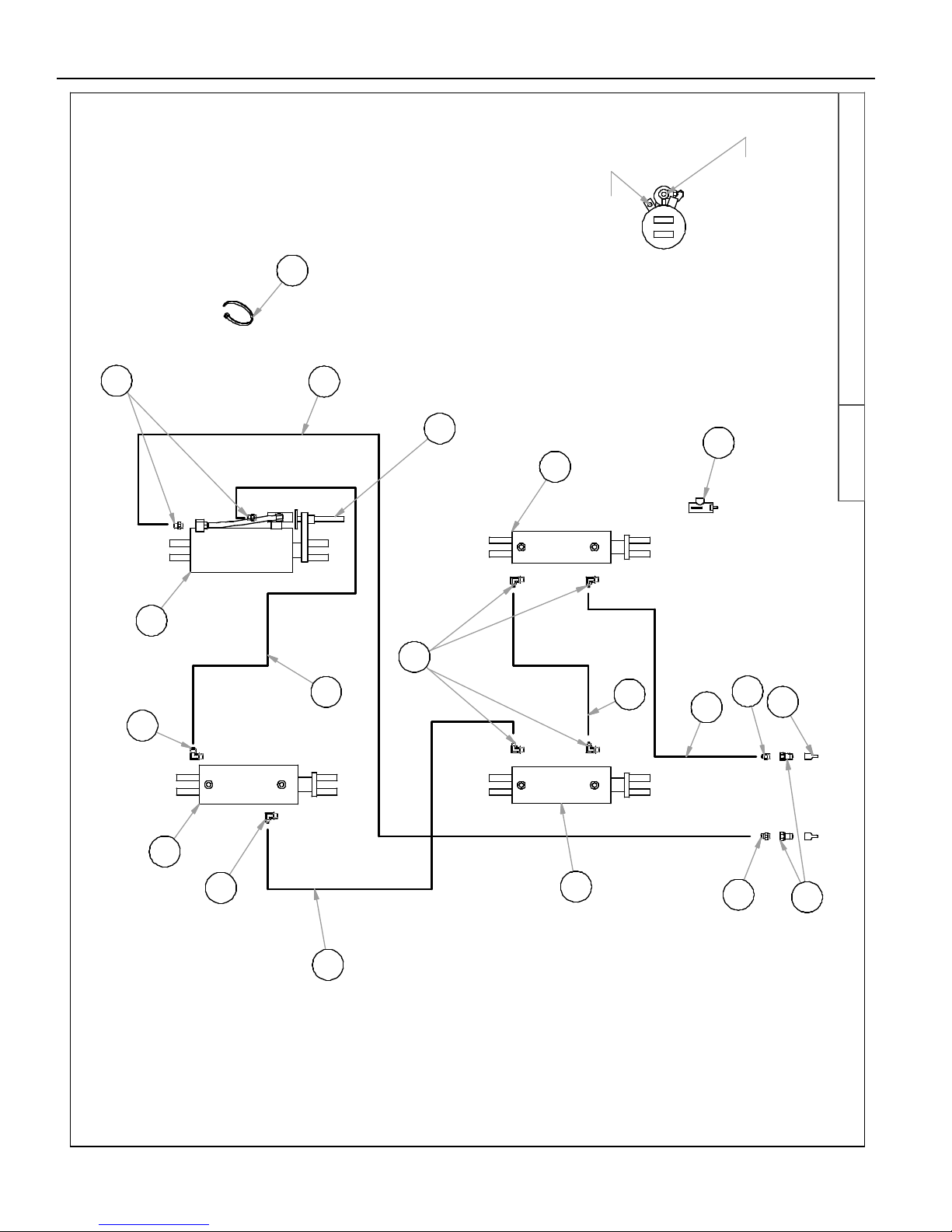

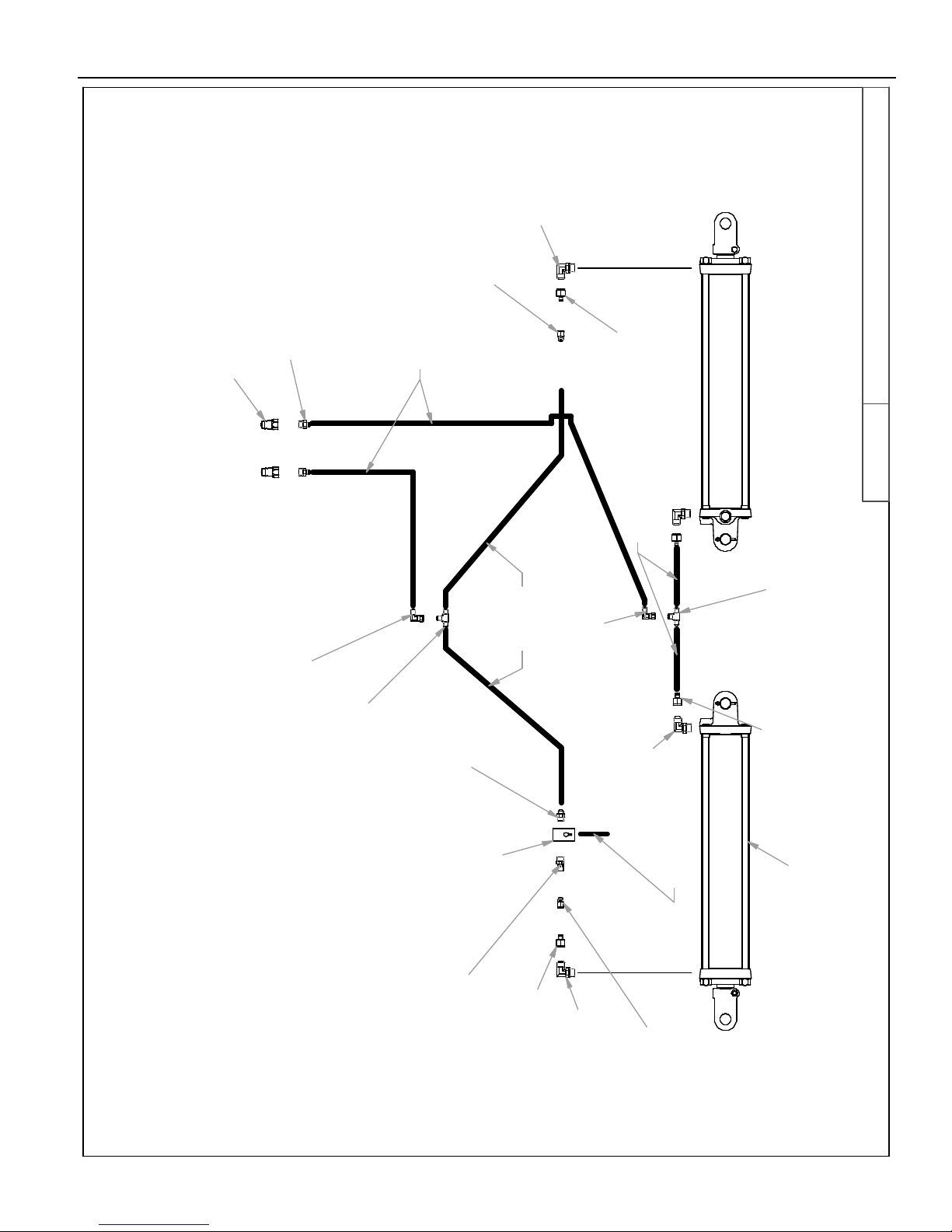

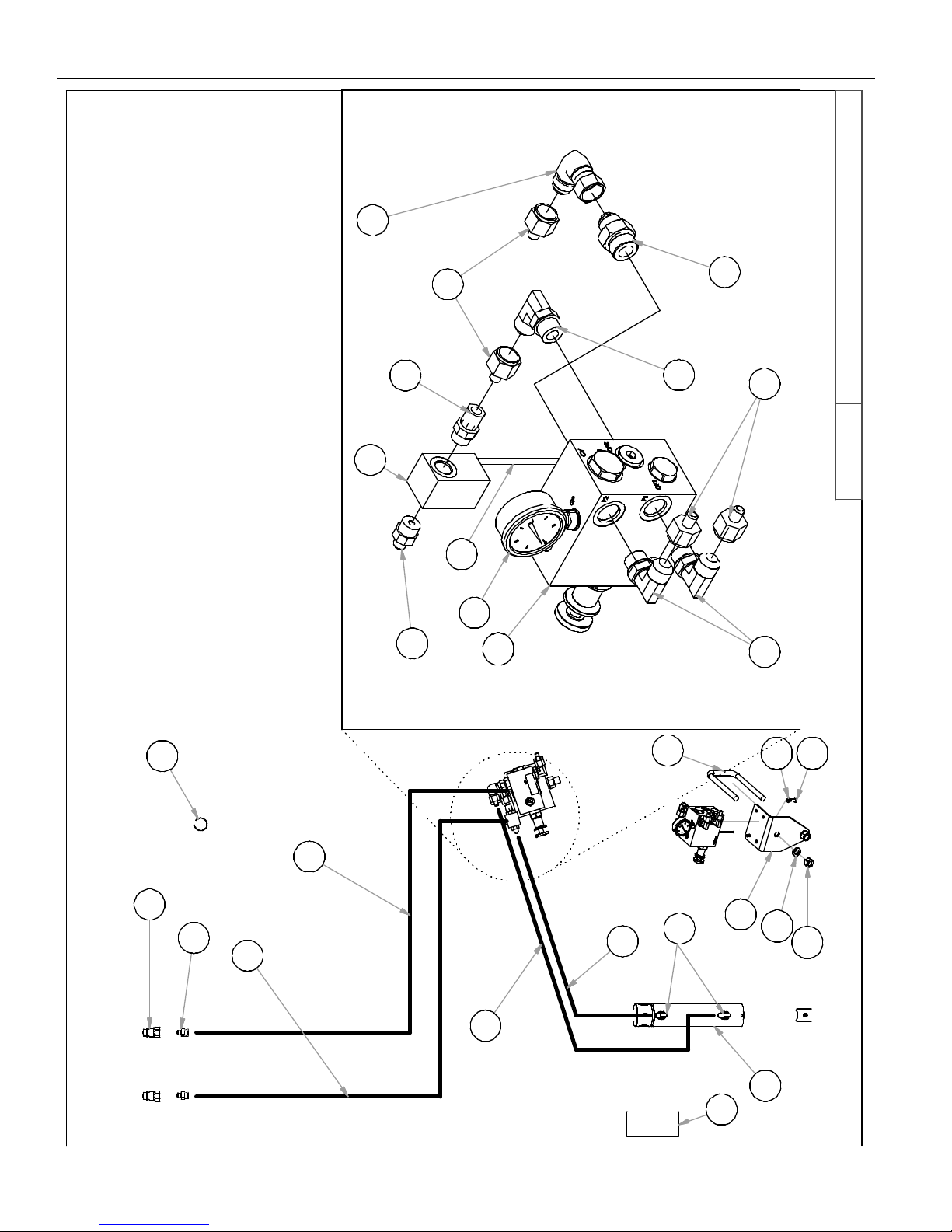

REAR COULTER HYDRAULICS

(PORT B TO

PORT

SECTION 2 - ASSEMBLY

27

FRAME PKG 16' N-DSK3/10/2015

8K3524.iam/

31

25

22

31

22

NOTE:

BLOCK IS CONFIGURED FOR

USE ON TRACTORS WITH

CLOSED-CENTER HYDRAULIC

SYSTEMS. FOR USE ON

OPEN-CENTER HYDRAULIC

SYSTEMS, HEX PLUG MUST

BE MOVED FROM CP1 TO

CP2 , AND HOLLO W HEX

PLUG MOVED FROM CP2

TO CP1.

26

32

6

75

20

23

84

15

23

81

13

101

127

81

(TO PORT P1)

28

76

CYL BASE)

(PORT A TO

77

CYL ROD)

P2)

(TO

2-9

57

33

128

119

56

1 7L2150

STL 1/2 X 7-1/2"OD X 2-9/16"ID

2 7P8530 ROUND CR 2 1/2"-22 1/4" 07-

3 8A1004

4 8A1155 U-BOLT 3/8 X 6-1/16 X 5" SQ

5 8A1156 U-BOLT 3/8 X 4-1/16 X 5" SQ

6 8A1954

7 8A4048 NYLON TIE .18 X 11"

8 8A4050 NYLON TIE .30 X 8-7/8"

9 8A4052

10 8CC6018 PARALLEL LINK W/ MNT HOLS

11 8CC6020 D/C CHSL PARALLEL LINK

8CC6035 WASHER 2.5X4X 1.281ID

13 8D0340 U-BOLT 3/4 X 4-1/16 X 7-3/4" SQ

14 8D2470 SAFETY CHAIN 7/16" X 5'

15 8D3212

16 8D8490 PIONEER/ISO TIP HLDR BNT

17 8D8500 HYD HOSE HOLDER PNTD BLK 91-

18 8D8522

JACK 5000# TOP CRANK 15"LIFT

19 8D9108 ROLL PIN 1/4 X 2" YLW ZNC

20 8G2282 NYLON TIE .187 X 7-1/2" RED

8G2285 NYLON TIE .187 X 7-1/2" GREEN

22 8J5200 #10 JIC(F) X #6 JIC(M)HEX BUSH

23 8J5510

24 8J5520 3/4" -16 ORB X #10 JIC(M) STR

25 8J5550 1-1/16" - 12ORBX#10JIC(M)STR

26 8J5620

3/4" -16 ORB X #6 JIC(F-SW) STR

27 8J5710 #10 JIC(F-SW)X#10 JIC(M)90*ADP

28 8J6000 9/16"-18 ORB X #6 JIC(M) 90°ADP

29 8J6010 3/4"-16 ORB X #6 JIC(M)90*ADP

30 8J6020 3/4"-16 ORB X #10 JIC(M)90*ADP

31 8J6030 7/8"-14 ORB X #10 JIC(M)90°ADP

32 8J7040 THERMAL RELIEF MANIFLD 4000PSI

33 8K0050 M NT BRKT ADJ DP MANFLD

34 8K1105S H UB&AXLE ASSY HD812 (2"RCVR)

35 8K1152 L IFT ARM 18.5' - 32.5' REAR CNTR

36 8K1410 HIT CH NRRW DSK

37 8K1415 CNTR FRAME NRRW DSK-LEFT

38 8K1417 CNTR FRAME NRRW DSK-RGHT

39 8K1425 TRANSREST CRSSTUBE NRRW DSK

40 8K1430 SP LICE TUBE FRONT NRRW DSK

41 8K1435 A-F RAME NRRW DSK

42 8K1449 BOLT-ON LINK ARM PIVOT-R

43 8K1451

BOLT-ON LIN K ARM PIVOT-L

44 8K1452 CA STR CYLATTCH SIDEPLATE DSK

45 8K1470 CA STR CYL ATTCH BOLT-IN

46 8K1475

47 8K1477

48 8K1500 DIS K CASTER MNT

49 8K1640

PIN 1-1/2 X 10-5/8" HITCH 84-

50 8K1660 PIN 1-1/2 X 15-1/2" HARDEND

51 8K1755 EY EBOLT 1.5DIA X 1.26"EYE X 14" YZ

SECTION 2 - ASSEMBLY

DESCRIPTION

BOLT 7/16-14NC X 3-1/2"GR5 ZDI

BOLT 3/4-10NC X 1-1/4" GR5 YZ

103 8X0044

104 8X0072 BOLT 1/2-13NC X 3-3/4" GR5 YZ

ITEM PN

105 8X0110

BOLT 3/4-10NC X 6-1/2" GR5 YZ

106 8X0111 BOLT 3/4-10NC X 2-1/2" GR5 YZ

107 8X0113 BOLT 3/4-10NC X 5" GR5 YZ

108 8X0121

BOLT 1-8NCX7" W/1.5"THDGR5 YZ

NUT 3/8"-16NC SERFLANG GR2 YZ

109 8X0133 BOLT 7/8-9NC X 3" GR5 ZDI

110 8X0139 BOLT 1-8NC X 3" GR5 ZDI

111 8X0140

112 8X0146 BOLT 1-8NCX8.5" W/1.5"THD GR5ZDI

113 8X0202 NUT 3/8"-16NC NY-LOCK GR2 YZ

114 8X0203

NUT 7/16"-14NC NY-LOCK GR2 ZDI

115 8X0211 NUT 5/16"-18NC SERFLANG GR2 YZ

116 8X0223 NUT 1/4"-20NC SERFLANG GR2 YZ

117 8X0234

NUT 3/4"-10NC NY-LOCK GR2 YZ

NUT 1-1/4"-7NC HEX GR2 YZ

NUT 1-1/2"-6NC JAM GR2 YZ

118 8X0242 NUT 1/2"-13NC NY-LOCK GR2 YZ

119 8X0260 NUT 3/4"-10NC HEX GR2 YZ

120 8X0261

121 8X0270 NUT 7/8"-9NC CNTRLOCK GR2 YZ

122 8X0280 NUT 1"-8NC HEX GR2 YZ

123 8X0284

124 8X0285 NUT 1-1/2"-6NC HEX GR2 YZ

125 8X0286

LOCKWASHER 3/4" YLW ZNC

126 8X0292 NUT 2"-4.5 HVY HEXSLOT GR2 PLN

127 8X0300 LOCKWASHER 5/16" YLW ZNC

128 8X0306

129 8X0307 LOCKWASHER 7/8" YLW ZNC

130 8X0309 LOCKWASHER 1" YLW ZNC

131 8X0311 LOCKWASHER 1-1/4" YLW ZNC

132 8X0318 WASHER 3/4"(13/16"ID)FLAT YZ

133 8X0320 WASHER 3/8" (7/16" ID)FLAT ZDI

134 8X0402 HAIR PIN CLIP 1/8 X 2-9/16"

135 8X0405 SNAPPER PIN 1/4 X 1.75"

INSTALL CYL LOCKS DECAL

GANG BEARING GREASE DECAL

CASTER WHEELTORQUE DECAL

REFLCTR REDORANGE ADHSVBK99-

136 8X0440 CLEVIS PIN 5/8 X 3-7/8" ZDI

137 8X1120 CRG 3/8-16NC X 2" GR2 ZN

252 8Z0075 TRANSPORT LOCK DECAL

253 8Z0087 DECAL"WARNING"PINCH POINT03-

254 8Z0100 MADE IN THE USA DECAL

255 8Z0202 3.5" SUMMERS DECAL

256 8Z0204 5.5" SUMMERS DECAL

257 8Z0276 GENERAL MACHINE CAUTION DECAL

258 8Z0340 REPHASING CYLINDERS DECAL

259 8Z0342

260 8Z0344 DECAL WING DANGER

261 8Z0346 ELECTROCUTION-TILLAGE EQUIP. DECAL

262 8Z0350

263 8Z0352

264 8Z0800 REFLECTOR AMBER ADHSVBCK98-

265 8Z0805

266 8Z0810 REFLECTOR RED ADHSV-BACK 98-

154 8Z1000 MANUAL-PAK 3DIA X 11.75" 09-

DESCRIPTION

SEAL GBGI V WALKING TANDEM 01-

GANG WRENCH

52 8K1900

53 8K1920 RETA INING RING 2-7/8" INV 00-

ITEM PN

DESCRIPTION

54 8K3002

CLAMP HOSE 5" #72

SEAL KIT 2.25X6" CTD 14-

55 8K5200 WASHER GANG BO LT 2.030"ID

56 8K6313 HYD CY L 2.25 X 6" 1.25"ROD

57 8K6413

TUBING GAGE LINE 1/4" OD

STL 7K2045 3/8X3.5 PNTDLGHT

MODULE AG ENHNCDW/BRAKE6PIN08-

58 8K7042 12.5L X 15 LRF ON 15X10X8 WHL

59 8K7123 NUT WHEEL BOLT 5/8-18UNF 97-

60 8K8000

61 8K8010 TUBE LGHT BRCKT1.5SQ55.5"00-

62 8K8020 MOUNTNG BRCKT LIGHT 00-

63 8K8030A

NYLON TIE .30 X 15.25"

EXT HRNSS NONDRAWBR DTSCH 07-

64 8K8067 DUST C AP FOR 7PIN CONNECT00-

65 8K8070B MA IN HRNSS 7PNLNG W/BRAKE 09-

66 8K8075A

MALE TIP 3/4"-16 ORB ISO

EXT HRNSS 26'2WIRE DTSCH 07-

BUSHING 2.875ODX2.5ID X3"

PLATE 2PT CASTER WEAR

67 8K8090B LIGH T LED AMBER 2WR DTSCH 12-

68 8K8095B LIGH T LED RED 3WIRE DTSCH 12-

69 8K8105A

70 8K8200 BRCKT SMV ATT CH 4-8"FRAME98-

71 8K9106 PIN 1-1/4 X 4-3/8" HARDENE D

72 8L0246

73 8L0258 U-BOLT 5/16 X 1-1/2 X 2-1/2"SQ

74 8L0320

3/4"-16 ORB X #6 JIC(M) STR

3/8 X 48" HYD HOSE #6FJX3000 PSI

75 8N0250 HYD PRESSURE GAGE 2.5"

76 8N3035 3/8X 35" HYD HOSE #6FJX3000PSI

77 8N3048

78 8N3060 3/8 X 60" HYD HOSE #6FJX3000PSI

79 8N3108 3/8" X 108" HYD HOSE #6FJX3000PSI

80 8N3252 3/8 X 252" HYD HOSE #6FJX3000PSI

81 8N3390 3/8" X 390" HYD HOSE #6FJX3000PSI

82 8N4120 1/2" X 120" HYD HOSE #10FJX3000PSI

83 8N6354 3/4" X 354" HYD HOSE #10FJX3000PSI

84 8N7000 ADJ DOWN PRESSURE MANIFLD

85 8S1120 SIGN SLOW MOVING VEHICLE(SMV)

86 8S1124 MOUNTING SOCKET SMV SIGN ZDI

87 8S1126 MNT SP ADE W/HRDWR SMV SIGN

88 8S2990 HYD HOS E CLAMP-LARGE-NYLON

89 8S3095 CAPLUG FITS ISO HYD COUPLR 08-

90 8T1006 PLUNGER PIN W/HLS RAM 98-

91 8T1010 POPPET

HYD CYL 5.5 X 10" REPHASE 96-

WLKNG TNDM 7.5"C-C 2" ID 98-

TRNS LCK W/UHMW10.5"(2.4RD)

BOLT 3/8-16NC X 3-3/4" GR5 ZDI

92 8T1045 HYD CYL 4.5 X 10" REPHASE 96-

93 8T1050 HYD CYL 5.0 X 10" REPHASE 96-

94 8T1055

95 8T1060 HYD CYL 6 X 10 W/ STRK CNTRL 96-

96 8T3620 PIN 1-1/2 X 12-1/2" HRDND&ZINC

97 8T4132

98 8T4350

99 8X0000 BOLT 1/4-20X3/4" FLLTHD GR5 YZ

100 8X0015

101 8X0021 BOLT 5/16-18NC X 3/4" GR5 ZDI

102 8X0021A BOLT 5/16-18NC X 1" GR5 ZDI

CASTER ARM DISK -L

CASTER ARM DISK -R

ITEM PN

12

21

2-10

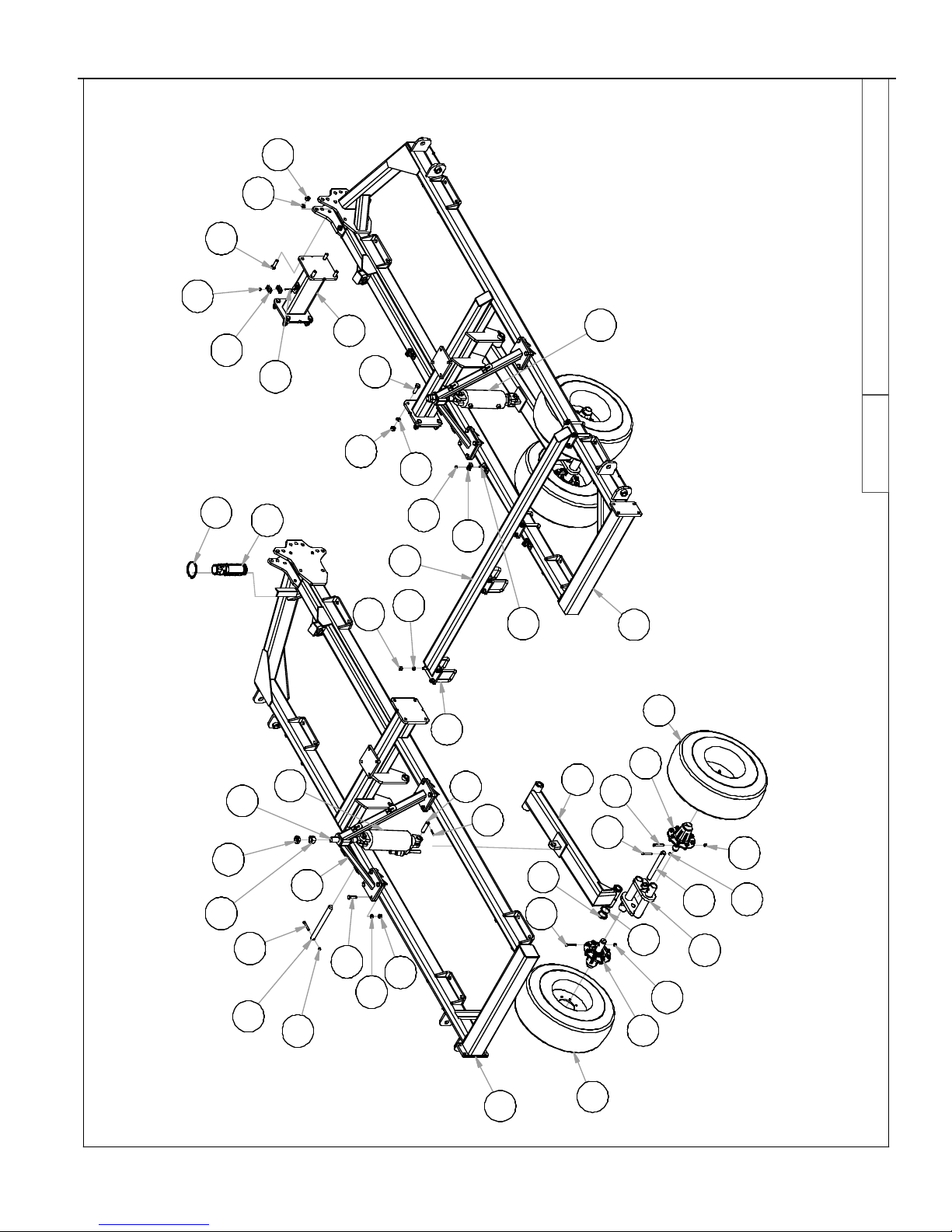

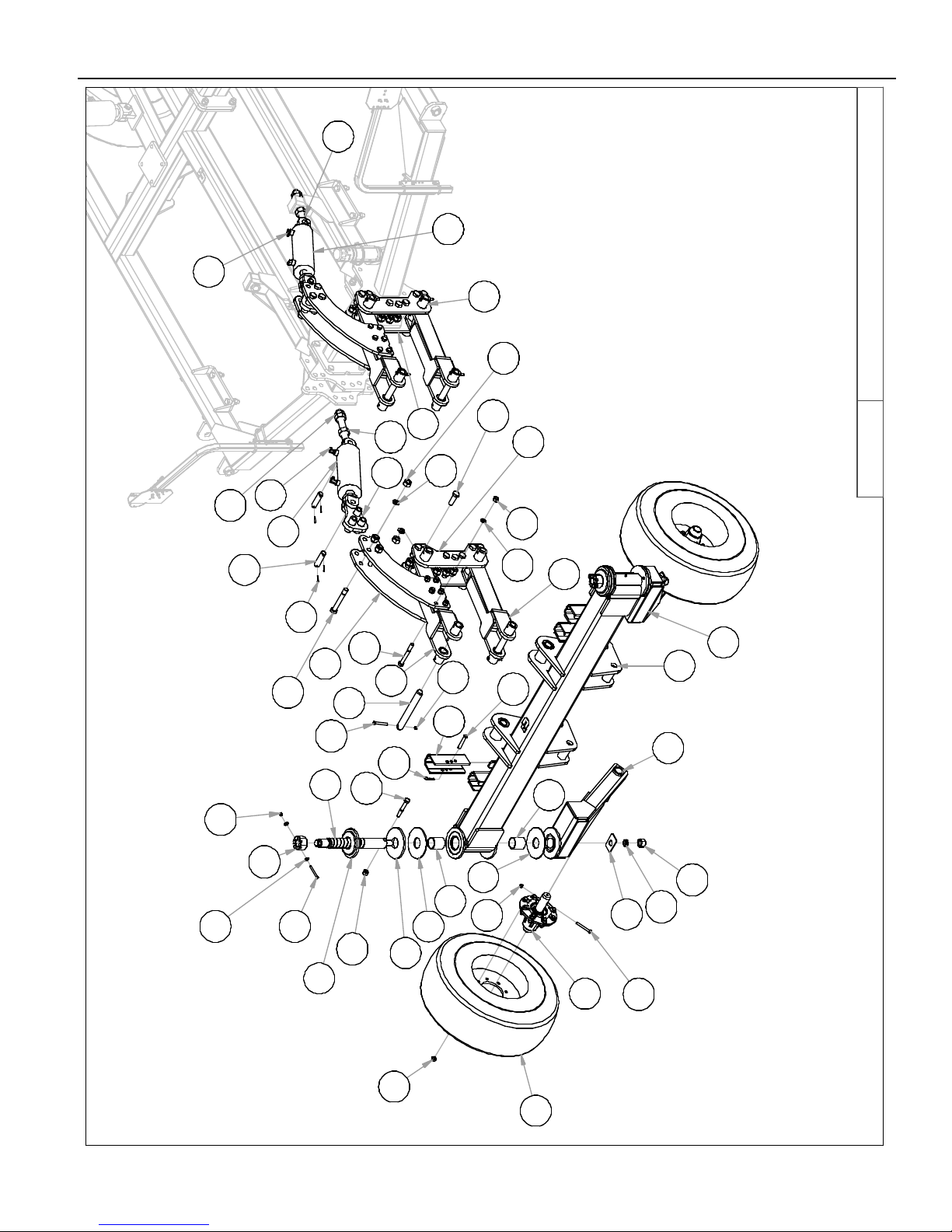

SECTION 2 - ASSEMBLY

142

151

128

133

50

106

142

139

128

151

133

106

49

150

161

162

3

178

111

46

FRAME PKG 21' N-DSK10/21/2014

8K3521.iam/

147

146

64

121

63

112

137

51

72

10

42

65

122

43

72

122

121

66

42

138

114

138

137

115

85

17

124

139

150

45

2-11

SECTION 2 - ASSEMBLY

19

113

11

154

FRAME PKG 21' N-DSK10/21/2014

8K3521.iam/

144

48

157

59

64

146

18

87

19 147

52

61

47

131

152

143

141

141

86

10

69

2-12

139

137

121

150

63

SECTION 2 - ASSEMBLY

147

146

64

FRAME PKG 21' N-DSK10/21/2014

85

17

17

110

85

53

54

143

109

152

150

129

8K3521.iam/

158

8

160

139

116

56

130

55

7

127

121

114

137

60

2-13

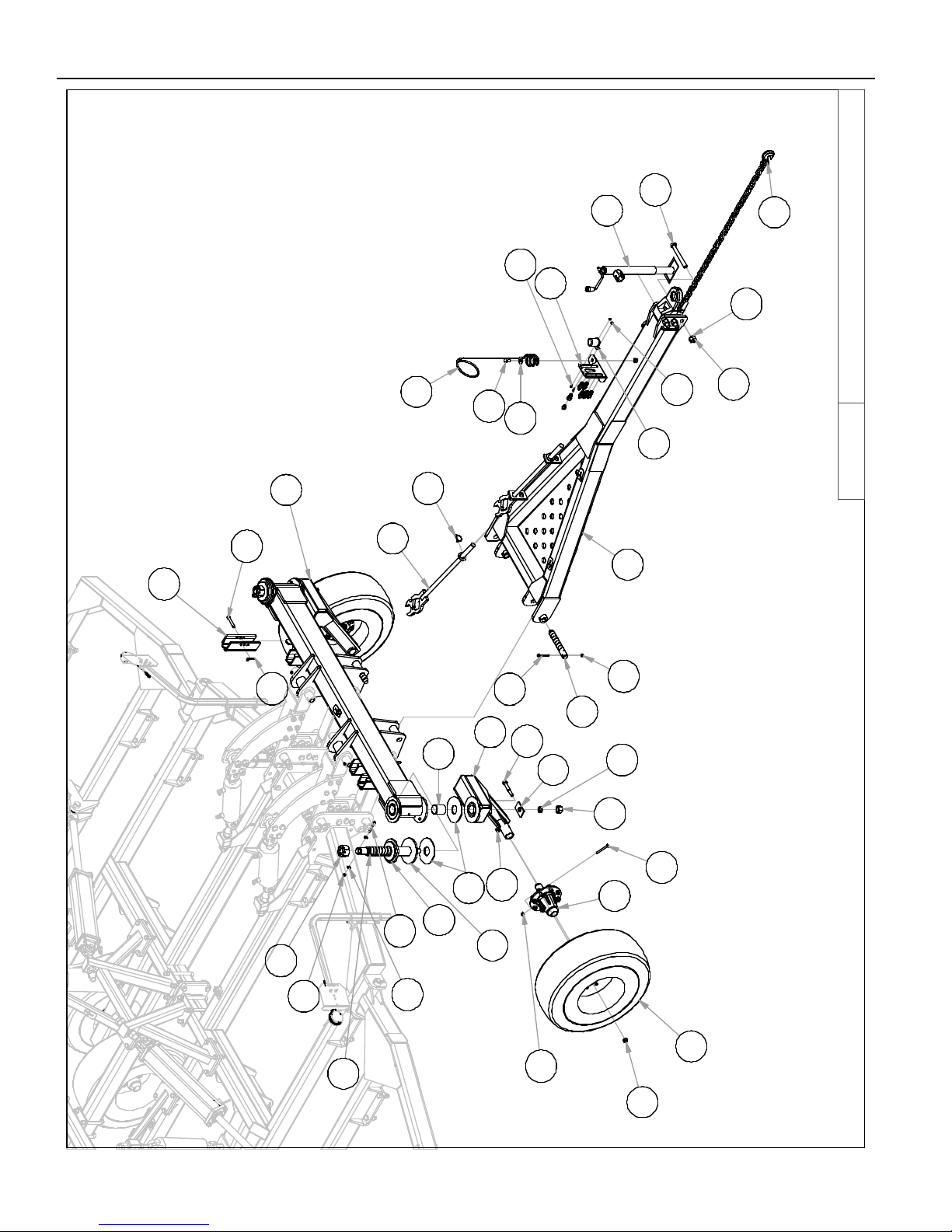

SECTION 2 - ASSEMBLY

14

16

132

12

FRAME PKG 21' N-DSK10/21/2014

152

8K3521.iam/

116

160

15

123

155 117

57

158

67

159

88

58

121

125

44

137

62

9

153

145

136

78

143

148

133

122

90

140

68

118

156

2

1

138

42

72

73

2-14

SECTION 2 - ASSEMBLY

F

268

79

258

265

261

135

75

267

263

89

134

260

83

264

83

77

266

257

268

FRAME PKG 21' N-DSK10/21/2014

8K3521.iam/

259

80

76

81

89

135

744

256

80

269

264

H

135

259

104

5

257

G

76

82

264

105

134

268

270

5

84

120

84

103

134

2-15

269

270

81

270

269

DEPTH CONTROL HYDRAULICS

SECTION 2 - ASSEMBLY

28

TO 111

22

101

108

109

112

35

112

TOP VIEW

107

TO TRACTOR

FRAME PKG 21' N-DSK10/21/2014

8T1060.iam/

36

111

35

100

110

96

95

27

97

28

13

2-16

REAR COULTER HYDRAULICS

(PORT B TO

PORT

SECTION 2 - ASSEMBLY

33

FRAME PKG 21' N-DSK10/21/2014

8K3524.iam/

37

29

23

37

23

NOTE:

BLOCK IS CONFIGURED FOR

USE ON TRACTORS WITH

CLOSED-CENTER HYDRAULIC

SYSTEMS. FOR USE ON

OPEN-CENTER HYDRAULIC

SYSTEMS, HEX PLUG MUST

BE MOVED FROM CP1 TO

CP2 , AND HOLLO W HEX

PLUG MOVED FROM CP2

TO CP1.

31

38

6

91

20

27

102

13

27

99

10

119

149

99

(TO PORT P1)

34

93

CYL BASE)

(PORT A TO

94

CYL ROD)

P2)

(TO

2-17

71

41

150

139

70

ITEM

1 7L2150 2 STL 1/2 X 7-1/2"OD X 2-9/16"ID

2 7P8530 2 ROUND CR 2 1/2"-22 1/4" 07-

3 8A1004 1

4 8A1155 4 U-BOLT 3/ 8 X 6-1/16 X 5" SQ

8A1156 3 U-BOLT 3/8 X 4-1/16 X 5" SQ

6 8A1954 3

7 8CC6018 2 PARALLEL LINK W/ MNT HOLS

8 8CC6020 2 D/C CHSL PARA LLEL LINK

9 8CC6035 2 WASHER 2.5X4X 1.281ID

10 8D0340 17 U-BOLT 3/4 X 4-1/16 X 7-3/4" SQ

11 8D0350 4 U-BOLT 3/4 X 4-1/16 X 10" SQ

12 8D2470 1

13 8D3212 6 MALE TIP 3/4"-16 ORB PIONEER

14 8D8490 1 PIONE ER/ISO TIP HLDR BNT

15 8D8500 1

HYD HOSE HOLDER PNTD BLK 91-

16 8D8522 1 JACK 5000# TOP CRANK 15"LIFT

17 8D9108 20 ROLL PIN 1/4 X 2" YLW ZNC

18 8D9110 2 HAIR PIN CLIP LARGE(1"CYL PIN)

19 8D9524 2 HYD CYL 5 X 24"

20 8G2282 6 NYLON TIE .187 X 7-1/2" RED

21 8G2284 6 NYLON TIE .187 X 7-1/2" YELLOW

22 8G2285 6 NYLON TIE .187 X 7-1/2" GREEN

23 8J5200 8 #10 JIC(F) X #6 JIC(M)HEX BUSH

24 8J5298 2 TEE #6 SWIVELNUTRUN(M+F+F-SW)

25 8J5300 2 #6 JIC (MALE) 3X TEE

26 8J5500 1 9/16"-18 ORB X #6 JIC(M) STR

27 8J5510

28 8J5520 3

29 8J5550 1 1-1/16" - 12ORBX#10JIC(M)STR

30 8J5600 1 9/16"-18 ORB X #6 JIC(F-SW)STR

31 8J5620 2 3/4" -16 ORB X #6 JIC(F-SW) STR

32 8J5700 3 #6 JIC (F-SW) X #6 JIC (M) 90°ADP

33 8J5710 1

#10 JIC(F-SW)X#10 JIC(M)90*ADP

34 8J6000 2 9/16"-18 ORB X #6 JIC(M) 90°ADP

35 8J6010 5

36 8J6020 1 3/4"-16 ORB X #10 JIC(M)90*ADP

37 8J6030 7 7/8"-14 ORB X #10 JIC(M)90°ADP

38 8J7040 2 THERMAL RELIEF MANIFLD 4000PSI

39 8J7216 2 #6JIC(M)X6JIC(F)1/16"RSTR GOLD

40 8J7250 1

RELIEF VLV 2250PSI 9/16"-18ORB

41 8K0050 1 MNT BRKT ADJ DP MANFLD

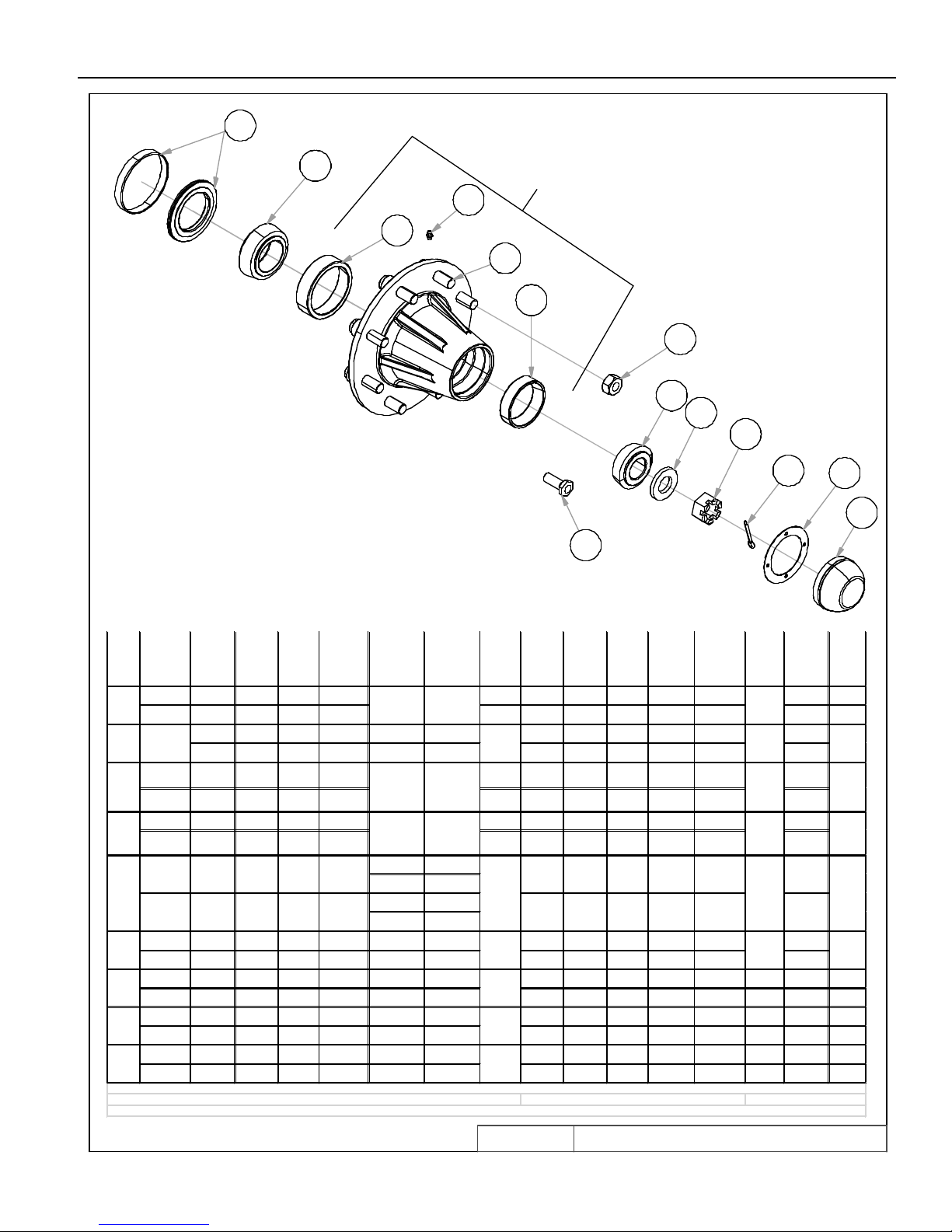

42 8K1105S 6 HUB&AXLE ASSY HD812 (2"RCVR)

43 8K1152 2 LIFT ARM 18.5' - 32.5' REAR CNTR

44 8K1410 1

45 8K1415 1 CNTR FRAME NRRW DSK-LEF T

SECTION 2 - ASSEMBLY

NUT 1/2"-13NC NY-LOCK GR2 ZDI

NUT 3/4"-10NC SER F LANG GR2 YZ

136 8X0223 2 NUT 1/4"-20NC SER FLANG GR2ZDI

137 8X0234 18 NU T 7/16"-14NC NY-LOCK GR2 ZDI

138 8X 0242 6

139 8X0260 62 NU T 3/4"-10NC HEX GR2 ZDI

140 8X0261 2 NUT NY-LOCK 3/4"-10NC GR2 ZDI

141 8X 0266 8

142 8X0270 72 NU T 7/8"-9NC CNTRLOCK GR2 YZ

ITEM PN QTY DESCRIPTION

143 8X 0280 35 NU T HEX 1"-8NC G R2 ZDI

NUT 1-1/2"-6NC JAM GR2 ZDI

LOCKWASHER 3/4" YL W ZNC

144 8X 0282 2 NUT 1"-14NF TOP LOCK GR2 ZDI

145 8X0284 2 NUT HEX 1.25"-7NC GR2 ZDI

146 8X 0285 12 NU T 1-1/2"-6NC H EX GR2 YZ

147 8X 0286 6

148 8X0292 2 NUT 2"-4.5 HVY HEXSLOT GR2 PLN

149 8X0300 2 LOCKWASHER 5/16" YLW ZNC

150 8X 0306 62

151 8X0307 72 LOCKWASHER 7/8" YLW ZNC

152 8X 0309 35 LOCK WASHER 1" YLW ZNC

WASHER 3/8" (7/16" ID)FLAT ZDI

153 8X0311 2 LOCKWASHER 1-1/4" YLW ZNC

154 8X0316 2 WASHER SAE FLAT 1" ZDI

155 8X 0318 1 WAS HER 3/4"(13/ 16"ID)FLAT Z DI

156 8X 0320 4

157 8X0327 8 WASHER SAE FLAT 1-1/4" ZDI

158 8X0402 4 HAIR PIN CLIP 1/8 X 2-9/16"

159 8X0405 1 SNAPPER PIN 1/4 X 1.75"

160 8X0440 4 CLEVIS PIN 5/8 X 3-7/8" ZDI

161 8X1120 12 CR G 3/8-16NC X 2" GR2 ZN

MADE IN THE USA DECAL

162 8X1140 6 CRG 3/8-16NC X 4" GR2 ZN

163 8Z0075 2 TRANSPORT LOCK DECAL

164 8Z0087 2 PINCH POINT DECAL

165 8Z0100 1

3.5" SUMMERS DECA L

166 8Z0202 5

167 8Z0204 2 5.5" SUMMERS DECAL

WING DANGER DECAL

DECAL

168 8 Z0276 1 GENERAL MACHINE CAUT ION DECAL

169 8Z0340 1 REPHASING CYLINDERS DECAL

170 8Z0342 1 INSTALL CYL LOCKS DECAL

171 8Z0344 4

172 8 Z0346 1 ELECTROCUTION-TILLA GE EQUIP.

BACKED

ADHESIVE BACKED

BACKED

173 8Z0350 2 GANG BEARING GREASE DECAL

174 8Z0352 1 CASTER WHEELTORQUE DECAL

175 8Z0800 6 REFLECTOR - YELLOW - ADHESIVE

176 8Z0805 4 REFLECTOR RED/ORANGE

177 8Z0810 4 REFLECTOR - RED - ADHESIVE

178 8Z1000 1 MANUAL-PAK 3DIA X 11.75" 09-

8K3521 Parts List

3/8 X 35" HYD HOSE #6FJX3000PSI

91 8N0250 1 HYD PRESS URE GAGE 2.5"

92 8N3028 2 3/8 X 28" HYD HOSE #6FJX3000PSI

93 8N3035 2

ITEM PN QTY DESCRI PTION

WING FRAME NRRW DSK-R GHT 21'

46 8K1417 1 CNTR FRAME NRRW DSK-RGHT

47 8K1421 1 WING FRAME NRRW DSK-LEFT 21'

48 8K1423 1

ITEM PN QTY DESCR IPTION

3/8 X 252" HYD HOSE #6FJX3000PSI

94 8N3048 3 3/8 X 48" HYD HOSE #6FJX3000PSI

95 8N3060 1 3/8 X 60" HYD HOSE #6FJX3000PSI

96 8N3180 1 3/8 X 180" HYD HOSE #6FJX3000PSI

97 8N3252 1

98 8N3312 2 3/8 X 312" HYD HOSE #6FJX3000PSI

99 8N3390 2 3/8 X 390" HYD HOSE #6FJX3000PSI

100 8N4120 1 1/2 X 120" HYD HOSE #10FJX3000PSI

101 8N6354 1 3/4 X 354" HYD HOSE #10FJX3000PSI

102 8N7000 1 ADJ DOWN PRE SSURE MANIFLD

BOLT-ON LINK ARM PIVOT-R

CASTR CYLATTCH SIDEPLATE DSK

CASTER ARM DISK -L

4

8K1452

49 8K1425 1 TRANSREST CRSSTUBE NRRW DSK

50 8K1430 1 SPLICE TUBE FRONT NRRW DSK

51 8K1435 2 A-FRAM E NRRW DSK

52 8K1440 2 WINGLOCK NRRW DSK

53 8K1449 2

54 8K1451 2 BOLT-ON LINK ARM PIVOT-L

55

56 8K1470 2 CASTR CYL ATTCH BOLT-IN

57 8K1475 1

HYD HOSE CLAMP-LARGE-NYLON

PLASTIC PLUNGER REPAIR KIT

HYD CYL 5.0 X 10" REPHASE 96-

38

8S2990

103 8S1120 1 SIGN SLOW MOVING VEHICLE(SMV)

104 8S1124 1 MOUNTING SOCKET SMV SIGN ZDI

105 8S1126 1 MNT SPADE W/HRDWR SMV SIGN

106

107 8T1006 1

108 8T1010 1 POPPET

109 8T1045 1 HYD CYL 4.5 X 10" REPHASE 96-

110 8T1050 1

111 8T1055 1 HYD CYL 5.5 X 10" REPHASE 96-

112 8T1060 1 HYD CYL 6 X 10 W/ STRK CNTRL 96-

DISK CASTER MNT

58 8K1477 1 CASTER ARM DISK -R

59 8K1485 1 WING LIFT CYL ATTCH NRRW DSK

60 8K1500 1

61 8K1615 2 PIN 3/4X10-1/2" SAFETYLOCK

62 8K1640 2 PIN 1-1/2 X 10-5/8" HITCH 84-

63 8K1660 6 PIN 1-1/2 X 15-1/2" HARDEND

64 8K1755 6 EYEBOLT 1.5DIA X 1.26"EYE X 14" YZ

65 8K1900 4 SEAL GBGI V WALKING TANDEM 01-

66 8K1920 4 RETAINING RING 2-7/8" INV 00-

67 8K3002 2 GANG WRENCH

TRNS LCK W/UHMW10.5"(2.4RD)

BOLT 5/16-18NC X 3/4" GR5 ZDI

113 8T3300 2 PIVOT BOLT CHSLTRP&WNGLFT YZ

114 8T3620 10 PIN 1-1 /2 X 12-1/2" H RDND&ZINC

115 8T4132 2 WLKNG TNDM 7.5"C-C 2" ID 98-

116 8T4350 4

117 8X0000 2 BOLT 1/4-20X3/4"FULLTHDGR5 ZDI

118 8X0015 2 BOLT 3/8-16NC X 3-3/4" GR5 ZDI

119 8X0021 2

120 8X0021A 2 BOLT 5/16-18NC X 1" GR5 ZDI

121 8X0044 18 BOLT 7/16-14NC X 3-1/2"GR5 ZDI

NUT 5/8"-18UNF WHEEL BOLT 97-

TUBE LGHT BRCKT1.5SQ55.5"00-

68 8K5200 2 WASHER GANG BOLT 2.030"ID

69 8K5515 4 U-BOLT 3/4 X 4 X 6" SQ

70 8K6313 1 HYD CYL 2.25 X 6" 1.25"ROD

71 8K6413 1 SEAL KIT 2.25X6" CTD 14-

72 8K7042 6 12.5L X 15 LRF ON 15X10X8 WHL

73 8K7123 1

74 8K8000 2 STL 7K2045 3/8X3.5 PNTDLGHT

75 8K8010 2

76 8K8020 4 MOUNTNG BRCKT LIGHT 00-

BOLT 3/4-10NC X 5" GR5 ZDI

BOLT 7/8- 9NC X 3" GR5 ZD I

122 8X0072 6 BOLT 1/2-13NC X 3-3/4" GR5 ZDI

123 8X0110 1 BOLT 3/4-10NC X 1-1/4" GR5 ZDI

124 8X 0111 16 BOL T 3/4-10NC X 2 -1/2" GR5 ZD I

125 8X0113 2

126 8X0114 8 BOLT 3/4-10NC X 3" GR5 ZDI

127 8X0121 12 BOLT 3/4-10NC X 6.5" GR5 ZDI

128 8X0133 72

ENHNCDW/BRAKE6PIN0 8-

8K8030A 1 MODULE AG

77

78 8K8067 1 DUST CAP FOR 7PIN CONNECT00-

79 8K8070B 1 MAIN HRNSS 7PNLNG W/BRAKE 09-

80 8K8075A 2 EXT HRNSS NONDRAWBR DTSCH 07-

81 8K8090B 4 LIGHT LED AMB ER 2WR DTSCH 12-

82 8K8095B 2 LIGHT LED RE D 3WR DTSCH 12 -

BOLT 1-8NCX8.5" W/1.5"THD GR5ZDI

129 8X0139 28 BOLT 1-8NC X 3" GR5 ZDI

130 8X0140 6 BOLT 1-8NCX7" W/1.5"THD GR5ZDI

131 8X0145 4 BOLT 1-8NC X 10 1/2" GR5 YZ

132 8X0146 1

133 8X0202 18 NUT 3/8"-16NC NY-LOCK GR2 ZDI

134 8X0203 14 NUT 3/8"-16NC SER FLANG GR2ZDI

135 8X0211 18 NUT 5/16"-18NC SERFLANG GR2ZDI

SUITCASE WGHT PNTD 1.25"-67#

83 8K8105A 2 EXT HARNESS 26' 2WIRE DTSCH 07-

84 8K8200 1 BRCKT SMV ATTCH 4-8"FRAME98-

85 8K9106 8 PIN 1-1/4 X 4-3/8" HARDENED

86 8K9220 4 ANGLE 6X6X1/2-6.25"WGHTPKG99-

87 8K9230 12

88 8L0246 4 BUSHING 2.875ODX2.5ID X3"

89 8L0258 8 U-BOLT 5/16X1-1/2X2-1/2" SQ

90 8L0320 4 PLATE 2PT CASTER WEAR

CLAMP HOSE 5" #72

TUBING GAGE LINE 1/4" OD

PN QTY DESCRIPTION

5

SAFETY C HAIN 7/1 6" X 5'

3/4" -16 ORB X #6 JIC(M) STR

3/4" -16 ORB X #10 JIC(M) STR

7

3/4" - 16 ORB X #6 JIC(M) 90°ADP

HITCH NRRW DSK

2-18

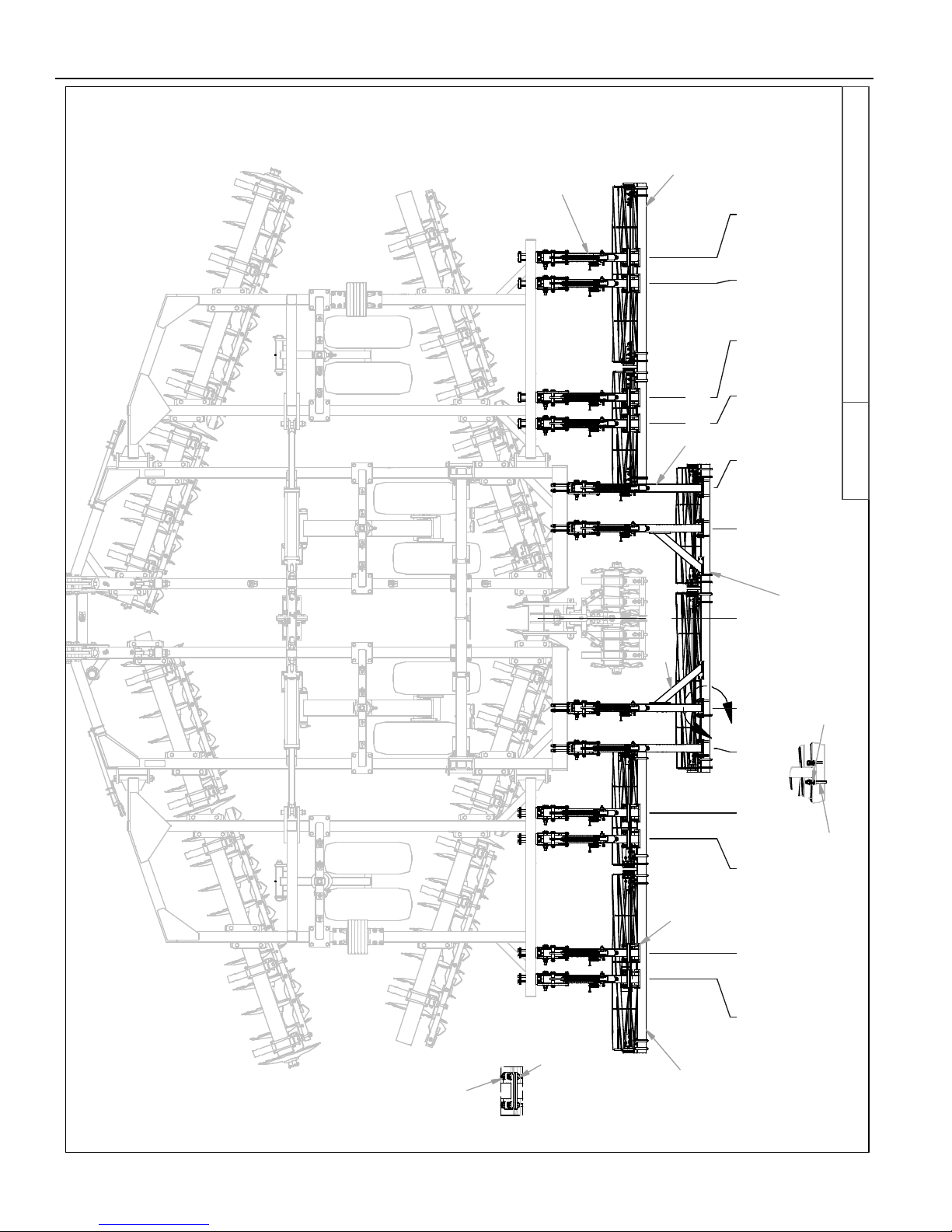

SECTION 2 - ASSEMBLY

3

142

112

187

170

DETAI L G

SC ALE 1 / 20

151

171

137

151

160

146

119

64

43

131

G

20

86

50

160

132

73

74

41

147

FRAME PKG 25'-28.5' N-DSK3/10/2015

8K3524.iam/

H

60

124

155

156

65

51

134

120

52

148

21

159

14

70

148

150

66

67

147

DE TAIL H

SC ALE 1 / 20

125

131

46

49

62

13

159

45

2-19

DET AIL J

SCAL E 1 / 20

SECTION 2 - ASSEMBLY

DE TAIL B

140

150

SCALE 1 / 20

150

148

88

159

B

87

146

146

48

64

131

74

73

132

41

147

42

FRAME PKG 25'-28.5' N-DSK3/10/2015

8K3524.iam/

118

134

13

161

65

152

155

155

156

22

J

86

20

64

121

47

5322

2-20

123

156

155

131

91

91

53

153 163

SECTION 2 - ASSEMBLY

65

157

128

2

69

93

90

93

1

149

90

147

135

12

73

162

58

FRAME PKG 25'-28.5' N-DSK3/10/2015

8K3524.iam/

154

74

165

142

165

156

155

117

161

116

55

11

54

152

57

86

20

138

C

56

139

136

10

124

131

146

126

169

61

167

59

41

132

2-21

SECTION 2 - ASSEMBLY

131

FRAME PKG 25'-28.5' N-DSK3/10/2015

8K3524.iam/

166

68

168

146

63

44

19

18

133

164

17

161

152

141

14.5

15

2-22

SECTION 2 - ASSEMBLY

145

79

F

DETAIL F

SCALE 1 / 18

174

177

179

188

181

78

183

92

144

77

82

92

143

75

76

127

80

144

176

184

84

4

180

84

81

182

173

FRAME PKG 25'-28.5' N-DSK3/10/2015

184

8K3524.iam/

175

175

185

81

83

82

186

180 184

E

5

D

175

186

77

5

185

143

DE TAIL D

SCALE 1 / 18

144

85

110

111

130

2-23

DE TAI L E

SCAL E 1 / 18

143

109

DEPTH CONTROL HYDRAULICS

SECTION 2 - ASSEMBLY

29

36

121

35

120

99 105

35

106

115

121

114

102

TOP VIEW

TO TRACTOR

FRAME PKG 25'-28.5' N-DSK3/10/2015

8T1060.iam/

28

TO 120

25

25.5

107

116

98

100

119

35

117

29

101

118

122

16

2-24

WING FOLD HYDRAULICS

SECTION 2 - ASSEMBLY

16

28

24

103

39

37

FRAME PKG 25'-28.5' N-DSK3/10/2015

26

9CC2412H.iam/

NOTE:

37

26

95

97

32

27

INSTALL CYLINDERS WITH PORTS FACING DOWN.

32

27

28

31

38

26

37

37

6

26

22

8D9525

SEAL KIT 5X24"

39

2-25

REAR COULTER HYDRAULICS

(PORT B TO

CYL ROD)

SECTION 2 - ASSEMBLY

33

37

30

2637

FRAME PKG 25'-28.5' N-DSK3/10/2015

8K3524.iam/

26

31

38

NOTE:

BLOCK IS CONFIGURED FOR USE ON TRACTORS WITH

CLOSED-CENTER HYDRAULIC SYSTEMS. FOR USE ON

OPEN-CENTER HYDRAULIC SYSTEMS, HEX PLUG MUST

BE MOVED FROM CP1 TO CP2, AND HOLLOW HEX

PLUG MOVED FROM CP2 TO CP1.

6

94

28

108

16

23

28

(TO PORT 2)

104

(TO PORT 1)

104

2-26

13

(PORT A TO

CYL BASE)

96

97

34

72

40

71

158

159

129

148

1

1

2

2

1 7L2150 STL 1/2 X 7-1/2"OD X 2-9/16"ID

2 7P8530 ROUND CR 2 1/2"-22 1/4" 07-

3 8A1004 CLAMP HOSE 5" #72

4 8A1155 U-BOLT 3/8 X 6-1/16 X 5" SQ

8A1156 U-BOLT 3/8 X 4-1/16 X 5" SQ

6 8A1954 TUBING GAGE LINE 1/4" OD

7 8A4048 NYLON TIE .18 X 11"

8 8A4050 NYLON TIE .30 X 8-7/8"

9 8A4052 NYLON TIE .30 X 15.25"

10 8CC6018 PARALLEL LINK W/ MNT HOLS

11 8CC6020 D/C CHSL PARALLEL LINK

12 8CC6035 WASHER 2.5X4X 1.281ID

13 8D0340 U-BOLT 3/4 X 4-1/16 X 7-3/4" SQ

14 8D0350 U-BOLT 3/4 X 4-1/16 X 10" SQ

14.5 8D0720 HITCH PIECE CAST CAT.3CT D PNTD

15 8D2470 SAFETY CHAIN 7/16" X 5'

16 8D3212 MALE TIP 3/4"-16 ORB PIONEER

17 8D8490 PION EER/ISO TIP HLDR BNT

18 8D8500 HYD HO SE HOLDER PNTD BLK 91-

19 8D8522 JACK 5000# TOP CRANK 15"LIFT

20 8D9108 ROLL PIN 1/4 X 2" YLW ZNC

21 8D9110 HAIR P IN CLIP LARGE(1"CYL PIN)

22 8D9524 HYD CYL 4 X 24" 3000PSI 09-

23 8G2282 NYLON TIE .187 X 7-1/2" RED

24 8G2284 NYLON TIE .187 X 7-1/2" YELLOW

25 8G2285 NYLON TIE .187 X 7-1/2" GREEN

25.5 8J5110 #10 JIC(M) X #10 JIC (M) UNION

26 8J5200 #10 J IC(F) X #6 JIC(M)HEX BUSH

27 8J5300 TEE #6 J IC (MALE) 3X

28 8J5510 3/4"-16 ORB X #6 JIC(M) STR

29 8J5520 3/4" -16 ORB X #10 JIC(M) STR

30 8J5550 1-1/16" - 12ORBX#10JI C(M)STR

31 8J5620 3/4" -16 ORB X #6 JIC(F-SW) STR

32 8J5700 #6 JIC(F-S W) X #6 JIC(M)90*ADP

33 8J5710 #10 J IC(F-SW)X#10 JIC(M)90*ADP

34 8J6000 9/16"-18 ORB X #6 JIC(M) 90°ADP

35 8J6010 3/4"-16 ORB X #6 JIC(M)90*ADP

36 8J6020 3/4"-16 ORB X #10 JIC(M)90*ADP

37 8J6030 7/8"-14 ORB X #10 JIC(M)90°ADP

38 8J7040 TH ERMAL RELIEF MANIFLD 4000PSI

39 8J7216

40 8K0050 MNT BRKT ADJ DP MANFLD

41 8K1105S HUB&AXLE ASSY HD812 (2"RCVR)

42 8K1134N

43 8K1152 LIFT ARM 18.5' - 32.5' REAR CNTR

44 8K1410 HITCH NRRW DSK

45 8K1415 CNTR FRAME NRRW DSK-LEFT

46 8K1417 CNTR FRAME NRRW DSK-RGHT

47 8K1420 WING FRAME NRRW DSK-LEFT

48 8K1422 WING FRAME NRRW DSK-RIGHT

49 8K1425 TRANSR EST CRSSTU BE NR RW DS K

50 8K1430

51 8K1435 A-FRAM E NRRW DSK

52 8K1440 WINGLOCK NRRW D SK

53 8K1445 TU BE

54 8K1449 BOLT-ON LINK ARM P IVOT-R

55 8K1451 BOLT-ON LINK ARM P IVOT-L

56 8K1452 CASTR C YLAT TCH SI DEPL ATE DSK

57 8K1470 CASTR CYL ATTCH BO LT-IN

58 8K1475 CASTER ARM DISK -L

59 8K1477 CASTER ARM DISK -R

60 8K1485 WING LIFT CYL ATTCH NRRW DSK

61 8K1500 DISK CASTE R MNT

62 8K1615 PIN 3/4X10-1/2" SAFETYLO CK

SECTION 2 - ASSEMBLY

SNA PPER PIN 1 /4 X 1.5"

CRG 3/8-16NC X 4" GR2 Z N

128 8X0015 BOLT 3/8-16NC X 3-3/4" GR5 ZDI

129 8X0021 BOLT 5/16-18NC X 3/4" GR5 ZDI

130 8X0021A BOLT 5/16-18NC X 1" GR5 ZDI

131 8X0044 BOLT 7/16-14NC X 3-1/2"GR5 ZDI

132 8X0072 BOLT 1/2-13NC X 3-3/4" GR5 YZ

133 8X0110 BOLT 3/4-10NC X 1-1/4" GR5 YZ

134 8X0111 BOLT 3/4-10NC X 2-1/2" GR5 YZ

135 8X0113 BOLT 3/4-10NC X 5" GR5 YZ

136 8X0121 BOLT 3/4-10NC X 6-1/2" GR5 YZ

137 8X0133 BOLT 7/8-9NC X 3" GR5 ZDI

138 8X0139 BOLT 1-8NC X 3" GR5 ZDI

139 8X0140 BOLT 1-8NCX7" W/1.5"THDGR5 YZ

140 8X0145 BOLT 1-8NC X 10.5" GR5 ZDI

141 8X0146 BOLT 1-8NCX8.5" W/1.5"THD GR5ZDI

142 8X0202 NUT 3/8"-16NC NY-LOCK GR2 YZ

143 8X0203 NUT 3/8"-16NC SERFLANG GR2 YZ

144 8X0211 NUT 5/16"-18NC SERFLANG GR2 YZ

145 8X0223 NUT 1/4"-20NC SERFLANG GR2 YZ

146 8X0234 NUT 7/16"-14NC NY-LOCK GR2 ZDI

147 8X0242 NUT 1/2"-13NC NY-LOCK GR2 YZ

148 8X0260 NUT 3/4"-10NC HEX GR2 YZ

149 8X0261 NUT 3/4"-10NC NY-LOCK GR2 YZ

150 8X0266 NUT 3/4"-10NC SER FLANG GR2 YZ

151 8X0270 NUT 7/8"-9NC CNTRLOCK GR2 YZ

152 8X0280 NUT 1"-8NC HEX GR2 YZ

153 8X0282 NUT 1"-14TPI TOPLOCK GR B Z

154 8X0284 NUT 1-1/4"-7NC HEX GR2 YZ

155 8X0285 NUT 1-1/2"-6NC HEX GR2 YZ

156 8X0286 NUT 1-1/2"-6NC JAM GR2 YZ

157 8X0292 NUT 2"-4.5 HVY HEXSLOT GR2 PLN

158 8X0300 LOCKWASHER 5/16" YLW ZNC

159 8X0306 LOCKWASHER 3/4" YLW ZNC

160 8X0307 LOCKWASHER 7/8" YLW ZNC

161 8X0309 LOCKWASHER 1" YLW ZNC

162 8X0311 LOCKWASHER 1-1/4" YLW ZNC

163 8X0316 WASHER 1" SAE FLAT YZ

164 8X0318 WASHER 3/4"(13/16"ID)FLAT YZ

165 8X0320 WASHER 3/8" (7/16" ID)FLAT ZDI

166 8X0327 WASHER 1-1/4" SAE FLATYZ

167 8X0402 HAIR PIN CLIP 1/8 X 2-9/16"

168 8X0405

169 8X0440 CLEVIS PIN 5/8 X 3-7/8" ZDI

170 8X1120 CRG 3/8-16NC X 2" GR2 ZN

171 8X1140

172 8Z0075 TRANSPORT LOCK DECAL

173 8Z0087 DECAL"WARNING"PINCH POINT03-

174 8Z0100 MADE IN THE USA DECAL

ITEM PN DESCRIPTION

175 8Z0202 3.5" SUMMERS DECAL

INS TALL CYL LO CKS DEC AL

GANG B EARING GRE ASE DECAL

176 8Z0204 5.5" SUMMERS DECAL

177 8Z0276 GENERAL MACHINE CAUTION DECAL

178 8 Z034 0 REP HASING CY LIND ERS DEC AL

179 8Z0342

180 8Z0344 DECAL WING DANGER

181 8Z0346 ELECTROCUTION-TILLAGE EQUIP. DECAL

182 8Z0350

183 8Z0352 CASTER WHEELTORQUE DECAL

184 8Z0800 REFLECTOR AMBER ADHSVBCK98-

185 8Z0805 REFLCTR REDORANGE ADHSVBK99-

186 8Z0810 REFLECTOR RED ADHSV-BACK 98-

187 8Z1000 MANUAL-PAK 3DIA X 11.75" 09-

188 FEMA DECAL FEMA DEC AL

263 8K9230 SUITCASE WGHT PNTD 1.25"- 70#

264 8K9220 STL

265 8X0145 BOLT 1-8NC X 10-1/2" GR5 ZDI

3/8 X 390" HYD HOSE #6FJX3000PSI

3/4 X 354" HYD HOSE #10FJX3000PSI

63 8K 1640 PIN 1-1/2 X 10-5/8" HITCH 84-

64 8K 1660 PIN 1-1/2 X 15-1/2" HARDEND

65 8K 1755 EYEBOLT 1.5DIA X 1.26"EYE X 14" YZ

66 8K 1900 SEAL GBGI V WALKING TANDEM 01-

67 8K 1920 RETAINING RING 2-7/8" INV 00-

68 8K 3002 GANG WRENCH

69 8K 5200 WASHER GANG BOLT 2.030"ID

70 8K 5515 U-BOLT 3/4 X 4-1/16 X 6" SQ

71 8K 6313 HYD CYL 2.25" X 6" 1.25" ROD

72 8K 6413 SEAL KIT 2.25X6" CTD 14-

73 8K 7042 12.5L X 15 LRF ON 15X10X8 WHL

74 8K 7123 NUT 5/8"-18UNF WHEEL BOLT 97-

75 8K 8000 STL 7K2045 3/8X3.5 PNTDLGHT

76 8K 8010 TUBE LGHT BRCKT1.5SQ55.5"00-

77 8K 8020 MOUNTNG BRCKT LIGHT 00-

78 8K8030A MODULE AG ENHNCDW/BRAKE6PIN08-

79 8K 8067 DUST CAP FOR 7PIN CONNECT00-

80 8K807 0B MAIN HRNSS 7PNLNG W/BRAKE 09-

81 8K8075A EXT HRN SS NONDRAWBR DTSCH 07-

82 8K809 0B LIGHT LED AMBER 2WR DTSCH 12-

83 8K809 5B LIGHT LED RED 3WIRE DTSCH 12-

84 8K8105A EXT HARNESS 26' 2WIRE DTSCH 07-

85 8K 8200 BRCKT SMV ATTCH 4-8"FRAME98-

86 8K 9106 PIN 1-1/4 X 4-3/8" HARDENED

87 8K 9220 ANGLE 6X6X1/2- 6.25" WGHT PKG

88 8K 9230 SUITCASE WGHT PNTD 1.25" - 70#

90 8L0246 BUSHING 2.875ODX2.5ID X3"

91 8L0252 WASHER 4.5ODX1.28IDX1/4" ZI-DI

92 8L0258 U-BOLT 5/16 X 1-1/2 X 2-1/2"SQ

93 8L0320 PLATE 2PT CASTER WEAR

94 8N0250 HYD PRESSURE GAGE 2.5"

95 8N3028 3/8 X 28" HYD HOSE #6FJX3000PSI

96 8N3035 3/8 X 35" HYD HOSE #6FJX3000PSI

97 8N3048 3/8 X 48" HYD HOSE #6FJX3000PSI

98 8N3060 3/8 X 60" HYD HOSE #6FJX3000PSI

99 8N3124 3/8 X 124" HYD HOSE #6FJX3000PSI

100 8N3150 3/8 X 150" HYD HOSE #6FJX3000PSI

101 8N3228 3/8 X 228" HYD HOSE #6FJX3000PSI

102 8N3252 3/8 X 252" HYD HOSE #6FJX3000PSI

103 8N3312 3/8 X 312" HYD HOSE #6FJX3000PSI

104 8N3390

105 8N4160 1/2 X 160" HYD HOSE #10FJX3000PSI

106 8N6060 3/4 X 60" HYD HOSE #10FJX3000PSI

107 8N6354

108 8N7000 ADJ DOWN PRESSURE MANIFLD

109 8S 1120 SIGN SLOW MOVING VEHICLE(SMV)

110 8S 1124 M OUNTING SOCKET SMV SIGN ZDI

IT EM PN DESCRIPTION

#6JIC(M)X6JIC(F)1/16"RSTR GOLD

ITEM PN DESCRIPTION

5

LIFTARM 32.5' WING NARRO W

111 8S 1126 MNT SPADE W/HRDWR SMV SIGN

PO PPET

HYD CYL 4.5 X 10" REPHASE 96-

112 8S 2990 HYD HOSE CLAMP-LARGE-NYLON

113 8S 3095 CAPLUG FITS ISO HYD COUPLR 08-

114 8T1008 PLASTIC PLUNGER REPAIR KIT

115 8T1010

116 8T1037 HYD CYL 3.75" X 10"

117 8T1040B HYD CYL 4" X 10"

118 8T1045

119 8T1050 HYD CYL 5.0 X 10" REPHASE 96-

120 8T1055 HYD CYL 5.5 X 10" REPHASE 96-

121 8T1060 HYD CYL 6 X 10 W/ STRK CNTRL 96-

122 8T2990 HYD HOS E CLAMP MTL/RUB BLACK

123 8T3300 PIVOT BOLT CHSLTRP&WNGLFT YZ

124 8T3620 PIN 1-1/2 X 12-1/2" HRDND&ZINC

125 8T4132 WLKNG TNDM 7.5"C-C 2" ID 98-

126 8T4350 TRNS LCK W/UHMW10.5"(2.4RD)

127 8X 0000 BOLT 1/4-20X3/4" FLLTHD GR5 YZ

SPLICE TUBE FRONT NRRW DSK

2-27

SECTION 2 - ASSEMBLY

2-28

SECTION 3 - OPERATION & MAINTENANCE

START-UP AND HYDRAULIC OPERATION

INITIAL START UP PROCEDURE FOR DISK LIFT
HYDRAULIC CYLINDERS

This disk has a Master-Slave Hydraulic Lift System. Fully extend
hydraulic cylinders and maintain hydraulic pressure for 30 seconds
to insure all air is purged from system.

NOTE: As oil is pumped into the base end of master cylinder,
oil is forced out of the rod end into the base end of each slave
cylinder. To compensate for the smaller volume of oil in the rod
end of the master cylinder, each slave cylinder is 1/2” smaller
in diameter. When cylinders are fully extended, oil will bypass
through a rephasing slot on each cylinder in order to equalize the
system. The tractor SCV lever must be held for a few seconds to
accomplish this passage of oil through the system.

INITIAL START-UP PROCEDURE FOR WING LIFT
HYDRAULIC CYLINDERS

The wing lift hydraulic cylinders on this disk must be charged with
oil before attempting to raise the wings.

The best method of performing this is to disconnect the rod end
of the fold cylinders from the wings and connect the hoses to the
tractor’s couplers. Make sure the tractor reservoir is full of manu­facturer’s recommended hydraulic oil. Extend and retract the
cylinders until the action is positive and all air is purged from the

system. Due to the amount of oil required to ll the cylinders
and lines, additional hydraulic oil may be required. After cylinders
have been lled with oil, reconnect the rod ends of the cylinders

to the wings.

CAUTION: Stand clear whenever raising
or lowering the wings.

them in the storage positions. After wings are lowered, extend
cylinders fully.

BEFORE INITIAL OPERATION

1. After receiving or assembling your disk, it is a good practice
to double check entire machine so that all bolts are securely
tightened.

2. Make sure all grease ttings are in place and greased properly.

3. Inate all lift tires to the recommended ination pressure and
check wheel bolts. (See Maintenance for specications.)

AFTER FIRST TWO HOURS OF OPERATION

1. Recheck wheel bolts for tightness and tighten spindle nuts if any
side-play is evident in the bearings.

2. Check gang shafts for tightness. This procedure should be re-

peated daily through the rst twenty hours of operation. Gang

shafts should be tightened to 1200 foot-pounds.

NOTE: A 1/4” spacer (PN 8X0366) is available

and should be installed when the castle nut
has been tightened past lock bolt.

3. Bearing and C-shaped shank mounting bolts should be checked
for tightness. This procedure should also be repeated daily

during the rst twenty hours of operation.

4. The scrapers on your disks should be checked and tightened
if needed. Scrapers may have to be adjusted periodically to

account for wear and different eld conditions.

Before lowering the wings, remove the safety lock pins and place

MAINTENANCE

GANG BEARINGS:
Note: Zerks are installed on both front and back of gang bearing

cast holders for your convenience. Both zerks lead to the bearing,

only one needs to be greased.

To prevent contamination, insure that coupler and zerk are clean.

To maximize bearing life, grease bearings at mid day or end of day

when bearings are at operating temperature.

Every 20 hours: Add three strokes (approx. .14 oz.) of grease to

gang bearing. Rotate gang 2 to 3 revolutions. Add an additional
three strokes of grease.

GENERAL:
Daily: Grease all pivot points located on wing lift, disk lift arms,

and hitch.

Check all wheel bolts/nuts for tightness. Recommended torque

listed below:

Hub Wheel Bolt/Nut Torque

812 – 8 Bolt 240 ft-lb

Tighten spindle nuts if any side-play is evident in the bearings.

Maintain disk gang torque at 1200 ft. lb.

Seasonally: Clean and repack wheel bearings.

TIRE INFLATION:

Recommended tire inations listed below:

Size Ply Pressure

12.5L x 15 LRF 90 psi

340/60R16.5 148A8 73 psi (Optional)

3-1

SECTION 3 - OPERATION & MAINTENANCE

FIELD OPERATION

The following procedure should be used for eld operation

of your Summers Diamond Disk & DT9530.

1. Remove wing safety lock pins and transport locks and
place in their storage positions.

2. Lower wings for eld operation.

3. Level disk. The disk should be adjusted in a level area

of the eld.

IMPORTANT!

All pressure must be removed from cylinders before adjusting
eyebolts. Rest Disk on top of the ground, shut tractor off and
relieve pressure by cycling remote lever.

A. First, level the center section (front to rear) by adjusting

the threaded eye bolts connected to each hydraulic
cylinder.

B. Second, level the wings with the center section again

by adjusting the threaded eye bolt connected to each
hydraulic cylinder.

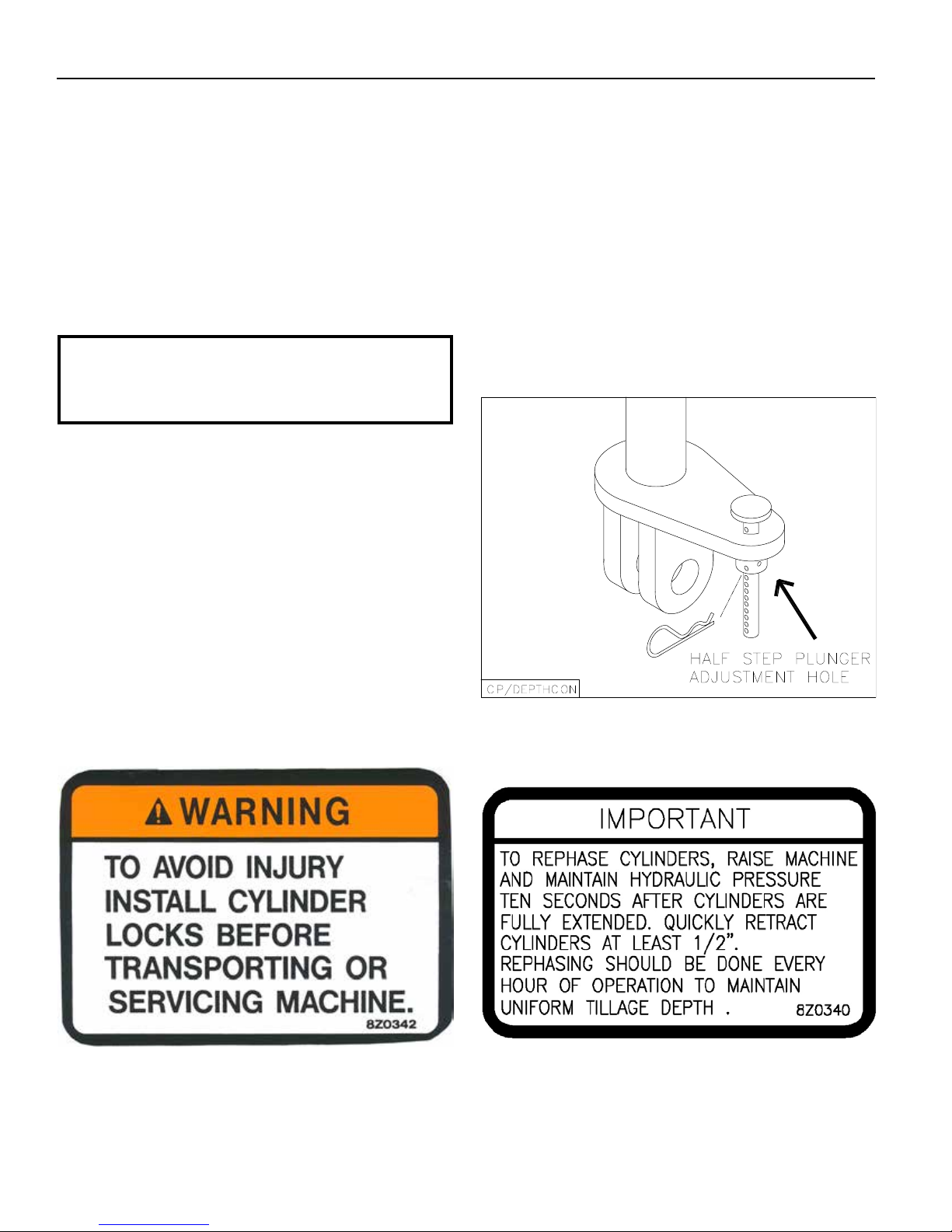

After determining desired tillage depth, set depth control
plunger accordingly. Standard plunger hole spacing gives
5/16” cylinder stroke adjustment. By rotating plunger 90
degrees, a half step adjustment can be achieved. See
drawing below.

3-2

SECTION 3 - OPERATION & MAINTENANCE

REAR COULTER GANG

IMPORTANT: Rear coulter gang is designed to work with active hydraulic down pressure. See
note on Page 4-7 to congure to either closed-center or open-center hydraulic system trac­tors.

1. Plug rear coulter gang hydraulic hoses into desired tractor outlet. Insure that tips and couplers are

clean. At the tractor, adjust hydraulic ow to 30% of maximum and to constant vs. timed output.

2. Do not allow anyone to stand near rear coulter gang when raising or lower. Lower rear coulter
gang with tractor hydraulics and engage circuit in lower position, do not run this hydraulic circuit
in neutral/locked position. Adjust rear coulter gang down pressure with base end regulator to 500
PSI.

3. Work a test strip in your eld. Insure that the DK/DT is tilling at an equal depth across machine
width. Check penetration depth of rear coulter blades, regulator valve pressure can be adjusted
lower or higher to maintain effective cutting depth. Maximum regulator pressure is 1500 PSI.

IMPORTANT: Damage to DK or DT and rear coulter gang may occur if run with hydraulic cir­cuit in neutral/locked position. Damage caused by running with hydraulic circuit in neutral/
locked position is not covered by Summers warranty.

Monitor temperature of tractor hydraulic oil. Discontinue use of rear coulter gang live hydrau­lic down pressure if hydraulic oil becomes excessively hot. If this occurs, run rear coulter
gang hydraulic circuit in Float Position Only until cause of overheating is resolved. Contact
your Summers Dealer for troubleshooting information. Damage caused by overheating of
tractor hydraulic system is not covered by Summers warranty.

4. If the soil prole behind the rear coulter gang shows a valley or depression, not enough soil is
owing between the rear center blades. Lower the front of the DK/DT to increase the amount of

soil running thru the implement center.

If a mound of soil appears behind the rear coulter

gang, too much soil is owing between the rear

center blades. Raise the front of the DK or DT to
reduce the amount of soil running thru the imple­ment center.

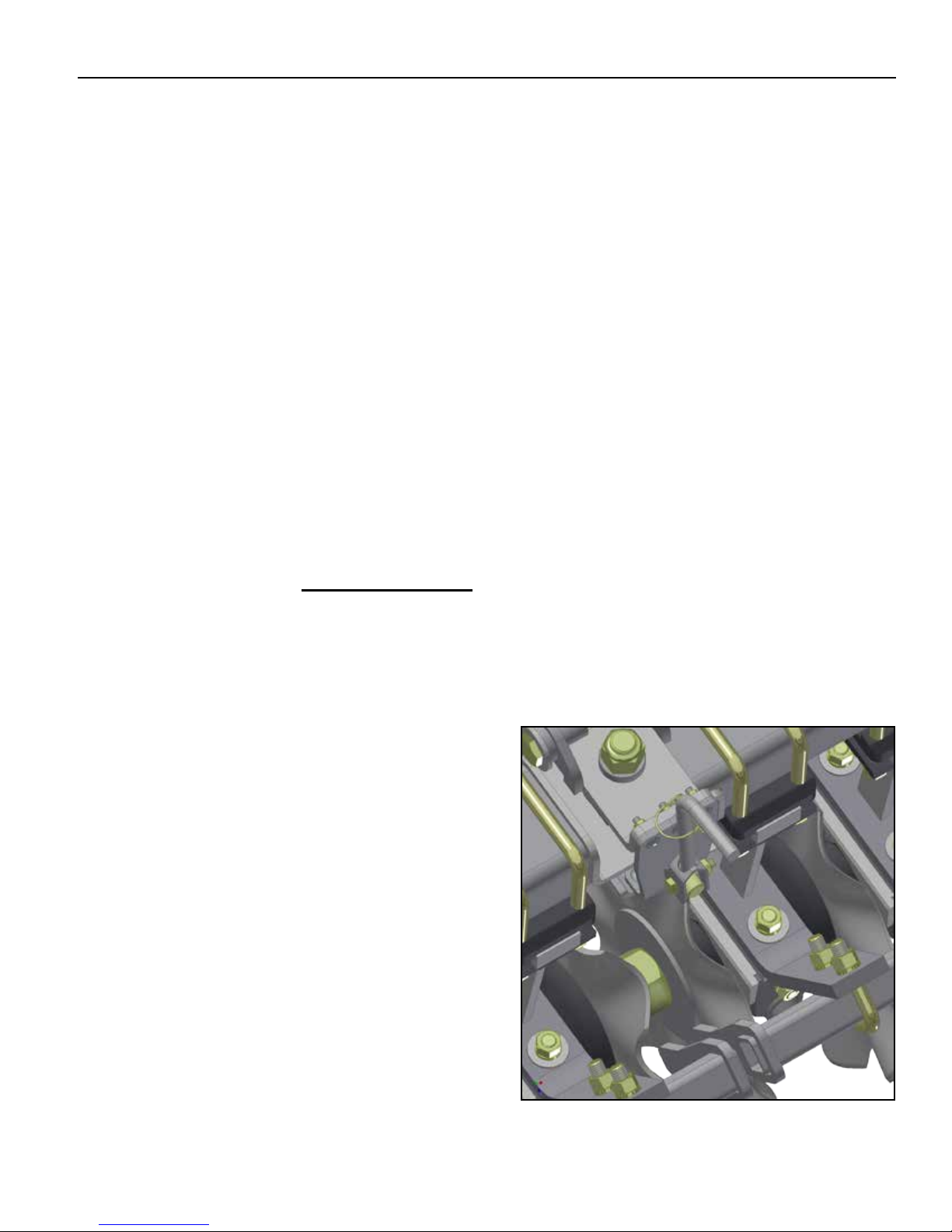

5. If equipped with Adjustable Rear Coulter Gang,
ne tuning can be accomplished by changing the

angle of the coulter gangs. Rotating the crank
handle counter-clockwise will increase the gang
angle, resulting in the coulter blades pulling more
soil away from center strip. Rotating the crank
handle clockwise will decrease (straighten) the
gang angle, resulting in less soil movement.

3-3

SECTION 3 - OPERATION & MAINTENANCE

TRANSPORTING

The Summers Diamond Disk & DT9530 are equipped with
manual wing and center lift cylinder locks. The following
procedure should be used to prepare disk for transport.

1. Check that wing locks are in the storage positions.

2. Fully extend main lift cylinders, quickly lower disk ap­proximately 1”, raise wings.

3. Install safety locks on wings and center lift cylinders.

4. USE a safety chain between tractor drawbar and disk
hitch when transporting on public roads.

5. Check wheel bolts / nuts after rst 20 miles of road
transport and every 60 miles there after.

Road the implement at a reasonable speed not to exceed
20 miles per hour.

Always use an ASAE “Slow Moving Vehicle” emblem and
Safety Lights when transporting on a road or highway.
Comply with your state and local laws governing lighting
and maximum width regulations. Transport during daylight

hours only.

Proper rust prevention treatment of equipment before placing in
storage will not only lengthen its useful life, but will assist in main­taining optimum performance when put back into service.

The following list contains suggestions for preparing your imple­ment for storage.

1. Clean entire machine. Remove all dirt and excessive grease
implement.

2. Check disk over thoroughly for damaged or worn parts,
cracked or broken blades, and loose bolts.

3. Wheel bearings should be cleaned and repacked each year.

4. Grease all zerks on implement.

STORAGE

5. Block up to remove weight from tires.

6. If implement is lowered to the ground, place boards under
blades.

7. Disconnect rods and fully retract the cylinders to prevent rust­ing of shafts and subsequent seal damage. If left extended,
coat rods with grease to prevent corrosion. Remove grease
prior to retracting cylinders.

8. For safety, do not store implement with wings folded up.

9. Clean and place a protective coating of heavy oil or grease
on earth-working parts to prevent rusting.

10. Touch-up any spots where paint has been scratched or
worn off.

3-4

SECTION 3 - OPERATION & MAINTENANCE

TROUBLESHOOTING

NO. PROBLEM CAUSE CORRECTION

1 Leaving center valley Rear gangs cutting too deep. Level disk using threaded adjustment bolts

above each cylinder/wheel assembly.
Diamond Disk - Install additional 2 8K5025N

blades at rear center.

2 Gangs plugging. Extremely wet eld conditions. Allow to dry if possible.

Scrapers adjusted improperly. Adjust scrapers so scraping edge is ush

against each blade, but not tight enough to
prevent gang from turning freely.

Under some soil and residue conditions,
scrapers will perform better if set 1 to 1-1/4”
away from blades.

Adjust machine to run rear gangs deeper.

3 Poor penetration,

center section.

4 Hydraulic cylinders

not synchronized.

5 Leaving ridge 2-4 feet

from disk center.

6 Plugging at disk front

center.

7 Wings do not pen-

etrate.

8 Gang bolts do not

stay tight.

Disk not running level from
front to rear.

Wheels are holding disk out of
the ground.

Hydraulics have drifted or air
has entered the system.

Side draft. Level disk using threaded adjustment bolts

Wet conditions or extremely
high residue conditions.

Dry/hard conditions. Adjust wing cylinders to lift wheels off

Gangs have run loose for
extended time.

Level disk using threaded adjustment bolts
above each cylinder/wheel assembly.

Retract hydraulic cylinders for desired depth.

Hold hydraulic control lever with the hydrau­lic cylinders fully extended 15 seconds to

synchronize rephasing cylinders.

above each cylinder/wheel assembly.
Recheck gang spacing.
Level disk using threaded adjustment bolts

above each cylinder/wheel assembly.

ground.
Disassemble gang, clean and replace worn

components.

APPROX.

SIZE

TRANSPORT

WIDTH

16’ 16’6” 6’6” 13,400# 14,451# 14,823# 31’6”
21’ 16’ 10’ 18,600# 19,937# 20,500# 31’6”
25’ 16’2” 10’8” 22,100# 23,526# 24,329# 31’6”

28’6” 16’2” 13’9” 23,300# 24,834# 25,636# 31’6”

APPROX.

TRANS-

PORT

HEIGHT

DIMENSIONS

BASE

MACHINE

WEIGHT

3-5

WEIGHT

W/3 BAR

M104

WEIGHT W/

ROLLING

BSKTS

APPROX.

LENGTH W/

ROLLING

BSKTS

SECTION 3 - OPERATION & MAINTENANCE

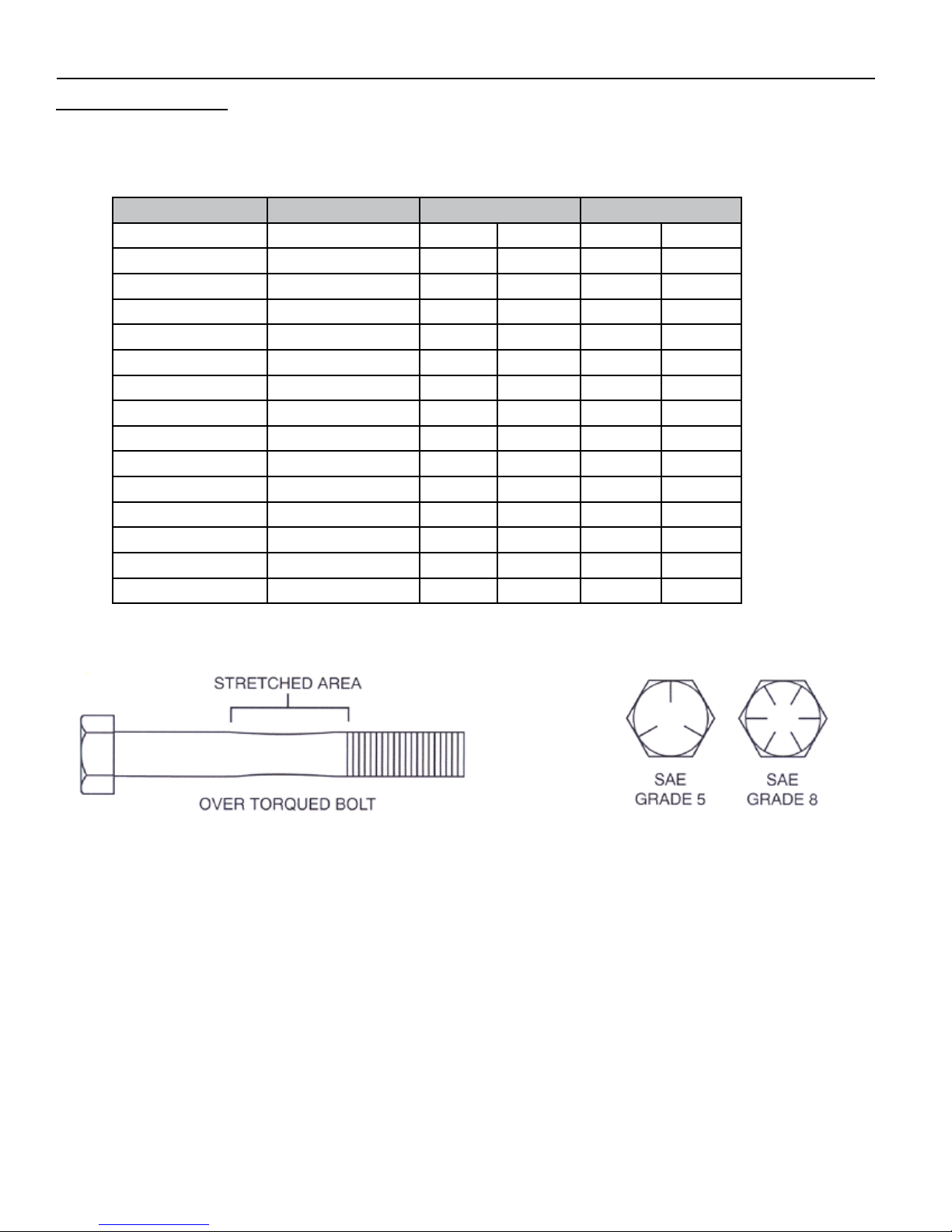

PROPER BOLT USE

DO NOT use these values if a different torque value or tightening procedure is given for a specic applica­tion. Torque values listed are for general use only. Check tightness of fasteners periodically.

BOLT SIZE WRENCH SIZE GRADE 5 GRADE 8

ft-lbs N • m ft-lbs N • m

1/4” 7/16” or 3/8” 7 9.5 12 17

5/16” 1/2” 15 20 25 34

3/8” 9/16” 30 41 45 61

7/16” 5/8” or 11/16” 45 61 70 95

1/2” 3/4” 70 95 105 142

9/16” wheel bolts 7/8” 170 231

5/8” 15/16” 170 231 210 285

5/8” wheel nuts 1-1/16” 240 325

3/4” 1-1/16”* or 1-1/8” 250 339 375 509
7/8” 1-5/16” 350 475 600 814

1” 1-1/2” 450 610 880 1193
1-1/4” 1-7/8” 500 678
1-1/2” 2-1/4” 570 773

2” 3-1/8” 1200 1627

*Nylon Lock Nut 3/8/12 TILLAGE

3-6

16' & 21' DEPTH CONTROL HYDRAULICS

3/4-16ORB X #6JIC(M) 90° ADP

SECTION 4 - PARTS

BRING OWNER REGISTER INFORMATION LOCATED AT THE BEGINNING OF
THIS MANUAL WHEN ORDERING PARTS (SERIAL NUMBER IS LOCATED AT
FRONT OF DISK BY HITCH PIECE).

8T1060

TO TRACTOR

TO 8T1055

8N63 54

3/4 X 354"

TOP VIEW

8T1010

8T1008

POPPET

8N3252

REPAIR KIT

PLASTIC PLUNGER

3/8 X 252"

8T1045

8J5520

8T1060

3/4" ORB X #10 STR

8J6020

8N4120

1/2 X 120"

8T1055

8J6010

8N3060

3/8 X 60"

3/4-16ORB X #6JIC(M) 90° ADP

NRRW CNTR DISK HYD-21'

12/18/2013

8J5510

3/4" ORB X #6 JIC(M)

3/4"-16ORB X 10 JIC(M) 90° ADP

8J6010

4-1

8T1050

8J5520

8N3180

3/8 X 180"

3/4" ORB X #10 STR

8D32 12

3/4" ORB TIP ISO

8T1045

25' & 28 1/2' DEPTH CONTROL HYDRAULICS

SECTION 4 - PARTS

+

+

+

+

8J5520

3/4" ORB X #10 STR

8T1060

8N6354 3/4 X 354"

8J5110 UNION

8J5110 UNION

8N6060 3/4 X 60"

8T1060

TO TRACTOR

TO 8T1055

8N6060 3/4 X 60"

TOP VIEW

8N4160

1/2 X 160"

8T1055

8J6020

3/4"-16ORB X 10 JIC(M) 90° ADP

8J6010

8J6010

3/4-16ORB X #6JIC(M) 90° ADP

8N3124

3/8 X 124"

8T1050

8J6010

3/4-16ORB X #6JIC(M) 90° ADP

8T1037

8N3060

3/8 X 60"

8T1010

8T1008

POPPET

8N3252

3/8 X 252"

REPAIR KIT

PLASTIC PLUNGER

NRRW CNTR DISK HYD

8/27/2013

8J5510

3/4" ORB X #6 JIC(M)

8N3150

3/8 X 150"

3/4-16ORB X #6JIC(M) 90° ADP

8D3212

3/4" ORB TIP ISO

8N3228

8T1040B

3/8 X 228"

8J5520

3/4" ORB X #10 STR

4-2

DETAIL A

DETAIL B

DETAIL C

FRAME PARTS3/12/2 015

8K352 4.iam/

A

B

C

8K3002

8D8522

8X0146

1 X 8-1/2"

8D2470

8X0309

1" LW

8X0280

1" N

8K1640

8X0234

7/16" LNUT

8X0044

7/16" X 3-1/2"

8X0266
3/4" FN

8D9110

8K1615

8K1440

8K5515

3/4 X 4 X 6"

8X0285
1 1/2" N

8X0286

1 1/2" JN

8K1435

8K1755

8D9108

1/4 X 2" RP

8K9106

8X0260

3/4" N

8X0306
3/4" LW

8X0111

3/4" X 2-1/2"

8K1425

8K1415

8K1417

8K1422

8K1420

8X0282

8X0316

1" FW

8T3300

8K1445

8L0252

8K1445

8K1660

8X0044

7/16" X 3-1/2"

8X0234

7/16" LNUT

8X0139

1 X 3"

8X0280

1" N

8X0309

1" LW

8X0234

7/16" LNUT

8T3620

8X0044

7/16" X 3-1/2"

8X0234

7/16" LNUT

8T3620

8X0044

7/16" X 3-1/2"

8CC6020

8K1451

(LEF T)

8K1449 (RIGHT)

8X0280

1" N

8X0309

1" LW

8K1470

8K1452

8X0140

1 X 7"

8X0121

3/4" X 6-1/2"

8CC60 18

8X0306

3/4" LW

8X0260

3/4" N

8K1410

8K1500

8K1485

8D9108

1/4 X 2" RP

8K9106

8T4350

8X0402

8X0440

8D8490

8K8067

8D8500

8D0350

3/4"X4-1/16"X10"

8K1430

8X0318
3/4" FW

8X0110

3/4 X 1-1/4"

8X0270
7/8" LN

8X0307
7/8" LW

8X0133
7/8 X 3"

8K1421 (21')
(25' & 28 1/2') SHOWN

8K1423 (21')
(25' & 28 1/2') SHOWN

SECTION 4 - PARTS

4-3

DETAIL A

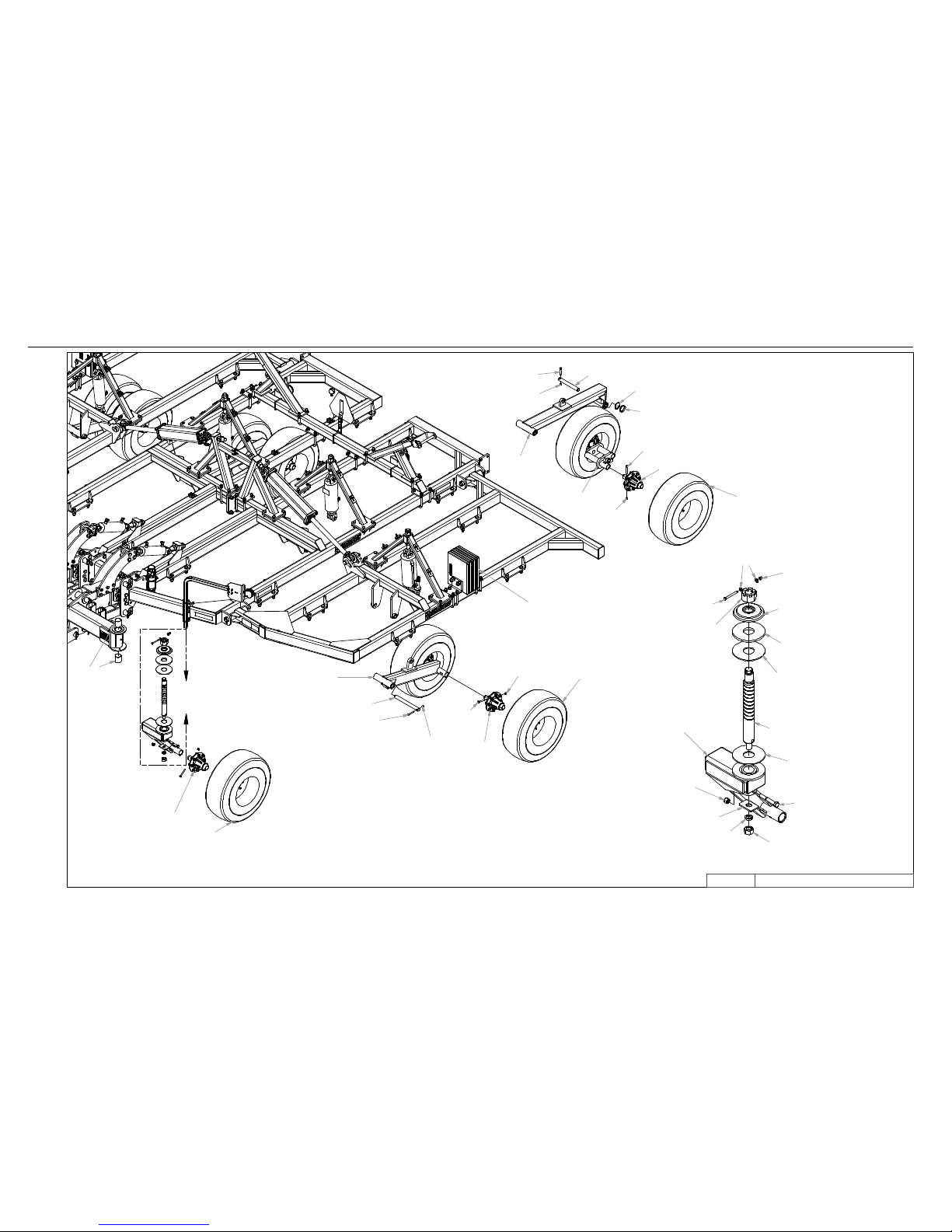

TRANSPORT PARTS3/12/2 015

8K352 4.iam/

A

8K7042

8X0242

NY-LOCK 1/2" N

8K1105S

8X0072

1/2" X 3-3/4"

8T4132

8K1900

8K1920

8K1152

8X0234

7/16" LNUT

8X0044

7/16" X 3-1/2"

8T3620

8K1105S

8K7042

8K7042

8K1105S

8X0242

NY-LOCK 1/2" N

8K1134N

8K1660

8X0044

7/16" X 3-1/2"

8X0234

7/16" LNUT

8X0072

1/2" X 3-3/4"

8X0284

1 1/4" N

8X0311

1 1/4" LW

8X0261

3/4" LN

8CC60 35

8X0113

3/4" X 5"

8L0320

7P8530

8L0320

7L2150

8K5200

8X0292

2" SLTD N

8X0015

3/8" X 3 3/4"

8X0320

3/8" FW

8X0202
3/8" LN

8K1475

(LEF T)

8K1477 (RIGHT)

NOTE :
8X0366 WASHER
USED UNDER 8X0292
NUT AS REQUIRED

8L0246

8K9230

SECTION 4 - PARTS

4-4

21' WING FOLD HYDRAULICS

3/4" X #6 JIC (F-SW)

#10(F)X#6(M) BUSH

7/8"X#10(M) 90° ADP

#6(M) X #6(F) 1/16" RSTR

SECTION 4 - PARTS

8J6030

7/8"X#10(M) 90° ADP

8J5510

3/4" ORB X #6 JIC(M)

8D3212

3/4" ORB TIP ISO

8J5700

8N3312

8J7216

3/8 X 312"

#6(M) X #6(F) 1/16" RSTR

8J5200

NRRW CNTR DISK HYD-21'

#10(F)X#6(M) BUSH

NOTE:

INSTALL CYLINDERS WITH PORTS FACING DOWN.

12/18/2013

8N3028

3/8" X 28"

8J5300

8N3048

3/8" X 48"

8J5700

#6 JIC(M) TEE

#6 JIC(F-SW) X #6 JIC(M) 90° ADP

8J5300

#6 JIC(F-SW) X #6 JIC(M) 90° ADP

#6 JIC(M) TEE

8J5510

8J5620

3/4" ORB X #6 JIC(M)

4-5

8J6030

7/8"X#10(M) 90° ADP

8A1954

8J7040

THERMAL RELIEF

8J5200

8J6030

1/4"OD TUBE - 18"

8J7216

8J5200

#10(F)X#6(M) BUSH

8D9525

8D9524

5.0" X 24"

SEAL KIT 5X24"

25' & 28 1/2' WING FOLD HYDRAULICS

3/4" X #6 JIC (F-SW)

#10(F)X#6(M) BUSH

7/8"X#10(M) 90° ADP

#6(M) X #6(F) 1/16" RSTR

SECTION 4 - PARTS

8J6030

7/8"X#10(M) 90° ADP

8J5510

3/4" ORB X #6 JIC(M)

8D3212

3/4" ORB TIP ISO

8J5700

8N3312

8J7216

3/8 X 312"

#6(M) X #6(F) 1/16" RSTR

8J5200

NRRW CNTR DISK HYD

#10(F)X#6(M) BUSH

NOTE:

INSTALL CYLINDERS WITH PORTS FACING DOWN.

8/27/2013

8N3028

3/8" X 28"

8J5300

8N3048

3/8" X 48"

8J5700

#6 JIC(M) TEE

#6 JIC(F-SW) X #6 JIC(M) 90° ADP

8J5300

#6 JIC(F-SW) X #6 JIC(M) 90° ADP

#6 JIC(M) TEE

8J5510

8J5620

3/4" ORB X #6 JIC(M)

4-6

8J6030

7/8"X#10(M) 90° ADP

8A1954

8J7040

THERMAL RELIEF

8J5200

8J6030

1/4"OD TUBE - 18"

8J7216

8J5200

#10(F)X#6(M) BUSH

8D9525

8D9524

5.0" X 24"

SEAL KIT 5X24"

REAR COULTER HYDRAULICS

(PORT B TO CYL ROD)

SECTION 4 - PARTS

8J5710

NOTE:

BLOCK IS CONFIGURED FOR

USE ON TRACTORS WITH

CLOSED-CENTER HYDRAULIC

SYSTEMS. FOR USE ON

OPEN-CENTER HYDRAULIC

SYSTEMS, HEX PLUG MUST

BE MOVED FROM CP1 TO

CP2 , AND HOLLO W HEX

PLUG MOVED FROM CP2

TO CP1.

#10 JIC(F-SW)X#10 JIC(M)90*ADP

8J7040

THERMAL RELIEF

8J5200

#10(F)X#6(M) BUSH

8J5620

3/4" X #6 JIC (F-SW)

8A1954

8J5510

8N7000

3/4" ORB X #6 JIC(M)

ADJ PRESS MNFLD

8J5550

1-1/16" - 12ORBX#10JIC(M)STR

8J6030

7/8"X#10(M) 90° ADP

8J5200

8J6030

NRRW CNTR DISK HYD

#10(F)X#6(M) BUSH

8/27/2013

7/8"X#10(M) 90° ADP

8D3212

3/4" ORB TIP ISO

8J5510

3/4" ORB X #6 JIC(M)

8N3390

3/8 X 390"

8N3035

3/8 X 35"

8N3390

3/8 X 390"

(TO PORT P1)

(TO PORT P2)

8N3048

3/8 X 48"

(PORT A TO CYL BASE)

8J6000

9/16ORB X #6JIC(M) 90°

8K6313

4-7

SECTION 4 - PARTS

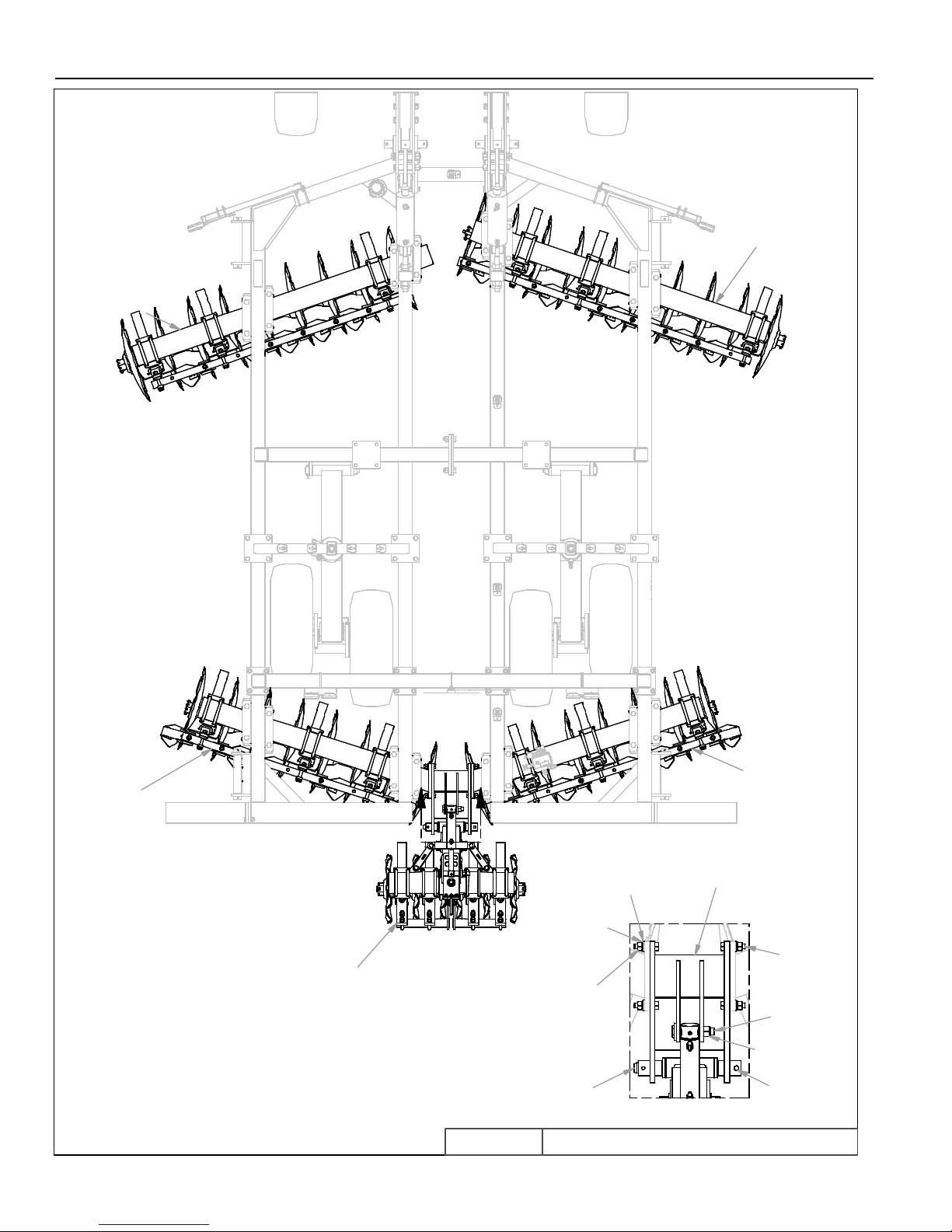

16' NARROW
DISK/DT
GANG
LAYOUT
(8K3316)

8K0950

(8K3111)

***

DT GANG

(GANG MOUNT TUBE PN)

8K0160

(8K3113)

8K0860

(8K3115)

*8K6860 HARDWARE PACKAGE

8K6800

A

4-8

8X0306

8X0260

8K1660

8X0317

16' N-DISK.iam/

8K1075

GANG LAYOUT9/3/2014

8K0862

(8K3117)

8X0114

8X0138

8X0281

8X0044

21' NARROW DISK/DT

GANG LAYOUT

*8K6860 HARDWARE PACKAGE

SECTION 4 - PARTS

8K0702

8K0752

***

DIAMOND GANG

DT GANG (8K3321)

(GANG MOUNT TUBE PN)

8K0603

8K0653

(8K3135)

(8K3137)

8K0502

8K0552

(8K3147)

8K0602

GANG LAYOUT9/3/2014

21' N-DISK.iam/

8K0652

(8K3145)

8K1075

8K0500

8K0550

(8K3132)

8K0701

8K0751

(8K3130)

4-9

8K0501

8K0654

8K0604

(8K3142)

8K0551

(8K3140)

25' NARROW DISK/DT

GANG LAYOUT

*8K6860 HARDWARE PACKAGE

SECTION 4 - PARTS

***

DIAMOND GANG

DT GANG (8K3325)

(GANG MOUNT TUBE PN)

8K0800

8K0850

(8K3112)

8K0804

8K0854

(8K3122)

8K0601

8K0651

(8K3127)

8K0812

8K0862

GANG LAYOUT9/3/2014

25' N-DISK.iam/

(8K3117)

8K1075

8K0750

8K0700

(8K3110)

8K0803

8K0853

8K0860

8K0810

(8K3115)

(8K3120)

4-10

8K0600

8K0650

(8K3125)

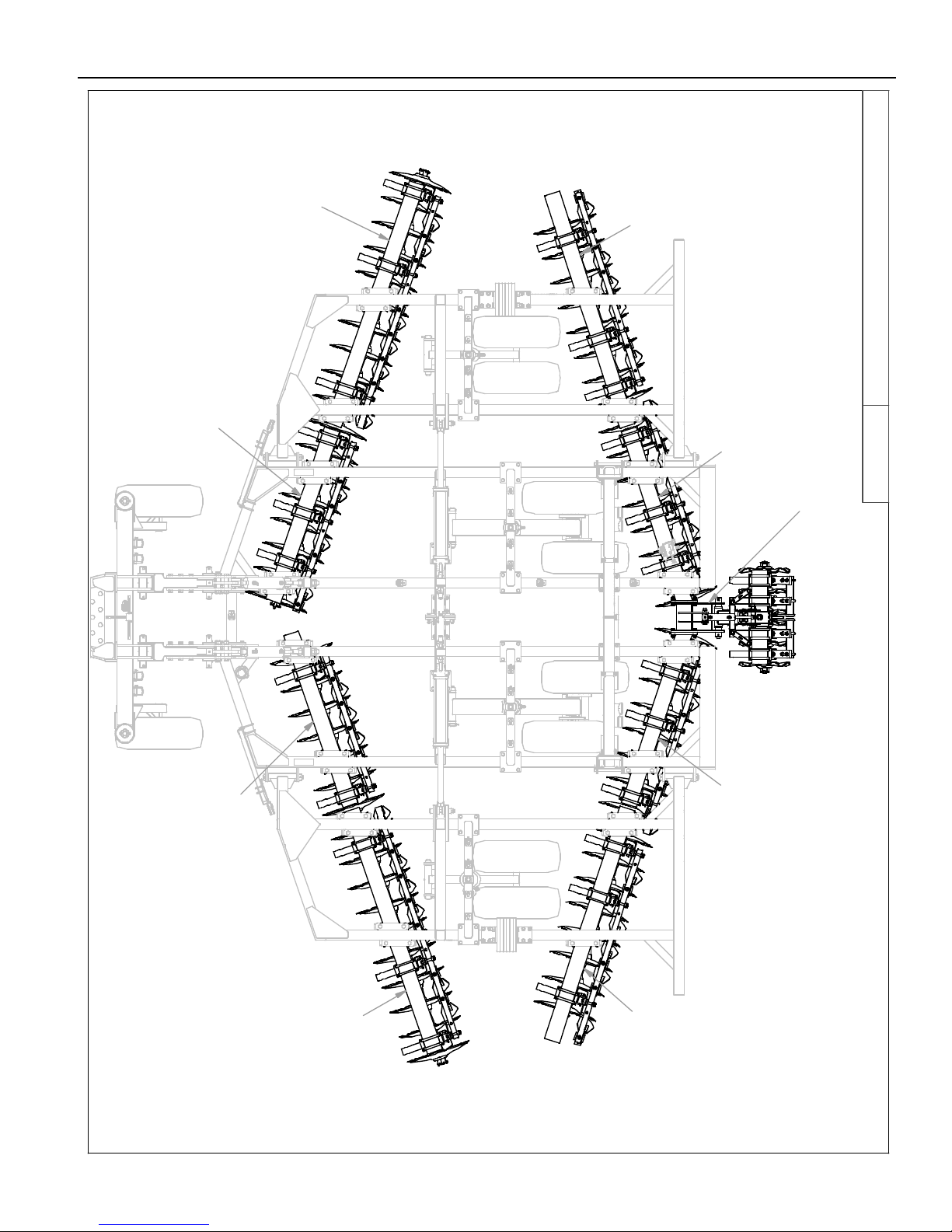

28.5' NARROW DISK/DT

GANG LAYOUT

*8K6860 HARDWARE PACKAGE

SECTION 4 - PARTS

8K0102

8K0152

(8K3102)

***

DIAMOND GANG

DT GANG (8K3328)

8K0815

8K0865

(8K3107)

GANG LAYOUT10/7/2014

8K0800

(GANG MOUNT TUBE PN)

8K0850

(8K3112)

8K0700

28.5' N-DISK.iam/

8K0812

8K0862

(8K3117)

8K1075

8K0810

8K0860

(8K3115)

8K0750

(8K3110)

8K0100

8K0150

(8K3100)

4-11

8K0802

8K0852

(8K3105)

SECTION 4 - PARTS

8X0138

1 X 5-1/2"

8X0285A

1-1/2" NYLOC K

8X0352

8K1775

8X0288

8X0260

3/4" N

8X0306
3/4" LW

8X0317

3/4" FW

8X0114
3/4 x 3"

8K1075

8K6313

8X0146

1 X 8-1/2"

8X0281

8K1760

8K1570

8K1585

8X0405

NY-LOCK 1"

8X0044

7/16" X 3-1/2"

A

8X0234

8X0281

NY-LOCK 1"

8X0067

1/2-13NCX2-1/4"

8K1770

7K3218

8X0242

NY-LOCK 1/2" N

1. INSTALL 8K1075 SPLICE TUBE WITH HARDWARE AS SHOWN, AND TIGHTEN.

2. INSTALL 8K1560 GANG HOUSING WITH 8K1660 PIN. RETAIN WITH 8X004 4
BOLT AND 8X0234 NUT.

3. INSTALL 8K6313 CYLINDER AS SHOWN WITH 8X0138 BOLT AT BASE END OF
CYLINDER, AND 8X0146 BOLT AT ROD END. INSTALL 8X0281 NUTS AND TIGHTEN.
DO NOT OVERTIGHTEN. CYLINDER MUST BE FREE TO ROTATE.

4. ATTACH 8K1575 GANG MOUN T TUBE IN LEFT LOCATION USING 8K1760 BOLT AND 8X0288
NUT. DO NOT OVERTIGHTEN, AS THE GANG T UBE MUST BE FR EE TO ROTATE, BUT STILL SNUG.

5. ATTACH SECOND 8K1575 GANG MOUNT TUBE , IN THE SAME MANNER, IN RIGHT LOCATION TO
8K1570 AS SHOWN.

6. ATTACH 8K1570 TO 8K1560 AS SHOWN.

7. ATTACH HOUSIN G TO 8K1 075 SPLICE TUBE WITH 8K1660 PIN AS SHOWN. NEXT CONNECT RO D END OF 8K6313 CYLINDER TO HOUSING AS
SHOWN.

8. INSERT 8K1775 SLIDE SHAFT INTO HOUSING AND RETAIN WITH 8X0352 WASHERS AND 8X0285A NYLOCK NUTS (FROM EACH SIDE). **DO NOT
TIGHTEN NUTS.

9. THREAD 8K1770 ADJUSTMENT SCREW INTO 8K1775 SLIDE SHAFT UNTIL THERE IS APPROXIMATELY 16" FROM THE REAR END OF ADJUSTMENT
SCREW TO THE SLIDE SHAFT.

10. ATTACH 8K1580 REAR CAP WITH 8X1115 CARRIAGE BOLTS AND 8X0203 FLANGE NUTS, PASSING 8K1770 ADJU STMENT SCREW THROUGH
HOLE IN CAP AS SHOWN.

11. TIGHTEN NUTS ON BOTH ENDS OF SLIDE SHAFT, TAKING CARE TO ENSURE THE SLIDE SHAFT IS CENTERED IN THE HOUSI NG.

12. INST ALL 8K1 555 LINK BARS TO SLIDE SHAFT AND GANG MOUNT TUB ES. INSTALL 8K1582 AN GLE GAUGE OVER THE TOP OF HOUSING AS
SHOWN AN D SECU RE USING 8X0114 BOLTS AND 8X0261 NYLOCK NUTS.

13. ATTACH 8K1585 CRAN K HANDLE TO ADJUSTMENT SCRE W WITH 8X00 67 B OLT AND 8X02 42 NUT. 8X0405 PIN IS PROVIDED TO RETAIN THE
HANDLE AND PREVENT UNWANTE D MOVEMENT OF THE ADJUSTMENT SCREW.

14. ROTATE HAND LE TO ENSURE T HE GANG MOUNT TUBES PIVOT
FREELY, AND WITHOUT EXCESSIVE INPUT FORCE ON THE HANDLE.

7/16" LNUT

8K1575

8K1660

8K1582

9K2827.iam/

8Z0475

8X0281

NY-LOCK 1"

SPLICE&GANGTUBE INSTALL7/25/2018

8X0114
3/4 x 3"

8X0261

3/4" LN

8X0044

7/16" X 3-1/2"

8X0234

7/16" LNUT

8K1555

4-12

SECTION 4 - PARTS

8K4400

8X0306

8X0306
3/4" LW

3/4" LW

8X0325

3/4" FW

8X0260

3/4" N

8X0260

3/4" N

8J0200

8K4199

8K5520

3/4 X 6-1/8 X 7-1/2"

8K5505

3/4 X 2-1/8 X 4-1/4"

1. INSTALL 8J2230WR AND 8J2230WL GANGS AS SHOWN.
LEAVE 8K5520 U-BOLTS LOOSE TO ALLOW CENTERING
OF THE GANG. ONCE GANG HAS BEEN CENTERED ON
MACHINE, TIGHTEN U-BOLTS.

2. INSTALL 8K1565 SCRAPER MOUNT TUBES, AS SHOWN. CENTER
TUBES ON GANG.

8K1565

8K2102

8K2114

8K4008

8J1020N

8X0260

3/4" N

8K4209

8X0306
3/4" LW

8K5200

8X0320
3/8" FW

8X0015

3/8" X 3 3/4"

8X0320

3/8" FW

8X0292

2" SLTD N

8X0202

3/8" LN

4-13

9K2827.iam/

CLTR GANG INSTALL7/25/2018

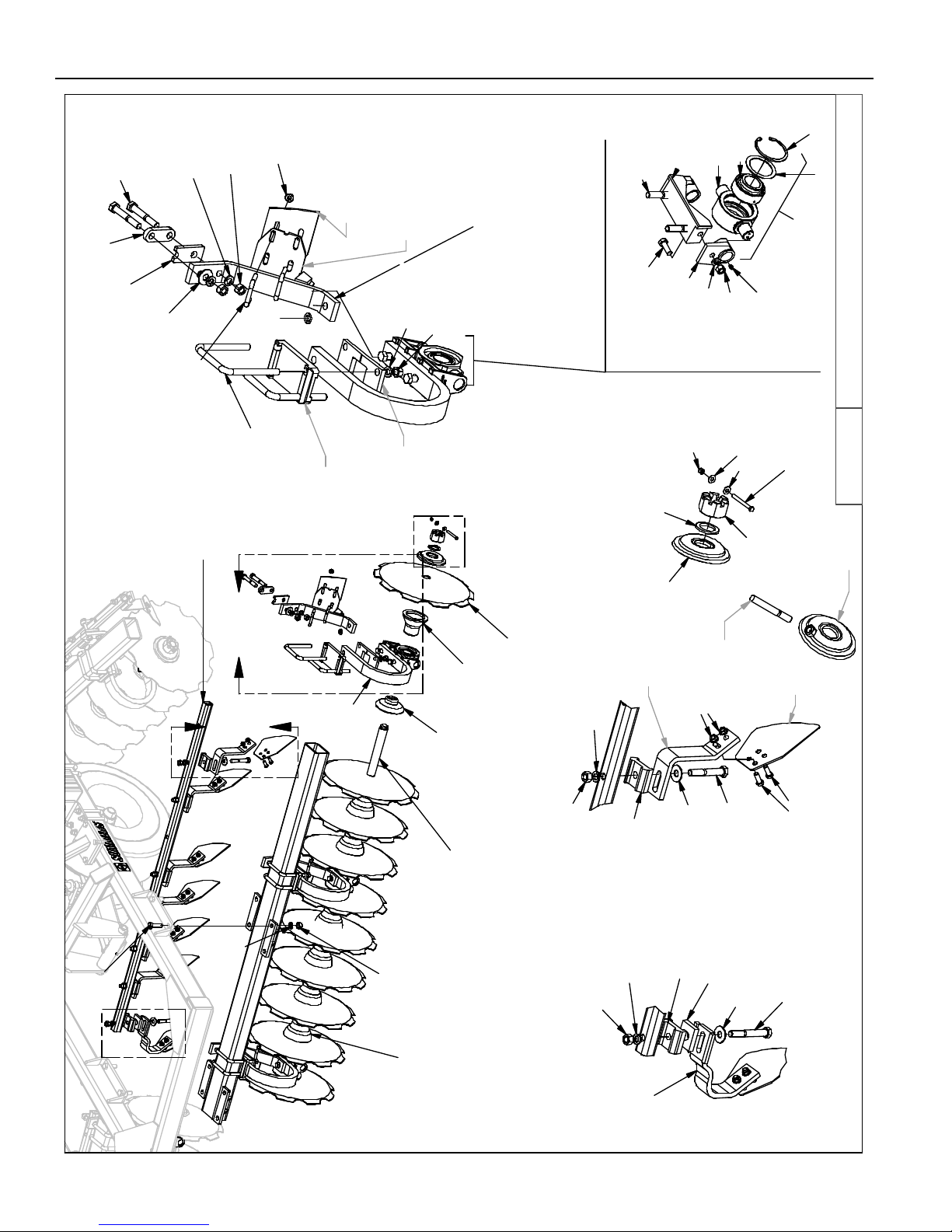

8K4449

SECTION 4 - PARTS

1/2" FN

8X0246

3/4" N

8X0113

8K4440

3/4" X 5"

8X0306

3/4" LW

8X0260

8K4405 2510 DT

8K4415 DIAMOND

8K4407 2510 DT

8K4417 DIAMOND

8K4450

8X0115

3/4 X 3-1/2"

8K2080

8K2000

8K4130

8K2020

8X0370

8K2050

GANG PARTS8/30/2018

5/8 X 1 3/4"

2" FW

8K4430

(AS REQUIRED)

8K5200

8K2090

8X0202

8X0246

8X0304

3/8" LN

1/2" FN

5/8" LW

8K5214

8X0250

8X0721

5/8" N

5/16" ZERK

28.5' N-DISK.iam/

8X0320

3/8" FW

8X0015

3/8" X 3 3/4"

DETA IL D

8K5210

8X0292

2" SLTD N

8K4410

DE TAIL B

8K4420

8X0318

3/4" FW

8C1718

1/2 X 2-5/8 X 2-5/8"

8K5520

8K4610 - 38"

8K4620 - 48"

8K4630 - 58"

8K4635 - 62.5"

8K4640 - 68"

8K4650 - 78"

- 88"

8K4670 - 98"

8K4680 - 108"

8K4660

8K4200

3/4 X 6-1/8 X 7-1/2"

8X0306

8K4210

3/4" LW

8X0260

3/4" N

DE TAIL C

D

8X0091

8K2102

8X0366

C

8K5024N 24" (NOTCHED LOW-CONCAVITY)

25" (NOTCHED LOW-CONCAVITY)

8K5026 26" (FULL-CONCAVITY)

8K5026N 26" (NOTCHED FULL-CONCAVITY)

8K5025N

8X0306

3/4" LW

B

8K4400

8K4020

8K4010

8X0307

7/8" LW

8X0133

7/8 X 3"

A

8X0270

7/8" LN

8K2120 - 47"

8K4000

8K2170 - 57"

8K2140 - 67"

4-14

8K2150 - 77"

8K2160 - 87"

- 97"

8K2170

8K2190 - 117"

8X0260

3/4" FW

8X0063

8X0123

DE TAIL A

1/2 X 1-1/2"

3/4" X 5.5"

3/4" N

8K4300

8K4299

8X0260

8X0306

3/4" LW

3/4" N

8X0318

3/4" FW

8K4423

8X0113

3/4" X 5"

8X0318

SECTION 4 - PARTS

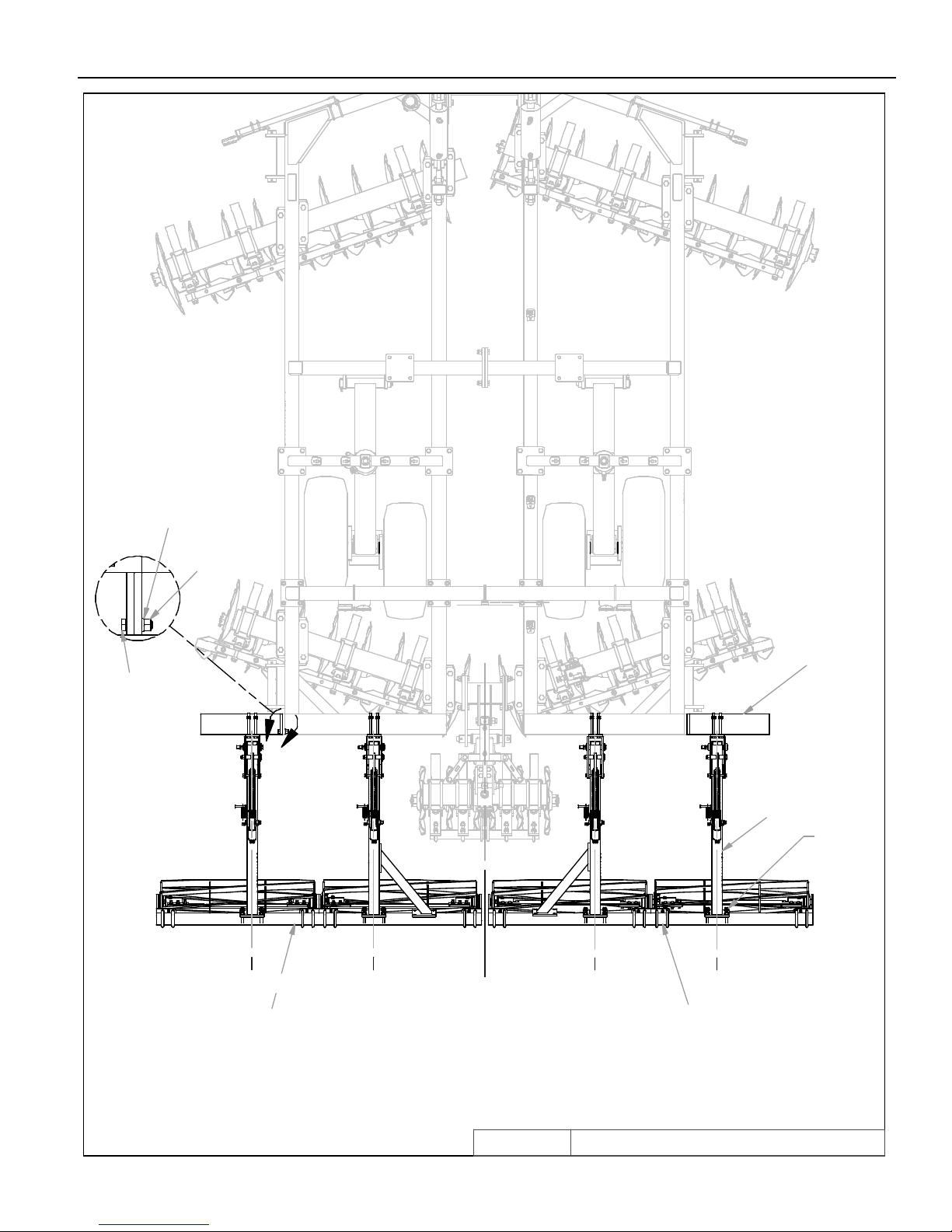

8K9716

8X0306
3/4" LW

8X0111

3/4" X 2-1/2"

8X0260

3/4" N

A

32"67 1/4" 32" 67 1/4"

0"

8K9700

8H2314

(52")

8X0258

5/8" NUT

8H2718

NOTE:
USE 8X0101 5/8 X 8" BOLTS IN PLACE OF 8X0099
5/8 X 6.75" BOLTS TO ATTACH 8H2314 MOUNTING
ARMS.

4-15

8H2718

16' N-DISK.iam/

BASKET LAYOUT3/12/2015

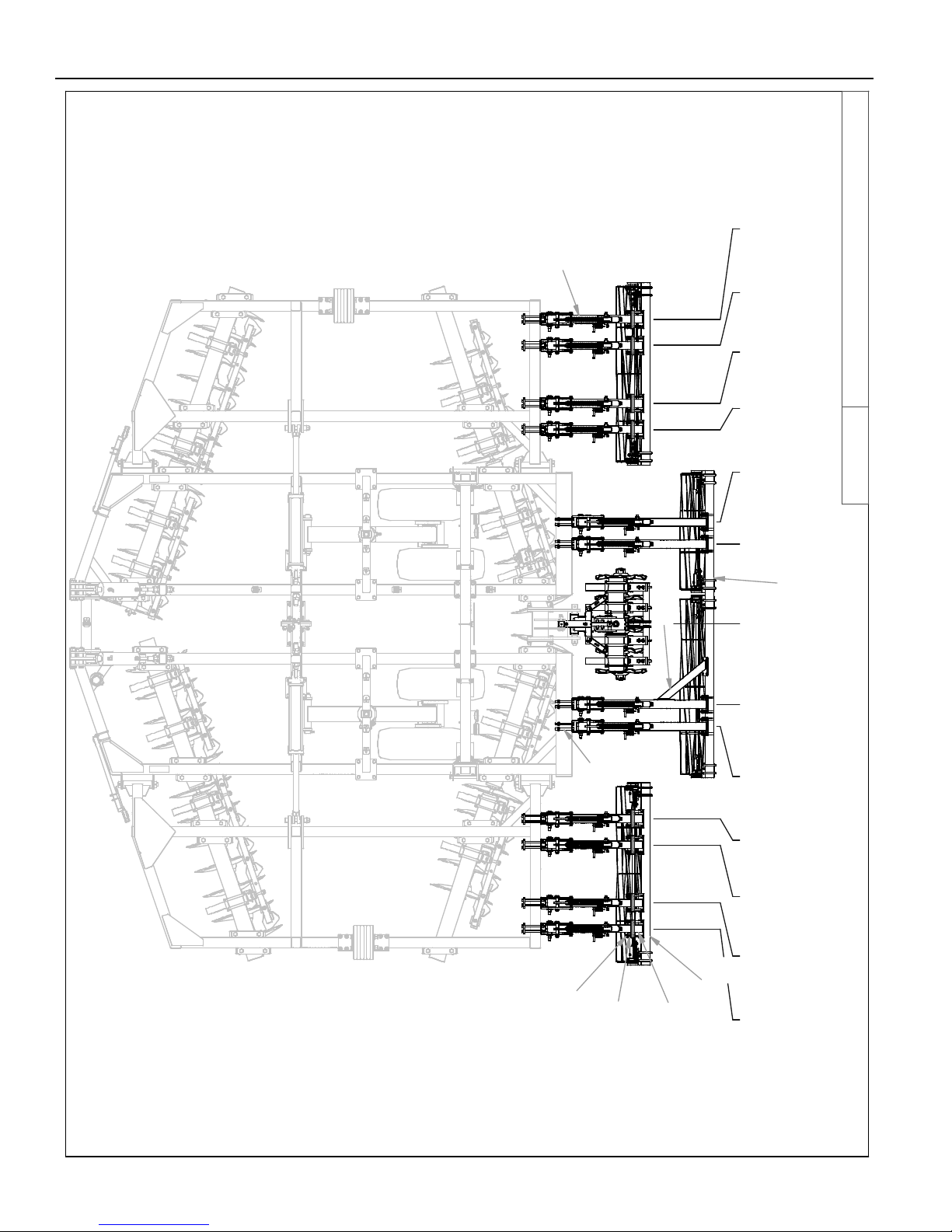

NOTE:

USE 8X0101 5/8 X 8" BOLTS IN PLACE OF 8X0099 5/8 X

TO ATTACH 8H2314 MOUNTING ARMS (4) ON CENTER SECTIO

8K9722

5/8" FLNG NUT

SECTION 4 - PARTS

8H2300

8C9010

BASKET LAYOUT3/18/2015

107" 117"

21' N-DISK.iam/

30 3/4" 39 1/4" 74 3/4" 84 3/4"

8H2719

0"

8X0091

30 3/4"39 1/4"74 3/4"84 3/4"

8X0101

107"117"

8H2716

5/8 X 1 3/4"

8X0256

8H2317

N.

6.75" BOLTS

4-16

DE TAIL B

SCAL E 1 / 20

NOTE:

USE 8X0101 5/8 X 8" BOLTS IN PLACE OF 8X0099 5/8 X

TO ATTACH 8H2314 MOUNTING ARMS (4) ON CENTER SECTIO

8K9726

5/8" FLNG NUT

5/8 X 1 3/4"

SECTION 4 - PARTS

8X0256

8S0358

5/8" FLNG NUT

DE TAIL C

5/8 x 3-1/16 x 4-1/2"

SCALE 1 / 20

C

8H2718

BASKET LAYOUT3/19/2015

25' N-DISK.iam/

8H2314

8H2719

0"30 3/4"39 1/4"74 3/4"84 3/4"127 3/4"137 3/4" 30 3/4" 39 1/4" 74 3/4" 84 3/4" 127 3/4" 137 3/4"

8X0256

8X0091

8C9010

N.

6.75" BOLTS

8X0101

8H2300

8H2317

B

8H2718

4-17

DETAI L B

SCALE 1 / 20

8H2719

8K9730

8X0256

5/8" FLNG NUT

SECTION 4 - PARTS

8H2300

8H2719

BASKET LAYOUT3/19/2015

28.5' N-DISK.iam/

8H2314

B

8C9010

NOTE:

USE 8X0101 5/8 X 8" BOLTS IN PLACE OF 8X0099 5/8 X 6.75" BOLTS

TO ATTACH 8H2314 MOUNTING ARMS (2) ON CENTER SECTION.

0"34 1/2"50"74 3/4"84 3/4"128 1/2"138 1/2" 34 1/2" 50" 74 3/4" 84 3/4" 128 1/2" 138 1/2"

8H2719

8X0256

5/8" FLNG NUT

A

DETAIL A

8H2317

8S0358

5/8 x 3-1/16 x 4-1/2"

8X0091

5/8 X 1 3/4"

4-18

SECTION 4 - PARTS

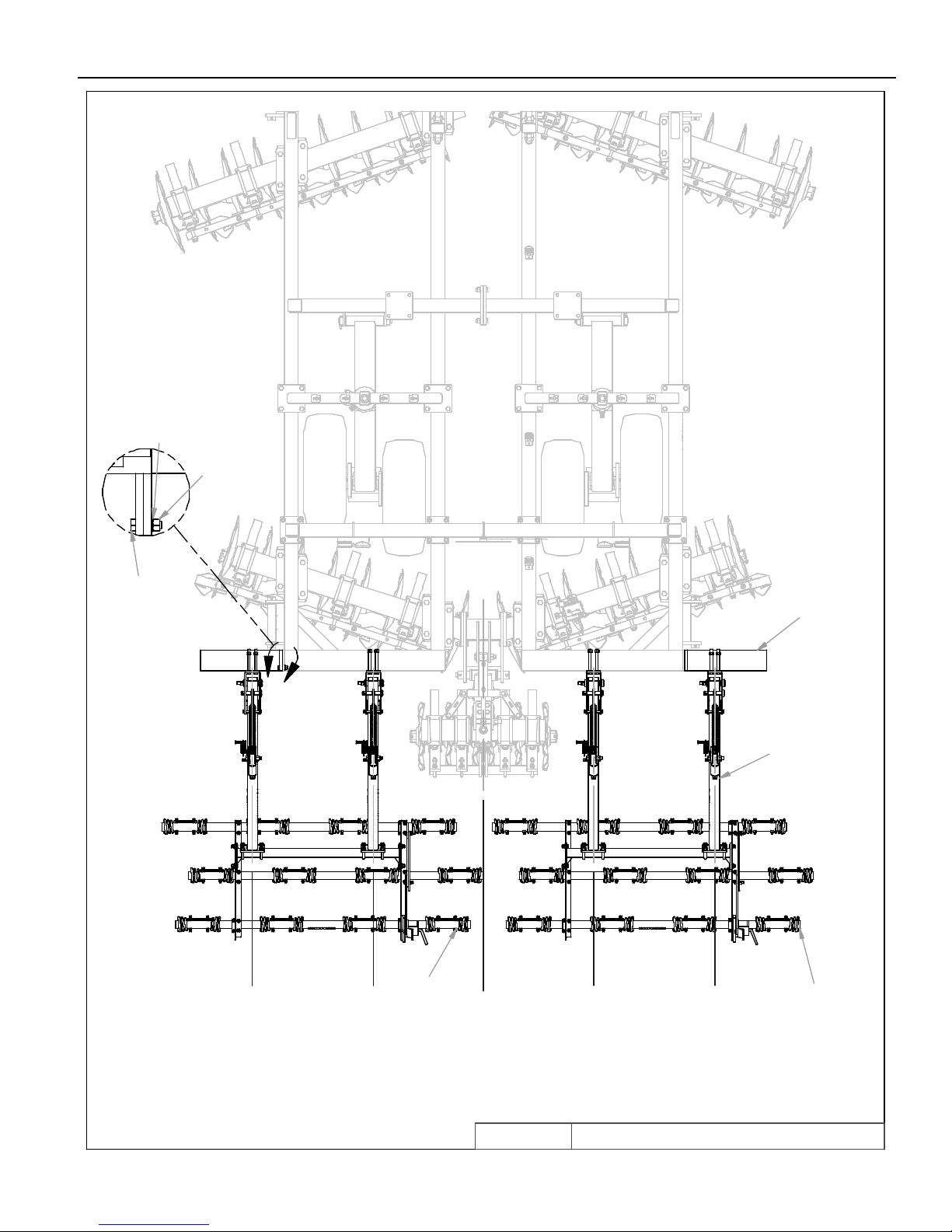

8K9718

8X0306
3/4" LW

8X0260

3/4" N

8X0111

3/4" X 2-1/2"

67 3/16"

A

32"

8HD5381

0"

32"

67 3/16"

8K9700

8H2314

(52")

8HD5381

NOTE:
USE 8X0101 5/8 X 8" BOLTS IN PLACE OF 8X0099
5/8 X 6.75" BOLTS TO ATTACH 8H2314 MOUNTING
ARMS.

4-19

16' N-DISK.iam/

HARROW LAYOUT9/3/2014

NOTE:

USE 8X0101 5/8 X 8" BOLTS IN PLACE OF 8X0099 5/8 X

TO ATTACH 8H2314 MOUNTING ARMS (2) ON CENTER SECTIO

8K9724

SECTION 4 - PARTS

8HD5361

(52")

8H2314

8X0101

HARROW LAYOUT9/3/2014

21' N-DISK.iam/

8HD5401

0"

30 3/4"89 1/4"102 3/4" 30 3/4" 89 1/4" 102 3/4"

N.

6.75" BOLTS

8HD5361

4-20

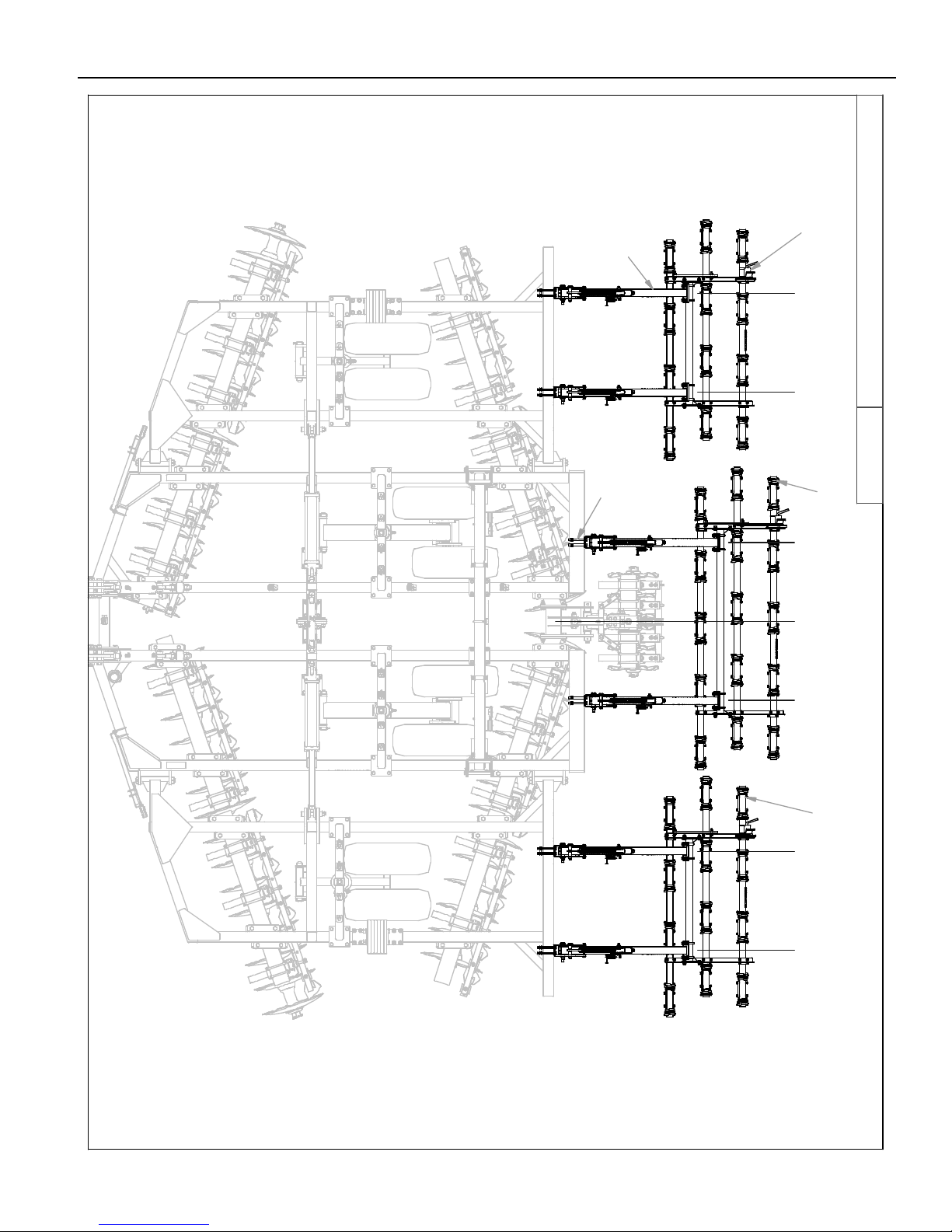

NOTE:

USE 8X0101 5/8 X 8" BOLTS IN PLACE OF 8X0099 5/8 X

TO ATTACH 8H2314 MOUNTING ARMS (2) ON CENTER SECTIO

8K9728

SECTION 4 - PARTS

(52")

8H2314

8HD5381

HARROW LAYOUT9/3/2014

25' N-DISK.iam/

8X0101

0"

30 3/4"89"127 1/2" 30 3/4" 89 " 127 1/2"

8HD5401

N.

6.75" BOLTS

8HD5381

4-21

8HD5097

NOTE:

USE 8X0101 5/8 X 8" BOLTS IN PLACE OF 8X0099 5/8 X

TO ATTACH 8H2314 MOUNTING ARMS (2) ON CENTER SECTIO

8K9732

SECTION 4 - PARTS

8HD5097

(52")

8H2314

8X0101

8HD5401

HARROW LAYOUT10/23/2014

28.5' N-DISK.iam/

8HD5180

8HD5381

0"

8HD5180

33"84 3/4"127 1/4" 33" 84 3/4" 127 1/4"

8HD5401

N.

6.75" BOLTS

4-22

CAUTION: EACH SUITCASE

WEIGHT (8K9230) WEIGHS

70#, USE EXTREME CARE

WHEN HANDLING THEM.

DBL PKG. OPT.

SECTION 4 - PARTS

88K5515

48K9220

48X0145

48X0280

QTYPN

128K9230

48X0309

168X0266

8K9230

8X0309

8X0280

8X0266

WEIGHT PKG.6/22/2010

8K9220

8K9250.iam/

8K5515

8X0145

8X0149

1" X 18"

1" X 10.5"

4-23

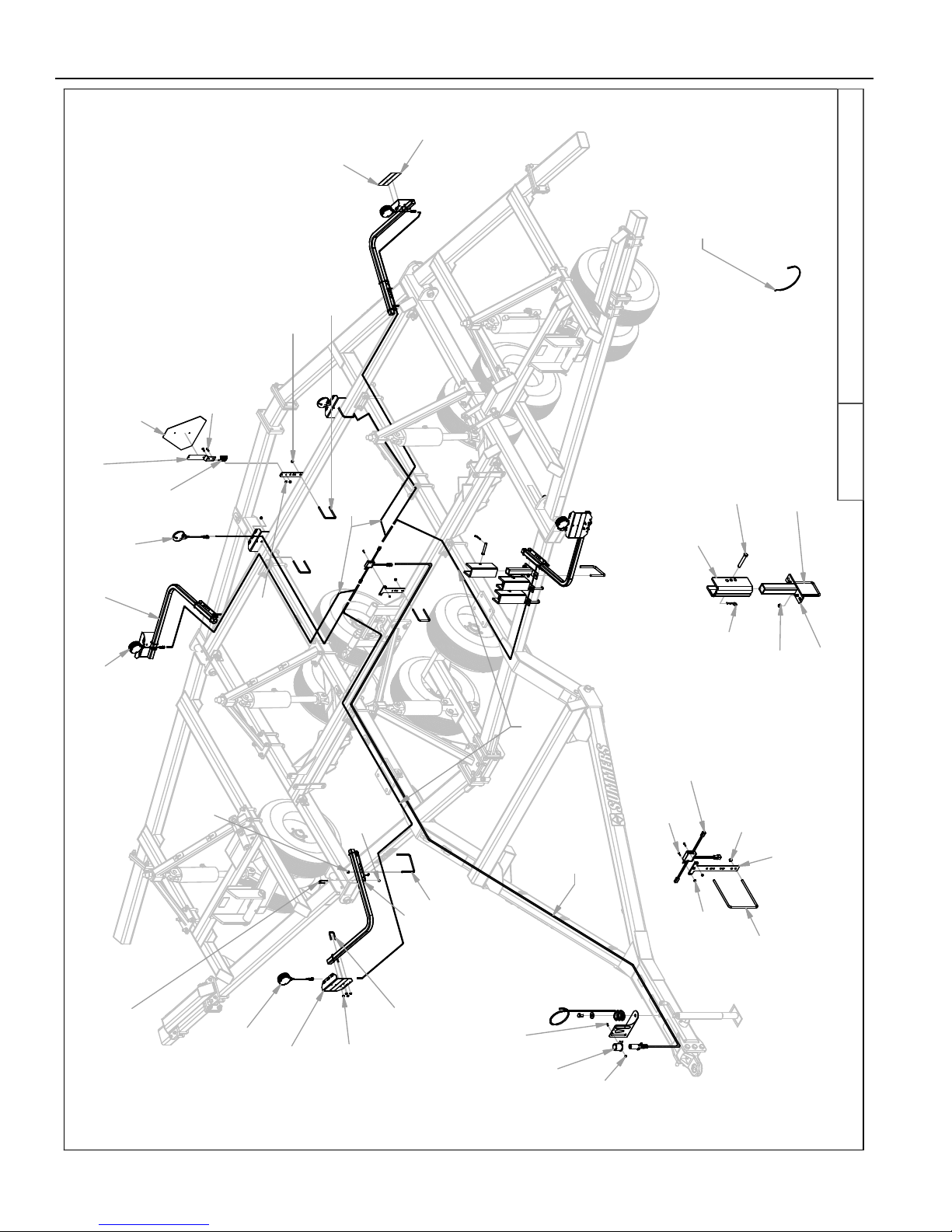

5/16X1-1/2X2-1/2"

5/16X1-1/2X2-1/2"

8X0223

1/4" FN

NOTE: AVOID SHARP EDGES AND PINCH

POINTS WHEN ROUTING CABLES.

SECURE WITH NYLON TIES.

SECTION 4 - PARTS

8Z0805

8S1126

8K8010

8S1120

8K8095B

8Z0810

8A1156

3/8 X 4-1/16 X 5"

3/8" FN

8X0203

5/16 X 1"

8X0021A

8S1124

8K8075A

8T4350

8A4048

8A4050

11" NYL TIE

8A4052

8-7/8" NYL TIE HV

15-1/4" NYL TIE HVY

DISK SAFETY LIGHTS1/4/2017

8K8100.idw/

8A1157

8X0440

3/8 X 4-1/16 X 7"

8K8090B

8L0258

8X0203

3/8" FN

8K8090B

8X0211

5/16" FN

8X0402

8X0203

8K8030A

8K8104

MODULE-ENHANCER

8X0211

5/16" FN

8K8069 20'

8K8071 26'

8K8000

8A1155

3/8X6-1/16X5"

8L0258

8K8020

8X0211

5/16" FN

8X0000

1/4 X 3/4"

8K8067

8X0170

8X0208

8C1702

3/8" FN

8X0203

8X0803

8C1710

3/8 X 8 X 5"

3/8" FN

3/8 X 8 X 9"

8T4380

4-24

10 . O UT E R

8R6914

** GBGI (Not S ho wn), 8R69 21 Triple Lip (Sho wn)

* P re 2000

CD2\ MANUALS \10 2-26 HUB-AXLE COMP ONENTS

LAST REVIS ION: 1/17/ 2011

*** P re 2006 8K712 0 (SE17 )

SECTION 4 - PARTS

1

2

5

9

3

6

4

7

10

11

12

13

14

Assembly Notes:

A. Before towing machine, pack wheel bearings and fill
1/2 of hub cavity with high quality bearing grease.

8

B. Tighten axle nut to 45 ft.-lbs., loosen nut until first slot
is aligned with hole in axle, install cotter pin and bend
to retain.

2. INNER

3. INNER

HUB 1. S EAL

H5 17

H6 14

INS TR UCTI ONS

S E A L S E7 7

HD812

HD817 N/ A N/A N/A

H 1010

LT

H 1010

HVY

H1020 N/A

BEARING

8G822 0 8G8217 8G8 230 8 G8230 8G8211 8D5114 8X0708 8G8217 8D5119 8 D 5 112 8 X04 10 8 G8 2 13 N / A

SE10 L44643 8L44610 L44610 HDA211 WB10 1/ 4-28NF L44 643 3/4" I. D . 3/ 4 " -16 3 / 16 X1" D C 11

8D523 4
8D523 6

8D523 8

8D522 1 8 D5317 8D5334 8D53 36

8R 6922** 8 R6917 8R6 925 8 D5332 8 R6911 8R69 14 8X0708 8 D5217 8D5 319 8D5312 8 X0 415 8R 6913

S EE GBGI

8K7127***

8K7128***

SLEE VE

SE77 -1

8K7344 8K7342 8K7346 8K7347 8K7340 8K7122-5/8" 8K7123-5/8" 8X0708 8K7343 8X0328 8D5314 8X0414 8K7341

8K7220 8K7217 8K7230 8K7232 8K7211 8K7215 8K7216 8X07 08 8K7218 8X0328 8D5314 8X0414 8K7212 8K7213 8K7214

8K7221 8K7219 8K7231 8K7232 8 K7 210 8K7215 8K7216 8X0708 8K7218 8X0328 8D5 314 8X0414 8K7212 8K7213 8K7214

8K7320 8K7317 8K7330 8K7332 8K7209 8K7215 8K7216 8X07 08 8K7318 8X0366 8D5318 8X0418 8K7312 8K7313 8K7214

8D5217 8D5 332 8 D5336 8D5 210 8D5215 8D5214 8X0708 8D5 117 8S 5219 8D5212 8 X0415 8D5213

LM48 548 LM48510 LM670 10 H5 17 WB16 1/2-2 0UNF 1/ 4-28NF LM67048 7/8" I.D. 7/ 8"-14 3 /16 X1-1/2" DC13

SE13 LM2974 9 LM297 10 LM67010 H611

LM603049 LM603011 LM485 10 H614 WB12 1/4-28NF LM48548 1" I.D . 1" - 14 3 / 16 X 1- 1/ 2 " D C 15

8 K7117

LM378 0

SE 42 LM387AS 382A LM501310 HD817 WB 46 WB118 1/4-28 NF LM50134 9 1.3 12 I. D. 1-1/ 4 " - 12 1/ 4 X2 " DC 2 6

SE 48 39585 3 9520 45 3A H1010-9 WB51 WB 52 1/4-28 NF 460 1.312 I.D . 1- 1/ 4" - 12 1/ 4 X2 " S E 49 D C2 7 W B5 3

SE 67 33275 3 3462 45 3A H10 10-11 WB 51 WB 52 1/4-28NF 460 1.312 I.D . 1- 1/ 4" - 12 1/ 4 X2 " SE 49 D C2 7 W B5 3

SE 55 HM 218248 HM218 210 HM212010 HDA1020 WB51 WB 52 1/4-28 NF HM212049 2.03" ID 2" - 12WB65 5/16 X 2-1/2" SE 59 DC28 WB53

4. OUTE R

RACE

8K7130

LM372 0 1/4-28 NF

RACE

8K7132

LM2720

5. H UB
ASSY

8D5311 -09
8D5316 10-

8 K7111

HD 8 12

6. WHEEL
S T UD

8K7115-9/16"* 8K7116-9/16"*

8K7122-5/8 " 8K7123 -5/8"

WB 41 WB 4 0

WB 46 WB 118

N/A

N/A

7. WHEEL
N UT

N/A

N/A N/A

8. WH EE L

9. H UB

BO LT

ZERK

N/A N/A N/A

8D5114

WB10 -09 8X0708 8D5117 8D5319 8D5312 8X0415 8D5213

WB 12 10 - 1/ 4- 2 8 N F L M6 7 04 8 1" I. D . 1"- 14 3 / 16 X1-1/ 2 " D C 13

8X0708

N/A

N/A

N/A

BEARING

8 K7118

LM27 90

11. A XLE

WASHE R

8D5319

1" I.D.

12 . AX LE

NUT

8D5312

1" - 14

13. COTTER

3 / 16 X1- 1/ 2 "

P IN

8X0415

14 . HUB

CAP

GASKET

N/AH 211 N/ A N/A

N/AH 611

N/A

15 . H UB

CAP

8K7113

D C 17

16. HUB
CAP

BO LT

N/A

N/A

N/A

15

4-25

8K1105S.iam/

HUB&AXLE ASSY8/13/2014

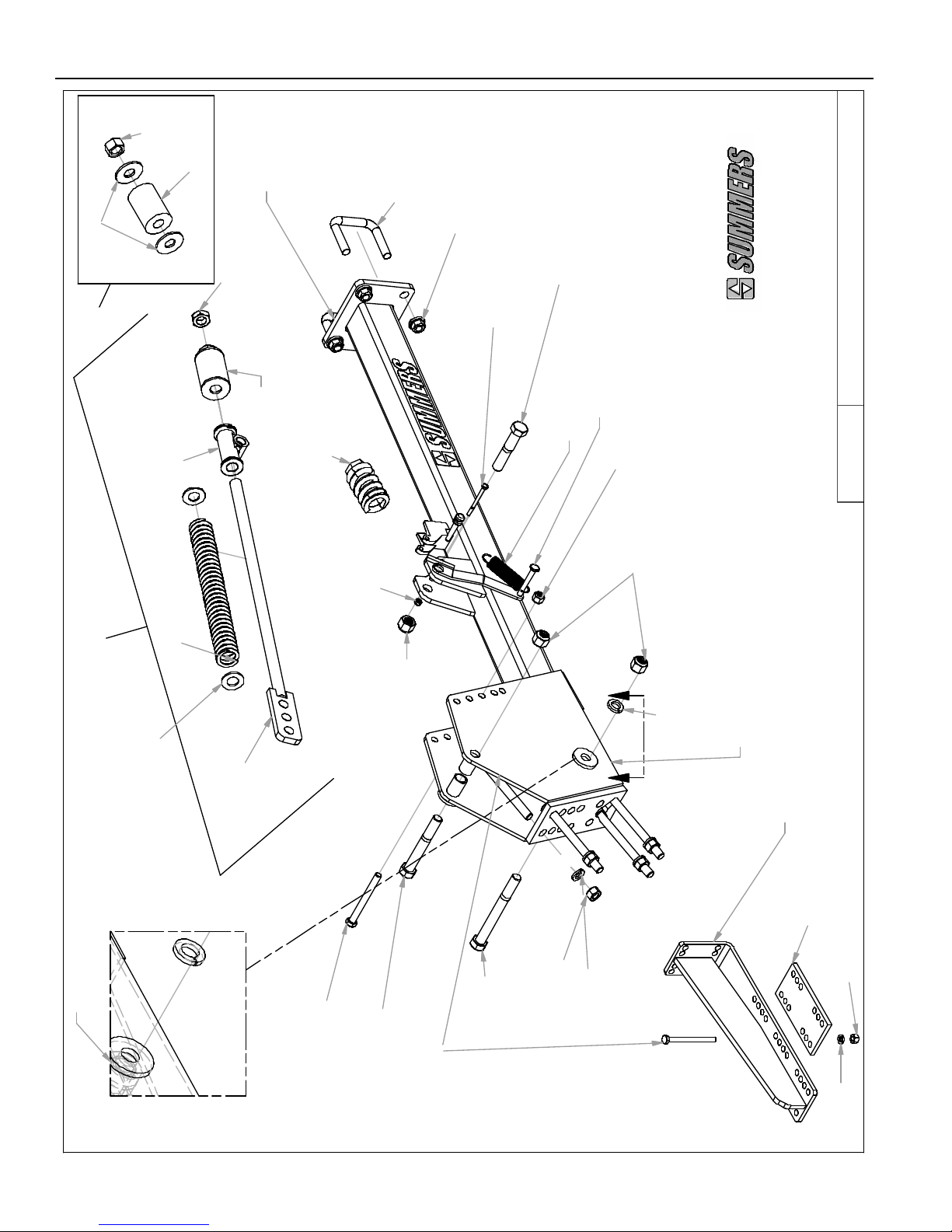

5/8" X 6-3/4"

8X0304

5/8" LW

SECTION 4 - PARTS

7/8" N

8X0268

8X0338

8H2129

8H1328

8H2128

ARM LENGTH

8H2132 - 34"

8H2142 - 42"

8H2144 - 52"

8X0269

8W1205

8X0256

5/8 x 3-1/16 x 3-1/4"

5/8" FLNG NUT

8X0118

7/8" JAM NUT

8X0014

1/4 X 3"

OR

8H2129

SPRING

8H2131A

URETHANE BUSHING

3/4 X 4"

8H1280

8Z0101

SMC DECAL

MNT ARM ASSEMBLY8/2/2018

8H2314.iam/

8H2190

8X0242

NY-LOCK 1/2" N

DO NOT OVERTIGHTEN

WING-ARM TRAVEL STOP

ARM MUST BE FREE TO ROTATE

8W1897

3/4" LN

8X0261

1/4" LN

8X0222

8H1394

8D5219

7/8" FW

8H1309

8H1315

A

B

C

C

B

A

WING-ARM TRAVEL STOP

MATCH LOCATION LETTER

ON SUPPORT ROD ASSEMBLY

8X0261

3/4" LN

A

8X0306

3/4" LW

8H2120

8H1520 SHORT UNIVERSAL

8H1522 SHORT HI-CLEARANCE

8H1530 LONG UNIVERSAL (SHOWN)

W/D ISK BRKT

NOT REQUIRED

8H1532 LONG HI-CLEARANCE

8H1510

5/8" N

8X0250

5/8" N

8X0250

8X0304

5/8" LW

8X0073

8X0117

3/4 X 7"

1/2 X 5"

8X0123

3/4" X 5.5"

8X0099

4-26

SECTION 4 - PARTS

4-27

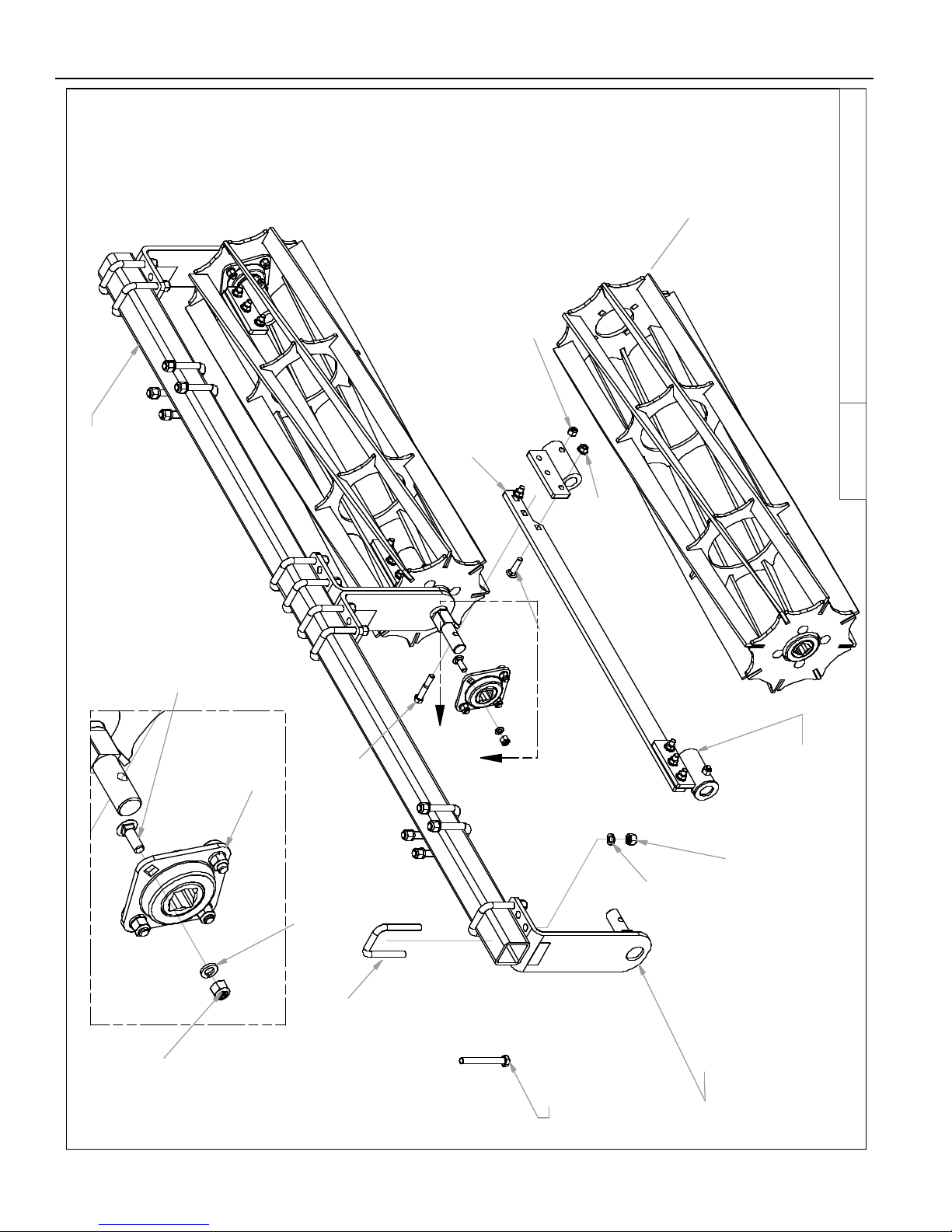

5/8 x 3-1/16 x 4-1/2"

NY-LOCK 1/2" N

WHERE REQUIRED

INTERFERENCE

WITH MOUNTING

ARM (8H2326)

8H2601 - THRU 2017

8H2601B - 2018-CURRENT

SECTION 4 - PARTS

8X0242

NY-LOCK 1/2" N

(4')

8H2666 (6')

8H2664

8H2634 (4' REEL)

8H2636 (6' REEL)

ROLLING BASKETS ASSEMBLY6/8/2018

8H2706 (6' BSKT)

8H2708 (8' BSKT)

8H2710 (10' BSKT)

8X0244

8X0064

1/2" FLG TOP LOCK NUT

CRG 1/2 X 1-1/2"

8X0065

CRG 1/2 X 2"

A

8H2703

1/2X3"

8X0069

DETAIL A

8X0304

8X0303

1/2" LW

5/8" LW

8X0253

NY-LOCK 5/8"-11NC

8H2660 - THRU 2017

8H2660B - 2018-CURRENT

8X0242

8S0358

4-28

8X0095

5/8" X 5"

DUE TO

CONVERSION

Multiply by __

_ for Acres

16’ .90

18 ½’

1.04

21’ 1.19

21 ½’

1.22

24 ½’

1.37

25’ 1.40

28’ 1.58

28 ½’

1.61

32 ½’

1.82

38 ½’

2.16

44 ½’

2.49

47’ 2.63

DT9530

Width

16’ .86

18 ½’

1.00

21’ 1.14

21 ½’

1.17

24 ½’

1.32

25’ 1.35

28’ 1.52

28 ½’

1.55

32 ½’

1.75

38 ½’

2.08

44 ½’

2.39

47’ 2.53

SECTION 4 - PARTS

SUMMERS MFG. CO., INC.

3/23/15

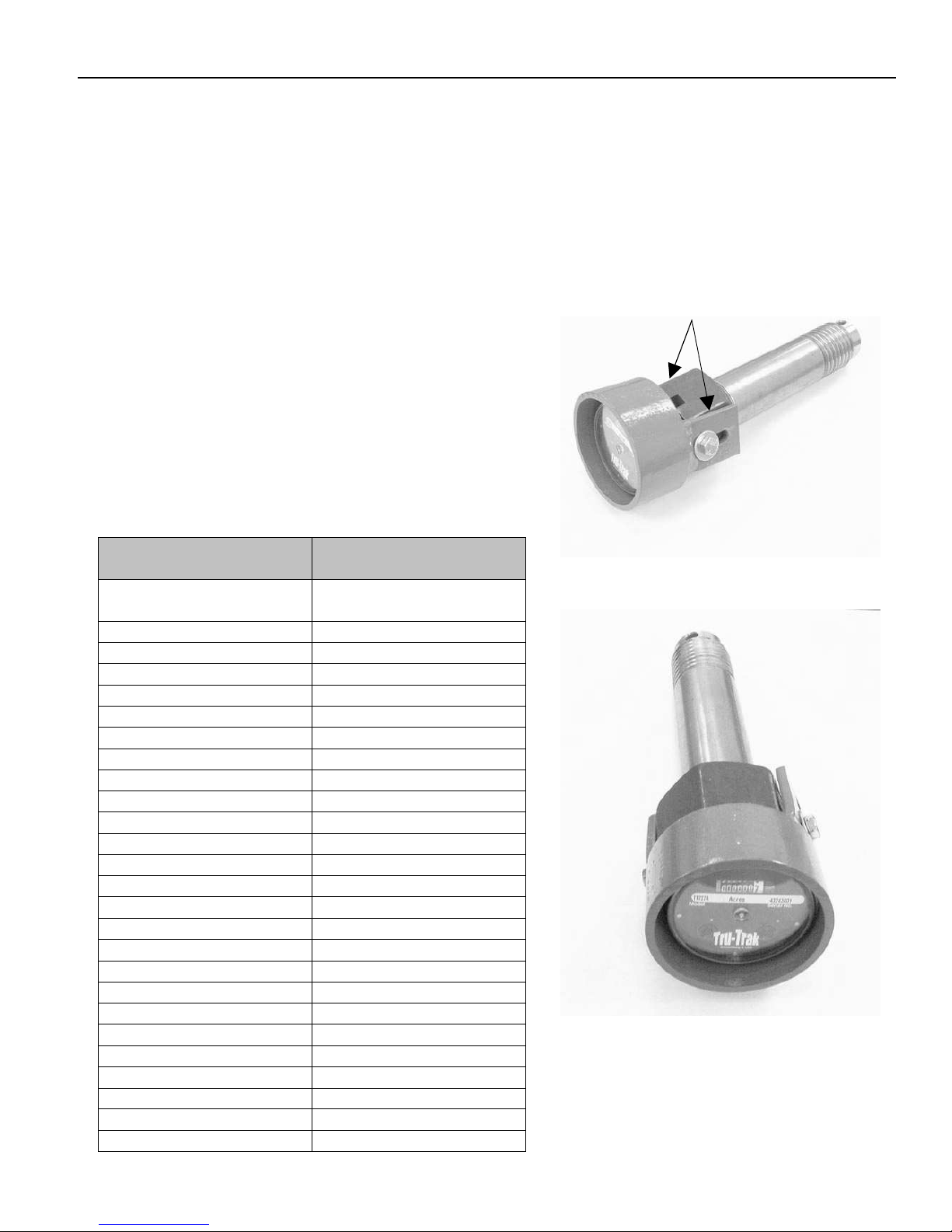

INSTALLATION AND OPERATION

INSTRUCTIONS FOR 8K1850

HUBODOMETER W/ HOUSING

FOR SUMMERS DIAMOND DISK AND 2510 DT

Attach HUB ODOMETER to gang nut as shown in photos
with 3/8” x 4-1/2” bolt, flat washers and lock nut. To prevent
loosening, rotate gang to insure that bracket is on center and
spot weld at locations shown.

Position Hubodometer on inside of rear center gang. DO
NOT LOCATE HUBODOMETER BENEATH I MPLEMENT
WING HINGE OR AT WIDEST POINT OF MACHINE.
Hub Odometer will be damaged if installed in these locations.

The Hub Odometer is calibrated at 359 revolutions per acre.
Refer to chart below for conversion for your implement.

MACHINE

Diamond Disk Width

FACTOR

Covered

4-29

CD1/8K/8K1850

SECTION 4 - PARTS

4-30

SECTION 5 - PART NUMBERS AND DESCRIPTIONS

Stock Code Description Stock Code Description

7K2055 STL 1/2 X 2 X 4.25” 11­7K2060 STL 5/8 SCRAPR BACKPLATE 11­7L2150 STL 1/2 X 7-1/2”OD X 2-9/16”ID
7P8530 ROUND CR 2-1/2- 22-1/4” 07­8A1004 CLAMP HOSE 5” #72
8A1155 U-BOLT 3/8 X 6-1/16 X 5” SQ
8A1156 U-BOLT 3/8 X 4-1/16 X 5” SQ
8A1954 TUBING GAGE LINE 1/4”OD PER FT
8A4048 NYLON TIE .18 X 11”
8A4050 NYLON TIE .30 X 8-7/8”
8A4052 NYLON TIE .30 X 15.25”
8C1718 U-BOLT 1/2 X 2-5/8 X 2-5/8” SQ
8C9010 BRACE MNTNG ARM RLNGATCH 09­8CC6018 PARALLEL LINK W/ HLS N-DSK 13­8CC6020 PARALLEL LINK W/O RCKSHFT 10­8CC6035 WASHER 2.5X4X 1.281”ID 11­8D0340 U-BOLT 3/4 X 4-1/16 X 7-3/4”SQ
8D0350 U-BOLT 3/4 X 4-1/16 X 10” SQ
8D2470 SAFETY CHAIN 30400# 7/16” X 5’
8D3212 MALE TIP 3/4”-16 ORB ISO
8D8490 PIONEER/ISO TIP HLDR BNT 97­8D8500 HYD HOSE HOLDER PNTD BLK 91­8D8522 JACK 5000# TOP CRANK 15”LIFT
8D9108 ROLL PIN 1/4 X 2” ZINC
8D9110 HAIRPIN CLIP LARGE (1”CYL PIN)
8D9524 HYD CYL 5 X 24” 3000PSI 09­8G2282 NYLON TIE .187 X 7-1/2” RED
8G2284 NYLON TIE .187 X 7-1/2” YELLOW
8G2285 NYLON TIE .187 X 7-1/2” GREEN
8H2600 RLLNG BSKT ENDPLATE 09-12
8H2601 ENDPLATE RLNGBSKT 4SCRPR 12­8H2601B ENDPLATE RLNGBSKT 4SCRPR 17­8H2660 RLLING BSKT SCRAPR MNT 12­8H2660B RLLING BSKT SCRAPR MNT 17­8H2314 MNTG ARM ASSY 52” M94-M108
8H2718 RLLNG BSKT ASSY 8FT
8H2719 RLLNG BSKT ASSY 10FT
8HD5097 M104 1 TINE EXT OPT PAIR 03­8HD5180 EXT BRCKT M94-108 2ND ARM 15”
8HD5381 8’ 3BR M104SECT ASSY QADJ00­8HD5401 10’3BR M104SECT ASSY QADJ00­8J1000 SPRING SHNK W/BRG&MNTFLT 00­8J1021N CLTR BLADE 8X1.75W NOTCH.26X22
8J1022H CLTR BLADE 13WAVE .256X22” 04­8J3005 SPACER 2.02IDX2.63OD-2.63” 13­8J3010 CAST SPOOL 10” FULL CLTR 00­8J5110 #10 JIC(M) X #10 JIC(M) UNION
8J5200 #10 JIC(F) X #6 JIC(M)HEX BUSH
8J5300 TEE #6 JIC (MALE) 3X
8J5510 3/4”-16 ORB X #6 JIC(M) STR
8J5520 3/4”-16 ORB X #10 JIC(M) STR
8J5550 1-1/16” - 12ORBX#10JIC(M)STR
8J5620 3/4”-16 ORB X #6 JIC(F-SW)STR
8J5700 #6 JIC(F-SW) X #6 JIC(M)90*ADP
8J5710 #10 JIC(F-SW)X#10 JIC(M)90*ADP
8J6000 9/16”-18 ORB X #6 JIC(M)90*ADP

8J6010 3/4”-16 ORB X #6 JIC(M)90*ADP
8J6020 3/4”-16 ORB X #10 JIC(M)90*ADP
8J6030 7/8”-14 ORB X #10 JIC(M)90*ADP
8J7040 THERMAL RELIEF MANIFLD 4000PSI
8J7216 #6JIC(M)X6JIC(F)1/16”RSTR BLKZ
8K0050 MNT BRKT ADJ DPRSS MANFLD 12­8K0150 DTGANG 10 BLADE LEFT FRNT WING
8K0152 DTGANG 10 BLADE RGHT FRNT WING
8K0750 DTGANG 7 BLADE LEFT FRONT CNTR
8K0850 DTGANG 8 BLADE RGHT FRONT CNT
8K0852 DTGANG 8 BLADE LEFT REAR WING
8K0860 DTGANG 8 BLADE LEFT REAR CNTR
8K0862 DTGANG 8 BLADE RGHT REAR CNTR
8K0865 DTGANG 8 BLADE RGHT REAR WING
8K1075 SPLICE TUBE REAR W/PIVOT 11­8K1105S HUB&AXLE ASSY HD812 (2”RCVR)
8K1134N LIFTARM 32.5’ WING & NRRW 07­8K1152 LIFTARM18.5-32.5 REARCNTR98­8K1410 HITCH NRRW DSK 12­8K1415 CNTR FRAME NRRW DSK-LEFT 12­8K1417 CNTR FRAME NRRW DSK-RGHT 12­8K1420 WING FRAME NRRW DSK-LEFT 12­8K1422 WING FRAME NRRW DSK-RGHT 12­8K1425 CROSSTUBE TRNSMNT NRRW DSK12­8K1430 SPLICE TUBE FRONT NRRW DSK12­8K1435 A-FRAME NRRW DSK 12­8K1440 WINGLOCK NRRW DSK 12­8K1445 TUBE 1.75 X1.268ID- 2.25” 12­8K1449 BOLT-ON LINK ARM PIVOT-R 13­8K1451 BOLT-ON LINK ARM PIVOT-L 13­8K1452 SIDEPLT CSTR CYLATCH N-DSK13­8K1470 CYLATCH CASTR FRNT N-DSK 12­8K1475 CASTER ARM N-DISK -L 12­8K1477 CASTER ARM N-DISK -R 12­8K1485 WING LIFT CYL ATCH NRW DSK12­8K1500 CASTER MNT NRRW-DISK 13­8K1615 PIN 3/4X 10-1/2” SAFETYLCK 13­8K1640 PIN 1-1/2 X 10-5/8” HITCH 84­8K1660 PIN 1-1/2 X 15-1/2” HARDEND84­8K1660 PIN 1-1/2 X 15-1/2” HARDEND84­8K1755 EYEBOLT 1.5”DIAX1.26EYE YZ 12­8K1900 SEAL GBGI V WALKNG TANDM 01­8K1920 RETAINING RING 2-7/8” INV 00­8K2104 SPRING SHNK W/BEARNG ASSY DSK
8K2130 GANG ROD 2” DIA X 57”
8K2170 GANG ROD 2” DIA X 97”
8K3002 WRENCH GANG 3-1/8” HEX BLCK00­8K3100 GANG MNT TUBE LEFT FRNT 98.5”
8K4000 SPOOL FULL DISK DUCTIL MACHIND
8K4010 SPOOL HALF SHRT 2.63” DISK 94­8K4019 SPOOL HALF 4.8” FLAT CLTR 00­8K4020 SPOOL HALF LONG 4.9” DISK 94­8K4199 CAST CLAMP GANG MNT W/PEG RAW
8K4209 CAST CLAMP GANG MOUNT RAW
8K4299 CAST CLAMP SCRAPER MNT RAW
8K4404 STL 5/16” 2510 SCRAPR IN RAW

5-1

SECTION 5 - PART NUMBERS AND DESCRIPTIONS

Stock Code Description Stock Code Description

8K4406 STL 5/16” 2510 SCRAPR OUT RAW
8K4409 STL 3/16” SCRAPR PLATE DSK RAW
8K4423 FILLER FLAT 5/8 X 2.5- 3” 08­8K4429 ARM 5/8 X 2.5-15.375”HR1044RAW
8K4449 BRCKT ADJ OFFSET SCRAPER 99­8K5025N BLADE DSK1/4X25” 2HL NTCH LOWC
8K5200 WASHER GANG BOLT 2.03” ID
8K5200 WASHER GANG BOLT 2.03” ID
8K5200 WASHER GANG BOLT 2.03” ID
8K5515 U-BOLT 3/4 X 4-1/16 X 6” SQ
8K5520 U-BOLT 3/4 X 6-1/8 X 7-1/2” SQ
8K6313 HYD CYL 2.25X6” 1.25”RD 11­8K7042 12.5L X 15 LRF ON 15X10X8 WHL
8K8000 STL 7K2045 3/8X3.5 PNTDLGHT09­8K8010 TUBE LGHT BRCKT 1.5SQ PNTD 00­8K8020 STL 12GA MNTNG BRCKT LIGHT 00­8K8030A MODULE AG ENHNCDW/BRAKE6PIN08­8K8067 DUST CAP FOR 7PIN CONNECT00­8K8069 MAIN HRNSS 7PN 20’ W/BRAKE 17­8K8071 MAIN HRNSS 7PN 26’ W/BRAKE 09­8K8075A EXT HRNSS NONDRAWBR DTSCH 07­8K8090A LIGHT AMBER 2WIRE DEUTSCH 07­8K8095A LIGHT RED 3WIRE DEUTSCH 07­8K8104 EXT HRNSS 13’2WIRE DTSCH 07­8K8200 BRCKT SMV ATTCH 4-8”FRAME98­8K9106 PIN 1-1/4 X 4-3/8” HRDND 1/4HL
8K9250 900#WGHT PKG W/HRDWR DSK/CLTR
8L0246 BUSHING 2.875X2.5ID- 3” 97­8L0252 WASHER 1.28”IDX4.5ODX 1/4” YZ
8L0258 U-BOLT 5/16 X 1-1/2 X 2-1/2”SQ
8L0320 PLATE 2PNT&LR CASTER WEAR 96­8N3028 3/8X 28”HYD HOSE #6FJX3000PSI
8N3035 3/8X 35”HYD HOSE #6FJX3000PSI
8N3048 3/8X 48”HYD HOSE #6FJX3000PSI
8N3060 3/8X 60”HYD HOSE #6FJX3000PSI
8N3124 3/8X 124”HYD HOSE #6FJX3000PSI
8N3150 3/8X 150”HYD HOSE #6FJX3000PSI
8N3228 3/8X 228”HYD HOSE #6FJX3000PSI
8N3252 3/8X 252”HYD HOSE #6FJX3000PSI
8N3312 3/8X 312”HYD HOSE #6FJX3000PSI
8N3390 3/8X 390”HYD HOSE #6FJX3000PSI
8N4160 1/2X 160”HYD HOSE#10FJX3000PSI
8N6060 3/4X 60”HYD HOSE#10FJX3000PSI
8N6354 3/4X 354”HYD HOSE#10FJX3000PSI
8N7000 ADJ DOWN PRESSURE MANIFLD 12­8S0358 U-BOLT 5/8 X 3-1/16 X 4-1/2”SQ
8S1120 SIGN SLOW MOVING VEHICLE(SMV)
8S1124 MOUNTING SOCKET SMV SIGN
8S1126 MNT SPADE W/HRDWR SMV SIGN
8S2990 HYD HOSE CLAMP-LARGE-NYLON
8S3095 CAPLUG FITS ISO HYD COUPLR 08­8T1037 HYD CYL 3.75 X 10”R3755M-10BP
8T1040B HYD CYL 4.0 X 10” FOR 5PLX 99­8T1045 HYD CYL 4.5 X 10” REPHASE 96­8T1050 HYD CYL 5 X 10” REPHASE 96­8T1055 HYD CYL 5.5 X 10” REPHASE 96-

8T1060 HYD CYL 6 X10 W/STRK CNTRL 96­8T2990 HYD HOSE CLAMP MTL/RUB BACK
8T3300 BOLT PIVOT CHSLTRP&WNGLFT YZ
8T3620 PIN 1-1/2 X 12-1/2” HRDND&ZINC
8T4132 WLKNG TNDM 7.5”C-C 2” ID 98­8T4350 TRNS LCK W/UHMW10.5”(2.4RD)96­8X0000 BOLT 1/4-20X3/4” FLLTHD GR5 YZ
8X0015 BOLT 3/8-16NC X 3-3/4” GR5 YZ
8X0021 BOLT 5/16-18NC X 3/4” GR5 YZ
8X0021A BOLT 5/16-18NC X 1” GR5 YZ
8X0044 BOLT 7/16-14NC X 3-1/2”GR5 YZ
8X0063 BOLT 1/2-13NC X 1-1/2” GR5 YZ
8X0072 BOLT 1/2-13NC X 3-3/4” GR5 YZ
8X0101 BOLT 5/8-11NC X 8” GR5 YZ
8X0110 BOLT 3/4-10NC X 1-1/4” GR5 YZ
8X0111 BOLT 3/4-10NC X 2-1/2” GR5 YZ
8X0113 BOLT 3/4-10NC X 5” GR5 YZ
8X0114 BOLT 3/4-10NC X 3” GR5 YZ
8X0121 BOLT 3/4-10NC X 6-1/2” GR5 YZ
8X0123 BOLT 3/4-10NC X 5-1/2” GR5 YZ
8X0133 BOLT 7/8-9NC X 3” GR5 YZ
8X0138 BOLT 1-8NC X 5-1/2” GR5 YZ
8X0139 BOLT 1-8NC X 3” GR5 YZ
8X0140 BOLT 1-8NCX7” W/1.5”THDGR5 YZ
8X0143 BOLT 1-8NC X 5” GR5 YZ
8X0146 BOLT 1-8NC X 8-1/2” GR5 YZ
8X0202 NUT 3/8”-16NC NY-LOCK GR2 YZ
8X0203 NUT 3/8”-16NC SERFLANG GR2 YZ
8X0211 NUT 5/16”-18NC SERFLANG GR2 YZ
8X0223 NUT 1/4”-20NC SERFLANG GR2 YZ
8X0234 NUT 7/16”-14NC NY-LOCK GR2 YZ
8X0242 NUT 1/2”-13NC NY-LOCK GR2 YZ
8X0246 NUT 1/2”-13NC SERFLANG GR2 YZ
8X0256 NUT 5/8”-11NC SERFLANG GR2 YZ
8X0260 NUT 3/4”-10NC HEX GR2 YZ
8X0261 NUT 3/4”-10NC NY-LOCK GR2 YZ
8X0265 NUT 3/4”-10NC CNTRLOCK GR2 YZ
8X0270 NUT 7/8”-9NC CNTRLOCK GR2 YZ
8X0280 NUT 1”-8NC HEX GR2 YZ
8X0281 NUT 1”-8NC NY-LOCK GR2 YZ
8X0282 NUT 1”-14TPI TOPLOCK GR B Z
8X0284 NUT 1-1/4”-7NC HEX GR2 YZ
8X0285 NUT 1-1/2”-6NC HEX GR2 YZ
8X0286 NUT 1-1/2”-6NC JAM GR2 YZ
8X0292 NUT 2”-4.5 HVY HEXSLOT GR2 PLN
8X0300 LOCKWASHER 5/16” YLW ZNC
8X0306 LOCKWASHER 3/4” YLW ZNC
8X0307 LOCKWASHER 7/8” YLW ZNC
8X0309 LOCKWASHER 1” YLW ZNC
8X0311 LOCKWASHER 1-1/4” YLW ZNC
8X0316 WASHER 1” SAE FLAT YZ
8X0318 WASHER 3/4”(13/16”ID)FLAT YZ
8X0320 WASHER 3/8”(7/16” ID)FLAT YZ
8X0366 WASHER 2.03IDX2-7/8ODX 1/4”PLN
8X0402 HAIRPIN CLIP 1/8 X 2-9/16”
8X0440 CLEVIS PIN 5/8 X 3-7/8” YZ

5-2

SECTION 5 - PART NUMBERS AND DESCRIPTIONS

Stock Code Description Stock Code Description

8X1120 CRG 3/8-16NC X 2” GR2 ZN
8X1140 CRG 3/8-16NC X 4” GR2 ZN
8Z0075 DECAL TRNSPRT LCK WARNING TILL
8Z0087 DECAL”WARNING”PINCH POINT03­8Z0100 DECAL MADE IN USA
8Z0101 DECAL”SUMMERS”M94/04/06 2.25X9
8Z0204 DECAL 5.5” SUMMERS 14­8Z0276 DECAL GENERAL CAUTION 91­8Z0340 DECAL REPHASING CYLINDERS
8Z0342 DECAL INSTALL CYLINDER LOCKS

8Z0344 DECAL WING DANGER
8Z0346 DECAL ELECTROCUTION-TILLAGE
8Z0350 DECAL GREASE GANG BEARNG 04­8Z0800 REFLECTOR AMBER ADHSVBCK98­8Z0805 REFLCTR REDORANGE ADHSVBK99­8Z0810 REFLECTOR RED ADHSV-BACK 98­8Z1000 MANUAL-PAK 3DIA X 11.75” 09­8Z2255 DECAL DK9630 ID 16-28.5’ N-DISK
8Z2290 DECAL DT9530 ID 16-28.5’ N-DT

5-3

SECTION 5 - PART NUMBERS AND DESCRIPTIONS

5-4

History of Summers Manufacturing Co., Inc.

1965 – Summers Manufacturing is founded by Harley Summers, who purchases patent rights for Goebel truck and pickup hoists from the Goebel

Brothers of Lehr, ND. These hoists, produced in Harley Summers’ blacksmith shop the rst year, were distributed nationwide by a Cincin­nati, Ohio, dealer. With increasing sales, the company soon outgrows the small shop. Summers wins the Herman harrow contract, beginning
the company’s Herman culti-harrow line. Summers builds a 7,200 square-foot factory in Maddock to meet the demand for truck and pickup
hoists, as well as Herman harrows.

1969 – Firm incorporates and becomes ofcially known as Summers Manufacturing Company, Inc.

1970 – Summers purchases rights to manufacture/market the Herman Harrow.

1973 – Company builds new 20,000 square-foot plant and ofces in Maddock, adding a 20,000 square-foot assembly plant in the fall of 1975 (com-

pleted in January 1976), bringing total square footage of Maddock factories to 47,000.

1977 – Summers introduces the Agri-sprayer, used in conjunction with the Herman culti-harrow to incorporate herbicides and liquid fertilizer.

1980 – Company purchases manufacturing and distributing rights to Crown rockpickers from Crown Manufacturers of Regina, Saskatchewan. This

forces another expansion project – a 26,000 square foot factory on a 24 acre site in Devils Lake, ND Industrial Park.

1981 – Company establishes a branch facility in Regina, Saskatchewan.

1982 – Devils Lake plant begins operations in January, manufacturing supersprayers and rockpickers. The Maddock factory begins producing the

Superweeder, a combination cultivator and harrow.

1983 – Summers buys manufacturing and distributing rights to the Fargo Field Sprayer line from Mid America Steel (formerly Fargo Foundry),

Fargo. This eld sprayer line is manufactured at the Devils Lake plant. Harley Summers is selected North Dakota’s small-businessman of

the year by the Small Business Administration.

1984 – Herman Diamond Disk, a disk harrow made in a diamond shape to reduce blade breakage from rocks, comes off the assembly line.

1985 – Summers signs a contract with Melroe Company of Bismarck to obtain exclusive manufacturing rights to the Melroe harrow line.

1989 – Summers purchases TorMaster Company of Hordean, Manitoba, giving the company a line of rolling packer equipment, comprised of harrow

packers and hydraulic fold coil packers.

1992 – A new engineering ofce/parts department is added to the Devils Lake factory.

1993 – Company adds two new products: a pickup-mounted sprayer with booms of 80 and 90 feet, and the Summers Superharrow, an extra-heavy-

duty residue-management tool designed for the minimum and no-till farmer.

1994 – a 50 by 125 foot addition to the Maddock factory is completed. Construction begins on a 24,576 square-foot addition to the Devils Lake fac-

tory, which enables the company to increase production of truck-mounted and pull-type supersprayers and rockpickers.

1996 – 1500 square foot ofce area added to the Maddock plant. Company introduces Chisel Plow with oating hitch and 700# trip assembly.

1997 – 16,800 square foot warehouse in Maddock purchased from local business.

1999 - Company introduces the Ultimate suspended boom trailer sprayer with hydraulic folding booms. Additional sizes added to the Chisel Plow

line, now ranging from 28’ to 54’.

2000 - Company introduces the Supercoulter, the innovative solution for excessive eld residue management on no-till, minimum-till, and conven-

tional-till farming operations.

2001 - Cold storage building completed at Devils Lake. Company extends boom lengths up to 110 feet on the Ultimate Supersprayer.

2002 - Company adds a warehouse and service man in Aberdeen, SD.

2003 - Company introduces the Ultimate NT Supersprayer featuring a bolt on axle for easier adjustment, and a new family of tanks that feature a

drainable sump and a common width dimension.

2004 - A 124 ft. x 310 ft. addition is added onto the current Devils Lake plant.

2005 - The Summers Superroller is added to the “Field Tested Tough” product line. Additional sizes of 56’, 58’ and 60’ are added to the Superchisel

line. Ultimate-Ultra NT Supersprayer introduced featuring 120’ & 133’ booms.

2006 - The Summers Coulter-Chisel, Rolling Choppers and 30’ Superroller were included in product line.

2007 - 62’ & 84’ 5 Section Landrollers and a 20’ Coulter-Chisel were introduced.

2008 - Disk-Chisels, ranging from 16’ to 40’ widths, are added to product line.

2009 – M105 and M108 Mounted Harrows added to selection of Mounted Attachments. SuperHarrow 2650, 50’ SuperCoulter, Hydraulic Fold Roll-

ing Chopper and 36” diameter Landrollers introduced.

2010 – Rolling Basket and 47’ Diamond Disk added to product line. A 124 ft. x 310 ft. addition to Devils Lake factory built for a state of the art

paint system.

2011 – Additional Supercoulter sizes were added along with larger tires for tillage implements. Ultimate and Ultra Supersprayers received an ad-

ditional tank size of 1650 gallons. Front Caster Wheel option was made available for chisel implements.

2012 – 41’, 46’ & 53’ Trail Type Landroller added to product line. Additional Superchisel sizes of 16’ & 20’ were added.

2013 – DT9530 added to product line. Internal Scraper in Rolling Baskets introduced. Finishing Coulter Gang becomes standard on the Diamond

Disk and 2510 DT. Corporate ofces opened at Devils Lake plant. New building and location for the Aberdeen warehouse.

2014 – Introduced the VRT2530 (Variable Rate Tillage).

2015 – Introduced the VT Flex Applicator and Spray Fill Xpress.

Summers distributes on a wholesale level to dealers and distributors throughout markets in North Dakota, South Dakota, Minnesota, Montana, Iowa,
Washington, Idaho, Oregon, Utah, Colorado, Kansas, Nebraska, Oklahoma, Texas, Manitoba, Saskatchewan, Alberta, British Columbia, Kazakhstan,
Russia and Australia, making it an international company.

. . . Field Tested TOUGH!

®

Tillage

Rock Picker

Land Rollers/Packers Sprayers

Cultivators/Harrows

Mounted Attachments

1-800-732-4347 • www.summersmfg.com
