Ear Thermometer
03204
Please read the following
instructions carefully.
Keep this instruction manual
for future reference.
For technical support
e-Mail customerservice@summerinfant.com
Birth and up.
INSTRUCTION MANUAL
GROW WITH ME
EAR THERMOMETER SET
• back lit LCD display glows red to indicate fever
• no probe covers necessary
• switch between ˚F and ˚C
• memory feature stores up to 12 readings
• 2 probe sizes, newborn and adult
Battery included.
BONUS
digital thermometer!
CAUTION: This product is not a toy.
Adult supervision is required.
Store away from child’s each.

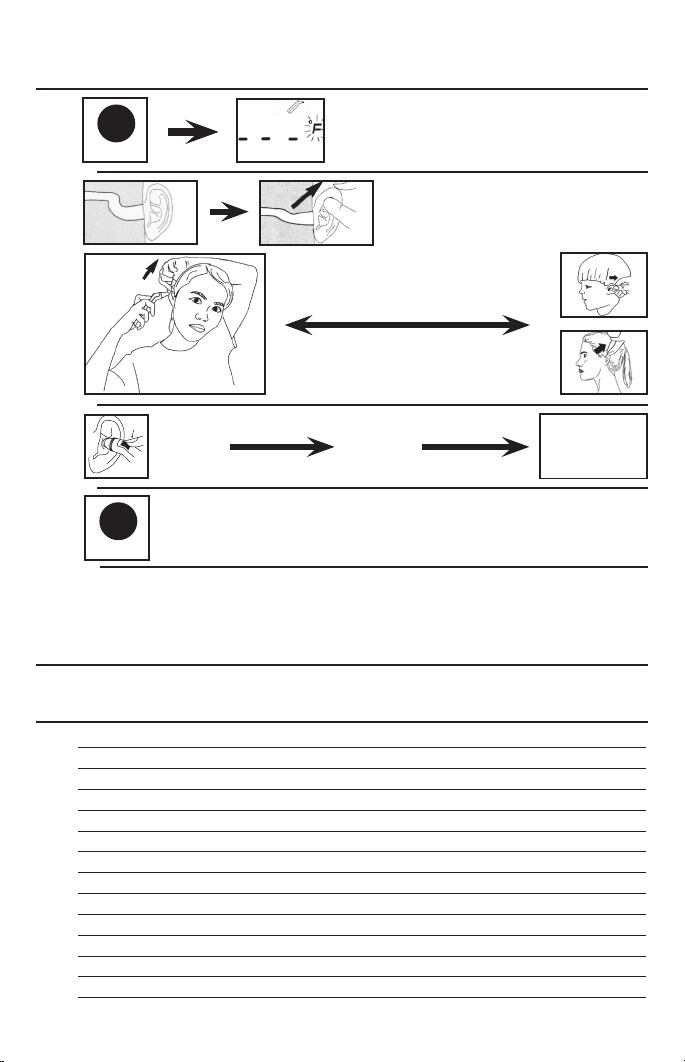

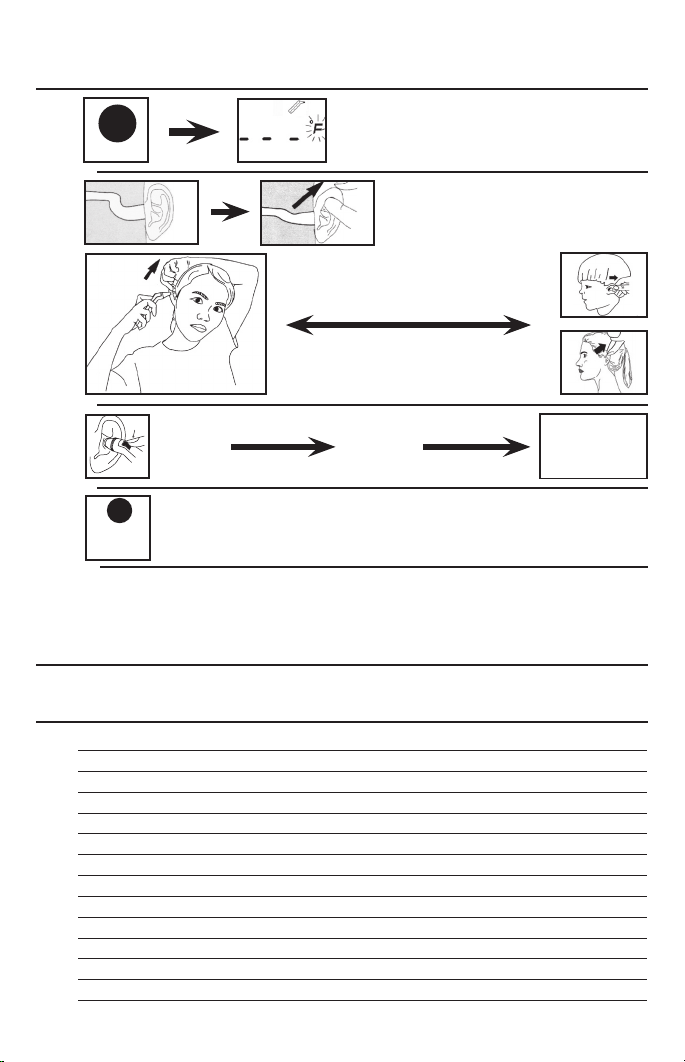

Turn Unit “ON”.
Display Indicates Ready to Measure.
Gently Pull Outer Ear.
Straighten Ear Canal
O/I
98.8 ˚F
ON/OFF
Turn
Unit
“OFF”.
“BEEP”
Less than 1 Year
1 Year and older
Push
Start
Button
Fully Insert Thermometer Probe
Gently into Ear
NOTE: Pediatricians recommend ear thermometer use for children 12 months old
and above. It may be difficult to get accurate temperature readings for infants from
newborn to 12 months due to the early development and curvature of the ear canal.
QUICK START GUIDE
1
2
3
4
Please Note: Unit Reads “Oral” Equivalent Temperature.
Take 3 or More Measurements. Especially if Readings
Appear Low.
GROW WITH ME EAR THERMOMETER SET
TABLE OF CONTENTS
Product Features Page 3
Important Safety Instructions Page 3
Components Page 4
How the Ear Thermometer Takes a Reading Page 4
What is a Normal Temperature? Page 4
Directions for Use Page 4-8
Changing from Fahrenheit to Celsius and Vice-Versa Page 5
Control Displays and Symbols Page 6
Error Messages Page 6
How to Recall 12 Readings in Memory Mode Page 7
Cleaning and Storage Page 7
Replacing the Battery Page 7
Technical Specifications Page 8
2 23
for Grow With Me Ear Themometer Set 03204
3
PRODUCT FEATURES
Measurement in 1 second
This innovative technology allows measurement of ear temperature in only 1 second.
The thermometer then converts this reading to the familiar oral reading equivalent.
Fever Indicator
• Automatically glows red when a fever temperature is detected. Glows green for normal temperature.
Adult Adaptor Tip
Snaps onto probe tip for older children and adults to use. Stores in base when not it use.
Accurate and reliable
The unique probe design and the advanced sensor provide a very accurate and reliable temperature measurement.
Gentle and Easy to Use
• Special ergonomic design enables simple and easy use of the thermometer.
• Non-invasive technology.
• A measurement can be taken even while a child is sleeping.
• Small probe tip is ideal for children.
Memory Recall
The product displays the last temperature reading automatically for 2 seconds when the unit is switched on.
This thermometer can also recall the last 12 readings.
This feature helps to keep track of your child’s progress.
Safe and Hygienic
• No risk of broken glass or mercury ingestion.
• Completely safe for use on children.
IMPORTANT SAFETY INSTRUCTIONS
• Never use the thermometer for purposes other than body temperature measurement. Please follow the safety precautions when using on children.
• Never immerse the ear thermometer in water or other liquids (not waterproof). For cleaning and disinfecting please
follow the instructions in the “Cleaning and Storage” section.
• Keep the instrument away from direct exposure to the sun and keep it in a dust-free, dry area at a temperature between
50°F - 104°F. (10°C- 40°C).
• Do not use the thermometer if there are signs of damage on the probe tip or on the instrument itself. If damaged,
do not attempt to repair the thermometer! Please contact Summer Infant’s Consumer Relations Department.
• Earwax in the ear canal may cause a lower temperature reading. Make sure child’s ear canal is clean to ensure an
accurate reading.
• The ear thermometer consists of high quality precision parts. Do not drop the instrument. Protect it from severe
impact and shock.
WARNING:
• Please keep the adult adapter out of the reach of
children. It may pose a choking hazard.
• Use of this thermometer is not intended as a
substitute for consultation with your physician.
• This thermometer is not waterproof! NEVER
immerse into liquids!
CAUTION:
THIS PRODUCT IS NOT A TOY. ADULT SUPERVISION IS
REQUIRED. STORE AWAY FROM CHILD’S REACH.
4

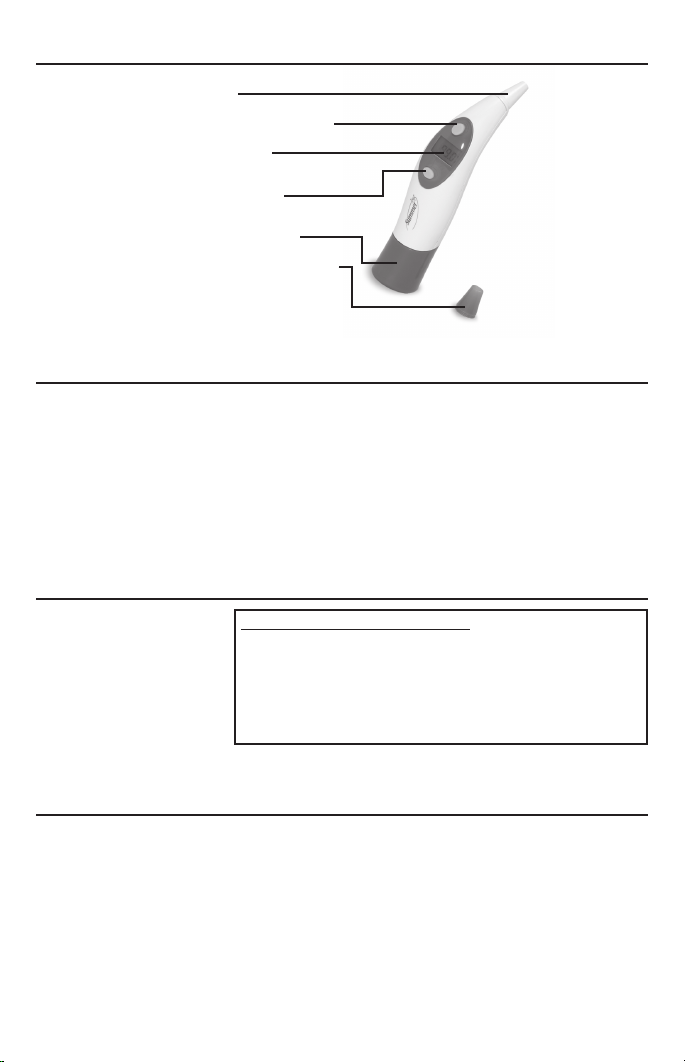

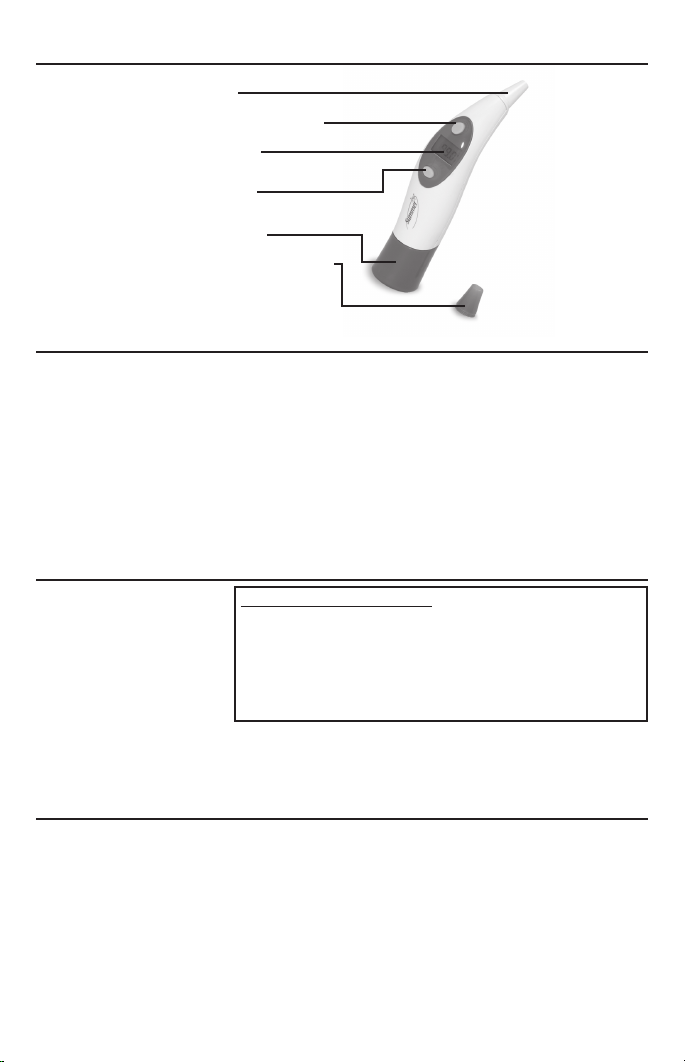

(1) Probe
(2) START Button
(3) LCD Display
(4) ON/OFF Button (O/I)
(5) Battery Cover/Storage Cap
(6) Adult Adaptor
HOW THE EAR THERMOMETER TAKES A READING
The Grow With Me Ear Thermometer Set measures the heat radiated from the eardrum and the surrounding
tissue. This energy is collected through the lens and converted to a temperature value equivalent to the commonly
used oral reading. The measured reading obtained directly from the eardrum (Tympanic Membrane) can ensure the
most accurate body temperature. The accuracy of a reading will depend on your technique, so please follow instruc
tions for use carefully. We recommend that you practice using the ear thermometer on yourself and your family
members when they are healthy. You will then be more confident using the ear thermometer when a
family member is ill.
The Grow With Me Ear Thermometer Set meets the ASTM Accuracy Standard under normal operating
condi-
tions.
The Grow With Me Ear Thermometer Set has been clinically tested and proven to be safe and accurate
when
used in accordance with operating instructions.
WHAT IS A NORMAL TEMPERATURE?
Normal body temperature varies
from person to person. It is
important to be familiar with your
and your child’s healthy
temperature range to help you
identify what is normal. You can
do this with your Grow With Me
Ear Thermometer Set. Please
note that ear, oral, rectal and
underarm temperature readings also vary, therefore readings taken from different body sites should not be
directly compared.
Normal Temperature Range by Age:
Age Fahrenheit Celsius
0-2 97.5°F - 100.4°F 36.4°C - 38.0°C
3-10 97.0°F - 100.0°F 36.1°C - 37.8°C
11-65 96.6°F - 99.7°F 35.9°C - 37.6°C
> 65 96.4°F - 99.5°F 35.8°C - 37.5°C
DIRECTIONS FOR USE
Note: • The thermometer probe should be kept clean by using alcohol swab to wipe it 2 minutes prior to the
test, and after each use.
Dirt, dust, or ear wax on the sensor will give inaccurate measurements!
• Do not touch the thermometer probe 2 minutes before measuring the ear.
• The time interval of the continuous measurement for the same ear should be at least 15 seconds.
• The thermometer probe should be fitted into the ear canal deep enough with gentle insertion, making
sure you don’t move the thermometer, then press the start key to get the measurement, do not
remove the probe until hearing a beep sound.
• Whenever putting on (or removing) the adult adaptor, you need to wait for 2 more minutes to cool
down the probe so as to get a reliable reading for next measurement. The adult adaptor should be
assembled to the probe by hearing (or feeling) a small click sound, so that we can ensure a reliable
measurement.
• The adult adaptor is not necessary to put on unless it is for measuring the temperature of an adult.
COMPONENTS
520

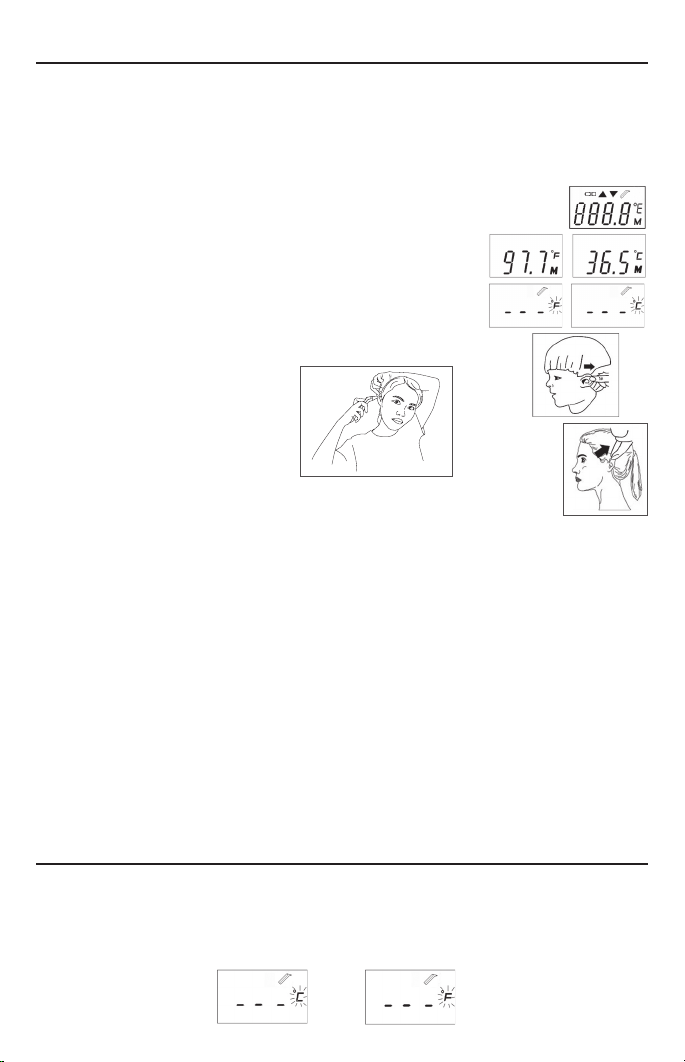

1. Press the O/I button once to turn the ear thermometer on. The display will show all icons
momentarily while the ear thermometer runs a test.
2. Then the last measurement reading will appear on the display for about 2
seconds. You will see a small “M“ next to the temperature reading. This
memory feature helps you track your child’s progress.
3. The ear thermometer will beep and the °F or °C icon will flash, indicating that
the thermometer is ready to take a reading.
4. Straighten the ear canal by pulling the outer ear up and back to give a clear view of
the eardrum.
• For children under 1 year: Pull the ear
straight back.
• Children ages 1 year to adult: Pull the
ear up and back.
• For an infant, it is best to have the
child laying flat with head
sideways so the ear is facing towards you. For an older child or adult, it is best to stand
behind and slightly to the side.
5. While gently pulling the ear, insert the probe snugly into the ear canal and press the "START” button until you
hear a beep sound.You should hear this beep after about 1 second; It indicates the reading is complete.
6. Remove the thermometer from the ear canal. Read the temperature measurement on the display.
NOTE:
• Always take measurements in the same ear since temperature readings may be different from the right and
left ear.
• In order to assure accurate readings, please wait at least 15 seconds between continuous measurements.
• In the following situations it is recommended that three temperatures in the same ear be taken and the
highest one taken as the reading:
1) Newborn infants in the first 100 days.
2) Children under three years of age with a compromised immune system and for whom the presence or
absence of fever is critical.
3) When you are learning how to use the ear thermometer for the first time and until you have familiarized
yourself with the instrument and how to obtain consistent readings.
• The LCD display automatically glows red when a fever temperature is detected. Glows green for normal
temperature.
CHANGING FROM FAHRENHEIT TO CELSIUS
AND VICE-VERSA
The ear thermometer can display temperature measurements in either Fahrenheit or Celsius. To
switch the display between °C and °F, turn the unit off. Press and hold the START BUTTON for 5 seconds, until the current measurement scale (°C or °F icon) flashes on the display. Switch the measurement scale between °C and °F by pressing the START BUTTON again. When the
measurement scale has been chosen, wait for 5 seconds and the thermometer will be ready for taking a temperature.
DIRECTIONS FOR USE (CONTINUED)
• There may be some inconsistent readings between different continuous measurements, due to the following
reasons:
• Different probe insertion depth (or angle).
• Too frequent measurement for the same ear within a short period of time
(more than 5 times, with time interval less than 5 sec.).
• Extreme ambient temperature change, dirty probe with ear wax or dust, dirty ear canal.
• Long stay of the probe inside the ear canal (should not be more than 5 sec.), probe shaking during
measuring or probe removing away from ear before hearing the beep.
Less than
1 year old
1 year and older,
including adults
6

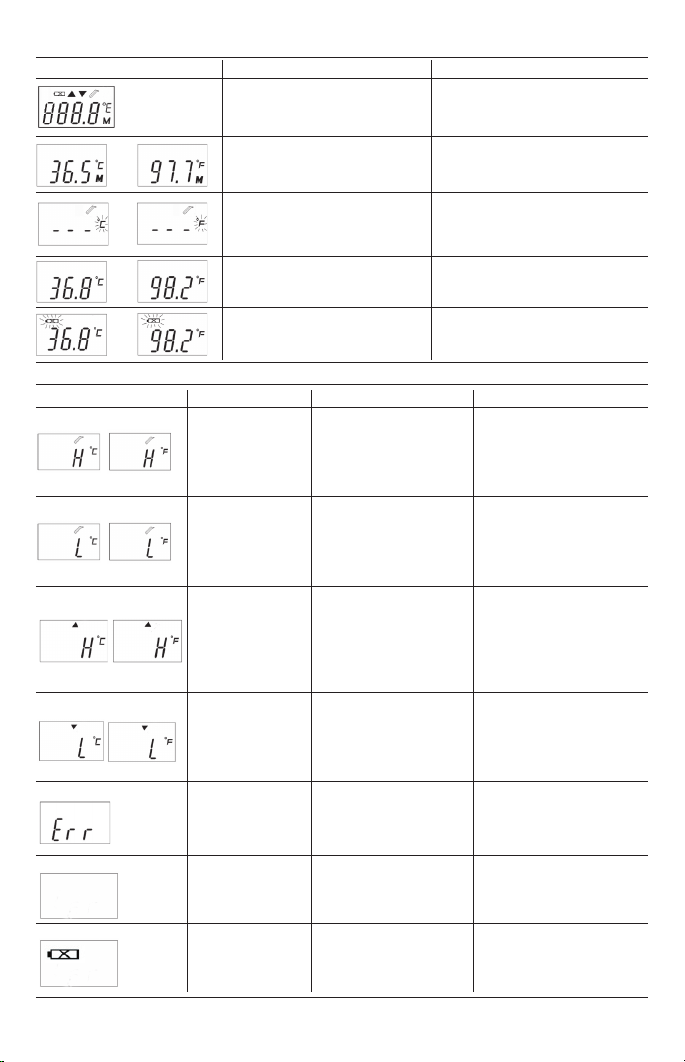

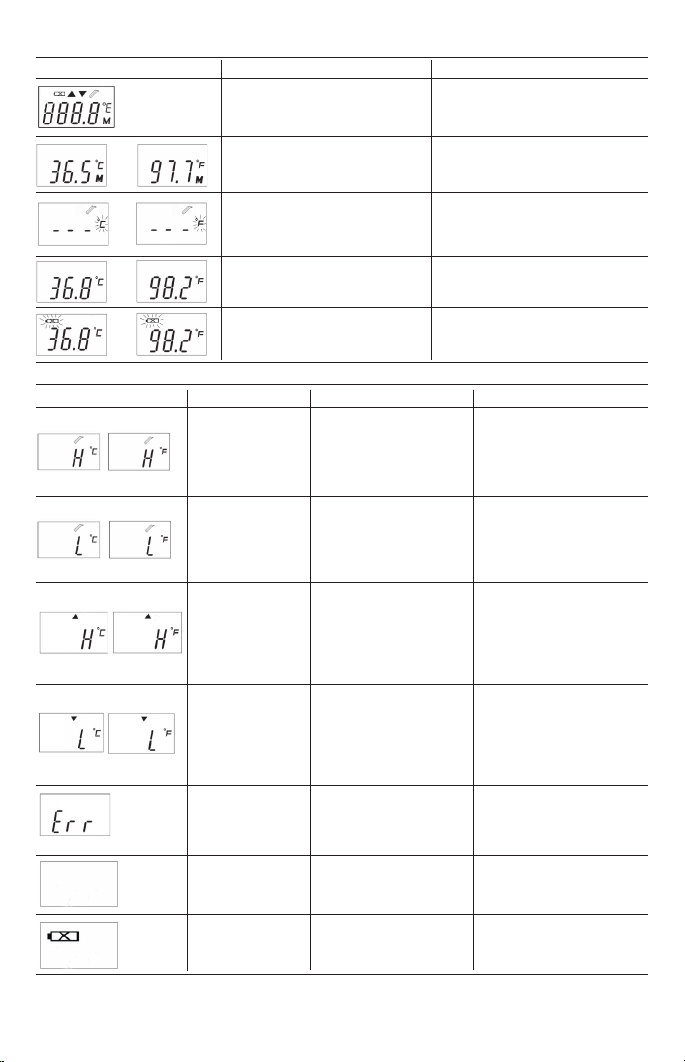

LCD Display
Display Meaning
Thermometer is running a built-in test.
Memory shows previous
temperature reading.
Thermometer is ready to take
a reading.
Measurement complete.
Low battery.
What to Do
Wait for memory display.
Wait for ready display.
Insert ear thermometer into ear and press
“START” button.
Read temperature.
See instructions on page 7 for
“Replacing the Battery”.
Error Messages
LCD Display
Display Meaning
Measured temperature
too high
Measured temperature
too low
Ambient temperature
too high
Ambient temperature
too low
Error function display
Blank display
Dead battery indication
Possible Cause and Fault Remedy
Probe may not have been
inserted properly. Take another
measurement.
Probe may not have been
inserted properly. Take another
measurement.
Ambient temperature is higher
than 40.0 °C or 104.0 °F.
Ambient temperature is lower
than 10.0 °C or 50.0 °F.
Thermometer has malfunctioned.
Turn it off and take another
measurement.
Please check if the battery has
been loaded correctly. Also
check polarity (+ and -) of
batteries.
If the steady battery icon is the
only symbol shown on the
display, the battery should be
replaced immediately.
Description
Displays “H” when measured
temperature higher than
42.2˚C or 108.0˚F. Emits three
short beeps and red LED is on
for 5 seconds.
Displays “
L” when measured
temperature lower than 32.0˚C
or 89.6˚F. Emits three short
beeps and red LED is on for
5 seconds.
Displays “H” in conjunction
with the “
▲” when ambient
temperature is higher than
40.0˚C or 104.0˚F. Emits three
short beeps and red LED is on
for 5 seconds.
Displays “L” in conjunction
with the “
▼” when ambient
temperature is lower than
5.0˚C or 41.0˚F. Emits three
short beeps and red LED is on
for 5 seconds.
When system has malfunction.
Emits three short beeps and
red LED is on for 5 seconds.
Control Displays and Symbols
7

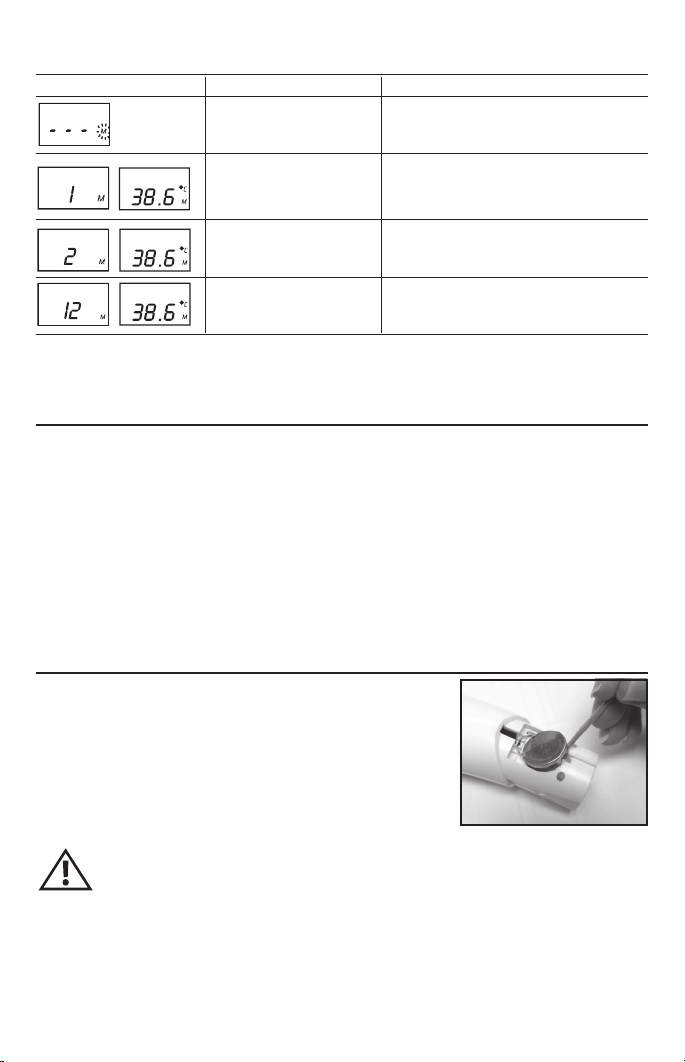

REPLACING THE BATTERY
The Grow With Me Ear Thermometer Set is supplied with one
lithium battery, type CR2032. Replace with a new CR2032 battery
when the flashing battery symbol appears on the LCD display.
Use a toothpick or insulated probe to remove the battery. Do not
use any kind of sharp metal object to remove the battery.
CLEANING AND STORAGE
Use an alcohol swab or cotton swab moistened with alcohol (70% Isopropyl) to clean the thermometer casing and the measuring probe. Ensure that no liquid enters the interior of the thermometer.
Never use abrasive cleaning agents, thinners or benzene for cleaning and never immerse the instru-
ment in water or other cleaning liquids. Take care not to scratch the surface of the LCD display.
NOTE: The sensor should be cleaned before taking measurements.
Remove the battery from the instrument if it is not required for extended periods of time in order to
avoid damage to the thermometer resulting from a leaking battery.
How to Recall 12 Readings in Memory Mode
The thermometer can recall the last 12 readings. To recall please follow sequence.
Display Display Meaning Description
Recall Mode
Reading 1 (the last reading)
Reading 2 (the second latest
reading)
Reading 12 (the last
reading)
Press the START button to enter Recall Mode
when power is off.The memory icon <M>
flashes.
Press and release the START button to
recall the last reading. Display 1 alone with
memory icon.
Press and release the START button to recall
the second latest reading.
Press and release the START button
consecutively to recall readings in
succession, up to the last 12 readings.
Pressing and releasing the START button after the last 12 readings have been recalled will resume the above
sequence from reading 1.
BATTERY WARNING:
Keep battery out of child’s reach. Swallowing battery could be fatal.
Battery should not be charged or placed in extreme heat as it may rupture.
Used batteries should be disposed of properly.
Loading...
