WARNING
Cord poses a potential strangulation hazard to young
children. When not in use, store out of children’s reach.
Use of this thermometer is not intended as a substitute
for consultation with you physician.
The thermometer is not waterproof! NEVER immerse
into liquids
CAUTION:
THIS PRODUCT IS NOT A TOY. ADULT SUPERVISION IS
STORE AWAY FROM CHILD’S REACH.
We congratulate you on your purchase of 3 in 1 Family Thermometer.
Our innovative thermometer enables very fast and reliable measure-
ments and with its predictive technology the thermometer offers a very
high clinical accuracy and has been designed to provide a maximum
of user-friendliness.
3 IN 1 FAMILY
THERMOMETER
03180
Please read the following instructions
and warnings carefully.
Keep this instruction manual
for future reference.
Requires 2 AAA batteries (included).
For Technical Support
Call 1-800-268-6237
or E-Mail at
For use with children
from birth and up.
Page 2
Your 3 in 1 Family Thermometer:
operation and advantages Page 2-3
Control displays and symbols Page 5-6
Changing from Celsius to Fahrenheit
and vice-versa Page 6
memory mode Page 9
Cleaning and storage Page 9
Technical specifi cations Page 11
Warranty Page 12
EN12470-3: 2000, clinical thermometers
ASTM E1112- 00 standard
Reference to standards
EN12470-3: 2000, clinical thermometers
ASTM E1112- 00 standard
EN12470-3: 2000, clinical thermometers
ASTM E1112- 00 standard
Reference to standards
Complete a Measurement in 5/6/7 Seconds
The innovative predictive technology incorporated in the thermometer
allows calculation in 5/6/7 seconds (rectal/oral/underarm).
Ergonomic Probe Shape
Ergonomic probe shape for each measuring site (oral, underarm, and
rectal). This makes the measurement more comfortable and reliable
Accurate and Reliable
Accuracy of measurements with the thermometer is comparable to
that of a conventional pen-type one.
Fever Indicator
RED backlight will be on for 5 seconds if reading is equal to or higher
than 99.5°F
(37.5°C)
.
Lighted Large Display
Large display with backlight makes the thermometer easy to use
and read.
TABLE OF CONTENTS
YOUR 3 IN 1 FAMILY THERMOMETER:
OPERATION AND ADVANTAGES
2
TECHNICAL SPECIFICATIONS (CONT.)
Description
Features
Turn on the unit. It will automatically
display the last reading for 2 seconds
after display check.
Memory function
Turn on the unit. It will automatically
display the last reading for 2 seconds
after display check.
Turn on the unit. It will automatically
display the last reading for 2 seconds
after display check.
Memory function
Around 3 and a half min. ±30 seconds
after the measurement is completed.
Auto Power-Off function
Around 3 and a half min. ±30 seconds
after the measurement is completed.
Around 3 and a half min. ±30 seconds
after the measurement is completed.
Auto Power-Off function
Displays “Lo” when the measurement is
lower than 89.6°F (32°C) and “Hi” when
higher than 109.2°F (42.9°C)
Out-of-range indication
Displays “Lo” when the measurement is
lower than 89.6°F (32°C) and “Hi” when
higher than 109.2°F (42.9°C)
Displays “Lo” when the measurement is
lower than 89.6°F (32°C) and “Hi” when
higher than 109.2°F (42.9°C)
Out-of-range indication
When the battery voltage drops to the
low level, the symbol
“ “
will appear
on LCD.
Low battery indication
When the battery voltage drops to the
low level, the symbol
on LCD.
When the battery voltage drops to the
low level, the symbol
on LCD.
Low battery indication

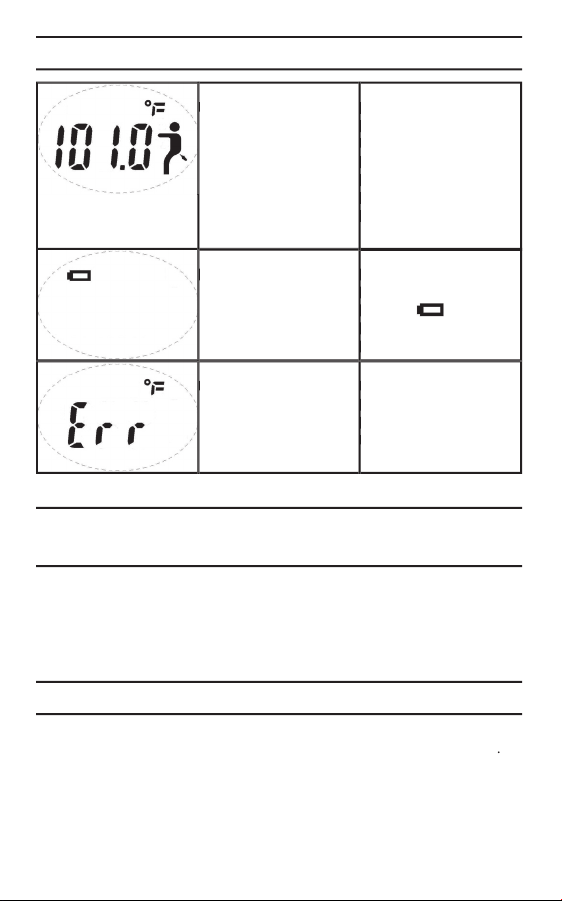

It runs automatically after power on.
Display “Err” when system malfunction.
50~104°F (10~40°C), 15~95%R.H.
noncondension
Operating temperature
50~104°F (10~40°C), 15~95%R.H.
noncondension
50~104°F (10~40°C), 15~95%R.H.
noncondension
Operating temperature
Self-test function
It runs automatically after power on.
Display “Err” when system malfunction.
It runs automatically after power on.
Display “Err” when system malfunction.
Self-test function
-4°F to 140°F (-20°C to +60°C)
Storage temperature
-4°F to 140°F (-20°C to +60°C) -4°F to 140°F (-20°C to +60°C)
Storage temperature
Please observe the applicable disposal regulations to dispose of the
instrument and the batteries.
a. 1 beep sound is made when power
ON or OFF.
b. 5 beeps are made after the
measuring is completed.
Beeper function
a. 1 beep sound is made when power
ON or OFF.
b. 5 beeps are made after the
measuring is completed.
a. 1 beep sound is made when power
ON or OFF.
b. 5 beeps are made after the
measuring is completed.
Beeper function
Page 3
OPERATION AND ADVANTAGES (CONT.)
3
Multiple Reading Recalls
Users will be able to recall the last 10 readings when entering the
recall mode, enabling tracking of temperature variation in a more
efficient way.
Acoustic Signal
A beeper works to indicate readiness for use and end of a
measurement.
Dual Temperature Scale
The temperature scale can be switched from Celsius to Fahrenheit and
vice-versa.
Probe Detection Section
This device detects which probe is used and displays the the body site
icon on the LCD.
Never use the thermometer for purposes other than body
temperature measurement. Please follow the safety precautions
when using in on children.
(not waterproof). For cleaning and disinfecting, please follow the
instructions in the “Cleaning and Storage” section of the instructions.
sun and keep in a dust-free, dry area at a temperature between
50°F-104°F, (10°C-40°C).
probe tips or the thermometer itself. If damaged, do not attempt to
repair the thermometer! Please contact Summer Infant’s Consumer
Relations Department.
Page 4
4
9

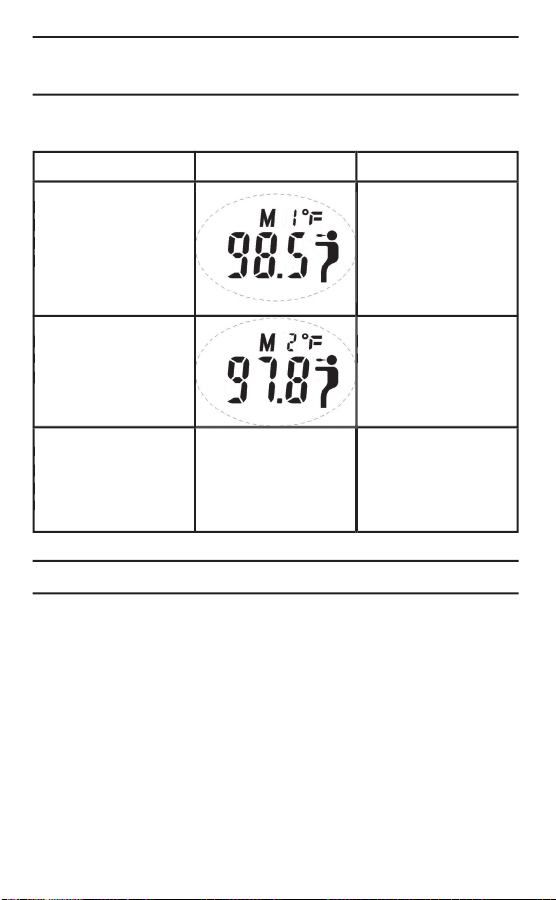

The 3 in 1 Family Thermometer can recall the last 10 readings.
To recall please follow the sequence.
Turn unit off and push
memory key. The reading,
measurement site symbol,
and M 1 are displayed
Turn unit off and push
memory key. The reading,
measurement site symbol,
and M 1 are displayed
Beeper: one short beep
Beeper: one short beep
Back Light: On for
Back Light: On for
5 seconds
5 seconds
Beeper: one short beep
Back Light: On for
5 seconds
Push memory key again
to recall other memories
in sequence
Push memory key again
to recall other memories
in sequence
Back Light: On for
Back Light: On for
5 seconds
5 seconds
Back Light: On for
5 seconds
Operation Sequence
LCD Display
Beeper/Backlight
If there is no action after
press memory key and
goes to automatic shut
off in 1 minute.
If there is no action after
press memory key and
goes to automatic shut
off in 1 minute.
CLEANING AND STORING
Use a soft slightly moist cloth to clean the thermometer casing and the
measuring tip. Ensure that no liquid enters the interior of the thermom-
eter. For disinfecting wipe the thermometer with approximately 70%
ethyl alcohol. Never use abrasive cleaning agents, thinners or benzene
for cleaning and never immerse the instrument in water or other clean-
ing liquids. Take care not to scratch the surface of the LCD.
Remove the batteries from the thermometer if it is not required
for extended periods of time in order to avoid damage to the
thermometer resulting from a leaking battery.
LCD
Screen
Power
O/I
Memory
Main Unit
Probe Handle
Battery Cover
Oral
Underarm
Rectal
Side
View
Probe
Tray
Page 5

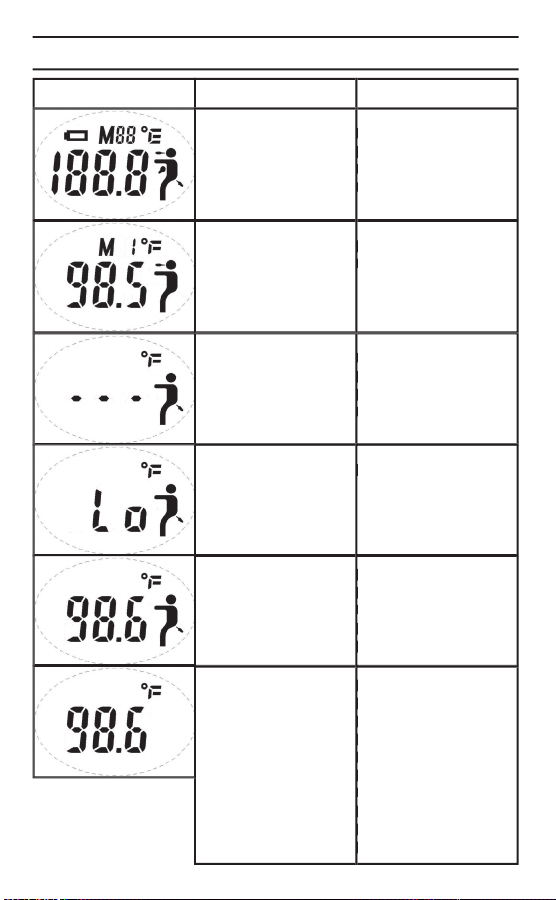

CONTROL DISPLAYS AND SYMBOLS
All segments displayed
All segments displayed
Press the O/I button to turn
on the unit. All segments
will be shown for 2
seconds.
Press the O/I button to turn
on the unit. All segments
will be shown for 2
seconds.
Recall of last reading
Recall of last reading
Show last reading
for 2 seconds
Show last reading
for 2 seconds
Probe detection
Probe detection
The device detects which
probe is used and
displays the body site
icon.
The device detects which
probe is used and
displays the body site
icon.
Ready-for-measurement
Ready-for-measurement
Ready-for-measurement
Ready-for-measurement
Completion of
a measurement
Completion of
a measurement
5 short beeps and then
green backlight on for
5 seconds when the
temperature is lower than
99.5°F (37.5C)
5 short beeps and then
green backlight on for
5 seconds when the
temperature is lower than
99.5°F (37.5C)
Completion of a
measurement by
regular mode
Completion of a
measurement by
regular mode
During measurement, if
irregular action such as
movement of the body
which produce abnormal
data is detected, the
device will enter regular
measurement mode with
the body icon
disappeared and one
beeper alarm.
During measurement, if
irregular action such as
movement of the body
which produce abnormal
data is detected, the
device will enter regular
measurement mode with
the body icon
disappeared and one
beeper alarm.
5
LCD Display
Display Meaning
Description
Page 6
Connect the right probe for the measuring site you would like to take
the temperature of before turning on the device by connecting probe
to probe handle.
2.
Turn on the device and it automatically displays all segments, last
reading and check circuit before it is ready for measurement
3. Oral measurement
When correctly used your thermometer is able to accurately measure
the temperature in the mouth in
approximately 6 seconds
.
Note:

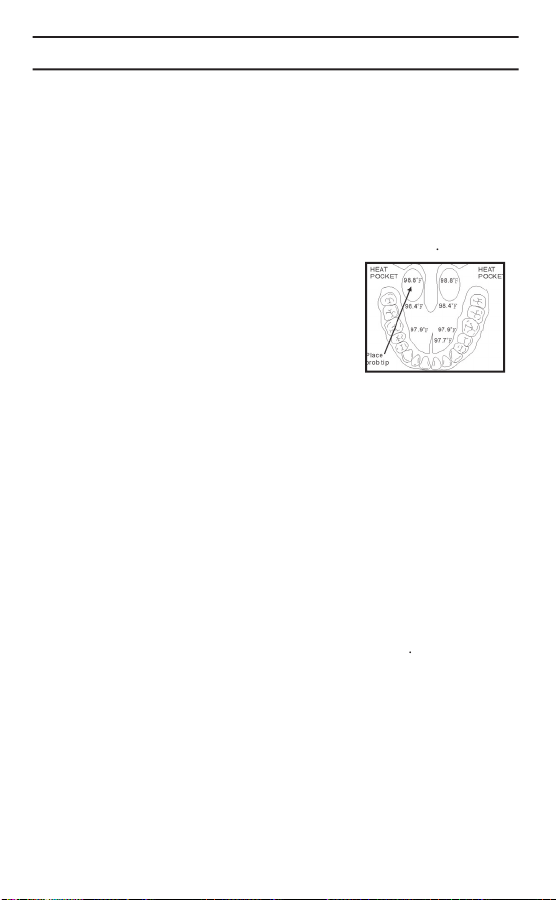

Among other things the measured temperature is dependent
on the position of the measuring tip in the mouth. The most accurate
temperature is obtained in the warming pockets to the left and right
next to the frenumum of the tongue. Breathing through the mouth and
taking food and drinks directly prior to measurement also influences
the temperature values obtained by oral measurement.
b.
Keep the measuring tip in permanent contact with the mucous
membrane of the mouth during the entire measuring process.
Holding the measuring tip still guarantees rapid and accurate
measurement.
4. For underarm measurement
When correctly used your thermometer is able to measure the tem-
perature in the underarm in
approximately 6 seconds
.
a.
Wipe underarm with a dry towel
b.
Place probe tip in armpit and bring arm down against the body. The
probe should be pointing upward in the same direction as your body
if possible.
a.
Carefully introduce the measuring tip in
the slightly opened mouth of the patient.
When doing so the measuring tip must be
positioned as Instantly as possible in one of
the two warming pockets to the left or right
next to the frenulum of the tongue. Now lightly
close the lips around the measuring tip.
6
7
CONTROL DISPLAYS AND SYMBOLS
Fever alarm
Fever alarm
15 short beeps and then
red backlight on for 5
seconds when the
temperature is higher than
99.5°F (37.5°C) in order
to alert the patient that
he/she may have a fever.
15 short beeps and then
red backlight on for 5
seconds when the
temperature is higher than
99.5°F (37.5°C) in order
to alert the patient that
he/she may have a fever.
Low battery indication
Low battery indication
When the battery voltage
drops to the low level, the
symbol “ “ will
appear on LCD to remind
user to change battery
When the battery voltage
drops to the low level, the
symbol “ “ will
appear on LCD to remind
user to change battery
Error detection
Error detection
1. The device detects
problem on the circuit.
2. The probe does not
connect well.
1. The device detects
problem on the circuit.
2. The probe does not
connect well.
The 3 in 1 Family Thermometer can display temperature
measurements in either Fahrenheit or Celsius.
To switch the scale from °C to °F or vise versa, press the O/I button for
more than 3 seconds, and the unit is changed from °C to °F, then the
device enters to measuring mode automatically.
Your 3 in 1 Family Thermometer will always attempt first to calculate
the temperature with the predictive technology in
Prediction mode
.
If correct measurement in the
Prediction mode
is repeatedly
impossible (e.g. failure to position the probe adequately) the
instrument automatically switches to
Regular mode
.
In this mode the temperature is determined as with a conventional
digital medical thermometer by extending the measuring time.
CHANGING FROM CELCIUS TO
IMPORTANT: The thermometer is not waterproof.
Page 7
Connect the right probe for the measuring site you would like to take
the temperature of before turning on the device by connecting probe
to probe handle.
2.
Turn on the device and it automatically displays all segments, last
reading and check circuit before it is ready for measurement
3. Oral measurement
When correctly used your thermometer is able to accurately measure
the temperature in the mouth in
approximately 6 seconds
.
Note:
Among other things the measured temperature is dependent
on the position of the measuring tip in the mouth. The most accurate
temperature is obtained in the warming pockets to the left and right
next to the frenumum of the tongue. Breathing through the mouth and
taking food and drinks directly prior to measurement also influences
the temperature values obtained by oral measurement.
b.
Keep the measuring tip in permanent contact with the mucous
membrane of the mouth during the entire measuring process.
Holding the measuring tip still guarantees rapid and accurate
measurement.
4. For underarm measurement
When correctly used your thermometer is able to measure the tem-
perature in the underarm in
approximately 6 seconds
.
a.
Wipe underarm with a dry towel
b.
Place probe tip in armpit and bring arm down against the body. The
probe should be pointing upward in the same direction as your body
if possible.
a.
Carefully introduce the measuring tip in
the slightly opened mouth of the patient.
When doing so the measuring tip must be
positioned as Instantly as possible in one of
the two warming pockets to the left or right
next to the frenulum of the tongue. Now lightly
close the lips around the measuring tip.
7
Page 8
5. For rectum measurement
When correctly used your thermometer is able to accurately measure
the temperature in the Rectal in
approximately 5 seconds
.
a.
Move the two cheeks of the buttocks somewhat apart with one hand
and carefully introduce the measuring tip not more than 1.5cm (less for
babies and small children) in the rectum. A lubricant (cream) can be
used if required.
b.
The measuring tip must be in complete contact with the mucus
membrane. Do not move the measuring tip so as not to injure the
mucous membrane. Holding the measuring tip still guarantees rapid
and accurate measurement.
6.
While measuring the temperature the LCD display following. These
indicate that measuring is in progress.
Note:
If the measuring tip is moved during the measuring process, the
measuring time is extended in order to enable accurate temperature
measurement.
7.
Once the final measured temperature has been obtained
five short
beep are heard
and green back light is on for 5 seconds if the read-
ing below 99.5°F (37.5°C), or red back light is on for 5 seconds if the
reading is above 99.5°F (37.5°C) with 15 short beep sound.
8.
To switch off the thermometer, briefly press the O/I button.
If this is not done, the thermometer switches off automatically after
approximately 3 and half minutes.
8

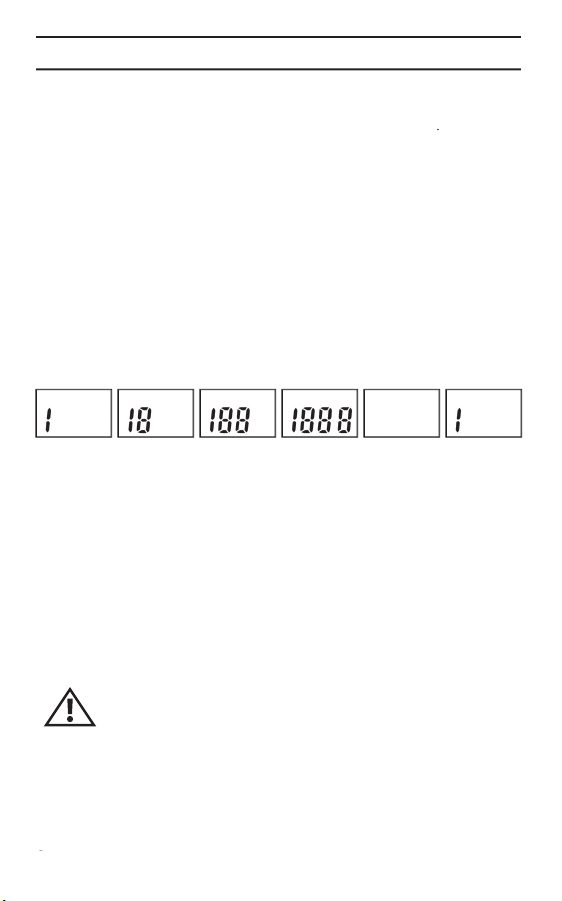

CONTROL DISPLAYS AND SYMBOLS
All segments displayed All segments displayed
Press the O/I button to turn
on the unit. All segments
will be shown for 2
seconds.
Press the O/I button to turn
on the unit. All segments
will be shown for 2
seconds.
Recall of last reading Recall of last reading
Show last reading
for 2 seconds
Show last reading
for 2 seconds
Probe detection Probe detection
The device detects which
probe is used and
displays the body site
icon.
The device detects which
probe is used and
displays the body site
icon.
Ready-for-measurement Ready-for-measurement
Ready-for-measurement Ready-for-measurement
Completion of
a measurement
Completion of
a measurement
5 short beeps and then
green backlight on for
5 seconds when the
temperature is lower than
99.5°F (37.5C)
5 short beeps and then
green backlight on for
5 seconds when the
temperature is lower than
99.5°F (37.5C)
Completion of a
measurement by
regular mode
Completion of a
measurement by
regular mode
During measurement, if
irregular action such as
movement of the body
which produce abnormal
data is detected, the
device will enter regular
measurement mode with
the body icon
disappeared and one
beeper alarm.
During measurement, if
irregular action such as
movement of the body
which produce abnormal
data is detected, the
device will enter regular
measurement mode with
the body icon
disappeared and one
beeper alarm.
5
LCD Display
Display Meaning
Description
time or when batteries are exhausted.
Page 9
9
The 3 in 1 Family Thermometer can recall the last 10 readings.
To recall please follow the sequence.
Turn unit off and push
memory key. The reading,
measurement site symbol,
and M 1 are displayed
Turn unit off and push
memory key. The reading,
measurement site symbol,
and M 1 are displayed
Beeper: one short beep
Beeper: one short beep
Back Light: On for
Back Light: On for
5 seconds
5 seconds
Beeper: one short beep
Back Light: On for
5 seconds
Push memory key again
to recall other memories
in sequence
Push memory key again
to recall other memories
in sequence
Back Light: On for
Back Light: On for
5 seconds
5 seconds
Back Light: On for
5 seconds
Operation Sequence
LCD Display
Beeper/Backlight
If there is no action after
press memory key and
goes to automatic shut
off in 1 minute.
If there is no action after
press memory key and
goes to automatic shut
off in 1 minute.
CLEANING AND STORING
Use a soft slightly moist cloth to clean the thermometer casing and the
measuring tip. Ensure that no liquid enters the interior of the thermom-
eter. For disinfecting wipe the thermometer with approximately 70%
ethyl alcohol. Never use abrasive cleaning agents, thinners or benzene
for cleaning and never immerse the instrument in water or other clean-
ing liquids. Take care not to scratch the surface of the LCD.
Remove the batteries from the thermometer if it is not required
for extended periods of time in order to avoid damage to the
thermometer resulting from a leaking battery.
Page 10
OPERATION AND ADVANTAGES (CONT.)
The 3 in 1 Family Thermometer is supplied with two AAA batteries.
Replace with new batteries when the low battery symbol appears
on the LCD display.
Remove the battery cover by
depressing tab and opening.
Remove old batteries and replace
with new ones. Snap battery cover
back in place.

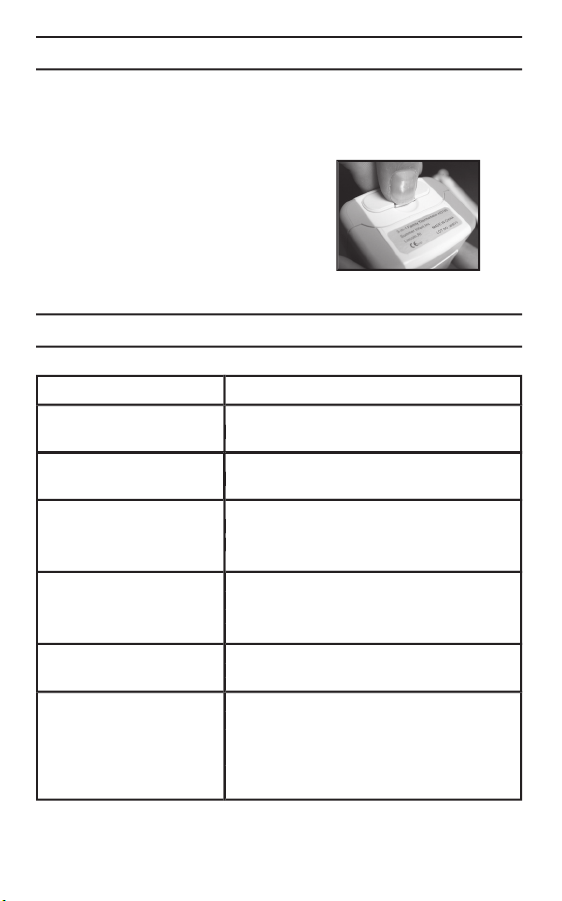

Description
89.6°F ~109.2°F (32°C ~42.9°C)
Predict mode: 5 seconds in rectal
Regular mode: 10 seconds in rectal
Comply with ASTM E1112-00 and
EN12470-3 requirement
0.1°F (0.1°C)
Features
Measuring range
89.6°F ~109.2°F (32°C ~42.9°C)
89.6°F ~109.2°F (32°C ~42.9°C)
Measuring range
Resolution
0.1°F (0.1°C)
0.1°F (0.1°C)
Resolution
Accuracy
Comply with ASTM E1112-00 and
EN12470-3 requirement
Comply with ASTM E1112-00 and
EN12470-3 requirement
Accuracy
Measurement time
Predict mode: 5 seconds in rectal
Regular mode: 10 seconds in rectal
Predict mode: 5 seconds in rectal
Regular mode: 10 seconds in rectal
Measurement time
1.5V AAA battery X2
Power source
1.5V AAA battery X2
1.5V AAA battery X2
Power source
TECHNICAL SPECIFICATIONS
1. Green light is on when the reading is
below 99.5°F (37.5°C)
2. Red light is on when the reading is
above 99.5°F (37.5°C)
Back light
1. Green light is on when the reading is
below 99.5°F (37.5°C)
2. Red light is on when the reading is
above 99.5°F (37.5°C)
1. Green light is on when the reading is
below 99.5°F (37.5°C)
2. Red light is on when the reading is
above 99.5°F (37.5°C)
Back light
3
Multiple Reading Recalls
Users will be able to recall the last 10 readings when entering the
recall mode, enabling tracking of temperature variation in a more
efficient way.
Acoustic Signal
A beeper works to indicate readiness for use and end of a
measurement.
Dual Temperature Scale
The temperature scale can be switched from Celsius to Fahrenheit and
vice-versa.
Probe Detection Section
This device detects which probe is used and displays the the body site
icon on the LCD.
Never use the thermometer for purposes other than body
temperature measurement. Please follow the safety precautions
when using in on children.
(not waterproof). For cleaning and disinfecting, please follow the
instructions in the “Cleaning and Storage” section of the instructions.
sun and keep in a dust-free, dry area at a temperature between
50°F-104°F, (10°C-40°C).
probe tips or the thermometer itself. If damaged, do not attempt to
repair the thermometer! Please contact Summer Infant’s Consumer
Relations Department.
Page 11
EN12470-3: 2000, clinical thermometers
ASTM E1112- 00 standard
Reference to standards
EN12470-3: 2000, clinical thermometers
ASTM E1112- 00 standard
EN12470-3: 2000, clinical thermometers
ASTM E1112- 00 standard
Reference to standards
TECHNICAL SPECIFICATIONS (CONT.)
Description
Features
Turn on the unit. It will automatically
display the last reading for 2 seconds
after display check.
Memory function
Turn on the unit. It will automatically
display the last reading for 2 seconds
after display check.
Turn on the unit. It will automatically
display the last reading for 2 seconds
after display check.
Memory function
Around 3 and a half min. ±30 seconds
after the measurement is completed.
Auto Power-Off function
Around 3 and a half min. ±30 seconds
after the measurement is completed.
Around 3 and a half min. ±30 seconds
after the measurement is completed.
Auto Power-Off function
Displays “Lo” when the measurement is
lower than 89.6°F (32°C) and “Hi” when
higher than 109.2°F (42.9°C)
Out-of-range indication
Displays “Lo” when the measurement is
lower than 89.6°F (32°C) and “Hi” when
higher than 109.2°F (42.9°C)
Displays “Lo” when the measurement is
lower than 89.6°F (32°C) and “Hi” when
higher than 109.2°F (42.9°C)
Out-of-range indication
When the battery voltage drops to the
low level, the symbol
“ “
will appear
on LCD.
Low battery indication
When the battery voltage drops to the
low level, the symbol
on LCD.
When the battery voltage drops to the
low level, the symbol
on LCD.
Low battery indication
It runs automatically after power on.
Display “Err” when system malfunction.
50~104°F (10~40°C), 15~95%R.H.
noncondension
Operating temperature
50~104°F (10~40°C), 15~95%R.H.
noncondension
50~104°F (10~40°C), 15~95%R.H.
noncondension
Operating temperature
Self-test function
It runs automatically after power on.
Display “Err” when system malfunction.
It runs automatically after power on.
Display “Err” when system malfunction.
Self-test function
-4°F to 140°F (-20°C to +60°C)
Storage temperature
-4°F to 140°F (-20°C to +60°C)
-4°F to 140°F (-20°C to +60°C)
Storage temperature
Please observe the applicable disposal regulations to dispose of the
instrument and the batteries.
a. 1 beep sound is made when power
ON or OFF.
b. 5 beeps are made after the
measuring is completed.
Beeper function
a. 1 beep sound is made when power
ON or OFF.
b. 5 beeps are made after the
measuring is completed.
a. 1 beep sound is made when power
ON or OFF.
b. 5 beeps are made after the
measuring is completed.
Beeper function
Page 12
Summer Infant, Inc.
6 Blackstone Valley Place, Suite 206
Lincoln, RI 02865 USA 1-800-268-6237
© 2005 Summer Infant, Inc.
WARNING
Cord poses a potential strangulation hazard to young
children. When not in use, store out of children’s reach.
Use of this thermometer is not intended as a substitute
for consultation with you physician.
The thermometer is not waterproof! NEVER immerse
into liquids
CAUTION:
THIS PRODUCT IS NOT A TOY. ADULT SUPERVISION IS
STORE AWAY FROM CHILD’S REACH.

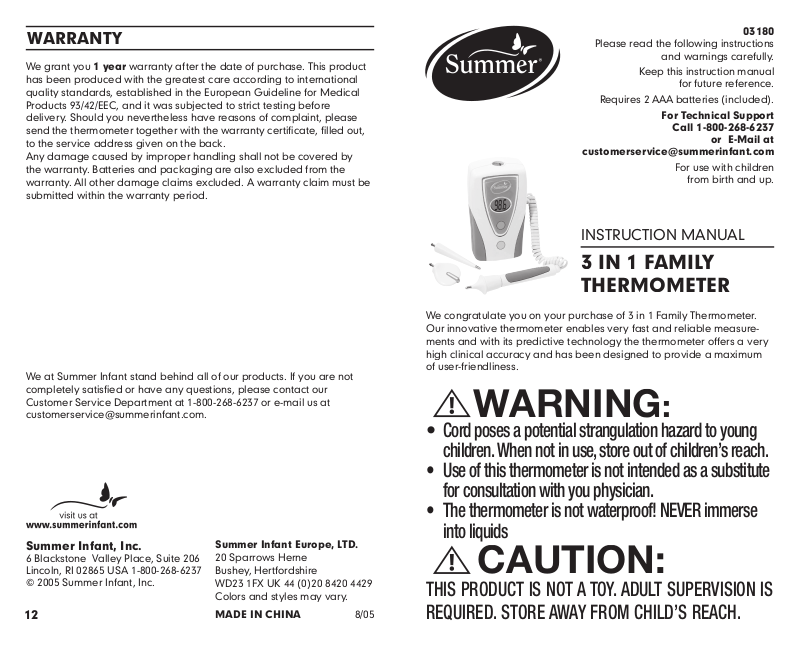

We congratulate you on your purchase of 3 in 1 Family Thermometer.
Our innovative thermometer enables very fast and reliable measure-
ments and with its predictive technology the thermometer offers a very
high clinical accuracy and has been designed to provide a maximum
of user-friendliness.
3 IN 1 FAMILY
THERMOMETER
We grant you
warranty after the date of purchase. This product
has been produced with the greatest care according to international
quality standards, established in the European Guideline for Medical
Products 93/42/EEC, and it was subjected to strict testing before
delivery. Should you nevertheless have reasons of complaint, please
send the thermometer together with the warranty certifi cate, fi lled out,
to the service address given on the back.
Any damage caused by improper handling shall not be covered by
the warranty. Batteries and packaging are also excluded from the
warranty. All other damage claims excluded. A warranty claim must be
submitted within the warranty period.
03180
Please read the following instructions
and warnings carefully.
Keep this instruction manual
for future reference.
Requires 2 AAA batteries (included).
For Technical Support
Call 1-800-268-6237
or E-Mail at
For use with children
from birth and up.
We at Summer Infant stand behind all of our products. If you are not
completely satisfi ed or have any questions, please contact our
Customer Service Department at 1-800-268-6237 or e-mail us at
Summer Infant Europe, LTD.
20 Sparrows Herne
Bushey, Hertfordshire
WD23 1FX UK 44 (0)20 8420 4429
Colors and styles may vary.
MADE IN CHINA
8/05
Loading...
