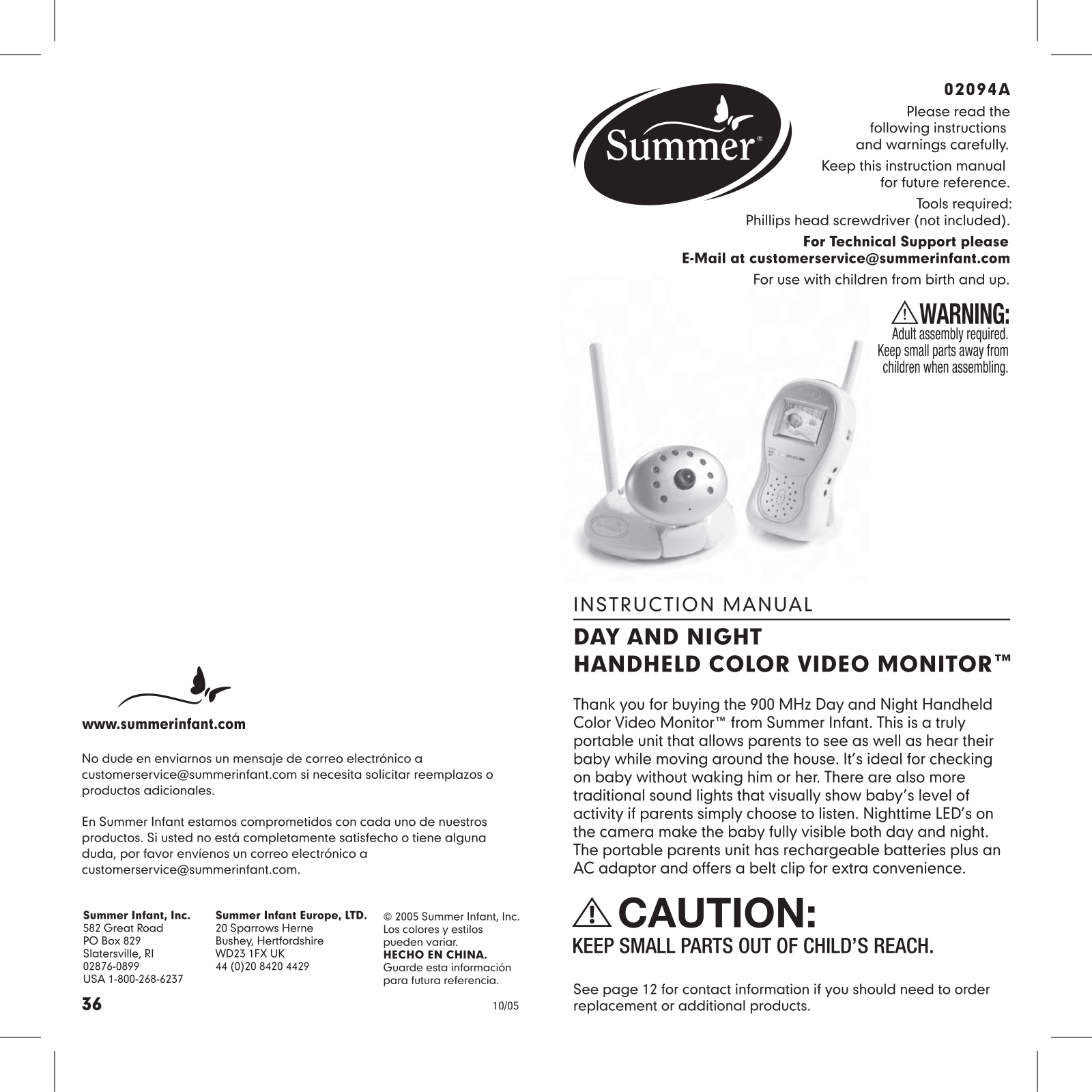

Summer Infant 02094A User Manual
Specifications and Main Features
- Type of Device: A handheld color video device.
- Range: The device operates on a 900 MHz frequency.
- Age Limit: The device can cater to users of up to 350 feet in distance, starting from birth.
- Source of Energy: The device either operates with a 4.8V Ni-Cd rechargeable battery which is provided when purchased or operates steadily on an AC adapter.
- Night Vision Capabilities: The device contains infrared LEDs which give the device the capability to see in the dark.
- Audio Capabilities: The device is embedded with detection lights which indicate the sound level of the connected audio source i.e. the baby.
- Video Features and Capabilities: The day video feature works in color whilst the night video feature is enabled in black and white.
- Number of Channels: The device is able to operate with multiple channels spanning A and B.
- Maximum Range: The maximum range that the device can support is 350 feet.
- Adjustable camera position: The device contains a multi position camera alongside a multi-directional microphone.

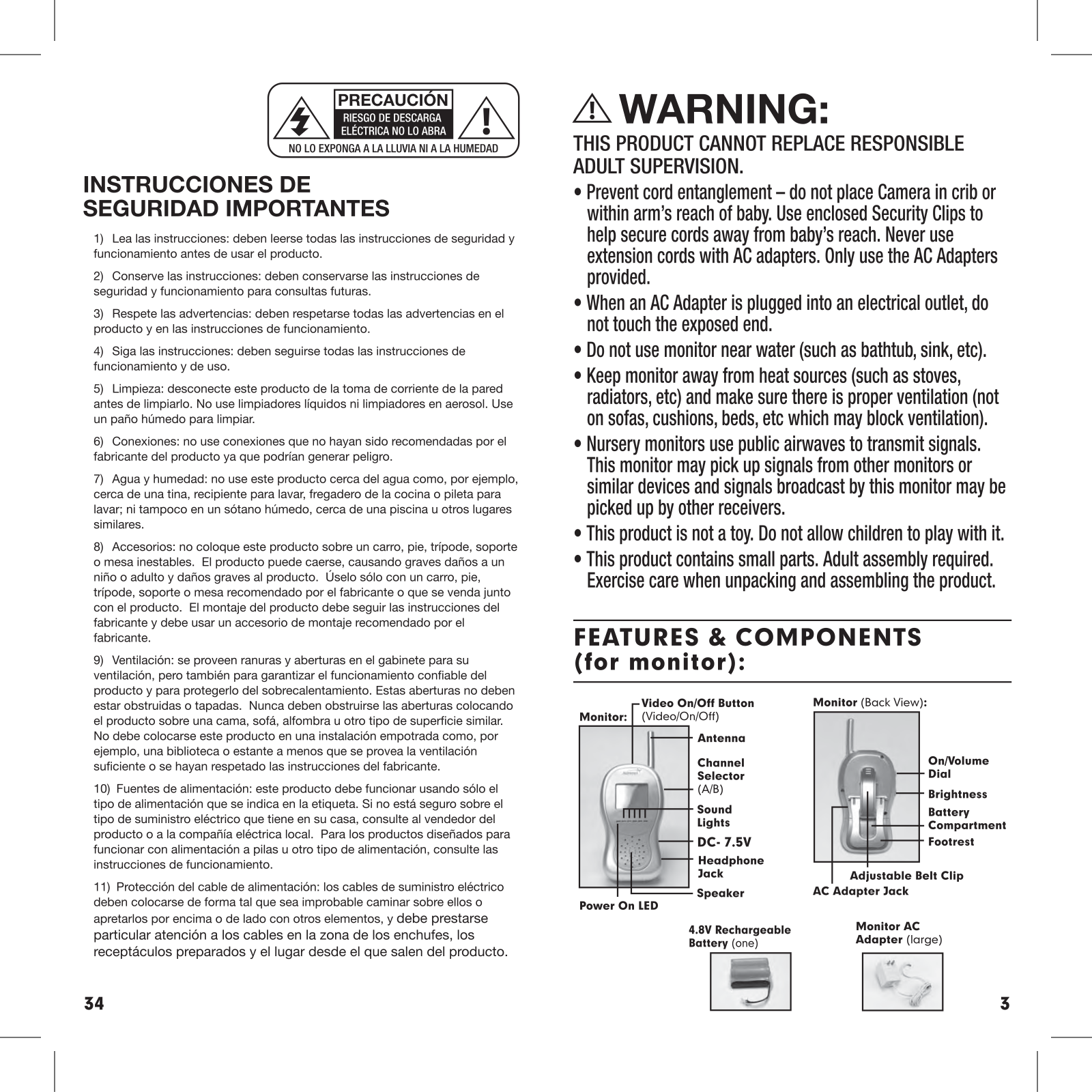

- Monitor Capacities:
- A switch allowing users to turn Power On/Off alongside a dial controlling volume.
- A Quick View button which also has the ability to Switch the Video On and Off.
- A Brightness dial, however, this can be placed to varying levels allowing perspective adjustments.
- A reception-controlled antenna.
- A single port for headphones to enable the user to listen privately.
- A belt clip for after use.
- A footrest which can be attached onto the video monitor permitting to do tabletop usage.

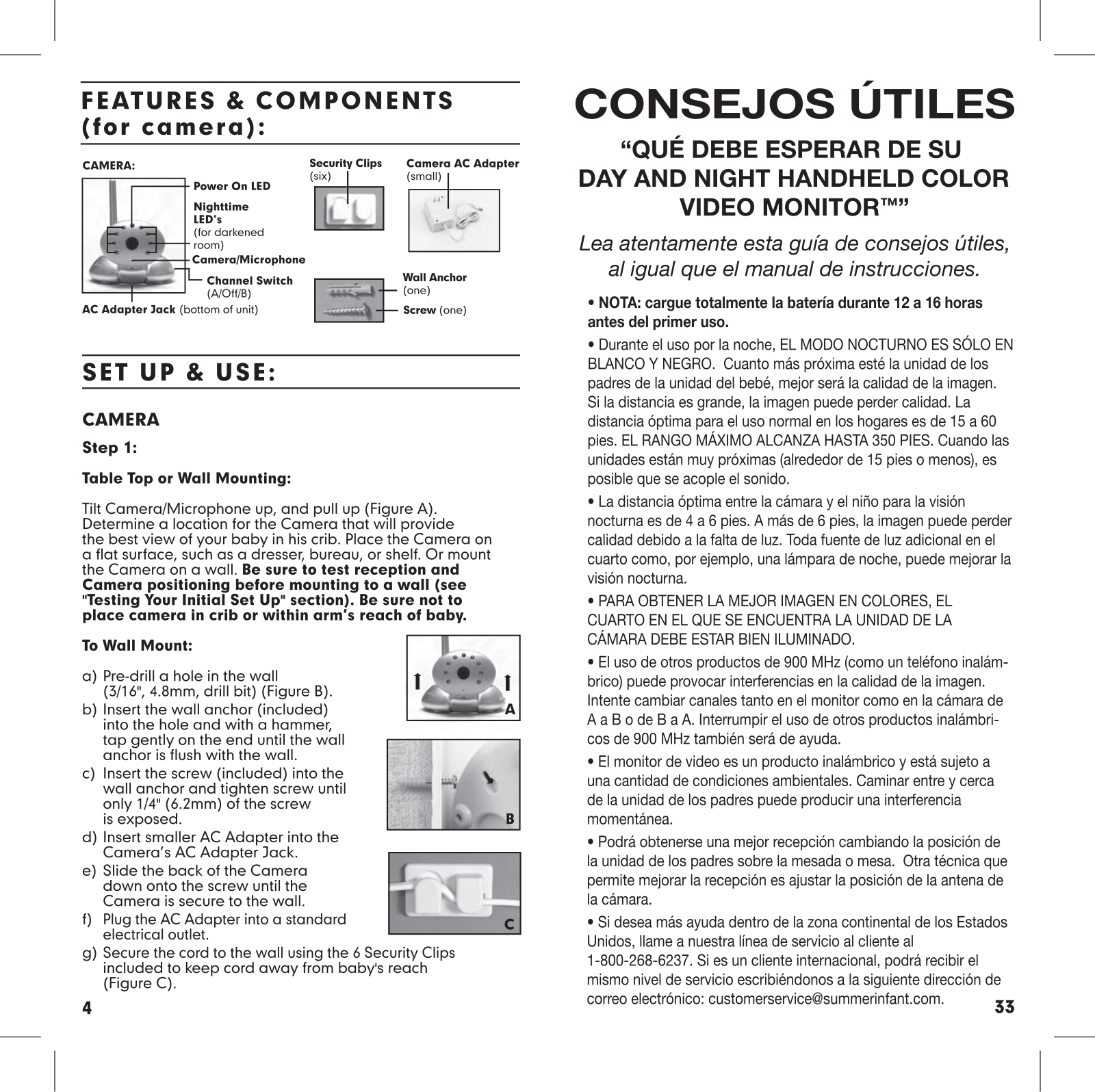

- Camera Devices:
- The camera is embedded with a power enabling LED.
- Six LED lights, illuminating the camera when needed.
- Approximately 6 clips with security features which bind lovely camera cords from the child.
- and a full pack of screws with anchors enabling wall mounting.
Frequently Asked Questions
Q: What is the range of a fully functional Daytime and Night handheld color video devices when controlled by only one user being the monitor.
A: Its range encompasses 350 feet.
Q: Is it possible for the monitor to function without being plugged into electrical power?
A: The monitor can use a rechargeable battery that supplies 4.8 volts.
Q: Does this device include a night vision option?
A: Yes, the monitor is equipped with infrared LEDs for night vision which allows you to see the baby clearly in the dark room.
Q: How do I adjust the channel on the devices?
A: There is a channel selector on both the camera and monitor that has an A or B setting.
Q: Is it possible to connect the handheld monitor with headphones?
A: Yes, a headphone jack is available on the handheld monitor for monitoring purposes.

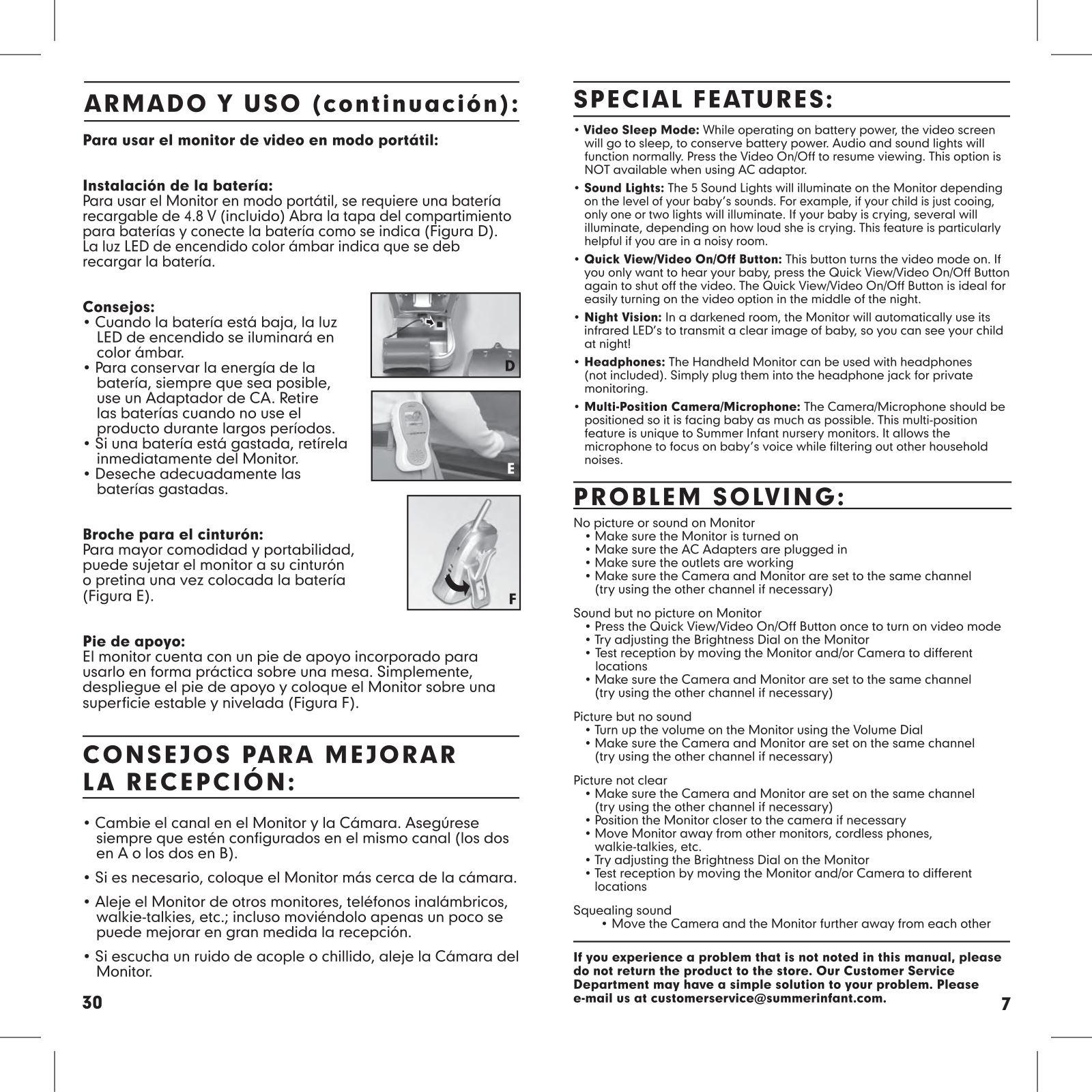

Q: What can be done if there is no sound or picture displayed on the monitor?
A: Make sure that the AC adapters are plugged in and the monitor is powered on. Also check that the camera and monitor are using the same channel.

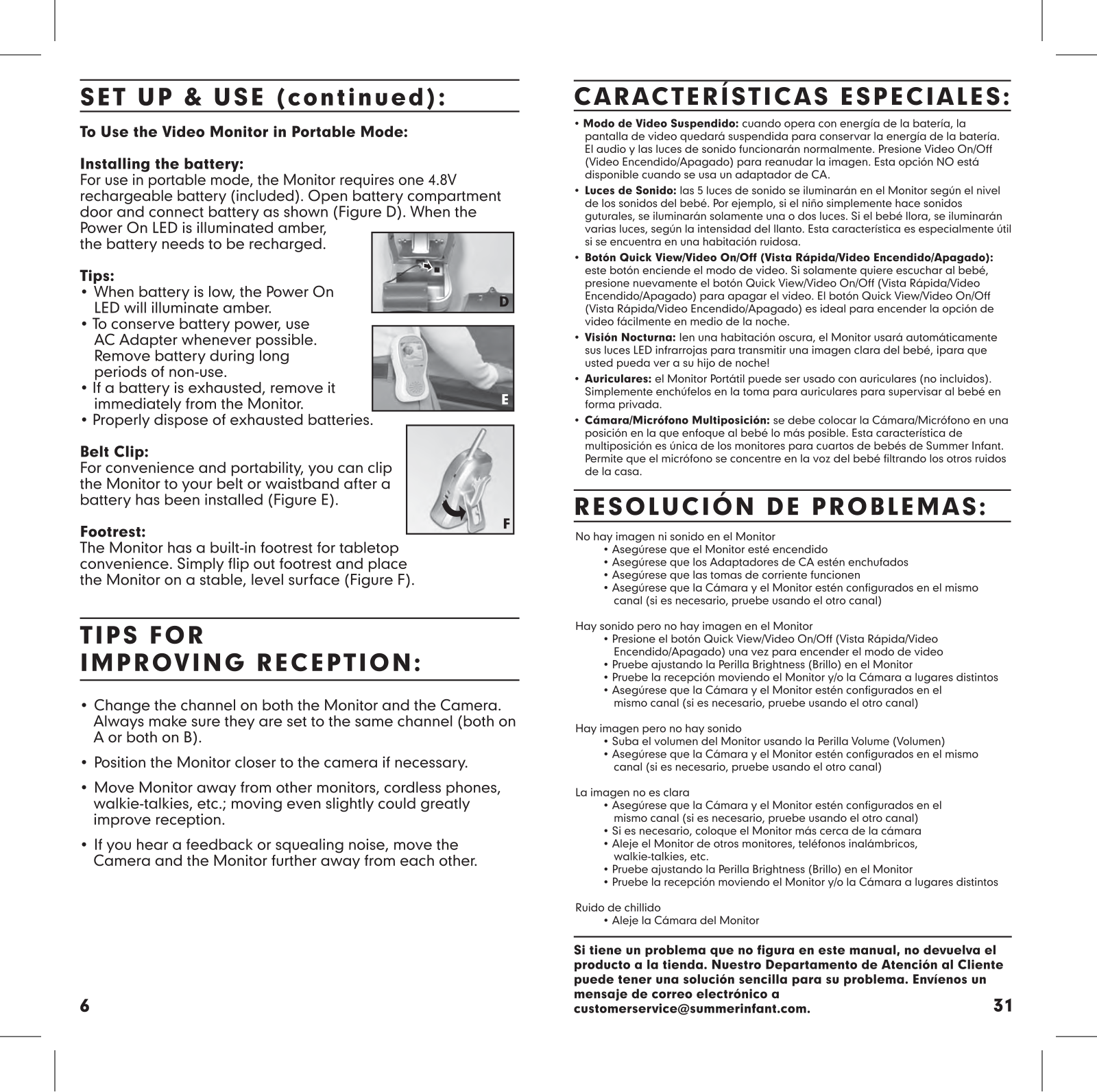

User Manual
