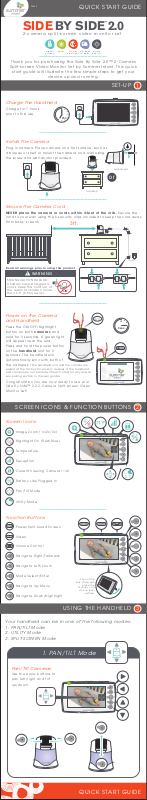

QUICK START GUIDE
SIDE BY SIDE 2.0
2-camera split-screen video monitor set
digital
privacy
zoom
2-color
nightlight
talk-back
to baby
remote
pan/tilt
Thank you for purchasing the Side By Side 2.0™ 2-Camera
Split-screen Video Monitor Set by Summer Infant. This quick
start guide will illustrate the few simple steps to get your
device up and running.

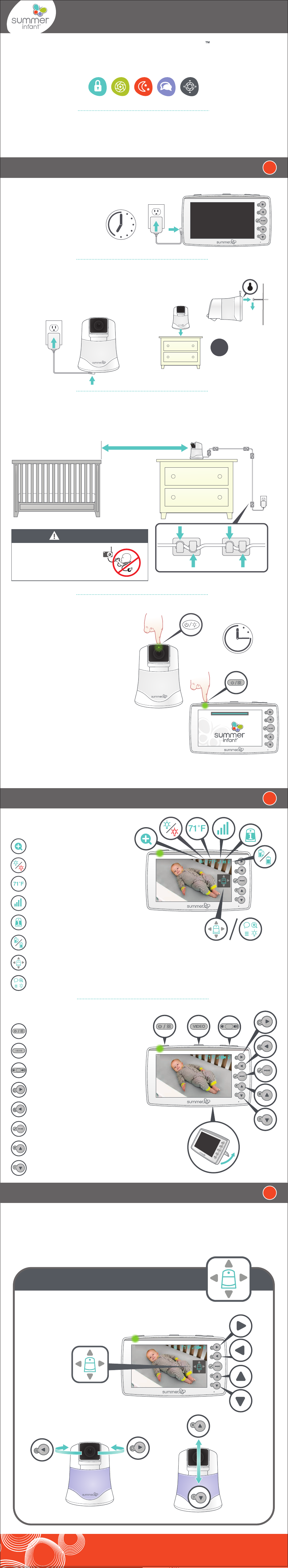

SET-UP
Charge the Handheld
Charge for 7 hours
prior to first use.
7hr.
1
Install the Camera
Plug in camera. Place camera on a flat surface, such as
a bureau or shelf or mount the camera on a wall using
the screw and wall anchor provided.
wall mount
or
tabletop
Secure the Camera Cord
NEVER place the camera or cords within 3-feet of the crib. Secure the
cord to your wall using the 6 security clips included to keep the cord away
from baby’s reach.
3ft.
Read all warnings prior to using this product.
WARNING
STRANGULATION HAZARD:
Children have strangled in
cords. Keep this cord out of
the reach of children (more
than 3 ft. (0.9m) away).
Power on the Camera
and Handheld
Press the ON/OFF/Nightlight
button on both cameras and
hold for 3 seconds. A green light
will appear near the lens.
Press and hold the power button
on the handheld unit for 3
seconds. The handheld will
automatically sync with both of
the cameras. (The handheld unit and the camera are
paired at the factory for privacy reasons. If the handheld
and camera are not paired with each other for any reason,
see pairing section in the user guide.)
3 sec.
/MENU
Congratulation You are now ready to use your
Side By Side™ 2.0 2-Camera Split-screen Video
Monitor Set!
SCREEN ICONS & FUNCTION BUTTONS 2
Screen Icons
Image Zoom (1x/2x/3x)
Nightlight On (Red/Blue)
Temperature
Reception
Current Viewing Camera (1-4)
Battery Life/Plugged In
Pan/Tilt Mode
Utility Mode
Function Buttons
Power/Split-Quad Screen
Video
Volume Control
Navigate Right/Talkback
Navigate Left/Zoom
Mode Select/Enter
Navigate Up/Menu
Navigate Down/Nightlight
Flip out the
kick-stand and
place the
monitor on a
stable, level
surface.
Your handheld can be in one of the following modes:
1. PAN/TILT Mode
2. UTILITY Mode
3. SPLIT-SCREEN Mode
1. PAN/TILT Mode
3USING THE HANDHELD
Pan/Tilt Cameras
Use the arrow buttons to
pan left/right and tilt
up/down.
QUICK START GUIDE
Page 2

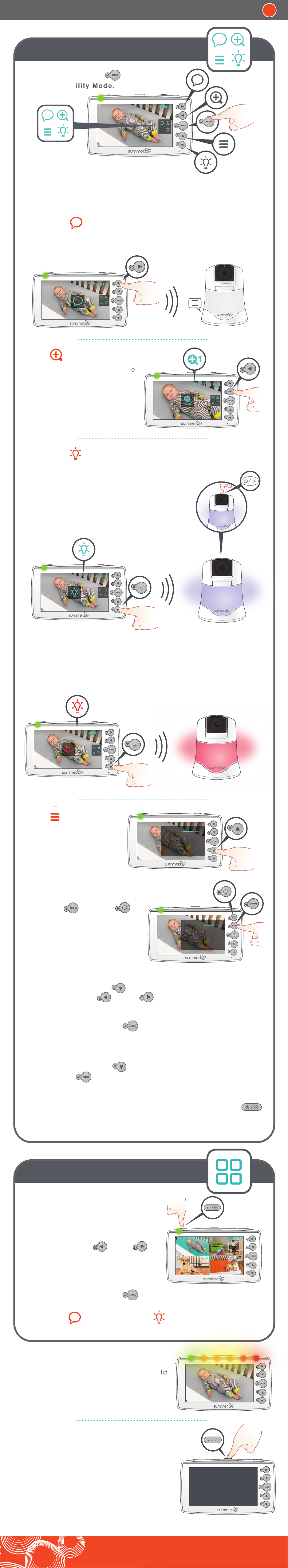

USING THE HANDHELD (continued) 3
2. UTILITY Mode
Press the Select/Mode button
to enter the Utility Mode.
When you select Utility Mode, the buttons
convert into secondary functions such as Talkback, Zoom, Menu
and Nightlight. If the buttons are not activated for about 4-5
seconds, it will automatically default back to Pan/Tilt Mode.
Talk-back
Press and hold the talk-back button to activate the talk-back
feature. Release the button to end talk-back mode.
Zoom
Press the zoom button to toggle
between No zoom, zoom 1x,
zoom 2x and zoom 3x. The zoom
level is indicated as an icon on
the top-right hand corner.
Nightlight
Press the nightlight button on the handheld
to activate the soft glow nightlight on the
camera. The light will glow blue. Blue light
acts as a soothing soft glow nightlight.
Nightlights are comforting to little ones,
especially toddlers who become scared in
a pitch black room.
The nightlight can be turned
on or off from the camera
by pressing the
ON/OFF/Nightlight button.
Press the nightlight button again to change the nightlight color to
red. Red light helps soothe infants to sleep. This color is prominent in
the sunset, natures very own way of telling your little one it’s time to
go to sleep. An added bonus: young baby’s find red light soothing
as it is a familiar color to them– it’s the only color light your baby
was able to see in the womb.
Menu
Press the Menu button
to enter the menu.
BRIGHTNESS
SCAN
VIEW CAM
DELETE CAM
ADD CAM
Menu - Adjusting Brightness
Use the left and right
arrow buttons to adjust the
brightness.
BRIGHTNESS
SCAN
VIEW CAM
DELETE CAM
ADD CAM
Menu - Selecting Camera to View
Step 1: Using the “DOWN ” button, select “View Cam”.
Step 2: Use the “LEFT /RIGHT ” buttons to select an available
camera (blue color indicates powered-on, within-range, or paired
cameras).
Step 3: Press “SELECT/MODE ” button to confirm selection.
Step 4: The video will appear on the handheld screen.
Menu - Scanning Camera
Step 1: Using the “DOWN ” button, select “SCAN” and press
“SELECT/MODE ” button.
Step 2: Scanning cameras will begin, it will cycle through each
active camera every 8 seconds.
Step 3: To stop scanning, press the “Power/Split-Quad Screen ”
/MENU
button.
For understanding additional Menu features including: delete camera, and add
camera, please refer to the user’s guide.
3. SPLIT-SCREEN Mode
Split/Quad Screen Viewing
Press the Split/Quad Screen button
to view more than one room at
once. Audio is only transmitted from
one room or camera in this mode.
Manually press “LEFT /RIGHT ”
buttons to hear other rooms. The
room with the audio will have a blue
box around it.
Note: Zoom and Pan/Tilt are not
accessible while in split-screen
mode. Press “SELECT/MODE ” button to exit Split/Quad screen
mode or view the selected camera in full screen.
/MENU
Talk-back and Nightlight function are
available in SPLIT-SREEN Mode.
Sound Activated Lights
The LED light bar on the top of the handheld
will light up as it picks up noises. Softer
sounds will light up the amber LEDs. Louder
noises will light up the red LEDs.
Video On/Off
Turn off the handheld’s video by pressing the
VIDEO button. On battery or portable mode,
the video will turn off automatically after 3.5
minutes. The screen will go dark. This feature
allows you to preserve battery life when not
plugged into A/C adapter. The audio feature
will remain activated allowing you to monitor
sounds. Press the button again to resume
video monitoring.
