USER’S MANUAL FOR THE
S e r i e s
IMPORTANT
Before you begin...
Please complete the attached Warranty Registration Card and return it to
Summa today. (Users outside Europe, Africa and the Middle East should
check the address on the back of the Warranty Registration Card.)
Failure to return the duly completed Warranty Registration Card might
delay response to your warranty and service enquiries.
When selecting software drivers: If the Summa name is not mentioned in
the list of available software drivers, use Summagraphics drivers.
.
NOTE
FCC NOTICE
The SummaCut series cutters have been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
These cutters generate, use, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of these
cutters in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
Caution !
Changes or modifications, not expressly approved by Summa, who is
responsible for FCC compliance, could void the users authority to operate
this equipment.
DOC NOTICE
The SummaCut-series cutters do not exceed the Class A limits for radio noise
for digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
NOTICE
Summa reserves the right to modify the information contained in this User
Manual at any time without prior notice. Unauthorized copying, modification,
distribution or display is prohibited. All rights reserved. All queries, comments or
suggestions concerning this and other Summa manuals should be directed to :
Americas and Asia Pacific
Summa, Inc.
372 North Billy Mitchell Road
Salt Lake City, Utah 84116
USA
Tel +(01) 801-355-6669
Fax +(01) 801-355-4446
Europe
Summa NV
Rochesterlaan 6
8470 GISTEL
Belgium
Tel +32 59 270011
Fax +32 59 270063
Copyright 1999, Summa.
Notice
Trademark Acknowledgements
TRADEMARK ACKNOWLEDGEMENTS
3M and Scotchcal are trademarks of the 3M Corp.
Arlon is a trademark of Keene Corp.
DM/PL and Houston Instrument are trademarks of Summagraphics Corporation.
Fasson is a trademark of Avery.
Gerber is a trademark of Gerber Scientific Products, Inc.
Grafitack is a trademark of Grafityp.
HP-GL is a trademark of Hewlett-Packard Company.
IBM PC, IBM PC/XT, and IBM AT are trademarks of International Business
Machines Corp.
Kapco is a trademark of Kent Adhesive Products Co.
Macintosh, Macintosh Plus, Macintosh SE, and Macintosh II are trademarks of
Apple Computer.
MACTac is a trademark of MACTac Europe.
Multifix is a trademark of Multiplast Grafics.
Rubylith is a trademark of Ulano.
Tesa and Tesacal are trademarks of Tesa.
User’s Manual SummaCut Series Cutters
Table of Contents TOC-i
TABLE OF CONTENTS .................................................................................. Page
1. GENERAL INFORMATION
1.1. Introduction...................................................................................................1-1
1.1.1. Product features...........................................................................................1-1
1.1.2. SummaCut Series User Manual ...................................................................1-3
1.2. Specifications................................................................................................1-4
1.2.1. Cutter.............................................................................................................1-4
1.2.2. Media ............................................................................................................1-4
1.2.3. Knife, pen and pouncing tool .....................................................................1-5
1.2.4. Interface........................................................................................................1-6
1.2.5. Firmware........................................................................................................1-6
1.2.6. Performance.................................................................................................1-7
1.2.7. Certifications .................................................................................................1-7
1.2.8. Environmental...............................................................................................1-7
1.2.9. Electrical .......................................................................................................1-8
1.3. Cutter accessories and consumables ........................................................1-9
1.4. Rear panel components ............................................................................1-10
1.5. Front panel controls....................................................................................1-11
1.6. Powering up the cutter...............................................................................1-13
1.6.1. Grounding...................................................................................................1-13
1.6.2. Power-up procedure .................................................................................1-14
1.7. Installation of a knife, pen or pouncing tool ............................................1-15
1.7.1. Knife installation..........................................................................................1-15
1.7.2. Pen installation............................................................................................1-18
1.7.3. Installation of a pouncing tool ..................................................................1-19
1.8. Loading media...........................................................................................1-20
1.8.1 Positioning the pinch rollers .......................................................................1-20
1.8.2. Feeding and positioning media................................................................1-21
SummaCut Series Cutters User’s Manual
TOC-ii Table of Contents
2. OPERATION
2.1. The control panel..........................................................................................2-1
2.1.1 The Origin key ...............................................................................................2-1
2.1.2 The Online key ..............................................................................................2-2
2.1.3 The Jogging keys ..........................................................................................2-3
2.1.4 The LED Indicators ........................................................................................2-3
2.1.5 The boot keys................................................................................................2-4

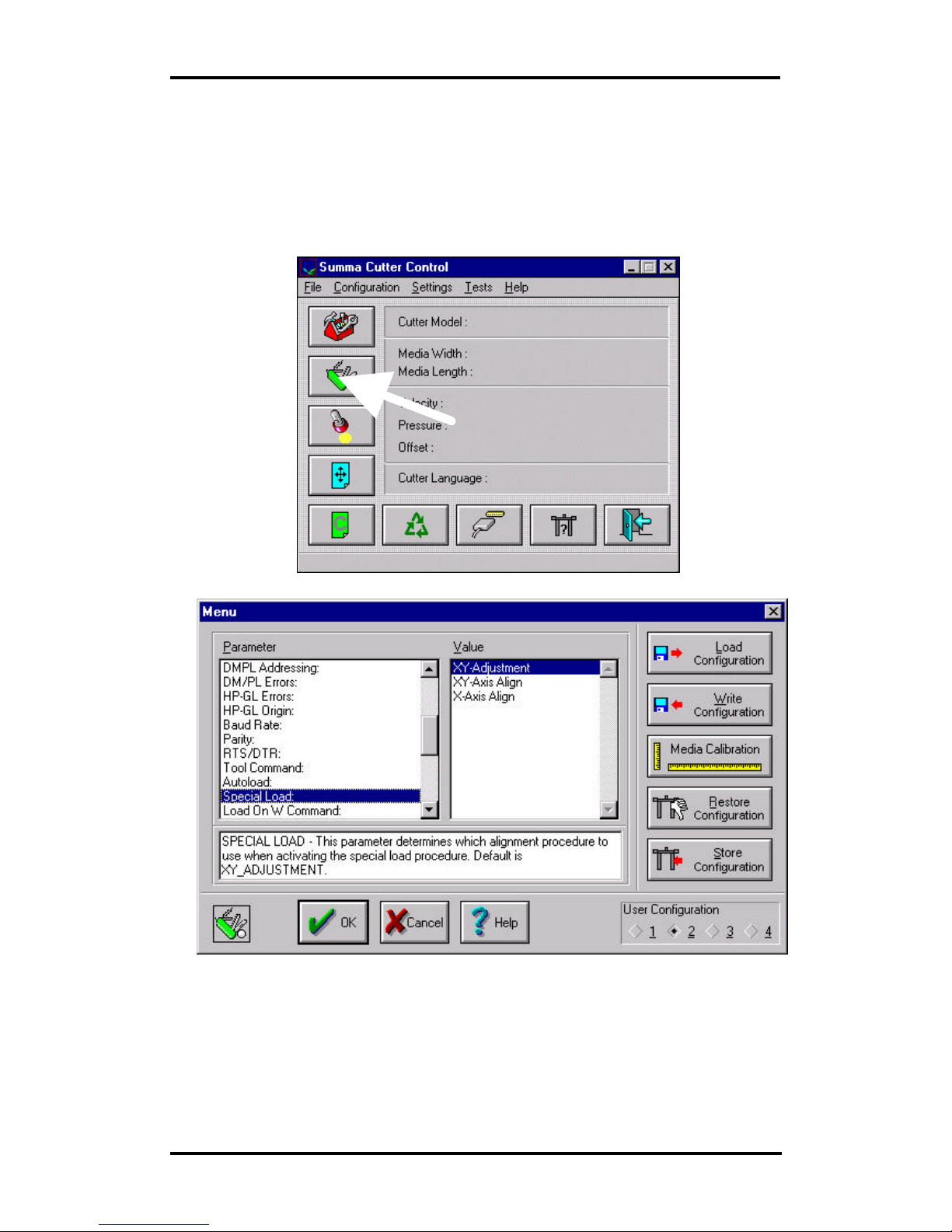

2.2. Summa Cutter Control .................................................................................2-5
2.2.1 Knife pressure................................................................................................2-5
2.2.2 Pouncing pressure........................................................................................2-5
2.2.3 Knife offset.....................................................................................................2-5
2.2.4 Pouncing gap...............................................................................................2-6
2.2.5 Velocity .........................................................................................................2-6
2.2.6 Overcut .........................................................................................................2-6
2.2.7 Concatenation.............................................................................................2-6
2.2.8 Smoothing.....................................................................................................2-7
2.2.9 Language ....................................................................................................2-7
2.2.10 Tool ................................................................................................................2-7
2.2.11 Addressing ....................................................................................................2-8
2.2.12 Baud rate ......................................................................................................2-8
2.2.13 Parity..............................................................................................................2-8
2.2.14 RTS/DTR ..........................................................................................................2-9
2.2.15 HP-GL origin ..................................................................................................2-9
2.2.16 Media sensors ...............................................................................................2-9
2.2.17 Autoload .......................................................................................................2-9
2.2.18 Tool command...........................................................................................2-10
2.2.19 LOAD ON W command.............................................................................2-10
2.2.20 Flex-Cut .......................................................................................................2-10
2.2.21 Cut Length ..................................................................................................2-10
2.2.22 Flex-Cut Length...........................................................................................2-11
2.2.23 Flex Pressure................................................................................................2-11
2.2.24 Recut offset.................................................................................................2-11
2.2.25 Recut ...........................................................................................................2-11
User’s Manual SummaCut Series Cutters
Table of Contents TOC-iii
3. MAINTENANCE AND CLEANING
3.1. Maintenance ................................................................................................3-1
3.1.1 Cleaning the drive system...........................................................................3-1
3.1.2 Cleaning the sensors....................................................................................3-2
3.2. Operating voltage conversion ....................................................................3-3
4. INTERFACE
4.1. Introduction...................................................................................................4-1
4.2. Interface notes..............................................................................................4-1
4.2.1 System setup.................................................................................................4-1
4.2.1.1 MS-DOS or PC-DOS operating system ........................................................4-1
4.2.1.2 Windows 3.xx.................................................................................................4.2
4.2.1.3 Windows 95 ................................................................................................... 4.2
4.2.2 Serial interface connector on cutter ..........................................................4-3
4.3. Available serial signals ................................................................................4-3

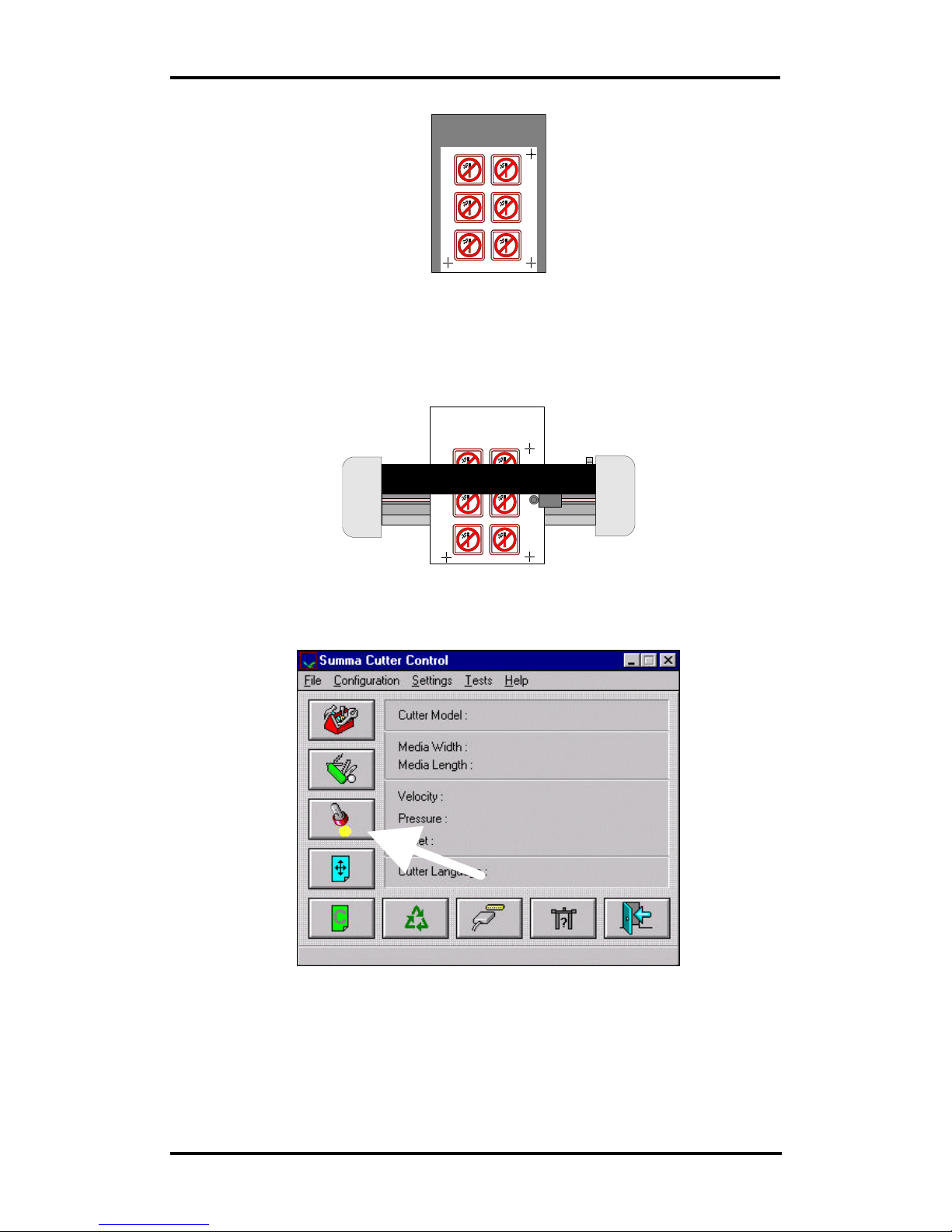

5. CONTOUR CUTTING
5.1. Introduction......................................................................................................1
5.2. General ............................................................................................................5
5.3. Creating the design.........................................................................................5
5.4. Placing the Cross-marks .................................................................................6
5.5. Print the design ................................................................................................7
5.6. Loading the cutter and setting the parameters ............................................8
5.7. Registrating the cross-marks ..........................................................................9
5.8. Cutting the contour .......................................................................................10
SummaCut Series Cutters User’s Manual
TOC-iv Table of Contents
APPENDIX A:
MEDIA CERTIFICATION................................................................................. A-1
ADDRESSES ...................................................................................................A-3
LIST OF ILLUSTRATIONS ............................................................................................Page
1-1 SummaCut Series cutter, rear view ..........................................................1-10
1-2 SummaCut Series cutter, front view..........................................................1-11
1-3 Ground connection ...................................................................................1-14
1-4 Blade insertion ............................................................................................1-15
1-5 Blade length adjustment...........................................................................1-16
1-6 Setting knife depth .....................................................................................1-16
1-7 Knife depth test pattern.............................................................................1-17
1-8 Pinch roller lever.........................................................................................1-21
1-9 Feeding roll media.................................................................................... 1-22
1-10 Pinch roller positioning ...............................................................................1-23
2-1 SummaCut Series cutter, control panel .....................................................2-1
3-1 Cleaning of the friction drive system..........................................................3-2
3-2 Location of the sensors ................................................................................3-2
3-3 Power entry module ....................................................................................3-3
LIST OF TABLES.........................................................................................................Page
1-1 SummaCut Series cutter specifications......................................................1-4
1-2 SummaCut Series media specifications.....................................................1-4
1-2 SummaCut Series media specifications (continued)................................1-5
1-3 SummaCut Series knives, pens and pouncing tools .................................1-5
1-4 SummaCut Series interface specifications.................................................1-6
1-5 SummaCut Series firmware .........................................................................1-6
1-6 SummaCut Series performances ................................................................1-7
1-7 SummaCut Series environmental specifications .......................................1-7
1-8 SummaCut Series electrical specifications................................................1-8
1-9 SummaCut Series accessories and consumables ....................................1-9
2-1 LED Indication...............................................................................................2-3
General Information 1-1
SECTION 1
GENERAL INFORMATION
1.1. INTRODUCTION
The SummaCut range of cutters has been designed to produce computergenerated graphic designs on cut sheet or roll vinyl media. By replacing the
knife with a fibre tip pen, the cutter can also be used to produce inexpensive
previews of new graphic designs on paper.
This manual covers the following SummaCut Series cutter models:
• The SummaCut D520, which can handle media widths from 70 mm up to
675 mm (2.7” to 26.6”)
• The SummaCut D620, which can handle media widths from 70 mm up to
775 mm (2.7” to 30.5”)
• The SummaCut D760, which can handle media widths from 70 mm up to
915 mm (2.7” to 36”)
• The SummaCut D1020, which can handle media widths from 120 mm up to
1175 mm (4.7” to 46.3”)
• The SummaCut D1220, which can handle media widths from 120 mm up to
1375 mm (4.7” to 54.1”)
The term ‘ summaCut Series Cutters’ is used when information is provided which
is common to all members of this series. The specific model terms D520, D620,
D760, D1020 and D1220 are used when information pertains only to that
particular model.
1.1.1. PRODUCT FEATURES
The following are the main features of the SummaCut Series cutters.
• Easy to use computer control via software utility.
• Variable media widths.
SummaCut Series Cutters User’ s Manual
General Information 1-2
• Interchangeable pen for producing preview plots of sign designs on paper.
• Interchangeable pouncing tool.
• Adjustable knife pressure and offset settings controlled by microprocessor.
• Communication with host computer via standard serial RS-232-C
interface.
• 6-key control panel with LED indicators.
• Metric or English units.
• Menu mode for selection of the cutter’ s power-up operating configuration,
controlled by microprocessor.
• Wide variety of axial cutting speeds (in metric or English units).
• Up to four separate user configurations stored in the non-volatile memory.
• Automatic media pull from roll.
• Automatic media sensing.
• User changeable origin to any location.
• Concatenation and curve smoothing to obtain better cut quality.
• Manual knife for cutting off the finished sign.
• Knife depth and offset test.
• Overcut for easy weeding.
• Optional media support system to guarantee tracking of longer signs
(Standard for D1020 and D1220).
• User-selectable DM/PL
TM
, HP-GL
TM
and HP-GL/2 TM software protocols.
• Optional stand (Standard for D1020 and D1220).
• Multiple recut feature
SummaCut Series Cutters User’ s Manual
General Information 1-3
1.1.2. SUMMACUT SERIES USER’ S MANUAL
The User’ s Manual provides the following information :
• Full technical specifications for the SummaCut Series cutters and the media
to be cut.
• A complete description of the SummaCut Series main components.
• Step-by-step instructions for knife and pen installation, and media loading.
• Instructions for online and local mode ( ) operations.
• Information on the control panel and the cutter’ s parameters.
• Maintenance and cleaning instructions.
• Information about the RS-232-C interface cables used to inter-connect the
cutter and IBM, IBM-compatible, Macintosh and Macintosh-compatible
host computers.
SummaCut Series Cutters User’ s Manual
General Information 1-4
1.2. SPECIFICATIONS
1.2.1.CUTTER
D520 D620 D760 D1020 D1220
mm inch mm inch mm inch mm inch mm inch
Height
395 15.6 395 15.6 395 15.6 1010 39.8 1010 39.8
Width
890 35 990 40 1120 52 1390 54.7 1590 62.6
Depth
200 7.9 200 7.9 200 7.9 390 15.4 390 15.4
Weigh
17 kg 37 lbs 18 kg 40 lbs 20 kg 44 lbs 40 kg 88 lbs 45 kg 99 lbs
TABLE 1-1 :
SUMMACUT SERIES CUTTER SPECIFICATIONS
1.2.2.MEDIA
D520 D620 D760 D1020 D1220
mm inch mm inch mm inch mm inch mm inch
Width Roll
220
to
610
8.6 to24220
to
710
8.6 to28220
to
850
8.6 to
33.5
220
to
1110
8.6
to
43.7
220
to
1310
8.6 to
51.6
Sheet
70
to
675
2.7 to
26.670to
775
2.7 to
30.5
70 to
915
2.7 to36120
to
1175
4.7
to
46.2
120
to
1375
4.7 to
54.1
Tracking
performance
4m/13 feet max. within guaranteed
specifications*
-8 m/26 feet max. within
guaranteed specifications*
for media less than 750 mm
(30’’ wide).
-4m/13 feet max. within
guaranteed specifications**
for media larger than 750
mm (30’’).
Thickness
0.05
to
0.8
0.002
to
0.030
0.05
to
0.8
0.002
to
0.030
0.05
to 0.8
0.002
to
0.030
0.05
to 0.8
0.002
to
0.030
0.05
to 0.8
0.002
to
0.030
Max.Cutting/
Plotting area
500
mm
x 50
m.
19.7’’
x 164
ft.
600
mm
x
50
m.
23.6’’
x 164
ft.
740
mm x
50 m.
29.1’’
x 164
ft.
1000
mm x
50 m
39.4’’
x 164
ft.
1200
mm x
50 m
47.2’’
x 164
ft.
Minimum
Margins**
25 1 25 1 25 1 25 1 25 1
TABLE 1-2 :
SUMMACUT SERIES MEDIA SPECIFICATIONS
SummaCut Series Cutters User’ s Manual
General Information 1-5
D520 D620 D760 D1020 D1220
Front margin
18 0.7 18 0.7 18 0.7 18 0.7 18 0.7
Rear margin Sensor on
42 1.7 42 1.7 42 1.7 42 1.7 42 1.7
Sensor off
25 1 25 1 25 1 25 1 25 1
* Media lengths greater than 4 m (13 feet) can be handled, but compliance with
specifications is not guaranteed (will be dependent on media type, media size and other
parameters not mentioned here). With the optional media support system, the tracking
performance is 8 m / 26 feet.
** For positioning of the pinch rollers (see section 1.8.)
TABLE 1-2 :
SUMMACUT SERIES MEDIA SPECIFICATIONS (CONTINUED)
Vinyl Types
A wide range of vinyl types has been evaluated and tested on the SummaCut
Series cutters. When using duly certified media, operation in accordance with
the functional specifications of the model is warranted. Other media should be
certified by Summa before use to ensure performance in compliance with
specifications.
For a full list of all duly certified media suitable for friction drive operation, see
Appendix A.
Plotting Paper
Bond paper (120 g/m² recommended)
1.2.3.KNIFE, PEN AND POUNCING TOOL
The SummaCut cutters are supplied with two standard knife blades (for vinyl
media) and a black fibre tip pen.
Knife
Medium Quantity
Standard knife standard, reflective
& fluorescent vinyl
types
2 off
Knife for masking stencil masking stencil &
thick material
optional
Pen
Colour Quantity
Fibre tip pen black 1 off
Pouncing tool
Paper Optional
TABLE 1-3:
SUMMACUT SERIES KNIVES, PENS AND POUNCING TOOLS
SummaCut Series Cutters User’ s Manual
General Information 1-6
To order replacement knives, pens and/or pouncing tools, contact your local
dealer, quoting the part numbers listed in table 1-9.
The SummaCut cutters will only perform according to specifications if a
genuine Summagraphics knife, pen or pouncing tool is installed. Do not
replace the standard knife, pen or pouncing tool with products from other
manufacturers.
1.2.4.INTERFACE
Communication
asynchronous RS-232-C
Serial : I/O Port connector
DB-9P
Mating connector
DB-9S
Byte format
8 data bits, 2 stop bits, no parity
Baud rate
38400, 19200, 9600, 4800, 2400 BPS
TABLE 1-4:
SUMMACUT SERIES INTERFACE SPECIFICATIONS
1.2.5.FIRMWARE
Language
DM/PL, HP-GL (758x emulation), HP-GL/2
Supported character sets
Standard ASCII
Supported fonts
Sans serif (single stroke & medium)
ROM-based plots
Confidence plot, DIN plot
TABLE 1-5:
SUMMACUT SERIES FIRMWARE
SummaCut Series Cutters User’ s Manual
General Information 1-7
1.2.6. PERFORMANCE
Cutting specifications on 0.05 mm (0.002") wax-backed vinyl, total media
thickness not greater than 0.25 mm (0.010")
Axial speed
50 to 600 mm/s 2 to 24 ips
Default speed
500 mm/s 20 ips
Acceleration
up to 2 G up to 2 G
Addressable resolution
0.025 mm, 0.1 mm 0.001", 0.005"
Default resolution
0.025 mm 0.001"
Mechanical resolution
0.0127 mm 0.0005"
Accuracy
0.2% of move or 0.25
mm, whichever is
greater
*
0.2% of move or 0.010",
whichever is greater
*
Knife pressure
0 to 400 gr. 0 to 400 gr.
Pen pressure
0 to 400 gr 0 to 400 gr.
Pouncing pressure
0 to 400 gr 0 to 400 gr.
*
Excludes differences due to media expansion, stretching, etc.
TABLE 1- 6:
SUMMACUT SERIES PERFORMANCES
1.2.7. CERTIFICATIONS
CE-Certification
FCC Class A
EN50022:1987
EN50082-2:1995
IEC 950 , EN 60950
UL 1950
CSA 950
1.2.8. ENVIRONMENTAL
(cutter without media)
Operating Temperature
15 to 35° C 59 to 95° F
Storage temperature
-30 to 70° C -22 to 158° F
Relative humidity
35 - 85 %, non
condensing
35 - 85 %, non
condensing
TABLE 1-7:
SUMMACUT SERIES ENVIRONMENTAL SPECIFICATIONS
SummaCut Series Cutters User’ s Manual
General Information 1-8
IMPORTANT HINT
The use of dimensionally stable media is an essential pre-requisite to
obtaining high cut quality. Additionally, media expansion or
contraction may occur as a result of temperature variations.
To improve the dimensional stability of media, let it stabilise to the
current environmental conditions before usage for a minimum period
of 24 hours.
1.2.9. ELECTRICAL
Main Supply : 48-62 Hz, single phase.
Nominal line Min./Max. line Fuse
D520/D620/D760
Fuse
D1020/D1220
100 V AC 89 - 108 V AC 1.0 A, Slo-Blo 1.25 A, Slo-Blo
120 V AC 108 - 130 V AC 1.0 A, Slo-Blo 1.25 A, Slo-Blo
220 V AC 197 - 238 V AC 0.5 A, Slo-Blo 0.6 A, Slo-Blo
240 V AC 216 - 260 V AC 0.5 A, Slo-Blo 0.6 A, Slo-Blo
TABLE 1-8:
SUMMACUT SERIES ELECTRICAL SPECIFICATIONS
SummaCut Series Cutters User’ s Manual
General Information 1-9
1.3. CUTTER ACCESSORIES AND CONSUMABLES
The following accessories and consumables are available for your SummaCut
Series cutter :
OPTIONS/
ACCESSORIES/ SUMMACUT D520/D620/
CONSUMMABLES D760, D1020 and D1220
User's Manual
MD9020
Power Supply Cables market specific
Serial Interface Kit,
423-155
consisting of:
- 9 pin to 9 pin cable
- 9 pin to 25 pin conv.
- 9 pin to 8 pin DIN conv.
Standard knife 391-360
Standard knife holder
391-332
Sandblast knife 391-358
Media support system
D520 398-528
D620 398-628
D760 398-728
Stand
D520 398-550
D620 398-650
D760 398-750
Sandblast knife holder
391-363
Fiber tip pen black MP0635
Razor blade & holder
391-142
Pouncing tool 391-980
TABLE 1-9:
SUMMACUT SERIES ACCESSORIES AND CONSUMABLES
SummaCut Series Cutters User’ s Manual
General Information 1-10
1.4. REAR PANEL COMPONENTS
In order to get acquainted with your SummaCut cutter, read the following
description of the rear panel components. Figure 1-1 shows the location of the
main components.
FIGURE 1-1:
SUMMACUT SERIES REAR VIEW
1. RS-232-C Port.- This DB-9P connector provides the communication link
between the cutter and a host computer. It allows bidirectional
communication between the host computer and the cutter.
2. Power Entry Module.- The fuse box, the voltage select board and the AC
power cord receptacle are located in the power entry module.
The power-up procedure is explained in detail in Section 1.6.
For information on the conversion of the cutter’ s operating voltage, see
Section 3.2.
SummaCut Series Cutters User’ s Manual
General Information 1-11
1.5. FRONT PANEL CONTROLS
In order to get acquainted with your SummaCut cutter, read the following
description of the front panel controls and components.
Figure 1-2 shows the location of the main components.
FIGURE 1-2:
SUMMACUT SERIES, FRONT VIEW
1. Power ON/OFF switch. - This rocker switch sets the cutter’ s power to ON or
OFF. To switch the power ON, press the “I” side of the rocker switch. To
switch the power OFF, press the “O’ side of the rocker switch.
2. Control Panel. - The control panel contains 6 keys. Each control panel
function is explained in Section 2.1.
3. Pinch roller lever arm.- This lever is used to raise and lower the pinch rollers
during media loading (Media loading is discussed in Section 1.8).
4. Media Drive Sleeves.- The media drive sleeves move the media only
when the pinch rollers are in the ‘down’ position.
5. Tool Carriage. - The tool carriage is the mount for the knife holder and the
pen .
SummaCut Series Cutters User’ s Manual
General Information 1-12
6. Sensors. - The sensors detect the presence of a media to avoid any
damage to the cutting strip. Upon powering up the machine, they cause
the media to move all the way to the front edge of the platen.
7. Pinch rollers.- The pinch rollers hold the media clamped between the
rubber rollers and the media drive sleeves.
8. Cutting strip.- Soft strip to avoid any damage to the knife tip when no
media has been loaded. Since cutting is done on the cutting strip, it is
essential that the cutting strip remains intact.
9. Roll feed. - This shaft can be removed from the cutter and inserted into a
media roll.
10. Manual cutting knife border: - This border can be helpful when cutting off
the sheet with the slitter knife.
SummaCut Series Cutters User’ s Manual
General Information 1-13
1.6. POWERING UP THE CUTTER
1.6.1. GROUNDING
!
SAFETY WARNING
An insulated ground conductor must be installed as part of the branch
circuit which supplies power to the wall outlet to which the cutter is
connected. The ground conductor must have the same size, insulation
material and thickness as the grounded and ungrounded branchcircuit supply conductors, but the insulating sheath should be green,
or green with yellow striping.
The ground conductor described above must be grounded at the
electrical distribution board, or, if power is supplied by a separate
system, at the power supply transformer/motor generator set.
The wall sockets into which the cutter is plugged must be of the
grounded type. The grounded conductors serving said wall sockets
must be properly connected to ground.
CAUTION
Before plugging in the cutter’ s power cord to a power source, make
sure the cutter is set to the correct operating voltage (100 V, 120 V,
220 V, or 240 V AC) (See section 3.2.)
See Table 1-8 for the minimum and maximum operating voltage for the
different voltage ratings.
To check the operating voltage setting, locate the power entry module (shown
in Figure 1-1) on the cutter’ s rear panel. The power entry module shows four
possible voltage settings (100 V, 120 V, 220 V and 240 V). A pin next to one of
the voltage settings indicates the voltage setting currently selected for the
cutter. If this setting does not match the voltage supplied to your site, you will
have to change the voltage setting prior to powering up the cutter.
SummaCut Series Cutters User’ s Manual
General Information 1-14
For information about the conversion of the cutter’ s operating voltage and the
exact fuse ratings, see Section 3.2.
MAKE SURE THIS
IS CONNECTED TO A
MAKE SURE THIS IS
CONNECTED TO A
THREE-PIN
PLUG
EUROPE:
USA
OUTLET
:
THREE-PIN
KNOWN EARTH
KNOWN EARTH
FIGURE 1-3:
GROUND CONNECTION
!
IMPORTANT OPERATIONAL TIP
This cutter must only be used with a power outlet that is properly
grounded to ground. Use of an ungrounded outlet exposes the
operator to risk of electric shock and will also lead to malfunctioning
of the cutter.
1.6.2.POWER-UP PROCEDURE
è To power up the cutter, proceed as follows:
1. Make sure the cutter is placed on a flat, level and sturdy surface.
2. Plug one end of the AC power cord into the AC power cord receptacle
on the cutter’ s rear panel.
3. Plug the other end of the AC power cord into the wall socket.
4. Press the "I" side of the ON/OFF rocker switch on the left side plate to
switch the cutter ON.
5. The Power LED will flash up, and if media is loaded, the standard loading
procedure will take place.
SummaCut Series Cutters User’ s Manual
General Information 1-15
1.7. INSTALLATION OF A KNIFE, PEN OR POUNCING TOOL
1.7.1.KNIFE INSTALLATION
!
SAFETY WARNING
Your cutter uses razor-sharp knives. The knife blades may cause
serious personal injuries if handled without proper care. Use extreme
care when operating the cutter and when installing, removing or
handling the knife!
è To set up your cutter for knife operation, proceed as follows.
1. As shown in Figure 1-4, insert the knife blade into the knife holder using a
pair of tweezers.
adjustment
knob
FIGURE 1-4
BLADE INSERTION
2. Set the knife blade length to zero by aligning the blade tip with the tip of
the holder. An easy way of performing this is by holding the knife holder
against your fingertip and gradually increasing the blade length by
turning the adjustment knob until you feel the knife tip touching your
fingertip.
3. Extend the tip of the blade by the distance required for the desired
cutting media (t), as shown in Figure 1-5. The blade should only extend
beyond the knife holder sufficiently far to completely cut through the film
layer, yet avoid penetrating through the backing, which would risk cutting
into and damaging the cutting strip.
SummaCut Series Cutters User’ s Manual
General Information 1-16
FIGURE 1-5
BLADE LENGTH ADJUSTMENT
4. Turn the cutting depth adjustment screw clockwise to increase the cutting
depth. Turning the cutting depth adjustment screw anticlockwise will
decrease the cutting depth.
CLAMP ARM
CLAMPING
SCREW
+
_
FIGURE 1-6
SETTING KNIFE DEPTH
5. To install the knife into the tool carriage :
- Loosen the clamping screw, swing the clamp arm back and load the
knife.
- Close the clamp arm and tighten the clamping screw.
SummaCut Series Cutters User’ s Manual
General Information 1-17
6. Set the knife pressure as follows :
• Power up the cutter and load a piece of media in the cutter (See
1.8.). Make sure that none of the two lower LED’ s are on. If one LED is
on, press on the respective button to turn it off.
• Start up the Summa Cutter Control software on your host PC (See
2.2.). Press the ‘Menu’ button on the main screen. (For more
information about setting up the port parameters, read the help
instructions included in the program)
• All the cutter’ s parameters will now be displayed. The first one is the
knife pressure which can be changed in a range of 0 to 400gr.
• Click the
‘Cut Test Pattern’ button in the lower right corner to perform
a knife depth test as illustrated in Figure 1-7 .
FIGURE 1-7
KNIFE DEPTH TEST PATTERN
The knife depth is correctly set when the test pattern is visible on the
front side of the media backing, but not on the rear side of the media
backing.
• Click on the ‘OK’ button to go back to the main window.
In general, you should increase the knife depth and knife pressure when
using thicker vinyl types.
7. Analogous to point 6. , the ‘knife offset’ can be changed (See 2.2.3.).
NOTE
As the ideal knife pressure setting depends upon the thickness and
the type of media to be cut, adjusting the knife pressure will require
some practice. In general terms, you should increase the pressure
when cutting thicker types of vinyl . For thinner types of vinyl, you will
normally have to reduce the knife pressure.
SummaCut Series Cutters User’ s Manual
General Information 1-18
CAUTION
After setting the cutting depth and/or the knife pressure, perform a
thorough visual check of the knife blade, which can be seen
protruding from the knife holder, and test cutting results on a scrap of
vinyl media.
DO NOT OPERATE THE CUTTER if the knife blade cuts through the media
backing, as this will seriously damage the cutter’ s rubber cutting strip
and the knife.
CAUTION
For most vinyl cutting activities, the knife blade tip will be barely
visible at the bottom of the knife tool. If you can clearly see the knife
blade tip, you will probably need to readjust the cutting depth.
To prevent damage to the cutter, check the depth of the knife blade
tip and the quality of the cut each time you load a different type of
vinyl into the cutter.
1.7.2.PEN INSTALLATION
The SummaCut cutters can also be operated with a pen. After replacing the
knife with a pen, the cutter can be used as a plotter to draw draft plots of new
or existing designs on paper.
è To install the pen, proceed as follows:
• Load a piece of media in the cutter (See 1.8.). Make sure that none of
the two lower LED’ s are on. If one LED is on, press on the respective
button to turn it off.
• Start up the Summa Cutter Control on your host PC. Press the ‘Menu’
button on the main screen. (For more information about setting up
the port parameters, read the help instructions included in the
program. )
SummaCut Series Cutters User’ s Manual
General Information 1-19
• All the cutter’ s parameters will now be displayed. Scroll to the ‘Tool’
parameter and select ‘PEN’.
• Click on the ‘OK’ button to go back to the main window.
• Analogous to 1.7.1., point 6, the pen pressure can be changed.
1.7.3.INSTALLATION OF A POUNCING TOOL
The SummaCut cutters can also be operated with a pouncing tool. After
replacing the knife with a pouncing tool, the cutter can be used as a pouncer.
è To install the pen, proceed as follows:
• Load a piece of media in the cutter (See 1.8.). Make sure that none of
the two lower LED’ s are on. If one LED is on, press on the respective
button to turn it off.
• Start up the Summa Cutter Control on your host PC. Press the ‘Menu’
button on the main screen. (For more information about setting up
the port parameters, read the help instructions included in the
program. )
• All the cutter’ s parameters will now be displayed. Scroll to the ‘Tool’
parameter and select ‘PEN’.
• Click on the ‘OK’ button to go back to the main window.
• Analogous to 1.7.1., point 6, the pouncing pressure can be changed.
SummaCut Series Cutters User’ s Manual
General Information 1-20
1.8. LOADING MEDIA
The following procedures are mainly written for the use of roll media. When
using sheets, there are two possibilities. Firstly, when using long sheets, roll up
the sheet so that the alignment is identical to that of a roll. Secondly, when
using short sheets, the alignment is not so important. If the sheet is cut off
perpendicularly, it can be aligned to the front border.
1.8.1. POSITIONING THE PINCH ROLLERS
When working with cut sheet or roll media, the traction resulting from the
contact between the pinch rollers and the drive sleeves moves the media in
the direction of the X axis (forward/backward).
Proper movement of the media will only occur if the media is driven by the
pinch rollers correctly located over two drive sleeves.
The pinch rollers are lowered or raised simultaneously by means of the pinch
roller lever arm located on the right hand side of the cutter. The rollers must be
lifted to facilitate vinyl loading, during which the media is fed from the rear of
the cutter to the front.
When in the up position, the pinch rollers can be moved manually to the left or
the right along the pinch roller shaft, so that they can be easily positioned in a
detent (click position) where they are to be lowered to ensure optimum
traction on the media.
When the pinch rollers are in the up position, the origin LED will flash.
CAUTION
Always make sure that the pinch rollers are fully raised before sliding
them to the left or right.
The pinch rollers MUST be positioned correctly and lowered onto the media
before an automatic load sequence is initiated. Make sure that the two pinch
rollers are positioned above the drive sleeves. The left pinch roller should be
positioned in a detent (click position). The right pinch roller should be
positioned somewhere on the long drive sleeve that only has a click position at
the beginning and at the end of the sleeve. The drive drum will move the
media only when the pinch rollers are lowered onto the sleeves.
SummaCut Series Cutters User’ s Manual
General Information 1-21
Before lowering the pinch rollers, carefully check the position of the rollers in
relation to the drive sleeves. When the pinch rollers are DOWN, the two rollers
must run over the sleeves in order to ensure proper media traction. It is very
important that both media edges always rest on the sleeves in such a way that
the two pinch rollers, which are positioned 3 to 15 mm (0.1" to 0.6") from the
media edge, will run over the sleeves when lowered to the drive drum.
1.8.2. FEEDING AND POSITIONING MEDIA
The loading procedure described below has been found to give excellent
repeatability. When loading media, adhere to these step-by-step instructions
strictly.
è To load media, proceed as follows:
1. Raise the pinch rollers by means of the pinch roller lever arm located on
the right-hand side of the cutter.
FIGURE 1-8 :
PINCH ROLLER LEVER.
2a. When working with roll media and the roll feed, proceed by placing the roll
of media horizontally on a table or on another easy-to-reach surface.
Make sure that the front edge of the media is at the bottom and pointing
away from you. If not, turn the roll. Remove the roll feed from under the
machine. Remove the loose core holder. Insert the shaft into the media
roll from the right hand side, and press the core holder into the core. Press
the shaft further, so that it comes out at the other side of the roll. Insert the
loose core holder from the left hand side. Place this assembly back under
the cutter.
SummaCut Series Cutters User’ s Manual
General Information 1-22
FIGURE 1-9
FEEDING ROLL MEDIA
SummaCut Series Cutters User’ s Manual
General Information 1-23
2b. When working with roll media and using the media support system at the
back of the machine, proceed by inserting a media flange at each end of
the media roll and tighten the thumbscrew until the media roll is firmly
gripped between the flanges. Make sure the flanges are firmly pressed
against the roll. Place the roll of media on the media support rollers at the
rear of the machine.
3. Start feeding the media from the rear of the machine until the front edge
of the media reaches the roll again at the front.
Position the left media edge on the left-most drive sleeve and check
whether the right media edge is positioned over the long drive sleeve. If so,
the left pinch roller can be positioned in a detent (click position) over the
left-most sleeve, and the right pinch roller is positioned somewhere over
the long drive sleeve to suit the media width. The pinch roller can be
lowered anywhere between the two detent (click positions) on the long
drive sleeve to allow for flexibility in holding any media width.
In circumstances where the above does not work, because your media is
too narrow to reach the long drive sleeve, try positioning the left media
edge over the second left drive sleeve, and position the right media edge
somewhere on the long drive sleeve.
4. To make sure that the media follows a straight path from the material roll
over the platen back to the roll, align the side edge of the media to the
roll, and make sure that the media is rolled up properly and follows a
straight path.
5. The pinch rollers should be positioned over the drive sleeves about 3 to 15
mm (0.1” to 0.6”) away from the media’ s outer edges.
FIGURE 1-10
PINCH ROLLER POSITIONING
SummaCut Series Cutters User’ s Manual
General Information 1-24
6. Lower the pinch roller lever to press the media firmly against the drive
sleeves. After one second, the tool carriage automatically moves from the
right to the left to sense the usable width.
NOTE
It is not necessary to unroll the media manually from the roll. The
cutter will unroll the media automatically during the load sequence.
7. The positioning and routing of sheet material is identical to that of roll
media.
8. The cutter is now ready for the actual load procedure.
Operation 2-1
SECTION 2
OPERATION
2.1. THE CONTROL PANEL
Figure 2-1 shows the control panel of the SummaCut Series cutters. The
functions of the control panel keys are explained in the following paragraphs.
FIGURE 2-1:
SUMMACUT SERIES, CONTROL PANEL
2.1.1. THE ORIGIN KEY
The key (ORIGIN) is used to move the origin or to abort the cut in progress.
When the key (ORIGIN) is pressed, the cutter goes in Set Origin mode. The
current task is aborted and the respective LED will flash on. Move the knife
origin using the , , , jogging keys and press the key (ORIGIN)
again to confirm the new origin position.
SummaCut Series Cutters User’ s Manual
Operation 2-2
2.1.2. THE ON-LINE KEY
The
key (ON-LINE) toggles between on-line and off-line operation.
Selecting OFF-LINE (the respective LED will flash on) will suspend all operations
in progress. Pressing the
key while the cutter is off-line will make the cutter go
on-line again, resuming the suspended operation.
While the cutter is off-line, the following operations can be performed:
• Press the or jogging key to move the tool carriage to the left or to
the right.
• Press the or jogging key to make the media move forward
(towards you) or backward (away from you). Moving the media forward
will prove to be very practical when you have to cut the finished sign off
manually.
On-line and off-line are two important concepts when using the SummaCut
cutters.
When on-line, the cutter can be addressed by the host computer, which
means that the cutter will execute cutting or plotting instructions issued by the
host computer’ s application software. The host computer will first issue a
SELECT sequence to the on-line cutter.
When the cutter is on-line and ready to receive instructions from the host
computer, it will remain deselected until actual instructions from the computer
are received.
For normal cutting operations, the cutter MUST be on-line, so that it can receive
instructions from the host computer and the cutting/plotting software.
To set the cutter on-line so that it can be selected by the host computer, the
following conditions must be met:
• The cutter must be powered up.
• Media must be loaded. For detailed media loading instructions, see
Section 1.8.
• The proper tool must be installed.
• The cutter must be connected to the host computer via a RS-232-C link.
• The cutter must be configured for the scheduled operation.
SummaCut Series Cutters User’ s Manual
Operation 2-3
To put the cutter off-line, press the key. Pressing this key will suspend the
current cutting/plotting operation until the cutter is put on-line again.
2.1.3. THE JOGGING KEYS
The Jogging keys are used to move the head and vinyl in off-line mode and in
Set Origin mode.
2.1.4. LED INDICATORS
The SummaCut has 3 LEDs on its keypad, each of which can be in three
different states : ON, OFF or FLASHING. Any combination of LED states
represents an error code. See table below.
POWER
LED
OFF-LINE
LED
ORIGIN
LED
Status
[X] [ ] [ ] Cutter is online, ready to receive data.
[X] [ ] [*] Cutter is loading media, or waiting for media to be
inserted, or waiting for camrollers to be closed. When the
sensors are not working, this key code will be shown.
[X] [*] [ ] The motor is hot and waiting to cool down.
[X] [ ] [X] The Load key has been pressed and the cutter is now in
“Set Origin” mode, press the arrow keys to place the
origin and then press the LOAD key again to set the origin
and to return to on-line mode.
[X] [X] [ ] The Online key has been pressed and the cutter is now in
off-line mode, press the arrow keys to move the media
and press the ON-LINE key again to return to on-line
mode.
[*] [ ] [ ] Low Line Voltage error.
[*] [*] [*] High Line Voltage error.
[*] [ ] [*] X error position.
[*] [*] [ ] Y error position.
[*] [X] [X] Internal error (=division by zero, bus error, bad command,
…).
[*] [ ] [X] NVRAM FAILURE, It is then still possible to work with the
cutter, but the cutter has been defaulted to a D610. As
the nvram has been defaulted to a D610, the margins
and the calibration will be incorrect! The correct
machine type can be set with SummaCutter Control.
Calibration and margins will then also be reset.
[X] [X] [X] Other errors (most of the time a hardware error ,bad ROM
or bad RAM.
[ ] LED off ; [X] LED on; [ *] LED flashing.
TABLE 2-1:
LED INDICATION
SummaCut Series Cutters User’ s Manual
Operation 2-4
2.1.5. BOOT KEYS
The SummaCut has some internal boot tests.
To activate these boot tests press, while powering on the unit, the
corresponding key on the control panel until the power LED flashes or
repeated beeps are heard. Then release the key, and the selected test will be
activated.
left key: activates the MENU PLOT. Make sure that an A3 format paper is
laoded and that the pen is installed. The MENU PLOT is a hard copy of the
present cutter configuration, i.e. the items selected in the USER CONFIG
submenus. The plot is organised by menu categories to show the current values
for the various USER CONFIG 1(->4) configurations.
NOTE
It is strongly recommended to produce a MENU PLOT hard copy
each time you alter the cutter configuration. The resulting plot should
be kept with the cutter documentation in order to provide other users
with details of the actual configurations of the unit.
right key : activates the Din Test. Make sure that some media is loaded in
the unit. The DIN CUT also performs an electrical and mechanical test of the
cutter, in order to check the cut quality, but also provides the user with
feedback on knife setting, knife pressure, knife offset and cutting depth.
This cut is always run as a DIN A4 portrait/A-size image, regardless of the actual
size of the media loaded. If the media loaded is smaller than DIN A4/A-size,
part of the outer box will be clipped (not cut). This cut is always executed in the
sequence prescribed by the ISO DIN standard.
SummaCut Series Cutters User’ s Manual
Operation 2-5
2.2. SUMMA CUTTER CONTROL
All the settings of the SummaCut Series can be changed with the control
program Summa Cutter Control. For information on installation or general
setup of this program, refer to the ‘Readme.txt’ file on the installation disk.
This program will only communicate with the cutter if the cutter is in on-line
mode. This means that the two green LEDs are off.
By clicking on the ‘Menu’ button in the main Summa Cutter Control window,
all the cutter’ s settings can be changed.
Four different user configurations can be saved in the cutter’ s memory. The
selected configuration number is marked at the bottom of the menu window.
These four configurations are maintained independently.
Following parameters can be changed with Summa Cutter Control:
2.2.1.KNIFE PRESSURE
The KNIFE PRESSURE parameter is used to set or modify the cutting pressure of
the knife.
The default knife pressure value is 120 grams.
The knife pressure can be set between 0 and 400 grams.
The knife pressure value is set in 5 gram increments.
Knife pressure setup is explained in detail in section 1.7.1.
2.2.2.POUNCING PRESSURE
The POUNCING PRESSURE submenu is used to set or modify the pouncing
pressure of the pouncing tool.
The default pouncing pressure value is 120 grams.
The pouncing pressure can be set between 0 and 400 grams.
The pouncing pressure value is set in 5 gram increments.
On the LCD, the active pouncing pressure value is marked with an *.
Pouncing pressure setup is explained in detail in section 1.7.3.
2.2.3.KNIFE OFFSET
The KNIFE OFFSET parameter is used to set or modify the distance between the
knife blade tip and the centre axis.
SummaCut Series Cutters User’ s Manual
Operation 2-6
The default knife offset value is .45 mm.
The value can be set between 0 and 1 mm.
Make sure that the selected knife offset value matches that of the knife. Some
fine tuning may be necessary because of the mechanical tolerances on the
knife. To verify the knife offset, a test can be cut by clicking on the ‘Cut test
pattern’ button.
If the offset value is set too low, the rectangles will not close.
When the offset value is set too high, the rectangles will be distorted.
The offset test is illustrated below.
2.2.4. POUNCING GAP
The pouncing gap submenu is used to set or modify the distance between the
pounced wholes. This routine applies to the pouncer only.
The default pouncing gap value is 0 mm.
The value can be set between o and 50 mm.
On the LCD, the active pouncing gap value is marked with an *.
2.2.5. VELOCITY
The VELOCITY is used to set or modify the velocity of the tool.
The default velocity is 500 mm/s (20 ips).
The velocity can be set between 50 mm/s (2 ips) and 600 mm/s (24 ips).
2.2.6. OVERCUT
The OVERCUT parameter enables you to generate an overcut in order to
facilitate weeding of the cut.
The default overcut is set to 1.
The overcut setting can be disabled (=0) or set to any value between 0(=off)
and 10. One unit is about 0.1 mm or 0.004 ".
2.2.7. CONCATENATION
The CONCATENATION feature increases the speed and quality with which cut
data having a very high resolution is cut. However, when changing over to
normal characters again, deactivate concatenation by setting this parameter
to 0.
SummaCut Series Cutters User’ s Manual
Operation 2-7
2.2.8. SMOOTHING
The SMOOTHING feature helps to cut smoother curves when curve data with
many short vectors is received from the computer.
The default setting is OFF.
2.2.9.LANGUAGE
The LANGUAGE parameter is used to select the active cutting/plotting
language for the cutter.
The SummaSign cutters support DM/PL , HP-GL and HP-GL/2.
NOTE
The active cutting/plotting language MUST match the cutting
software.
Always select a language which is supported by the host computer’ s
cutting software.
Whenever possible, select the DM/PL menu option to set the active
cutting/plotting language to Houston Instrument Digital Microprocessor/Plotting
Language (DM/PL). This selection will allow the cutter to operate with DM/PLbased cutting/plotting software. This language, having special command
extensions for cutting, normally gives superior cutting performance.
Select the HP-GL menu option to set the active cutting/plotting language to
HP-GL. The cutter will emulate an HP model 758xB plotter (with selectable
origin, see 2.2.15).
2.2.10.TOOL
The TOOL submenu is used to select the default tool at power up.
To configure the cutter for plotting operations, select PEN.
To configure the cutter for cutting operations, select the DRAG KNIFE option.
To configure the cutter for pouncing operations, select the POUNCING TOOL
option.
SummaCut Series Cutters User’ s Manual
Operation 2-8
2.2.11. ADDRESSING
The ADDRESSING parameter is used to select the cutter’ s default DM/PL useraddressable resolution. In HP-GL & HP-GL/2 the addressing is fixed at 0.025
mm.
The default addressing resolution is 0.025 mm (Europe) or 0.001" (US).
The user-addressable resolution can be set to 0.025 mm or 0.001" or 0.1 mm or
0.005".
2.2.12. BAUD RATE
The BAUD RATE parameter is used to set or modify the operating baud rate for
RS-232-C serial communications between your cutter and the host computer.
The default baud rate is 9600 bps.
The baud rate can be set to any of the following values: 2400 bps, 4800 bps,
9600 bps, 19200 and 38400 bps.
NOTE
The baud rate setting of your cutter MUST match the host computer’ s
baud rate setting.
2.2.13. PARITY
The PARITY submenu is used to set or modify the byte format and parity type for
RS-232-C serial communications between your cutter and the host computer.
The default parity setting is bit 8 = 0 (8 data bits, no parity, the 8th bit being a
low bit). The parity can be set to any of the following values:
information Parity setting Remarks
BIT 8 = 0
8 data bits, no parity bit 8 = low (0)
BIT 8 = 1
8 data bits, no parity bit 8 = high (1)
EVEN
7 data bits, 1 parity bit parity bit = even
ODD
7 data bits, 1 parity bit parity bit = odd
NOTE
The parity setting of your cutter MUST match the host computer’ s
parity setting.
SummaCut Series Cutters User’ s Manual
Operation 2-9
2.2.14. RTS/DTR
The RTS/DTR submenu controls the Request To Send (RTS) and Data Terminal
Ready (DTR) signals of the cutter’ s RS-232-C serial communications interface
for hardware handshaking.
The RTS/DTR default value is TOGGLE.
RTS/DTR can be set to TOGGLE (hardware handshaking) or HIGH (software
handshaking).
2.2.15. HP-GL ORIGIN
The HP-GL ORIGIN parameter will only be displayed if the PLOT LANGUAGE is
set to HP-GL. (See Paragraph 2.2.9.) The HP-GL ORIGIN submenu is used to set
the origin in the centre (see HP-GL 758x) or in the bottom-right corner (see HPGL 7475) of the media loaded.
The HP-GL ORIGIN option can be set to RIGHT_FRONT or CENTER.
If the cut is found to be incomplete, and is wholly located in the upper left
corner of the media, then modify the HP-GL ORIGIN setting to RIGHT FRONT. If
the cut is found to be incomplete, and is wholly located in the lower right
corner of the media, then change the HP-GL ORIGIN setting to CENTER.
2.2.16. MEDIA SENSOR
The MEDIA SENSOR parameter is used to activate or deactivate the media
sensors.
The sensors detect whether media is loaded, or detect the end of media. The
sensors prevent damage to the cutting strip and knife tip.
2.2.17. AUTOLOAD
The AUTOLOAD option enables the user to the change the vinyl unroll
proceedings. When AUTOLOAD is ON , the cutter will automatically unroll the
vinyl when needed. When the AUTOLOAD option is OFF, the operator himself
should unroll enough media before starting to cut.
The default setting is ON. The best results and performance are guaranteed
when using this setting.
SummaCut Series Cutters User’ s Manual
Operation 2-10
2.2.18. TOOL COMMAND
The TOOL COMMAND is used to determine whether the DM/PL and HP-GL
pen/knife-select commands (the P and SP commands respectively) are
ignored or accepted.
When the TOOL COMMAND option is set to “ACCEPT”, the P or SP commands
will change the selected tool in the cutter according to the suffix that follows
the pen/knife command. However, the pen must already have been inserted
before because the cutter will not stop when receiving this command. When
the TOOL COMMAND option is set to “IGNORE” the pen/knife commands are
ignored.
The default setting is “ACCEPT”.
2.2.19. LOAD ON W CMD
The LOAD ON W CMD parameter will only be displayed if the PLOT LANGUAGE
is set to DM/PL (See Paragraph 2.2.9.). The LOAD ON W CMD determines, when
receiving the DM/PL Window-command (W-command), whether aside from
the scaling function, media is loaded or not. Besides scaling, the W-command
is also very useful when cutting long signs. With the W-command, media
loading will go smoother. Sufficient media will be pulled off the roll at once.
Even when AUTOLOAD is off, there is no need anymore to unroll the media
manually.
2.2.20. FLEX-CUT
FLEX-CUT can be set to OFF, to Mode 1 or Mode 2. When the cutter is set to
Mode 1 or Mode 2, it will alternately cut one length with full pressure, and one
length with reduced pressure. The feature FLEX-CUT offers the advantage that it
cuts completely through the material, yet allowing the material to stay
together by means of the small media bridges.
MODE 1 is the quickest mode, but it is less precise because the pressure
changes during the cutting. MODE 2 is a lot slower, but at the same time it is
much more precise, as the cutter stops at every change of pressure.
2.2.21. CUT LENGTH
This parameter determines the length that is cut with full pressure. By clicking on
the ‘Cut Test Pattern’ button, the FLEX-CUT test pattern will be cut.
SummaCut Series Cutters User’ s Manual
Operation 2-11
2.2.22. FLEX CUT LENGTH
This parameter determines the length that will be cut with reduced pressure or
without pressure. By clicking on the ‘Cut Test Pattern’ button, the FLEX-CUT test
pattern will be cut.
2.2.23. FLEX PRESSURE
This parameter determines the pressure of the FLEX-CUT LENGTH. By clicking on
the ‘Cut Test Pattern’ button, the FLEX-CUT test pattern will be cut.
2.2.24. RECUT OFFSET
The recut offset submenu is used to set or modify the distances between the
drawings when making multiple recuts.
The default recut offset value is 0 mm.
The distance can be set between o and 255 mm.
On the LCD, the active recut offset value is marked with an *.
2.2.25.RECUT
The Summa Cutter Control program also offers the possibility to recut the last
file sent to the cutter (provided that it fitted into the buffer).
To make a recut, proceed as follows:
1. Cut the file once with your usual software.
2. Start up the Summa Cutter Control program. Make sure that the port is
correctly configured.
3. Press the Recut button.
4. Select the desired number of copies and the recut offset
Maintenance and Cleaning 3-1
SECTION 3
GENERAL INFORMATION
3.1. MAINTENANCE & CLEANING
The SummaCut cutter range has a number of sliding surfaces made of smooth
metals and plastics. They are virtually friction-free and require no lubrication.
They will, however, collect dust and lint which may affect the performance of
the cutter. Keep the cutter as clean as possible by using a dust cover. When
necessary, clean the unit with a soft cloth dampened with isopropyl alcohol or
mild detergent. Do not use abrasives.
3.1.1. CLEANING THE DRIVE SYSTEM
After a time, the sleeves of the drive drum may become clogged with
accumulated residue from the media. This situation may affect traction as the
media will tend to slip between the pinch rollers and the drive sleeves.
è To clean the drive sleeves, proceed as follows:
1. First disable the sensors by covering them, or via the configuration menu.
2. Place the cutter off-line. Local operation will allow you to use the control
panel jogging keys, even when no media is loaded.
3. Remove the backing from a piece of vinyl. Place the vinyl with the tacky
side down between one of the pinch rollers and a drive sleeve. Lower the
pinch roller arm.
4. Use the and jogging keys to move the piece of vinyl backward
and forward several times, until all residue is removed from the drive
sleeves.
5. Raise the pinch roller arm and remove the piece of vinyl media.
6. Repeat steps 3 through 5 for the other drive sleeves.
SummaCut Series Cutters User’ s Manual
Maintenance and Cleaning 3-2
7. Set the cutter’ s power switch to OFF.
SLEEVE
VINYL STRIP PINCH ROLLER
TACKY SIDE ON BOTTOM
FIGURE 3-1:
CLEANING THE DRIVE SLEEVES
3.1.2. CLEANING THE SENSORS
After a certain time, the sensor may become dirty with accumulated residue
from the media. This situation may cause malfunctioning of the cutter.
è To clean the sensor area, proceed as follows:
1. The sensors are located on the cutter’ s right side. One sensor is located on
the front platen; the other sensor is located on the rear platen.
FIGURE 3-2:
LOCATION OF THE SENSORS
2. To keep the sensors clean, it is sufficient to wipe them out now and then with
a cotton swab.
SummaCut Series Cutters User’ s Manual
Maintenance and Cleaning 3-3
3.2. OPERATING VOLTAGE CONVERSION
The power entry module cover shows four possible AC voltage settings (100 V,
120 V, 220 V and 240 V). The pin in one of the holes indicates the cutter’ s
active voltage setting. If this setting does not match the voltage supplied to
your site, you must change the voltage BEFORE powering on the cutter.
When changing the voltage setting, you will also have to change the fuses as
appropriate to the voltage.
To change the fuse(s), remove the fuse(s) from the fuse box behind the cover
plate of the power entry module.
For 100 or 120 V AC operation, use only 1.0 A Slo-Blo fuses in case of the D520,
D620 and the D760 SummaCut models.
For 220 or 240 V AC operation, use only 0.5 A Slo-Blo fuses in case of the D520,
D620 and the D760 SummaCut models.
For 100 or 120 V AC operation, use only 1.25 A Slo-Blo fuses in case of the D1020
and D1220 SummaCut models.
For 220 or 240 V AC operation, use only 0.6 A Slo-Blo fuses in case of the D1020
and D1220 SummaCut models.
NOTE
Always make sure that you are using the correct fuses for your
voltage selection.
FIGURE 3-3
POWER ENTRY MODULE
Interface 4-1
SECTION 4
INTERFACE
4.1. INTRODUCTION
This section describes the signal connections for RS-232-C serial communication
between your cutter and the host computer. When connecting the cutter to
the host computer, always proceed as follows:
1. Refer to the cutting/plotting application software documentation and
check the recommended cabling specifications.
If your cutter is not specifically listed, use the cabling specified for the
Houston Instrument DMP-60C cutters.
2. If the documentation of the cutting/plotting software does not contain
specific cabling instructions, use the Summagraphics cable specifications
recommended for your computer.
4.2. INTERFACE NOTES
4.2.1. SYSTEM SETUP
4.2.1.1. MS-DOS or PC-DOS operating system
è To set up your system, proceed as follows:
1. Boot up the operating system.
2. If the cutter is to be connected to serial port #1 (known as COM1) the
port must be configured by entering the following command at the
system prompt: MODE COM1:9600,N,8,2,P.
3. If the cutter is to be connected to serial port #2 (known as COM2) the
port must be configured by entering the following command at the
system prompt: MODE COM2:9600,N,8,2,P.
SummaCut Series Cutters User’ s Manual
Interface 4-2
4. To redirect the output to serial port #1, enter the following command at
the system prompt: MODE LPT1:=COM1:.
5. To redirect the output to serial port #2, enter the following command at
the system prompt: MODE LPT1:=COM2:.
6. The computer end of the cable must be plugged into the serial port
defined as COM1 (or COM2). The cutter’ s baud rate must be set to 9600,
with parity NONE and RTS/DTR mode set to TOGGLE.
4.2.1.2. Windows 3.xx.
è To set up your system, proceed as follows:
1. Select “Main group” in the Program Manager. Select “Control Panel’,
then “Ports” and then the port that is connected to the cutter. Press the
“Settings” Button to see the port settings.
2. The default settings of the cutter are as follow:
• Baudrate : 9600 (see 2.2.12.)
• Data Bits : 8
• Parity : none (see 2.2.14.)
• Stop Bits: 2
• Flow Control : Hardware or Xon / Xoff
4.2.1.3. Windows 95
è To set up your system, proceed as follows:
1. Press the “Start” Button and select “Settings”, continued by “Control
Panel”. Press on the “System” icon and select the “Device Manager” tab.
Select the port that is connected to the cutter and click on the properties
button. Select the “Port Settings” tab to set the port settings.
2. Analogous to 4.2.1.2.
SummaCut Series Cutters User’ s Manual
Interface 4-3
4.2.2. SERIAL INTERFACE CONNECTOR ON CUTTER
RS-232C Serial Interface Connector
Pin n° Signal Description
1 NC Not Connected
2 RXD Receive Data
3 TXD Transmit Data
4 DTR Data Terminal Ready
5 GND Signal ground
6 NC Not connected
7 RTS Request To Send
8 CTS Clear To Send
9 NC Not Connected
4.3. AVAILABLE SERIAL SIGNALS
If you are making your own cable, only a few of the cutter pins will actually
need to be connected to the host computer. To ensure optimum results, the
cable length should not exceed 4.8 m (16 feet). It should be taken into
account that your computer or cutting software may also require additional
loopback connections at the host computer’ s end of the data cable.
• Connect the Transmit Data (TXD) pin of the computer to pin #2 of the
cutter.
• Connect the Receive Data (RXD) pin of the computer to pin #3 of the
cutter.
• For hardware handshaking, connect the Clear To Send (CTS) pin of the
computer to pin #4 or pin #7 of the cutter. Connect the Request To Send
(RTS) pin of the computer to pin #8 of the cutter.
• Connect the ground (GND) pin of the computer to pin #5 of the cutter.
Contour Cutting 5-1
5 Contour cutting on the SummaCut Series
5.1. INTRODUCTION
The SummaCut Series cutters have accurate alignment methods to
guarantee precise contour cutting.
Depending on the selected alignment method, the cutters can
counterbalance the following irregularities:
1. ROTATED DESIGN : If the printed design is not loaded straight into the unit,
the contour can be rotated equally to fit the printed graphic.
2. SKEWED DESIGN : If the X and Y axes of the printed design are not
perpendicular, the contour can be skewed to fit the printed design.
3. INCORRECTLY SCALED DESIGN : If the print size is different from the original
design in your software due to media expansion or shrinkage, or due to
printing inaccuracies, the contour can be scaled to fit the printed graphic.
SummaCut Series Cutters User’ s Manual
Contour Cutting 5-2
NOTE : The scaling can only be adjusted by a few percent.
à Any combination of the three above irregularities can be handled too.
The parameter SPECIAL_LOAD in the user configuration menu determines
which alignment method is used. Use SummaCutter Control to select the
desired alignment method:
The alignment methods are based on the principle of cross-marks that are
printed together with the drawing. These cross-marks can be of any type.
There are three alignment methods.
SummaCut Series Cutters User’ s Manual
Contour Cutting 5-3
Alignment methods:
1. X-Alignment : counterbalances a “rotated design” problem. For this
method, the origin and one point along the x-axis must be specified. This
method only rotates the contour. It does not require any distance
parameters. This is the fastest and easiest method. It is advised to use this
method with small sheets (up to A3 (11” x 17”)).
2. XY-Alignment : counterbalances the “rotated design” and “skewed
design” problems. For this method, the origin, one point along the x-axis
and one point along the y-axis must be specified. This method rotates and
skews the drawing. It does not need any distance parameters. This method
is the most precise method without using any distance parameters.
3. XY-Adjustment : counterbalances the “rotated design”, “skewed design”
and “Incorrectly scaled design” problems. For this method, the origin, one
defined point along the x-axis and one defined point along the y-axis must
be specified. This method rotates, skews and scales the drawing. It requires
two parameters (x_distance and y_distance). These distances define the
position of the two points along the axes . This is the most accurate manual
alignment method.
Origin point
X-Axis point
Two cross-marks
indicating the
origin and the Xaxis.
Y-Axis point
X-Axis point
Origin point
Three crossmarks indicating
the origin, the Xaxis and the Yaxis.
SummaCut Series Cutters User’ s Manual
Contour Cutting 5-4
5.2. GENERAL (see section 6 for the actual procedure details)
For accurate Contour Cutting with the alignment methods, proceed as
follows:
• Create the design on which you want to perform the contour cut.
• Place cross-marks around your design.
• Print out the design with the cross marks.
• Load the printed design in the cutter and set the cross-mark parameters in
the cutter (only when using the XY-adjustment method ).
• Execute the special load procedure.
• Cut out the contour.
5.3. CREATING THE DESIGN
• Create in your software the design you want to print and Cut:
• Define the Contour:
⇒ Do not define the contour exactly on a printed line. This way it will not
catch the eye if the contour has moved a little during cutting.
⇒ Place the contour on a separate layer, assign a unique color to it,
etc. (refer to your software documentation), so that it is easy to select
the contour or the design.
Origin point
X-Axis point
Y-Axis point
Three crossmarks indicating
the origin, the Xaxis and the Yaxis.
SummaCut Series Cutters User’ s Manual
Contour Cutting 5-5
NOTE
Most dedicated sign-making software will provide some easier ways to do
all this. Please contact your dealer.
• Make multiple copies if necessary (of both the design and the contour):
5.4. PLACING THE CROSS-MARKS
• Place two cross-marks indicating the X-axis.
♦ Make sure that the origin cross-mark is situated completely at the
left side and below all the contours that will be cut.
♦ Make sure that the two cross-marks are situated exactly at the
same height.
♦ The cross-marks may be of any type.
♦ The exact distance between the two points that are indicated
by these cross-marks must be known (only when using the XYadjustment method). Do not measure these distances on the
print out but measure them in the software!
⇒ Place the markers as far as possible from each other for maximum
accuracy.
⇒ Place the cross-marks on a separate layer for easier handling.
Origin cross-mark
X-Axis point
SummaCut Series Cutters User’ s Manual
Contour Cutting 5-6
• Place the cross-mark indicating the Y-axis (only when using the XY-
Alignment and the XY-Adjustment method):
♦ Make sure that the cross-mark is placed exactly above the origin
marker.
♦ The exact distance between the two points that are indicated
by this marker and the origin must be known (only when using
the XY-Adjustment method). Do not measure these distances on
the print-out, but measure them in the software.
⇒ Place the markers as far as possible from each other for maximum
accuracy.
5.5. PRINT THE DESIGN
• Print the markers and the design with your printer.
• When printing on a roll, make sure that the orientation is as follows:
♦ Make sure that there is at least 1 cm, preferably 2cm margin
(0.4”, preferably 0.8”) on each side.
• When printing on sheets or cutting off your print from the roll, make sure
that there is a margin of at least 8 cm (3.15”) at the end of the sheet:
Origin point
X-Axis point
Y-Axis point
Y-Axis point
SummaCut Series Cutters User’ s Manual
Contour Cutting 5-7
5.6. LOADING THE CUTTER AND SETTING THE PARAMETERS
• Load the print out in the cutter as described in the User’s Manual. Make
sure that the cross-mark indicating the origin is situated at the front right.
• If you have selected the XY-adjustment method (see above), then open
Summa Cutter Control and select OPOS in the Configuration menu.
♦ Fill in the values for the marker distances and press OK:
Origin point
X-Axis point
X-Axis point
Origin point
Y-Axis point
Y-Axis point
SummaCut Series Cutters User’ s Manual
Contour Cutting 5-8
5.7. REGISTRATING THE CROSS-MARKS
• Before proceeding, make sure all the cutting parameters are correct
(pressure, velocity, …). See User’s Manual.
• Press the key. The origin LED will turn green.
• Press the key . The on-line LED will flash.
• Position the knife tip exactly above the origin-marker using the ,
,
, jogging keys.
During this entire procedure, make sure that the knife does not rotate, which
may cause an offset error.
Indicate the cross-marks with extreme accuracy because it directly
influences the result.
• Press the key. Position the knife tip exactly above the mark indicating
the X-axis.
SummaCut Series Cutters User’ s Manual
Contour Cutting 5-9
• Press the key . If the X-axis-alignment method has been choosen, the
special load procedure will stop here. For the two other methods: position
the knife tip exactly above the cross-mark indicating the Y-axis. Press the
key .
5.8. CUTTING THE CONTOUR
• Follow the specific instructions for contour cutting in your software. If there
are no such instructions, follow the explanation below.
• Move the entire design (cross-marks and contours included) in your
software so that the origin mark is situated in the lower left corner of the
cutting area (In most sign-making software the orientation is landscape. If
not, you will have to rotate everything).
• Select the contours and cut them out:
SummaCut Series Cutters User’ s Manual
Contour Cutting 5-10
♦ Make sure that only the contours are cut.
♦ Make sure that the origin of the cutting area is used.
⇒ Some software will shift the selected contours to the origin when
cutting. This can be avoided by adding a small rectangle that has its
lower left corner right in the origin. Select this rectangle together with
the contours.
Origin
IncorrectCorrect
Origin
SummaCut Series Cutters User’ s Manual
Contour Cutting 5-11
♦ Make sure that only the contours are cut.
♦ Make sure that the origin of the cutting area is used.
⇒ Some software will shift the selected contours to the origin when
cutting. This can be avoided by adding a small rectangle that has its
lower left corner right in the origin. Select this rectangle together with
the contours.
Origin
IncorrectCorrect
Origin
Appendix A-1
APPENDIX A
MEDIA CERTIFICATION
Types of media
A wide range of vinyl types has been evaluated and extensively tested on the
SummaCut Series cutters. To ensure operation in compliance with the
functional specifications of the SummaCut cutters as listed in Section 1 of the
User’ s Manual, only duly certified media should be used.
An alphabetic list of all duly certified media is included below. Before using
other media, please contact your local Summa representative for advice.
Manufacturer Type
3 M
Scotchcal Series 100
Scotchcal Series 3480
Scotchcal Translucent Series 3630
Scotchcal Special Effects 210
Controltac Series 170
Controltac Series 180
APA
ARLON
Series 2100
Series 2500
FASSON
Economy
Fascal 900 High Performance
Fascal 4500 Translucent
Fascal 8800 Intermediate
GRAFITACK
Economy
100 Series
200 - 300 Series
Transparent
KAPCO
High Performance Cast Vinyl
Intermediate K5000
MACTAC
MaCal 8900
MaCal 9700
MaCal 9800
SummaCut Series Cutters User’ s Manual
Appendix A-2
MULTIFIX
Series 1000
Series 5000
Series 7000
MULTISTIQ
Series 4500
Series 4600
Series 4700
PMF
500-600-700 Series
TESA
Tesacal 4196
X-FILM
Economy
User’ s Manual SummaCut Series Cutters
