Summa S Class 2 OPOS-CAM User Manual

User’s Manual

Rev 1

FCC Notice

The S CLASS 2 cutters have been tested and found to comply with the limits for Class A
digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. The cutters generate, use and can emit radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of the cutters in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at his own expense.

Caution!

Changes or modifications not expressly approved by Summa, which is responsible for FCC
compliance, could void the user’s authority to operate this equipment.

DOC Notice

The S CLASS 2 cutters do not exceed the Class A limits for radio noise for digital apparatus
set out in the Radio Interference Regulations of the Canadian Department of
Communications.

Notice

Summa reserves the right to modify the information contained in this User Manual at any
time without prior notice. Unauthorized copying, modification, distribution or display is
prohibited. All rights reserved.

Waste Electrical and Electronic Equipment (WEEE) Directive

Directive 2002/96/EC of the European Parliament and of the Council

The symbol (right) is shown on this product. It indicates that the product
should not be disposed of with regular household waste, but should be
disposed of separately.
Electrical and electronic equipment can contain materials that are
hazardous to the environment and human health and therefore should
be disposed of at a designated waste facility or returned to your retailer
for the appropriate recycling to take place.

If you wish to dispose of this product and the product still functions, please consider
recycling/reusing it by donating it to a charity shop, selling it or part-exchanging it with
your retailer.

Copyright © 2013 Summa

Registering Your Cutter

Please register your cutter on the following link:

http://www.summa.be/registration.html

Failure to register may result in delayed responses to your warranty and service inquiries.

Contact Information

All inquiries, comments or suggestions concerning this and other Summa manuals should
be directed to:

North America and Asia

Pacific

Eastern United States and

Latin America

Europe, Africa and

Middle East

Summa, Inc

10001 Lake City Way NE
Seattle, WA 98125
USA

Main Office

[phone]
[phone]

Fax

[phone]

Support

[e-mail]

Sales

[e-mail]

Web Site

www.summausa.com

Summa East, Inc

222 Jubilee Drive
Peabody, MA 01960
USA

Main Office

[phone]
[phone]

Fax

[phone]

Support

[e-mail]

Sales

[e-mail]

Web Site

www.summausa.com

Summa, bvba

Rochesterlaan 6
B-8470 GISTEL
Belgium

Web Site

www.summa.eu

Welcome

Congratulations on your purchase of the new S CLASS 2 cutter!

The S CLASS 2 cutters are made for sign-makers who demand the very best in cut quality.

Four versatile modes let you switch between Cutting, Cutting in FlexCut, Plotting or
Pouncing. So even if your workspace is limited, your output options aren't.

Unrivalled tracking delivers guaranteed accuracy on cuts up to 12 meters (40 feet) long. So
you won't have to monitor your cuts, even when you're sending the long jobs through.

The S CLASS 2 T series cutters with genuine tangential operation, and not simply "tangential
emulation," handle a wider range of materials and cut with unparalleled precision.

In short, the S CLASS 2 cutters take cutting signs to a new level.

This manual is a reference guide for installing and operating the S Class 2 OPOSCAM series.
Minimum revisions needed for this manual:
Camera control: 2.3.0.0.
Firmware cutter : 006 (MD9981)
USB driver: 6.4

Table of contents I

Table of Contents

1 Setup ............................................................................................................... 1-1

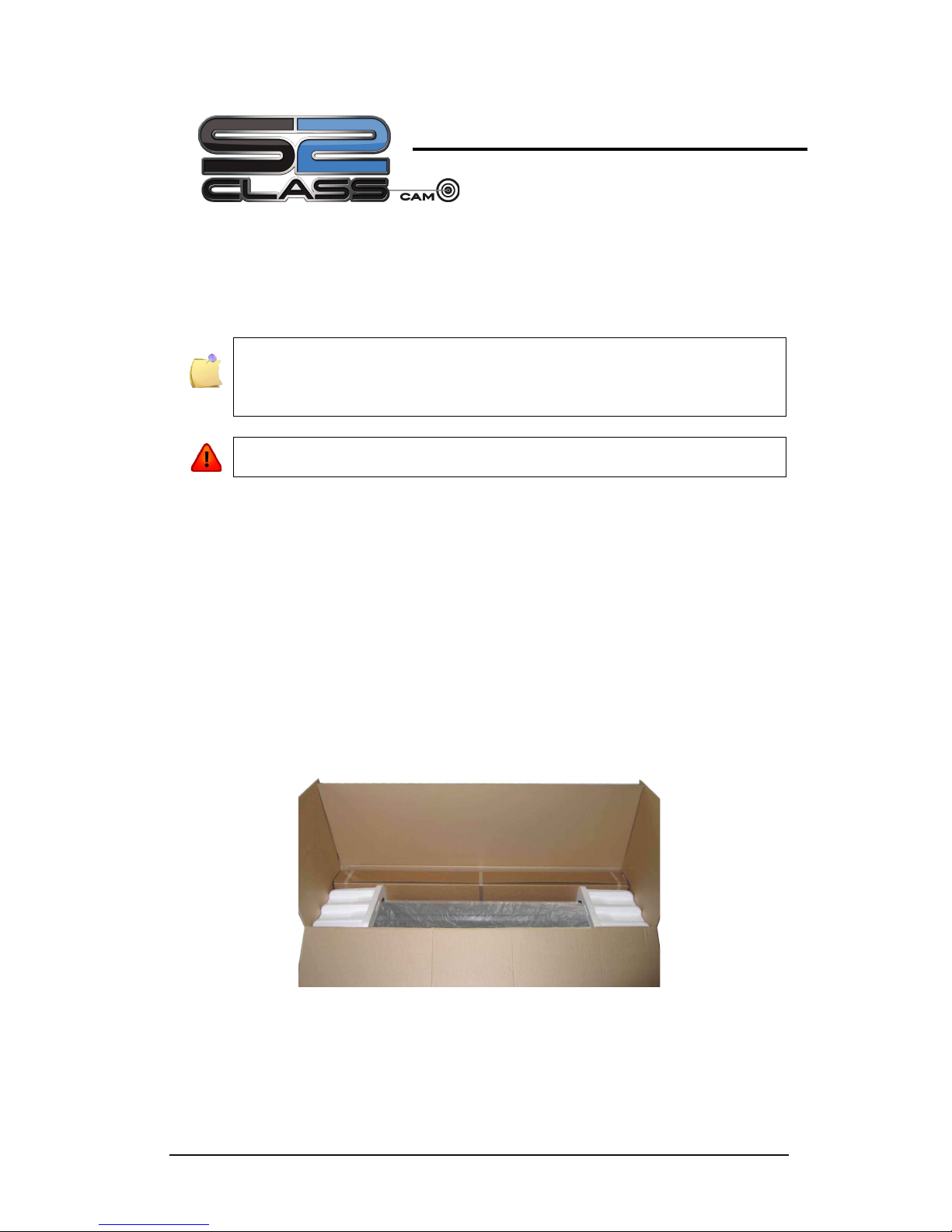

1.1 Unpacking the Cutter .......................................................................................... 1-1

1.1.1 Removing the packaging from the cutter ...................................................................... 1-1

1.1.2 Setting up the stand .............................................................................................................. 1-2

1.1.3 Mounting the cutter on the stand .................................................................................... 1-4

1.2 S CLASS 2 Cutter Components ........................................................................... 1-5

1.2.1 The Cutter as viewed from the front ................................................................................ 1-5

1.2.2 The Cutter as viewed from the back ................................................................................ 1-7

1.3 Safety, Ideal Operating Environment Connecting to the Mains ...................... 1-9

1.3.1 Safety ........................................................................................................................................... 1-9

1.3.1.1 General .............................................................................................................................. 1-9

1.3.1.2 Symbols used in manual ............................................................................................. 1-9

1.3.1.3 Safety precautions ...................................................................................................... 1-10

1.3.2 Operating environment ..................................................................................................... 1-10

1.3.3 Connecting the cutter to the mains .............................................................................. 1-11

1.3.3.1 Grounding (“Earthing”) ............................................................................................. 1-11

1.3.3.2 Operating voltage ...................................................................................................... 1-11

1.4 Powering-on the cutter ..................................................................................... 1-12

1.5 Connecting the Cutter to a Computer ............................................................. 1-13

1.5.1 USB connection .................................................................................................................... 1-13

1.5.1 Check for interfering programs or hardware ............................................................. 1-14

1.5.2 Ethernet connection ........................................................................................................... 1-16

1.6 Loading Media ................................................................................................... 1-19

1.6.1 Pinch roller positioning...................................................................................................... 1-19

1.6.2 Pinch roller pressure setting ............................................................................................ 1-20

1.6.3 Loading media ...................................................................................................................... 1-21

1.6.4 Media load procedure ........................................................................................................ 1-24

1.7 Tool Installation ................................................................................................ 1-28

1.7.1 Tangential knife installation ............................................................................................. 1-28

1.7.1.1 Pen installation ............................................................................................................ 1-32

1.7.1.2 Pouncing pin installation ......................................................................................... 1-32

1.7.1.3 Drag knife installation ................................................................

............................... 1-33

1.7.2 Replacement of the separation knife blade ............................................................... 1-33

S CLASS™ 2 cutter OPOSCAM User’s Manual

Table of contents II

2 Basic Operation.............................................................................................. 2-1

2.1 Touch Screen ....................................................................................................... 2-1

2.1.1 Touch screen............................................................................................................................. 2-2

2.1.2 Settings ....................................................................................................................................... 2-3

2.1.3 Actions ........................................................................................................................................ 2-3

2.1.4 Origin ........................................................................................................................................... 2-4

2.1.5 Configuration ........................................................................................................................... 2-4

2.1.6 Online/Pause ............................................................................................................................ 2-5

2.2 How to Set Tool Parameters ............................................................................... 2-6

2.2.1 Setting tool type ...................................................................................................................... 2-6

2.2.2 Changing tool pressure ........................................................................................................ 2-7

2.2.3 Calibrating a tangential knife ............................................................................................. 2-7

2.2.4 Changing drag knife offset ............................................................................................... 2-10

2.3 How to Set Cutting Speed ................................................................................. 2-12

2.4 How to Make Sure the Sign Has the Correct Size ............................................ 2-13

3 OPOS (Optical POSitioning) .......................................................................... 3-1

3.1 Introduction......................................................................................................... 3-1

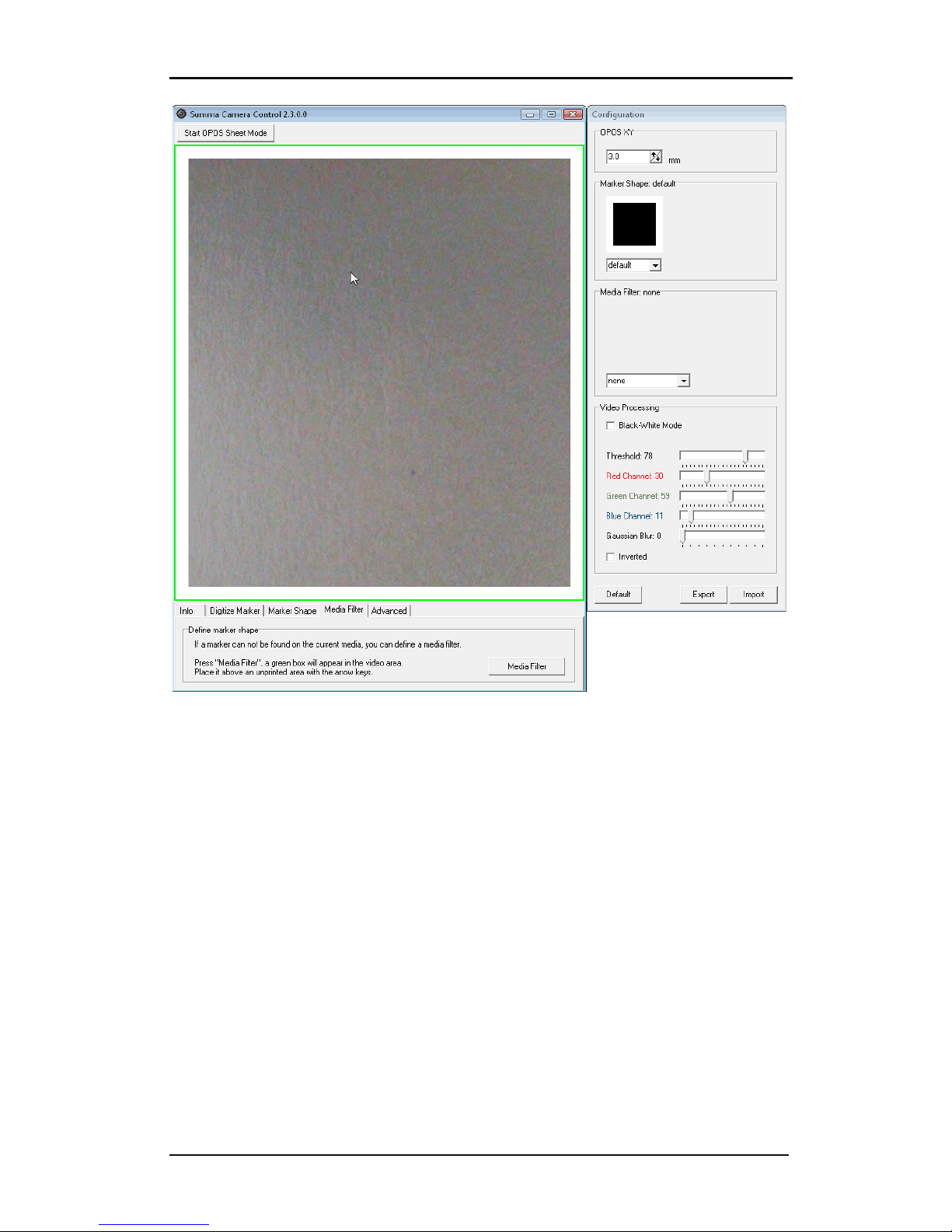

3.2 Summa Camera Control ...................................................................................... 3-1

3.3 Calibration of OPOS-CAM ................................................................................... 3-2

3.4 Basic OPOS-CAM operation ................................................................................ 3-4

3.5 Automating Tasks with OPOS-CAM ................................................................... 3-5

3.5.1 Cutting multiple copies of a graphic on the same roll .............................................. 3-5

3.5.2 Cutting the same graphic on multiple media sheets................................................. 3-6

3.6 Detailed Summa Camera Control Operation .................................................... 3-8

3.6.1 Main Window tabs .................................................................................................................. 3-8

3.6.2 Configuration Window ...................................................................................................... 3-14

3.7 Basic OPOS operation ....................................................................................... 3-15

3.7.1 Creating the graphic ........................................................................................................... 3-16

3.7.2 OPOS XY .................................................................................................................................. 3-17

3.7.3 Printing the graphic ............................................................................................................ 3-18

3.7.4 Orientation ............................................................................................................................. 3-19

3.7.5 Registering the marks

......................................................................................................... 3-20

3.7.6 OPOS paneling ...................................................................................................................... 3-21

3.8 Cutting through ................................................................................................ 3-22

S CLASS™ 2 cutter OPOSCAM User’s Manual

Table of contents III

4 Detailed Operation ........................................................................................ 4-1

4.1 Introduction......................................................................................................... 4-1

4.2 Action Menu ........................................................................................................ 4-1

4.2.1 Reset ............................................................................................................................................ 4-2

4.2.2 Replot .......................................................................................................................................... 4-2

4.2.3 Cut sheets .................................................................................................................................. 4-2

4.2.4 Open file ..................................................................................................................................... 4-3

4.2.5 Confidence test ........................................................................................................................ 4-3

4.2.6 DIN A4 test ................................................................................................................................. 4-3

4.3 Configuration Menu ............................................................................................ 4-4

4.3.1 Settings ....................................................................................................................................... 4-6

4.3.1.1 Tool ..................................................................................................................................... 4-6

4.3.1.2 Velocity .............................................................................................................................. 4-6

4.3.1.3 Knife pressure ................................................................................................................. 4-6

4.3.1.4 Calibrate Knife ................................................................................................................. 4-6

4.3.1.5 Knife offset ....................................................................................................................... 4-7

4.3.1.6 Pouncing gap .................................................................................................................. 4-7

4.3.1.7 FlexCut ............................................................................................................................... 4-7

4.3.1.8 Advanced cutting .......................................................................................................... 4-8

Overcut: ...................................................................................................................................... 4-8

OptiCut: ...................................................................................................................................... 4-9

Panelling: ................................................................................................................................... 4-9

Panel size: ................................................................................................................................... 4-9

Panel replot: .............................................................................................................................. 4-9

Sorting Vectors:........................................................................................................................ 4-9

Long Vectors: ......................................................................................................................... 4-10

TurboCut: ................................................................................................................................ 4-10

4.3.1.9 General ........................................................................................................................... 4-10

Media sensor: ......................................................................................................................... 4-10

Recut offset: ........................................................................................................................... 4-10

Cut off margin: ...................................................................................................................... 4-11

Roll up media: ........................................................................................................................ 4

-11

Autoload: ................................................................................................................................. 4-11

Language: ............................................................................................................................... 4-11

Menu Units: ............................................................................................................................ 4-12

4.3.1.10 OPOS ............................................................................................................................... 4-12

4.3.1.11 Communication .......................................................................................................... 4-13

Emulation language: ........................................................................................................... 4-13

Tool commands: ................................................................................................................... 4-13

USB class: ................................................................................................................................. 4-13

LAN: ........................................................................................................................................... 4-13

4.3.1.12 Length calibration ...................................................................................................... 4-14

4.3.1.13 Coil setup ....................................................................................................................... 4-14

4.3.1.14 Factory defaults ........................................................................................................... 4-14

4.3.1.15 Copy current user ....................................................................................................... 4-14

4.3.1.16 Media sensor setup .................................................................................................... 4-15

4.3.1.17 Calibrate touch screen .............................................................................................. 4-15

S CLASS™ 2 cutter OPOSCAM User’s Manual

Table of contents IV

5 Maintenance and Cleaning ........................................................................... 5-1

5.1 Introduction......................................................................................................... 5-1

5.1.1 Cleaning the drive system ................................................................................................... 5-1

5.1.2 Cleaning the media sensors ................................................................................................ 5-1

5.1.3 Cleaning the Y-Guide Rail .................................................................................................... 5-2

5.1.4 Cleaning the nose piece (tangential machine only) ................................................... 5-2

5.1.5 Changing the fuse .................................................................................................................. 5-3

6 Specs and General Information .................................................................... 6-1

6.1 Introduction......................................................................................................... 6-1

6.1.1 Product features ...................................................................................................................... 6-1

6.2 Specifications ...................................................................................................... 6-3

6.2.1 Cutter ........................................................................................................................................... 6-3

6.2.2 Media ........................................................................................................................................... 6-3

6.2.3 Knife, pen and pouncing tool ............................................................................................. 6-4

6.2.4 Interface...................................................................................................................................... 6-5

6.2.5 Firmware .................................................................................................................................... 6-5

6.2.6 Performance ............................................................................................................................. 6-6

6.2.7 Certifications ............................................................................................................................. 6-6

6.2.8 Environmental .......................................................................................................................... 6-7

6.2.9 Electrical ..................................................................................................................................... 6-7

6.3 Cutter accessories and consumables ................................................................. 6-8

S CLASS™ 2 cutter OPOSCAM User’s Manual

Table of contents V

List of Figures

1-1 S Class 2 cutter fully boxed .................................................................................................................... 1-1

1-2 Contents of box stand ............................................................................................................................. 1-2

1-3 Mounting horizontal panel .................................................................................................................... 1-2

1-4 Mounting feet and casters ..................................................................................................................... 1-2

1-5 Mounting basket tubes ........................................................................................................................... 1-3

1-6 Preparing to install the linen basket ................................................................................................... 1-3

1-7 Orientation of the holes in the c-shaped tubes .............................................................................. 1-3

1-8 Stand for the S CLASS 2 cutter completely assembled ................................................................ 1-4

1-9 Position of the screws .............................................................................................................................. 1-4

1-10 S CLASS 2 cutter, front view ................................................................................................................ 1-5

1-11 S CLASS 2 cutter, rear view .................................................................................................................. 1-7

1-12 Properly grounded connection ...................................................................................................... 1-11

1-13 Cutter is loaded and ready ............................................................................................................... 1-12

1-14 Cutter is ready no media loaded .................................................................................................... 1-12

1-15 Position pinch rollers .......................................................................................................................... 1-19

1-16 reducing pressure ................................................................................................................................ 1-20

1-17 Pinch roller lever................................................................................................................................... 1-21

1-18 Media flanges ........................................................................................................................................ 1-21

1-19 Position media flange on cutter ..................................................................................................... 1-21

1-20 Feeding roll media without using media flanges .................................................................... 1-22

1-21 Media position ...................................................................................................................................... 1-22

1-22 Pinch roller lever................................................................................................................................... 1-23

1-28 Removing the tangential knife holder ......................................................................................... 1-28

1-29 Removing knife from the tangential knife holder .................................................................... 1-28

1-31 Inserting the tangential knife holder ............................................................................................ 1-29

1-32 Knife depth adjustment ..................................................................................................................... 1-29

1-33 Knife pressure test pattern ............................................................................................................... 1-30

1-34 Razor blade for automatic separation of media ....................................................................... 1-33

2-1 Touch screen ............................................................................................................................................... 2-1

2-2 screen saver ................................................................................................................................................. 2-1

2-3 Online status screen ................................................................................................................................. 2-5

2-5 Possible knife calibrations ...................................................................................................................... 2-8

2-4 Correct knife offset pattern ................................................................................................................. 2-11

2-7 Length calibration pattern .................................................................................................................. 2-13

3-1 Position media fro multiple sheet ....................................................................................................... 3-3

3-1 Position media fro multiple sheet ....................................................................................................... 3-7

3-3 FlexCut principle ..................................................................................................................................... 3-22

3-4 combined contour cut and cutting through ................................................................................ 3-24

4-1 Action Menu ................................................................................................................................................ 4-1

4-2a Configuration Menu ............................................................................................................................... 4-4

4-2b Configuration Menu .............................................................................................................................. 4-5

4-3 Overcut .......................................................................................................................................................... 4-8

4-4 S Sensor setup ......................................................................................................................................... 4-15

5-3 Media sensors S CLASS 2 cutters ......................................................................................................... 5-1

5-4 Sliding surfaces on Y-guide rail ............................................................................................................ 5-2

5-6 Power entry module ................................................................................................................................. 5-3

S CLASS™ 2 cutter OPOSCAM User’s Manual

Table of contents VI

List of Tables

6-1 S CLASS 2 Cutter specifications ............................................................................................................ 6-3

6-2 S CLASS 2 media specifications ............................................................................................................ 6-3

6-3 S CLASS 2 tools ........................................................................................................................................... 6-4

6-4 S CLASS 2 interface specifications ....................................................................................................... 6-5

6-5 S CLASS 2 firmware ................................................................................................................................... 6-5

6-6 S CLASS 2 performances ......................................................................................................................... 6-6

6-7 S CLASS 2 environmental specifications ........................................................................................... 6-7

6-8 S CLASS 2 general accessories .............................................................................................................. 6-8

6-8 S CLASS 2 knives and stuff .................................................................................................................. 6-10

Setup 1-1

1 Setup

1.1 Unpacking the Cutter

NOTE: Save the shipping box and any other packaging items in case the cutter

needs to be shipped. Do not ship the cutter without first completely repacking it
in its original packaging. A document explaining how to repackage it is

available.

WARNING: For safety reasons, no fewer than two people should be involved in
unpacking the cutter.

Before unpacking the cutter, make sure that there is enough space to assemble the stand
and to set the cutter aside to insert the stand screws.

1.1.1 Removing the packaging from the cutter

1. Remove the straps and the staples and open the lid of the box.

2. The cutter is packed in foil and sits in front of the box. Behind the cutter is the box

containing the stand. The accessories are located at the bottom in a separate box.
Check first whether everything is present.

3. Do not throw away the packaging. Shipping it without the original box voids any

warranty.

FIG 1-1

1-1 S CLASS 2 CUTTER FULLY BOXED

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-2

1.1.2 Setting up the stand

1. Verify that the stand is complete. The box containing the stand should contain

following:

a. 2 legs, left and right
b. 2 feet, left and right
c. Horizontal panel
d. Media flanges
e. Total of 7 tubes for [media] basket
f. Linen media basket
g. Bag of 4 casters, screws and other accessories to mount the stand

FIG 1-2

1-2 CONTENTS OF BOX STAND

2. Mount the horizontal panel between the two legs of the stand with 4 screws at each

side.

FIG 1-3

1-3 MOUNTING HORIZONTAL PANEL

3. Turn the stand upside down and mount the 2 feet at each side with 4 screws. Take care

to position the feet so that all the holes in the feet corresponds to the holes in the legs
(left and right) as in the picture (1), and the 4 holes in the feet all point towards the
middle (2). Screw in the 4 casters.

FIG 1-4

1-4 MOUNTING FEET AND CASTERS

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-3

4. Attach on the left and right the 4 tubes for the basket as shown in figure 1-5 below. On

each tube, put the end cap (1) and the two saddle clips (2) to fix the tube in its place.
Position the shorter tube (3) at the rear side (side of the horizontal panel).

FIG 1-5

1-5 MOUNTING BASKET TUBES

5. Turn the stand upright and put the media basket on the horizontal panel as shown in

figure 1-6 below.

FIG 1-6

1-6 PREPARING TO INSTALL THE LINEN BASKET

6. Take one of the large c-shaped tubes and put it through the front hem in the linen

basket. Make sure the holes are oriented right-side up so that the tubes click securely in
place. Then put the tube on the two front tubes that stick out of the feet. Slide the tubes
together, while pressing down on the spring loaded ball stopper, until the ball locks
into place.

FIG 1-7

1-7 ORIENTATION OF THE HOLES IN THE C-SHAPED TUBES

7. Click a saddle clip onto one side of the tube. Insert the other end of the tube through

the middle hem of the linen basket and then into the hole in the leg of the stand. Then
guide the other end of the tube into the hole on the leg and secure with a saddle clip.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-4

8. Make sure the linen basket is guided under the horizontal panel. Take the last large c-

shaped tube and feed it through the rear hem in the linen basket. Then put the tube on
the two rear tubes that stick out of the feet. Make sure the holes are oriented right-side
up so that the tube clicks securely on the tubes. The finished stand should look like the
stand in the picture below (Figure 1-8).

FIG 1-8

1-8 STAND FOR THE S CLASS 2 CUTTER COMPLETELY ASSEMBLED

9. The right leg has a hole in the foot and a cutout in the leg to guide the power cable and

data cable. If you plan to use these cable guides, then put the cables in place before
mounting the cutter on the stand.

1.1.3 Mounting the cutter on the stand

1. Carefully take the cutter out of the box and lay it on its back (first spread out the

cardboard of the stand box, and then rest the cutter on that cardboard). Then insert left
and right two screws and turn them 3 turns in. Do not put a screw in at the front.

FIG 1-9

1-9 POSITION OF THE SCREWS

2. Put the cutter on its stand. Put a lock washer on the two remaining screws and put them

in the two remaining holes. Then secure all six screws.

3. Loosen the cutting head. Raise the pinch rollers to remove the protection strip from

underneath the pinch roller assemblies.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-5

1.2 S CLASS 2 Cutter Components

1.2.1 The Cutter as viewed from the front

FIG 1-10

1-10 S CLASS 2 CUTTER, FRONT VIEW

1. Pinch rollers: The pinch rollers clamp the media to the drive system to ensure accurate

tracking. The S160(T) and S 140(T) have two extra pinch rollers to ensure that wide
media stays flat in the middle. The outer drive pinch rollers have a selectable pressure;
the extra rollers in the middle can be enabled or disabled. Extra pinch rollers can be
added.

2. Touch panel: All cutter activity can be initiated from the 320x240 dot touch panel. The

panel displays information about the cutter’s current status and/or actions that need to
be taken.

3. Pinch roller lever: This lever is used to raise and lower the pinch rollers for media

loading.

4. Media drive sleeves: The media drive sleeves move the media only when the pinch

rollers are in the “down” position. The following table lists the number of sleeves
installed on each model of the S CLASS 2 cutters.

Number of sleeves

S75 (T) S140 (T) S160 (T)

Short sleeve 4 8 9

Long sleeve 1 1 1

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-6

5. Tool carriage: The tool carriage is the mount for the knife holder, pen or pouncing tool.

It has also holds the camera and a cut-off knife to cut a sheet from the roll when a job is
finished.

6. Cutting strip: A self-healing orange strip helps avoid any damage to the knife tip when

no media has been loaded. Since cutting is done on the cutting strip, it is essential that
the strip remains intact.

7. Pouncing strip: An extra black strip to pounce on.

8. Tool holder: The left end cap has a rim so it can be used for tool storage.

9. Screws to secure the cutter base: Make sure all three screws are secured at each side

before the cutter is used.

10. Media basket: The stand and linen media basket come standard with all S CLASS 2

cutters.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-7

1.2.2 The Cutter as viewed from the back

FIG 1-11

1-11 S CLASS 2 CUTTER, REAR VIEW

1. AC power cord receptacle: It is located at the left-hand side of the power entry

module. The power-up procedure is explained in detail in Section 1.3. Always use a
power cord that was delivered with your cutter.

2. Power On/Off switch: This rocker switch, in the middle of the power entry module, sets

the cutter’s power to ON or OFF. To switch on the power, press the “I” side of the rocker
switch. To switch off the power, press the “O” side of the rocker switch.

3. The fuse box: The fuse is located at the right side of the power entry module. Check the

specification section to see which fuse is used in the S CLASS 2 cutter.

WARNING: For continued protection against risk of fire, replace only with the
same type and rating of fuse.

4. USB port type A female: For plugging in a USB stick.

5. Ethernet port RJ45: For connecting the cutter to the LAN.

6. USB port Type B female: This interface is based on the standards specified in Universal

Serial Bus Specifications Revision 1.1. It allows a high-speed bi-directional
communication between the host computer and the cutter.

7. Pinch roller lever: This lever is used to raise and lower the pinch rollers for media

loading.

8. Roll media guide bushes: The two flange guides serve to keep the media roll in place

when media is pulled from the roll.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-8

9. Pinch rollers: The pinch rollers clamp the media to the drive system to ensure accurate

tracking. The SS160(T) and S 140(T) have two extra pinch rollers to ensure that wide
media stays flat in the middle. The outer drive pinch rollers have a selectable pressure;
the extra rollers in the middle can be enabled or disabled. Do not move the pinch roller
assemblies while holding them from this side only.

10. Screws to secure the cutter base: Screws (3 left and 3 right) hold the cutter base to its

stand. All the screws must be properly tightened before using the cutter.

11. Tubes for media basket: Tubes in the back and front hold the media basket. They can

easily pulled outwards to put the basket in its place.

12. Casters: The casters on the stand are equipped with locking brakes. Once the cutter has

been moved to its new location, press the brakes with your foot to lock the casters.

13. Media support rollers: Rotating support rollers for the media roll.

14. Media basket: The stand and linen media basket come as standard equipment with all

S CLASS 2 cutters.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-9

1.3 Safety, Ideal Operating Environment Connecting to the Mains

1.3.1 Safety

1.3.1.1 General

The purpose of the user’s manual is not only to explain the operating procedures for
working with this machine. But it also provides the owner, users and operators with
precaution procedures for safe and proper machine operation for its intended purpose.
All information in this manual must be read and understood before any attempt is made to
operate the machine.

The manufacturer has no direct control over the machine operation and application. Proper
safety practice is the sole responsibility of the owner, user and operator.
All instructions and safety warnings in this manual are based upon the use of this machine
under proper operating conditions without alterations from the original design.

Any use of the cutter that is beyond the capabilities of the combination knife/material is
considered as improper use and may result in injury, serious damage to the machine and
will lead to loss of warranty.

1.3.1.2 Symbols used in manual

Warning with dark (red) symbol: Refers to immediate threat that
can cause serious injuries and effects on health and safety.

Warning with light (yellow) symbol: Refers to a dangerous

situation that can cause injuries and serious damage to the
machine.

Attention with dark (red) symbol: Refers to useful information to
prevent damage to the equipment and prolong the service live of
the machine.

Attention with light (yellow) symbol: Refers to useful tips to
enhance the user-friendliness

and make the work significantly

easier.

Note: Can be considered as a general tip, something that is useful
to know.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-10

1.3.1.3 Safety precautions

WARNING: The S CLASS 2 cutters use razor-sharp knives. Touching the knife

with bare hands may cause injury. Do not touch the knives while the machine is

cutting.

The cutter comes with a tool to insert the knives in the knife holder. Use this tool to prevent
injury. Put used blades in their original packaging for disposal.

The whole base plate can be considered as a dangerous area when the cutter is switched on
and online. The tool carriage can move from left to right and the yellow media sleeves are
sharp and can grab loose objects, clothing or body parts.
The cutter measures constantly the current through the motors. If the machine detects that
the current is too high, then current is cut off to the motors and a fatal error message is
displayed on the control panel.
Be sure to observe all the caution labels on the cutter.

1.3.2 Operating environment

Environmental conditions can significantly affect the machine’s performance.
The environmental conditions of the machine (without media) are as follows:

Operating Temperature

15 to 35° C

59 to 95° F

Storage temperature

-30 to 70° C

-22 to 158° F

Relative humidity

35 - 75 %, non condensing

35 - 75 %, non condensing

It is possible that the environmental conditions of the used media are stricter than those of
the machine itself. Please refer to the documentation about the used media.
Also make sure that the media has had time enough to acclimatize.

NOTE: Keep the cutter away from direct sunlight or a strong indoor light source.

The optical sensors in the machine may be affected thus causing unexpected

behavior of the cutter.

WARNING: There is a risk of injury from being caught or trapped in moving

machine parts.
Keep hands, hair, clothing and jewelry away from moving parts. Do not wear

jewelry, loose clothing, scarves or open jackets or shirtsleeves.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-11

1.3.3 Connecting the cutter to the mains

1.3.3.1 Grounding (“Earthing”)

FIG 1-12

1-12 PROPERLY GROUNDED CONNECTION

1.3.3.2 Operating voltage

The power supply detects the line voltage and switches automatically between 110V and
230V.
Fuse Rate: T2.0A, 250V SCHURTER SPT OR EQUIVALENT.

WARNING: Before changing the fuse, make sure that the cutter is completely
disconnected from its power source.

WARNING:

For continued protection against risk of fire, replace only with the

same type and rating of fuse.

WARNING: An insulated ground conductor must be installed as part of the
branch circuit that supplies power to the wall outlet to which the cutter is
connected. The ground conductor must have the same size, insulation material
and thickness as the grounded and ungrounded branch circuit supply

conductors, but the

insulating seat should be green or green with yellow

striping.

The ground conductor described above must be grounded at the electrical
distribution board or, if power is supplied by a separate system, at the power

supply transformer/motor generator set.

The wall sockets into which the cutter is plugged must be of the grounded type.
The grounded conductors serving the wall socket must be properly connected to

the ground.

For emergency access, the cutter should be installed near the socket-outlet for

easy access.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-12

1.4 Powering-on the cutter

WARNING: Be sure the power switch is turned off before connecting the power

cord (the “0” side of the ON/OFF rocker switch should be pressed).

WARNING: Do not used the power cord if it is visibly damaged. Disconnect the
power cord by pulling the plug, not the cable.

WARNING: Keep fingers and other body parts away

from the cutting area.

There are hazardous moving parts.

1. Plug the female end of the AC power cord into the receptacle located in the power

entry module on the cutter’s rear panel.

2. Plug male end of the AC power cord into a properly grounded wall socket.

3. Power on the cutter by pressing the “I” side of the ON/OFF rocker switch located on the

power entry module on the rear panel.

4. The touch screen will activate and the initialization process will begin. If media is

loaded, then the cutter will check size and load the media.

FIG 1-13

1-13 CUTTER IS LOADED AND READY

FIG 1-14

1-14 CUTTER IS READY NO MEDIA LOADED

Knife pressure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Media size 50000 x 718 mm

Act ions

Settings

Confi gurat ion 1

Paus eOrigin

Summa USB port 1Summa USB port 1

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-13

1.5 Connecting the Cutter to a Computer

The S CLASS 2 cutters support bi-directional USB and Ethernet connectivity. When both
ports are connected at the same time, the port that receives data first will remain active and
the other port will be deactivated.

NOTE:

The camera option functions only when the cutter is connected through

USB with a PC. There are no Mac or Linux drivers available for the camera.

If the cutter is connected to the computer with Ethernet connection only, then the camera
option will not work. It is possible to send cut data through the Ethernet port in
combination with using the camera option if the cutter is connected with the computer
with the USB cable. The cutting data itself can come from another computer.

1.5.1 USB connection

The USB cable should be 5 meters (16 feet) or less in length. The connector on the cutter
side of the cable should be USB series B 4-pin. The connector on the computer side of the
cable should be USB A 4-pin.

NOTE: The use of HUB’s or active extensions is not allowed.

The computer has to install three devices. A USB hub, the USB device driver for the cutter
and the USB device driver for the camera.

NOTE: The installation of the cutter driver and the camera driver must be
prepared by a running a program prior to connecting the cutter to the
computer.

NOTE: When installing a cutter, make sure that the user has administrative

rights and that UAC is deactivated or set to its lowest level (not applicable for
Windows XP or earlier versions).

2. Power off the cutter.

3. Insert the S CLASS 2 CD into the computer’s CD-ROM drive.

4. Choose to run Windows_autostart.

5. Choose language and click on install USB driver. Wait for the driver to install.

6. Click on “install USB driver camera”. Wait for the program to finish.

7. Connect one end of the USB cable to a USB port on the computer.

8. Connect the other end of the USB cable to the USB port on the back of the cutter.

9. Power on the cutter (see section 1.4) and return to the computer.

The Found New Hardware Wizard should appear on the computer screen and install the
USB driver.

10. Click “OK” and follow the instructions provided by the Wizard.

11. Restart the computer.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-14

NOTE: When connecting a cutter to a computer for the first time using the USB

cable, the computer will detect the cutter and install the USB driver if the setup
program was run. If the setup program was not run prior to connection, then
install the program while cutter is connected and switched on. After that the
program is run, the computer will detect a new device and install the correct

driver automatically.

NOTE: It is recommended to use always the latest version of the driver. The Cd

is made so that it downloads the latest version automatically. If no internet

connection is available, then it is possible that the driver on the CD is outdated.

1.5.1 Check for interfering programs or hardware

Interference results in ‘green lines’ (when Camera control is started and when it is set in
color mode – see section 3.6):

The cause of this can either be software or hardware related.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-15

Other programs could interfere with the camera, it is recommended to check if such
programs are running. The procedure to check this is simple.
Double click on the ‘Safely Remove Hardware’ icon in the tray. Choose to stop the videology
device.

If the computer allows it, then disconnect and connect cutter again.
If the computer does not allow it, then check which program or service prevents this
(usually chat programs similar to windows messenger).

NOTE: power saving programs can also interfere with the proper working of the

camera and driver. For non-

laptop computers set power options to high

performance. For laptops make sure that the power suspend setting for USB is

disabled.

Hardware causes could be devices that are USB connected and that generate too much
traffic on the USB bus.
Examples are external hard disk, camera’s, USB adapters, …
Just disconnect each device separately and check if the lines disappear.

NOTE: Make sure the cutter is connected and switched on before camera

control is started. Also make sure that no other cutting software is running

before camera control is started.

NOTE: Close camera control before cutter is switched off

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-16

1.5.2 Ethernet connection

A couple of parameters have to be set when connecting a cutter to the Ethernet. It is best to
check a couple of network settings or ask the network administrator for following info:
Is the network working with DHCP server or not?
If so, what is the lease time and what is the IP pool range of the DHCP server.
If not, then find out what the used IP range is.
Also ask for the value for the subnet mask.
If the network administrator can already provide a free IP address and the value of the
subnet mask, then go directly to the procedure “Case set everything manual”.
If the values are not known on forehand and need to be searched for, then follow procedure
below.

 Case DHCP server is used:

If there is no lease time set (lease time is infinite) then no parameters have to be set on the
cutter. Just connect the cutter and write down the IP address to set up the cutting software.

Check IP address in communication menu:

1. Power on the cutter (see section 1.4) and connect the Ethernet cable.

2. Press status bar

3. Press LAN

4. Press Status

IP address ( and other network
settings) are shown on screen

If a lease time is set, then use a static IP address. If the IP pool range is known, then use an
address outside this range. If this is not possible, then try and change the IP pool range of
the network so that there are a couple of addresses free to be used as a static address.

NOTE: Be careful when changing the IP pool range of a network. Check if there

are no devices attached to the network that use IP addresses outside the new IP
pool range (use ping command for this – see Check IP).

If such devices are

found, then switch them off and back on after that the pool range is changed.

If an address can be chosen outside the IP pool range, then check if this address is free with
the ping command on a computer in the network (use ping command for this – see ping).

Knif e pres sure 95 gr

Velocity 800 mm /s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

PauseOrigin

Summa USB port 1Eth. 192.68.1.7

USB C lass Summa USB port 1

Tool comma nds Accept

Emulation lan guage AUTO

Comm unication

Back

Home

LAN ...

Status

Configure

DHCP Off

Comm unication | LAN

Back

Home

IP address 192.168.1.11

Comm unication | LAN

Apply

255.255.255.0Subnet mas k

0.0.0.0Default gateway

0.0.0.0DNS-serv er 1

0.0.0.0DNS-serv er 2

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-17

If no address can be chosen outside the IP pool range (range is not known, or range cannot
be changed), then check the manual of the router if it possible to link a static IP address to a
mac address. If so, choose a free IP address (use ping command for this – see ping) and link
it to the mac address of the cutter in the router setup or DHCP setup.

NOTE: it is recommended to work with a static IP address because cutting

software uses a static IP address to send the data to.

If the lease time of the

DHCP server isn’t infinite or if no static IP address is used, then it is possible that
the IP address of the cutter suddenly changes and that the cutter software does

not work anymore.

When it was impossible to obtain an address with the above procedures, then there exist a
‘trick’ to try and find a free address. For that check the IP address and subnetmask from the
computer and chose an IP address that is ‘far’ from that IP address of the computer ( add or
subtract 98, but make sure it stays in de range of 2 – 250 )

Check IP config of the computer:

Press simultaneously and . Type “Cmd” (without the “ “) and click on OK. Then
a program box opens. In this box type IP config.

Check if chosen IP address (xxx.xxx.xxx.xxx) is free:

Press simultaneously and . Type “Cmd” (without the “ “) and click on OK. Then
a program box opens. In this box type ping xxx.xxx.xxx.xxx (xxx.xxx.xxx.xxx being the IP
address that is chosen for the cutter). If there is a reply, then this means that the IP address
is in use and cannot be used for the cutter. If there is no reply, then this address is free and
can be used for the cutter.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-18

 Case set everything manual:

1. Power on the cutter (see section 1.4) and connect the Ethernet cable.

2. Press sstatus bar

3. Press More

4. Press off and then Apply

5. Press Configure

6. Press parameter that has

to be changed

7. Set address correct press

apply

8. Press parameter that has

to be changed

9. Set address correct press

apply

Knif e pres sure 95 gr

Velocity 800 mm /s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

PauseOrigin

Summa USB port 1Eth. 192.68.1.7

Status

Configure

DHCP Off

Comm unication | LAN

Back

Home

On

Off

Cance l

Apply

Comm unication | LAN

Status

Configure

DHCP Off

Comm unication | LAN

Back

Home

IP address 192.168.1.11

Comm unication | LAN

Apply

255.255.255.0Subnet mas k

0.0.0.0Default gateway

0.0.0.0DNS-serv er 1

0.0.0.0DNS-serv er 2

Apply

█00.000.000.000

Comm unication | LAN

0

IP address 192.168.1.11

Comm unication | LAN

Apply

255.255.255.0Subnet mas k

0.0.0.0Default gateway

0.0.0.0DNS-serv er 1

0.0.0.0DNS-serv er 2

Apply

█00.000.000.000

Comm unication | LAN

0

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-19

1.6 Loading Media

The following procedures apply mainly to the use of roll media. If you are using sheets,
there are two options:
For long sheets, roll up the sheet so that the alignment is identical to that of a roll.
For short sheets, the alignment is not so important. If the sheet is cut off perpendicularly, it
can be aligned to the front border.

1.6.1 Pinch roller positioning

Proper movement of the media will only occur if the media is driven by the two outer pinch
rollers that are correctly located over two drive sleeves.

The pinch rollers are lowered or raised simultaneously by means of the pinch roller lever
arm located on the right-hand side of the cutter. The pinch rollers must be lifted to allow
vinyl loading, during which the media is fed from the rear of the cutter to the front. When
raised, the pinch rollers can be moved manually to the left or the right along the pinch roller
shaft.

CAUTION: Always make sure that the pinch rollers are fully raised before sliding

them to the left or right.
Always hold the assembly at the side of the pinch roller to move it from left to
right; do not reposition pinch roller by holding the assembly at the rear of the

machine.

The pinch rollers MUST be positioned correctly and lowered onto the media before an
automatic load sequence is initiated. Make sure that all the pinch rollers are positioned
above a drive sleeve. The outer left pinch roller should be positioned in one of the detents
(click position), just under a white triangular label. The outer right pinch roller should be
positioned somewhere over the long drive sleeve, click positions are located at the edges of
the sleeve (area marked with a white triangular label).

FIG 1-15

1-15 POSITION PINCH ROLLERS

CAUTION: Always leave the pinch rollers in the “up” position when the cutter is

not in use. Leaving the pinch rollers in the “down” position for a long time will
result in a flat spot in the pinch rollers, which will seriously [negatively] affect

tracking performance and cutting quality.

NOTE: When the pinch rollers are raised during a job, then the cutter will
immediately stop and after a second move the carriage to the right side.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-20

1.6.2 Pinch roller pressure setting

The S CLASS 2 cutters are equipped with selectable pinch wheel pressure. The pressure can
be set to “standard” or “low.” The
change in pressure can only be done when the pinch rollers are in the down position. When
reduced pressure is needed, then it is advised to set autoload to ‘ASK’. Then the cutter will
not start to load the vinyl when the pinch rollers are set down or when it is switched on. On
the touch screen there will be a message, giving the user time to change the pressure on
the pinch rollers.

NOTE: Each time the pinch rollers are raised, the pressure is automatically set
back to full pressure.

FIG 1-16

1-16 REDUCING PRESSURE

To work with reduced pressure do the following:

1. Set AUTOLOAD to ASK (see section on Autoload:).

2. Load media in the cutter (see section on Media load procedure).

3. Push the lever of the two outer pinch rollers upwards and inwards (toward the machine)

– see figure above.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-21

1.6.3 Loading media

1. Raise the pinch rollers by means of the pinch roller lever arm, which is located on the

right-hand side of the cutter, next to the touch panel.

FIG 1-17

1-17 PINCH ROLLER LEVER

2. Loosen the knobs on the two media flanges. The following illustration shows a loosened

flange (1) and a tightened flange (2).

FIG 1-18

1-18 MEDIA FLANGES

3. Insert a loosened flange into one end of the media roll and tighten the knob. Verify that

the flange is secure. Then do the same on the other side of the roll.

4. Place the flange-equipped roll on the media supply rollers. Set the flanges inside the

groove of the flange guide. The flange guides can be moved laterally on the roller.

FIG 1-19

1-19 POSITION MEDIA FLANGE ON CUTTER

NOTE: If the flanges are not used (not recommended – tracking is not
guaranteed), then make sure that the roll is caught between the two flange
guides.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-22

FIG 1-20

1-20 FEEDING ROLL MEDIA WITHOUT USING MEDIA FLANGES

5. Start feeding the media from the rear of the machine. Pass the media underneath the

pinch rollers towards the front of the machine.

6. Position the left media edge on the left-most drive sleeve and check whether the right

media edge is positioned over the long drive sleeve. Then position the left and right
pinch rollers.

The pinch rollers should be positioned over the drive sleeves about 3 to 15 mm (0.1” to

0.6”) away from the media’s outer edges (1). Then pull on the media while holding the
flange at the back so the media is tight. Make sure the front media sensor is covered (2).

FIG 1-21

1-21 MEDIA POSITION

In circumstances where the above procedure does not work, because the media is too
narrow to reach the long drive sleeve, try positioning the left media edge over the
second left drive sleeve and position the right media edge somewhere over the long
drive sleeve. Continue moving the left pinch roller toward the long drive sleeve until
both pinch rollers are in their designated position and directly over the edges of the
vinyl.

In all cases, both edges of the media must cover a drive sleeve. If this is not the case,
reposition the roll of material to cover the drive sleeve.

7. Make sure that the media follows a straight path from the roll of material. To accomplish

this, slide the media roll and flange guides from the left to the right along the media
support rollers.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-23

WARNING: Keep fingers and other body parts away from the cutting area.
There are hazardous moving parts.

8. Lower the pinch roller lever to press the media firmly against the drive sleeves. After

one second the tool carriage automatically moves from the right to the left to sense the
usable media width.

FIG 1-22

1-22 PINCH ROLLER LEVER

NOTE:

It is not recommended

to unroll the media manually from the roll. The

cutter will unroll the media automatically during the load sequence.

9. The positioning and routing of sheet material is identical to that of roll media.

10. The cutter is now ready.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-24

1.6.4 Media load procedure

CAUTION: Do not place any objects in front of, or behind, the cutter that could

interfere with cutter operation. Make sure the media is free to move forward

and back. Keep hands, hair, clothing and jewelry away from moving parts.

While the cutter is on, it will automatically start executing a minimal loading procedure as
soon as the pinch rollers are lowered. The load procedure will also start when the cutter is
switched on while media is already in the machine and the pinch rollers are in the “down”
position (this is not recommended). Always keep the pinch rollers in the up position while
the cutter is not being used.

The minimal loading procedure consists of:

 A media width measurement.
 Media is unwound over a length equal to the width measured between the outer

two pinch rollers.

 A simultaneous 45° axial move of the drive drum (sleeves) and cutting head.

After that, the cutter is ready to receive files from the computer.
When receiving a job from the computer, the cutter will automatically pull the required
media from the roll. It does this in steps and the length of the vinyl used is equal to a
number of times the measured width of the media.

IMPORTANT: Tracking of longer signs is only guaranteed when the full load

procedure is performed!

Full media load procedure:

WARNING: Each keystroke can initiate an internal test or movement of head or

media. Keep fingers and other body parts away from the cutting area. There are

hazardous moving parts.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-25

 Loading a sheet.

1. Press on Media size

2. Press on Sheet

The cutter will immediately start to load the sheet. It measures the width and loads a certain
length of media, or until the end of the media is encountered. The user will then be prompted
to accept the length or not.

3. Press to accept the length or go to step 4.

The cutter will now complete the loading sequence and then come online and will be ready
to receive data. The loading sequence conditions the edges of the vinyl for a given length.

4. Press .

5. Press or until the required media length appears, then press .

The cutter will now complete the loading sequence. After that, the cutter will come online
and will be ready. The length of the job it can cut is limited to the loaded length.

NOTE: If the rear media sensor detects the end of the media, then the cutter will
complete the loading sequence without any input from the user.

Knif e pres sure 95 gr

Velocity 800 mm /s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

PauseOrigin

Summa USB port 1Summa USB port 1

Velocity 800 mm /s

Actions | Load

Back

Home

Roll

Sheet

Extended

Media alignment

Accept

Abort

Apply

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-26

Y: 7 17X: 0

Set origin

Action | Load

Apply

Cance l

 Loading a roll.

1. Press on Media size

2. Press on Roll

Four arrows will appear, together
with an “apply” button. The status is
visible in the middle of the right­hand side of the screen.

3. Use , , or to reposition the origin, if necessary. Then press

.

Two arrows will stay on the screen with which the necessary length can be loaded.

4. The media length needed for the task can be entered by pressing or and

thus then loading the needed length. Or the needed length for the job can be entered

by pressing and then by pressing or to change the value of the
default length to load.

Depending on the manner chosen for entering the needed length of the job, the cutter will
either load the length or display the chosen length on screen.

5. Press

.

The cutter will now complete the loading sequence. Then the cutter will come online and will
be ready. The length of the job it can cut is limited to the actual length of the media that is
left on the roll. The cutter will always assume a full roll, thus it will use 50000mm (1982
inches) on the status screen.

NOTE: If the rear media sensor detects the end of the media, then the cutter will
complete the loading sequence without any input from the user.

Knif e pres sure 95 gr

Velocity 800 mm /s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

PauseOrigin

Summa USB port 1Summa USB port 1

Velocity 800 mm /s

Actions | Load

Back

Home

Roll

Sheet

Extended

Media alignment

Apply

Apply

Apply

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-27

 Extended load.

The function extended load makes it possible to define the limits of the Y axis so that the
cutter can cut outside the pinch rollers. Media has to loaded before this function can be
used.

1. Press on Media size

2. Press on Extended

Two arrows will appear, together with an “apply” button.

3. Use or to reposition the right Y-axis limit (origin). Then press .

Two arrows will stay on the screen, the tool carriage will move to the left Y-axis limit.

4. Use or to reposition the left Y-axis limit (define size). Then press .

The cutting area in the Y-axis has now been redefined.

NOTE: Tracking is not guaranteed when using this mode.

Knif e pres sure 95 gr

Velocity 800 mm /s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

PauseOrigin

Summa USB port 1Summa USB port 1

Velocity 800 mm /s

Actions | Load

Back

Home

Roll

Sheet

Extended

Media alignment

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-28

1.7 Tool Installation

WARNING: The S CLASS 2 cutters use razor-sharp knives. To avoid serious

injury, use caution when installing, removing or otherwise handling the knife!

1.7.1 Tangential knife installation

A knife has been pre-installed in your cutter. For safety reasons, the knife depth has been
set to zero. Simply turn out the knife (see fig FIG 1-23) to start cutting. Below is the complete
description of how to remove or install a knife.

NOTE:

To benefit fully from the advantages of the tangential knife, the amount

the knife extends is very important. The knife pressure may not control the knife

depth; the two rollers of the nosepiece should always touch the media, thus

controlling the knife depth.

 Removing the tangential knife

1. Turn the knife holder counterclockwise. The holder will rise up, eventually making it

possible to lift the knife holder out of the tangential head. Underneath is the nosepiece.
Remove this part if another tool will be used in the cutter.

FIG 1-23

1-23 REMOVING THE TANGENTIAL KNIFE HOLDER

2. The knife can be removed from the knife holder by using something like a flat

screwdriver to pry between the knife and the knife holder in the groove.

FIG 1-24

1-24 REMOVING KNIFE FROM THE TANGENTIAL KNIFE HOLDER

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-29

 Installing the tangential knife and setting knife depth

1. Insert the standard knife blade into the knife holder. Make sure the knife blade is firmly

fixed in the holder. The knife is inserted correctly if it cannot be removed manually from
the knife holder. The installation tool can be used to apply enough pressure on the knife
to secure it.

FIG 1-25

1-25 BLADE ASSEMBLY

2. Insert the nosepiece from the side until it snaps into place. Gently insert the knife into

the tool shaft. Hold the nosepiece in place with one hand and, with the other hand, turn
the knife holder counterclockwise until the alignment pin fits into the small notch of the
tool shaft. Now turn the knife holder clockwise until its thread takes hold inside the tool
shaft.

FIG 1-26

1-26 INSERTING THE TANGENTIAL KNIFE HOLDER

3. Holding the nosepiece in place with one hand, adjust the knife depth with the other

hand by turning the knife holder clockwise until the knife tip is just visible from under
the nosepiece.

Film

Backing

FIG 1-27

1-27 KNIFE DEPTH ADJUSTMENT

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-30

 Setting pressure and checking knife depth:

(media must be loaded in the cutter before knife pressure can be tested).

WARNING: Each keystroke can initiate an internal test or movement of head or

media. Keep fingers and other body parts away from the cutting area. There are

hazardous moving parts.

1. Power on the cutter and load media.

2. Press on pressure

4. Or fill in the new value

after pressing Numpad.

1. Press to perform the internal knife pressure test.

2. Press to confirm the chosen knife pressure and exit the menu.

3. Press to leave the pressure unchanged.

Once is pressed, the current knife pressure value will be set automatically to the
new value and the cutter will cut the knife pressure test pattern.

FIG 1-28

1-28 KNIFE PRESSURE TEST PATTERN

Peel out the rectangle and inspect the backing.

The knife depth is set correctly when the test pattern cuts through the vinyl completely, the
vinyl is removed, and the blade tip visibly scratched the front side of the media backing. The
blade should never cut through the backing; just slightly scratch the silicon coating and first
few fibers of the backing material.

Knif e pres sure 95 gr

Velocity 800 mm /s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

PauseOrigin

Summa USB port 1Summa USB port 1

Cance l

Apply

Test

Numpad

Old va lue: 85gr

New value: 95gr

Range: 0 ... 600gr

Summa USB port 1

Apply

9▌

Summa USB port 1

Test

Apply

Cance l

Test

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-31

NOTE:

The knife pressure can also be used to check the knife depth (which is
controlled by the amount the knife extends outs of the nosepiece). If the correct
knife pressure is raised b

y 150 gr, then the knife may not cut through the

backing of the vinyl. If it does, then the knife depth needs to be reduced.

CAUTION: After setting the cutting depth and/or the knife pressure, perform a

thorough visual check of the knife blade, which

can be seen protruding from

the knife holder, and test cutting results on a scrap of vinyl media!

WARNING: Do not operate the cutter if the knife blade cuts through the media

backing, as this will seriously damage the cutter's rubber cutting strip and the

knife.

NOTE: For most vinyl cutting operations, the knife blade tip will be barely

visible at the bottom of the knife tool. If the knife blade tip is clearly visible, then
the cutting depth must be readjusted.
To prevent damage to the cutter, check the depth of the knife blade tip and the

quality of the cut each time you load a different type of vinyl into the cutter.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-32

1.7.1.1 Pen installation

The S CLASS 2 tangential cutters can also be operated with a ballpoint pen. After replacing
the knife with a pen, the cutter can be used as a plotter to draw draft plots of new or
existing designs on paper.

1. Turn the installed tool counterclockwise. The holder will raise up, making it possible to

lift the knife holder out of the tangential head. Underneath is the place for a nosepiece.
Remove this part also if it is mounted.

2. Insert the ballpoint pen holder into the tool shaft.

3. Gently insert the ballpoint pen into the tool shaft. Turn the ballpoint pen clockwise all

the way down.

4. The change of tool can either be input on the touch screen with Summa Cutter Control,

or with the cutting software.

Selecting pen operation changes the pressure to “pen pressure.”

NOTE:

The information on the touch panel shows the tool currently selected by

the cutter. Make sure the cutter’s tool setting matches the actual tool in use.

1.7.1.2 Pouncing pin installation

The S CLASS 2 tangential cutters can also be operated with a pouncing tool. After replacing
the knife with a pouncing tool, the cutter can be used as a pouncer.

1. Turn the installed tool counterclockwise. The holder will rise up, making it possible to

lift the tool out of the tangential head. Underneath is the place for a nosepiece. Remove
this part also if it is mounted.

2. Remove the black plug from the front tool shaft.

3. Gently insert the pouncer into the front tool shaft. Turn the pouncer clockwise all the

way down.

4. The change of tool can either be input on the touch screen with Summa Cutter Control,

or with the cutting software.

Selecting pouncer operation changes the pressure to “pouncer pressure” and adds
“pouncing gap” to tool properties.

NOTE: The information on the touch panel shows the tool currently selected by
the cutter. Make sure the cutter’s tool setting matches the actual tool in use.

CAUTION: Before starting to pounce, check whether the pouncing tool is

positioned above the black pouncing strip. If the pouncing tool is mounted in

the rear slot of the clamp, the cutting strip will be irreversibly damaged !

S CLASS™ 2 cutter OPOSCAM User’s Manual

Setup 1-33

1.7.1.3 Drag knife installation

The S CLASS 2 tangential cutters can also be operated with a drag knife. To set the
properties for the drag knife, see section Error! Reference source not found.. Follow steps
1 through 4, and then continue with step 5 as follows:

1. Turn the installed tool counterclockwise. The holder will rise up, making it possible to

lift the knife holder out of the tangential head. Underneath is the place for a nosepiece.
Remove this part also if it is mounted.

2. Mount the nosepiece for the drag knife.

3. Gently insert the drag knife into the rear tool shaft. Turn the drag knife clockwise all the

way down.

4. The change of tool can either be input on the touch screen with Summa Cutter Control,

or with the cutting software.

5. Selecting drag knife operation will add “knife offset” to tool properties.

NOTE:

The information on the touch panel shows the tool currently selected by

the cutter. Make sure the cutter’s tool setting matches the actual tool in use.

1.7.2 Replacement of the separation knife blade

The tool carriage also holds the separation knife. With this knife (razor blade), the job can be
automatically cut off after it is finished.

NOTE: This separation knife may only be used with standard vinyl (max 0.25mm
thick).

1. Remove the razor blade holder by turning on the knurled screw at the bottom of the

tool carriage.

2. The razor blade is kept in its place by a small magnet. Turn it around or replace it when

it is worn down, figure 1-b.

FIG 1-35

1-29 RAZOR BLADE FOR AUTOMATIC SEPARATION OF MEDIA

NOTE:

The assembly is tilted under an angle of +/- 30° when it is put back on

the machine. Mind the position of the assembly before replacing the razor

blade.

Basic Operation 2-1

2 Basic Operation

2.1 Touch Screen

The 320x240-dot touch screen provides a unique interface system that provides detailed
cutter status information and offers a more flexible and powerful control of the cutter’s
configuration.
All screen and optional panel controls on the touch screen are easily formatted to allow
quick access to the most common cutter settings.
Next to the status messages and/or menu options displayed on the touch screen, button
symbols can be pressed to change menu items or to change the value for a given
submenu/parameter.

FIG 2-1

2-1 TOUCH SCREEN

There is also screen saving feature. After a certain amount of time the screen goes blank and
this logo appears on screen. Touching the screen once disables the screen saver.

FIG 2-2

2-2 SCREEN SAVER

WARNING:

Each keystroke can initiate an internal test or movement of head or

media. Keep fingers and other body parts away from the cutting area. There are

hazardous moving parts.

Knife pressure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Media size 50000 x 718 mm

Act ions

Settings

Confi gurati on 1

Paus eOrigin

Summa USB port 1Summa USB port 1

S CLASS™ 2 cutter OPOSCAM User’s Manual

Basic Operation 2-2

2.1.1 Touch screen

The touch screen provides information and lets the user change the cutter’s parameters.

 Most common buttons on touch screen:

Normally, the status or current value is visible on the left side of the screen, while the
control buttons appear on the right side.

There are five main control buttons: ,

,

,

and .

If a menu is entered, 3 navigation buttons: , and may appear.

Press to return to the status screen. If media is loaded in the cutter, then the cutter
will come online and be ready to cut a job sent from the computer.

Press for more menu options. If there are more than six options for the chosen menu,
then pressing this button will reveal the rest of the options onscreen.

Press to return one step in the menu structure.

 Other buttons that will appear on the screen are:

, , and arrow buttons to move tool carriage or media or

to change the values of parameters.

to scroll through a list of settings for a certain parameter.

to cancel an instruction or change in parameter.

to apply a change in parameter.

to initiate an internal test.

 Status line:

The bottom line gives extra information on the way the cutter is connected to the
computer.
If it is connected through the Ethernet connection, then the IP address is shown.
In other cases, the current USB class is shown.
When in menu mode, it shows which menu the machine is in.

Settings

Acti ons

Origin

Configu ration 1

Pause

Home

More

Back

Home

More

Back

Abort

Accept

Test

S CLASS™ 2 cutter OPOSCAM User’s Manual

Basic Operation 2-3

2.1.2 Settings

The Settings button gives access to the main menu. Pressing this button will cause the
cutter to go offline and suspend all operations in progress. The main menu contains all
parameter settings, submenus and access to tests and calibration routines.
The chosen tool will influence the displayed settings.

Parameter Settings are recognized by the name of the parameter and the value. Press

the parameter to change the value.

Sub menus are recognized by the group name followed by three points. Submenus
group certain parameters. Access to some of the submenus will be determined by plotting

language or tool type.

Tests & calibrations routines are recognized by the name of the test followed by a

small start button. These offer access to the different internal tests and calibration routines.
The calibration routines are used to adjust and fine-tune the cutter for the chosen
application. The internal tests are used for diagnostics.

2.1.3 Actions

The “Actions” button is used to initiate a load sequence, abort the cut in progress, recut the
last file, access the flash drive or cut an internal test.

Velocity 800 mm /s

FlexCut ...

Calibrate knife

S CLASS™ 2 cutter OPOSCAM User’s Manual

Basic Operation 2-4

2.1.4 Origin

1. Press .

The origin menu will appear on screen

2. Use with , , and to reposition the origin; press to

confirm or press to leave without changing the origin.

3. Press

to cut off a previous job if necessary; the cutter will then automatically

search the front of the media and set the new origin.

2.1.5 Configuration

The S CLASS 2 cutters include 8 user configurations, all of which consist of the same
parameters. Each configuration can have unique parameter settings. This allows the cutter
to be quickly and easily reconfigured for different types of jobs or media.

NOTE: Factory default values for the different users are all set the same.

1. Press

The different users will appear on screen.

2. Press on the desired user or scroll through the users with and

select it when it comes on screen.

3. Press to confirm the new user.

4. Press to leave the menu without changing the user.

NOTE: Use easy names to quickly recognize what each user is configured to do.
Commonly used names are: Normal, Pen, Slow, Sandblast, Pouncer, Red
intermediate vinyl, etc.

NOTE: The touch screen can be used to change user configurations. User
configuration names can only be modified through Summa Cutter Control (PC
only).

Origin

Apply

Cance l

Cut off

Configu ration 1

Apply

Cance l

S CLASS™ 2 cutter OPOSCAM User’s Manual

Basic Operation 2-5

2.1.6 Online/Pause

Online and pause are two important concepts when using the S CLASS 2 cutters. The cutter
is online only when the status of the touch screen is similar to figure 2-3.

FIG 2-3

2-3 ONLINE STATUS SCREEN

When online, the cutter can be addressed by the host computer, which means that the
cutter will execute cutting or plotting instructions issued by the host computer's application
software. As soon as any other button on the cutter is pressed, the cutter pauses and can no
longer be addressed by the host computer. However if the computer was busy sending
cutting data to the cutter it will be able to do so until the buffer of the cutter is full.

1. Press

2. the tool can be moved around the working area with , , and

arrow buttons.

3. Press

to raise or lower the tool (once push toggles the status each time).

4. Press to set the cutter online again.

Knife pressure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Media size 50000 x 718 mm

Act ions

Settings

Confi guration 1

Paus e

Origin

Summa USB port 1Summa USB port 1

Pause

Up/down

Apply

S CLASS™ 2 cutter OPOSCAM User’s Manual

Basic Operation 2-6

2.2 How to Set Tool Parameters

The S CLASS 2 cutters can work with a knife, pen or pouncer. With the T version there is the
choice between drag knife and tangential knife.
Once a tool has been changed, then the tool parameters (menu settings) must be reset or
checked.
All the different tools have one parameter name in common: the pressure.
Each tool has also its specific parameters.
Tool parameters can be changed by either changing them in the current user, or simply by
changing user (see section 2.1.5).

NOTE:

The S CLASS 2 cutters will only perform according to specifi

cations if a
genuine Summa knife, pen or pouncing tool is installed. Do not replace the
standard knife, pen or pouncing tool with products from other manufacturers.

WARNING: Each keystroke can initiate an internal test or movement of head or

media. Keep fingers and other body parts away from the cutting area. There are

hazardous moving parts.

2.2.1 Setting tool type

1. Power on the cutter and load media.

2. Press Tool

3. Select tool

4. Press Apply

to select the
tool that is highlighted on
screen.

The cutter will prompt the user to change the tool.

Knif e pres sure 95 gr

Velocity 800 mm /s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

PauseOrigin

Summa USB port 1Summa USB port 1

Tangential Knife

Drag kn ife

Ballpoint

Pouncer

Cance l

Apply

Summa USB port 1

Tangential Knife

Drag kn ife

Ballpoint

Pouncer

Cance l

Apply

Summa USB port 1

NOTE: If no media is loaded, then access the tool menu by pressing on .

The cutter will prompt the user after media is loaded for a tool change

Settings

S CLASS™ 2 cutter OPOSCAM User’s Manual

Basic Operation 2-7

2.2.2 Changing tool pressure

1. Power on the cutter and load media.

2. Press on pressure

3. Press arrow up or down

to change the value.

4. Or fill in the new value

after pressing Numpad.

1. Press to perform the internal knife pressure test.

2. Press to confirm the chosen knife pressure and exit the menu.

3. Press to leave the pressure unchanged.

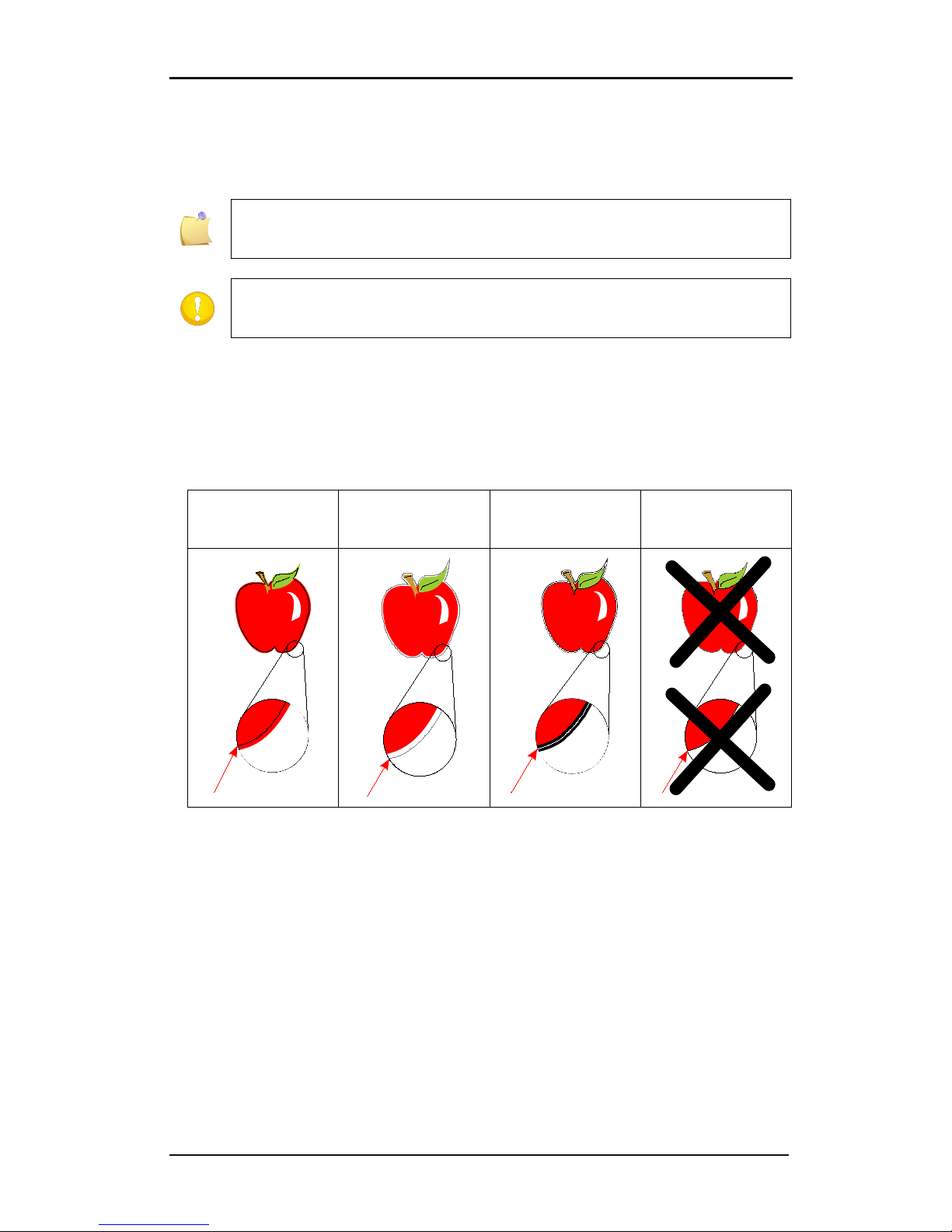

2.2.3 Calibrating a tangential knife

The purpose of the knife calibration routine is to detect and, if necessary, to correct
problems related to the concentricity of the tangential knife blade.

NOTE: Knife calibration should be done each time the knife is changed and
should be checked if the knife shows signs of wear.

Knife calibration errors may be due to any of the following causes:

• Origin deviation. The knife tip is slightly rotated in relation to its theoretical 0° angle.
This error can be corrected by adjusting the origin.

• Lateral deviation. The knife tip deviates from its theoretical center in the lateral
direction. This error can be corrected by adjusting the lateral parameter.

• Longitudinal misalignment. The knife tip deviates from its theoretical center in the
longitudinal direction. This error can be corrected by adjusting the longitudinal
parameter.

Knif e pres sure 95 gr

Velocity 800 mm /s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

PauseOrigin

Summa USB port 1Summa USB port 1

Cance l

Apply

Test

Numpad

Old va lue: 85gr

New value: 95gr

Range: 0 ... 600gr

Summa USB port 1

Apply

9▌

Summa USB port 1

Test

Apply

Cance l

S CLASS™ 2 cutter OPOSCAM User’s Manual

Basic Operation 2-8

LONGITUDINAL deviation

LA TE RAL deviation

Theoretical center
of the knife

ORIGIN deviation

Real center

of the knife

FIG 2-5

2-4 POSSIBLE KNIFE CALIBRATIONS

During the knife calibration routine, the cutter will cut a series of test patterns that allow the
user to identify errors in knife rotation and concentricity. Use the touch screen to make
corrections.

Setting tangential knife parameters:

1. Power on the cutter and load media and mount the drag knife (see section 1.7.1.)

2. Press on Settings

3. Press on Calibrate knife.

4. Click on the parameter to select it to be changed.

The selected parameter will be highlighted in cyan on the touch screen.

5. Use to change the value of the parameter.

The value (inverse) will change.

1. Press to perform the internal knife calibration test.

2. Press to confirm and exit the knife calibration menu.

Knif e pres sure 95 gr

Velocity 800 mm /s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

Pause

Origin

Summa USB port 1

Knif e pres sure 95 gr

Velocity 800 mm /s

Tool Tangential knife

Settin gs

Back

More

Home

...General

Calibrate knife

Advanced cutting ...

FlexCut ...

Test

Apply

S CLASS™ 2 cutter OPOSCAM User’s Manual

Basic Operation 2-9

When the knife offset is set correctly, the test pattern looks like this:

FIG 2-6

2-5 CORRECT TANGENTIAL KNIFE CALIBRATION TEST

Rectangle 1 and 2 should weed out (remove) smoothly without sticking to the rest of the
vinyl.
The fan shaped pattern 3 should have a clear cut line in the middle; the ones at the sides
show burs.
The squares in 4 should be aligned and equal in size.
The 4 vertical cuts in 5 should be clear without any burs and straight all the way from top
to bottom (not rounded near the horizontal lines).

NOTE:

It is possible that not all test patterns come out perfect (depends on the
type of vinyl). Test pattern 1 and 4 are the most important test patterns. They
should be as close to perfect as possible.

Start with the setting of the origin, and then set the other parameters.

Origin correction

If the clear cut line in test pattern 3 is to the right, then increase the value of the origin,
begin in steps of 20, and lower the steps when nearing the correct origin setting.
It helps sometimes to gently feel the pattern to find out which side has the clear-cut line.
If the clear cut line in test pattern 3 is to the left, then decrease the value of the origin,
begin in steps of 20, and lower the steps when nearing the correct origin setting.

Lateral correction

Weed out (remove) the rectangle in pattern 1 and in pattern 4, if the test pattern is like
the one below, decrease the value of the lateral parameter to correct the closing lines
cut.

1

2

3

4

5

S CLASS™ 2 cutter OPOSCAM User’s Manual

Basic Operation 2-10

However, if the test cut resembles the pattern below, increase the value of the lateral
parameter to correct the closing lines cut.

Longitudinal correction

Weed (remove) out the rectangle and, if you obtained a pattern like the one below,
decrease the value of the longitudinal parameter to correct the closing lines cut.

However, if the test cut resembles the pattern below, increase the value of the
longitudinal parameter to correct the closing lines cut.

Each time a parameter is changed, press to perform the internal knife calibration test.

NOTE: Failing to set the knife parameters correctly will result in poor cut quality.

2.2.4 Changing drag knife offset

A very important parameter for a drag knife is the offset. The offset is the distance between
the knife center and the knife tip.

NOTE: Knife offset should be set each time the knife is changed and should be
checked if the knife shows signs of wear.

NOTE: Typical knife offset for Summa knives is between 0.41 and 0.45 for

standard knives, between 0.9 and 0.97 for sandblast knives and between 0.49

and 0.52 for the 60 degree knife.

Changing knife offset:

Test

S CLASS™ 2 cutter OPOSCAM User’s Manual

Basic Operation 2-11

1. Power on the cutter and load media and mount the drag knife (see section 1.7.1.3.)

2. Press on Settings

3. Press on Knife offset.

4. Use arrows to change

knife offset.

1. Press to perform the internal knife offset test.

2. Press to confirm the chosen knife offset and exit the menu.

3. Press to leave the knife offset unchanged.

When the knife offset is set correctly, the test pattern looks like this:

FIG 2-4

2-6 CORRECT KNIFE OFFSET PATTERN

When the knife offset is too low, the test pattern looks like this:

When the knife offset is too high, the test pattern looks like this:

Knif e pres sure 95 gr

Velocity 800 mm /s

Tool Drag knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

Pause

Origin

Summa USB port 1

Knif e pres sure 95 gr

Velocity 800 mm /s

Tool Tangential knife

Settin gs

Back

More

Home

Knife offset 0.45 mm

FlexCut ...

Advanced cutting ...

Cance l

Test

Numpad

Settin gs

Old va lue: 0.45 mm

New value: 0.43 mm

Range: 0.00 ... 1.00 mm

Apply

Test

Apply

Cance l

S CLASS™ 2 cutter OPOSCAM User’s Manual

Basic Operation 2-12

2.3 How to Set Cutting Speed

The actual speed at which the tool moves is determined by 4 different parameters. Speed
(and acceleration) while the tool is down; speed (and acceleration) while tool is up.
These 4 parameters have been bundled in one parameter to make changing speed fast and
easy.
This overall parameter is called “velocity” and is the speed the cutter uses when the tool is
down. If velocity is raised or lowered, then the other parameters are also raised or lowered
accordingly.

There is one fixed speed: the speed at which the cutter pulls the media from the roll. This
speed is fixed at 200mm/s (8ips).

Setting the cutting speed:

1. Power on the cutter.

 Case media loaded:

3. Select new velocity,

scroll with arrows U/D first if
necessary.

 Case media not loaded:

2. Press on Settings

3. Press on Velocity

4. Select new velocity,

scroll with arrows U/D first if
necessary.

Press to confirm the chosen knife offset and exit the menu, press to leave the

knife offset unchanged.

NOTE:

Sometimes the cutter feeds the material too fast and the media has no
time to settle and fold into the basket. A fifth speed parameter is designed for
such cases. The speed of long X-axis vectors is reduced automatically so that the

media does not bulge (see section Long Vectors:).

Apply

Cance l

Knife pressure

95 gr

Velocity

800 mm/s

Tool

Tangential knife

Media size

50000 x 718 mm

Actions

Settings

Configuration 1

Pause

Origin

Eth. 192.68.1.7

Apply

600 mm/s

700 mm/s

800 mm/s

900 mm/s

1000 mm/s

Cancel

Summa USB port 1

Actions

Settings

Configuration 1

Insert media and lower the pinchr ollers.

Knife pressure

95 gr

Velocity

800 mm/s

Tool

Tangential knife

Settings

Back

More

Home

...

General

Calibrate knife

Advanced cutting

...

FlexCut

...

Apply

600 mm/s

700 mm/s

800 mm/s

900 mm/s

1000 mm/s

Cancel

Summa USB port 1

S CLASS™ 2 cutter OPOSCAM User’s Manual

Basic Operation 2-13

2.4 How to Make Sure the Sign Has the Correct Size

(Length Calibration)

The S CLASS 2 cutters are friction-feed machines. This means that the cutting length is
dependent on the thickness of the material.

The cutters have been calibrated in the factory for standard 2-mil cast or 3-mil calendared
vinyl. Each user (the S CLASS 2 has a total of 8) can hold a different calibration factor.
This is very helpful for multi-colored signs; it ensures that the parts in different colors match
up, even if different types of vinyl media are used.

NOTE:

For standard use, it is not necessary to calibrate the machine. With
standard vinyl the accuracy is within 0.2%. However if high accuracy between

different vinyl or colors is needed, then calibration is necessary.

Calibrating the media (Length calibration):

1. Power on the cutter, load media, and mount knife (see section 1).

NOTE: The wider and longer the loaded media, the more accurate the

calibration will be. Use a piece of vinyl of maximum width and a length that is

approximately 1.5 times the width.

2. Press on Settings

3. Press on More

4. Press on length

calibration.

The cutter will reload the media and perform the length calibration test. Take out the media
and measure the length of the cut line with a ruler (measuring device). The length that has to
be entered is the distance between line 1 and line 2 as shown in the figure.

1 2

FIG 2-7

2-7 LENGTH CALIBRATION PATTERN

NOTE: The cutter will only be as accurate as the accuracy of the calibration. If the

ruler (measuring device) is inaccurate, then re-calibrating may make the cutter’s
accuracy worse. The accuracy of calibration will be directly reflected in the cuts.
Set the cutter to Metric to do the calibration. It is more accurate than the English

unit system (see :Panel Units).

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

Pause

Origin

Summa USB port 1

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Settin gs

Back

More

Home

...G eneral

Calibrate knife

Advanced cutting ...

FlexCut ...

Communication ...

OPOS ...

Settin gs

Back

More

Home

Length calibration

Coil setup

Confid ence test

General ...

S CLASS™ 2 cutter OPOSCAM User’s Manual

Basic Operation 2-14

5. Press Measure lines to fill

in the value or Abort quit
without changing.

6. Use arrow to change

the value or press Numpad
to fill in the value

7. Delete the numbers

with the arrow, press Apply
to confirm the value.

8. Press to confirm the value of the measured length.

TIP:

Once this user is calibrated, change the user name. This makes it easy for

future reference.

Settin gs | le ngth calibration

Meas ure
lines

Length calibration

Abort

Cance l

Numpad

Value: 900.000 mm

Apply

Settin gs | le ngth calibration

Apply

900.000█

Settin gs | le ngth calibration

Apply

Basic Operation 3-1

3 OPOS (Optical POSitioning)

3.1 Introduction

Contour cutting is made possible by the highly accurate Optical Positioning System (OPOS)
with camera.

The OPOS camera, which is mounted in the tool carriage, registers printed marks that are
placed around the graphic. Because of this registration process, OPOS-CAM can determine
the exact position of the printed graphic.

Many versions of cutting software have the built-in capability to make contour cutting user­friendly and automatic.
Some software are fully automatic and take care of placing of the marks, sending data to the
cutter and processing the camera data.
Most software place the marks, send data to the cutter and use the utility Summa Camera
Control.
Please refer to the user’s manual that came with your software or contact your software
dealer for details.

3.2 Summa Camera Control

The program is used to process the
data from the camera. The program
should run in the background.
When the program is started, the
driver for the camera is also started.
This means that it is necessary to
power on the cutter before starting
the camera control program.
When the program is stopped, the
driver for the camera is stopped also
(this is the same as performing a save
removal).
Minimize the program after starting it
up. It will be minimized to the tray
and pop up when the marks are read
on the cutter.
The full explanation of the
possibilities of camera control are
explained in section 3.6

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-2

3.3 Calibration of OPOS-CAM

To ensure that OPOS-CAM is working accurately, a calibration is necessary. The OPOS
calibration is the calibration of the distance between the knife tip and the sensor. After a
calibration, a reference test has to be done to check.

1. Switch the cutter on and load black vinyl with white backing. Make sure cutter is

connected to the computer and the program camera control is running.

NOTE: Black vinyl with white backing MUST be used when calibrating OPOS.

2. Set the head’s origin above a clean, blank part of the vinyl.

3. Press on Settings

4. Press on More

5. Press on OPOS.

The cutter will cut out
rectangle with two small
squares in it and move the
media forward. “Weed out
Rectangle” will appear on
the display.

6. Press on Calibrate OPOS

7. Carefully weed the

rectangle,

making sure the

small squares stay on their
place. Press on Back.

OPOS will read the positions of the two squares and calibrate itself accordingly.

NOTE:

In order to keep the accuracy of the OPOS sensor as high as possible, do

this calibration each time the knife is been replaced.

8. Start Summa Cutter Control.

NOTE: Reading cutter info may not work properly when camera control is
running, however sending data works. Leave summa camera control running.

9. Click on .

If Adobe reader is installed on the computer, then it will start up and open an OPOS-CAM test
that can be printed out. This can be done on a normal desktop printer. Make sure the
printout Is not scaled (max 5%)

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

Pause

Origin

Summa USB port 1Summa USB port 1

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Settin gs

Back

More

Home

...G eneral

Calibrate knife

Advanced cutting ...

FlexCut ...

Communication ...

OPOS ...

Settin gs

Back

More

Home

Length calibration

Coil setup

Confid ence test

General ...

Settin gs | OPOS

Back

Home

Alignment mode OPOS X

OPOS s heet mode Off

OPOS panelling Off

Calibr ate OPOS

Settin gs | OPOS

Weed out rectangle

Back

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-3

10. Load the printout of the test file in the cutter. Change the origin so that the knife tip is

above the first mark (mark under right lower corner of rectangle around ‘OPOS’).

11. Click on .

A test file with reduced knife pressure (20grs) will be sent to the cutter. This is to make sure
that the knife does not cut completely through the paper (although new knives can still cut
completely through the paper). Camera Control will pop up.

12. Click on the ‘Digitize Mark’ tab, then click on the picture area.

If the mark is recognized,
then a green box appears
around it. Click ‘Apply’ if so.
The cutter will read the 4
marks and cut out 1 OPOS
design.
If the mark is not visible, then
the paper can be moved
around in the cutter by
clicking in the picture area (
the point clicked is
repositioned to the middle)
or by going to the cutter,

pressing on

touch
screen and then using the
arrows to position the knife
above the mark. Pressing

switches back to what
the camera sees. A white dot
in the black square on the
touch screen also means that
the mark is recognized.

FIG 3-1

3-1 POSITION MEDIA FRO MULTIPLE SHEET

13. Check the accuracy of the result.

Knife

Came ra

Set knife above first mark

Action | Load

Apply

Cance l

Knife

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-4

3.4 Basic OPOS-CAM operation

In general, contour cutting includes the following steps:

 Create a graphic.
 Print the graphic (laminate if necessary).
 Load the graphic into the cutter.
 Set the necessary parameters for OPOS-CAM.
 Load the media and register the marks.
 Cut the graphic.

Most cutting software do all this automatically. Once the OPOS- and cut data is sent to the
cutter, the knife is set above the first mark and the program Camera Control pops up.

Click on the ‘Digitize Mark’ tab, and then click on the picture area.

If the mark is recognized, then a
green box is shown around it. Click
‘Apply’ if so. The cutter will read the 4
marks and cut out 1 OPOS design.
If the mark is not visible, then the
paper can be moved around in the
cutter by clicking in the picture area
(the point clicked is repositioned to
the middle).
If this does not work, then the set the
tool carriage correct by going to the

cutter, pressing on

touch
screen and then using the arrows to
position the knife above the mark.

Pressing switches back to
what the camera sees. A white dot in
the black square on the touch screen
also means that the mark is
recognized.

Press on to start reading the
rest of the marks.

Knife

Came ra

Apply

NOTE: After loading the media, change the origin so that the knife tip is above

the first mark. This will make it possible to do the rest of the procedure from

behind the computer.

NOTE: Make sure the program Summa Camera Control is running on the
computer.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-5

3.5 Automating Tasks with OPOS-CAM

OPOS-CAM allows the user to automate certain tasks, thus reducing user intervention and
production time. When cutting multiple graphics, the user only needs to move the OPOS
camera above the origin mark of the first graphic; cutting subsequent graphics do not
require additional user input.

There are two multiple-job situations in which contourcutting can be automated:

 When cutting multiple (copies of a) graphic(s) on the same media roll.
 When cutting the same graphic on multiple media sheets.

Most automated tasks are organized from within the cutting software. However, when the
same graphic contour needs to be cut out, then the automatic tasks also involve some
manual manipulation.

Before using the automating features, note the amount of your cutter’s RAM. If the cutter’s
RAM is greater than the job’s file size, then the automating features may be used. If the
cutter’s RAM is less than the job’s file size, then the automating features may not be used.

3.5.1 Cutting multiple copies of a graphic on the same roll

If the same graphic design has been printed on a roll with equal distance between the
different graphics, then this feature can be used.

First, load the media.

Cutting multiple copies of the same graphic on the same media roll:

1. Press on Settings

2. Press on More

3. Press on general

4. Press Recut offset.

5. Use arrows to change

the value. Then press apply.

6. Press Home to get online

again.

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

Pause

Origin

Summa USB port 1Summa USB port 1

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Settin gs

Back

More

Home

...G eneral

Calibrate knife

Advanced cutting ...

FlexCut ...

Communication ...

OPOS ...

Settin gs

Back

More

Home

Length calibration

Coil setup

Confid ence test

General ...

Settin gs | G eneral

Menu units Me tric

Languag e English

Autoload On

Cut off margin 10 mm

Recut offs et 40 mm

Med ia sens or On

Back

Home

More

Menu units Me tric

Cance l

Numpad

Settin gs | G eneral

Old va lue: 40 mm

New value: 45 mm

Range: 0 ... 4000 mm

Apply

Settin gs | G eneral

Menu units Me tric

Languag e English

Autoload On

Cut off margin 10 mm

Recut offs et 45 mm

Med ia sens or On

Back

Home

More

Menu units Me tric

NOTE: The distance between the multiple copies should be at least 30mm.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-6

6. Do the first copy as a normal OPOS job.

The cutter will stop after the first contour has been cut and come online again.

7. Press on Actions

8. Press on Replot

9. Use arrows to change

the value. Then press apply.

OPOS will sense the marks for the second contour and then cut that contour. This process of
sensing and cutting will repeat automatically until all remaining contours have been cut.

3.5.2 Cutting the same graphic on multiple media sheets

If the same graphic design has been printed on a multiple sheets, then this feature can be
used.

First, load the media and check that the parameters of the marks are set correctly.

Cutting the same graphic on multiple media sheets:

1. Maximize Camera Control .

2. Click on .

3. Minimize Camera Control again

4. Do the first copy as a normal OPOS job.

The cutter will stop after the first contour has been cut and come online again.

5. Raise the pinch rollers and manually remove the sheet.

6. Insert the next sheet into the cutter. Lower the pinch rollers.

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

PauseOrigin

Summa USB port 1Summa USB port 1

Load ...

Actions

Back

Home

Repl ot

Cut s heets

Open file

DIN A4 test

Reset

Cance l

Numpad

Actions

Value: 1

Range: 1 ... 999

Apply

NOTE: If the cut off command is used, then the recut distance should be at least
30mm larger then the cut off distance.

NOTE: The sheets should be more or less the same size, and the graphics on
them should be oriented and positioned the same way .

NOTE: Do not change the origin after loading the sheet .

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-7

FIG 3-1

3-1 POSITION MEDIA FRO MULTIPLE SHEET

NOTE: The second and any following sheets must be loaded in the cutter at the

same position as and with the same orientation of the first sheet. When in OPOS
sheet mode, the cutter stores the distance between edges of the sheet and the

first OPOS mark .

NOTE: For WinPlot set the option in the output window to ‘feed after job’. Do
not use the option cut off.

NOTE:

For WinPlot set the option in the output window to ‘feed after job’. Do

not use the option cut off.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-8

3.6 Detailed Summa Camera Control Operation

The camera option cannot work without it being connected to the computer. If the cutting
software is not equipped with such a possibility, then the utility Summa Camera Control can
do this.
It is best to minimize camera control (to tray) after it has been started
It will then pop-up when necessary.
If the cutter is switched off for a long time, then it is advised to close the program, otherwise
the program will continuously try to start the video driver.
To do this, right click the camera control icon in the tray.

3.6.1 Main Window tabs

The program has 5 tabs, the first tab gives information about the connection with the
camera.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-9

The second tab is used to set the camera above the mark and check whether the system has
recognized it.

A green square will be visible around a mark if it is recognized as a mark.
The media in the cutter can be moved by clicking with the left button of the mouse in the
video area. If that is done, then the image (and media in the cutter) will be repositioned so
that the point that was clicked will come in the middle of the video area.
Otherwise said, clicking in the top half of the video area will move the media forward,
clicking in the left have of the video area will move the tool carriage to the left.
It is not necessary to get the mark in the middle of the video area, once it has been
recognized (green square around it) click ‘Apply’ and the rest of the marks will be registered
and the contours will be cut.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-10

This is the view of the second tab when the camera is measuring the OPOS XY line. There
will be no green rectangle around the piece of the OPOSXY line if the size of the OPOS XY
line is not set correct.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-11

The third tab is used when the mark is not immediately recognized.
If no green rectangle was automatically drawn around the mark, then click on the third tab
(Mark Shape) and click on the button ‘Mark Shape’. A green square, slightly larger than the
mark will appear in the video area. Drag it with the mouse above the mark. This will force
the recognition of the mark. A window will be pop up given the user the chance to store the
mark shape (under a chosen name) so it can be used for recognizing the rest of the marks of
the job.
If the customer mark is not necessary any more, then the mark recognition can be set to
default again.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-12

The fourth tab is to store patterns which can interfere in the mark detection.
For this the camera has to set on a area on the media where there is nothing printed. Then
the pattern can be saved when ‘Media filter is clicked’ When the media filter is then chosen,
then the pattern is subtracted from the reading in order to get a clearer mark. This mode
can only be used in very special cases and probably will reduce the accuracy. It is usually
used to filter out shadows.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-13

The fifth tab is used to save images if a service technician asks for it. This can be useful for
troubleshooting problems over the phone.
You can also change camera settings, but it is not recommended to do this.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-14

3.6.2 Configuration Window

Thickness of the OPOSXY line. This value has to
be the same as the thickness of the printed
OPOSXY line, otherwise the program will not
recognize the line. If the line is recognized, then
a green rectangle is put around it

Mark Shape: With this an earlier saved mark
shape can be chosen.

Media Filter: With this an earlier saved mark
shape can be chosen.

The program Camera Control does always its
calculation in black-white mode. If this option is
checked, then the user can see which the camera
takes in account for its calculations. This option
is checked by default after installation. The
program switches to color mode when setting
media Filter.
The color filters and threshold sliders can be
used to filter out colors or darker patches in the
media. If those sliders are used to try and get a
better image, then it is recommended to check
the black-white box so the user can see what the
computer actually calculates with. Settings of
the slider can be saved for future reference.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-15

3.7 Basic OPOS operation

In general, contour cutting includes the following steps:

a. Create a graphic.
b. Print the graphic (laminate if necessary).
c. Load the graphic into the cutter.
d. Set the necessary parameters for the OPOS sensor.
e. Load the media and register the marks.
f. Cut the graphic.

Many versions of cutting software have the built-in capability to make contour cutting user­friendly and automatic. Please refer to the user’s manual that came with your software or
contact your software dealer for specifics.

The following paragraphs are not a detailed description of the complete procedure for
contour cutting. They just are a guideline with useful recommendations and tips.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-16

3.7.1 Creating the graphic

1. Create the graphic and contour cut line(s). For easier handling, place the contour line(s)

on a different layer.

NOTE: Some Rip software require that the contour lines are defined in s special

color (spot color). Please refer to the user’s manual that came with your software

or contact your software dealer for specifics

NOTE:

Do not place contour lines along the edges of graphics or the slightest

movement in the media may result in an unsatisfactory cut. Instead, practice one

of the following techniques.

1. Place contour lines just inside the graphics (recommended) (1).

2. Place contour lines outside the graphics (2).

3. Create thick borders around graphics and place contour lines inside these

borders (3).

(1) contour line

inside graphic

recommended

(2) contour line

outside graphic

(3) contour line

inside a thick border

Contour line on

edge of graphic

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-17

3.7.2 OPOS XY

There exists a function in OPOS to compensate for curved printing errors in the Y axis also.
This is called OPOS XY. An extra line needs to be printed with the design to be able to use
the OPOS XY functionality.

When OPOS XY is enabled, then the OPOS sensor will measure points along the extra line.
The number of measuring points will be determined by the cutter and will depend on the
width of the design.

NOTE: The default setting for OPOS is OPOSX. If the OPOS XY functionality is

needed, then the user must set change the setting ‘alignment mode’ in the
OPOS Setup to OPOS XY by hand on the control panel or via the cutting

software.

NOTE:

Some cutting software do not support the OPOS XY feature. If they also
send the alignment command ‘OPOS’ to the cutter, then they block the OPOS XY
feature of the cutter. If it is possible to define a line by hand in the design so that
it meets up to the specifications above, then the blocking of the software can be

neutralized by using the setting: ‘FORCE OPOS XY’ in the alignment mode.

The line may be added between or above the front Y marks. The distance between the
center of the marks and the line should not be more then 20mm( distance 1). The left and
right margin between line and mark should be 10mm for optimal sensing (distance 2). The
line itself should be 1mm thick. There should be at least 3mm white space above the line.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-18

3.7.3 Printing the graphic

1. Print the graphic and its marks with a printer (scale = 100%). When printing on a roll,

make sure that the graphic’s Origin mark coincides with the media’s origin (1).

1

2. Make sure there is at least a 1cm (0.4in) margin on each side of the graphic (2). A 2cm

(0.8in) margin is preferable. There must also be a front margin of 1 cm (3).

2

3

3. Leave a margin of at least 4cm (1.6in) following the print when using sheets or when

cutting the print off a roll (4).

4

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-19

3.7.4 Orientation

Mining the orientation is very important when loading the printed media for contour
cutting.
With some cutting software, it may be necessary to collectively rotate the contours and
marks so that the Origin mark (1) is situated in the bottom left corner of the cutting area (2)
as viewed on the screen. If the cutting software’s default orientation is not set to
“landscape,” the contours and marks will need to be rotated.

Orientation needed in most cutter software. Orientation when using WinPlot

Make sure that the cutter is connected to the computer and that the cutter is switched on.
The cutter’s touch screen should indicate that the cutter is ONLINE.
Click Cut from within the cutting software. The cutter should begin cutting the contour and
return to ONLINE status when finished.

1 2

1

2

NOTE: Also mind the orientation when working from roll or sheet. If a complete

roll is printed, then the jobs are loaded “upside down” into the cutter. Check

orientation before starting to cut.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-20

3.7.5 Registering the marks

Load the printout into the cutter as described in section 1.6. Make sure that the mark
indicating the Origin is situated at the bottom right corner of the cutter.

Most cutting software will initiate the special load procedure after sending the parameters.
If the software does not do this, then initiate the loading sequence from the cutter’s touch
panel.

Registering the marks:

Make sure the program
Summa Camera Control is
running on the computer.

1. Press Media size

2. Press Media alignment

3. Use the arrows

to
maneuver the knife on top
of the first mark. Press

.

4. Press to confirm

if a white dot is visible in the
middle of the mark. Press

to reposition the

head if the mark in view

The cutter read the marks and cut the job..

NOTE:

If a mark cannot be read, then the user will be given the option to re-

position the knife (sensor) or to abort.

NOTE:

If an error occurs or the cutter cannot read the marks after three

attempts, the following message will be displayed: ”Marks could not be sensed,

press to continue.”.

Knif e pres sure 95 gr

Velocity 800 mm /s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

Pause

Origin

Summa USB port 1Summa USB port 1

Velocity 800 mm /s

Actions | Load

Back

Home

OPOS Barcode

Roll

Sheet

Extended

Media alignment

Set knife above first mark

Action | Load

Apply

Cance l

Knife

Y: 7 17X: 0

Camer a

Came ra

Set knife above first mark

Action | Load

Apply

Cance l

Knife

Apply

Knife

Cance l

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-21

3.7.6 OPOS paneling

With this option, the marks can be read in panels.
When OPOS paneling is set to on, then all cut data will be cut in panels. The size of the panel
will be the distance between the OPOS marks in the X axis.

OPOS Panels can be set to OFF or ON. When set to ON, then the cutter will load only 2 marks
in X-direction when loading OPOS and read the marks. The rest of the marks will be read
when unrolling media one panel at once.

NOTE: Do not use software paneling when using OPOS paneling.

Setting OPOS paneling on:

1.

Press on Settings

2.

Press on More

3.

Press on OPOS.

.

5. Press on OPOS paneling.

6. Press on On and then on

Apply.

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Media size 50000 x 718 mm

Acti ons

Settings

Configur ation 1

Pause

Origin

Summa USB port 1

Summa USB port 1

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Settin gs

Back

More

Home

...G eneral

Calibrate knife

Advanced cutting ...

FlexCut ...

Communication ...

OPOS ...

Settin gs

Back

More

Home

Length calibration

Coil setup

Confid ence test

General ...

Settin gs | OPOS

Back

Home

Alignment mode OPOS X

OPOS s heet mode Off

OPOS panelling Off

Calibr ate OPOS

On

Off

Cance l

Apply

Settin gs | OPOS

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-22

3.8 Cutting through

The cutting through functionality is focussed to cut simple shapes (e.g. rectangles). It is
most used in combination with contour cutting.
An interrupted cutting line makes sure that the material remains together thanks to the
small media ‘bridges’. When the job is finished the cut pieces can be torn loose.

FIG 3-3

3-3 FLEXCUT PRINCIPLE

Some cutting software can recognize the difference between a contour line and a cut­through line. The software sends then first the data of the contour lines to the cutter, and
then it activates FlexCut, panelling mode and vector sorting and sends the data for cutting
through to the cutter.
If the cutting software cannot do this, then the user needs to first send the data of the
contour lines separate, set the cutter manually in FlexCut mode and then send the data for
cutting through.

Setting the parameters for cutting through the media:

1. Press on Settings.

2. Press on FlexCut.

3. Select parameter to

change.

Press arrows or use
Numpad to change the Full
pressure and press Apply to
confirm.

180 gr is a recommended
starting value for the full (cut
through) pressure.

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Media size 50000 x 718 mm

Summa USB port 1

Acti ons

Settings

Configur ation 1

PauseOrigin

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Settin gs

Back

More

Home

...General

Calibrate knife

Advanced cutting ...

FlexCut ...

Flex pres sure 95 gr

Full p ressure length 10.000 mm

Ful l pre ssure 190 gr

Settin gs | Fle xCut

Back

Home

FlexCut mode Of f

Flex pressure cut leng th 1.000 mm

FlexCut velocity auto

Cance l

Numpad

Settin gs | Fle xCut

Old va lue: 180 gr

New value: 180 gr

Range: 0 ... 600 gr

Apply

Test

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-23

Press arrows or use
Numpad to change the Full
pressure cut length and
press Apply to confirm.

10mm is a recommended
starting value for the cutting
length at full pressure.

Press arrows or use
Numpad to change the Flex
pressure and press Apply to
confirm.

50% of the full pressure is a
recommended starting value
for the flex (bridge) pressure.

Press arrows or use
Numpad to change the Flex
pressure cut length and
press Test to confirm.

1mm is a recommended
starting value for the cutting
length at flex pressure.

The cutter will cut out a test pattern.

4. Check if the result is the satisfactory. If not change one of the 4 parameters above.

Reducing the velocity can also improve the result. It is never recommended to use
cutting speeds larger then 400mm/s (16 ips) with cutting pressures above 200 gr.

NOTE:

It is not always easy to find the correct balance between cutting deep
enough making sure the pieces can be taken out easily, and not cutting too
deep making sure the material keeps it strength while cutting. Sometimes this
balance doesn’t exist meaning that this material can’t be cut through with

satisfactory result.

NOTE: When cutting through, it is recommended that parallel lines are at least 1

cm away from each other. Otherwise, while cutting the second line, the first line

may come loose and cause trouble.

5. After that press to get in the FlexCut menu and then press

Cance l

Numpad

Settin gs | Fle xCut

Old va lue: 10mm

New value: 10mm

Range: 0.250 ... 250.000
mm

Apply

Test

Cance l

Numpad

Settin gs | Fle xCut

Old va lue: 80 gr

New value: 80 gr

Range: 0 ... 600 gr

Apply

Test

Cance l

Numpad

Settin gs | Fle xCut

Old va lue: 1mm

New value: 1mm

Range: 0.250 ... 250.000
mm

Apply

Test

Apply

Back

NOTE: FlexCut parameters are always metric, regardless the value of the panel
Units parameter.

NOTE:

FlexCut can be set off or on for older types of software that cannot switch

on or off FlexCut. It is recommended to use only the accurate mode.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Contour Cutting 3-24

8. Press on Advanced

cutting.

9. Press on Panel size.

10. Use arrows or Numpad

to change to va

lue (

between 3 and 10 cm)

and press Apply.

11. Press to set the cutter online again.

NOTE: The above procedure has to done even if the software on the computer

can activate FlexCut. It is also recommended to set the FlexCut parameters on

the cutter and not with the cutting software.

FIG 3-4

3-4 COMBINED CONTOUR CUT AND CUTTING THROUGH

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Settin gs

Back

More

Home

...Gener al

Calibrate knife

Advanced cutting ...

FlexCut ...

Settin gs | Advan ced c utting

Long vectors Automatic

Sorti ng vector s Off

Panel replot 0

Panel size 50 cm

Panelling Off

Overcut 0.1 mm

Back

Home

Cance l

Numpad

Settin gs | Advan ced c utting

Old va lue: 50cm

New value: 5cm

Range: 0 ... 250 cm

Apply

Home

Detailed Operation 4-1

4 Detailed Operation

4.1 Introduction

This section is a detailed list of all parameters that can be changed and tests that can be
initiated from the touch screen.
Section 1 and 2 of this manual describe in detail the most commonly used touch screen
manipulation.
This section may be used as a reference for locating a certain parameter setting or test. The
less frequently used parameters are also explained in this section.

4.2 Action Menu

Load ...

Replot

Cut sheets

Reset

Media alignment

Extended Roll up media

Roll Sheet

Open file

Confi dence test

DIN A 4 test

Acti ons

FIG 4-1

4-1 ACTION MENU

(1) Only visible if roll up option is installed.
(2) Only visible if flash drive is inserted.

The Load menu has been explained in the previous sections.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-2

4.2.1 Reset

Is used to interrupt an ongoing job. It clears the internal buffer and communication ports.

4.2.2 Replot

Each job is stored in the cutter’s memory until a new job is sent. Pressing replot allows the
job to be replotted. After this button is pressed, the user may choose the number of replots.
The replot button does not work if there is no job in the memory, or if the previous job was
larger than the cutter’s memory.

4.2.3 Cut sheets

Use this function to cut off a defined number of sheets from a roll with a fixed length.

1. Press on Actions.

2. Press on Cut sheets.

3. Select parameter to

change.

Press arrows or use
Numpad to change the
sheet length and press
Apply to confirm.

Press arrows or use
Numpad to change the
number of sheets and press
Apply to confirm.

4. Press to sheets or to abort.

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Media size 50000 x 718 mm

Summa USB port 1

Acti ons

Settings

Configur ation 1

PauseOrigin

Load ...

Actions

Back

Home

Repl ot

Cut s heets

Open file

DIN A 4 test

Reset

Cance l

Apply

Cut shee ts

Sheet length 50 mm

Sheet count 3

Cance l

Numpad

Cut shee ts

Old va lue: 50 mm

New value: 50 mm

Range: 50 ... 2500 mm

Apply

Cance l

Numpad

Cut shee ts

Old va lue: 3

New value: 3

Range: 1 ... 100

Apply

Apply

Cance l

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-3

4.2.4 Open file

Use this to cut directly from the USB flash drive or to upgrade the cutter.

Press on Actions.

2.

Press on Open file.

3.

Select file to cut, press
apply.

The cutter now cuts out the file. If the file was a new version of firmware, then the firmware is
upgraded. However it is recommended to upgrade with the program Summa Cutter Control if
possible.

4.2.5 Confidence test

The confidence test performs a quick electrical and mechanical test of the cutter to make
sure that the cutter is fully operational. A media sheet of at least A3/B-size should be used
for this plot. This test is always cut at the left side of the loaded media.

4.2.6 DIN A4 test

The DIN A4 Test also performs an electrical and mechanical test of the cutter, in order to
check the cut quality, but also provides the user with feedback on knife setting, knife
pressure, knife offset, and cutting depth.

This cut is always run as a DIN A4 portrait/A-size image, regardless of the actual size of the
media loaded. If the media loaded is smaller than DIN A4/A-size, part of the outer box will
be clipped (not cut).

Knif e pres sure 95 gr

Velocity 800 mm/s

Tool Tangential knife

Media size 50000 x 718 mm

Summa USB port 1

Acti ons

Settings

Configur ation 1

PauseOrigin

Load ...

Actions

Back

Home

Repl ot

Cut s heets

Open file

DIN A 4 test

Reset

270x134_Lace.plt

045x22_S2_logo.plt

FOTOCUT...

550x630_Indian.plt

550x470_Horse.plt

550x160_Butterfly.plt

Cance l

Apply

Actions

NOTE:

The cutter accepts only files with cut data. Those are HPGL or DMPL files

made by software that is used to drive the cutter direct. They can have as

extension .plt, dmp, .hpg, hgl or .hgp.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-4

4.3 Configuration Menu

Settingss

Tool Tangent ial knife

Velocity

Knif e press ure

Calibrate knife

800 mm/s

90 gr

FlexCut ...

Ful l pres sure 210 g r

Flex pressure cut length 1.000 mm

Overcut 0.1 mm

Full pressure cut length 10.000 mm

FlexCut velocity auto

OptiCut Off

TurboCut On

Fle x press ure 85 gr

Long vectors Automatic

Advanced cu tting ...

Sor ting vector s OffPanel replot 0Panel si ze 10 c m

Panelling Off

FIG 4-2A

4-2A CONFIGURATION MENU

(1) Depends on tool setting.
(2) Not visible if tool is not drag knife.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-5

Media s ensor On

Roll up media Off

LCD contras t 0

Emul ation l anguage AUTO

Calibrate OP OS

LAN ...

Recut off set 40 mm

OPOS panelling Off

Tool comm ands Accept

Cut off m argin 10 mm

Alignm ent mode OPOS X

USB Class Summa USB port 1

General ...

OPOS ...

OPOS sheet mode Off

Communication ...

Coil setup

Factory defaults

Length calibr ation

Copy current user

Media s ensor setup

Cali brate touch screen

More

More

More

Menu units metric

Language English

Autoload On

FIG 4-2B

4-2B CONFIGURATION MENU

(3) Only visible if roll up option is installed.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-6

4.3.1 Settings

This menu bundles all the settings of the S CLASS 2 cutters. All settings in this section, apart
from the OPOS parameters, are user-dependent (information is contained within each of
the eight individual user settings, see section 2.1.5.).

4.3.1.1 Tool

The Tool submenu is used to change the default tool at power-up (same as in section 2-6,
but it can be changed when no media is loaded).

Press the Tool button, then press on the tool to another default tool. Press to confirm

or to cancel. After changing the tool, the cutter will ask the user to confirm that there

was a tool change just before it comes online if media is loaded (press on ).

4.3.1.2 Velocity

The Velocity submenu is used to change the default velocity (same as in section 2.3., but it
can be changed when no media is loaded).
Press the Velocity button, then press on the desired velocity to change the velocity, use
arrow up/down if the desired velocity is not on screen.

Press to confirm or to cancel.

4.3.1.3 Knife pressure

The Knife pressure submenu is used to change the default knife pressure (same as in
section 2.2.2, but it can be changed when no media is loaded, however it can’t be tested).
Press the Knife pressure button, then change the knife pressure to the desired knife

pressure. Press to confirm or to cancel.

4.3.1.4 Calibrate Knife

The Calibrate knife submenu is explained in section 2.2.3.

Apply

Cance l

Home

Apply

Cance l

Apply

Cance l

NOTE: Do not forget to check and/or recalibrate the tool settings when a tool

has been changed (see section 1.7). Also, OPOS calibration must be redone (see

section 3.3).

NOTE: The term ‘knife can be different if the tools has been set.

NOTE: Another menu item is here if the tool is a drag knife (see section 4.3.1.5)
or a pouncer (see section 4.3.1.6).

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-7

4.3.1.5 Knife offset

The Knife offset submenu is explained in section 2.2.4.

4.3.1.6 Pouncing gap

The Pouncing gap submenu is used to change the pouncing gap (distance between the
holes that are punched in the material by the pouncing tool).
Press the Pouncing gap button, then change the pouncing gap to the desired distance.

Press to confirm or to cancel.

4.3.1.7 FlexCut

The FlexCut submenu is explained in section 3.8., however setting up the cutter for
FlexCutting is not that easy. Follow next procedure to try and determine usable FlexCut
settings.

1. Turn out the knife so that the out coming knife tip is longer than the material thickness.

2. Go to the knife pressure submenu (see section 2.2.2). Increase the knife pressure

gradually and do in between the knife pressure test. Until the minimum knife pressure
to cut the material completely through is reached. Then increase this value with 5-10%.
Write this value down.

Apply

Cance l

NOTE:

The pouncing tool is not mounted in the machine on the same place the

other tools. The pouncing tool should be mounted so that the center of the pin

is located above the black soft pouncing strip.

NOTE: Never turn the knife
so far out, that the media
can hit the knife shaft. Only
the knife edge may get in
contact with the media in

order to avoid media

crashes.

NOTE:

It is discouraged to use brand new knives for cutting through. Pressure
setting and knife depth of brand new knives change quickly. On the tangential
machines, a double tip knife or double wedge knife is recommended for cutting
through. This knife is more wear resistant and gives and automatic overcut at the

beginning and the end of cut lines.

NOTE: It is recommended to use cutting speeds of 400mm/s (16 ips) and lower
when cutting pressures is 200 gr or higher.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-8

3. Turn the top piece of the knife holder a half turn counter clockwise. In the ‘knife

pressure’ menu, press the test to activate the knife-pressure-test-pattern. If the pattern
is still cut out completely, repeat these actions. Once the pattern is not cut anymore,
increase the knife depth (turning clockwise) with 1/8’s of a turn, and perform the test,
until the minimum required knife depth is reached. Now increase (clockwise) the knife
depth slightly: ¼ of a turn for tangential knife and ½ of a turn for drag knives.

4. Now decrease the knife pressure gradually and do in between the knife depth test until

the knife pressure is set as described in section 2.2.2. Also write down this value.

5. Go to the flex cut sub menu and set full pressure to the pressure that was needed to cut

through the media and set flex pressure to the normal pressure. Set the full pressure
length to 10mm and the flex pressure length to 1mm. Then cut a test pattern.
Depending on the strength (size) of the ‘bridges’ got to step 6 or 7.

6. If the bridges are too strong, then decrease the flex pressure length and do the test

again.

7. If the bridges are too weak, raise the flex pressure length and do the test again.

4.3.1.8 Advanced cutting

Overcut:

Use Overcut submenu to generate an overcut in order to facilitate weeding the cut. Each
time the knife goes up or down, the cutter cuts a bit further then it should. Figure 4.3 below
shows what overcut does with a tangential knife. A sample cut-out with a drag knife would
show fewer overcuts, since there would be fewer up/downs (usually only one per
curve/letter).
The overcut setting can be disabled (=0) or set to any value between 0(=off) and 10. One
unit is about 0.1 mm or 0.004 ".

FIG 4-3

4-3 OVERCUT

Press the Overcut button, then change the overcut to the desired value.

Press to confirm or to cancel.

Apply

Cance l

NOTE: Keep the flex pressure length between 0.5 and 1.5mm. If no good

setting can be found, then try with changing the flex pressure itself (lower if

bridges are too strong, raise if they are too weak).

NOTE: Do not forget to set panel size as described in section Panel size:.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-9

OptiCut:

OptiCut increases the cutting quality in case the knife is worn out or not calibrated correctly.
OptiCut is default-set to OFF.
Press the OptiCut button, then set it off or on.

Press to confirm or to cancel.

Panelling:

Use Panelling submenu to enable or disable the internal paneling function of the cutter.
Paneling is used for several different applications most common are FlexCut and long jobs
with or without the roll up option.
Press the Panelling button, then set it off or on.

Press to confirm or to cancel.

Panel size:

Use the Panel size submenu to set the size of the panel.
Press the Panel size button, then set it to the desired length.

Press to confirm or to cancel.

Panel rep lot:

This parameter determines if the design has to be cut more than once on top of itself, this
per panel. Panel replot is used for thick media and media which is difficult to cut. The value
of this parameter is disregarded if panelling is set to off. If this parameter is set at 0, then the
cutter will cut each panel only once. If it is set at 1, it will cut each panel twice…
Use the Panel replot submenu to set the size of the panel.
Press the Panel replot button, then set it to the desired value.

Press to confirm or to cancel.

Sorting Vectors:

There are three options in this menu.

1. Off: When vector sorting is set of, then the cutter does no optimizing of the vectors. This

is used when the intelligence of the cutter driver is preferred.

2. Directional: If set to directional, then the vectors are optimized for cutting direction

(media movement). This used when the cutting pressure has to be set relatively high
(for example with cutting through).

3. Starting point: This option optimizes the starting point for closed curves. This is used

when the users sees that the curves do not close as they should.

Press the Sorting vector button, then set it to the desired value.

Press to confirm or to cancel. Sorting vectors is default set to Off.

Apply

Cance l

Apply

Cance l

Apply

Cance l

Apply

Cance l

Apply

Cance l

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-10

Long Vectors:

Some vinyls have the tendency buckle when large designs (long vectors) are cut out. To
avoid this, the speed needs to be reduced. This option does this automatic so that the
speed and accelerations of small vectors are not affected when the speed is brought down.
Press the Long vectors button, then set it Automatic or Constant velocity.

Press to confirm or to cancel. Velocity for long vectors is default set to
automatic.

TurboCut:

TurboCut increases throughput without raising the overall speed of the plotter by
speeding up the drag movement. The cutting time reduction is significant, especially when
cutting small, detailed designs. However, some thicker materials might not cut well with
this feature turned ON.
Press the Long vectors button, to set it On or Off.

Press to confirm or to cancel. TurboCut is default activated.

4.3.1.9 General

Media sensor:

The Media sensors detect whether media is loaded and also detect the end of the media.
The sensors prevent damage to the cutting strip and knife tip. The sensors can be activated
or deactivated with this menu.
When the sensors are activated, the cutter searches for the front end of the media during
the loading procedure. If it does not find it after returning the media for 1m (+/- 3 feet), it
stops returning the media and sets the origin in the x-axis there.
The cutter will also stop, during the loading procedure or while it is cutting, if the rear
sensor detects the end of the media.
The cutter does not search for the front end of the media and assumes that the loaded
media is endless if the sensors are not activated.
Press the media sensor button, then select to activate (ON) or deactivate (OFF) both or just
front sensor (FRONT OFF) only.

Press to confirm or to cancel. The default setting for the media sensors is ON.

Recut offset:

The Recut offset submenu is used to set or modify the distances between the jobs when
making multiple recuts.
Press the Recut offset button, then set it to the desired value.

Press to confirm or to cancel. The default value is 40mm.

Apply

Cance l

Apply

Cance l

Apply

Cance l

Apply

Cance l

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-11

Cut off margin:

The Cut off margin submenu is used to set or modify the distance the cutter will feed
before it will cut off the job when action ‘cut off’ is used from the touch screen or from the
software.
Press the Cut off margin, then set it to the desired value.

Press to confirm or to cancel. The default value is 10mm.

Roll up media:

The roll up media submenu is used to choose when the cutter will start the automatic roll
up. There are 3 possible settings. Off, after job and after AUTO-panel.
Off disables the roll-up system. After job rolls up the media after the job, regardless the
number of panels the job had. After AUTO panel roll up the media each time a panel is cut.
The size of the panel can be set in the Panels menu or is 100 cm when paneling is set to off.
Press the Roll up media button, then set it to the desired value.

Press to confirm or to cancel. The default value is after AUTO-panel.

Autoload:

The Autoload option enables the user to the change the vinyl unroll procedure. When
autoload is on, the cutter will automatically unroll the vinyl when needed. When the
autoload option is set off, the operator should manually unroll enough media before
starting to cut. When autoload is set to ask, then cutter will pause after that the pinch rollers
are put down. This gives the user the time to lower pinch roller pressure if necessary.
The default setting is ON. Tracking is not guaranteed when autoload is set to OFF.
Press the Autoload button, then choose to activate or deactivate the autoload feature.

Press to confirm or to cancel. Autoload is default activated.

Language:

This submenu is used to set or modify the dialogue language on the touch screen. When
the machine is new, it asks the user to choose a language. If this setting was set to the
wrong language, it can be changed with this option.
The information on the touch screen can be displayed in English, French, German, Spanish,
Italian, Polish or Dutch.
Press the Language button, and then set to the desired language.

Press to confirm or to cancel. The default language is chosen when the cutter
is switched on for the first time.

Apply

Cance l

Apply

Cance l

Apply

Cance l

Apply

Cance l

NOTE:

The recut offset should be bigger than the cut-off margin if both
parameters are used in the same job. For OPOS jobs using the cut-off command
it is required that the recut offset is at least 30mm bigger than the cut-off

margin.

NOTE: Tracking is not guaranteed when autoload is set to OFF .

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-12

Menu Units:

The setting of these options determines whether the speed and size values are displayed in
the metric measure system or ENG/US measure system.
Press the Menu units button, then set to the desired measure system.

Press to confirm or to cancel. The panel units are chosen when the cutter is
switched on for the first time.

LCD contrast:

The LCD contrast submenu is used to adjust the contrast (or intensity) of the touch screen.
The firmware automatically rejects values that would make the touch screen too dark to be
able to use it.
Press the LCD contrast button, then set to the desired value.

Press to confirm or to cancel.

4.3.1.10 OPOS

The OPOS settings are explained in detail in section 3, except for the Alignment mode and
Monitor.

Alignment:

There are three additional alignment methods available on all S CLASS 2 cutters:

X-Alignment, XY-Alignment and XY-Adjustment. These alignment methods can be used if
the combination of mark color – media color cannot be read by the OPOS sensor.
These alignment methods require that the user manually register marks using the cutter’s
keypad. Most cutting software can automatically put these marks around the printed
graphic.

X-Alignment compensates for errors in media alignment, by rotating the graphic’s contour.
This alignment method requires that the user specify the Origin and one point along the X­Axis. X-Alignment is the simplest alignment method.

XY-Alignment compensates for errors in graphic rotation and skew. Skew errors occur when
the graphic’s X and Y Axes are not perpendicular. This alignment method requires that the
Origin and one point along both the X and Y Axes be specified.

XY-Adjustment compensates for errors in graphic rotation, skew, and scale. Scale errors
occur when the graphic’s printed size is different from the graphic’s original size as created
in the imaging software. X-Distance and Y-Distance parameters are required. These
parameters define the distance between the Origin and X-Axis point, and between the
Origin and Y-Axis point. XY-Adjustment is the most accurate manual alignment method.

Apply

Cance l

Apply

Cance l

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-13

4.3.1.11 Communication

The communication settings menu groups all the parameters that determine the method of
communicating with the computer, as well as the language protocol.

Emulation language:

The S CLASS 2 cutters support DM-PL , HP-GL , HP-GL/2 and Auto.
DM-PL is the recommended plotting language and usually gives the best cutting quality.
HP-GL emulates an HP 7585B, 7580B, 758X Series HPGL printer.
HP-GL emulates an HP Draftmaster RX / SX / MX 7595B type printer.
Press the Emulation language, then set to the desired value.

Press to confirm or to cancel. The default setting is Auto.

Tool commands:

TOOL COMMAND is used to determine whether the DM/PL and HP-GL tool commands (pen
select pressure and velocity) are ignored or accepted.
Press the Tool command button, then activate or disable.

Press to confirm or to cancel.

USB class:

USB class can be set to Summa USB port 1, Summa USB port 2, Summa USB port 3, Summa
USB port 4 or Printer Uni.
Printer Uni is for using the windows printer spooler.
Because of the different USB id’s, the computer can make a distinction between several
cutters attached to it (maximum 4).
Press the USB Class button, then set to the desired USB Class.

Press to confirm or to cancel. The default mode is Summa USB port 1.

LAN:

The LAN menu has been explained in section 1.5.2.

Apply

Cance l

Apply

Cance l

Apply

Cance l

NOTE: The minimum USB driver version required for attaching more than 1

cutter to the same computer is 6.2. The change in USB class becomes active only

after rebooting the cutter .

NOTE: The USB id in the cutting software has to be the same as the chosen USB

id in the cutter. Each time a new USB is select on the cutter and connected for
the first time to the computer, the wizard for installing a driver will be started by

Windows.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-14

4.3.1.12 Length calibration

Length calibration allows the length of the lines cut to be adjusted to within the
specifications.
For instance, if a cut line should measure 100 mm exactly, the cutter can be adjusted for any
discrepancy.
Calibration is explained in section 2.4.

4.3.1.13 Coil setup

This test is used to calibrate knife and pen pressure and to set the knife and pen “landing.”
The cut quality is seriously affected by incorrect landing settings. Before changing these
values, write them down, as there is no default setting for these parameters.
After adjustment, the value is saved in the system’s non-volatile RAM.

Press the button of the parameter that needs to be changed and use
to change the value of the highlighted parameter.

Press to leave the menu.

Setting the landing

The landing determines, among other things, the force at which the tool hits the media.
When calibrating the landing, the tool holder with the knife must be inserted in the head.
Be sure that the knife does not protrude.

Use to lower the landing value until the tool is in the “up” position. Then use

to raise the value of the parameter. With each unit of change, continue checking
if the tool is completely down yet. Once the tool is completely down, raise the value back
up three units, and this becomes the proper setting.

4.3.1.14 Factory defaults

This option defaults all user parameters to factory default.

4.3.1.15 Copy current user

Press the button to copy the user parameters from the current user to all the other users. It
is recommended to do this only when the current user is user 1.

Apply

S CLASS™ 2 cutter OPOSCAM User’s Manual

Detailed Operation 4-15

4.3.1.16 Media sensor setup

The media sensor setup option is a useful routine for checking whether the front and rear
media sensors are functioning properly and whether the switching levels of these sensors
are correctly set.

1. Press or to select the sensor that will be tested.

2. Put a piece of media half on the chosen sensor and under the two outer pinch rollers.

Press . There are five levels of sensitivity to choose from.

3. Use or to change sensitivity level.

After choosing a sensitivity level, there will be a rectangle next to the sensitivity. When the sensor
is covered then the rectangle will be (completely) filled with black squares. When the senor is
uncovered, there will be (almost) no black squares in the rectangle.

Sensor uncovered

Sensor covered

FIG 4-4

4-4 S SENSOR SETUP

The blue stripe in the rectangle is the trigger level at which the cutter decides whether there is
media in the machine or not.

4. Use or to change the trigger level if necessary.

Ideally, there would be 0 to 2 black squares when the sensor is uncovered, the rectangle is
completely filled when it is covered, and the trigger level is set in the middle

4.3.1.17 Calibrate touch screen

This option makes it possible to calibrate the touch screen. Perform this calibration if the
illustration of the button on the touch screen does not match the area that needs to be
pressed to activate the button.
Press button to start the calibration and follow guidelines on screen.

Back sensor

Front s ensor

Back

S1

S1

Maintenance 5-1

5 Maintenance and Cleaning

5.1 Introduction

The S CLASS 2 cutter range has a number of sliding surfaces made of smooth metals and
plastics. They are virtually friction-free and require no lubrication. They will, however, collect
dust and lint that may affect the cutter’s performance. Keep the cutter as clean as possible
by using a dust cover. When necessary, clean the unit with a soft cloth dampened with
isopropyl alcohol or mild detergent. Do not use abrasives.

5.1.1 Cleaning the drive system

Over time, the sleeves of the drive drum may become clogged with accumulated residue
from the media liner. This may cause the media to slip between the pinch rollers and the
drive sleeves, decreasing traction.

Cleaning the drive system:

1. Unplug the power cord..

2. Apply a mild solvent (normally used to remove old glue residue) on the yellow sleeves

and wait for it to dissolve the accumulated residue.

3. Clean with a brush (toothbrush is recommended)

4. Repeat for all dirty drive sleeves.

5.1.2 Cleaning the media sensors

Over time, the media sensors may become dirty with accumulated residue from the media.
This may cause the cutter to malfunction.

Clean the media sensors by wiping them out with cotton swabs.

FIG 5-3

5-3 MEDIA SENSORS S CLASS 2 CUTTERS

S CLASS™ 2 cutter OPOSCAM User’s Manual

Maintenance 5-2

5.1.3 Cleaning the Y-Guide Rail

There are 4 areas on the Y-guide rail on which the tools carriage slides from left to right.
Two areas (1) are visible on the front side of the guide rail. The other 2 surfaces (2) are on the
back of the guide rail, directly behind the areas that are visible at the front.
Figure 5-4 below shows the areas. Even though the shape of the Y-guide rail may differ from
model to model, the areas are located in the same place at the top and bottom of the
guiding.

FIG 5-4

5-4 SLIDING SURFACES ON Y-GUIDE RAIL

Over time, there may be some accumulated residue on these sliding surfaces and on the
rollers of the tool carriage.

Cleaning the sliding surfaces of the Y-Guide rail:

1. Switch machine off.

2. Take a soft cloth dampened with isopropyl alcohol or mild detergent.

3. Clean surfaces; when the tool carriage is in the way, push it gently to the left or right.

5.1.4 Cleaning the nose piece (tangential machine only)

The nosepiece may accumulate residue from the vinyl that will result in poor cut quality.
The typical indication of a dirty nosepiece is an interruption of the cut line every 12mm
(0.5”).

Cleaning the nose piece:

1. Gently remove the knife by turning the knife holder counterclockwise.

2. Observe the orientation of the nosepiece and then push it out of its holder.

3. Remove any remaining vinyl residue using a brush or a pair of tweezers.

4. Replace the nosepiece.

5. Install the knife as described in section 1.7.1.

S CLASS™ 2 cutter OPOSCAM User’s Manual

Maintenance 5-3

5.1.5 Changing the fuse

WARNING: Before changing the fuse, make sure that the cutter is completely

disconnected from its power source.

WARNING: :

For continued protection against risk of fire, replace only with the

same type and rating of fuse: T2.0A, 250V SCHURTER SPT OR EQUIVALENT.

1. To remove the fuse (3), lightly pry the fuse holder release clip (2) in the direction

opposite the power switch. The fuse holder will pop free.

FIG 5-6

5-6 POWER ENTRY MODULE

2. Remove the fuse holder.

3. Pull the fuse from the holder.

4. Put new fuse in the holder and clip the holder back into place.

Specifications 6-1

6 Specs and General Information

6.1 Introduction

The S CLASS 2 range of cutters has been designed to produce computer-generated graphic
designs on cut sheet or roll vinyl media. Using the integrated optical positioning system
(OPOS) allows contour cutting of printed sheets of material. By replacing the knife with a
pen, these cutters can also be used to produce inexpensive previews of new graphic
designs on paper.

The following cutter models are currently available:

• The S2 75, which can handle media widths from 60 mm up to 840 mm (2.4” to 33”).

• The S2 120, which can handle media widths from 115 mm up to 1300 mm (4.5” to 51”).

• The S2 140, which can handle media widths from 170 mm up to 1450 mm (6.7” to 57”).

• The S2 160, which can handle media widths from 170 mm up to 1680 mm (6.7” to 66”).

6.1.1 Product features

The following are the main features of the S CLASS 2 cutters.

• Variable media widths.

• User-selectable DM/PL,

HP-GL, and HP-GL/2 software languages.

• Interchangeable pouncing tool with its own pouncing strip.

• Integrated OPOS positioning and alignment system with camera.

• Interchangeable pen for producing preview plots of sign designs on paper.

• Adjustable knife pressure and offset settings controlled by microprocessor.

• Communication with host computer via standard USB or Ethernet 10/100.

• 3.5 inch color touch screen panel for convenient operator control.

• Metric or English units.

• User-addressable curve resolution: 0.1 mm, 0.025 mm, 0.001" or 0.005".
