Multilayer Chip Ferrite Beads
——SHB-3216
Features
1. Effective in suppressing noise at high frequencies.
2. Suited for preventing the abnormal oscillation from high frequency amplifying circuits.
3. Excellent solder heat resistance for soldering.
4. High reliability in the circuits of high current.
5. Lead Free (RoHS Compliance).
Applications
1. Noise suppression in digital equipments.
2. Computers and peripheral devices, VCR and camera.
3. Noise suppression in automotive electronic equipment, car stereo, car engine controller.
4. Noise suppression for OA electronic instruments.
Ordering Information
SHB
(1)
(1) Series
SHB : For Signal line
1 M
-
(2)
3216 - 102 J T
(3) (4) (5) (6)
(4) Impedance (at 100MHz)
First two digits are impedance values.
Last digit is the number of zeros
1/4
(2) Material & Design
S : For high speed
M : For high impedance type
T : For Low speed
(3) Dimension
First two digits : length (㎜)
Last two digits : width (㎜)
(5) Termination
J : Nickel barrier
(6) Packaging
B : Bulk package
T : Tape & Reel (Φ178㎜ [ 7 inches ])
L : Tape & Reel (Φ254㎜ [ 10 inches ])

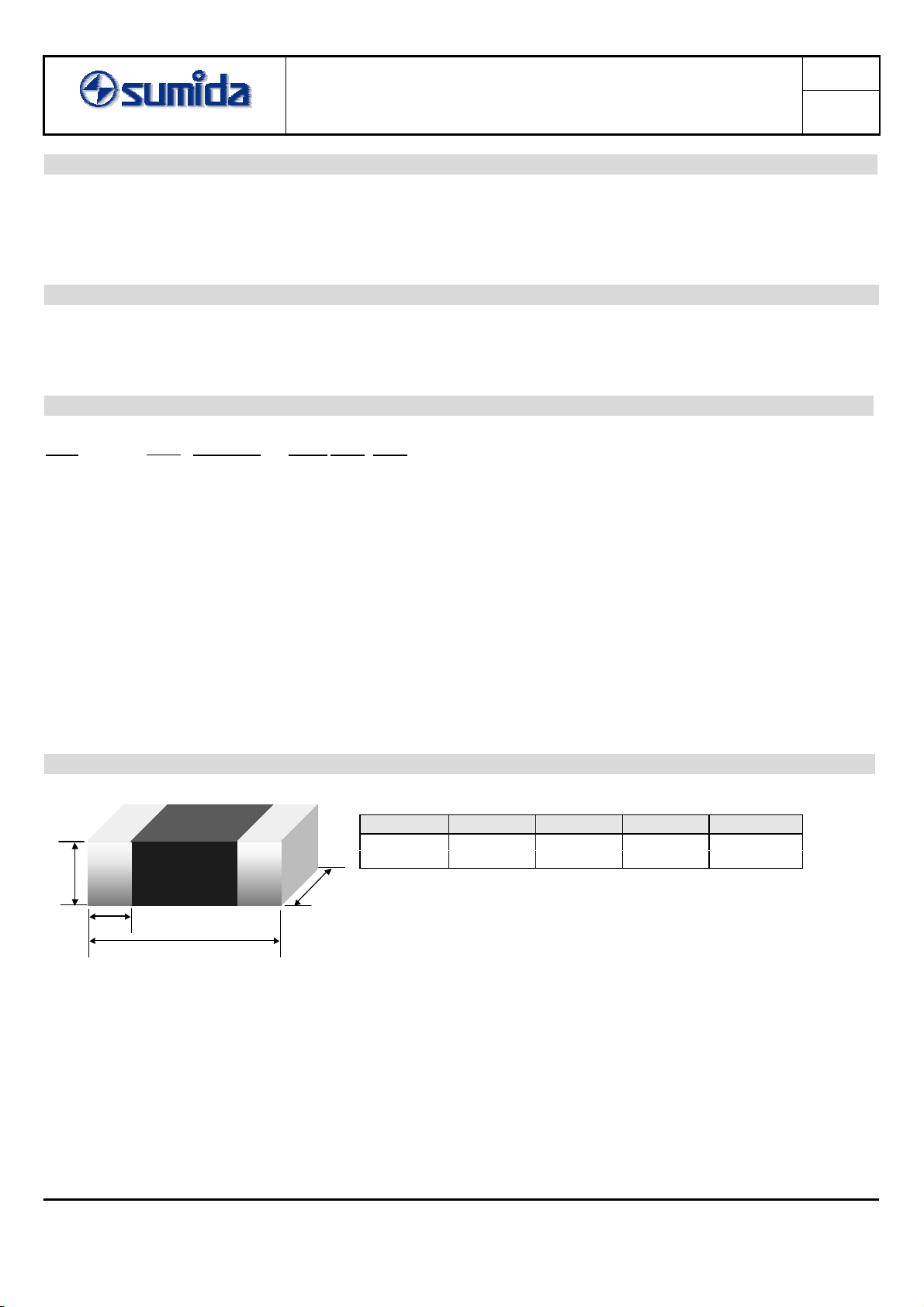

Shape and Dimensions
Unit : mm [inches]
Type L W T C
3.2±0.20 1.6±0.20 1.3±0.20 0.50±0.30
〔.126±.008〕
〔.063±.008〕 〔.051±.008〕 〔.020±.012〕
T
SHB-1□3216-
W
C₁
L
*All specifications are subject to change without notice.

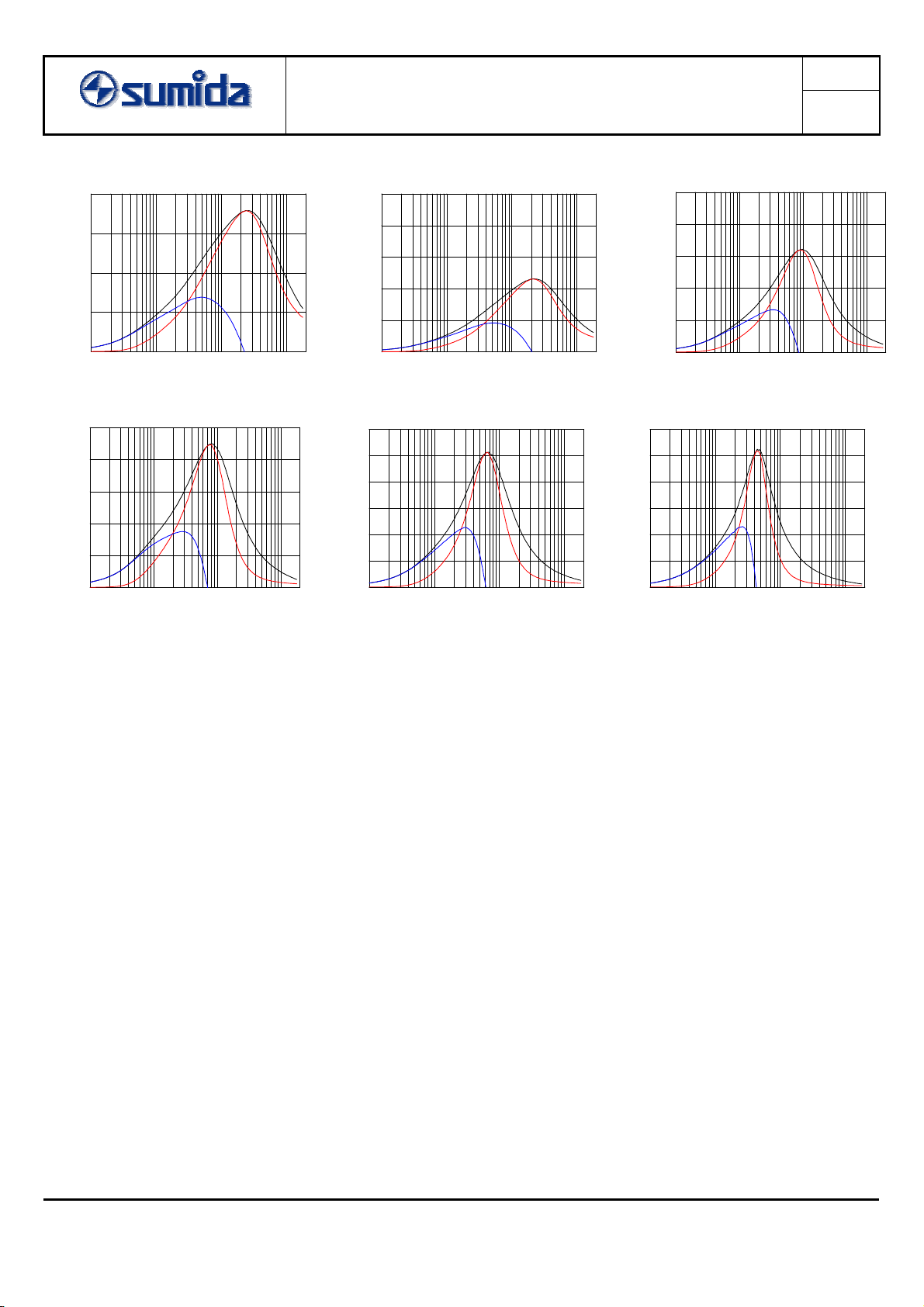

PAGE
Multilayer Chip Ferrite Beads
——SHB-3216

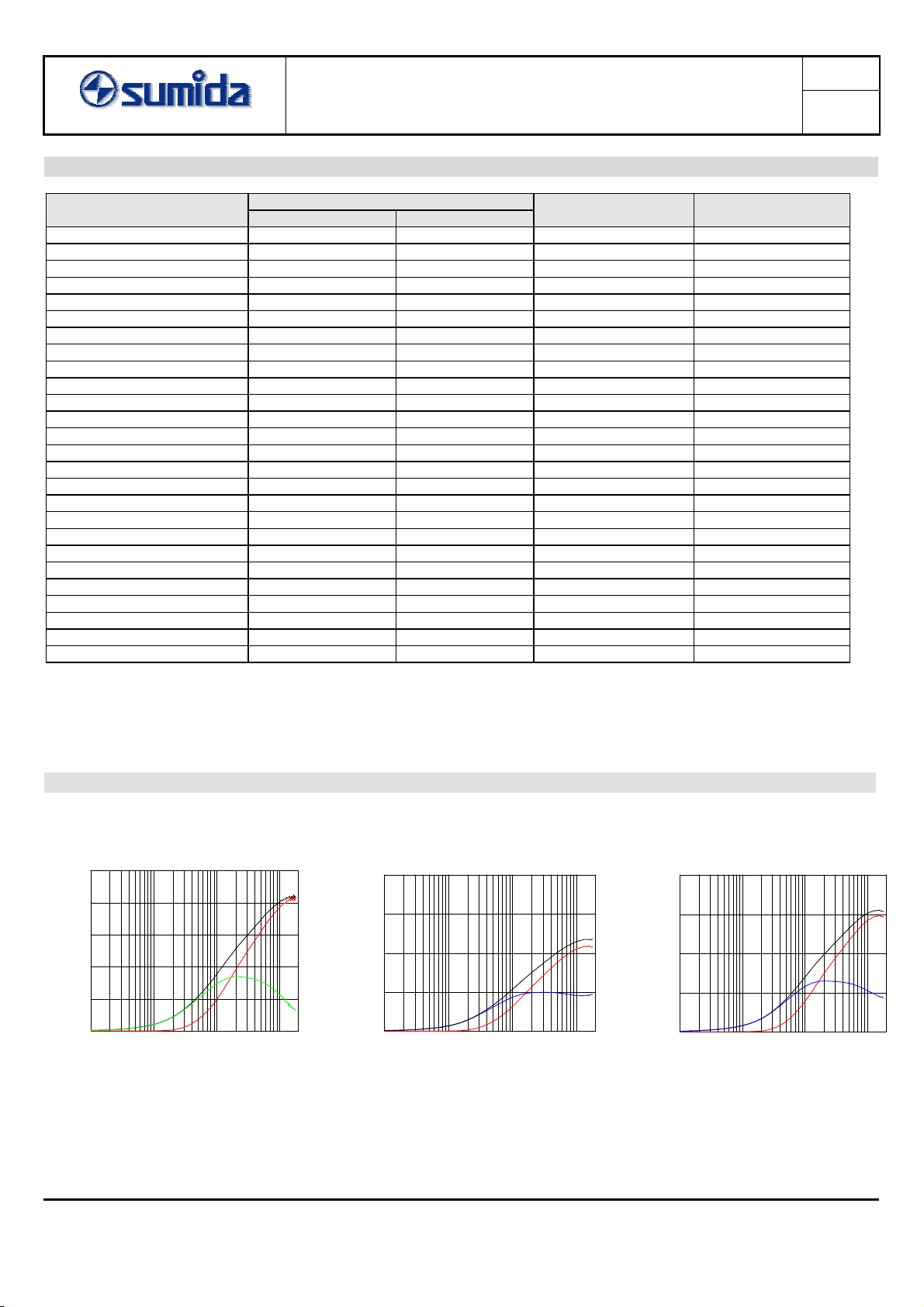

Electrical Parameters
Part No.
lZl at 100MHz(Ω)
typ. min.
SHB-1M3216-350□□ 35 26 0.02 600
SHB-1M3216-500□□ 50 37 0.03 600
SHB-1M3216-700□□ 70 52 0.05 600
SHB-1M3216-121□□ 120 90 0.05 300
SHB-1M3216-151□□ 150 115 0.05 300
SHB-1M3216-201□□ 200 150 0.08 300
SHB-1M3216-301□□ 300 225 0.09 200
SHB-1M3216-601□□ 600 450 0.20 200
SHB-1M3216-102□□ 1000 750 0.25 200
SHB-1S3216-100□□ 10 7.5 0.05 300
SHB-1S3216-200□□ 20 15 0.10 300
SHB-1S3216-800□□ 80 60 0.25 200
SHB-1S3216-251□□ 250 190 0.30 200
SHB-1S3216-601□□ 600 450 0.40 200
SHB-1T3216-350□□ 35 26 0.03 600
SHB-1T3216-500□□ 50 37 0.03 600
SHB-1T3216-700□□ 70 52 0.05 400
SHB-1T3216-800□□ 80 60 0.05 400
SHB-1T3216-121□□ 120 90 0.10 300
SHB-1T3216-151□□ 150 115 0.10 300
SHB-1T3216-201□□ 200 150 0.15 300
SHB-1T3216-601□□ 600 450 0.30 200
SHB-1T3216-801□□ 800 600 0.30 200
SHB-1T3216-102□□ 1000 (at 60MHz) 750 0.40 200
SHB-1T3216-122□□ 1200 (at 50MHz) 900 0.40 200
SHB-1T3216-202□□ 2000 (at 30MHz) 1500 0.50 200
※ Parts with other electrical characteristics available upon request.
※ Test equipment : HP4291 + HP16192A
DC Resistance
(Ω) max.
Rated current
(mA) max.
Electrical Characteristic Curves
2/4
HB-1T3216-350J
100
80
60
40
Impedance [ohm ]
20
0
1M 10M 100M 1G
SHB-1M3216-350J
Frequency [Hz]
200
Z
R
X
150
100
Impedance [Ω]
50
0
1M 10M 100M 1G
SHB-1M3216-500J
HB-1M3216-500J
Frequency [Hz]
*All specifications are subject to change without notice.
SHB-1M3216-700J
200
150
Z
R
X
100
Impedance [ Ω ]
50
0
1M 10M 100M 1G
HB-1M3216-700J
Z
Frequency [Hz]
R
X
PAGE
Multilayer Chip Ferrite Beads
——SHB-3216
SHB-1M3216-121J SHB-1M3216-151J SHB-1M3216-201J
300
300
HB-1M3216-121J
HB-1M3216-151J
500
HB-1M3216-201J
3/4
250
200
150
Impedance [ Ω ]
100
50
0
1M 10M 100M 1G
500
400
300
200
Impedance [Ω]
Frequency [Hz]
SHB-1M3216-301J SHB-1M3216-601J SHB-1M3216-102J
HB-1M3216-301J
Z
X
Z
R
X
100
0
1M 10M 100M 1G
100
Frequency [Hz]
SHB-1S3216-200J SHB-1S3216-251J SHB-1T3216-350J
HB-1S3216-200J
250
Z
200
R
150
Impedance [ Ω ]
100
50
0
1M 10M 100M 1G
Frequency [Hz]
R
X
HB-1M3216-601J
1000
800
600
400
Impedance [ Ω ]
200
0
1M 10M 100M 1G
1000
Frequency [Hz]
HB-1S3216-251J
Z
R
X
400
300
200
Impedance [ Ω ]
100
0
1M 10M 100M 1G
1200
1000
800
600
Impedance [Ω]
400
200
0
1M 10M 100M 1G
100
Frequency [Hz]
HB-1M3216-102J
Z
R
X
Frequency [Hz]
HB-1T3216-350J
Z
R
X
80
60
40
Impedance [Ω]
20
0
1M 10M 100M 1G
100
80
60
Frequency [Hz]
SHB-1T3216-500J SHB-1T3216-700J SHB-1T3216-121J
HB-1T3216-500J
Z
R
40
Impedance [ Ω ]
20
0
1M 10M 100M 1G
Frequency [Hz]
X
800
Z
R
X
600
400
Impedance [Ω]
200
0
1M 10M 100M 1G
Frequency [Hz]
Z
R
X
200
150
HB-1T3216-700J
80
60
40
lZl, R, X [ohm]
20
0
1M 10M 100M 1G
200
150
Frequency [Hz]
HB-1T3216-121J
Z
R
X
Z
100
Impedance [Ω]
50
Z
R
X
0
1M 10M 100M 1G
Frequency [Hz]
100
Impedance [Ω]
50
0
1M 10M 100M 1G
R
X
Frequency [Hz]
*All specifications are subject to change without notice.
PAGE
Multilayer Chip Ferrite Beads
——SHB-3216
4/4
HB-1T3216-151J
200
150
100
Impedance [Ω]
50
0
1M 10M 100M 1G
1000
800
SHB-1T3216-151J
Z
R
X
Frequency [Hz]
HB-1T3216-801J
SHB-1T3216-801J SHB-1T3216-122J SHB-1T3216-202J
Z
600
400
Impedance [ Ω ]
200
0
1M 10M 100M 1G
R
X
Frequency [Hz]
HB-1T3216-201J
500
400
300
200
Impedance [Ω]
100
0
1M 10M 100M 1G
1500
1250
1000
750
Impedance [Ω]
500
250
0
1M 10M 100M 1G
SHB-1T3216-201J SHB-1T3216-601J
Z
R
X
Frequency [Hz]
HB-1T3216-122J
Z
R
X
Frequency [Hz]
1000
800
600
400
Impedance [Ω]
200
0
1M 10M 100M 1G
3000
2500
2000
1500
Impedance [Ω]
1000
500
0
1M 10M 100M 1G
HB-1T3216-601J
Z
R
X
Frequecny [Hz]
HB-1T3216-202J
Z
R
X
Frequency [Hz]
*All specifications are subject to change without notice.
