Multilayer Chip Ferrite Beads
——SHB-1608
Features
1. Effective for suppressing noise at high frequencies.
2. Suited for preventing the abnormal oscillation from high frequency amplifying circuits.
3. Excellent solder heat resistance for soldering.
4. High reliability in the circuits of high current.
5. Lead Free (RoHS Compliance)
Applications
1. Noise suppression in digital equipments.
2. Computers and peripheral devices, VCR and camera.
3. Noise suppression in automotive electronic equipment, car stereo, car engine controller.
4. Noise suppression for OA electronic instruments.
Ordering Information
SHB
(1)
(1) Series
SHB : For Signal line
1 M
-
(2)
1608 - 102 J T
(3) (4) (5) (6)
(4) Impedance (at 100MHz)
First two digits are impedance values.
Last digit is the number of zeros
1/4
(2) Material & Design
S, B : For high speed
M : For high impedance type
T : For Low speed
(3) Dimension
First two digits : length (㎜)
Last two digits : width (㎜)
(5) Termination
J : Nickel barrier
(6) Packaging
B : Bulk package
T : Tape & Reel (Φ178㎜ [ 7 inches ])
L : Tape & Reel (Φ254㎜ [ 10 inches ])
Shape and Dimensions
T
C₁
L
Unit : mm [inches]
Type L W T C
SHB-1□1608-
W
1.6±0.15 0.8±0.15 0.8±0.15 0.30±0.20
〔.063±.006〕
〔.031±.006〕 〔.031±.006〕 〔.012±.008〕
*All specifications are subject to change without notice.
PAGE
Multilayer Chip Ferrite Beads
——SHB-1608

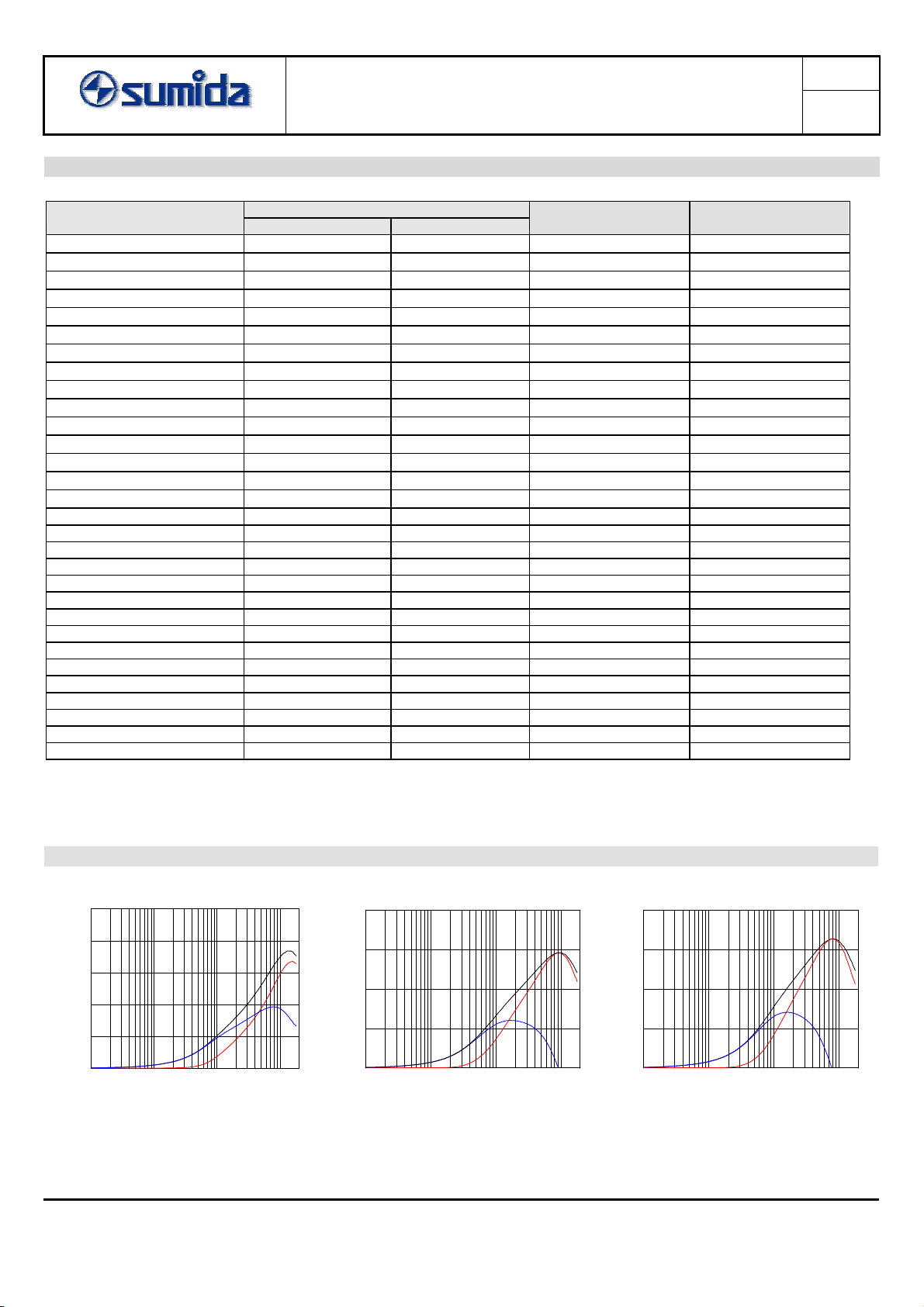

Electrical Parameters
Part No.
lZl at 100MHz(Ω)
typ. min.
SHB-1M1608-300□□ 30 22 0.08 500
SHB-1M1608-600□□ 60 45 0.09 200
SHB-1M1608-800□□ 80 60 0.10 200
SHB-1M1608-121□□ 120 90 0.12 200
SHB-1M1608-221□□ 220 165 0.20 200
SHB-1M1608-301□□ 300 225 0.30 200
SHB-1M1608-501□□ 500 375 0.40 200
SHB-1M1608-601□□ 600 450 0.40 200
SHB-1M1608-801□□ 800 600 0.60 200
SHB-1M1608-102□□ 1000 750 0.60 150
SHB-1S1608-100□□ 10 7.5 0.05 300
SHB-1S1608-200□□ 20 15 0.12 300
SHB-1S1608-300□□ 30 22 0.12 300
SHB-1S1608-400□□ 40 30 0.12 300
SHB-1S1608-550□□ 55 42 0.15 200
SHB-1S1608-800□□ 80 60 0.25 200
SHB-1S1608-121□□ 120 90 0.25 200
SHB-1S1608-221□□ 220 165 0.40 200
SHB-1T1608-260□□ 26 20 0.05 500
SHB-1T1608-300□□ 30 22 0.05 500
SHB-1T1608-600□□ 60 45 0.10 400
SHB-1T1608-800□□ 80 60 0.10 300
SHB-1T1608-121□□ 120 90 0.20 250
SHB-1T1608-221□□ 220 165 0.30 200
SHB-1T1608-301□□ 300 225 0.35 200
SHB-1T1608-331□□ 330 250 0.35 200
SHB-1T1608-601□□ 600 450 0.50 200
SHB-1T1608-102□□ 1000(at 60MHz) 750 0.70 200
SHB-1T1608-202□□ 2000(at 70MHz) 1500 1.20 100
SHB-1B1608-222□□ 2200 1650 0.85 200
※ Parts with other electrical characteristics available upon request.
※ Test equipment : HP4291 + HP16192A
DC Resistance
(Ω) max.
Rated current
(mA) max.
Electrical Characteristic Curves
2/4
SHB-1M1608-300J SHB-1M1608-600J SHB-1M1608-800J
100
80
60
40
Impedance [Ω]
20
0
1M 10M 100M 1G
HB-1M1608-300J
Frequency [Hz]
200
150
Z
R
X
100
Impedance [Ω]
50
0
1M 10M 100M 1G
HB-1M1608-600J
Frequency [Hz]
*All specifications are subject to change without notice.
200
150
Z
100
R
X
Impedance [Ω]
50
0
1M 10M 100M 1G
HB-1M1608-800J
Frequency [Hz]
Z
R
X
PAGE
Multilayer Chip Ferrite Beads
——SHB-1608
3/4
HB-1M1608-121J
300
250
200
150
Impedance [Ω]
100
50
0
1M 10M 100M 1G
1000
800
600
400
Impedance [Ω]
200
0
1M 10M 100M 1G
SHB-1M1608-121J SHB-1M1608-221J SHB-1M1608-301J
Frequency [Hz]
SHB-1M1608-601J
HB-1M1608-601J
Frequency [Hz]
500
Z
R
X
Z
R
X
400
300
200
Impedance [Ω]
100
0
1M 10M 100M 1G
1400
1200
1000
800
600
Impedance [Ω]
400
200
0
1M 10M 100M 1G
HB-1M1608-221J
Z
Frequency [Hz]
SHB-1M1608-102J
HB-1M1608-102J
Z
R
Frequency [Hz]
R
X
X
600
500
400
300
Impedance [Ω]
200
100
0
1M 10M 100M 1G
200
150
100
Impedance [ohm ]
50
0
1M 10M 100M 1G
HB-1M1608-301J
Z
X
Frequency [Hz]
SHB-1S1608-100J
HB-1S1608-100J
Frequency [Hz]
R
Z
X
R
SHB-1S1608-200J SHB-1S1608-300J SHB-1S1608-400J
200
150
100
Impedance [Ω]
50
0
1M 10M 100M 1G
300
250
200
150
Impedance [Ω]
100
50
0
1M 10M 100M 1G
HB-1S1608-200J
Frequency [Hz]
SHB-1S1608-550J SHB-1S1608-800J SHB-1S1608-121J
HB-1S1608-550J
Frequency [Hz]
200
150
100
Z
R
Impedance [Ω]
50
X
0
1M 10M 100M 1G
HB-1S1608-300J
Frequency [Hz]
200
150
Z
R
100
Impedance [Ω]
50
X
0
1M 10M 100M 1G
HB-1S1608-400J
Frequency [Hz]
Z
R
X
500
400
Z
R
X
300
200
Impedance [Ω]
100
0
1M 10M 100M 1G
HB-1S1608-800J
Frequency [Hz]
500
400
Z
R
X
300
200
Impedance [Ω]
100
0
1M 10M 100M 1G
HB-1S1608-121J
Frequency [Hz]
Z
R
X
*All specifications are subject to change without notice.
PAGE
Multilayer Chip Ferrite Beads
——SHB-1608
4/4
HB-1S1608-221J
1000
800
600
400
Impedance [Ω]
200
0
1M 10M 100M 1G
200
150
Ω]
100
Impedance [
50
0
1M 10M 100M 1G
1000
800
600
400
Impedance [Ω]
200
0
1M 10M 100M 1G
3000
SHB-1S1608-221J SHB-1T1608-300J SHB-1T1608-800J
Frequency [Hz]
SHB-1T1608-121J
HB-1T1608-121J
Frequency [Hz]
HB-1T1608-601J
SHB-1T1608-601J SHB-1T1608-102J SHB-1T1608-202J
Frequency [Hz]
SHB-1B1608-222J
HB-1B1608-222J
100
80
60
Z
R
40
Impedance [Ω]
20
X
0
1M 10M 100M 1G
HB-1T1608-300J
Z
R
X
Frequency [Hz]
200
150
100
Impedance [Ω]
50
0
1M 10M 100M 1G
HB-1T1608-800J
Z
R
X
Frequency [Hz]
SHB-1T1608-221J SHB-1T1608-301J
300
Z
R
X
250
200
150
Impedance [Ω]
100
50
0
1M 10M 100M 1G
HB-1T1608-221J
Z
R
X
Frequency [Hz]
500
400
300
200
Impedance [Ω]
100
0
1M 10M 100M 1G
HB-1T1608-301J
Z
R
X
Frequency [Hz]
1400
1200
Z
R
X
1000
800
600
Impedance [Ω]
400
200
0
1M 10M 100M 1G
HB-1T1608-102J
Z
R
X
Frequency [Hz]
2500
2000
1500
1000
Impedance [Ω]
500
0
1M 10M 100M 1G
HB-1T1608-202J
Z
R
X
Frequency [Hz]
2500
2000
1500
1000
Impedance [Ω]
500
0
1M 10M 100M 1G
Z
R
X
Frequency [Hz]
*All specifications are subject to change without notice.
