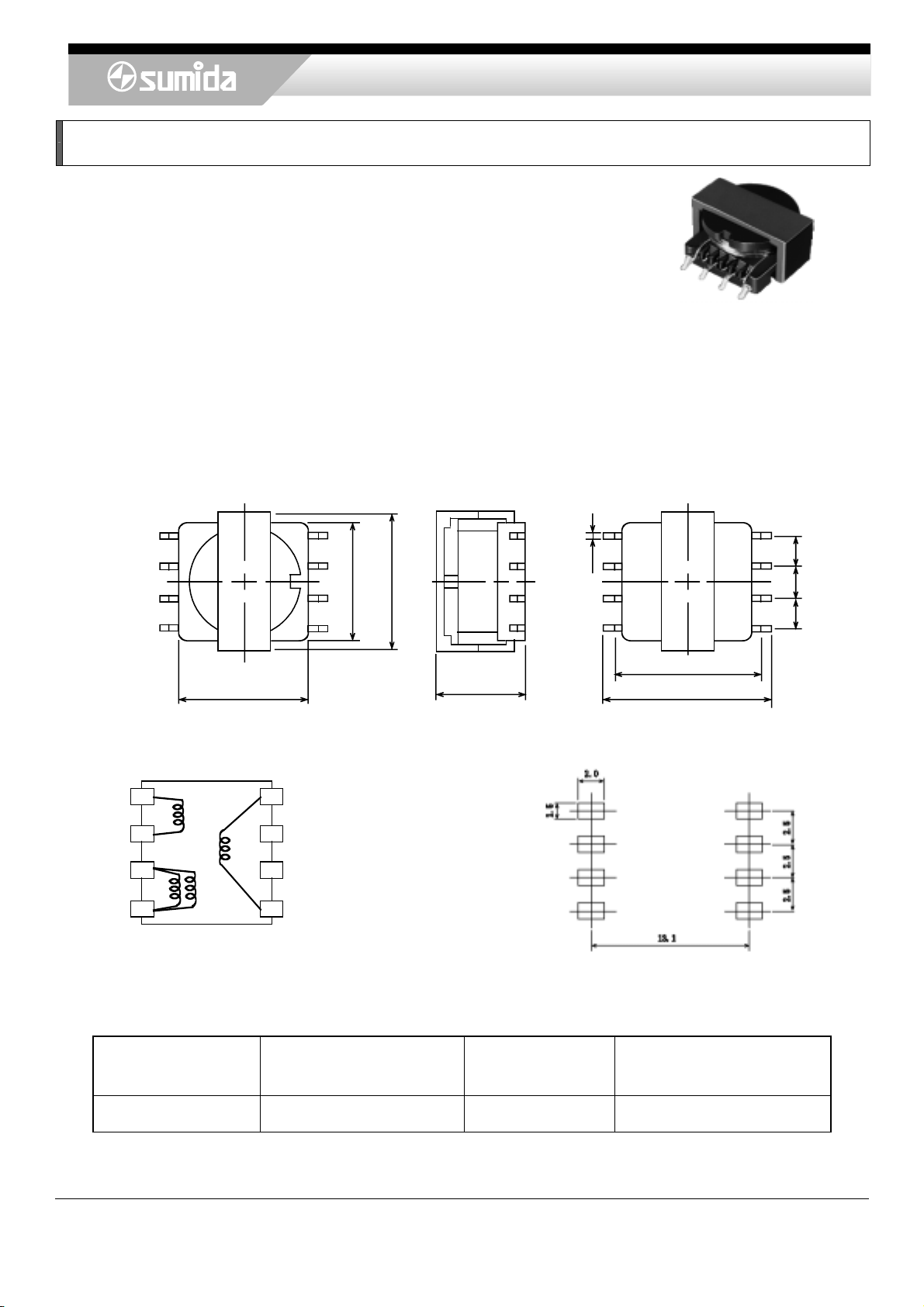

General Power Transformer<SMD Type:CEE Series>
Type: CEE128
◆ Product Description
・13.3×11.5mm Max.(L×W), 9.5mm Max. (Height)
・In addition to the typical versions of parameters shown here,
custom parameters are available to meet your exact requirements.
◆ Feature
・Max. Operating frequency 500kHz,Max. Operating Power 3.1W(300kHz).
・Ideally used in LCD TV, Note PC, Portable equipment.
・RoHS Compliance
◆ Dimensions (mm)
＋0.8
9.6±0.5
12.5－0.5
0.6±0.2
±0.2
2.5
2.5
2.5
11.0±0.5
9.5 Max.
12.2±0.5
14.0±0.5
◆ Schematics (Bottom) ◆ Land Pattern (mm)
4
P2
3
S
S1
2
P1
1
S
5
S
6
7
8
“Ｓ”indicates winding start.
◆ Specification
Sample No.
6342 – T103
Please refer to the sales offices on our website for a representative near you
Inductance(1-2)
(1kHz/1.0V)
4.86μＨ±25％ within 40mΩ Max.
D.C.R.
(1-2)
www.sumida.com 1/1
Hi-pot (1,2-3,4,5,8)
(50/60Hz)
AC 2500Vrms/1min.
