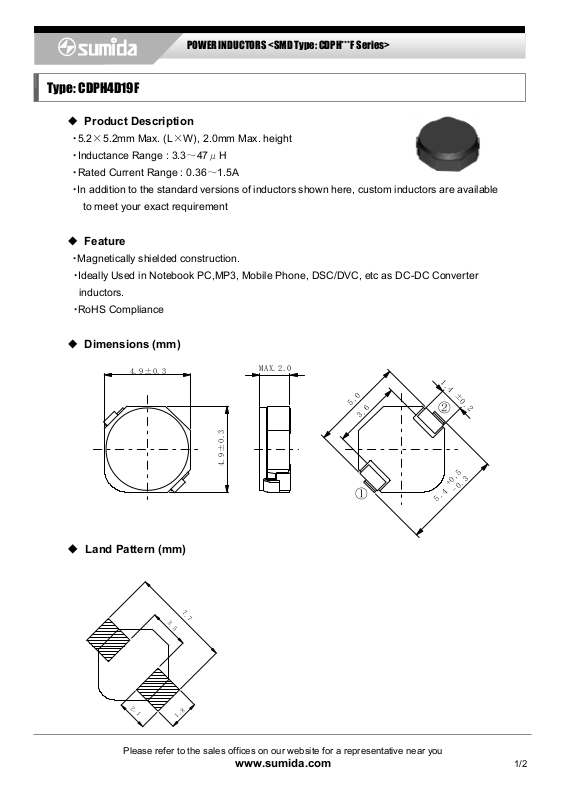

Type: CDPH4D19F
◆ Product Description
・5.2×5.2mm Max. (L×W), 2.0mm Max. height
・Inductance Range : 3.3～47μH
・Rated Current Range : 0.36～1.5A
・In addition to the standard versions of inductors shown here, custom inductors are available
to meet your exact requirement
◆ Feature
・Magnetically shielded construction.
・Ideally Used in Notebook PC,MP3, Mobile Phone, DSC/DVC, etc as DC-DC Converter
inductors.
POWER INDUCTORS <SMD Type: CDPH***F Series>
・RoHS Compliance
◆ Dimensions (mm)
4.9±0.3
MAX.2.0
0
.
5
3.6
4.9±0.3
①
◆ Land Pattern (mm)
1
②
.4
5
.
4
±
0
.
2
.5
0
+
0.3
-
7
.7
3
.5
2.1
Please refer to the sales offices on our website for a representative near you
8
.
1
www.sumida.com 1/2
Type: CDPH4D19F
◆ Specification
POWER INDUCTORS <SMD Type: CDPH***F Series>
Part Name
※
CDPH4D19FNP-3R3MC 3R3
CDPH4D19FNP-4R7MC 4R7
CDPH4D19FNP-6R8MC 6R8
CDPH4D19FNP-8RØMC 8R0
CDPH4D19FNP-1ØØMC 100
CDPH4D19FNP-15ØMC 150
CDPH4D19FNP-22ØMC 220
CDPH4D19FNP-33ØMC 330
CDPH4D19FNP-47ØMC 470
Stamp
Inductance
［Within］
100kHz/1V
3.3μH±20％
4.7μH±20％
6.8μH±20％
8.0μH±20％
10μH±20％
15μH±20％
22μH±20％
33μH±20％
47μH±20％
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
33(26) 1.50 3.80
38(30) 1.15 3.30
50(40) 1.00 3.02
56(45) 0.90 2.68
65(52) 0.80 2.32
95(75) 0.66 1.88
135(108) 0.54 1.44
200(160) 0.43 1.25
293(234) 0.36 1.03
Saturation
current
（A）※１
Temperature
rise current
(A)※2
※Description of part name
CDPH4D19FNP-3R3M□
※1.Saturation Current: The DC current at which the inductance decreases to 65% of it's
nominal value (Ta＝20℃)
※2 Temperature rise current: The DC current at which the temperature rise is △t＝40℃.
(Ta＝20℃)
B Box
C Carrier Tape
Please refer to the sales offices on our website for a representative near you
www.sumida.com 2/2
