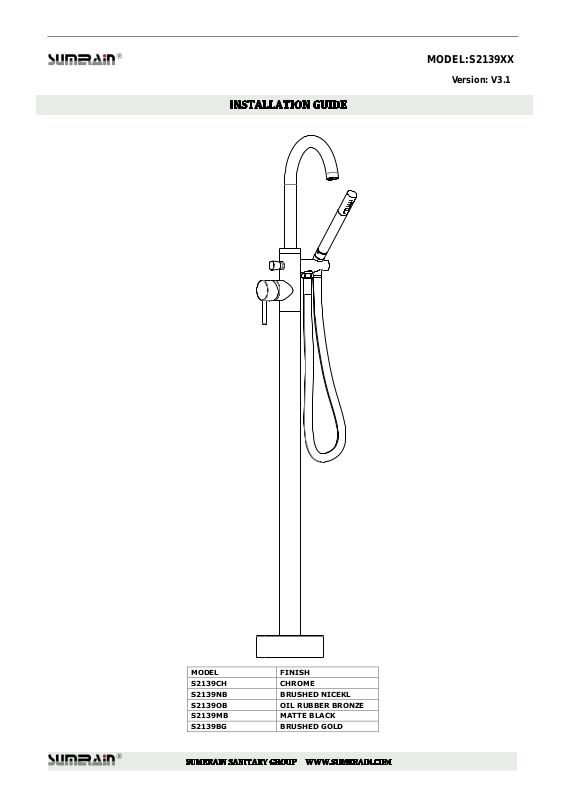

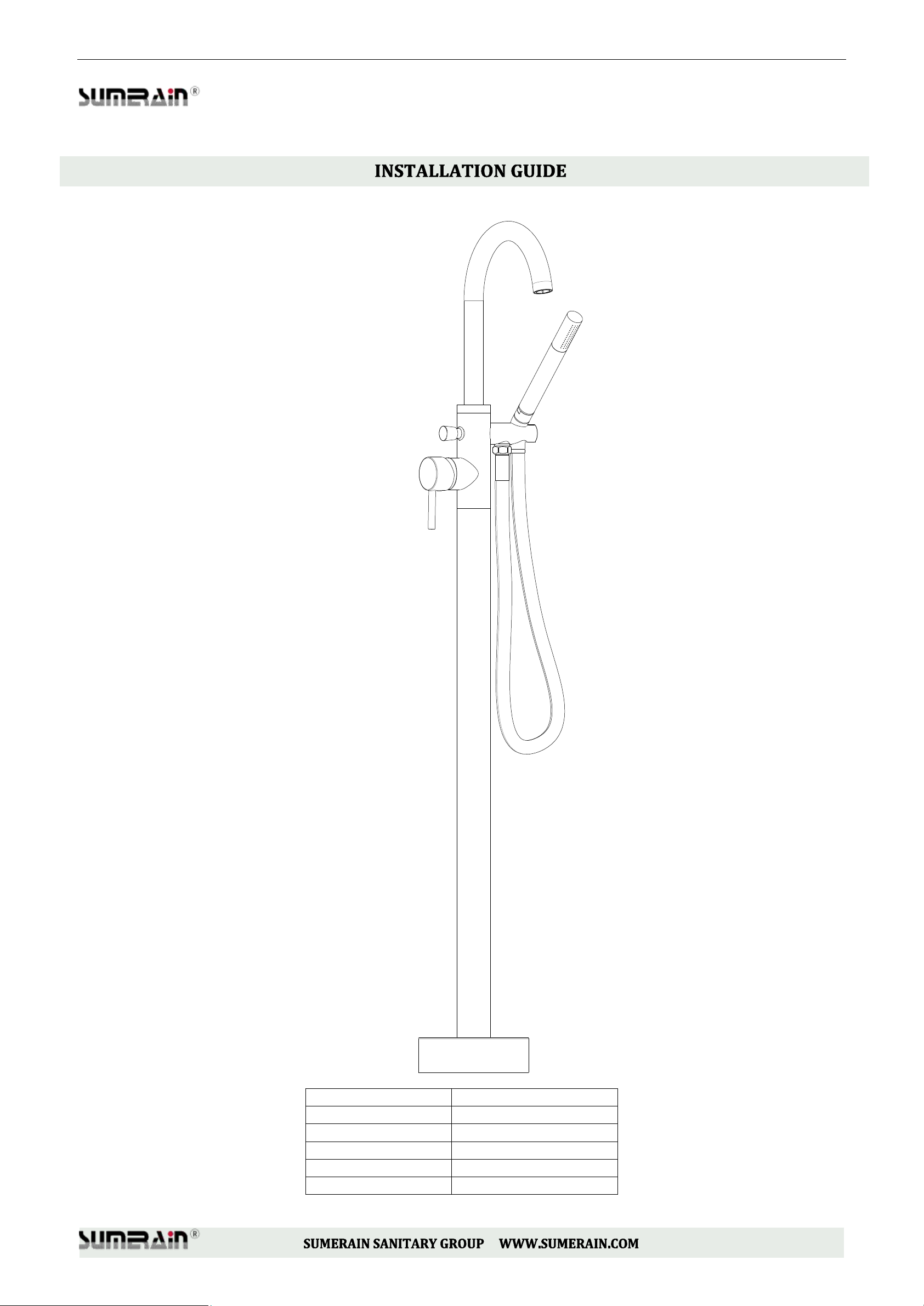

sumerain SMER1063 Installation & Assembly

MODEL

FINISH

S2139CH

CHROME

S2139NB

BRUSHED NICEKL

S2139OB

OIL RUBBER BRONZE

S2139MB

MATTE BLACK

S2139BG

BRUSHED GOLD

MODEL:S2139XX

Version: V3.1

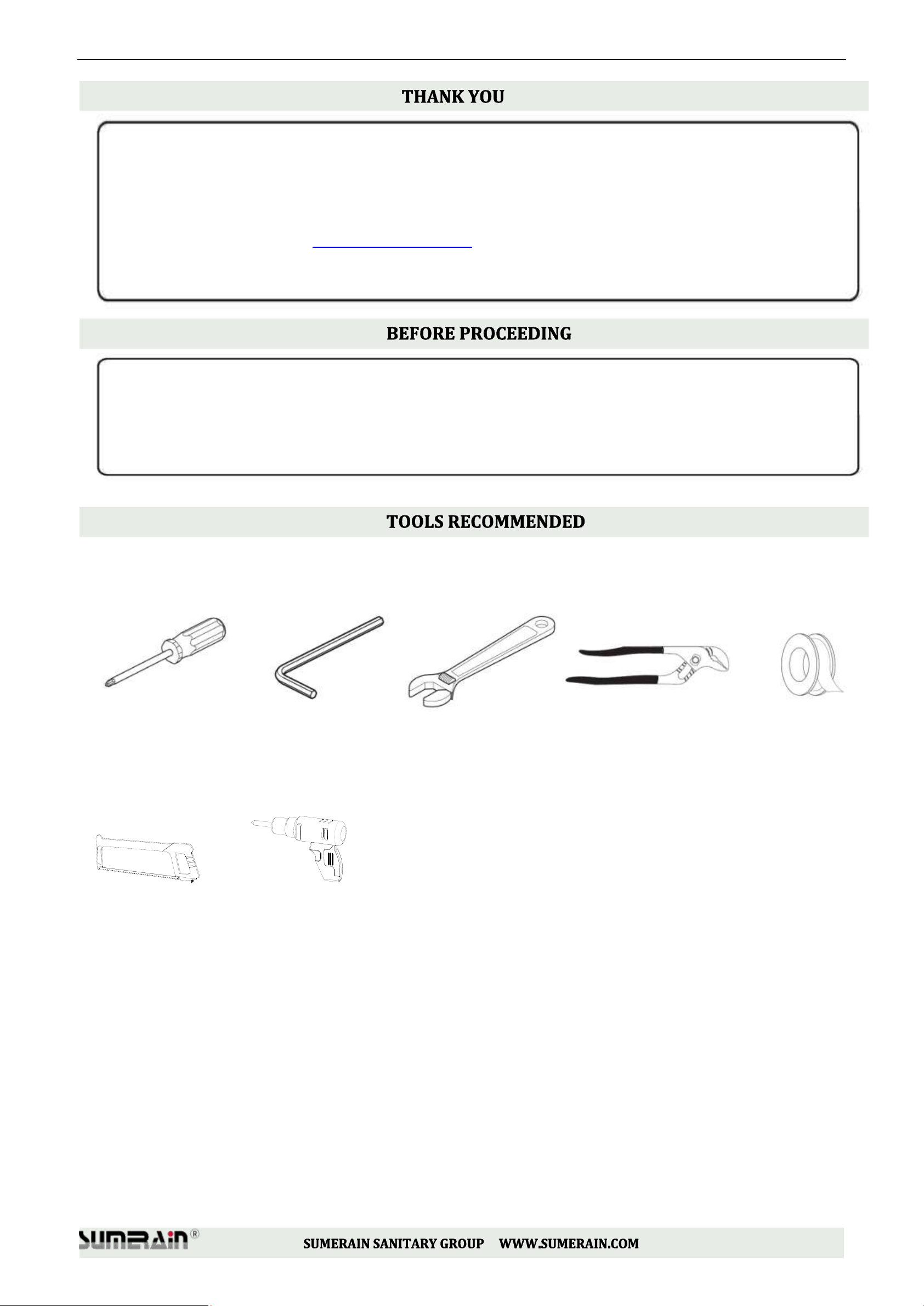

Dear Valued Customer,
SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere
hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered,
and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using
basic tools and our easy to follow illustrated instructions. We welcome any questions or comments you may have
and look forward to assisting you in the future. If you have any questions regarding this product, call
[phone] or email to [email protected] .
Sincerely,
SUMERAIN customer service department

1. Unpack your new product and ensure that all the parts are contained in the packaging. Keep the product in its
original box until you ready to install it.

2. Locate water supply inlets and shut off the water supply valves. These are usually found near the water meter.

if you are replacing an existing unit, remove the old unit and clean the mounting surface thoroughly.

3. Observe all plumbing and building codes in your area.

4. It is recommends calling professional if you are uncertain about installing this product.

Philips screwdriver Allen wrench Adjustable wrench Channel locks Thread Sealant

saw electric drill

VERSION: 20160320.18.1

This product has been manufactured and tested to the highest quality standards by SUMERAIN sanitary Inc("SUMERAIN").This
warranty is limited to SUMERAIN products which are purchased by a consumer in the China after Jan 1,2010 and installed in China
or the state which has SUMERAIN technical support department locally.(visit http://www.sumerain.com/en/supportcenter.asp for
review the state list of SUMERAIN technical support department).If the faucet should leak or drip during normal use,SUMERAIN will,
free of charge, mail to the purchaser the cartridge necessary to put the faucet in good working condition. If a defect is found in
normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment.

WHO IS COVERED BY THE WARRANTY

This warranty extends to the original consumer purchaser only (exclusive online retail original customer, online retail original
customer cover by the "Online CONSUMER Limited Lifetime WARRANTY & Return policy"), This warranty is not-transferable.

WHAT IS COVERED BY THE WARRANTY

This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in material or
workmanship as follows: SUMERAIN will repair at no charge for parts only or, at its option, replace any product or part of the product
that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If
SUMERAIN unable to provide replacement, SUMERAIN may elect to provide similar model upon close value.

FINISH WARRANTY

It is the responsibility of the customer to check for any material finish defects before installation. SUMERAIN doesn't warranty these
finishes after the fixture has been installed.

ELECTRONIC FAUCETS WARRANTY

SUMERAIN warrants that its electronic faucets, valves and controls to be free from manufacturing defects in material and
workmanship under normal use for three(3) years from the date of purchase and waterflow impeller-dynamo (generate power for
LED faucet) for six(6) months from the date of purchase.

LENGTH OF WARRANTY

Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two sentences, if
you are a consumer who purchased the product for use primarily for personal,family,or household purposes, this warranty extends
for 5 years since the product originally installed (Extend max 1 month From the date of purchase).if you purchased the product for
use primarily for any other purpose,including,without limitation, a commercial purpose or is installed outside of US, or if the finish is
gold, non-Vibrant or a painted or powder coated color finish this warranty extends only for one year, with respect to SUMERAIN and
commercial products.

THIS WARRANTY DOES NOT COVER, AND SUMERAIN WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage resulting from normal wear and tear, improper installation, improper maintenance, misuse,

abuse,negligence,accident or alteration or the use of abrasive or caustic cleaning agents or "no-rinse" cleaning products, or the use
of the product in any manner contrary to the product instructions. Conditions in the home such as excessive water pressure or
corrosion.
C. Labor or other expenses for the disconnection, deinstallation, or return of the product for warranty service, or for installation or
reinstallation of the product.
D. Accessories, connected materials and products (including but not limited in handshower Drain Pipe, spray Drain Pipe,
handshower), or related products not manufactured by SUMERAIN

TO OBTAIN WARRANTY PARTS OR INFORMATION

Contact your SUMERAIN retailer or contact technical service at: [email protected]
In requesting warranty service, you will need to provide

1. The sales receipt or other evidence of the date and the place of purchase.

2. A description of the problem (Download URL: http://www.sumerain.com/download/servicerequest/sheet.pdf and fill out the Service
Request Sheet).

3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured to specified address.
When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid.

EXCLUSIONS AND LIMITATIONS

Repair or replacement (or, in limited circumstances, refund of the purchase price) as provided under this warranty is the exclusive
remedy of the purchaser. SUMERAIN neither assumes nor authorizes any person to create for it any obligation or liability in
connection with this product.SUMERAIN shall not be liable to purchaser or any person for any incidental, special, or consequential
damages, arising out of breach of this warranty or any implied warranty (including merchantability) Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This
warranty gives you specific legal right, and you may have other rights which vary from state to state. You may be required by law to
give us a reasonable opportunity to correct or cure any failure to comply before you can bring any action in court against us under
the Magnusson-moss warranty Act.

PRODUCT INSTRUCTIONS AND QUESTIONS

Upon purchase or prior to installation, please carefully inspect your SUMERAIN product for any damage or visible defect. Prior to
installing, always carefully study the enclosed instructions on the proper installation and the care and maintenance of the product. if
you have questions at any time about the use,installation,or performance of your SUMERAIN product, or this warranty, please call or
email us at [phone], [email protected]

Function

Bathtub faucet

Feature

Floor mounted, Freestanding

Theme

Modern ,Contemporary

Finish

Chrome/Brushed Nickel/Matte Black/ Oil Rubber Bronze/Brushed Gold

Number of Handles

One

Handle style

Level

Primary Material

Brass

Mounting Hardware Included

Yes

Diverter Included

Yes

Handheld Shower Included

Yes

Valve Included

Yes

Hand shower material

Brass

Shower hose Included

Yes

Hose Material

SUS 304 Stainless steel

Faucet Total Height

39-3/8”

Spout Reach

7-7/8”

Spout Height

34-1/4”

Valve Type

Ceramic disc

Handle Material

Metal

Net Weight

15,0 lbs [ 6.8KG ]

Gross Weight

16,1 lbs [ 7.3KG ]

Working water press

0.2 ~0.8 Mpa

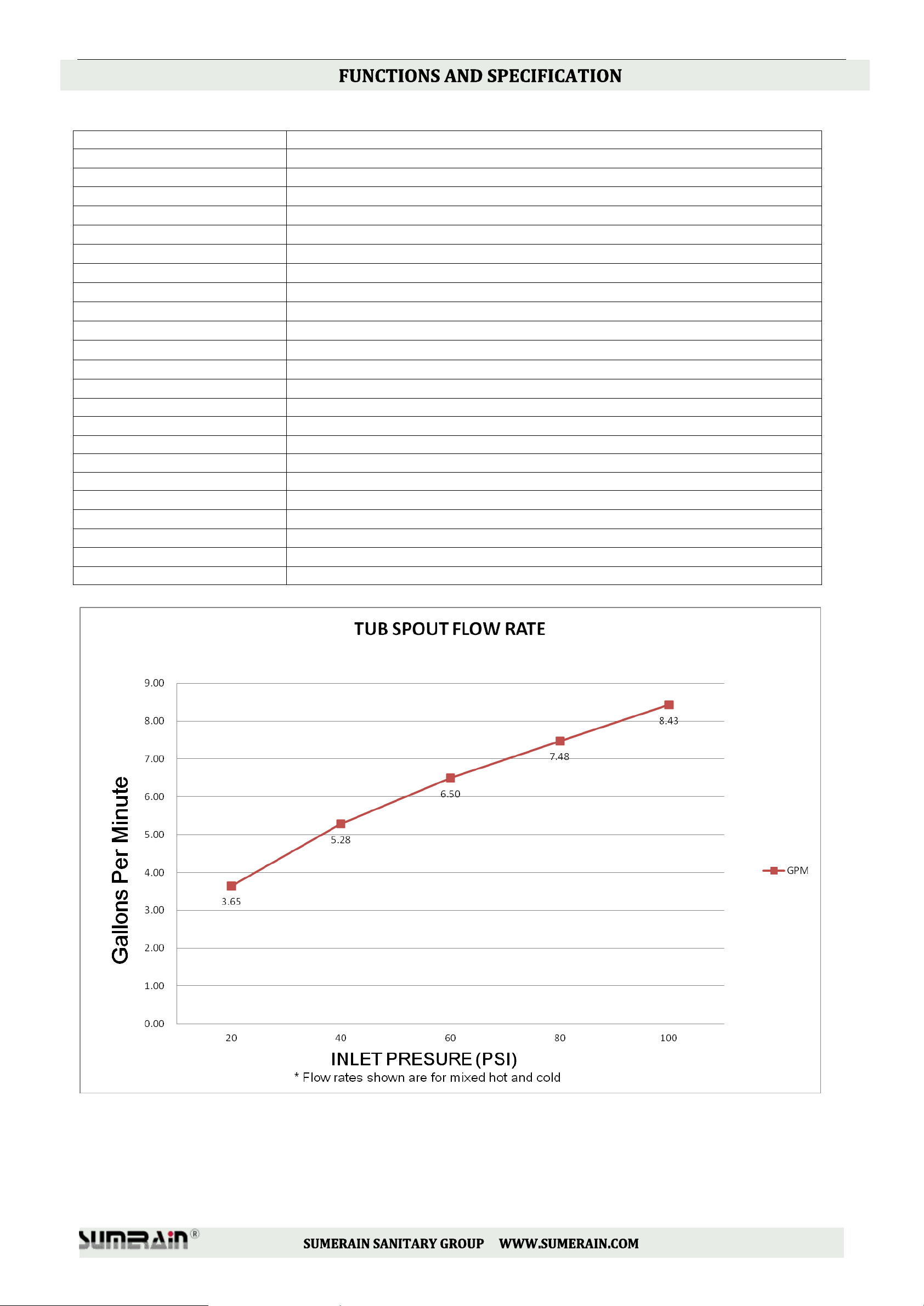

Max Flow Rate (spout)

8.4GPM

Packing box size

720mm[28-11/32”] x 420mm[16-1/2”] x 120 mm[4-23/32”]

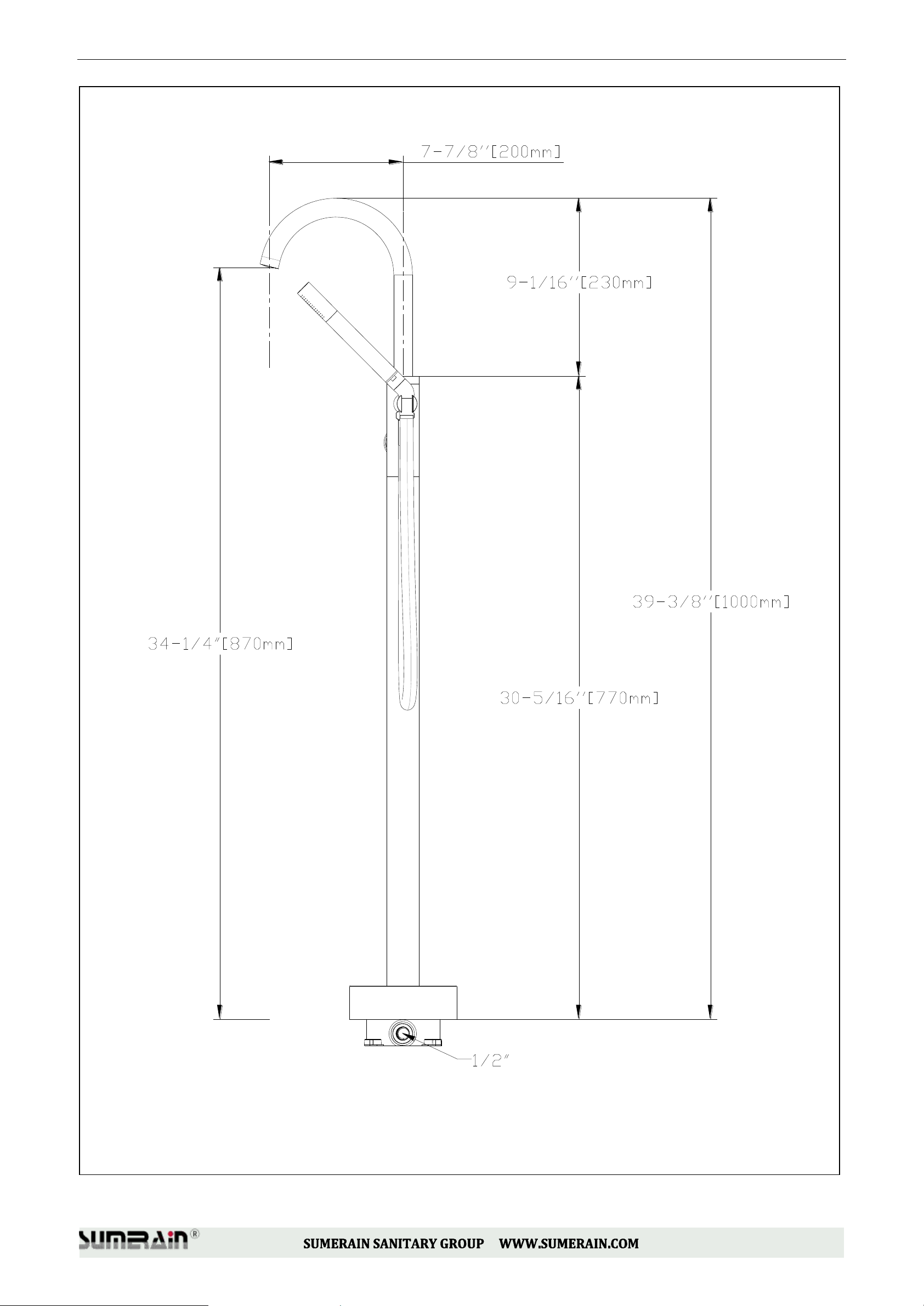

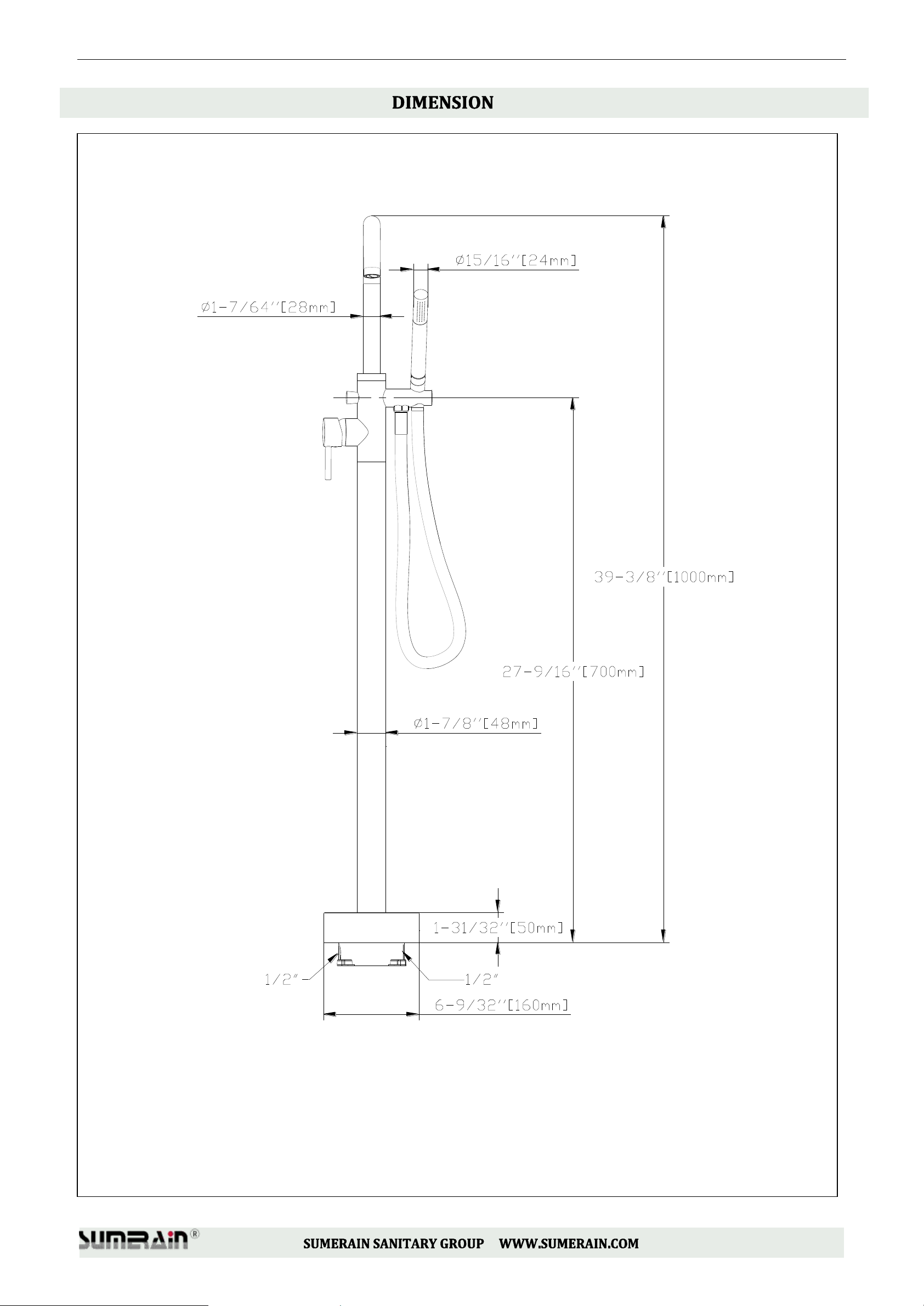

FRONT VIEW OF FAUCET

RIGHT VIEW OF FAUCET

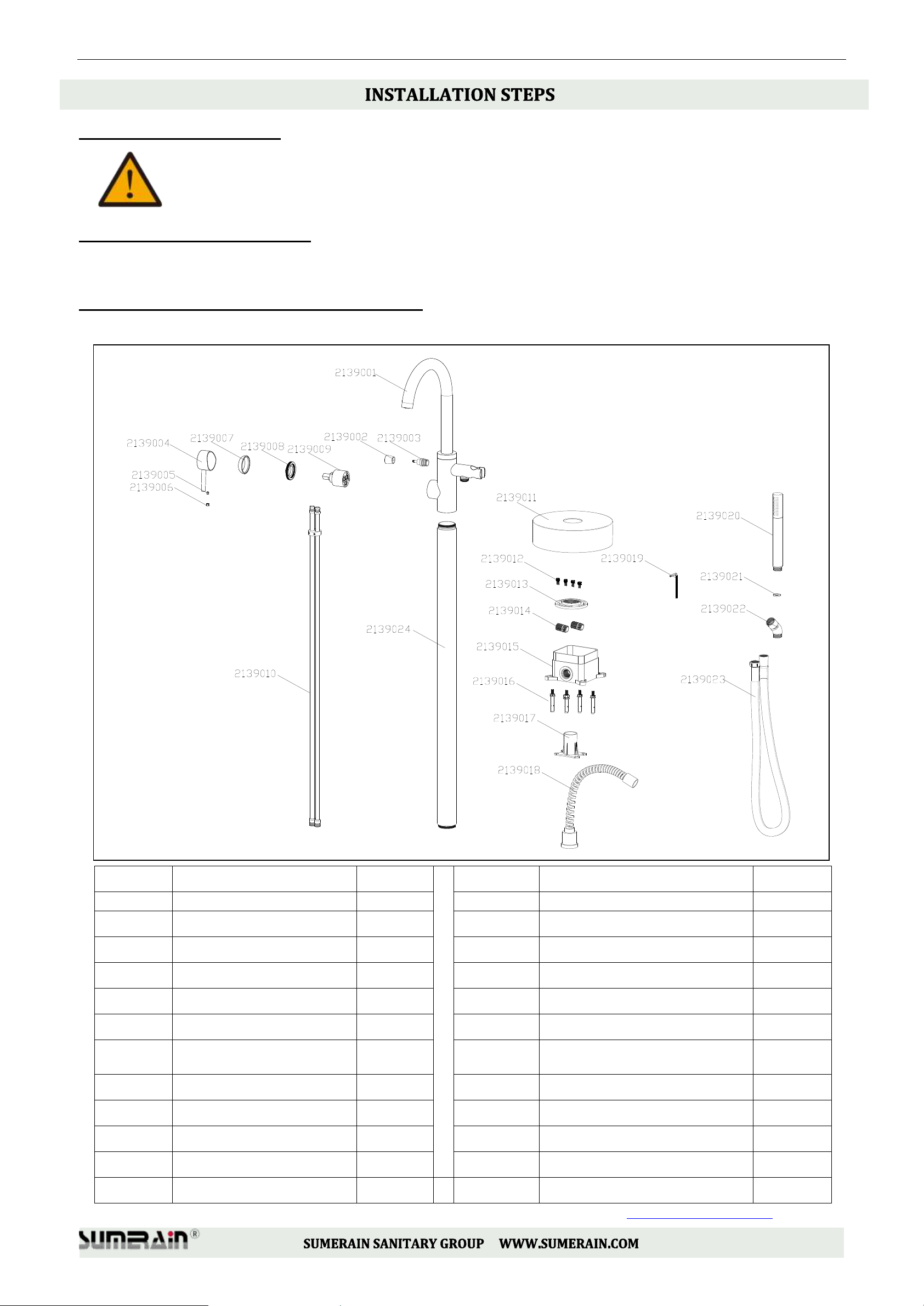

CODE

ITEM NAME

QTY

CODE

ITEM NAME

QTY

2139001

Faucet body assembly

1PCS

2139002

Diverter Knob

1PCS

2139003

Diverter cartridge

1PCS

2139004

Handle(Lever)

1PCS

2139005

Set screws

1PCS

2139006

Screw Cover

1PCS

2139007

Flange

1PCS

2139008

Bonnet

1PCS

2139009

#40 Cartridge

1PCS

2139010

Hot/Cold Brass Supply riser

1SET

2139011

Escutcheon

1PCS

2139012

Bolts

4PCS

2139013

Mounting base

1PCS

2139014

G1/2" To NPT 1/2-14 Adapter

(optional)

2PCS

2139015

Rough-in valve

1PCS

2139016

Screws & Anchor

4PCS

2139017

Drain Pipe Adapter

1PCS

2139018

Drain Pipe

1PCS

2139019

Allen wrench S4

1PCS

2139020

Hand shower

1PCS

2139021

washer

1PCS

2139022

Hand shower adapter

1PCS

2139023

Shower hose

1PCS

2139024

Standpipe

1PCS

1. BEFORE PROCEEDING

WARNING: Read all the instructions completely before proceeding.SUMERAIN recommends calling a

professional if you are uncertain about installing this product!, this product should be installed in
accordance with all local and state plumbing and building codes.

2. SHUT OFF WATER SUPPLY

Locate water supply inlets and shut off the water supply valves. These are usually found near the water meter. if you are

replacing an existing unit, remove the old unit and clean the mounting surface thoroughly.

3. CHECKING THE CONTENTS OF THE BOX

Upon opening the box, check to ensure that all the following items are included.

If any of these items are missing, please contact SUMERAIN consumer service by email to: [email protected]

4. ROUGH-IN VALVE INSTALLATION

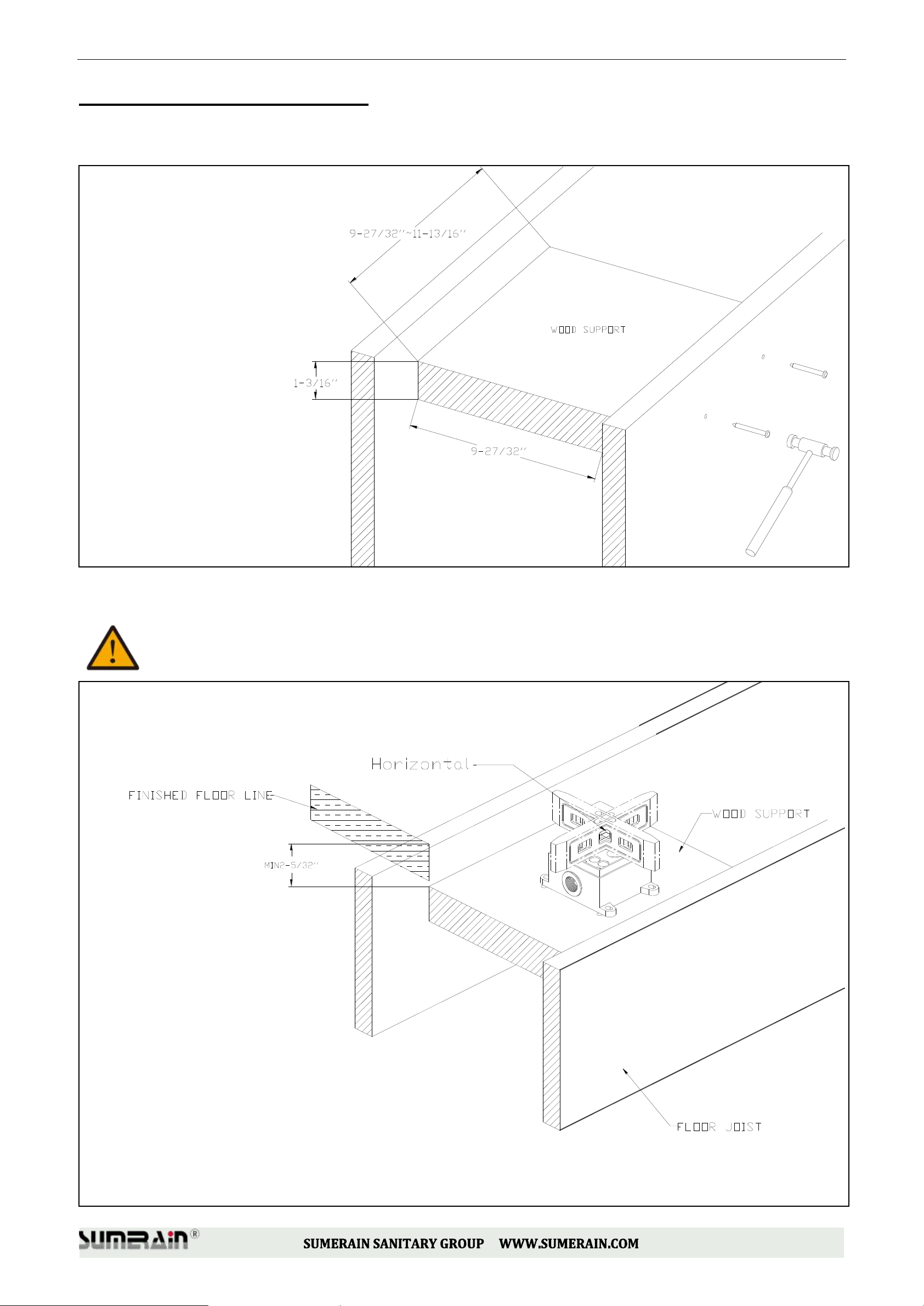

4.1 INSTALL TUB FILLER FLOOR SUPPORT

4.1.1 Adequate floor support is required. The wood support must be a minimum of 1-3/16" (30 mm) thick by 9-27/32"

(250 mm) wide. 2”x6” lumber is not adequate for this application.

4.1.2 Locate wood support between floor joists keeping a minimum distance of 2-3/4" (55 mm) and recommend max distance of

3-11/32”[85mm] from the top surface of wood support to the finished floor.

IMPORTANT:
Use a bubble level to level the wood support. The wood support must be perfectly level. Secure wood support to floor
joists. Check for level again.

Cold

Hot

Cold

Hot

NPT 1/2 to G1/2
adapter(optional)

NPT 1/2 to G1/2
adapter(optional)

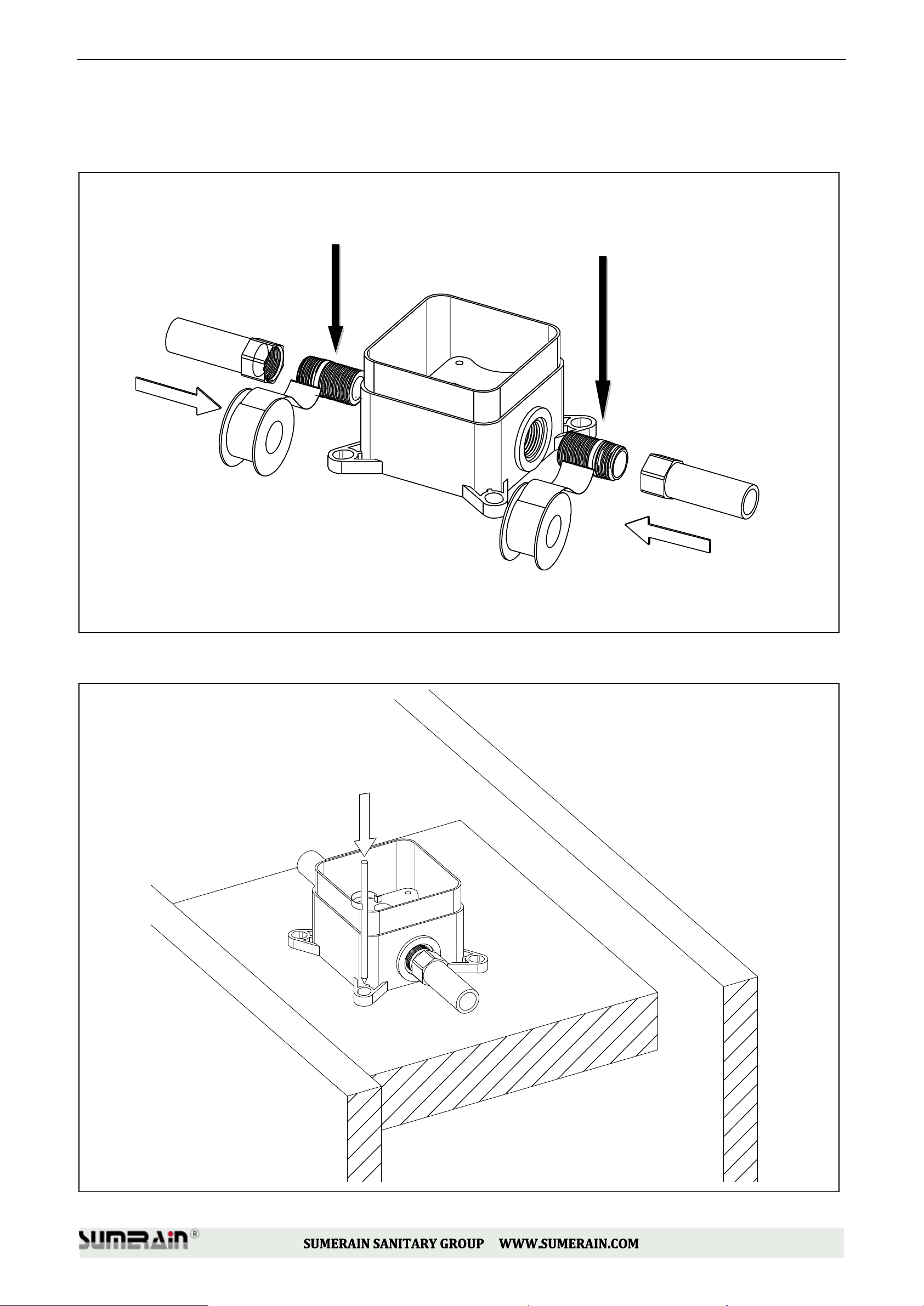

4.2 INSTALL HOT AND COLD WATER SUPPLIES.

Apply sealing tape to threaded connections. Thread supply assemblies into rough-in valve inlets. The Hot inlet will be on the left
when facing the front of the Tub Filler.

Note: （1）The Hot and Cold inlets are marked on the concealed box.
（2）G1/2 Male to NPT 1/2-14 Male adapter may be required in North America.

4.3 Locate the position on the wood support where the rough-in valve will be installed. Use the rough-in valve as a guide to mark the

four mounting holes locations.

Cold

Hot

Cold

Hot

Cold

Hot

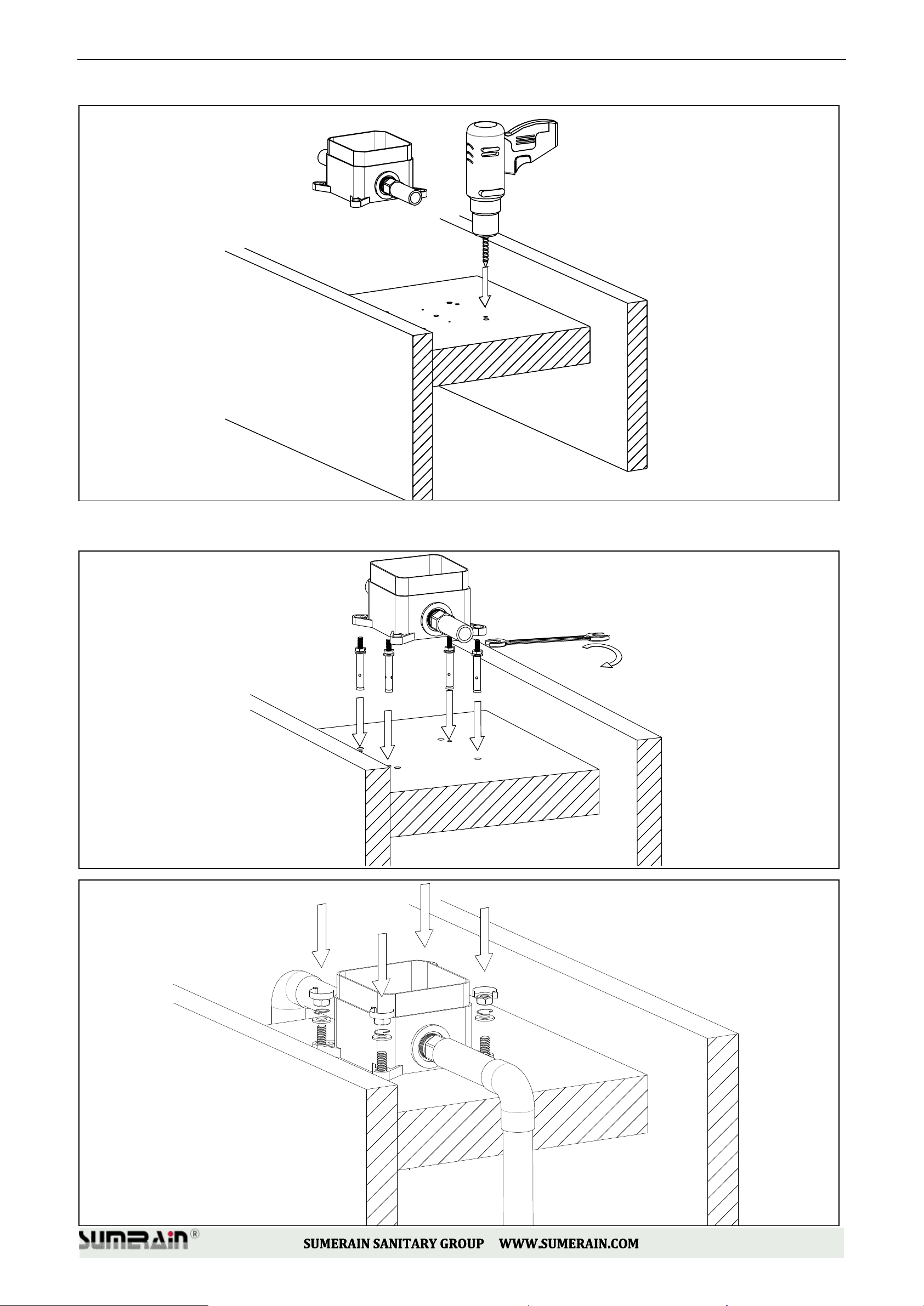

4.4 Drill four pilot holes of 13/32" [10 mm] in diameter

4.5 Install the 4 mounting screws into wood support and install rough-in valve onto the 4 mounting screws and tighten nuts &

washers supplied

Cold

Hot

Cold

Hot

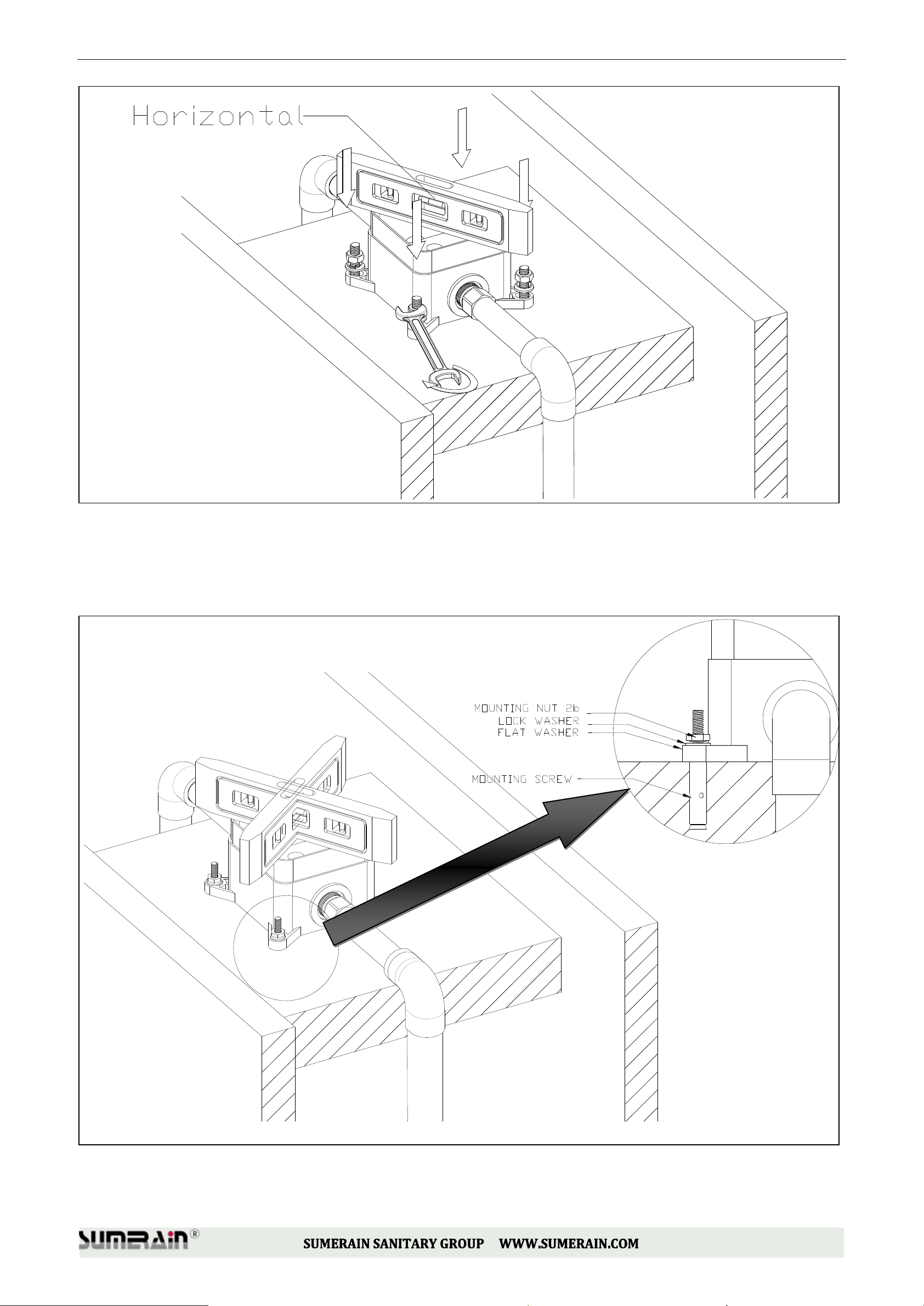

4.6 LEVEL ROUGH-IN VALVE(CONCEALED BOX)

Check that top of the rough-in valve is level in all directions. If the rough-in valve is not level follow the steps below.

(1) Loosen the four mounting nuts(2b).
(2) Adjust until the concealed box is level in all directions.
(3) Tighten the four mounting nuts(2b)

Verify that the concealed box is level and then fully tighten nuts before next step.

Cold

Hot

Cold

Hot

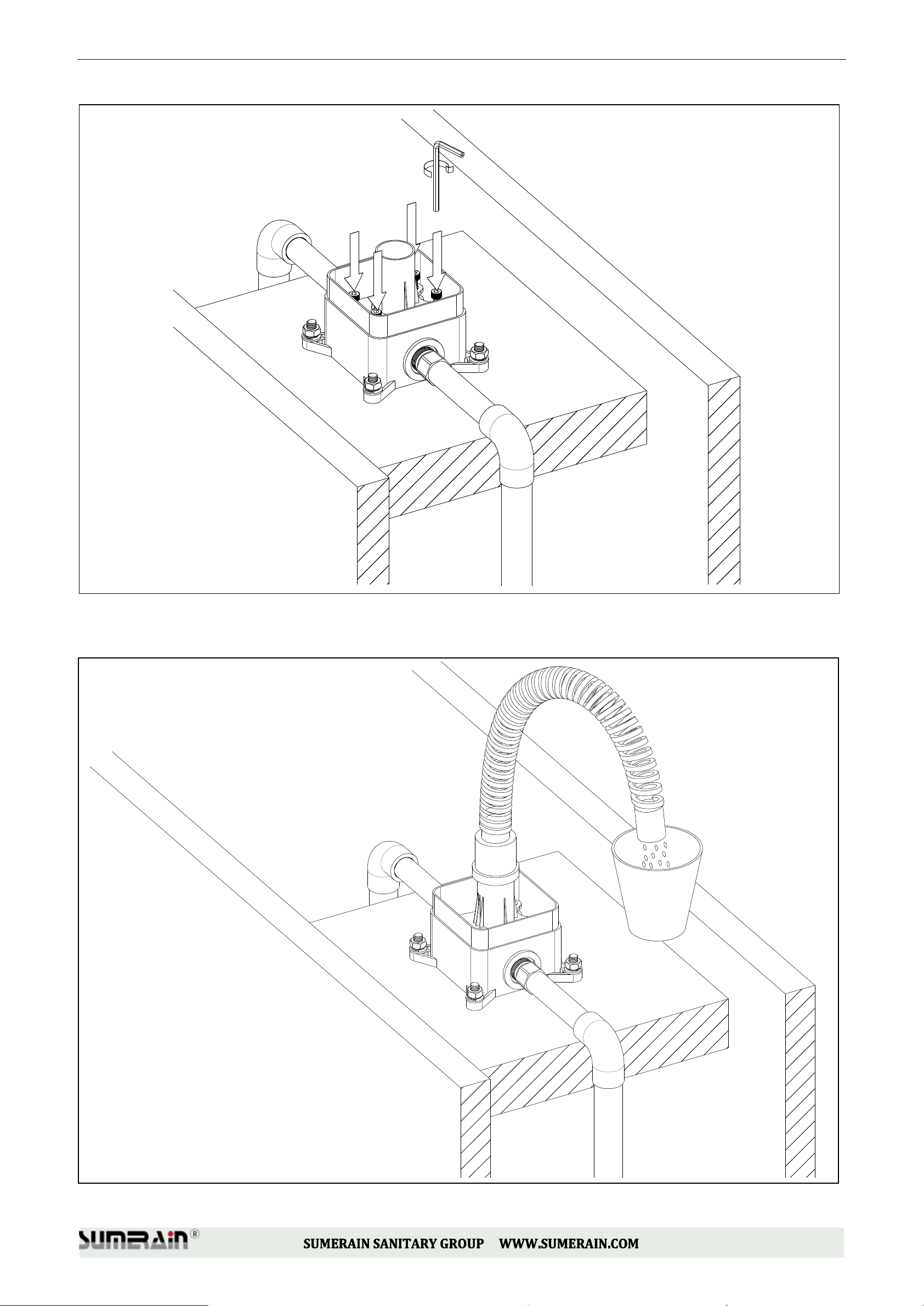

4.8 Install the Drain Pipe Adapters with the inner hexagon screw.

4.9 Connect the supplied Drain Pipe to Drain Pipe Adapters and turn on the water supplies to flush 3~5 minutes to flush out dirt and

debris.

Cold

Hot

Cold

Hot

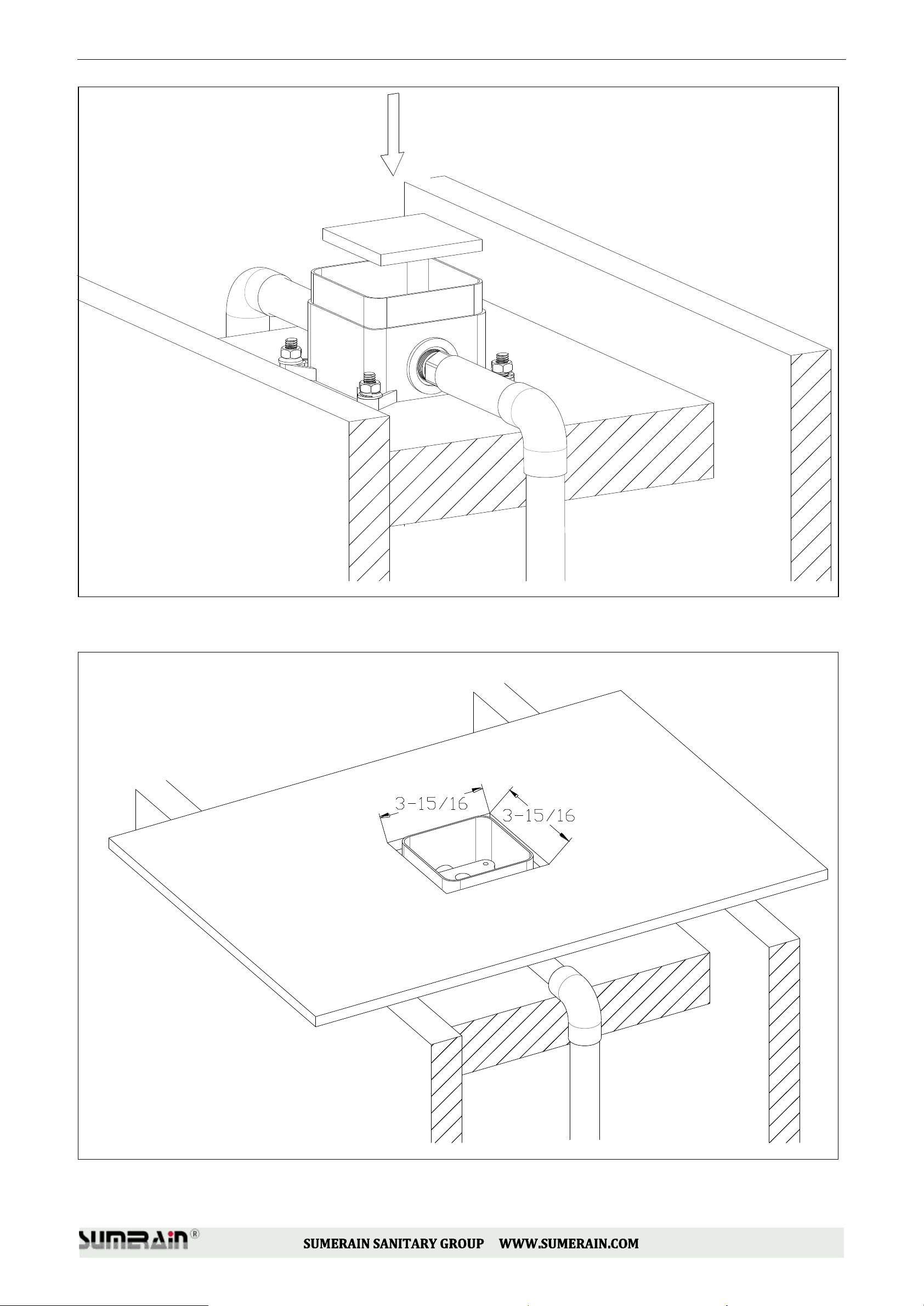

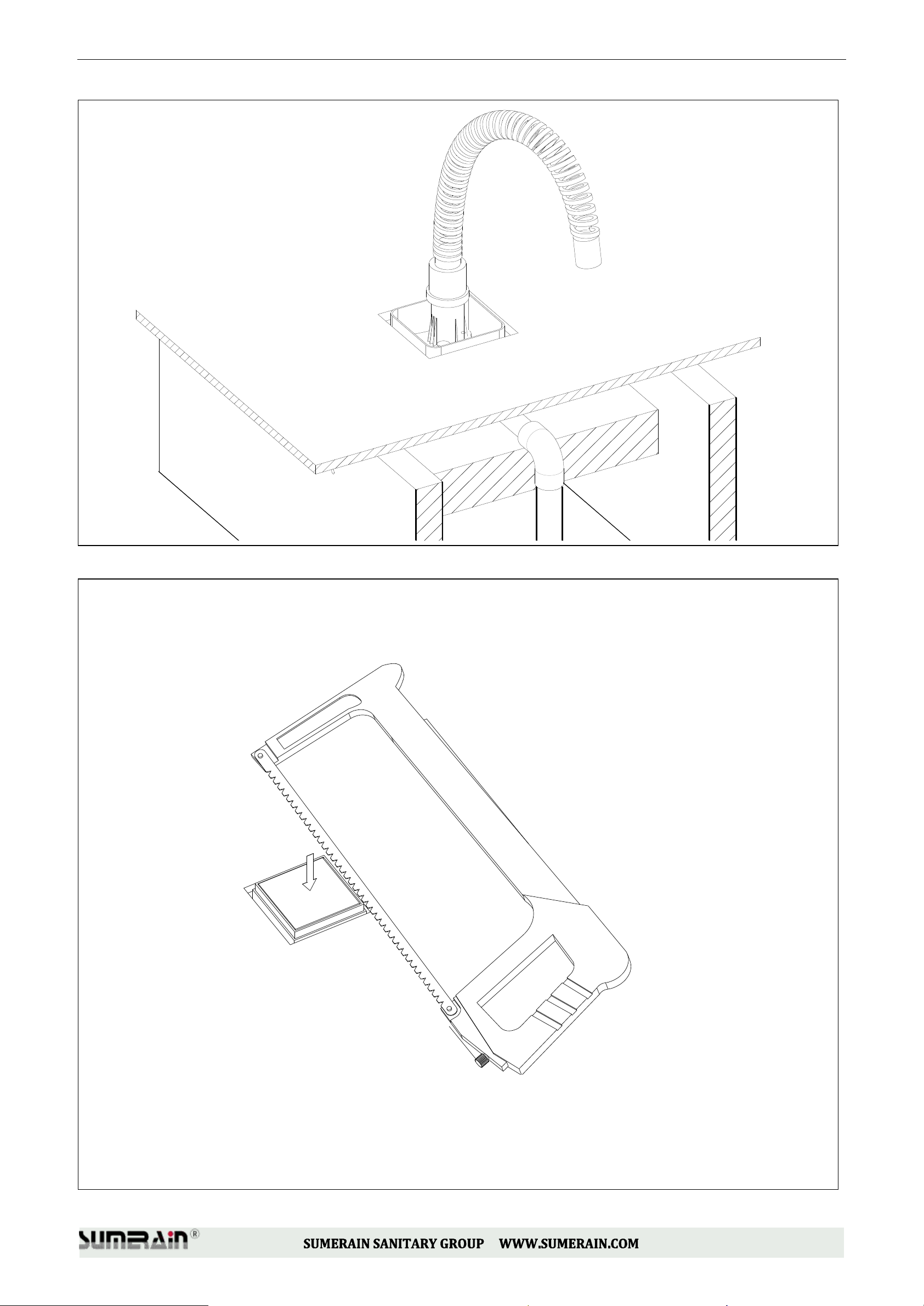

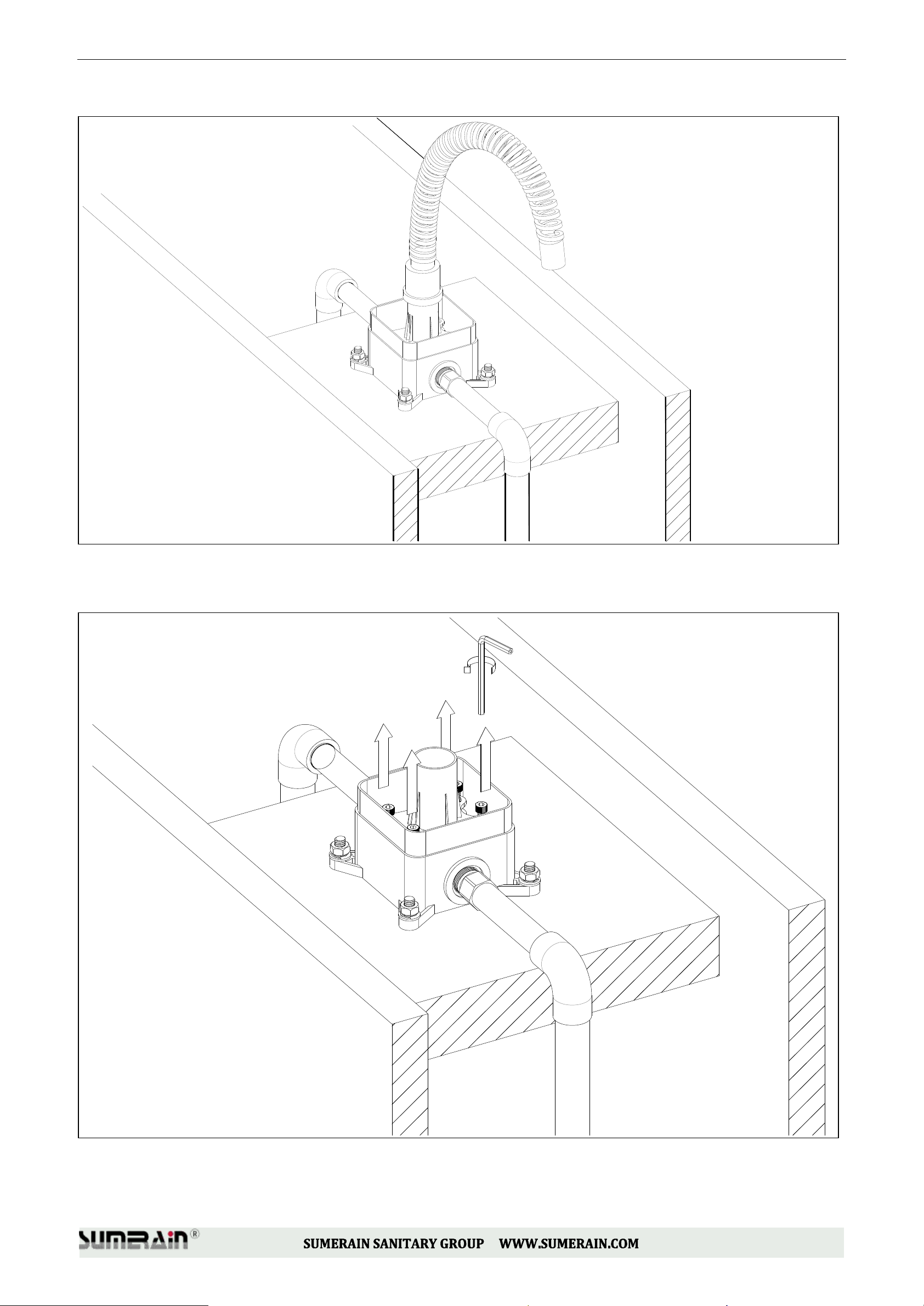

5.0 (a) Shut off the water supply and keep the Drain Pipe on Drain Pipe Adapters for dust-proof during further installation.

(b) Optional Step : Remove the Drain Pipe Adapters and cover the conceal box with dust cover(not provide)

Cold

Hot

Cold

Hot

5.1 Done the finished floor.

5.2 Cut excess section of concealed box above the finished floor if necessary.

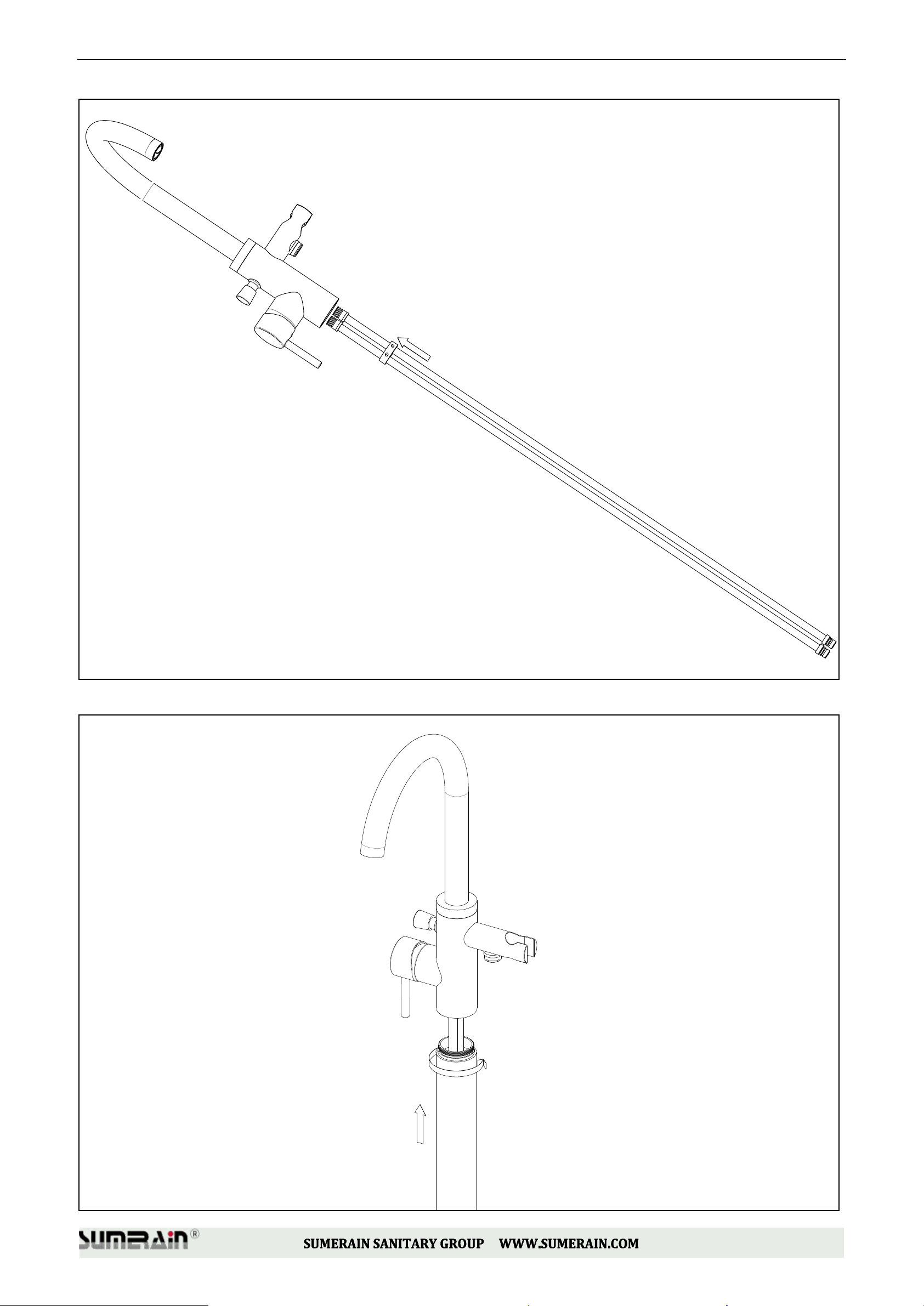

5.3 Install the Hot/Cold Brass Supply riser to faucet body assembly.

5.4 Install the standpipe to faucet body assembly.

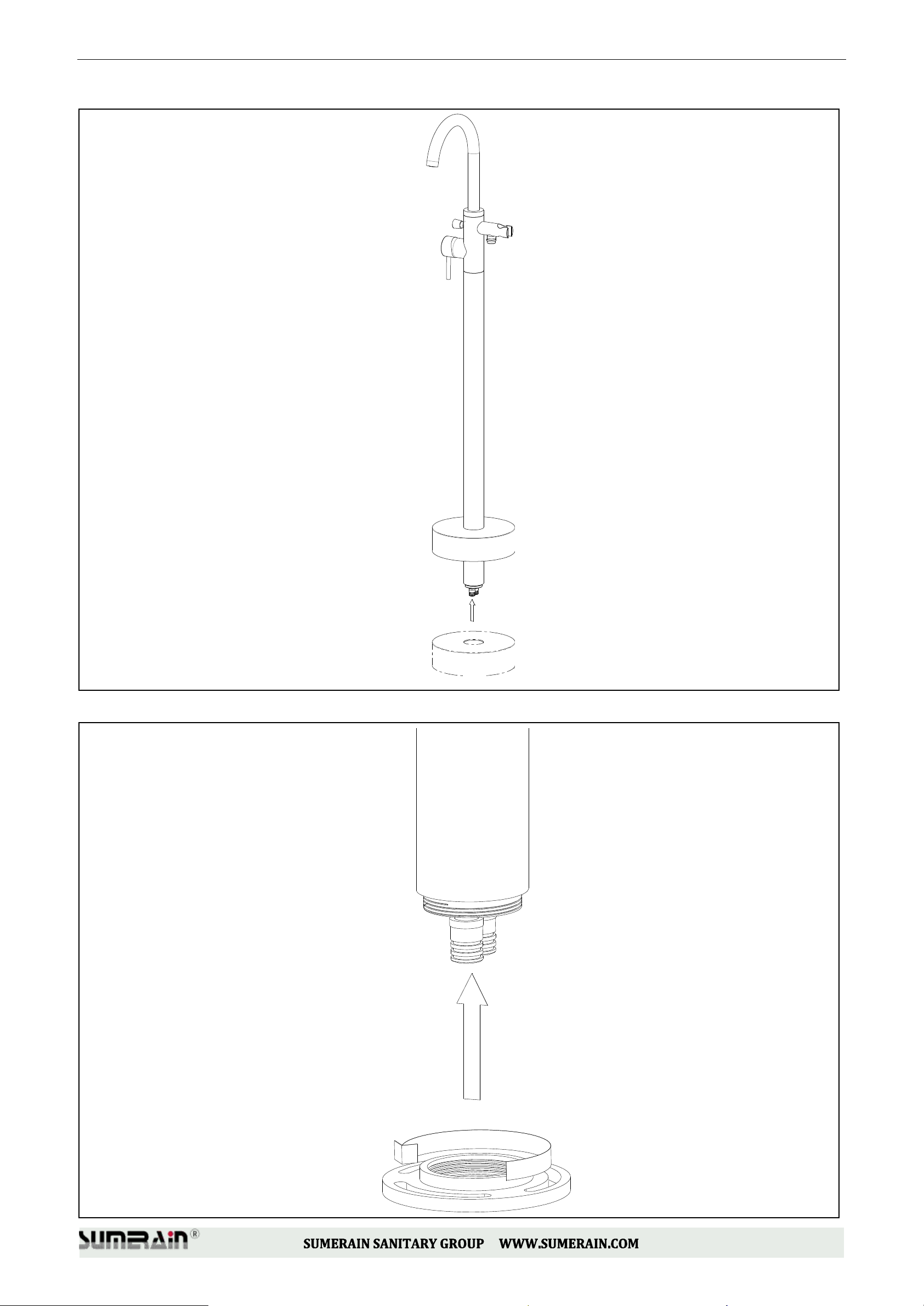

5.5 Place the escutcheon over the standpipe.

5.6 Install the mounting base to standpipe and fasten it.

Cold

Hot

5.7 Remove the Drain Pipe Adapters and the Drain Pipe or the dust cover from the concealed box.

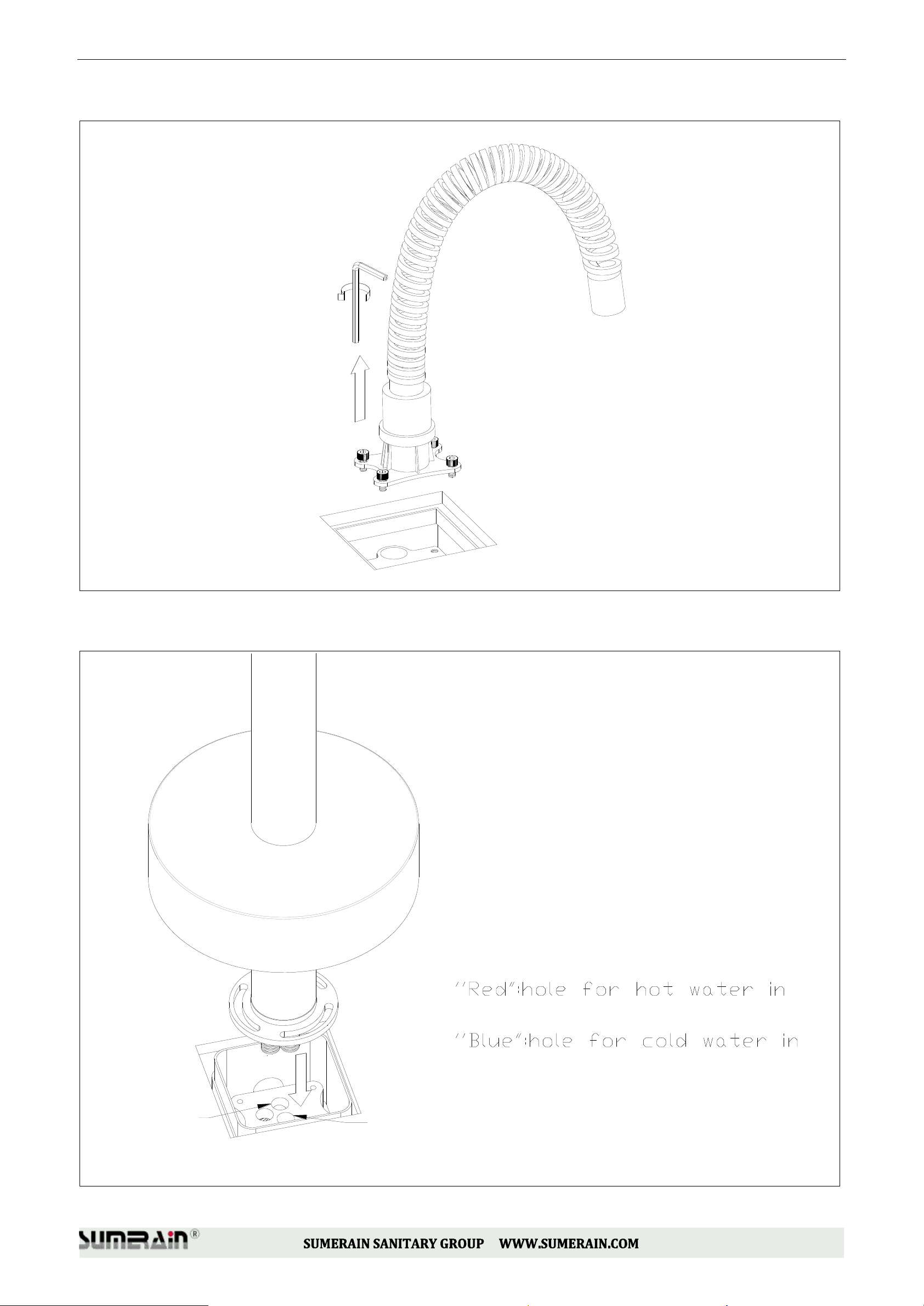

5.8 Align the hot&cold water brass risers and insert into the rough-in valve.

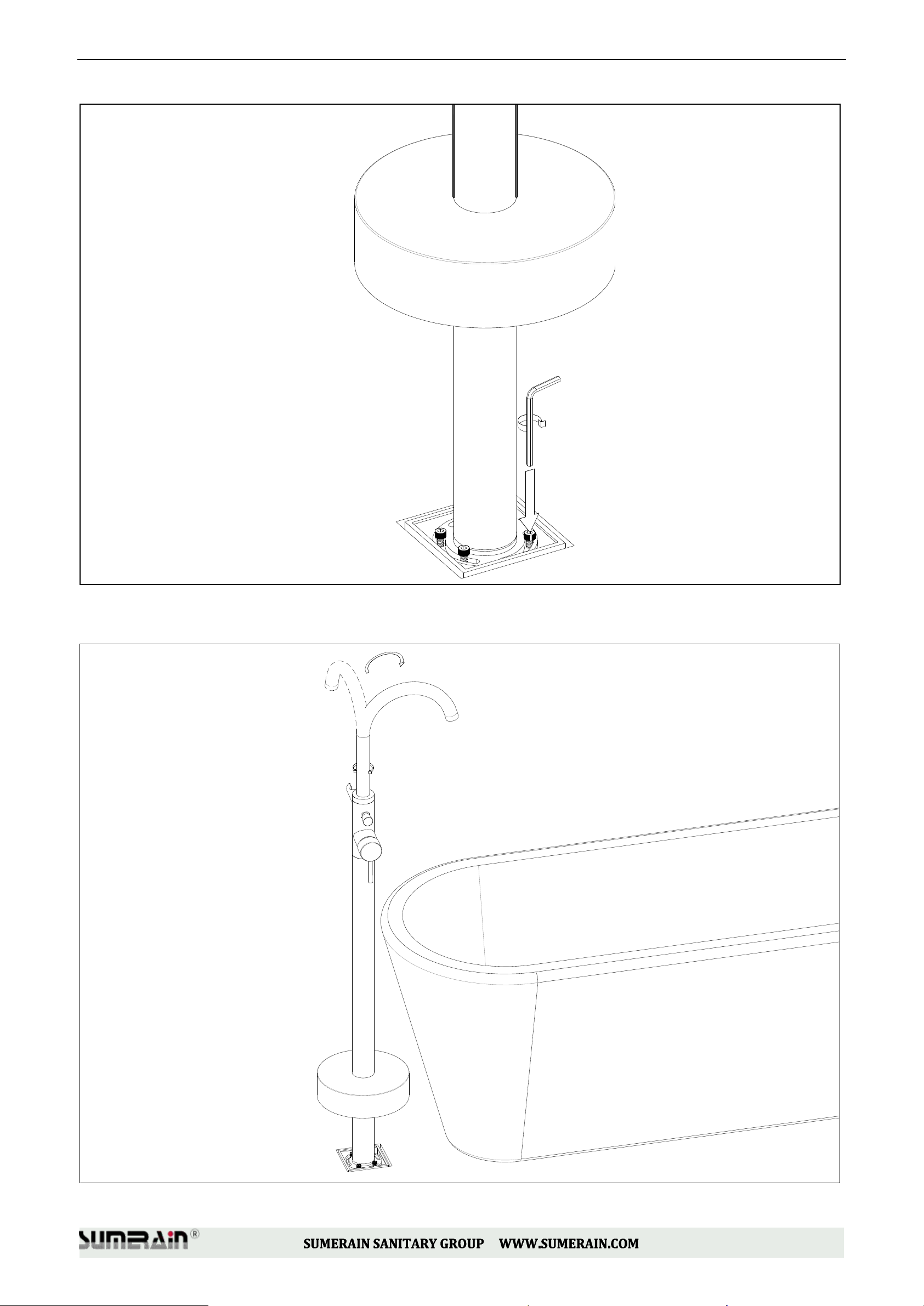

5.9 Install the mounting screws and fasten them.

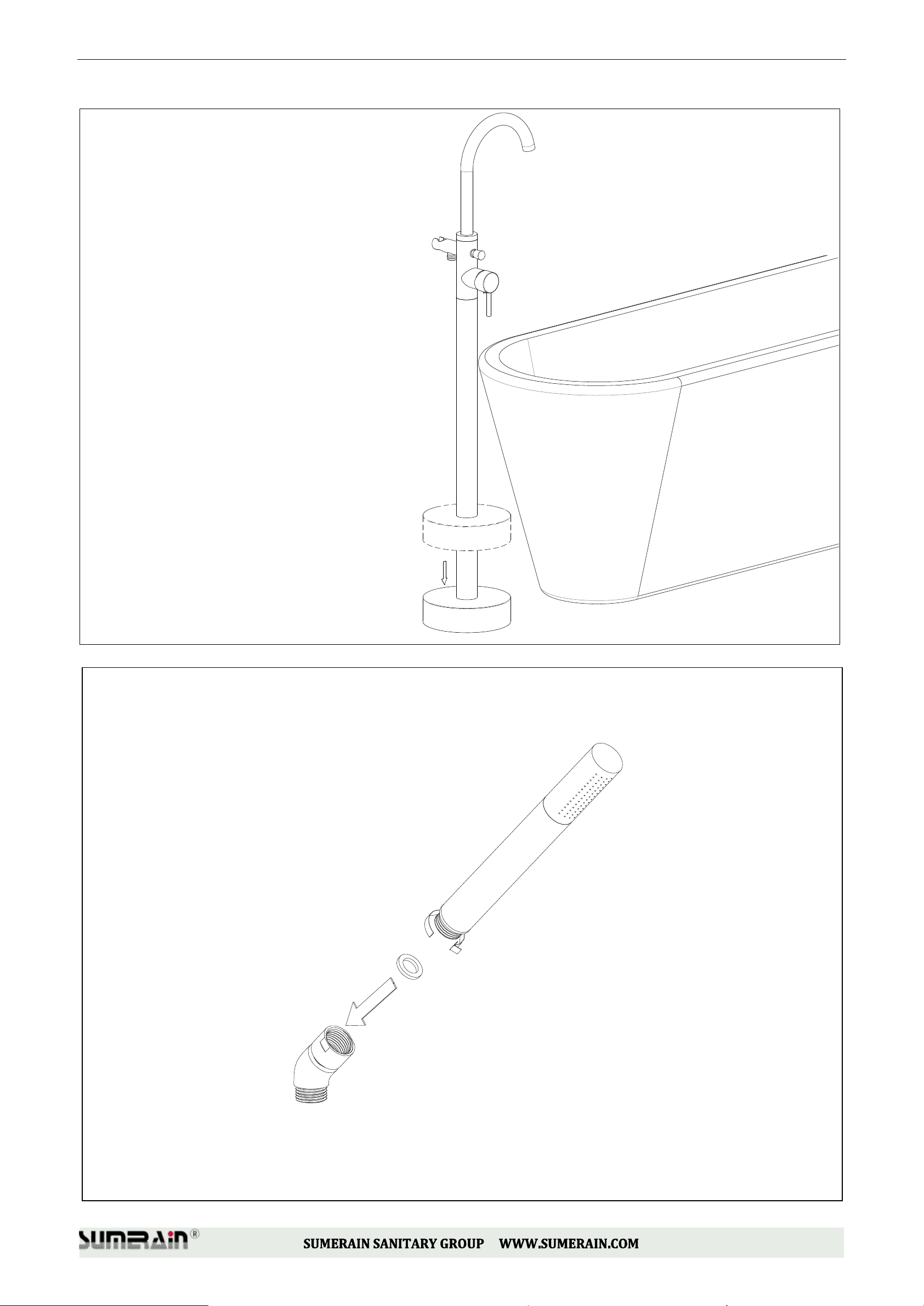

5.10 Adjusting faucet spout to desired direction by rotating spout.

5.11 Plush the escutcheon to the finished floor.

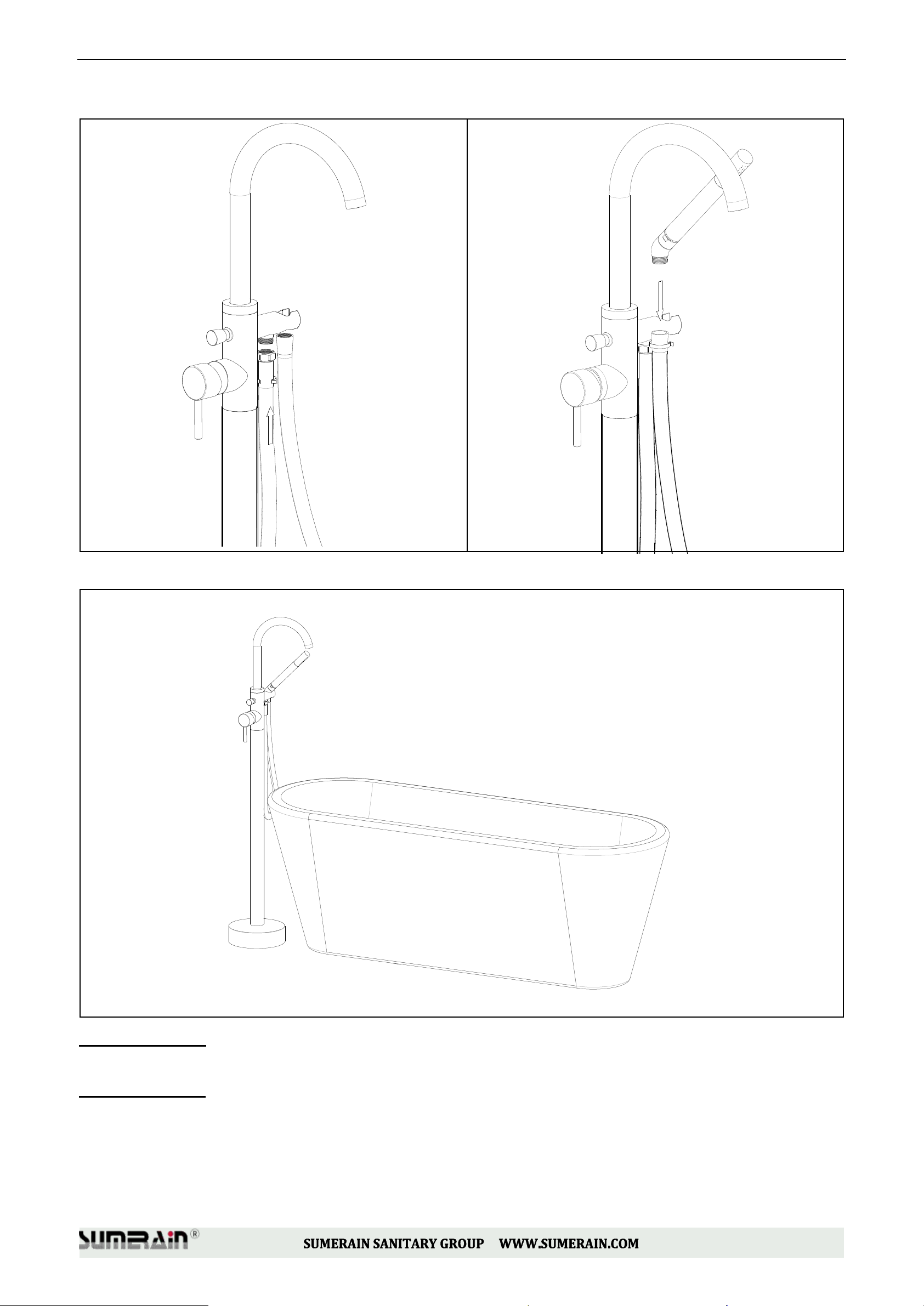

5.12 Install the hand shower to the hand shower adapter.

5.13 Connect one end of the shower hose to the mixer outlet and the other end to the hand shower adapter. Ensure the washer is in

each end for seal.

5.14 Assemble finished.

6. INSPECTION

6.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere.

INSTALL FINISH

Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with
regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.

Cleaning Materials for faucets and showers

Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when
cleaning faucets and showers:

■ Only use cleaning materials which are explicitly intended for this type of application.

■ Never use cleaning materials which contain hydrochloric, formic, phosphoric, or acetic acid, as they cause considerable damage.

■ Never mix one cleaning material with another.

■ Never use cleaning materials or appliances with an abrasive effect, such as unsuitable cleaning powders, sponge pads, or micro

fiber cloths.

Cleaning instructions for faucets and showers

Please follow the cleaning material manufacturer's instructions. In addition, pay attention to the following points:

■ Clean the faucets and showers as and when required.

■ Use the amount of cleaning product and the amount of time recommended by the manufacturer. Do not leave the cleaner on the

fixture longer than necessary.

■ Regular cleaning can prevent calcification, if scale deposits are noticed on the faucet surface or the spout, you can clean it by a

commercial limescale remover, such as Lime-Away® or CLR®.Dilute the remover according to the label instructions.

■ The faucets might have some rusty if your faucet under hard water condition, please rub it with aluminum foil dipped in water until

the surface is nice and smooth, and wipe it use a small amount of chrome polish or maybe something like car wax(such as
Meguiar®,Turtle Wax®) or polish.

■ For stainless steel faucet and spout both made of solid stainless, normally this finish has not protective coating on it(in particular

waterfall spout inside),stainless steel is by its material nature very tarnish resistant, but by no means tarnish or stain proof. This
finish might oxidize naturally over time and react to its environment. Keep your stainless fixture wiped clean and dry and use only
a cleaner specifically made for stainless steel (such as Weiman®, CLR®).

■ When using spray cleaners, spray first onto a soft cloth or sponge, never spray directly onto the faucet as droplets can enter

openings and gaps and cause damage.

■ After cleaning, rinse thoroughly with clean water to remove any cleaner residue.

Important

Residues of liquid soaps, shampoos, and shower foams can also cause damage, so rinse with clean water after using.

Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage.

Components with damaged surfaces must be replaced or injury could result.
Damage caused by improper treatment is not covered under the warranty.

HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED

Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK,

KL,HONGKONG
Factory Address:

Floor 3th,No.2 ZhongXing Road,ShuiNuan City Industrial Zone,Shuikou town, Kaiping City,
Guangdong Province,
China

U.S. Support line: [phone]
Factory Tel: [phone]
Web: http://www.sumerain.com
E-mail: [email protected]
