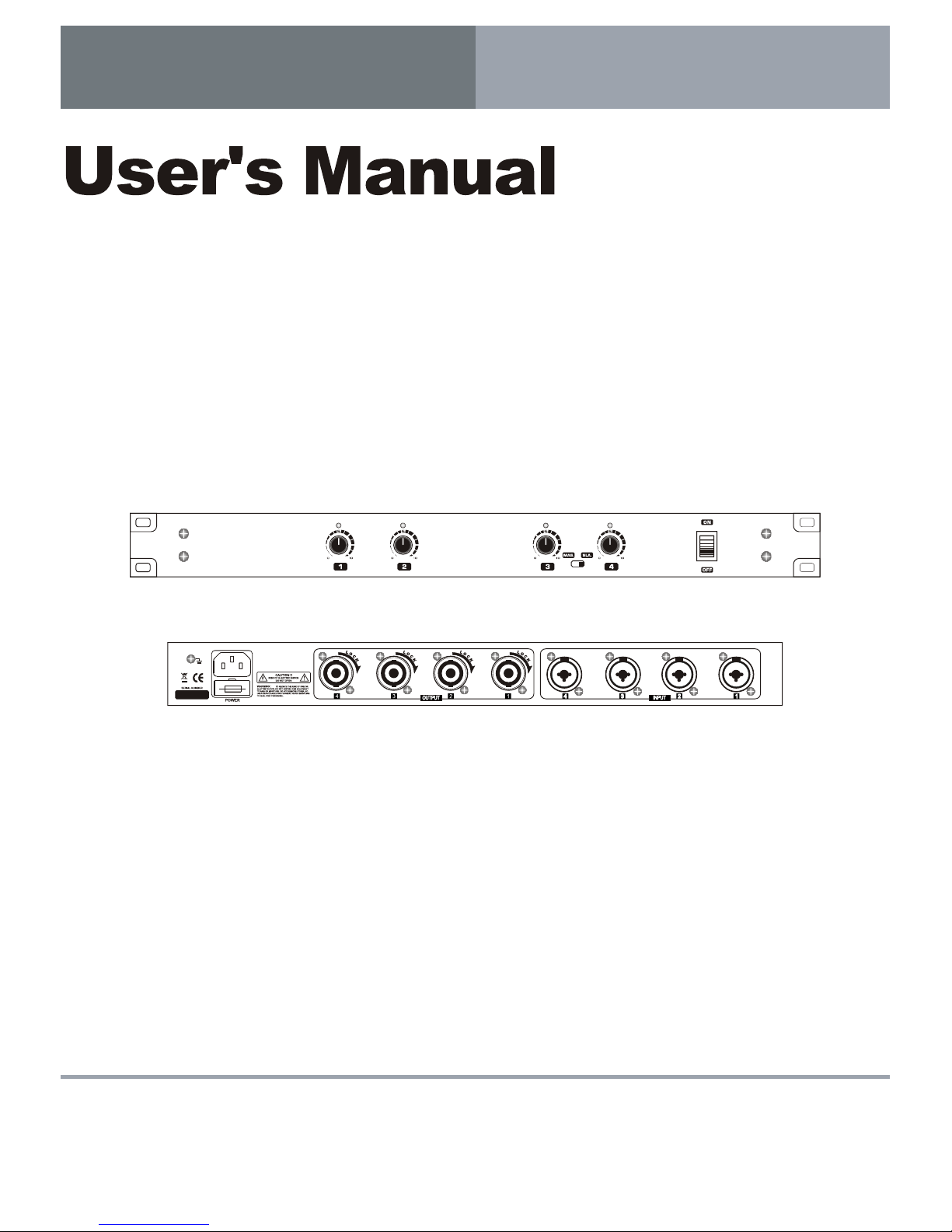

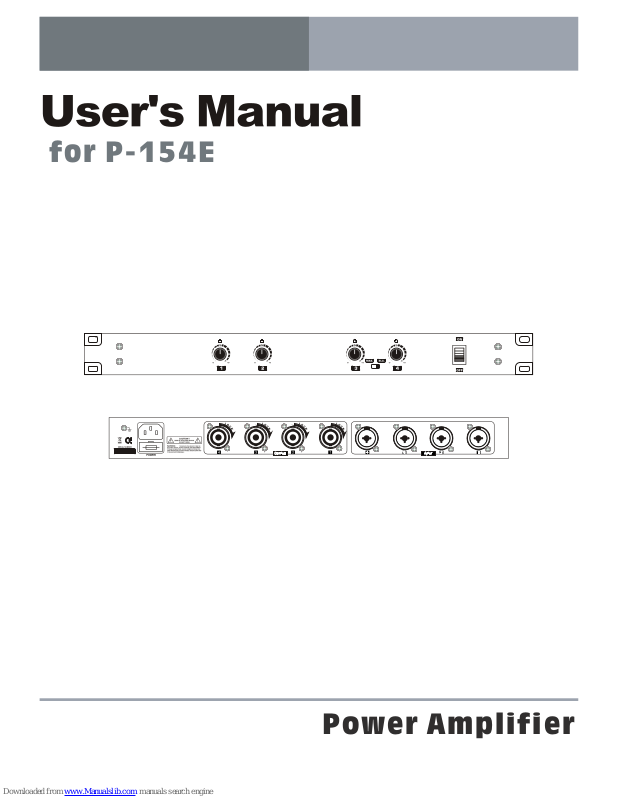

Power Amplifier
for P-154E
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases,
shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall
remain readily operable.
Warning : the user shall not place this apparatus in the confined area during the operation so that the mains switch
can be easily accessible.
This triangle on your component alert you to the
presence of uninsulated dangerous voltage inside
the enclosure that may be sufficient to constitute a
risk of shock.
This triangle on your component alert you to
important operation and maintenance instructions
in this accompanying liferature.
To reduce the risk of electric shock, do not remove
the top cover (or the tear section). No user serviceable
parts inside, refer servicing to qualified personnel.
CAUTION:
To reduce the risk of electric shock, do not expose
this appliance to rain and moisture.
WARNING:
1. Read these instructions before operating this
apparatus.
2. Keep these instructions for future reference.
3. Heed all warnings to ensure safe operation.
4. Follow all instructions provided in this document.
5. Do not use this apparatus near water or in locations
where condensation may occur.
6. Clean only with dry cloth. Do not use aerosol or liquid
cleaners. Unplug this apparatus before cleaning.
7. Do not block any of the ventilation openings. Install
in accordance with the manufacturers instruction.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus that produce
heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plug, convenience receptacles,
and the point where they exit from the apparatus.
11. Unplug this apparatus during lighting storms or when
unused for long periods of time.
12. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
IMPORTANT SAFETY INSTRUCTIONS

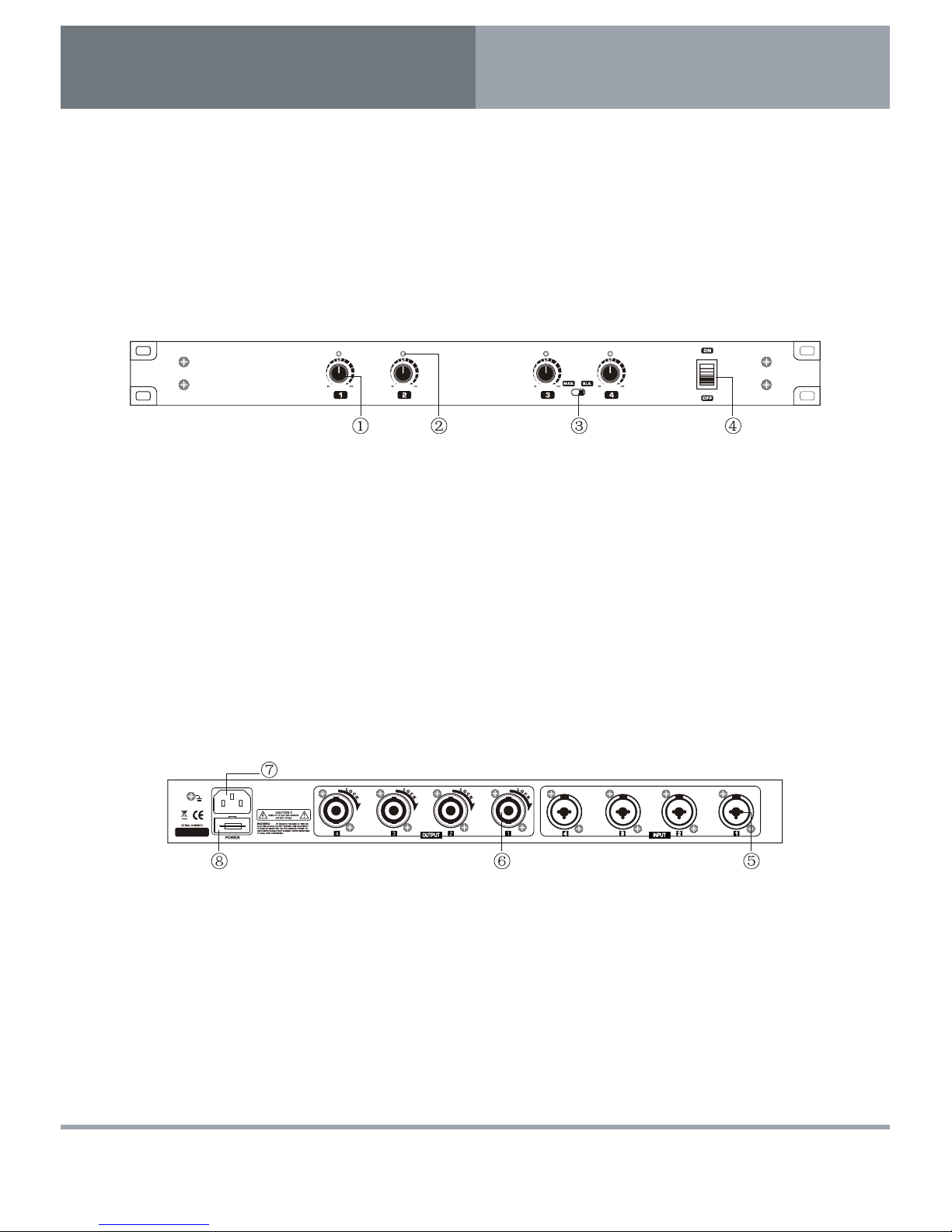

FRONT PANEL
1. When first powering-up the amp, keep the amplifier gain controls all the way off, in order to prevent from being
potentially damaged and from producing annoyed sounds caused by defective cables or hookups. When turning
up gain control, do it gradually, until normal operation is verified. These precautions are necessary with all high power amplifiers, since they have enough power to blow most speakers in abnormal situations.
2. Check the AC Voltage before connectiong the AC plug.
PRECAUTIONS
1. GAIN CONTROLS KNOB
CSR154 has a level control knob for four channel respectively. Turning clockwise will increase its gain, and
counter-clockwise will reduce its gain. Please always power-up with the volume all the way down, and increase
volume slowly to make sure that no conditions what so ever could annoy your audience or harm your speakers.
2. SIGNAL INDICATOR
Each channel of the CSR154 features a signal LED for showing an audio signal at the input to the channel.
3. MASTER / SLAVE SWITCH
Always take slave mode, input signal as input 1 and 2, there are four output.
4. Power switch and indicator
Turn on this unit with this power On / Off switch, and the power indicator will illuminate immediately. Always
start with gain control all the way down before powering-up to avoid abnormal sound from defective cables
or hookups.
BACK PANEL
5. CH 1 / CH2 / CH3 / CH4 INPUT
Connect your source to either the XLR or 1 / 4" phone jack, which are commonly used for both mobile and istallation
set-ups.
6. OUTPUT
This product has Speakon Speaker outputs, so you can use speaker cables with Speakon connectors. These locking
connectors are easy to attach and are capable of handling high currents and low impedance loads.
7. POWER
This is where you connect the AC linecord to provide AC power. Plug the linecord into an AC socket properly configured
for your particular model.
8. FUSE HOLDER
When occur a problem on this appliance, the fuse will be cut off power to prevent from a problem. To replace, use stan dard fuse as specified on this appliance.

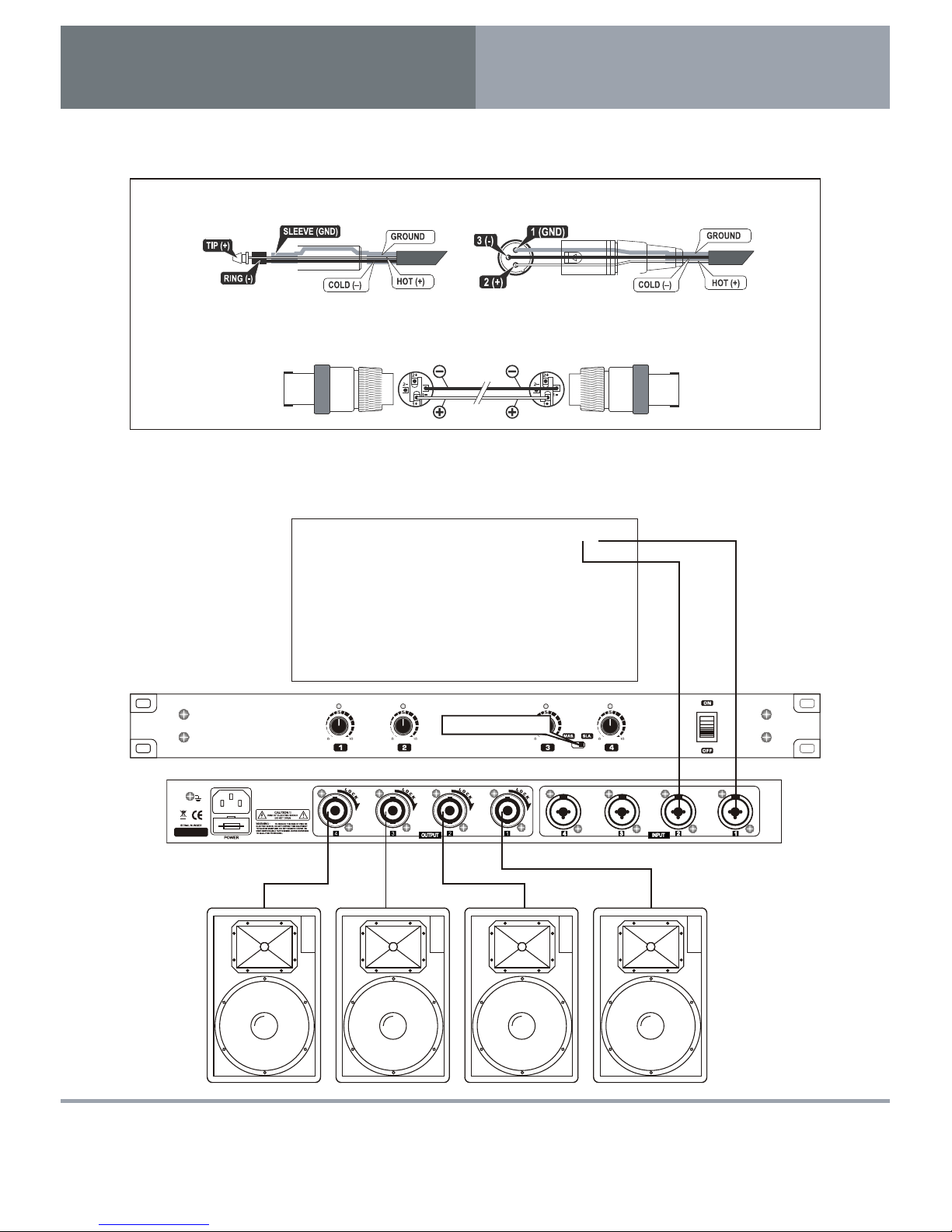

CONVENTION OF INPUTS AND OUTPUTS
The XLR inputs wired1 / 4" phone jacks inputs wired
speakon outputs wired
APPLICATION
1. SLAVE MODE
MIXER
SLAVE MODE

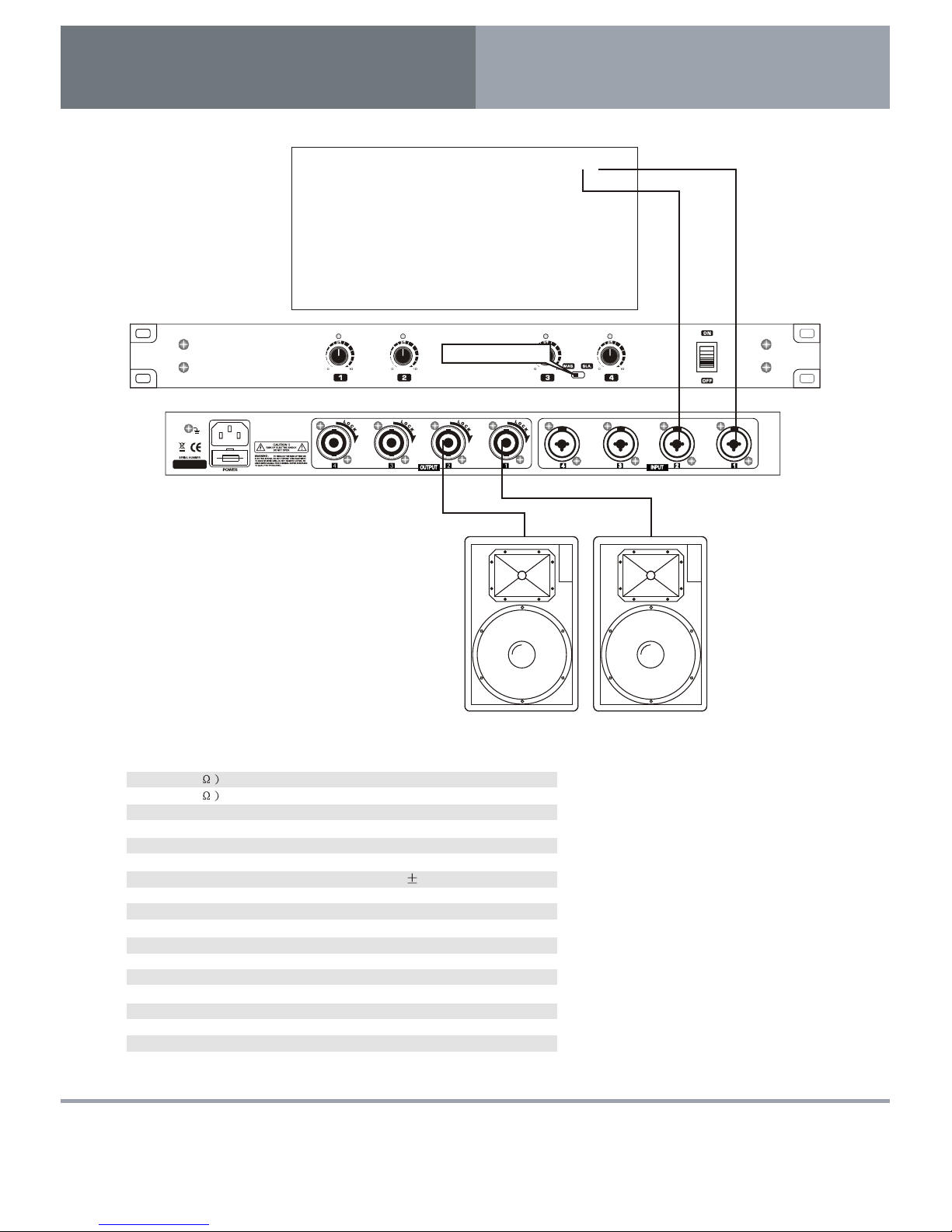

1. MASTER MODE
MIXER
MASTER MODE
SPECIFICATION
Output (8 RMS
Output (4 RMS
THD
Signal to Noise Ratio
Damping Factor
Frequency Response
Input Impedance
Input
Output
indicators
Front Panel Control
Rear Panel Control
Power Requirment
Dimensions (W x H x D)
Weight
150 W x 4CH
250 W x 4CH
4 Ohms 1 kHz 0.5% THD 250W
8 Ohms 1 kHz 0.5% THD 150W
unweighted 20-20kHz -98dB
>200 @ 8 Ohms
20Hz~20kHz 0.5dB
20 K Ohms balanced,
10 K Ohms unbalanced
XLR, 1 / 4" TRS
4-pole, 1+, 1SIGNAL: Green LED
CH1, CH2, CH3, CH4
SPEAKON
120V / 60Hz, or 230 V / 50Hz
depends on different regions
483x44.5x34.5 (mm)
3.6 Kg
