Suhr SL-68 User Manual

SL-68™ HAND WIRED

USER GUIDE

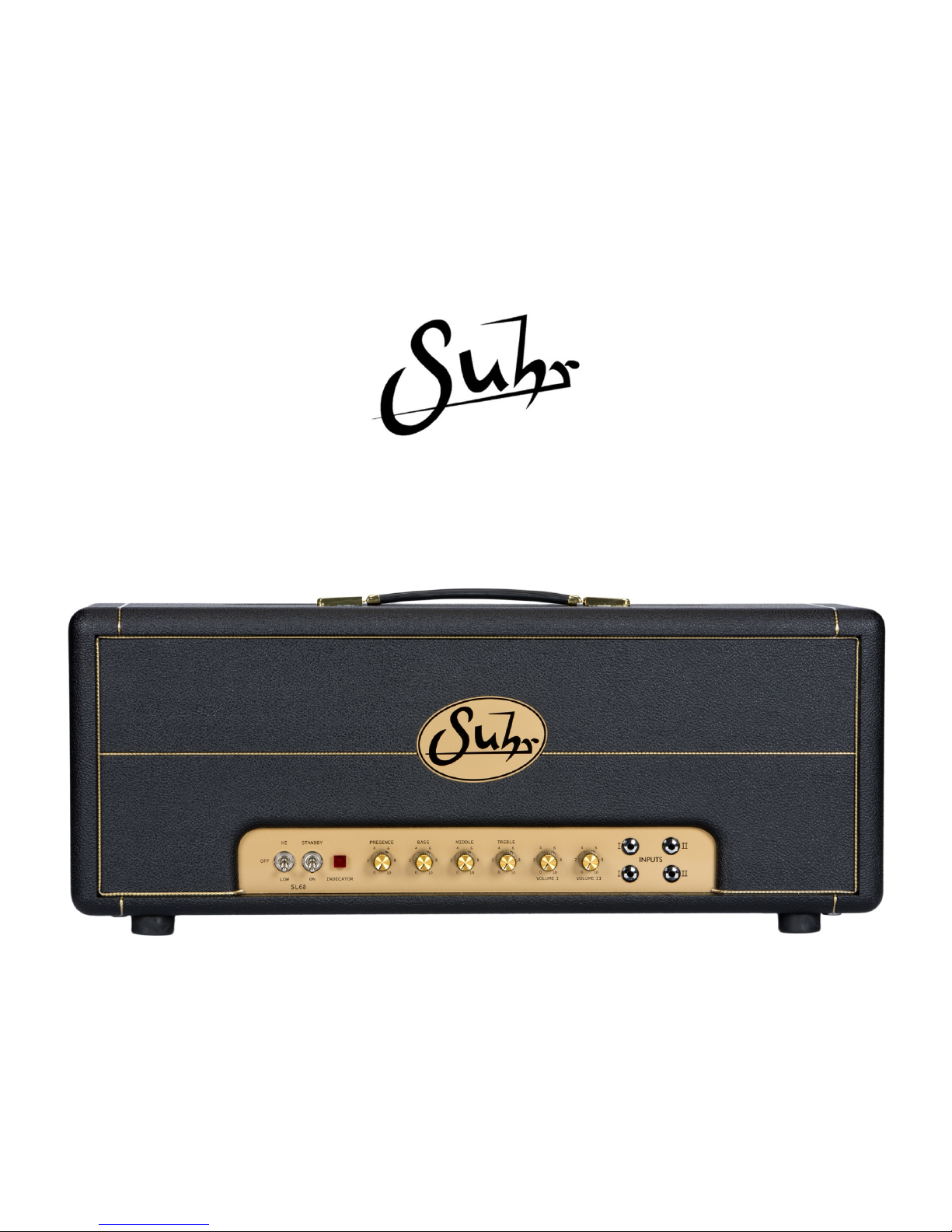

SL-68 Hand Wired Amp

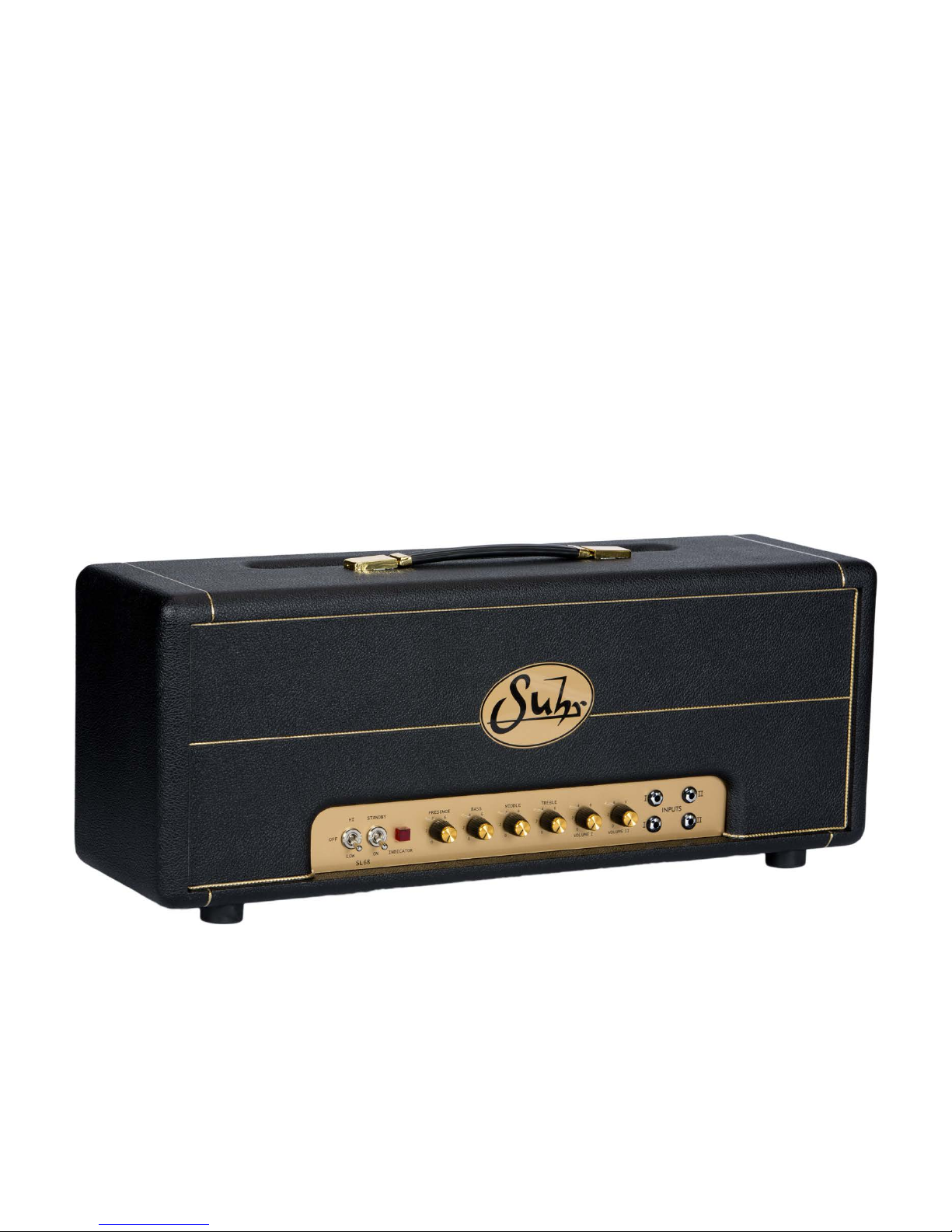

Each SL68 amp features hand wired construction, four EL-34‘s (which deliver 100 watts),

four inputs, two channels, a Low Power switch, Master Volume control, and delivers a wide
range of classic and modern tones.

From warm and sparkling cleans, to high-gain *Variac™style overdrive tones, the SL68 is the
foundation of great rock tones!

*Variac is a trademark of ISE, Inc.

Presence:

Adjusts the amount of high frequencies. Turning it clockwise will

add more cut and sparkle.

Bass:

Adjusts the amount of low end. Turning it clockwise increases the

amount of low frequencies, giving you a fuller tone. Turning it

counter clockwise will reduce the effect and tighten up the bottom-

end, useful when performing at louder volumes.

Middle:

Adjusts the midrange. Turning it clockwise increases the amount

of mids, giving your tone a fatter response. Turning it counter

clockwise will produce a mid-scooped sound.

Treble:

Adjusts the top end. Turning it clockwise increases the amount of

treble, giving your tone clarity and brightness. Turning it counter

clockwise will produce a warmer sound, excellent for dialing in

smooth fluid-like lead tones.

Vol ume I:

Adjusts the overall output level of Channel I.

Vol ume II :

Adjusts the overall output level of Channel II.

Offers the following three-positions:

OFF: Power is switched off

HI: On, normal operation

LOW: Changes the SL-68’s feel from tight and aggressive to

spongy with a smoother attack, excellent for solo playing.

NOTE: Dimming of the power indicator light in LOW mode is normal.

Stand-By:

With the Power switch in the OFF position and the Standby switch

in the Standby position, flip the power switch to ON. Wait sixty

seconds, then flip the Standby switch to the ON position.* To power

down, simply switch the power switch to the OFF position.

* This will prolong tube life.

NOTE: To avoid loud popping or damage, ensure the amplifier is in the Standby position.

Power Selector Switch:

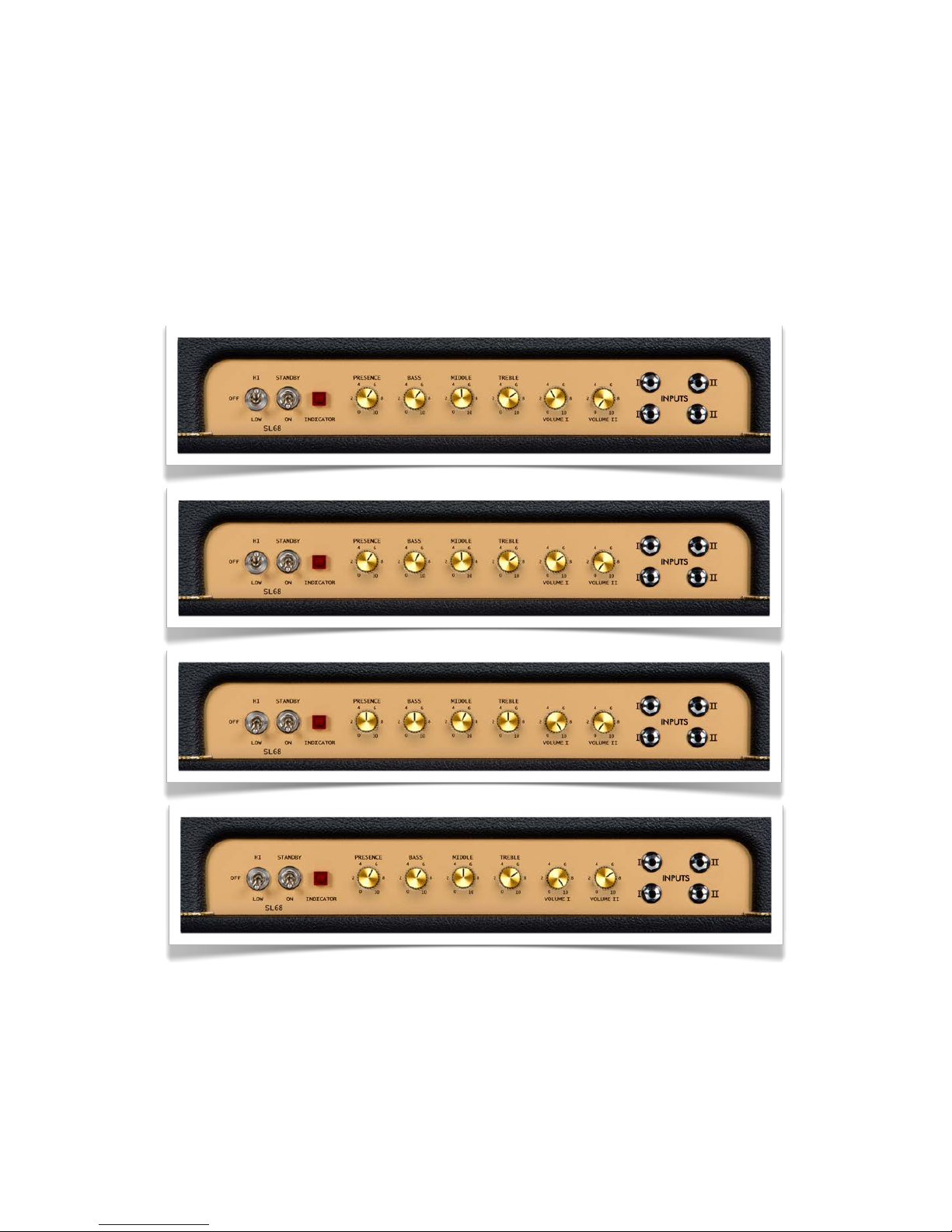

TONE CONTROLS

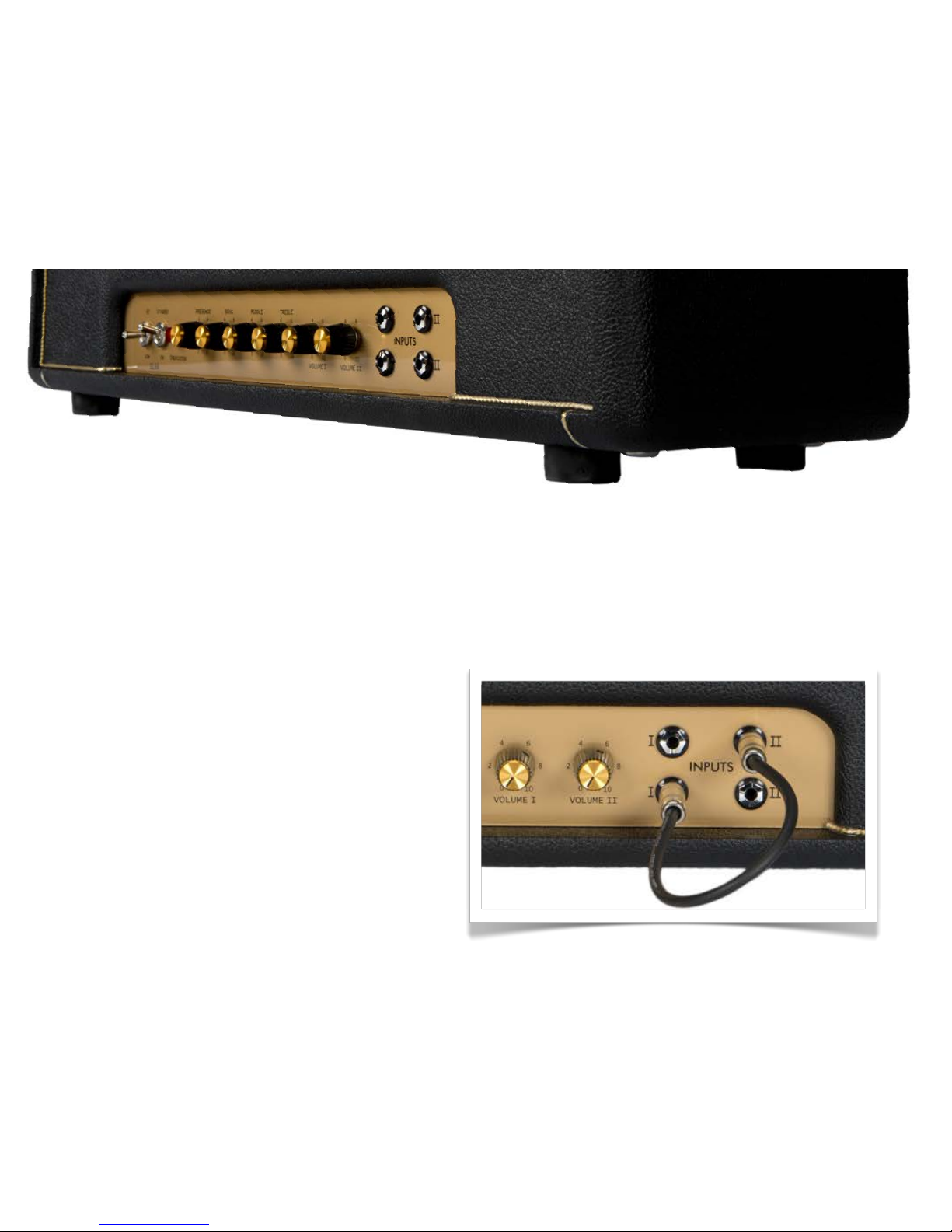

Bridging or Jumping the Channels

Bridging or Jumping the channels will unlock a palette of sounds and

expand the SL-68’s possibilities. Begin by plugging your guitar into

the top (high sensitivity) input of Channel I, then run a short

instrument patch cable from Channel I’s bottom (low sensitivity) input

to the top (high sensitivity) input of Channel II, then blend Volume I

and Volume II controls to dial in a wealth of new and unique tones.

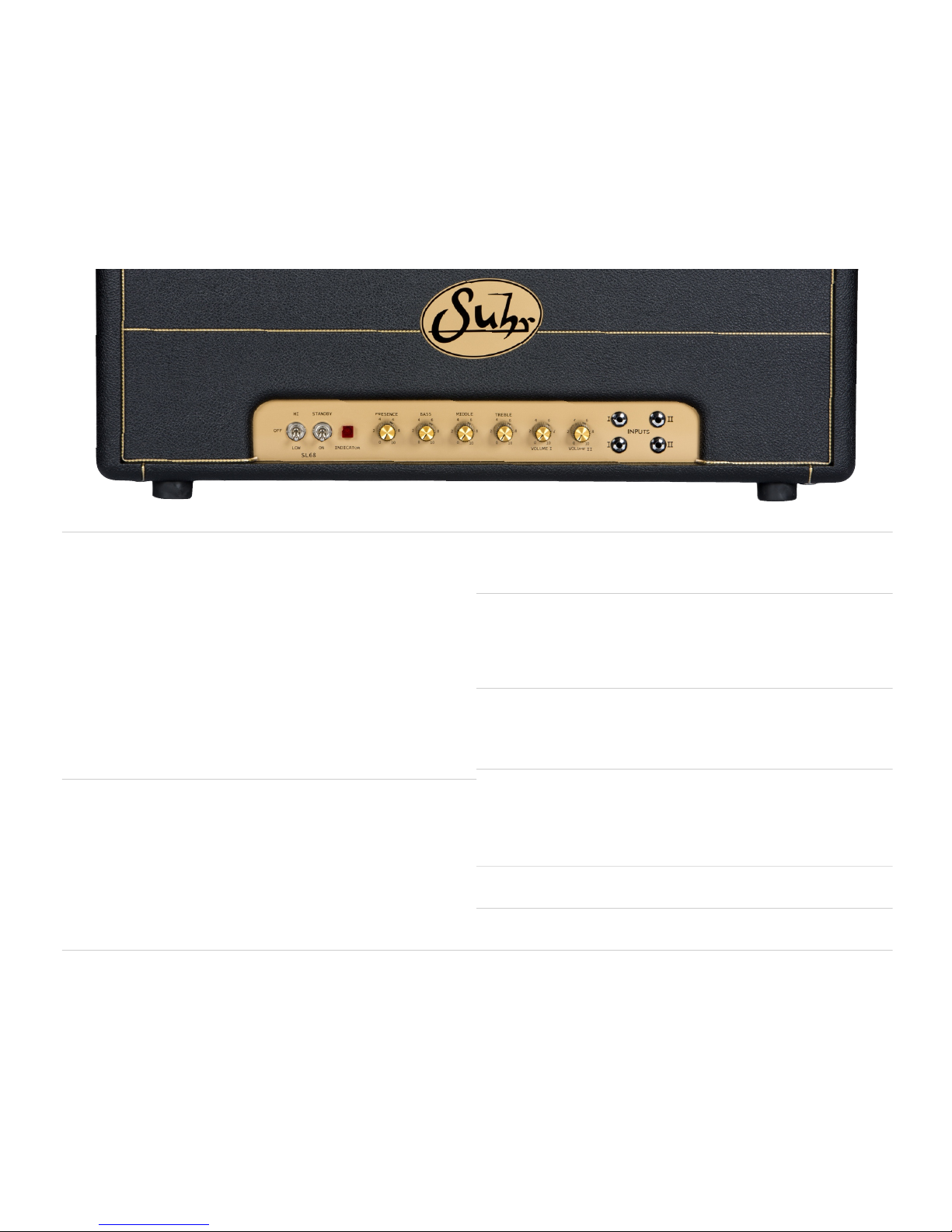

Channel I Input (top)

Has a high sensitivity and voiced brighter than Channel II.

NOTE: This input is most commonly used.

Channel I Input (bottom)

Has low sensitivity and offers a slightly warmer tone.

Channel II Input (top)

Has high sensitivity and offers a normal/bassier tonal response.

Channel II Input (bottom)

Has low sensitivity and a normal/bassier tonal response.

INPUTS

Master Volume:

Adjusts the SL-68‘s overall output level and offers the flexibility to dial up rich, high-gain overdrive at any volume.

Tub es

The SL-68 tube compliment consists of four EL-34 power tubes and three12AX7 preamp tubes.

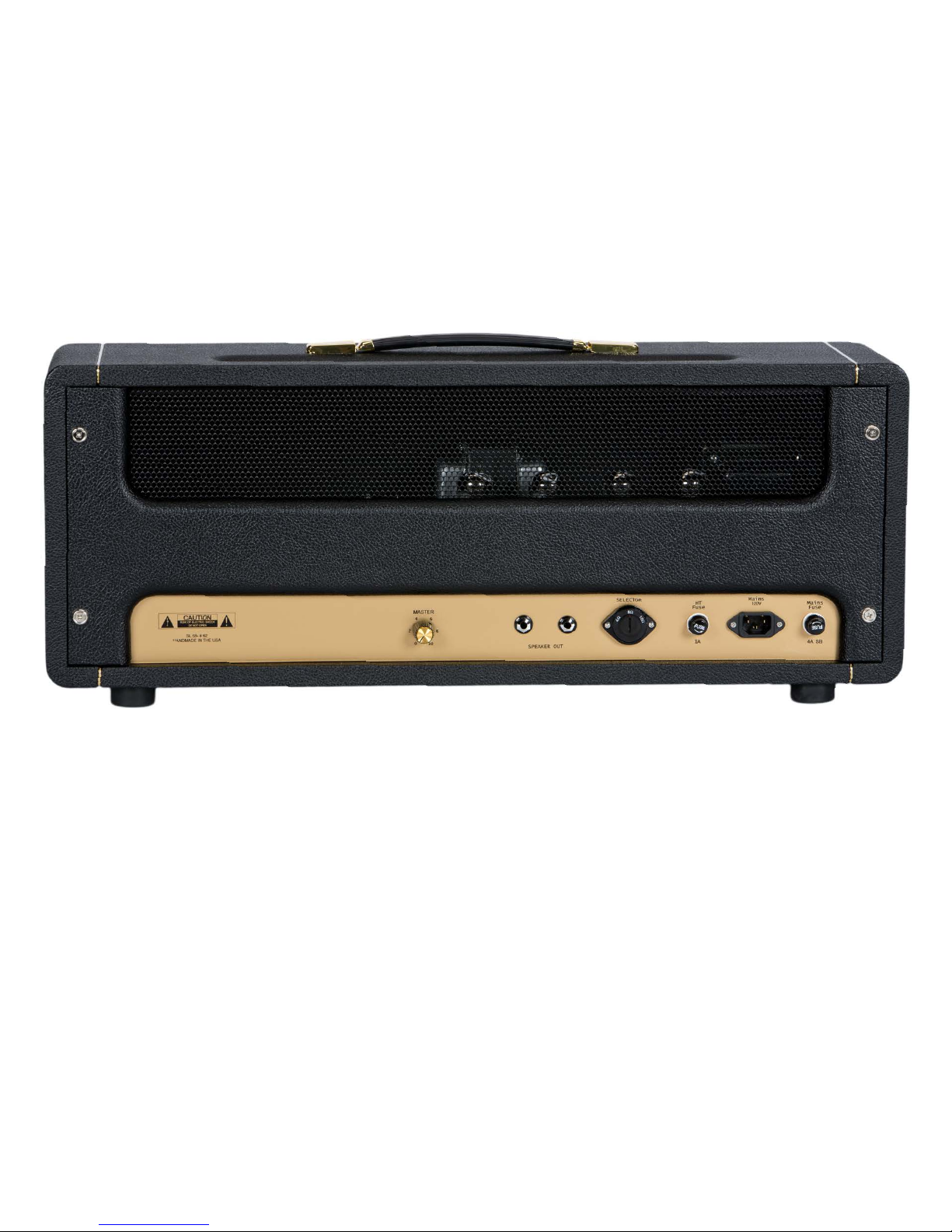

Speaker Outputs:

Two loudspeaker outputs wired in parallel with 3-way impedance selector switch for 4Ω, 8Ω & 16Ω.

IMPORTANT: To avoid serious damage to your amplifier, we recommend never operating it without a speaker or suitable load.

SAMPLE SETTINGS

PUNCHY CLEAN: Power: HI, Master Volume: 8, Presence: 6, Bass: 6, Middle: 5, Treble: 7, Volume I: 4, Volume II: 0

CRUNCH: Power: HI, Master Volume: 4, Presence: 6, Bass: 6, Middle: 5, Treble: 7, Volume I: 7, Volume II: 0

LEAD: Power: Low, Master Volume: 4, Presence: 5, Bass: 5, Middle: 6, Treble: 5, Volume I: 10, Volume II: 0

BRIDGED: Power: Low, Master Volume: 4, Presence: 6, Bass: 6, Middle: 5, Treble: 7, Volume I: 10, Volume II: 7

SPECIFICATIONS:!

Output: 100 Watts RMS

Tub es: 4-EL34 & 3-12AX7

Fuse:"3 Amp Slo-Blo

Speaker: EVM-12L

Front Panel: OFF/HI/LOW Power Select Switch, Presence, Bass, Middle, Treble, Volume I, Volume II controls and four Inputs

Rear Panel: Master Volume, two Speaker outputs, Impedance Selector (4Ω, 8Ω, & 16Ω), HT Fuse, Mains AC Inlet and Mains Fuse
