Thank you for purchasing the all new, completely redesigned,
Suhr PT-100 Signature Edition amplier.
OVERVIEW
World renown guitarist Peter Thorn, is not only known for his touring/session work with
legendary artists such as Chris Cornell and Melissa Etheridge, but he is also considered
by the guitarist community to be one of the foremost authorities on tone.
After ve years of extensive road testing and countless hours spent modifying his
original PT-100 amplier, we have created the ultimate, no compromise, multi-channel
amp - now MIDI switchable.
The PT-100 Signature Edition is available in a classic black tolex and appointed with
black knobs and a rich midnight anodized aluminium faceplate.
The Suhr PT-100 Signature Edition is a 100 watt, three-channel tube amplier head
lthat features a custom “Plexi-style” output transformer, four EL-34 power tubes, six
12AX7 preamp tubes, a hybrid/solid-state series/parallel effects loop, and a 4-button
programmable footswitch.
3
Page 4
OPERATING INSTRUCTIONS
POWERING INSTRUCTIONS
With the power switch (located on Back) in the O (OFF) position and the Standback/Standby switch in the Standby position O, ip the power switch to the I (ON) position.
Wait sixty seconds, then ip the Standby switch to the Standback I position.
To power down, simply switch the amplier from Standback to Standby, then ip the power switch to the O (OFF) position.
POWER SELECT SWITCH (located on Back)
I: ON, normal operation
O: Power is switched OFF
STAND BACK / STANDBY: (located on Back)
I: ON, normal operation
O: OFF, standby operation
CONNECTING YOUR INSTRUMENT
INPUT
Use this input to connect your guitar to the amplier
4
Page 5

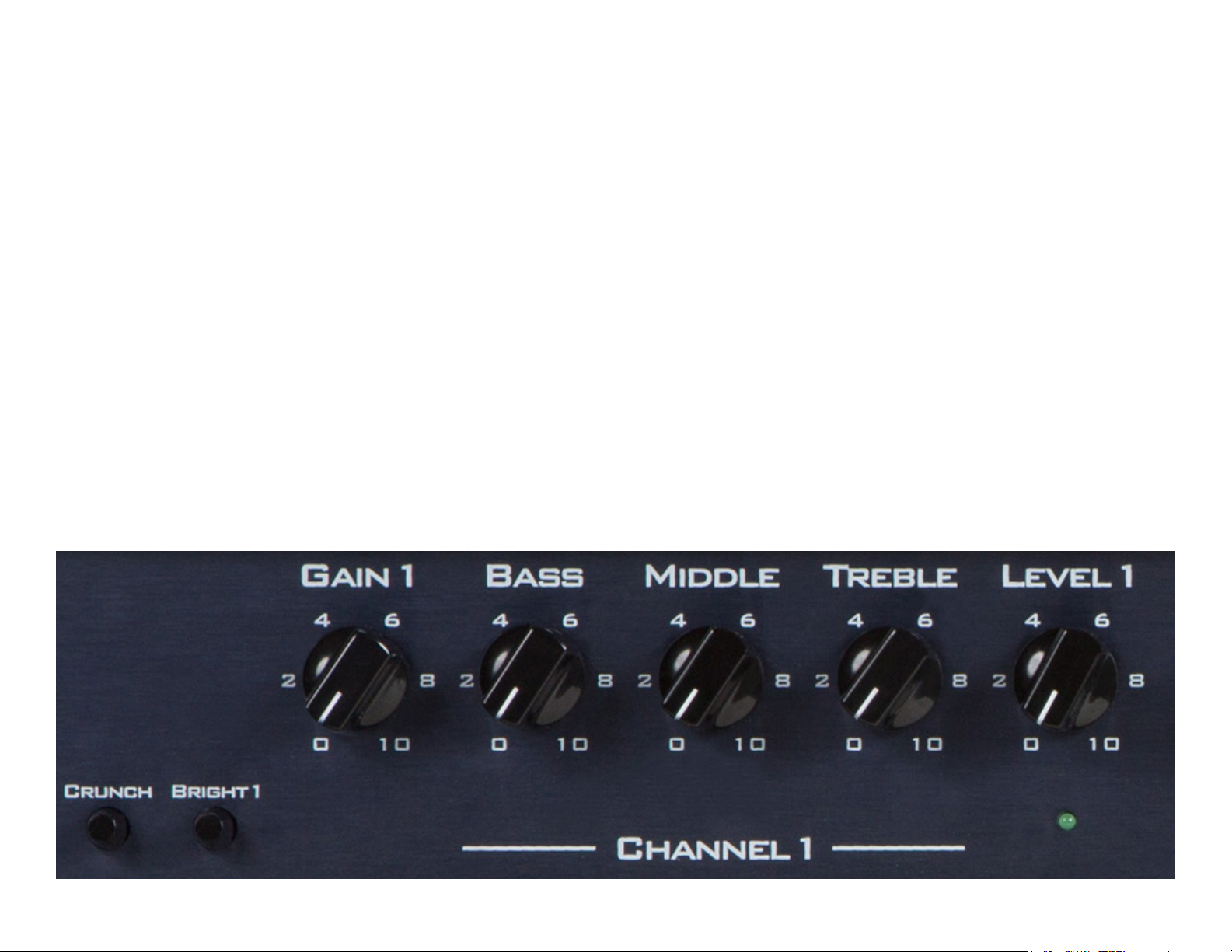

CHANNEL 1 (Clean)
CRUNCH Engaging this switch changes the character of Channel 1 from pristine clean to a thicker classic tone that breaks up when Gain 1 is set at higher settings.
BRIGHT 1 Adds brightness and sparkle.
GAIN 1 Adjusts the overall gain of Channel 1.
BASS Adjusts the amount of bass. Turning it clockwise increases the amount of bottom-end, giving you a fuller tone. Turning it counter clockwise will reduce the
bottom-end, which is useful when performing at louder volumes.
MIDDLE Adjusts the midrange. Turning it clockwise increases the amount of mids. Turning it counter clockwise will reduce the mids and produce a mid-scooped
sound.
TREBLE Adjusts the treble. Turning it clockwise increases the amount of top-end, giving your tone clarity and brightness. Turning it counter clockwise will produce
a warmer sound, ideal for dialing in smoother Jazz-like tones.
LEVEL 1 Adjusts the overall output (Master Volume) of Channel 1.
NOTE: When engaging the effects loop while in Channel 1, Level 1 becomes your send level for that channel.
5
Page 6

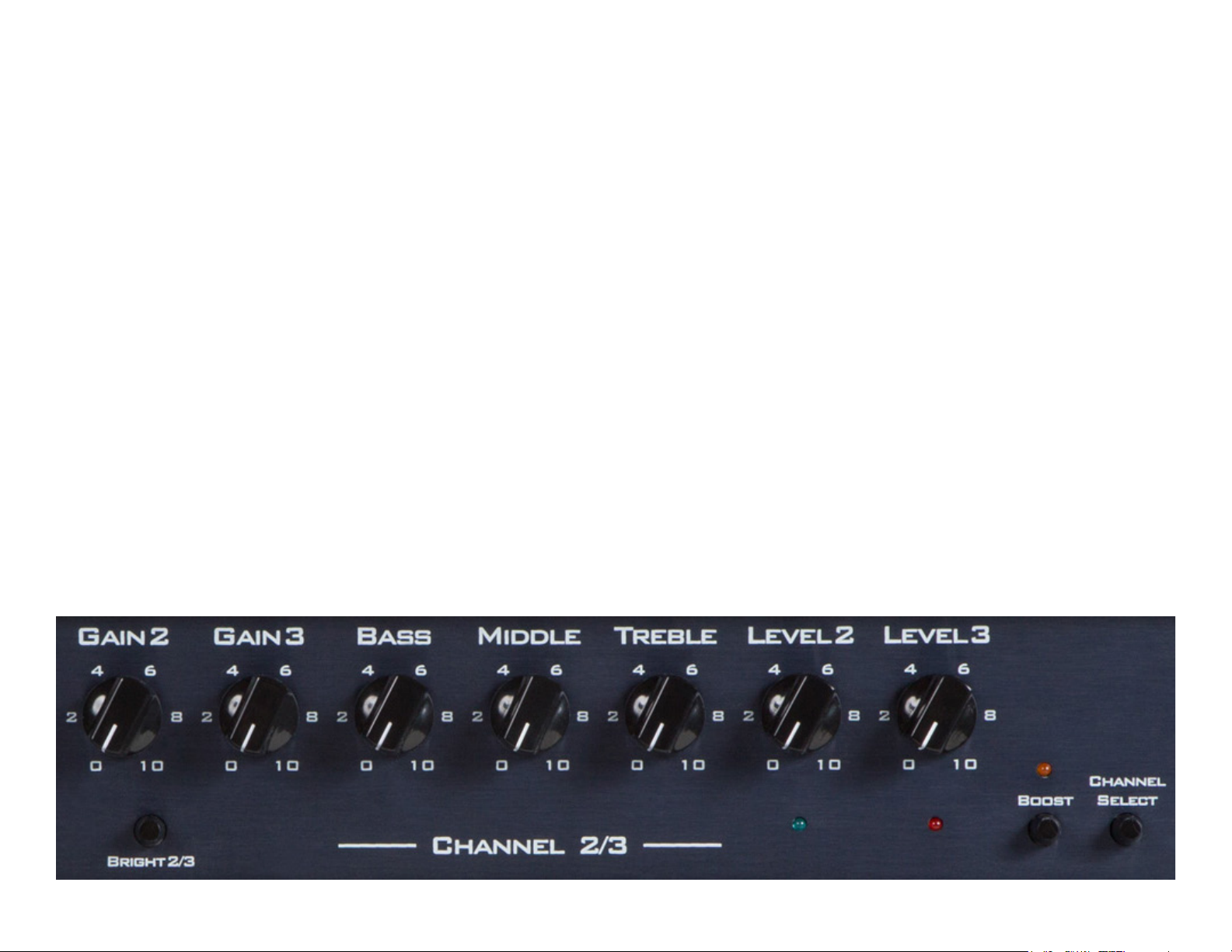

CHANNEL 2 / 3 (Overdrive)
BRIGHT 2 / 3 Adds brightness to Channels 2 and 3.
GAIN 2 Adjusts the overall gain of Channel 2.
GAIN 3 Adjusts the overall gain of Channel 3.
BASS Adjusts the amount of bass. Turning it clockwise increases the amount of bottom-end, giving you a fuller tone. Turning it counter clockwise will reduce the
bottom-end, which is useful when performing at louder volumes.
MIDDLE Adjusts the midrange. Turning it clockwise increases the amount of mids. Turning it counter clockwise will reduce the mids and produce a mid-scooped
sound.
TREBLE Adjusts the treble. Turning it clockwise increases the amount of top-end, giving your tone clarity and brightness. Turning it counter clockwise will produce
a warmer sound, excellent for dialing in smooth uid-like lead tones.
LEVEL 2 Adjusts the overall level (Master Volume) of Channel 2.
NOTE: When engaging the effects loop while in Channel 2, Level 2 becomes your send level for that channel.
LEVEL 3 Adjusts the overall level (Master Volume) of Channel 3.
NOTE: When engaging the effects loop while in Channel 3, Level 3 becomes your send level for that channel.
6
Page 7

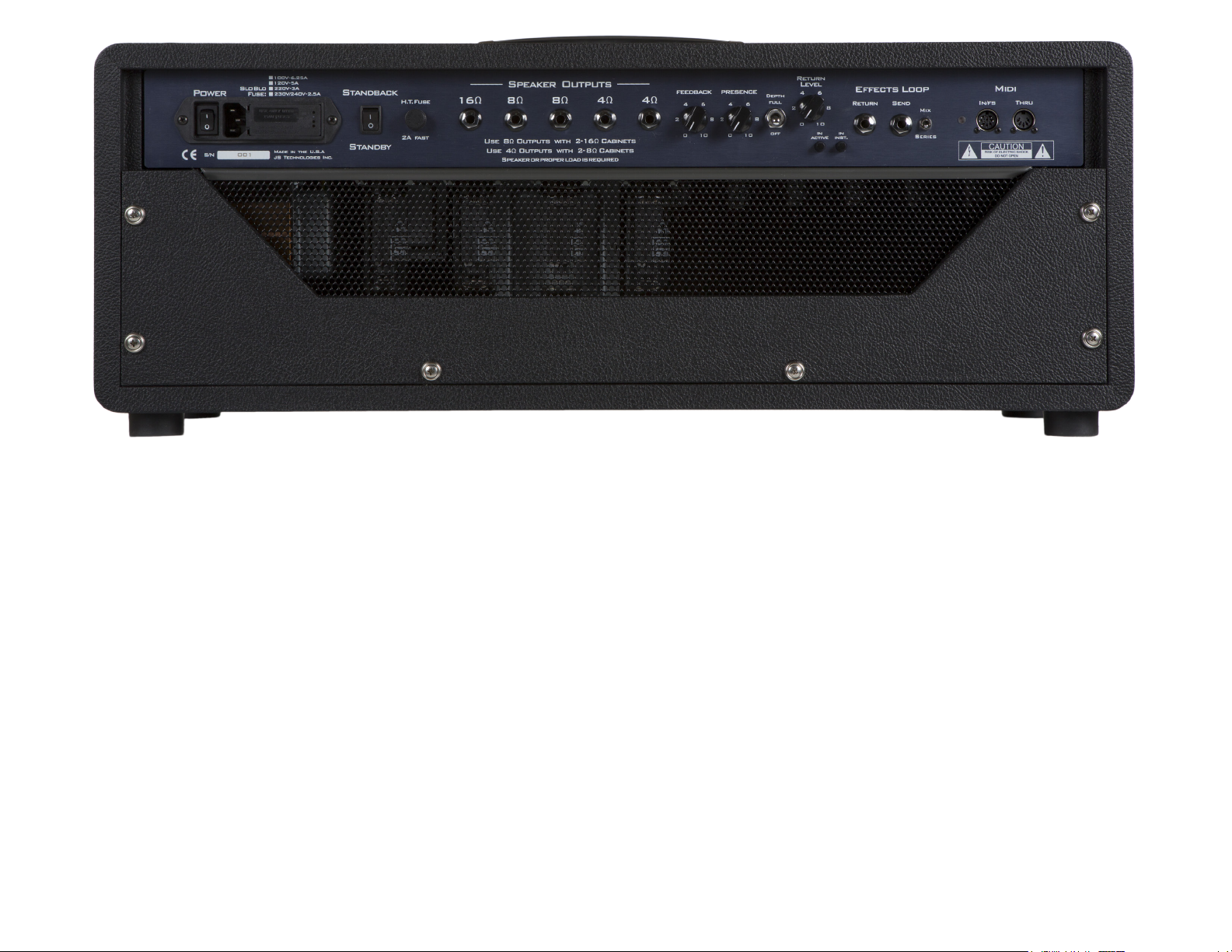

SPEAKER OUTPUTS
The PT-100 Signature Edition has individual speaker outputs. Therefore you must
choose the appropriate speaker output jack(s) depending on the impedance (Ω) of
your cabinet(s).
NOTE: Do not use more than one of the speaker impedance groups when connecting
to more than one speaker. For example: 1-16Ω and 1-8Ω or 1-8Ω and 1-4Ω.
One 16 Ω cabinet, use the 16 Ω output jack.
Two 16 Ω cabinets, use both 8 Ω output jacks.
One 8 Ω cabinet, use one 8 Ω output jack.
Two 8 Ω cabinets, use both 4 Ω output jacks.
One 4 Ω cabinet, use one 4 Ω output jack.
IMPORTANT:
• To avoid damage to your amplier, do not operate without connecting it a speaker
or a suitable load device.
FEEDBACK
This control has a center detent and adjusts the overall feel of the power amp section
from smooth and spongy, (at lower settings) to tight and aggressive (at higher settings).
PRESENCE
Adjusts the amount of high frequencies added to your tone. Turning it clockwise will
add more sparkle.
DEPTH (3-Position Switch)
Selects the amount of low-end boost added to the PT-100’s power section, this will
provide more bottom end while retaining clarity.
Full: + 4dB
Half: + 2dB
Off: Bypassed
EFFECTS LOOP
The PT-100 Signature Edition is equipped with a bypassable (via the In/Active button),
a hybrid/solid-state series/parallel effects loop, which performs well with pedals and
line-level rack gear (selected via the In/Inst.button).
NOTE: When the effects loop is engaged the return level control acts as the amp’s
overall master volume, and the individual channel level controls become your send
levels.
7
Page 8

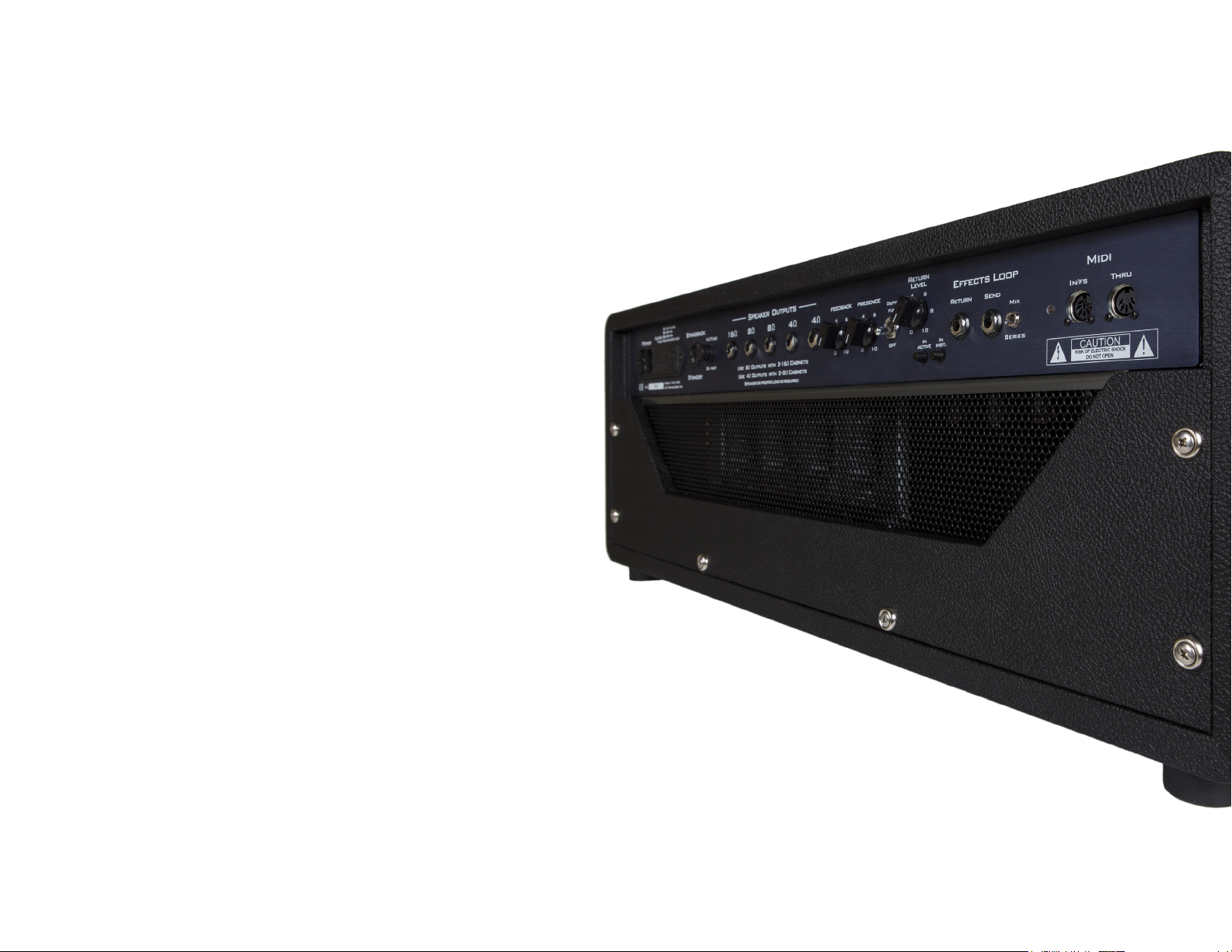

MIDI
IN/FS
Use this port to connect the included four button footswitch or other MIDI enabled
devices.
THRU
This port emits a copy of everything received at the Midi input port, allowing data to
be forwarded to another device in a “daisy chain arrangement”.
FOOTSWITCH
The PT-100 is equipped with an anodized aluminum, four button footswitch which
enables remote channel selection, and toggles the boost feature.
PROGRAMMING THE FOOTSWITCH
1. First select the desired channel on the footswitch
2. Select the Boost function (if desired)
3. Finally, hold down the selected channel on the footswitch until the LED light
ashes
8
Page 9
MIDI IMPLEMENTATION
The PT-100 ships from the factory receiving data on MIDI channel 14. It easily integrates with your favorite MIDI footswitch/system, utilizing Program/Controller messages. For
detailed information, please refer to the chart below.
PT-100 SIGNATURE EDITION MIDI IMPLEMENTATION CHART
(CONTROLLER ASSIGNMENTS)
CONTROLLER
NUMBER
105 MUTE - 14
106 CH2 / CH1 - 14
107 CH3 / CH1 - 14
108 CH1 / CH2 / CH3 - 14
109 CH2 / CH3 - 14
110 - On / Off 14
111 CH1 - 14
112 CH2 - 14
113 CH3 - 14
114 CH1 Off 14
115 CH2 Off 14
116 CH3 Off 14
117 CH1 On 14
118 CH2 On 14
119 CH3 On 14
AMP
CHANNEL BOOST MIDI CH
(PROGRAM ASSIGNMENTS)
PROGRAM
NUMBER
0 CH1 - 14
1 CH2 - 14
2 CH3 - 14
3 CH1 Off 14
4 CH2 Off 14
5 CH3 Off 14
6 CH1 On 14
7 CH2 On 14
8 CH3 On 14
AMP
CHANNEL BOOST MIDI CH
9
Page 10
The PT-100 tube complement consists of four EL-34 power tubes and six 12AX7
preamp tubes.
PREAMP TUBE POSITION LIST
V1 (closest to the input jack) First gain stage for Channel 1 and 2
V2 Additional gain stages for Channel 1
V3 Additional gain stage for Channel 2 / 3
V4 Additional gain stage for Channel 2 / 3 and it’s tone stack
V5 Effects loop
V6 Phase inverter

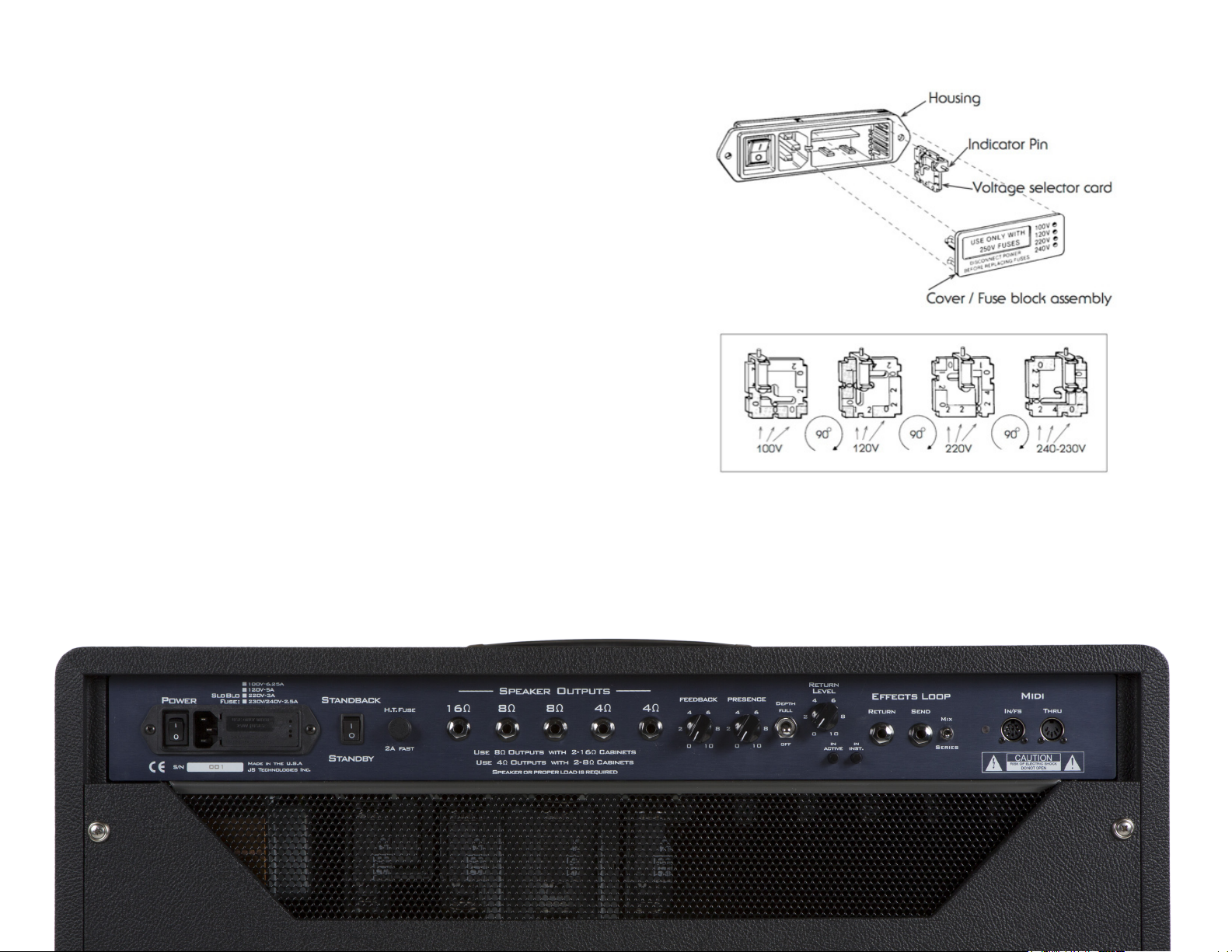

FUSE AND VOLTAGE SELECTION
Voltage selection is made externally at the Power Entry Module. See diagram EX. 1
Open cover using small blade screwdriver or similar tool. Set aside cover/fuse block
assembly. Pull voltage selector card straight out of housing using an indicator pin,
orient selector card so that the desired voltage is readable at the bottom (see below).
Fix indicator pin into notch at opposite side. Insert voltage selector card into housing,
printed side of card facing towards on/off switch and edge containing the desired
voltage rst. Replace cover and verify that the indicator pin shows the desired voltage
on the cover assembly.
EX.1TUBES
Troubleshooting Notes:
• If the ampliers lights operate but there is no sound, we recommend checking/
replacing the HT fuse.
• If there are no lights, or sound, we recommend checking/replacing the Mains fuse
which can be found behind the Fuse Block Assembly Plate.
10
Page 11

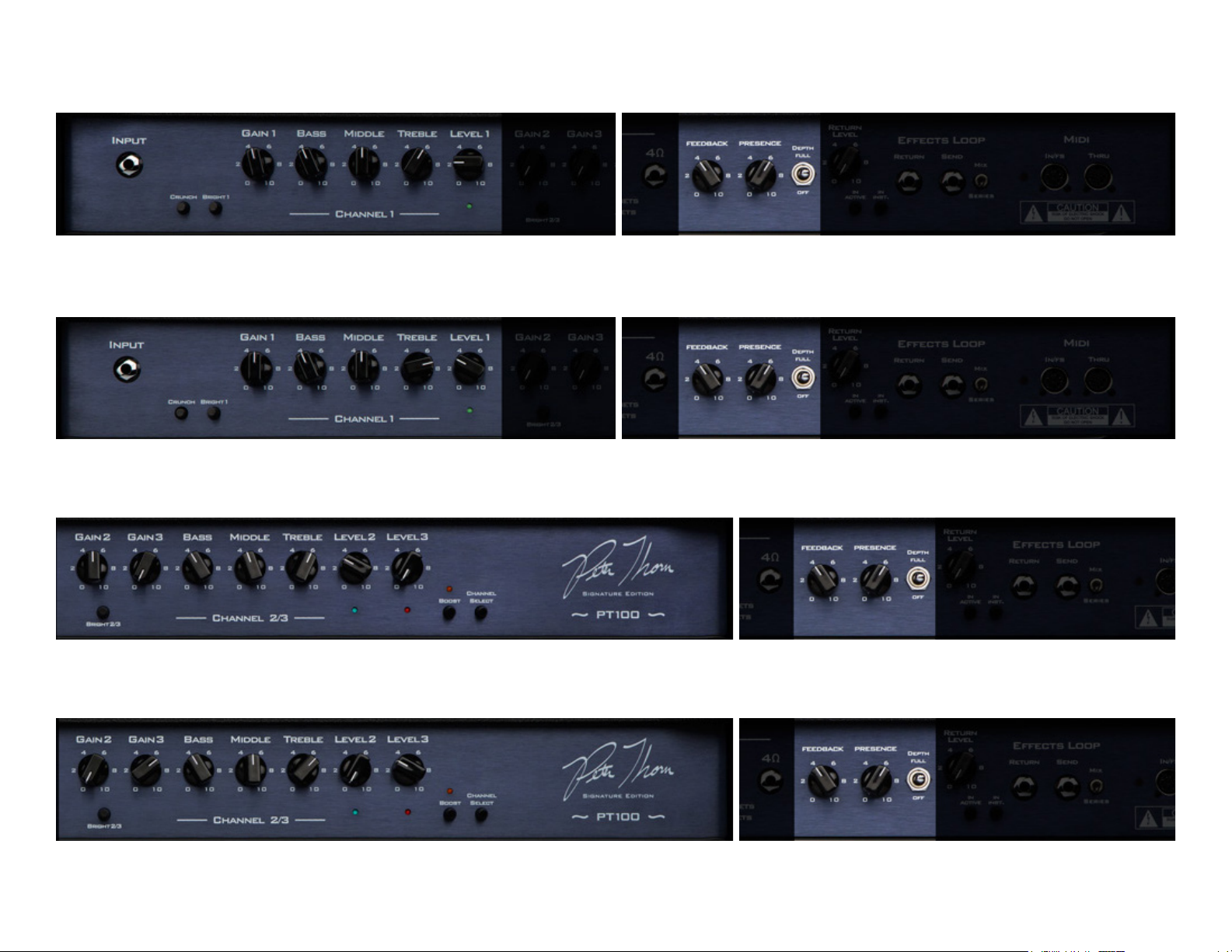

PETE THORN'S SAMPLE SETTINGS
WARM CLEAN (CHANNEL 1)
FRONT PANEL
FRONT PANEL
FRONT PANEL
BACK PANEL
CRUNCHY CLEAN (CHANNEL 1)
BACK PANEL
RHYTHM CRUNCH (CHANNEL 2)
BACK PANEL
FRONT PANEL
HI-GAIN LEAD (CHANNEL 3)
BACK PANEL
11
Page 12
