Suga Electronics Limited
802.11b/g/n (2T2R) WLAN AP/Router Module
User Manual
Model: SWP23MA-3
Version: 1.0
June 2014
Contents
. FCC & IC Statement............................................................................................... 2
1
1.1. FCC Caution ..................................................................................................2
1.2. FCC Radiation Exposure Statement ...........................................................2
1.3. IC Warning ....................................................................................................3
2. Hardware Installation............................................................................................. 4
2.1. Hardware Installation Procedures...............................................................4
3. Software Installation ............................................................................................... 6
3.1. Booting up ......................................................................................................6
3.2. Operation Mode Configuration ...................................................................7
3.3. Local Area Network (LAN) Settings............................................................8
3.4. Basic Wireless Settings..................................................................................9
3.5. Advanced Wireless Settings ........................................................................10
3.6. Wireless Security / Encryption Settings ....................................................11
3.7. Station List ...................................................................................................12
4. Device Labeling ..................................................................................................... 13
5. Disclaimer .............................................................................................................. 13
© Suga Electronics Limited. All Rights Reserved.
I
nformation in this document is subject to change without prior notice.
P. 1
Suga Electronics Limited
1. FCC & IC Statement
1.1. FCC Caution
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
1.2. F
IMPORTANT NOTE:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
CC Radiation Exposure Statement
© Suga Electronics Limited. All Rights Reserved.
I
nformation in this document is subject to change without prior notice.
P. 2
Suga Electronics Limited
1.3. I
C Warning
RSS (Category I Equipment):
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by
Industry Canada.
To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé
pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et
son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse
pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
IC RF Exposure Statement
his equipment complies with IC radiation exposure limits set forth for an
T
uncontrolled environment.
Cet appareil est conforme aux limites d'exposition aux rayonnements définies pour un
environnement non contrôlé.
© Suga Electronics Limited. All Rights Reserved.
In
formation in this document is subject to change without prior notice.
P. 3
Suga Electronics Limited
2. Hardware Installation
2.1. Hardware Installation Procedures
IMPORTANT: MUST DISCONNECT POWER BEFORE INSTALLATION.
(1) Plug the module into the host mother board by the 40-pin connector J6. Press the
module gently until the connectors are mated.
© Suga Electronics Limited. All Rights Reserved.
I
nformation in this document is subject to change without prior notice.
P. 4
Suga Electronics Limited
(2) Plug antenna_0 into the RF connector port.
(3) Plug antenna_1 into the RF connector port.
(4) Plug the LAN/WAN cable in to the LAN/WAN RJ45 socket J5.
© Suga Electronics Limited. All Rights Reserved.
I
nformation in this document is subject to change without prior notice.
P. 5
Suga Electronics Limited

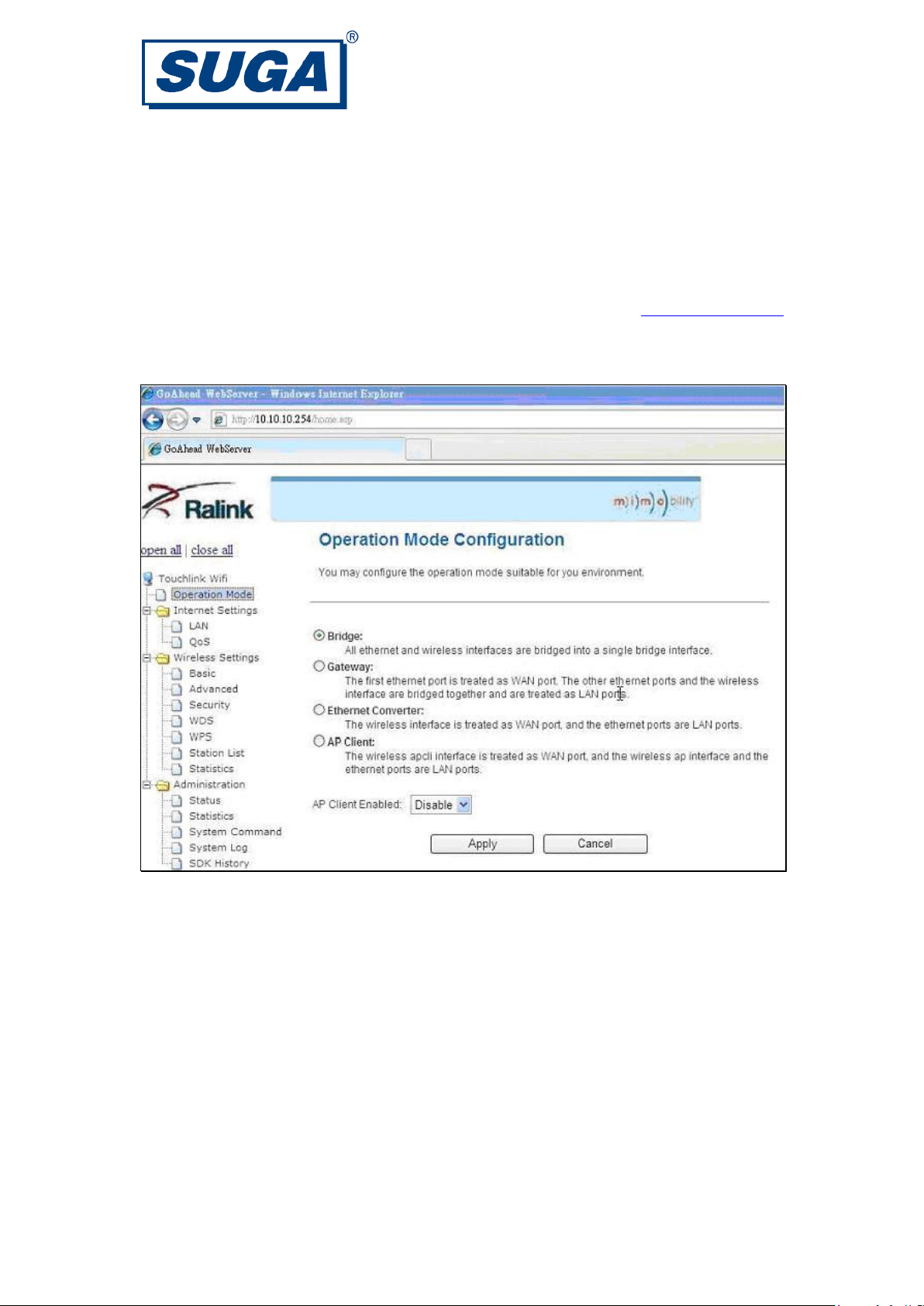

3. Software Installation
3.1. Booting up
Power up the module. Connect the Ethernet port to the PC. Enter http://10.10.10.254
into Browser (e.g., Internet Explorer) to open the AP/router home page. As below:
© Suga Electronics Limited. All Rights Reserved.
I
nformation in this document is subject to change without prior notice.
P. 6
Suga Electronics Limited
3.2. Operation Mode Configuration
Select “Operation Mode” to configure the operation mode to fit your environment. In
this menu, there are four options. Please follow the description to choose the option
you needed. If you want the module to act as an AP and Client, you should select “AP
Client” mode, choose “Enable” and then “Apply”.
© Suga Electronics Limited. All Rights Reserved.
I
nformation in this document is subject to change without prior notice.
P. 7
Suga Electronics Limited
3.3. Local Area Network (LAN) Settings
Select “LAN” option to set your home page IP address, subnet mask, default gateway,
etc. The default IP is 10.10.10.254.
© Suga Electronics Limited. All Rights Reserved.
I
nformation in this document is subject to change without prior notice.
P. 8
Suga Electronics Limited

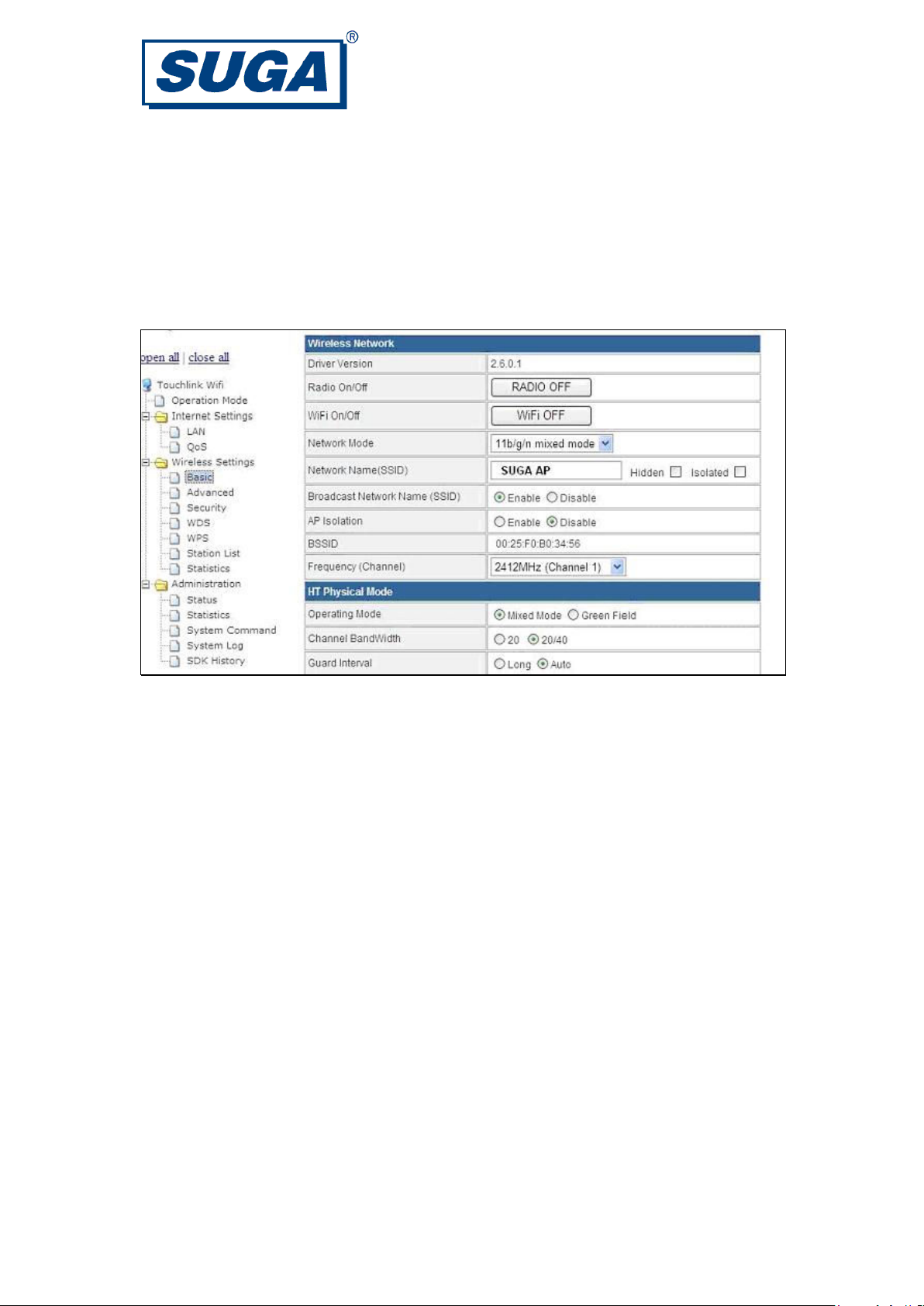

3.4. Basic Wireless Settings
You could configure the minimum number of Wireless settings for communication
such as Network Name (SSID), Network Mode (802.11b/g/n) and Channel. The
Access Point can be set simply with only the minimum setting items.
© Suga Electronics Limited. All Rights Reserved.
I
nformation in this document is subject to change without prior notice.
P. 9
Suga Electronics Limited
3.5. Advanced Wireless Settings
Use the Advanced Setup page to make advanced settings for the Wireless. Advanced
Setup includes items that are not available from the Basic Setup page such as Beacon
Interval, Control Tx Rates and Basic Data Rates.
© Suga Electronics Limited. All Rights Reserved.
I
nformation in this document is subject to change without prior notice.
P. 10
Suga Electronics Limited
3.6. Wireless Security / Encryption Settings
Setup the wireless security and encryption to prevent from unauthorized access and
monitoring.
© Suga Electronics Limited. All Rights Reserved.
I
nformation in this document is subject to change without prior notice.
P. 11
Suga Electronics Limited
3.7. Station List
You could monitor stations that are associated to this AP here.
© Suga Electronics Limited. All Rights Reserved.
I
nformation in this document is subject to change without prior notice.
P. 12
Suga Electronics Limited
4. D
The host device containing this module must either:
(1). Make the module label visible so that the FCC
construction.
(2). Label the end product with the FCC ID and IC number of the module. For example:
“Contain FCC ID:
evice Labeling
ID/ IC numeber is visible in the end
VZFSWP23MA3” and “Contain IC: 10609A-SWP23MA3”.
5. Disclaimer
Suga Electronics Limited assumes no responsibility for errors or omissions in the
materials available on this Document.
THESE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED , INCLUDING
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR
NON-INFRINGEMENT.
SugaE uses reasonable efforts to include accurate and up-to-date information on this
Document; it does not, however, make any representations as to its accuracy or
completeness of the information, text, graphics, links or other items contained within
these materials. Your use of this Document is at your own responsibility. SugaE,
its suppliers, and other parties involved in creating and delivering this Document’s
contents shall not be liable for any special, indirect, incidental, or consequential
damages, including without limitation, lost revenues or lost profits.
© Suga Electronics Limited. All Rights Reserved.
I
nformation in this document is subject to change without prior notice.
P. 13
