WELCOME TO WOLF APPLIANCE

In this Design Guide, you’ll find all the necessary information for specifying a Wolf oven, cooktop, range, rangetop, BBQ grill or ventilation equipment into the next kitchen or home you design.

Each unit is handcrafted with the knowledge and experience gleaned from being the premier supplier of cooking equipment to professional chefs and their restaurants for nearly 75 years.

Sub-Zero, a corporate companion and kitchen soul mate, shares the identical values and pride we take in providing the best cooking equipment.

A Wolf is beautiful and will complement any design you use, whether it be contemporary or traditional.

But that’s not why many customers turn to us. We have a passion for cooking and it shows in our work. Consumers appreciate the unique features we have built in to our many different models. You can refer to specifics as you page through this guide.

The features are as numerous as the various units you have to choose from. But one of the more prominent highlights is the Wolf Dual Convection System that is in all of our built-in ovens and dual fuel ranges. It delivers even temperature and airflow throughout the oven. Its combination of fans and heating elements operate either simultaneously or in sequence, depending on which one of the eight different cooking modes your client chooses.

In addition, our dual-stacked burners on the gas cooktops, dual fuel ranges and sealed burner rangetops are all sealed and offer you the capability of simmering foods.

Our electric cooktops are unique to the industry with their capabilities of providing simmer on all elements and the melt feature on one of the elements. The triple element on the 36" (914) cooktop can generate up to 2,700 watts for those large pots that need fast boiling.

If you are looking for cooking performance, but don’t want to shout it out in your kitchen design, one of our new unframed electric cooktops may be your choice. There’s no stainless steel trim, just the sophisticated black ceramic glass top that can be mounted flush with the top of the countertop or as a frameless installation sitting on top of the countertop surface.

The sizes, alternative tops, and selection of the standard classic stainless steel and the premium finishes of carbon or platinum stainless steel make your decision-making process much more fun for you and your clients. Now you can give them exactly what they want without sacrificing the quality they demand.

In all your applications you can depend on Wolf. That reputation is even stronger because it is backed by Sub-Zero. The combination of the two is really greater than their sum.

Each Wolf unit is backed by the best warranty in the business. Please refer to page 99 for details.

Review this Design Guide in greater detail when you get a chance and keep it as a handy reference. We are confident you will like what you see.

The information and images in this guide are the copyright property of Wolf Appliance Company, Inc., an affiliate of Sub-Zero Freezer Company, Inc. Neither this book nor any information or images contained herein may be copied or used in whole or in part without the express written permission of Wolf Appliance Company, Inc., an affiliate of Sub-Zero Freezer Company, Inc.

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

FEATURES

Dual convection logic control system

Eight cooking modes—bake, roast, broil, convec-

tion bake, convection roast, convection broil, convection and bake stone (accessory required)

Rotating glass touch control panel

Cobalt blue porcelain oven interior

Three removable racks, six-level rack guide and

full-extension bottom rack— five-level rack guide for 36" (914) oven

Large viewing triple-pane window

Dual interior halogen lighting

Hidden bake element and recessed broil element

Temperature probe and receptacle

Proof feature and dehydration feature

(accessory required)

Self-clean, delayed start and Sabbath features

Door hinge with hydraulic damper assures

smooth opening and closing of the door

Factory-installed trim

CSA certified for US and Canada

Rotating electronic control panel

Electronics and door cooling vents

Recessed broil element

Probe receptacle

Halogen lights

Removable six-level rack guide

Hidden bake element

Door hinge with hydraulic damper

Triple-pane window Gasket

Exhaust vent

Location of rating plate

Oven door light switch

Thermostat

Three removable racks

BUILT-IN OVEN FEATURES

Model SO30F/S shown

Model SO30F

Model SO30U

Model DO30F

Model DO30U

Model SO36U

WOLF BUILT-IN OVENS

It’s hard to put into a few words the differences you will see in the Wolf built-in ovens compared to others on the market. Some of those differences are very dramatic, like the three finishes offered. There is the standard classic stainless steel along with two premium finishes offered in platinum and carbon stainless steel.

The platinum look lets you have the beauty of stainless steel without the sheen and reduces the number of fingerprints, whereas the carbon stainless steel is unlike any other black appliance you have experienced.

Look closer and you will see two different door styles offered— framed and unframed. The framed is more traditional and lends itself nicely with a professional rangetop, while the unframed is sleek and contemporary in appearance.

Did you notice that the control panel closes? It’s an attractive feature and will enable you to hide that control panel that many of us have labored to make functional and tried to make beautiful.

Inside, the beauty, design and functionality continue. Brilliant halogen lights illuminate the beautiful blue interior. As you open the oven door, feel the smoothness of the door damper system. Pull that bottom oven rack all the way out and notice how it is nestled on the door rails. With the dual convection fans, all models offer eight different cooking modes.

BUILT-IN OVENS

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

Dimensions in parentheses are in millimeters unless otherwise specified.

This appliance must be installed in accordance with National Electrical Code regulations, as well as all state, municipal and local codes. The correct voltage, frequency and amperage must be supplied to the appliance from a dedicated, grounded circuit that is protected by a properly sized circuit breaker or time delay fuse. The proper voltage, frequency and amperage ratings are listed on the product rating plate.

PLANNING INFORMATION

While you have many design options to consider, there are only three different sizes to consider when planning for your layout. You can choose either a 30" (762) or 36" (914) built-in single oven or a 30" (762) double oven.

For ease of installation, Wolf recommends using 33" (838) wide cabinets with 30" (762) ovens and 39" (991) wide cabinets with the 36" (914) oven. You will need a minimum 24" (610) of usable cabinet depth. The cabinet must be able to support 250 lbs (113 kg) for a single oven and 400 lbs (181 kg) for a double oven.

Wolf built-in ovens have a face trim on all four sides and will overlap stiles and rails. The trim overlaps 1/8" (3) on the bottom, 3/16" (5) on the top and 3/4" (19) on each side.

Specifications on the following pages provide overall dimensions, rough openings and installation specifics for the three different oven sizes. We have minimized the information contained in the illustrations, concentrating on the critical information you must plan into your installation.

A Wolf single oven may be installed below an electric or gas cooktop. Wolf built-in ovens are designed and agency approved for installation with Wolf cooktops only. Refer to the electric and gas cooktops sections for additional specifications. A built-in oven cannot be installed below a Wolf rangetop.

ELECTRICAL REQUIREMENTS

Single ovens require a separate, grounded 4-wire 240/ 208 V AC, 60 Hz, 30 amp service with its own circuit breaker. Double ovens require a separate, grounded 4-wire 240/208 V AC, 60 Hz, 50 amp service with its own circuit breaker.

IMPORTANT NOTE: Unless you are using cabinets deeper than 24" (610), it is recommended that the electrical supply be placed in an adjacent cabinet within reach of the conduit. A 2" (51) diameter hole to route the conduit through cabinetry will be required. Refer to the Installation Specifications illustrations on the following pages for location of the electrical supply.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

MODEL OPTIONS

Built-In Ovens

30" (762) Single Oven – Framed

Classic Stainless SO30F/S

30" (762) Single Oven – Unframed

Classic Stainless SO30U/S

Platinum Stainless SO30U/P

Carbon Stainless SO30U/B

36" (914) Single Oven – Unframed

Classic Stainless SO36U/S

Platinum Stainless SO36U/P

Carbon Stainless SO36U/B

30" (762) Double Oven – Framed

Classic Stainless DO30F/S

30" (762) Double Oven – Unframed

Classic Stainless DO30U/S

Platinum Stainless DO30U/P

Carbon Stainless DO30U/B

Stainless steel finishes.

BUILT-IN OVENS

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

ACCESSORIES

Built-In Ovens

Bake stone accessory, includes stone, rack and peel

Additional oven racks

Two-piece broiler pan and temperature probe

Dehydration racks with door stop

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

SPECIFICATIONS

30" (762) Built-In Single Oven

Overall Dimensions 297/8"x 271/2" x 24" (W x H x D) (759 x 699 x 610)

Door Clearance 203/4" (527)

Usable Oven Interior Capacity* 2.7 cu ft (76 L)

Interior Dimensions 21

/2"x 161/2"x 163/8"

(W x H x D) (546 x 419 x 416)

Rec Cabinet Width 33" (838)

Min Cabinet Width 30" (762)

Min Cabinet Depth 24" (610)

Min Base Support 250 lbs (113 kg)

Opening Width 28

/2" (724)

Opening Height 27

/16" (691)

Electrical Supply 240/ 208 V AC, 60 Hz

30 amp dedicated circuit

Conduit 4' (1.2 m) flexible 4-wire

Electrical Rating 5.1 kW at 240 V

3.8 kW at 208 V

Total Amps 21

Shipping Weight 273 lbs (124 kg)

*Oven capacity is calculated using new AHAM standards (AHAM OV-1-2005); the size of the oven cavity has not physically changed.

MODEL OPTIONS

30" (762) Built-In Single Oven

Framed / Classic SO30F/S

Unframed / Classic SO30U/S

Unframed / Platinum SO30U/P

Unframed / Carbon SO30U/B

INSTALLATION OPTIONS

The Wolf 30" (762) single oven may be installed below a Wolf 30" (762) electric or gas cooktop. Unless you are using cabinets deeper than 24" (610), it is recommended that the electrical supply be placed in the base cabinet to the right of the oven within reach of the conduit. The Wolf 30" (762) single oven may also be installed below a Wolf 36" (914) electric or gas cooktop.

The Wolf 30" (762) single oven may be installed in combination with a Wolf microwave and warming drawer. Refer to page 37 for specifications.

A Wolf 30" (762) single oven may be installed next to another 30" (762) single oven. You must allow for a 2

/2" (64) space between the oven rough openings. Also, a separate inner wall is required for each oven between openings.

Refer to installation instructions shipped with each Wolf product for detailed specifications.

BUILT-IN OVENS

(127)

43/4"min (121)

33" (838)

RECOMMENDED CABINET WIDTH

30"min (762)

33/4"min (95)

36" (914)

STANDARD

FLOOR TO COUNTER

HEIGHT

273/16"

(691)

OPENING

HEIGHT

281/2" (724)

OPENING WIDTH

(102)

24"min (610)

OPENING DEPTH

ELECTRICAL LOCATION WITHIN OPENING APPLIES ONLY TO CABINETS DEEPER THAN 24" (610)

OVERALL DIMENSIONS

30" (762) Built-In Single Oven

INSTALLATION SPECIFICATIONS

30" (762) Built-In Single Oven

Wall Application

Undercounter Installation

Unit dimensions may vary to ±1/8" (3).

IMPORTANT NOTE: Unless you are using cabinets deeper than 24" (610), it is recommended that the electrical supply be placed in an adjacent cabinet within reach of the conduit. Choose the location shown in the illustrations that best suits your installation.

RIGHT SIDE VIEW

POWER CORD

CHANNEL

271/2"

(699)

17/8"

297/8"

(759)

(76)

24" (610)

BEHIND FRAME

24"min (610)

OPENING DEPTH

273/16"

(691)

OPENING

HEIGHT

67"max

(1702)

261/16"

(662)

INSIDE

SIDE TRIM

(48)

RECOMMENDED CABINET WIDTH

30"min (762)

281/2" (724)

OPENING WIDTH

ELECTRICAL LOCATION WITHIN OPENING APPLIES ONLY TO CABINETS DEEPER THAN 24" (610)

33"

(838)

TOP VIEW

17/8"

(48)

283/16"

(716)

OPEN OVEN DOOR

28"

(711)

(102)

E E

(127)

24"

(610)

203/4"

(527)

11/4"

(32)

BUILT-IN OVENS

241/16"

(611)

OPENING

HEIGHT

341/2" (876)

OPENING WIDTH

(127)

39" (991)

RECOMMENDED CABINET WIDTH

36"min (914)

67"max

(1702)

24"min (610)

OPENING DEPTH

(102)

ELECTRICAL LOCATION WITHIN OPENING APPLIES ONLY TO CABINETS DEEPER THAN 24" (610)

33/4"min (95)

(127)

39" (991)

RECOMMENDED CABINET WIDTH

36"min (914)

73/4" (197) rec 43/4" (121) min

241/16"

(611)

OPENING

HEIGHT

341/2" (876)

OPENING WIDTH

24"min (610)

OPENING DEPTH

(102)

36" (914)

STANDARD

FLOOR TO COUNTER

HEIGHT

ELECTRICAL LOCATION WITHIN OPENING APPLIES ONLY TO CABINETS DEEPER THAN 24" (610)

OVERALL DIMENSIONS

36" (914) Built-In Single Oven

INSTALLATION SPECIFICATIONS

36" (914) Built-In Single Oven

Wall Application

SPECIFICATIONS

36" (914) Built-In Single Oven

Overall Dimensions 355/8"x 243/8" x 24" (W x H x D) (905 x 619 x 610)

Door Clearance 173/4" (451)

Usable Oven Interior Capacity* 2.7 cu ft (76 L)

Interior Dimensions 26

/2"x 131/4"x 163/8"

(W x H x D) (673 x 337 x 416)

Rec Cabinet Width 39" (991)

Min Cabinet Width 36" (914)

Min Cabinet Depth 24" (610)

Min Base Support 250 lbs (113 kg)

Opening Width 34

/2" (876)

Opening Height 24

/16" (611)

Electrical Supply 240/ 208 V AC, 60 Hz

30 amp dedicated circuit

Conduit 3' (.9 m) flexible 4-wire

Electrical Rating 5.1 kW at 240 V

3.8 kW at 208 V

Total Amps 21

Shipping Weight 288 lbs (131 kg)

*Oven capacity is calculated using new AHAM standards (AHAM OV-1-2005); the size of the oven cavity has not physically changed.

Undercounter Installation

INSTALLATION OPTIONS

The Wolf 36" (914) single oven may be installed below a Wolf 36" (914) electric or gas cooktop. Unless you are using cabinets deeper than 24" (610), it is recommended that the electrical supply be placed in the base cabinet to the right of the oven within reach of the conduit. The 36" (914) single oven may also be installed below a Wolf 30" (762) framed electric cooktop, but not below a 30" (762) unframed electric cooktop or 30" (762) gas cooktop. When installed below a cooktop, it is recommended that the opening for the oven be 7

/4" (197)

from the floor to ease the use of the oven door.

The Wolf 36" (914) single oven may be installed above or below a Wolf warming drawer with integrated drawer front. This installation may also include a convection microwave with 36" (914) trim. Refer to page 37 for specifications.

A Wolf 36" (914) single oven may be installed directly above another 36" (914) oven. You must allow enough space between the oven rough openings to accommodate a base support for the top oven. A 36" (914) single oven may be installed next to another 36" (914) oven. You must allow for a 2

/2" (64) space between the oven rough openings. Also, a separate inner wall is required for each oven between openings. Each base cabinet support must be able to support 250 lbs (113 kg).

Unit dimensions may vary to ±1/8" (3).

MODEL OPTIONS

36" (914) Built-In Single Oven

Unframed / Classic SO36U/S

Unframed / Platinum SO36U/P

Unframed / Carbon SO36U/B

RIGHT SIDE VIEW

POWER CORD

CHANNEL

24" (610)

BEHIND FRAME

355/8"

(905)

243/8"

(619)

(76)

17/8"

(48)

23" (584)

INSIDE

SIDE TRIM

TOP VIEW

17/8"

(48)

341/8"

(867)

OPEN OVEN DOOR

3311/16"

(870)

24"

(610)

173/4"

(451)

11/4"

(32)

BUILT-IN OVENS

OVERALL DIMENSIONS

30" (762) Built-In Double Oven

INSTALLATION SPECIFICATIONS

30" (762) Built-In Double Oven

Wall Application

SPECIFICATIONS

30" (762) Built-In Double Oven

Overall Width 297/8" (759)

Overall Height 50" (1270)

Overall Depth 24" (610)

Door Clearance 20

/4" (527)

Usable Oven Interior Capacity (per oven)* 2.7 cu ft (76 L)

Interior Dimensions 21

/2"x 161/2"x 163/8"

(W x H x D) (546 x 419 x 416) each

Rec Cabinet Width 33" (838)

Min Cabinet Width 30" (762)

Min Cabinet Depth 24" (610)

Min Base Support 400 lbs (181 kg)

Opening Width 28

/2" (724)

Opening Height 49

/8" (1260)

Electrical Supply 240/ 208 V AC, 60 Hz

50 amp dedicated circuit

Conduit 5' (1.5 m) flexible 4-wire

Electrical Rating 8.9 kW at 240 V

6.7 kW at 208 V

Total Amps 37

Shipping Weight 466 lbs (211 kg)

*Oven capacity is calculated using new AHAM standards (AHAM OV-1-2005); the size of the oven cavity has not physically changed.

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

Unit dimensions may vary to ±1/8" (3).

MODEL OPTIONS

30" (762) Built-In Double Oven

Framed / Classic DO30F/S

Unframed / Classic DO30U/S

Unframed / Platinum DO30U/P

Unframed / Carbon DO30U/B

50"

(1270)

RIGHT SIDE VIEW

POWER CORD

CHANNEL

17/8"

(48)

481/2"

(1232)

INSIDE

SIDE TRIM

TOP VIEW

17/8"

(48)

283/16"

(716)

OPEN OVEN DOOR

24"

(610)

203/4"

(527)

11/4"

(32)

297/8"

(759)

(76)

24" (610)

BEHIND FRAME

24"min (610)

OPENING DEPTH

495/8"

(1260)

OPENING

HEIGHT

67"max

(1702)

28"

(711)

(838)

33"

RECOMMENDED CABINET WIDTH

30"min (762)

281/2" (724)

OPENING WIDTH

ELECTRICAL LOCATION WITHIN OPENING APPLIES ONLY TO CABINETS DEEPER THAN 24" (610)

(127)

(102)

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF FRAMED ELECTRIC COOKTOPS

Behind the sophisticated, minimalist exterior, beneath that perfectly smooth, subtly patterned glass that cleverly reduces scratches, there is a high-performance cooking tool.

The black ceramic glass top is beautifully complemented by the classic stainless steel trim finish, and for the 30" (762) and 36" (914) cooktops, you can choose the premium finishes of platinum or carbon stainless steel. The 15" (381) cooktop is available only in the classic stainless steel finish.

Multiple cooking elements with different zones allow your customer a variety of different applications. The 36" (914) cooktop features a 12" (305) diameter triple heating element— concentric rings that give you exceptional control of temperature for pans and pots of every size.

All of the heating elements offer True Simmer, and with each cooktop there is one element that enables you to set a temperature for melting.

FEATURES

Classic, platinum and carbon stainless steel trim finishes— Model CT15E in classic stainless only

Easy-to-clean black ceramic glass surface is resistant to scratching, staining, impact and heat— translucent surface allows you to see the glow of hot elements

Illuminated electronic touch controls with graduated control lighting

Ribbon-type radiant heating elements—some elements with multiple temperature zones

True Simmer setting on all elements

Melt setting on one element

Hot surface indicators on all elements

High frequency pulsation elements improve

cooking performance and control

Temperature limiter to ensure that safe operating temperature of ceramic glass is never exceeded

Child safety lock key and universal off

CSA certified for US and Canada

WOLF ELECTRIC COOKTOPS

FRAMED ELECTRIC COOKTOP FEATURES

Model CT36E shown

Illuminated electronic touch controls

Triple-zone element

Dual-zone element

Hot surface indicators

True Simmer on all elements

Lock key and universal off

MODEL OPTIONS

Framed Electric Cooktops

15" (381) Framed Electric Cooktop

Classic Trim CT15E/S

30" (762) Framed Electric Cooktop

Classic Trim CT30E/S

Platinum Trim CT30E/P

Carbon Trim CT30E/B

36" (914) Framed Electric Cooktop

Classic Trim CT36E/S

Platinum Trim CT36E/P

Carbon Trim CT36E/B

Stainless steel trim finishes.

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

Model CT15E

15" (381) Framed

Electric Cooktop

Model CT30E

30" (762) Framed

Electric Cooktop

Model CT36E

36" (914) Framed

Electric Cooktop

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

Location of rating plate

Framed edge

OFF ON

SIM

HIGH

OFF ON

ZONE 2

SIM

HIG

F O

HIGH

ZONE 2

SIM

OFF O

HIGH

OFF

HIGH

OFF ON

SIM

PLANNING INFORMATION

From a planning perspective, your selection process is made easier by the three different sizes you have to choose from. The 30" (762) and 36" (914) framed electric cooktops are available in three trim finishes— classic, platinum and carbon stainless steel. The 15" (381) cooktop is available with classic stainless steel trim only.

For ease of installation, Wolf recommends using 33" (838) cabinets with the 30" (762) cooktop and 39" (991) cabinets with the 36" (914) cooktop.

Specifications on the following pages provide overall dimensions, countertop cut-out dimensions and installation specifics for the three different sized cooktops. We have minimized the information contained in the illustrations, concentrating on the critical information you must plan into your installation.

A Wolf single built-in oven may be installed below these cooktops. Wolf framed electric cooktops are designed and agency approved for installation with Wolf built-in ovens only. Also, be aware of the depth of the cooktop when planning for this installation.

Multiple cooktops and/ or integrated modules can be installed side by side. Refer to the countertop cut-out dimensions on page 23 when planning for this installation.

These cooktops can accommodate a Wolf cooktop hood, downdraft system or Pro ventilation hood or hood liner. When installing a ventilation hood, refer to the specific requirements of the hood for the minimum dimension to the countertop. Refer to pages 72–91 for ventilation specifications.

ELECTRICAL REQUIREMENTS

The electrical requirements vary with the size of the framed electric cooktop. Refer to the specifications on the following pages for the three different cooktop sizes. Locate electrical supply within the shaded area shown in the Installation Specifications illustration for your model.

IMPORTANT NOTE: When an oven is installed below the cooktop, unless you are using cabinets deeper than 24" (610), it is recommended that the electrical supply be placed in the base cabinet to the right of the oven. Refer to pages 6– 7 for additional specifications for built-in ovens.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

WOLF ELECTRIC COOKTOPS

These cooktops are intended for indoor use.

ACCESSORIES

Optional accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

ACCESSORIES

Electric Cooktops

Filler strip

Bracket supports for installation of two integrated modules with downdraft (Model CT15E)

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Dimensions in parentheses are in millimeters unless otherwise specified.

OVERALL DIMENSIONS

Model CT15E/S

INSTALLATION SPECIFICATIONS

Model CT15E/S

Countertop Cut-Out Dimensions

WOLF ELECTRIC COOKTOPS

SPECIFICATIONS

Model CT15E/S 15" (381) Framed Electric Cooktop

Trim Finish Classic

Overall Width 15" (381)

Overall Height 3

/2" (89)

Overall Depth 21" (533)

Heating Elements Tw o

Temperature Zones Three

Max Element Power 750 W / 2200 W (dual)

Max Element Power 1200 W (single)

Cabinet Depth 22

/4" (578) min

Height Clearance 4" (102) min

Cut-Out Width* 13

/8" (340)

Cut-Out Depth 19

/4" (489)

Electrical Supply 240/ 208 V AC, 60 Hz

15 amp dedicated circuit

Conduit 4' (1.2 m) flexible 3-wire

Electrical Rating 3.4 kW at 240 V

2.6 kW at 208 V

Shipping Weight 30 lbs (14 kg)

*If the 15" (381) cooktop is to be used with any combination of additional cooktop units or modules with a filler strip, the cut-out width increases to 14" (356).

The outer diameter of the heating elements are 9" (229) and 6

/2" (165).

Unit dimensions may vary to ±

/8" (3).

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

21"

(533)

OVERALL

DEPTH

15" (381)

OVERALL WIDTH

31/2" (89)

33" (838)

13" max

(330)

2"**

191/4" (489)

(51)

COOKTOP CUT-OUT

DEPTH

NOTE: Application shown allows for installation of two 15" (381) modules side-by-side with 33" (838) recommended cabinet width. 18" (457) recommended cabinet width for installation of single 15" (381) cooktop or module. *Minimum clearance from both side edges of cooktop cut-ou to combustible materials up to 18" (457) above countertop. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.

18"

(457)

21/2"min

(64)

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

2"*min (51)

CUT-OUT TO

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

21/2"min

(64)

COOKTOP CUT-OUT

CABINET WIDTH

133/8" (340)

WIDTH

15"

(381)

133/8" (340)

WIDTH

RECOMMENDED

4" (102)

15"

(381)

191/4" (489)

COOKTOP

CUT-OUT DEPTH

30" (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

ABOVE COOKTOP

FRONT OF COUNTERTOP

Countertop Cut-Out Dimensions

OVERALL DIMENSIONS

30" (762) Framed Electric Cooktop

INSTALLATION SPECIFICATIONS

30" (762) Framed Electric Cooktop

SPECIFICATIONS

30" (762) Framed Electric Cooktop

Overall Width 30" (762)

Overall Height 3

/2" (89)

Overall Depth 21" (533)

Heating Elements Four

Temperature Zones Six

Max Element Power 750 W / 2200 W and (two dual) 950 W/ 1900 W

Max Element Power 1200 W and 1500 W (two single)

Cabinet Width 33" (838) rec

Cabinet Depth 22

/4" (578) min

Height Clearance 4" (102) min

Cut-Out Width* 28

/8" (721)

Cut-Out Depth 19

/4" (489)

Electrical Supply 240 V AC / 60 Hz / 40 amp

208 V AC / 60 Hz / 30 amp

Conduit 4' (1.2 m) flexible 3-wire

Electrical Rating 6.8 kW at 240 V

5.2 kW at 208 V

Shipping Weight 45 lbs (20 kg)

*If the 30" (762) cooktop is to be used with any combination of additional cooktop units or modules with a filler strip, the cut-out width increases to 29" (737).

The outer diameter of the heating elements are 9" (229), 8

/2" (216), 7" (179) and 61/2" (165).

WOLF ELECTRIC COOKTOPS

INSTALLATION OPTIONS

A Wolf 30" (762) single oven may be installed below the Wolf 30" (762) framed electric cooktop. For this installation, unless you are using cabinets deeper than 24" (610), it is recommended that the electrical supply be placed in the base cabinet to the right of the oven. A Wolf 36" (914) single oven may also be installed below the Wolf 30" (762) framed electric cooktop. Refer to pages 6 and 7 for additional specifications.

Refer to installation instructions shipped with each Wolf product for detailed specifications.

Unit dimensions may vary to ±1/8" (3).

MODEL OPTIONS

30" (762) Framed Electric Cooktop

Classic Trim Finish CT30E/S

Platinum Trim Finish CT30E/P

Carbon Trim Finish CT30E/B

21"

(533)

OVERALL

DEPTH

30" (762)

OVERALL WIDTH

31/2" (89)

13" max

(330)

191/4" (489)

2"**

COOKTOP CUT-OUT

(51)

DEPTH

24"min

(610)

18"

(457)

21/2"min

(64)

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

2"*min (51)

CUT-OUT TO

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

33" (838)

RECOMMENDED

CABINET WIDTH

30"min (762)

283/8" (721) COOKTOP

CUT-OUT WIDTH

4" (102)

33/4"min

31/2" (89)

(95)

30-INCH OVEN OPENING

10"

(254)

30" (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

ABOVE COOKTOP

*Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18" (457) above countertop. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.

21/2"min

(64)

283/8" (721)

COOKTOP CUT-OUT WIDTH

FRONT OF COUNTERTOP

191/4" (489)

COOKTOP

CUT-OUT DEPTH

Dimensions in parentheses are in millimeters unless otherwise specified.

OVERALL DIMENSIONS

36" (914) Framed Electric Cooktop

INSTALLATION SPECIFICATIONS

36" (914) Framed Electric Cooktop

Countertop Cut-Out Dimensions

WOLF ELECTRIC COOKTOPS

SPECIFICATIONS

36" (914) Framed Electric Cooktop

Overall Width 36" (914)

Overall Height 3

/2" (89)

Overall Depth 21" (533)

Heating Elements Five

Temperature Zones Eight

Max Element Power 1050 W / 2200 W / (triple) 2700 W

Max Element Power 750 W / 2200 W (dual)

Max Element Power 1200 W, 1500 W (three single) and 1800 W

Cabinet Width 39" (991) rec

Cabinet Depth 22

/4" (578) min

Height Clearance 4" (102) min

Cut-Out Width* 34

/8" (873)

Cut-Out Depth 19

/4" (489)

Electrical Supply 240 V AC / 60 Hz / 50 amp

208 V AC / 60 Hz / 40 amp

Conduit 4' (1.2 m) flexible 3-wire

Electrical Rating 9.4 kW at 240 V

7.1 kW at 208 V

Shipping Weight 60 lbs (27 kg)

*If the 36" (914) cooktop is to be used with any combination of additional cooktop units or modules with a filler strip, the cut-out width increases to 35" (889).

The outer diameter of the heating elements are 11

/8" (302), 91/8" (232), 77/8" (200), 71/8" (181)

and 6

/2" (165).

INSTALLATION OPTIONS

A Wolf 36" (914) single oven may be installed below the Wolf 36" (914) framed electric cooktop. For this installation, unless you are using cabinets deeper than 24" (610), it is recommended that the electrical supply be placed in the base cabinet to the right of the oven. A Wolf 30" (762) single oven may also be installed below the Wolf 36" (914) framed electric cooktop. Refer to pages 6 and 7 for additional specifications.

When a 36" (914) oven is installed below a cooktop, it is recommended that the rough opening for the oven be 7

/4" (197) from the

floor to ease the use of the oven door.

Unit dimensions may vary to ±1/8" (3).

MODEL OPTIONS

36" (914) Framed Electric Cooktop

Classic Trim Finish CT36E/S

Platinum Trim Finish CT36E/P

Carbon Trim Finish CT36E/B

21"

(533)

OVERALL

DEPTH

36" (914)

OVERALL WIDTH

31/2" (89)

13" max

(330)

191/4" (489)

2"**

COOKTOP CUT-OUT

(51)

DEPTH

24"min

(610)

18"

(457)

21/2"min

(64)

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

2"*min (51)

CUT-OUT TO

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

39" (991)

RECOMMENDED CABINET WIDTH

36"min (914)

343/8" (873)

COOKTOP CUT-OUT WIDTH

4" (102)

33/4"min (95)

36-INCH OVEN OPENING

31/2" (89)

10"

(254)

30" (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

ABOVE COOKTOP

21/2"min

(64)

343/8" (873)

COOKTOP CUT-OUT WIDTH

FRONT OF COUNTERTOP

191/4" (489)

COOKTOP

CUT-OUT DEPTH

WOLF UNFRAMED ELECTRIC COOKTOPS

Behind the sophisticated, minimalist exterior, beneath that perfectly smooth, subtly patterned glass that cleverly reduces scratches, there is a high-performance cooking tool.

There’s no stainless steel trim, just the sophisticated black ceramic glass top, with subtly patterned design. The 30" (762) and 36" (914) unframed electric cooktops can be mounted flush with the top of the countertop or as a frameless installation sitting on top of the countertop surface.

All of the heating elements offer True Simmer, and with each cooktop there is one element that enables you to set a temperature for melting.

FEATURES

Can be mounted flush with top of countertop or as a frameless installation sitting on top of the countertop surface

Easy-to-clean black ceramic glass surface is resistant to scratching, staining, impact and heat— translucent surface allows you to see the glow of hot elements

Illuminated electronic touch controls with graduated control lighting

Ribbon-type radiant heating elements—some elements with multiple temperature zones

True Simmer setting on all elements

Melt setting on one element

Hot surface indicators on all elements

High frequency pulsation elements improve

cooking performance and control

Temperature limiter to ensure that safe operating temperature of ceramic glass is never exceeded

Child safety lock key and universal off

CSA certified for US and Canada

WOLF ELECTRIC COOKTOPS

UNFRAMED ELECTRIC COOKTOP FEATURES

Model CT36EU shown

MODEL OPTIONS

Unframed Electric Cooktops

30" (762) Width CT30EU

36" (914) Width CT36EU

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

Model CT30EU

30" (762) Unframed

Electric Cooktop

Model CT36EU

36" (914) Unframed

Electric Cooktop

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

Flush mount installations are intended for granite, solid surface or stone countertop surfaces only. Failure to use high heat resistant surface will result in countertop damage if hot cooking utensils are accidentally moved off the cooking surface.

Illuminated electronic touch controls

Triple-zone element

Dual-zone element

Hot surface indicators

True Simmer on all elements

Lock key and universal off

Location of rating plate

Unframed edge

HIGH

ZONE 2

SIM

OFF ON

HIGH

OFF ON

SIM

HIGH

OFF ON

ZONE 2

SIM

H IG H

N FF O O

L E M

OFF

IMPORTANT NOTE: A Wolf downdraft ventilation system cannot be used with the unframed electric cooktops.

IMPORTANT NOTE: Unframed electric cooktops are not designed to be installed in combination with other cooktops or modules.

ELECTRICAL REQUIREMENTS

The electrical requirements vary with the size of the unframed electric cooktop. Refer to the specifications on the following pages for the two different cooktop sizes. Locate electrical supply within the shaded area shown in the Installation Specifications illustration for your model.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

Dimensions in parentheses are in millimeters unless otherwise specified.

PLANNING INFORMATION

Wolf recommends using 33" (838) cabinets with the 30" (762) cooktop and 39" (991) cabinets with the 36" (914) cooktop.

The Wolf 30" (762) and 36" (914) unframed electric cooktops can be mounted flush with the top of the countertop or as a frameless installation sitting on top of the countertop surface. There’s no stainless steel trim, just the black ceramic glass surface. In either installation the cooktop cut-out dimensions are the same. If it is to be mounted flush with the countertop, you will need to provide a recessed area surrounding the cooktop cut-out.

IMPORTANT NOTE: If the cooktop is to be mounted flush with the countertop, fabrication of the recessed area must take place before the final countertop installation. A template of the countertop cut-out will be provided with the cooktop for fabrication purposes.

Specifications on the following pages provide overall dimensions, countertop cut-out dimensions and installation specifics for the two different sized cooktops. We have minimized the information contained in the illustrations, concentrating on the critical information you must plan into your installation.

A Wolf single built-in oven may be installed below these cooktops. Wolf unframed electric cooktops are designed and agency approved for installation with Wolf built-in ovens only. Also, be aware of the depth of the cooktop when planning for this installation.

A Wolf cooktop or Pro ventilation hood is recommended with these cooktops. When installing a ventilation hood, refer to the specific requirements of the hood for the minimum dimension to the countertop. Refer to pages 72–91 for ventilation specifications.

These cooktops are intended for indoor use.

WOLF ELECTRIC COOKTOPS

ACCESSORIES

Optional accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Countertop Cut-Out Dimensions

OVERALL DIMENSIONS

Model CT30EU

INSTALLATION SPECIFICATIONS

Model CT30EU

SPECIFICATIONS

Model CT30EU 30" (762) Unframed Electric Cooktop

Overall Width 30" (762)

Overall Height 4" (102)

Overall Depth 21" (533)

Heating Elements Four

Temperature Zones Six

Max Element Power 750 W / 2200 W and (two dual) 950 W/ 1900 W

Max Element Power 1200 W and 1500 W (two single)

Cabinet Width 33" (838) rec

Cabinet Depth 22

/4" (578) min

Height Clearance 4" (102) min

Cut-Out Width 28

/8" (721)

Cut-Out Depth 19

/8" (492)

Electrical Supply 240 V AC / 60 Hz / 40 amp

208 V AC / 60 Hz / 30 amp

Conduit 4' (1.2 m) flexible 3-wire

Electrical Rating 6.8 kW at 240 V

5.2 kW at 208 V

Shipping Weight 45 lbs (20 kg)

The outer diameter of the heating elements are 9" (229), 8

/2" (216), 7" (179) and 61/2" (165).

WOLF ELECTRIC COOKTOPS

INSTALLATION OPTIONS

The Model CT30EU unframed electric cooktop can be mounted flush with the top of the countertop or as a frameless installation sitting on top of the countertop surface. In either installation the cooktop cut-out dimensions are the same. If mounted flush with the countertop, a recessed area surrounding the cooktop cut-out is required.

IMPORTANT NOTE: Flush mount installations are intended for granite, solid surface or stone countertop surfaces only. If the cooktop is to be mounted flush with the countertop, fabrication of the recessed area must take place before the final countertop installation. A template of the countertop cut-out will be provided with the cooktop for fabrication purposes.

A Wolf 30" (762) single oven may be installed below the Model CT30EU. For this installation, unless you are using cabinets deeper than 24" (610), it is recommended that the electrical supply be placed in the base cabinet to the right of the oven. Refer to page 6 for additional specifications.

Refer to installation instructions shipped with each Wolf product for detailed specifications.

283/8" (721) COOKTOP

CUT-OUT WIDTH

15/16" (49)

RADIUS

27/16" (62)

193/8" (492)

COOKTOP

CUT-OUT DEPTH

/16" (11) RADIUS

301/8"**

(

765

)

RECESSED AREA FOR

FLUSH MOUNT INSTALLATION ONLY

FRONT OF COUNTERTOP

19/16" (40)

211/8"** (537)

RECESSED AREA FOR FLUSH MOUNT INSTALLATION ONLY

**Minimum dimension, but may be exceeded by up to 1/8" (3).

RECESSED AREA FOR

FLUSH MOUNT INSTALLATION ONLY

/16"

(8)

/8"

(22) max

COUNTERTOP

PROFILE

2"* (51)

Unit dimensions may vary to ±1/8" (3).

IMPORTANT NOTE: For flush mount applications, it is recommended to measure the cooktop glass before cutting the countertop to ensure a proper fit. Small variances may exist between the template and the cooktop.

Dimensions in parentheses are in millimeters unless otherwise specified.

21"

(533)

OVERALL

DEPTH

30" (762)

OVERALL WIDTH

4" (102)

33" (838)

13" max

(330)

SEE COUNTERTOP

CUT-OUT BELOW

4"min (102)

24"min

(610)

*Minimum clearance from both side edges and back edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.

18"

(457)

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

2"*min (51)

CUT-OUT TO

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

RECOMMENDED

CABINET WIDTH

30"min (762)

SEE COUNTERTOP

CUT-OUT BELOW

4" (102)

31/2" (89)

30-INCH OVEN OPENING

10"

(254)

30" (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

ABOVE COOKTOP

OVERALL DIMENSIONS

Model CT36EU

INSTALLATION SPECIFICATIONS

Model CT36EU

Countertop Cut-Out Dimensions

WOLF ELECTRIC COOKTOPS

SPECIFICATIONS

Model CT36EU 36" (914) Unframed Electric Cooktop

Overall Width 36" (914)

Overall Height 4" (102)

Overall Depth 21" (533)

Heating Elements Five

Temperature Zones Eight

Max Element Power 1050 W / 2200 W / (triple) 2700 W

Max Element Power 750 W / 2200 W (dual)

Max Element Power 1200 W, 1500 W (three single) and 1800 W

Cabinet Width 39" (991) rec

Cabinet Depth 22

/4" (578) min

Height Clearance 4" (102) min

Cut-Out Width 34

/8" (873)

Cut-Out Depth 19

/8" (492)

Electrical Supply 240 V AC / 60 Hz / 50 amp

208 V AC / 60 Hz / 40 amp

Conduit 4' (1.2 m) flexible 3-wire

Electrical Rating 9.4 kW at 240 V

7.1 kW at 208 V

Shipping Weight 60 lbs (27 kg)

The outer diameter of the heating elements are 11

/8" (302), 91/8" (232), 77/8" (200), 71/8" (181)

and 6

/2" (165).

INSTALLATION OPTIONS

The Model CT36EU unframed electric cooktop can be mounted flush with the top of the countertop or as a frameless installation sitting on top of the countertop surface. In either installation the cooktop cut-out dimensions are the same. If mounted flush with the countertop, a recessed area surrounding the cooktop cut-out is required.

A Wolf 36" (914) single oven may be installed below the Model CT36EU. For this installation, unless you are using cabinets deeper than 24" (610), it is recommended that the electrical supply be placed in the base cabinet to the right of the oven. A Wolf 30" (762) single oven may also be installed below the Model CT36EU. Refer to pages 6–7 for additional specifications.

When a 36" (914) oven is installed below a cooktop, it is recommended that the rough opening for the oven be 7

/4" (197) from the

floor to ease the use of the oven door.

361/8"** (918)

RECESSED AREA FOR

FLUSH MOUNT INSTALLATION ONLY

343/8" (873)

COOKTOP CUT-OUT WIDTH

15/16" (49)

RADIUS

FRONT OF COUNTERTOP

27/16" (62)

193/8" (492)

COOKTOP

CUT-OUT DEPTH

19/16" (40)

211/8"** (537)

RECESSED AREA FOR FLUSH MOUNT INSTALLATION ONLY

/16" (11) RADIUS

**Minimum dimension, but may be exceeded by up to 1/8" (3).

RECESSED AREA FOR

FLUSH MOUNT INSTALLATION ONLY

/16"

(8)

/8"

(22) max

COUNTERTOP

PROFILE

2"* (51)

Unit dimensions may vary to ±1/8" (3).

21"

(533)

OVERALL

DEPTH

36" (914)

OVERALL WIDTH

4" (102)

13" max

(330)

SEE COUNTERTOP

CUT-OUT BELOW

*Minimum clearance from both side edges and back edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.

4"min (102)

24"min

(610)

18"

(457)

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

39" (991)

2"*min (51)

CUT-OUT TO

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

RECOMMENDED CABINET WIDTH

36-INCH OVEN OPENING

36"min (914)

SEE COUNTERTOP

CUT-OUT BELOW

4" (102)

31/2" (89)

10"

(254)

30" (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

ABOVE COOKTOP

WOLF GAS COOKTOPS

New features make cooking a greater pleasure than ever. For instance, at higher settings the dual-stacked burner design uses its upper-level burner for maximum heat transfer. Merely turn down the illuminated knob and the lower-tier burners deliver fine-tuning control and True Simmer. You’ll see why we patented this concept when you can have the slightest of flame and enjoy a simmer with no boiling or scorching. This is heat tailored for every cooking vessel you’re using—from the largest stockpot to the smallest melting pan.

All gas cooktops are available in the classic stainless steel finish, and for the 30" (762) and 36" (914) cooktops you can choose the premium platinum stainless steel finish. The 15" (381) gas cooktop is available only in the classic stainless steel finish.

A more powerful 15,000 Btu/ hr (4.4 kW) burner is standard on the 30" (762) and 36" (914) gas cooktops.

The dual-stacked sealed burners and deep recess of the seamless drawn pan area make clean up of any of those previously unsightly spills a snap.

FEATURES

Available in natural and LP gas

Stainless steel top construction, available in

classic and platinum stainless steel finishes— Model CT15G available in classic finish only

Dual-stacked, sealed burners with automatic reignition on all settings

Large 15,000 Btu/hr (4.4 kW) burner with 800 Btu/ hr (.2 kW) delivered at simmer—Models CT30G and CT36G only

Medium 12,000 Btu/hr (3.5 kW) burner with 800 Btu/ hr (.2 kW) delivered at simmer

Small 9,200 Btu/hr (2.7 kW) burners with 300 Btu/ hr (.1 kW) delivered at simmer

Individual spark ignition system

True Simmer setting on all burners

Illuminated control panel with two-tiered control

knobs

Low-profile, cast iron continuous burner grates with matte porcelain finish

Seamless drawn burner pan

CSA certified for US and Canada

WOLF GAS COOKTOPS

GAS COOKTOP FEATURES

Model CT36G shown

MODEL OPTIONS

Gas Cooktops

15" (381) Gas Cooktop

Classic Stainless CT15G/S

30" (762) Gas Cooktop

Classic Stainless CT30G/S

Platinum Stainless CT30G/P

36" (914) Gas Cooktop

Classic Stainless CT36G/S

Platinum Stainless CT36G/P

Natural gas models listed; for LP gas add (-LP) to the model number.

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

Model CT15G

15" (381)

Gas Cooktop

Model CT30G

30" (762)

Gas Cooktop

Model CT36G

36" (914)

Gas Cooktop

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

Small 9,200 Btu/ hr (2.7 kW) burners

Low-profile continuous grates

Location of rating plate

Illuminated control panel

Two-tiered control knobs

Seamless drawn pan

Medium 12,000 Btu/ hr (3.5 kW) burner

Large 15,000 Btu/ hr (4.4 kW) burner

Dimensions in parentheses are in millimeters unless otherwise specified.

PLANNING INFORMATION

Wolf offers three sizes of gas cooktops to choose from to address your clients‘ needs. The 30" (762) and 36" (914) cooktops are available in classic and platinum stainless steel finish. The 15" (381) cooktop module comes in classic stainless steel only.

Wolf recommends using 33" (838) cabinets with the 30" (762) cooktop and 39" (991) cabinets with the 36" (914) cooktop.

A Wolf single built-in oven may be installed below these cooktops. Wolf gas cooktops are designed and agency approved for installation with Wolf built-in ovens only. Also, be aware of the depth of the cooktop when planning for this installation.

Multiple cooktops and/ or integrated modules can be installed side by side. Refer to the countertop cut-out dimensions on page 23 when planning for this installation.

ELECTRICAL | GAS REQUIREMENTS

The electric ignition system is a safe, convenient and reliable manner to provide ignition for the burners. However, you need to make provisions for a separate 120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker, and a grounded 3-prong receptacle should be located within the reach of the 6' (1.8 m) power cord.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

Wolf gas cooktops are designed to operate on natural gas at 5" (12.5 mb) WC (water column) pressure or LP (propane) gas at 10" (25 mb) WC pressure. The minimum line pressure for natural gas is 7" (17.5 mb) WC and 11" (27.4 mb) WC for LP gas. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa). They are supplied with a

/2" NPT male gas connection at the right rear corner on the bottom of the cooktop. The male connector exits the unit straight down, and you are supplied with a regulator with two female connectors.

Locate electrical and gas supply within the shaded area shown in the Installation Specifications illustration for your model.

When a gas cooktop is installed above cabinets, the gas and electrical placement is not critical. A grounded outlet needs to be placed within 4' (1.2 m) of the right rear of the cooktop.

You must follow all National Electrical Code and gas regulations. In addition, be aware of local codes and ordinances when installing your services.

WOLF GAS COOKTOPS

These cooktops are intended for indoor use.

HIGH ALTITUDE

Wolf gas cooktops using natural gas function up to an altitude of 8,000' (2438 m) without any adjustment. Natural gas installations from 8,000' (2438 m) to 10,000' (3048 m) need the high altitude conversion kit. LP gas installations will operate up to 10,000' (3048 m) without adjustment.

ACCESSORIES

Gas Cooktops

One-piece wok and single burner grate (Models CT30G and CT36G)

Filler strip

Bracket supports for installation of two integrated modules with downdraft (Model CT15G)

High altitude conversion kit

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

WOLF GAS COOKTOPS

Countertop Cut-Out Dimensions

OVERALL DIMENSIONS

15" (381) Gas Cooktop

INSTALLATION SPECIFICATIONS

15" (381) Gas Cooktop

SPECIFICATIONS

15" (381) Gas Cooktop

Overall Width 15" (381)

Overall Height 4" (102)

Overall Depth 21" (533)

Burner Rating (1) 12,000 Btu/hr

(3.5 kW) with 800 Btu/ hr (.2 kW) delivered at simmer

(1) 9,200 Btu/ hr (2.7 kW) with 300 Btu/ hr (.1 kW) delivered at simmer

Cabinet Depth 22

/4" (578) min

Height Clearance 4" (102) min

Cut-Out Width 14" (356)

Cut-Out Depth 19

/4" (489)

Electrical Supply 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 6' (1.8 m) 3-prong

Gas Rating 21,200 Btu/ hr

(6.2 kW)

Shipping Weight 30 lbs (14 kg)

Unit dimensions may vary to ±1/8" (3).

INSTALLATION OPTIONS

For the 15" (381) gas cooktop, the gas service may be supplied through the floor if the cooktop is not installed above an oven. Refer to the illustration for specifics on placement of gas and electrical.

Refer to installation instructions shipped with each Wolf product for detailed specifications.

Unit dimensions may vary to ±1/8" (3).

MODEL OPTIONS

15" (381) Gas Cooktop

Classic / Natural Gas CT15G/S

Classic / LP Gas CT15G/S-LP

21"

(533)

OVERALL

DEPTH

15" (381)

OVERALL WIDTH

4" (102)

13" max

21/2"**

(64)

(330)

191/4" (489)

COOKTOP CUT-OUT

DEPTH

21/2"min

(64)

18"

(457)

7"*min (178)

CUT-OUT TO

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

33" (838)

RECOMMENDED

CABINET WIDTH

14" (356)

COOKTOP CUT-OUT

WIDTH

4" (102)

30" (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

ABOVE COOKTOP

36" (914)

STANDARD FLOOR TO

COUNTERTOP

LOCATION OF GAS SUPPLY MAY ALSO

EXTEND 5" ON FLOOR

FROM BACK WALL

(127)

HEIGHT

21/2"min

LOCATION OF GAS SUPPLY

MAY ALSO EXTEND 5" ON

FLOOR FROM BACK WALL

14" (356)

COOKTOP CUT-OUT

WIDTH

(64)

FRONT OF COUNTERTOP

15"

(381)

15"

(381)

15"

(381)

191/4" (489)

COOKTOP

CUT-OUT DEPTH

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF GAS COOKTOPS

Countertop Cut-Out Dimensions

OVERALL DIMENSIONS

30" (762) Gas Cooktop

INSTALLATION SPECIFICATIONS

30" (762) Gas Cooktop

SPECIFICATIONS

30" (762) Gas Cooktop

Overall Width 30" (762)

Overall Height 4" (102)

Overall Depth 21" (533)

Burner Rating (1) 15,000 Btu/hr

(4.4 kW) with 800 Btu/ hr (.2 kW) delivered at simmer

(1) 12,000 Btu/ hr (3.5 kW) with 800 Btu/ hr (.2 kW) delivered at simmer

(2) 9,200 Btu/ hr (2.7 kW) with 300 Btu/ hr (.1 kW) delivered at simmer

Cabinet Width 33" (838) rec

Cabinet Depth 22

/4" (578) min

Height Clearance 4" (102) min

Cut-Out Width 29" (737)

Cut-Out Depth 19

/4" (489)

Electrical Supply 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 6' (1.8 m) 3-prong

Gas Rating 45,400 Btu/ hr

(13.3 kW)

Shipping Weight 50 lbs (23 kg)

Unit dimensions may vary to ±1/8" (3).

INSTALLATION OPTIONS

A Wolf 30" (762) single oven may be installed below the Wolf 30" (762) gas cooktop. For this installation, unless you are using cabinets deeper than 24" (610), it is recommended that the electrical and gas supply be placed in the base cabinet to the right of the oven. Refer to page 6 for additional specifications.

Unit dimensions may vary to ±1/8" (3).

MODEL OPTIONS

30" (762) Gas Cooktop

Classic / Natural Gas

CT30G/S

Platinum / Natural Gas

CT30G/P

Classic / LP Gas CT30G/S-LP

Platinum / LP Gas CT30G/P-LP

21"

(533)

OVERALL

DEPTH

30" (762)

OVERALL WIDTH

4" (102)

13" max

21/2"**

(64)

(330)

191/4" (489)

COOKTOP CUT-OUT

DEPTH

24"min

(610)

18"

(457)

21/2"min

(64)

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

9"*min (229)

CUT-OUT TO

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

33" (838)

RECOMMENDED

CABINET WIDTH

30"min (762)

29" (737) COOKTOP

CUT-OUT WIDTH

4" (102)

31/2" (89)

/4"min

(95)

30-INCH OVEN OPENING

10"

(254)

30" (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

ABOVE COOKTOP

21/2"min

(64)

29" (737)

COOKTOP CUT-OUT WIDTH

FRONT OF COUNTERTOP

191/4" (489)

COOKTOP

CUT-OUT DEPTH

WOLF GAS COOKTOPS

OVERALL DIMENSIONS

36" (914) Gas Cooktop

INSTALLATION SPECIFICATIONS

36" (914) Gas Cooktop

Countertop Cut-Out Dimensions

SPECIFICATIONS

36" (914) Gas Cooktop

Overall Width 36" (914)

Overall Height 4" (102)

Overall Depth 21" (533)

Burner Rating (1) 15,000 Btu/hr

(4.4 kW) with 800 Btu/ hr (.2 kW) delivered at simmer

(1) 12,000 Btu/ hr (3.5 kW) with 800 Btu/ hr (.2 kW) delivered at simmer

(3) 9,200 Btu/ hr (2.7 kW) with 300 Btu/ hr (.1 kW) delivered at simmer

Cabinet Width 39" (991) rec

Cabinet Depth 22

/4" (578) min

Height Clearance 4" (102) min

Cut-Out Width 35" (889)

Cut-Out Depth 19

/4" (489)

Electrical Supply 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 6' (1.8 m) 3-prong

Gas Rating 54,600 Btu/ hr

(16.0 kW)

Shipping Weight 67 lbs (30 kg)

INSTALLATION OPTIONS

A Wolf 36" (914) single oven may be installed below the Wolf 36" (914) gas cooktop. For this installation, unless you are using cabinets deeper than 24" (610), it is recommended that the electrical and gas supply be placed in the base cabinet to the right of the oven. A Wolf 30" (762) single oven may also be installed below the Wolf 36" (914) gas cooktop. Refer to pages 6 and 7 for additional specifications.

When a 36" (914) oven is installed below a cooktop, it is recommended that the rough opening for the oven be 7

/4" (197) from the

floor to ease the use of the oven door.

Refer to installation instructions shipped with each Wolf product for detailed specifications.

Unit dimensions may vary to ±1/8" (3).

MODEL OPTIONS

36" (914) Gas Cooktop

Classic / Natural Gas

CT36G/S

Platinum / Natural Gas

CT36G/P

Classic / LP Gas CT36G/S-LP

Platinum / LP Gas CT36G/P-LP

21"

(533)

OVERALL

DEPTH

36" (914)

OVERALL WIDTH

4" (102)

13" max

21/2"**

(64)

(330)

191/4" (489)

COOKTOP CUT-OUT

DEPTH

24"min

(610)

18"

(457)

21/2"min

(64)

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

9"*min (229)

CUT-OUT TO

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

39" (991)

RECOMMENDED CABINET WIDTH

36"min (914)

35" (889)

COOKTOP CUT-OUT WIDTH

4" (102)

33/4"min (95)

36-INCH OVEN OPENING

31/2" (89)

10"

(254)

30" (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

ABOVE COOKTOP

21/2"min

(64)

35" (889)

COOKTOP CUT-OUT WIDTH

FRONT OF COUNTERTOP

191/4" (489)

COOKTOP

CUT-OUT DEPTH

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF INTEGRATED MODULES

With Wolf‘s integrated modules, you have the ultimate in customization. You can create your own design by mixing and matching the various components within this system. And when you couple these modules with other cooktops within the Wolf inventory, you and your client will truly understand freedom of choice.

Some modules integrate with their larger counterparts, right down to their low-profile grates, dual-stacked gas burners, deep spill pan and illuminated controls. The two-element electric and dual-stacked sealed burner gas cooktop modules deliver the same performance and appearance as the larger electric and gas cooktops.

Some integrated modules can be installed together or with a 30" (762) or 36" (914) cooktop. When multiple cooktops or modules are installed side by side, the cut-out dimensions shown in the illustration below are derived by adding 11/4" (32) additional space for each additional unit, to give you your total cut-out width.

IMPORTANT NOTE: Refer to specifications on the following pages for specific installation requirements and limitations for each integrated module. Review specific installation instructions for product to product capabilities. Additional information is provided in the specifications pdf files on our website, wolfappliance.com

Refer to the following illustration for countertop cut-out dimensions for the installation of multiple cooktops or modules.

IMPORTANT NOTE: When multiple cooktops or modules are installed side by side, each unit must have its own separate recommended electrical circuit. When multiple gas cooktops or modules are installed next to one another, they can receive their gas supply from a common line. However, each unit must have its own regulator installed between the mainline and the cooktop or module.

WOLF INTEGRATED MODULES

COUNTERTOP CUT-OUT DIMENSIONS

Installation of Multiple Cooktops or Modules

INTEGRATED MODULES

15" (381) Width

Induction Cooktop CT15I/S

Electric Cooktop CT15E/S

Electric Grill IG15/S

Electric Steamer IS15/S

Electric Fryer IF15 /S

Gas Cooktop CT15G/S

Gas Multi-Function Cooktop IM15/S

All integrated modules are available in the classic stainless steel finish.

IMPORTANT NOTE: Refer to specifications on the following pages for specific installation requirements and limitations for each integrated module. Specifications for Model CT15E/S are found on page 11 and Model CT15G/S specifications are on page 20.

/2"min

(64)

FRONT OF COUNTERTOP

191/4"

(489)

CUT-OUT

DEPTH

291/4" (743)

TWO MODULES WIDTH

441/2" (1130) THREE MODULES WIDTH OR

441/4" (1124) 30" COOKTOP AND ONE MODULE

593/4" (1518) FOUR MODULES WIDTH OR

591/2" (1511) 30" COOKTOP AND TWO MODULES OR

501/4" (1276) 36" COOKTOP AND ONE MODULE

14"

(356)

CUT-OUT

WIDTH

Model IS15/S

Electric Steamer

Model IF15/S Electric Fryer

Model IM15/S

Gas Multi-Function

Cooktop

Model IG15/S

Electric Grill

IMPORTANT NOTE: When two or more modules are installed together, an integrated module filler strip is recommended. If a Model DD30 downdraft system is also installed, an integrated module support for downdraft ventilation is required. Contact your Wolf dealer for information on these accessory components.

These integrated modules are intended for indoor use.

Model CT15I/S

Induction Cooktop

Model CT15G/S

Gas Cooktop

Model CT15E/S

Electric Cooktop

INDUCTION COOKTOP

While induction cooking is new to North America, it has been used in Europe for decades by professionals and homeowners demanding the best in performance.

Cooking with this sleek 15-inch powerhouse is simply the best way to cook. Electricity flows through a coil to produce a magnetic field under the sleek black ceramic top. When an iron or magnetic stainless steel pan is placed on the surface, the magnetic field creates a current in the pan, exciting the molecules and heating the pan and not the cooktop. That‘s why the cooktop stays cool to the touch and the food cooks efficiently.

In fact, this unit is so efficient that it outperforms gas and electric cooktops. There is no wasted heat because energy is supplied directly to the cooking vessel, so nearly 90 percent of the energy gets used to cook.

You can keep sauces and chocolates melted at 50 watts of power, or with the touch of a finger, activate the hi-power boost feature and boil water in nearly half the time you normally do.

The Wolf induction cooktop has it all.

FEATURES

Integrated design allows for installation of multiple cooktops or modules

Classic stainless steel trim finish

Easy-to-clean black ceramic glass surface is

resistant to scratching, staining, impact and heat

Induction elements heat cookware not the glass, for a cooler and safer cooking surface

Cookware sensing— elements will not be energized without an iron or magnetic stainless steel pan on the cooktop surface

Illuminated electronic touch controls with graduated control lighting

High-efficiency elements deliver power and control

Hi-Power mode boosts power on rear element to 2200 W maximum power output by diverting power from front element

Simultaneous operation of both elements at 1800 W each

True Simmer setting on both elements

Melt setting on both elements

Temperature limiter to ensure that safe operat-

ing temperature of ceramic glass is never exceeded

Child safety lock key and universal off

CSA certified for US and Canada

INDUCTION COOKTOP FEATURES

Model CT15I /S

WOLF INTEGRATED MODULES

Model CT15I/S

Induction Cooktop

OVERALL DIMENSIONS

Model CT15I/S

Illuminated electronic touch controls

Two induction elements

True Simmer and melt on both elements

Lock key and universal off

Classic stainless steel trim finish

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

ACCESSORIES

Induction Cooktop

Filler strip

Bracket supports for installation of two integrated modules with 30" (762) downdraft

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Location of rating plate

HIGH

OFF ON

HI-POWER

ELT

HIGH

ON FF O

IM S

21"

(533)

OVERALL

DEPTH

15" (381)

OVERALL WIDTH

(64)

21/2"

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF INTEGRATED MODULES

INSTALLATION SPECIFICATIONS

Model CT15I/S

Countertop Cut-Out Dimensions

SPECIFICATIONS

Model CT15I/S Induction Cooktop

Trim Finish Classic

Overall Width 15" (381)

Overall Height 2

/2" (64)

Overall Depth 21" (533)

Heating Elements Tw o

Max Element Power 1800 W (front)

Max Element Power 2200 W (rear)

Cabinet Depth 22

/4" (578) min

Height Clearance 6" (152) min

Cut-Out Width* 13

/8" (340)

Cut-Out Depth 19

/4" (489)

Electrical Supply 240/ 208 V AC, 60 Hz

20 amp dedicated circuit

Conduit 4' (1.2 m) flexible 3-wire

Electrical Rating 3.4 kW at 240 V

2.6 kW at 208 V

Shipping Weight 30 lbs (14 kg)

*If the induction cooktop is to be used with any combination of additional cooktop units or modules with a filler strip, the cut-out width increases to 14" (356).

IMPORTANT NOTE: A minimum height clearance of 6" (152) is required. If a shelf is installed below the unit, a 1" (25) gap at the rear of the cabinet shelf is necessary to allow for proper ventilation. Failure to do so could result in decreased performance or product damage.

Unit dimensions may vary to ±

/8" (3).

PLANNING INFORMATION

The illustrations provide the overall dimensions and finished cut-out dimensions that you need to plan for in your installation. We have minimized the information contained in the illustrations, concentrating on the critical information you must plan into your installation.

IMPORTANT NOTE: When multiple cooktops or modules are installed side by side, refer to page 23 for countertop cut-out dimensions.

The induction cooktop can accommodate a Wolf cooktop hood, downdraft system or Pro ventilation hood or hood liner. When installing a ventilation hood, refer to the specific requirements of the hood for the minimum dimension to the countertop. Refer to pages 72–91 for ventilation specifications.

ELECTRICAL REQUIREMENTS

The Wolf induction cooktop requires a separate, grounded 3-wire 240/ 208 V AC, 60 Hz, 20 amp service with its own circuit breaker. Locate electrical within the shaded area shown in the illustration.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

33" (838)

13" max

(330)

191/4" (489)

2"**

COOKTOP CUT-OUT

(51)

DEPTH

18"

(457)

21/2"min

(64)

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

2"*min (51)

CUT-OUT TO

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

21/2"min

(64)

COOKTOP CUT-OUT

CABINET WIDTH

133/8" (340)

WIDTH

15"

(381)

133/8" (340)

WIDTH

RECOMMENDED

(152)

15"

(381)

191/4" (489)

COOKTOP

CUT-OUT DEPTH

30" (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

ABOVE COOKTOP

FRONT OF COUNTERTOP

ELECTRIC GRILL MODULE

Who says you have to sacrifice the fun of grilling when the weather changes and you cannot take advantage of the outdoors? With this grill cooktop you can easily handle steaks and all sorts of food without the hassle of lava rocks or briquettes.

There are two individual heating elements— front and back— on this module that enable you to cook on one side while keeping other items at serving temperature.

For ease of cleaning, there are porcelainized plates below two 1400-watt heating elements that accumulate any unwanted grease and drain it away.

The Wolf electric grill module is available in classic stainless steel.

FEATURES

Integrated design allows for installation of multiple cooktops or modules

Stainless steel top construction with classic stainless steel finish

Two 1400-watt, individually controlled heating elements— front and back for even grilling

Illuminated electronic touch controls with graduated control lighting

Low-profile, one-piece cast iron grilling grate with matte porcelain finish

Black porcelain-coated grease deflection plates

Easy-to-clean, removable porcelain collection

pan

Independent digital timer

CSA certified for US and Canada

ELECTRIC GRILL FEATURES

Model IG15/S

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

WOLF INTEGRATED MODULES

Model IG15/S

Electric Grill Module

15" (381)

OVERALL WIDTH

21"

(533)

OVERALL

DEPTH

61/4"

(159)

OVERALL DIMENSIONS

Model IG15/S

Two 1400-watt heating elements

Low-profile, one-piece grilling grate

Graduated control lighting

Illuminated electronic touch controls

Removable collection pan

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

ACCESSORIES

Electric Grill Module

Filler strip

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Location of rating plate

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF INTEGRATED MODULES

INSTALLATION SPECIFICATIONS

Model IG15/S

Countertop Cut-Out Dimensions

SPECIFICATIONS

Model IG15/S Electric Grill Module

Exterior Finish Classic

Overall Width 15" (381)

Overall Height 6

/4" (159)

Overall Depth 21" (533)

Temperature Zones Tw o

Heating Element 1400 W Zone (front)

Heating Element 1400 W Zone (rear)

Total Element Power 2800 W

Cabinet Depth 22

/4" (578) min

Height Clearance 6

/4" (159) min

Cut-Out Width 14" (356)

Cut-Out Depth 19

/4" (489)

Electrical Supply 240/ 208 V AC, 60 Hz

15 amp dedicated circuit

Conduit 4' (1.2 m) flexible 3-wire

Electrical Rating 2.8 kW at 240 V

2.1 kW at 208 V

Shipping Weight 50 lbs (28 kg)

Unit dimensions may vary to ±1/8" (3).

PLANNING INFORMATION

IMPORTANT NOTE: When multiple cooktops or modules are installed side by side, refer to page 23 for countertop cut-out dimensions.

The grill module can accommodate a Wolf cooktop hood or Pro ventilation hood or hood liner. When installing a ventilation hood, refer to the specific requirements of the hood for the minimum dimension to the countertop. Refer to pages 72–91 for ventilation specifications.

IMPORTANT NOTE: Wolf does not recommend the use of downdraft ventilation with the grill module.

ELECTRICAL REQUIREMENTS

The Wolf electric grill module requires a separate, grounded 3-wire 240/208 V AC, 60 Hz, 15 amp service with its own circuit breaker. Locate electrical within the shaded area shown in the illustration.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

33" (838)

13" max

(330)

191/4" (489)

2"**

COOKTOP CUT-OUT

(51)

DEPTH

18"

(457)

21/2"min

(64)

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

7"*min (178)

CUT-OUT TO

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

COOKTOP CUT-OUT

CABINET WIDTH

14" (356)

WIDTH

15"

(381)

14" (356)

WIDTH

RECOMMENDED

61/4"

(159)

15"

(381)

30" (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

ABOVE COOKTOP

21/2"min

(64)

191/4" (489)

COOKTOP

CUT-OUT DEPTH

FRONT OF COUNTERTOP

ELECTRIC STEAMER MODULE

From a temperature of 140˚F (60˚C) to boil, you can keep food hot for long periods of time or defrost easily without drying out or losing flavor.

The beauty of this steamer module is accented by the sculptured glass domed lid, which is easily inverted for storage to keep a low profile.

The deep, large vessel with a two-gallon (7.6 L) capacity can hold up to 14 cups of cooked pasta. Includes one solid and one perforated stackable insert pan.

The diversity of our electric steamer includes slow cooking, double boiling, steaming eggs, steaming custard, proofing bread dough, warming food and melting chocolate as well as steaming vegetables.

The Wolf electric steamer module is available in classic stainless steel.

FEATURES

Integrated design allows for installation of multiple cooktops or modules

Stainless steel top construction with classic stainless steel finish

Hidden 2600-watt heating element

Illuminated electronic touch controls with

graduated control lighting

Large two-gallon (7.6 L) maximum capacity tub— 10-cup capacity for steaming

Two stackable stainless steel steamer insert pans— one solid and one perforated

Uses include steaming vegetables, eggs and custard, double boiling, proofing bread dough, warming food and melting chocolate

Can function as a slow cooker for 8–10 hours

Reversible domed glass lid for easy storage

Independent digital timer

Digital temperature readout and preheat indicator

Electronic drain

CSA certified for US and Canada

ELECTRIC STEAMER FEATURES

Model IS15/S

WOLF INTEGRATED MODULES

Model IS15/S

Electric Steamer

Module

OVERALL DIMENSIONS

Model IS15/S

Reversible domed glass lid

Deep drawn pan

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

This steamer module must be installed at least 15" (381) away from a Wolf fryer module, as contact between water and hot oil may cause burns from steam and hot oil.

ACCESSORIES

Electric Steamer Module

Filler strip

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Hidden 2600-watt heating element

Location of rating plate

Illuminated electronic touch controls

Graduated control lighting

Digital temperature readout

21"

(533)

OVERALL

DEPTH

15" (381)

OVERALL WIDTH

71/2"

(191)

131/2" (343)

TO DRAIN

OUTLET

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF INTEGRATED MODULES

INSTALLATION SPECIFICATIONS

Model IS15/S

Countertop Cut-Out Dimensions

SPECIFICATIONS

Model IS15/S Electric Steamer Module

Exterior Finish Classic

Overall Width 15" (381)

Overall Height 13

/2" (343)

Overall Depth 21" (533)

Heating Element 2600 W

Cabinet Depth 22

/4" (578) min

Height Clearance 13

/2" (343) min

Cut-Out Width 14" (356)

Cut-Out Depth 19

/4" (489)

Electrical Supply 240/ 208 V AC, 60 Hz

15 amp dedicated circuit

Conduit 4' (1.2 m) flexible 3-wire

Electrical Rating 2.6 kW at 240 V

1.9 kW at 208 V

Shipping Weight 40 lbs (18 kg)

Unit dimensions may vary to ±1/8" (3).

PLANNING INFORMATION

The illustrations provide the overall dimensions and finished cut-out dimensions that you need to plan for in your installation.

IMPORTANT NOTE: When multiple cooktops or modules are installed side by side, refer to page 23 for countertop cut-out dimensions.

For the drain connection, the 5/8" (16) outlet from the valve will accept a drain hose that must flow downward to and tie into an existing sink drain. Or a separate drain with a freefall may be installed. Following local building codes, your plumber will dictate how to plumb the unit. As a third option, the consumer will supply a heat resistant bucket for drainage in the location of the drain outlet. Refer to the illustration for location of the drain outlet.

The steamer module can accommodate a Wolf cooktop hood or Pro ventilation hood or hood liner. When installing a ventilation hood, refer to the specific requirements of the hood for the minimum dimension to the countertop. Refer to pages 72–91 for ventilation specifications.

IMPORTANT NOTE: Wolf does not recommend the use of downdraft ventilation with the steamer module.

ELECTRICAL REQUIREMENTS

The Wolf electric steamer module requires a separate, grounded 3-wire 240/208 V AC, 60 Hz, 15 amp service with its own circuit breaker. Locate electrical within the shaded area shown.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

This steamer module must be installed at least 15" (381) away from a Wolf fryer module, as contact between water and hot oil may cause burns from steam and hot oil.

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

33" (838)

14" (356)

WIDTH

123/8"

(314)

14" (356)

WIDTH

15"

(381)

RECOMMENDED

CABINET WIDTH

131/2"

(343)

(152)

15"

(381)

DRAIN

OUTLET

LOCATION

30" (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

ABOVE COOKTOP

13" max

(330)

2"**

191/4" (489)

(51)

COOKTOP CUT-OUT

DEPTH

123/8"

(314)

75/8"

(194)

DRAIN OUTLET

LOCATION

18"

(457)

21/2"min

(64)

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

7"*min (178)

CUT-OUT TO

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

COOKTOP CUT-OUT

21/2"min

(64)

191/4" (489)

COOKTOP

CUT-OUT DEPTH

FRONT OF COUNTERTOP

ELECTRIC FRYER MODULE

To round out your options for the ideal kitchen, you can choose a fryer, and Wolf offers a great option that the market has never seen. When your client uses this module, they‘ll be able to create dinner specialties never tried before.

The accurate temperature control will enable your customer to seal in that great flavor of the food without absorbing any unnecessary grease. The fryer can handle a variety of goods at a wide range of oil temperatures.

The Wolf fryer module is available in classic stainless steel. In addition, there is a metal storage lid to keep the grease area free from particles falling into the fryer.

FEATURES

Integrated design allows for installation of multiple cooktops or modules

Stainless steel top construction with classic stainless steel finish

Hidden 2600-watt heating element

Illuminated electronic touch controls with

graduated control lighting

Large 11/4 gallon (3.8 L) capacity tub

Three baskets included— one large and two small

side by side, each with wire basket hanger

Low-profile lid

Melt feature for shortening or lard

Independent digital timer

Digital temperature readout and preheat indicator

Easy manual locking drain capability

Recommended for installation with any Wolf

framed electric cooktop or the Wolf electric grill module

CSA certified for US and Canada

ELECTRIC FRYER FEATURES

Model IF15/S

WOLF INTEGRATED MODULES

Model IF15/S

Electric Fryer Module

OVERALL DIMENSIONS

Model IF15/S

Hidden 2600-watt heating element

Low-profile lid

Location of rating plate

Illuminated electronic touch controls

Deep drawn pan

Graduated control lighting

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

This fryer module must be installed at least 15" (381) away from any open flame cooking device. The open flame may cause ignition of oil.

This fryer module must be installed at least 15" (381) away from a Wolf steamer module, as contact between water and hot oil may cause burns from steam and hot oil.

ACCESSORIES

Electric Fryer Module

Filler strip

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Digital temperature readout

21"

(533)

OVERALL

DEPTH

15" (381)

OVERALL WIDTH

71/2"

(191)

131/2" (343)

TO DRAIN

OUTLET

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF INTEGRATED MODULES

INSTALLATION SPECIFICATIONS

Model IF15/S

Countertop Cut-Out Dimensions

SPECIFICATIONS

Model IF15/S Electric Fryer Module

Exterior Finish Classic

Overall Width 15" (381)

Overall Height 13

/2" (343)

Overall Depth 21" (533)

Heating Element 2600 W

Cabinet Depth 22

/4" (578) min

Height Clearance 13

/2" (343) min

Cut-Out Width 14" (356)

Cut-Out Depth 19

/4" (489)

Electrical Supply 240/ 208 V AC, 60 Hz

15 amp dedicated circuit

Conduit 4' (1.2 m) flexible 3-wire

Electrical Rating 2.6 kW at 240 V

1.9 kW at 208 V

Shipping Weight 30 lbs (14 kg)

Unit dimensions may vary to ±1/8" (3).

PLANNING INFORMATION

The illustrations provide the overall dimensions and finished cut-out dimensions that you need to plan for in your installation.

IMPORTANT NOTE: When multiple cooktops or modules are installed side by side, refer to page 23 for countertop cut-out dimensions.

The electric fryer module must be installed in a base cabinet with access to the bottom of the unit to drain the oil through a manual valve. The consumer must supply a heat resistant bucket to accept the drained oil. Refer to the illustration for location of the drain outlet.

The fryer module can accommodate a Wolf cooktop hood or Pro ventilation hood or hood liner. When installing a ventilation hood, refer to the specific requirements of the hood for the minimum dimension to the countertop. Refer to pages 72–91 for ventilation specifications.

IMPORTANT NOTE: Wolf does not recommend the use of downdraft ventilation with the fryer module.

ELECTRICAL REQUIREMENTS

The Wolf electric fryer module requires a separate, grounded 3-wire 240/208 V AC, 60 Hz, 15 amp service with its own circuit breaker. Locate electrical within the shaded area shown in the illustration.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

This fryer module must be installed at least 15" (381) away from any open flame cooking device. The open flame may cause ignition of oil.

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

This fryer module must be installed at least 15" (381) away from a Wolf steamer module, as contact between water and hot oil may cause burns from steam and hot oil.

33" (838)

14" (356)

WIDTH

123/8"

(314)

15"

(381)

14" (356)

WIDTH

RECOMMENDED

CABINET WIDTH

131/2"

(343)

(152)

15"

(381)

30" (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

ABOVE COOKTOP

13" max

(330)

191/4" (489)

2"**

COOKTOP CUT-OUT

(51)

DEPTH

123/8"

(314)

75/8"

(194)

DRAIN OUTLET

LOCATION

NOTE: Application shown allows for installation of two 15" (381) modules side-by-side with 33" (838) recommended cabinet width. 18" (457) recommended cabinet width for installation of single 15" (381) cooktop or module. NOTE: Fryer module must be installed in a base cabinet with access to manual valve at base of unit to drain oil into heat resistant receptacle. *Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18" (457) above countertop. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.

18"

(457)

21/2"min

(64)

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

7"*min (178)

CUT-OUT TO

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

DRAIN OUTLET

LOCATION

COOKTOP CUT-OUT

21/2"min

(64)

191/4" (489)

COOKTOP

CUT-OUT DEPTH

FRONT OF COUNTERTOP

GAS MULTI-FUNCTION COOKTOP

It’s really a misnomer to describe this wonderful cooktop module as a wok instrument because it is much more than that. The large, low-profile grate will fit in nicely with any Wolf gas cooktop.

For true wok cooking, the burner sculpts the gas flame into a plume, focusing heat in the center of the wok, then dispersing it outward for precisely controlled cooking. The larger grate will handle your wok perfectly, but also accommodate even your largest stockpots, Dutch ovens and the like. The powerful burner exceeds 18,000 Btu/ hr (5.3 kW).

The Wolf multi-function cooktop is available in classic stainless steel.

FEATURES

Integrated design allows for installation of multiple cooktops or modules

Available in natural and LP gas

Stainless steel top construction with classic

stainless steel finish

High output 18,000 Btu/hr (5.3 kW) dual-stacked sealed burner

Automatic electronic reignition system

Illuminated control panel

Individual spark ignition system

Two interchangeable cast iron burner grates

with matte porcelain finish— wok grate and lowprofile continuous grate

Deep drawn burner pan

CSA certified for US and Canada

GAS MULTI-FUNCTION COOKTOP FEATURES

Model IM15/S

WOLF INTEGRATED MODULES

Model IM15/S

Gas Multi-Function

Cooktop

OVERALL DIMENSIONS

Gas Multi-Function Cooktop

Wok grate shown

High-output 18,000 Btu/ hr (5.3 kW) burner

Continuous control knob

Deep drawn pan

Illuminated control panel

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

ACCESSORIES

Gas Multi-Function Cooktop

Filler strip

Bracket supports for installation of two integrated modules with 30" (762) downdraft

High altitude conversion kit

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Location of rating plate

21"

(533)

OVERALL

DEPTH

15" (381)

OVERALL WIDTH

5" (127)

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF INTEGRATED MODULES

INSTALLATION SPECIFICATIONS

Gas Multi-Function Cooktop

Countertop Cut-Out Dimensions

SPECIFICATIONS

Gas Multi-Function Cooktop

Overall Width 15" (381)

Overall Height 5" (127)

Overall Depth 21" (533)

Burner Rating 18,000 Btu/hr

(5.3 kW)

Cabinet Depth 22

/4" (578) min

Height Clearance 5" (127) min

Cut-Out Width 14" (356)

Cut-Out Depth 19

/4" (489)

Electrical Supply 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 6' (1.8 m) 3-prong

Gas Rating 18,000 Btu/ hr

(5.3 kW)

Shipping Weight 30 lbs (14 kg)

Unit dimensions may vary to ±1/8" (3).

PLANNING INFORMATION

The illustrations provide the overall dimensions and finished cut-out dimensions that you need to plan for in your installation.

IMPORTANT NOTE: When multiple cooktops or modules are installed side by side, refer to page 23 for countertop cut-out dimensions.

This cooktop can accommodate a Wolf cooktop hood, downdraft system or Pro ventilation hood or hood liner. When installing a ventilation hood, refer to the specific requirements of the hood for the minimum dimension to the countertop. Refer to pages 72–91 for ventilation specifications.

ELECTRICAL | GAS REQUIREMENTS

The electric ignition system is a safe, convenient and reliable manner to provide ignition for the burner. The Wolf gas multi-function cooktop requires a separate 120 V AC, 60 Hz power supply.

The service should have its own 15 amp circuit breaker, and a grounded 3-prong receptacle should be located within reach of the power cord. Locate electrical and gas supply within the shaded area shown in the illustration.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

The gas multi-function cooktop is designed to operate on natural gas at 5" (12.5 mb) WC pressure or LP gas at 10" (25 mb) WC pressure. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa). It is supplied with a 1/2" NPT male gas connection at the right rear corner of the module. The male connector exits the unit straight down, and you are supplied with a regulator with two female connectors.

HIGH ALTITUDE

The Wolf gas multifunction cooktop functions up to 8,000' (2438 m) in altitude without any adjustment. If installation is above 8,000' (2438 m), contact your Wolf dealer.

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

MODEL OPTIONS

Gas Multi-Function Cooktop

Classic / Natural Gas IM15/S

Classic / LP Gas IM15/S-LP

33" (838)

14" (356)

WIDTH

15"

(381)

15"

(381)

14" (356)

WIDTH

RECOMMENDED

CABINET WIDTH

5" (127)

15"

(381)

30" (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

ABOVE COOKTOP

13" max

(330)

21/2"**

191/4" (489)

(64)

COOKTOP CUT-OUT

DEPTH

LOCATION OF GAS SUPPLY MAY ALSO

EXTEND 5" ON FLOOR

FROM BACK WALL

(127)

18"

(457)

21/2"min

(64)

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

7"*min (178)

CUT-OUT TO

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

COOKTOP CUT-OUT

LOCATION OF GAS SUPPLY

MAY ALSO EXTEND 5" ON

FLOOR FROM BACK WALL

COOKTOP CUT-OUT

21/2"min

(64)

191/4" (489)

COOKTOP

CUT-OUT DEPTH

FRONT OF COUNTERTOP

FEATURES

Built-in or freestanding convection microwave oven with 1.5 cu ft (42 L) capacity and 900 watts of power

30" (762) or 36" (914) trim kit allows microwave to be built in to fit above a Wolf built-in oven

Classic, platinum or carbon stainless steel trim finishes

Sensor cooking

Slow cook mode for up to four hours

Easy-to-operate control panel and programma-

ble power options

Interactive display— 99 minutes, 99 seconds

Menu label and food guide

Multi-language— English, French and Spanish

Removable turntable and turntable support

Microwave tray for popcorn and meat

Oven door with window

Multiple rack baking

Safety door latches—oven will not operate

unless the door is closed

Oven light comes on when oven is operating or door is open

Tight door seals with one-touch door open pad

Rear ventilation openings

WOLF MICROWAVE OVENS

CONVECTION MICROWAVE FEATURES

Model MWC24

WOLF CONVECTION MICROWAVE

Taking the experience we’ve gained from our microwave ovens and combining that with the expertise of convection, Wolf has brought the best of both cooking technologies together in one unit.

This handsome unit comes with trim kits to mount the unit above a 30" (762) or 36" (914) Wolf oven and finish off your cooking tower in a single look. The trim comes in three stainless steel looks— classic, platinum and carbon.

Aside from looking beautiful whether you use it in conjunction with an oven or not, the unit offers you all the performance you would expect from Wolf—a cooking company with a heritage of nearly 75 years in the kitchen.

One-touch door open pad

Safety door latches

Lighted digital display

Oven door with window

Convection air openings

Location of rating plate

Door hinges

Turntable

Ventilation openings (rear)

Oven light

Waveguide cover

Auto-touch control panel

Model MWC24

Freestanding

Model MWC24

with 30" (762) Trim

Model MWC24

with 36" (914) Trim

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF MICROWAVE OVENS

PLANNING INFORMATION

The Wolf convection microwave oven can be used free-standing or with optional 30" (762) or 36" (914) trim, or can be built in to fit above a Wolf 30" (762) or 36" (914) single oven.

IMPORTANT NOTE: In all instances, where the microwave oven is built in, you must use one of Wolf‘s trim kits to ensure proper ventilation.

The Wolf convection microwave oven with 30" (762) or 36" (914) trim kit will overlap stiles and rails. The trim overlaps for the 30" (762) and 36" (914) trim kits are 13/16" (21) on the bottom,

/16" (8) on the top and 13/16" (30) on each side.

Refer to the installation instructions provided with the trim kit for detailed specifications.

When using the Wolf convection microwave oven as a free-standing unit, allow 2" (51) of airflow space on top, rear and both sides. A minimum 201/8" (511) cabinet depth is required.

Specifications on the following pages provide overall dimensions, rough openings and installation options for the convection microwave oven. We have minimized the information contained in the illustrations, concentrating on the critical information you must plan into your installation.

The Wolf convection microwave oven with 30" (762) trim kit may be installed in combination with a 30" (762) single oven and 30" (762) warming drawer with stainless steel drawer front. With the 36" (914) trim kit, the convection microwave may be installed in combination with a 36" (914) single oven and warming drawer with integrated drawer front. Refer to installation options on the following pages.

ELECTRICAL REQUIREMENTS

The Wolf convection microwave oven requires a separate, grounded 110/120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker, and a grounded 3-prong receptacle should be located within reach of the power cord.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

TRIM KIT OPTIONS

Model MWC24

30" (762) Stainless Steel Trim

Classic Trim MWCTRIM30/S

Platinum Trim MWCTRIM30/P

Carbon Trim MWCTRIM30/B

36" (914) Stainless Steel Trim

Classic Trim MWCTRIM36/S

Platinum Trim MWCTRIM36/P

Carbon Trim MWCTRIM36/B

Optional trim kits are ordered and shipped as a sales accessory. Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

OVERALL DIMENSIONS

Model MWC24 and Trim

INSTALLATION SPECIFICATIONS

Model MWC24 with 30" (762) Trim

Wall Application

Undercounter Installation

SPECIFICATIONS

Model MWC24 with 30" (762) Trim

Overall Width 297/8" (759)

Overall Height 19

/8" (505)

Overall Depth 20

/8" (511)

Rec Cabinet Width 33" (838)

Min Cabinet Width 30" (762)

Min Base Support 125 lbs (57 kg)

Opening Width 27

/2" (699)

Opening Height 18

/16" (475)

Opening Depth 20

/8" (511) min

SPECIFICATIONS

Model MWC24 Convection Microwave (free-standing)

Overall Width 243/4" (629)

Overall Height 14

/8" (378)

Overall Depth 20

/8" (511)

Interior Oven Cap 1.5 cu ft (42 L)

Interior Oven Dim 16

/8"x 95/8"x 161/8"

(W x H x D) (410 x 244 x 410)

Electrical Supply 120 V AC, 60 Hz

15 amp dedicated circuit

Power 900 W

Power Requirement 1.6 kw (with convection)

Power Cord 3

/2' (1.1 m) 3-prong

Shipping Weight 68 lbs (31 kg)

SPECIFICATIONS

Model MWC24 with 36" (914) Trim

Overall Width 355/8" (905)

Overall Height 19

/8" (505)

Overall Depth 20

/8" (511)

Rec Cabinet Width 39" (991)

Min Cabinet Width 36" (914)

Min Base Support 125 lbs (57 kg)

Opening Width 33

/8" (854)

Opening Height 18

/16" (475)

Opening Depth 20

/8" (511) min

Unit dimensions may vary to ±1/8" (3).

WOLF MICROWAVE OVENS

IMPORTANT NOTE: For installation of the convection microwave with 36" (914) trim, add 6" (152) to the overall width dimensions shown in the illustrations.

243/4" (629)

FREE-STANDING

WIDTH

11/4" (32) 11/4" (32)

211/16"

(68)

297/8" (759)

30" (762) TRIM WIDTH

355/8" (905)

36" (914) TRIM WIDTH

201/8"min

(511)

OPENING DEPTH

24"min

(610)

1811/16"

(475)

OPENING

HEIGHT

273/16"

(691)

1"min

(25)

197/8"

(505)

TRIM

HEIGHT

211/16"

(68)

271/2" (699)

OPENING WIDTH

281/2" (724)

30-INCH OVEN

ROUGH OPENING

201/8" (511)

BEHIND FRAME

(127)

(102)

147/8"

(378)

FREE-STANDING

HEIGHT

RECOMMENDED CABINET WIDTH

30"min (762)

201/8"min

(511)

OPENING DEPTH

1811/16"

(475)

OPENING

HEIGHT

36" (914)

STANDARD

FLOOR TO

COUNTER

HEIGHT

OPENING WIDTH

RECOMMENDED CABINET WIDTH

30"min (762)

33"

(838)

271/2" (699)

33" (838)

(127)

(102)

Dimensions in parentheses are in millimeters unless otherwise specified.

INSTALLATION OPTIONS

Model MWC24 with 30" (762) trim may be installed in combination with a 30" (762) built-in single oven and 30" (762) warming drawer with stainless steel drawer front. Refer to page 6 for installation specifications for the built-in oven.

Refer to the installation instructions provided with each microwave trim kit for detailed specifications.

Dimensions will vary according to the specific installation.

INSTALLATION SPECIFICATIONS

Model MWC24 with 30" (762) Trim

Installation with 30" (762) built-in single oven and warming drawer with stainless steel drawer front

INSTALLATION SPECIFICATIONS

Model MWC24 with 36" (914) Trim

Installation with 36" (914) built-in single oven and warming drawer with integrated drawer front

INSTALLATION OPTIONS

Model MWC24 with 36" (914) trim kit may be installed in combination with a 36" (914) built-in single oven and warming drawer with integrated drawer front. Refer to page 7 for installation specifications for the built-in oven.

Keep in mind that the width of the custom panel for the warming drawer with integrated drawer front will vary according to the specific installation.

Refer to the installation instructions provided with each microwave trim kit for detailed specifications.

Dimensions will vary according to the specific installation.

WOLF MICROWAVE OVENS

30"min (762) CABINET

271/2" (699)

201/8"min

(511)

24"min

(610)

/8" (22)

PLATFORM

91/8" (232)

OPENING

HEIGHT

237/8"min (606)

OPENING DEPTH

1811/16"

(475)

273/16"

(691)

/8"

(22)

1"min

(25)

201/8"min

(511)

24"min

(610)

2"(51) x 2" (51)

ANTI-TIP BLOCK

91/8" (232)

OPENING

HEIGHT

237/8"min (606)

OPENING DEPTH

1811/16"

(475)

273/16"

(691)

23/8"

(60)

1"min

(25)

CONVECTION MICROWAVE

OPENING WIDTH

(127)

281/2" (724)

30-INCH OVEN

OPENING WIDTH

(127)

(102)

285/8" (727)

WARMING DRAWER

OPENING WIDTH

(102)

ANTI-TIP BLOCK APPLICATIONPLATFORM APPLICATION

NOTE: Refer to the 30" (762) built-in single oven specifications for electrical location.

24" min (610)

CABINET DEPTH

2"(51) x 2" (51)

ANTI-TIP BLOCK

97/8"(251)

24" min (610)

OPENING DEPTH

201/8"min

(511)

24"min

(610)

101/4"

OPENING

HEIGHT

(260)

1811/16"

(475)

241/16"

(611)

11/2"min*

(38)

1"min

(25)

25" min (635)

CABINET DEPTH

201/8"min

(511)

24"min

(610)

2"(51) x 2" (51)

ANTI-TIP BLOCK

101/4"

97/8"(251)

24" (610) + THICKNESS

OF DRAWER FACE

FOR OPENING DEPTH

(260)

OPENING

HEIGHT

1811/16"

(475)

241/16"

(611)

11/2"min*

(38)

1"min

(25)

39" (991)

RECOMMENDED CABINET WIDTH

36"min (914)

333/8" (854)

MICROWAVE

OPENING WIDTH

341/2" (876 )

36-INCH OVEN

OPENING WIDTH

(127)

(102)

291/2" (749)

WARMING DRAWER

OPENING WIDTH

(127)

(102)

OVERLAY APPLICATION

*Dimension may increase depending on the size of the drawer front panel.

The width of the custom panel for the warming drawer with integrated drawer front will vary according to the specific installation, but the rough opening width will remain 291/2" (749).

INSET APPLICATION

NOTE: Refer to the 36" (914) built-in single oven specifications for electrical location.

FEATURES

Built-in or free-standing non-convection microwave oven with 2.0 cu ft (57 L) capacity and 1200 watts of power

Classic stainless steel trim finish

Sensor cooking

Easy-to-operate control panel and programma-

ble power options

Interactive display— 99 minutes, 99 seconds

Warming feature

Menu label and food guide

Multi-language— English, French and Spanish

Removable turntable and support

Safety door latches—oven will not operate

unless the door is closed

Oven light comes on when oven is operating or door is open

Tight door seals with one-touch door open pad

Rear ventilation openings

WOLF MICROWAVE OVENS

NON-CONVECTION MICROWAVE FEATURES

Model MW24

WOLF NON-CONVECTION MICROWAVE

What sort of microwave oven can you expect from a cooking company? This is the only nonconvection microwave that deserves the Wolf name.

It‘s fast— 1200 watts on high. Roomy— a full 2.0 cu ft (57 L). And it is a true cooking instrument with a vast range of advanced features including sensor cooking controlled from an interactive display.

The unit is black with optional trim available in the classic stainless steel finish.

With the trim in place, the microwave oven is identical in width to our 30" (762) oven, so it can be easily mounted above the oven to offer an attractive combination look.

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

Model MW24

Free-Standing

Model MW24

with 30" (762) Trim

One-touch door open pad

Oven door with window

Interactive display

Safety door latches

Location of rating plate

Door hinges

Door seals and sealing surfaces

Turntable

Ventilation openings (rear)

Oven light

Waveguide cover

Control panel

TRIM OPTION

Model MW24

30" (762) Stainless Steel Trim

Classic MWTRIM30/S

The optional trim kit is ordered and shipped as a sales accessory. Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

OVERALL DIMENSIONS

Model MW24 and Trim

Unit dimensions may vary to ±1/8" (3).

24" (610)

FREE-STANDING WIDTH

211/16" (68)

11/4" (32) 11/4" (32)

297/8" (759)

30" (762) TRIM WIDTH

181/4"

(464)

TRIM

HEIGHT

191/8" (486)

BEHIND FRAME

133/8"

(340)

FREE-STANDING

HEIGHT

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF MICROWAVE OVENS

INSTALLATION SPECIFICATIONS

Model MW24 with 30" (762) Trim

Wall Application— installation with 30" (762) built-in single oven and warming drawer with stainless steel drawer front

Undercounter Installation

SPECIFICATIONS

Model MW24 Non-Convection Microwave

Overall Width 24" (610) (free-standing)

Overall Width 297/8" (759) with 30" (762) trim

Overall Height 133/8" (340) (free-standing)

Overall Height 181/4" (464) with 30" (762) trim

Overall Depth 191/8" (486)

Interior Oven Cap 2.0 cu ft (57 L)

Interior Oven Dim 17

/8"x 101/2"x 185/8"

(W x H x D) (441 x 267 x 473)

Rec Cabinet Width 33" (838)

Min Cabinet Width 30" (762)

Min Base Support 125 lbs (57 kg)

Opening Width 27

/2" (699)

Opening Height 17" (432)

Opening Depth 20" (508) min

Electrical Supply 120 V AC, 60 Hz

15 amp dedicated circuit

Power 1200 W

Power Cord 3' (.9 m) 3-prong

Shipping Weight 50 lbs (23 kg)

PLANNING INFORMATION

The Wolf non-convection microwave oven can be used free-standing or with optional 30" (762) trim, or can be built in to fit above a Wolf 30" (762) single oven and/ or 30" (762) warming drawer with stainless steel drawer front.

IMPORTANT NOTE: In all instances, where the microwave oven is built in, you must use the trim kit to ensure proper ventilation.

The Wolf non-convection microwave oven with 30" (762) trim kit will overlap stiles and rails. The trim overlaps 13/16" (21) on the bottom, 7/16" (11) on the top and 13/16" (30) on each side.

In a free-standing application, allow 2" (51) of airflow space on top, rear and both sides. A minimum 20" (508) cabinet depth is required.

ELECTRICAL REQUIREMENTS

The Wolf microwave oven requires a separate, grounded 120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker, and a grounded 3-prong receptacle should be located within the reach of the power cord.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

INSTALLATION OPTIONS

The Wolf non-convection microwave oven may be installed in combination with a 30" (762) single oven and 30" (762) warming drawer with stainless steel drawer front. Refer to page 6 for installation specifications for the 30" (762) single oven.

Refer to the installation instructions provided with the trim kit for detailed specifications. These instructions can also be found on our website, wolfappliance.com.

33" (838)

RECOMMENDED CABINET WIDTH

30"min (762)

20"min

(508)

24"min

(610)

2"(51) x 2" (51)

ANTI-TIP BLOCK

91/8" (232)

237/8"min (606)

NOTE: Refer to the built-in 30" (762) single oven specifications for electrical location.

17"

(432)

273/16"

(691)

23/8"

(60)

1"min

(25)

ALLOW FOR

/8" (16)

OVERLAP OF

DRAWER FACE

ON ALL SIDES

/2" (699)

MICROWAVE

OPENING WIDTH

281/2" (724)

30-INCH OVEN

OPENING WIDTH

(127)

(102)

285/8" (727)

WARMING DRAWER

OPENING WIDTH

20"min

(508)

OPENING DEPTH

17" (432)

OPENING

HEIGHT

36" (914)

STANDARD

FLOOR TO

COUNTER

HEIGHT

/2" (699)

OPENING WIDTH

33" (838)

RECOMMENDED CABINET WIDTH

30"

min (762)

FEATURES

Stainless steel drawer front and tubular handle available in classic, platinum and carbon finishes

Integrated drawer front allows for custom wood panel application

850-watt heating element

Hidden electronic touch control panel

Preset and variable temperature control

Preset automatic shut-off or extended operation

in Sabbath Mode

Stainless steel interior

Rack for stacking food

Removable stainless steel drawer pan

Full-extension, ball bearing drawer glides

CSA certified for US and Canada

CSA approved for outdoor installations

WOLF WARMING DRAWERS

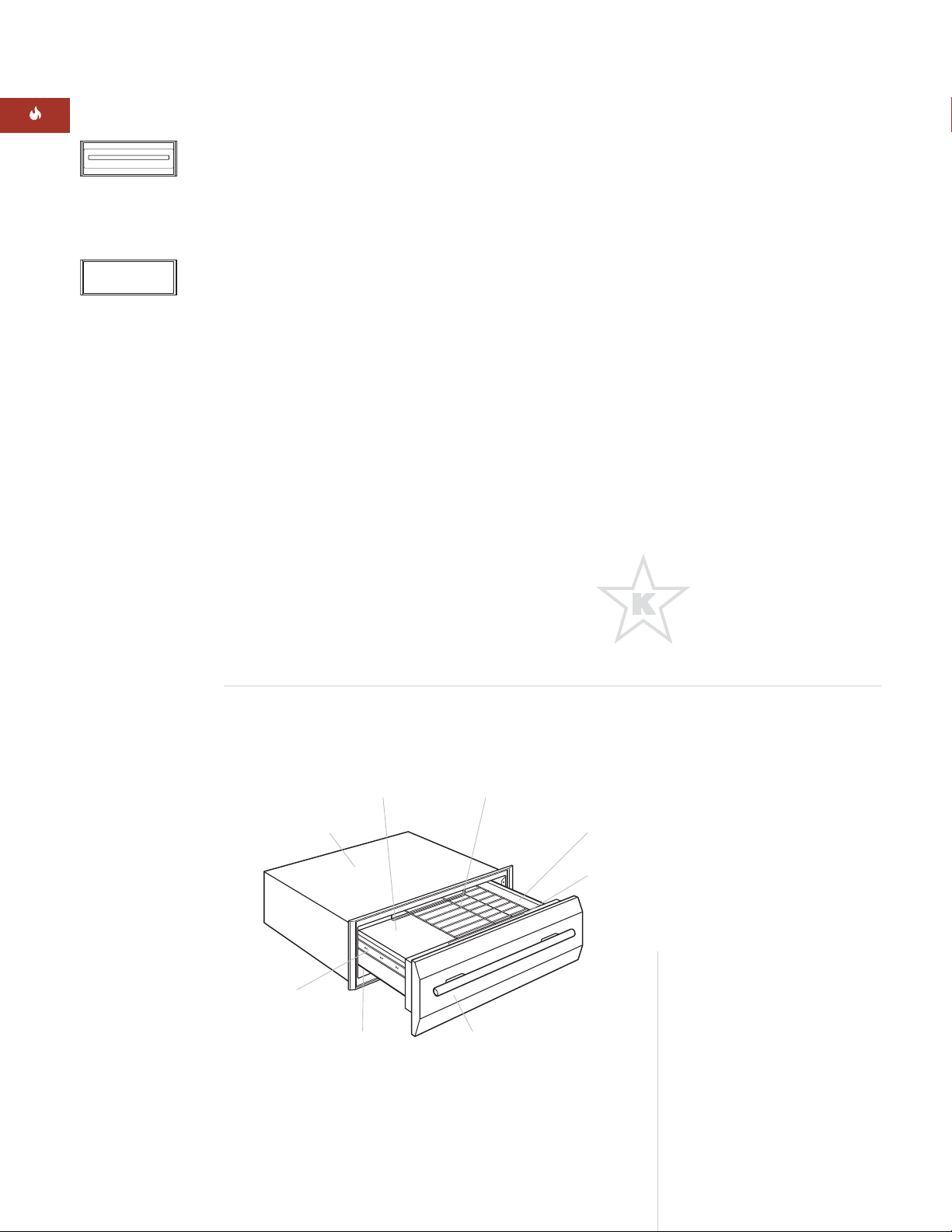

WARMING DRAWER FEATURES

Model WWD30 (stainless steel drawer front shown)

WOLF WARMING DRAWER

Warming drawers have a clear mission in life— to take good care of good food until it’s time for you to eat. Our superior air control helps keep moist foods moist and crisp foods crisp. In addition, Wolf warming drawers are among the most spacious on the market, so you will have little problem storing items.

There is a rack for stacking food, plus an optional set of six stainless steel containers with lids that divide the drawer into sections, keeping different dishes warm at the same time.

From a design perspective, you have four choices for the drawer front. Electronic controls are hidden regardless of your panel selection. Choose from the classic stainless steel look or the premium finishes of platinum or carbon stainless steel. Also available is the integrated drawer front, which allows for a custom wood panel. Wolf offers optional decorative handles for the integrated drawer front. Keep in mind, there are significant changes to the installation procedure if you plan on using the integrated drawer front.

Model WWD30

with Stainless Steel

Drawer Front

Model WWD30

with Integrated

Drawer Front

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

Rack for stacking food

Galvanized exterior

Stainless steel drawer front shown (sold as an accessory)

Ball bearing drawer glides

Stainless steel interior

Removable stainless steel drawer pan

Hidden electronic touch control panel

Location of rating plate

ACCESSORIES

Warming Drawer

Six-piece container set— includes six stainless steel pans with lids; one 6.7-quart pan, one

4.1-quart pan, two 3-quart pans, two 1.8-quart pans and pan rack

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF WARMING DRAWERS

PLANNING INFORMATION

The Wolf 30" (762) warming drawer is shipped without any decorative drawer front. You must order one of three stainless steel drawer fronts (tubular handle included) in classic, platinum or carbon finish, or the integrated front (no handle) for a custom wood application.

Specifications on the following pages provide overall dimensions, rough openings and installation options for Model WWD30 with stainless steel and integrated drawer fronts. Note that there are significant differences to the installation requirements for the integrated drawer front.

An anti-tip block must be installed to prevent the unit from tipping forward when the drawer is opened.

The base platform must be able to support 200 lbs (91 kg). This platform must be a minimum of 1" (25) above the toe kick to allow for the 5/8" (16) overlap of the warming drawer trim.

Model WWD30 may be installed below a Wolf built-in oven or an electric or gas cooktop, provided the warming drawer is fully enclosed, top and bottom. It may also be installed next to or above another Model WWD30. Dimensions will vary according to the specific installation.

STAINLESS STEEL DRAWER FRONT

Wolf recommends using a 33" (838) wide cabinet for the warming drawer with stainless steel drawer front. A minimum 30" (762) wide by 24" (610) deep cabinet is required.

INTEGRATED DRAWER FRONT

IMPORTANT NOTE: A minimum 33" (838) wide by 26" (660) deep cabinet is required for the warming drawer with integrated drawer front.

Model WWD30 with integrated drawer front can accommodate installations with a 30" (762) or 36" (914) cooktop. It may also be installed in combination with a 30" (762) single or double oven or a 36" (914) single oven. Dimensions will vary according to the specific installation.

Keep in mind that the width of the custom panel for the warming drawer with integrated drawer front will vary according to the specific installation. The opening width will remain 291/2" (749) whether installed in combination with a 30" (762) or 36" (914) cooktop or oven.

The decorative wood drawer front panel must be a minimum of 5/8" (16) thick.

ELECTRICAL REQUIREMENTS

Model WWD30 requires a separate, grounded 120 V AC, 60 Hz power supply. The service should have its own 15 or 20 amp circuit breaker, and a grounded 3-prong receptacle should be located within reach of the power cord and flush with the back wall. Locate electrical within the shaded area shown in the installation illustrations on the following pages.

IMPORTANT NOTE: When installed outdoors, a ground fault circuit interrupter (GFCI) is required to reduce the risk of electrical shock.

FRONT PANEL OPTIONS

Model WWD30

Classic Stainless WWDFRONT/S

Platinum Stainless WWDFRONT/P

Carbon Stainless WWDFRONT/B

Integrated WWDFRONT/I (accepts wood panel)

Optional drawer front panels are ordered and shipped as sales accessories. Stainless steel drawer front panels include matching tubular handle.

OVERALL DIMENSIONS

Model WWD30 with Stainless Steel Drawer Front

ACCESSORIES

Optional accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Model WWD30 with Integrated Drawer Front

271/8" (689)

OVERALL DEPTH

101/4"

(260)

297/8" (759)

OVERALL WIDTH

101/8"

(257)

293/8" (746)

OVERALL WIDTH

231/2" (597)

BEHIND FRAME

231/2" (597)

BEHIND FRAME

(229)

WOLF WARMING DRAWERS

SPECIFICATIONS

Model WWD30 with Stainless Steel Drawer Front

Overall Width 297/8" (759)

Overall Height 10

/4" (260)

Overall Depth 23

/16" (586)

(behind frame)

Rec Cabinet Width 33" (838)

Min Cabinet Width 30" (762)

Min Cabinet Depth 24" (610)

Min Base Support 200 lbs (91 kg)

Opening Width 28

/2" (724)

Opening Height 9

/8" (232)

Opening Depth 23

/2" (597)

Electrical Supply 120 V AC, 60 Hz

15 or 20 amp circuit

Heating Element 850 W

Power Cord 3' (.9 m) 3-prong

Shipping Weight 75 lbs (34 kg)

Unit dimensions may vary to ±1/8" (3).

INSTALLATION OPTIONS

Model WWD30 with stainless steel drawer front may be installed above or below a Wolf 30" (762) single or double oven, or below an electric or gas cooktop, provided the warming drawer is fully enclosed, top and bottom, with a minimum base support of 200 lbs (91 kg). Refer to the built-in oven and cooktop sections for additional specifications. It may also be installed next to or above another Model WWD30.

Model WWD30 with stainless steel drawer front may be installed in combination with a 30" (762) single oven and microwave oven with 30" (762) trim. Refer to the illustrations on pages 37 and 39.

Refer to the installation instructions provided with the stainless steel drawer front for detailed specifications. These instructions can also be found on our website, wolfappliance.com.

Dimensions will vary according to the specific installation.

INSTALLATION SPECIFICATIONS

Model WWD30 with Stainless Steel Drawer Front

Undercounter Installation

281/2" (724)

33" (838)

RECOMMENDED CABINET WIDTH

30"min (762)

285/8" (727)

WARMING DRAWER

OPENING WIDTH

(127)

(102)

ALLOW FOR

/8" (16)

OVERLAP OF

DRAWER FACE

ON ALL SIDES

NOTE: Refer to the built-in 30" (762) single oven specifications for electrical location.

30-INCH OVEN

ROUGH OPENING

PLATFORM APPLICATION

24"min (610)

CABINET DEPTH

/8"

(22)

91/8" (232)

OPENING

HEIGHT

237/8"min (606)

OPENING DEPTH

273/16"

(691)

24"min

(610)

/8" (22)

PLATFORM

24"min (610)

CABINET DEPTH

23/8"

(60)

ANTI-TIP BLOCK APPLICATION

91/8" (232)

OPENING

HEIGHT

237/8"min (606)

OPENING DEPTH

273/16"

(691)

24"min

(610)

2"(51) x 2" (51)

ANTI-TIP BLOCK

Installation below 30" Built-In Single Oven

2"(51) x 2" (51)

ANTI-TIP BLOCK

91/8" (232)

OPENING

HEIGHT

237/8" min (606)

OPENING DEPTH

24" min (610)

CABINET DEPTH

*Allow enough room for placement of anti-tip block and drawer face overlap.

DIMENSION WILL VARY*

STANDARD

FLOOR TO

COUNTER

36" (914)

HEIGHT

ALLOW FOR

/8" (16)

OVERLAP OF

DRAWER FACE

ON ALL SIDES

RECOMMENDED CABINET WIDTH

33" (838)

30" min (762)

(127)

(102)

285/8" (727)

OPENING WIDTH

5" min (127)

BOTTOM

OF OPENING

TO FLOOR

Dimensions in parentheses are in millimeters unless otherwise specified.

INSTALLATION SPECIFICATIONS

Model WWD30 with Integrated Drawer Front

Undercounter Installation

SPECIFICATIONS

Model WWD30 with Integrated Drawer Front

Overall Width 293/8" (746)

Overall Height 10

/8" (257)

Overall Depth 23

/2" (597)

(behind frame)

Min Cabinet Width 33" (838)

Min Cabinet Depth

Overlay 24" (610) Inset 25" (610)

Min Base Support 200 lbs (91 kg)

Opening Width 29

/2" (749)

Opening Height 10

/4" (260)

Opening Depth* 24" (610)

Min Panel Size (W x H)

Overlay 30" (762) x 10

/8" (264)

Inset 29

/8" (746) x 101/8" (257)

Min Panel Thickness

/8" (16)

Electrical Supply 120 V AC, 60 Hz

15 or 20 amp circuit

Heating Element 850 W

Power Cord 3' (.9 m) 3-prong

Shipping Weight 75 lbs (34 kg)

*For inset application, add thickness of drawer face to opening depth.

Unit dimensions may vary to ±

/8" (3).

WOLF WARMING DRAWERS

INSTALLATION OPTIONS

Model WWD30 with integrated drawer front may be installed above or below any Wolf built-in oven, or below an electric or gas cooktop, provided the warming drawer is fully enclosed, top and bottom, with a minimum base support of 200 lbs (91 kg). Refer to the cooktop and oven sections for additional specifications. It may also be installed next to or above another Model WWD30.

Model WWD30 with integrated drawer front may be installed in combination with a 30" (762) or 36" (914) single oven and microwave oven with 30" (762) or 36" (914) trim. Refer to page 37.

Refer to the installation instructions provided for detailed specifications. These instructions can also be found on our website, wolfappliance.com.

NOTE: Refer to the built-in 30" (762) single oven specifications for electrical location.

291/2" (749)

WARMING DRAWER

OPENING WIDTH

281/2" (724)

30-INCH OVEN

OPENING WIDTH

33" (838)

CABINET WIDTH

(127)

(102)

OVERLAY APPLICATION

273/16"

(691)

24"min

(610)

24" min (610)

OPENING DEPTH

24" min (610)

CABINET DEPTH

11/2"min*

(38)

101/4"

(260)

OPENING

HEIGHT

97/8"(251)

2"(51) x 2" (51)

ANTI-TIP BLOCK

INSET APPLICATION

273/16"

(691)

24"min

(610)

24" (610) + THICKNESS

OF DRAWER FACE

FOR OPENING DEPTH

25" min (635)

CABINET DEPTH

11/2"min*

(38)

101/4"

(260)

OPENING

HEIGHT

97/8"(251)

2"(51) x 2" (51)

ANTI-TIP BLOCK

*Dimension may increase depending on the size of the drawer front panel.

Installation below 30" Built-In Single Oven

Inset Application

Overlay Application

101/4"

(260)

HEIGHT

DIMENSION WILL VARY*

36" (914)

STANDARD

FLOOR TO COUNTER

HEIGHT

ALLOW FOR OVERLAP OF DECORATIVE

DRAWER FACE ON ALL SIDES**

2"(51) x 2" (51)

ANTI-TIP BLOCK

97/8"(251)

*Allow enough room for placement of anti-tip block and drawer face overlap.

**Overlap of decorative drawer face will vary depending on the size of the custom panel.

OPENING

24" min (610)

OPENING DEPTH

24" min (610)

CABINET DEPTH

RECOMMENDED CABINET WIDTH

2"(51) x 2" (51)

ANTI-TIP BLOCK

101/4"

97/8"(251)

24" (610) + THICKNESS

OF DRAWER FACE

FOR OPENING DEPTH

(260)

OPENING

HEIGHT

25" min (635)

CABINET DEPTH

DIMENSION WILL VARY*

36" (914)

STANDARD

FLOOR TO

COUNTER

HEIGHT

MINIMUM CABINET WIDTH

33" (838)

30" min (762)

(102)

291/2" (749)

OPENING WIDTH

33" (838)

(102)

291/2" (749)

OPENING WIDTH

(127)

5" min (127)

BOTTOM

OF OPENING

TO FLOOR

5" min (127)

BOTTOM

OF OPENING

TO FLOOR

*Allow enough room for placement of anti-tip block.

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

DF486CDF304

DF486G

DF606DG

DF484CG

DF366

DF606F

DF364C

DF606CG

DF484DG

DF364G

DF604CF

DF484F DF604GF

WOLF DUAL FUEL RANGES

COOKING MODES

Bake

Roast

Broil

Convection Bake

Convection Roast

Convection Broil

Convection

Bake Stone*

* Accessory required.

WOLF DUAL FUEL RANGES

With Wolf‘s dual fuel ranges you have state-ofthe-art cooking expertise in any number of sizes to meet the discriminating consumers‘ precise needs. Patented features ensure this range stands out from the rest in performance and also beauty.

Wolf dual fuel ranges come in 30" (762), 36" (914), 48" (1219) and 60" (1524) widths. Combined with the top configuration options, the different configurations you can choose from are numerous. Model numbers indicate the top configurations: (C) charbroiler, (G) griddle, (DG) double griddle and (F) French Top. All Wolf dual fuel ranges come in the classic stainless steel finish.

The electric oven(s) feature the Wolf exclusive dual convection system that delivers even temperature and airflow throughout. Its combination of convection fans and heating elements give the user convenience and superior control over eight different cooking modes. These modes include bake, roast, broil, convection bake, convection roast, convection broil, convection and bake stone (with bake stone accessory).

Advanced standard features such as dualstacked sealed burners, dual convection fans, cobalt blue porcelain oven interior, pivoting control panel, along with the Wolf exclusive infrared charbroiler, infrared griddle and French Top are all yours for the asking. The freedom to customize your dual fuel range will make you and your client look great.

MODEL OPTIONS

Dual Fuel Ranges

Dimensions in parentheses are in millimeters unless otherwise specified.

Continuous cast iron top grates

Pivoting hidden control panel

Coaxial oven selector knob

Dual halogen oven lighting

Spring/ damper door system

Control knobs with platinum bezels

Location of rating plate

Dual convection oven

Stainless steel island trim

Infrared griddle (optional)

Infrared charbroiler (optional)

Single convection oven— 48" (1219) range only

Adjustable front legs and rear casters

Blue porcelain oven interiors

Dual-stacked, sealed burners

Spring/damper door system

Griddle indicator light

Stainless steel exterior finish

Coaxial oven selector knob

ACCESSORIES

Dual Fuel Ranges

5" (127) and 10" (254) classic stainless steel risers

20" (508) classic stainless steel riser with shelf

Red or black control knobs— must be ordered with the range

Chrome or brass bezels

One-piece wok grate and single burner grate

Porcelain-cast two-burner S-grate

Two-piece broiler pan and temperature probe

Additional oven racks

Hardwood cutting board—griddle models only

Bake stone accessory

Dehydration accessory

Front leg extension covers and rear leg caster covers

High altitude conversion kit

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

WOLF DUAL FUEL RANGES

DUAL FUEL RANGE FEATURES

Model DF484CG shown

FEATURES

Natural or LP gas rangetop with dual convection electric oven(s)

18" (457) oven on 48" (1219) range is single convection

Optional infrared charbroiler, infrared griddle and French Top configurations

Classic stainless steel exterior finish with island trim included

Distinctive red or black control knobs

Platinum bezels surround all knobs—chrome or

brass bezels optional

Dual-stacked, sealed surface burners, all with simmer capabilities and automatic reignition at all settings

15,000 Btu/hr (4.4 kW) burners with 950 Btu/hr (.3 kW) delivered at simmer

9,200 Btu/hr (2.7 kW) burner with 325 Btu/hr (.1 kW) delivered at simmer and melt feature

Porcelain-coated cast iron continuous top grates

Pivoting hidden touch control panel

Eight cooking modes

Self-cleaning oven(s) with cobalt blue porcelain

oven interior

Coaxial temperature-displaying oven selector knob

Proof mode for 18" (457) oven on 48" (1219) range

Temperature probe and dehydration feature

Three removable oven racks, six-level rack guide

and full-extension bottom rack

Hidden bake element and recessed broil element

Triple-pane oven door window(s) and dual

halogen lighting

Spring/ damper door system on oven door(s)

Adjustable stainless steel legs in front and

adjustable rear casters

CSA certified for US and Canada

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

WOLF DUAL FUEL RANGES

PLANNING INFORMATION

Wolf dual fuel ranges come in 30" (762), 36" (914), 48" (1219) and 60" (1524) widths. Specifications on the following pages provide overall dimensions, finished rough opening dimensions and installation specifics for each size of dual fuel range. We have minimized the information contained in the illustrations, concentrating on the critical information you must plan into your installation.

IMPORTANT NOTE: Caution must be used in planning the proper installation of the Wolf dual fuel range to avoid fires or damage to adjacent cabinetry or kitchen equipment. Please follow the minimum clearances established in the finished rough opening dimensions. Refer to specifications on the following pages for your model.

It is recommended that you use a Wolf Pro ventilation hood or hood liner with the Wolf dual fuel range. Refer to pages 82–91 for Pro ventilation specifications.

ELECTRICAL | GAS REQUIREMENTS

Specifications on the following pages provide electrical and gas requirements for each size of dual fuel range.

Locate electrical and gas supply within the shaded area shown in the Installation Specifications illustration for your model.

Wolf dual fuel ranges are designed with a terminal block on the rear of the range. The terminal block allows for a 3-wire or 4-wire installation. For a 4-wire installation, the ground strap from the unit to the terminal block must be cut. Two concentric knockouts on the base of the unit are provided to allow a certified electrical contractor to wire the range directly to the electrical supply. The terminal block will also accept an appliance cord that is sized correctly for the voltage and amperage of your range.

Wolf dual fuel ranges are designed to operate on natural gas at 5" (12.5 mb) WC (water column) pressure or LP (propane) gas at 10" (25 mb) WC pressure. The minimum line pressure for natural gas is 7" (17.5 mb) WC and 11" (27.4 mb) WC for LP gas. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa).

Wolf recommends the use of a 1/2" (13) I.D. commercial-type flex hose; this is the minimum size that may be used. All plumbing to the flex hose must be3/4" (19) minimum I.D. pipe.

IMPORTANT NOTE: A separate external gas shut-off valve must be located near the range in an accessible location.

You must follow all National Electrical Code and gas regulations. In addition, be aware of local codes and ordinances when installing your services.

HIGH ALTITUDE

Wolf dual fuel ranges using natural gas function up to an altitude of 8,000' (2438 m) without any adjustment. Natural gas and LP gas installations from 8,000' (2438 m) to 11,000' (3353 m) need the high altitude kit. Contact your Wolf dealer for details.

BURNER RATING

Dual Fuel Ranges

Surface Burners 15,000 Btu/hr (4.4 kW)

with 950 Btu/ hr (.3 kW) delivered at simmer

(1) 9,200 Btu/ hr (2.7 kW) with 325 Btu/ hr (.1 kW) delivered at simmer

Infrared Charbroiler 16,000 Btu /hr (4.7 kW)

Infrared Griddle Natural Gas 15,000 Btu/hr (4.4 kW) LP Gas 13,000 Btu/hr (3.8 kW)

Infrared Double Griddle Natural Gas (2) 15,000 Btu /hr (4.4 kW) LP Gas (2) 13,000 Btu /hr (3.8 kW)

French Top 15,000 Btu/ hr (4.4 kW)

Refer to the specific model requirements for risers in non-island installations.

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF DUAL FUEL RANGES

13"

(330)

LOCATION OF

ELECTRICAL

36"

(914)

367/8"

(937) TO COOKING SURFACE

30"min (762)

COUNTERTOP TO

COMBUSTIBLE

MATERIALS

VENTILATION HOOD

18"min (457)

TO COUNTERTOP

LOCATION OF GAS AND ELECTRICAL EXTENDS 3" (76) ON FLOOR FROM BACK WALL

30" (762)

FINISHED ROUGH

OPENING WIDTH

31/4"

(83)

81/2"

(216)

10" (254)

LOCATION

OF GAS

SUPPLY

30"min (762) TO

36"max (914)

TO BOTTOM OF

VENTILATION HOOD

ISLAND INSTALLATIONS: 12" (305) MINIMUM

CLEARANCE FROM BACK OF RANGE TO

COMBUSTIBLE REAR WALL ABOVE COUNTERTOP–

0" (0) TO NON-COMBUSTIBLE MATERIALS

13" max

(330)

6"min (152)

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

297/8" (759)

OVERALL WIDTH

417/8"

(1064)

WITH 5"

RISER

467/8"

(1191)

WITH 10"

RISER

567/8"

(1445)

WITH 20"

RISER

47" (1194)

241/4"

(616)

271/2" (699)

91/4"

(235)

291/2" (749)

OVERALL DEPTH

LEGS AND CASTERS ALLOW

21/8" (54) HEIGHT ADJUSTMENT

357/8"

(911)

367/8"

(937)

OVERALL

HEIGHT TO

COOKING SURFACE

INSTALLATION SPECIFICATIONS

30" (762) Dual Fuel Range

OVERALL DIMENSIONS

30" (762) Dual Fuel Range

SPECIFICATIONS

30" (762) Dual Fuel Range

Overall Width 297/8" (759)

Overall Height (to cooking surface) 367/8" (937)

Overall Depth 29

/2" (749)

Usable Oven Interior Capacity* 2.7 cu ft (76 L)

Interior Dimensions 21

/2"x 161/2"x 163/8"

(W x H x D) (546 x 419 x 416)

Opening Width 30" (762)

Electrical Supply 240/ 208 V AC, 60 Hz

30 amp dedicated circuit

Electrical Rating 5.2 kW at 240 V

4.5 kW at 208 V

Total Amps 21.7

Shipping Weight 325 lbs (147 kg)

*Oven capacity is calculated using new AHAM standards (AHAM OV-1-2005); the size of the oven cavity has not physically changed.

MODEL OPTIONS

30" (762) Dual Fuel Range

Four Surface Burners DF304

Natural gas model listed; for LP gas add (-LP) to the model number.

Unit dimensions may vary to ±

/8" (3).

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

WOLF DUAL FUEL RANGES

INSTALLATION SPECIFICATIONS

36" (914) Dual Fuel Range

OVERALL DIMENSIONS

36" (914) Dual Fuel Range

SPECIFICATIONS

36" (914) Dual Fuel Range

Overall Width 357/8" (911)

Overall Height (to cooking surface) 367/8" (937)

Overall Depth 29

/2" (749)

Usable Oven Interior Capacity (per oven)* 3.4 cu ft (96 L)

Interior Dimensions 26

/2"x 161/2"x 163/8"

(W x H x D) (673 x 419 x 416)

Opening Width 36" (914)

Electrical Supply 240/ 208 V AC, 60 Hz

30 amp dedicated circuit

Electrical Rating 5.2 kW at 240 V

4.5 kW at 208 V

Total Amps 21.7

Shipping Weight 445 –470 lbs

(202– 213 kg)

*Oven capacity is calculated using new AHAM standards (AHAM OV-1-2005); the size of the oven cavity has not physically changed.

MODEL OPTIONS

36" (914) Dual Fuel Range

Six Surface Burners DF366

Four Surface Burners

Charbroiler DF364C

Griddle DF364G

Natural gas models listed; for LP gas add (-LP) to the model number.

IMPORTANT NOTE: A minimum 10" (254) riser is required when installing a 36" (914) dual fuel range with a charbroiler or griddle against a combustible surface.

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

Unit dimensions may vary to ±1/8" (3).

291/2" (749)

OVERALL DEPTH

271/2" (699)

COMBUSTIBLE

6"min (152)

MATERIALS

(BOTH SIDES)

357/8" (911)

OVERALL WIDTH

VENTILATION HOOD

36"min (914)

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

44"min (1118)

FOR CHARBROILER

30"min (762) TO

36"max (914)

TO BOTTOM OF

VENTILATION HOOD

367/8"

(937)

OVERALL

HEIGHT TO

COOKING SURFACE

357/8"

(911)

18"min (457)

TO COUNTERTOP

91/4"

(235)

241/4"

(616)

47" (1194)

LEGS AND CASTERS ALLOW

21/8" (54) HEIGHT ADJUSTMENT

13" max

(330)

417/8"

(1064)

WITH 5"

RISER

467/8"

(1191)

WITH 10"

RISER

567/8"

(1445)

WITH 20"

RISER

FINISHED ROUGH OPENING WIDTH

81/2"

(216)

LOCATION OF GAS AND

ELECTRICAL EXTENDS 3" (76)

ON FLOOR FROM BACK WALL

36" (914)

15" (381)

LOCATION

OF GAS SUPPLY

19" (483)

LOCATION OF

ELECTRICAL

31/4"

(83)

36"

(914)

367/8"

(937) TO COOKING SURFACE

ISLAND INSTALLATIONS: 12" (305) MINIMUM

CLEARANCE FROM BACK OF RANGE TO

COMBUSTIBLE REAR WALL ABOVE COUNTERTOP–

0" (0) TO NON-COMBUSTIBLE MATERIALS

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF DUAL FUEL RANGES

13"

(330)

LOCATION OF

ELECTRICAL

36"

(914)

367/8"

(937) TO

COOKING

SURFACE

VENTILATION HOOD

LOCATION OF GAS AND ELECTRICAL EXTENDS 3" (76) ON FLOOR FROM BACK WALL

ISLAND INSTALLATIONS: 12" (305) MINIMUM

CLEARANCE FROM BACK OF RANGE TO

COMBUSTIBLE REAR WALL ABOVE COUNTERTOP–

0" (0) TO NON-COMBUSTIBLE MATERIALS

48" (1219)

FINISHED ROUGH OPENING WIDTH

24" (610)

31/4"

(83)

10"

(254)

LOCATION

OF GAS SUPPLY

18"min (457)

TO COUNTERTOP

30"min (762) TO

36"max (914)

TO BOTTOM OF

VENTILATION HOOD

36"min (914)

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

44"min (1118)

FOR CHARBROILER

13" max

(330)

6"min (152)

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

INSTALLATION SPECIFICATIONS

48" (1219) Dual Fuel Range

OVERALL DIMENSIONS

48" (1219) Dual Fuel Range

SPECIFICATIONS

48" (1219) Dual Fuel Range

Overall Width 477/8" (1216)

Overall Height (to cooking surface) 367/8" (937)

Overall Depth 29

/2" (749)

Large Oven Usable Interior Capacity* 2.7 cu ft (76 L)

Interior Dimensions 21

/2"x 161/2"x 163/8"

(W x H x D) (546 x 419 x 416)

Small Oven Usable Interior Capacity* 1.5 cu ft (42 L)

Interior Dimensions 115/8"x 161/2"x 163/8" (W x H x D) (295 x 419 x 416)

Opening Width 48" (1219)

Electrical Supply 240/ 208 V AC, 60 Hz

50 amp dedicated circuit

Electrical Rating 10.2 kW at 240 V

8.8 kW at 208 V

Total Amps 42.5

Shipping Weight 665 –750 lbs

(302– 340 kg)

*Oven capacity is calculated using new AHAM standards (AHAM OV-1-2005); the size of the oven cavity has not physically changed.

MODEL OPTIONS

48" (1219) Dual Fuel Range

Six Surface Burners

Charbroiler DF486C

Griddle DF486G

Four Surface Burners

Charbroiler and Griddle DF484CG

Double Griddle DF484DG

French Top DF484F

Natural gas models listed; for LP gas add (-LP) to the model number.

IMPORTANT NOTE: A minimum 10" (254) riser is required for all 48" (1219) dual fuel range models installed against a combustible surface.

Unit dimensions may vary to ±

/8" (3).

291/2" (749)

OVERALL DEPTH

271/2" (699)

367/8"

(937)

OVERALL

HEIGHT TO

COOKING SURFACE

477/8" (1216)

OVERALL WIDTH

357/8"

(911)

LEGS AND CASTERS ALLOW

21/8" (54) HEIGHT ADJUSTMENT

241/4"

(616)

47" (1194)

91/4"

(235)

417/8"

(1064)

WITH 5"

RISER

467/8"

(1191)

WITH 10"

RISER

567/8"

(1445)

WITH 20"

RISER

WOLF DUAL FUEL RANGES

13"

(330)

LOCATION OF

ELECTRICAL

36"

(914)

367/8"

(937) TO COOKING SURFACE

VENTILATION HOOD

LOCATION OF GAS AND ELECTRICAL EXTENDS 3" (76) ON FLOOR FROM BACK WALL

31/4"

(83)

31"

(787)

10" (254)

LOCATION

OF GAS SUPPLY

601/4" (1530)

FINISHED ROUGH OPENING WIDTH

18"min (457)

TO COUNTERTOP

30"min (762) TO

36"max (914)

TO BOTTOM OF

VENTILATION HOOD

36"min (914)

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

44"min (1118)

FOR CHARBROILER

ISLAND INSTALLATIONS: 12" (305) MINIMUM

CLEARANCE FROM BACK OF RANGE TO

COMBUSTIBLE REAR WALL ABOVE COUNTERTOP–

0" (0) TO NON-COMBUSTIBLE MATERIALS

13" max

(330)

6"min (152)

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

601/8" (1527)

OVERALL WIDTH

417/8"

(1064)

WITH 5"

RISER

467/8"

(1191)

WITH 10"

RISER

567/8"

(1445)

WITH 20"

RISER

47" (1194)

241/4"

(616)

271/2" (699)

91/4"

(235)

291/2" (749)

OVERALL DEPTH

LEGS AND CASTERS ALLOW

21/8" (54) HEIGHT ADJUSTMENT

357/8"

(911)

367/8"

(937)

OVERALL

HEIGHT TO

COOKING SURFACE

INSTALLATION SPECIFICATIONS

60" (1524) Dual Fuel Range

OVERALL DIMENSIONS

60" (1524) Dual Fuel Range

SPECIFICATIONS

60" (1524) Dual Fuel Range

Overall Width 601/8" (1527)

Overall Height (to cooking surface) 367/8" (937)

Overall Depth 29

/2" (749)

Usable Oven Interior Capacity (per oven)* 2.7 cu ft (76 L)

Interior Dimensions 21

/2"x 161/2"x 163/8"

(W x H x D) (546 x 419 x 416) each

Opening Width 60

/4" (1530)

Electrical Supply 240/ 208 V AC, 60 Hz

50 amp dedicated circuit

Electrical Rating 10.2 kW at 240 V

8.8 kW at 208 V

Total Amps 42.5

Shipping Weight 875 –950 lbs

(397– 431 kg)

*Oven capacity is calculated using new AHAM standards (AHAM OV-1-2005); the size of the oven cavity has not physically changed.

MODEL OPTIONS

60" (1524) Dual Fuel Range

Six Surface Burners

Double Griddle DF606DG

French Top DF606F

Charbroiler and Griddle DF606CG

Four Surface Burners

Charbroiler and French Top DF604CF

Griddle and French Top DF604GF

Natural gas models listed; for LP gas add (-LP) to the model number.

IMPORTANT NOTE: A minimum 10" (254) riser is required for all 60" (1524) dual fuel range models installed against a combustible surface.

Unit dimensions may vary to ±

/8" (3).

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

Dimensions in parentheses are in millimeters unless otherwise specified.

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

SRT486CSRT304

SRT486G

SRT484CG

SRT366

SRT364C

SRT484DG

SRT364G

SRT484F

WOLF SEALED BURNER RANGETOPS

There's a good reason why professional chefs choose gas cooking; control. The patented, dual-stacked sealed gas burners of our new sealed burner rangetop take control to a new level. Two levels, really. The upper-tier burner delivers maximum heat transfer at higher settings; the lower-tier continuous flame ably handles the subtleties of simmering and melting.

Patented features along with the Wolf exclusive infrared charbroiler, infrared griddle and French Top ensure this rangetop stands out from the rest in performance and also beauty.

Wolf sealed burner rangetops come in 30" (762), 36" (914) and 48" (1219) widths and are available in natural or LP gas, with your choice of several top configurations. Model numbers indicate the rangetop features; (C) charbroiler, (G) griddle, (DG) double griddle and (F) French Top. The model number followed by (-LP) denotes an LP gas model. All Wolf sealed burner rangetops come in the classic stainless steel finish.

MODEL OPTIONS

Sealed Burner Rangetops

NEW

ACCESSORIES

Sealed Burner Rangetops

5" (127) and 10" (254) classic stainless steel risers

20" (508) classic stainless steel riser with shelf

Black control knobs— one set available at no cost

Chrome or brass bezels

One-piece wok grate and single burner grate

Porcelain-cast two-burner S-grate

SRT/ Downdraft trim kit— Models SRT304 and SRT366 only

Hardwood cutting board—griddle models only

High altitude conversion kit

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

WOLF SEALED BURNER RANGETOPS

SEALED BURNER RANGETOP FEATURES

Model SRT484CG shown

FEATURES

Natural or LP gas models

Classic stainless steel exterior finish with

island trim

Optional infrared charbroiler, infrared griddle, double griddle and French Top configurations

Distinctive red control knobs—optional black knobs available at no cost

Platinum bezels surround all knobs—chrome or brass bezels optional

Dual-stacked, sealed surface burners, all with simmer capabilities and automatic reignition at all settings

15,000 Btu/hr (4.4 kW) burners with 950 Btu/hr (.3 kW) delivered at simmer

9,200 Btu/hr (2.7 kW) burner with 325 Btu/hr (.1 kW) delivered at simmer and melt feature

Porcelain-coated cast iron continuous top grates

CSA certified for US and Canada

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

Continuous, cast iron top grates

Dual-stacked, sealed burners

Stainless steel exterior finish

Infrared griddle (optional)

Infrared charbroiler (optional)

Low-profile island trim

Location of rating plate

Griddle indicator light

Control knobs with platinum bezels

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF SEALED BURNER RANGETOPS

PLANNING INFORMATION

Wolf sealed burner rangetops come in 30" (762), 36" (914) and 48" (1219) widths. Specifications on the following pages provide overall dimensions, finished rough opening dimensions and installation specifics for each size of sealed burner rangetop. We have minimized the information contained in the illustrations, concentrating on the critical information you must plan into your installation.

IMPORTANT NOTE: Caution must be used in planning the proper installation of the Wolf sealed burner rangetop to avoid fires or damage to adjacent cabinetry or kitchen equipment. Please follow the minimum clearances established in the finished rough opening dimensions. Refer to specifications on the following pages for your model.

It is recommended that you use a Wolf Pro ventilation hood or hood liner with the Wolf sealed burner rangetop. Refer to pages 82–91 for Pro ventilation specifications. A downdraft can be used with Models SRT304 and SRT366. An accessory trim kit is necessary for this installation. Contact your Wolf dealer for details.

ELECTRICAL | GAS REQUIREMENTS

Specifications on the following pages provide electrical and gas requirements for each size of sealed burner rangetop.

The Wolf sealed burner rangetop requires a 110/ 120 V AC, 50/ 60 Hz electrical supply to operate the electronic ignition system. The power supply cord is equipped with a 3-prong, grounded plug for protection against shock hazard. The service should have its own 15 amp circuit breaker.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

Wolf sealed burner rangetop are designed to operate on natural gas at 5" (12.5 mb) WC (water column) pressure or LP (propane) gas at 10" (25 mb) WC pressure. The minimum line pressure for natural gas is 7" (17.5 mb) WC and 11" (27.4 mb) WC for LP gas. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa).

If local codes permit, a certified, 3' (.9 m) long,

/2" or 3/4" ID flexible metal appliance connector is recommended for connecting the rangetop to the gas supply line.

IMPORTANT NOTE: A separate external gas shut-off valve must be located near the rangetop in an accessible location.

The platform for the rangetop must be 3/4" (19) thick and include a cut-out at the right rear for gas supply and electrical connections.

Locate electrical and gas supply within the shaded area shown in the Installation Specifications illustration for your model.

You must follow all National Electrical Code and gas regulations. In addition, be aware of local codes and ordinances when installing your services.

HIGH ALTITUDE

Wolf sealed burner rangetops using natural gas function up to an altitude of 8,000' (2438 m) without any adjustment. Natural gas and LP gas installations from 8,000' (2438 m) to 11,000' (3353 m) need the high altitude kit. Contact your Wolf dealer for details.

BURNER RATING

Sealed Burner Rangetops

Surface Burners 15,000 Btu/hr (4.4 kW)

with 950 Btu/ hr (.3 kW) delivered at simmer

(1) 9,200 Btu/ hr (2.7 kW) with 325 Btu/ hr (.1 kW) delivered at simmer

Infrared Charbroiler 16,000 Btu /hr (4.7 kW)

Infrared Griddle Natural Gas 15,000 Btu/hr (4.4 kW) LP Gas 13,000 Btu/hr (3.8 kW)

Infrared Double Griddle Natural Gas (2) 15,000 Btu /hr (4.4 kW) LP Gas (2) 13,000 Btu /hr (3.8 kW)

French Top 15,000 Btu/ hr (4.4 kW)

Refer to the specific model requirements for risers in non-island installations.

MODEL OPTIONS

30" (762) Sealed Burner Rangetops

Four Surface Burners SRT304

Natural gas model listed; for LP gas add (-LP) to the model number.

INSTALLATION SPECIFICATIONS

30" (762) Sealed Burner Rangetop

OVERALL DIMENSIONS

30" (762) Sealed Burner Rangetop

Unit dimensions may vary to ±

/8" (3).

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

SPECIFICATIONS

30" (762) Sealed Burner Rangetop

Overall Width 297/8" (759)

Overall Height (to cooking surface) 81/2" (216)

Overall Depth 28

/2" (724)

Opening Width 30" (762)

Opening Height 7

/2" (191)

(platform to countertop)

Opening Depth 24" (1219)

Electrical Supply 110/ 120 V AC

50/ 60 Hz, 15 amp dedicated circuit

Power Cord 6' (1.8 m) 3-prong

Shipping Weight 160 lbs (73 kg)

WOLF SEALED BURNER RANGETOPS

COOKING SURFACE

81/2" (216)

OVERALL

HEIGHT

297/8" (759)

OVERALL WIDTH

71/2"

(191)

281/2" (724)

OVERALL DEPTH

171/2"

(445)

WITH 10"

RISER

271/2"

(699)

WITH 20"

RISER

241/4"

(616)

91/4"

(235)

121/2"

(318)

WITH 5"

RISER

VENTILATION

HOOD

30"min (762)

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

6"min (152)

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

PLATFORM

LOCATION OF GAS AND

ELECTRICAL SUPPLY CUT-OUT

WITHIN SHADED AREA THROUGH BOTTOM OF

PLATFORM

30"min (762)

TO BOTTOM OF

VENTILATION HOOD

30" (762)

OPENING WIDTH

/4" (19)

OF PLATFORM

4" (102)

36"max (914)

16" (406)

TOP VIEW

BACK WALL

16"

(406)

18"min (457)

TO COUNTERTOP

81/2"

(216)

36"

(914)

COOKING SURFACE

/4" (19)

PLATFORM

24" (610)

13" max

(330)

71/2"

(191)

ISLAND INSTALLATIONS: 12" (305) MINIMUM

CLEARANCE FROM BACK OF RANGETOP TO

COMBUSTIBLE REAR WALL ABOVE COUNTERTOP–

0" (0) TO NON-COMBUSTIBLE MATERIALS

Dimensions in parentheses are in millimeters unless otherwise specified.

INSTALLATION SPECIFICATIONS

36" (914) Sealed Burner Rangetop

OVERALL DIMENSIONS

36" (914) Sealed Burner Rangetop

Unit dimensions may vary to ±

/8" (3).

SPECIFICATIONS

36" (914) Sealed Burner Rangetop

Overall Width 357/8" (911)

Overall Height (to cooking surface) 81/2" (216)

Overall Depth 28

/2" (724)

Opening Width 36" (914)

Opening Height 7

/2" (191)

(platform to countertop)

Opening Depth 24" (1219)

Electrical Supply 110/ 120 V AC

50/ 60 Hz, 15 amp dedicated circuit

Power Cord 6' (1.8 m) 3-prong

Shipping Weight 190–220 lbs

(86–100 kg)

MODEL OPTIONS

36" (914) Sealed Burner Rangetops

Six Surface Burners SRT366

Four Surface Burners

Charbroiler SRT364C

Griddle SRT364G

Natural gas models listed; for LP gas add (-LP) to the model number.

IMPORTANT NOTE: A minimum 5" (127) riser is required when installing Model SRT366 against a combustible surface. A minimum 10" (254) riser is required for charbroiler (C) or griddle (G) models installed against a combustible surface.

WOLF SEALED BURNER RANGETOPS

COOKING SURFACE

357/8" (911)

OVERALL WIDTH

81/2" (216)

OVERALL

HEIGHT

71/2"

(191)

281/2" (724)

OVERALL DEPTH

241/4"

(616)

91/4"

(235)

121/2"

(318)

WITH 5"

RISER

171/2"

(445)

WITH 10"

RISER

271/2"

(699)

WITH 20"

RISER

VENTILATION HOOD

36"min (914)

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

6"min (152)

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

LOCATION OF GAS AND

ELECTRICAL SUPPLY CUT-OUT

44"min (1118)

FOR CHARBROILER

FINISHED ROUGH OPENING WIDTH

/4" (19)

PLATFORM

WITHIN SHADED AREA THROUGH BOTTOM OF

PLATFORM

30"min (762) TO

36"max (914)

TO BOTTOM OF

VENTILATION HOOD

36" (914)

OF PLATFORM

4" (102)

16" (406)

TOP VIEW

16"

(406)

BACK WALL

18"min (457)

TO COUNTERTOP

81/2"

(216)

36"

(914)

COOKING SURFACE

/4" (19)

PLATFORM

24" (610)

13" max

(330)

71/2"

(191)

ISLAND INSTALLATIONS: 12" (305) MINIMUM

CLEARANCE FROM BACK OF RANGETOP TO

COMBUSTIBLE REAR WALL ABOVE COUNTERTOP–

0" (0) TO NON-COMBUSTIBLE MATERIALS

INSTALLATION SPECIFICATIONS

48" (1219) Sealed Burner Rangetop

OVERALL DIMENSIONS

48" (1219) Sealed Burner Rangetop

SPECIFICATIONS

48" (1219) Sealed Burner Rangetop

Overall Width 477/8" (1216)

Overall Height (to cooking surface) 81/2" (216)

Overall Depth 28

/2" (724)

Opening Width 48" (1219)

Opening Height 7

/2" (191)

(platform to countertop)

Opening Depth 24" (1219)

Electrical Supply 110/ 120 V AC

50/ 60 Hz, 15 amp dedicated circuit

Power Cord 6' (1.8 m) 3-prong

Shipping Weight 240– 280 lbs

(109–127 kg)

MODEL OPTIONS

48" (1219) Sealed Burner Rangetops

Six Surface Burners

Charbroiler SRT486C

Griddle SRT486G

Four Surface Burners

Charbroiler and Griddle SRT484CG

Double Griddle SRT484DG

French Top SRT484F

Natural gas models listed; for LP gas add (-LP) to the model number.

IMPORTANT NOTE: A minimum 10" (254) riser is required for charbroiler (C) or griddle (G) models installed against a combustible surface.

Unit dimensions may vary to ±

/8" (3).

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

WOLF SEALED BURNER RANGETOPS

COOKING SURFACE

81/2" (216)

477/8" (1216)

OVERALL WIDTH

OVERALL

HEIGHT

281/2" (724)

OVERALL DEPTH

171/2"

(445)

WITH 10"

RISER

271/2"

(699)

WITH 20"

RISER

71/2"

(191)

241/4"

(616)

91/4"

(235)

121/2"

(318)

WITH 5"

RISER

VENTILATION HOOD

36"min (914)

COUNTERTOP

TO COMBUSTIBLE

6"min (152)

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

MATERIALS

44"min (1118)

FOR CHARBROILER

48" (1219)

FINISHED ROUGH OPENING WIDTH

/4" (19) PLATFORM

LOCATION OF GAS AND

ELECTRICAL SUPPLY CUT-OUT

WITHIN SHADED AREA

THROUGH BOTTOM OF

PLATFORM

30"min (762) TO

36"max (914)

TO BOTTOM OF

VENTILATION HOOD

OF PLATFORM

4" (102)

16" (406)

TOP VIEW

16"

(406)

BACK WALL

18"min (457)

TO COUNTERTOP

81/2"

(216)

36"

(914)

COOKING

SURFACE

/4" (19)

PLATFORM

24" (610)

13" max

(330)

71/2"

(191)

ISLAND INSTALLATIONS: 12" (305) MINIMUM

CLEARANCE FROM BACK OF RANGETOP TO

COMBUSTIBLE REAR WALL ABOVE COUNTERTOP–

0" (0) TO NON-COMBUSTIBLE MATERIALS

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF GAS RANGES

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

WOLF GAS RANGES

If it looks as if it could be in a restaurant kitchen, well, that’s natural. That’s precisely where Wolf has spent the past seven decades, perfecting the form, function and sheer durability of our stainless steel gas ranges.

Wolf gas ranges come in 30" (762), 36" (914), 48" (1219) and 60" (1524) widths, and combined with the range top options, the different configurations you can choose from are numerous. Model numbers indicate the range top features: (C) charbroiler, (G) griddle, (DG) double griddle and (F) French Top.

Advanced standard features such as an infrared oven broiler, convection baking, dual burners, along with the Wolf exclusive infrared charbroiler, infrared griddle and French Top are all yours for the asking. The freedom to customize your gas range will make you and your client look great.

All Wolf gas ranges come in the classic stainless steel finish and are shipped with the distinctive red control knobs. Contact your Wolf dealer for optional black knobs available at no cost.

R488R304

R486C

R606DG

R486G

R366

R606F

R484CG

R364C

R606CG

R364G

R604CF

R484DG

R604GF

TOP CONFIGURATIONS

Gas Ranges

R484F

R482CF

ACCESSORIES

Gas Ranges

5" (127) and 10" (254) classic stainless steel risers

20" (508) classic stainless steel riser with shelf

Classic stainless steel island trim

Black control knobs— available at no cost

Porcelain-coated, cast iron wok grate

WOLF GAS RANGES

GAS RANGE FEATURES

Model R484CG shown with 5" (127) riser

FEATURES

Natural or LP gas models

Fits standard 24" (610) deep cabinets with zero

clearance for easy installation

Optional infrared charbroiler, infrared griddle and French Top configurations

Classic stainless steel exterior finish

Dual brass burners with automatic reignition at

all settings, 500 Btu/ hr (.1 kW) simmer to 16,000 Btu/ hr (4.7 kW) high

Porcelain-coated cast iron top grates

Large red control knobs with four position

settings and chrome bezels— optional black knobs available

Large-capacity convection oven(s) with infrared broiler, porcelain interior, three adjustable racks, lights and door window

18" (457) oven with porcelain interior, two adjustable racks, lights and door window on 48" (1219) range

Spring/ damper door system on oven door(s)

Stainless steel drip tray on ball bearing slides

Adjustable 3" (76) stainless steel legs in front

and rear casters

Full side panels and skirt

High altitude conversion kit available

CSA certified for US and Canada

5" (127) riser (optional)

Dual brass burners

Pull-out drip tray

Convection fan switch

Oven indicator light

Burner drip pan

Oven light switch

Porcelain-coated, cast iron top grates

Infrared charbroiler (optional)

Infrared griddle (optional)

Oven light switch

Full side panels and skirt

Large capacity convection oven

Stainless steel exterior finish

Large red control knobs

Griddle indicator light

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

Porcelain-coated, cast iron two-burner S-grate

Hardwood cutting board—griddle models only

Additional oven racks

High altitude conversion kit

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Location of rating plate

Spring/ damper door system

18" (457) oven—48" (1219) range only

WOLF GAS RANGES

PLANNING INFORMATION

Wolf gas ranges come in 30" (762), 36" (914), 48" (1219) and 60" (1524) widths. Specifications on the following pages provide overall dimensions, finished rough opening dimensions and installation specifics for each size of gas range. We have minimized the information contained in the illustrations, concentrating on the critical information you must plan into your installation.

IMPORTANT NOTE: Caution must be used in planning the proper installation of the Wolf gas range to avoid fires or damage to adjacent cabinetry or kitchen equipment. Please follow the minimum clearances established in the finished rough opening dimensions. Refer to specifications on the following pages for your model.

It is recommended that you use a Wolf Pro ventilation hood or hood liner with the Wolf gas range. Refer to pages 82–91 for Pro ventilation specifications.

ELECTRICAL | GAS REQUIREMENTS

The Wolf gas range requires a 110/120 V AC, 50/ 60 Hz electrical supply to operate the electronic ignition system. The power supply cord is equipped with a 3-prong, grounded plug for protection against shock hazard. The service should have its own 15 amp circuit breaker.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

Locate electrical and gas supply within the shaded area shown in the Installation Specifications illustration for your model.

Wolf gas ranges are designed to operate on natural gas at 5" (12.5 mb) WC (water column) pressure or LP (propane) gas at 10" (25 mb) WC pressure. The minimum line pressure for natural gas is 7" (17.5 mb) WC and 11" (27.4 mb) WC for LP gas. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa).

Wolf recommends the use of a 1/2" (13) I.D. commercial-type flex hose; this is the minimum size that may be used. All plumbing to the flex hose must be3/4" (19) minimum I.D. pipe.

IMPORTANT NOTE: A separate external gas shut-off valve must be located near the range in an accessible location.

You must follow all National Electrical Code and gas regulations. In addition, be aware of local codes and ordinances when installing your services.

HIGH ALTITUDE

The Wolf gas range functions up to 6,000' (1828 m) in altitude without any adjustment. If the installation is above 6,000' (1828 m), contact your Wolf dealer.

Dimensions in parentheses are in millimeters unless otherwise specified.

BURNER RATING

Gas Ranges

Surface Burners 16,000 Btu/hr

(4.7 kW) with 500 Btu/ hr (.1 kW) delivered at simmer

Infrared Charbroiler 16,000 Btu /hr

(4.7 kW)

Infrared Griddle 18,000 Btu/ hr

(5.3 kW)

Infrared Double (2) 18,000 Btu /hr Griddle (5.3 kW)

French Top 15,000 Btu/ hr

(4.4 kW)

Oven Burner (Bake) 30,000 Btu /hr

(8.8 kW)

Infrared Oven Broiler 18,000 Btu /hr

(5.3 kW)

Refer to the specific model requirements for risers in non-island installations.

WOLF GAS RANGES

30" (762)

OVERALL WIDTH

36"

(914)

37" (940)

OVERALL

HEIGHT TO

COOKING SURFACE

21/2"

(64)

241/2" (622)

251/4" (641)

LEGS AND CASTERS ALLOW

1" (25) HEIGHT ADJUSTMENT

433/8" (1102)

463/4"

(1187)

WITH 10"

RISER

563/4"

(1441)

WITH 20"

RISER

271/4" (692)

91/4"

(235)

283/8" (721)

OVERALL DEPTH

413/4"

(1060)

WITH 5"

RISER

INSTALLATION SPECIFICATIONS

30" (762) Gas Range

OVERALL DIMENSIONS

30" (762) Gas Range

SPECIFICATIONS

30" (762) Gas Range

Overall Width 30" (762)

Overall Height (to cooking surface) 37" (940)

Overall Depth 28

/8" (721)

Usable Oven Interior Capacity* 2.7 cu ft (76 L)

Oven Interior Dim 24" x 16

/2" x 17"

(W x H x D) (610 x 419 x 432)

Opening Width 30

/4" (768)

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 6' (1.8 m) 3-prong

Shipping Weight 325 lbs (147 kg)

*Oven capacity is calculated using new AHAM standards (AHAM OV-1-2005); the size of the oven cavity has not physically changed.

MODEL OPTIONS

30" (762) Gas Range

Four Surface Burners R304

Natural gas model listed; for LP gas add (-LP) to the model number.

IMPORTANT NOTE: A minimum 5" (127) riser is required when installing a 30" (762) gas range against a combustible surface.

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

Unit dimensions may vary to ±1/8" (3).

VENTILATION

HOOD

30"min (762)

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

30"(762) TO 36"(914)

VENTILATION HOOD

301/4" (768)

FINISHED ROUGH

OPENING WIDTH

10"

(203)

51/2"

(140)

COUNTERTOP

TO BOTTOM OF

12"

(305)

12"

(305)

6"min (152)

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

ISLAND INSTALLATIONS: 12" (305) MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE REAR WALL ABOVE COUNTERTOP – 0" (0) TO NON-COMBUSTIBLE MATERIALS

(254)

(51)

13" max

18"min (457)

TO COUNTERTOP

36"

(914)

(940) TO COOKING SURFACE

37"

(330)

(127)

LOCATION OF GAS SUPPLY EXTENDS

3" (76) ON FLOOR FROM BACK WALL

(76)

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF GAS RANGES

INSTALLATION SPECIFICATIONS

36" (914) Gas Range

OVERALL DIMENSIONS

36" (914) Gas Range

SPECIFICATIONS

36" (914) Gas Range

Overall Width 36" (914)

Overall Height (to cooking surface) 37" (940)

Overall Depth 28

/8" (721)

Usable Oven Interior Capacity* 3.5 cu ft (99 L)

Oven Interior Dim 30" x 16

/2" x 17"

(W x H x D) (762 x 419 x 432)

Opening Width 36

/4" (921)

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 6' (1.8 m) 3-prong

Shipping Weight 445 –470 lbs

(202– 213 kg)

*Oven capacity is calculated using new AHAM standards (AHAM OV-1-2005); the size of the oven cavity has not physically changed.

MODEL OPTIONS

36" (914) Gas Range

Six Surface Burners R366

Four Surface Burners

Charbroiler R364C

Griddle R364G

Natural gas models listed; for LP gas add (-LP) to the model number.

IMPORTANT NOTE: A minimum 5" (127) riser is required when installing a gas range against a combustible surface. A minimum 10" (254) riser is required when installing a gas range with a charbroiler or griddle against a combustible surface.

Unit dimensions may vary to ±

/8" (3).

283/8" (721)

OVERALL DEPTH

271/4" (692)

37" (940)

HEIGHT TO

36" (914)

OVERALL WIDTH

OVERALL

COOKING SURFACE

36"

(914)

21/2"

(64)

VENTILATION

HOOD

30"min (762)

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

6"min (152)

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

ISLAND INSTALLATIONS: 12" (305) MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE REAR WALL ABOVE COUNTERTOP – 0" (0) TO NON-COMBUSTIBLE MATERIALS

CHARBROILER

FINISHED ROUGH OPENING WIDTH

10"

(254)

(203)

51/2"

(140)

36"min (914)

FOR

361/4" (921)

12"

(305)

30"(762) TO 36"(914)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

12"

(305)

(51)

241/2" (622)

251/4" (641)

433/8" (1102)

LEGS AND CASTERS ALLOW

1" (25) HEIGHT ADJUSTMENT

18"min (457)

TO COUNTERTOP

36"

(914)

(127)

LOCATION OF GAS SUPPLY EXTENDS

3" (76) ON FLOOR FROM BACK WALL

91/4"

(235)

37"

(940) TO COOKING SURFACE

413/4"

(1060)

WITH 5"

RISER

463/4"

(1187)

WITH 10"

RISER

563/4"

(1441)

WITH 20"

RISER

13" max

(330)

(76)

WOLF GAS RANGES

48" (1219)

OVERALL WIDTH

36"

(914)

37" (940)

OVERALL

HEIGHT TO

COOKING SURFACE

21/2"

(64)

241/2" (622)

251/4" (641)

LEGS AND CASTERS ALLOW

1" (25) HEIGHT ADJUSTMENT

433/8" (1102)

463/4"

(1187)

WITH 10"

RISER

563/4"

(1441)

WITH 20"

RISER

271/4" (692)

91/4"

(235)

283/8" (721)

OVERALL DEPTH

413/4"

(1060)

WITH 5"

RISER

INSTALLATION SPECIFICATIONS

48" (1219) Gas Range

OVERALL DIMENSIONS

48" (1219) Gas Range

SPECIFICATIONS

48" (1219) Gas Range

Overall Width 48" (1219)

Overall Height (to cooking surface) 37" (940)

Overall Depth 28

/8" (721)

Large Oven Usable Interior Capacity* 2.7 cu ft (76 L)

Interior Dimensions 24" x 16

/2" x 17"

(W x H x D) (610 x 419 x 432)

Small Oven Usable Interior Capacity* 1.5 cu ft (42 L)

Interior Dimensions 131/2"x 161/2" x 17" (W x H x D) (343 x 419 x 432)

Opening Width 481/4" (1226)

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 6' (1.8 m) 3-prong

Shipping Weight 650 –750 lbs

(295– 340 kg)

*Oven capacity is calculated using new AHAM standards (AHAM OV-1-2005); the size of the oven cavity has not physically changed.

MODEL OPTIONS

48" (1219) Gas Range

Eight Surface Burners R488

Six Surface Burners

Charbroiler R486C

Griddle R486G

Four Surface Burners

Charbroiler and Griddle R484CG

Double Griddle R484DG

French Top R484F

Two Surface Burners

Charbroiler and French Top R482CF

Natural gas models listed; for LP gas add (-LP) to the model number.

Unit dimensions may vary to ±

/8" (3).

VENTILATION HOOD

30"min (762)

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

6"min (152)

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

ISLAND INSTALLATIONS: 12" (305) MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE REAR WALL ABOVE COUNTERTOP – 0" (0) TO NON-COMBUSTIBLE MATERIALS

36"min (914)

FOR CHARBROILER

FINISHED ROUGH OPENING WIDTH

26"

(660)

481/4" (1226)

(203)

51/2"

(140)

30"(762) TO 36"(914)

COUNTERTOP TO

BOTTOM OF

VENTILATION HOOD

12"

(305)

12"

(305)

(51)

13" max

18"min (457)

TO COUNTERTOP

36"

(914)

37"

(940) TO

COOKING

(127)

SURFACE

LOCATION OF GAS SUPPLY EXTENDS

3" (76) ON FLOOR FROM BACK WALL

(330)

(76)

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF GAS RANGES

60" (1524)

OVERALL WIDTH

36"

(914)

37" (940)

OVERALL

HEIGHT TO

COOKING SURFACE

21/2"

(64)

241/2" (622)

251/4" (641)

LEGS AND CASTERS ALLOW

1" (25) HEIGHT ADJUSTMENT

433/8" (1102)

463/4"

(1187)

WITH 10"

RISER

563/4"

(1441)

WITH 20"

RISER

271/4" (692)

91/4"

(235)

283/8" (721)

OVERALL DEPTH

413/4"

(1060)

WITH 5"

RISER

INSTALLATION SPECIFICATIONS

60" (1524) Gas Range

OVERALL DIMENSIONS

60" (1524) Gas Range

SPECIFICATIONS

60" (1524) Gas Range

Overall Width 60" (1524)

Overall Height (to cooking surface) 37" (940)

Overall Depth 28

/8" (721)

Usable Oven Interior Capacity (per oven)* 2.7 cu ft (76 L)

Oven Interior Dim 24" x 16

/2" x 17"

(W x H x D) (610 x 419 x 432)

Opening Width 60

/4" (1530)

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 6' (1.8 m) 3-prong

Shipping Weight 875 –950 lbs

(397– 431 kg)

*Oven capacity is calculated using new AHAM standards (AHAM OV-1-2005); the size of the oven cavity has not physically changed.

MODEL OPTIONS

60" (1524) Gas Range

Six Surface Burners

Double Griddle R606DG

French Top R606F

Charbroiler and Griddle R606CG

Four Surface Burners

Charbroiler and French Top R604CF

Griddle and French Top R604GF

Natural gas models listed; for LP gas add (-LP) to the model number.

Unit dimensions may vary to ±

/8" (3).

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

VENTILATION HOOD

44"min (1118)

COUNTERTOP

6"min (152)

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

ISLAND INSTALLATIONS: 12" (305) MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE REAR WALL ABOVE COUNTERTOP – 0" (0) TO NON-COMBUSTIBLE MATERIALS

TO COMBUSTIBLE

MATERIALS

FINISHED ROUGH OPENING WIDTH

12"

10"

(203)

51/2"

(140)

(305)

(254)

601/4" (1530)

30"(762) TO 36"(914)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

12"

(305)

(51)

(127)

18"min (457)

TO COUNTERTOP

36"

(914)

37"

(940) TO COOKING SURFACE

LOCATION OF GAS SUPPLY EXTENDS

3" (76) ON FLOOR FROM BACK WALL

13" max

(330)

(76)

Choose from two, four, six or eight dual burners or consider the Wolf exclusive infrared charbroiler, infrared griddle or French Top for the ultimate in restaurant cooking in the home.

The dual burners can produce 16,000 Btu/ hr (4.7 kW) for professional cooking heat and turn down to 500 Btu/ hr (.1 kW) for those delicate sauces.

All Wolf gas rangetops come in the classic stainless steel finish and are shipped with the distinctive red control knobs. Contact your Wolf dealer for optional black knobs available at no cost.

WOLF GAS RANGETOPS

If you want to offer a more professional look to your client’s kitchen and still use a cooktop, look to the rangetops from Wolf. They offer you that commercial look but give you flexibility to use the ovens in other locations in the kitchen. In fact, the Wolf framed ovens would be a beautiful complement to these cooking instruments.

Wolf gas rangetops come in 36" (914) and 48" (1219) widths. Combined with the top configuration options, the different configurations you can choose from are numerous. Model numbers indicate the top configurations: (C) charbroiler, (G) griddle, (DG) double griddle and (F) French Top.

WOLF GAS RANGETOPS

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

RT488

RT486C

RT486G

RT366

RT484CG

RT364C

RT364G

RT484DG

TOP CONFIGURATIONS

Gas Rangetops

RT484F

RT482CF

Porcelain-coated cast iron top grates

Dual brass burners

Stainless steel exterior finish

Infrared charbroiler (optional)

Infrared griddle (optional)

Low-profile island trim

Griddle indicator light

Pull-out drip tray Large red

control knobs

RT362F

GAS RANGETOP FEATURES

Model RT484CG shown with island trim

ACCESSORIES

Gas Rangetops

101/2" (267) classic stainless steel riser

Classic stainless steel island trim

Black control knobs— available at no cost

Porcelain-coated, cast iron wok grate

Porcelain-coated, cast iron two-burner S-grate

Hardwood cutting board—griddle models only

High altitude conversion kit

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

Location of rating plate

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF GAS RANGETOPS

FEATURES

Natural or LP gas models

Fits standard 24" (610) deep cabinets with zero

clearance for easy installation

Optional infrared charbroiler, infrared griddle and French Top configurations

Classic stainless steel exterior finish

Dual brass burners with automatic reignition at

all settings, 500 Btu/ hr (.1 kW) simmer to 16,000 Btu/ hr (4.7 kW) high

Porcelain-coated cast iron top grates

Large red control knobs with four position

settings and chrome bezels— optional black knobs available

Stainless steel drip tray on ball bearing slides

High altitude conversion kit available

CSA certified for US and Canada

PLANNING INFORMATION

Wolf gas rangetops come in 36" (914) and 48" (1219) widths. Specifications on the following pages provide overall dimensions, finished rough opening dimensions and installation specifics for each size of gas rangetop. We have minimized the information contained in the illustrations, concentrating on the critical information you must plan into your installation.

IMPORTANT NOTE: Caution must be used in planning the proper installation of the Wolf gas rangetop to avoid fires or damage to adjacent cabinetry or kitchen equipment. Follow the minimum clearances established in the finished rough opening dimensions. Refer to specifications on the following pages for your model.

It is recommended that you use a Wolf Pro ventilation hood or hood liner with the Wolf gas rangetop. Refer to pages 82–91 for Pro ventilation specifications.

ELECTRICAL | GAS REQUIREMENTS

Specifications on the following pages provide electrical and gas requirements for each size of gas rangetop.

The Wolf gas rangetop requires a 110/120 V AC, 50/ 60 Hz electrical supply to operate the electronic ignition system. The power supply cord is equipped with a 3-prong, grounded plug for protection against shock hazard. The service should have its own 15 amp circuit breaker.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

Wolf gas rangetops are designed to operate on natural gas at 5" (12.5 mb) WC (water column) pressure or LP (propane) gas at 10" (25 mb) WC pressure. The minimum line pressure for natural gas is 7" (17.5 mb) WC and 11" (27.4 mb) WC for LP gas. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa).

Wolf recommends the use of a 1/2" (13) I.D. commercial-type flex hose; this is the minimum size that may be used. All plumbing to the flex hose must be3/4" (19) minimum I.D. pipe.

IMPORTANT NOTE: A separate external gas shut-off valve must be located near the range in an accessible location.

The platform for the rangetop must be 3/4" (19) thick and include a cut-out at the right rear for gas supply and electrical connections.

Locate electrical and gas supply within the shaded area shown in the Installation Specifications illustration for your model.

You must follow all National Electrical Code and gas regulations. In addition, be aware of local codes and ordinances when installing your services.

BURNER RATING

Gas Rangetops

Surface Burners 16,000 Btu /hr

(4.7 kW) with 500 Btu/ hr (.1 kW) delivered at simmer

Infrared Charbroiler 16,000 Btu /hr (4.7 kW)

Infrared Griddle 18,000 Btu /hr (5.3 kW)

Infrared Double (2) 18,000 Btu/ hr Griddle (5.3 kW)

French Top 15,000 Btu/ hr(4.4 kW)

Refer to the specific model requirements for risers in non-island installations.

HIGH ALTITUDE

The Wolf gas rangetop functions up to 6,000' (1828 m) in altitude without any adjustment. If the installation is above 6,000' (1828 m), contact your Wolf dealer.

WOLF GAS RANGETOPS

INSTALLATION SPECIFICATIONS

36" (914) Gas Rangetop

OVERALL DIMENSIONS

36" (914) Gas Rangetop

SPECIFICATIONS

36" (914) Gas Rangetop

Overall Width 36" (914)

Overall Height (to cooking surface) 101/2" (267)

Overall Depth 27

/4" (692)

Opening Width 36

/4" (921)

Opening Height 9

/2" (241)

(platform to countertop)

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 6' (1.8 m) 3-prong

Shipping Weight 190 –220 lbs

(86– 100 kg)

MODEL OPTIONS

36" (914) Gas Rangetop

Six Surface Burners RT366

Four Surface Burners

Charbroiler RT364C

Griddle RT364G

Two Surface Burners

French Top RT362F

Natural gas models listed; for LP gas add (-LP) to the model number.

IMPORTANT NOTE: In nonisland applications, a riser is required when installing a 36" (914) gas rangetop against a combustible surface.

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

Unit dimensions may vary to ±1/8" (3).

36" (914)

OVERALL WIDTH

COOKING SURFACE

101/2" (267)

OVERALL

HEIGHT

91/2"

(241)

271/4" (692)

OVERALL DEPTH

TO KNOBS

23/4" (70)

24" (610)

(51)

20" (508)

WITH

/2"

RISER

VENTILATION HOOD

30"min (762)

COUNTERTOP

6"min (152)

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

OF PLATFORM

BACK WALL

3"(76)

TO COMBUSTIBLE

MATERIALS

36"min (914)

FOR CHARBROILER

FINISHED ROUGH OPENING WIDTH

/4" (19) PLATFORM

TOP VIEW

/2"

(13)

(203)

30"min (762)

36"max (914)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

361/4" (921)

8" (203)

GAS AND ELECTRICAL

WITHIN SHADED AREA

THROUGH BOTTOM OF

14"

(356)

LOCATION OF

SUPPLY CUT-OUT

PLATFORM

18"min (457)

TO COUNTERTOP

91/2" (241)

OPENING

HEIGHT

36"

(914)

23/4"

(70)

13" max

(330)

/4" (19) PLATFORM

24" (610)

ISLAND INSTALLATIONS: 12" (305) MINIMUM

CLEARANCE FROM BACK OF RANGETOP TO

COMBUSTIBLE REAR WALL ABOVE COUNTERTOP–

0" (0) TO NON-COMBUSTIBLE MATERIALS

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF GAS RANGETOPS

INSTALLATION SPECIFICATIONS

48" (1219) Gas Rangetop

OVERALL DIMENSIONS

48" (1219) Gas Rangetop

SPECIFICATIONS

48" (1219) Gas Rangetop

Overall Width 48" (1219)

Overall Height (to cooking surface) 101/2" (267)

Overall Depth 27

/4" (692)

Opening Width 48

/4" (1226)

Opening Height 9

/2" (241)

(platform to countertop)

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 6' (1.8 m) 3-prong

Shipping Weight 220 –280 lbs

(100– 127 kg)

MODEL OPTIONS

48" (1219) Gas Rangetop

Eight Surface Burners RT488

Six Surface Burners

Charbroiler RT486C

Griddle RT486G

Four Surface Burners

Charbroiler and Griddle RT484CG

Double Griddle RT484DG

French Top RT484F

Two Surface Burners

Charbroiler and French Top RT482CF

Natural gas models listed; for LP gas add (-LP) to the model number.

IMPORTANT NOTE: In nonisland applications, a riser is required when installing a 48" (1219) gas rangetop against a combustible surface.

Unit dimensions may vary to ±

/8" (3).

48" (1219)

OVERALL WIDTH

COOKING SURFACE

101/2" (267)

OVERALL

HEIGHT

91/2"

(241)

271/4" (692)

OVERALL DEPTH

TO KNOBS

23/4" (70)

24" (610)

(51)

20" (508)

WITH

/2"

RISER

VENTILATION HOOD

30"min (762)

COUNTERTOP

TO COMBUSTIBLE

6"min (152)

COMBUSTIBLE

MATERIALS

(BOTH SIDES)

MATERIALS

36"min (914)

FOR CHARBROILER

FINISHED ROUGH OPENING WIDTH

TOP VIEW

OF PLATFORM

(76)

BACK WALL

16"

(406)

481/4" (1226)

/4" (19) PLATFORM

/2"

LOCATION OF GAS AND

(13)

ELECTRICAL SUPPLY CUT-OUT

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

16"

(406)

WITHIN SHADED AREA THROUGH BOTTOM OF

PLATFORM

30"min (762)

36"max (914)

14"

(356)

18"min (457)

TO COUNTERTOP

91/2" (241)

OPENING

HEIGHT

36"

(914)

23/4"

(70)

13" max

(330)

/4" (19) PLATFORM

24" (610)

ISLAND INSTALLATIONS: 12" (305) MINIMUM

CLEARANCE FROM BACK OF RANGETOP TO

COMBUSTIBLE REAR WALL ABOVE COUNTERTOP–

0" (0) TO NON-COMBUSTIBLE MATERIALS

WOLF GAS BBQ GRILLS

TOP CONFIGURATIONS

Gas BBQ Grills

WOLF GAS BBQ GRILLS

Cooking to our way of thinking, is every bit as much a performing art as music or theater. So here is our logic. When the symphony or the Shakespeare troupe moves outdoors for the festival season, the venue is more casual than usual, but the performance loses nothing in terms of artistry. Why can’t cooking be the same way? With Wolf they are.

Wolf gas BBQ grills are, like their kitchen counterparts, precision instruments.

Constructed of heavy-duty stainless steel, both the 36" (914) and 48" (1219) models are available built-in or as a free-standing grill on a cart. Model numbers followed by (BI) indicate a builtin unit, while (C) indicates that the grill is on a free-standing cart. Features include a 115-volt rotisserie, an infrared rear burner for precise, consistent grilling, and optional side burners.

GAS BBQ GRILL FEATURES

Model BBQ362C shown

BBQ362BI

BBQ48BI

BBQ362C

BBQ48C

BBQ242BI

BBQ36BI

BBQ242C

BBQ36C

FEATURES

Natural or LP gas units

Built-in (BI) or free-standing cart (C) models

Heavy-duty 18-gauge stainless steel construc-

tion with classic stainless steel exterior finish

Push-button, battery-powered ignition

Individually-controlled 10,000 Btu/hr (2.9 kW)

stainless steel grill burners and 9000 Btu/hr (2.6 kW) infrared rotisserie burner — 8000 Btu/hr (2.3 kW) for Model BBQ242

Optional 16,000 Btu/hr (4.7 kW) step-up cast iron side burners

Cast iron porcelain-coated grill grates

Redesigned burner radiant plates

115-volt rotisserie motor and infrared rear

rotisserie burner

Two-piece stainless steel hood and handle

LP gas models include gas regulator, hose and

5-gallon (19 L) tank

Heavy-duty locking swivel casters on cart models

Scraper and protective canvas cover included

Infrared rotisserie burner

Location of rating plate (rear panel)

Step-up side burners (optional)

Porcelain-coated grill grates

Two-piece hood and handle

Rotisserie motor

Gas control knob

Pull-out drip tray Fold down

plate shelf

48" (1219) free-standing cart (optional)

Ignition button

WOLF WARRANTY

Two and five year residential warranty, along with a limited lifetime warranty on the BBQ body and hood (exclusions apply). See warranty details at the end of this guide.

ACCESSORIES

Gas BBQ Grills

Black control knobs— available at no cost

Insulated liner for built-in applications

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Stainless steel exterior finish

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF GAS BBQ GRILLS

PLANNING INFORMATION

It goes without saying that the BBQ grill mounted on the free-standing cart takes very little planning from a design perspective. However, there are provisions you need to take into account when planning for a built-in application.

When choosing a permanent built-in location for your Wolf gas BBQ grill, keep the gas lines as short as possible. Allow for an adequate supply of fresh air for proper combustion and ventilation. The BBQ grill should not be exposed to the wind, but never locate the grill in an enclosed area.

The Wolf gas BBQ grill is designed for easy placement into a built-in enclosure. For a combustible enclosure, use the Wolf-approved insulated liner and maintain minimum clearances to combustible surfaces. Built-in installations require a deck to support the BBQ grill. The supporting deck should be level and strong enough to support 400 lbs (181 kg).

Wolf gas BBQ grills come in 36" (914) and 48" (1219) widths. Specifications on the following pages provide overall dimensions, finished rough opening dimensions and installation specifics for each size of gas BBQ grill. We have minimized the information contained in the illustrations, concentrating on the critical information you must plan into your installation.

IMPORTANT NOTE: The Wolf gas BBQ grill must be specified natural or LP gas at the time of order. The gas type cannot be converted.

ELECTRICAL | GAS REQUIREMENTS

The Wolf gas BBQ grill requires a 110/ 120 V electrical supply to operate the rotisserie motor. The 3' (.9 m) power supply cord provided with the grill is equipped with a 3-prong, grounded plug for protection against shock hazard. The service should have its own 15 amp circuit breaker.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

Locate electrical and gas supply within the shaded area shown in the Installation Specifications illustration for your built-in model.

Wolf gas BBQ grills are designed to operate on natural gas at 5" (12.5 mb) WC (water column) pressure or LP (propane) gas at 10" (25 mb) WC pressure. The minimum line pressure for natural gas is 7" (17.5 mb) WC and 11" (27.4 mb) WC for LP gas. The maximum gas supply pressure to the regulator should never exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa).

Wolf recommends the use of a 1/2" (13) I.D. commercial-type flex hose; this is the minimum size that may be used. All plumbing to the flex hose must be3/4" (19) minimum I.D. pipe.

IMPORTANT NOTE: A separate external gas shut-off valve must be located near the range in an accessible location.

You must follow all National Electrical Code and gas regulations. In addition, be aware of local codes and ordinances when installing your services.

BURNER RATING

Gas BBQ Grills

Grill Burners 10,000 Btu/hr (per burner) (2.9 kW)

Side Burners (2) 16,000 Btu /hr (per burner) (4.7 kW)

Infrared Burner 8,000 Btu /hr *

(2.3 kW)

Infrared Burner 9,000 Btu /hr

(2.6 kW)

*Models BBQ242BI and BBQ242C only.

ACCESSORIES

Optional accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

WOLF GAS BBQ GRILLS

361/2"max

(927)

381/4" (972)

ROUGH OPENING WIDTH

COMBUSTIBLE ENCLOSURE

273/4" (705)

ROUGH OPENING

DEPTH

101/2" (267)

ROUGH

OPENING

HEIGHT

18"

(457) min

18"

(457) min

18"

(457) min

101/2" (267)

ROUGH

OPENING

HEIGHT

31/8"

(79)

31/8"

(79)

33/4" (95)

2" (51) DIAMETER OPENING

FOR GAS SUPPLY CONNECTION

(BACK WALL LOCATION OR

BOTTOM LOCATION)

ALLOW OPENING

FOR ACCESS

DOOR

LOCATE

ELECTRICAL

OUTLET FOR

ROTISSERIE

ON LEFT SIDE

2" (51) DIAMETER OPENING

FOR GAS SUPPLY CONNECTION

(BOTTOM LOCATION)

27/8"

(73)

NOTE: Dimensions include insulated liner.

INSTALLATION SPECIFICATIONS

36" (914) Gas BBQ Grills – Built-In (BI) Models

Combustible Enclosure

OVERALL DIMENSIONS

36" (914) Gas BBQ Grills

Model BBQ36C shown

SPECIFICATIONS

36" (914) Gas BBQ Grills

Overall Width 36" (914)

Overall Height (BI) Models 26" (660) (C) Models 52

/4" (1340)

Overall Depth 30" (762)

Combustible Enclosure

Opening Width 38

/4" (972)

Opening Depth 27

/4" (705)

Non-Combustible Enclosure

Opening Width 36

/4" (921)

Opening Depth 26

/4" (679)

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 3' (.9 m) 3-prong

Shipping Weight 340 –460 lbs

(154– 209 kg)

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

361/2"max

(927)

NON-COMBUSTIBLE ENCLOSURE

263/4" (680)

ROUGH OPENING

DEPTH

91/2" (242)

ROUGH

OPENING HEIGHT

(152)

min

(152)

min

(76) min

91/2" (242)

ROUGH

OPENING HEIGHT

21/8"

(54)

21/8"

(54)

23/4"

(70)

LOCATE ELECTRICAL OUTLET FOR

ROTISSERIE

ON LEFT SIDE

17/8"

(48)

361/4" (921)

ROUGH OPENING WIDTH

2" (51) DIAMETER OPENING

FOR GAS SUPPLY CONNECTION

(BACK WALL LOCATION OR

BOTTOM LOCATION)

ALLOW OPENING

FOR ACCESS

DOOR

2" (51) DIAMETER OPENING

FOR GAS SUPPLY CONNECTION

(BOTTOM LOCATION)

Non-Combustible Enclosure

MODEL OPTIONS

36" (914) Gas BBQ Grills

Built-In Models

with Side Burners BBQ242BI

w/o Side Burners BBQ36BI

Free-Standing Cart Models

with Side Burners BBQ242C

w/o Side Burners BBQ36C

Natural gas models listed; for LP gas add (-LP) to the model number.

Unit dimensions may vary to ±

/8" (3).

36" (914)

OVERALL WIDTH

523/4"

(1340)

OVERALL

HEIGHT

561/2"

(1435)

HEIGHT

WITH

HOOD

OPEN

361/4" (921)

TO GRILLING

SURFACE

30" (762)

OVERALL DEPTH

303/8" (771) WITH HOOD OPEN

(152)

255/8" (651)

26"

(660)

HEIGHT

OF GRILL

263/4"

(680)

HEIGHT

OF CART

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF GAS BBQ GRILLS

361/2"max

(927)

501/4" (1276)

ROUGH OPENING WIDTH

COMBUSTIBLE ENCLOSURE

273/4" (705)

ROUGH OPENING

DEPTH

101/2" (267)

ROUGH

OPENING

HEIGHT

18"

(457) min

18"

(457) min

18"

(457) min

101/2" (267)

ROUGH

OPENING

HEIGHT

31/8"

(79)

31/8"

(79)

33/4" (95)

ALLOW OPENING

FOR ACCESS

DOOR

LOCATE

ELECTRICAL

OUTLET FOR

ROTISSERIE

ON LEFT SIDE

27/8"

(73)

2" (51) DIAMETER OPENING

FOR GAS SUPPLY CONNECTION

(BACK WALL LOCATION OR

BOTTOM LOCATION)

2" (51) DIAMETER OPENING

FOR GAS SUPPLY CONNECTION

(BOTTOM LOCATION)

NOTE: Dimensions include insulated liner.

INSTALLATION SPECIFICATIONS

48" (1219) Gas BBQ Grills – Built-In (BI) Models

Combustible Enclosure

OVERALL DIMENSIONS

48" (1219) Gas BBQ Grills

Model BBQ362C shown

SPECIFICATIONS

48" (1219) Gas BBQ Grills

Overall Width 48" (1219)

Overall Height (BI) Models 26" (660) (C) Models 52

/4" (1340)

Overall Depth 30" (762)

Combustible Enclosure

Opening Width 50

/4" (1276)

Opening Depth 27

/4" (705)

Non-Combustible Enclosure

Opening Width 48

/4" (1226)

Opening Depth 26

/4" (679)

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 3' (.9 m) 3-prong

Shipping Weight 525 –560 lbs

(238– 254 kg)

MODEL OPTIONS

48" (1219) Gas BBQ Grills

Built-In Models

with Side Burners BBQ362BI

w/o Side Burners BBQ48BI

Free-Standing Cart Models

with Side Burners BBQ362C

w/o Side Burners BBQ48C

Natural gas models listed; for LP gas add (-LP) to the model number.

361/2"max

(927)

481/4" (1226)

ROUGH OPENING WIDTH

NON-COMBUSTIBLE ENCLOSURE

263/4" (680)

ROUGH OPENING

DEPTH

91/2" (242)

ROUGH

OPENING HEIGHT

(152)

min

(152)

min

91/2" (242)

ROUGH

OPENING HEIGHT

21/8"

(54)

21/8"

(54)

23/4"

(70)

LOCATE ELECTRICAL OUTLET FOR

ROTISSERIE

ON LEFT SIDE

17/8"

(48)

ALLOW OPENING

FOR ACCESS

DOOR

2" (51) DIAMETER OPENING

FOR GAS SUPPLY CONNECTION

(BACK WALL LOCATION OR

BOTTOM LOCATION)

2" (51) DIAMETER OPENING

FOR GAS SUPPLY CONNECTION

(BOTTOM LOCATION)

C L

(76) min

Non-Combustible Enclosure

Unit dimensions may vary to ±

/8" (3).

36" (914)

48" (1219)

OVERALL WIDTH

523/4"

(1340)

OVERALL

HEIGHT

561/2"

(1435)

HEIGHT

WITH

HOOD

OPEN

361/4" (921)

TO GRILLING

SURFACE

30" (762)

OVERALL DEPTH

303/8" (771) WITH HOOD OPEN

(152)

255/8" (651)

26"

(660)

HEIGHT

OF GRILL

263/4"

(680)

HEIGHT

OF CART

FEATURES

Classic stainless steel finish

Internal, in-line and remote blower options

Front-mounted controls with LED indicator

Heavy-duty stainless steel seamless

construction

Three-speed blower control

Filter clean timer lets you know when the filter

needs cleaning

Delay-off feature automatically turns unit off

Sealed halogen lighting with three settings

Stainless steel filter cover with dishwasher-safe

aluminum mesh filter

Heat sentry feature automatically turns unit on when heat is sensed and automatically adjusts blower speed

Transition with back draft damper included

Fits 8' (2.4 m) to 9' (2.7 m) ceilings—flue

extension to accommodate 10' (3 m) ceilings is available

UL listed to US and Canadian safety standards

WOLF COOKTOP VENTILATION

COOKTOP VENTILATION HOOD FEATURES

Model CTWH36 shown

WOLF COOKTOP VENTILATION HOODS

Powerful multi-speed blowers draw odors and smoke into the five-layer mesh filter. Filters remove easily for cleaning. The sculpted classic stainless steel shape not only provides the power you expect from Wolf, but also the beauty you have come to appreciate as well.

Wolf chimney-style cooktop wall and island hoods are recommended for use with Wolf electric and gas cooktops and integrated modules. For Wolf dual fuel ranges, gas ranges, sealed burner rangetops and gas rangetops, a Pro ventilation hood is recommended.

MODEL OPTIONS

Cooktop Ventilation Hoods

Wall Hoods

30" (762) Width CTWH30

36" (914) Width CTWH36

Island Hood IH4227

Model CTWH30

Model CTWH36

Model IH4227

Classic stainless steel finish

Aluminum mesh filter

Front-mounted controls

Halogen lighting

Three-speed blower control

Telescopic chimney flue extension

Seamless construction

Transition with backdraft damper

LED indicators

Location of rating plate

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF COOKTOP VENTILATION

ELECTRICAL REQUIREMENTS

Wolf cooktop wall and island hoods require a separate, grounded 120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker. Placement of the electrical supply is not critical, as long as you provide a minimum of 12" (305) of 120 V AC power cable for the wall hood and 6' (1.8 m) for the island hood.

Locate electrical within the shaded area shown in the Installation Specifications illustration for your model.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

PLANNING INFORMATION

Chimney-style cooktop wall hoods are 21" (533) deep and come in 30" (762) and 36" (914) widths. The island hood is 42" (1067) wide by 27" (686) deep.

IMPORTANT NOTE: Wolf cooktop wall and island hoods are recommended for use with Wolf electric and gas cooktops along with integrated modules, and should be at least as wide as the cooking surface. A Pro ventilation hood is recommended for use with Wolf dual fuel ranges, gas ranges, sealed burner rangetops and gas rangetops. Refer to pages 82–91 for Pro ventilation specifications.

Wolf cooktop wall and island hoods come with a telescopic chimney flue extension that allows you to reach a ceiling height of 8' (2.4 m) to 9' (2.7 m) with a finished look. A flue extension to accommodate 10' (3 m) ceilings is available.

Specifications on the following pages provide overall dimensions, blower and ducting considerations, and installation specifics for cooktop wall and island hoods. We have minimized the information contained in the illustrations, concentrating on the critical information you must plan into your installation. Also refer to the cooktop ventilation recommendations on pages 93–94.

Installation of the cooktop wall or island hood should be 24" (610) to 30" (762) from the bottom of the hood to the countertop.

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

ACCESSORIES

Cooktop Ventilation Hoods

Flue extension to accommodate 10' (3 m) ceilings

30" (762) and 36" (914) wall shields— wall hoods only

8" (203) to 10" (254) round transition

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

OVERALL DIMENSIONS

Cooktop Wall Hoods

Model CTWH30

INSTALLATION SPECIFICATIONS

Cooktop Wall Hoods

WOLF COOKTOP VENTILATION

SPECIFICATIONS

Model CTWH30

Overall Width 30" (762)

Overall Height 6

/8" (175)

(excluding chimney)

Overall Height 301/2" (775) (including chimney)

Maximum Height 481/2" (1232) (full extension)

Overall Depth 21" (533)

Bottom of Hood to Countertop 24" (610) to 30" (762)

Duct Size 8" (203) Round

Discharge Vertical

Internal Blower* 450 CFM

In-Line Blowers* 600 or 1100 CFM

Remote Blowers* 600, 900, 1200 or

1500 CFM

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight 85 lbs (39 kg) (shell only)

*Blower options vary with the cooking surface. Refer to the cooktop ventilation recommendations on page 93–94.

Model CTWH36

SPECIFICATIONS

Model CTWH36

Overall Width 357/16" (900)

Overall Height 9

/4" (235)

(excluding chimney)

Overall Height 3211/16" (830) (including chimney)

Maximum Height 507/8" (1292) (full extension)

Overall Depth 21" (533)

Bottom of Hood to Countertop 24" (610) to 30" (762)

Duct Size 8" (203) Round

Discharge Vertical

Internal Blowers* 600 or 900 CFM

In-Line Blowers* 600 or 1100 CFM

Remote Blowers* 600, 900, 1200 or

1500 CFM

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight 100 lbs (45 kg) (shell only)

*Blower options vary with the cooking surface. Refer to the cooktop ventilation recommendations on pages 93–94.

18"

(457)

301/2" TO 481/2"

OVERALL HEIGHT

(152)

30" (762)

OVERALL WIDTH

18"

(457)

3211/16" TO 507/8"

OVERALL HEIGHT

811/16"

(221)

(775 – 1232)

(830 – 1292)

12"

(305)

41/2"min

(114)

191/8"

(486)

67/8"

(175)

21" (533)

OVERALL DEPTH

12"

(305)

19/16"

(40)

45/16"min

(110)

191/8"

(486)

91/4"

(235)

357/16" (900)

OVERALL WIDTH

481/2" OR 507/8"

(1232 or 1292)

MAXIMUM

HEIGHT OF HOOD

21"

(533)

8' TO 9'

(2.4 m – 2.7 m)

FLOOR TO

CEILING HEIGHT

24" TO 30"*

(610 – 762)

COUNTERTOP

LOCATION OF

ELECTRICAL

4" (102)

21" (533)

OVERALL DEPTH

(152)

30" OR 357/16"

(762 or 900)

19/16"

(40)

301/2" OR 3211/16"

(775 or 830)

MINIMUM

HEIGHT OF HOOD

*8' (2.4 m) ceilings will not allow for a 30" (762) maximum height above the countertop. Based on a 36" (914) high countertop, an 8' (2.4 m) ceiling will allow for a maximum height above the countertop of 29

/2" (749) for Model CTWH30 and 275/16" (694) for Model CTWH36.

Dimensions in parentheses are in millimeters unless otherwise specified.

OVERALL DIMENSIONS

Model IH4227

INSTALLATION SPECIFICATIONS

Model IH4227

WOLF COOKTOP VENTILATION

SPECIFICATIONS

Model IH4227

Overall Width 42" (1067)

Overall Height 9

/4" (235)

(excluding chimney)

Overall Height 339/16" (853) (including chimney)

Maximum Height 471/16" (1195) (full extension)

Overall Depth 27" (686)

Bottom of Hood to Countertop 24" (610) to 30" (762)

Duct Size 8" (203) Round

Discharge Vertical

Internal Blowers* 600 or 900 CFM

In-Line Blowers* 600 or 1100 CFM

Remote Blowers* 600, 900, 1200 or

1500 CFM

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight 110 lbs (50 kg) (shell only)

*Blower options vary with the cooking surface. Refer to the cooktop ventilation recommendations on page 93–94.

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

18"

(457)

339/16" TO 471/16"

(853 – 1195)

OVERALL HEIGHT

42" (1067)

OVERALL WIDTH

12"

(305)

27" (686)

OVERALL DEPTH

5"min

(127)

195/16"

(491)

19/16"

(40)

91/4"

(235)

471/16" (1195)

MAXIMUM

HEIGHT OF HOOD

27" (686)

8' TO 9'

(2.4 m – 2.7 m)

FLOOR TO

CEILING HEIGHT

24" TO 30"

(610 – 762)

COUNTERTOP

/16" (672).

42" (1067)

LOCATION OF ELECTRICAL

ON CEILING THROUGH

TOP OF HOOD

339/16" (853)

MINIMUM

HEIGHT OF HOOD

WOLF COOKTOP VENTILATION

BLOWER CONSIDERATIONS

Wolf cooktop wall and island hoods are shipped without the blower assembly. Internal, in-line and remote blower assemblies are available. For wall hoods, the remote blower can be mounted on the roof or an exterior wall. For island hoods, the remote blower will be mounted on the roof.

The blower will vary in size and is dictated by the cooking surface, the volume of air that needs to be moved and the length of the duct run. A straight, short duct run with a limited number of elbows and transitions will allow the ventilation hood to perform most efficiently.

A remote mounted blower will minimize the amount of blower noise, but will not eliminate the noise completely. All remote blowers will require a transition to a 10" (254) duct.

IMPORTANT NOTE: Install these ventilation hoods only with a Wolf blower.

WALL CAP

OR REMOTE BLOWER

COOKTOP

WALL HOOD

DUCTWORK INSTALLATION

THROUGH ROOF

DUCTWORK INSTALLATION

THROUGH WALL

8" (203) ROUND

VERTICAL DISCHARGE

8" (203) ROUND DUCT

CHIMNEY FLUE EXTENSION

TELESCOPIC CHIMNEY FLUE

8" (203) ROUND ELBOW

8" (203) ROUND DUCT

67/8" (175) OR 91/4" (235)

21"

(535)

24" TO 30"

(610– 762)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

ROOF CAP OR REMOTE BLOWER –

TRANSITION FROM 8" (203) TO 10" (254) DUCT

REQUIRED FOR REMOTE BLOWER

8" (203) ROUND DUCT

8" (203) ROUND ELBOW

CHIMNEY FLUE EXTENSION

TELESCOPIC CHIMNEY FLUE

8" (203) ROUND DUCT

24" TO 30"

(610– 762)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

COOKTOP

ISLAND HOOD

DUCTWORK INSTALLATION

THROUGH ROOF

DUCTWORK

INSTALLATION

THROUGH

EAVE – INTERNAL OR IN-LINE

BLOWER ONLY

8" (203) ROUND

ELBOW

EAVE VENT

91/4" (235)

27"

(686)

8" (203) ROUND

VERTICAL

DISCHARGE

ROOF CAP OR REMOTE BLOWER –

TRANSITION FROM 8" (203) TO 10" (254) DUCT

REQUIRED FOR REMOTE BLOWER

DUCTING CONSIDERATIONS

IMPORTANT NOTE: All Wolf cooktop hoods must be vented to the outside. Use only metal ductwork.

Wolf cooktop wall and island hoods have an 8" (203) round vertical discharge. Ducting can run through the roof, external wall or eave. Ducting through an eave requires an internal blower. Refer to the illustrations below.

Wolf cooktop wall and island hoods will operate most efficiently when ductwork does not exceed 50' (15 m) in length.

Local building codes may require the use of make-up air. Consult your local HVAC professional for specific requirements in your area.

Refer to the cooktop ventilation recommendations on pages 93–94.

DUCTING CONSIDERATIONS

Cooktop Wall Hoods Cooktop Island Hood

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF COOKTOP VENTILATION

FEATURES

Classic, platinum and carbon stainless steel finishes available on control module and top cover— Model DD45 available in classic only

Remote-mounted control module

Internal, in-line and remote blower options

Three-speed blower control

Filter clean timer lets you know when the filter

needs cleaning

Delay-off feature automatically turns unit off after five minutes, chimney remains up

Stainless steel filter cover with dishwasher-safe aluminum mesh filter

LED indicators

Downdraft control kit, available as a sales

accessory for Models DD30 and DD36 (included with Model DD45)— includes control module, top cover, mounting brackets, DIN connector and mounting hardware

UL listed to US and Canadian safety standards

WOLF DOWNDRAFT SYSTEMS

The cooktop downdraft unit rises from the countertop to whisk away odors and smoke into the easy-to-clean, five-layer mesh filter. The control module and top cover are available in the exclusive premium finishes of platinum or carbon stainless steel, or the standard classic stainless steel for ease in matching your cooktop.

Wolf downdraft systems come in 30" (762), 36" (914) and 45" (1143) widths and are recommended for use with Wolf framed electric cooktops, gas cooktops and integrated modules.

IMPORTANT NOTE: Wolf downdraft ventilation systems cannot be used with unframed electric cooktops and are not recommended for use with the electric grill, steamer and fryer modules.

A Pro ventilation hood is recommended for use with Wolf dual fuel ranges, gas ranges, sealed burner rangetops and gas rangetops. A downdraft can be used with sealed burner rangetop Models SRT304 and SRT366. An accessory trim kit is necessary for this installation. Contact your Wolf dealer for details.

CONTROL KIT OPTIONS

Downdraft Systems

Model DD30I / DD30R

Classic DD30CONTROL/S

Platinum DD30CONTROL/P

Carbon DD30CONTROL/B

Model DD36I / DD36R

Classic DD36CONTROL/S

Platinum DD36CONTROL/P

Carbon DD36CONTROL/B

Control module and top cover have the stainless steel finish. Control kits also include mounting brackets, DIN connector and hardware and are ordered and shipped as sales accessories for Models DD30 and DD36. Control kit components are included with Model DD45.

Model DD30

Model DD36

DOWNDRAFT SYSTEM FEATURES

Model DD36 shown

9" (229) chimney elevation

Top cover

Remote-mounted control module

Location of rating plate

Three-speed blower control

Aluminum mesh filters

MODEL OPTIONS

Downdraft Systems

(I) Models

500 CFM internal blower included

30" (762) Width DD30 I

36" (914) Width DD36 I

45" (1143) Width DD45I

(R) Models

Remote blower required

30" (762) Width DD30R

36" (914) Width DD36R

45" (1143) Width DD45R

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

Stainless steel filter covers

Model DD45

ACCESSORIES

Downdraft Systems

Bracket supports for installation of two integrated modules with 30" (762) downdraft

SRT/ Downdraft trim kit for sealed burner rangetop Models SRT304 and SRT366

Transitions in various sizes

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

OVERALL DIMENSIONS

Downdraft Systems

Models DD30I / DD30R

WOLF COOKTOP VENTILATION

23/8"

(60)

30"

(762)

91/16"

(230)

261/4"

(667)

11/2" (38)

DEPTH OF

DOWNDRAFT CHIMNEY

Models DD36I / DD36R

36"

(914)

321/4"

(819)

23/8"

(60)

91/16"

(230)

11/2" (38)

DEPTH OF

DOWNDRAFT CHIMNEY

Specifications on the following pages provide overall dimensions, blower and ducting considerations, and installation specifics for downdraft ventilation systems. Also refer to the cooktop ventilation recommendations on pages 93–94.

If a Model DD30 is installed in combination with two integrated modules, an integrated module support for downdraft ventilation is required. Contact your Wolf dealer for information on accessory components.

PLANNING INFORMATION

Wolf downdraft ventilation systems are available in 30" (762), 36" (914) and 45" (1143) widths. The downdraft should be at least as wide as the cooking surface.

Downdraft Model DD30 will fit most 30" (762) wide cabinets, Model DD36 will fit most 36" (914) wide cabinets and Model DD45 will fit most 45

/2" (1156) wide cabinets. It is recommended that oversized cabinets be used for easier installation. Cabinet backs may need to be removed.

IMPORTANT NOTE: To install a downdraft system and a Wolf cooktop, you must allow for a minimum 25

/8" (638) flat counter space from front to back. A countertop with a raised lip and/ or backsplash may not allow enough space for proper installation. 23/8" (60) of flat countertop is required behind the cooktop and 13/4" (44) is necessary between the back edge of the cooktop and inside of cabinet back.

IMPORTANT NOTE: This appliance must be used with a Wolf-approved control module and top cover.

The remote-mounted control module is available as a sales accessory for Models DD30 and DD36 and is included with Model DD45. Installation of the control module must be within 10' (3 m) of the downdraft assembly and a minimum of 4" (102) from the outer edge of cooktop element or burner. You will be required to drill three holes and connect the downdraft to the control module with the provided wire.

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

451/2"

(1156)

411/4"

(1048)

23/8"

(60)

91/16"

(230)

11/2" (38)

DEPTH OF

DOWNDRAFT CHIMNEY

Models DD45I / DD45R

Dimensions in parentheses are in millimeters unless otherwise specified.

INSTALLATION SPECIFICATIONS

Downdraft Systems

WOLF COOKTOP VENTILATION

SPECIFICATIONS

Models DD30I / DD30R

Overall Width 30" (762)

Overall Height 9

/16" (230)

(above countertop)

Overall Depth 23/8" (60)

Duct Size (DD30I) 3

/4" (83) x 10" (254)

Duct Size (DD30R) 3

/4" (83) x 14" (356)

Discharge Adjustable

Blower (DD30I) 500 CFM Internal

Blower Options* 1100 CFM In-Line, (DD30R) 900, 1200 or 1500 CFM

Remote

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 2

/2' (.8 m) 3-prong

Shipping Weight 75 lbs (34 kg)

SPECIFICATIONS

Models DD36I / DD36R

Overall Width 36" (914)

Overall Height 9

/16" (230)

(above countertop)

Overall Depth 23/8" (60)

Duct Size (DD36I) 3

/4" (83) x 10" (254)

Duct Size (DD36R) 3

/4" (83) x 14" (356)

Discharge Adjustable

Blower (DD36I) 500 CFM Internal

Blower Options* 1100 CFM In-Line, (DD36R) 900, 1200 or 1500 CFM

Remote

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 2

/2' (.8 m) 3-prong

Shipping Weight 80 lbs (36 kg)

SPECIFICATIONS

Models DD45I / DD45R

Overall Width 451/2" (1156)

Overall Height 9

/16" (230)

(above countertop)

Overall Depth 23/8" (60)

Duct Size (DD45I) 3

/4" (83) x 10" (254)

Duct Size (DD45R) 3

/4" (83) x 14" (356)

Discharge Adjustable

Blower (DD45I) 500 CFM Internal

Blower Options* 1100 CFM In-Line, (DD45R) 900, 1200 or 1500 CFM

Remote

Electrical Supply 110/ 120 V AC, 60 Hz

15 amp dedicated circuit

Power Cord 2

/2' (.8 m) 3-prong

Shipping Weight 85 lbs (39 kg)

*Refer to the cooktop ventilation recommendations on pages 93–94.

"min (44)

BACK EDGE OF COOKTOP TO INSIDE OF

CABINET BACK

.344"

/16

(745)

COUNTERTOP

TO BOTTOM OF

AIR BOX

OF FLAT COUNTERTOP

(16)

COOKTOP CUT-OUT

" (60)

" (54)

(83)

18"

(457)

(127)

"min (638)

DEPTH

(92)

" (489)

(197)

"min

/2 (64)

WITH NO

RAISED LIP

/16

36"

(914)

"min

(638)

FLAT

COUNTERTOP

SPACE

(181)

24"min (610)

CABINET DEPTH

AREAS OF POTENTIAL INTERFERENCE

27" (686)

FOR MODEL DD30

33" (838)

FOR MODEL DD36

42" (1067)

FOR MODEL DD45

COOKTOP CUT-OUT

WIDTH

COUNTERTOP TOP VIEW

"min (64)

" (70)

(489)

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

WOLF COOKTOP VENTILATION

BLOWER CONSIDERATIONS

Except for Models DD30I, DD36I and DD45I, which include a 500 CFM internal blower, Wolf downdrafts are shipped without the blower assembly. In-line and remote blower assemblies are available. The blower will vary in size and is dictated by the cooking surface, the volume of air that needs to be moved and the length of the duct run. A straight, short duct run with a limited number of elbows and transitions will allow the ventilation hood to perform most efficiently.

Wolf downdraft ventilation systems are designed for use with 31/4" (83) x 10" (254) ductwork for Models DD30I, DD36I and DD45I, and 3

/4" (83) x 14" (356) ductwork for Models DD30R, DD36R and DD45R. Each can be transitioned to 8" (203) or 10" (254) round ductwork.

A remote-mounted blower will minimize the amount of blower noise, but will not eliminate the noise completely.

IMPORTANT NOTE: Install this downdraft system only with a Wolf blower.

Refer to the cooktop ventilation recommendations on pages 93–94.

ELECTRICAL REQUIREMENTS

Wolf downdraft ventilation systems require a separate, grounded 120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker, and a grounded 3-prong receptacle should be located within the reach of the 2' (.6 m) power cord. The specific location of the outlet is not critical, as long as it is within reach of the power cord that is located mid-way, top and bottom, on the right side of the downdraft.

IMPORTANT NOTE: If Model DD30 is to be installed in a 30" (762) wide cabinet, Model DD36 in a 36" (914) wide cabinet or Model DD45 in a 451/2" (1156) wide cabinet, the electrical outlet cannot be located on the back wall of the cabinet. The outlet may be placed in adjacent cabinetry.

Locate electrical within the shaded area shown in the Installation Specifications illustrations.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

36" min (914)

FOR MODEL DD36

451/2" min (1156)

FOR MODEL DD45

30" min (762)

FOR MODEL DD30

OPTIONAL ELECTRICAL LOCATION IN

ADJACENT RIGHT

SIDE CABINET

E E

31/2" (89)

4" min (102)

10" (254)

24" min (610)

CABINET DEPTH

INSTALLATION SPECIFICATIONS

Location of Electrical Supply

IMPORTANT NOTE: Certain installations may require that the electrical supply be placed in an adjacent cabinet within reach of the power cord. Choose the location shown in the illustration that best suits your installation.

Dimensions in parentheses are in millimeters unless otherwise specified.

DUCTING OPTIONS

Downdraft Systems

DUCTING CONSIDERATIONS

Wolf downdraft systems have an adjustable discharge that will allow you to negotiate ducting around floor joists and other obstacles. Three different discharge locations are available with side-to-side adjustment for accurate alignment of ductwork. Refer to the illustration below for discharge location and adjustment.

IMPORTANT NOTE: All Wolf downdraft systems must be vented to the outside. Use only metal ductwork.

For best performance, 10" (254) round ductwork is recommended. The downdraft will operate most efficiently when ductwork does not exceed 40' (12 m) in length.

DISCHARGE CUT-OUT

DIMENSIONS:

" (260) x 3

" (89)

INTERNAL BLOWER

" (362) x 3

" (89)

IN-LINE OR

REMOTE BLOWER

CENTERLINE OF COUNTERTOP CUT-OUT

" (416)

INTERNAL BLOWER

" (546)

IN-LINE OR

REMOTE BLOWER

" (140)

INTERNAL BLOWER

" (108)

IN-LINE OR

REMOTE BLOWER

" (562)

INTERNAL BLOWER

19" (483)

IN-LINE OR

REMOTE BLOWER

RIGHT

DISCHARGE

LOCATION

LEFT

DISCHARGE

LOCATION

CENTERLINE OF COUNTERTOP CUT-OUT

" (140)

INTERNAL BLOWER

" (108)

IN-LINE OR

REMOTE BLOWER

NOTE: Measurements are to centerline of duct cut-outs

ADJUSTMENT:

5" MAX (127)

IN-LINE OR

REMOTE BLOWER

ADJUSTMENT:

1" (25) – 7" (178)

INTERNAL BLOWER

" MAX (165)

IN-LINE OR

REMOTE BLOWER

BOTTOM

DISCHARGE

LOCATION

DISCHARGE LOCATION

Downdraft Systems

WOLF COOKTOP VENTILATION

Choose the ducting option that allows the shortest length of ductwork and a minimum number of elbows and transitions. Refer to the illustration below for ducting options.

WALL CAP

12" MIN

GROUND

INTERNAL BLOWER

INSTALLATION THROUGH WALL

12" MIN

GROUND

INTERNAL BLOWER

INSTALLATION THROUGH WALL

12" MIN

GROUND

REMOTE BLOWER

ROOF MOUNT INSTALLATION

REMOTE BLOWER

10"

ROUND

REMOTE BLOWER

INSTALLATION THROUGH WALL

10"

ROUND

REMOTE

BLOWER

WOLF PRO VENTILATION

24" (610) Wall Hood

24" (610) Wall Hood (R) Rail Option

27" (686) Wall Hood

27" (686) Wall Hood (R) Rail Option

Island Hood

Island Hood (R) Rail Option

Low-Profile Wall Hood

Low-Profile Wall Hood (R) Rail Option

MODEL OPTIONS

Pro Ventilation Hoods

Pro Low-Profile Wall Hoods

30" (762) Width W302210 I*

36" (914) Width W362210

W362210I *

42" (1067) Width W422210

48" (1219) Width W482210

Pro 24" (610) Deep Wall Hoods

30" (762) Width W302418

36" (914) Width W362418

42" (1067) Width W422418

48" (1219) Width W482418

54" (1372) Width W542418

60" (1524) Width W602418

66" (1676) Width W662418

Pro 27" (610) Deep Wall Hoods

30" (762) Width W302718

36" (914) Width W362718

42" (1067) Width W422718

48" (1219) Width W482718

54" (1372) Width W542718

60" (1524) Width W602718

66" (1676) Width W662718

Pro Island Hoods

36" (914) Width I 363418

42" (1067) Width I423418

54" (1372) Width I543418

66" (1676) Width I663418

*( I) Models include 600 CFM internal blower.

Models without decorative rail(s) listed; for hoods with rail(s) add (R) to the model number.

IMPORTANT NOTE: For optimal performance in wall hood applications, a Pro 27" (686) deep wall hood is recommended for use with ranges and rangetops that contain a charbroiler or griddle.

WOLF PRO VENTILATION HOODS

Wolf Pro wall and island hoods provide the ultimate in ventilation. With standard elements like heat sentry and dual-setting halogen lighting, Wolf elevates the need for ventilation to an enjoyable perk.

Pro wall and island hoods are recommended for use with all Wolf cooking appliances.

IMPORTANT NOTE: For optimal performance in wall hood applications, a Pro 27" (686) deep wall hood is recommended for use with ranges and rangetops that contain a charbroiler or griddle.

The deepest of the Wolf Pro wall hoods, the 27" (686) model provides an additional exclusive feature— heat lamps.

All Pro wall and island hoods are available in classic stainless steel. Rail option hoods (R) come with a classic stainless steel decorative rail and stand-offs. Optional platinum and brass rails to match dual fuel range and sealed burner rangetop bezels are available as sales accessories.

Dimensions in parentheses are in millimeters unless otherwise specified.

Continually welded seams, hemmed edges and sides, and hand-finished craftsmanship

Recessed easy-access controls

Infinite-speed blower control

Heat sentry feature automatically turns unit on

when heat is sensed and automatically adjusts blower speed

Halogen lighting with two settings

Heat lamps on 27" (686) deep wall hoods—

two R40 250-watt maximum bulbs required (bulbs not included)

Removable, dishwasher-safe, restaurant-grade stainless steel baffle filters and grease cups

Transition with backdraft damper included

UL listed to US and Canadian safety standards

UL approved for covered outdoor applications

WOLF PRO VENTILATION

PRO VENTILATION HOOD FEATURES

Model W482718R shown

Classic stainless steel finish

Backdraft damper

Infinite-speed blower control

Welded seams and hemmed edges

Halogen lighting

Hand-finished craftsmanship

Recessed easyaccess controls

Decorative rail (R) models

FEATURES

Low-profile, 24" (610), 27" (686) deep wall ventilation hoods in a variety of widths with classic stainless steel finish

Island ventilation hoods in a variety of widths with classic stainless steel finish

Rail option wall hoods (R) come with a classic stainless steel decorative rail and stand-offs— optional platinum or brass rail available to match dual fuel range and sealed burner rangetop bezels

Rail option island hoods (R) come with classic stainless steel decorative rails and stand-offs for both sides of the hood— optional platinum or brass rails available to match dual fuel range and sealed burner rangetop bezels

Internal, in-line and remote blower options

Heavy-duty 16-gauge brushed stainless steel

construction

Stainless steel enclosed liner

WOLF WARRANTY

Wolf products are covered by a two and five year residential warranty (exclusions apply). See warranty details at the end of this guide.

ACCESSORIES

Pro Ventilation Hoods

Platinum or brass decorative rails and stand-offs

38" (965) high classic stainless steel backsplash (wall hoods)

38" (965) high classic stainless steel backsplash with warming rack (wall hoods)

Recirculating kit— available for certain wall hood models

6" (152) and 12" (305) classic stainless steel duct covers

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Stainless steel baffle filters

Location of rating plate

WOLF PRO VENTILATION

ELECTRICAL REQUIREMENTS

Wolf Pro wall and island hoods require a separate, grounded 120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker. Placement of the electrical supply is not critical, as long as you provide a minimum of 6' (1.8 m) of 120 V AC power cable. Note that for some wall hoods, placement of the electrical supply will differ between vertical and horizontal discharge locations. Refer to pages 89–91 for blower and ducting considerations to determine discharge location.

Locate electrical within the shaded area shown in the Installation Specifications illustration for your model.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

PLANNING INFORMATION

Pro low-profile wall hoods are available in 30" (762), 36" (914), 42" (1067) and 48" (1219) widths. (I) models include a 600 CFM internal blower.

Pro 24" (610) deep wall hoods are available in 30" (762), 36" (914), 42" (1067), 48" (1219), 54" (1372), 60" (1524) and 66" (1676) widths.

Pro 27" (686) deep wall hoods are available in 30" (762), 36" (914), 42" (1067), 48" (1219), 54" (1372), 60" (1524) and 66" (1676) widths.

Pro island hoods are available in 36" (914), 42" (1067), 54" (1372) and 66" (1676) widths.

IMPORTANT NOTE: For optimal performance in wall hood applications, a Pro 27" (686) deep wall hood is recommended for use with ranges and rangetops that contain a charbroiler or griddle.

Specifications on the following pages provide overall dimensions, blower and ducting considerations, and installation specifics for Pro wall and island hoods. We have minimized the information contained in the illustrations, concentrating on the critical information you must plan into your installation. Also refer to the Pro ventilation recommendations on pages 95–98.

The overall dimensions illustrations include the optional rail dimensions. Overall width, height and depth dimensions will remain the same if a decorative rail is not to be used.

Pro wall hoods should be at least as wide as the cooking surface; an overlap of 3" (76) on either side is recommended. Island hoods should always be larger than the cooking surface by a minimum of 3" (76) on each side.

Installation of all Pro wall and island hoods should be 30" (762) to 36" (914) from the bottom of the hood to the countertop.

Optional classic stainless steel duct covers are available in heights of 6" (152) and 12" (305) for all Pro wall and island hoods.

ACCESSORIES

Optional accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Dimensions in parentheses are in millimeters unless otherwise specified.

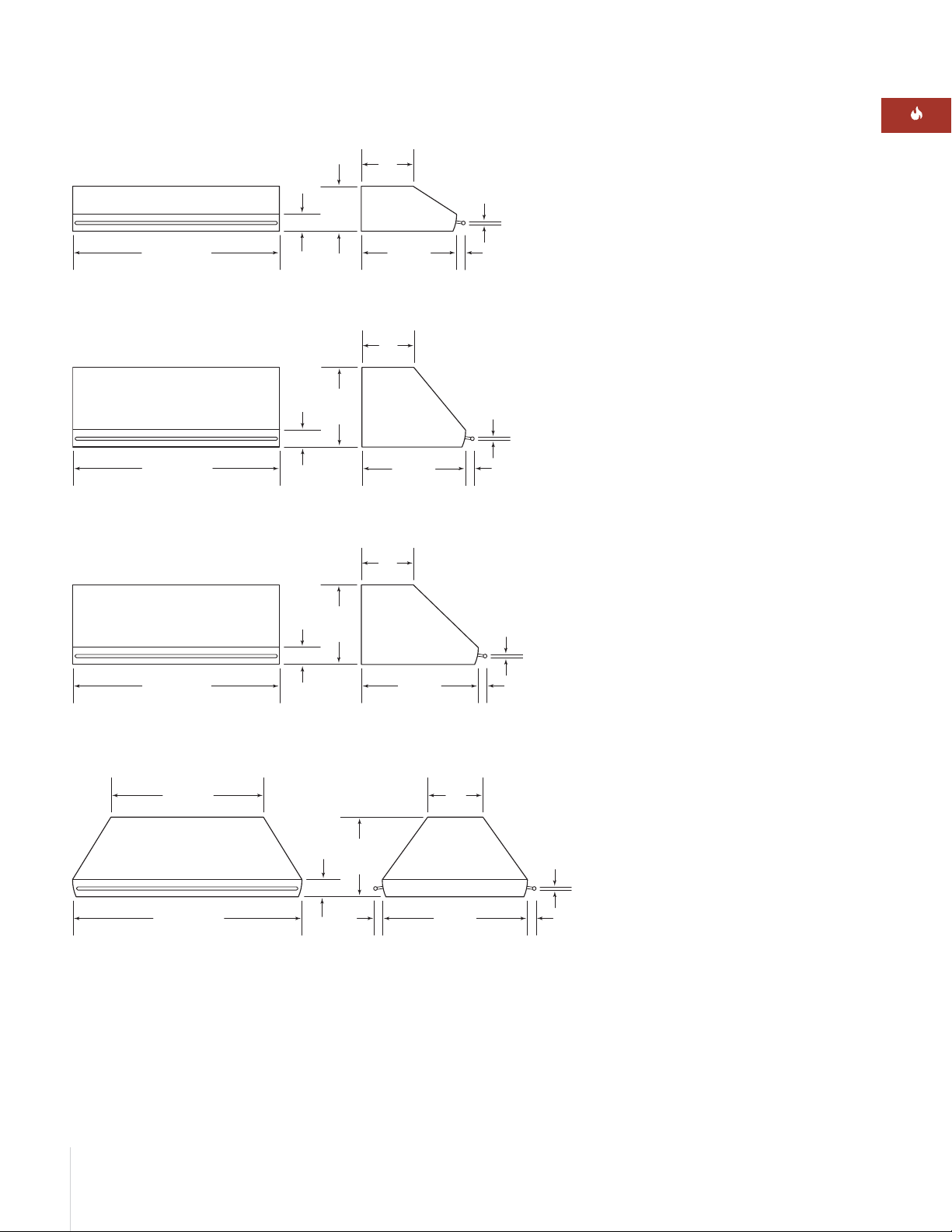

Pro Island Hoods

10" (254)

OVERALL

HEIGHT

OVERALL WIDTH

4" (102)

22" (559)

OVERALL DEPTH

12"

(305)

(51)

/4" (19)

DIAMETER

OF RAIL

OVERALL DIMENSIONS

SPECIFICATIONS

Pro Low-Profile Wall Hoods

Overall Width W302210I * 30" (762) W362210 36" (914) W362210I * 36" (914) W422210 42" (1067) W482210 48" (1219)

Overall Height 10" (254)

Overall Depth 22" (559) excluding rail

Bottom of Hood to Countertop 30" (762) to 36" (914)

Duct Size 8" (203) Round

Discharge Vertical or Horizontal

Internal Blower** 600 CFM

In-Line Blower** 600 CFM

Remote Blowers** 600 or 900 CFM

Electrical Supply 110 / 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight 39–55 lbs (18–25 kg) (shell only)

*Models W302210 I and W362210I include a 600 CFM internal blower and are vertical discharge only.

**Blower options vary with the size of hood and cooking surface. Refer to the Pro ventilation recommendations on pages 95–98.

WOLF PRO VENTILATION

OVERALL WIDTH

4" (102)

24" (610)

OVERALL DEPTH

12"

(305)

18" (457)

OVERALL

HEIGHT

(51)

/4" (19)

DIAMETER

OF RAIL

OVERALL WIDTH

27" (686)

OVERALL DEPTH

12"

(305)

18" (457)

OVERALL

HEIGHT

(51)

4" (102)

/4" (19)

DIAMETER

OF RAIL

SPECIFICATIONS

Pro 24" (610) Deep Wall Hoods

Overall Width W302418 30" (762) W362418 36" (914) W422418 42" (1067) W482418 48" (1219) W542418 54" (1372) W602418 60" (1524) W662418 66" (1676)

Overall Height 18" (457)

Overall Depth 24" (610) excluding rail

Bottom of Hood to Countertop 30" (762) to 36" (914)

Duct Size 10" (254) Round

Discharge Vertical or Horizontal

Internal Blowers* 600, 900 or 1200 CFM

In-Line Blowers* 600 or 1100 CFM

Remote Blowers* 600, 900, 1200 or

1500 CFM

Electrical Supply 110 / 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight 67–126 lbs (30–57 kg) (shell only)

*Blower options vary with the size of hood and cooking surface. Refer to the Pro ventilation recommendations on pages 95–98.

NOTE: The 900 CFM internal blower is vertical discharge only.

Pro 24" (610) Deep Wall Hoods

Pro 27" (686) Deep Wall Hoods

Unit dimensions may vary to ±1/8" (3).

Pro Low-Profile Wall Hoods

SUBTRACT 18" (457) FROM OVERALL WIDTH

TOP WIDTH

OVERALL WIDTH

4" (102)

18" (457)

OVERALL

HEIGHT

(51)

13"

(330)

34" (864)

OVERALL DEPTH

/4" (19)

DIAMETER

OF RAIL

(51)

INSTALLATION SPECIFICATIONS

Pro Island Hoods

WOLF PRO VENTILATION

SPECIFICATIONS

Pro 27" (686) Deep Wall Hoods

Overall Width W302718 30" (762) W362718 36" (914) W422718 42" (1067) W482718 48" (1219) W542718 54" (1372) W602718 60" (1524) W662718 66" (1676)

Overall Height 18" (457)

Overall Depth 27" (686) excluding rail

Bottom of Hood to Countertop 30" (762) to 36" (914)

Duct Size 10" (254) Round

Discharge Vertical

Internal Blowers* 600, 900 or 1200 CFM

In-Line Blowers* 600 or 1100 CFM

Remote Blowers* 600, 900, 1200 or

1500 CFM

Electrical Supply 110 / 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight 69–128 lbs (31–58 kg) (shell only)

*Blower options vary with the size of hood and cooking surface. Refer to the Pro ventilation recommendations on pages 95–98.

SPECIFICATIONS

Pro Island Hoods

Overall Width I363418 36" (914) I423418 42" (1067) I543418 54" (1372) I663418 66" (1676)

Overall Height 18" (457)

Overall Depth 34" (864) excluding rails

Bottom of Hood to Countertop 30" (762) to 36" (914)

Duct Size 10" (254) Round

Discharge Vertical

Internal Blower* 1200 CFM

In-Line Blower* 1100 CFM

Remote Blowers* 900, 1200 or 1500 CFM

Electrical Supply 110 / 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight 95–168 lbs (43–76 kg) (shell only)

*Blower options vary with the size of hood and cooking surface. Refer to the Pro ventilation recommendations on pages 95–98.

(152)

(127)

LOCATION OF ELECTRICAL

30" TO 36"

(762–914)

TO COUNTERTOP

30" TO 36"

(762–914)

TO COUNTERTOP

10" (254) 18" (457)

HEIGHT

OF HOOD

22" (559) 24" (610) 27" (686)

DEPTH OF HOOD

WIDTH OF HOOD

INSTALLATION SPECIFICATIONS

Pro Wall Hoods

LOCATION OF ELECTRICAL SUPPLY

CENTERED THROUGH TOP OF HOOD

WIDTH OF HOOD

30" TO 36"

(762–914)

TO COUNTERTOP

18" (457)

HEIGHT

OF HOOD

30" TO 36"

(762–914)

TO COUNTERTOP

34" (864)

DEPTH OF HOOD

Dimensions in parentheses are in millimeters unless otherwise specified.

PLANNING INFORMATION

Pro hood liners are available to accommodate 30" (762), 36" (914), 42" (1067), 48" (1219), 54" (1372) and 60" (1524) wide hoods. (I ) models include a 600 CFM internal blower.

The ventilation hood should be at least as wide as the cooking surface. It is recommended that the hood overlap the cooking surface by 3" (76) on either side.

Installation of all Pro hood liners should be 30" (762) to 36" (914) from the bottom of the decorative hood to the countertop.

The specifications provide overall dimensions and installation specifics for Pro hood liners. Refer to pages 89–91 for blower and ducting considerations and pages 95–98 for Pro ventilation recommendations.

ELECTRICAL REQUIREMENTS

Wolf Pro hood liners require a separate, grounded 120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker. Placement of the electrical supply is not critical, as long as you provide a minimum of 6' (1.8 m) of 120 V AC power cable.

Locate electrical within the shaded area shown in the Installation Specifications illustration.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

WOLF PRO VENTILATION

WOLF PRO HOOD LINERS

Wolf Pro hood liners allow you to incorporate superior ventilation within your kitchen design. Whether you prefer French country or modernist, the Pro hood liners take care of the interior design, with true superior ventilation. All you have to do is decide what it will look like.

Sometimes referred to as power packs, these liners bring all of the controls, lighting and convenience of our new ventilation line for those applications with a custom exterior treatment.

Wolf Pro hood liners are recommended for use with all Wolf cooking appliances and are available to accommodate 30" (762), 36" (914), 42" (1067), 48" (1219), 54" (1372) and 60" (1524) wide hoods.

FEATURES

Stainless steel enclosed liner with seamed construction

Internal, in-line and remote blower options

Recessed easy-access controls

Infinite-speed blower control

Heat sentry feature automatically turns unit on

when heat is sensed and automatically adjusts blower speed

Halogen lighting with two settings

Removable, dishwasher-safe, restaurant-grade

stainless steel baffle filters

Transition with backdraft damper included

Pro Hood Liner

MODEL OPTIONS

Pro Hood Liners

For 30" (762) Hood L282212I*

For 36" (914) Hood L342212

For 42" (1067) Hood L402212

For 48" (1219) Hood L462212

For 54" (1372) Hood L522212

For 60" (1524) Hood L582212

*( I) Model includes 600 CFM internal blower.

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

ACCESSORIES

Pro Hood Liners

38" (965) high classic stainless steel backsplash

38" (965) high classic stainless steel backsplash with warming rack

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

WOLF PRO VENTILATION

DECORATIVE HOOD

A decorative hood can be created out of wood, plaster, tile or metal. The shape of the decorative hood is not critical. The only place where the liner and outside cover must meet is at the bottom edge of the metal liner. The decorative hood and liner must fit at the bottom edge in both width and depth.

The height of the liner does not have to be the same as the height of the decorative hood and is generally shorter.

The top depth of the liner, which is 12" (305) standard, must be less than the interior depth of the decorative hood. Measure the interior depth of the hood at the top height of the liner to make sure the liner will fit inside the decorative hood.

The hood liner comes standard with a 4" (102) lower reveal. Be sure to include this dimension in your decorative hood selection.

Always use the interior measurements of the decorative hood and measure in multiple places. Use the smallest dimensions to verify hood liner specifications.

30" TO 36"

(762–914)

TO COUNTERTOP

30" TO 36"

(762–914)

TO COUNTERTOP

12" (305)

HEIGHT OF LINER

221/2" (572)

DEPTH OF LINER

WIDTH OF LINER

DECORATIVE HOOD

HOOD LINER

DECORATIVE HOOD

(152)

(127)

LOCATION OF ELECTRICAL

INSTALLATION SPECIFICATIONS

Pro Hood Liners

OVERALL DIMENSIONS

12" (305)

OVERALL

HEIGHT

283/8" (721)

OVERALL WIDTH

4" (102)

221/2" (572)

OVERALL DEPTH

12"

(305)

(76)

223/8" (568)

SPECIFICATIONS

Pro Hood Liners

Overall Width L282212I * 28

/8" (721)

L342212 34

/8" (873)

L402212 40

/8" (1026)

L462212 46

/8" (1178)

L522212 52

/8" (1330)

L582212 58

/8" (1483)

Overall Height 12" (305)

Overall Depth 22

/2" (572)

Bottom of Hood to Countertop 30" (762) to 36" (914)

Duct Size 8" (203) and 10" (254)

Round

Discharge Vertical

Internal Blowers** 600 or 1200 CFM

In-Line Blower** 1100 CFM

Remote Blowers** 900, 1200 or 1500 CFM

Electrical Supply 110 / 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight 39 –65 lbs (18 –29 kg) (shell only)

*Model L282212I includes a 600 CFM internal blower.

**Blower options vary with the size of hood and cooking surface. Refer to the Pro ventilation recommendations on pages 95–98.

Unit dimensions may vary to ±

/8" (3).

Pro Hood Liners (except Model L282212I)

Model L282212I

SUBTRACT 6" (152) FROM OVERALL WIDTH

(76)

TOP WIDTH

223/8"

(568)

OVERALL WIDTH

(76)

12" (305)

OVERALL

HEIGHT

1" (25)

12"

(305)

221/2" (572)

OVERALL DEPTH

4" (102)

Dimensions in parentheses are in millimeters unless otherwise specified.

BLOWER CONSIDERATIONS

Wall hood Models W302210I and W362210I come with internal blowers. All other Pro wall and island hoods are shipped without the blower assembly. Internal, in-line and remote blower assemblies are available. For Pro wall and island hoods, the remote blower can be mounted on the roof or an exterior wall.

Hood liner Model L282212I comes with an internal blower. All other Pro hood liners are shipped without the blower assembly. Internal, in-line and remote blower assemblies are available. For Pro hood liners, the remote blower can be mounted on the roof or exterior wall.

The blower assemblies are quite varied, and depending on the amount of air you want to move and the length of the duct run, you have many options.

DUCTWORK INSTALLATION

THROUGH ROOF

22" (559)

DEPTH OF HOOD

8" ROUND DUCT

SOFFIT OR CABINET

OR DUCT COVER

REMOTE BLOWER

*HORIZONTAL DISCHARGE APPLICABLE ON LOW-PROFILE WALL HOODS

(EXCLUDING W302210I AND W362210I) USING A REMOTE BLOWER. LOW-PROFILE WALL

HOODS WITH AN INTERNAL OR IN-LINE BLOWER MUST USE VERTICAL DISCHARGE.

DUCTWORK INSTALLATION

THROUGH WALL

DISCHARGE COLLAR

HORIZONTAL DISCHARGE*

VERTICAL DISCHARGE

TRANSITION

/4"W x 41/4"D TO 8" ROUND

/8"H (INCLUDING FLANGES)

30" TO 36"

(762–914)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

10" (254)

HEIGHT OF HOOD

WALL HOOD

ROOF CAP OR REMOTE BLOWER –

TRANSITION FROM 8" (203) TO 10" (254) DUCT

REQUIRED FOR REMOTE BLOWER

DUCTWORK INSTALLATION

THROUGH ROOF

24" (610)

DEPTH OF HOOD

ROOF CAP OR REMOTE BLOWER

10" ROUND DUCT

SOFFIT OR CABINET

OR DUCT COVER

WALL CAP

OR REMOTE BLOWER

*HORIZONTAL DISCHARGE IS APPLICABLE ON 24" (610) DEEP WALL HOODS USED WITH WBLOWER-60INT, WBLOWER-120INT OR ANY WOLF REMOTE BLOWER. WBLOWER-90INT AND IN-LINE BLOWERS ARE NOT FOR USE IN HORIZONTAL DISCHARGE APPLICATIONS.

DUCTWORK INSTALLATION

THROUGH WALL

DISCHARGE COLLAR

HORIZONTAL

DISCHARGE*

VERTICAL DISCHARGE

TRANSITION

/4"W x 9"D TO 10" ROUND

10"H (INCLUDING FLANGES)

30" TO 36"

(762–914)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

18" (457)

HEIGHT OF HOOD

WALL HOOD

A straight, short duct run with a limited number of elbows and transitions will allow the ventilation hood to perform most efficiently. The Pro wall and island hoods will operate most efficiently when ductwork does not exceed 50' (15 m) in length.

A remote mounted blower will minimize the amount of blower noise, but will not eliminate the noise completely.

IMPORTANT NOTE: Install this ventilation hood or hood liner only with a Wolf blower.

Refer to the Pro ventilation recommendations on pages 95–98.

Refer to the illustrations below for ducting considerations for the Pro low-profile and 24" (610) deep wall hoods.

DUCTING CONSIDERATIONS

Pro Low-Profile Wall Hoods Pro 24" (610) Deep Wall Hoods

WOLF PRO VENTILATION

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

WOLF PRO VENTILATION

DUCTING CONSIDERATIONS

IMPORTANT NOTE: Unless a recirculating kit is being used, all Wolf Pro ventilation hoods must be vented to the outside. Use only metal ductwork.

Wolf Pro low-profile and 24" (610) deep wall hoods have an adjustable discharge location that can run vertically or horizontally. Horizontal discharge is applicable on Pro low-profile wall hoods (excluding Models W302210I and W362210I) using a remote blower. Horizontal discharge applicable on Pro 24" (610) hoods used with WBLOWER-60INT or WBLOWER120INT or any remote blower. WBLOWER-90INT is not for use in horizontal discharge applications.

30" TO 36"

(762–914)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

18" (457)

HEIGHT OF HOOD

WALL HOOD

DUCTWORK INSTALLATION

THROUGH ROOF

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

27" (686)

DEPTH OF HOOD

10" ROUND DUCT

SOFFIT OR CABINET

OR DUCT COVER

VERTICAL DISCHARGE ONLY FOR 27" (686) DEEP WALL HOODS.

TRANSITION

/4"W x 9"D TO 10" ROUND

10"H (INCLUDING FLANGES)

ROOF CAP OR REMOTE BLOWER

VERTICAL DISCHARGE

ROOF CAP OR REMOTE BLOWER

18" (457)

HEIGHT OF HOOD

ISLAND HOOD

DUCTWORK INSTALLATION

THROUGH ROOF

34" (864)

DEPTH OF HOOD

10" ROUND DUCT

VERTICAL

DISCHARGE

VERTICAL DISCHARGE ONLY FOR ISLAND HOODS.

TRANSITION

/8"W x 9"D TO 10" ROUND

11"H (INCLUDING FLANGES)

SOFFIT, CABINET OR

DUCT COVER

30" TO 36"

(762–914)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

In a horizontal discharge application, additional framework may be needed to accommodate the remote blower. Consult your local HVAC professional for specific requirements in this application.

All Wolf Pro 27" (686) deep wall hoods and Pro island hoods have a vertical discharge location. Wolf Pro hood liners also have a vertical discharge location.

Refer to the illustrations below for ducting considerations for the Pro 27" (686) deep wall hoods and Pro island hoods.

DUCTING CONSIDERATIONS

Pro 27" (686) Deep Wall Hoods Pro Island Hoods

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF PRO VENTILATION

DUCTING CONSIDERATIONS

Refer to the illustration below for ducting considerations for Pro hood liners.

Pro wall and island hoods and hood liners will operate most efficiently when ductwork does not exceed 50' (15 m) in length.

Local building codes may require the use of make-up air. Consult your local HVAC professional for specific requirements in your area.

Refer to the Pro ventilation recommendations on pages 95–98.

12" (305)

HEIGHT OF LINER

HOOD LINER

DUCTWORK INSTALLATION

THROUGH ROOF

8" ROUND DUCT (L282212I)

10" ROUND DUCT (ALL OTHER LINERS)

SOFFIT OR CABINET

OR DUCT COVER

VERTICAL DISCHARGE ONLY FOR VENTILATION HOOD LINERS.

VERTICAL DISCHARGE

221/2" (572)

DEPTH OF LINER

DECORATIVE HOOD

30" TO 36"

(762–914)

COUNTERTOP

TO BOTTOM OF

DECORATIVE HOOD

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

TRANSITION

/4"W x 41/4"D TO 8" ROUND

/8"H (L282212I)

/4"W x 9"D TO 10" ROUND

10"H (ALL OTHER LINERS)

DIMENSIONS INCLUDE FLANGES

ROOF CAP OR REMOTE BLOWER –

TRANSITION FROM 8" (203) TO 10" (254) DUCT

REQUIRED FOR REMOTE BLOWER

DUCTING CONSIDERATIONS

Pro Hood Liners

INSTALLATION

Refer to installation instructions shipped with each Wolf product for detailed specifications.

WOLF VENTILATION RECOMMENDATIONS

BLOWER-60REM and BLOWER-90REM

BLOWER-150REM

BLOWER-120REM

WOLF BLOWER ASSEMBLIES

A ventilation system must include a blower assembly. With a few exceptions where internal blowers are included, Wolf ventilation hoods and downdrafts are shipped without the blower assembly. An internal, in-line or remote blower assembly must be selected to accommodate the cooking appliance, CFM requirements and homeowner preferences. Internal, in-line and remote blower assemblies are available as sales accessories through your Wolf dealer.

Internal blowers are mounted inside the hood canopy or downdraft blower box.

Wolf in-line blowers are mounted between the hood and the exterior of the home. Ducting runs from the hood and connects to the blower. More ducting is attached to the other side of the blower and runs to the exterior of the home. An in-line blower is a good option for those who do not want the blower mounted inside the hood but cannot, or prefer not to, mount a remote blower on the exterior of the home.

BLOWER-110IL

BLOWER-60IL

IN-LINE BLOWERS

Remote blowers can be mounted on the roof or, in some cases, on an exterior wall. A remotemounted blower will minimize the amount of blower noise but will not eliminate the noise completely.

Wolf internal, in-line and remote blowers are for use with Wolf cooktop hoods, downdraft systems and Pro ventilation hoods and hood liners.

Cooktop and Pro ventilation recommendation charts on pages 93–98 provide minimum CFM recommendations according to the cooking appliance and ventilation system used and blower options for each specific ventilation hood or downdraft.

Refer to the illustrations below for dimensions of Wolf in-line and remote blowers. Installation instructions shipped with each Wolf ventilation product provide detailed specifications. These instructions can also be found on our website, wolfappliance.com.

REMOTE BLOWERS

ACCESSORIES

Blower assemblies are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

113/4"

(298)

181/2"

(470)

41/2"

(114)

211/2"

(546)

18"

12"

(457)

(305)

(203)

22"

(559)

243/8"

(619)

121/4"

(311)

(632)

18"

(457)

21" (533)

10"

(254)

(749)

25"

(635)

(184)

(718)

(394)

10" (254)

Diameter

14"

(356)

(629)

(527)

(622)

(121)

(749)

(375)

10" (254)

Diameter

(264)

(749)

10" (254)

Diameter

(375)

(257)

18" (457)

10"

(254)

(749)

22"

(559)

(184)

Dimensions in parentheses are in millimeters unless otherwise specified.

CTWH30 CTWH36 IH4227 DD30 DD36 DD45 Pro Hoods

Electric Cooktops

Model CT15E 215* 215* 215* 215* 150* 215*

Model CT30E 450 600 600 500 350 600

Model CT30EU 450 600 600 600

Model CT36E 600 600 500 600

Model CT36EU 600 600 600

CTWH30 CTWH36 IH4227 DD30 DD36 DD45 Pro Hoods

Gas Cooktops

Model CT15G 215* 215* 215* 215* 150* 215*

Model CT30G 450 600 600 500 350 600

Model CT36G 600 600 500 600

CTWH30 CTWH36 IH4227 DD30 DD36 DD45 Pro Hoods

Integrated Modules

Model CT15I 215* 215* 215* 215* 150* 215*

Model IG15 215* 215* 215* 215*

Model IS15 215* 215* 215* 215*

Model IF15 215* 215* 215* 215*

Model IM15 215* 215* 215* 215* 150* 215*

CTWH30 CTWH36 IH4227 DD30 DD36 DD45 Pro Hoods

Sealed Burner Rangetops

Model SRT304 600 600

Model SRT366 900 900

*Use these recommendations to determine total CFM when installing multiple cooktops or modules.

CFM

Recommendations are based on total Btu/ hr output. Wolf recommends 1 CFM per 100 Btu/ hr (.03 kW). Additional CFM may be required for charbroilers, griddles and long duct runs.

COOKTOP HOODS AND DOWNDRAFTS

COOKTOP VENTILATION CFM RECOMMENDATIONS

WOLF VENTILATION RECOMMENDATIONS

IMPORTANT NOTE

Blower configurations are for reference only. Refer to the minimum CFM recommendations for your specific cooking appliance. Consult a qualified HVAC engineer for specific installation and ducting applications.

COOKTOP VENTILATION BLOWER OPTIONS

Blower Description Blower Number Cooktop Hood Models

450 CFM Internal CTBLOWER-45INT (801643) CTWH30

600 CFM Internal CTBLOWER-60INT (801644) CTWH36 / IH4227

900 CFM Internal CTBLOWER-90INT (801645) CTWH36 / IH4227

600 CFM In-Line BLOWER-60IL (808331) CTWH30 / CTWH36 / IH4227

1100 CFM In-Line BLOWER-110 IL (808332) CTWH30 / CTWH36 / IH4227

600 CFM Remote BLOWER-60REM (801640) CTWH30 / CTWH36 / IH4227

900 CFM Remote BLOWER-90REM (801641) CTWH30 / CTWH36 / IH4227

1200 CFM Remote BLOWER-120REM (801642) CTWH30 / CTWH36 / IH4227

1500 CFM Remote BLOWER-150REM (804701) CTWH30 / CTWH36 / IH4227

Vertical discharge with 8" (203) round duct for wall and island hoods. Transition not required for internal blowers; in-line and remote blowers require TRANS-8-10. Backdraft damper included.

Blower Description Blower Number Downdraft Models

500 CFM Internal Included with (I) Models DD30I / DD36I / DD45I

1100 CFM In-Line BLOWER-110 IL (808332) DD30R / DD36R / DD45R

900 CFM Remote BLOWER-90REM (801641) DD30R / DD36R / DD45R

1200 CFM Remote BLOWER-120REM (801642) DD30R / DD36R / DD45R

1500 CFM Remote BLOWER-150REM (804701) DD30R / DD36R / DD45R

Adjustable discharge. 31/4" (83) x 10" (254) duct for internal blower, no transition required. 31/4" (83) x 14" (356) duct for in-line and remote blowers. TRANS-14-10 required for remote blowers.

COOKTOP WALL AND ISLAND HOODS

DOWNDRAFT SYSTEMS

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF VENTILATION RECOMMENDATIONS

PRO VENTILATION CFM RECOMMENDATIONS

W302210I

W362210(I)

W422210 W482210

DF304 / R304 / SRT304 600 600

DF366 / R366 / SRT366 / RT366 900 900

DF364 / R364 / SRT364 / RT364 900 900

RT362 900 900

DF484 / R484 / SRT484 / RT484 900

R482 / RT482 900

IMPORTANT NOTE

For optimal performance in wall hood applications, a Pro 27" (686) deep wall hood is recommended for use with ranges and rangetops that contain a charbroiler or griddle.

PRO LOW-PROFILE WALL HOODS

W302418 W362418 W422418 W482418 W542418 W602418 W662418

DF304 / R304 / SRT304 600 600

DF366 / R366 / SRT366 / RT366 900 900

DF364 / R364 / SRT364 / RT364 900 900

RT362 900 900

R488 / RT488 1100 1100

DF486 / R486 / SRT486 / RT486 1100 1100

DF484 / R484 / SRT484 / RT484 1100 1100

R482 / RT482 1100 1100

DF606 / R606 1500 1500

DF604 / R604 1500 1500

PRO 24" (610) DEEP WALL HOODS

W302718 W362718 W422718 W482718 W542718 W602718 W662718

DF304 / R304 / SRT304 600 600

DF366 / R366 / SRT366 / RT366 900 900

DF364 / R364 / SRT364 / RT364 900 900

RT362 900 900

R488 / RT488 1100 1100

DF486 / R486 / SRT486 / RT486 1100 1100

DF484 / R484 / SRT484 / RT484 1100 1100

R482 / RT482 1100 1100

DF606 / R606 1500 1500

DF604 / R604 1500 1500

PRO 27" (686) DEEP WALL HOODS

CFM

Recommendations are based on total Btu/ hr output. Wolf recommends 1 CFM per 100 Btu/ hr (.03 kW). Additional CFM may be required for charbroilers, griddles and long duct runs.

MODEL NUMBERS

Model numbers for dual fuel ranges, gas ranges, sealed burner rangetops and gas rangetops indicate width and number of surface burners. Features such as a charbroiler, griddle and/ or French Top will vary.

WOLF VENTILATION RECOMMENDATIONS

CFM

Recommendations are based on total Btu/ hr output. Wolf recommends 1 CFM per 100 Btu/ hr (.03 kW). Additional CFM may be required for charbroilers, griddles and long duct runs.

I363418 I423418 I543418 I663418

DF304 / R304 / SRT304 600 600

DF366 / R366 / SRT366 / RT366 900

DF364 / R364 / SRT364 / RT364 900

RT362 900

R488 / RT488 1100

DF486 / R486 / SRT486 / RT486 1100

DF484 / R484 / SRT484 / RT484 900

R482 / RT482 900

DF606 / R606 1500

DF604 / R604 1500

PRO VENTILATION CFM RECOMMENDATIONS

MODEL NUMBERS

PRO ISLAND HOODS

L282212I L342212 L402212 L462212 L522212 L582212

DF304 / R304 / SRT304 600

DF366 / R366 / SRT366 / RT366 900 900

DF364 / R364 / SRT364 / RT364 900 900

RT362 900 900

R488 / RT488 1100 1100

DF486 / R486 / SRT486 / RT486 1100 1100

DF484 / R484 / SRT484 / RT484 900 900

R482 / RT482 900 900

DF606 / R606 1500

DF604 / R604 1500

PRO HOOD LINERS

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF VENTILATION RECOMMENDATIONS

Blower Description Blower Number Wall Hood Models

600 CFM Internal* Included with (I) Models W302210I / W362210I

600 CFM Internal* WBLOWER-60INT (807614) W362210 / W422210

600 CFM In-Line* BLOWER-60IL (808331) W362210 / W422210 / W482210

600 CFM Remote BLOWER-60REM (801640) W362210 / W422210 / W482210

900 CFM Remote BLOWER-90REM (801641) W362210 / W422210 / W482210

*Vertical discharge with 8" (203) round duct. Remote blowers are adjustable discharge with 8" (203) round duct.

Blower Description Blower Number Wall Hood Models

600 CFM Internal WBLOWER-60INT (807614) W302418 / W362418 / W422418

900 CFM Internal* WBLOWER-90INT (805086) W302418 / W362418 / W422418

1200 CFM Internal WBLOWER-120INT (804702) W482418 / W542418 / W602418 / W662418

600 CFM In-Line* BLOWER-60IL (808331) W302418

1100 CFM In-Line* BLOWER-110 IL (808332) All 24" (610) Deep Wall Hoods

600 CFM Remote BLOWER-60REM (801640) W302418

900 CFM Remote BLOWER-90REM (801641) W302418 / W362418 / W422418 / W482418 / W542418

1200 CFM Remote BLOWER-120REM (801642) All 24" (610) Deep Wall Hoods

1500 CFM Remote BLOWER-150REM (804701) All 24" (610) Deep Wall Hoods

*Vertical discharge with 10" (254) round duct. All other blowers are adjustable discharge with 10" (254) round duct.

Blower Description Blower Number Wall Hood Models

600 CFM Internal WBLOWER-60INT (807614) W302718 / W362718 / W422718

900 CFM Internal WBLOWER-90INT (805086) W302718 / W362718 / W422718

1200 CFM Internal WBLOWER-120INT (804702) W482718 / W542718 / W602718 / W662718

600 CFM In-Line BLOWER-60IL (808331) W302718

1100 CFM In-Line BLOWER-110 IL (808332) All 27" (686) Deep Wall Hoods

600 CFM Remote BLOWER-60REM (801640) W302718

900 CFM Remote BLOWER-90REM (801641) W302718 / W362718 / W422718 / W482718 / W542718

1200 CFM Remote BLOWER-120REM (801642) All 27" (686) Deep Wall Hoods

1500 CFM Remote BLOWER-150REM (804701) All 27" (686) Deep Wall Hoods

Vertical discharge with 10" (254) round duct.

PRO VENTILATION BLOWER OPTIONS

IMPORTANT NOTE

For optimal performance in wall hood applications, a Pro 27" (686) deep wall hood is recommended for use with ranges and rangetops that contain a charbroiler or griddle.

Wall hood models without decorative rail listed; blower options are the same for (R) models.

Transition with backdraft damper included with all wall hoods.

PRO LOW-PROFILE WALL HOODS

PRO 24" (610) DEEP WALL HOODS

PRO 27" (686) DEEP WALL HOODS

Dimensions in parentheses are in millimeters unless otherwise specified.

WOLF VENTILATION RECOMMENDATIONS

Blower Description Blower Number Island Hood Models

1200 CFM Internal I BLOWER-120INT (804703) All Island Hoods

1100 CFM In-Line BLOWER-110 IL (808332) All Island Hoods

900 CFM Remote BLOWER-90REM (801641) I363418 / I423418 / I 543418

1200 CFM Remote BLOWER-120REM (801642) All Island Hoods

1500 CFM Remote BLOWER-150REM (804701) All Island Hoods

Vertical discharge with 10" (254) round duct.

Blower Description Blower Number Hood Liner Models

600 CFM Internal* Included with (I) Model L282212I

1200 CFM Internal LBLOWER-120INT (805087) All Hood Liners (except L282212I )

1100 CFM In-Line BLOWER-110 IL (808332) All Hood Liners (except L282212I)

900 CFM Remote BLOWER-90REM (801641) All Hood Liners (except L282212I)

1200 CFM Remote BLOWER-120REM (801642) All Hood Liners (except L282212I )

1500 CFM Remote BLOWER-150REM (804701) All Hood Liners (except L282212I )

*Vertical discharge with 8" (203) round duct. In-line blower is vertical discharge with 10" (254) round duct. Remote blowers are adjustable discharge with 10" (254) round duct.

PRO VENTILATION BLOWER OPTIONS

IMPORTANT NOTE

Island hood models without decorative rails listed; blower options are the same for (R) models.

Transition with backdraft damper included with all island hoods and hood liners.

PRO ISLAND HOODS

PRO HOOD LINERS

W OLF A PPLIANCE P RODUCTS

L IMITED W ARRANTY

RESIDENTIAL USE ONLY

FULL TWO YEAR WARRANTY*

For two years from the date of original installation, your Wolf Appliance product warranty covers all parts and labor to repair or replace any part of the product that proves to be defective in materials or workmanship. All service provided by Wolf Appliance Company under the above warranty must be performed by a Wolf Appliance authorized service center, unless otherwise specified by Wolf Appliance Company. Service will be provided in the home during normal business hours.

LIMITED THIRD THROUGH FIFTH YEAR WARRANTY

From the third through fifth year from the date of original installation, Wolf Appliance Company will repair or replace the following parts that prove to be defective in materials or workmanship. Labor to remove and replace defective parts is not covered. Wolf Appliance Company recommends that you use a Wolf Appliance authorized service center to perform such service.

Gas Burners (excluding appearance), Electric Heating Elements, Blower Motors (vent hoods),

Electronic Control Boards, Magnetron Tubes and Induction Generators

LIMITED LIFETIME WARRANTY

For the life of the product, Wolf Appliance Company will repair or replace any BBQ body or BBQ hood that rusts through due to defective material or workmanship. Labor to remove and replace defective parts is not covered. Wolf Appliance Company recommends that you use a Wolf Appliance authorized service center to perform such service.

TERMS APPLICABLE TO EACH WARRANTY

The warranty applies only to products installed for normal residential use. The warranty applies only to products installed in any one of the fifty states of the United States, the District of Columbia or the ten provinces of Canada. This warranty does not cover any parts or labor to correct any defect caused by negligence, accident or improper use, maintenance, installation, service or repair.

THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES THAT WOLF APPLIANCE COMPANY, INC. WILL PROVIDE, EITHER UNDER THIS WARRANTY OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. WOLF APPLIANCE COMPANY, INC. WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THIS WARRANTY OR ANY OTHER WARRANTY, WHETHER EXPRESS, IMPLIED OR STATUTORY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights that vary from state to state.

To receive parts and/ or service and the name of the Wolf Appliance authorized service center nearest you, contact Wolf Appliance Company, Inc., P. O. Box 44848, Madison, Wisconsin 53744; check the Locator section of our website, wolfappliance.com, or call 800-332-9513.

* Stainless Steel (classic, platinum and carbon) doors, panels and product frames are covered by a limited 60 day parts and labor warranty for cosmetic defects.

WOLF APPLIANCE COMPANY, INC. P. O. BOX 44848 MADISON, WI 53744 800-332-9513 WOLFAPPLIANCE.COM

808255 REV-B 10/2006

Sub-Zero WOLFDESIGN User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
