Planning Information
Model W362718(R) Pro Wall Hood
Dimensions in parentheses are in millimeters unless otherwise specified.
9/06
1
Wolf Pro wall hoods provide the ultimate in
ventilation. With standard elements like heat sentry and dual setting halogen lighting, Wolf elevates the need for ventilation to an enjoyable perk.
Pro 27" (686) deep wall hoods are available in the classic stainless steel finish. You also have the option of a decorative rail. While a classic stainless steel rail is standard on (R) models, platinum or brass rails are available to match the bezels of our dual fuel ranges and sealed burner rangetops.
The deepest of the Pro wall hoods, this 27" (686) model provides an additional exclusive feature – heat lamps.
Pro wall ventilation hoods are recommended for use with all Wolf cooking appliances. For optimal perform­ance, a Pro 27" (686) deep wall hood is recommended for use with ranges and rangetops that contain a charbroiler or griddle.
Wolf Pro 27" (686) deep wall hoods are available in the classic stainless steel finish. Rail option hoods (R) come with a classic stainless steel decorative rail and stand-offs. Optional platinum or brass rails match dual fuel range bezels. Pro wall hoods are sold as a shell only; internal, in-line and remote blower options are available.
Model W362718
Model W362718R – Rail Option
Classic stainless steel finish
Backdraft damper
Stainless steel baffle filters
Infinite speed blower control
Welded seams and hemmed edges
Halogen lighting
Model W362718R shown with standard classic stainless steel decorative rail, platinum or brass rail available as a sales accessory
Hand finished craftsmanship
Recessed easy access controls
Decorative rail (optional)
Planning Information
Model W362718(R) Pro Wall Hood
Dimensions in parentheses are in millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
FEATURES
36" (914) wide by 27" (686) deep wall
ventilation hood with classic stainless steel
finish
Rail option hoods (R) come with a classic
stainless steel decorative rail and stand-offs –
optional platinum or brass rail to match dual
fuel range and sealed burner rangetop bezels
is available as a sales accessory
Internal, in-line and remote blower options
Heavy-duty 16-gauge brushed stainless steel
construction
Stainless steel enclosed liner
Continually welded seams, hemmed edges
and sides and hand finished craftsmanship
Recessed easy-access controls
Infinite speed blower control
Heat sentry feature automatically turns unit on when heat is sensed and automatically adjusts blower speed
Halogen lighting with two settings
Heat lamps – bulbs not included
Removable, dishwasher-safe, restaurant­grade stainless steel baffle filters
Transition with backdraft damper included
UL listed to US and Canadian safety standards
UL approved for covered outdoor applications
Two and five year residential warranty – exclusions apply; warranty information can be found on our website, wolfappliance.com
OVERALL DIMENSIONS
Model W362718
Model W362718R with Rail
18"(457)
OVERALL
HEIGHT
36" (914)
OVERALL WIDTH
4"(102)
36" (914)
OVERALL WIDTH
18"(457)
OVERALL
HEIGHT
12"
(305)
27" (686)
OVERALL DEPTH
12"
(305)
27" (686)
OVERALL DEPTH
4"(102)
3
/4" (19)
DIAMETER
OF RAIL
2"
(51)
Planning Information
Model W362718(R) Pro Wall Hood
Dimensions in parentheses are in millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Width of Hood 36" (914)
Overall Height of Hood 18" (457)
Overall Depth of Hood – W362718 27" (686) W362718R (including rail) 29" (737)
Duct Size 10" (254) Round
Discharge Vertical
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight 80 lbs (36 kg)
For optimal performance, a Pro 27" (686) deep wall hood is recommended for use with ranges and rangetops that contain a charbroiler or griddle.
Specifications are subject to change without notice.
BLOWER OPTIONS
600 CFM Internal Blower 807614
900 CFM Internal Blower 805086
1100 CFM In-Line Blower 808332
900 CFM Remote Blower 801641
1200 CFM Remote Blower 801642
1500 CFM Remote Blower 804701
Refer to the Pro Ventilation Recommendations chart at the end of this section.
ACCESSORIES
Platinum or brass decorative rail
and stand-offs
38" (965) high stainless steel
backsplash with or without
warming rack
6" (152) and 12" (305) duct covers
Contact your Wolf dealer for additional information on accessories.
Planning Information
Model W362718(R) Pro Wall Hood
Dimensions in parentheses are in millimeters unless otherwise specified.
4

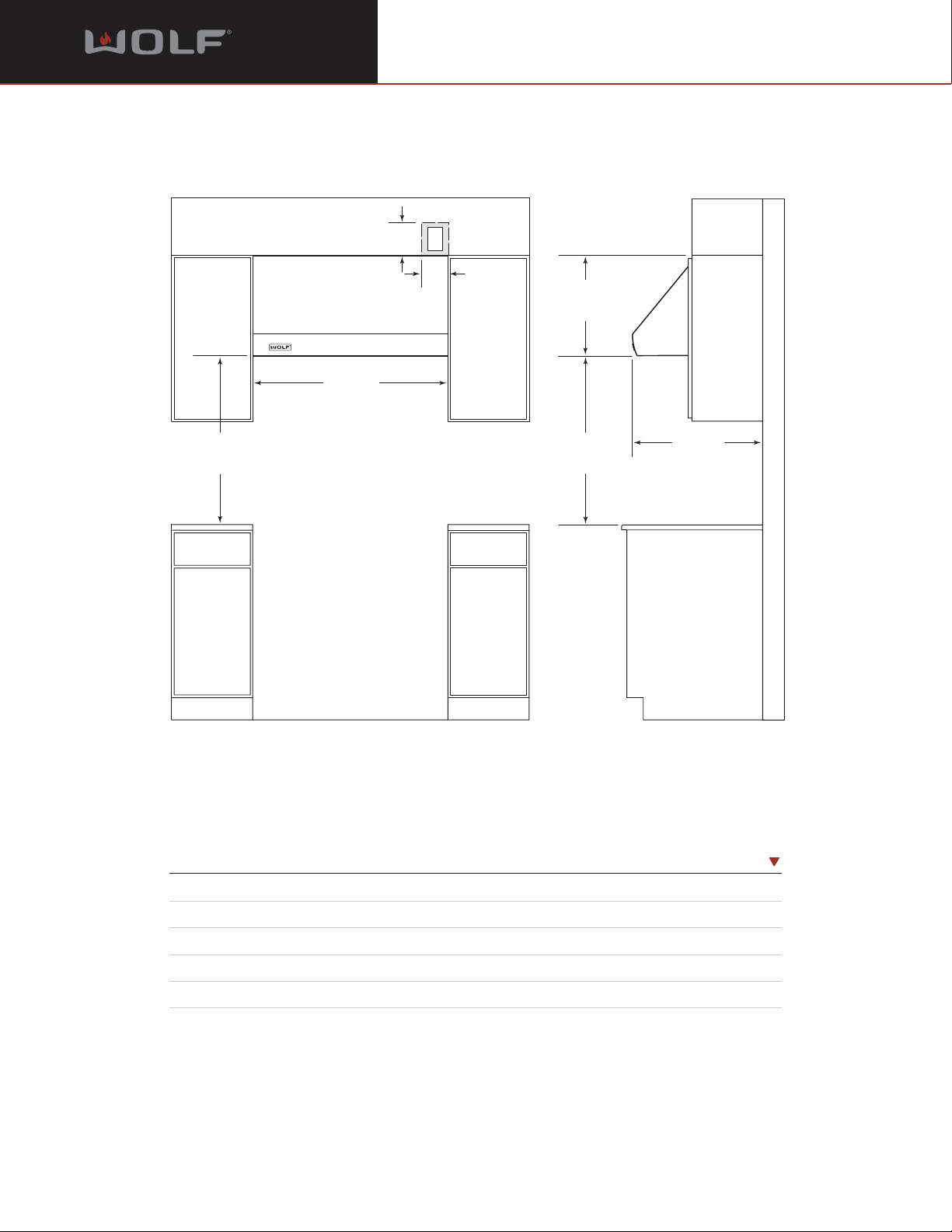

DIMENSIONS
Overall Width of Hood 36" (914)
Overall Height of Hood 18" (457)
Overall Depth of Hood (excluding rail) 27" (686)
Countertop to Bottom of Hood 30" (762) to 36" (914)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
INSTALLATION SPECIFICATIONS
36" (914)
WIDTH OF HOOD
E
6"
(152)
5"
(127)
LOCATION OF
ELECTRICAL
NOTE: Horizontal discharge is applicable on 24" (610) deep wall hoods used with WBLOWER-60INT or any remote blower. WBLOWER-90INT is not for use in horizontal discharge applications. 27" (686) deep wall hoods are vertical discharge only.
30" TO 36"
(762–914)
TO COUNTERTOP
30" TO 36"
(762–914)
TO COUNTERTOP
18" (457)
HEIGHT
OF HOOD
27"
(
686
)
DEPTH OF HOOD
Planning Information
Model W362718(R) Pro Wall Hood
Dimensions in parentheses are in millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications for overall dimensions and installation specifics.
Wolf Pro wall ventilation hoods are recom­mended for use with any Wolf cooking appli­ance, and should be at least as wide as the cooking surface. It is recommended that the hood overlap the cooking surface by 3" (76) on either side.
For optimal performance, a Pro 27" (686) deep wall hood is recommended for use with ranges and rangetops that contain a charbroiler or griddle.
Installation of all Pro wall hoods should be 30" (762) to 36" (914) from the bottom of the hood to the countertop. Follow the dimensions shown in the Installation illustration.
Wolf Pro wall hoods are shipped without a blower assembly. Internal, in-line and remote blower assemblies are available. Blower options also vary with the volume of air that needs to be moved and the length of the duct run. Refer to the end of this section for Pro ventilation recommendations and blower options.
IMPORTANT NOTE: Install this ventilation hood only with a Wolf blower.
Pro wall hoods require a separate, grounded 110/ 120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker. Placement of the electrical supply is not critical, as long as you provide a minimum of 6" (152) of 120 V AC, 60 Hz power cable. Locate electri­cal within the shaded area shown in the Instal­lation illustration. Note that the location of the electrical supply will differ between vertical and horizontal discharge blowers.
You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.
Refer to the installation instructions shipped with each Wolf product for detailed specifica­tions. This information can also be found on our website, wolfappliance.com.
Planning Information
Model W362718(R) Pro Wall Hood
Dimensions in parentheses are in millimeters unless otherwise specified.
6
DUCTING CONSIDERATIONS
Wolf Pro 27" (686) deep wall hoods are shipped without the blower assembly. Internal, in-line or remote blower assemblies are available.
Pro 27" (686) deep wall hoods have a vertical discharge location as shown in the illustration below.
IMPORTANT NOTE: Install these ventilation hoods only with a Wolf blower.
Refer to the Pro ventilation charts at the end of this section for recommendations and blower options.
30" TO 36"
(762–914)
COUNTERTOP
TO BOTTOM OF
VENTILATION HOOD
18" (457)
HEIGHT OF HOOD
WALL HOOD
DUCTWORK INSTALLATION
THROUGH ROOF
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
27" (686)
DEPTH OF HOOD
10" ROUND DUCT
SOFFIT OR CABINET
OR DUCT COVER
VERTICAL DISCHARGE ONLY FOR 27" (686) DEEP WALL HOODS.
TRANSITION
22
1
/4"W x 9"D TO 10" ROUND
10"H (INCLUDING FLANGES)
ROOF CAP OR REMOTE BLOWER
VERTICAL DISCHARGE
Ducting considerations for Pro 27" (686) deep wall hoods.
Planning Information
Wolf Ventilation Recommendations
Dimensions in parentheses are in millimeters unless otherwise specified.
7

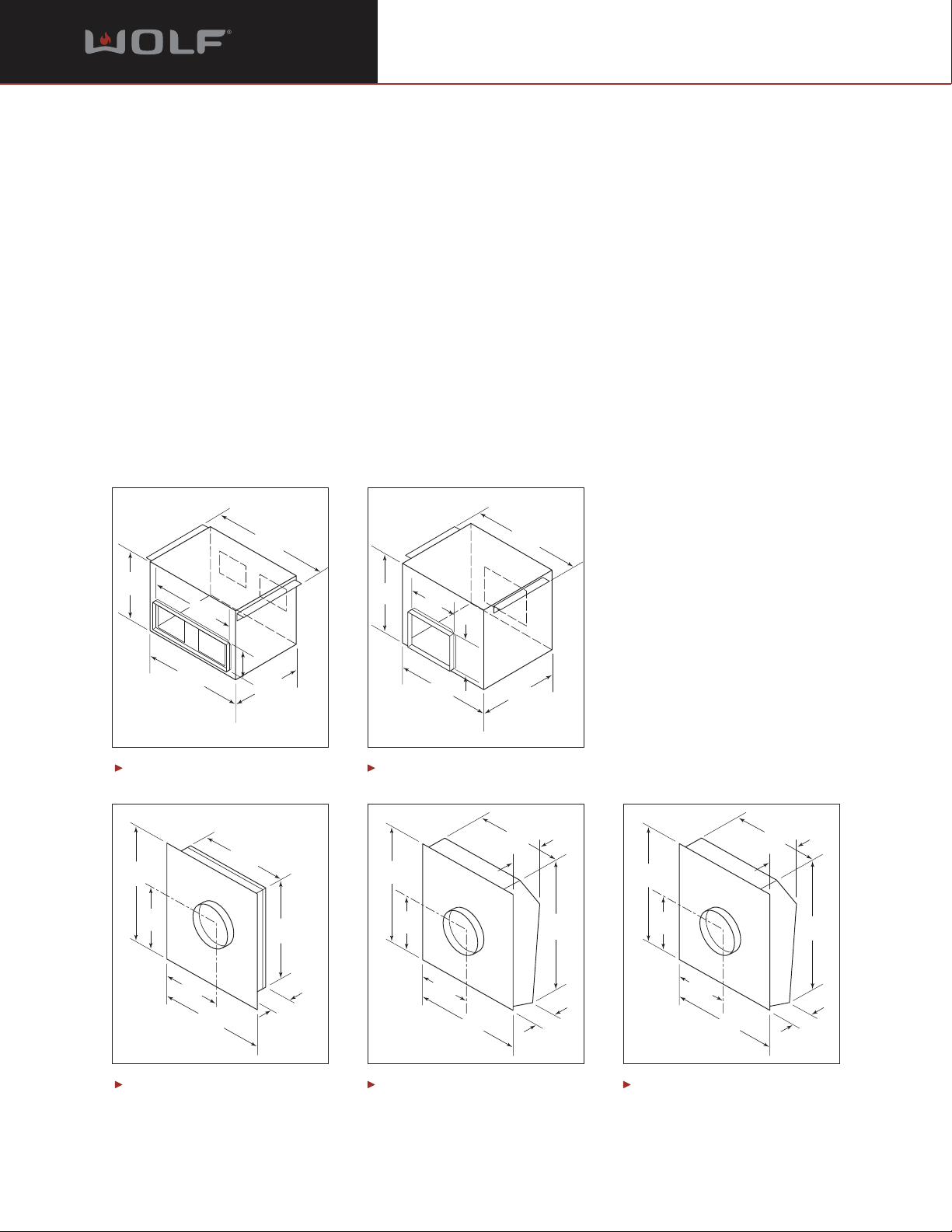

Remote BLOWER-60REM and BLOWER-90REM
WOLF BLOWER ASSEMBLIES
A ventilation system must include a blower assembly. With a few exceptions where internal blowers are included, Wolf ventilation hoods and downdrafts are shipped without the blower assembly. An internal, in-line or remote blower assembly must be selected to accommodate the cooking appliance, CFM requirements and home­owner preferences. Internal, in-line and remote blower assemblies are available as sales acces­sories through your Wolf dealer.
Wolf internal, in-line and remote blowers are for use with Wolf cooktop hoods, downdraft systems and Pro ventilation hoods and hood liners.
IMPORTANT NOTE: Use only a Wolf blower with all Wolf ventilation products.
Internal blowers are mounted inside the hood canopy or downdraft blower box. In-line blowers are mounted in between the hood and the exterior of the home. Remote blowers can be mounted on the roof or in some cases, on an exterior wall. Refer to the illustrations below for dimensions of Wolf in-line and remote blowers.
Ventilation recommendation charts on the following pages provide minimum CFM recom­mendations according to the cooking appliance and ventilation system used and blower options for each specific ventilation hood or downdraft.
Remote BLOWER-120REM Remote BLOWER-150REM
In-line BLOWER-60IL In-line BLOWER-110IL
Dimensions may vary by ±1/8" (3).
243/8"
(619)
113/4"
(298)
181/2"
(470)
211/2"
(546)
41/2"
(114)
121/4"
(311)
18"
(457)
12"
(305)
22"
(559)
8"
(203)
7
24
"
/8
(632)
18"
(457)
3
/4
20
"
28
(718)
1
"
/4
1
15
"
/2
(394)
14"
(356)
10" (254)
Diameter
3
24
/4
(629)
(527)
1
/2
24
"
(622)
3
4
"
/4
"
(121)
1
29
"
/2
(749)
14
(375)
10" (254)
Diameter
3
"
/4
1
10
"
/8
(257)
22"
(559)
18" (457)
10"
(254)
29
(749)
7
(184)
21" (533)
10"
1
29
"
/2
(749)
1
"
/2
1
"
/4
14
(375)
10" (254)
Diameter
3
/4
"
3
10
"
/8
(264)
25"
(635)
(254)
29
(749)
7
(184)
1
"
/2
1
"
/4
Planning Information
Wolf Pro Ventilation Recommendations
8
Dimensions in parentheses are in millimeters unless otherwise specified.
PRO VENTILATION CFM RECOMMENDATIONS
Pro 27" (686) Deep Wall Hoods
W302718 W362718 W422718 W482718 W542718 W602718 W662718
DF304 / R304 / SRT304 600 600
DF366 / R366 / SRT366 / RT366 900 900
DF364 / R364 / SRT364 / RT364 900 900
RT362 900 900
R488 / RT488 1100 1100
DF486 / R486 / SRT486 / RT486 1100 1100
DF484 / R484 / SRT484 / RT484 1100 1100
R482 / RT482 1100 1100
DF606 / R606 1500 1500
DF604 / R604 1500 1500
Model numbers for dual fuel ranges, gas ranges, sealed burner rangetops and gas rangetops indicate width and number of surface burners. Features such as a charbroiler, griddle and/or French Top will vary.
CFM recommendations are based on total Btu/hr output. Wolf recommends 1 CFM per 100 Btu/hr (.03 kW). Additional CFM may be required for long duct runs.
PRO VENTILATION BLOWER OPTIONS
Pro 27" (686) Deep Wall Hoods
Blower Description Blower Number Wall Hood Models
600 CFM Internal WBLOWER-60INT (807614) W302718 / W362718 / W422718
900 CFM Internal WBLOWER-90INT (805086) W302718 / W362718 / W422718
1200 CFM Internal WBLOWER-120INT (804702) W482718 / W542718 / W602718 / W662718
600 CFM In-Line BLOWER-60IL (808331) W302718
1100 CFM In-Line BLOWER-110IL (808332) All 27" (686) Deep Wall Hoods
600 CFM Remote BLOWER-60REM (801640) W302718
900 CFM Remote BLOWER-90REM (801641) W302718 / W362718 / W422718 / W482718 / W542718
1200 CFM Remote BLOWER-120REM (801642) All 27" (686) Deep Wall Hoods
1500 CFM Remote BLOWER-150REM (804701) All 27" (686) Deep Wall Hoods
Vertical discharge with 10" (254) round duct.
Wall hood models without decorative rail listed; blower options are the same for (R) models. Transition with backdraft damper included
with all wall hoods. Blower configurations are for reference only. Refer to minimum CFM recommendations for your specific cooking
product. Always consult a qualified HVAC Engineer for specific applications.
