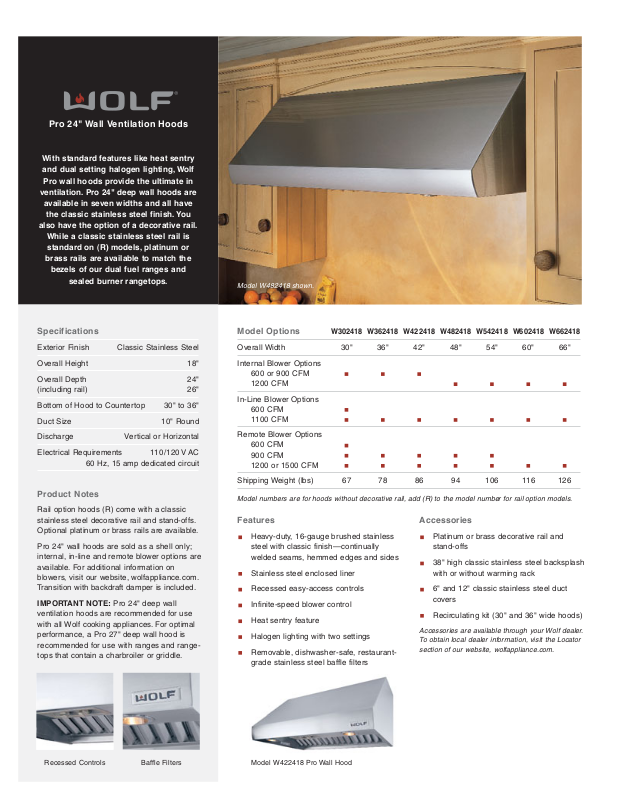

Pro 24" Wall Ventilation Hoods
With standard features like heat sentry
and dual setting halogen lighting, Wolf
Pro wall hoods provide the ultimate in
ventilation. Pro 24" deep wall hoods are
available in seven widths and all have
the classic stainless steel finish. You
also have the option of a decorative rail.
While a classic stainless steel rail is
standard on (R) models, platinum or
brass rails are available to match the
bezels of our dual fuel ranges and
sealed burner rangetops.
Specifications
Exterior Finish Classic Stainless Steel
Overall Height 18"
Overall Depth 24"
(including rail) 26"
Bottom of Hood to Countertop 30" to 36"
Duct Size 10" Round
Discharge Vertical or Horizontal
Electrical Requirements 110/120 V AC
60 Hz, 15 amp dedicated circuit
Product Notes
Rail option hoods (R) come with a classic
stainless steel decorative rail and stand-offs.
Optional platinum or brass rails are available.
Pro 24" wall hoods are sold as a shell only;
internal, in-line and remote blower options are
available. For additional information on
blowers, visit our website, wolfappliance.com.
Transition with backdraft damper is included.
IMPORTANT NOTE: Pro 24" deep wall
ventilation hoods are recommended for use
with all Wolf cooking appliances. For optimal
performance, a Pro 27" deep wall hood is
recommended for use with ranges and rangetops that contain a charbroiler or griddle.
Model W482418 shown.
Recessed Controls Baffle Filters
Model Options
W302418 W362418 W422418 W482418 W542418 W602418 W662418
Overall Width 30" 36" 42" 48" 54" 60" 66"
Internal Blower Options
600 or 900 CFM
1200 CFM
In-Line Blower Options
600 CFM
1100 CFM
Remote Blower Options
600 CFM
900 CFM
1200 or 1500 CFM
Shipping Weight (lbs) 67 78 86 94 106 116 126
Model numbers are for hoods without decorative rail, add (R) to the model number for rail option models.
Features
Heavy-duty, 16-gauge brushed stainless
steel with classic finish—continually
welded seams, hemmed edges and sides
Stainless steel enclosed liner
Recessed easy-access controls
Infinite-speed blower control
Heat sentry feature
Halogen lighting with two settings
Removable, dishwasher-safe, restaurantgrade stainless steel baffle filters
Accessories
Platinum or brass decorative rail and
stand-offs
38" high classic stainless steel backsplash
with or without warming rack
6" and 12" classic stainless steel duct
covers
Recirculating kit (30" and 36" wide hoods)
Accessories are available through your Wolf dealer.
To obtain local dealer information, visit the Locator
section of our website, wolfappliance.com.
Model W422418 Pro Wall Hood
