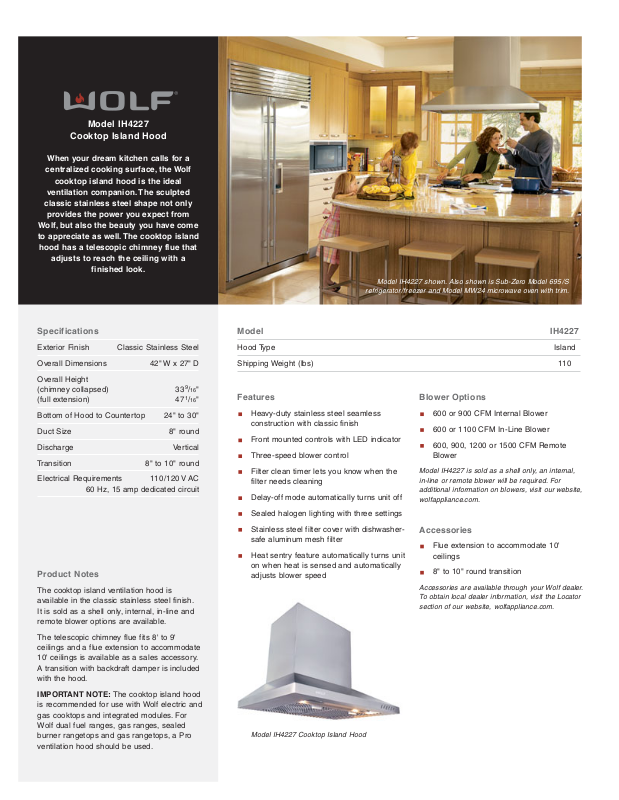

Sub-Zero QRIH4227 User Manual

Specifications

Exterior Finish Classic Stainless Steel

Overall Dimensions 42" W x 27" D

Overall Height (chimney collapsed) 33

/16"

(full extension) 471/16"

Bottom of Hood to Countertop 24" to 30"

Duct Size 8" round

Discharge Vertical

Transition 8" to 10" round

Electrical Requirements 110/120 V AC

60 Hz, 15 amp dedicated circuit

Blower Options

600 or 900 CFM Internal Blower

600 or 1100 CFM In-Line Blower

600, 900, 1200 or 1500 CFM Remote Blower

Model IH4227 is sold as a shell only, an internal, in-line or remote blower will be required. For additional information on blowers, visit our website, wolfappliance.com.

Accessories

Flue extension to accommodate 10' ceilings

8" to 10" round transition

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Model IH4227

Hood Type Island

Shipping Weight (lbs) 110

Features

Heavy-duty stainless steel seamless construction with classic finish

Front mounted controls with LED indicator

Three-speed blower control

Filter clean timer lets you know when the filter needs cleaning

Delay-off mode automatically turns unit off

Sealed halogen lighting with three settings

Stainless steel filter cover with dishwashersafe aluminum mesh filter

Heat sentry feature automatically turns unit on when heat is sensed and automatically adjusts blower speed

Model IH4227 shown. Also shown is Sub-Zero Model 695/S

refrigerator/freezer and Model MW24 microwave oven with trim.

Model IH4227

Cooktop Island Hood

When your dream kitchen calls for a

centralized cooking surface, the Wolf

cooktop island hood is the ideal

ventilation companion. The sculpted

classic stainless steel shape not only

provides the power you expect from

Wolf, but also the beauty you have come

to appreciate as well. The cooktop island

hood has a telescopic chimney flue that

adjusts to reach the ceiling with a

finished look.

Product Notes

The cooktop island ventilation hood is available in the classic stainless steel finish. It is sold as a shell only, internal, in-line and remote blower options are available.

The telescopic chimney flue fits 8' to 9' ceilings and a flue extension to accommodate 10' ceilings is available as a sales accessory. A transition with backdraft damper is included with the hood.

IMPORTANT NOTE: The cooktop island hood is recommended for use with Wolf electric and gas cooktops and integrated modules. For Wolf dual fuel ranges, gas ranges, sealed burner rangetops and gas rangetops, a Pro ventilation hood should be used.

Model IH4227 Cooktop Island Hood
