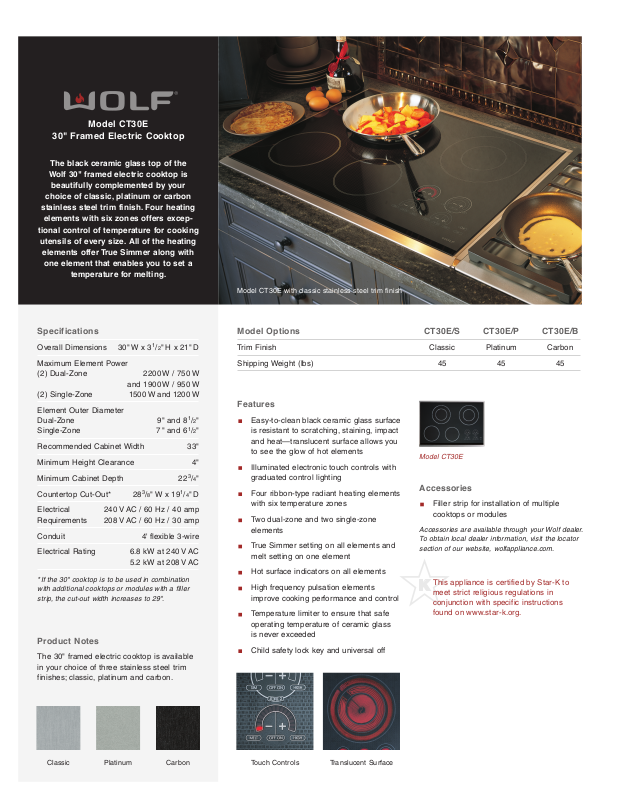

Model CT30E
30" Framed Electric Cooktop
The black ceramic glass top of the
Wolf 30" framed electric cooktop is
beautifully complemented by your
choice of classic, platinum or carbon
stainless steel trim finish. Four heating
elements with six zones offers excep-
tional control of temperature for cooking
utensils of every size. All of the heating
elements offer True Simmer along with
one element that enables you to set a
temperature for melting.
Specifications
Overall Dimensions 30" W x 31/2" H x 21" D
Maximum Element Power
(2) Dual-Zone 2200 W / 750 W
and 1900 W / 950 W
(2) Single-Zone 1500 W and 1200 W
Element Outer Diameter
Dual-Zone 9" and 8
1
/2"
Single-Zone 7 " and 61/2"
Recommended Cabinet Width 33"
Minimum Height Clearance 4"
Minimum Cabinet Depth 223/4"
Countertop Cut-Out* 283/8"W x 191/4"D
Electrical 240 V AC / 60 Hz / 40 amp
Requirements 208 V AC / 60 Hz / 30 amp
Conduit 4' flexible 3-wire
Electrical Rating 6.8 kW at 240 V AC
5.2 kW at 208 V AC
*If the 30" cooktop is to be used in combination
with additional cooktops or modules with a filler
strip, the cut-out width increases to 29".
Accessories
Filler strip for installation of multiple
cooktops or modules
Accessories are available through your Wolf dealer.
To obtain local dealer information, visit the locator
section of our website, wolfappliance.com.
Product Notes
The 30" framed electric cooktop is available
in your choice of three stainless steel trim
finishes; classic, platinum and carbon.
Touch Controls
Model Options CT30E/S CT30E/P CT30E/B
Trim Finish Classic Platinum Carbon
Shipping Weight (lbs) 45 45 45
Classic CarbonPlatinum
Features
Easy-to-clean black ceramic glass surface
is resistant to scratching, staining, impact
and heat—translucent surface allows you
to see the glow of hot elements
Illuminated electronic touch controls with
graduated control lighting
Four ribbon-type radiant heating elements
with six temperature zones
Two dual-zone and two single-zone
elements
True Simmer setting on all elements and
melt setting on one element
Hot surface indicators on all elements
High frequency pulsation elements
improve cooking performance and control
Temperature limiter to ensure that safe
operating temperature of ceramic glass
is never exceeded
Child safety lock key and universal off
This appliance is certified by Star-K to
meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Model CT30E
Translucent Surface
Model CT30E with classic stainless steel trim finish
