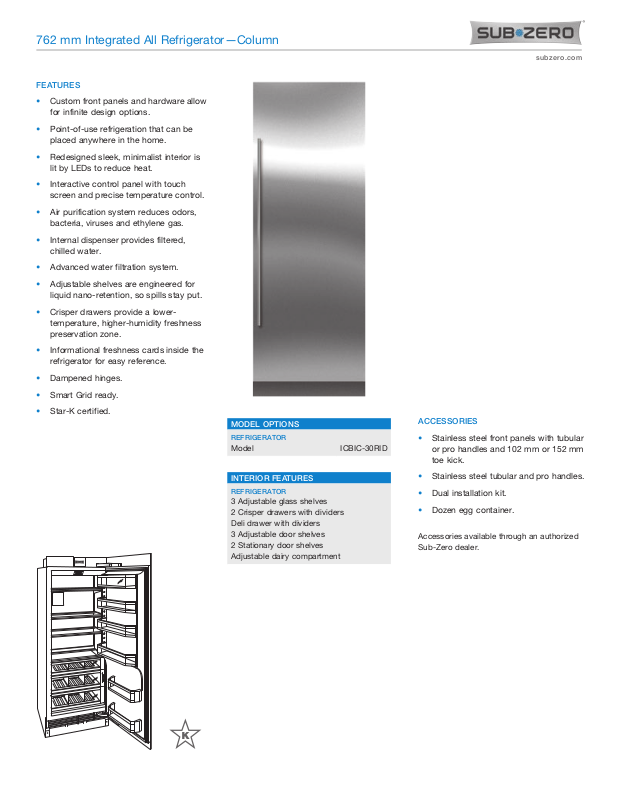

SUB-ZERO ICBIC-30RID-LH User Manual

762 mm Integrated All Refrigerator—Column
FEATURES
Custom front panels and hardware allow
for infinite design options.
Point-of-use refrigeration that can be
placed anywhere in the home.
Redesigned sleek, minimalist interior is
lit by LEDs to reduce heat.
Interactive control panel with touch
Air purification system reduces odors,
bacteria, viruses and ethylene gas.
Internal dispenser provides filtered,
chilled water.
Advanced water filtration system.
Adjustable shelves are engineered for
liquid nano-retention, so spills stay put.
Crisper drawers provide a lower-
temperature, higher-humidity freshness preservation zone.
Informational freshness cards inside the
refrigerator for easy reference.
Dampened hinges.
Smart Grid ready.
Star-K certified.
MODEL OPTIONS
REFRIGERATOR
Model ICBIC-30RID
INTERIOR FEATURES
REFRIGERATOR
3 Adjustable glass shelves 2 Crisper drawers with dividers Deli drawer with dividers 3 Adjustable door shelves 2 Stationary door shelves Adjustable dairy compartment
subzero.com
ACCESSORIES
Stainless steel front panels with tubular
or pro handles and 102 mm or 152 mm toe kick.
Stainless steel tubular and pro handles.
Dual installation kit.
Dozen egg container.
Accessories avail able through an authorized Sub-Zero dealer.
762 mm Integrated All Refrigerator—Column
NOTE: Shaded areas will be visib
SIDE
subzero.com
SPECIFICATIONS
PRODUCT
Dimensions 762 W x 2134 H x 610 D Weight 181 kg
CAPACITY
Refrigerator 475 L
ELECTRICAL
Supply 220-240 V AC, 50/60 Hz Service 10 amp circuit
PLUMBING
Supply
1
/4" OD copper, braided
stainless steel or PEX tubing
Pressure
2.4–8.3 bar
Overall dimensions do not include panels or handles. Dimensions will vary with panel thickness.
The depth of each integrated model is 610 mm. Allow for panel thickness when planning the finished opening depth.
Specifications are subject to change without notice.
Dimensions may vary ±3 mm.
DIMENSIONS
762 mm
W 610 mm
2134 mm*
MIN TO 2146 mm MAX
*2121 mm
45 mm
114 mm
1765
mm
A
143 mm
92 mm
ELECTRICAL
LEFT SIDE
OF OPENING
114
A
318 mm
mm
E
FLOOR
6 mm
PLUMBING
RIGHT SIDE
OF OPENING
A
152 mm
76 mm
AREA EXTENDS
FORWARD ON FLOOR
152 mm
13 mm
108 mm
INSTALLATION
2134 mm
H
OPENING
HEIGHT
724 mm
B
635 mm
OPENING
TOP VIEW
W
762 mm
OPENING WIDTH
DEPTH
89 mm
TYPICAL
©Sub-Zero, Inc. all rights reserved. 9/2013
VIEW
FRONT VIEW
le and should be finished to match cabinetry.
19 mm
TYPICAL
