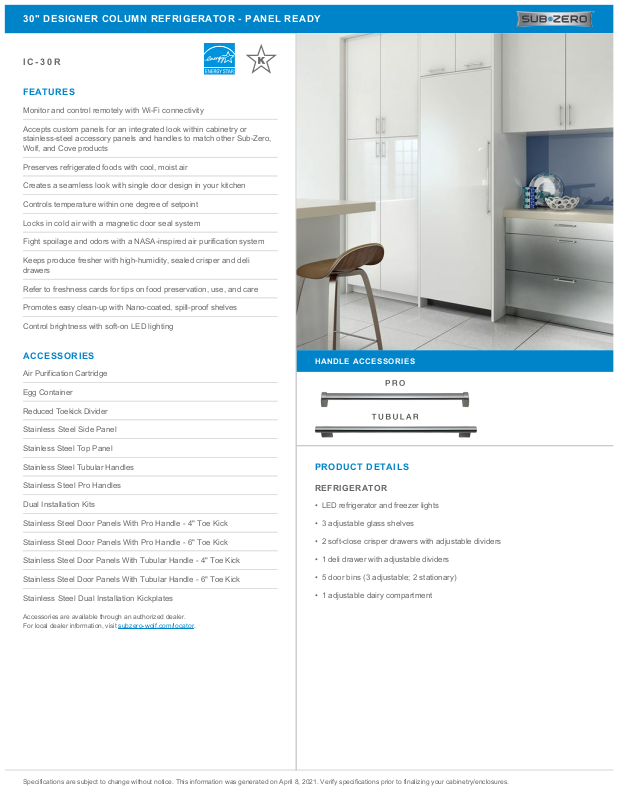

Sub-Zero IC-30R Quick Reference Guide
30" DESIGNER COLUMN REFRIGERATOR - PANEL READY
IC-30R
FEATURES
Monitor and control remotely with Wi-Fi connectivity
Accepts custom panels for an integrated look within cabinetry or
stainless-steel accessory panels and handles to match other Sub-Zero,
Wolf, and Cove products
Preserves refrigerated foods with cool, moist air
Creates a seamless look with single door design in your kitchen
Controls temperature within one degree of setpoint
Locks in cold air with a magnetic door seal system
Fight spoilage and odors with a NASA-inspired air purification system
Keeps produce fresher with high-humidity, sealed crisper and deli
drawers
Refer to freshness cards for tips on food preservation, use, and care
Promotes easy clean-up with Nano-coated, spill-proof shelves
Control brightness with soft-on LED lighting
ACCESSORIES
Air Purification Cartridge
Egg Container
Reduced Toekick Divider
Stainless Steel Side Panel
Stainless Steel Top Panel
Stainless Steel Tubular Handles
Stainless Steel Pro Handles
Dual Installation Kits
Stainless Steel Door Panels With Pro Handle - 4" Toe Kick
Stainless Steel Door Panels With Pro Handle - 6" Toe Kick
Stainless Steel Door Panels With Tubular Handle - 4" Toe Kick
Stainless Steel Door Panels With Tubular Handle - 6" Toe Kick
Stainless Steel Dual Installation Kickplates
Accessories are available through an authorized dealer.
For local dealer information, visit subzero-wolf.com/locator.
HANDLE ACCESSORIES
PRODUCT DETAILS
REFRIGERATOR
• LED refrigerator and freezer lights
• 3 adjustable glass shelves
• 2 soft-close crisper drawers with adjustable dividers
• 1 deli drawer with adjustable dividers
• 5 door bins (3 adjustable; 2 stationary)
• 1 adjustable dairy compartment
Specifications are subject to change without notice. This information was generated on April 8, 2021. Verify specifications prior to finalizing your cabinetry/enclosures.
30" DESIGNER COLUMN REFRIGERATOR - PANEL READY
PRODUCT SPECIFICATIONS
Model IC-30R
Dimensions 30"W x 84"H x 24"D
Door Clearance 28 1/2"
Refrigerator Capacity 17.3 cu. ft.
Electrical Supply 115 VAC, 60 Hz
Electrical Service 15 amp dedicated circuit
ELECTRICAL
NOTE: The electrical outlet must be positioned with the grounding prong to the right of
the thinner blades.
PANEL SPECIFICATIONS For complete panels specifications including width/height,
weight requirements and thickness requirements visit subzero-wolf.com/reveal.
NOTE: Dimensions in parenthesis are in millimeters unless otherwise specified
INTERIOR VIEW
This illustration is intended for interior reference only and may not represent the exterior
of the model being specified.
DIMENSIONS
STANDARD INSTALLATION
25" (635)
OPENING
DEPTH
30" (762)
OPENING WIDTH
84"
(2134)
OPENING
HEIGHT
NOTE: 31/2" (89) finished returns will be visible and should be finished to match cabinetry.
SIDE VIEW
TOP VIEW
FRONT VIEW
3
/4" (19)
TYPICAL
FRAMED
CABINETRY
30"
(762)
FILLER
31/2" (89)
FINISHED
RETURN
FRAMELESS
CABINETRY
30"
(762)
3
/4" (19)
TYPICAL
31/2" (89)
FINISHED
RETURN
Specifications are subject to change without notice. This information was generated on April 8, 2021. Verify specifications prior to finalizing your cabinetry/enclosures.
