INSTALLATION GUIDE
Integrated Refrigeration
Page 2
Contents
Important Note
Integrated Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Model Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Integrated Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Features and specifications are subject to change at any time
without notice. Visit subzero.com/specs for the most up-todate information.
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specified.
o ensure the safe and efficient installation of Sub-Zero
T
equipment, please take note of the following types of
highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially
relevant to a problem-free installation.
CAUTION signals a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
Page 3
Integrated Refrigeration 3
subzero.com/specs
Sub-Zero Integrated Refrigeration
he importance of the installation of the Sub-Zero
T
integrated unit cannot be overemphasized. Installation
should be done by a qualified installer.
Before you begin the installation process, it is recommended that you read this entire installation guide. There
are key details that you should take special care to
observe during the installation. By reading these instructions carefully, you will make the installation process
easier, problem-free and most importantly, safe.
Any questions or problems regarding the installation
should be directed to your authorized Sub-Zero dealer or
Sub-Zero customer care at 800-222-7820. You may also
check the contact & support sectionofour website,
subzero.com.

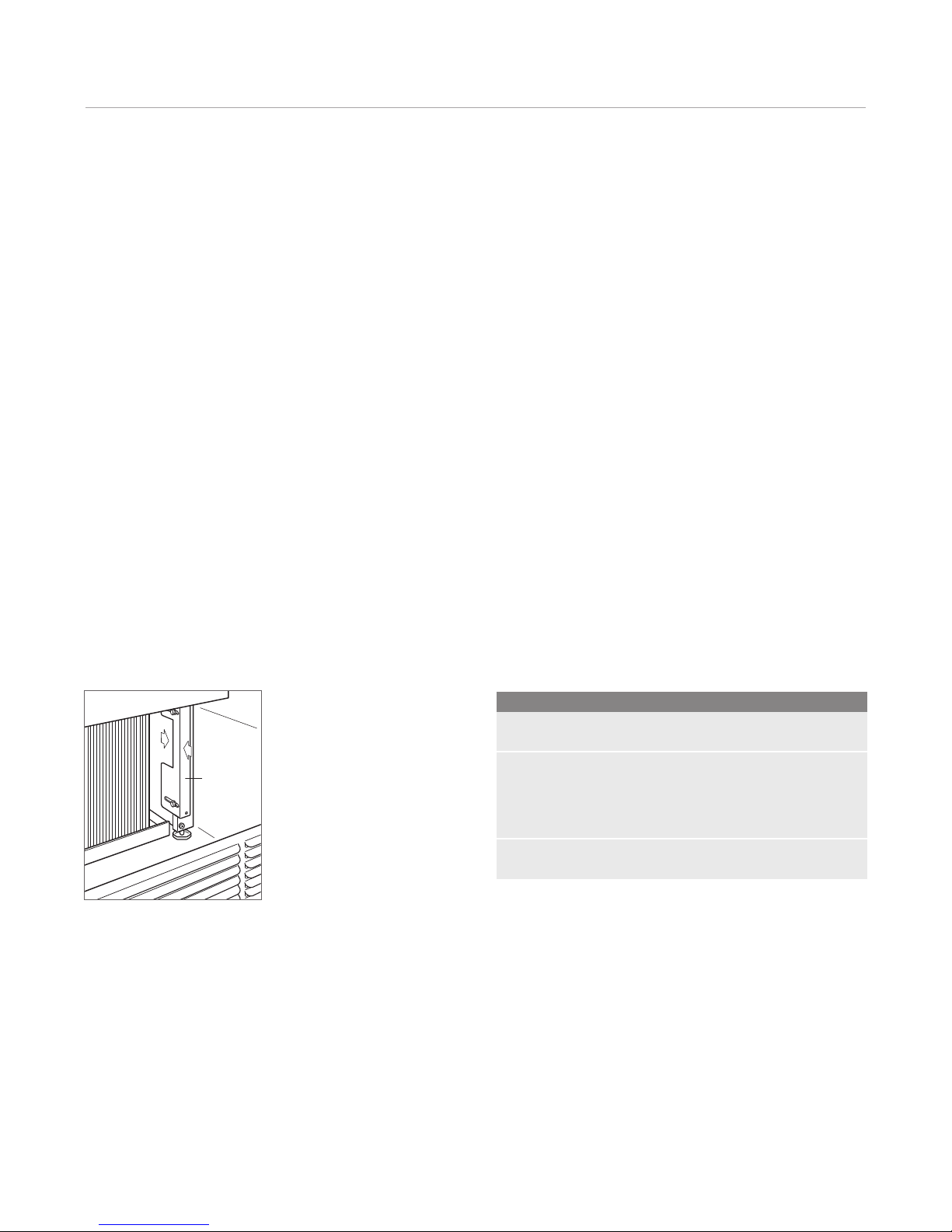

Important product information, including the model and
serial number of your unit are listed on the product rating
plate. For column models, the rating plate is located inside
the top drawer near the drawer guide opposite the hinge.
For tall and drawer models, the rating plate is located
inside the cabinet, to the left of the upper drawer. Refer to
the illustrations below.
Before You Start
ake sure the opening dimensions, door and drawer
M
clearances, electrical service and plumbing are correct for
the model you are about to install. Refer to specifications
on the following pages.
IMPORTANT NOTE: The inside edges of the rough
opening, as well as the sides and a portion of the
backside of the decorative panels will need to be finished,
as they will be exposed when the doors are open.
TOOLS AND MATERIALS REQUIRED
• Appliance dolly able to support 500 lbs (227 kg) and
adequate manpower to handle the weight of the unit.
• Phillips and slotted screwdrivers.
• Allen, standard and crescent wrenches.
• Various sized pliers.
5
•
/16" hex bolt nut driver.
• Cordless drill and assorted drill bits.
• Level—2'
• 4'
(1.2 m) of
PEX tubing and saddle valve for water line (do not use
self-piercing valves).
(.6 m) and 4' (1.2 m) recommended.
1
/4" copper, braided stainless steel or
RATING PLATE
• Tubing cutter.
• Masonite, plywood, pressed fiberboard, cardboard or
RATING PLATE
other suitable material to protect finished flooring.
• Appropriate materials to cover and protect the home
and furnishings during installation.
Tall and drawer models.Column models.
Page 4
Model Specifications 4
27" (
686)
14"(
356)
15/8"
(41)
24"
(610)
81"
(2057)
TO TOPOF
OPENNG
24" (
610)
789/16"
(1995)
93/4"(248)
4"
(102)
1
/2" (13) ± ADJUSTMENT IN LEVELING LEGS
251/2"
(648)
45/8"
(117)
DIMENSIONS WILL VARY WITH PANEL THICKNESS
27" (686)
14"(
356)
13
/16"
(21)
341/2"
(876)
24"
(610)
203/8"
(518)
101/4"
(
260)
131/4"
(337)
DIMENSIONS WILL VARY WITH PANEL THICKNESS
1
/2"
(
13)
3
/8"
(10)
191/2"
(495)
251/2"
(648)
45/8"
(117)
80"
(2032)
TO TOP OF
OPENNG
24" (610)
789/16"
(
1995)
93/4"
(248)
4"
(102)
HEIGHT DIMENSIONS ±
1
/2" (13)
Overall Dimensions
COLUMN MODELS
27" (686) TALL MODELS
MODELS IC-27R AND IC-27FI
MODELS 700TR, 700TFI AND 700TCI
Page 5
Model Specifications 5
36" (914)
14"(356)
80"
(2032)
TO TOP OF
OPENNG
24" (610)
15/16"
(
33)
7713/16"
(1976)
341/2"
(
876)
24"
(610)
203/8"
(518)
101/4"
(260)
131/4"
(337)
93/4"
(248)
4"
(102)
DIMENSIONS WILL VARY WITH PANEL THICKNESS
1
/2"
(13)
3
/8"
(10)
191/2"
(495)
341/2"
(876)
7" (178)
HEIGHT DIMENSIONS ±
1
/2" (13)
subzero.com/specs
Overall Dimensions
36" (914) TALL MODELS
MODELS 736TR, 736TFI AND 736TCI
Page 6
Model Specifications 6
27" (686)
341/2"
(
876)
24"
(610)
203/8"
(518)
DIMENSIONS WILL VARY WITH PANEL THICKNESS
1
/2"
(13)
3
/8"
(10)
191/2"
(495)
257/8" (657)
24" (
610)
93/4" (248)
4"
(102)
101/4"
(
260)
131/4"
(337)
H
EIGHT DIMENSIONS ±
1
/2" (13)
Overall Dimensions
DRAWER MODELS
Specifications
INTEGRATED MODELS
Interior Capacity R cu ft (
COLU MN MODELS
IC-27R 16.2 (459)
IC-27FI 16.3 (462)
27" (6 86) TALL MODELS
700TR 15.5 (439)
700TFI 15.3 (433)
700TCI 10.2 (289) 5.1 (144)
36" (9 14) TALL MODELS
736TR 20.9 (592)
736TFI 21.5 (609)
736TCI 13.3 (377) 7.1 (201)
(686 )
27"
DRAWE R MODELS
700BR 5.3 (150)
700BF(I) 5.1 (144)
700BC(I) 2.9 (82) 2.1 (59)
Shipping Weight lbs (kg)
IC-27R, IC-27FI, 700TR, 700TFI and 700TCI 360 (163)
736TR, 736TFI and 736TCI 480 (218)
700BR, 700BF(I) and 700BC(I) 190 (86)
L)
F cu ft (
L)
MODELS 700BR, 700BF(I) AND 700BC(I)
Page 7
Site Preparation 7
25" (635)
O
PENING
D
EPTH
A
OPENING WIDTH
25" (
635)
OPENING DEPTH
B
OPENING
H
EIGHT
TOP VIEW
FRONT VIEWSIDE VIEW
subzero.com/specs
Opening Dimensions
INTEGRATED MODELS
IMPORTANT NOTE: The depth of each integrated model is
610)
24"
(
from the front of the unit to its back. Your design
may necessitate moving the unit back or cabinets forward to
achieve a flush fit. This will require a minimum rough opening
depth of 25"
(635).
Opening Dimensions AB
700TR, 700TFI, 700TCI 27" (686) 80" (2032)
736TR, 736TFI, 736TCI 36" (914) 80" (2032)
IC-27R and IC-27FI 27" (686) 81" (2057)
700BR, 700BF(I), 700BC(I) 27" (686) 341/2" (876)
Page 8
Site Preparation 8
13" (330)
1
/4"
(6)
41/2"
(
114
)
LEFT SIDE
OF OPENING
FLOOR
21/2"
(64)
FRONT VIEW
171/2" (445)
41/2"
(
114
)
FRONT VIEW
FLOOR
1
/4"
(6)
LEFT SIDE
OF OPENING
21/2"
(64)

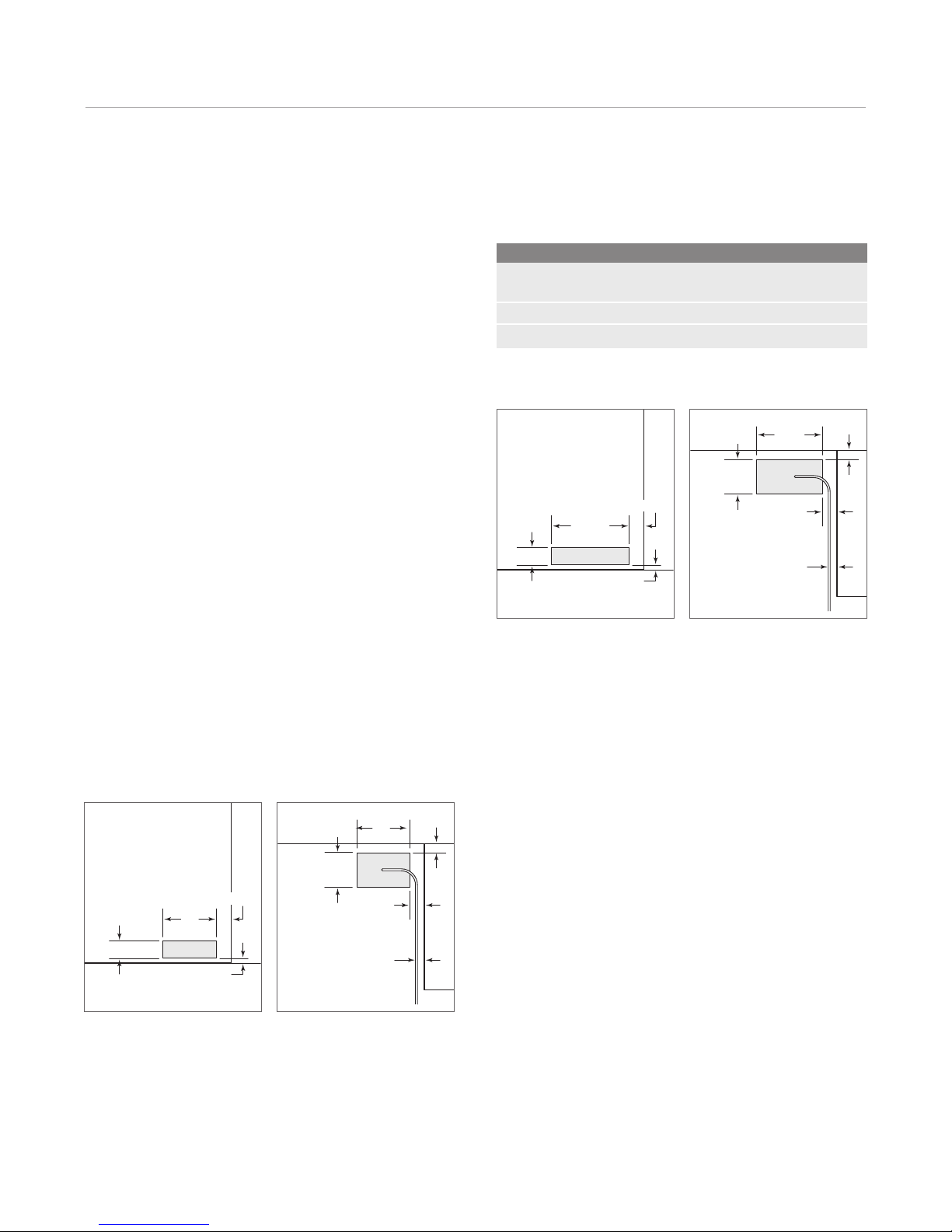

Electrical Requirements
he electrical supply should be located within the shaded
T
area shown in the illustrations below. Follow the National
Electrical Code and local codes and ordinances when
installing the receptacle. A separate circuit, servicing only
this appliance is required. A ground fault circuit interrupter
(GFCI) is not recommended and may cause interruption of
operation.
The outlet must be checked by a qualified electrician
to be sure that it is wired with the correct polarity. Verify
that the outlet is properly grounded.
IMPORTANT NOTE: It is critical that the electrical outlet be
located within the shaded area shown so it does not interfere with installation of the anti-tip bracket. It must be
flush with the back wall and positioned with the grounding
prong to the right of the thinner blades.
Electrical Requirements
Power Supply 115 V AC, 60 Hz
Circuit Breaker 15 amp
Receptacle 3-prong grounding-type
Do not use an extension cord or two-prong adapter.
Do not remove the power supply cord ground prong.
27" (686) models. 36" (914) models.
Page 9
Site Preparation 9
3" (76)
9"
(229)
3
/4"
(19)
FLOOR
21/2" (64)
FRONT VIEW
9"
(229)
6"
(152)
TOP VIEW
11/2"
(38)
21/2" (64)
BACK
WALL
11/2" (38)
131/2"
(343)
3" (76)
FRONT VIEW
3
/4"
(19)
FLOOR
21/2" (64)
1
3
1
/2"
(343)
TOP VIEW
6"
(152)
11/2"
(38)
B
ACK
WALL
21/2" (64)
11/2" (
38)
subzero.com/specs
Plumbing Requirements
or integrated models with an automatic ice maker, the
F
water supply line should be located through the floor or
back wall, within the shaded area shown in the illustrations. Routing the line in these locations will avoid any
interference with the anti-tip bracket.
IMPORTANT NOTE: Do not route the water supply line in
front of the compressor tray. The tray must be slid forward
for service.
The water supply line should be connected to the house
supply with an easily accessible shut-off valve between
the supply and the unit. Do not use self-piercing valves.
A saddle valve kit is available from your authorized
Sub-Zero dealer.
An in-line filter is required when water conditions have
a high sediment content.
Plumbing Requirements
Water Supply Line
1
/4" OD copper, braided stainless steel
or PEX tubing
Water Pressure 20–100 psi (1.4–6.9 bar)
Excess Water Line for Connection 27" (686)
A reverse osmosis system can be used provided there is
constant water pressure of 20 psi
(6.9 bar) supplied to the unit at all times. In some cases,
(1.4 bar) to 100 psi
a reverse osmosis water filter system may not be able to
maintain the minimum pressure consistently. A copper line
is not recommended for this application.
IMPORTANT NOTE: All installations must meet local
plumbing code requirements.
27" (686) models.
36" (914) models.
Page 10
Site Preparation 10
A
A
SUBFLOORING
WOOD FLOOR
WALL PLATE
FINISHED
FLOORING
A
A
SUBFLOORING
CONCRETE
FLOOR
WALL PLATE
FINISHED
FLOORING
11/2"(38)
min

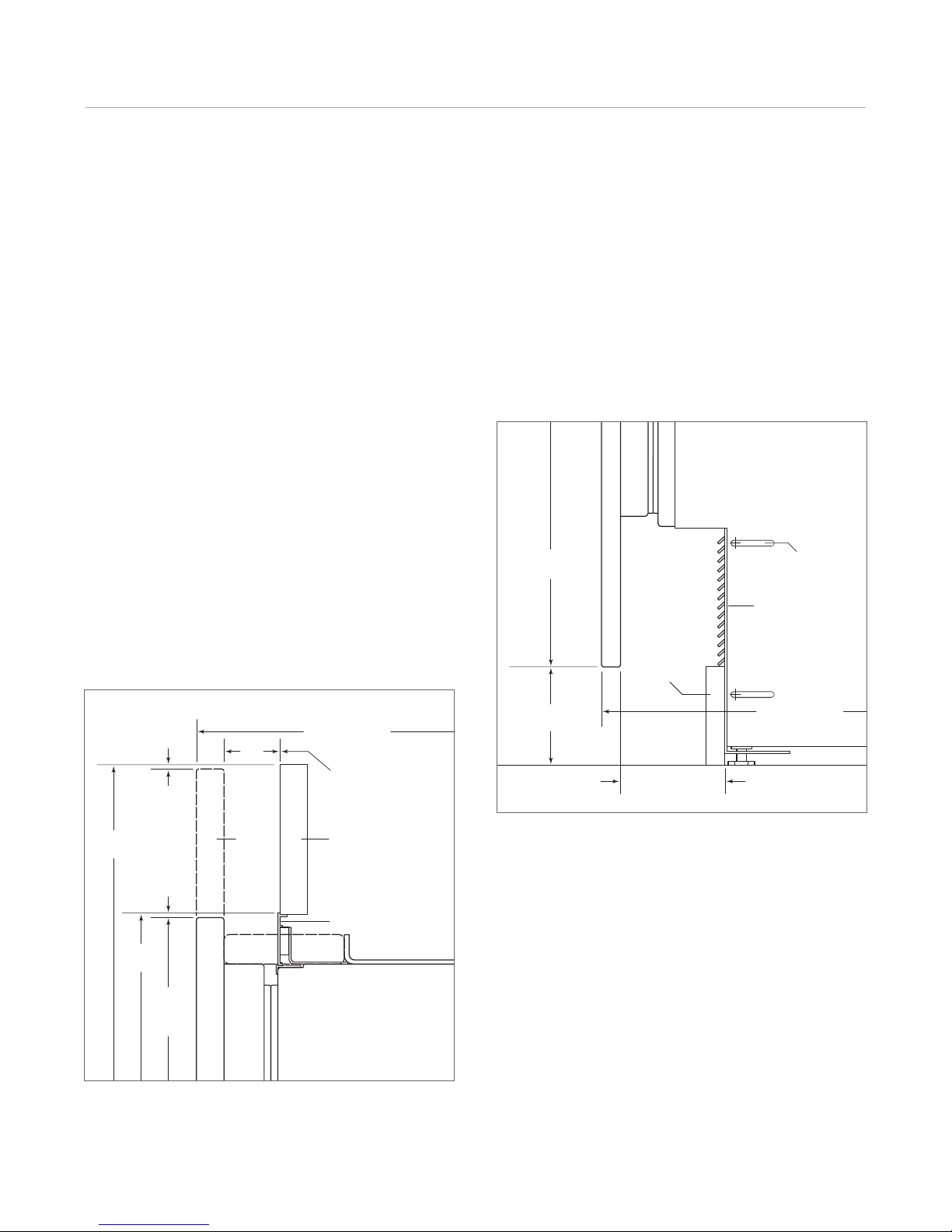

Anti-Tip Bracket Installation
WOOD FLOOR APPLICATIONS
To prevent the unit from tipping forward and provide
a stable installation, the unit must be secured in place
with the anti-tip bracket provided with the unit.
An anti-tip bracket and hardware is provided with the integrated unit. Placement of the anti-tip bracket is critical to
a stable installation. The anti-tip bracket must be installed
on a solid base.
If you are installing the unit in a space deeper than 24"
(610), be sure to locate the anti-tip bracket so that it
engages the unit properly. It is important that the anti-tip
bracket is placed 24"
(610) from the front of the unit
(without panels) to the back of the anti-tip bracket.
IMPORTANT NOTE: In some installations the subflooring
or finished floor may require angling the wood screws
used to fasten the anti-tip bracket to the back wall.
Make sure there are no electrical wires or plumbing
in the area which the screws could penetrate.
Use the six #12 x 21/2" wood screws and the six1/4" flat
washers provided. Drill pilot holes
3
/16" (5) diameter
maximum, and make sure the screws penetrate through
the flooring material and into the wall plate a minimum of
3
/4" (19). Make sure the screws hold tight. Refer to the
illustration below.
CONCRETE FLOOR APPLICATIONS
Use the two3/8" x 33/4" concrete wedge anchors, two
#12 x 2
1
/2" wood screws and two1/4" flat washers
provided. Make sure the anchors and screws hold tight.
Refer to the illustration below.
Anti-Tip Bracket Placement A
27" (686) Models 131/2" (343)
36" (914) Models 18" (457)
Wood floor. Concrete floor.
Page 11
Site Preparation 11
subzero.com/specs

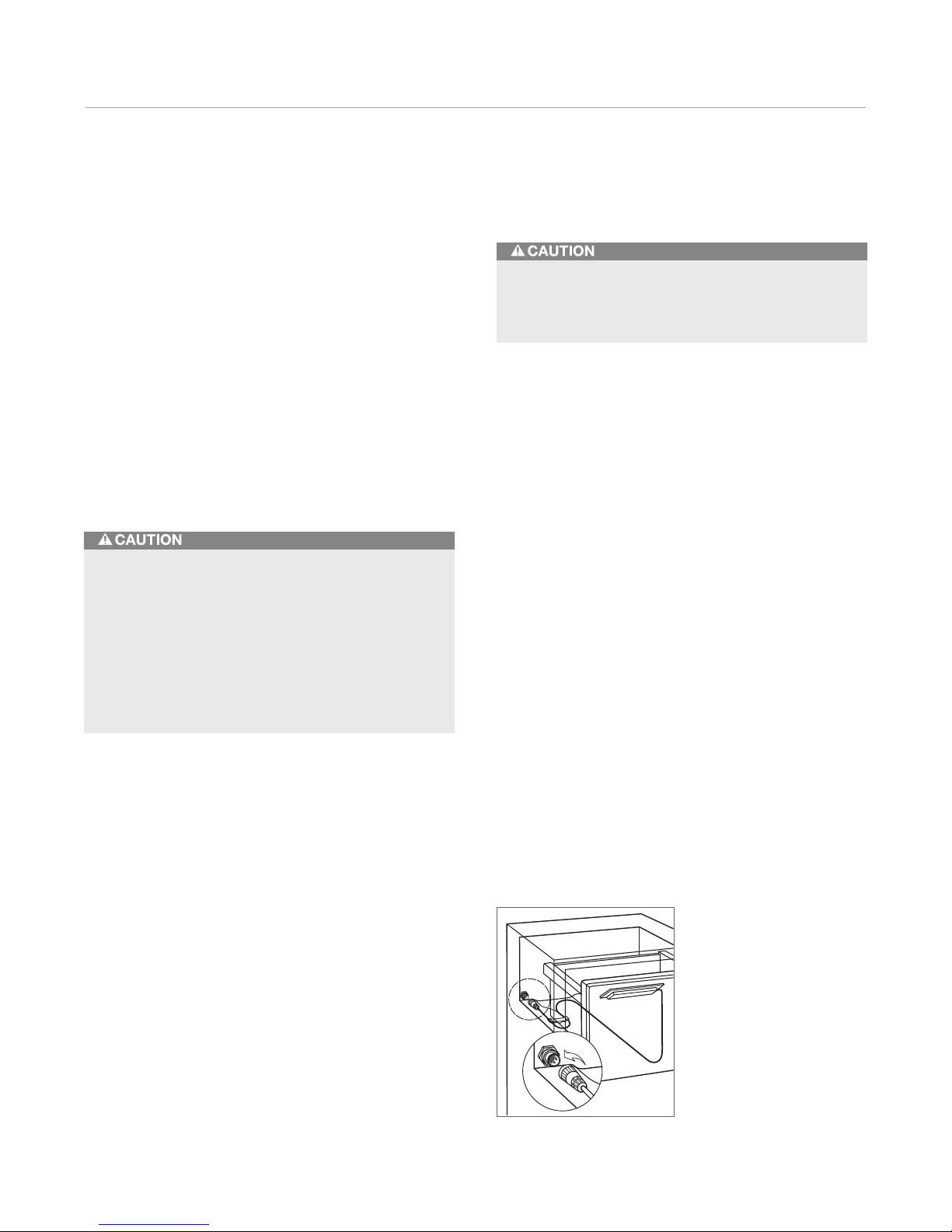

Anti-Tip Bracket Installation
INSTALL CONCRETE WEDGE ANCHORS:
1) Drill a3/8" (10) diameter hole any depth exceeding the
minimum embedment. Clean the hole or continue
drilling additional depth to accommodate drill fines.
Use a carbide drill bit manufactured within ANSI
B94.12-77.
2) Assemble the washer and nut flush with the end of
anchor to protect threads. Drive the anchor through the
material to be fastened until the washer is flush with
the surface material.
3) Expand the anchor by tightening the nut 3–5 turns past
hand-tight position or to 25 foot-pounds of torque.
Always wear safety glasses and use other necessary
protective devices or apparel when installing or
working with anchors.
Anchors are not recommended for use in lightweight
masonry material such as block or brick, or for use in
new concrete which has not had sufficient time to cure.
The use of core drills is not recommended to drill holes
for the anchors.
Position the Unit
Before moving the integrated unit into position, secure
the door closed, remove drawers and protect any
finished flooring.
Uncrate the integrated unit and inspect for any damage.
Remove the wood base and discard the shipping bolts
that hold the wood base to the bottom of the unit. Remove
all packing materials and tape.
The drawers should be removed and placed aside until
you are ready for installation of the panels. Remove the
decorative top and side moldings and the kickplate/grille.
IMPORTANT NOTE: For drawer models, the top drawer
has a control cable that needs to be disconnected before
removing this drawer. Refer to the illustration below for
placement and how to disconnect this fitting.
Retract the front leveling legs all the way up to allow the
unit to be moved into position more easily. You will extend
the leveling legs when the unit is in its final position to
reduce the possibility of the unit tipping forward.
Use an appliance dolly to move the integrated unit near
the rough opening. Position the dolly at the side of the unit
to prevent damage to finished surfaces.
IMPORTANT NOTE: If for any reason the integrated unit
has been laid on its back or side, you must allow the unit
to stand upright for a minimum of 24 hours before connecting power.
Control cable.
Page 12
Integrated Installation 12
UNIT
ON/OFF
C
O
L
DER
W
A
RMER
REFRI
G
ERA
T
OR
FR
EEZ
ER
C
OLDER
W
AR
MER
I
CE
O
N
/OFF
ON
/O
FF
UN
I
T
O
N
/OFF
UNIT
ON/OFF
Position the Unit
lug the power cord into the grounded electrical outlet.
P
With power applied to the appliance, check for lighting
and cooling. Press the UNIT ON/OFF key pad on the
control panel (POWER for column models). Refer to the
illustrations below. Once you are satisfied that the unit is
operating properly, shut off power to the electrical outlet at
the circuit breaker and proceed.
If two integrated units are installed closer than 2"
one another, refer to dual installations on page 20.
Pre-level the unit before moving into position. This is to
allow the unit to engage the anti-tip bracket properly.
Slide the unit into position, making sure the anti-tip
bracket is engaged properly. Extend the front leveling legs
down approximately
3
/16" (5) to make additional adjust-
ments easier.
When the integrated unit is installed, the anti-tip bracket
will be positioned just below the engaging bracket on the
unit. It is not necessary to raise the unit up so that it locks
into the anti-tip bracket, but the unit must be in alignment
with the anti-tip bracket.
(51) to
Level the Unit
evel the integrated unit by turning the front leveling legs
L
clockwise to raise or counterclockwise to lower the unit.
To assist you in adjusting the front leveling legs up or
down, use a standard screwdriver blade and place it in the
front leveling leg as shown in the illustration below.
The rear leveling legs are adjusted from the front of the
base by turning the Phillips head screw as shown in the
illustration below.
IMPORTANT NOTE: The rear leveling legs will only move
1
/16" (2) for every 18 revolutions on the Phillips head screw.
Do not over torque. Use the lowest torque setting on any
power screwdriver. Do not turn the rear leveling legs by
hand.
Once the unit is leveled, secure the unit in place by using
the side mounting clips and #8 x
To reduce the possibility of the unit tipping forward,
the front leveling legs must be in contact with the floor.
1
/2" screws provided.
The floor under the integrated unit must be at the same
level as the surrounding finished floor to allow the compressor tray to be slid forward for service.
On/off key pad—tall model. On/off key pad—drawer model.
Front leveling legs. Rear leveling legs.
Page 13
Integrated Installation 13
TOP
MOLDING
SIDE
MOLDING
PEX
TUBING
subzero.com/specs

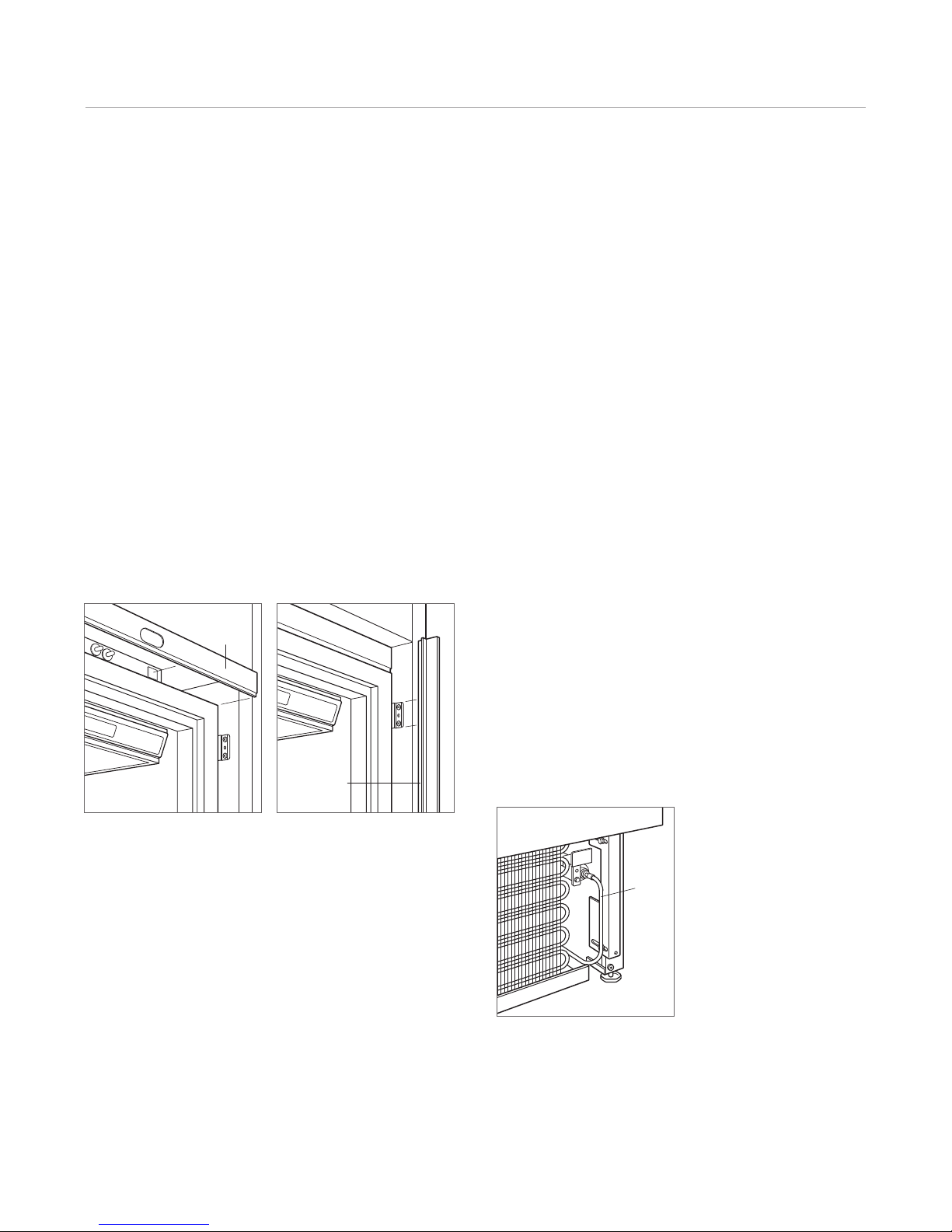

Molding Installation
nstall the decorative white molding strips to the top and
I
sides of the integrated unit for a finished look. The top
molding strip, used on column and tall models, must be
installed before the side molding can be attached. The top
molding strip is held in place by double-sided velcro. The
side molding strips snap into place over brackets attached
to the side of the unit. Refer to the illustrations below for
positioning. For installations where units are side by side,
refer to dual installations on page 20.
If you choose, the molding strips may be painted to match
surrounding cabinetry. Follow these steps: Rough up the
surface to be painted with fine grit sandpaper. Wipe with
alcohol to ensure that the surface is clean and dry. Use an
appliance or industrial grade, oil base, high gloss enamel
paint.
Water Line Connection
QUICK CONNECT WATER VALVE
For units with an ice maker, the quick connect water valve
and PEX tubing are located on the bottom right side of the
unit.
To connect the ice maker water line, attach the union
fitting to the house water supply line. Pull the coiled gray
PEX tubing with red cap and captured nut toward the
house water supply line. Remove and discard the red cap.
Then attach the tubing to the union with the nut. Tighten
all connections. Recoil the excess tubing under the unit.
Refer to the illustration below.
Turn on the water supply and check all fittings for leaks.
Make sure the electrical harness is attached to the
solenoid.
An in-line filter is required when water conditions have
a high sediment content.
The ice maker will not fill with water immediately. Allow 24
hours for proper ice production. The first container of ice
should be discarded. As with any new connection, there
may be impurities in the ice from the water supply line.
Top molding. Side molding.
IMPORTANT NOTE: Water lines must not be exposed to
freezing temperatures. Exposure could cause damage to
the unit and home.
Water line connection.
Page 14
Integrated Installation 14
MOUNTING
BRACKET
Kickplate/Grille Installation
nce the integrated unit is secured, the kickplate/ grille
O
can be installed. The mounting bracket may be adjusted
slightly forward or back so the kickplate/grille will fit flush
with the surrounding area. Refer to the illustration below.
The kickplate/grille must be removable for service. The
floor cannot interfere with removal.
Turn power back on to the electrical outlet.
IMPORTANT NOTE: The unit must be allowed to have
ventilation through the fins of the kickplate/ grille. You may
cover the solid area, but do not block the fins. The lower
drawer panel or the door panel of a column unit may hang
in front of the fins, but the baseboard molding must not
cover them.
If you choose, the kickplate/grille may be painted another
color. Follow these steps: Rough up the surface to be
painted with fine grit sandpaper. Wipe with alcohol to
ensure that the surface is clean and dry. Use an appliance
or industrial grade, oil base, high gloss enamel paint.
Panel Considerations
he integrated design utilizes custom wood or other
T
decorative panels and handles provided by the customer.
Stainless steel panels are available as accessories through
your authorized Sub-Zero dealer. For local dealer information, visit the find a showroom section of our website,
subzero.com.
Check panel dimensions before proceeding. Additional
panel information can be found in the Sub-Zero design
guide and on our website, subzero.com.
IMPORTANT NOTE: A portion of the backside of the
decorative panels will need to be finished, as they will be
exposed when the doors are open.
D-style handles are recommended. Handles should be
located on the opposite side from the hinge, centered on
the cabinet door, and on the top center area of the drawer
panel. Screw heads may have to be countersunk to ensure
that hardware does not interfere with the panel fitting flush.
It is recommended that the door panel of a tall model be
installed first, then the upper and lower drawer panels.
Kickplate /grille installation.
Panel Requirements
COLU MN MODELS MAX WEIGHT
Door Panel 65 lbs (29 kg)
TALL AND DRAWER MODELS MAX WEIG HT
27" (686) Door Panel 40 lbs (18 kg)
27" (686) Drawer Panel 12 lbs (5 kg)
36" (914) Door Panel 53 lbs (24 kg)
36" (914) Drawer Panel 16 lbs (7 kg)
PANEL T HICKNE SS MINIMUM
All Panels
5
/8" (16)
Page 15
Integrated Installation 15
453/8"
(
1153)
2
6
3
/4" (679)
P
ANEL WIDTH
139/16"
(345)
1611/16"
(424)
4" (102)
453/8"
(
1153)
353/4" (908)
PANELWIDTH
139/16"
(345)
1611/16"
(424)
27" (686)
FINISHED OPENING
4" (102)
36" (914)
FINISHED OPENING
797/8"
(2029)
797/8"
(2029)
767/8"
(
1953)
2
6
3
/4" (679)
P
ANEL WIDTH
4" (102)
807/8"
(2054)
27" (686)
FINISHED OPENING
1
/8"
(3)
1
/8"
(3)
1
/8"
(3)
1
/8"
(3)
1
/8"
(3)
1
/8"
(3)
1
/8"
(
3)
subzero.com/specs
Panel Considerations
TYPICAL PANEL DIMENSIONS

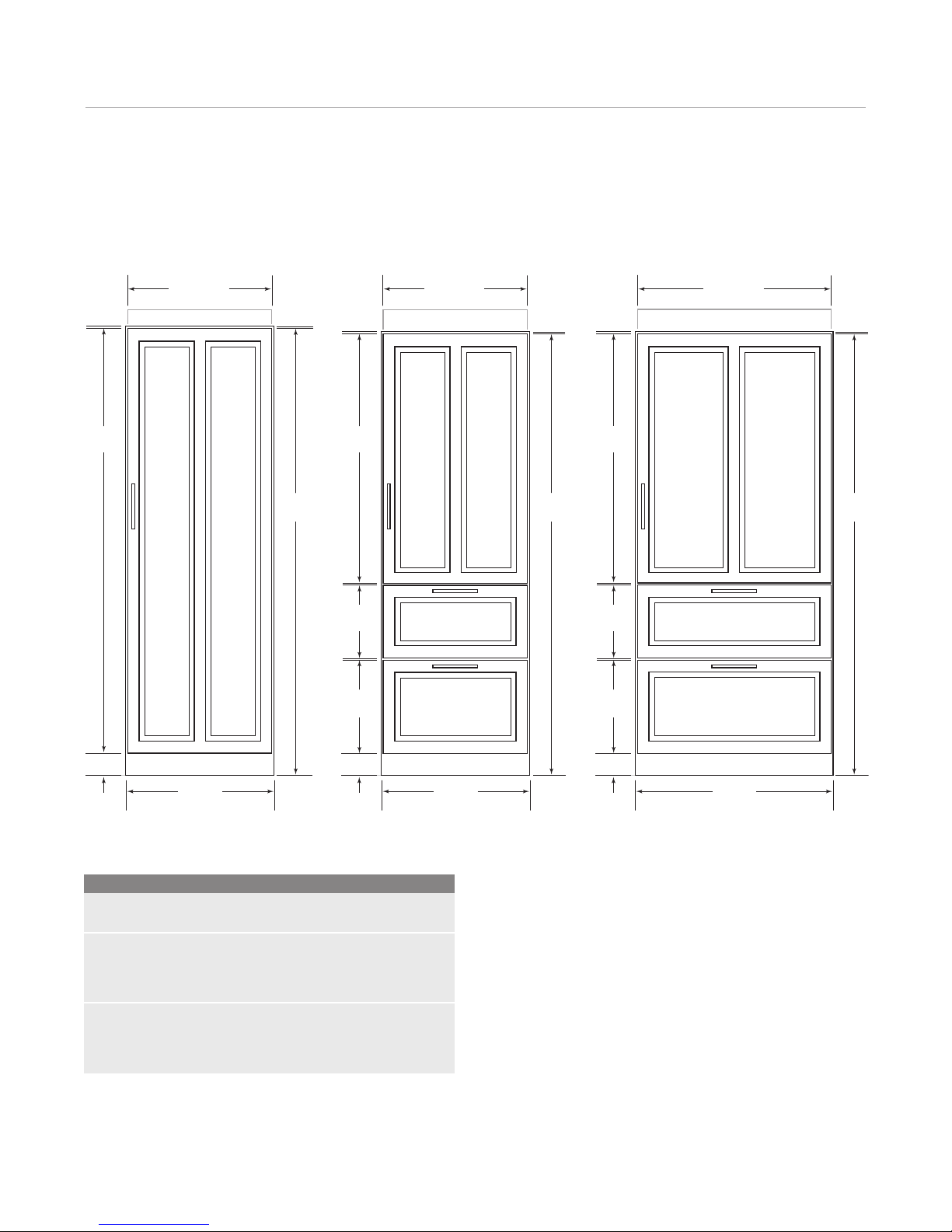

Typical Panel Dimensions
COLU MN MODELS WH
Door 263/4" (679) 767/8" (1953)
27" (6 86) MODELS WH
Door 263/4" (679) 453/8" (1153)
Top Drawer 263/4" (679) 139/16" (345)
Bottom Drawer 263/4" (679) 1611/16" (424)
36" (9 14) MODELS WH
Door 353/4" (908) 453/8" (1153)
Top Drawer 353/4" (908) 139/16" (345)
Bottom Drawer 353/4" (908) 1611/16" (424)
Panel dimensions are based on a1/8" (3) reveal. A reveal of up
1
/4" (6) is possible with adjustments to panel dimensions.
to
Page 16
Integrated Installation 16
INTEGRATED UNIT
(SIDE VIEW)
11/2"
(38)
25" (635) TO WALL
HINGE
DECORATIVE VALANCE
CANNOT EXTEND BEYOND
THE FRONT OF THE MOLDING
DECORATIVE VALANCE
REMOVABLE MOLDING
TYPICAL
HEIGHT
OF DOOR
PANEL
MINIMUM
HEIGHT
OVERALL
HEIGHT
1
/8"(3)
1
/8"(3)
DOOR
PANEL
25" (635) TO WALL
HEIGHT
OF PANEL
I
NTEGRATED UNIT
(SIDE VIEW)
25/8" (67) TO 4" (102)
BASE MOLDING
MUST BE
R
EMOVABLE—
4" (102) MAX
HEIGHT
KICKPLATE /GRILLE
CAN BE ADJUSTED
FORWARD
KICKPLATE /GRILLE
4" (102) TO 9"(229)
FROM FLOOR
Panel Considerations
DOOR PANEL HEIGHT
The height of the door panel can extend beyond the
typical panel height, provided you do not exceed the panel
weight limit.
A minimum finished height of 80"
(686) and 36" (914) tall models. For the 27" (686) integrated
column, a minimum finished height of 81"
(2032) is required for 27"
(2057) is required.
Therefore, when installing a tall model next to a column,
the minimum finished height is 81"
taller than 80"
(2032) or 81" (2057), a decorative valance
(2057). For installations
will be needed to finish off the height to the finished surrounding cabinetry.
The illustration below shows how the panel may be
extended and what you need to consider to finish the area
behind the door panel.
IMPORTANT NOTE: The decorative valance used to finish
the area behind the door panel must stay behind the front
plane of the finished molding.
TOE KICK CLEARANCE
The toe kick clearance can vary with the height of the
panel. You must keep a minimum space of 4"
(102) clear
below the bottom edge of the panel for proper venting. In
addition, any decorative base molding must be removable
and cannot exceed 4"
(102) in height.
Upper valence.
Kickplate/grille area.
Page 17
Integrated Installation 17
subzero.com/specs

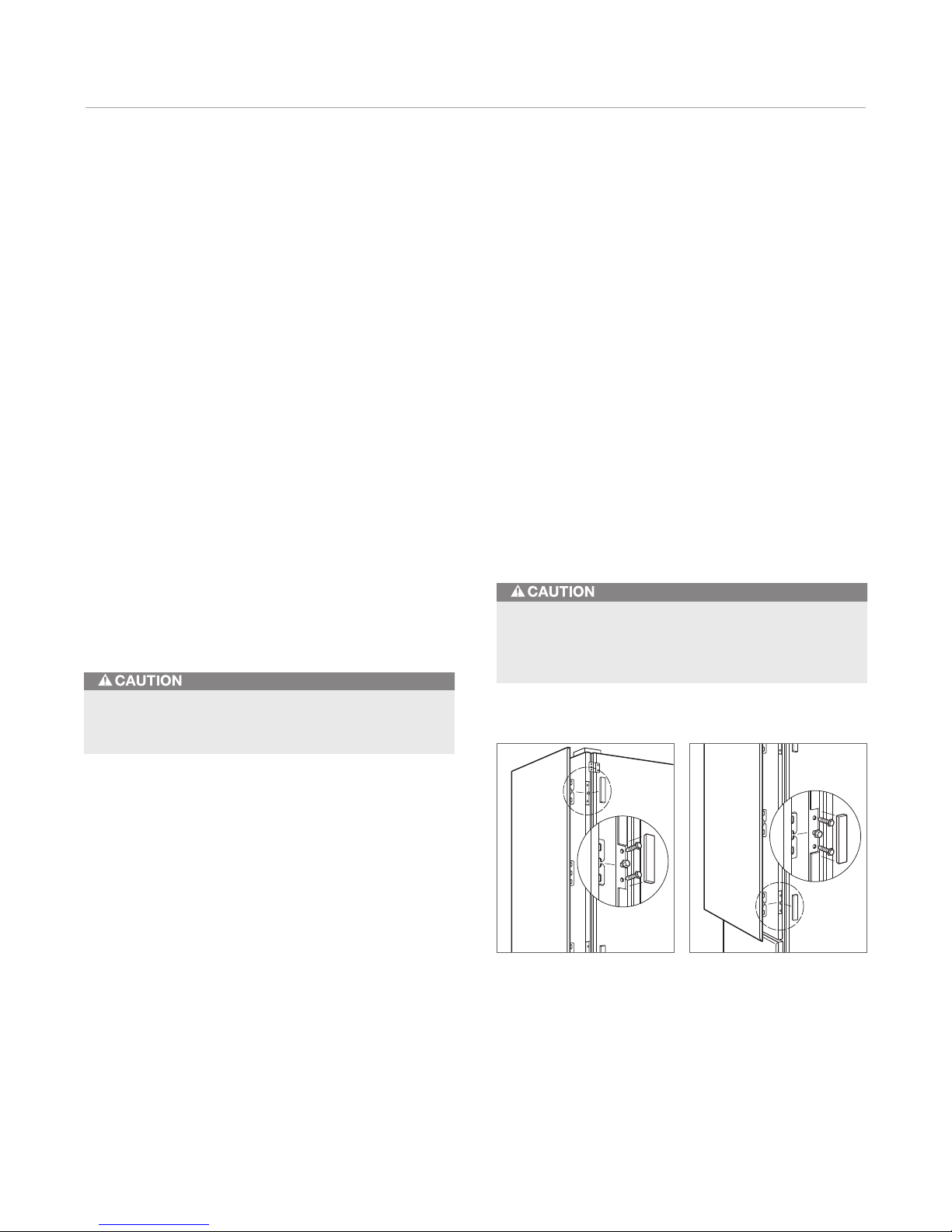

Panel Installation
DOOR PANEL INSTALLATION
Remove the two pieces of mounting hardware attached to
the front of the door and set aside. Place the door panel
lying face down on a protected surface to ensure that the
front is not scratched or damaged.
Position the plastic template as indicated on the template.
One side is for a right-hinge unit and the other side is for a
left-hinge unit. Verify that you are using the correct side.
Once you have located the proper position of the
template, mark the pilot holes indicated on the template.
Remove the template and drill the pilot holes. Next, place
the bottom holes of the bracket over the pre-drilled holes
and secure with the #8 x
1
/2" screws provided. After the
bracket has been secured to the pilot holes, drill the
remaining bracket holes and secure the bracket to the
panel with screws provided.
IMPORTANT NOTE: Dimensions are based on a
1
/8" (3)
reveal. A reveal of up to1/4" (6) is possible. Panel dimensions must be adjusted accordingly.
efore attaching the door panel to the door, place a screw
B
in the center of the upper and lower mounting positions,
just enough that the slotted holes on the hinge side door
panel bracket will slide under the heads. These positioning
screws will support the door panel during installation and
adjustment. Refer to the illustrations below.
Install the door panel by engaging the tabbed bracket to
the handle side of the door first and then sliding the hinge
side mounting bracket onto the positioning screws on the
hinge side of the door. The panel can be adjusted
1
/4" (6)
up and down and side to side.
Once the door panel is in place and adjusted correctly,
attach the remaining #10 x
1
/2" screws to the hinge side
mounting bracket and install the magnetic caps as shown
in the illustration below.
As the reveal between cabinets and the unit decreases,
the potential exists for severe finger pinching if fingers
are placed in the opening when the door is closing.
Exercise caution when drilling holes for mounting
hardware. This is especially critical with inset panels.
Mounting position—column. Mounting position—tall model.
Page 18
Integrated Installation 18
53/16" (132)
55/16"
(135)
87/16"
(214)
115/16"
(287)
11/4"
(32)
11/4"
(32)
237/8" (606) F
OR 27" UNITS
3
2
7
/8" (835) FOR 36"UNIT S
LH DOOR SWING
BACK OF PANEL
RH DOOR SWING
BACK OF PANEL
BACK OF PANEL
BACK OF PANEL
17/16" (
37)
811/16"*
(221)
73/16"*
(183)
24" (610)
1
1
3
/16"(46)
LH DOOR SWING
BACK OF PANEL
RH DOOR SWING
BACK OF PANEL
*Dimensions are based on a 4" (102) toe kick.
Panel Installation

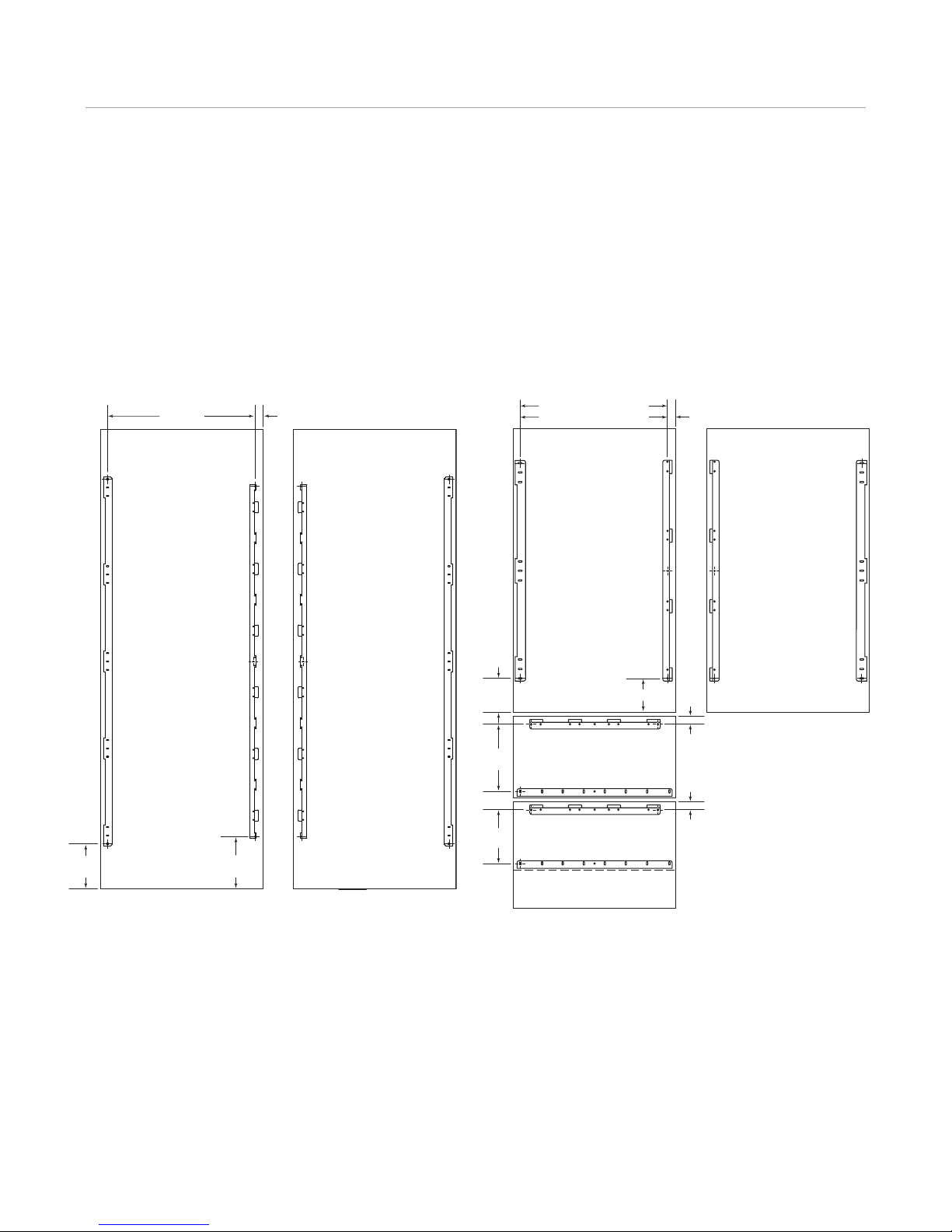

PANEL BRACKET POSITIONING
The illustrations below show placement of panel mounting
brackets. Dimensions are based on a 4"
1
a
/8" (3) reveal. A reveal of up to1/4" (6) is possible, but
panel dimensions need to be adjusted accordingly.
(102) toe kick and
COLUMN MODELS TALL AND DRAWER MODELS
Page 19
Integrated Installation 19
BACK OF PANEL
TEMPLATE FLUSH WITH
TOP OF PANEL
SIDE
EDGE GAP
WILL VARY
TABBED BRACKET
L BRACKET
subzero.com/specs

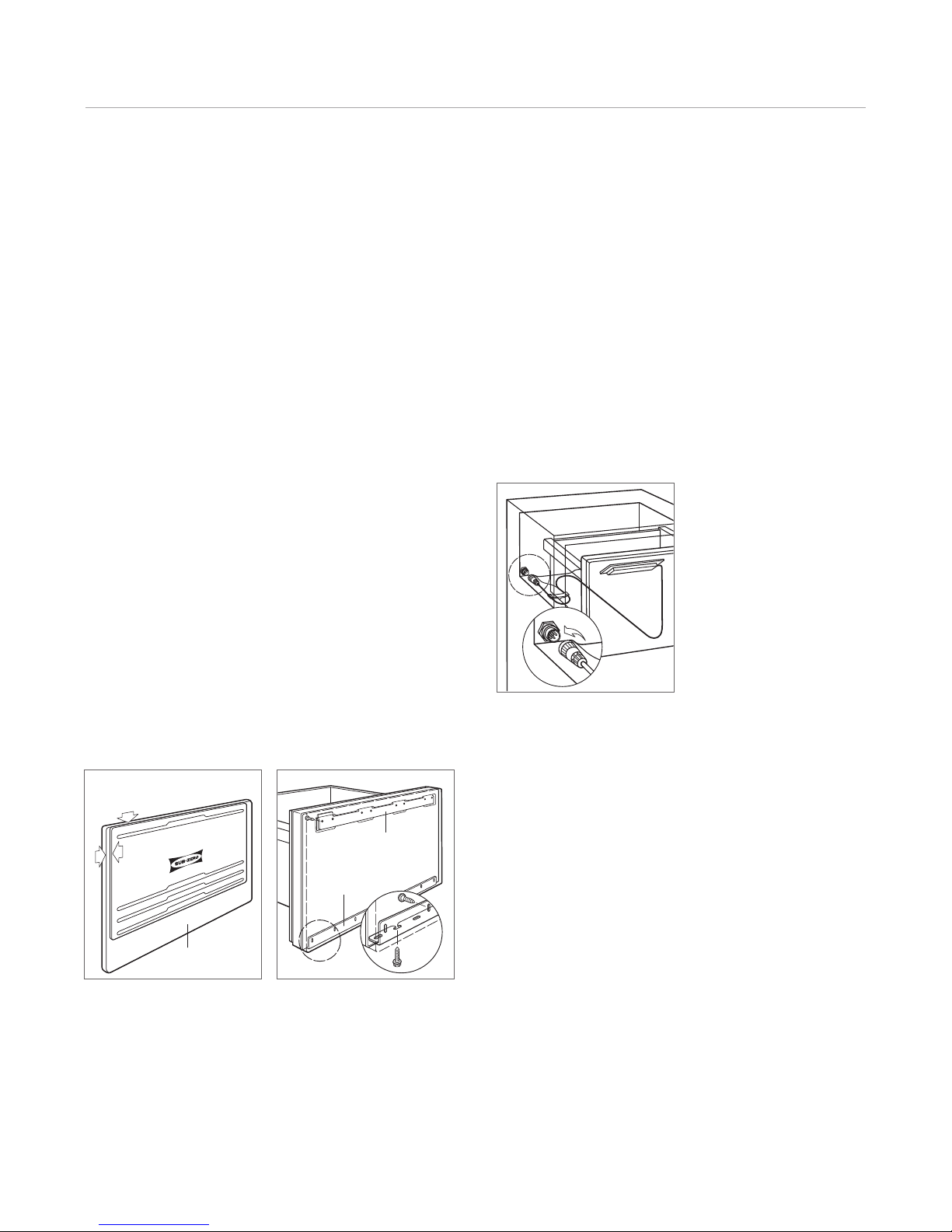

Panel Installation
ith the two mounting brackets in place, install the
DRAWER PANEL INSTALLATION
Remove the mounting hardware provided and set aside.
As with the door panel, you should work on the back side
of each drawer panel to protect the front surface.
Position the top edge of the template flush with the top
edge of each drawer. For the top drawer, there is only one
location for the lower mounting bracket. The bottom
drawer allows a second option by inverting the lower
mounting bracket, depending on the height and thickness
of the panel. Refer to the illustration below.
Secure the template in place and mark the pilot holes.
Remove the template and drill pilot holes for mounting the
bracket. Place the mounting brackets in the proper
location with the tabbed bracket on top and L-bracket on
the bottom of the panel. Fasten brackets securely with the
1
#8 x
/2" screws provided. Refer to the illustration below.
W
drawer panel by engaging the top tabbed bracket first,
then slide the lower L-bracket onto the positioning screws.
Each drawer panel can be adjusted
1
/4" (6) up and down
and side to side. Fasten all screws to the lower L-bracket
to secure the drawer panel.
The drawers can be placed back in the unit. Reconnect
the control cable for the top drawer (drawer models only).
Refer to the illustration below.
To help with the placement of the drawer panels, examine
the lower L-bracket and panel to determine the slotted
holes on the bracket that will be used. Then position
screws into the lower portion of the drawer that correspond with these slots. Leave the screws out slightly so
the slotted holes will slide under the heads.
Template position. Drawer panel installation.
Control cable.
Page 20
Integrated Installation 20
Dual Installations
wo integrated units may be placed side by side in a dual
T
installation. Panel width dimensions will vary slightly from
single installations. A dual installation kit is required for
installations with 2"
Dual installation kits are available through your authorized
Sub-Zero dealer.
IMPORTANT NOTE: If a 27" (686) unit is installed next to a
36"
(914) tall model, the decorative front panels will align,
(51) or less space between units.
90° Door Stop
he door of integrated columns and tall models opens
T
to 105°. A 90° door stop is built into the hinge system for
installations where the door opening must be limited.
To engage the door stop, use the blade edge of a
standard screwdriver and rotate the cam in the center
portion of the hinge. You must make this adjustment to
both the bottom and top hinge. Refer to the illustration
below.
however, the face frames will not. This is only apparent
when both doors are open at the same time. Due to a
more robust hinge on 36"
(914) units, the face frame was
reconfigured to maintain a consistent overall panel height.
Typical Panel Dimensions
COLU MN MODELS WH
Door 2613/16" (681) 767/8" (1953)
686)
27" (
MODE LS WH
Door 2613/16" (681) 453/8" (1153)
Top Drawer 2613/16" (681) 139/16" (345)
Bottom Drawer 2613/16" (681) 1611/16" (424)
36" (9 14) MODELS WH
Door 3513/16" (910) 453/8" (1153)
Top Drawer 3513/16" (910) 139/16" (345)
Bottom Drawer 3513/16" (910) 1611/16" (424)
90° door stop.
Page 21
Integrated Installation 21
subzero.com/specs
Installation Checklist
o ensure a safe and proper installation, the following
T
checklist should be completed by the installer to ensure
that no part of the installation has been overlooked.
INSTALLATION CHECKLIST
Have all packing materials been removed?
Turn the unit on. Is it operating properly?
Is the power cord plugged into a properly grounded
outlet, which has been installed in accordance with all
applicable electrical codes?
For units with an automatic ice maker, is the water
supply line connected and not leaking? Is the water
supply turned on and ice maker control on?
Has the anti-tip bracket been installed securely and
properly engaging the unit?
Is the unit leveled properly with all leveling legs making
contact with the floor? Has the kickplate/grille been
installed?
Are panels attached securely and properly aligned?
Has the door been aligned for proper appearance and
operation?
Does the customer understand the unit's operation?
Does the customer have the warranty package?
Have any installation or service problems been noted
on the product registration card? Has the registration
card been mailed in?
Have stainless steel panels been inspected for any
imperfections? This is to be done by the authorized
Sub-Zero dealer or installer with the customer, upon
completion of installation. Stainless steel panels are
covered by a limited 60-day warranty for cosmetic
defects.
Page 22
Service Information 22

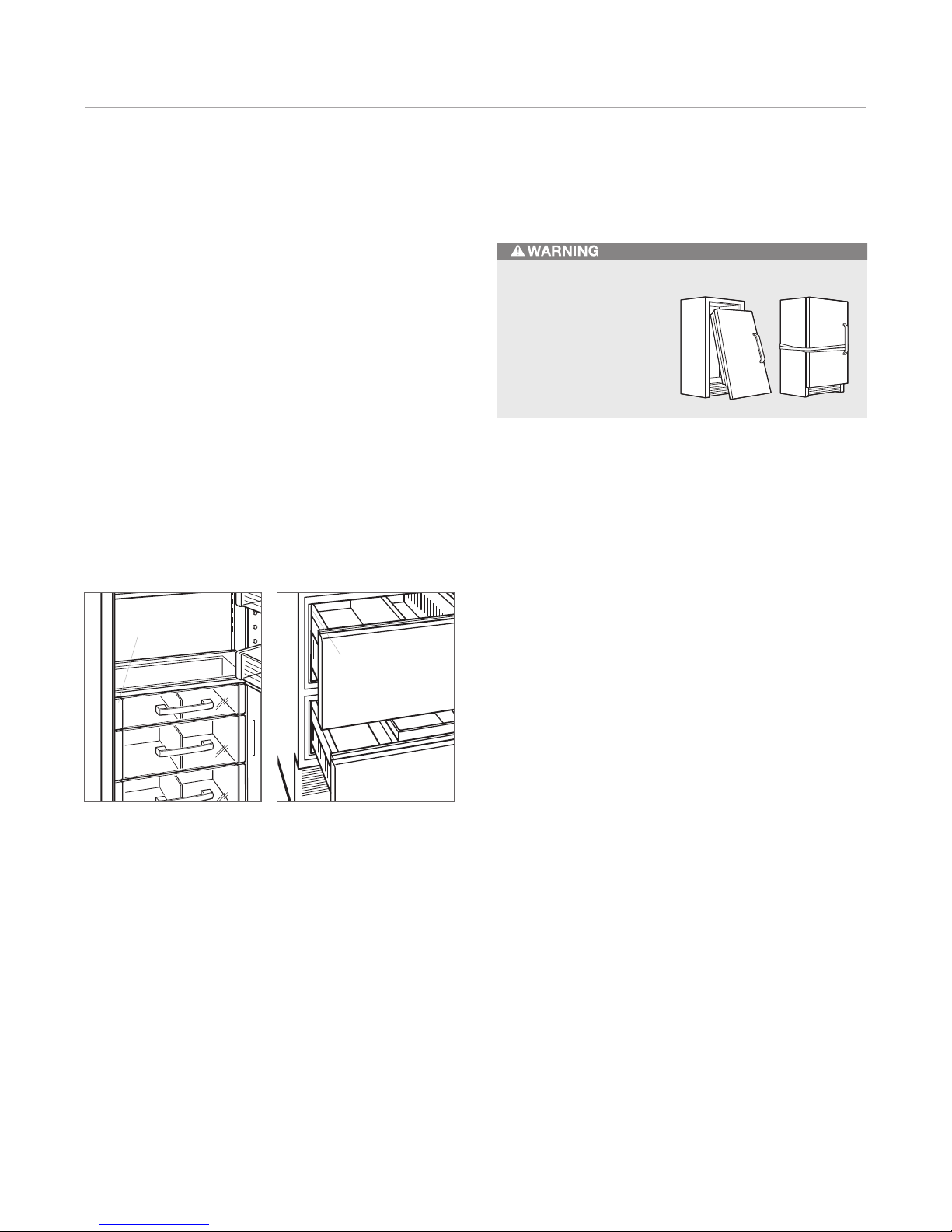

Service Information
f service is necessary, maintain the quality built into your
I
integrated unit by calling Sub-Zero factory certified
service.
For the name and number of Sub-Zero factory certified
service nearest you, check the contact & support section
of our website, subzero.com or call Sub-Zero customer
care at 800-222-7820.
When calling for service, you will need the model and
serial numbers of your unit. Both numbers are listed on the
product rating plate. For column models, the rating plate
is located inside the top drawer near the drawer guide
opposite the hinge. For tall and drawer models, the rating
plate is located inside the cabinet, to the left of the upper
drawer. Refer to the illustrations below.
If you are storing or disposing of your old refrigerator or
freezer, please do it
safely. Remove the
doors or tightly secure
the doors closed.
Child entrapment
accidents can be tragic.
RATING PLATE
RATING PLATE
Tall and drawer models.Column models.
Page 23
The information and images in this guide are the copyright property of Sub-Zero, Inc. Neither this guide nor any information or images contained herein may be
copied or used in whole or in part without the express written permission of Sub-Zero, Inc. ©Sub-Zero, Inc. all rights reserved.
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
Sub-Zero, Sub-Zero & Design, Dual Refrigeration, Constant Care and The Living Kitchen are registered trademarks and service marks of Sub-Zero, Inc.
(collectively,the“Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
Page 24
SU B-ZER O, IN C. P. O. BOX 4 4848 MA DISON , W I 5374 4 SUBZE RO.CO M 800 .222. 7820
702 3602 REV-A 8 /2011
Loading...
