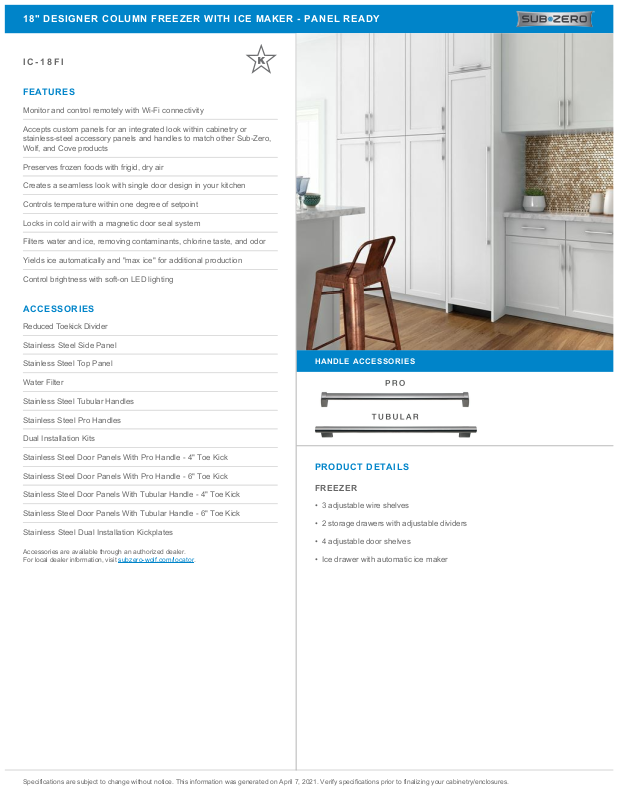

Sub-Zero IC-18FI Quick Reference Guide
18" DESIGNER COLUMN FREEZER WITH ICE MAKER - PANEL READY
IC-18FI
FEATURES
Monitor and control remotely with Wi-Fi connectivity
Accepts custom panels for an integrated look within cabinetry or
stainless-steel accessory panels and handles to match other Sub-Zero,
Wolf, and Cove products
Preserves frozen foods with frigid, dry air
Creates a seamless look with single door design in your kitchen
Controls temperature within one degree of setpoint
Locks in cold air with a magnetic door seal system
Filters water and ice, removing contaminants, chlorine taste, and odor
Yields ice automatically and "max ice" for additional production
Control brightness with soft-on LED lighting
ACCESSORIES
Reduced Toekick Divider
Stainless Steel Side Panel
Stainless Steel Top Panel
Water Filter
Stainless Steel Tubular Handles
Stainless Steel Pro Handles
Dual Installation Kits
Stainless Steel Door Panels With Pro Handle - 4" Toe Kick
Stainless Steel Door Panels With Pro Handle - 6" Toe Kick
Stainless Steel Door Panels With Tubular Handle - 4" Toe Kick
Stainless Steel Door Panels With Tubular Handle - 6" Toe Kick
Stainless Steel Dual Installation Kickplates
Accessories are available through an authorized dealer.
For local dealer information, visit subzero-wolf.com/locator.
HANDLE ACCESSORIES
PRODUCT DETAILS
FREEZER
• 3 adjustable wire shelves
• 2 storage drawers with adjustable dividers
• 4 adjustable door shelves
• Ice drawer with automatic ice maker
Specifications are subject to change without notice. This information was generated on April 7, 2021. Verify specifications prior to finalizing your cabinetry/enclosures.
18" DESIGNER COLUMN FREEZER WITH ICE MAKER - PANEL READY
PRODUCT SPECIFICATIONS
Model IC-18FI
Dimensions 18"W x 84"H x 24"D
Door Clearance 16 1/2"
Weight 308 lbs
Freezer Capacity 8.4 cu. ft.
Electrical Supply 115 VAC, 60 Hz
Electrical Service 15 amp dedicated circuit
Plumbing Supply 1/4" OD copper, braided stainless steel or
PEX tubing
Plumbing Pressure 35–120 psi
ELECTRICAL PLUMBING
NOTE: The electrical outlet must be positioned with the grounding prong to the right of
the thinner blades.
PANEL SPECIFICATIONS For complete panels specifications including width/height,
weight requirements and thickness requirements visit subzero-wolf.com/reveal.
NOTE: Dimensions in parenthesis are in millimeters unless otherwise specified
INTERIOR VIEW
This illustration is intended for interior reference only and may not represent the exterior
of the model being specified.
DIMENSIONS
STANDARD INSTALLATION
25" (635)
OPENING
DEPTH
18" (457)
OPENING WIDTH
84"
(2134)
OPENING
HEIGHT
NOTE: 31/2" (89) finished returns will be visible and should be finished to match cabinetry.
SIDE VIEW
TOP VIEW
FRONT VIEW
3
/4" (19)
TYPICAL
FRAMED
CABINETRY
18"
(457)
FILLER
31/2" (89)
FINISHED
RETURN
FRAMELESS
CABINETRY
18"
(457)
3
/4" (19)
TYPICAL
31/2" (89)
FINISHED
RETURN
Specifications are subject to change without notice. This information was generated on April 7, 2021. Verify specifications prior to finalizing your cabinetry/enclosures.
