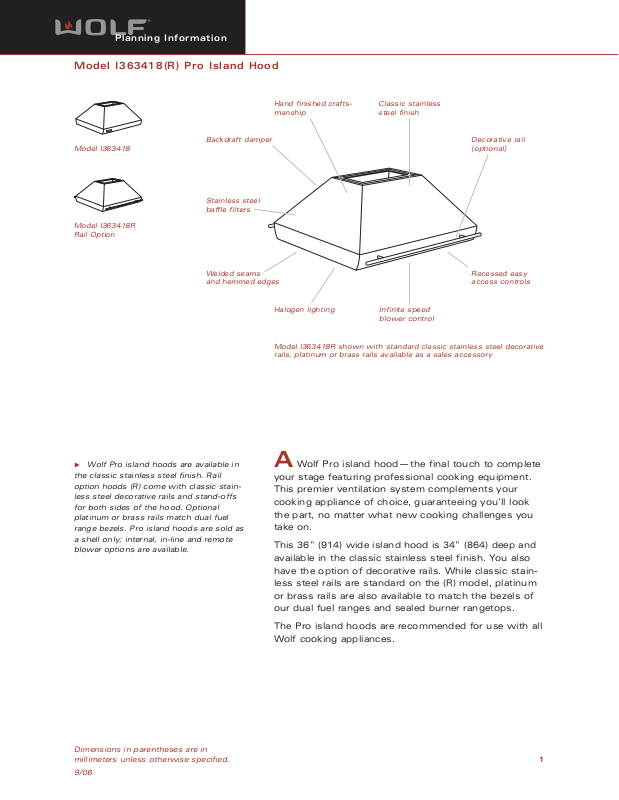

Planning Information
Model I363418(R) Pro Island Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
1
Classic stainless
steel finish
Backdraft damper
Stainless steel
baffle filters
Infinite speed
blower control
Welded seams
and hemmed edges
Halogen lighting
Model I363418
Model I363418R
Rail Option
Hand finished craftsmanship
Recessed easy
access controls
Decorative rail
(optional)
A Wolf Pro island hood — the final touch to complete
your stage featuring professional cooking equipment.
This premier ventilation system complements your
cooking appliance of choice, guaranteeing you’ll look
the part, no matter what new cooking challenges you
take on.
This 36" (914) wide island hood is 34" (864) deep and
available in the classic stainless steel finish. You also
have the option of decorative rails. While classic stainless steel rails are standard on the (R) model, platinum
or brass rails are also available to match the bezels of
our dual fuel ranges and sealed burner rangetops.
The Pro island hoods are recommended for use with all
Wolf cooking appliances.
Wolf Pro island hoods are available in
the classic stainless steel finish. Rail
option hoods (R) come with classic stainless steel decorative rails and stand-offs
for both sides of the hood. Optional
platinum or brass rails match dual fuel
range bezels. Pro island hoods are sold as
a shell only; internal, in-line and remote
blower options are available.
Model I363418R shown with standard classic stainless steel decorative
rails, platinum or brass rails available as a sales accessory
36" (914)
OVERALL WIDTH
18"
(457)
18" (457)
OVERALL
HEIGHT
34" (864)
OVERALL DEPTH
13"
(330)
4"(102)
2"
(51)
3
/4" (19)
DIAMETER
OF RAIL
2"
(51)
18" (457)
OVERALL
HEIGHT
36" (914)
OVERALL WIDTH
4"(102)
34" (864)
OVERALL DEPTH
13"
(330)
18"
(457)
Planning Information
Model I363418(R) Pro Island Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
2
Model I363418
Model I363418R with Rail
OVERALL DIMENSIONS
FEATURES
Classic stainless steel finish
Rail option hoods (R) come with classic
stainless steel decorative rails and stand-offs
– optional platinum or brass rails to match
dual fuel range and sealed burner rangetop
bezels are available as a sales accessory
Internal, in-line and remote blower options
Heavy-duty 16-gauge brushed stainless steel
construction
Stainless steel enclosed liner
Continually welded seams, hemmed edges
and sides and hand finished craftsmanship
Recessed easy-access controls
Infinite-speed blower control
Heat sentry feature automatically turns unit
on when heat is sensed and automatically
adjusts blower speed
Halogen lighting with two settings
Removable, dishwasher-safe, restaurantgrade stainless steel baffle filters
Transition with backdraft damper included
UL listed to US and Canadian safety
standards
UL approved for covered outdoor applications
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
Dimensions may vary by ±1/8" (3).
Planning Information
Model I363418(R) Pro Island Hood
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
BLOWER OPTIONS
1200 CFM Internal Blower 804703
1100 CFM In-Line Blower 808332
900 CFM Remote Blower 801641
1200 CFM Remote Blower 801642
1500 CFM Remote Blower 804701
Refer to the Pro Ventilation
Recommendations chart at the end
of this section.
ACCESSORIES
Platinum or brass decorative rails
and stand-offs for both sides of
the hood
6" (152) and 12" (305) duct
covers
Contact your Wolf dealer for additional
information on accessories.
SPECIFICATIONS
Overall Width of Hood 36" (914)
Overall Height of Hood 18" (457)
Overall Depth of Hood – I363418 34" (864)
I363418R (including rails) 38" (965)
Duct Size 10" (254) Round
Discharge Vertical
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight (shell only) 95 lbs (43 kg)
Specifications are subject to change without notice.
