subzero Designer Design Guide

Design Guide

Designer Series

ICB REVISED 5/2022

Contents

Contents

Designer Series Refrigeration

3

Designer Series Undercounter Refrigeration

13

Sub-Zero Warranty

20

2 | English

Features and specifications are subject to change at any
time without notice.

Throughout this guide, dimensions may vary by ± 3 mm.

Designer Series Refrigeration

Designer Series Refrigeration

With custom front panels and hardware, Sub-Zero invented
Designer Series columns, tall, and drawer models that
disappear into the decor. Units fit flush with other cabine­try, making Designer Series refrigeration as practical and
beautiful in the master suite, bar, or theatre room as in the
kitchen. Model ICBID-24RO, approved for outdoor installa­tions, is ideal for any outdoor kitchen.

Features and specifications are subject to change at any
time without notice.

Throughout this guide, dimensions may vary by ± 3 mm.

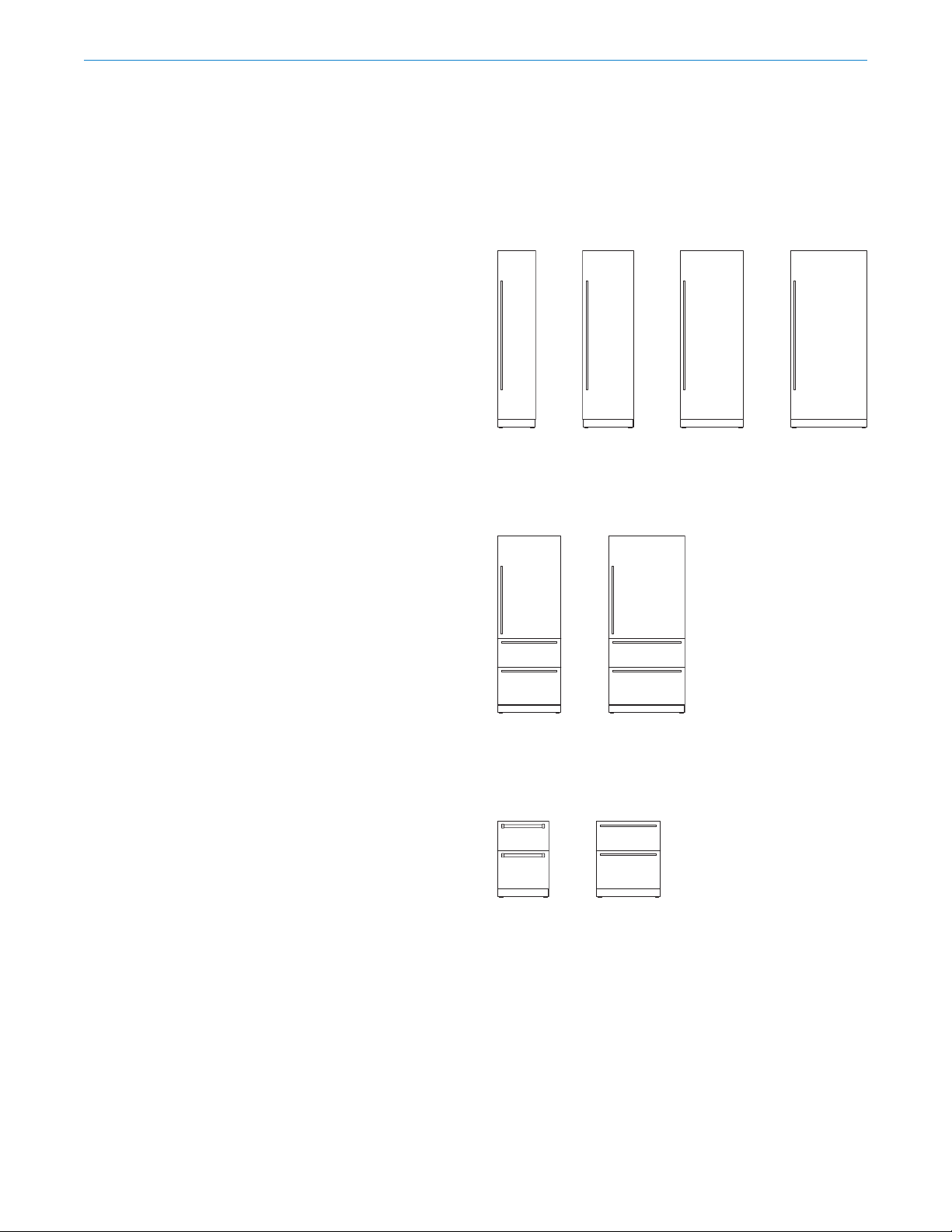

COLUMN MODELS

ICBDEC1850FI ICBDEC2450R

ICBDEC2450FI

TALL MODELS

ICBDEC3050RID
ICBDEC3050FI

ICBDEC3650RID

ICBDET3050CIID ICBDET3650CIID

DRAWER MODELS

ICBID-24RO

ICBID-30R
ICBID-30FI

| 3

Designer Series Refrigeration

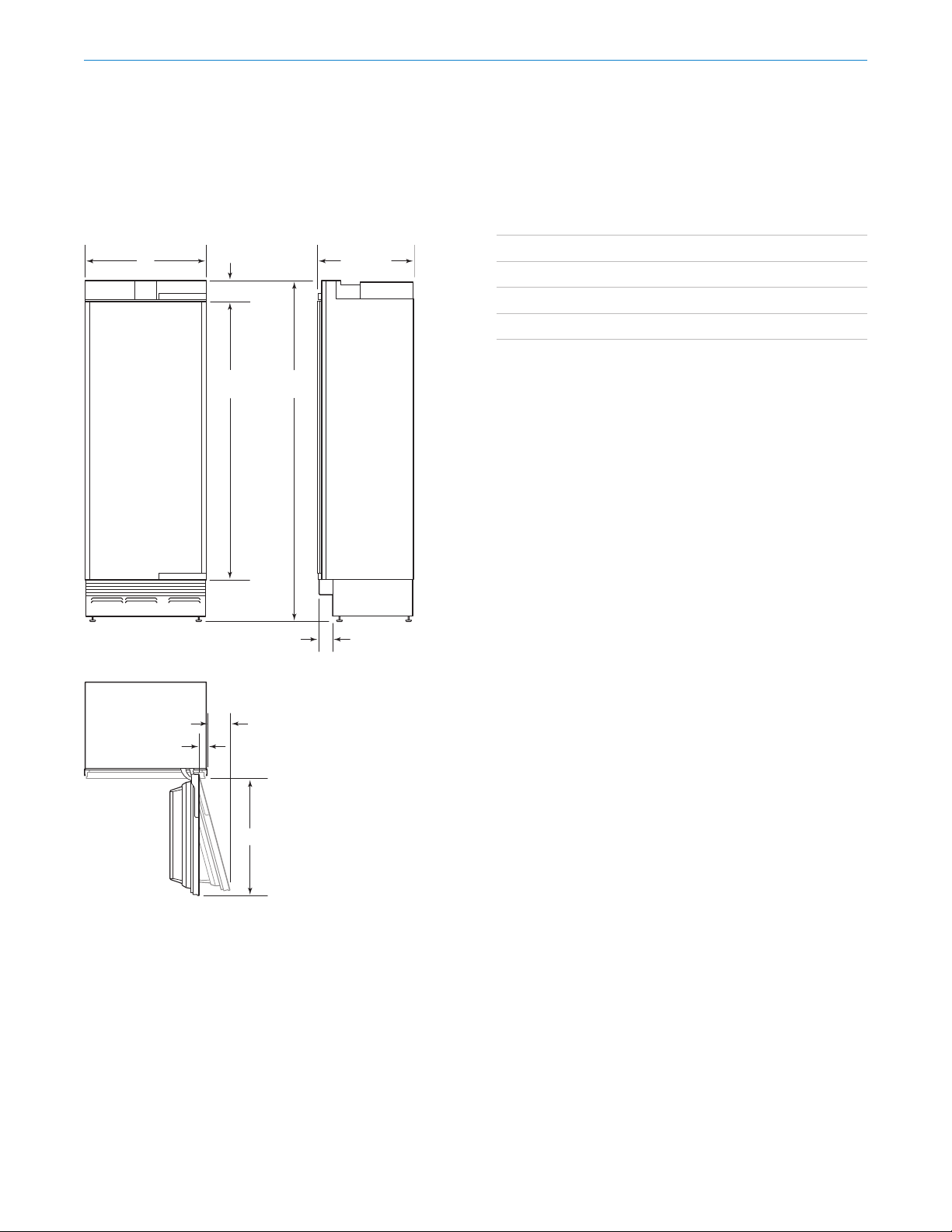

Overall Dimensions

COLUMN

W

*HEIGHT DIMENSION ± 13 mm

114 mm

1765

mm

2134
mm*

COLUMN W A B

457 mm Column 457 mm 64 mm 419 mm

610 mm

610 mm Column 610 mm 102 mm 572 mm

762 mm Column 762 mm 143 mm 724 mm

914 mm Column 914 mm 184 mm 876 mm

IMPORTANT NOTE: Overall dimensions do not include
panels or handles. Dimensions will vary with panel
thickness.

92 mm

45 mm

A

B

4 | English

Designer Series Refrigeration

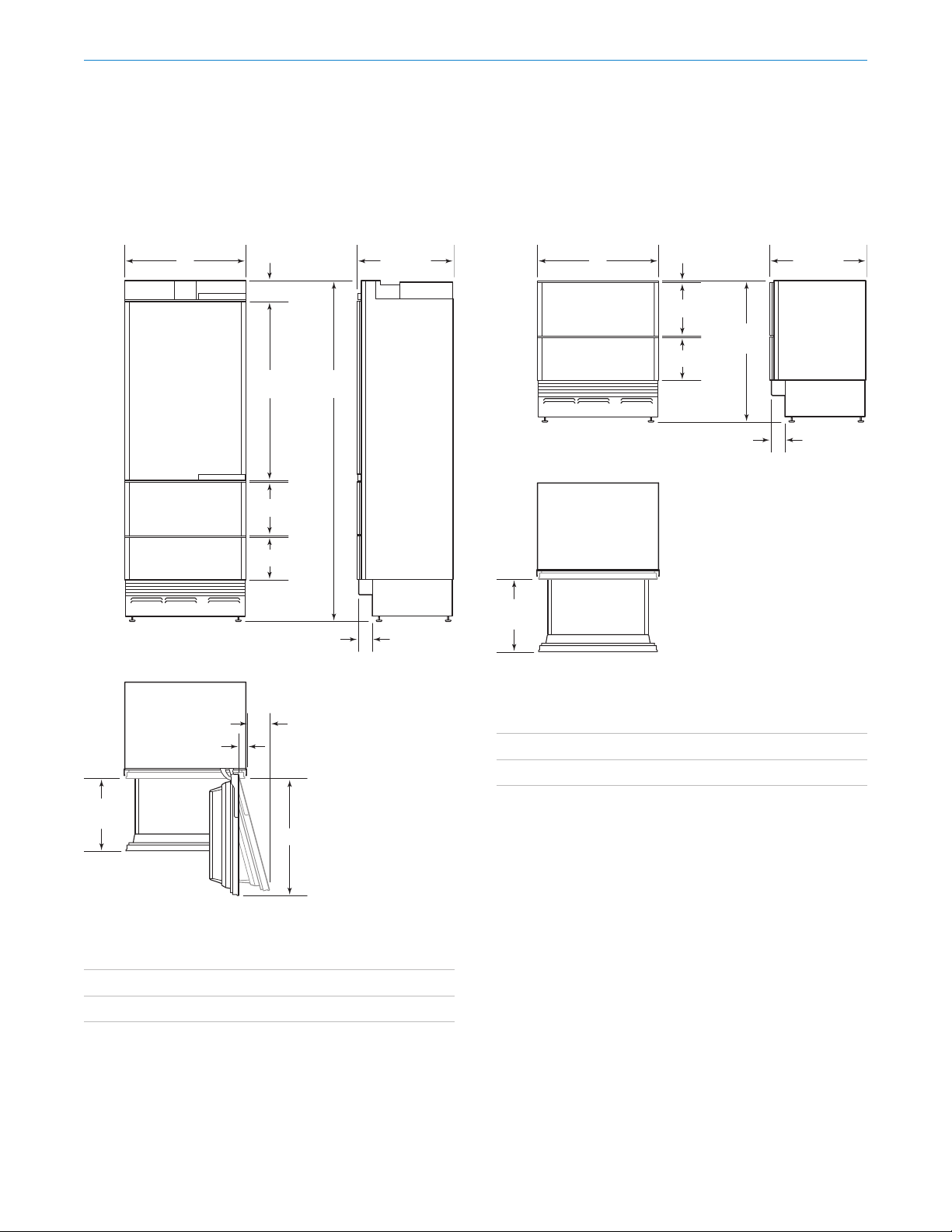

Overall Dimensions

TALL

*HEIGHT DIMENSION ± 13 mm

DRAWER

13 mm

6 mm

338 mm

268 mm

10

mm

876

mm*

W

114 mm

1140

mm

338 mm

268 mm

10 mm

10 mm

2134
mm*

610 mm

92 mm

*HEIGHT DIMENSION ±

451
mm

610 mmW

92 mm

A

45 mm

451
mm

B

TALL W A B

762 mm Tall 762 mm 143 mm 724 mm

914 mm Tall 914 mm 184 mm 876 mm

DRAWER W

610 mm Drawer 610 mm

762 mm Drawer 762 mm

IMPORTANT NOTE: Overall dimensions do not include
panels or handles. Dimensions will vary with panel
thickness.

| 5

NOTE: 89 mm
11

SIDE VIE

Designer Series Refrigeration

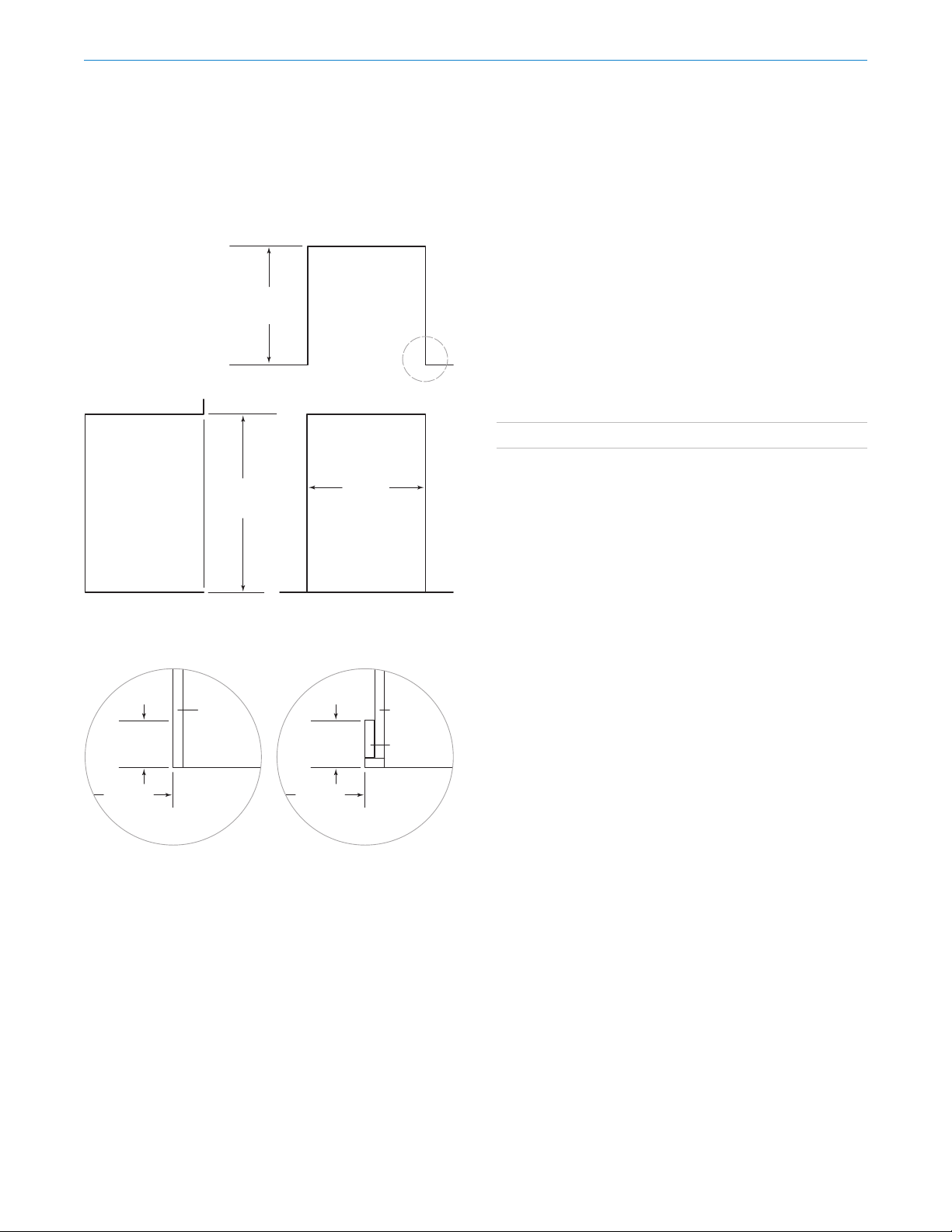

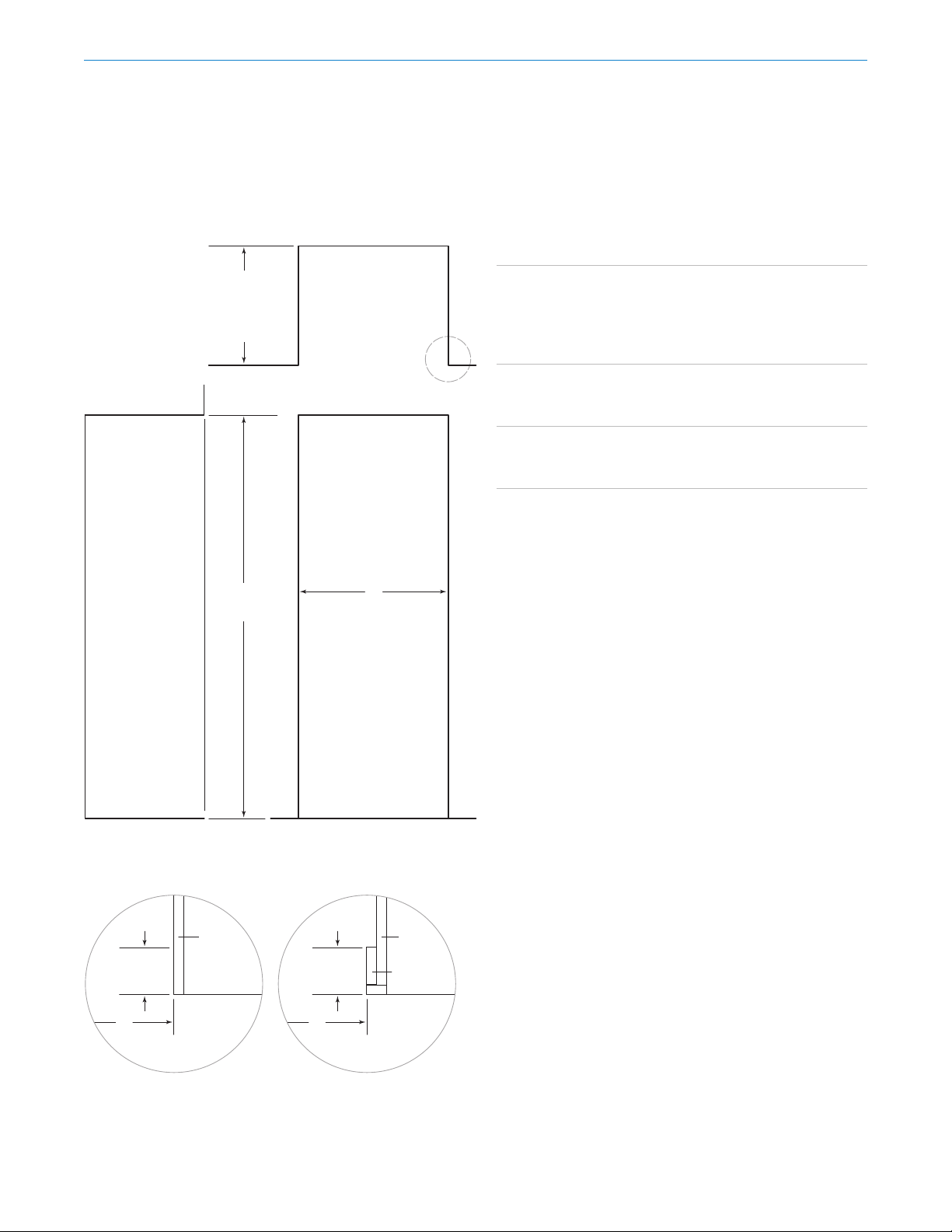

Opening Dimensions

DESIGNER SERIES

645 mm

OPENING

DEPTH

664 mm

FOR OUTDOOR

MODEL

TOP VIEW

OPENING DIMENSIONS

COLUMN W* H

457 mm Column 457 mm 2134 mm
610 mm Column 610 mm 2134 mm
762 mm Column 762 mm 2134 mm
914 mm Column 914 mm 2134 mm

TALL W* H

762 mm Tall 762 mm 2134 mm
914 mm Tall 914 mm 2134 mm

DRAWER W* H

610 mm Drawer 610 mm 876 mm
762 mm Drawer 762 mm 876 mm

*For stainless steel side panel accessory, add 25 mm per panel to
opening width.

W

4 mm for outdoor model.

finished returns will be visible and should be finished to match cabinetry—

89 mm

FINISHED

RETURN

W

FRAMELESS

CABINETRY

19

mm

TYPICAL

H

OPENING

HEIGHT

OPENING WIDTH

FRONT VIEW

89 mm

FINISHED

RETURN

W

FRAMED

CABINETRY

W

19

mm

TYPICAL

FILLER

The depth of each Designer Series model is 610 mm. Allow
for panel thickness when planning the finished opening
depth. A minimum 89 mm finished return is required on
all sides of the opening—114 mm for the outdoor model.
Framed cabinets will require additional finished filler mate­rial behind the face frame for a proper installation. Refer to
the illustration.

Dual Installation

When installing two units side by side in a dual installa­tion, the opening width is the width of the two units added
together. A dual installation kit will be required for this
installation. If a dual installation kit is not specified, a mini­mum 51 mm filler strip is required between the units.

Dual installation kits are available through an authorized
Sub-Zero dealer. For questions regarding the installation,
contact your authorized Sub-Zero dealer.

6 | English

Designer Series Refrigeration

Electrical Requirements

Installation must comply with all applicable electrical
codes.

International models from the factory require a 220-240 V
AC, 50/60 Hz electrical supply, fused at the correct rating
for the unit.

The electrical supply should be easily accessible and
positioned either in a cabinet above the refrigerator, a
minimum of 2200mm above the floor or in adjacent
cabinet.

ELECTRICAL REQUIREMENTS

Power Supply 220-240 V AC, 50/60 Hz

Circuit Breaker 10 amp

Receptacle grounding-type (earthed)

Plumbing Requirements

Installation must comply with all applicable plumbing
codes.

For Designer Series models with an automatic ice maker
and/or water dispenser, a pressure limiting valve and 5
metres of flexible 6mm pipe with fittings is included in the
refrigerator carton. Connect the pressure limiting valve
close to the water tap, CHECKING THE WATER FLOW IS IN
THE RIGHT DIRECTION.
Ensure water connection is 1/2" BSP male threaded outlet.
Tape the 6mm water line to the wall and floor to ensure it
is not compressed when the refrigerator is pushed into the
cavity.
The water tap should be easily accessible and positioned
either in a cabinet above the refrigerator, a minimum of
2200mm above the floor, or in adjacent cabinet.
Do not use self piercing valves.

IMPORTANT NOTE: In some cases a reverse osmosis
water filter system may not be able to maintain the
minimum pressure consistently.

PLUMBING REQUIREMENTS

Water Supply Line

Water Pressure 2.4–8.3 bar

Excess Water Line for Connection

6mm plastic line

5 m

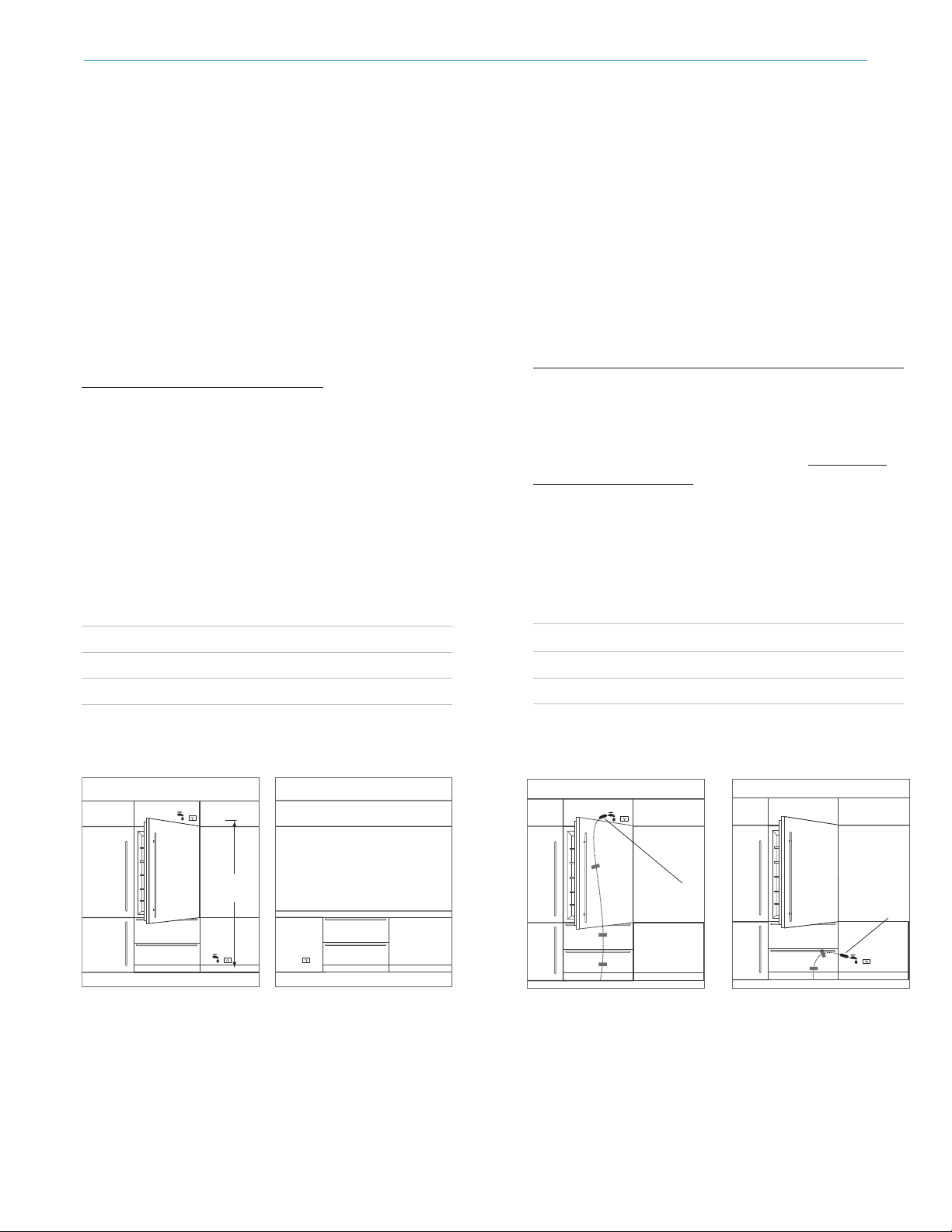

1.

2,200 mm

FROM

FLOOR

2.

Designer Series.
Tall models. Alternative
location of power and water
supply depending on ease of
access.

Designer Series.
Under bench model.
Location of power.

1.

pressure

limiting valve

6mm flexi hose

& tape to wall

1. Designer Series.
Water supply above fridge.
Location of 6mm flexible hose.
Tape to wall and floor with
pressure limiting valve next to
tap.

pressure

limiting valve

6mm flexi hose

& tape to wall

2.

2. Designer Series.
Water supply beside fridge.
Location of 6mm flexible hose.
Tape to wall and floor with
pressure limiting valve next to
tap.

| 7

Designer Series Refrigeration

Stainless Steel Panels

The outdoor model requires the use of Sub-Zero stainless
steel outdoor accessory panels. Stainless steel panels are
available through an authorized Sub-Zero dealer.

The thickness of indoor stainless steel panels is 19 mm and
outdoor stainless steel panels is 38 mm. The depth of each
Designer Series model is 610 mm. Allow for panel thick­ness when planning the finished opening depth.

Reveals of 3 mm are typical, however, the reveal between
the upper and lower outdoor stainless steel panels is 6 mm
to accommodate the lock.

Custom Panels

For Designer Series models, custom door/drawer panels
and handle hardware must be provided.

The thickness of the custom panel can vary. A minimum
16 mm thick panel is required, but the thickness can be
increased provided it does not exceed the maximum panel
weight indicated in the chart below. The depth of each
Designer Series model is 610 mm. Allow for panel thick­ness when planning the finished opening depth. Refer to
the full-scale template on page 12.

Reveals between panels can vary, 3 mm reveals are typical.

CAUTION

As reveals between cabinetry and the unit decrease,
severe finger pinching can occur while the door is
closing.

Finish all sides of the custom panels. They will be visible
when the door/drawer is open.

D-style handles are recommended. Locate the door
handle near the edge of the panel opposite the hinge and
centered top to bottom. Locate the drawer handles near
the top edge of each panel. Stainless steel tubular and
pro handles are avail able through an authorized Sub-Zero
dealer.

PANEL REQUIREMENTS

WEIGHT PER PANEL MAX

457 mm Column 20 kg
610 mm Column 27 kg
762 mm Column 34 kg
914 mm Column 34 kg

WEIGHT PER PANEL MAX

762 mm Tall (door) 22 kg
914 mm Tall (door) 27 kg
Drawer Panel 7 kg

PANEL THICKNESS MIN

All Panels 16 mm

| 8

Designer Series Refrigeration

Custom Panels

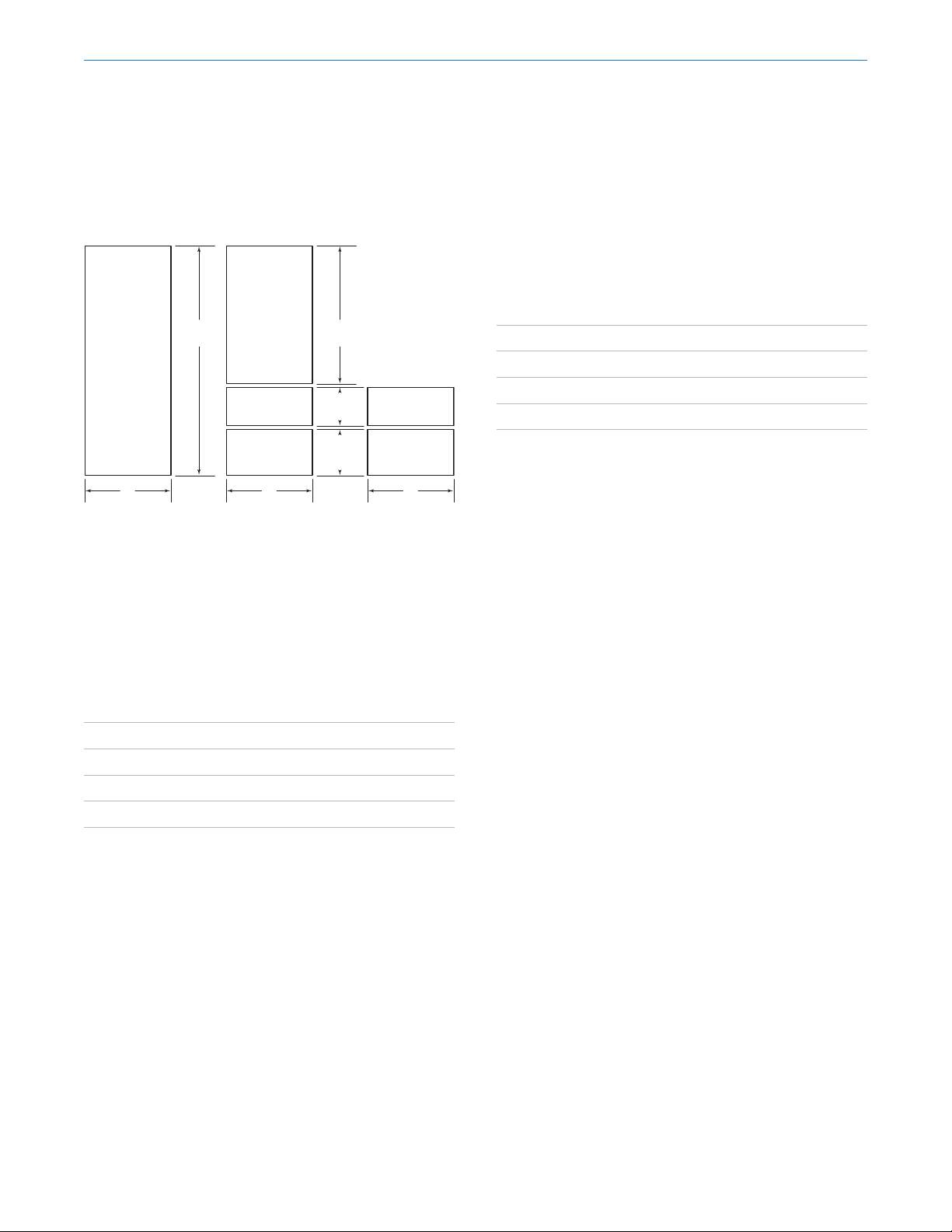

TYPICAL PANEL DIMENSIONS

2029

mm

W

Column Tall Drawer

1254

mm

345
mm

424
mm

WW

Typical panel dimensions are based on a 2134 mm finished
height for column and tall models and 876 mm for drawer
models, with a 102 mm toe kick and 3 mm reveals. Panel
dimensions must be adjusted accordingly for all other
installations. Refer to the illustration for panel height and
the chart below for panel width.

DUAL INSTALLATION

For dual installations, refer to the illustration for panel
height and the chart below for panel width.

PANEL WIDTH—DUAL INSTALLATION W

457 mm Model

610 mm Model

762 mm Model

914 mm Model

452.5mm

605.5 mm

757.5 mm

909.5 mm

PANEL WIDTH W

457 mm Model 451 mm

610 mm Model 604 mm

762 mm Model 756 mm

914 mm Model 908 mm

9 | English

Designer Series Refrigeration

Custom Panels

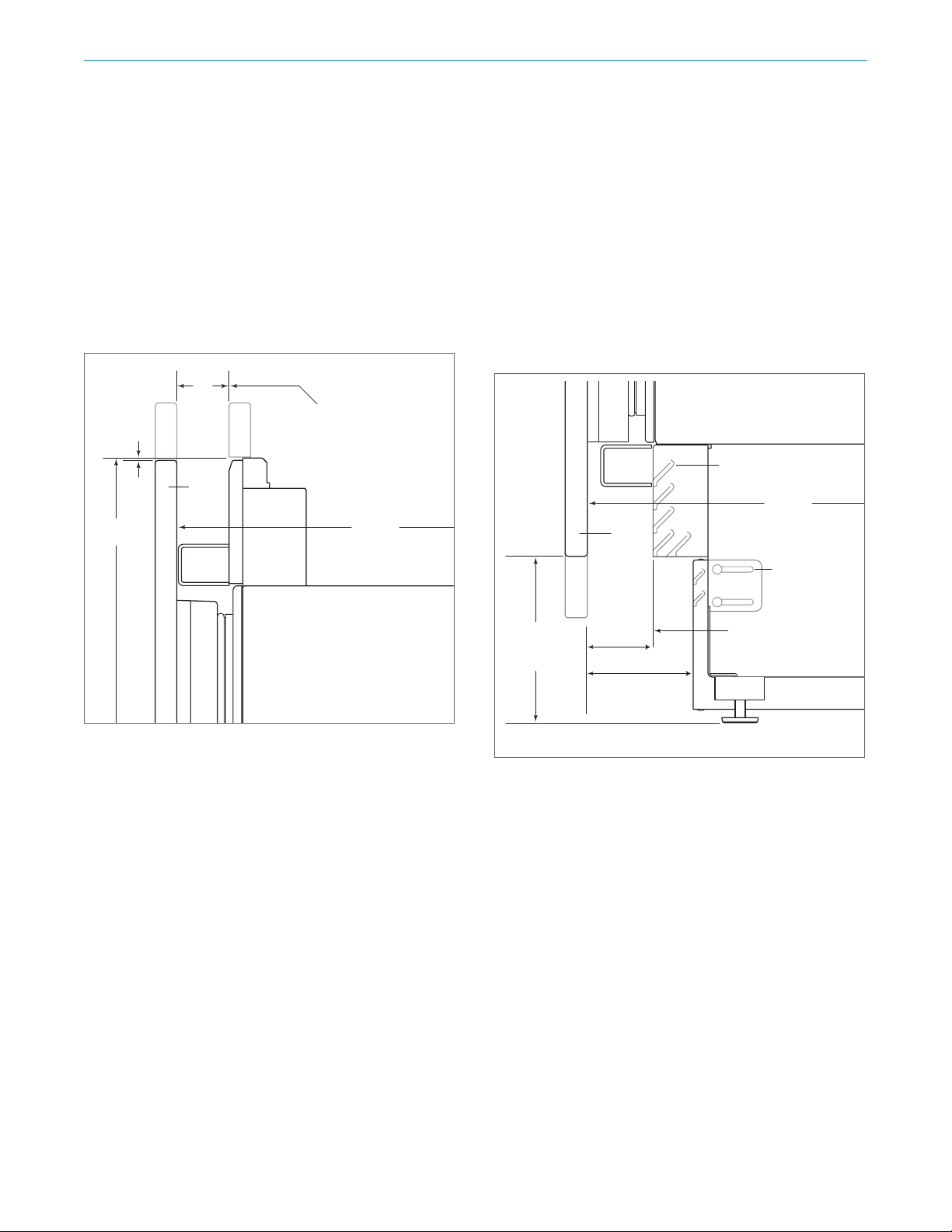

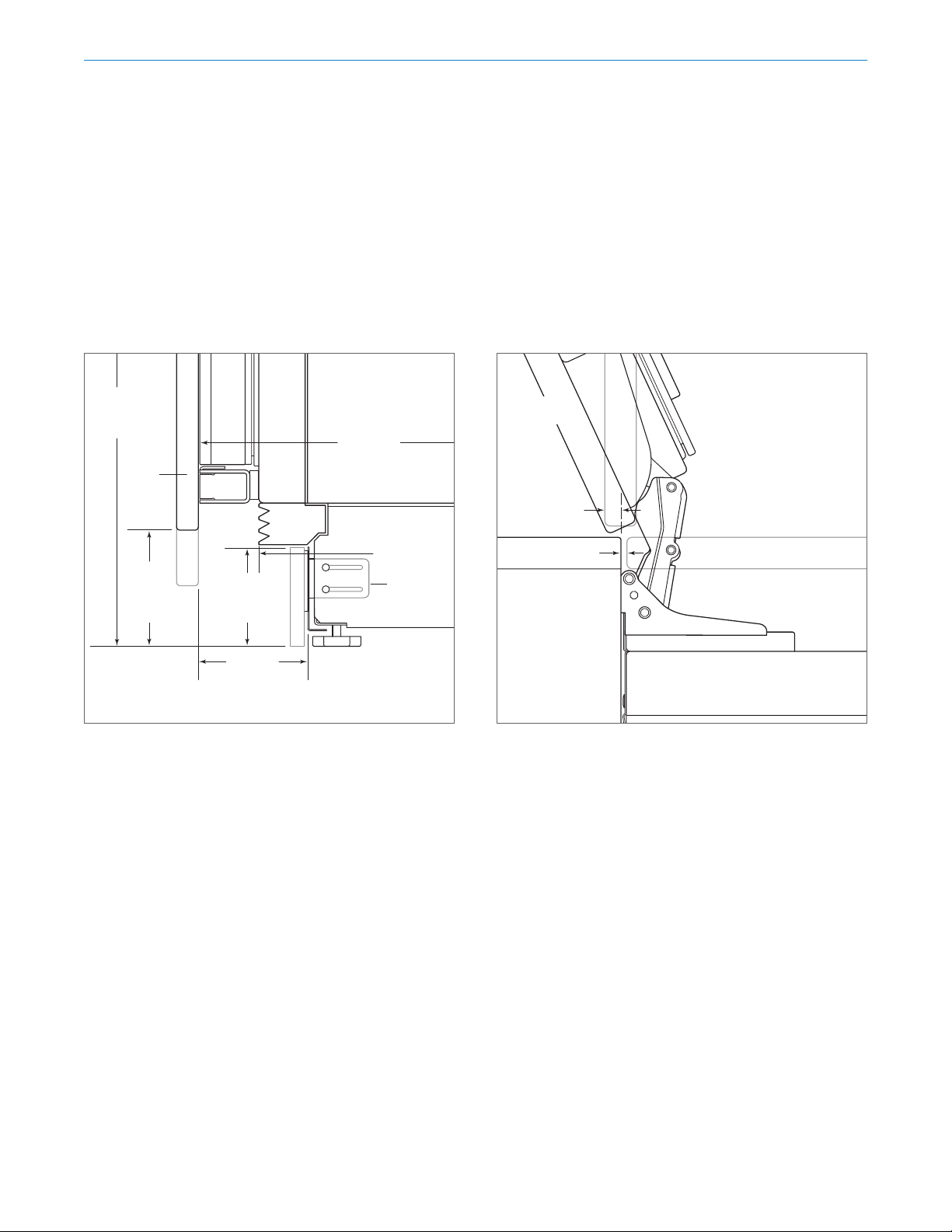

DOOR PANEL HEIGHT

The height of the custom door panel can extend beyond
the typical panel height, provided it does not exceed the
weight limit. Refer to the illustration below.

45

2134

mm

3 mm

mm

DOOR
PANEL

HINGE

A DECORATIVE VALANCE

CANNOT EXTEND

BEYOND THIS PLANE

610 mm

TO BACK OF UNIT

TOE KICK CLEARANCE

For indoor models only, the height of the toe kick area can
extend beyond the typical toe kick height, provided it does
not exceed the dimensions in the illustration below. Toe
kick heights from 51 mm to 98 mm require a reduced toe
kick accessory available through an authorized Sub-Zero
dealer.

VENTED

LOUVERS

610 mm

TO BACK OF UNIT

29 mm

MAX

TOE KICK

ADJUSTMENT

A DECORATIVE TOE KICK

CANNOT EXTEND

BEYOND THIS PLANE

50 mm*

TO

152 mm

FROM FLOOR

HINGE**

DOOR

PANEL

Min 63mm

Max 92mm

Upper valance—column and tall (side view)

*50 mm to 98 mm requires sales accessory.
**Column models only.

Toe kick (side view)

| 10

Designer Series Refrigeration

Standard Handles

Optional stainless steel tubular and pro handles are avail­able through an authorized Sub-Zero dealer.

Refer to the chart below for standard handle lengths for
Designer Series models.

HANDLE LENGTH TUBULAR PRO

Column Door 1273 mm 1229 mm

Tall Door 845 mm 800 mm

610 mm Drawer 540 mm 495 mm

762 mm Drawer 692 mm 648 mm

914 mm Drawer 845 mm 800 mm

11 | English

Designer Series Refrigeration

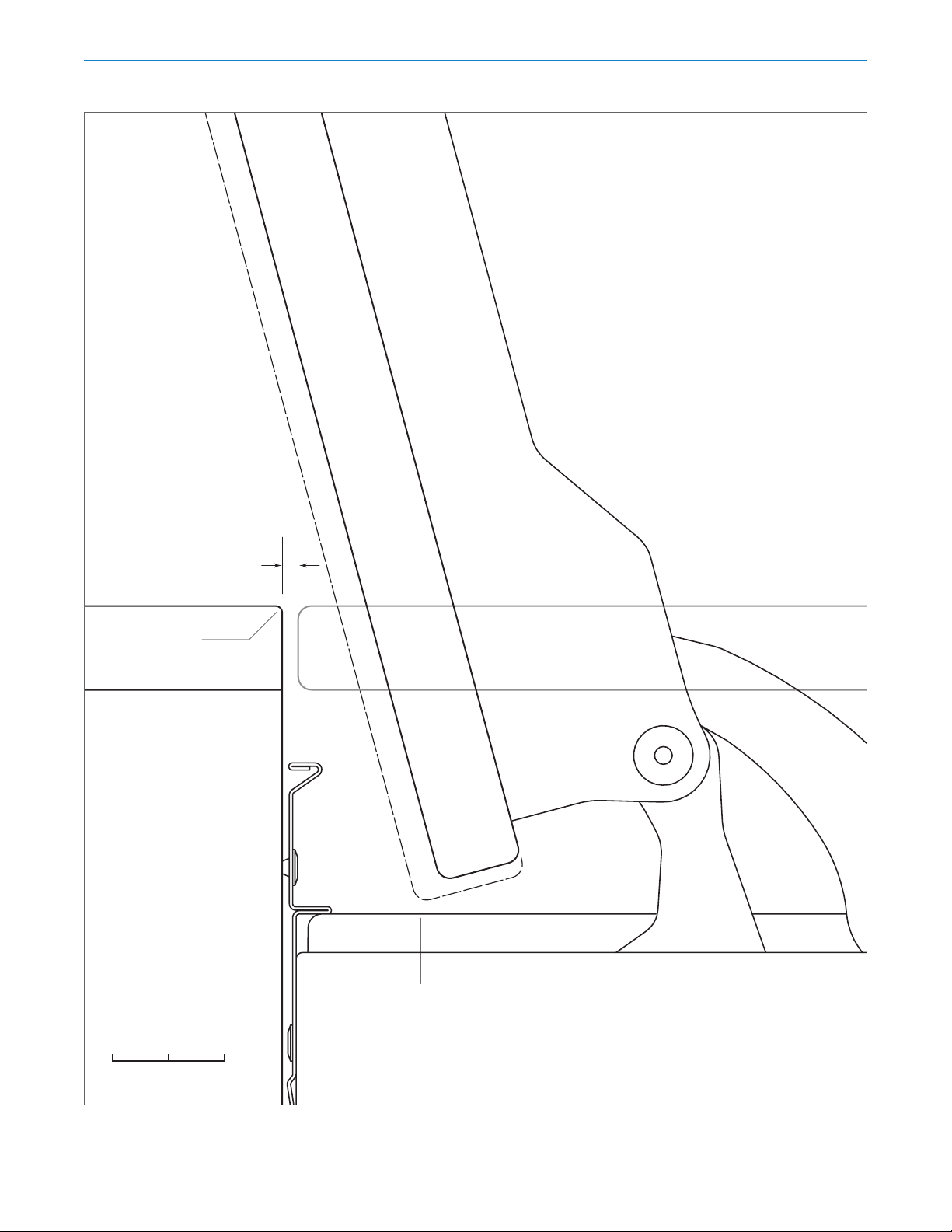

Maximum Door Opening

FULL-SCALE TEMPLATE

As the panel width and/or depth increases,
so does the potential for panel interference.
Interference may be minimized by using
the 90° door stop.

3 mm REVEAL

POTENTIAL

INTERFERENCE

ADJACENT

CABINETRY

19 mm PANEL

DOOR OPEN

MAXIMUM 105°

DOOR CLOSED

19 mm PANEL

25 mm0

SCALE

Maximum door opening (top view)

POTENTIAL INTERFERENCE

| 12

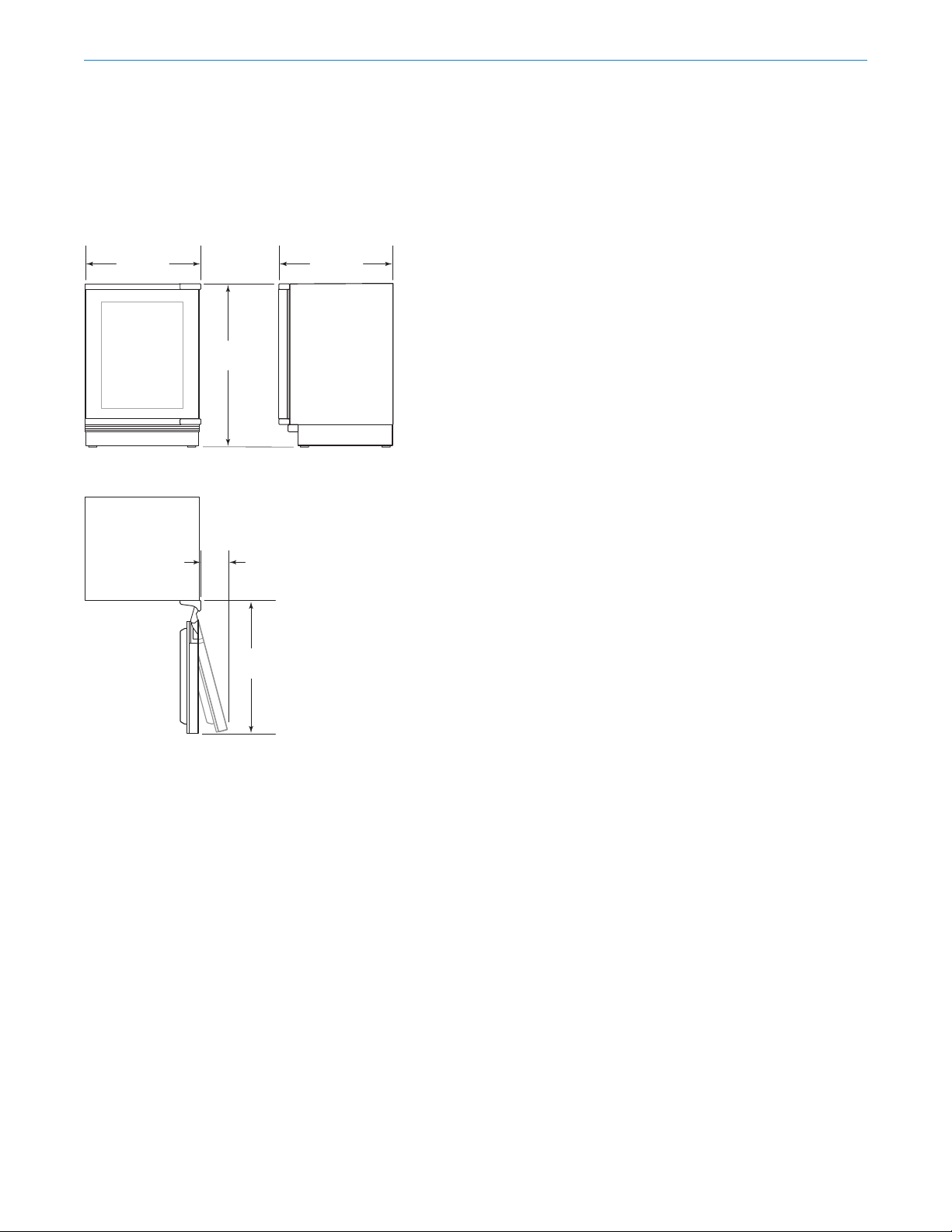

Designer Series Undercounter Refrigeration

Designer Series Undercounter Refrigeration

The Sub-Zero Designer Series Undercounter Refrigeration
is a helpful addition to a master suite, bar, home office, or
media room. Choose from an all refrigerator or beverage
center. The design flexibility of these compact yet roomy
units makes them all the more welcome in any room.
They are ready to be fitted with a custom or stainless steel
panel.

Features and specifications are subject to change at any
time without notice.

Throughout this guide, dimensions may vary by ± 3 mm.

DESIGNER SERIES UNDERCOUNTER MODELS

ICBDEU2450R ICBDEU2450BG

13 | English

Designer Series Undercounter Refrigeration

HEIGH

Overall Dimensions

UNDERCOUNTER MODELS IMPORTANT NOTE: Overall dimensions do not include

panels or handles. Dimensions will vary with panel

610 mm 587 mm

876
mm

T DIMENSIONS ± 13 mm

thickness.

245
mm

673
mm

Model ICBDEU2450R, ICBDEU2450BG

| 14

SIDE VIEWF

NOTE: 89 mm

Designer Series Undercounter Refrigeration

Opening Dimensions

UNDERCOUNTER MODELS

620 mm

OPENING

DEPTH

876 mm

OPENING

HEIGHT

finished returns will be visible and should be finished to match cabinetry.

TOP VIEW

610 mm

OPENING WIDTH

RONT VIEW

Dual Installation

When installing two units side by side in a dual installa­tion, the opening width is the width of the two units added
together. A dual installation kit will be required for this
installation. If a dual installation kit is not specified, a mini­mum 51 mm filler strip is required between the units.

Dual installation kits are available through an authorized
Sub-Zero dealer. For questions regarding the installation,
contact your authorized Sub-Zero dealer.

DUAL OPENING WIDTH W

Two 610 mm Models 1222 mm

Dual installation kit required.

89 mm

FINISHED

RETURN

610 mm

FRAMELESS

CABINETRY

19 mm

TYPICAL

89 mm

FINISHED

RETURN

610 mm

CABINETRY

FRAMED

19 mm

TYPICAL

FILLER

The depth of each model is 610 mm. Allow for panel
thickness when planning the finished opening depth. A
minimum 89 mm finished return is required on all sides
of the opening. Framed cabinets will require additional
finished filler material behind the face frame for a proper
installation. Refer to the illustration.

15 | English

Designer Series Undercounter Refrigeration

Electrical Requirements

Installation must comply with all applicable electrical
codes.

International models from the factory require a 220-240 V
AC, 50/60 Hz electrical supply, fused at the correct rating
for the unit.

The electrical supply should be easily accessible and
positioned in an adjacent cabinet.

ELECTRICAL REQUIREMENTS

Power Supply 220-240 V AC, 50/60 Hz

Circuit Breaker 10 amp

Receptacle grounding-type (earthed)

Custom Panel

For all models excluding stainless steel, a door panel and
handle must be provided. Refer to the panel requirements
and custom panel dimensions charts.

Do not install a solid panel on a glass door unit. A solid
door is available as a sales accessory and must be installed
if a solid panel is specified. Service may be required to
install the door. Contact an authorized Sub-Zero dealer
for more information. Overall dimensions are the same for
glass and solid door panels.

Finish all sides of the custom panel. They may be visible
when the door is open or through the window of a glass
door model.

A D-style handle is recommended. Locate the door handle
near the edge of the panel opposite the hinge and cen­tered top to bottom. Stainless steel tubular and pro handles
are available through an authorized Sub-Zero dealer.

CAUTION

As reveals between cabinetry and the unit decrease,
severe finger pinching can occur while the door is
closing.

Designer Series.
Undercou
Location of power.

nter model.

| 16

Designer Series Undercounter Refrigeration

Custom Panel

The panel cannot exceed the maximum panel weight
indicated in the chart below. The depth of each model
is 587 mm.

PANEL REQUIREMENTS

Panel Weight 10 kg max

Panel Thickness 16 mm min– 19 mm max

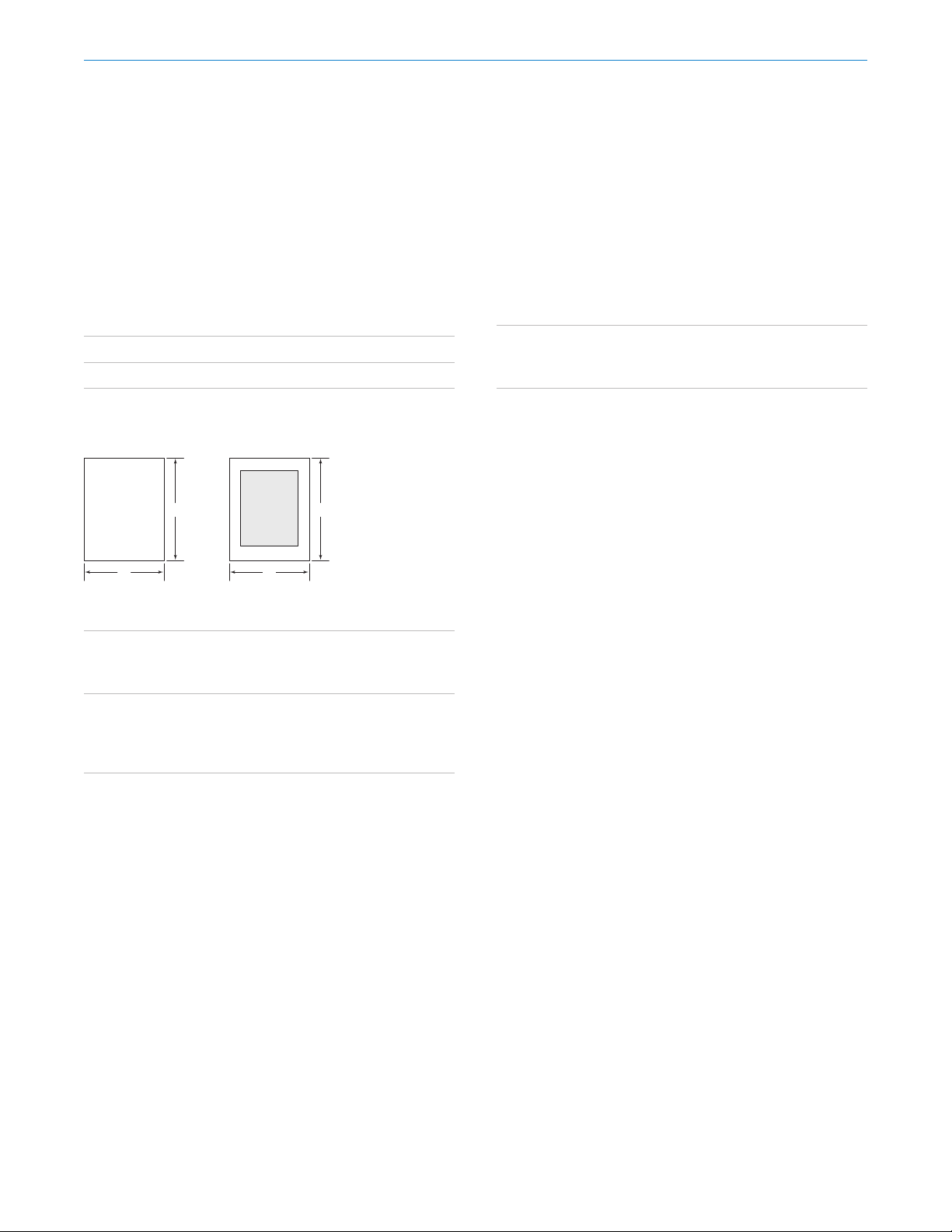

TYPICAL PANEL DIMENSIONS

H

W

PANEL DIMENSIONS

MODEL W H

ICBDEU2450R 604 mm 772 mm
ICBDEU2450BG 604 mm 772 mm

STILES / RAILS* MIN

Stiles 83 mm
Top Rail 89 mm
Bottom Rail 114 mm

*Model ICBDEU2450BG.

W

H

DUAL INSTALLATION

For dual installations, refer to the chart below for typical
panel dimensions.

PANEL DIMENSIONS—DUAL INSTALLATION

MODEL W H

ICBDEU2450R 605.5 mm 772 mm
ICBDEU2450BG 605.5 mm 772 mm

17 | English

Designer Series Undercounter Refrigeration

Custom Panel

TOE KICK CLEARANCE

The height of the toe kick area can extend beyond the
typical toe kick height, provided it does not exceed the
dimensions in the illustration below.

876 mm

TYPICAL

PRODUCT

HEIGHT

DOOR
PANEL

51 mm

TO

114 mm

FROM

FLOOR

*Not included. Dimension will vary as the product height increases or decreases
from the typical product height.

HINGE

86 mm*

DECORATIVE

KICKPLATE

HEIGHT

89 mm

MAX DEPTH

587 mm

TO BACK OF UNIT

DECORATIVE KICKPLATE

CANNOT EXTEND

BEYOND THIS

POINT

29 mm

KICKPLATE

ADJUSTMENT

MAXIMUM DOOR OPENING

As the panel width and/or depth increases, so does the
potential for panel interference. Interference may be
minimized by using the 90° door stop.

DOOR OPEN

MAXIMUM 115°

10 mm

REVEAL

3 mm

ADJACENT

CABINETRY

DOOR
OPEN

90°

DOOR CLOSED

19 mm PANEL

Toe kick clearance (side view)

Maximum door opening (top view)

| 18

Designer Series Undercounter Refrigeration

Standard Handles

Optional stainless steel tubular and pro handles are avail­able through an authorized Sub-Zero dealer. Refer to the
chart below for standard handle lengths.

HANDLE LENGTH TUBULAR PRO

ICBDEU2450R 614 mm 572 mm

ICBDEU2450BG 614 mm 572 mm

Sub-Zero, Sub-Zero & Design, Sub-Zero & Snowflake Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, Wolf, Wolf &
Design, Wolf Gourmet, W & Design, red colored knobs, Cove, and Cove & Design are registered trademarks and service marks of Sub-Zero Group, Inc. and its subsidiaries.
All other trademarks are property of their respective owners in the United States and other countries.

19 | English

Warranty

Sub-Zero International Limited Warranty

FOR RESIDENTIAL USE

These Warranty Terms and Conditions (‘Warranty’) constitute your agreement with Sub-Zero Group Australia Pty Ltd (ACN
610 807 899) (‘Sub-Zero’) and will apply to your service order. The benefits given by this Warranty are in addition to all
consumer guarantees and other rights and remedies prescribed by the Australian Consumer Law and any other applicable
laws.

Our products come with guaran
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.

In addition to your rights and remedies under the Australian Consumer Law, Sub-Zero provides customers with a Warranty
where, if any part of a Sub-Zero Product is found upon inspection by an authorised Sub-Zero representative or an associated
licensed technician supplied by either Sub-Zero or a relevant approved supplier (including a Sub-Zero factory certified
service) (‘Service Representative’) to be defective in materials or workmanship, Sub-Zero will repair or replace the part free of
charge as follows:

tees that cannot be excluded under the Australian Consumer Law. You are entitled to a

FULL TWO YEAR WARRANTY* (**Outdoor product full one year warranty)

For two years from the date of original installation, this Sub-Zero product warranty covers all parts and labour to repair or replace,
under normal residential use, any part of the product that proves to be defective in materials or workmanship. All service provided
by Sub-Zero under the above warranty must be performed by Sub-Zero factory certified service, unless otherwise specified by
Sub-Zero, Inc. Where the Service Representative is unable to identify any fault in the product, Sub-Zero may require the consumer
to provide proof that the product is defective. For the avoidance of doubt, defective products or parts become Sub-Zero’s
property. Service will be provided during normal business hours.

FULL FIVE YEAR SEALED SYSTEM WARRANTY*

For five years from the date of original installation, this Sub-Zero product warranty covers all parts and labour to repair or replace,
under normal residential use, these parts that prove to be defective in materials or workmanship: compressor, condenser,
evaporator, drier and all connecting tubing. All service provided by Sub-Zero under the above warranty must be performed by
Sub-Zero factory certified service, unless otherwise specified by Sub-Zero, Inc. Where the Service Representative is unable to
identify any fault in the product, Sub-Zero may require the consumer to provide proof that the product is defective. For the
avoidance of doubt, defective products or parts become Sub-Zero’s property. Service will be provided during normal business
hours.

TERMS APPLICABLE TO EACH WARRANTY*

The warranty applies only to products installed for normal residential use. This warranty does not cover any parts or labour to
correct any defect caused by negligence, accident or improper use, maintenance, installation, service or repair.

CLAIM PROCEDURE*

In order to claim the Warranty, you must cease using the product when a fault arises, contact Sub-Zero or authourised Sub-Zero
dealer where the product was purchased to report the issue and follow Sub-Zero’s directions regarding what to do next. Sub­Zero’s general contact details are as follows:
Sub-Zero Group Australia
11-19 Bank Place
Melbourne VIC 3000
Phone: [phone] Email: [email protected]

CLAIM PROCEDURE*

Except to the extent required by law, all consumer guarantees, representations, warranties, terms and conditions in relation to the
products (whether implied or otherwise) are hereby excluded to the maximum extent permitted by law.
To the fullest extent permitted by law, Sub-Zero excludes all liability for damage or injury to any person, damage to any property
and any indirect consequential or other loss or damage.
*Stainless steel (doors, panels, handles, product frames and interior surfaces) are covered by a limited 60-day parts and labour
warranty for cosmetic defects.
*Replacement water filters and air purification cartridges are not covered by the product warranty.
**Full one year warranty applies to outdoor product. Product must be approved for outdoor use, designated by model and serial
number.

| 20

subzero-wolf.com.au
