INTERNATIONAL DESIGN GUIDE

CONTENTS

Built-In Refrigeration 4

Integrated Refrigeration 27

Wine Storage 46

Undercounter Refrigeration 63

Features and specifications indicated herein and on our website are subject to change at any time without notice. Check our website, subzero.com, for the most up-to-date specifications.

IMPORTANT NOTE

International models from the factory designed without a transformer require a 220/240 V AC, 50/60 Hz electrical supply, fused at the correct rating for the unit. If required by local or national codes, the power cord can be easily replaced using the power inlet device.

International models using a factory installed transformer require a 220/240 V AC, 50/60 Hz electrical supply, fused at the correct rating for the unit. These models will come equipped with Schuko power cords. The power cord may need to be replaced depending on local and national codes. The USA power cord that is supplied with the product must be disconnected with the appropriate transformer output to be connected in its place.

The information and images in this guide are the copyright property of Sub-Zero Freezer Company, Inc. Neither this book nor any information or images contained herein may be copied or used in whole or in part without the express written permission of Sub-Zero Freezer Company, Inc.

SUB-ZERO®is a registered trademark of Sub-Zero Freezer Company, Inc.

WELCOME TO SUB-ZERO

We make the ultimate built-in, integrated and undercounter refrigerators, freezers and wine storage units. We offer more solutions to your daily design problems of trying to work the largest appliance into a home without being obtrusive. Placing refrigeration in the home is no longer a problem, but, rather, an opportunity to exercise your creativity.

Sub-Zero has rethought traditional built-in refrigeration, a category it pioneered, with over 60 years of experience. When our complete line of configurations— all refrigerator and all freezer, over-and-under, or side-by-side—are coupled with overlay or stainless steel design alternatives, the result is unlimited flexibility in satisfying your client‘s needs for residential refrigeration.

Created to blend invisibly into your home‘s decor, the Integrated line lets you incorporate refrigeration anywhere in the house— the kitchen, master suite, media room or workout room. These tall units or two-drawer base refrigerators, freezers and combination units can be hidden inside the furniture or cabinetry of your choosing.

Sub-Zero is breaking with conventional ways of offering Wine Storage for designers and their clients. Our Built-In and Integrated models, along with the free-standing Model I424FS, offer unlimited design and storage capabilities.

Comprehensive installation instructions are shipped with each model. Refer to those instructions in preparing and installing all Sub-Zero products. These instructions along with product specifications and downloadable 2D and 3D CAD files, as well as pdf files can be found on our website, subzero.com.

CONTACT INFORMATION

Website: subzero.com

As you follow these instructions, you will notice warning and caution symbols. This blocked information is important for the safe and efficient installation of Sub-Zero equipment. There are two types of potential hazards that may occur during installation.

signals a situation where minor injury or product damage may occur if you do not follow instructions.

states a hazard that may cause serious injury or death if precautions are not followed.

Another footnote we would like to identify is IMPORTANT NOTE: This highlights information that is especially relevant to a problem-free installation.

Model I695/O Overlay

Model I695/S Classic Stainless Steel

BUILT-IN REFRIGERATION

Sub-Zero’s Built-In line offers you the most complete set of design options in built-in refrigeration for all of its models, from the beauty of the overlay models to the professional treatment of the wrapped stainless steel doors.

Glass doors are available on our Models I601R, I611 and I650. They each come in a framed, overlay and stainless steel design. Model ICB648PROG also features a glass door in its classic stainless steel look.

In the illustrations, we have shown the two different design configurations of the overlay and stainless steel units applied to Model I695. Please note how we qualify the different looks with the model number.

Overlay models will come with no handle hardware, because the beauty of this design is that you can match the surrounding cabinetry hardware; however, we do offer optional handles as sales accessories. The new ice and water dispensing Models I685 and I695 are able to accept overlay panels. Overlay models will come with a standard 279 mm panel grille that will accept decorative panel inserts. Models I601R, I601RG and I601F are only available with the louvered grille. No panel grille option is available.

All stainless steel models are offered in the classic stainless steel finish. Stainless steel models come with a standard 279 mm heavyduty grille, 25 mm diameter stainless steel handles and a stainless steel kickplate.

All grilles will be offered as options in 25 mm increments from 254 mm to 381 mm and can be ordered as sales accessories. Models I601R, I601RG, I601F, ICB648PRO and ICB648PROG are the exception and are available only with a 279 mm grille.

An important step in assuring a successful plan is to make sure that the actual equipment shipped to your installation site matches the design you have ordered. Each of these design options has specific installation requirements, which means it is vital that the unit match your planning and space needs.

914 mm

1854

914 mm 1067 mm 1067 mm 1219 mm 1219 mm 1219 mm 1219 mm

2134

914 mm

1854

914 mm

1854

762 mm

2134

914 mm

2134

914 mm

2134

BUILT-IN REFRIGERATION

These illustrations represent the full line of Sub-Zero Built-In models shown in the stainless steel design application with heavy-duty grille. Models ICB648PRO and ICB648PROG are available as built-in or free-standing units in classic stainless steel only.

For information regarding specific Built-In models, refer to the illustrations in this section. Regardless of the specific design application, overlay or stainless steel, the interior specifications of each model are identical.

With the installation of a harness kit, these appliances are Star-K compliant to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org. Models ICB648PRO and ICB648PROG are Star-K certified from the factory with no extra wiring harness required. For details about the harness kit, contact your Sub-Zero dealer.

ALL REFRIGERATOR | ALL FREEZER

MODEL I601R

All Refrigerator

MODEL I601RG

All Refrigerator

with Glass Door

OVER-AND-UNDER

762 mm

2134

MODEL I601F

All Freezer

MODEL I611 MODEL I611G

MODEL I650

with Glass Door

SIDE-BY-SIDE

MODEL I661 MODEL I642 MODEL I685

Ice | Water

Dispensing

MODEL I632 MODEL I695

Ice | Water

Dispensing

MODEL

ICB648PRO

Free-Standing

or Built-In

Comprehensive installation instructions are shipped with each model. Refer to those instructions in preparing and installing all Sub-Zero products. The instructions can also be found on our website, subzero.com.

MODEL I650G

with Glass Door

MODEL

ICB648PROG

Free-Standing

or Built-In

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer.

BUILT-IN FEATURES

Overlay models blend seamlessly into your overall room design and complement surrounding cabinetry. You add decorative hardware. Overlay models come with a panel grille that will accept decorative panel inserts. The new ice and water dispensing Models I685 and I695 are also available in the overlay application.

Stainless steel models feature wrapped doors, 25 mm diameter stainless steel handles and a heavy-duty grille designed specifically to enhance the aesthetics of today's professional looking kitchens. All Built-In stainless steel models are offered in the classic stainless steel finish.

Dual Refrigeration System. All Built-In combination models have the Sub-Zero dual refrigeration system, which ensures the freshest food and energy efficiency at the same time. You have precise independent control of the refrigerator and freezer compartments. In addition to two compressors, the PRO 48 has three separate evaporators to keep foods fresher longer and prevent odor transfer.

Glass Door. Model I601RG is an all refrigerator unit featuring a glass door. Models I611G and I650G are over-and-under combination units with a glass door on the refrigerator. These glass door models come in overlay and stainless steel designs. The side-by-side Model ICB648PROG features a glass door on the refrigerator side and comes in classic stainless steel only.

Stainless Steel. The PRO 48 (Models ICB648PRO and ICB648PROG) feature stainless steel construction inside and out with classic finish for professional strength and beauty.

Ice and Water Dispensing. Models I685 and I695 feature a dispenser that gives you both ice and chilled water through the refrigerator door.

Built-In Design. True cabinet depth design means every inch of the interior is easy to see and to reach. The PRO 48 can be built in or, with the free-standing accessory kit, used in a freestanding application.

Fresh Food. High-humidity crisper drawer with removable dividers is large and deep, with smooth sides for easy cleaning. The top refrigerated drawer on the PRO 48 features a tight-seal, retracting glass crisper lid that keeps produce exceptionally humid and fresh.

Electronic Controls. Up-front touch controls give you digital readings for quick, easy-to-read reference. The microprocessor provides supreme control, accurate to within one degree of preset temperatures, automatic defrosting that senses, then adapts to your use patterns, and a service indicator light. The PRO 48 also features exterior temperature displays.

Advanced Lighting. Bright lighting spreads even illumination throughout the compartment. The source of the illumination is concealed. The PRO 48 top LED lights bathe upper compartments in a soft glow. On the refrigerator side, channeled sidewall LEDs can even serve as a door-area night-light for Model ICB648PROG.

Adjustable Shelves. Cantilevered glass shelves make repositioning quick and easy. They are easy to clean, spill proof and steel reinforced for durability. The PRO 48 features glass shelves with stainless steel trim in the refrigerator and 100% stainless steel shelves in the freezer.

Slide-Out Bins. An exclusive PRO 48 feature— these versatile stainless steel bins hold small items, remove easily, and fit neatly under any shelf.

Door Shelves. All door shelves are adjustable for complete flexibility and convenience.

Dairy Storage. Dairy compartment is adjustable, with easy, one-door access, compartment dividers and a clean design. The dairy shelf is magnetically sealed to maintain freshness.

Automatic Ice. Ice maker provides high-quality, crescent-shaped ice that won‘t stick to the side of the glass.

Energy Efficient. Our solid core doors improve insulation and structural integrity. Magnetic gaskets around all doors give extra-tight seals.

Kickplate. Solid, adjustable kickplate gives a true built-in look and conforms to American Institute of Architects standards.

MODEL I601R

ALL REFRIGERATOR

MODEL I601RG

ALL REFRIGERATOR WITH GLASS DOOR

MODEL I601F

ALL FREEZER

MODEL OPTIONS

Overlay Design I601R/O

Classic Stainless Steel I601R/S

SPECIFICATIONS

Overall Width 914 mm

Overall Height 1854 mm

Overall Depth 610 mm

Refrigerator Capacity 564 L

Min Height Required 1848 mm

Door Swing Clearance 916 mm

Specify Door Swing LH or RH

Shipping Wt (O) 177 kg

Shipping Wt (S) 191 kg

REFRIGERATOR FEATURES

4 Adjustable Glass Shelves

1 Stationary Glass Shelf

High-Humidity Compartment with Dividers

Adjustable Roll-Out Deli Basket

3 Adjustable Door Shelves

Adjustable Dairy Compartment

Egg Container

MODEL OPTIONS

Overlay Design I601RG/O

Classic Stainless Steel I601RG/S

SPECIFICATIONS

Overall Width 914 mm

Overall Height 1854 mm

Overall Depth 610 mm

Refrigerator Capacity 569 L

Min Height Required 1848 mm

Door Swing Clearance 916 mm

Specify Door Swing LH or RH

Shipping Wt (O) 181 kg

Shipping Wt (S) 195 kg

REFRIGERATOR FEATURES

4 Adjustable Glass Shelves

1 Stationary Glass Shelf

High-Humidity Compartment with Dividers

Triple-Pane UV Resistant Glass Door

Optional Accessory Roll-Out Deli Basket Available

Egg Container

MODEL OPTIONS

Overlay Design I601F/O

Classic Stainless Steel I601F/S

SPECIFICATIONS

Overall Width 914 mm

Overall Height 1854 mm

Overall Depth 610 mm

Freezer Capacity 547 L

Min Height Required 1848 mm

Door Swing Clearance 916 mm

Specify Door Swing LH or RH

Shipping Wt (O) 171 kg

Shipping Wt (S) 184 kg

FREEZER FEATURES

Automatic Ice Maker

3 Adjustable Wire Shelves

1 Stationary Glass Shelf

3 Freezer Storage Drawers

5 Adjustable Door Shelves

0 1

R G

MODEL I601R MODEL I601RG MODEL I601F

All models are shown in the stainless steel design application.

ACCESSORIES

Contact your Sub-Zero Dealer

Side panels in white and classic stainless steel

Full-length framed handles

Decorative overlay handles

Roll-out deli basket (Model I601RG)

Dozen egg container with lid

Harness kit for Star-K compliance

90˚ and 105˚ door stop kits

All models are shown in the stainless steel design application.

MODEL I611

OVER-AND-UNDER

MODEL OPTIONS

Overlay Design I611/O

Classic Stainless Steel I611/S

MODEL I611G

OVER-AND-UNDER WITH GLASS DOOR

MODEL OPTIONS

Overlay Design I611G/O

Classic Stainless Steel I611G/S

SPECIFICATIONS

Overall Width 762 mm

Overall Height 2134 mm

Overall Depth 610 mm

Refrigerator Capacity 360 L

Freezer Capacity 110 L

Min Height Required 2108 mm

Door Swing Clearance 765 mm

Shipping Wt (O) 195 kg

Shipping Wt (S) 210 kg

REFRIGERATOR (DOOR)

3 Adjustable Glass Shelves

1 Stationary Glass Shelf

High-Humidity Compartment with Divider

Adjustable Roll-Out Deli Basket

2 Adjustable Door Shelves

Adjustable Dairy Compartment

Egg Container

FREEZER (DRAWER)

Full-Extension Roll-Out Freezer Drawer

Two-Tier Wire Storage Baskets

Automatic Ice Maker

SPECIFICATIONS

Overall Width 762 mm

Overall Height 2134 mm

Overall Depth 610 mm

Refrigerator Capacity 365 L

Freezer Capacity 110 L

Min Height Required 2108 mm

Door Swing Clearance 765 mm

Shipping Wt (O) 214 kg

Shipping Wt (S) 216 kg

REFRIGERATOR (DOOR)

3 Adjustable Glass Shelves

1 Stationary Glass Shelf

High-Humidity Compartment with Divider

Triple-Pane UV Resistant Glass Door

Optional Accessory Roll-Out Deli Basket Available

Egg Container

FREEZER (DRAWER)

Full-Extension Roll-Out Freezer Drawer

Two-Tier Wire Storage Baskets

Automatic Ice Maker

MODEL I611 MODEL I611G

MODEL I650

OVER-AND-UNDER

MODEL I650G

OVER-AND-UNDER WITH GLASS DOOR

ACCESSORIES

MODEL OPTIONS

Overlay Design I650/O

Classic Stainless Steel I650/S

SPECIFICATIONS

Overall Width 914 mm

Overall Height 2134 mm

Overall Depth 610 mm

Refrigerator Capacity 445 L

Freezer Capacity 139 L

Min Height Required 2108 mm

Door Swing Clearance 916 mm

Shipping Wt (O) 219 kg

Shipping Wt (S) 234 kg

REFRIGERATOR (DOOR)

3 Adjustable Glass Shelves

1 Stationary Glass Shelf

High-Humidity Compartment with Dividers

Adjustable Roll-Out Deli Basket

2 Adjustable Door Shelves

Adjustable Dairy Compartment

Egg Container

FREEZER (DRAWER)

Full-Extension Roll-Out Freezer Drawer

Two-Tier Wire Storage Baskets

Automatic Ice Maker

MODEL OPTIONS

Overlay Design I650G/O

Classic Stainless Steel I650G/S

SPECIFICATIONS

Overall Width 914 mm

Overall Height 2134 mm

Overall Depth 610 mm

Refrigerator Capacity 453 L

Freezer Capacity 139 L

Min Height Required 2108 mm

Door Swing Clearance 916 mm

Shipping Wt (O) 237 kg

Shipping Wt (S) 240 kg

REFRIGERATOR (DOOR)

3 Adjustable Glass Shelves

1 Stationary Glass Shelf

High-Humidity Compartment with Dividers

Triple-Pane UV Resistant Glass Door

Optional Accessory Roll-Out Deli Basket Available

Egg Container

FREEZER (DRAWER)

Full-Extension Roll-Out Freezer Drawer

Two-Tier Wire Storage Baskets

Automatic Ice Maker

Optional accessories are available through your Sub-Zero dealer.

MODEL I650

MODEL I650G

ACCESSORIES

Contact your Sub-Zero Dealer

Side panels in white and classic stainless steel

Panel, louvered or stainless steel grilles in 25 mm increments from 254 mm to 381 mm high

Full-length framed handles

Decorative overlay handles

Roll-out deli basket (Models I611G and I650G)

Dozen egg container with lid

Harness kit for Star-K compliance

MODEL I661

SIDE-BY-SIDE

MODEL I642

SIDE-BY-SIDE

MODEL I685

SIDE-BY-SIDE ICE

WATER DISPENSING

MODEL OPTIONS

Overlay Design I661/O

Classic Stainless Steel I661/S

SPECIFICATIONS

Overall Width 914 mm

Overall Height 2134 mm

Overall Depth 610 mm

Refrigerator Capacity 354 L

Freezer Capacity 249 L

Min Height Required 2108 mm

Door Swing Clearance 527 mm

Shipping Wt (O) 227 kg

Shipping Wt (S) 244 kg

REFRIGERATOR FEATURES

4 Adjustable Glass Shelves

1 Stationary Glass Shelf

High-Humidity Compartment

1 Storage Drawer

Adjustable Roll-Out Deli Basket

3 Adjustable Door Shelves

Adjustable Dairy Compartment

Egg Container

MODEL OPTIONS

Overlay Design I642/O

Classic Stainless Steel I642/S

SPECIFICATIONS

Overall Width 1067 mm

Overall Height 2134 mm

Overall Depth 610 mm

Refrigerator Capacity 459 L

Freezer Capacity 232 L

Min Height Required 2108 mm

Door Swing Clearance 649 mm

Shipping Wt (O) 245 kg

Shipping Wt (S) 264 kg

REFRIGERATOR FEATURES

4 Adjustable Glass Shelves

1 Stationary Glass Shelf

High-Humidity Compartment

1 Storage Drawer

Adjustable Roll-Out Deli Basket

3 Adjustable Door Shelves

Adjustable Dairy Compartment

Egg Container

MODEL OPTIONS

Overlay Design I685/O

Classic Stainless Steel I685/S

SPECIFICATIONS

Overall Width 1067 mm

Overall Height 2134 mm

Overall Depth 610 mm

Refrigerator Capacity 442 L

Freezer Capacity 232 L

Min Height Required 2108 mm

Door Swing Clearance 649 mm

Shipping Wt (O) 258 kg

Shipping Wt (S) 276 kg

REFRIGERATOR FEATURES

4 Adjustable Glass Shelves

1 Stationary Glass Shelf

High-Humidity Compartment

1 Storage Drawer

Adjustable Roll-Out Deli Basket

3 Adjustable Door Shelves

Adjustable Dairy Compartment

Egg Container

FREEZER FEATURES

Automatic Ice Maker

2 Adjustable Wire Shelves

1 Stationary Solid Shelf

4 Storage Drawers

5 Adjustable Door Shelves

MODEL I661 MODEL I642 MODEL I685

FREEZER FEATURES

Automatic Ice Maker

3 Adjustable Wire Shelves

1 Stationary Solid Shelf

3 Storage Drawers

5 Adjustable Door Shelves

FREEZER FEATURES

Automatic Ice Maker

2 Adjustable Wire Shelves

1 Stationary Wire Shelf

3 Storage Drawers

5 Adjustable Door Shelves

2 Juice Can Shelves

MODEL I632

SIDE-BY-SIDE

MODEL OPTIONS

Overlay Design I632/O

Classic Stainless Steel I632/S

MODEL I695

SIDE-BY-SIDE ICE

WATER DISPENSING

MODEL OPTIONS

Overlay Design I695/O

Classic Stainless Steel I695/S

All models are shown in the stainless steel design application.

SPECIFICATIONS

Overall Width 1219 mm

Overall Height 2134 mm

Overall Depth 610 mm

Refrigerator Capacity 535 L

Freezer Capacity 278 L

Min Height Required 2108 mm

Door Swing Clearance 743 mm

Shipping Wt (O) 264 kg

Shipping Wt (S) 286 kg

REFRIGERATOR FEATURES

4 Adjustable Glass Shelves

1 Stationary Glass Shelf

High-Humidity Compartment with Divider

2 Storage Drawers

Adjustable Roll-Out Deli Basket

3 Adjustable Door Shelves

Adjustable Dairy Compartment

Egg Container

FREEZER FEATURES

Automatic Ice Maker

3 Adjustable Wire Shelves

1 Stationary Solid Shelf

3 Storage Drawers

5 Adjustable Door Shelves

SPECIFICATIONS

Overall Width 1219 mm

Overall Height 2134 mm

Overall Depth 610 mm

Refrigerator Capacity 515 L

Freezer Capacity 278 L

Min Height Required 2108 mm

Door Swing Clearance 743 mm

Shipping Wt (O) 277 kg

Shipping Wt (S) 298 kg

REFRIGERATOR FEATURES

4 Adjustable Glass Shelves

1 Stationary Glass Shelf

High-Humidity Compartment with Divider

2 Storage Drawers

Adjustable Roll-Out Deli Basket

3 Adjustable Door Shelves

Adjustable Dairy Compartment

Egg Container

FREEZER FEATURES

Automatic Ice Maker

2 Adjustable Wire Shelves

1 Stationary Wire Shelf

3 Storage Drawers

5 Adjustable Door Shelves

2 Juice Can Shelves

MODEL I632 MODEL I695

ACCESSORIES

Contact your Sub-Zero Dealer

Side panels in white and classic stainless steel

Panel, louvered or stainless steel grilles in 25 mm increments from 254 mm to 381 mm high

Full-length framed handles

Decorative overlay handles

90˚ and 105˚ door stop kits

Dozen egg container with lid

Harness kit for Star-K compliance

MODEL ICB648PRO

SIDE-BY-SIDE BUILT-IN OR FREE-STANDING

MODEL ICB648PROG

SIDE-BY-SIDE WITH GLASS DOOR BUILT-IN OR FREE-STANDING

SPECIFICATIONS

Overall Width 1219 mm

Overall Height 2134 mm

Overall Depth 657 mm

Refrigerator Capacity 521 L

Freezer Capacity 331 L

Min Height Required 2121 mm

Door Swing Clearance 730 mm

Shipping Weight 390 kg

REFRIGERATOR

(Door and Two Drawers)

3 Adjustable Glass Shelves

1 Stationary Glass Shelf

2 Adjustable Slide-Out Stainless Steel Bins

1 Crisper Lid

Dividers for Drawers Included

FREEZER

(Door and Two Drawers)

Automatic Ice Maker

3 Adjustable Stainless Steel Shelves

1 Stationary Stainless Steel Shelf

1 Stainless Steel Ice Bucket

SPECIFICATIONS

Overall Width 1219 mm

Overall Height 2134 mm

Overall Depth 657 mm

Refrigerator Capacity 521 L

Freezer Capacity 331 L

Min Height Required 2121 mm

Door Swing Clearance 730 mm

Shipping Weight 397 kg

REFRIGERATOR

(Door and Two Drawers)

3 Adjustable Glass Shelves

1 Stationary Glass Shelf

2 Adjustable Slide-Out Stainless Steel Bins

1 Crisper Lid

Dividers for Drawers Included

Triple-Pane UV Resistant Glass Door

FREEZER

(Door and Two Drawers)

Automatic Ice Maker

3 Adjustable Stainless Steel Shelves

1 Stationary Stainless Steel Shelf

1 Stainless Steel Ice Bucket

ACCESSORIES

Contact your Sub-Zero Dealer

90˚ door stop kit— right or left hinge

Dozen egg container with lid

Slide-out stainless steel refrigerator bin

Refrigerator drawer dividers

Classic stainless steel side panel

Free-standing kit— includes two stainless steel side panels and top lid

MODEL ICB648PRO MODEL ICB648PROG

PLANNING INFORMATION

Although the Sub-Zero Built-In line offers a wide range of designs and configurations, the basic planning considerations for all models have much in common. As you integrate Built-In models into your overall plan, review installation requirements for your particular model(s). The Installation Specifications illustrations provide planning information for all Built-In models— overlay and stainless steel.

Allow the door(s) to open a minimum of 90˚ or you‘ll have problems removing drawers. With the door opening at 90˚, you may have to move drawers slightly to clear the door interior.

For corner installations, allow for a minimum 76 mm filler so that the door can open to 90˚. If you‘re using raised panels, consider using a wider filler.

When units are installed side by side, a filler strip is recommended. The width of this filler strip will vary depending on the configuration and panels you use.

Be sure to add the filler strip width to your finished rough opening dimension. In any installation of two units side by side without a filler strip, add an additional 13 mm to your combined numbers. This will allow for the proper width.

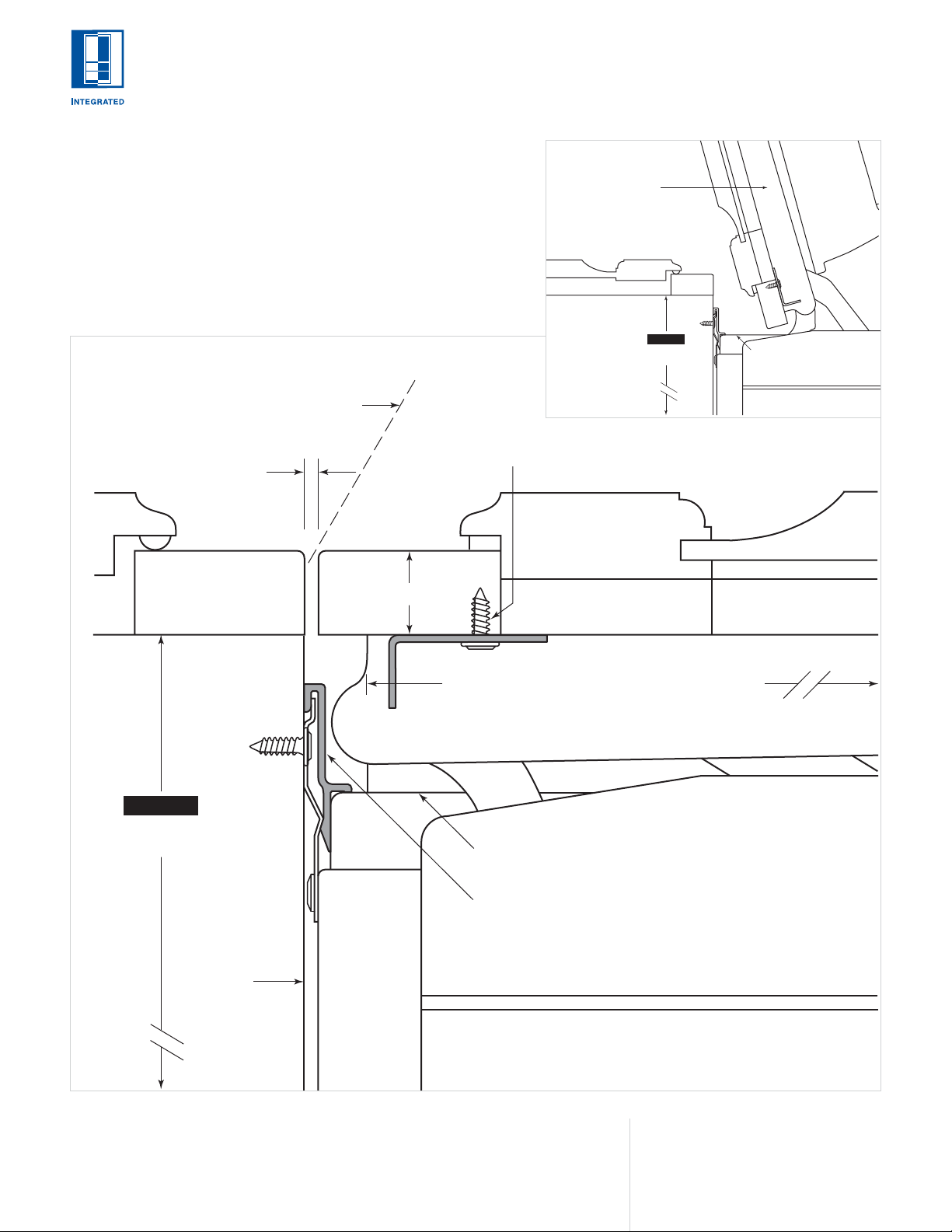

IMPORTANT NOTE: Refer to the full-scale illustrations at the end of this section for specifics on door openings and filler size alternatives.

ELECTRICAL REQUIREMENTS

IMPORTANT NOTE: The electrical outlet must be grounded. The outlet must be flush with the back wall. Refer to the Installation Specifications illustration for your model for exact placement.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

PLUMBING CONSIDERATIONS

For Built-In models with an automatic ice maker, rough in the water supply line. Connect a

6.35 mm OD copper line to the house supply, being sure to use an easily accessible shut-off valve between the supply and the refrigerator.

Do not use self-piercing valves. A saddle valve kit (4200880) is available from your Sub-Zero dealer.

For Built-In models, a line filter is required when water conditions have a high sediment content. The ice maker operates on water pressure of 1.4 bar to 6.9 bar.

IMPORTANT NOTE: In some cases a reverse osmosis water filter system may not be able to maintain the minimum water pressure consistently.

IMPORTANT NOTE: A reverse osmosis system can be used with Models ICB648PRO and ICB648PROG, provided there is constant water pressure of 1.4 bar to 8.3 bar supplied to the unit at all times.

The water line should be routed up through the floor within 13 mm from the back wall and no higher than 76 mm off the floor. If you have to

MODEL OPTIONS

Model I601R

914 mm All Refrigerator

Model I601RG

914 mm All Refrigerator with Glass Door

Model I601F

914 mm All Freezer

Model I611

762 mm Over-and-Under

Model I611G

762 mm Over-and-Under with Glass Door

Model I650

914 mm Over-and-Under

Model I650G

914 mm Over-and-Under with Glass Door

Model I661

914 mm Side-by-Side

Model I642

1067 mm Side-by-Side

Model I685

1067 mm Side-by-Side Ice | Water Dispensing

Model I632

1219 mm Side-by-Side

Model I695

1219 mm Side-by-Side Ice | Water Dispensing

Model ICB648PRO

1219 mm Side-by-Side Built-In or Free-Standing

Model ICB648PROG

1219 mm Side-by-Side with Glass Door Built-In or Free-Standing

come through the wall, make sure the water line is no more than 76 mm from the floor.

Regardless of the routing, allow 1 m of excess copper tubing to remain outside the wall or floor for easy connection to the unit. Refer to Installation Specification illustrations.

914 mm

1854 mm

914 mm

1854 mm

ALL REFRIGERATOR ALL FREEZER

Model I601R

All Refrigerator

Model I601RG

All Refrigerator with Glass Door

Model I601F

All Freezer

OVERALL DIMENSIONS

All Refrigerator | All Freezer Models

914 mm

1854 mm

610 mm

INSTALLATION

Refer to the installation instructions shipped with each Sub-Zero product for detailed specifications.

Refer to the fullscale illustrations at the end of this section for specifics on door openings and other specifications.

Model I601R

All Refrigerator

Model I601RG

All Refrigerator with Glass Door

Width 914 mm

Height 1854 mm

Depth 610 mm

Width 914 mm

Height 1854 mm

Depth 610 mm

Illustrations shown in stainless steel design.

INSTALLATION SPECIFICATIONS

All Refrigerator | All Freezer Models

Models I601R and I601RG, which do not have an ice maker, will not require the water line connection.

Dimensions are for finished rough openings.

Door swing clearances are based on stainless steel door and handle dimensions.

10 mm

FRAME

EXTENSION

606 mm

BEHIND

FRAME

Model I601F

All Freezer

Width 914 mm

Height 1854 mm

Depth 610 mm

610 mm

ROUGH

OPENING

DEPTH

ROUGH OPENING WIDTH

APPROX 914 mm

FROM BACK WALL

SHUT-OFF

VALVE

TOP VIEW

902 mm

WATER LINE

(I601F ONLY)

EXTEND

90˚

916 mm

1848 mm

ROUGH OPENING

HEIGHT TO

FINISHED

FLOORING

LOCATE ELECTRICAL

WITHIN ENTIRE SHADED AREA

LOCATE WATER SUPPLY

WITHIN BOTTOM SHADED

AREA ONLY (I601F ONLY)

610 mm

279 mm

FRONT VIEW

152 mm

1848 mm

MINIMUM HEIGHT

REQUIRED TO

FINISHED

FLOORING

(LEVELERS IN)

762 mm

2134 mm

914 mm

2134 mm

762 mm

2134 mm

914 mm 610 mm

2134 mm

OVERALL DIMENSIONS

606 mm

BEHIND

FRAME

10 mm

FRAME

EXTENSION

90˚

Over-and-Under Refrigerator/ Freezer Models

OVER-AND-UNDER

Model I611

Model I611G

with Glass Door

Model I650

Model I650G

with Glass Door

Model I611

Model I611G

with Glass Door

Width 762 mm

Height 2134 mm

Depth 610 mm

Width 762 mm

Height 2134 mm

Depth 610 mm

Illustrations shown in stainless steel design.

INSTALLATION SPECIFICATIONS

Over-and-Under Refrigerator/ Freezer Models

Model I611

A) Rough Opening Width 749 mm

B) Min Door Clearance 765 mm

Model I611G

A) Rough Opening Width 749 mm

B) Min Door Clearance 765 mm

Model I650

A) Rough Opening Width 902 mm

B) Min Door Clearance 916 mm

Model I650G

A) Rough Opening Width 902 mm

B) Min Door Clearance 916 mm

Dimensions are for finished rough openings.

Door swing clearances are based on stainless steel door and handle dimensions.

Model I650

Width 914 mm

Height 2134 mm

Depth 610 mm

610 mm

ROUGH

OPENING

DEPTH

2108 mm

MIN HEIGHT

REQUIRED TO

FINISHED

FLOORING

(LEVELERS IN)

1918

Model I650G

with Glass Door

Width 914 mm

Height 2134 mm

Depth 610 mm

EXTEND

WATER LINE

APPROX 914 mm

FROM BACK WALL

SHUT-OFF

VALVE

TOP VIEW

178 mm

LOCATE ELECTRICAL

WITHIN SHADED AREA

ROUGH OPENING WIDTH

LOCATE WATER SUPPLY

WITHIN SHADED AREA

457 mm

FRONT VIEW

152 mm

2127 mm

ROUGH OPENING

HEIGHT TO

FINISHED

FLOORING WITH

STANDARD

279 mm GRILLE

INSTALLATION

Refer to the installation instructions shipped with each Sub-Zero product for detailed specifications.

Refer to the fullscale illustrations at the end of this section for specifics on door openings and other specifications.

1067 mm

1219 mm 610 mm

2134 mm

OVERALL DIMENSIONS

606 mm

BEHIND

FRAME

10 mm

FRAME

EXTENSION

90˚

Side-by-Side Refrigerator | Freezer Models

914 mm

Model I661

Width 914 mm

Height 2134 mm

Depth 610 mm

SIDE-BY-SIDE

Model I661

Model I642

Model I685

Ice | Water Dispensing

Model I632

Model I695

Ice | Water Dispensing

Model I642

Width 1067 mm

Height 2134 mm

Depth 610 mm

INSTALLATION SPECIFICATIONS

Side-by-Side Refrigerator | Freezer Models

Model I661

A) Rough Opening Width 902 mm

B) Min Door Clearance 527 mm

Model I642

A) Rough Opening Width 1054 mm

B) Min Door Clearance 649 mm

Model I685

A) Rough Opening Width 1054 mm

B) Min Door Clearance 649 mm

1067 mm

Model I685

Ice | Water Dispensing

Width 1067 mm

Height 2134 mm

Depth 610 mm

1219 mm

Model I632

Width 1219 mm

Height 2134 mm

Depth 610 mm

Model I695

Ice | Water Dispensing

Width 1219 mm

Height 2134 mm

Depth 610 mm

Illustrations shown in stainless steel design.

610 mm

ROUGH

OPENING

DEPTH

LOCATE ELECTRICAL

WITHIN SHADED AREA

TOP VIEW

EXTEND

WATER LINE

APPROX 914 mm

FROM BACK WALL

SHUT-OFF

VALVE

178 mm

152 mm

INSTALLATION

Refer to the installation instructions shipped with each Sub-Zero product for detailed specifications.

Model I632

A) Rough Opening Width 1206 mm

B) Min Door Clearance 743 mm

Model I695

A) Rough Opening Width 1206 mm

B) Min Door Clearance 743 mm

Dimensions are for finished rough openings.

Door swing clearances are based on stainless steel door and handle dimensions.

2108 mm

MIN HEIGHT

REQUIRED TO

FINISHED

FLOORING

(LEVELERS IN)

ROUGH OPENING WIDTH

1918

LOCATE WATER SUPPLY

WITHIN SHADED AREA

457 mm

FRONT VIEW

2127 mm

ROUGH OPENING

HEIGHT TO

FINISHED

FLOORING WITH

STANDARD

279 mm GRILLE

152 mm

1219 mm

OVERALL DIMENSIONS

1219 mm

2134 mm

657 mm

766 mm

606 mm

BEHIND

FAC E

FRAME

657 mm

TO FRONT

OF FACE

FRAME

730 mm

521 mm

1219 mm

PRO 48 Side-by-Side Refrigerator | Freezer Models

PRO 48 SIDE-BY-SIDE

Model ICB648PRO

Built-In or Free-Standing

Model ICB648PROG

with Glass Door Built-In or Free-Standing

Model ICB648PRO

Model ICB648PROG

with Glass Door

Width 1219 mm

Height 2134 mm

Depth 606 mm*

657 mm**

Width 1219 mm

Height 2134 mm

Depth 606 mm*

657 mm**

*Depth from behind face frame to back of unit for standard installation. **Depth from front of face frame to back of unit for flush installation.

INSTALLATION SPECIFICATIONS

PRO 48 Side-by-Side Refrigerator | Freezer Models Built-In or Free-Standing

Models ICB648PRO and ICB648PROG can be used free-standing or installed as a standard

ROUGH

OPENING DEPTH

610 mm

STANDARD

660 mm

FLUSH

or flush built-in application. For standard built-in installations, the face frame of the unit will extend 51 mm beyond cabinetry. In flush built-in installations, the front of the face frame will be flush with surrounding cabinetry.

Dimensions are for finished rough openings.

MIN HEIGHT

REQUIRED

TO FINISHED

FLOORING

(LEVELERS IN)

2121 mm

STANDARD

2127 mm

FLUSH

ROUGH

OPENING HEIGHT

TO FINISHED

FLOORING

2127 mm

STANDARD

2137 mm

FLUSH

MIN 914 mm 1

/4" COPPER

WATER LINE

SHUT-OFF

VALVE

TOP VIEW

LOCATE ELECTRICAL

WITHIN SHADED AREA

ROUGH

OPENING WIDTH

1206 mm STANDARD

1219 mm FLUSH

178 mm

152 mm

INSTALLATION

Refer to the installation instructions shipped with each Sub-Zero product for detailed specifications.

1918 mm

LOCATE WATER SUPPLY

WITHIN SHADED AREA

76 mm

FRONT VIEW

152 mm

132 mm

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer.

ANTI-TIP BLOCKING KIT

To prevent the unit from tipping forward and to provide a stable installation, the unit must be secured in place with an anti-tip blocking kit. If there is a solid soffit above the unit with clearance between the unit and the soffit of 25 mm or less, you won‘t need to block the unit. But for installations with clearances of more than 25 mm, you must block the unit with the anti-tip blocking kit (wood block and hardware) provided with each Sub-Zero Built-In model. Refer to the Built-In Installation Guide packed with the appliance, which provides step-by-step procedures for making sure the unit is installed properly.

ADDING PANELS

In your plan for panels, be sure you are working with the Sub-Zero panel design family called for in your design. If you have chosen the stainless steel design, the unit will be shipped complete with wrapped stainless steel doors and handle hardware. You will not have to install door panels.

Specifications on the following pages provide panel dimensions and installation considerations for overlay door panels.

Side panels can be used with the overlay and stainless steel design applications. Refer to specifications on page 20.

OVERLAY DOOR PANELS

If you and your client have ordered an overlay design model, you will be adding panels to give the unit the custom Sub-Zero look. The overlay panel design option is available on all Built-In units except Models ICB648PRO and ICB648PROG.

For exact door panel dimensions for Built-In overlay models, refer to the Overlay Panel Specifications on pages 22–23.

The overlay design allows decorative panels to cover the door trim for a more seamless appearance that blends with the design of the room. To achieve this look, the most common way is to work with three panels—the decorative overlay panel, a 3 mm spacer panel and a 6 mm backer panel. Depending on your cabinet manufacturer, this could be one panel routed for different dimensions or, more likely, three different panels.

Regardless of the physical construction of the

IMPORTANT NOTE: Keep in mind that the Sub-Zero door panels have the potential for hitting adjacent cabinets and/ or countertops when they are opened. You need to be aware of your surrounding cabinetry and space limitations when using the overlay models. Refer to the fullscale illustrations at the end of this section.

If you are using an overlay door panel with Model I611, I611G, I650 or I650G, it is necessary to rout a space for the unit‘s lower hinge plate so it does not strike the door panel. Refer to illustration 5.

For Models I611, I611G, I650 and I650G, you will minimize the reveal between the bottom of the overlay door panel and the top of the overlay drawer panel. Refer to illustration 6.

IMPORTANT NOTE: If you choose not to rout a space for the lower hinge plate, you can reduce the total height of the overlay panel (decorative

panel only) by 13 mm. panels (routing or three-panel assembly), you will need to follow the Overlay Panel Specifications on the following pages for exact sizing and panel placement to ensure a proper fit.

Illustration 3 is a cross section view of the threepanel assembly showing placement of the door, drawer or grille trim. Illustration 4 shows a rear view of the three-panel assembly and critical dimensions, standard for all models.

PANEL REQUIREMENTS

The overlay door panel assembly must be a minimum of16 mm thick and cannot exceed 23 kg.

Do not exceed the overlay decorative panel dimensions for Models I611, I611G, I650 or I650G listed on page 22. If you try to make the reveal tighter between the door and drawer panels, the panels may hit when opening and closing, causing possible damage to the panels and the Sub-Zero unit.

Spacer Panel

4 mm

2 mm

Overlay Panel

6 mm Backer Panel 8 mm min

Door /Drawer /

Grille Trim

Overlay Panel

~19

Illus. 4Illus. 3

3 mm

Spacer Panel

Backer

Panel

6 mm

Overlay Panel

6 mm Backer Panel

Spacer Panel

76 mm

10 mm

Illus. 5 Illus. 6

Bottom Edge –

Hinge Side

(rear view)

Overlay Panel

Spacer Panel

Backer

Panel

13 mm

INSTALLATION

43 mm

Edge of Panel to Cut-Out

Glasswell

Cut-Out

37 mm

Width

of Stile

Adjacent

to Bezel

Routing

Required

327 mm

Height

of Bezel

To install overlay panels, see the detailed procedures outlined in the Sub-Zero Built-In Installation Guide.

OVERLAY DOOR PANELS

For glass door Models I601RG, I611G and I650G, the refrigerator door panel must include a cutout to accommodate the window. Refer to the Overlay Panel Specifications for Models I601RG, I611G and I650G on page 22.

IMPORTANT NOTE: On glass door models, the glass portion of the door must be exposed and not covered by any part of the panel.

For Models I685 and I695, the refrigerator door panel must include a cut-out to accommodate the glasswell and bezel. The thickness of the panel in this area can range from 6 mm to a maximum of 29 mm.

IMPORTANT NOTE: Regardless of the thickness of the overlay panel for Model I685 or I695, you must plan for a flat ’landing’ space for the decorative bezel surrounding the glasswell area. Refer to page 23 for exact cut-out dimensions of the glasswell area in the overlay, spacer and backer panels. This ’landing’ area can be accomplished in a number of different ways. We are showing two in Illustrations 7 and 8 below.

Illustration 7 shows how you can recess the bezel to the inset panel. You must rout out a space to accommodate the 327 mm height of the bezel. Also keep in mind that the amount of material you will rout out of the stile will vary because of the thickness of this element. However, the width of the stile immediately adjacent to the bezel must be 37 mm. DO NOT cut the entire stile to this dimension. In this illustration you can see that rails above and below the bezel give this a finished look. Make sure that the bezel is not supporting weight from the panel.

Illustration 8 shows how you can box out a landing space for the bezel using stiles and rails to create this space. Again, keep in mind, that the total thickness of the panel at this level must not exceed 29 mm.

OVERLAY PANEL GRILLE

Overlay grille panels for the panel grille match the design of the door panels. Overlay units, except Models I601R, I601RG and I601F, come standard with an 279 mm panel grille. Optional grilles are available in 25 mm height increments from 254 mm to 381 mm. Overlay grille panel specifications for the panel grille are listed on page 23. Also refer to illustration 4 on page 19 for additional overlay panel dimensions.

Do not exceed the panel dimensions listed for the appropriate overlay grille panel you are specifying. The decorative panel cannot be any larger or it may restrict the airflow to the compressor area and cause problems with the operation of the Sub-Zero unit.

Illus. 8Illus. 7

HANDLE HARDWARE

337 mm

102 mm

6 mm

76 mm

606 mm

BEHIND FRAME

Overlay models come without handle hardware. The beauty of this design is that you can match the surrounding cabinet hardware. You or the cabinet manufacturer must provide handle hardware to match the overall decorating scheme.

The handle hardware must be installed before installing the panel assembly. Use larger D-style handles. If screws with thick heads are used, the screws will need to be countersunk into the door before the panel is put into place.

IMPORTANT NOTE: Sub-Zero does not recommend using single pull knobs on any of its BuiltIn models.

For overlay Models I685 and I695, mounting placement of the refrigerator door handle must assure proper access to the glasswell and adequate clearance under the handle. Illustration 8 shows placement of the refrigerator door handle in relationship to the glasswell bezel on stainless steel models.

Optional stainless steel handles are available in a variety of diameters and lengths, as are handles to match the color and style of Wolf ovens. Contact your Sub-Zero dealer for specifics.

Refer to the full-scale illustrations at the end of this section for handle hardware considerations.

SIDE PANELS

Side panels can be used with the overlay and

stainless steel design applications. When

planning for side panels with the installation of a

Built-In model, you need to be aware of space

configuration to achieve a pleasing fit. Depend-

ing on the exact panel you are using with your

unit, the height of the panel will vary.

Cut-outs around the toe kick and grille area are

required if a 6 mm thick panel will be inserted

into the main frame channel. The panel will need

to be 610 mm deep. If a 10 mm thick panel is

used, the panel will abut the main frame and

should be 606 mm deep. Refer to illustrations

9–11 below for placement of toe kick and grille

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer.

area cut-outs for your specific model. These

dimensions do not apply to Models ICB648PRO

and ICB648PROG.

The toe kick area may or may not be cut out

depending on the look you want to achieve.

IMPORTANT NOTE: The use of side panels may

change the width of your rough opening.

INSTALLATION

To install overlay panels, see the detailed procedures outlined in the Sub-Zero Built-In Installation Guide.

25 mm

Illus. 8

51 mm

Glasswell

Profile

Handle

Profile

606 mm

BEHIND FRAME

102 mm

76 mm

Illus. 9— Models I601R, I601RG and I601F

Illus. 10— Models I611, I611G, I650 and I650G

337 mm

6 mm

606 mm

BEHIND FRAME

6 mm

102 mm

Illus. 11— Models I661, I642, I632, I685 and I695

76 mm

C C

OVERLAY DOOR PANEL SPECIFICATIONS

All Refrigerator | All Freezer Overlay (O) Models

OVERLAY DOOR PANEL SPECIFICATIONS

Over-and-Under Overlay (O) Models

Model I601R W H

Refrigerator Overlay Panel 875 mm 1505 mm

Refrigerator Spacer Panel 851 mm 1481 mm

Refrigerator Backer Panel 867 mm 1497 mm

Model I601RG W H

Refrigerator Overlay Panel 875 mm 1505 mm

Refrigerator Spacer Panel 851 mm 1481 mm

Refrigerator Backer Panel 867 mm 1497 mm

Window Cut-out Dimensions 646 mm 1048 mm

Window Cut-out Location C) 114 mm D) 343 mm

Model I601F W H

Freezer Overlay Panel 875 mm 1505 mm

Freezer Spacer Panel 851 mm 1481 mm

Freezer Backer Panel 867 mm 1497 mm

IMPORTANT NOTE: Panel specifications are for Built-In overlay (O) models.

Model I611 W H

Refrigerator Overlay Panel 722 mm 1241 mm

Refrigerator Spacer Panel 699 mm 1205 mm

Refrigerator Backer Panel 714 mm 1221 mm

Freezer Overlay Panel 722 mm 475 mm

Freezer Spacer Panel 699 mm 451 mm

Freezer Backer Panel 714 mm 467 mm

Model I611G W H

Refrigerator Overlay Panel 722 mm 1241 mm

Refrigerator Spacer Panel 699 mm 1205 mm

Refrigerator Backer Panel 714 mm 1221 mm

Freezer Overlay Panel 722 mm 475 mm

Freezer Spacer Panel 699 mm 451 mm

Freezer Backer Panel 714 mm 467 mm

Window Cut-out Dimensions 494 mm 1000 mm

Window Cut-out Location C) 114 mm D) 127 mm

Model I650 W H

Refrigerator Overlay Panel 875 mm 1241 mm

Refrigerator Spacer Panel 851 mm 1205 mm

Refrigerator Backer Panel 867 mm 1221 mm

Freezer Overlay Panel 875 mm 475 mm

Freezer Spacer Panel 851 mm 451 mm

Freezer Backer Panel 867 mm 467 mm

Model I650G W H

Refrigerator Overlay Panel 875 mm 1241 mm

Refrigerator Spacer Panel 851 mm 1205 mm

Refrigerator Backer Panel 867 mm 1221 mm

Freezer Overlay Panel 875 mm 475 mm

Freezer Spacer Panel 851 mm 451 mm

Freezer Backer Panel 867 mm 467 mm

Window Cut-out Dimensions 646 mm 1000 mm

Window Cut-out Location C) 114 mm D) 127 mm

IMPORTANT NOTE: Panel specifications are for Built-In overlay (O) models.

and I601F

Model I601RGModels I601R

Models I611 and

I650

Models I611G and

I650G

OVERLAY DOOR PANEL SPECIFICATIONS

Side-by-Side Overlay (O) Models

Model I661 W H

Refrigerator Overlay Panel 494 mm 1727 mm

Refrigerator Spacer Panel 470 mm 1703 mm

Refrigerator Backer Panel 486 mm 1719 mm

Freezer Overlay Panel 379 mm 1727 mm

Freezer Spacer Panel 356 mm 1703 mm

Freezer Backer Panel 371 mm 1719 mm

Model I642 W H

Refrigerator Overlay Panel 618 mm 1727 mm

Refrigerator Spacer Panel 594 mm 1703 mm

Refrigerator Backer Panel 610 mm 1719 mm

Freezer Overlay Panel 405 mm 1727 mm

Freezer Spacer Panel 381 mm 1703 mm

Freezer Backer Panel 397 mm 1719 mm

Model I685 W H

Refrigerator Overlay Panel 618 mm 1727 mm

Refrigerator Spacer Panel 594 mm 1703 mm

Refrigerator Backer Panel 610 mm 1719 mm

Freezer Overlay Panel 405 mm 1727 mm

Freezer Spacer Panel 381 mm 1703 mm

Freezer Backer Panel 397 mm 1719 mm

Glasswell Cut-out Dimensions 150 mm 315 mm

Glasswell Location (Overlay) E) 43 mm F) 730 mm

Glasswell Location (Spacer) E) 31 mm F) 718 mm

Glasswell Location (Backer) E) 39 mm F) 726 mm

Model I632 W H

Refrigerator Overlay Panel 711 mm 1727 mm

Refrigerator Spacer Panel 687 mm 1703 mm

Refrigerator Backer Panel 703 mm 1719 mm

Freezer Overlay Panel 464 mm 1727 mm

Freezer Spacer Panel 440 mm 1703 mm

Freezer Backer Panel 456 mm 1719 mm

Model I695 W H

Refrigerator Overlay Panel 711 mm 1727 mm

Refrigerator Spacer Panel 687 mm) 1703 mm

Refrigerator Backer Panel 703 mm 1719 mm

Freezer Overlay Panel 464 mm 1727 mm

Freezer Spacer Panel 440 mm 1703 mm

Freezer Backer Panel 456 mm 1719 mm

Glasswell Cut-out Dimensions 150 mm 315 mm

Glasswell Location (Overlay) E) 43 mm F) 730 mm

Glasswell Location (Spacer) E) 31 mm F) 718 mm

Glasswell Location (Backer) E) 39 mm F) 726 mm

IMPORTANT NOTE: Panel specifications are for Built-In overlay (O) models.

For Models I685 and I695, panel thickness in the glasswell area can range from 6 mm to a maximum of 29 mm. If the panel is thicker, you must rout out a minimum 6 mm flat landing area to accommodate the bezel surrounding the glasswell.

OVERLAY GRILLE PANEL

Overlay (O) Models Width Dimensions

Models I611 and I611G W

Overlay Panel Width 722 mm

Spacer Panel Width 699 mm

Backer Panel Width 714 mm

Models I650, I650G, I661 W

Overlay Panel Width 875 mm

Spacer Panel Width 851 mm

Backer Panel Width 867 mm

Models I642 and I685 W

Overlay Panel Width 1027 mm

Spacer Panel Width 1003 mm

Backer Panel Width 1019 mm

Models I632 and I695 W

Overlay Panel Width 1180 mm

Spacer Panel Width 1156 mm

Backer Panel Width 1172 mm

Height Dimensions

254 mm Grille H

Overlay Panel Height 235 mm

Spacer Panel Height 211 mm

Backer Panel Height 227 mm

279 mm Grille

(standard)

Overlay Panel Height 260 mm

Spacer Panel Height 237 mm

Backer Panel Height 252 mm

305 mm Grille Height H

Overlay Panel Height 286 mm

Spacer Panel Height 262 mm

Backer Panel Height 278 mm

330 mm Grille H

Overlay Panel Height 311 mm

Spacer Panel Height 287 mm

Backer Panel Height 303 mm

356 mm Grille H

Overlay Panel Height 337 mm

Spacer Panel Height 313 mm

Backer Panel Height 329 mm

381 mm Grille H

Overlay Panel Height 362 mm

Spacer Panel Height 338 mm

Backer Panel Height 354 mm

For grille panel size, use width dimensions listed for your model and height dimensions for grille option. 279 mm grille is standard.

Panel grille is available for all overlay units except Models I601R, I601RG and I601F.

OVERLAY PANELS

Panel specifications are for Built-In overlay (O) models.

To install overlay panels, see the detailed procedures outlined in the Sub-Zero Built-In Installation Guide.

Models I661, I642 and I632

Models I685 and I695

Overlay grille panel

PANEL AND HANDLE PROFILE – OVERLAY AND STAINLESS STEEL APPLICATION

32 mm PANEL

25 mm PANEL

6 mm PANEL

13 mm PANEL

19 mm PANEL 16 mm PANEL

DOOR

6 mm APPROXIMATE THICKNESS OF WRAPPED STAINLESS STEEL DOOR

NOTE: FOR OVERLAY APPLICATIONS, OPTIONAL STAINLESS STEEL HANDLE

MUST BE MOUNTED ON PANEL MINIMUM 16 mm THICK.

STANDARD STAINLESS STEEL HANDLE

The full-scale illustration above shows handle placement for the standard stainless steel handle on the wrapped stainless steel door and on overlay panel applications shown in the dashed line.

IMPORTANT NOTE: For overlay applications, the panel must be a minimum of 16 mm thick to support mounting the handle hardware.

For overlay applications, mount door handles close to the opening edge of the door for ease of opening.

32 m

PANEL

25 m

PA NE L

6 mm

PANEL

13 m

PANEL

19 m

PANEL

130˚ DOOR OPENING

WITH 51 mm FILLER STRIP

(TOP VIEW)

OPTIONAL

FRAMED EXTENDED

FULL-LENGTH HANDLE

STANDARD

FRAMED

FULL-LENGTH

HANDLE

DOOR CLOSED

DOOR OPEN @ 130˚

HINGE

51 mm

FILLER STRIP

MAIN FRAME

ALLOW FOR FILLER LAP

BEHIND FLANGE

APPROX

PROFILE OF

STAINLESS STEEL DOOR AND HANDLE

OVERLAY PANEL

19 mm THICK

(NOMINAL)

SUB-ZERO UNIT SUB-ZERO UNIT

PANEL AND HANDLE PROFILE – 130˚ DOOR OPENING

The full-scale illustration shows the panel and handle profile for 130˚ door opening with a 51 mm filler strip.

Interference of door panels with handles at maximum door swing may require the use of an optional 90˚ door stop available through your Sub-Zero dealer.

*Approximate thickness of wrapped stainless steel door.

32 mm

PANEL

25 mm

PA NE L

*6 mm

PANEL

13 mm

PA NE L

19 mm

PA NE L

32 mm

38 mm

44 mm

0 mm

25 mm

51 mm

57 mm

63 mm

70 mm

76 mm

83 mm

89 mm

6 mm

13 mm

19 mm

HINGE

OVERLAY PANEL

19 mm THICK (NOMINAL)

DOOR CLOSED

DOOR OPEN @ 90˚

90˚ DOOR OPENING

(TOP VIEW)

MAIN FRAME

NOMINAL OVERALL

WIDTH OF SUB-ZERO

SUB-ZERO UNIT

606 mm TO REAR

OF SUB-ZERO

OVERLAY PANEL APPLICATION – 90˚ DOOR OPENING (TOP VIEW)

The full-scale illustration shows what considerations you need to make for overlay panel applications and how they may interact with adjacent cabinets and countertops.

*Approximate thickness of wrapped stainless steel door.

INTEGRATED REFRIGERATION

686 mm

2032

914 mm

2032

876 mm

686 mm

876 mm

686 mm

876 mm

686 mm

914 mm

2032

For generations, the Sub-Zero name has been synonymous with built-in refrigeration. With the Integrated line, we‘ve taken the idea a step further— refrigerators and freezers you can hide anywhere in the house, inside the furniture or cabinetry of your choosing.

Created to blend invisibly into your home‘s decor, the Integrated line lets you integrate refrigeration into the kitchen, master suite, media room or workout room. Available as tall units or two-drawer base units, the Integrated line expands the possibilities for the way you shape your home.

Tall units are 2032 mm high and offered in two different widths— 686 mm and 914 mm. The 686 mm wide tall unit can be ordered as an all refrigerator, all freezer or combination refrigerator (upper cabinet) and freezer (drawers). The 914 mm wide tall unit is offered as an all refrigerator or combination unit. All of these models are 610 mm deep.

Base units are offered in the 686 mm width only. They can be ordered as an all refrigerator, all freezer or combination refrigerator (top drawer) and freezer (bottom drawer). Base units are 876 mm high and 610 mm deep.

You just need to add whatever beautiful cabinetry you want to use. Optional classic stainless steel panels with tubular handles are available as sales accessories.

For information regarding specific Integrated models, refer to the illustrations in this section.

ALL REFRIGERATOR | ALL FREEZER

686 mm

2032

MODEL I700TR

All Refrigerator

MODEL I700TFI

All Freezer

OVER-AND-UNDER

MODEL I700TCI

Refrigerator | Freezer

MODEL I736TCI

Refrigerator | Freezer

DRAWERS

NEW

MODEL I736TR

All Refrigerator

MODEL I700BR

All Refrigerator

With the installation of a harness kit, tall models are Star-K compliant to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org. Drawer models are Star-K certified from the factory with no extra wiring harness required. For details about the harness kit, contact your Sub-Zero dealer.

MODEL I700BFI

All Freezer

MODEL I700BCI

Refrigerator | Freezer

MODEL I700TR

ALL REFRIGERATOR

MODEL I736TR

ALL REFRIGERATOR

NEW

MODEL I700TFI

ALL FREEZER

SPECIFICATIONS

Overall Width 686 mm

Overall Height 2032 mm

Overall Depth 610 mm

Refrigerator Capacity 439 L

Min Height Required 2019 mm

Door Swing Clearance 648 mm

Specify Door Swing LH or RH

Drawer Clearance 495 mm

Shipping Weight 163 kg

REFRIGERATOR FEATURES

Dual Refrigeration

2 Temperature Zones

3 Adjustable Glass Shelves

1 Stationary Shelf

2 Storage Drawers

Removable Crisper Cover

2 Removable Drawer Dividers

Adjustable Deli Drawer

3 Adjustable Door Shelves

Adjustable Dairy Compartment

Egg Container

SPECIFICATIONS

Overall Width 914 mm

Overall Height 2032 mm

Overall Depth 610 mm

Refrigerator Capacity 595 L

Min Height Required 2019 mm

Door Swing Clearance 876 mm

Specify Door Swing LH or RH

Drawer Clearance 495 mm

Shipping Weight 218 kg

REFRIGERATOR FEATURES

Dual Refrigeration

2 Temperature Zones

3 Adjustable Glass Shelves

1 Stationary Shelf

2 Storage Drawers

Removable Crisper Cover

4 Removable Drawer Dividers

Adjustable Deli Drawer

3 Adjustable Door Shelves

Adjustable Dairy Compartment

Egg Container

SPECIFICATIONS

Overall Width 686 mm

Overall Height 2032 mm

Overall Depth 610 mm

Freezer Capacity 433 L

Min Height Required 2019 mm

Door Swing Clearance 648 mm

Specify Door Swing LH or RH

Drawer Clearance 495 mm

Shipping Weight 163 kg

FREEZER FEATURES

1 Temperature Zone

3 Adjustable Glass Shelves

1 Stationary Shelf

2 Storage Drawers

1 Removable Drawer Divider

4 Adjustable Door Shelves

Automatic Defrost

Automatic Ice Maker

PANEL OPTIONS

Integrated

Classic stainless steel finish (includes handles)*

MODEL I700TR

PANEL OPTIONS

Integrated

Classic stainless steel finish (includes handles)*

MODEL I736TR MODEL I700TFI

PANEL OPTIONS

Integrated

Classic stainless steel finish (includes handles)*

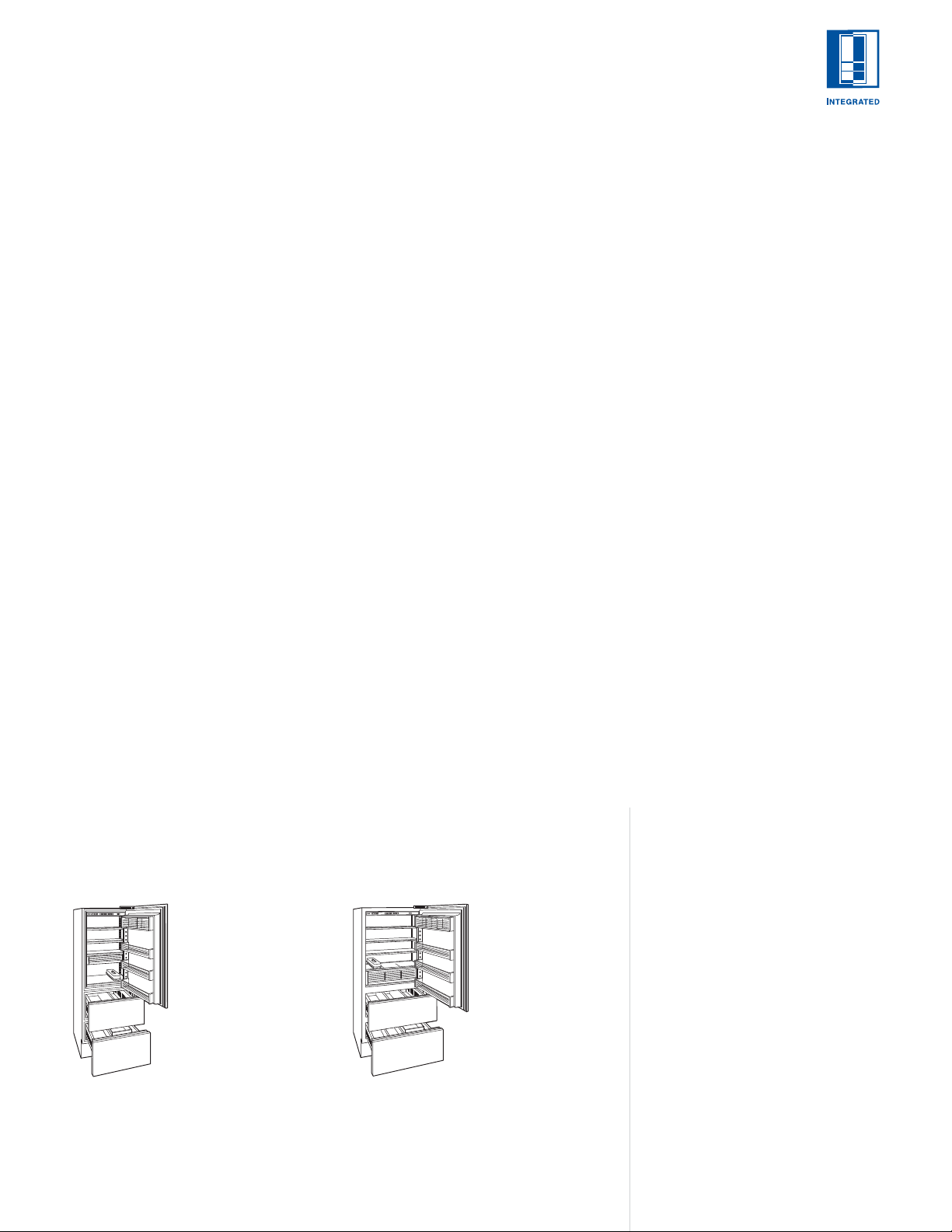

MODEL I700TCI

OVER-AND-UNDER

MODEL I736TCI

OVER-AND-UNDER

SPECIFICATIONS

Overall Width 686 mm

Overall Height 2032 mm

Overall Depth 610 mm

Refrigerator Capacity 289 L

Freezer Capacity 144 L

Min Height Required 2019 mm

Door Swing Clearance 648 mm

Specify Door Swing LH or RH

Drawer Clearance 495 mm

Shipping Weight 163 kg

REFRIGERATOR (DOOR)

Dual Refrigeration

3 Adjustable Glass Shelves

1 Stationary Shelf

Adjustable Deli Drawer

3 Adjustable Door Shelves

Adjustable Dairy Compartment

Egg Container

FREEZER (DRAWERS)

1 Removable Drawer Divider

Automatic Defrost

Automatic Ice Maker

SPECIFICATIONS

Overall Width 914 mm

Overall Height 2032 mm

Overall Depth 610 mm

Refrigerator Capacity 383 L

Freezer Capacity 195 L

Min Height Required 2019 mm

Door Swing Clearance 876 mm

Specify Door Swing LH or RH

Drawer Clearance 495 mm

Shipping Weight 218 kg

REFRIGERATOR (DOOR)

Dual Refrigeration

3 Adjustable Glass Shelves

1 Stationary Shelf

High-Humidity Crisper Drawer with Dividers

3 Adjustable Door Shelves

Adjustable Dairy Compartment

Egg Container

FREEZER (DRAWERS)

1 Removable Drawer Divider

Automatic Defrost

Automatic Ice Maker

*Optional stainless steel panels and handles are ordered and shipped as sales accessories.

PANEL OPTIONS

Integrated

Classic stainless steel finish (includes handles)*

MODEL I700TCI MODEL I736TCI

PANEL OPTIONS

Integrated

Classic stainless steel finish (includes handles)*

ACCESSORIES

Contact your Sub-Zero Dealer

Classic stainless steel front panels

Tubular handles in classic stainless steel

High-humidity crisper drawer and shelf assembly*

Adjustable deli drawer and shelf assembly*

Crisper cover with lid*

Dozen egg container with lid*

Dual installation heater kit

Harness kit for Star-K compliance

*Accessory is not available for every model.

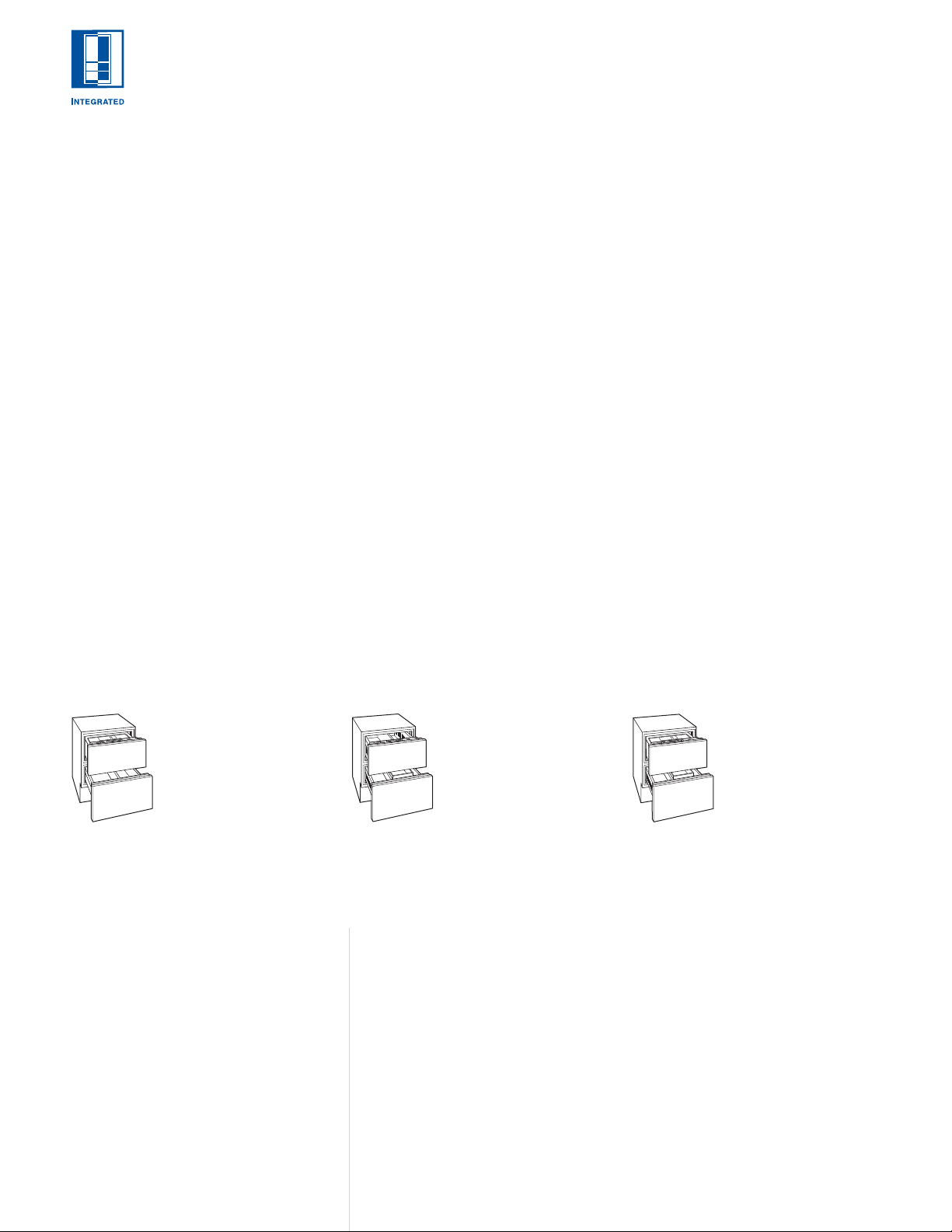

MODEL I700BR

REFRIGERATOR DRAWERS

MODEL I700BFI

FREEZER DRAWERS

MODEL I700BCI

REFRIGERATOR|FREEZER DRAWERS

SPECIFICATIONS

Overall Width 686 mm

Overall Height 876 mm

Overall Depth 610 mm

Refrigerator Capacity 150 L

Min Height Required 864 mm

Drawer Clearance 495 mm

Shipping Weight 86 kg

REFRIGERATOR FEATURES

1 Temperature Zone

2 Storage Drawers

Removable Crisper Cover

2 Removable Drawer Dividers

PANEL OPTIONS

Integrated

Classic stainless steel finish (includes handles)*

SPECIFICATIONS

Overall Width 686 mm

Overall Height 876 mm

Overall Depth 610 mm

Freezer Capacity 144 L

Min Height Required 864 mm

Drawer Clearance 495 mm

Shipping Weight 86 kg

FREEZER FEATURES

1 Temperature Zone

2 Storage Drawers

1 Removable Drawer Divider

Automatic Defrost

Automatic Ice Maker

PANEL OPTIONS

Integrated

Classic stainless steel finish (includes handles)*

SPECIFICATIONS

Overall Width 686 mm

Overall Height 876 mm

Overall Depth 610 mm

Refrigerator Capacity 82 L

Freezer Capacity 59 L

Min Height Required 864 mm

Drawer Clearance 495 mm

Shipping Weight 86 kg

FEATURES

2 Temperature Zones

2 Storage Drawers

Removable Crisper Cover

1 Removable Drawer Divider

Automatic Ice Maker

PANEL OPTIONS

Integrated

Classic stainless steel finish (includes handles)*

MODEL I700BR MODEL I700BFI MODEL I700BCI

ACCESSORIES

Contact your Sub-Zero Dealer

*Optional stainless steel panels and handles are ordered and shipped as sales accessories.

Front panels in classic stainless steel

Tubular handles in classic stainless steel

Crisper cover with lid*

Dozen egg container with lid*

Dual installation heater kit

*Accessory is not available for every model.

INTEGRATED FEATURES

All Integrated models accept wood or stainless steel panels. The optional stainless steel panels and handles are available in classic stainless steel at the 2032 mm and 2134 mm height. Stainless steel panels are ordered and shipped as sales accessories.

Functional Design. These models can be placed anywhere in the home. Think about “point-ofuse refrigeration” when planning where to place your units.

Integrated Design. All Sub-Zero models are 610 mm deep. Tall Integrated units are 2032 mm high and are offered in two different widths— 686 mm and 914 mm. All base units are 686 mm wide and 876 mm high.

Microprocessor. The “brains” of the Integrated units, this computer allows the best in temperature control, efficiency and food preservation.

Temperature Zones. On tall refrigerator and combination units, you have the flexibility of having two temperatures within the same unit.

Automatic Defrost. Depending on usage and exact climate, the Integrated unit will adapt to the unique situation and adjust accordingly to offer greater efficiency. Integrated freezer and combination units have an automatic defrost system.

Kickplate. The adjustable solid kickplate meets standards of the American Institute of Architects. The toe kick area for a solid, decorative kickplate is 102 mm high by 76 mm deep. You can show a 254 mm toe kick, but you cannot cover the louvers of the kickplate. If you choose, the kickplate can be painted.

Front Venting. All models have the mechanical equipment in an area below the lower drawer. The lower drawer panel can extend to cover these louvers, but a removable decorative kickplate cannot cover the fins.

Lighting. Flat to the ceiling, superior lighting provides white, efficient light in cabinet and drawer units.

Door / Drawer Alarm. When activated, if your door or drawer is accidentally left open for more than 30 seconds, an audible alarm will sound.

Spill-Proof Shelves. The cabinet section of the tall units features adjustable spill-proof one-piece glass shelves that are easily removed for cleaning.

Dairy Shelf. This magnetically sealed compartment is fully adjustable on the tall refrigerator and combination units.

Crisper Cover. On the tall and base refrigerator units and the base combination unit, a removable crisper cover is offered for one of the drawer sections.

Deli Drawer. Smaller items are not lost in this handy feature of the Models I700TR and I700TCI.

ACCESSORIES

Available as a sales accessory for Model I736TCI.

Crisper— Model I736TCI. Model I736TCI is equipped with a sealed crisper. It is large and deep, with smooth sides for easy cleaning. The

Optional accessories are available through your Sub-Zero dealer.

space features removable dividers.

Egg Container. You can store a dozen eggs in this removable egg container with lid in the tall refrigerator and tall combination units.

Ice Maker. An automatic ice maker, providing crescent-shaped ice, is available as an option on the tall and base freezers as well as the tall and base combination units. This optional equipment must be factory installed.

Door Swing. You can choose left or right door swing on the tall units. This option must be ordered when requesting the unit. You cannot reverse the door in the field.

Dual-Action Hinge. An exclusive dual-action hinge is featured on all of the tall units, allowing for a fully integrated look.

Door Stop. On all of the tall units, a 90˚ door stop is built in to the hinge. Normal door swing is 105˚.

Temperature Zones. With the microprocessor in the Integrated models, you have the capability of setting different optimum temperatures.

TEMPERATURE ZONES

Model I700BR – One zone, 1˚C to 7˚C

Models I700TR and I736TR – Two zones, 1˚C to 7˚C

Models I700BFI and I700TFI – One zone, -21˚C to -15˚C

Model I700TFI – One zone,

-21˚C to -15˚C

Model I700BCI – Two zones, 1˚C to 7˚C top drawer;

-21˚C to -15˚C bottom drawer

Models I700TCI and I736TCI – Two zones, 1˚C to 7˚C cabinet;

-21˚C to -15˚C drawers

INSTALLATION

Refer to the installation instructions shipped with each Sub-Zero product for detailed specifications.

PLANNING INFORMATION

Before moving the Integrated unit into place, be sure that the finished opening dimensions, electrical and plumbing locations and minimum door and drawer clearances are accurate. Refer to the Installation Specifications illustration for your model on the following pages. Be sure your installer has this information before finishing work is completed.

Integrated models without an automatic ice maker will not require the plumbing connections shown in the illustrations.

The height of the tall unit is set at 2032 mm. You can allow the top of the door panel to exceed this dimension with caution. If you are working with 2134 mm or 2438 mm neighboring panels, you can utilize door panels to match this height. Other critical dimensions regarding the door swing, drawer openings and toe kick clearance are noted in the Overall Dimensions illustrations on the following pages. Also refer to the full-scale illustrations at the end of this section for specifics on door openings and other specifications.

IMPORTANT NOTE: The anti-tip bracket must be installed to prevent the unit from tipping forward.

ELECTRICAL REQUIREMENTS

IMPORTANT NOTE: The electrical outlet must be grounded. The outlet must be flush with the back wall. Refer to the Installation Specifications illustration for your model for exact placement.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

Do not use an extension cord or 2-prong adapter. Electrical ground is required.

Do not under any circumstances remove the power supply cord ground prong.

PLUMBING CONSIDERATIONS

For models with an automatic ice maker, rough in the water supply line. Connect a 6.35 mm OD copper line to the house supply, being sure to use an easily accessible shut-off valve between the supply and the unit. This shut-off valve should not be installed behind the unit.

Do not use self-piercing valves. A saddle valve kit (4200880) is available from your Sub-Zero dealer. An in-line filter is required when water conditions have a high sediment content. The ice maker operates on constant water pressure between 1.4 bar and 6.9 bar.

IMPORTANT NOTE: In some cases, a reverse osmosis water filter system may not be able to maintain the minimum pressure consistently.

The Installation Specifications illustration for your model on the following pages shows the precise placement of the water line. When routing the water through the side walls, you must place the water line within 13 mm of the floor and as close as possible to the back wall. The line must be routed around the anti-tip bracket so it clears the bracket and the leveling feet of the unit as shown in the top view of the illustration. Regardless of the routing, allow for 686 mm of excess copper tubing to remain outside the wall or floor for easy connection to the unit.

IMPORTANT NOTE: Do not route water supply line in front of the compressor tray. The tray must be slid forward for service.

OVERALL DIMENSIONS

Models I700TR, I700TFI and I700TCI

10 mm

13 mm

518 mm

686 mm 610 mm

(UNIT DIMENSION) (UNIT DIMENSION)

356 mm

DOOR

MOUNTING

DETAIL

337 mm

260 mm

13 mm

DRAWER

MOUNTING DETAIL

FRONT VIEW SIDE VIEW

ADJUSTMENT IN LEVELING LEGS

876

mm*

TOP OF ROUGH

OPENING

1995 mm*

2032 mm*

INSTALLATION SPECIFICATIONS

Models I700TR, I700TFI and I700TCI

Models without an ice maker will not require the water line connection.

248 mm

102

DOOR/ DRAWER

CLOSED

90˚

90˚ DOOR OPENING

DOOR/ DRAWER PANEL THICKNESS NOT INCLUDED – DIMENSION WILL VARY WITH INSTALLATION

TOP VIEW TOP VIEW

229 mm

152 mm

686 mm635 mm

ANTI-TIP

BRACKET*

343 mm 343 mm

394 mm

WATER LINE

BOTTOM ENTRY

LOCATION

610 mm

mm*

648

mm*

TOP VIEW

DOOR/ DRAWER

CLOSED

495

MAXIMUM DOOR OPENING

WATER LINE

SIDE ENTRY

LOCATIONS

105˚

657 mm

ANTI-TIP

BRACKET

117 mm*

686 mm

ALL REFRIGERATOR ALL FREEZER

Model I700TR

All Refrigerator

Model I700TFI

All Freezer with Ice Maker

OVER-AND-UNDER

Refrigerator | Freezer

Model I700TCI

with Ice Maker

MODEL I700TR MODEL I700TFI MODEL I700TCI

Overall Dimensions

Width 686 mm

Height 2032 mm

Depth 610 mm

*PLACEMENT OF THE

ANTI-TIP BRACKET

SHOULD BE 610 mm

FROM THE FRONT OF THE

UNIT WITHOUT PANELS

TO THE BACK OF THE

ANTI-TIP BRACKET.

LOCATE ELECTRICAL WITHIN

SHADED AREA – ORIENT GROUND

PRONG TO RIGHT AS SHOWN

LOCATE WATER LINE

(REAR ENTRY) WITHIN

SHADED AREA

114 mm

ANTI-TIP

BRACKET

330 mm 229 mm

64 mm

394 mm

NOTE: ANTI-TIP BRACKET MUST BE INSTALLED TO

PREVENT UNIT FROM TIPPING FORWARD

38 mm

2032 mm

635 mm686 mm

SIDE VIEWFRONT VIEW

ANTI-TIP

BRACKET

38 mm

WATER LINE

SIDE ENTRY

LOCATION

Finished Opening

Width 686 mm

Height 2032 mm

Depth 635 mm*

*The depth of the unit is 610 mm from the front of the unit to its back. Your design may necessitate moving the unit back or cabinets forward to achieve a flush fit. This will require a minimum rough opening depth of 635 mm.

OVERALL DIMENSIONS

Models I736TR and I736TCI

ALL REFRIGERATOR

Model I736TR

All Refrigerator

OVER-AND-UNDER

Refrigerator | Freezer

Model I736TCI

with Ice Maker

MODEL I736TR MODEL I736TCI

Overall Dimensions

Width 914 mm

Height 2032 mm

Depth 610 mm

Finished Opening

Width 914 mm

Height 2032 mm

Depth 635 mm*

914 mm 610 mm

10 mm

337 mm

260 mm

518 mm

(UNIT DIMENSION) (UNIT DIMENSION)

DOOR MOUNTING

DRAWER MOUNTING

FRONT VIEW SIDE VIEW

13 mm

ADJUSTMENT IN LEVELING LEGS

356 mm

DETAIL

INSTALLATION SPECIFICATIONS

Models I736TR and I736TCI

Models without an ice maker will not require the water line connection.

*PLACEMENT OF THE

ANTI-TIP BRACKET

SHOULD BE 610 mm

FROM THE FRONT OF THE

UNIT WITHOUT PANELS

TO THE BACK OF THE

ANTI-TIP BRACKET.

LOCATE ELECTRICAL WITHIN

SHADED AREA – ORIENT GROUND

PRONG TO RIGHT AS SHOWN

ANTI-TIP

BRACKET

114

445 mm 343 mm

64 mm

508 mm

TOP OF ROUGH

OPENING

610 mm

876

mm*

1976 mm*

2032 mm*

248 mm

102

DOOR/ DRAWER

CLOSED

90˚

90˚ DOOR OPENING

DOOR/ DRAWER PANEL THICKNESS NOT INCLUDED – DIMENSION WILL VARY WITH INSTALLATION

495

mm*

876

mm*

TOP VIEW

DOOR/ DRAWER

CLOSED

105˚

886 mm

MAXIMUM DOOR OPENING

TOP VIEW TOP VIEW

ANTI-TIP

BRACKET*

635 mm 686 mm 686 mm

457 mm

508 mm

343 mm

WATER LINE

BOTTOM ENTRY

LOCATION

152 mm

457 mm

WATER LINE

SIDE ENTRY

LOCATIONS

ANTI-TIP

BRACKET

38 mm 38 mm

914 mm 635 mm

LOCATE WATER LINE

(REAR ENTRY) WITHIN

SHADED AREA

2032 mm

178

mm*

NOTE: ANTI-TIP BRACKET MUST BE INSTALLED TO

PREVENT UNIT FROM TIPPING FORWARD

SIDE VIEW FRONT VIEW

ANTI-TIP

BRACKET

WATER LINE

SIDE ENTRY

LOCATION

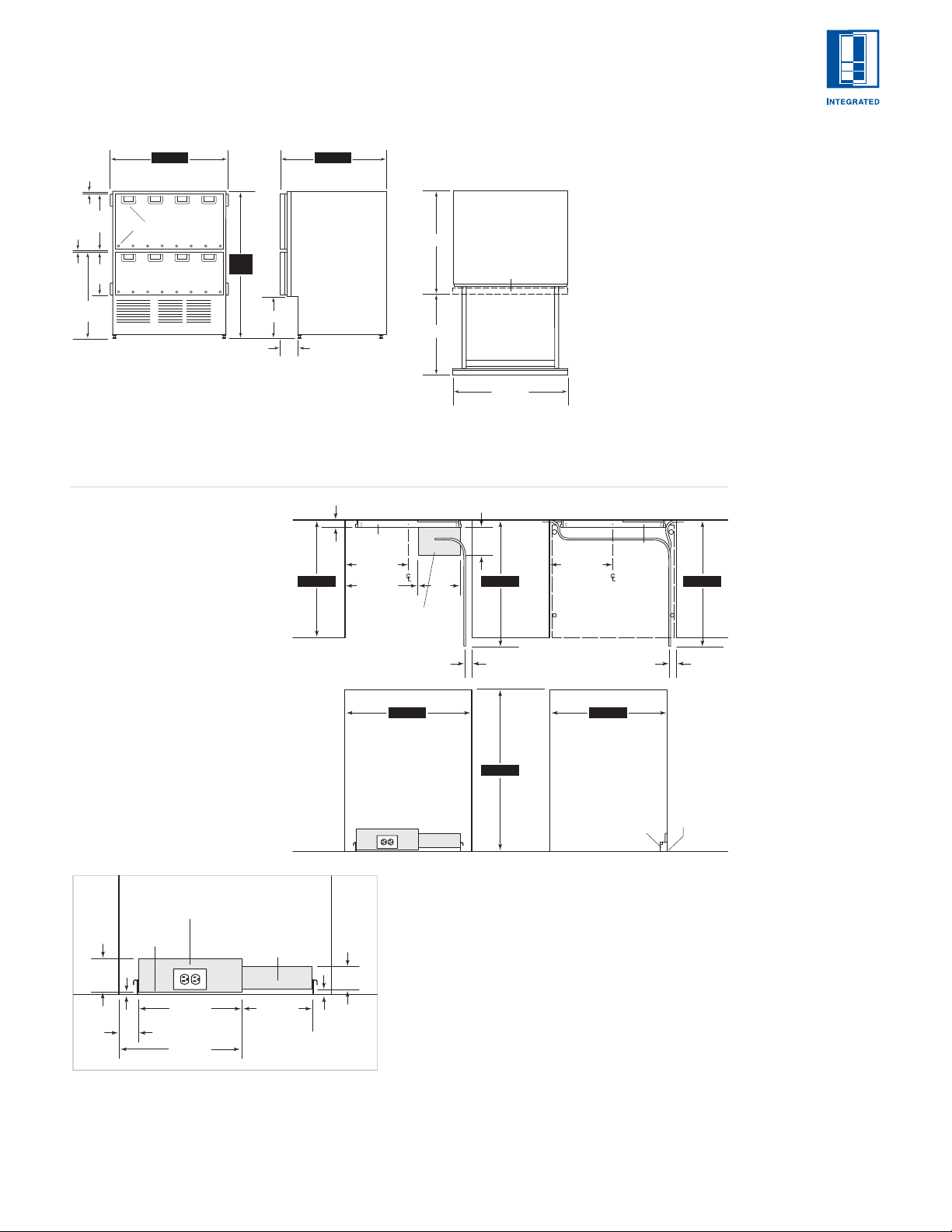

OVERALL DIMENSIONS

Models I700BR, I700BFI and I700BCI

686 mm 610 mm

10 mm

518 mm

(UNIT DIMENSION) (UNIT DIMENSION)

337 mm

260 mm

13 mm

DRAWER

MOUNTING DETAIL

876

mm*

248 mm

FRONT VIEW SIDE VIEW

ADJUSTMENT IN LEVELING LEGS

102 mm

610 mm

DRAWER CLOSED

495 mm*

657 mm

DRAWER PANEL THICKNESS NOT INCLUDED

TOP VIEW

DRAWERS

Model I700BR

All Refrigerator

Model I700BFI

All Freezer with Ice Maker

Model I700BCI

Refrigerator | Freezer with Ice Maker

INSTALLATION SPECIFICATIONS

Models I700BR, I700BFI and I700BCI

Models without an ice maker will not require the water line connection.

*PLACEMENT OF THE

ANTI-TIP BRACKET

SHOULD BE 610 mm

FROM THE FRONT OF THE

UNIT WITHOUT PANELS

TO THE BACK OF THE

ANTI-TIP BRACKET.

NOTE: ANTI-TIP BRACKET MUST BE INSTALLED TO

PREVENT UNIT FROM TIPPING FORWARD

LOCATE ELECTRICAL WITHIN

SHADED AREA – ORIENT GROUND

PRONG TO RIGHT AS SHOWN

LOCATE WATER LINE

(REAR ENTRY) WITHIN

SHADED AREA

114 mm

ANTI-TIP

BRACKET

330 mm 229 mm

64 mm

394 mm

TOP VIEW TOP VIEW

229 mm

152 mm

ANTI-TIP

BRACKET

WATER LINE

SIDE ENTRY

LOCATIONS

ANTI-TIP

BRACKET*

343 mm 343 mm

635 mm 686 mm 686 mm

394 mm

WATER LINE

BOTTOM ENTRY

LOCATION

38 mm 38 mm

635 mm686 mm

876 mm

WATER LINE

ANTI-TIP

BRACKET

SIDE ENTRY

LOCATION

SIDE VIEW FRONT VIEW

MODEL I700BR MODEL I700BFI MODEL I700BCI

Overall Dimensions

Width 686 mm

Height 876 mm

Depth 610 mm

Finished Opening

Width 686 mm

Height 876 mm

Depth 635 mm*

INSTALLATION

Refer to the installation instructions shipped with each Sub-Zero product for detailed specifications.

SUB-ZERO

UNIT

DOOR PANEL

CABINET

DOOR

CABINET

FRAME

TO WALL

610 mm

10 mm

REVEAL

686 mm 914 mm

DOOR PANEL

CABINET

DOOR

CABINET

FRAME

SUB-ZERO

UNIT

10 mm

REVEAL

686 mm 914 mm

TO WALL

610 mm

DOOR PANEL

CABINET

DOOR

CABINET

FRAME

SUB-ZERO

UNIT

10 mm

REVEAL

686 mm 914 mm

TO WALL

610 mm

PANEL REQUIREMENTS

Door and drawer panels must be a minimum of 16 mm thick.

The door panel cannot exceed 18 kg and each drawer panel must not exceed 5 kg for 686 mm wide units. For 914 mm wide units, the door panel weight limit is 24 kg and 7 kg for each drawer panel.

CABINETRY APPLICATIONS

Integrated refrigeration is compatible with virtually any style and look of cabinetry. The models can be used with framed as well as frameless cabinets. Because of the precise application and the look you may want to achieve, there are important questions you need to answer before ordering panels for the doors/ drawers. As you look at styles of cabinets, keep some important facts in mind:

IMPORTANT NOTE: The depth of each Integrated model is 610 mm from the front of the unit to its back. You must allow for the thickness of the panel you are applying when planning for the finished rough opening depth if you want the front panel to be flush with surrounding cabinetry. You must move the unit back into drywall or bring the cabinets forward to achieve a flush fit.

The height of the door panel can grow beyond 1153 mm and exceed the 2032 mm overall height as long as you stay below the recommended door panel weight limit.

The toe kick clearance can vary with the height of the lower drawer panel; the maximum panel height is 424 mm. You must keep a minimum space of 102 mm clear below the bottom edge of the lower drawer panel so the unit can be properly vented.

We recommend using D-style handles. For the cabinet door, handles must be located near the edge of the panel opposite the hinge, centered top to bottom. Locate handles in the top center area of the drawer panels.

IMPORTANT NOTE: The inside edges of the rough opening, as well as the sides and a portion of the backside of the decorative panels will need to be finished, as they will be exposed when the doors are open.

FRAMED CABINETRY

Framed cabinetry applications present you with different questions to address. The illustrations below show common applications of framed cabinetry. These are not meant to be the only alternatives, but are suggestions from designers around the country. Also refer to the full-scale illustrations at the end of this section for specifics on door openings.

NOTE: In the illustrations below, the first width dimension shown is for 686 mm wide units and the second dimension is for 914 mm wide units.

Traditional frame – full overlay (top view)

Traditional frame – standard overlay (top view)

Traditional frame – 10 mm offset (top view)

FRAMED CABINETRY –

A) ALL REVEALS ARE 3 mm B) DRAWER RAILS ARE ATTACHED TO DRAWER FRONTS C) BOTTOM RAIL MUST BE REMOVABLE

*DIMENSIONS MAY VARY

TOP VIEW

A A

DOOR PANEL

CABINET DOOR

TO WALL

SUB-ZERO

UNIT

PANEL WIDTH

1216

FRONT VIEW SIDE VIEW

679 mm

345 mm

383 mm

2624

38 mm

102 mm*

102 mm

SHADED AREA INDICATES STATIONARY STYLES AND RAILS

610 mm

686 mm

2032

mm*

876

mm*

610 mm

686 mm

BEADED INSET APPLICATION

The illustration below shows a 686 mm wide Integrated base or tall unit installed within a framed cabinetry, beaded inset application. Review, giving particular attention to the overall panel specifications. Also refer to the full-scale illustrations at the end of this section for specifics on door openings.

686 mm WIDE MODELS

Installation of a 686 mm wide Integrated base or tall unit within framed cabinetry.

*Dimensions may vary.

Dimensions are based on a 3 mm reveal. A reveal of up to 6 mm is possible, but panel dimensions need to be adjusted accordingly.

INSTALLATION

To install integrated panels, see the detailed procedures outlined in the Sub-Zero Integrated Installation Guide.

914 mm

A) ALL REVEALS ARE 3 mm B) DRAWER RAILS ARE ATTACHED TO DRAWER FRONTS C) BOTTOM RAIL MUST BE REMOVABLE

*DIMENSIONS MAY VARY

TOP VIEW

A A

DOOR PANEL

CABINET DOOR

TO WALL

SUB-ZERO

UNIT

PANEL WIDTH

1216

FRONT VIEW SIDE VIEW

908 mm

345 mm

383 mm

2624

38 mm

102 mm*

102 mm

SHADED AREA INDICATES STATIONARY STYLES AND RAILS

610 mm

914 mm

2032

mm*

876

mm*

610 mm

914 mm

WIDE MODELS

Installation of a 914 mm wide Integrated tall unit within framed cabinetry.

*Dimensions may vary.

Dimensions are based on a 3 mm reveal. A reveal of up to 6 mm is possible, but panel dimensions need to be adjusted accordingly.

FRAMED CABINETRY – BEADED INSET APPLICATION

The illustration below shows 914 mm wide Integrated tall unit installed within a framed cabinetry, beaded inset application. Review, giving particular attention to the overall panel specifications. Also refer to the full-scale illustrations at the end of this section for specifics on door openings.

INSTALLATION

To install integrated panels, see the detailed procedures outlined in the Sub-Zero Integrated Installation Guide.

FRAMELESS CABINETRY

A) ALL REVEALS ARE 3 mm * DIMENSIONS MAY VARY

SIDE VIEW

PANEL WIDTH

1153 mm

679 mm*

345 mm

424 mm*

102 mm*

FINISHED OPENING

TOE KICK

2029 mm*

610 mm

686 mm

2032

mm*

876

mm*

A) ALL REVEALS ARE 3 mm *DIMENSIONS MAY VARY

SIDE VIEW

PANEL WIDTH

1153 mm

908 mm*

345 mm

424 mm*

102 mm*

FINISHED OPENING

TOE KICK

2029

mm*

610 mm

914 mm

2032

mm*

876

mm*

The illustrations show hypothetical installations of Integrated base or tall units within frameless cabinetry. Review, giving particular attention to the overall panel specifications. Also refer to the full-scale illustrations at the end of this section for specifics on door openings.

686 mm WIDE MODELS

Installation of a 686 mm wide Integrated base or tall unit within frameless cabinetry.

*Dimensions may vary.

Dimensions are based on a 3 mm reveal. A reveal of up to 6 mm is possible, but panel dimensions need to be adjusted accordingly.

914 mm WIDE MODELS

Installation of a 914 mm wide Integrated tall unit within frameless cabinetry.

*Dimensions may vary.

Dimensions are based on a 3 mm reveal. A reveal of up to 6 mm is possible, but panel dimensions need to be adjusted accordingly.

679 mm

APPLIANCE

DOOR WIDTH

SUB-ZERO

UNIT

TO BACK

OF UNIT

657 mm

686 mm

CABINETRY

OR SIDE

PA NE L

CABINETRY

OR SIDE

PA NE L

REVEAL REVEAL

*SUBTRACT PANEL WIDTH FROM CABINETRY OPENING TO DETERMINE ACTUAL WIDTH OF REVEAL

635 mm

610 mm

19 mm

PA NE L

3 mm* min 3 mm* min

908 mm

APPLIANCE

DOOR WIDTH

SUB-ZERO

UNIT

TO BACK

OF UNIT

886 mm

CABINETRY

OR SIDE

PA NE L

CABINETRY

OR SIDE

PANEL

*SUBTRACT PANEL WIDTH FROM CABINETRY OPENING TO DETERMINE ACTUAL WIDTH OF REVEAL

914 mm

635 mm 635 mm

REVEAL

3 mm* min

REVEAL

3 mm* min

19 mm

PA NE L

610 mm

INSTALLATION

To install integrated panels, see the detailed procedures outlined in the Sub-Zero Integrated Installation Guide.

PANEL CONSIDERATIONS

The illustrations below provide panel width dimensions for installation of a single tall unit, 686 mm and 914 mm wide models.

Illustrations on the following page provide panel width dimensions for installing two tall units side by side, 686 mm wide models and 914 mm wide models.

686 mm WIDE MODELS

Panel width dimensions for installation of a 686 mm wide tall unit.

Dimensions are based on a 3 mm reveal. A reveal of up to 6 mm is possible, but panel dimensions need to be adjusted accordingly.

IMPORTANT NOTE: The depth of each Integrated model is 610 mm from the front of the unit to its back. You must allow for the thickness of the panel you are applying when planning for the finished rough opening depth if you want the front panel to be flush with surrounding cabinetry. You may have to move the unit back into drywall or bring the cabinets forward to achieve a flush fit.

914 mm WIDE MODELS

Panel width dimensions for installation of a 914 mm wide tall unit.

Dimensions are based on a 3 mm reveal. A reveal of up to 6 mm

is possible, but panel dimensions need to be adjusted accordingly.

As the reveal between cabinets and the

681 mm 681 mm

DOOR

SUB-ZERO

UNIT

DOOR

SUB-ZERO

UNIT

1372 mm

TO BACK

OF UNIT

REVEAL

*SUBTRACT PANEL WIDTH FROM CABINETRY OPENING TO DETERMINE ACTUAL WIDTH OF REVEAL

CABINETRY

OR SIDE

PANEL

CABINETRY

OR SIDE

PANEL

635 mm

610 mm

3 mm* min 3 mm* min

19 mm

PA NE L 19 mm PA NE L

3 mm* min

DOOR

SUB-ZERO

UNIT

DOOR

SUB-ZERO

UNIT

1829 mm

TO BACK

OF UNIT

*SUBTRACT PANEL WIDTH FROM CABINETRY OPENING TO DETERMINE ACTUAL WIDTH OF REVEAL

CABINETRY

OR SIDE

PANEL

CABINETRY

OR SIDE

PANEL

910 mm 910 mm

635 mm 635 mm

REVEAL

3 mm* min

REVEAL

3 mm* min

REVEAL

3 mm* min

19 mm

PA NE L19 mm PA NE L

610 mm

Integrated unit decreases, the potential exists for severe finger pinching or crushing if a hand or fingers are placed in the opening when the door is closing.

When 19 mm or thicker panels are used and a reveal less than 6 mm is maintained, the door panels may cause damage to the Sub-Zero unit when the door is open at the maximum 105˚ stop. You should use the built-in 90˚ stop to prevent damage.

686 mm WIDE MODELS

Panel width dimensions for installation of two 686 mm wide tall units side by side.

Dimensions are based on a 3 mm reveal. A reveal of up to 6 mm is possible, but panel dimensions need to be adjusted accordingly.

PANEL REQUIREMENTS

Door and drawer panels must be a minimum of 16 mm thick.

The door panel cannot exceed 18 kg and each drawer panel must not exceed 5 kg for 686 mm wide units. For 914 mm wide units, the door panel weight limit is 24 kg and 7 kg for each drawer panel.

914 mm WIDE MODELS

Panel width dimensions for installation of two 914 mm wide tall units side by side.

Dimensions are based on a 3 mm reveal. A reveal of up to 6 mm is possible, but panel dimensions need to be adjusted accordingly.

TOP VIEW

CABINETS

635 mm

686 mm 914 mm

MINIMUM 16 mm SIDE PANELS

CABINETS

635 mm

686 mm 914 mm

TOP VIEW

CABINETS

635 mm

1372 mm 1829 mm

MINIMUM 16 mm SIDE PANELS

CABINETS

635

686 mm 914 mm

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer.

INSTALLATION OPTIONS

The illustrations show some typical installations and their dimension considerations. The depth dimension in the illustrations may vary depending on cabinet styles, treatment of countertops or other design options.

IMPORTANT NOTE: The depth of each Integrated model is 610 mm from the front of the unit to its back. Your design may necessitate moving the unit back or cabinets forward to achieve a flush fit. This will require a minimum rough opening depth of 635 mm. Refer to the illustrations.

NOTE: In the Installation Options illustrations, the first width dimension shown is for 686 mm wide units and the second dimension is for 914 mm wide units.

DUAL INSTALLATIONS

If two or more Integrated models are installed side by side where there is 51 mm or less of space between the units, a heater kit is recommended— TTDUAL for two tall units installed side by side and BBDUAL for two base units or a base unit and a tall unit installed side by side. These optional components are available through your Sub-Zero dealer.

Installation without side panels

Installation with side panels

Installation of two units side by side

Installation at end of run

DOOR PANEL HEIGHT

268 mm

424 mm

PANEL

254 mm

OPTIONAL

FLOOR

TO WALL

635 mm

BASE MOLDING MUST BE REMOVABLE

246 mm

67 mm 102 mm

102 mm

The height of the door panel can grow beyond 1153 mm and exceed the 2032 mm overall height, as long as you stay below the recommended door panel weight limit.

The top illustration shows how the panel may grow and what you need to consider doing to finish the area in back of the door panel.

IMPORTANT NOTE: The valance you use to finish the area behind the door panel must stay behind the front plane of the finished molding.

UPPER VALANCE

Tall Models

The depth of each Integrated model is 610 mm from the front of the unit to its back. Your design may necessitate moving the unit back or cabinets forward to achieve a flush fit. This will require a minimum rough opening depth of 635 mm.

2032

mm*

FLOOR

3 mm

1153 mm

BOTTOM

DOOR

PAN E L

FINISHED HEIGHT OF 2032 mm IS TO TOP OF SUB-ZERO MOLDING

TOE KICK CLEARANCE

The toe kick clearance can vary with the height of the lower drawer panel; the maximum panel height is 424 mm.

IMPORTANT NOTE: You must keep a minimum space of 102 mm clear below the bottom edge of the lower drawer panel so the unit can be properly vented. In addition, any decorative base molding must be removable for possible servicing and cleaning of the condenser.

The bottom illustration shows the area below the lower drawer where the operating mechanical equipment of the Integrated unit is housed.

TO WALL

38 mm

635 mm

DECORATIVE VALANCE CANNOT EXTEND BEYOND THE FRONT OF THIS PLANE

DECORATIVE VALANCE

REMOVABLE MOLDING BY SUB-ZERO

TOP HINGE

PANEL REQUIREMENTS

Door and drawer panels must be a minimum of 16 mm thick.

The door panel cannot exceed 18 kg and each drawer panel must not exceed 5 kg for 686 mm wide units. For 914 mm wide units, the door panel weight limit is 24 kg and 7 kg for each drawer panel.

KICKPLATE AREA

Base and Tall Models

PANEL

SIDE MOLDING AND

INSTALLATION HARDWARE

PROVIDED BY SUB-ZERO

LINE OF INTERFERENCE*

AT MAXIMUM DOOR OPENING

MOUNTING BRACKET SCREW

FLUSH FURNITURE FINISH

LINE OF INTERFERENCE*

TO BACK

OF UNIT

610 mm

SUB-ZERO DOOR

657 mm

DOOR WIDTH FOR 686 mm MODELS

886 mm

DOOR WIDTH FOR 914 mm MODELS

REVEAL

3 mm min.

19 mm

FRAMED CABINETRY

IMPORTANT NOTE: The depth of each Integrated model is 610 mm from the front of the unit to its back. Your design may necessitate moving the unit back or cabinets forward to achieve a flush fit.

SUB-ZERO

DOOR

DOOR CLOSED

Full-scale (top view)

105˚ MAXIMUM DOOR OPENING

1/4 scale (top view)

610 mm

TO BACK

OF UNIT

LINE OF INTERFERENCE*

*If the panel is thicker than 19 mm, it is recommended that you utilize the built-in 90˚ door stop to prevent damage to the panel and face frame.

PANEL

LINE OF INTERFERENCE*

AT MAXIMUM DOOR OPENING

MOUNTING BRACKET SCREW

TO BACK

OF UNIT

SIDE MOLDING AND

INSTALLATION HARDWARE

PROVIDED BY SUB-ZERO

LINE OF INTERFERENCE*

SUB-ZERO DOOR

REVEAL

3 mm min.

19 mm

657 mm

DOOR WIDTH FOR 686 mm MODELS

886 mm DOOR WIDTH FOR 914 mm MODELS

610 mm

FRAMELESS CABINETRY

IMPORTANT NOTE: The depth of each Integrated model is 610 mm from the front of the unit to its back. Your design may necessitate moving the unit back or cabinets forward to achieve a flush fit.

DOOR CLOSED

Full-scale (top view)

SUB-ZERO DOOR

19 mm DOOR PANEL

SIDE PANEL COUNTERTOP

610 mm

WALL

105˚ MAXIMUM DOOR OPENING

1/4 scale (top view)

Adjacent side panel and countertop application.

LINE OF INTERFERENCE*

*If the panel is thicker than 19 mm, it is recommended that you utilize the built-in 90˚ door stop to prevent damage to the panel and face frame.

UNDERCOUNTER

686 mm

2032

686 mm

2032

762 mm

2134

616 mm

868mm864

606 mm

MODEL I424

Built-In

MODEL I424FS

Free-Standing

ALL WINE STORAGE

MODEL I427

Integrated

WINE STORAGE

MODEL I427R

Integrated

MODEL I430

REFRIGERATOR

Built-In

With the installation of a harness kit, Wine Storage models are Star-K compliant to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org. For details about the harness kit, contact your Sub-Zero dealer.

WINE STORAGE

Sub-Zero‘s innovative addition to its complete line of residential refrigeration is wine storage equipment— the ultimate in beauty, engineering, and attention to detail. From the exterior and the smooth lines of the free-standing Model I424FS classic stainless steel to the ability to use wood on the Built-In and Integrated models, each unit is beautiful.

With the exception of the free-standing Model I424FS, each model will have the capability of having wood panels applied to the doors. With the Model I427R, you can also apply the wood to the drawers.

The free-standing Model I424FS does not require any panels or surrounding cabinetry; it comes with classic stainless steel exterior.

All models will be shipped with glass doors as standard equipment. The glass doors allow one to see the wine that is being stored.

Stainless steel models will be shipped with tubular stainless steel handles, while the overlay models will come with no handle hardware. Accessory overlay handles are available. Optional stainless steel panels and handles for Models I427 and I427R are offered in the classic stainless steel finish and are ordered and shipped as sales accessories.

Standard grille assemblies for the Model I430 will be provided in 25 mm increments from 254 mm to 381 mm. The standard height will be 279 mm. The overlay model will have the panel grille, which accepts decorative panel inserts.

For information regarding specific Wine Storage models, refer to the illustrations in this section.

The illustrations represent the full line of Wine Storage models. The Model I424FS free-standing unit comes with a classic stainless steel exterior.

FEATURES AND OPTIONS

When looking for wine storage, you no longer have to think only about an undercounter application. Sub-Zero offers you complete flexibility from the perspective of design applications and storage capabilities.

Model I424 comes in the overlay and stainless steel door panel configurations. Model I424FS (free-standing) is identical to the Model I424 but with classic stainless steel exterior and is designed to be attractive in a stand-alone setting.

Models I427 and I427R are offered as integrated or stainless steel. Optional classic stainless steel panels and handles are offered at the 2032 mm and 2134 mm height. Stainless steel panels are available as sales accessories.

Model I430 comes in overlay and stainless steel. Stainless steel Model I430 comes with a standard 279 mm heavy-duty grille, 25 mm diameter stainless steel handles and a stainless steel kickplate.

Built-In Look. Sub-Zero offers you a host of design alternatives to choose from when selecting the look you want. Wood or stainless steel, overlay or integrated.

Dual Zone System. All Wine Storage models allow you to have precise temperature control within one degree of your pre-set temperature in each of the two wine compartments.

Dual Refrigeration System. In a similar fashion to our Built-In, each Wine Storage model has dual refrigeration so your client will have specific, individual temperature control of the two wine compartments.

Electronic Controls. Microprocessor offers touch pad controls that are easy to understand and that set the temperatures accurately.

Display Shelf. This beautiful shelf offers your clients the opportunity to display those prize bottles or magnums of wine in their collection. It is illuminated with discreet lighting mounted in the control panel. (Not available with Models I424 and I424FS.)

Storage Shelves. The sturdy, rustproof wire shelves can easily accommodate standard 750 ml bottles, half bottles, as well as magnums. All the shelves are finished off with a natural cherry wood facing. In addition, all shelves will enable you to be sure the wine is stored properly and that the corks are in contact with the bottles‘ contents.

Roller Assembly. All shelves have a roller assembly, which enables you to have a threequarter extension for easy access to all bottles of stored wine.

Service Alert. An indicator light will let you know if service may be necessary.

Home Alarm. Wiring connections give you the option of hooking the Wine Storage unit up to your home security system.

Discreet Lighting. Our soft low-wattage lighting is independent of door opening.

Correct Temperature. The range of each temperature zone is 3˚C to 18˚C, and your set temperature is digitally displayed in the control panel.

Humidity. Proper humidity is maintained throughout the entire unit.

UV Protection. The tinted glass minimizes the amount of ultraviolet light entering the unit.

Lock. A lock will be offered as an option for all Wine Storage models. The lock is offered as a sales accessory and should be ordered through your Sub-Zero dealer. Special planning is necessary when ordering locks for Models I427 and I427R; see page 57 for details.

Tight Seal. Magnetic gaskets around the doors give extra-tight seals.

Kickplate. The solid, adjustable kickplate gives a true built-in look and conforms to American Institute of Architects standards.

Front Venting. All Sub-Zero Wine Storage models are designed for mechanical system airflow at the front of the appliance. Decorative panels must not cover louvered surfaces or prevent removal of louvered components.

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer.

MODEL I424

UNDERCOUNTER BUILT-IN

MODEL I424FS

UNDERCOUNTER FREE-STANDING

MODEL I427

ALL WINE STORAGE

MODEL OPTIONS

Overlay Design I424/O

Classic Stainless Steel I424/S

SPECIFICATIONS

Overall Width 606 mm

Overall Height 864 mm

Overall Depth 610 mm

Wine Storage Capacity 46 bottles*

Min Height Required 870 mm

Door Swing Clearance 645 mm

Specify Door Swing LH or RH

Shipping Wt (glass) 86 kg

Shipping Wt (glass/S) 88 kg

FEATURES

2 Temperature Zones

8 (750 ml) Bottles per Standard Shelf

2 Top Zone Shelves (16 bottles*)

3 Bottom Zone Shelves (24 bottles*)

1 Fixed Bottle Holder (6 bottles*)

Full-View Glass Door

SPECIFICATIONS

Overall Width 616 mm

Overall Height 868 mm

Overall Depth 625 mm

Wine Storage Capacity 46 bottles*

Door Swing Clearance 645 mm

Specify Door Swing LH or RH

Shipping Wt 100 kg

FEATURES

2 Temperature Zones

8 (750 ml) Bottles per Standard Shelf

2 Top Zone Shelves (16 bottles*)

3 Bottom Zone Shelves (24 bottles*)

1 Fixed Bottle Holder (6 bottles*)

Full-View Glass Door

Classic Stainless Steel Exterior and Door Frame

SPECIFICATIONS

Overall Width 686 mm

Overall Height 2032 mm

Overall Depth 610 mm

Wine Storage Capacity 132 bottles*

Min Height Required 2019 mm

Door Swing Clearance 648 mm

Specify Door Swing LH or RH

Shipping Wt 179 kg

FEATURES

2 Temperature Zones

9 (750 ml) Bottles per Standard Shelf

5 Top Zone Shelves (45 bottles*)

9 Bottom Zone Shelves (81 bottles*)

1 Display Shelf (6 bottles*)

Full-View Glass Door

PANEL OPTIONS

Integrated

Classic stainless steel finish (includes handle)**

MODEL I424FSMODEL I424

MODEL I427

MODEL I430

ALL WINE STORAGE

MODEL I427R

WINE STORAGE|REFRIGERATOR

MODEL OPTIONS

Overlay Design I430/O

Classic Stainless Steel I430/S

SPECIFICATIONS

Overall Width 762 mm

Overall Height 2134 mm

Overall Depth 610 mm

Wine Storage Capacity 147 bottles*

Min Height Required 2108 mm

Door Swing Clearance 765 mm

Specify Door Swing LH or RH

Shipping Wt 197 kg

Shipping Wt (glass /S) 202 kg

FEATURES

2 Temperature Zones

10 (750 ml) Bottles per Standard Shelf

5 Top Zone Shelves (50 bottles*)

9 Bottom Zone Shelves (90 bottles*)

1 Display Shelf (7 bottles*)

Full-View Glass Door

SPECIFICATIONS

Overall Width 686 mm

Overall Height 2032 mm

Overall Depth 610 mm

Wine Storage Capacity 78 bottles*

Refrigerator Capacity 150 L

Min Height Required 2019 mm

Door Swing Clearance 648 mm

Specify Door Swing LH or RH

Drawer Clearance 495 mm

Shipping Wt 186 kg

FEATURES

3 Temperature Zones

2 Refrigerated Drawers

9 (750 ml) Bottles per Standard Shelf

6 Top Zone Shelves (54 bottles*)

2 Bottom Zone Shelves (18 bottles*)

1 Display Shelf (6 bottles*)

Full-View Glass Door

PANEL OPTIONS

Integrated

Classic stainless steel finish (includes handles)**

*750 ml bottles.

**Optional stainless steel panels and handles are ordered and shipped as sales accessories.

MODEL I430 MODEL I427R

ACCESSORIES

Contact your Sub-Zero Dealer

Classic stainless steel front panels (Models I427 and I427R)*

Tubular handles in classic stainless steel

Side and grille panels (Model I430)*

Panel, louvered or stainless steel grilles in varied heights (Model I430)*

Dual installation heater kit (Models I427 and I427R)*

*Accessory is available only for models listed.

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer.

INSTALLATION

Refer to the installation instructions shipped with each Sub-Zero product for detailed specifications.

PLANNING INFORMATION

Review the Overall Dimensions and Installation Specifications illustrations for your Wine Storage model on the following pages. These specifications cover all the details you need to know about space allocation and placement of electrical, whether the models are overlay, stainless steel or integrated.

All Wine Storage models must be installed so that the door can open a minimum of 90˚ or you will have problems pulling the wine shelves out. Refer to the door clearance and door swing information.

For corner installations, you need allow for a minimum 76 mm filler so the door can open to 90˚. If you are using larger handle hardware, you will also need to take that into account.

For a maximum 90˚ door opening, use the door stop built into the hinge system of Model I427. An optional 90˚ door stop kit for Model I430 is available from your Sub-Zero dealer.

If you will be connecting the unit to a home security system, you must allow a minimum of 914 mm of the system‘s wiring to be routed in the electrical area designated for your model.

IMPORTANT NOTE: The anti-tip bracket must be installed to prevent the unit from tipping forward.

ELECTRICAL REQUIREMENTS

IMPORTANT NOTE: The electrical outlet must be grounded. The outlet must be flush with the back wall. Refer to the Installation Specifications illustration for your model for exact placement.

IMPORTANT NOTE: A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

DUAL INSTALLATIONS

If you are installing a Wine Storage unit next to an existing Sub-Zero unit, you may have to allow for a filler strip.

If you are installing a Model I427 or I427R Wine Storage unit next to an existing Integrated Sub-Zero unit, with 51 mm or less between the units, an optional heater kit (BBDUAL or TTDUAL) will need to be installed to prevent moisture from forming between the units. This optional kit is available through your Sub-Zero dealer.

ROUGH OPENING

WIDTH

394 mm

LOCATE ELECTRICAL

WITHIN SHADED AREA

114 mm

64 mm

ROUGH

OPENING

HEIGHT TO

FINISHED

FLOORING

610 mm

ROUGH

OPENING

DEPTH

TOP VIEW

FRONT VIEW

FRONT VIEW SIDE VIEW

(CABINET DIMENSION)

TOE KICK

102 mm

625 mm

13 mm

ADJUSTMENT IN LEVELING LEGS

616 mm

868

mm*

OVERALL DIMENSIONS

FRONT VIEW SIDE VIEW

(CABINET DIMENSION)

102 mm

273 mm

CENTERED

VERTICALLY

597 mm DOOR FRAME

767 mm

DOOR

FRAME

864

mm*

587 mm

606 mm

13 mm

ADJUSTMENT IN LEVELING LEGS

Undercounter Wine Storage

UNDERCOUNTER

Model I424

Built-In

Model I424FS

Free-Standing

MODEL I424

Built-In

Width 606 mm

Height 864 mm

Depth 610 mm

Note the location of pre-drilled holes for optional handle hardware.

INSTALLATION SPECIFICATIONS

Undercounter Models

Model I424

A) Rough Opening Width 610 mm

B) Rough Opening Height 876 mm

C) Min Door Clearance 644 mm

D) Min Clearance at 90˚ 660 mm

Model I424FS*

C) Min Door Clearance 644 mm

D) Min Clearance at 90˚ 660 mm

*Free-standing Model I424FS requires no surrounding cabinetry.

Dimensions are for finished rough openings.

Door swing clearances are based on stainless steel door and handle dimensions.

MODEL I424FS

Free-Standing

Width 616 mm

Height 868 mm

Depth 625 mm

90˚

INTEGRATED

686 mm

ROUGH OPENING WIDTH

635 mm

ROUGH

OPENING

DEPTH

394 mm

LOCATE ELECTRICAL

WITHIN SHADED AREA

114 mm

64 mm

ANTI-TIP BRACKET

FRONT VIEW

TOP VIEW

2032 mm

ROUGH OPENING

HEIGHT

TO FINISHED

FLOORING

2019 mm

MIN HEIGHT

REQUIRED

356 mm

FRONT VIEW SIDE VIEW

(UNIT DIMENSION)

1997 mm*

227 mm

273 mm

CENTERED

VERTICALLY

664 mm DOOR FRAME

1789

DOOR

FRAME

WITH

HINGES

13 mm

ADJUSTMENT IN LEVELING LEGS

686 mm 610 mm

2032

102 mm

DRAWER FRONT

FRONT VIEW SIDE VIEW

(UNIT DIMENSION)

CENTERED

VERTICALLY

650 mm

DOOR

FRAME

WITH

HINGES

13 mm

ADJUSTMENT IN LEVELING LEGS

686 mm 610 mm

356 mm

664 mm

DOOR FRAME

102 mm

248 mm

517 mm

260 mm

337 mm

9 mm

273 mm

1139

1997

mm*

2032

877

mm*

606 mm

90˚

105˚

MAXIMUM

DOOR SWING

889 mm

DOOR CLEARANCE

711 mm

DOOR CLEARANCE

648 mm

Model I427

All Wine Storage

Model I427R

Wine Storage | Refrigerator

OVERALL DIMENSIONS

Model I427 | I427R

Width 686 mm

Height 2032 mm

Depth 610 mm

Note the location of pre-drilled holes for optional handle hardware.

OVERALL DIMENSIONS

All Wine Storage – Model I427

Wine Storage | Refrigerator – Model I427R

INSTALLATION SPECIFICATIONS

Models I427 | I427R

Dimensions are for finished rough openings.

Door swing clearances are based on stainless steel door and handle dimensions.

IMPORTANT NOTE: The depth of Models I427 and I427R is 610 mm from the front of the unit to its back. Your design may necessitate moving the unit back or cabinets forward to achieve a flush fit. This will require a minimum rough opening depth of 635 mm.

1918 mm

178 mm

152 mm

749 mm

ROUGH OPENING WIDTH

610 mm

ROUGH

OPENING

DEPTH

LOCATE ELECTRICAL

WITHIN SHADED AREA

ANTI-TIP BLOCK

FRONT VIEW

TOP VIEW

2127 mm

ROUGH OPENING

HEIGHT

TO FINISHED

FLOORING WITH

STANDARD

279 mm GRILLE

2108 mm

MIN HEIGHT

REQUIRED

(LEVELERS IN)

OVERALL DIMENSIONS

*13 mm ADJUSTMENT IN LEVELING LEGS

FRONT VIEW SIDE VIEW

CENTERED VERTICALLY

719 mm DOOR FRAME

606 mm

DOOR

FRAME

TOE KICK

762 mm

2134

105

273 mm

1724

90˚

130˚

MAXIMUM

DOOR SWING

1270 mm

DOOR CLEARANCE

838 mm

DOOR CLEARANCE

765 mm 765 mm

606 mm

BEHIND

FRAME

All Wine Storage – Model I430

ALL WINE STORAGE

Model I430

Built-In

OVERALL DIMENSIONS

Model I430

Width 762 mm

Height 2134 mm

Depth 610 mm

Note the location of pre-drilled holes for optional handle hardware.

INSTALLATION SPECIFICATIONS

All Wine Storage – Model I430

Dimensions are for finished rough openings.

Door swing clearances are based on stainless steel door and handle dimensions.

INSTALLATION

Refer to the installation instructions shipped with each Sub-Zero product for detailed specifications.

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer.

DOOR PANELS

Unless you are installing a stainless steel model, you will need to provide a frame for the glass door. If you order a stainless steel unit, Models I424, I424FS and I430 will be shipped with their panels and hardware installed and you will merely install the Sub-Zero. However, for Models I427 and I427R, you will have to have the stainless steel panels and handles installed.

MODEL I424FS – FREE-STANDING

The free-standing Model I424FS does not require any panels or surrounding cabinetry. It has a beautiful classic stainless steel exterior, door frame and handle. Refer to the Overall Dimensions illustration for the Model I424FS.

OVERLAY PANELS – MODEL I424

13 mm ADJUSTMENT IN LEVELING LEGS

MODEL I424/S (STAINLESS STEEL WRAPPED DOOR) FINISHES OFF AT 606 mm DEEP

FRONT VIEW SIDE VIEW

(CABINET DIMENSION)

603 mm DOOR PANEL

764 mm

DOOR PANEL

CENTERED

VERTICALLY

606 mm**

TOE

KICK

102 mm

606 mm

877

mm*

The overlay panel applied to Model I424 should not be confused with the Built-In overlay panel application. The overlay panel will consist of only a frame and would be either the 16 mm or 19 mm thick panel you may be using. It is affixed directly to the door itself with screws through a series of pre-drilled holes in the perimeter of the door itself. You do not need any backer or spacer panel.

Refer to the Overall Dimensions and Cabinetry Dimensions illustrations for Model I424 to give you a better idea of the exact space our unit needs and how the panel fits in relationship with the unit.

The glass door opening of the standard Model I424 is designed to be exposed to room air circulation. Decorative overlays on the glass should be kept to a minimum. Also, rails and stiles can be increased in size but should not exceed cabinet manufacturers‘ standard width. They cannot exceed overall door panel dimensions specified, as they would interfere with the operation of the door. The back sides of rails and stiles that will be visible through the glass door will need to be finished. Also, the inside edges of the frames must be finished to match the front surface.

The Overall Dimensions illustrations show the location of predrilled holes for optional handle hardware. Refer to page 60 for specifics about installing handles on this overlay application.

IMPORTANT NOTE: When planning to install the Model I424 next to adjoining cabinetry, you must make provisions to allow the door to open to a maximum of 145˚ and not interfere with the door panel. Refer to the full-scale illustration at the end of this section.

INSTALLATION

To install overlay panels, see the detailed procedures outlined in the Sub-Zero Wine Storage Installation Guide.

CABINETRY DIMENSIONS

Model I424

OVERLAY PANEL SPECIFICATIONS

Model I424

Door Panel Width 603 mm

Door Panel Height 764 mm

Min Width of Rails and Stiles 57 mm

Door Frame Panel Weight Limit 5kg

Min Panel Thickness 16 mm

NOTE: 13 mm ADJUSTMENT IN LEVELING LEGS

FRONT VIEW SIDE VIEW

(UNIT DIMENSION)

679 mm DOOR PANEL

2029

TRIMMED

DOOR

FINISHED OPENING

TOE KICK

102 mm

TOE KICK

FINISHED OPENING

DOOR PAN E L

686 mm

610 mm

2032

1927

102 mm

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer.

INTEGRATED PANELS – MODELS I427 | I427R

The integrated frame panels for glass doors for these models will follow some of the identical planning processes used with the Integrated line. The installation of the door panels is completely different, however. Rather than using the mounting hardware we used with the Integrated line, door panels for both Models I427 and I427R will be applied with screws applied through our door.

The drawer panels for the Model I427R will be applied using the Integrated technique of mounting brackets.

Refer to the Overall Dimensions and Cabinetry Dimensions illustrations for Models I427 and I427R to give you a better idea of the exact space our unit needs and how the panel fits in relationship with the unit.

IMPORTANT NOTE: The depth of Models I427 and I427R is 610 mm from the front of the unit to its back. You must allow for the thickness of the panel you are applying when planning for the finished rough opening depth if you want the front panel to be flush with surrounding cabinetry. You may have to move the unit back into the drywall or bring the cabinets forward. Refer to pages 37–43 of the Integrated section.

IMPORTANT NOTE: The glass door opening of the standard Models I427 and I427R is designed to be exposed to room air circulation. Decorative overlays on the glass should be kept to a minimum. While the cabinet front stiles are a minimum of 57 mm for both Models I427 and I427R, the top and bottom rails are different.

Rails and stiles can be increased in size but should not exceed cabinet manufacturers‘ standard width. They cannot exceed overall door panel dimensions specified, as they would interfere with the operation of the door. The back sides of rails and stiles that will be visible through the glass door will need to be finished. Also, the inside edges of the frames must be finished to match the front surface.

IMPORTANT NOTE: The inside edges of the rough opening will need to be finished as they will be exposed when the doors are open.

CABINETRY DIMENSIONS

Model I427

INTEGRATED PANEL SPECIFICATIONS

Model I427

Door Panel Width 679 mm

Door Panel Height 1927 mm

Min Width of Top Rail 95 mm

Min Width of Bottom Rail 203 mm

Min Width of Stiles 57 mm

Door Frame Panel Weight Limit 9kg

Min Panel Thickness 16 mm

IMPORTANT NOTE: The dimensions of these

*13 mm ADJUSTMENT IN LEVELING LEGS

DRAWER PANEL

FRONT VIEW SIDE VIEW

(UNIT DIMENSION)

679 mm

679 mm DOOR PANEL

FINISHED OPENING

TOE KICK

FINISHED OPENING

TRIMMED

DOOR

686 mm

610 mm

2032

877

mm*

102 mm

424 mm

345 mm

1153

2029

panels and stiles are assuming the models finish off at 2032 mm in height overall and have a 102 mm toe kick for the Model I427. If you finish off at 2134 mm, for instance, you must add 102 mm additional to the overall height of the panel and remember to add 102 mm to the top rail. Likewise, if you allow for a 152 mm toe kick for the Model I427, you must subtract 51 mm from the bottom rail.

Door panels for Models I427 and I427R can grow beyond the 2032 mm height to accommodate any size door as long as you stay below door panel weight limit of 9 kg. Refer to the specifications under Door Panel Height on page 43 of the Integrated section.

IMPORTANT NOTE: The toe kick area on the Model I427 cannot be larger than 152 mm, and no larger than 229 mm for the 427R. The toe kick area for either model cannot be less than 102 mm.

Please note in the Overall Dimensions illustrations the location of pre-drilled holes for optional handle hardware. Refer to page 60 for specifics about installing handle hardware on this overlay application.

IMPORTANT NOTE: If you are installing Sub-Zero‘s optional lock kit on a Model I427 or I427R, you may have to order door panels that exceed the 2032 mm finished height. Consult the lock kit installation instructions and see if your panels will allow for an adequate installation.

IMPORTANT NOTE: In the panel specifications for Model I427R, the bottom drawer panel height is based on a 102 mm toe kick. If you want to show a 152 mm toe kick, you must subtract 51 mm from the bottom drawer panel height.

INSTALLATION

To install integrated panels, see the detailed procedures outlined in the Sub-Zero Wine Storage Installation Guide.

CABINETRY DIMENSIONS

Model I427R

INTEGRATED PANEL SPECIFICATIONS

Model I427R

Door Panel Width 679 mm

Door Panel Height 1153 mm

Min Width of Top Rail 95 mm

Min Width of Bottom Rail 76 mm

Min Width of Stiles 57 mm

Door Frame Panel Weight Limit 9kg

Top Drawer Panel Width 679 mm

Top Drawer Panel Height 345 mm

Bottom Drawer Panel Width 679 mm

Bottom Drawer Panel Height 424 mm

Drawer Panel Weight Limit 5 kg each

Min Panel Thickness 16 mm

Backer

Panel

Spacer Panel

Overlay Panel

6 mm

3 mm

16 mm min

6 mm

Backer Panel

57 mm

Rail/ Stile

3 mm

Spacer Panel

Overlay Panel

Door Frame Glass

8 mm min

2 mm

4 mm

Door/ Grille

Tr im

OVERLAY PANELS – MODEL I430

Your overlay model will be shipped without handle hardware and with an 279 mm overlay panel grille as standard equipment. You will need to order a panel for the grille and hardware to complement your surrounding cabinetry.

While the overlay panel design offers you a more seamless appearance, you need to be aware of adjacent cabinets and/ or countertops when the door is opened. Refer to the full-scale illustrations at the end of the Built-In section.

To achieve the overlay look, you need three different panels— the decorative overlay panel, a 3 mm spacer panel and a 6 mm backer panel. Depending on your cabinet manufacturer, this could be one panel routed for different dimensions or more likely, three different panels. Refer to the Overlay Panel Specifications for complete details on the overlay sizing. In addition, illustrations 2 and 3 will give you a better idea of the panel construction and how it interacts with our frame.

The glass door opening of the standard Model I430 is designed to be exposed to room air circulation. Decorative overlays on the glass should be kept to a minimum. Also, rails and stiles can be increased in size but should not exceed cabinet manufacturers‘ standard width. They cannot exceed overall door panel dimensions specified, as they would interfere with the operation of the door.

Trim Reveal 6 mm min

Rout to 6 mm thickness

57 mm

Rail/ Stile

Illus. 1

Door

Frame

Glass

Illus. 2 Illus. 3

The back sides of rails and stiles that will be

NOTE: 13 mm ADJUSTMENT IN LEVELING LEGS

FRONT VIEW SIDE VIEW

103 mm

1727 mm

CENTERED

VERTICALLY

DOOR

PAN E L

TOE

KICK

722 mm DOOR FRAME

762 mm

2134

visible through the glass door will need to be finished. Also, the inside edges of the frames must be finished to match the front surface.

As with the Sub-Zero Built-In models, you have the flexibility of ordering grilles in a variety of heights for the overlay application. Overlay grille panel dimensions for the overlay Model I430, standard 279 mm grille, are listed below. Refer to page 23 for optional grille height dimensions. The width of the overlay grille, spacer and backer panel will be the same regardless of the height.

In addition, side panel information for a Model I430 is available on page 21 of the Built-In section. Refer to illustration 11 on page 21 for placement of toe kick and grille area cut-outs.

INSTALLATION

To install overlay panels, see the detailed procedures outlined in the Sub-Zero Wine Storage Installation Guide.

CABINETRY DIMENSIONS

Model I430

OVERLAY PANEL SPECIFICATIONS

Model I430 – Overlay (O)

Overlay Door Panel Width 722 mm

Overlay Door Panel Height 1727 mm

Spacer Panel Width 699 mm

Spacer Panel Height 1073 mm

Backer Panel Width 714 mm

Backer Panel Height 1719 mm

Min Width of Rails and Stiles 57 mm

Door Frame Panel Weight Limit 11 kg

Min Panel Thickness 16 mm

GRILLE PANEL SPECIFICATIONS

Model I430 – Overlay (O)

Overlay Grille Panel Width 722 mm

Overlay Grille Panel Height* 260 mm

Spacer Panel Width 699 mm

Spacer Panel Height* 236 mm

Backer Panel Width 714 mm

Backer Panel Height* 252 mm

Grille Panel Weight Limit 7kg

Min Panel Thickness 16 mm

*Grille panel dimensions are for standard 279 mm grille. Refer to page 22 for optional grille heights.

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer.

HARDWARE CONSIDERATIONS

With Model I424 (overlay), Models I427 and I427R (integrated) and Model I430 (overlay), you must supply your own handle hardware. It is recommended you use our optional handles and use the pre-drilled holes supplied to locate the handles within the frame of our unit. The metal frame on the door has numerous mounting holes on each side to accommodate Sub-Zero accessory handles. This will allow you to provide the best possible handle alignment and not take away from the strength of the stile in this area after the unit is used a number of times. We recommend using a pull handle and not a pull knob.

If you elect to place different hardware on these units, we encourage you to fasten the hardware by passing through our door and attaching the hardware through the Sub-Zero door‘s frame.

Optional stainless steel handles are available in a variety of diameters and lengths, as are handles to match the style of Wolf ovens. Contact your Sub-Zero dealer for specifics.

WINE SHELF WOOD FACING

Sub-Zero has provided a natural cherry wood facing to its wine storage shelves in each model. You can also replace these strips with wood more complementary to your design and surrounding cabinetry.

The Wine Shelf Wood Facing illustration on the following page can be used as a full-scale template. You must follow the layout of this format to accommodate the shelves properly. To remove the cherry strips, take the shelves out and remove the screws. Reverse the procedure to affix the new wood.

If you choose to stain or seal the wood facing, be aware that some of these substances are hazardous and will damage stored wine.

When planning for hardware, refer to the Door Frame Profile full-scale illustration on the following page to give you a better understanding of the unit‘s frame and positioning of the glass for the door. You must not drill through this glass.

DOOR FRAME PROFILE

57 mm Rail/Stile

Glass

Cabinet Door

Profile

This full-scale illustration is typical of the Model I424 door frame profile; details of the other Wine Storage door frames will vary slightly.

DOOR FRAME HANDLE OFFSET

Wine Storage Models

Dimension A

Model I424 25 mm

Model I427 22 mm

Model I427R 22 mm

Model I430 24 mm

IMPORTANT NOTE: Rails and stiles must be a minimum of 57 mm wide (except for the rails of Models I427 and I427R, which must be wide enough to cover the door hinges). The back sides of rails and stiles that will be visible through the glass door will need to be finished.

FULL-SCALE TEMPLATES

The full-scale illustrations on the following pages enable you to understand some of the unique situations you may face as you plan for the installation of the Wine Storage units. Use these illustrations as templates.

WINE SHELF WOOD FACING

38 mm

A (WIDTH)

FRONT VIEW

This full-scale illustration provides the dimensions you will need should you choose to replace the natural cherry wood facing of each wine shelf with wood more complementary to your design and surrounding cabinetry.

21 mm

3 mm

2 mm

16 mm

Maximum Thickness

9 mm

14 mm

SIDE VIEW

WINE SHELF WOOD FACING

Wine Storage Models

Dimension A

Model I424 495 mm

Model I424FS 495 mm

Model I427 532 mm

Model I427R 532 mm

Model I430 624 mm

DOOR PANEL

SUB-ZERO DOOR

145˚*

587 mm

TO BACK OF

APPLIANCE

MODEL I424 MUST

EXTEND A MINIMUM

6 mm BEYOND THE

FRONT SURFACE OF

ADJOINING

CABINETRY TO

ALLOW THE MAXIMUM

DOOR SWING

SUB-ZERO

DOOR

PANEL

610 mm

CABINETRY

OPENING

600 mm

DOOR PANEL

WIDTH

6 mm*

3 mm

19 mm

MODEL I424 – DOOR CLOSED AND 145˚ MAX OPENING

The full-scale illustration shows what considerations you need to make for the installation of Model I424 and how the maximum door opening may interact with adjacent cabinets and countertops.

864 mm

606 mm

864 mm

606 mm

864 mm

606 mm

864 mm

606 mm

NEW UNDERCOUNTER REFRIGERATION

Available in 2007

ALL REFRIGERATOR

NEW

Aside from the full-size models that Sub-Zero offers in its Built-In and Integrated lines of refrigeration and its Wine Storage equipment, we round out our product line-up with a new line of Undercounter refrigeration available in 2007.

Our new Undercounter line consists of an all refrigerator model, an all refrigerator beverage

MODEL UC-24R

All Refrigerator

center, a refrigerator / freezer combination model and an all refrigerator model designed for outdoor applications. The existing ice maker Model 315IP will continue to be offered.

BEVERAGE CENTER

NEW

The Undercounter models accept a decorative door panel for an overlay or stainless steel application and can be built in to fit flush with virtually any base cabinet style. The outdoor Model UC-24RO is available in classic stainless steel only and comes with door panel and handle in place. Model UC-24RO must also be

MODEL UC-24B

All Refrigerator

built-in into cabinetry and is not designed to be a free-standing unit.

A classic stainless steel door panel with handle is available as a sales accessory for Models

NEW

COMBINATION

UC-24R and UC-24C. Contact your Sub-Zero dealer for information on accessory panels and handles. Model UC-24B must be ordered as overlay (UC24-B/O) or stainless steel (UC-24B/S). Optional stainless steel panels and handles for Model 315IP are offered in classic stainless steel.

MODEL UC-24C

Combination

Refrigerator / Freezer

NEW

OUTDOOR MODEL

MODEL UC-24RO

All Refrigerator

ICE MAKER

386

854 mm

Comprehensive installation instructions are shipped with each model. Refer to those instructions in preparing and installing all Sub-Zero products. The instructions

MODEL 315IP

Ice Maker

can also be found on our website, subzero.com.

MODEL UC-24R

ALL REFRIGERATOR

NEW NEW

MODEL UC-24B

BEVERAGE CENTER

MODEL OPTIONS

Overlay Design UC-24B/O

Classic Stainless Steel UC-24B/S

MODEL UC-24C

COMBINATION REFRIGERATOR

NEW

FREEZER

SPECIFICATIONS

Overall Width 606 mm

Overall Height 864 mm

Overall Depth 610 mm

Refrigerator Capacity 161 L

Min Height Required 870 mm

Door Swing Clearance 645 mm

Specify Door Swing LH or RH

Shipping Weight 59 kg

FEATURES

2 Adjustable Glass Shelves

1 Utility Bin

2 Door Shelves

SPECIFICATIONS

Overall Width 606 mm

Overall Height 864 mm

Overall Depth 610 mm

Refrigerator Capacity 161 L

Wine Storage Capacity 16 bottles*

Min Height Required 870 mm

Door Swing Clearance 645 mm

Specify Door Swing LH or RH

Shipping Weight (O) 59 kg

Shipping Weight (S) 61 kg

FEATURES

2 Wine Storage Shelves

1 Adjustable Glass Shelf

1 Utility Bin

Full-View Glass Door

SPECIFICATIONS

Overall Width 606 mm

Overall Height 864 mm

Overall Depth 610 mm

Refrigerator Capacity 102 L

Wine Storage Capacity 8 bottles*

Freezer Capacity 31 L

Min Height Required 870 mm

Door Swing Clearance 645 mm

Specify Door Swing LH or RH

Shipping Weight 59 kg

FEATURES

1 Wine Storage Shelf

1 Adjustable Glass Shelf

1 Door Shelf

Automatic Defrost

Automatic Ice Maker

MODEL UC-24R

*750 ml bottles

Optional stainless steel panels and handles are ordered and shipped as sales accessories for Models UC-24R, UC-24C and 315IP.

MODEL UC-24B MODEL UC-24C

MODEL UC-24RO

ALL REFRIGERATOR OUTDOOR MODEL

NEW

MODEL 315IP

ICE MAKER

SPECIFICATIONS

Overall Width 606 mm

Overall Height 864 mm

Overall Depth 610 mm

Refrigerator Capacity 161 L

Min Height Required 870 mm

Door Swing Clearance 645 mm

Specify Door Swing LH or RH

Shipping Weight 59 kg

FEATURES

2 Adjustable Glass Shelves

1 Utility Bin

2 Door Shelves

Door Lock

Classic Stainless Steel Finish

SPECIFICATIONS

Overall Width 386 mm

Overall Height 854 mm

Overall Depth 610 mm

Ice Storage Capacity 12 kg

Min Height Required 857 mm

Door Swing Clearance 387 mm

Shipping Weight 45 kg

FEATURES

Automatic Ice Maker

Automatic Defrost

Reversible Door Swing

Drain Pump

PANEL OPTIONS

Custom Wood Panel

Classic stainless steel finish (includes handle)

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer.

MODEL UC-24RO

MODEL 315IP

ACCESSORIES

Contact your Sub-Zero Dealer

Classic stainless steel door front panel with tubular handle

Classic stainless steel tubular handle for overlay application

UL approved door lock

ACCESSORIES

Optional accessories are available through your Sub-Zero dealer.

UNDERCOUNTER FEATURES

Overlay Application. The overlay application blends seamlessly into your overall room design and complements surrounding cabinetry. You add the decorative door front panel and hardware. Sub-Zero accessories handles are available. The overlay application is available for all Undercounter models except Model UC-24RO. Model UC-24B must be ordered specifically as overlay (UC24-B/O).

Stainless Steel Application. Classic stainless steel door front panel and handle is available as an accessory for Models UC-24R, UC-24C and 315IP. Model UC-24B must be ordered specifically as stainless steel (UC24-B/S). Model UC-24RO is available as a classic stainless steel model only and comes with door panel and handle in place.

UNDERCOUNTER MODEL FEATURES

Electronic Controls. The electronic controls with digital readout LCD display are up front and easy to access.

Glass Shelves. The cantilevered glass shelves are adjustable, easy to clean and spill proof. The glass floor is also spill proof.

Utility Bin. All units except Model UC-24C feature a clear utility bin for storage of smaller items.

Wine Storage. Models UC-24B and UC-24C feature wine storage of 16 and 8 (750 ml) bottles, respectively. The roller-glide wine storage shelves faced with natural cherry wood have a three-quarter extension for easy access.

Glass Door— Model UC-24B. The full-view glass door and accent lighting of Model UC-24B matches the appearance of Wine Storage Model I424.

Ice Maker. Model UC-24C refrigerator/freezer features an automatic ice maker with clear ice bucket. The ice maker provides high-quality, crescent-shaped ice that won’t stick to the side of the glass.

Two-Litre Bottle Storage. All units except Model UC-24B feature two-litre bottle storage in the bottom door shelf.

Door Lock. A UL approved lock is standard on Model UC-24RO and available as a sales accessory for all other models.

Sabbath Feature. The Sabbath feature will allow the lights to remain off during certain religious observances.

315IP MODEL FEATURES

Built-in pump to allow water to drain into an adjacent sink.

Ice storage capapcity of up to 11.8 kg.

PLANNING INFORMATION

876 mm

ROUGH

OPENING

HEIGHT

870 mm

MINIMUM

HEIGHT

REQUIRED

610 mm

ROUGH OPENING

WIDTH

394 mm

610 mm

ROUGH

OPENING

DEPTH

LOCATE ELECTRICAL

AND WATER LINE (MODEL UC24C ONLY) WITHIN SHADED AREA

LOCATE WATER LINE (MODEL UC24C ONLY) WITHIN SHADED AREA

51 mm

394 mm

13 mm

51 mm

TOP VIEW

FRONT VIEW

ANTI-TIP BRACKET

90˚

660 mm

DOOR CLEARANCE

644 mm

Refer to the Installation Specifications for information regarding area requirements, minimum door clearance, placement of electrical and plumbing (Models UC-24C and 315IP).

PLUMBING REQUIREMENTS

For Models UC-24C and 315IP, rough in the water supply line. Connect a 6.35 mm OD copper line to the house supply with an easily accessible shut-off valve between the supply and the unit. A minimum of 660 mm of copper tubing is required for the water line.

Do not use self-piercing valves. A saddle valve kit (4200880) is available from your Sub-Zero dealer. An in-line filter is required when water conditions have a high sediment content.

The ice maker operates on constant water pressure between 1.4 bar and 6.9 bar.

IMPORTANT NOTE: In some cases, a reverse osmosis water filter system may not be able to maintain the minimum pressure consistently.

ELECTRICAL REQUIREMENTS

A 115 V AC, 60 Hz, 15 amp circuit breaker and electrical supply are required. A separate circuit, servicing only this appliance is required.

All Undercounter models are equipped with a power supply cord with a 3-prong grounding plug, which must be plugged into a mating 3-prong grounding-type wall receptacle. Follow local codes and ordinances when installing the receptacle. Refer to the Installation Specifications illustrations.

IMPORTANT NOTE: The Model UC-24RO is designed and safe for use in outdoor applications. When installed outdoors, a ground fault circuit interrupter (GFCI) is required to reduce the risk of electrical shock. A GFCI is not recommended for use with other Undercounter models and may cause interruption of operation.

MODEL OPTIONS

Model UC-24R

All Refrigerator

Model UC-24B

All Refrigerator Beverage Center

Model UC-24C

Refrigerator | Freezer with Ice Maker

Model UC-24RO

All Refrigerator Outdoor Model

Model 315I P

Ice Maker with Drain Pump

INSTALLATION SPECIFICATIONS

Undercounter Models

Overall Dimensions

Overall Width 606 mm

Overall Height 864 mm

Overall Depth 610 mm

Finished Opening Dimensions

Opening Width 610 mm

Opening Height 876 mm

Opening Depth 610 mm

Door Swing Clearance 645 mm

Model 315I P

Min Door Clearance 387 mm

Water Supply 203 mm

Models without an ice maker will not require the water line connection.

For Model 315I (P), the electrical supply can be located anywhere on the back wall.

Door swing clearance based on stainless steel door panel and handle dimensions.

INSTALLATION

TOP VIEW

SHUT-OFF

VALVE

WATER FILTER

WATER

INLET TUBE

DRAIN

TUBE

AIR GAP DEVICE

609 mm

387 mm

MIN.

3 mm

FRONT VIEW

SHUT-OFF

VALVE

WATER FILTER

WATER

INLET TUBE

AIR GAP

DEVICE

DRAIN

TUBE

387 mm MIN.

876 mm

NOMINAL

857 mm

MIN.

Refer to the installation instructions shipped with each Sub-Zero product for detailed specifications.

DRAIN PUMP – MODEL 315IP

This ice maker comes with a built-in drain pump. The drain and inlet water tubes must be plumbed before connecting to the ice maker. An air gap will likely be required between the ice maker drain tube and the drain/waste receptacle. A stand pipe with a trap below it would be acceptable for the drain/ waste receptacle. Refer to the illustrations below.

IMPORTANT NOTE: Poor drainage will cause a high rate of ice melting in the bin.

DOOR PANEL – MODEL 315IP

It is important to understand the differences in mounting any wood panel to the Model 315I P. Refer to the installation instructions packaged with the unit to understand how the panel is installed. It does not require a 6 mm backer. Door panel dimensions are 381 mm wide by 772 mm high and must be a minimum of 16 mm thick. The maximum door panel weight is 7 kg. No handle recess is required.

INSTALLATION SPECIFICATIONS

Model 315I P – Drain Pump

OVERLAY DOOR PANEL – MODELS UC-24R AND UC-24C

The overlay door panel design allows for a decorative panel to cover the door trim for a seamless appearance that will compliment surrounding cabinetry. You may also choose to match the handle hardware of surrounding cabinetry.

Refer to the Overlay Panel Specifications below for your specific model. Illustration 1 below applies to Models UC-24R and UC-24C. Illustration 2 applies to Model UC-24B. Outdoor Model UC-24RO is available as a classic stainless steel model only and comes with door panel and handle in place.

OVERLAY DOOR PANEL – MODEL UC-24B

The overlay door panel applied to the Model UC-24B will consist of only a frame and will affix directly to the door with screws through a series of predrilled holes in the perimeter of the door.

The glass door opening of the Model UC-24B is designed to be exposed to room air circulation. Decorative overlays on the glass should be kept to a minimum. Rails and stiles must be a minimum of 57 mm wide. They can be increased in size but should not exceed cabinet manufacturers standard width. Rails and stiles cannot exceed the overall door panel dimensions specified in the Overlay Panel Specifications, as they would interfere with the operation of the door. The back sides of rails and stiles that will be visible through the glass door will need to be finished. Also, the inside edges of the frames must be finished to match the front surface.

INSTALLATION

To install framed or overlay panels, see the detailed procedures outlined in the Sub-Zero Undercounter Installation Guide.

Refer to the fullscale illustrations at the end of this section for specifics on door openings and other specifications.

OVERLAY PANEL SPECIFICATIONS

Undercounter Models

Models UC-24R and UC-24C

Door Panel Width 603 mm

Door Panel Height 764 mm

Panel Thickness 16 mm min

Panel Weight Limit 9 kg max

Model UC-24B

Door Panel Width 603 mm

Door Panel Height 764 mm

Width of Rails and Stiles 57 mm min

Panel Thickness 16 mm min

Panel Weight Limit 5 kg max

Illus. 1

Illus. 2

FULL-SCALE TEMPLATES

DOOR FRAME PROFILE – MODEL UC-24B

Glass

The full-scale illustrations on the following pages enable you to understand some of the unique situations you may face as you plan for the installation of the Undercounter units. Use these illustrations as templates.

Door Panel Profile

25 mm

57 mm Rail/Stile

25 mm

The full-scale illustration shows the door frame profile for Model UC-24B.

IMPORTANT NOTE: Rails and stiles must be a minimum of 57 mm wide. The back sides of rails and stiles that will be visible through the glass door will need to be finished.

DOOR FRAME PROFILE

WINE SHELF WOOD FACING – MODELS UC-24B AND UC-24C

16 mm

Maximum Thickness

3 mm

38 mm

21 mm

2 mm

495 mm

FRONT VIEW

For Models UC-24B and UC-24C, use the full-scale illustration above as a template if you choose to replace the natural cherry wood facing with wood more complementary to your design and surrounding cabinetry.

9 mm

14 mm

SIDE VIEW

UNDERCOUNTER DOOR CLOSED AND 145˚ MAX OPENING

DOOR PANEL

SUB-ZERO DOOR

145˚*

587 mm

TO BACK OF

APPLIANCE

UNDERCOUNTER

UNIT MUST EXTEND

A MINIMUM 6 mm

BEYOND THE FRONT

SURFACE OF

ADJOINING

CABINETRY TO

ALLOW THE MAXIMUM

DOOR SWING

SUB-ZERO

DOOR

PANEL

610 mm

CABINETRY

OPENING

600 mm

DOOR PANEL

WIDTH

19 mm

6 mm*

3 mm

The full-scale illustration shows what considerations you need to make for the installation of the Undercounter unit and how the maximum door opening may interact with adjacent cabinets and countertops.

SUB-ZERO, INC.

PO BOX 44130

MADISON, WI 53744 USA

SUBZERO.COM

7001871 2/2007

Sub-Zero Built-In line User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
