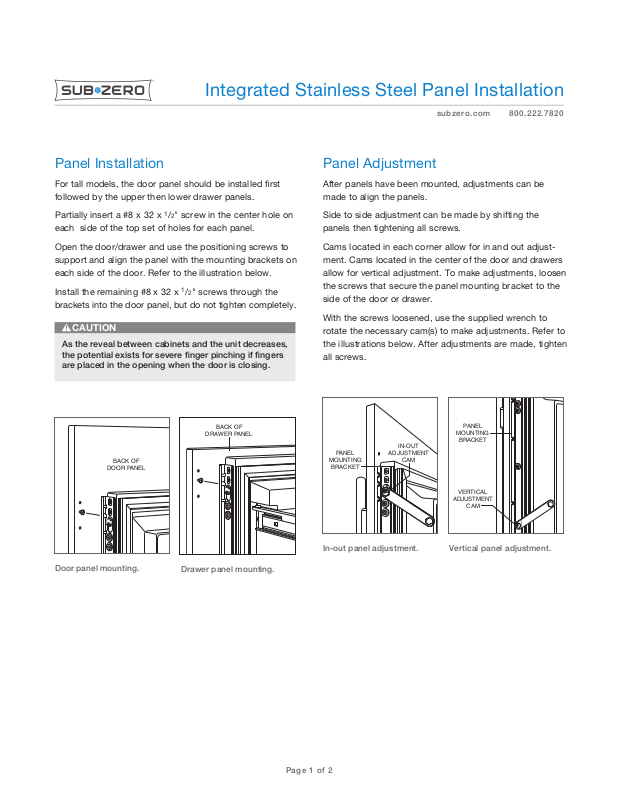

Sub-Zero 7025320 Installation Guide
Integrated Stainless Steel Panel Installation
subzero.com 800.222.7820
Panel Installation
For tall models, the door panel should be installed rst
followed by the upper then lower drawer panels.
Partially insert a #8 x 32 x 1/2" screw in the center hole on
each side of the top set of holes for each panel.
Open the door/drawer and use the positioning screws to
support and align the panel with the mounting brackets on
each side of the door. Refer to the illustration below.
Install the remaining #8 x 32 x 1/2" screws through the
brackets into the door panel, but do not tighten completely.
CAUTION
As the reveal between cabinets and the unit decreases,
the potential exists for severe nger pinching if ngers
are placed in the opening when the door is closing.
BACK OF
DRAWER PANEL
BACK OF
DOOR PANEL
Panel Adjustment
After panels have been mounted, adjustments can be
made to align the panels.
Side to side adjustment can be made by shifting the
panels then tightening all screws.
Cams located in each corner allow for in and out adjustment. Cams located in the center of the door and drawers
allow for vertical adjustment. To make adjustments, loosen
the screws that secure the panel mounting bracket to the
side of the door or drawer.
With the screws loosened, use the supplied wrench to
rotate the necessary cam(s) to make adjustments. Refer to
the illustrations below. After adjustments are made, tighten
all screws.
PANEL
MOUNTING
BRACKET
PANEL
MOUNTING
BRACKET
IN-OUT
ADJUSTMENT
CAM
Door panel mounting.
Drawer panel mounting.
In-out panel adjustment.
Page 1 of 2
VERTICAL
ADJUSTMENT
CAM
Vertical panel adjustment.
Integrated Stainless Steel Panel Installation
Trim Installation
After panels have been properly aligned, install side trim.
To install, align the trim with the bracket on the side of the
door or drawer and snap into position. Refer to the
illustration below.
DOOR TRIM
subzero.com 800.222.7820
Door side trim.
7025792 REV-B 08/2012
7025792
Page 2 of 2
