Sub Zero 7014888, 7014890, 7014889, 7023375 Installation

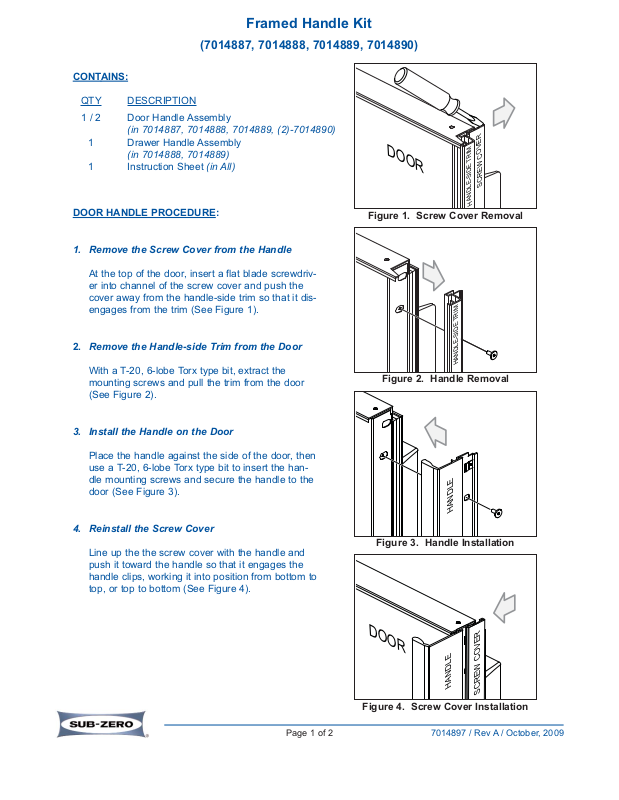

Framed Handle Kit
(7014887, 7014888, 7014889, 7014890)
7014897 / Rev A / October, 2009
Page 1 of 2
CONTAINS:
QTY
DESCRIPTION
1 / 2 Door Handle Assembly
(in 7014887, 7014888, 7014889, (2)-7014890)
1 Drawer Handle Assembly
(in 7014888, 7014889)
1 Instruction Sheet (in All)
DOOR
SCREW COVER
HANDLE-SIDE TRIM
DOOR HANDLE PROCEDURE:
1. Remove the Screw Cover from the Handle
At the top of the door, insert a flat blade screwdriver into channel of the screw cover and push the
cover away from the handle-side trim so that it disengages from the trim (See Figure 1).
2. Remove the Handle-side Trim from the Door
With a T-20, 6-lobe Torx type bit, extract the
mounting screws and pull the trim from the door
(See Figure 2).
3. Install the Handle on the Door
Place the handle against the side of the door, then
use a T-20, 6-lobe Torx type bit to insert the handle mounting screws and secure the handle to the
door (See Figure 3).
4. Reinstall the Screw Cover
Line up the the screw cover with the handle and
push it toward the handle so that it engages the
handle clips, working it into position from bottom to
top, or top to bottom (See Figure 4).
Figure 1. Screw Cover Removal
HANDLE-SIDE TRIM
Figure 2. Handle Removal
DOOR
SCREW COVER
HANDLE
Figure 4. Screw Cover Installation
HANDLE
Figure 3. Handle Installation
Framed Handle Kit
(7014887, 7014888, 7014889, 7014890)
7014897 / Rev A / October, 2009
Page 2 of 2
DRAWER
INSIDE
SCREW COVER
TOP DRAWER TRIM
DRAWER HANDLE PROCEDURE:
1. Remove the Screw Cover from the Handle
At the back right-hand side of the drawer handleside trim, insert a flat blade screwdriver into the
notch in the screw cover and pry the cover away
form the handle-side trim, disengaging it from the
trim (See Figure 5).
2. Remove the Handle-side Trim from the Drawer
With a T-20, 6-lobe Torx type bit, extract the
mounting screws and pull the trim from the drawer
(See Figure 6).
3. Install the Handle on the Drawer
Place the handle against the top of the drawer,
then use a T-20, 6-lobe Torx type bit to insert the
handle mounting screws and secure the handle to
the drawer (See Figure 7).
4. Reinstall the Screw Cover
Line up the the screw cover with the handle and
push it toward the handle so that it engages the
handle clips, working it into position from left to
right, or right to left (See Figure 8).
Figure 5. Screw Cover Removal
DRAWER
OUTSIDE
HANDLE-SIDE TRIM
Figure 6. Handle Removal
SCREW COVER
HANDLE
Figure 8. Screw Cover Installation
DRAWER
HANDLE
Figure 7. Handle Installation
