Page 1

WINE STORAGE USE & CARE GUIDE

Caring for your Sub-Zero and everything in it.

Page 2

Contents

Important Note

Sub-Zero Wine Storage . . . . . . . . . . . . . . . . . . . . . . . . 3

Wine Storage Features . . . . . . . . . . . . . . . . . . . . . . . . 4

Wine Storage Models . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Wine Storage Use & Care . . . . . . . . . . . . . . . . . . . . . . 8

Keeping Wine at Its Best . . . . . . . . . . . . . . . . . . . . . . 18

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . 20

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Sub-Zero Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Features and specifications in this guide and on the website are subject to change at any time without notice. Check our website, subzero.com, for the most up-to-date specifications.

o ensure the safe and efficient use of Sub-Zero equip-

T ment, please take note of the following types of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially important.

CAUTION signals a situation where minor injury or product damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or death if precautions are not followed.

SUB-ZERO®is a registered trademark of Sub-Zero, Inc.

Page 3

Sub-Zero Wine Storage 3

subzero.com

Thank You

hank you for purchasing your new Sub-Zero wine storage

T unit. The ultimate in beauty, engineering, detailing and functionality, this wine storage equipment continues the Sub-Zero tradition of superior quality and reliability, giving you the peace of mind that your wine is stored properly, at the exact temperature you select.

Your Sub-Zero wine storage model is protected by a warranty that is one of the finest in the industry. Take a moment to read the warranty statement at the end of this guide and refer to it should service become necessary.

This use & care guide will answer most of your questions about the features, operation and maintenance of your wine storage unit. If you have questions that are not addressed here, call Sub-Zero customer service at 800-222-7820 or visit our website, subzero.com.

Page 4

Wine Storage Features 4

Wine Storage Features

Display shelf—featured on models 427, 427R and

Dual temperature zones—all wine storage models allow

•

you to have precise independent temperature control within one degree of your preset temperature in each of the two temperature zones.

•

WS-30, this shelf allows you to display those prized bottles in your wine collection. It is illuminated with discreet lighting mounted in the control panel.

• Model 427R has a third temperature zone—refrigerator

drawers—for items to be stored at a cooler temperature than your wine.

• Electronic controls—a microprocessor controls all elec-

tronic functions and allows you to monitor the exact temperature you have preset and make adjustments easily.

• Correct temperature—each temperature zone of your

wine storage unit has a range of 38°F (3°C) to 65°F (18°C), and your set temperature is shown in the LED display, located on the control panel.

• Proper humidity is maintained throughout the entire

unit.

• Discreet lighting—our soft low-wattage lighting can be

controlled independently of the door’s opening, which will allow you to display your collection of wine for special occasions.

• Sturdy, rustproof wire shelves can easily accommodate

standard 750 ml bottles, half bottles, as well as magnums. Finished off with a natural cherry wood facing, all shelves ensure that the wine is stored properly, with the corks in contact with the bottles‘ contents.

• Roller-assembly shelves with a full three-quarter exten-

sion for easy access to all stored bottles.

• Service alert—an indicator light in the LED display on

the control panel will let you know if service may be necessary.

• Home alarm—wiring connections give you the option

of hooking the wine storage unit up to your home security system.

• Model 427R has an alarm feature that will make an

audible beeping sound if a drawer has been left open.

• Sabbath mode will allow the lights to remain off during

certain religious observances.

• UV-resistant glass in the door filters out harmful UV

light.

• Optional lock—lock is available as a sales accessory.

Contact your Sub-Zero dealer for details.

• Magnetic gaskets around the doors give extra-tight

seals.

• The solid, adjustable kickplate gives a true built-in

look and conforms to American Institute of Architects standards.

• Front venting—all Sub-Zero wine storage models are

designed for mechanical system airflow at the front of the unit.

• Sub-Zero products are covered by a two, five and

twelve year residential warranty (exclusions apply). See warranty details at the end of this guide.

With the installation of a harness kit, these appliances are Star-K compliant to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org. For details about the harness kit, contact your Sub-Zero dealer.

Page 5

Wine Storage Models 5

subzero.com

Model 424

UNDERCOUNTER WINE STORAGE

Discreet lighting

Lighted electronic

ontrol panel

Roller-assembly

helves

tationary shelf UV-resistant

Home security tie-in

Removable kickplate

Location of rating plate

Full-view glass

oor (standard)

Divider gasket

lass

Model 424FS

FREE-STANDING WINE STORAGE

Stainless steel exterior

Lighted electronic control panel

Roller-assembly shelves

Stationary shelf UV-resistant

Home security tie-in

Removable kickplate

Location of rating plate

Full-view glass door (standard)

Divider gasket

glass

Page 6

Wine Storage Models 6

Model 427

ALL WINE STORAGE

iscreet lighting

Lighted electronic

ontrol panel

ighted display

helf

Roller-assembly shelves

Home security tie-in

Model 427R

WINE STORAGE WITH REFRIGERATOR DRAWERS

Discreet lighting

Full-view glass

oor (standard)

Divider gasket

ocation of rating

late

UV-resistant glass

Removable kickplate /grille

Full-view glass door (standard)

Roller-assembly shelves

Lighted electronic control panel

Lighted display shelf

Removable drawer dividers

Home security tie-in

UV-resistant glass

Divider gasket

Location of rating plate

Refrigerator storage drawers

Removable kickplate /grille

Page 7

Wine Storage Models 7

subzero.com

Model WS-30

ALL WINE STORAGE

ome security

ie-in

ermetically sealed

efrigeration units

Discreet lighting

Lighted electronic

ontrol panel

ighted display

helf

Roller-assembly shelves

Full-view glass

oor

UV-resistant glass

ivider gasket

Location of rating plate

Removable kickplate

Page 8

Wine Storage Use & Care 8

TEMPERATURE

CONTROLS

Electronic Control System

he electronic control system of your Sub-Zero wine

T storage unit gives you the most accurate temperature control for your peace of mind. You can be assured your wine is stored at the temperature you have selected, whether it is long-term aging or staging wine for consumption that evening.

A microprocessor accurately samples the temperature every second in each zone to be sure the temperatures stay within one degree of your preset temperatures. It also monitors the unit’s operation and will let you know if service may be necessary.

TEMPERATURE CONTROL

With all wine storage models you have the capability of setting two distinct temperatures within the two zones of your wine storage unit. Your model has been thoroughly tested and inspected before it was shipped from the factory. The temperature has been preset at 45°F (7°C) in the smaller zone and 55°F (13°C) in the larger zone.

There are two sets of WARMER and COLDER key pads on the control panel, one for each of the two separate temperature zones. An arrow next to the temperature in the LED display, will indicate which temperature corresponds with each zone. Refer to the illustration below.

The COLDER key pad on the control panel allows you to decrease the temperature in the corresponding zone by one degree each time you depress the key pad. Remember that the temperature range in each zone is 38°F (3°C) to 65°F (18°C) and you can set two different temperatures—one for each zone.

Similar to the COLDER key pad, you can raise the temperature in the corresponding zone by one degree each time you depress the WARMER key pad on the control panel.

Electronic control panel.

Page 9

Wine Storage Use & Care 9

subzero.com

Electronic Control System

LED DISPLAY

Electronic control system functions, such as digital temperatures and service indicators, are shown in the LED display, located on the control panel. The temperatures of each zone will be visible through the glass door of your wine storage unit. If you are using your unit frequently, the numbers may fluctuate.

UNIT ON/OFF

The UNIT ON/OFF key pad on the control panel will shut off all electrical power to the wine storage unit for cleaning or service.

LIGHTS ON/OFF

All wine storage units have the capability of having the lights on independently of the door’s opening and closing. This will allow you to display your collection of wine for special occasions.

To have the lights remain on independently of the door’s opening and closing, press the LIGHTS ON/OFF key pad. Press the key pad again to have the lights to go off when the door is closed.

ALARM FEATURE

If the microprocessor detects temperature fluctuations or a faulty component, you will hear an audible beep and a bell symbol will flash in the LED display on the control panel. Also, if the unit is tied in with your home security, it will alert this system. You can deactivate the alarm feature and the audible sound by depressing the BELL symbol key pad. If the alarm is deactivated, the bell will not be visible in the LED display.

SABBATH MODE (STAR-K)

All wine storage units feature the Sabbath mode. This is for certain religious observances where the lights need to be turned off.

To initiate Sabbath mode, while the unit is on press the UNIT ON/OFF key pad so that OFF is visible in the LED display on the control panel. Your unit will be off.

Then press and hold the UNIT ON/OFF key pad for 10 seconds. This will turn the unit back on and will disable the lights. To return the unit to normal lighting, press and release the UNIT ON/OFF key pad.

If you have questions about Star-K compliance, visit www.star-k.org.

You should not leave the lights on overnight or for extremely long periods of time. The heat from the lights will cause the unit to work unnecessarily hard.

VISUAL SERVICE DISPLAY

The electronic control system monitors temperatures as well as the unit’s operation. If there is a temperature or operation problem, you will notice the word SERVICE illuminated in the LED display on the control panel. Before calling for service, please check to see if your condenser area needs cleaning. Refer to condenser cleaning on page 17.

Page 10

Wine Storage Use & Care 10

Refrigerator Drawers—Model 427R

TEMPERATURE CONTROL

For model 427R, the refrigerator drawers have their own microprocessor and control panel located in the top drawer. The preset temperature is 38°F (3°C) from the factory, but you have the option of adjusting the temperature within the range of 34°F (1°C) to 45°F (7°C). The LCD display on the control panel displays the actual temperature of both drawers in your unit.

The COLDER key pad on the control panel allows you to decrease the temperature of the drawers by one degree each time you depress the key pad. You can raise the temperature in the drawers by one degree each time you depress the WARMER key pad on the control panel.

ALARM FEATURE

For model 427R, an alarm will make an audible beeping sound if a drawer has been left open accidentally.

When the alarm is activated, a bell symbol will be illuminated in the LCD display of the control panel. When the alarm is deactivated, the bell symbol will not be visible.

Temperature Settings

n all instances, the temperature settings are your individ-

I ual preference, and with the wine storage model you purchased, you can be confident the unit will maintain those temperatures. A chart with suggested storing and serving temperatures can be found on page 19.

While each temperature zone of your wine storage unit has a range of 38°F (3°C) to 65°F (18°C), you can set the temperatures at the exact temperature you think best— whether it’s for consumption or for duplicating the temperatures of cellars for long term storage.

Page 11

Wine Storage Use & Care 11

subzero.com

Wine Storage

WINE STORAGE SHELVES

All Sub-Zero wine storage models have roller-assembly shelves with a full three-quarter extension for easy access to all stored bottles.

IMPORTANT NOTE: Models 424 and 424FS have roller-

assembly shelves in all instances with the exception of the bottom stationary shelf.

The shelves have a solid natural cherry wood facing that can be replaced with other wood to match your cabinetry. Details on how to replace the shelves’ wood facing can be found in the Sub-Zero design guide. Check our website at subzero.com or call Sub-Zero at 800-222-7820.

IMPORTANT NOTE: If you choose to stain or seal the

shelves’ natural cherry wood facing, be aware that some of these substances are hazardous and will damage stored wine.

Your wine storage unit is intended to maximize the storage of bottles in an ideal environment where the wine stays in contact with the cork at an even temperature. Refer to the illustration for the proper arrangement of bottles on the shelves.

If you are storing half bottles or magnums, they are nestled in the shelves in the same manner as the 750 ml bottles.

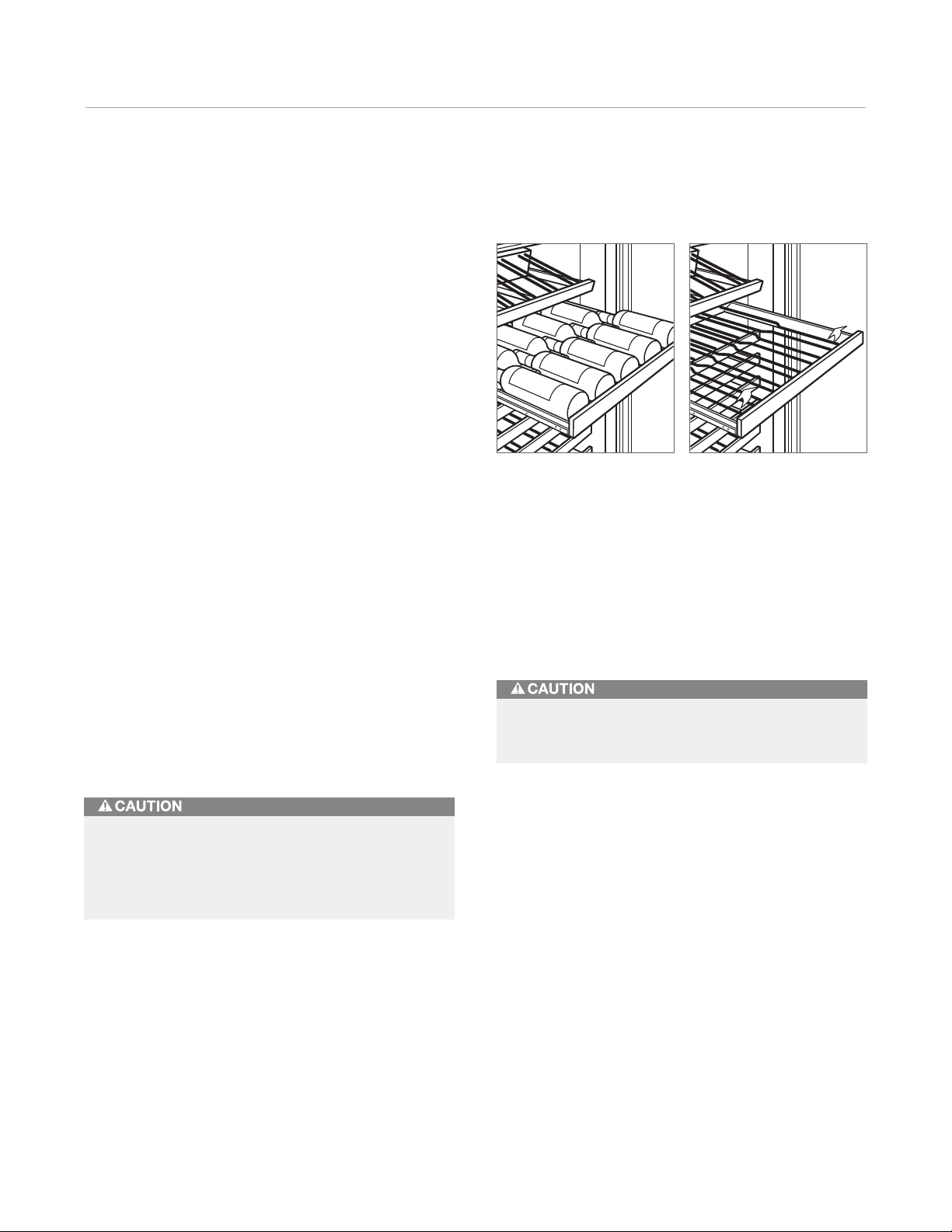

Wine storage arrangement. Wine storage shelf removal.

WINE STORAGE SHELF REMOVAL

To remove a wine storage shelf, pull the shelf out to its full extension, gently and evenly lift up on both sides of the front of the shelf and remove. Refer to the illustration above. Reverse the procedure to reinstall the shelf.

Be sure to unload all bottles from the wine storage shelf before removing it.

When storing magnum bottles you must remove the shelf just above the intended storage shelf to allow for these larger bottles to be moved in and out of the unit. Failure to do so will cause the bottles to break.

Page 12

Wine Storage Use & Care 12

MER

Wine Storage

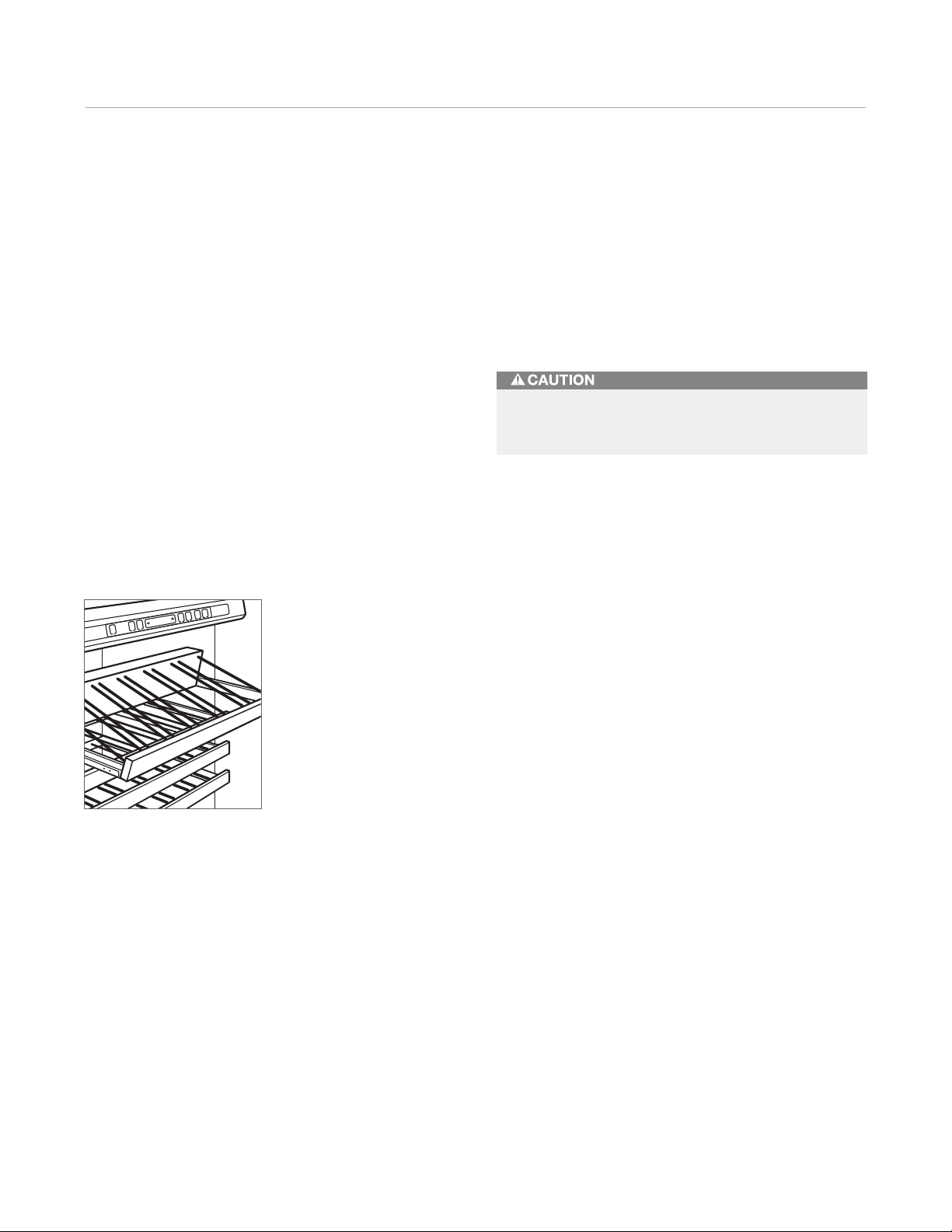

DISPLAY SHELF

Models 427, 427R and WS-30 feature a display shelf that allows you to display those prized bottles in your wine collection. It is illuminated with discreet lighting mounted in the control panel. The display shelf is designed so that the wine will stay in proper contact with the cork. Refer to the illustration below.

IMPORTANT NOTE: The display shelf is designed for only

one row of bottles laid in such a way that the bottom portion of the bottle is against the wood rail and the top and cork of the bottle are toward the back of the wine storage unit.

IMPORTANT NOTE: Models 424 and 424FS do not include

the display shelf.

DISPLAY SHELF REMOVAL

To remove the display shelf, pull the shelf out to its full extension, gently and evenly lift up on both sides of the front of the shelf and remove. Reverse the procedure to reinstall the shelf.

Be sure to unload all bottles from the wine storage shelf before removing it.

Display shelf.

Page 13

Wine Storage Use & Care 13

subzero.com

Refrigerator Drawers—Model 427R

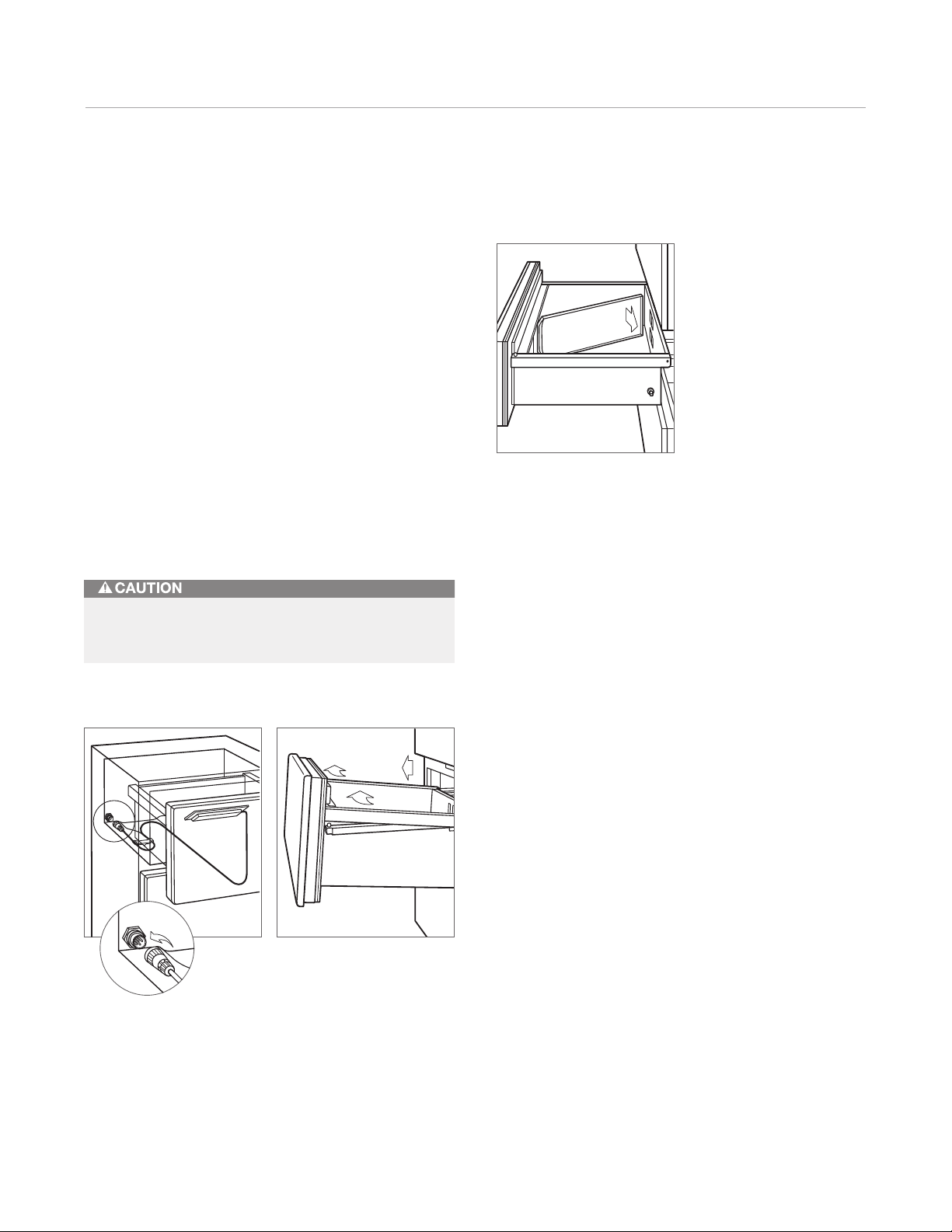

DRAWER REMOVAL

IMPORTANT NOTE:

the control cable before removing the top drawer. Refer to the illustration below.

To remove a drawer from the model 427R, pull the drawer open until it stops. Lift up evenly on both sides of the drawer front and pull out, as shown in the illustration below.

IMPORTANT NOTE: Be sure to unload the contents before

removing the drawer.

To replace a drawer, raise the front of the drawer up and place onto the drawer slide tracks. Be sure to engage the front holes of the drawer slide with the small pegs at the end of each rail.

Before removing the top drawer of the model 427R, you MUST disconnect the control cable.

For model 427R, you must disconnect

Drawer divider.

DRAWER DIVIDER

Each drawer of the model 427R has a divider that can be easily removed.

To remove, pull the drawer divider forward and pivot the back edge of the divider away from the back of the drawer. Reverse the procedure to reinstall the divider. Refer to the illustration above.

Control cable.

Drawer removal.

Page 14

Wine Storage Use & Care 14

Door Operation

DOOR CLOSING

The door of your wine storage unit has a spring-loaded closure mechanism. As the door is closed, the door closer engages to help close and seal the door.

90° DOOR STOP

If your wine storage unit is positioned in a corner, you may want to limit the door opening to 90°.

IMPORTANT NOTE: A 90° door stop is not available for

models 424 and 424FS.

For models 427 and 427R, a 90° door stop built into the hinge system. You can easily actuate the stop by using a blade-type screwdriver and rotating the brass cam in both the top and bottom hinges. You must position both stops at 90° if you want to safely use the door. You can go to the maximum of a 105° door opening by using the screwdriver and rotating the brass cam to the next stop. Refer to the illustration below.

For model WS-30, a 90° door stop ships with the unit and is located behind the flip-up grille. Refer to the illustration below.

The door swing on models 427 and 427R may cause severe finger pinching. Watch that fingers are not placed in the door opening on the hinge side when the door is open.

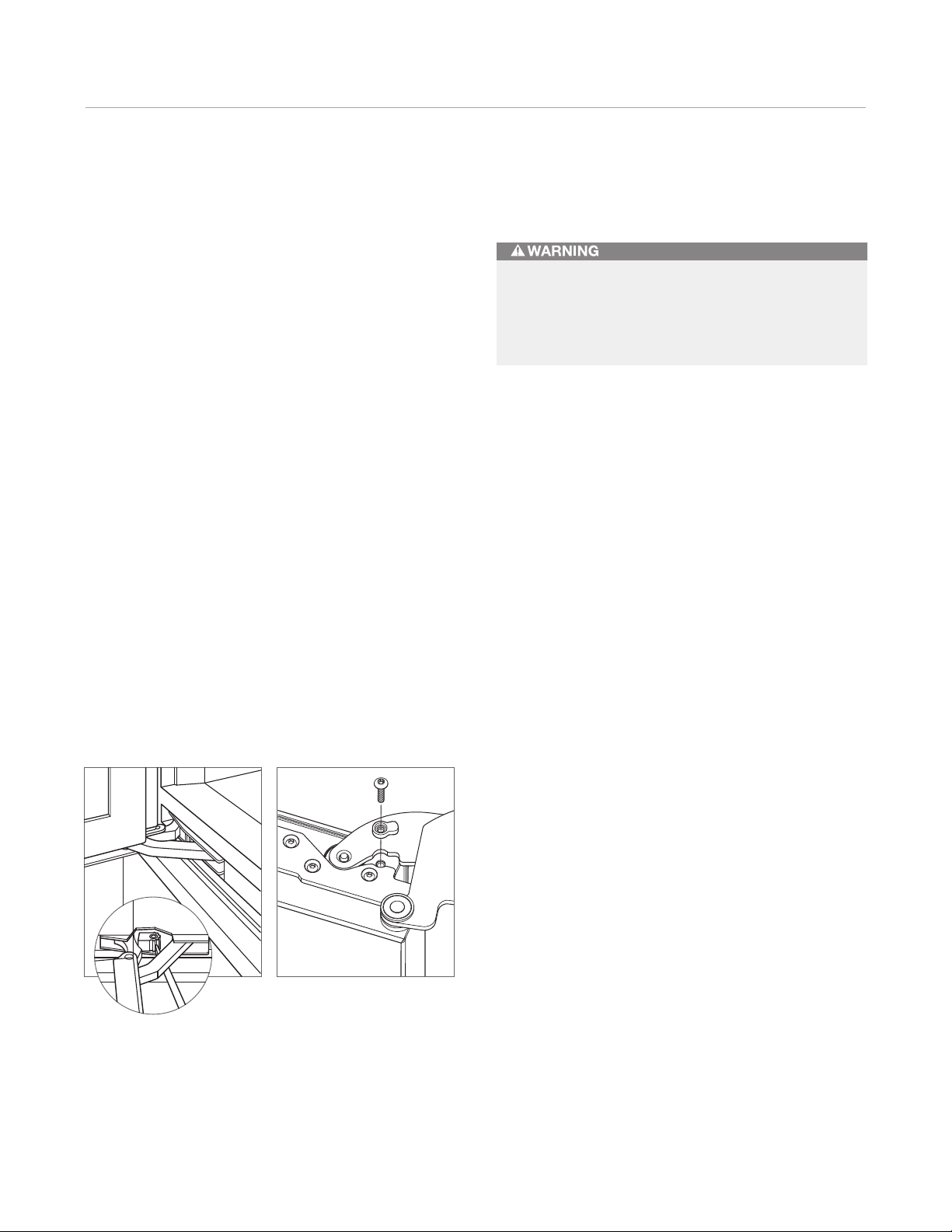

90° door stop (models 427 and 427R).

90° door stop (model WS-30).

Page 15

Wine Storage Use & Care 15

CABINET

LIGHTING

DRAWER

LIGHTING

subzero.com

Lighting Information

CABINET LIGHTING

For models 424 and 424FS, rope-style lighting is mounted to the top of the cabinet and cascades down the entire front of the unit.

Models 427, 427R and WS-30 have discreet lighting provided in two places. Rope-style lighting is mounted to the top of the cabinet and additional lighting is mounted in the control panel to illuminate the display shelf. Refer to the illustration.

These lights have an extended life and it should be some time before they need to be replaced. If you have problems with the cabinet lighting or need replacements, contact your Sub-Zero authorized service center or call 800-222-7820.

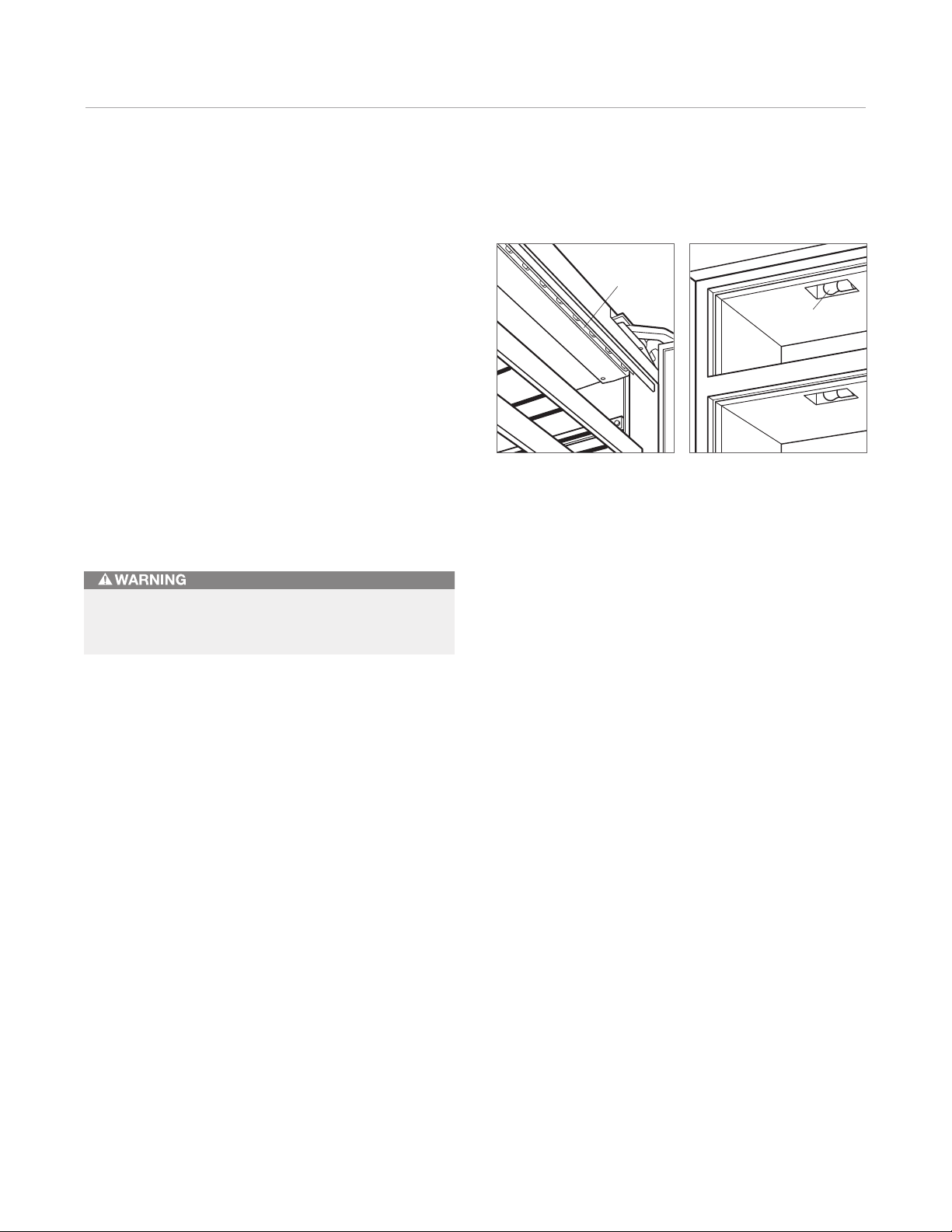

Cabinet lighting (models 427, 427R and WS-30).

Drawer compartment lighting (model 427R).

DRAWER LIGHTING—MODEL 427R

Shut off power to the unit before replacing light bulbs. Wear protective gloves when handling bulbs.

Lighting is recessed into the top area of each refrigerator drawer compartment of model 427R. Refer to the illustration above.

To replace a light bulb in the drawer compartment, you must pull the drawer out to its maximum extension. It is recommended that you remove the drawer. Refer to page 13 for the drawer removal procedure.

Remove the 15-watt bulb by unscrewing it from its socket and complete the reinstallation by following the reverse steps.

Page 16

Wine Storage Use & Care 16

Cleaning

STAINLESS STEEL EXTERIOR

Classic and platinum stainless steel finishes: To clean

the exterior of the classic and platinum stainless steel finishes, use a soft, nonabrasive stainless steel cleaner like Signature polish and apply with a soft 100% lint-free cloth.

Signature polish is available from Signature Limited Laboratory, P. O. Box 13436, Dayton, Ohio 45413-0436, or 877-376-5474 (toll free).

Carbon stainless steel finish: The carbon stainless steel finish uses the interest of brushed steel to bring out the maximum metallic luster of its charcoal background. Carbon stainless steel can be cleaned with mild soap and water.

Different light types and source locations can result in variations in shading on different components and areas of large appliances. These variations are normal with the carbon finish and add to the unique character of colored stainless steel.

To bring out the natural luster of all three finishes, lightly wipe the surface with a water-dampened microfiber cloth followed by a dry polishing chamois. All work should follow the grain direction of the finish. Better results are obtained by keeping the cloth in continuous contact with the stainless steel.

GLASS DOOR CLEANING

The glass door panel can be cleaned using any standard glass cleaner available on the market today.

INTERIOR CLEANING

To clean interior surfaces and removable parts, wash with a mild solution of soap and lukewarm water with a little baking soda. Do not use vinegar. Rinse and dry thoroughly. Avoid getting water on lights, control panel and the solid cherry wood facing on the shelves.

Do not use abrasive cleaners or cloths on any of the interior or exterior surfaces, including the glass door panel.

Before cleaning the unit, shut off power to the unit at the control panel.

Under no circumstances should you use a metallic or highly abrasive cleaner or cloth, as this will remove the carbon finish or scratch the classic or platinum finishes.

Page 17

Wine Storage Use & Care 17

KICKPLATE

CONDENSER

subzero.com

Cleaning

CONDENSER CLEANING

Clean the condenser area every three to six months. The cleaning schedule will depend on the amount of dust and lint that accumulates in this area.

For models 424 and 424FS, the condenser is located behind the kickplate. First, remove the kickplate to expose the condenser area. Refer to the illustration below.

The condenser for models 427 and 427R is located behind the kickplate/grille. Remove the screws holding the kickplate/grille. This assembly will slide forward easily, giving you access to the condenser area. Refer to the illustration below.

For model WS-30, the condenser is located behind the grille. First, pull out on the bottom edge of the grill and tilt forward. Refer to the illustration.

Use a soft bristle brush and vacuum hose to remove dust and lint from the condenser area.

IMPORTANT NOTE: To avoid bending the condenser fins,

be sure to vacuum in the direction of the fins (up and down).

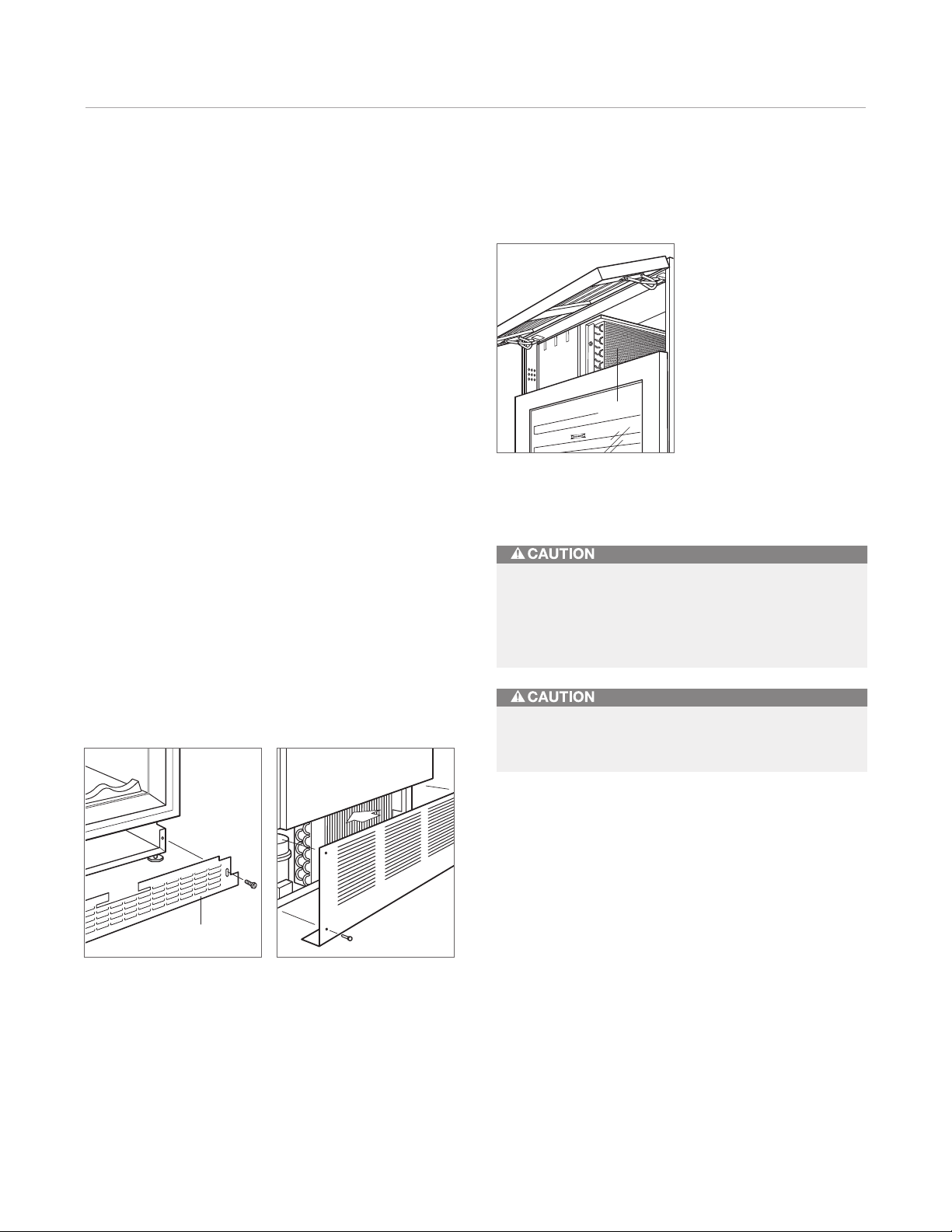

Location of condenser (model WS-30).

Before cleaning the condenser, shut off power to the unit at the control panel. When you clean the condenser, wear gloves to avoid injury from the sharp condenser fins.

Location of condenser (models 424 and 424FS).

Failure to clean the condenser could result in temperature loss or mechanical failure or damage.

Location of condenser (models 427 and 427R).

Page 18

Keeping Wine at Its Best 18

Storing and Serving Wine

ou can devote the entire wine storage unit to long-term

here is a right way to store and serve wine. And there is a

T wrong way. The Sub-Zero wine storage equipment is committed to the right way. Wine enthusiasts know that wine, optimally, likes to be stored for long periods of time in caves that are vibration free, dark, damp and kept at a constant 55°F (13°C). However, how many of us have these situations available?

When you think about wine, think about preserving fruit and the fact that you must refrigerate it at the proper temperature before it spoils. After all, wine is the juice of grapes in its simplest interpretation.

Wine needs to be selected and cared for properly. The wine aficionado knows that proper storage will ensure the wine is served at the best conditions.

You have taken the extra step to ensure that your wine is kept in the best possible environment by purchasing your Sub-Zero wine storage unit. Now how you use the unit is up to you.

Y storage and have the temperature set to 55˚F (13°C) in both zones—the ideal temperature for long-term storage or aging. If, however, you want to devote only a small portion of the unit to that feature, you can adjust the temperature in the smaller zone to long-term storage and adjust the other temperature zone to accommodate the wine you will be enjoying soon.

The temperature in this zone can be anything you choose. Sure, there are ideal temperatures for serving wine, but it is very subjective, with everyone’s palate reacting differently to different temperatures.

The chart on the following page offers some universally accepted storing and serving temperatures for the most common wines consumed today.

Enjoy the wine and your Sub-Zero wine storage unit. And thank you for your trust in Sub-Zero.

Page 19

Keeping Wine at Its Best 19

subzero.com

Storing and Serving Temperatures

Domestic Refrigerator Temperature

Ideal Long-Term Storage / Aging Temperature Room Temperature

SWEET WHITES LIGHT REDSDRY WHITES FULL SCALE REDS

1˚F (5˚C)39˚F (4˚C) 43˚F (6˚C) 45˚F (7˚C) 46˚F (8˚C) 48˚F (9˚C) 50˚F (10˚C) 52˚F (11˚C) 54˚F (12˚C) 55˚F (13˚C) 57˚F (14˚C) 59˚F (15˚C) 61˚F (16˚C) 63˚F (17˚C) 64˚F (18˚C)

Muscadet

auternes

ewurtztraminer

Sancerre / Pouilly

Gros Plant

Muscats

Sylvaner

Aligote

Non-Vintage ChampagneTokay

Sparkling Wine (Sekt, Cava, etc.)

Eiswein

Liebraumilch

Sweet Loire Chenin Blancs

Alsace / Riesling

Chablis

acon

ordeaux Blanc

Beaujolais Nouveau

Fino Sherry

Best Champagne

Good German /

Austrian Wines

hinon

Tawny Port

Amontillado

Montlla

Vin Jaune

Best Dry

German Wines

Best White

Burgundies / Graves

Beaujolais Crus

Cotes du Rhone (Red)

Midi Reds

(Corbieres, etc.)

Cream Sherry

Madeira

Best Sweet

German Wines

ed Burgundy

Top Red Rhone

Ordinary Red Bordeaux

Cahors

Madiran

Bandol

Vintage Port

Fine Red Bordeaux

Frascati

Orvieto

Vinho Verde

Fendant

Lambrusco

Retsina Yugoslav Riesling

S.A. Chenin Blanc

Light Muscats

N.Z. Sauvignon Blanc

Johannisberg Riesling

Barossa Riesling

41˚F (5˚C)39˚F (4˚C) 43˚F (6˚C) 45˚F (7˚C) 46˚F (8˚C) 48˚F (9˚C) 50˚F (10˚C) 52˚F (11˚C) 54˚F (12˚C) 55˚F (13˚C) 57˚F (14˚C) 59˚F (15˚C) 61˚F (16˚C)

Soave

Verdicchio

Chardonnay

Vin Rose

Valpolicella Chianti Reservas

Hungarian Whites

Valdepenas

Top California / Australian

California

Sauvignon Blanc

Liqueur Muscats

Dole

Chardonnays

Fiasco Chianti

Sicilian Reds

Bull’s Blood

Barbera

Light Zinfandels

Old Hunter Valley

Whites

Rioja Reservas

Best Portuguese Reds

Barolo

Chilean Cabernet

California / Australian / Oregon Pinot Noir

Best California

Cabernets / Zinfandels

Merlots / Pinot Noirs

Top Australian

Cabernet / Shiraz

63˚F (17˚C)

64˚F (18˚C)

Page 20

Troubleshooting Guide 20

Troubleshooting

ondensation forms inside the unit.

f your wine storage unit is not operating properly, refer to

I the following troubleshooting guide before calling your Sub-Zero authorized service center or dealer. This guide will save you time and trouble and may help you avoid the expense of a service call.

The wine storage unit is not operating.

• Is there electrical power to the unit?

• Is your home circuit breaker or fuse on?

• Is the unit on? Depress the UNIT ON/OFF key pad.

• Is the condenser area clean?

The wine storage unit is warmer than usual.

• This is normal during periods of higher humidity

(summer) and with frequent door openings.

• Are the door and drawers (model 427R) closing and

sealing properly?

Condensation forms outside the unit.

• During periods of high humidity, some condensation

may appear on outside surfaces. The condensation will disappear when the humidity drops. Be sure that the door and drawers (model 427R) are closing and sealing properly. If condensation persists, contact your Sub-Zero authorized service center.

• Is the control set properly?

• Is the condenser area clean?

• Have the door or drawers (model 427R) been open for

a long time?

The wine storage unit runs for long periods of time.

• Is the condenser area clean?

• On hot days and in warm room temperatures, the

compressor runs longer.

• Have the door or drawers (model 427R) been open for

a long time?

• Have you recently added a large amount of wine?

Condensation forms inside the unit.

• This is normal during periods of higher humidity

(summer) and with frequent door openings.

• Are the door and drawers (model 427R) closing and

sealing properly?

You need product information.

• Call Sub-Zero customer service at 800-222-7820

or visit our website, subzero.com, for planning, installation and product information.

You need service.

• If service is necessary, maintain the quality built into

your Sub-Zero unit by calling a Sub-Zero authorized service center.

• To obtain the name and number of a Sub-Zero author-

ized service center, check the contact & support section of our website, subzero.com or call Sub-Zero customer service at 800-222-7820.

• When calling for service, you will need the model and

serial numbers of your unit. The numbers are listed on the product rating plate. For models 424 and 424FS, the rating plate is located on the underside of the top wall. For models 427, 427R and WS-30, it is attached to the underside of the control panel.

Page 21

Troubleshooting Guide 21

subzero.com

Frequently Asked Questions

TEMPERATURE

IMPORTANT NOTE:

serviced, make sure the power for your unit is on.

Q: How do I adjust the temperatures?

A: To adjust temperatures, refer to temperature control on

page 8. For model 427R, also refer to page 10.

Q: What are the suggested temperature settings?

A: Temperature settings are your individual preference.

While each temperature zone of your wine storage unit has a range of 38°F (3°C) to 65°F (18°C), you can set the temperatures you think best. A chart with suggested storing and serving temperatures can be found on page 19.

Q: Condensation is forming on the inside and outside of

my unit.

A: In climates with higher humidity, condensation will form

and is considered normal. Leaving the door open for a long period of time may also contribute to condensation forming on the inside of your unit.

Unless the wine storage unit is being

NOISE

Q: Why do I hear my unit running frequently?

A: It is normal to hear the operation of fans and motors.

Sounds will be accentuated based on the placement of the unit and overall room design.

Q: My unit isn’t cooling properly.

A: Clean the condenser area as outlined on page 17.

Page 22

Service Information 22

Service Information

his use & care guide gives you the information necessary

T to preserve your wine at optimum quality in your Sub-Zero wine storage unit.

If you do need service, be sure to have the model and serial number of your unit when you call. The numbers are listed on the product rating plate. For models 424 and 424FS, the rating plate is located on the underside of the top wall. For models 427, 427R and WS-30, it is attached to the underside of the control panel. Refer to pages 5–7 for location of the rating plate for your specific model.

For warranty purposes, you will also need the date of installation and the name of your Sub-Zero dealer. Record this information below for future reference.

Model Number:

Serial Number:

Installation Date:

BEFORE CALLING FOR SERVICE

Before calling a Sub-Zero authorized service center, refer to the troubleshooting guide on pages 20–21. Check the household fuse or circuit breaker to see if it has been blown or tripped and that the electrical connection to the appliance has not been disconnected. A power outage may also have caused a disruption in service.

PRODUCT REGISTRATION

Register your new Sub-Zero today so that we may ensure your satisfaction. You may register by one of the following options:

1) Mail in the completed Sub-Zero product registration card.

2) Register online at subzero.com.

3) Register by phone by calling Sub-Zero customer service at 800-222-7820.

Sub-Zero Authorized Service Center:

Phone:

Sub-Zero Dealer:

Phone:

The model and serial number of your unit are printed on the enclosed Sub-Zero product registration card. If you provide us with your e-mail address, we will send you exciting new product updates and recipes as they become available, along with information on special events.

©Sub-Zero, Inc. all rights reserved. The information and images in this guide are the copyright property of Sub-Zero, Inc. Neither this guide nor any information or images contained herein may be copied or used in whole or in part without the express written permission of Sub-Zero, Inc.

Page 23

Sub-Zero Products Limited Warranty

RESIDENTIAL USE ONLY

FULL FIVE YEAR SEALED SYSTEM WARRANTY

LIMITED SIXTH THROUGH TWELFTH YEAR WARRANTY ON THE SEALED SYSTEM

FULL TWO YEAR WARRANTY ON TOTAL PRODUCT*

FULL FIVE YEAR SEALED SYSTEM WARRANTY

or five years from the date of original installation, your Sub-Zero warranty covers all parts and labor to repair or replace any components that prove to be defective in materials or workmanship in the sealed system. The sealed system consists of the compressor, condenser, evaporator, drier and all connecting tubing.

FULL TWO YEAR WARRANTY*

For two years from the date of original installation, your Sub-Zero warranty covers all parts and labor to repair or replace any part of the product, that proves to be defective in materials or workmanship.

LIMITED SIXTH THROUGH TWELFTH YEAR SEALED SYSTEM WARRANTY

From the 6th through the 12th year from the date of original installation, your Sub-Zero warranty covers all parts that prove to be defective in materials or workmanship in the sealed system (parts only). The sealed system consists of the compressor, condenser, evaporator, drier and all connecting tubing.

TERMS APPLICAB LE TO EACH WARRANTY

All service provided by Sub-Zero under the above warranty must be performed by a Sub-Zero authorized service center, unless otherwise specified by Sub-Zero. Service will be provided in the home during the normal business hours. This warranty applies only to products installed for normal residential use. Details regarding a non-residential warranty are available upon request.

The warranty applies only to products installed in any one of the fifty states of the United States, the District of Columbia or the ten provinces of Canada. This warranty does not cover any parts or labor to correct any defect caused by negligence, accident or improper use, maintenance, installation, service or repair, including but not limited to improper removal and reinstallation (whether in the unit or at a remote location) of the condensing unit.

THE REMED IES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES THAT SUB-ZERO WILL

PROVIDE, EITHER UNDER THESE WARRANTIES OR UNDER ANY WARRANTY ARISING BY OPERATION OF

LAW. SUB-ZERO WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES

ARISING FROM TH E BREACH OF THE SE WARRANTIES OR ANY OTHER WARRANTIES, WHETHER EXPRESS,

IMPLIED OR STATUTORY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights, which vary from state to state.

To receive parts and/or service and the name of the Sub-Zero authorized service center nearest you, contact your Sub-Zero dealer, distributor or Sub-Zero customer service, P. O. Box 44130, Madison, WI 53744; check the contact & support section of our website, subzero.com or call 800-222-7820.

*Stainless steel (classic, platinum and carbon) doors, panels, product frames and stainless interior surfaces are covered by a limited 60-day parts and labor warranty for cosmetic defects.

*Replacement water filter and air purification cartridges are not covered by the product warranty.

Page 24

SU B-ZER O, INC. P. O. BO X 4 413 0 MA DI S ON , W I 5374 4 SUBZE RO.CO M 800.2 22.78 20

70 11712 11 /2 008
