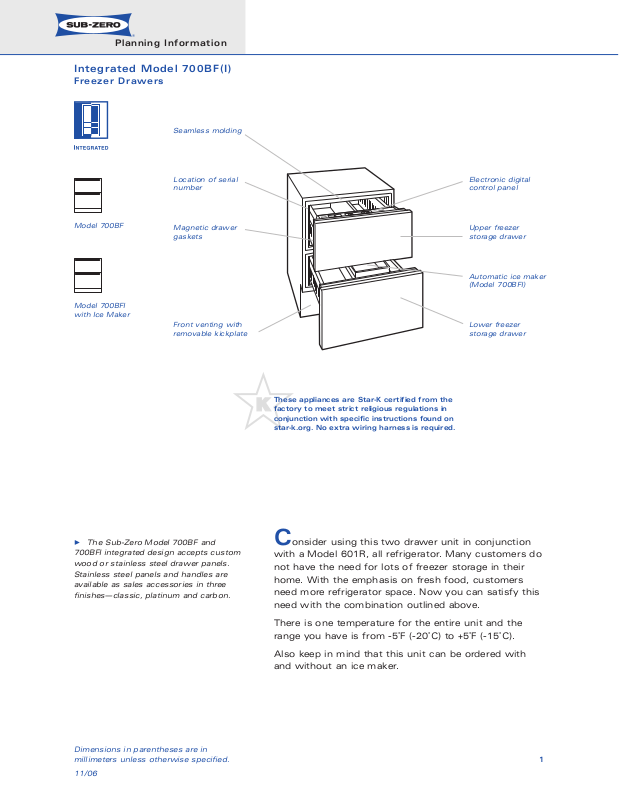

Sub-Zero 700BF-PS User Manual
Planning Information
Integrated Model 700BF(I)
Freezer Drawers
Seamless molding
odel 700BF
M
Model 700BFI
ith Ice Maker
w
ocation of serial
L
umber
n
Magnetic drawer
gaskets
nt venting with
Fro
removable kickplate
These appliances are Star-K certified from the
factory to meet strict religious regulations in
conjunction with specific instructions found on
star-k.org. No extra wiring harness is required.
lectronic digital
E
ontrol panel
c
Upper freezer
storage drawer
utomatic ice maker
A
Model 700BFI)
(
Lower freezer
storage drawer
The Sub-Zero Model 700BF and
700BFI integrated design accepts custom
wood or stainless steel drawer panels.
Stainless steel panels and handles are
available as sales accessories in three
finishes— classic, platinum and carbon.
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
Consider using this two dr
with a Model 601R, all refrigerator
awer unit in conjunction
. Many customer
s do
not have the need for lots of freezer storage in their
home. With the emphasis on fresh food, customers
need more refrigerator space. Now you can satisfy this
need with the combination outlined above.
There is one temperature for the entire unit and the
range you have is from -5˚F (-20˚C) to +5˚F (-15˚C).
eep in mind that this unit can be ordered with
Also k
and without an ice maker.
1
Planning Information
DRAWER
MOUNTING DETAIL
341/2"*
(876)
93/4"
(248)
4"
(102)
FRONT VIEW
SIDE VIEW
3
/8"
(10)
131/4"
(337)
1
/2"
(13)
101/4"
(260)
203/8"
(518)
27"
(686)
24"
(610)
(UNIT DIMENSION) (UNIT DIMENSION)
*
1
/2" (13)
+
_
ADJUSTMENT IN LEVELING LEGS
*
DRAWER PANEL THICKNESS NOT INCLUDED
DRAWER CLOSED
191/2"*
(495)
24"
(610)
257/8" (657)
TOP VIEW
Integrated Model 700BF(I)
FEATURES
Drawer unit with freezer storage drawers
M
odel 700BFI has automatic ice maker
Integrated design for "point-of-use" refrigeration anywhere in the home
Refrigeration system ensures the best food
storage and energy efficiency
Microprocessor offers precise temperature
control
Electronic digital controls are easily accessed
in the top storage drawer
Flat to the ceiling bright lighting in storage
drawers
Alarm will let you know with an audible
beeping if a drawer is left open
Top drawer has a removable divider
Meets strict Department of Energy requirements
UL approved for US and Canada
Two, five and twelve year residential
warranty – exclusions apply; warranty
information can be found on our website,
subzero.com
OVERALL DIMENSIONS
Dimensions ma
Dimensions in parentheses are in
millimeter
s unless otherwise specified
y v
ary b
1
±
y
/8" (3).
.
2
Planning Information
Integrated Model 700BF(I)
SPECIFICATIONS
M
odel 700BF(I) Drawer Freezer Unit
Overall Width 27" (686)
Overall Height 341/2" (876)
MODEL OPTIONS
D
rawer Freezer Unit 700BF
Drawer Freezer Unit
with Automatic Ice Maker 700BFI
PANEL OPTIONS
Integrated (custom panels)
Classic Stainless Steel Finish /S
Platinum Stainless Steel Finish /P
Carbon Stainless Steel F
Stainless steel drawer front panels are
ordered and shipped as sales accessories
and include tubular handles.
A CCESSORIES
inish
/B
Drawer front panels with tubular
handles in classic, platinum and
carbon stainless steel
Tubular handles in classic,
platinum and carbon stainless
steel and polished chrome
Dual installation heater kit
Accessories are available through your
Sub-Zero dealer. To obtain local dealer
information, visit the Locator section of
our website, subzero.com.
Overall Depth 24" (610)
Freezer Capacity 5.1 cu ft (144 L)
M
inimum Height (levelers in) 34" (864)
Drawer Clearance 191/2" (495)
Electrical Requirements 115 V AC, 60 Hz, 15 amp circuit
Plumbing Requirements
ater Supply 20– 100 psi
W
1
/4" copper line
Annual Energy Usage 488 kWh / $ 45
(based on 9.06 cents per kilowatt hour)
Shipping Weight 190 lbs (86 kg)
Special Note Drawer panels and handles are
available in three stainless steel finishes
Specifications are subject to change without notice.
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
ANTI-TIP
BRACKET*
*PLACEMENT OF THE
ANTI-TIP BRACKET
SHOULD BE 24" (610)
F
ROM THE FRONT OF THE
U
NIT WITHOUT PANELS
TO THE BACK OF THE
ANTI-TIP BRACKET.
25"
(635)
27"
(686)
341/2"
(876)
27"
(686)
25"
(635)
WATER LINE
BOTTOM ENTRY
LOCATION
WATER LINE
SIDE ENTRY
LOCATIONS
11/2"
(38)
11/2"
(38)
27"
(686)
11/2"
(38)
151/2"
(394)
9"
(229)
131/2"
(343)
131/2"
(343)
ANTI-TIP
BRACKET
6"
(152)
TOP VIEW TOP VIEW
SIDE VIEW FRONT VIEW
WATER LINE
SIDE ENTRY
LOCATION
ANTI-TIP
BRACKET
NOTE: ANTI-TIP BRACKET MUST BE INSTALLED TO
PREVENT UNIT FROM TIPPING FORWARD
41/2"
(114)
21/2" (64)
151/2" (394)
3
/4"
(19)
3"
(76)
1
/4"
(6)
13" (330) 9"
(229)
ANTI-TIP
BRACKET
LOCATE WATER LINE
(REAR ENTRY) WITHIN
SHADED AREA
LOCATE ELECTRICAL WITHIN
SHADED AREA – ORIENT GROUND
PRONG TO RIGHT AS SHOWN
Planning Information
Integrated Model 700BF(I)
INSTALLATION SPECIFICATIONS
DIMENSIONS
Finished Rough Opening Width 27" (686)
Finished Rough Opening Height 341/2" (876)
inished Rough Opening Depth 25" (635)*
F
Location of Electrical Within shaded area
Dimensions in parentheses are in
millimeters unless otherwise specified.
Location of Plumbing
* The depth of the Model 700BF(I) is 24" (610) from the front of the unit to its back.
Your design may necessitate moving the unit back, or cabinets forward to achieve a flush fit.
This will require a minimum r
See Installation Instructions shipped with unit for detailed specifications.
ough opening depth of 25" (635).
Within shaded area
4
