Planning Information

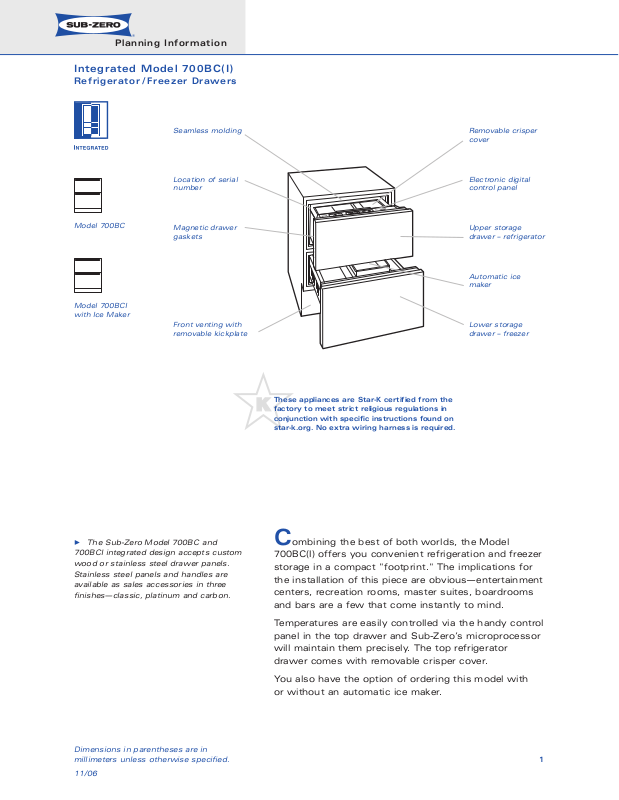

Integrated Model 700BC(I)

Refrigerator/ Freezer Drawers

odel 700BC

Model 700BCI

ith Ice Maker

Seamless molding

ocation of serial

umber

Magnetic drawer gaskets

Front venting with

emovable kickplate

These appliances are Star-K certified from the factory to meet strict religious regulations in conjunction with specific instructions found on star-k.org. No extra wiring harness is required.

Removable crisper

over

lectronic digital

ontrol panel

Upper storage drawer – refrigerator

utomatic ice

aker

Lower storage

rawer – freezer

The Sub-Zero Model 700BC and 700BCI integrated design accepts custom wood or stainless steel drawer panels. Stainless steel panels and handles are available as sales accessories in three finishes— classic, platinum and carbon.

Dimensions in parentheses are in millimeters unless otherwise specified.

11/06

Combining the best of both worlds, the Model

700BC(I) offers y

ou convenient refriger storage in a compact "footprint." The implications for the installation of this piece are obvious— entertainment centers, recreation rooms, master suites, boardrooms and bars are a few that come instantly to mind.

Temperatures are easily controlled via the handy control panel in the top drawer and Sub-Zero’s microprocessor will maintain them precisely drawer comes with remov

. The top refriger

ble crisper cover

You also have the option of ordering this model with or without an automatic ice mak

ation and freezer

ator

Page 2

DRAWER

MOUNTING DETAIL

341/2"*

(876)

93/4"

(248)

(102)

FRONT VIEW

SIDE VIEW

/8"

(10)

131/4"

(337)

/2"

(13)

101/4"

(260)

203/8"

(518)

27"

(686)

24"

(610)

(UNIT DIMENSION) (UNIT DIMENSION)

/2" (13)

ADJUSTMENT IN LEVELING LEGS

DRAWER PANEL THICKNESS NOT INCLUDED

DRAWER CLOSED

191/2"*

(495)

24"

(610)

257/8" (657)

TOP VIEW

Planning Information

Integrated Model 700BC(I)

FEATURES

Drawer unit with upper refrigerator storage drawer and lower freezer storage drawer

Model 700BCI has automatic ice maker

Integrated design for "point-of-use" refrigeration anywhere in the home

Microprocessor offers precise temperature control for refrigerator and freezer drawers

Electronic digital controls are easily accessed in the top refrigerator drawer

Flat to the ceiling bright lighting in storage drawers

Alarm will let you know with an audible beeping if a drawer is left open

Removable crisper cover with a clear-view window and removable divider in refrigerator storage drawer

Meets strict Department of Energy requirements

UL approved for US and Canada

Two, five and twelve year residential warranty – exclusions apply; warranty information can be found on our website, subzero.com

OVERALL DIMENSIONS

Dimensions ma

y vary by ±

/8" (3).

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 3

Planning Information

Integrated Model 700BC(I)

SPECIFICATIONS

odel 700BC(I) Drawer Combination Unit

Overall Width 27" (686)

Overall Height 341/2" (876)

MODEL OPTIONS

rawer Combination Unit 700BC

Drawer Combination Unit with Automatic Ice Maker 700BCI

PANEL OPTIONS

Integrated (custom panels)

Classic Stainless Steel Finish /S

Platinum Stainless Steel Finish /P

Carbon Stainless Steel F

Stainless steel drawer front panels are ordered and shipped as sales accessories and include tubular handles.

A CCESSORIES

inish

Drawer front panels with tubular handles in classic, platinum and carbon stainless steel

Tubular handles in classic, platinum and carbon stainless steel and polished chrome

Dozen egg container with lid

Dual installation heater kit

Accessories are available through your Sub-Zer information, visit the Locator section of our website, subzero.com.

o dealer

o obtain local dealer

. T

Overall Depth 24" (610)

Refrigerator Capacity 2.9 cu ft (82 L)

reezer Capacity 2.1 cu ft (59 L)

Minimum Height (levelers in) 34" (864)

Drawer Clearance 191/2" (495)

Electrical Requirements 115 V AC, 60 Hz, 15 amp circuit

Plumbing Requirements

/4" copper line

Water Supply 20– 100 psi

Annual Energy Usage 448 kWh / $ 41 (based on 9.06 cents per kilowatt hour)

Shipping Weight 190 lbs (86 kg)

Special Note Drawer panels and handles are

available in three stainless steel finishes

Specifications are subject to change without notice.

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 4

ANTI-TIP

BRACKET*

*PLACEMENT OF THE

ANTI-TIP BRACKET

SHOULD BE 24" (610)

ROM THE FRONT OF THE U

NIT WITHOUT PANELS

TO THE BACK OF THE

ANTI-TIP BRACKET.

25"

(635)

27"

(686)

341/2"

(876)

27"

(686)

25"

(635)

WATER LINE

BOTTOM ENTRY

LOCATION

WATER LINE

SIDE ENTRY

LOCATIONS

11/2"

(38)

11/2"

(38)

27"

(686)

11/2"

(38)

151/2"

(394)

(229)

131/2"

(343)

131/2"

(343)

ANTI-TIP

BRACKET

(152)

TOP VIEW TOP VIEW

SIDE VIEW FRONT VIEW

WATER LINE

SIDE ENTRY

LOCATION

ANTI-TIP

BRACKET

NOTE: ANTI-TIP BRACKET MUST BE INSTALLED TO

PREVENT UNIT FROM TIPPING FORWARD

41/2"

(114)

21/2" (64)

151/2" (394)

/4"

(19)

(76)

/4"

(6)

13" (330) 9"

(229)

ANTI-TIP

BRACKET

LOCATE WATER LINE

(REAR ENTRY) WITHIN

SHADED AREA

LOCATE ELECTRICAL WITHIN

SHADED AREA – ORIENT GROUND

PRONG TO RIGHT AS SHOWN

Planning Information

Integrated Model 700BC(I)

INSTALLATION SPECIFICATIONS

DIMENSIONS

Finished Rough Opening Width 27" (686)

Finished Rough Opening Height 341/2" (876)

inished Rough Opening Depth 25" (635)*

Location of Electrical Within shaded area

Dimensions in parentheses are in millimeters unless otherwise specified.

Location of Plumbing

* The depth of the Model 700BC(I) is 24" (610) from the front of the unit to its back. Your design may necessitate moving the unit back, or cabinets forward to achieve a flush fit. This will require a minimum r

See Installation Instructions shipped with unit for detailed specifications.

ough opening depth of 25" (635).

Within shaded area

Page 5

Planning Information

Integrated Model 700BC(I)

INSTALLATION NOTES

efer to the illustrations and specifications for overall dimensions, finished rough opening dimensions and installation specifics.

MPORTANT NOTE: The depth of Model 700BC(I) is 24" (610) from the front of the unit to its back. Your design may necessitate moving the unit back, or cabinets forward to achieve a flush fit. This will require a minimum rough opening depth of 25" (635). Refer to the installation illustration on page 4.

The anti-tip bracket must be installed to

prevent the unit from tipping forward.

Integrated units are compatible with virtually any style of cabinetry. They can be used with framed as well as frameless cabinets.

The weight of each drawer panel cannot exceed 12 lbs (5 kg). Drawer panels must be a minimum of

For the bottom drawer, the maximum panel height is 16 minimum space of 4" (102) clear below the bottom edge of the lower drawer panel, so the unit can be properly vented. In addition, any decorative base molding must be removable for possible servicing and cleaning of the condenser.

We recommend using D-style handles, which should be located on the top, center area of the drawer panel.

Two Integrated units may be installed next to one another. Refer to page 10 for additional information.

For Integrated models with an automatic ice maker, rough in the water supply line. Connect a

/4" OD copper line to the house supply sure to use an easily accessible shut-off v between the supply and the unit. This shut-off valve should not be installed behind the unit.

Do not use self-piercing valves. A saddle

alve kit (4200880) is av

v Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzer

o.com.

/8" (16) thick.

/16" (424). You must keep a

our

om y

ble fr

aila

, being

alve

line filter is required when water conditions have a high sediment content. The ice maker operates on water pressure of 20 psi (1.4 bar) to 100 psi (6.9 bar). In some cases a r

everse osmosis water filter system may not be able to maintain the minimum water pressure consistently.

When routing the water through the side

walls, you must place the water line within

/2" (13) of the floor and as close as possible to the back wall. The line must be routed around the anti-tip bracket so it clears the bracket and leveling feet of the unit. Refer to the installation illustration on page 4 for placement of the water line.

Do not route water supply line in front of the

compressor tr

ay. The tray must be slid forward

for service.

Regardless of the routing, allow for 27" (686) of excess copper tubing to remain outside the wall or floor for easy connection to the unit, as shown in the installation illustration on page 4.

A 115 v

olt, 6OHz, 15 amp cir

cuit breaker and electrical supply are required. A separate circuit, servicing only this a

ppliance is necessary.

All Integrated models are equipped with a

power supply cord with a 3

-prong grounding plug, which must be plugged into a mating 3-prong grounding type wall receptacle. The electrical outlet must be placed so the grounding prong is to the right of the thinner blades. The outlet must be flush with the back wall. Locate electrical within the shaded area shown in the installation illustr

ation on page 4.

Do not use an extension cord or two prong

adapter. Electrical ground is required on this

ppliance

. Do not under any cir

cumstances

remove the power supply cord ground prong.

ou must follow all National Electrical Code

Y regulations. In addition, be aware of local codes and ordinances when installing your service.

The Integrated Refrigeration Installation

ed with the appliance will give

Instructions

pac you step-by-step procedures for making sure the unit is installed properly.
