Page 1
Planning Information
Built-In Model 632
Side-by-Side Refrigerator/ Freezer
odel 632/F
M
F
ramed
Model 632/O
Overlay
Front venting allows unit
to be completely built in
erial and model
S
umber plate
n
djustable
A
door shelves
utomatic ice
A
aker
m
ce storage
I
drawer
Roll-out freezer
baskets
Four-sided
magnetic gaskets
Removable
kickplate
(Stainless steel design shown)
Hermetically sealed
refrigeration units
ighted electronic
L
ontrol panel
c
Adjustable dairy
ompartment
c
djustable roll-out
A
utility basket
djustable spill-
A
roof glass shelves
p
gg tray
E
Adjustable door
shelves
High humidity
crisper drawer
Door closers
Model 632/S (P/B)
Stainless Steel
The Sub-Zero Model 632 side-by-side
refrigerator/ freezer is available in your
choice of the framed, overlay or stainless
steel design application. Three stainless
steel finishes are offered— classic (/S),
platinum (/P) and carbon (/B).
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
With the installation of a harness kit, these
appliances are Star-K compliant to meet strict
ious regulations in conjunction with specific
elig
r
instructions found on star-k.org. You may purchase
this harness kit through your Sub-Zero dealer.
To obtain local dealer information, visit the Locator
section of our website, subzero.com.
Perhaps no other model is more visible or recognizable
for Sub-Zer
combination refriger
which all other built-in refrigerators have been compared.
It offers you the maximum storage space—nearly
30 cu. ft. (850 L)—nearly nineteen on the refrigerator side
and almost ten on the freezer. Beauty and functionality
working together for you and your clients.
o than the Model 632. This 48" (1219)
freezer is the standard b
/
r
ato
y
1
Page 2
48"
(1219)
24"
(610)
84"
(2134)
237/8"
(606)
BEHIND
FRAME
291/4"
(743)
48"
(1219)
3
/8" (10)
FRAME EXTENSION
471/4"
(1200)
Planning Information
Built-In Model 632
FEATURES
48" (1219) wide side-by-side refrigerator/
freezer
Framed, overlay and stainless steel applica-
tions provide complete design flexibility
Sub-Zero's dual refrigeration system ensures
t
he freshest food and energy efficiency
Shallow-depth design means access is easy
to any area of the refrigerator
Electronic digital controls are up front and
easy to use
Bright interior lighting
Adjusta
High-humidity crisper drawer is large and
deep with removable divider and smooth
sides for easy cleaning – there are even two
added storage drawers
ble, spill-proof glass shelves
D
oor alarm will let you know with an audible
beeping if your refrigerator or freezer door is
left ajar
A
utomatic ice maker provides an ample
supply of crescent-shaped ice
Solid core doors with magnetic gaskets and
door closers
F
ront venting allows unit to be completely
b
uilt in and serviced from the front
Meets strict Department of Energy requirements
UL approved for US and Canada
Two, five and twelve year residential
warranty – exclusions apply; warranty
information can be found on our website,
subzero.com
OVERALL DIMENSIONS
Stainless steel design shown.
1
±
y
ary b
Dimensions ma
Dimensions in parentheses are in
millimeters unless otherwise specified.
y v
/8" (3).
2
Page 3
Planning Information
Built-In Model 632
SPECIFICATIONS
M
odel 632 Side-by-Side Refrigerator/ Freezer
Overall Width 48" (1219)
Overall Height 84" (2134)
MODEL OPTIONS
Framed Design 632/F
Overlay Design 632/O
Classic Stainless Steel 632/S
Platinum Stainless Steel 632/P
Carbon Stainless Steel 632/B
ou must allow 90 days from order to
Y
delivery for platinum and carbon finishes.
A CCESSORIES
Louvered, panel or stainless steel
grilles in 1" (25) increments from
10" (254) to 15" (381) high
Front and grille panels for framed
design in white, almond and
classic stainless steel
Side panels in white, almond and
classic stainless steel
Extended framed handles
Stainless steel and polished
chrome handles for overlay design
Gallon door shelf
Dozen egg container with lid
90˚ and 105˚ door stop kits
Accessories are available through your
Sub-Zero dealer. To obtain local dealer
information, visit the Locator section of
our website
, subzero.com.
Overall Depth 24" (610)
Refrigerator Capacity 18.9 cu ft (535 L)
F
reezer Capacity 9.8 cu ft (278 L)
Minimum Height (levelers in) 83" (2108)
Door Swing Clearance 291/4" (743)
Electrical Requirements 115 V AC, 60 Hz, 15 amp circuit
Plumbing Requirements
1
/4" copper line
Water Supply 20–100 psi
Annual Energy Usage 675 kWh / $ 62
(based on 9.06 cents per kilowatt hour)
Shipping Weight Framed – 582 lbs (264 kg)
Overlay – 582 lbs (264 kg)
Stainless Steel – 630 lbs (286 kg)
Specifications are subject to change without notice
.
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
Page 4
Planning Information
833/4"
(2127)
ROUGH
OPENING
HEIGHT
WITH
STANDARD
11" (279)
GRILLE
751/2"
(1918)
7"
(
178)
6"
(152)
471/2"
(
1207)
R
OUGH OPENING WIDTH
24"
(610)
ROUGH
OPENING
DEPTH
E
3"
(76)
18"
(457)
W
LOCATE WATER SUPPLY
WITHIN SHADED AREA
L
OCATE ELECTRICAL
W
ITHIN SHADED AREA
6"
(152)
SHUT-OFF
VALVE
E
XTEND WATER LINE
A
PPROX. 36" (914)
F
ROM BACK WALL
FRONT VIEW
TOP VIEW
Built-In Model 632
INSTALLATION SPECIFICATIONS
DIMENSIONS
Finished Rough Opening Width 471/2" (1207)
Finished Rough Opening Height 833/4" (2127)
Finished Rough Opening Depth 24" (610)
Location of Electrical Within upper shaded area
Location of W
ater Supply
See Installation Instructions shipped with unit for detailed specifications.
Refer to the Sub-Zero Design Guide pdf file for additional specifications.
Dimensions in parentheses are in
millimeters unless otherwise specified.
Within lower shaded area
4
Page 5
Planning Information
Built-In Model 632
INSTALLATION NOTES
R
efer to the illustrations and specifications
for overall dimensions, finished rough opening
dimensions and installation specifics.
A
llow the doors to open a minimum of 90˚ or
you'll have problems removing drawers. With
the doors opening at 90˚, you may have to
move drawers slightly to clear the door interior.
Refer to the minimum door swing clearances in
the specifications chart.
For corner installations, allow for a minimum
3" (76) filler so that the door can open to 90˚. If
you're using raised panels, consider using a
wider filler. A 90˚ door stop is available as an
accessory.
Be sure to add the filler strip width to your
finished rough opening dimension. In any sideby-side installation without a filler strip, add an
additional
This will allow for the proper width.

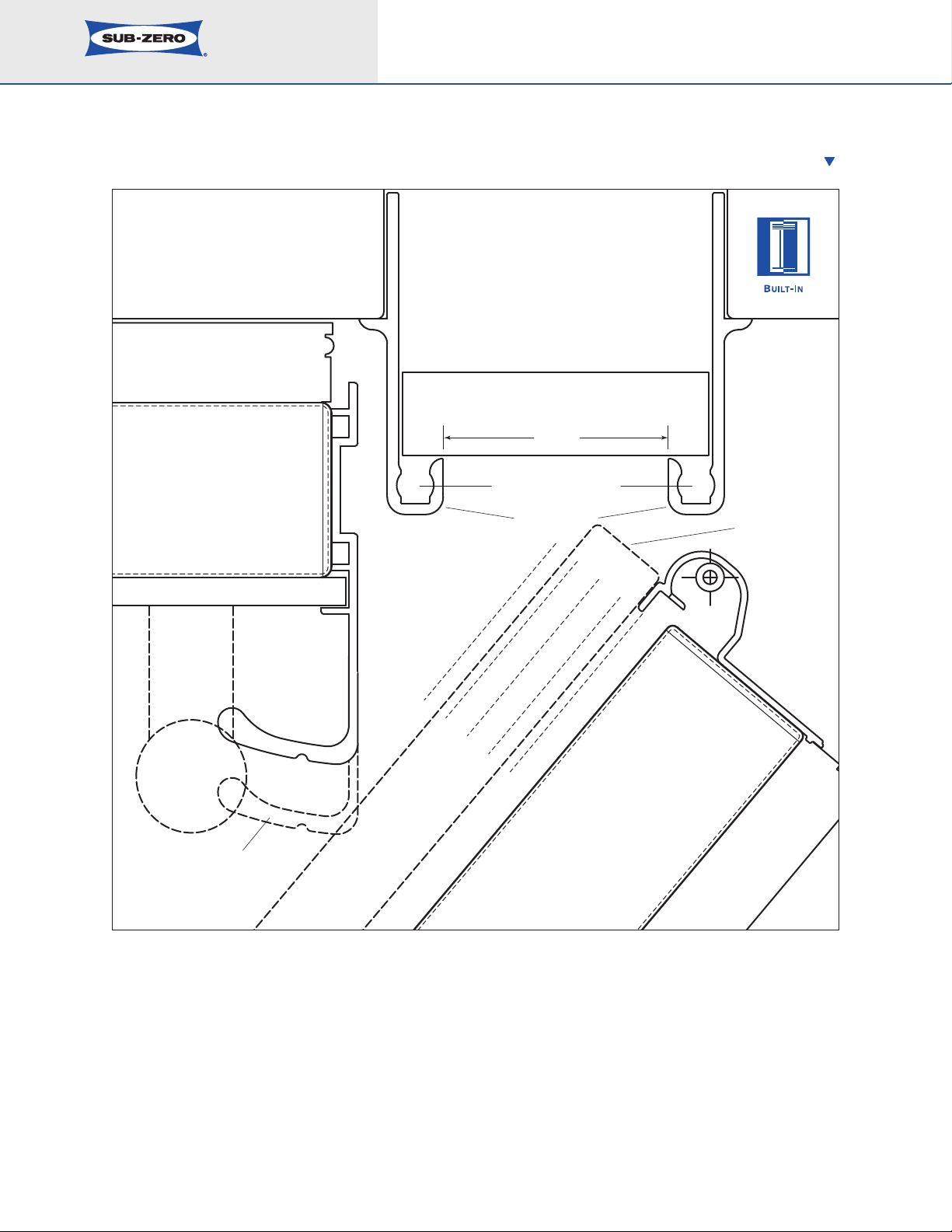

Refer to the full-scale illustrations at the end
of this section for specifics on door openings
and filler size alternatives.
If your client has chosen the stainless steel
design, the unit will be shipped complete with
wrapped stainless steel doors and handle
hardware. You will not have to install front
panels.
If your client has chosen the framed or
overlay design, you will be adding front panels
to give the unit the custom Sub-Zero look. The
overlay design also allows you to add your own
handles, or you may choose accessory handles
available through your Sub-Zero dealer. Refer to
pages 6– 10 for detailed information on adding
panels.
For Built-In models with an automatic ice
maker, rough in the water supply line. Connect
1
/4" OD copper line to the house supply, being
a
sure to use an easily accessible shut off v
between the supply and the unit.
Do not use self-piercing valves. A saddle
alve kit (4200880) is av
v
Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website
subzero.com.
1
/2" (13) to your combined numbers.
alve
ailable from your
,
A
line filter is required when water conditions have a high sediment content. The ice
maker operates on water pressure of 20 psi
(1.4 bar) to 100 psi (6.9 bar). In some cases a
r
everse osmosis water filter system may not be
able to maintain the minimum water pressure
consistently.
The water line should be routed up through
1
the floor within
/2" (13) from the back wall and
no higher than 3" (76) off the floor. If you have
to come through the wall, make sure the water
line is no more than 3" (76) from the floor.
Locate water supply within the shaded area
shown in the installation illustration.
Regardless of the routing, allow 3' (.9 m) of
excess copper tubing to remain outside the wall
or floor for easy connection to the unit.
A 115 volt, 60 Hz, 15 amp electrical supply
is required. The supply circuit for this appliance
must be protected by a 15 amp fuse or circuit
breaker. It is recommended that a separ
ate
circuit, serving only this appliance, be provided.
All Built-In models are equipped with a 6'
(1.8 m) power supply cord with a 3
-prong
grounding plug which must be plugged into a
mating 3
-prong grounding type wall receptacle.
Locate electrical within the shaded area shown
in the installation illustration.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
To prevent the unit from tipping forward and
provide a stable installation, the unit must be
secured in place with an anti-tip blocking kit. If
there is a solid soffit a
bove the unit with clear
ance between the unit and the soffit of 1" (25)
or less, you won't need to block the unit.
For installations with clearances of more
than 1" (25),
anti-tip bloc
you must block the unit with the
king kit (wood bloc
k and hardw
are)
provided with each Built-In unit.
Refer to the
Built-In Installation Instructions
packed with the appliance, which provides
step-b
y-step pr
ocedures for making sure the
unit is installed properly.
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
Page 6
Planning Information

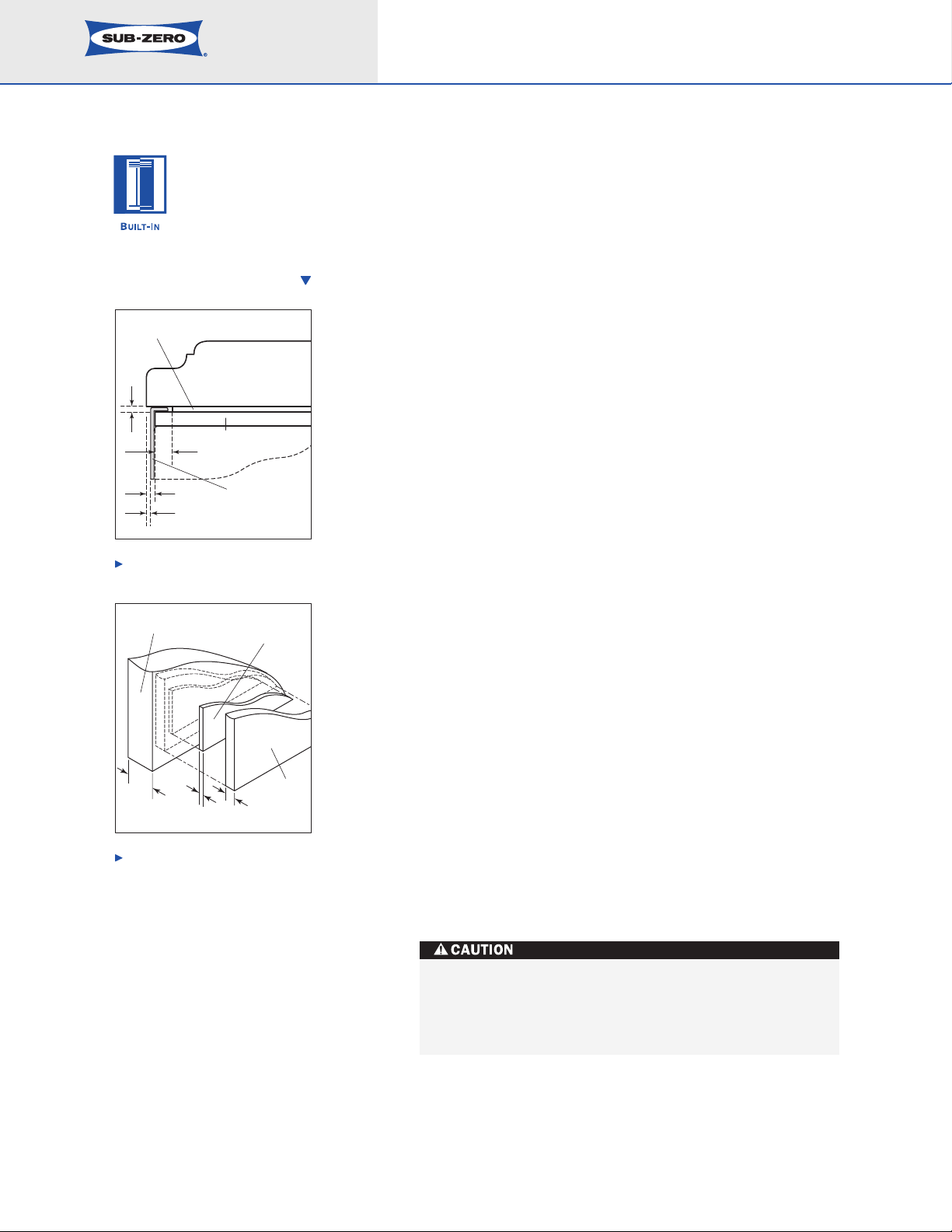

PANELS
1
/4" (6) THICK OR LESS
1
/4" (6) Panel
Trim reveal
1
/4" (6) min
PANELS THICKER THAN
1
/4" (6)
Trim reveal
1
/4" (6) min
Rout to 1/4" (6)
thickness
Built-In Model 632
FRAMED PANELS
ADDING PANELS
In your plan for panels, be sure you are working with the
Sub-Zero panel design family called for in your design. If
you have chosen the stainless steel design, the unit will be
shipped complete with wrapped stainless steel doors and
handle hardware. You will not have to install front door
p
anels.
If you and your client have ordered a framed or overlay
design model, you will be adding panels to give the unit
the custom Sub-Zero look. Specifications on the following
pages provide installation considerations for framed and
overlay door panels.
Side panels can be used with the framed, overlay and
stainless steel design applications. Refer to specifications
on page 10.
Framed door panel 1/4" (6) thick or less
Framed door panel thicker than 1/4" (6)
FRAMED PANELS
If the thickness of the custom panels is less than 1/4"
(6), they must be backed up with a sheet of shim material
1
to build the total thickness to
1
than
/4" (6), an edge must be routed ar
/4" (6). If the panel is thicker
ound the panel to
ensure a proper fit. Refer to the illustrations on this page.
IMPORTANT NOTE: Routing, recessing or optional
extended handles may be required on raised panels for
finger clearance under the handle. Refer to the full-scale
illustrations on pages 11– 14.
IMPORTANT NOTE: The weight of each panel cannot
exceed 50 lbs (23 kg).
The traditional framed models come with an 11" (279)
louvered grille and elegant full-length handle. Optional
extended full-length handles that provide additional finger
ance for raised panels are available through your
clear
Sub-Zero dealer. To obtain local dealer information, visit
the Locator section of our website, subzero.com.
For framed door panel dimensions and dimensions for the
optional panel grille for the framed application, refer to
specifications on page 7.
To install framed panels, refer to the installation instructions shipped with each unit
. These instructions can also
be found on our website, subzero.com.
Dimensions in parentheses are in
millimeters unless otherwise specified.
6
Page 7
Planning Information
W
14" (356)
WW
H
A
H
Built-In Model 632

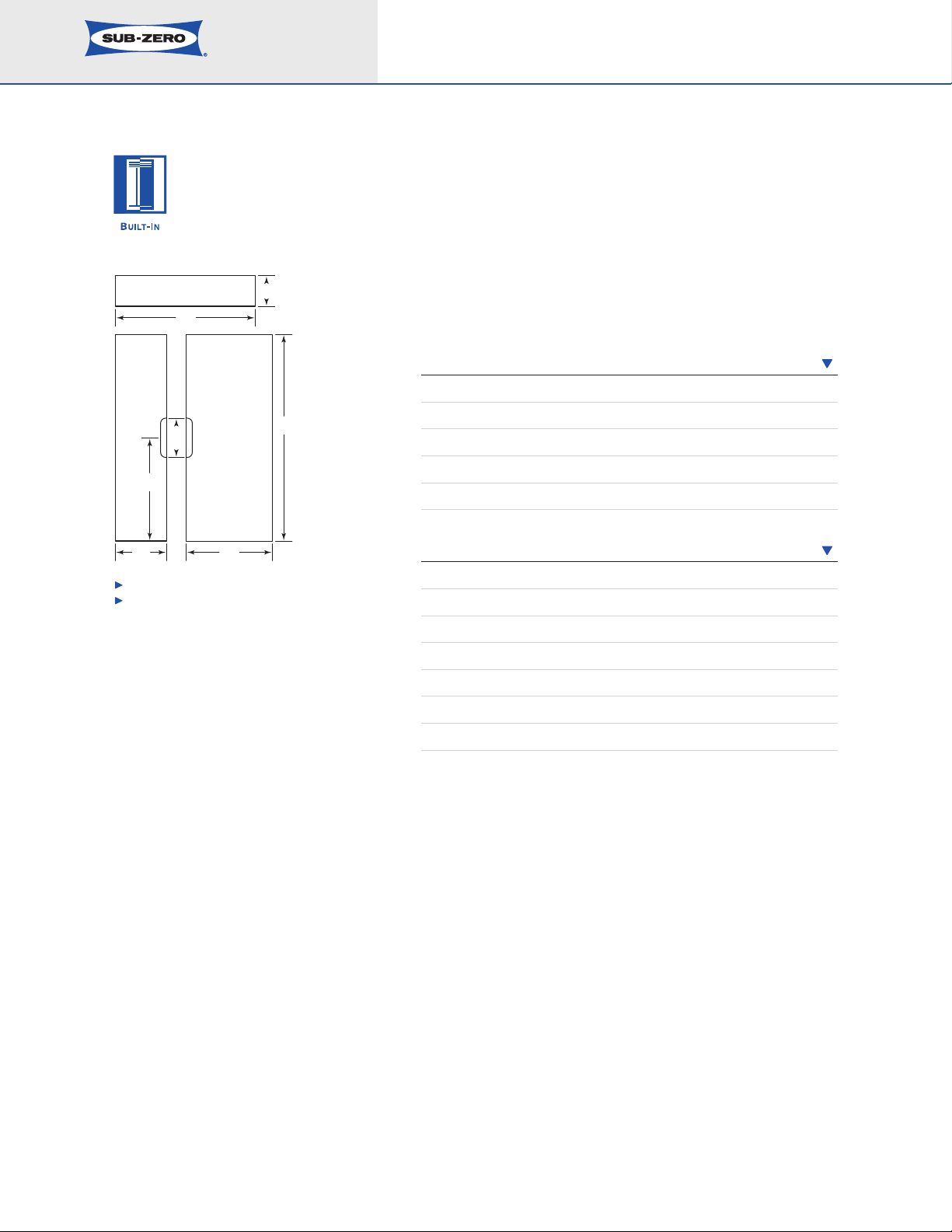

FRAMED PANELS
An 11" (279) louvered grille is standard on framed applications. Optional louvered grilles are available in 1" (25)
height increments from 10" (254) to 15" (381).
You may choose to use Sub-Zero's optional panel grille for
the framed application. Optional panel grilles are available
i
n 1" (25) height increments from 10" (254) to 15" (381).
Refer to the chart below for panel dimensions.
FRAMED PANEL DIMENSIONS
WIDTH HEIGHT
Refrigerator Door Panel 2711/16" (703) 6711/16"(1719)
Freezer Door Panel 1715/16" (456) 6711/16"(1719)
Handle Recess Location A – 385/32" (969)
Maximum Weight (per panel) 50 lbs (23 kg)
FRAMED GRILLE PANEL DIMENSIONS
Framed Door Panels
Framed Grille Panel
10" (254) Grille 463/16" (1173) 815/16" (227)
WIDTH HEIGHT
11" (279) Grille 463/16" (1173) 915/16" (252)
12" (305) Grille 463/16" (1173) 1015/16" (278)
13" (330) Grille 463/16" (1173) 1115/16" (303)
14" (356) Grille 463/16" (1173) 1215/16" (329)
15" (381) Grille 463/16" (1173) 1315/16" (354)
Dimensions in parentheses are in
millimeters unless otherwise specified.
7
Page 8
Planning Information
Door/Drawer/
Grille Trim
1
/16" (2)
5
/32" (4)
1
/4" (6) Backer Panel
5
/16" (8) min
.
10"
(3)
Spacer Panel
Overlay Panel
Spacer Panel
Overlay Panel
1
/4" (6)
Backer
Panel
.10"
(3)
~3/4"
(19)
Built-In Model 632
OVERLAY PANELS
OVERLAY PANELS
The overlay design allows decorative panels to cover the
door trim for a more seamless appearance that blends
with the design of the room. To achieve this look, the
most common way is to work with three panels—the
decorative overlay panel, a .10" (3) spacer panel and a
1
/4"
(6) backer panel. Depending on your cabinet manufacturer,
this could be one panel routed for different dimensions or
more likely, three different panels.
Regardless of the physical construction of the panels
(routing or three panel assembly), you will need to follow
the exact dimensions and panel placement to ensure a
proper fit.
The top illustration on this page is a cross section view of
the three panel assembly showing placement of the
door / drawer/grille trim. The bottom illustration shows a
rear view of the three panel assembly and critical dimensions, standard for all overlay models.
Three panel assembly— cross section
Three panel assembl
y— rear view
Overlay models will come with no handle hardware,
because the beauty of this design is that you can match
the surr
ounding cabinetry hardware. These models will
come with an 11" (279) panel grille which will accept
decorative panel inserts to match the look of the door
panels. For overlay door and grille panel dimensions, refer
to specifications on page 9.
IMPOR
TANT NOTE:
Keep in mind that the Sub-Zero door
panels have the potential for hitting adjacent cabinets
and/or countertops when they are opened. You need to be
are of your surrounding cabinetry and space limitations
aw
when using the overlay models. Refer to the full-scale
illustrations on pages 13–14.
IMPORTANT NOTE: The weight of each door panel
-
assembly cannot exceed 50 lbs (23 kg). The total thic
k
ness of all panels for an overlay model must be at least
5
/8" (16) thick.
To install overlay panels, refer to the installation instructions shipped with each unit
. These instructions can also
be found on our website, subzero.com.
Do not exceed the dimensions listed for the overlay
grille panel. The decorative panel cannot be any larger
estrict the air flow to the compressor area
or it ma
y r
and cause problems with the operation of the unit.
Dimensions in parentheses are in
millimeters unless otherwise specified.
8
Page 9
Planning Information
WW
H
W
H
Built-In Model 632

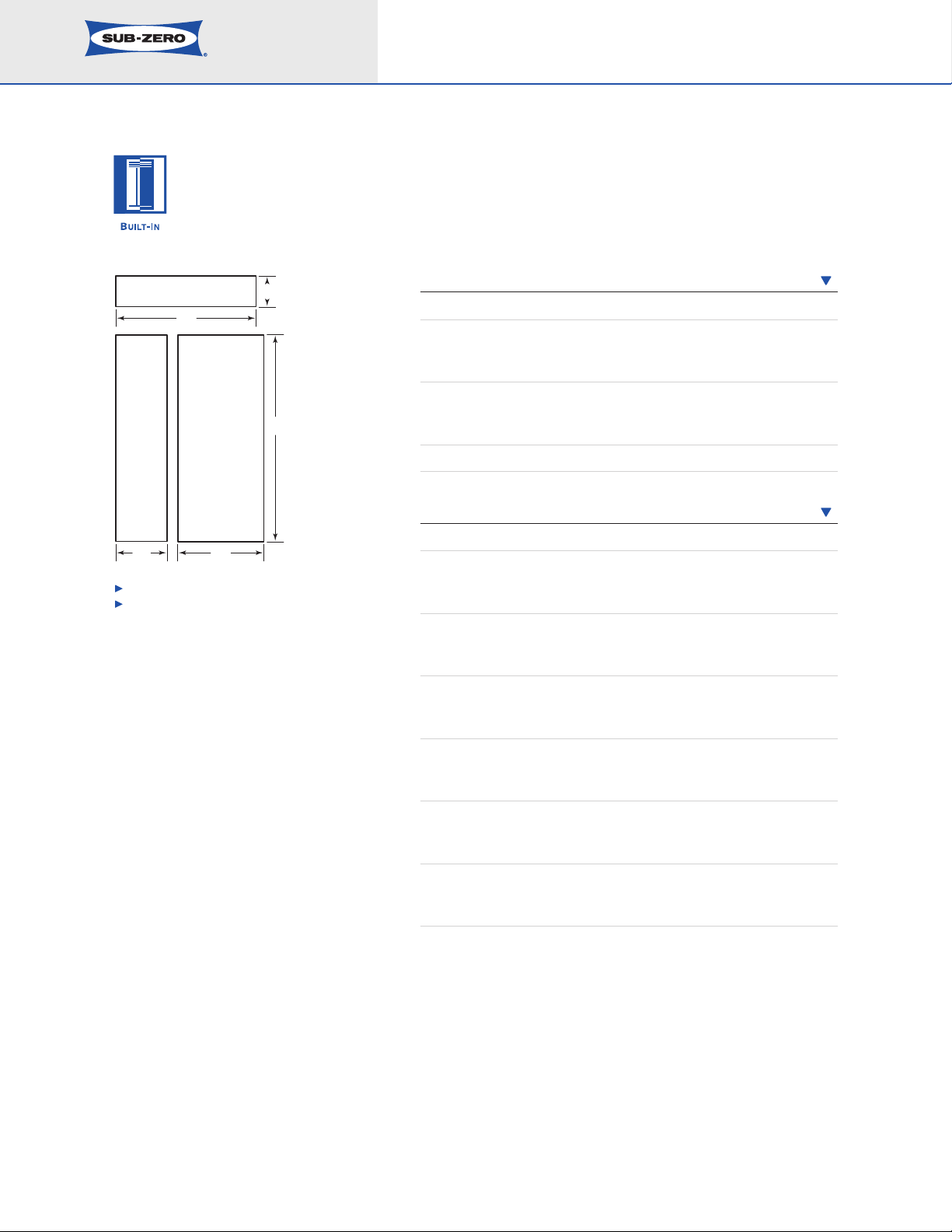

OVERLAY PANELS
An 11" (279) panel grille is standard on overlay applications. Optional panel grilles are available in 1" (25) height
increments from 10" (254) to 15" (381).
OVERLAY PANEL DIMENSIONS
WIDTH HEIGHT
Refrigerator Door Panel 28" (711) 68" (1727)
Refrigerator Door Spacer 271/16" (687) 671/16" (1703)
Refrigerator Door Backer 2711/16" (703) 6711/16" (1719)
Freezer Door Panel 181/4" (464) 68" (1727)
Freezer Door Spacer 175/16" (440) 671/16" (1703)
Freezer Door Backer 1715/16" (456) 6711/16" (1719)
Maximum Weight (per panel assembly) 50 lbs (23 kg)
OVERLAY GRILLE PANEL DIMENSIONS
WIDTH HEIGHT
10" (254) Grille Panel 467/16" (1180) 91/4" (235)
Overla
Overla
y Door Panels
y Grille Panel
10" (254) Grille Spacer 451/2" (1156) 85/16" (211)
10" (254) Grille Backer 461/8" (1172) 815/16" (227)
(279) Grille Panel46
11"
7
/16" (1180) 101/4" (260)
11" (279) Grille Spacer 451/2" (1156) 95/16" (237)
11" (279) Grille Backer 461/8" (1172) 915/16" (252)
12" (305) Grille Panel 467/16" (1180) 111/4" (286)
12" (305) Grille Spacer 451/2" (1156) 105/16" (262)
12" (305) Grille Backer 461/8" (1172) 1015/16" (278)
13" (330) Grille Panel 467/16" (1180) 121/4" (311)
13" (330) Grille Spacer 451/2" (1156) 115/16" (287)
13" (330) Grille Backer 461/8" (1172) 1115/16" (303)
14" (356) Grille Panel 467/16" (1180) 131/4" (337)
(356) Grille Spacer
14"
1
5
4
/2" (1156) 1
5
2
/16" (313)
14" (356) Grille Backer 461/8" (1172) 1215/16" (329)
15" (381) Grille Panel 467/16" (1180) 141/4" (362)
15" (381) Grille Spacer 451/2" (1156) 135/16" (338)
(381) Grille Backer 46
15"
1
/8" (1172) 1
15
3
/16" (354)
Dimensions in parentheses are in
millimeters unless otherwise specified.
9
Page 10
Planning Information
1
3
1
/4" (
337)
4" (102)
1
/4" (6)
1
/4" (6)
3"
(76)
3" (76)
237/8" (
606)
B
EHIND FRAME
1
Built-In Model 632
SIDE PANELS
SIDE PANELS
Side panels can be used with the framed, overlay and
stainless steel design applications. When planning for side
panels with the installation of the Built-In model, you need
to be aware of space configuration to achieve a pleasing
fit. Depending on the exact panel you are using with your
unit, the height of the panel will vary.
Cut-outs around the toe kick and grille area are required if
1
a
/4" (6) thick panel will be inserted into the main frame
channel. The panel will need to be 24" (610) deep. Refer to
the illustration on this page for placement of toe kick and
grille area cut-outs. If a
panel will abut the main frame and should be 23
3
/8" (10) thick panel is used, the
7
/8" (606)
deep. The toe kick area may or may not be cut out
depending on the look you want to achieve.
IMPORTANT NOTE: The use of side panels may change
the width of your rough opening.

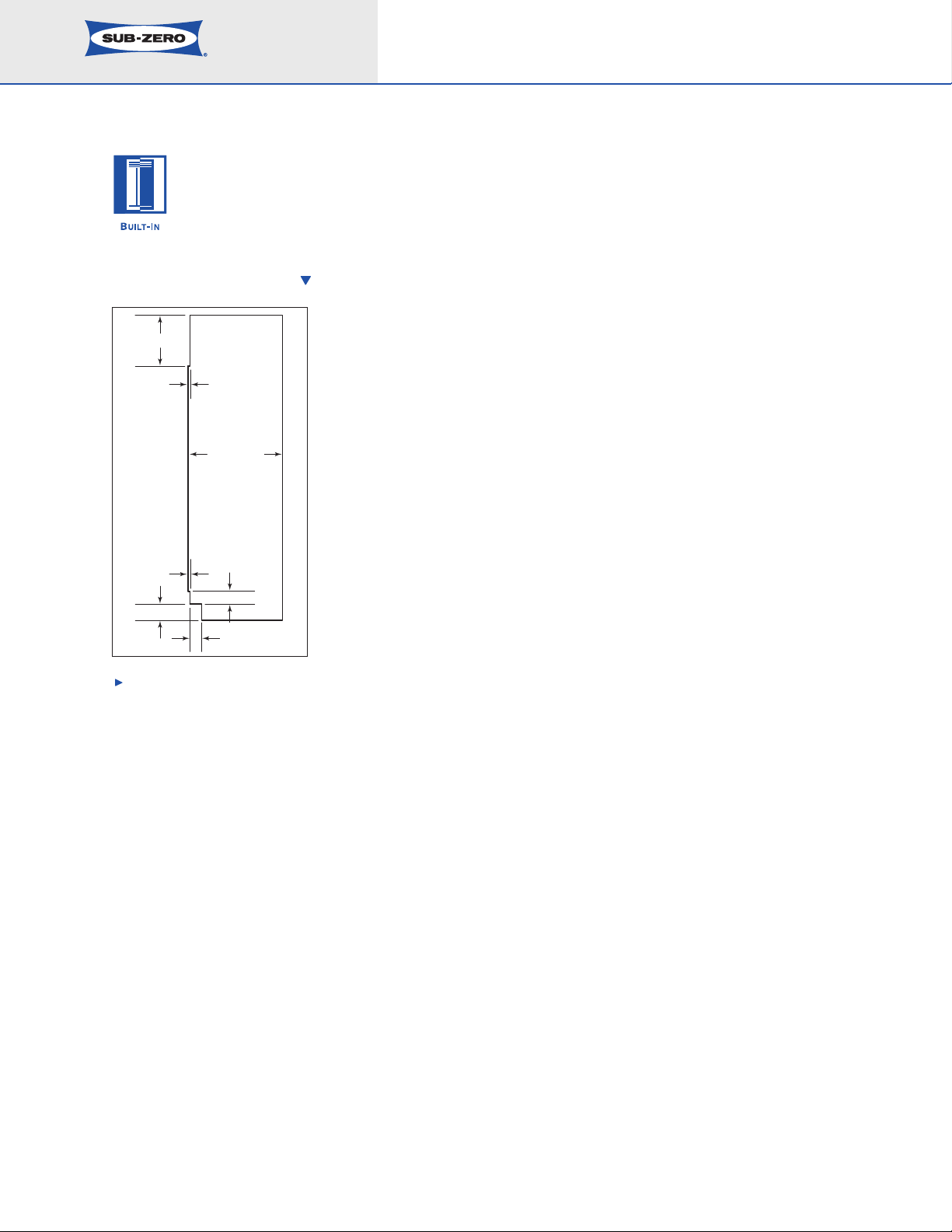

Cut-outs for grille and toe kick area
HARDWARE CONSIDERATIONS
Overlay models come without handle hardware. The
beauty of this design is that you can match the surrounding cabinet hardware. You or the cabinet manufacturer
must provide handle hardware to match the overall decorating scheme.
The handle hardware must be installed before installing
the panel assembly. Use larger D-style handles. If screws
with thick heads are used, the screws will need to be
countersunk into the door before the panel is put into
. Refer to the full-scale illustr
place
ations on pages 1
1–12
for handle hardware considerations.
IMPORTANT NOTE: Sub-Zero does not recommend using
single pull knobs on any of its Built-In models.
Optional stainless steel handles are available in a variety of
diameter
s and lengths in the classic, platinum and carbon
stainless steel finishes and polished chrome. Contact
your Sub-Zero dealer for specifics. To obtain local dealer
information, visit the Locator section of our website,
o.com.
subzer
Dimensions in parentheses are in
millimeters unless otherwise specified.
10
Page 11
Planning Information
11/4"(
32) PANEL
1"(25) PANEL
1
/4"(6) P
ANEL
1
/2"(13) PANEL
3
/4"(19) PANEL
O
PTIONAL
EXTENDED
FULL-LENGTH
HANDLE
S
TANDARD
FULL-LENGTH
HANDLE
DOOR
1
/4"(
6)
FRAMED PANEL
1"
(25)
2"
(
51)
3"
(
76)
Built-In Model 632
HANDLE PROFILE – FRAMED APPLICATION
FULL-SCALE TEMPLATES
The following full-scale illustrations enable you
to under
stand some of the unique situations
you may face as you design the Built-In units
into homes. These templates can be easily
photocopied or used in y
Dimensions in parentheses are in
millimeters unless otherwise specified.
our tr
acings.

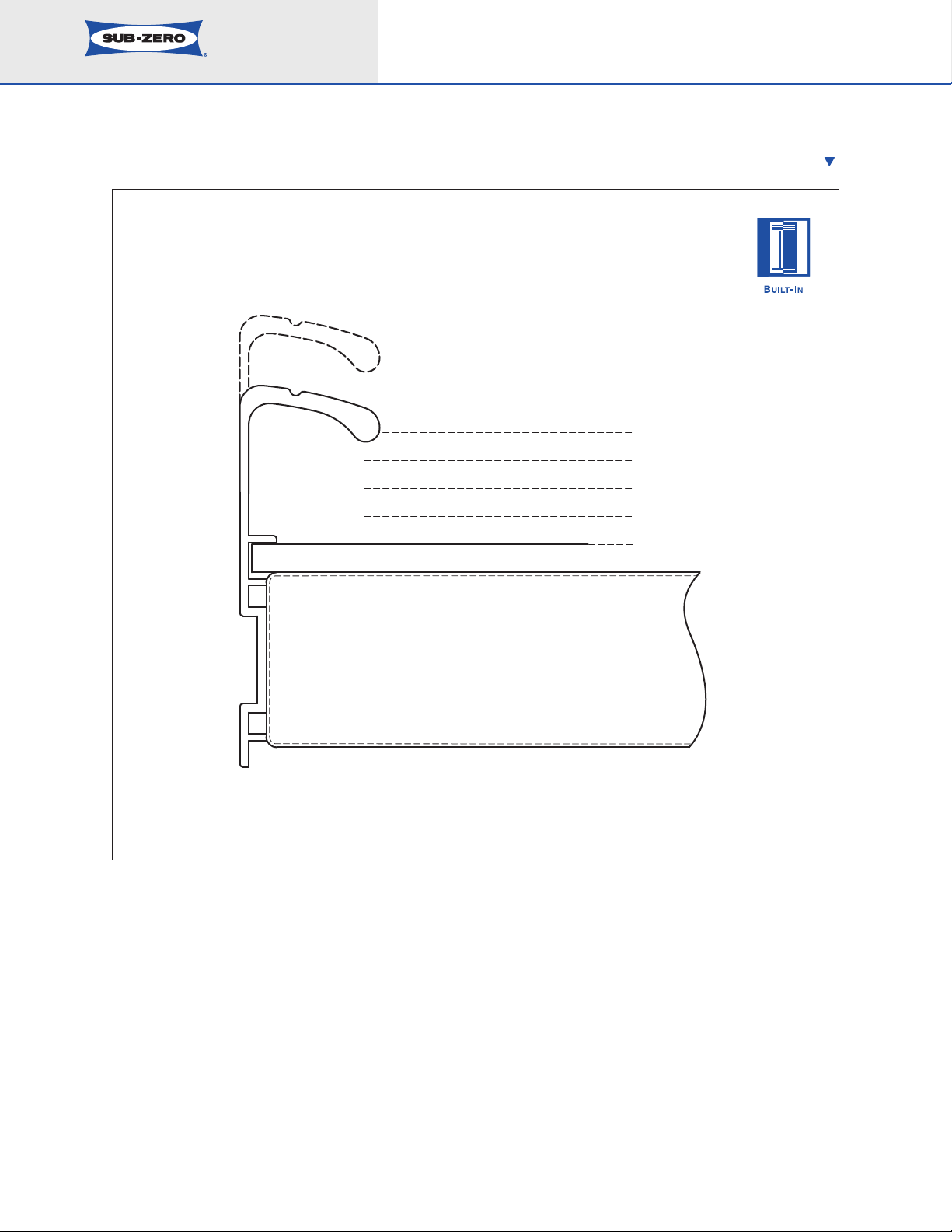

HANDLE PROFILE
The full-scale illustration above shows handle
placement for the fr
amed a
pplication standard
full-length handle and the optional extended
full-length handle shown in the dashed line.
11
Page 12
Planning Information
11/4" (32) PANEL
1" (25) PANEL
1
/4" (
6) PANEL
1
/2" (
13) PANEL
3
/4" (19) PANEL
5
/8" (16) PANEL
DOOR
1
/4" (
6)
APPROXIMATE THICKNESS OF WRAPPED STAINLESS STEEL DOOR
NOTE: FOR OVERLAY APPLICATIONS, OPTIONAL STAINLESS STEEL HANDLE
MUST BE MOUNTED ON PANEL MINIMUM 5/8" (16) THICK.
1"
2"
(
51)
3"
(
76)
S
TANDARD STAINLESS STEEL HANDLE
Built-In Model 632
HANDLE PROFILE – STAINLESS STEEL / OVERLAY APPLICATIONS

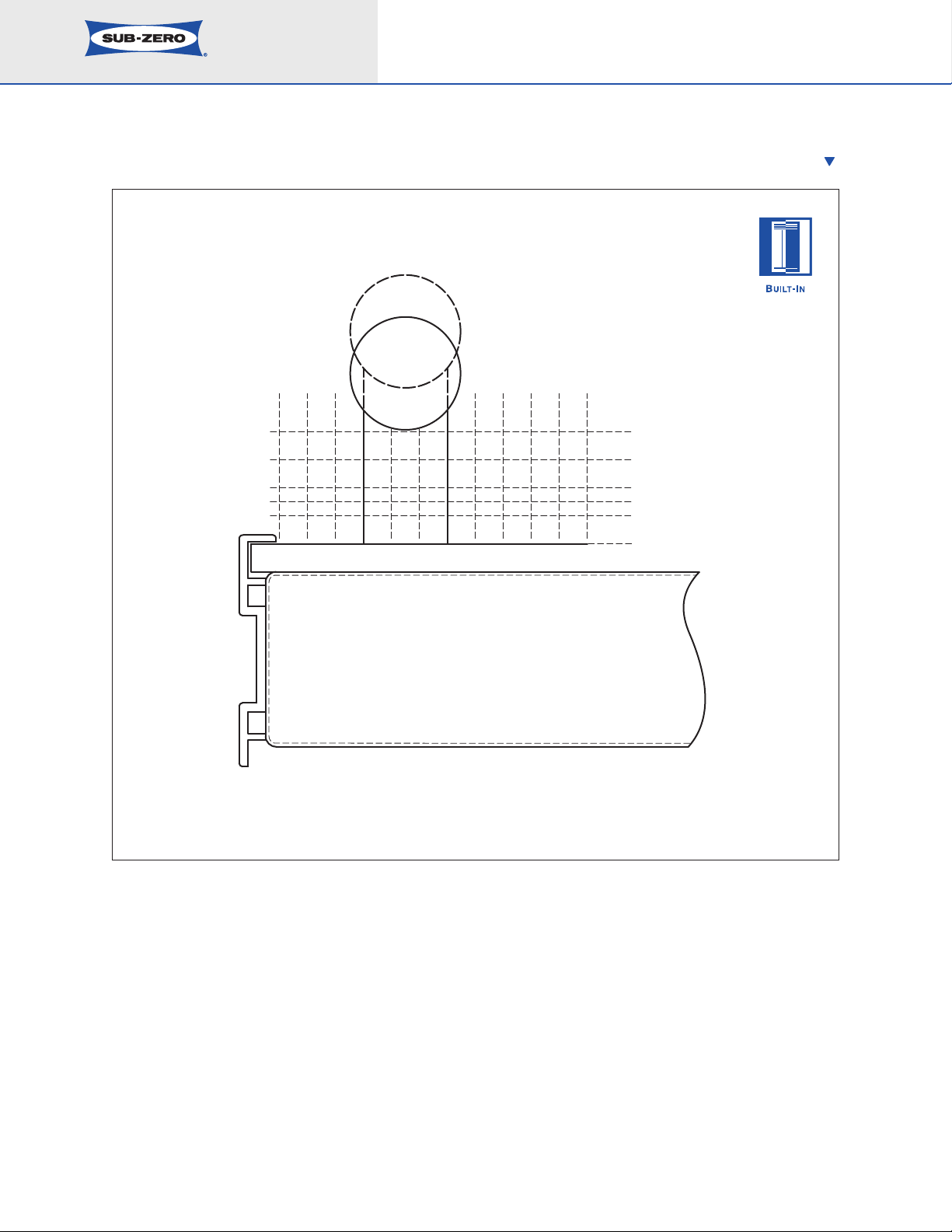

PANEL AND HANDLE PROFILE
The full-scale illustr
placement for the standard stainless steel
ation a
bove shows handle
handle on the wrapped stainless steel door and
on overla
dashed line
y panel applications shown in the
.
IMPORTANT NOTE: For overlay applications,
the optional stainless steel handle must be
mounted on a panel at least
5
/8" (16) thick.
For overlay applications, mount door handles
close to the opening edge of the door for ease
of opening
.
Dimensions in parentheses are in
millimeters unless otherwise specified.
12
Page 13
1
1
/
4
"
(32)
PA N
EL
1"
(25)
PA N
EL
*
1
/
4
"
(6)
PA N
EL
1
/
2
"
(13)
PA N
EL
3
/
4
"
(19)
PA N
EL
130˚ DOOR OPENING
WITH 2" (51) FILLER STRIP
(
TOP VIEW)
OPTIONAL
FRAMED EXTENDED
FULL-LENGTH HANDLE
STANDARD
FRAMED
FULL-LENGTH
HANDLE
D
OOR CLOSED
DOOR OPEN @ 130˚
HINGE
2" (51)
F
ILLER STRIP
MAIN FRAME
A
LLOW FOR FILLER LAP
BEHIND FLANGE
APPROX
PROFILE OF
STAINLESS
STEEL DOOR
AND HANDLE
OVERLAY PANEL
3/4" (19) THICK
(NOMINAL)
S
UB-ZERO UNITSUB-ZERO UNIT
Planning Information
Built-In Model 632
PANEL AND HANDLE PROFILE – 130˚ DOOR OPENING
The full-scale illustration above shows the panel
and handle profile of a 130˚ door opening with
2" (51) filler strip for framed applications.
Interference of door panels with handles at
maximum door s
optional 90˚ door stop available through your
Sub-Zero dealer.
Appr
*
stainless steel door
Dimensions in parentheses are in
millimeters unless otherwise specified.
oximate thic
wing ma
y require the use of an
kness of wr
.
pped
a
To obtain local dealer information, visit the
Locator section of our website, subzero.com.
The full-scale illustration on the following page
lets you see what considerations you need to
e for any overla
mak
how they may interact with adjacent cabinets
y panel applications, and
and/ or countertops.
13
Page 14
Planning Information
1
1
/4
"
(32)
PA N
EL
1"
(25)
PA N
EL
*
1
/4
"
(6)
PA N
EL
1
/2
"
(13)
PA N
EL
3
/4
"
(19)
PA N
EL
1
1
/4
"
(32)
1
1
/2
"
(38)
1
3
/4
"
(44)
0"
(0)
1"
(25)
2"
(51)
2
1
/4
"
(57)
2
1
/
2
"
(63)
2
3
/
4
"
(70)
3"
(76)
3
1
/4
"
(83)
3
1
/
2
"
(89)
1
/4
"
(6)
1
/2
"
(25)
3
/4
"
(19)
HINGE
OVERLAY PANEL
3/4" (19) THICK (NOMINAL)
DOOR CLOSED
DOOR OPEN @ 90˚
90˚ DOOR OPENING
(TOP VIEW)
M
AIN FRAME
NOMINAL OVERALL
WIDTH OF SUB-ZERO
S
UB-ZERO UNIT
237/8" (606) TO REAR
O
F SUB-ZERO
Built-In Model 632

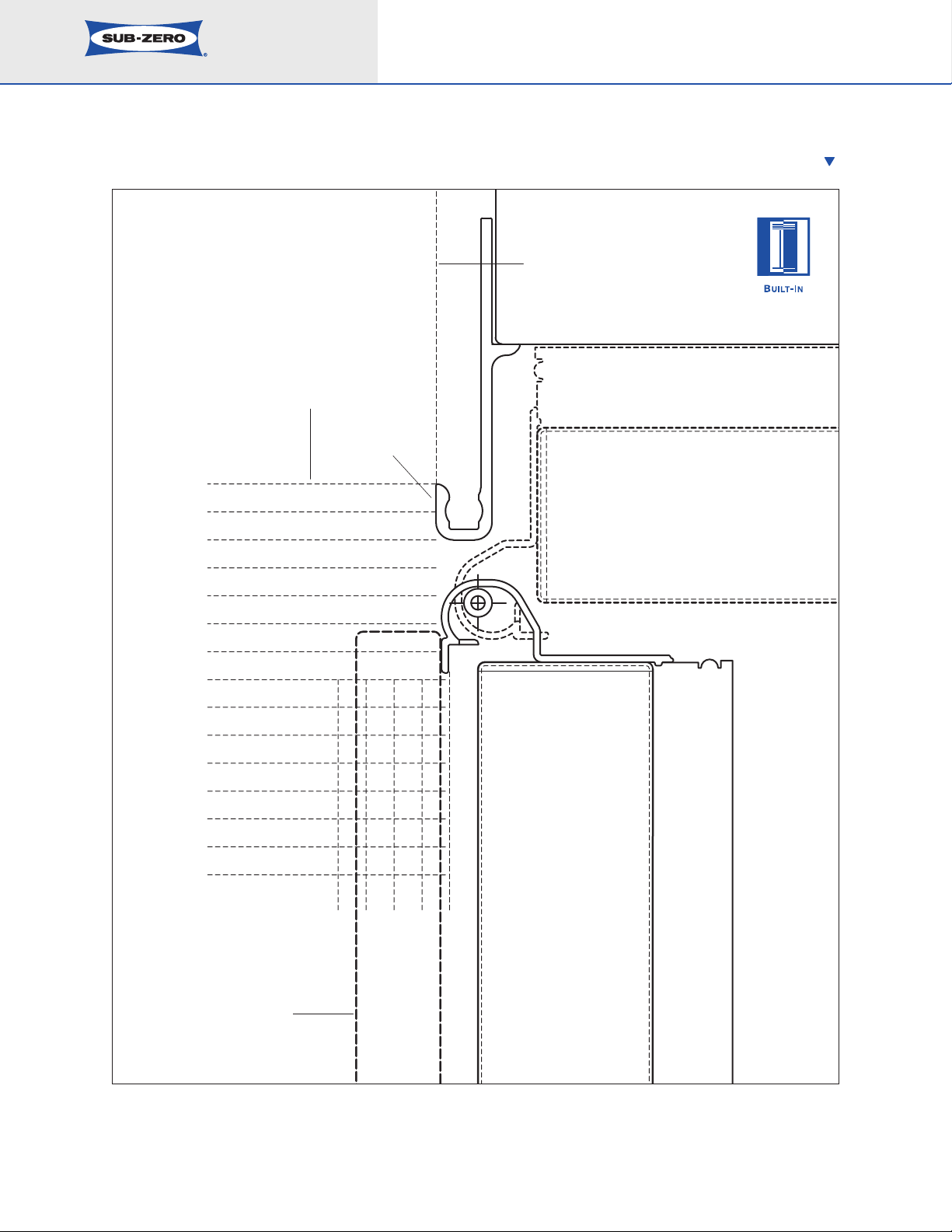

OVERLAY PANEL APPLICATION – 90˚ DOOR OPENING
kness of wr
.
oximate thic
Appr
*
stainless steel door
Dimensions in parentheses are in
pped
a
millimeters unless otherwise specified.
14
Loading...
