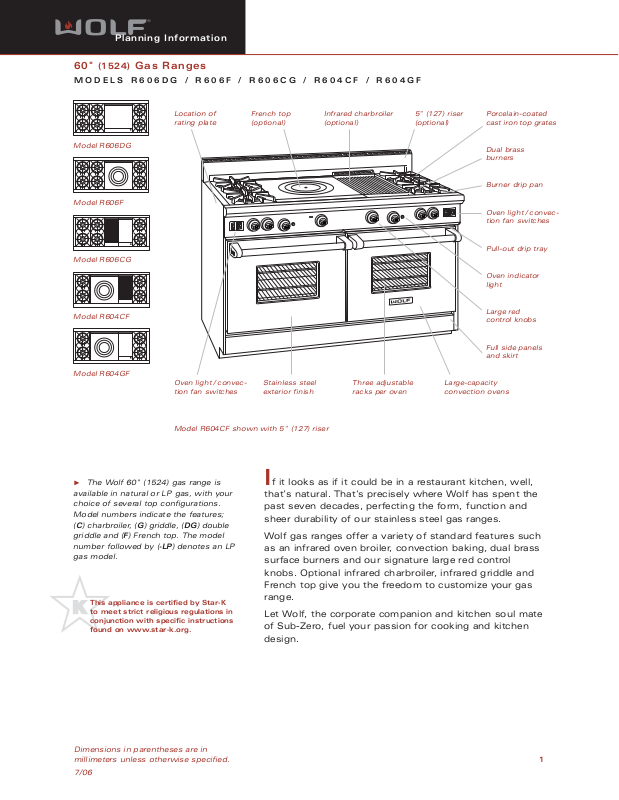

Planning Information
60" (1524) Gas Ranges
MODELS R606DG / R606F / R606CG / R604CF / R604GF
Dimensions in parentheses are in
millimeters unless otherwise specified.
7/06
1
Model R606DG
Model R606F
Model R606CG
Model R604CF
Model R604GF
If it looks as if it could be in a restaurant kitchen, well,
that’s natural. That’s precisely where Wolf has spent the
past seven decades, perfecting the form, function and
sheer durability of our stainless steel gas ranges.
Wolf gas ranges offer a variety of standard features such
as an infrared oven broiler, convection baking, dual brass
surface burners and our signature large red control
knobs. Optional infrared charbroiler, infrared griddle and
French top give you the freedom to customize your gas
range.
Let Wolf, the corporate companion and kitchen soul mate
of Sub-Zero, fuel your passion for cooking and kitchen
design.
The Wolf 60" (1524) gas range is
available in natural or LP gas, with your
choice of several top configurations.
Model numbers indicate the features;
(C) charbroiler, (G) griddle, (DG) double
griddle and (F) French top. The model
number followed by (-LP) denotes an LP
gas model.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
5" (127) riser
(optional)
Dual brass
burners
Pull-out drip tray
Oven indicator
light
Large red
control knobs
Burner drip pan
Oven light / convection fan switches
Full side panels
and skirt
Location of
rating plate
French top
(optional)
Infrared charbroiler
(optional)
Oven light / convection fan switches
Stainless steel
exterior finish
Three adjustable
racks per oven
Model R604CF shown with 5" (127) riser
Large-capacity
convection ovens
Porcelain-coated
cast iron top grates
Planning Information
60" (1524) Gas Ranges
MODELS R606DG / R606F / R606CG / R604CF / R604GF
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
Refer to the Wolf Design Guide for
additional specifications.
2
FEATURES
Natural or LP gas models
Classic stainless steel exterior finish
Fits standard 24" (610) deep cabinets, with
zero clearance
Optional infrared charbroiler, infrared griddle,
double griddle and French top configurations
Dual brass burners with automatic reignition
at all settings, 500 Btu/ hr (.1 kW) simmer to
16,000 Btu/ hr (4.7 kW) high
Porcelain-coated cast iron top grates
Large red control knobs with four position
settings and chrome bezels— optional black
knobs available at no cost
Large-capacity convection ovens with
infrared broilers, porcelain interiors, three
adjustable racks, lights and door windows
Stainless steel drip tray on ball bearing slides
Adjustable 3" (76) stainless steel legs in
front and rear casters
Full side panels and skirt
Certified by Star-K to meet religious
regulations
CSA certified for US and Canada
Two and five year residential warranty—
exclusions apply; warranty information can
be found on our website, wolfappliance.com
OVERALL DIMENSIONS
60" (1524)
OVERALL WIDTH
37" (940)
OVERALL
HEIGHT TO
COOKING
SURFACE
36"
(914)
21/2"
(64)
283/8" (721)
OVERALL DEPTH
271/4" (692)
91/4"
(235)
241/2" (622)
251/4" (641)
433/8" (1102)
LEGS AND CASTERS ALLOW
1" (25) HEIGHT ADJUSTMENT
WITH 10"
413/4"
(1060)
WITH 5"
RISER
WITH 20"
463/4"
(1187)
RISER
563/4"
(1441)
RISER
