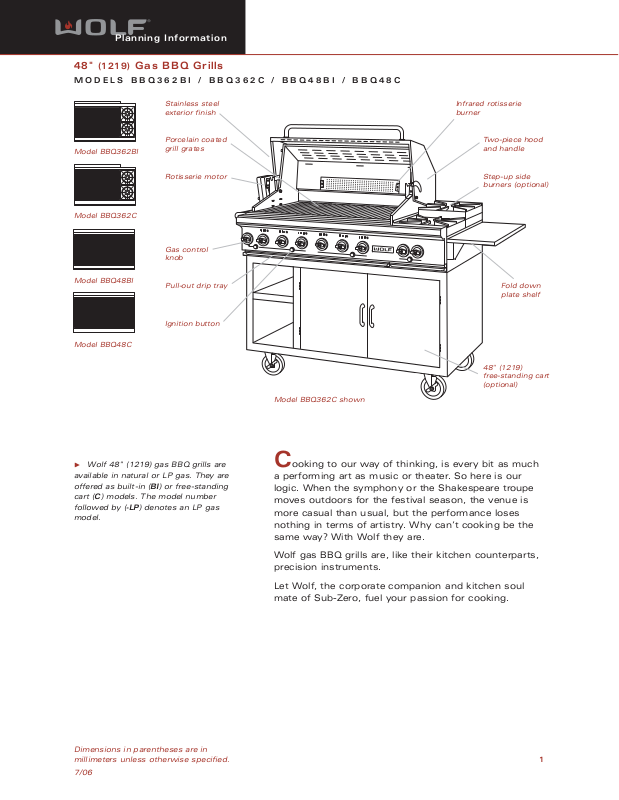

Page 1
Planning Information
48" (1219) Gas BBQ Grills
MODELS BBQ362BI / BBQ362C / BBQ48BI / BBQ48C
Dimensions in parentheses are in
millimeters unless otherwise specified.
7/06
1
Model BBQ362BI
Model BBQ48BI
Model BBQ362C
Model BBQ48C
Infrared rotisserie
burner
Two-piece hood
and handle
Step-up side
burners (optional)
Porcelain coated
grill grates
Stainless steel
exterior finish
Rotisserie motor
Gas control
knob
Pull-out drip tray Fold down
plate shelf
48" (1219)
free-standing cart
(optional)
Ignition button
Model BBQ362C shown
Cooking to our way of thinking, is every bit as much
a performing art as music or theater. So here is our
logic. When the symphony or the Shakespeare troupe
moves outdoors for the festival season, the venue is
more casual than usual, but the performance loses
nothing in terms of artistry. Why can’t cooking be the
same way? With Wolf they are.
Wolf gas BBQ grills are, like their kitchen counterparts,
precision instruments.
Let Wolf, the corporate companion and kitchen soul
mate of Sub-Zero, fuel your passion for cooking.
Wolf 48" (1219) gas BBQ grills are
available in natural or LP gas. They are
offered as built-in (BI) or free-standing
cart (C) models. The model number
followed by (-LP) denotes an LP gas
model.
Page 2
Planning Information
48" (1219) Gas BBQ Grills
MODELS BBQ362BI / BBQ362C / BBQ48BI / BBQ48C
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
FEATURES
Natural or LP gas units
Built-in (BI) or free-standing cart (C) models
Heavy duty 18-gauge stainless steel
construction with classic stainless steel
exterior finish
10,000 Btu / hr (2.9 kW) stainless steel grill
burners and 9000 Btu / hr (2.6 kW) infrared
burners
Optional 16,000 Btu / hr (4.7 kW) step-up
cast iron side burners (Models BBQ362BI
and BBQ362C)
Push button battery powered ignition
Cast iron porcelain coated grill grates
New redesigned burner radiant plates
115-volt rotisserie motor and infrared rear
rotisserie burner
Two piece stainless steel hood and handle
LP gas models include gas regulator, hose
and 5-gallon (19 L) tank
Heavy-duty locking swivel casters on cart
models
Scraper and protective canvas cover included
Two and five year residential warranty, along
with a limited lifetime warranty on the BBQ
body and hood – exclusions apply; warranty
information can be found on our website,
wolfappliance.com
OVERALL DIMENSIONS
BBQ362C
BBQ362C-LP
36" (914)
48" (1219)
OVERALL WIDTH
523/4"
(1340)
OVERALL
HEIGHT
561/2"
(1435)
HEIGHT
WITH
HOOD
OPEN
361/4" (921)
TO GRILLING
SURFACE
30" (762)
OVERALL DEPTH
303/8" (771) WITH HOOD OPEN
6"
(152)
255/8" (651)
26"
(660)
HEIGHT
OF GRILL
263/4"
(680)
HEIGHT
OF CART
Page 3
Planning Information
48" (1219) Gas BBQ Grills
MODELS BBQ362BI / BBQ362C / BBQ48BI / BBQ48C
3
SPECIFICATIONS
Overall Grill Width 48" (1219)
Overall Grill Height 26" (660)
Overall Height
(with free-standing cart) 523/4" (1340)
Overall Grill Depth 30" (762)
Grill Burners – Models BBQ362BI and BBQ362C
(6) 10,000 Btu / hr (2.9 kW)
Grill Burners – Models BBQ48BI and BBQ48C
(8) 10,000 Btu / hr (2.9 kW)
Infrared Burner 9,000 Btu / hr (2.6 kW)
Side Burners – Models BBQ362BI and BBQ362C
(2) 16,000 Btu / hr (4.7 kW)
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Power Cord 6' (1.8 m) power cord with
3-prong grounded plug
Shipping Weight 525 lbs (238 kg) - 560 lbs (254 kg)
Specifications are subject to change without notice.
OVERALL DIMENSIONS
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
BBQ362BI
BBQ362BI-LP
MODEL OPTIONS
Built-In w/ Side Burners BBQ362BI
Cart w/ Side Burners BBQ362C
Built-In BBQ48BI
Cart Model BBQ48C
Natural gas models listed, for LP gas add
(-LP) to the model number.
ACCESSORIES
Insulating liner
Black control knobs
Contact your Wolf dealer for additional
information on accessories.
36" (914)
48" (1219)
OVERALL WIDTH
26"
(660)
OVERALL
HEIGHT
91/2" (241)
TO GRILLING
SURFACE
30" (762)
OVERALL DEPTH
303/8" (771) WITH HOOD OPEN
255/8" (651)
293/4"
(756)
HEIGHT
WITH
HOOD
OPEN
Page 4
Planning Information
48" (1219) Gas BBQ Grills
MODELS BBQ362BI / BBQ362C / BBQ48BI / BBQ48C
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
DIMENSIONS
Rough Opening Width (combustible enclosure) 501/4" (1276)
Rough Opening Width (non-combustible enclosure) 481/4" (1226)
Rough Opening Depth (combustible enclosure) 273/4" (705)
Rough Opening Depth (non-combustible enclosure) 263/4" (679)
See Installation Instructions shipped with unit for detailed specifications.
INSTALLATION IN COMBUSTIBLE ENCLOSURE
INSTALLATION IN NON-COMBUSTIBLE ENCLOSURE
18"
(457) min
501/4" (1276)
ROUGH OPENING WIDTH
18"
(457) min
E
101/2" (267)
LOCATE
ELECTRICAL
OUTLET FOR
ROTISSERIE
ON LEFT SIDE
NOTE: Dimensions include insulated liner.
ROUGH
OPENING
HEIGHT
COMBUSTIBLE ENCLOSURE
ALLOW OPENING
FOR ACCESS
DOOR
33/4" (95)
2" (51) DIAMETER OPENING
FOR GAS SUPPLY CONNECTION
(BACK WALL LOCATION OR
BOTTOM LOCATION)
31/8"
(79)
31/8"
(79)
C
L
361/2"max
6"
(152)
min
481/4" (1226)
ROUGH OPENING WIDTH
6"
(152)
min
E
LOCATE
ELECTRICAL
OUTLET FOR
ROTISSERIE
ON LEFT SIDE
91/2" (242)
ROUGH
OPENING HEIGHT
ALLOW OPENING
FOR ACCESS
DOOR
23/4"
(70)
2" (51) DIAMETER OPENING
FOR GAS SUPPLY CONNECTION
(BACK WALL LOCATION OR
BOTTOM LOCATION)
21/8"
(54)
21/8"
(54)
C
L
361/2"max
(927)
(927)
273/4" (705)
ROUGH OPENING
DEPTH
101/2" (267)
ROUGH
OPENING
HEIGHT
263/4" (680)
ROUGH OPENING
DEPTH
91/2" (242)
ROUGH
OPENING HEIGHT
18"
(457) min
27/8"
(73)
C
L
2" (51) DIAMETER OPENING
FOR GAS SUPPLY CONNECTION
(BOTTOM LOCATION)
3"
(76)
min
17/8"
(48)
C
L
2" (51) DIAMETER OPENING
FOR GAS SUPPLY CONNECTION
(BOTTOM LOCATION)
NON-COMBUSTIBLE ENCLOSURE
Page 5
Planning Information
48" (1219) Gas BBQ Grills
MODELS BBQ362BI / BBQ362C / BBQ48BI / BBQ48C
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, finished rough opening
dimensions and installation specifics.
IMPORTANT NOTE: Safe and satisfactory operation of your Wolf gas BBQ grill depends upon
its proper use and installation. Minimum clearances to combustible surfaces must be
observed. Be certain the appliance is properly
grounded to avoid shock hazard.
The Wolf gas BBQ grill must be specified
natural or LP gas at the time of order. The gas
type cannot be converted.
When choosing a portable site for your Wolf
gas BBQ grill, always maintain a minimum clearance of 24" (610) from all four sides of the grill
to any combustible surface.
When choosing a permanent built-in location
for your Wolf gas BBQ grill, maintain minimum
clearances to combustible surfaces as shown in
the Installation illustration.
IMPORTANT NOTE: In all instances, you must
allow for an adequate supply of fresh air for
proper combustion and ventilation. Never locate
the grill in an enclosed area.
The Wolf gas BBQ grill is designed for easy
placement into a built-in enclosure. For a
combustible enclosure, use the Wolf approved
insulated jacket and maintain minimum clearances to combustible surfaces as shown in the
Installation illustration on page 4.
Built-in installations require a deck to
support the bottom. The supporting deck and
counter should be level and strong enough to
support 400 lbs (181 kg).
The Wolf gas BBQ grill requires a 110/ 120 V
electrical supply to operate the rotisserie motor.
The 6' (1.8 m) power supply cord provided with
the grill is equipped with a 3-prong, grounded
plug for protection against shock hazard. The
service should have its own 15 amp circuit
breaker.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
Wolf gas BBQ grills are designed to operate
on natural gas at 5" (127) WC (water column)
pressure or LP gas at 10" (254) WC pressure.
The maximum gas supply pressure to the
regulator should never exceed 14" (356) WC;
.5 psi (3.5 kPa).
Wolf recommends the use of a
1
/2" (13) I.D.
commercial type flex hose; this is the minimum
size that may be used. All plumbing to the flex
hose must be
3
/4" (19) minimum I.D. pipe.
IMPORTANT NOTE: A separate external gas
shut-off valve must be located near the grill in
an accessible location.
The Wolf gas BBQ grill functions up to
6000' (1828 m) in altitude without any
adjustment. If the installation is above 6000'
(1828 m), contact your Wolf dealer.
You must follow all National Electrical Code
and gas regulations. In addition, be aware of
local codes and ordinances when installing your
services.
Refer to the installation instructions shipped
with each Wolf product for detailed specifications.
