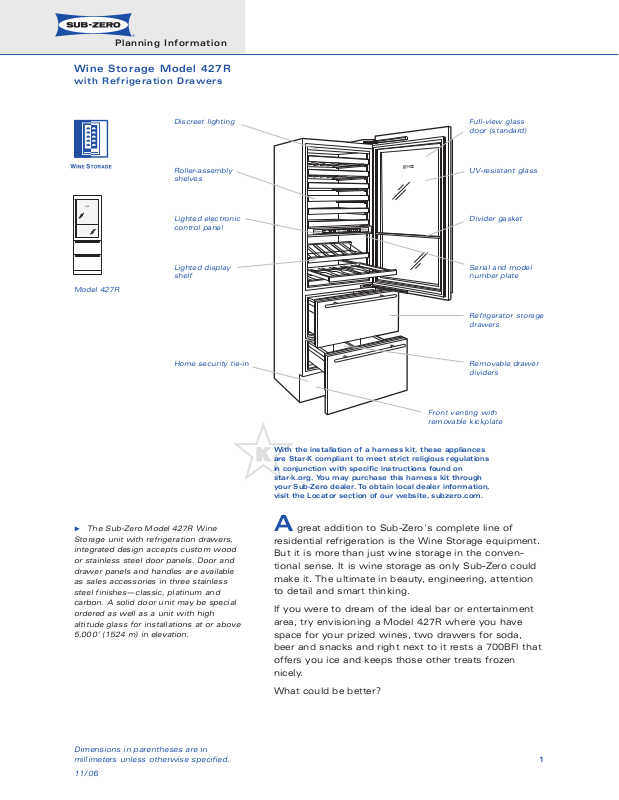

Planning Information

Wine Storage Model 427R

with Refrigeration Drawers

odel 427R

iscreet lighting

Roller-assembly

helves

ighted electronic

L control panel

Lighted display

helf

Home security tie-in Removable drawer

Front venting with removable kickplate

ull-view glass

F door (standard)

UV-resistant glass

ivider gasket

Serial and model

umber plate

wers

tor stor

age

Refrigera dra

dividers

The Sub-Zero Model 427R Wine Storage unit with refrigeration drawers, integrated design accepts custom wood or stainless steel door panels. Door and drawer panels and handles are available as sales accessories in three stainless steel finishes— classic, platinum and carbon. A solid door unit may be special ordered as well as a unit with high altitude glass for installations at or a 5,000' (1524 m) in elevation.

bove

With the installation of a harness kit, these appliances are Star-K compliant to meet strict religious regulations in conjunction with specific instructions found on star-k.org. You may purchase this harness kit through your Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzero.com.

A great addition to Sub-Zero's complete line of

residential refriger

ation is the Wine Stor But it is more than just wine storage in the conventional sense. It is wine storage as only Sub-Zero could make it. The ultimate in beauty, engineering, attention to detail and smart thinking.

If you were to dream of the ideal bar or entertainment area, try envisioning a Model 427R where you have space for y beer and snac

our prized wines, two drawers for soda,

ks and right next to it rests a 700BFI that offers you ice and keeps those other treats frozen nicely.

What could be better?

age equipment.

Dimensions in parentheses are in millimeters unless otherwise specified.

11/06

Page 2

Planning Information

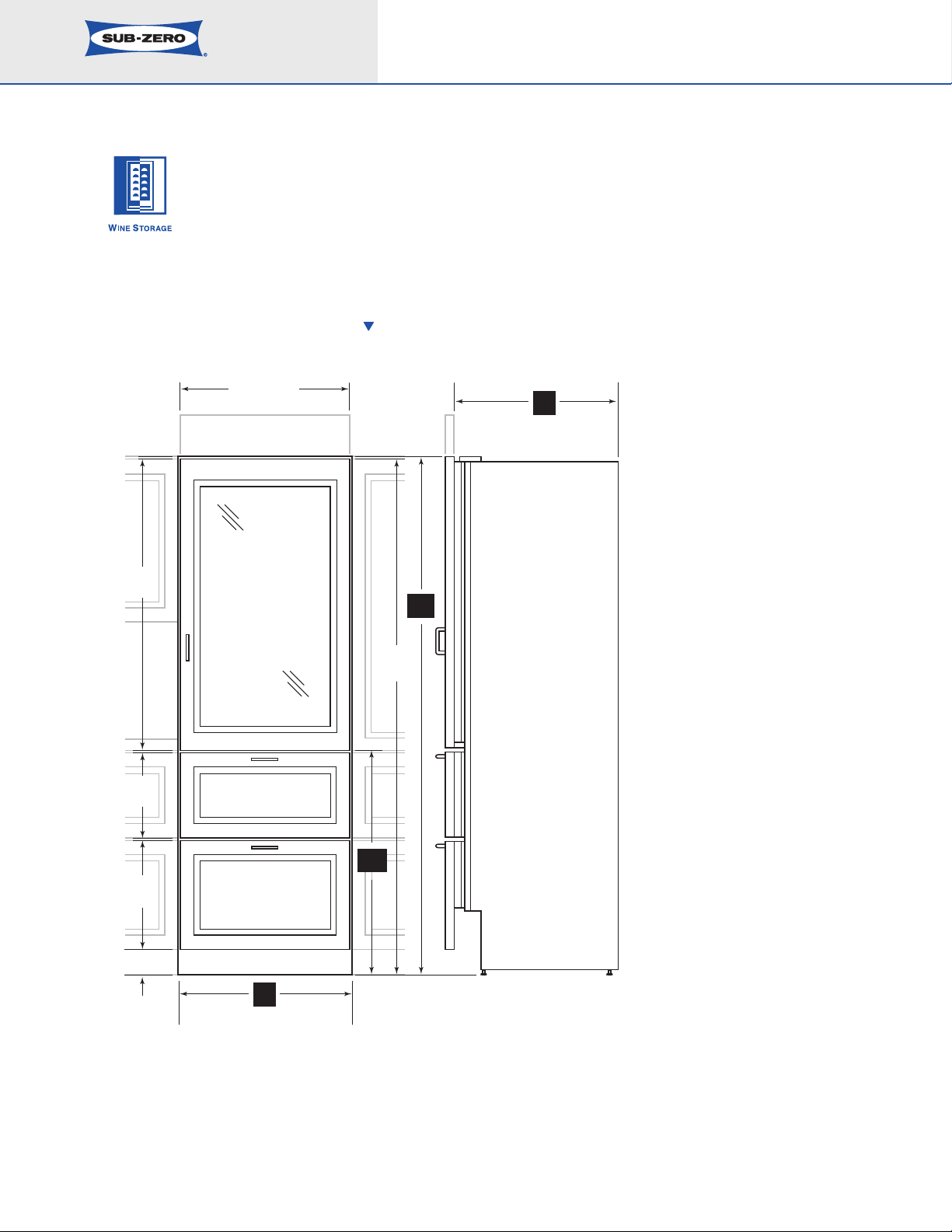

DRAWER FRONT

FRONT VIEW SIDE VIEW

(356)

3 8

(517)

1 2

(13)

1 4

(260)

1 4

(337)

3 8

(9)

(UNIT DIMENSION)

13 16

(20)

*78

5 8

(1997)

3 4

(248)

(102)

(686)

(610)

3 4

(273)

CENTERED

VERTICALLY

(650)

DOOR FRAME

(664)

1 8

*34

1 2

(877)

7 8

(1139)

DOOR FRAME

WITH

HINGES

(2032)

/2" (13)

ADJUSTMENT IN LEVELING LEGS

105˚

90˚

90˚ DOOR OPENING

DOOR/ DRAWER

CLOSED

MAXIMUM DOOR OPENING

DOOR/ DRAWER PANEL THICKNESS NOT INCLUDED – DIMENSION WILL VARY WITH INSTALLATION

DOOR/ DRAWER

CLOSED

191/2"*

(495)25

/2"*

(648)

24"

(610)

257/8" (657)

45/8"*(117)

TOP VIEW

Wine Storage Model 427R

FEATURES

Full-size Wine Storage unit with 78 (750 ml) bottle capacity and two refrigerator storage drawers

Integrated design accepts custom wood or stainless steel door panels offered in three stainless finishes

Refrigeration system allows individual temperature control of the two wine compartments and ideal humidity

lluminated display shelf for those prize

bottles

Sturdy, rustproof wire shelves accommodate standard 750 ml bottles, half-bottles, as well as magnums

Roller-glide shelves faced with natural cherry wood have a three-quarter extension for easy access

Full-view glass door standard with UVresistant glass protection

Solid door unit and high altitude glass unit can be special ordered

Discreet low voltage interior lighting

Service light indicator, optional lock and tie-in to home security system

The exclusive dual action hinge has a built-in 90˚ door stop

UL approved for US and Canada

Two, five and twelve year residential warranty—exclusions apply; warranty information can be found on our website,

o.com

subzer

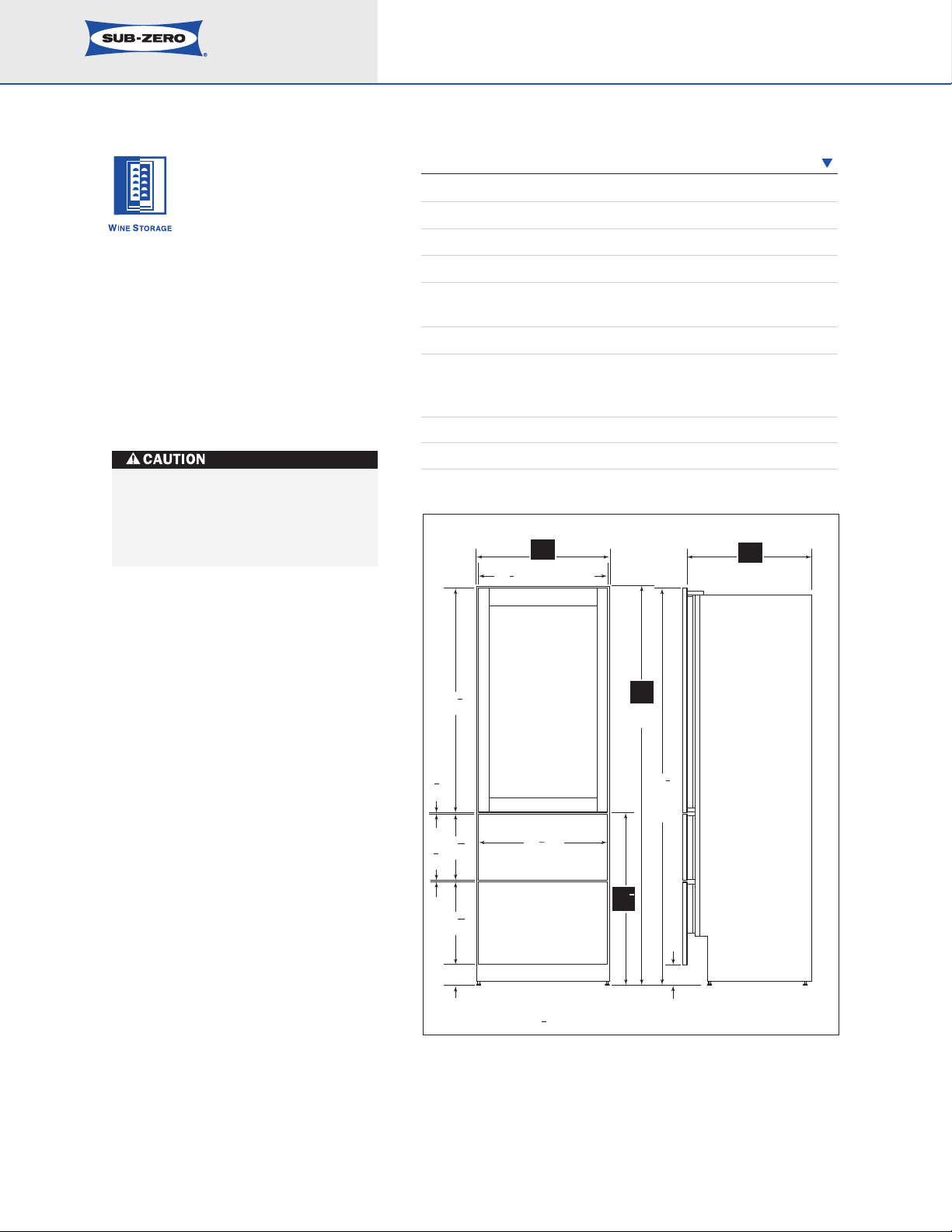

OVERALL DIMENSIONS

all dimensions shown in the standard

Over full-view glass door application.

Dimensions may vary by ±

Dimensions in parentheses are in millimeters unless otherwise specified.

/8" (3).

Page 3

Planning Information

Wine Storage Model 427R

DOOR OPTIONS

Full-View Glass Door (standard) 427RG

Solid Door 427RS

High Altitude Glass Door 427RHAG

ou must allow 90 days from order to

elivery for solid door and high altitude

lass door units.

PANEL OPTIONS

Integrated (custom panels)

Classic Stainless Steel Finish /S

Platinum Stainless Steel Finish /P

Carbon Stainless Steel Finish

SPECIFICATIONS

odel 427R Full-Size Wine Storage Unit

ith Refrigerator Storage Drawers

Overall Width 27" (686)

Overall Height 80" (2032)

Overall Depth 24" (610)

Wine Storage Capacity 78 Bottles (750 ml)

efrigerator Capacity 5.3 cu ft (150 L)

Minimum Height Required 791/2" (2019)

Door /Drawer Clearance 251/2" (648)

Electrical Requirements

115 V AC, 60 Hz, 15 amp circuit

Shipping Weight Glass Door – 410 lbs (186 kg)

Solid Door – 406 lbs (184 kg)

Special Note High altitude glass doors are available

for elevations 5,000' (1524 m) or above

Specifications are subject to change without notice.

Stainless steel full-view glass and solid door and drawer front panels are ordered and shipped as sales accessories and include tubular handles.

ACCESSORIES

Tubular handles in classic, platinum and carbon stainless steel

olished chr

ome handles for

custom panel applications

UL approved door lock kit

Dual installation heater kit

Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzero.com.

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 4

Planning Information

ANTI-TIP

BRACKET*

PLACEMENT OF THE

NTI-TIP BRACKET

HOULD BE 24" (610)

FROM THE FRONT OF THE

UNIT WITHOUT PANELS

TO THE BACK OF THE

ANTI-TIP BRACKET.

25"

(

635)

27"

(

686)

(

635)

11/2"

(

38)

131/2"

(

343)

TOP VIEW

SIDE VIEW FRONT VIEW

ANTI-TIP

BRACKET

80"

(

2032)

41/2"

(114)

21/2" (64)

151/2" (394)

/4"

(6)

13" (330)

ANTI-TIP

BRACKET

LOCATE ELECTRICAL WITHIN

SHADED AREA – ORIENT GROUND

PRONG TO RIGHT AS SHOWN

NOTE: ANTI-TIP BRACKET MUST BE INSTALLED TO

PREVENT UNIT FROM TIPPING FORWARD

Wine Storage Model 427R

INSTALLATION SPECIFICATIONS

DIMENSIONS

Finished Rough Opening Width 27" (686)

inished Rough Opening Height

inished Rough Opening Depth

80" (2032)

25" (635)*

Location of Electrical Within shaded area

The depth of the Model 427R is 24" (610) from the front of the unit to its back. Your design may

* necessitate moving the unit back, or cabinets forward to achieve a flush fit. This will require a minimum r

See Installation Instructions shipped with unit for detailed specifications.

ough opening depth of 25" (635).

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 5

Planning Information

Wine Storage Model 427R

INSTALLATION NOTES

efer to the illustrations and specifications for overall dimensions, finished rough opening dimensions and installation specifics.

MPORTANT NOTE: The depth of Model 427R is 24" (610) from the front of the unit to its back. Your design may necessitate moving the unit back, or cabinets forward to achieve a flush fit. This will require a minimum rough opening depth of 25" (635). Refer to the installation illustration on page 4.

The Wine Storage unit must be installed to open a minimum of 90˚ or you will have problems pulling the shelves out.

For corner installations, you need allow for a minimum 3" (76) filler so the door can open to 90˚. If you are using some larger handle hardware, you will also need to take that into account. For a maximum 90˚ door opening, use the door stop built into the hinge system.

If you are installing a wine unit next to an existing Sub-Zero unit, you may have to allow for a filler strip. Also, if there is 2" (51) or less in between units, an optional heater kit will need to be installed to prevent moisture fr in between units.

If you are connecting the unit to your home security system, you must allow a minimum of 36" (914) of the system's wiring to be r the electrical area designated for your model.

The anti-tip bracket must be installed to prevent the unit from tipping forward.

If your client has chosen the Model 427R stainless steel design, you will need to have the stainless steel panels and handle hardw installed.

or the integrated design, you will need to provide a complete door panel in the instance of a solid door unit, or a frame for the glass door

pplication, where wine will be seen fr

a outside

. Drawer panels must also be provided. Refer to pages 6–11 for complete panel information.

ANT NOTE:

IMPOR

A solid door panel must not be installed on a glass door unit, as this may cause moisture to form behind the panel. Solid door models are available as a special order and require 90 days for delivery.

om forming

outed in

are

om the

he door panel for Model 427R can grow beyond the 80" (2032) height to accommodate any size of door as long as you stay below door panel weight limit.

For Model 427R, the weight limit for a frame panel for the glass door unit is 20 lbs (9 kg). The weight limit for a solid door panel is 40 lbs (18 kg). The weight limit for each drawer panel is 12 lbs (5 kg).

If you are installing Sub-Zero's optional lock kit, you may have to order door panels that exceed the 80" (2032) finishing height. Consult the lock installation instructions and see if your panels will allow for an adequate installation.

For integrated panel applications, you must supply your own handle hardware. It is recommended you use our optional handles and use the pre-drilled holes supplied to locate the handles within the frame of our unit. Refer to page 12 for specifics about installing handle hardware.

Sub-Zero has provided a natural cherry wood facing to each of the wine shelves. You can choose to replace these strips with wood more complementary to your design and surrounding

binetry. Refer to the full-scale illustration on

ca page 14 for dimensions on the wood facing.

V AC, 60 Hz, 15 amp fused electrical

A 115 supply is required. It is recommended that a separate circuit, serving only this appliance, be provided.

All Sub-Zero Wine Storage units are equipped with a power supply cord with a 3-prong grounding plug which must be plugged into a mating 3

ounding type w

ong gr

all receptacle. Locate electrical within the shaded area shown in the installation illustration on page 4.

ou must follow all National Electrical Code

regulations. In addition, be aw

are of local codes

and ordinances when installing your service.

Refer to the

Wine Stor

age Installation

Instructions packed with the appliance, which

ovides step-b

y-step pr

ocedures for making

sure the unit is installed properly.

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 6

Planning Information

Wine Storage Model 427R

A solid panel must not be installed on a glass door unit, as this may cause moisture to form behind the panel.

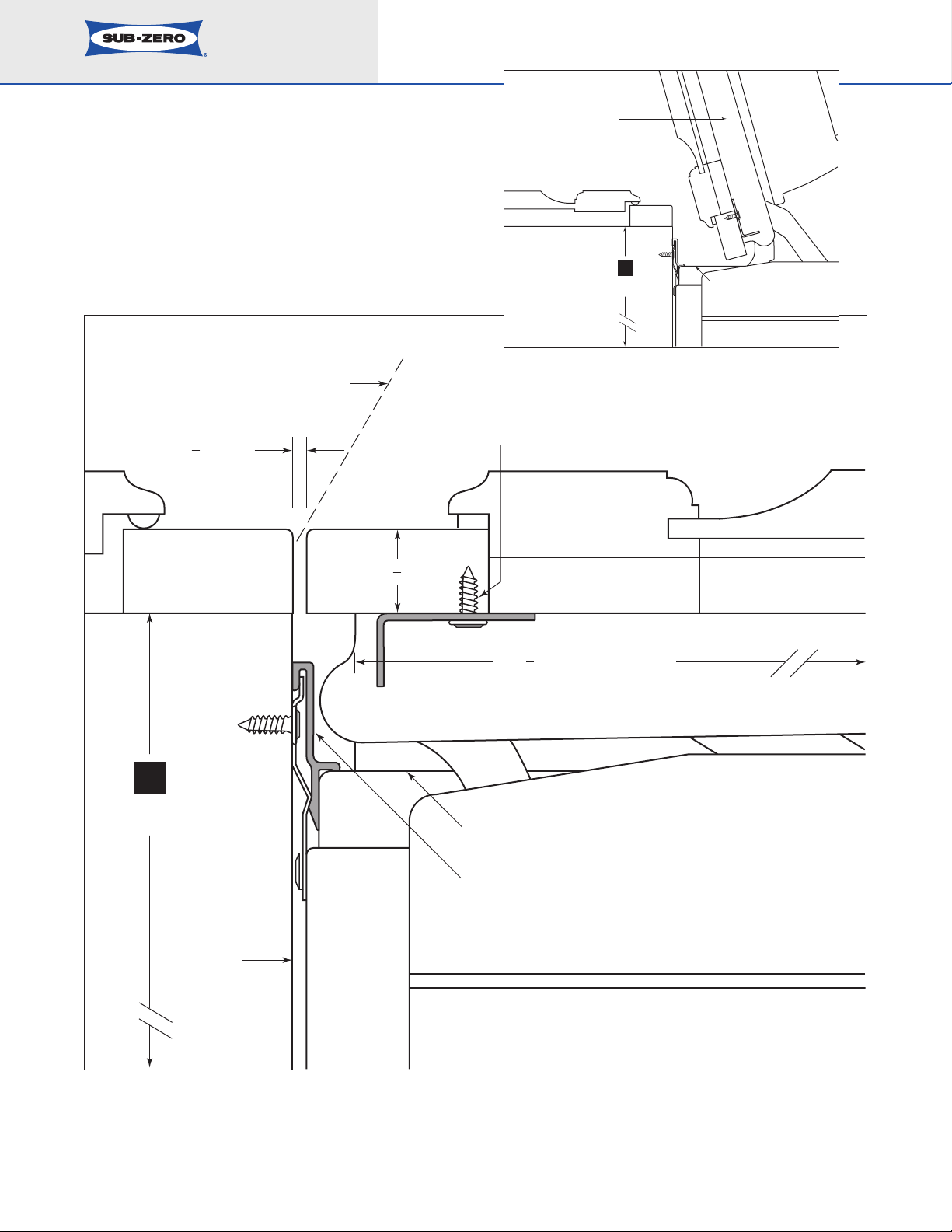

INTEGRATING CABINETRY

Unless you are installing a stainless steel unit, you will need to provide a full door panel in the instance of a solid door unit, or a frame for the glass door application, where wine will be seen from the outside. You will also have to provide drawer front panels. If you order a stainless steel Model 427R, you will need to have the stainless steel panels and handles installed.

INTEGRATED PANELS

If you are familiar with our Integrated line and its panel applications, this section will be relatively easy to understand. The Wine Storage solid door panels or frame panels for glass doors will follow some of the identical planning processes you learned with the Integrated line. The installation of the door panels is completely different, however. Rather than using the mounting hardware we used with the Integr

ated units, the door panel for Model 427R will be

attached with screws applied through our door.

awer panels for the Model 427R will be a

The dr

pplied

using the Integrated technique of mounting brackets.

IMPORTANT NOTE: The depth of Model 427R is 24" (610) from the front of the unit to its back. You MUST allow for the thickness of the panel you are applying when planning for the finished rough opening depth if you want the front panel to be flush with surrounding cabinetry. You may have to move the unit back into drywall or bring the cabinets forward.

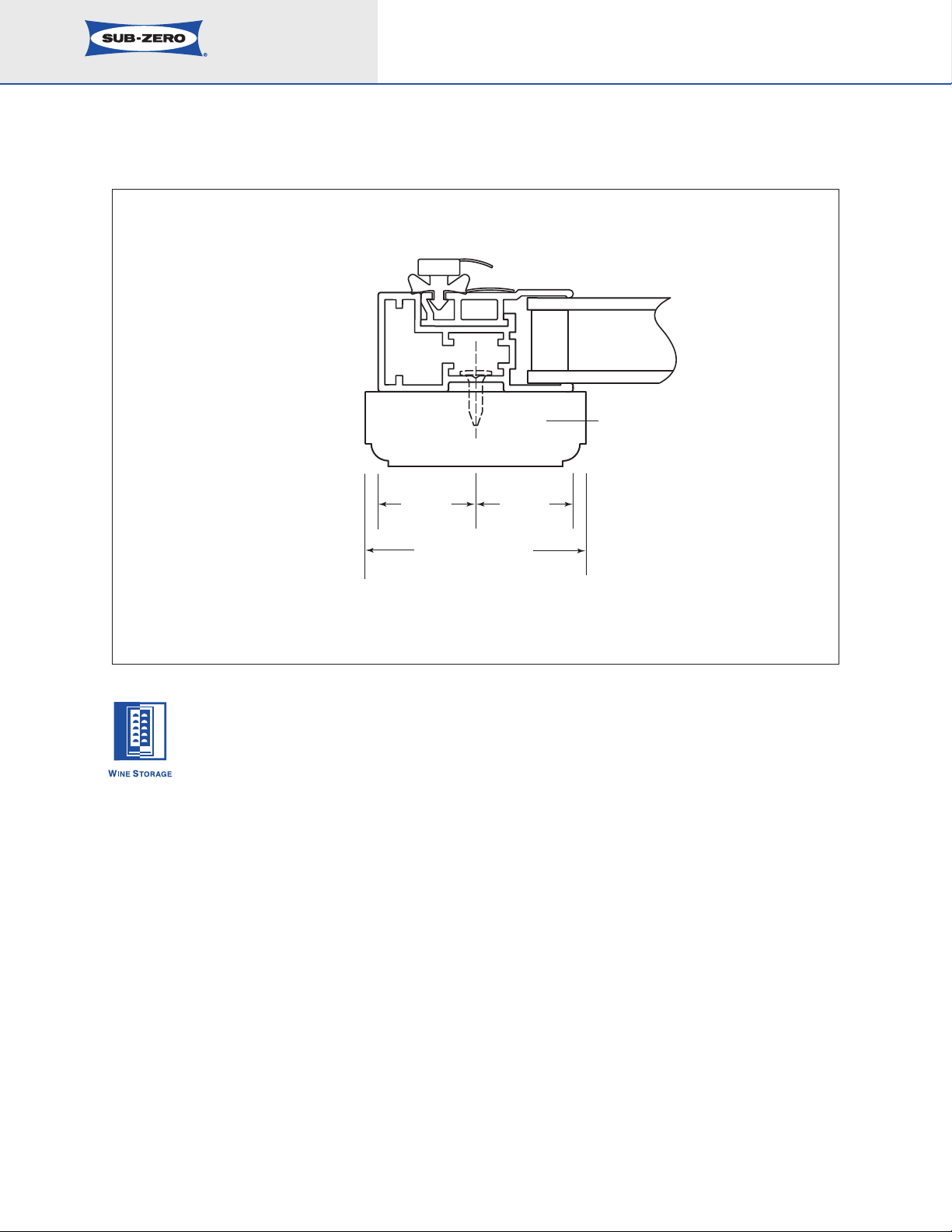

The glass door opening of the standard Model 427R is designed to be exposed to room air circulation. Decorative overlays on the glass should be kept to a minimum. While the cabinet front stiles are a minimum of 2

/4" (57), the top and bottom rails are different. Rails and stiles can be increased in size but should not exceed cabinet manufacturers standard width. They cannot exceed overall door panel dimensions specified, as they would interfere with the operation of the door. The back sides of rails and stiles that will be visible through the glass door will need to be finished. Also, the inside edges of the frame must be finished to match the front surface.

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 7

Planning Information

Wine Storage Model 427R

IMPORTANT NOTE: Wine Storage

models with a solid door are available a

s a special order and require 90 days

for delivery.

A solid panel must not be installed on a glass door unit, as this may cause moisture to form behind the panel.

INTEGRATED PANELS

The dimensions of these panels and stiles are assuming the Model 427R finishes off at 80" (2032) in height overall and has a 4" (102) toe kick. If you finish off at 84" (2134) for instance, you must add 4" (102) additional to the overall height of the panel and remember to add 4" (102) to the top rail. Likewise, if you allow for a 6" (152) toe kick for the Model 427R, you must subtract 2" (51) from the bottom rail.

IMPORTANT NOTE: The toe kick area on the Model 427R cannot be larger than 9" (229) or less than 4" (102).

The door panel for Model 427R can grow beyond the 80" (2032) height to accommodate any size of door as long as you stay below door panel weight limit of 40 lbs (18 kg) for solid door and 20 lbs (9 kg) for glass door units. Refer to the upper valance specifications for Integrated Models.

IMPORTANT NOTE: If you are installing Sub-Zero's optional loc

k kit on a Model 427R, you may have to order a door panel that exceeds the 80" (2032) finishing height. Consult the lock installation instructions and see if your panels will allow for an adequate installation.

The door frame of the unit has pre-drilled holes for our

. Refer to Hardware Considera-

optional handle hardw

are tions on page 12 for specifics about installing handle hardware on this overlay application.

Refer to the charts and illustrations on the following pages for specific dimensions for integrating cabinetry for Model 427R.

or additional specifications and installation information

F specific to Model 427R, refer to pages 2–5. Also refer to the comprehensive installation instructions that are shipped with each unit.

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 8

Planning Information

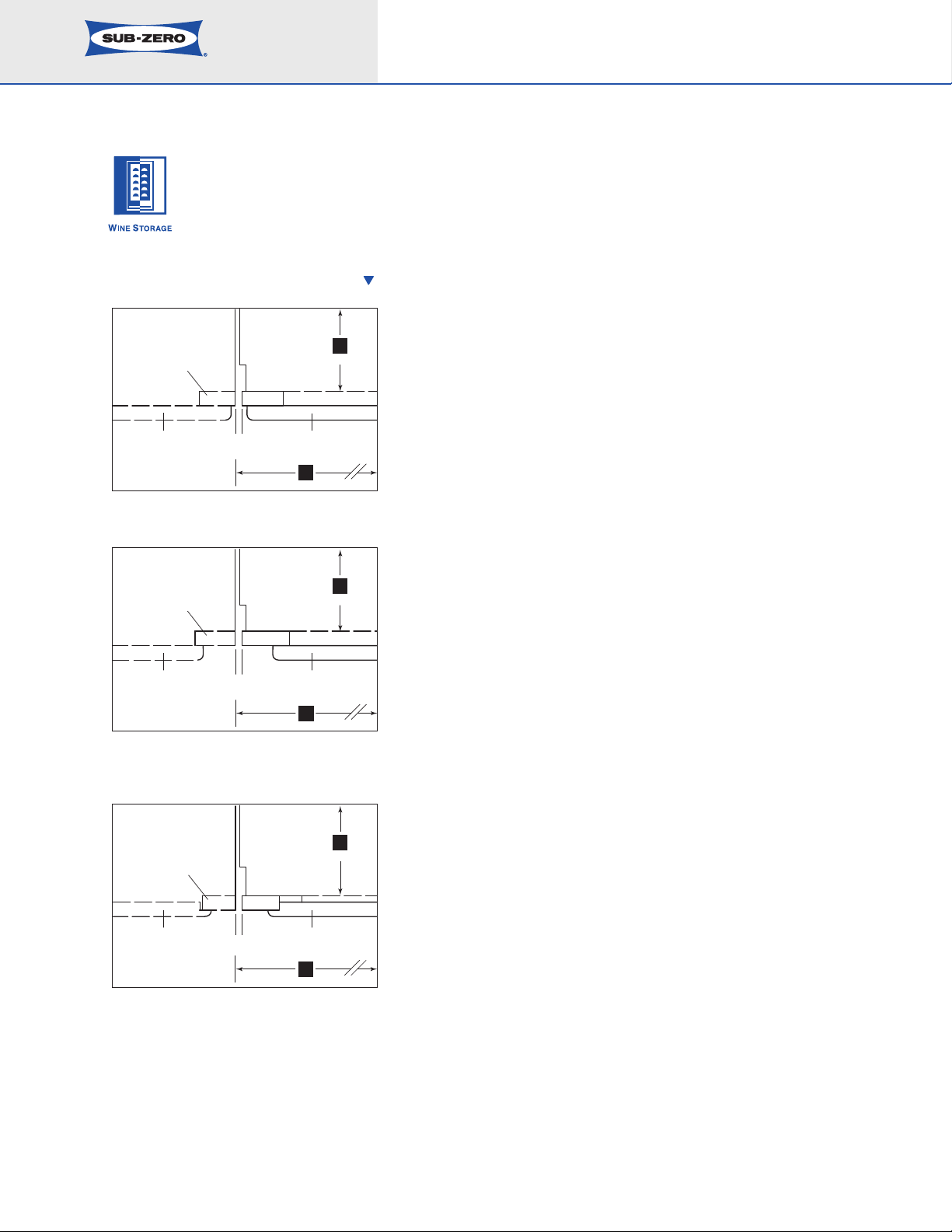

* INCH (13) ADJUSTMENT IN LEVELING LEGS

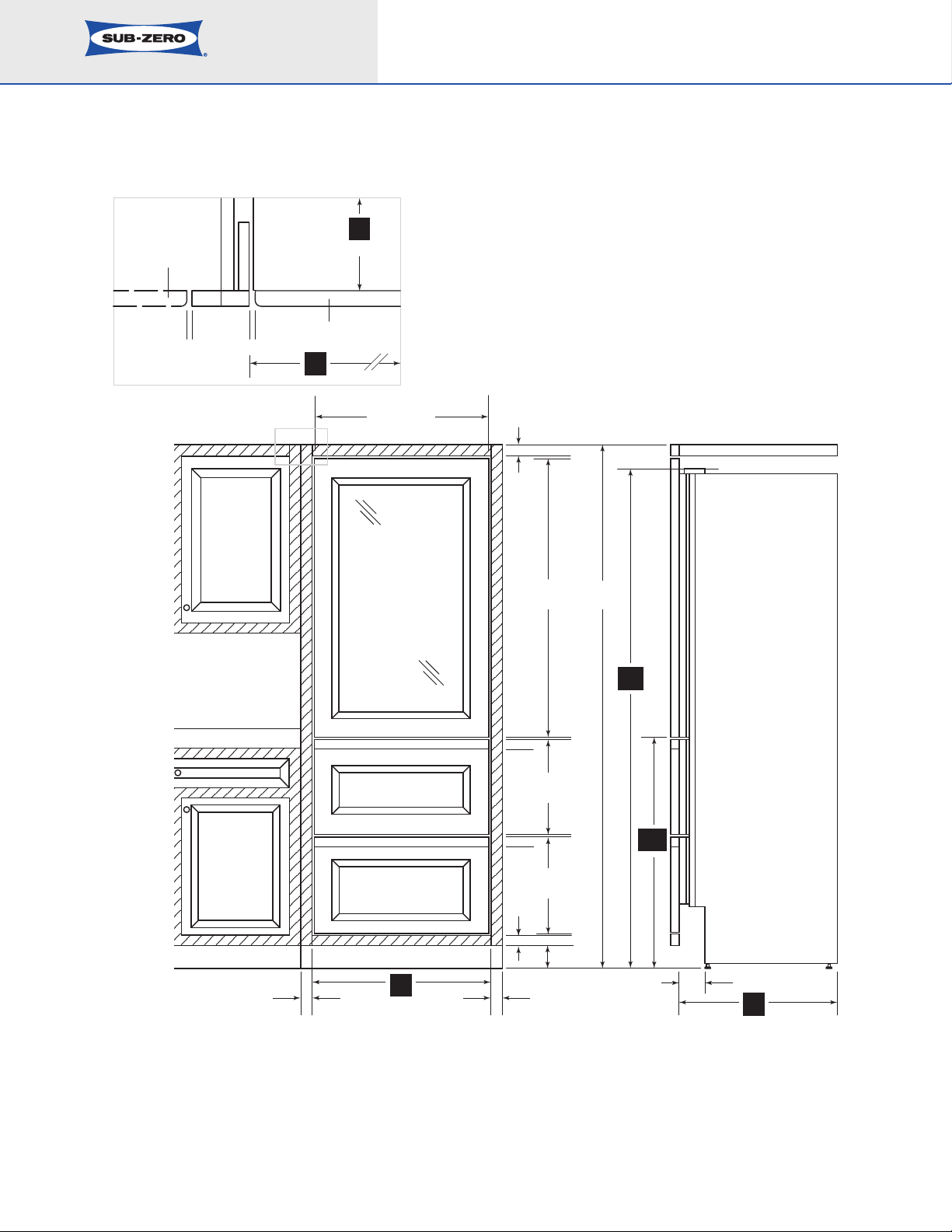

MODEL 427R CABINETRY DIMENSIONS

1 2

DRAWER PANEL

FRONT VIEW SIDE VIEW

1 8

(3)

11 16

(424)

(345)

1 8

(3)

(UNIT DIMENSION)

*34

1 2

(877)

(2032)

(686)

(610)

(679)

3 4

DOOR PANEL

(679)

3 4

7 8

(2029)

FINISHED OPENING

(

1153)

(102)

TOE KICK

(102)

TOE KICK

FINISHED OPENING

TRIMMED

DOOR

Wine Storage Model 427R

MODEL 427R PANEL SPECIFICATIONS

Door Panel (W x H) 263/4" (679) x 453/8" (1153)

Width of Top Rail 33/4" (95) min

IMPORTANT NOTE: Wine Storage models with a solid door are available a

s a special order and require 90 days for delivery. When ordering panels for a solid door unit, follow the overall panel dimensions indicated in the chart, rail and stile dimensions do not apply.

A solid panel must not be installed on a glass door unit, as this may cause moisture to form behind the panel.

idth of Bottom Rail 3"

(76) m

Width of Stiles 21/4" (57) min

Door Panel Weight Limit Glass Door – 20 lbs (9 kg)

Solid Door – 40 lbs (18 kg)

Top Drawer Panel (W x H) 263/4" (679) x 139/16" (345)

Bottom Drawer Panel (W x H)

(102) toe kick – 26

/4" (679) x 1611/16" (424)

6" (152) toe kick – 263/4" (679) x 1411/16" (373)

Drawer Panel Weight Limit 12 lbs (5 kg) each

anel Thickness

/8" (16) min

Cabinetry dimensions shown in the standard full-view glass door application.

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 9

Planning Information

SUB-ZERO

UNIT

ANEL

ABINET D

OOR

CABINET

FRAME

TO WALL

(

610)

/8" (3)

REVEAL

(

686)

PANEL

ABINET DOOR

CABINET

FRAME

SUB-ZERO

UNIT

TO WALL

(

610)

/8" (3)

REVEAL

(

686)

PANEL

CABINET

DOOR

CABINET

FRAME

SUB-ZERO

UNIT

TO WALL

(610)

/8" (3)

REVEAL

(686)

Wine Storage Model 427R

FRAMED CABINETRY

Traditional Frame – full overlay (top view).

FRAMED CABINETRY APPLICATIONS

ramed cabinetry applications present you with different questions to address. The illustrations on this page show common applications of framed cabinetry. These are not meant to be the only alternatives, but are suggestions from designers around the country. Also refer to the full-scale illustrations at the end of this section for specifics on door o

penings.

IMPORTANT NOTE: The depth of the Model 427R is 24" (610) from the front of the unit to its back. You must allow for the thickness of the panel you are applying when planning for the finished rough opening depth if you want the front panel to be flush with surrounding cabinetry. You may have to move the unit back into drywall or bring the cabinets forward to achieve a flush fit. Refer to the illustrations on this page.

The Illustration on the following page gives dimensions for a Model 427R installed within a framed cabinetry beaded

pplication. Review the illustration, giving particular

inset a attention to the overall panel specifications. Also refer to the full-scale illustrations at the end of this section for specifics on door openings.

Traditional Frame – standard overlay (top view).

Traditional Frame – 3/8" (10) offset (top view).

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 10

Planning Information

) ALL REVEALS ARE 1/8" (3) B) DRAWER RAILS ARE ATTACHED TO DRAWER FRONTS C

) BOTTOM RAIL MUST BE REMOVABLE

*DIMENSIONS MAY VARY

TOP VIEW

A A

OOR PANEL

CABINET DOOR

O WALL

SUB-ZERO

NIT

PANEL WIDTH

11/2"

(38)

11/2"

(38)

477/8"

(1216)

FRONT VIEW SIDE VIEW

263/4" (

679)

139/16"

(345)

151/16"

(383)

84"

(

2624)

11/2"

(38)

11/2"

(38)

4"*

(102)

4" (102)

80"*

(2032)

341/2"

(876)

24"

(610)

27"

(686)

SHADED AREA INDICATES STATIONARY STYLES AND RAILS

27"

(686)

(610)

Wine Storage Model 427R

FRAMED CABINETRY – BEADED INSET APPLICATION

The illustration shows a Model 427R installed within a framed cabinetry beaded inset application.

IMPORTANT NOTE: Dimensions are based on a 1/8" (3) reveal. A reveal of up to

/4" (6) is possible, but panel

dimensions need to be adjusted accordingly.

Installation of a Model 427R within framed cabinetry.

ary

*Dimensions ma

y v

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 11

Planning Information

A) ALL REVEALS ARE 1/8" (3) *DIMENSIONS MAY VARY

SIDE VIEW

(610)

PANEL WIDTH

453/8"

(1153)

/4"

(679)

139/16"

(345)

1611/16"*

(424)

4"*

(102)

80"*

(2032)

341/2"

(876)

27"

(686)

FINISHED OPENING

TOE KICK

797/8"*

(2029)

Wine Storage Model 427R

FRAMELESS CABINETRY

FRAMELESS CABINETRY APPLICATIONS

The illustration below shows a hypothetical installation of a Model 427R within frameless cabinetry. Review the illustration, giving particular attention to the overall panel specifications. Also refer to the full-scale illustrations at the end of this section for specifics on door openings.

MPORTANT NOTE:Dimensions are based on a

reveal. A reveal of up to

/4" (6) is possible, but panel

/8"

(3)

dimensions need to be adjusted accordingly.

Installation of a Model 427R within frameless cabinetry.

*Dimensions may vary.

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 12

Planning Information

Wine Storage Model 427R

When planning for hardware, please refer to the Door Frame Profile full-scale illustration on page 13 to give you a better understanding of the unit's frame and positioning of the glass for the door. You must not drill through the glass.

HARDWARE CONSIDERATIONS

With the Model 427R you must supply your own handle hardware. It is recommended you use our optional handles and use the pre-drilled holes supplied to locate the handles within the frame of our unit. The metal frame on the door has numerous mounting holes on each side to accommodate Sub-Zero accessory handles. This will allow you to provide the best possible handle alignment and not take away from the strength of the stile in this area after the unit is used a number of times. We recommend using a pull handle and not a pull knob.

If you elect to place different hardware on the units, we encourage you to fasten the hardware by passing through our door and attach the hardware through the Sub-Zero door's frame.

Optional stainless steel handles are available in a variety of diameters and lengths in the classic, platinum and carbon stainless steel finishes and polished chrome. Contact your Sub-Zero dealer for specifics. To obtain local dealer information, visit the Locator section of our website, subzero.com.

W OOD FA CING – WINE SHELVES

Sub-Zero has provided a natural cherry wood facing to each of its wine shelves in each model. If, however, you would like to replace these strips with wood more complementary to your design and surrounding cabinetry, you can.

The Wine Shelf Wood Facing Dimensions illustration, on page 14, can be used as a full-scale template. You must follow the la

yout of this format to accommodate the shelves properly. To remove the cherry strips, take the shelves out and merely remove the screws. Reverse the

ocedure to affix the new wood

If you choose to stain or seal the wood facing, be aware that some of these substances are hazardous and will damage stored wine.

Dimensions in parentheses are in millimeters unless otherwise specified.

Page 13

Planning Information

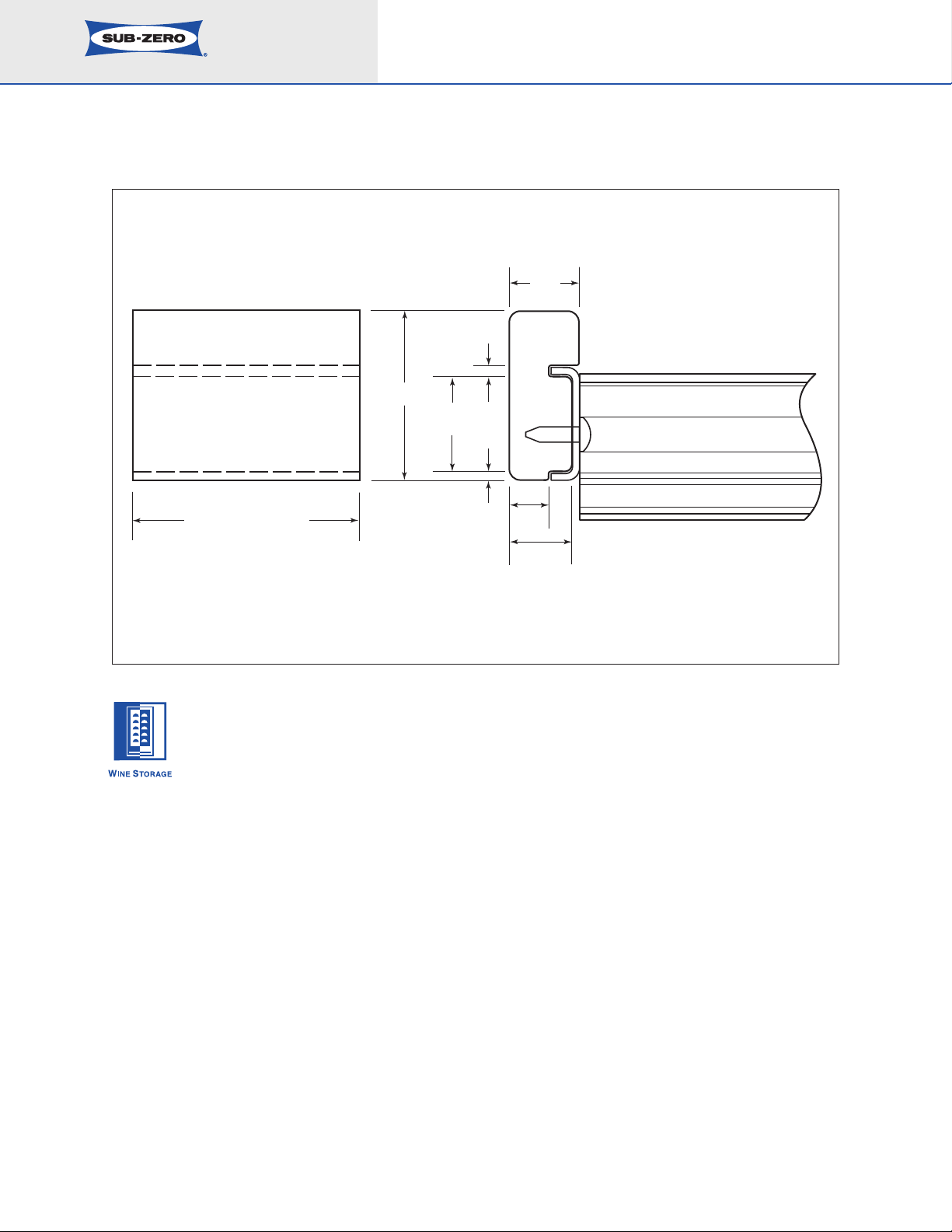

DOOR FRAME PROFILE

/8" (

22)

/8" (

22)

21/4" (57) Rail/Stile

Glass

Cabinet Door

Profile

Wine Storage Model 427R

WINE STORAGE DOOR FRAME

The full-scale illustration above is typical of the Model 424 door fr details of the other Wine Storage door frames will vary slightly.

Dimensions in parentheses are in millimeters unless otherwise specified.

ame profile,

FULL-SCALE TEMPLATE

The full-scale illustr

ations on this page and the following page enables you to understand some of the unique situations you may face as you design the Wine Storage units into homes. These templates can be easily photocopied or

acings.

used in y

our tr

IMPORTANT NOTE: Rails and stiles must be wide enough to cover the door hinges. The bac that will be visible thr

ough the glass door will need to be

k sides of r

ails and stiles

finished.

Page 14

Planning Information

/16" (532)

WIDTH

Maximum Thickness

FRONT VIEW

SIDE VIEW

11/2" (

38)

/8"

(

16)

/64"

(3)

/64"

(

/64"

(9)

/16" (

14)

/32"

(

21)

Wine Storage Model 427R

WINE SHELF WOOD FACING

Dimensions in parentheses are in millimeters unless otherwise specified.

FULL-SCALE TEMPLATE

Use the full-scale illustr

ation above as a template if you choose to replace the natural cherry wood facing with wood more complementary to your design and surround-

binetry.

ing ca

Page 15

Planning Information

1 8

3 4

MIN.

(3)

PANEL

SIDE MOLDING AND

INSTALLATION HARDWARE

PROVIDED BY SUB-ZERO

LINE OF INTERFERENCE*

AT MAXIMUM DOOR OPENING

MOUNTING BRACKET SCREW

(19)

FLUSH FURNITURE FINISH

LINE OF INTERFERENCE*

TO BACK

OF UNIT

(610)

SUB-ZERO DOOR

REVEAL

7 8

(657)

DOOR WIDTH

(610)

LINE OF INTERFERENCE*

UB-ZERO

DOOR

TO BACK

OF UNIT

Wine Storage Model 427R

FRAMED CABINETRY

IMPORTANT NOTE: The depth of the Model 427R

is 24" (610) from the front of the unit to its back. Your design may necessitate moving the unit back, or cabinets forward to achieve a flush fit.

105˚ maximum door opening – 1/4 scale (top view)

Door closed – full scale (top view) *If the panel is thicker than 3/4" (19), it is recommended that you

Dimensions in parentheses are in millimeters unless otherwise specified.

utilize the built-in 90˚ door stop to prevent damage to the panel and face fr

ame

Page 16

Planning Information

1 8

MIN.

(3)

REVEAL

3 4

PANEL

LINE OF INTERFERENCE*

AT MAXIMUM DOOR OPENING

MOUNTING BRACKET SCREW

(19)

TO BACK

OF UNIT

(610)

SIDE MOLDING AND

INSTALLATION HARDWARE

PROVIDED BY SUB-ZERO

LINE OF INTERFERENCE*

SUB-ZERO DOOR

7 8

(657)

DOOR WIDTH

WALL

(610)

LINE OF INTERFERENCE*

SUB-ZERO DOOR

/4" (19) DOOR PANEL

IDE PANEL

COUNTERTOP

Wine Storage Model 427R

FRAMELESS CABINETRY

IMPORTANT NOTE: The depth of the Model 427R

is 24" (610) from the front of the unit to its back. Your design may necessitate moving the unit back, or cabinets forward to achieve a flush fit.

05˚ maximum door opening –

/4 s

cale (top view)

Door closed – full scale (top view) *If the panel is thicker than 3/4" (19), it is recommended that you

Dimensions in parentheses are in millimeters unless otherwise specified.

utilize the built-in 90˚ door stop to prevent damage to the panel and face fr

ame
