INSTALLATION GUIDE
Wine Storage
Page 2
Contents
Important Note
Wine Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Models 424G and 424FSG Installation . . . . . . . . . . . . . . . 4
Models 427G and 427RG Installation . . . . . . . . . . . . . . . 16
Model WS-30 Installation . . . . . . . . . . . . . . . . . . . . . . . . 30
Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Features and specifications are subject to change at any time
without notice. Visit subzero.com/specs for the most up-todate information.
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specified.
o ensure the safe and efficient installation of Sub-Zero
T
equipment, please take note of the following types of
highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially
relevant to a problem-free installation.
CAUTION signals a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
Page 3
Wine Storage 3
subzero.com
Sub-Zero Wine Storage
he importance of the installation of the Sub-Zero wine
T
storage unit cannot be overemphasized. Installation
should be done by a qualified installer.
Before you begin the installation process, it is recommended that you read this entire installation guide. There
are key details that you should take special care to
observe during the installation. By reading these instructions carefully, you will make the installation process
easier, problem-free and, most importantly, safe.
Any questions or problems regarding the installation
should be directed to your authorized Sub-Zero dealer or
Sub-Zero customer care at 800-222-7820. You may also
check the contact & support sectionofour website,
subzero.com.
Models 424G and 424FSG.
RATING PLATE
ATING PLATE
R
Models 427G, 427RG and
WS-30.
Important product information, including the model and
serial number of your unit are listed on the product rating
plate. For models 424G and 424FSG, the rating plate is
located on the underside of the top wall. For models
427G, 427RG and WS-30, it is attached to the underside
of the control panel. Refer to the illustrations.
Page 4
Models 424G and 424FSG Installation 4
237/8" (606) 24" (610)
34"
(864)
253/8"
(645)
4
"
(102)
23/8" (60)
241/4" (616) 245/8" (625)
3
4
3
/16"
(868)
4" (102)
253/8"
(645)
23/8" (60)
Models 424G and 424FS
OVERALL DIMENSIONS
MODEL 424G
Door swing clearances are based on stainless steel door
and handle dimensions.
MODEL 424FSG
Page 5
Models 424G and 424FSG Installation 5
24" (
610)
OPENING WIDTH
24" (610)
OPENING
DEPTH
24" (
610)
OPENING DEPTH
341/2" (876)
OPENING
HEIGHT
T
OP VIEW
FRONT VIEWSIDE VIEW
subzero.com
Models 424G and 424FSG Installation
he model 424FSG wine storage unit is designed to be
T
attractive in a stand alone setting. Model 424G must be
built in. Refer to the previous page for overall dimensions
and door swing clearances for models 424G and 424FS.
Make sure that the finished rough opening where the
model 424G wine storage unit is to be installed is properly
prepared. Refer to the illustration. The floor under the unit
must be level with the surrounding finished floor.
IMPORTANT NOTE: To operate properly, the door must
open a minimum of 90°. Use a minimum 3"
(76) filler in
corner installations to assure a 90° door opening. Allow
enough clearance in front of the unit for full door swing.
TOOLS AND MATERIALS REQUIRED
OPENING DIMENSIONS
• Appliance dolly able to support 130 lbs (59 kg) and
adequate manpower to handle the weight of the unit.
• Phillips and slotted screwdrivers.
• Allen, standard and crescent wrenches.
• Various sized pliers.
5
•
/16" hex bolt nut driver.
• Cordless drill and assorted drill bits.
• Level—2'
(.6 m) and 4' (1.2 m) recommended.
• Masonite, plywood, pressed fiberboard, cardboard or
other suitable material to protect finished flooring.
• Appropriate materials to cover and protect the home
and furnishings during installation.
Do not load wine into the wine storage unit until the
installation is complete.
MODEL 424G
Page 6
Models 424G and 424FSG Installation 6
FRONT VIEW
151/2"
(394)
3" (76)
2" (51)
LEFT SIDE
OF OPENING

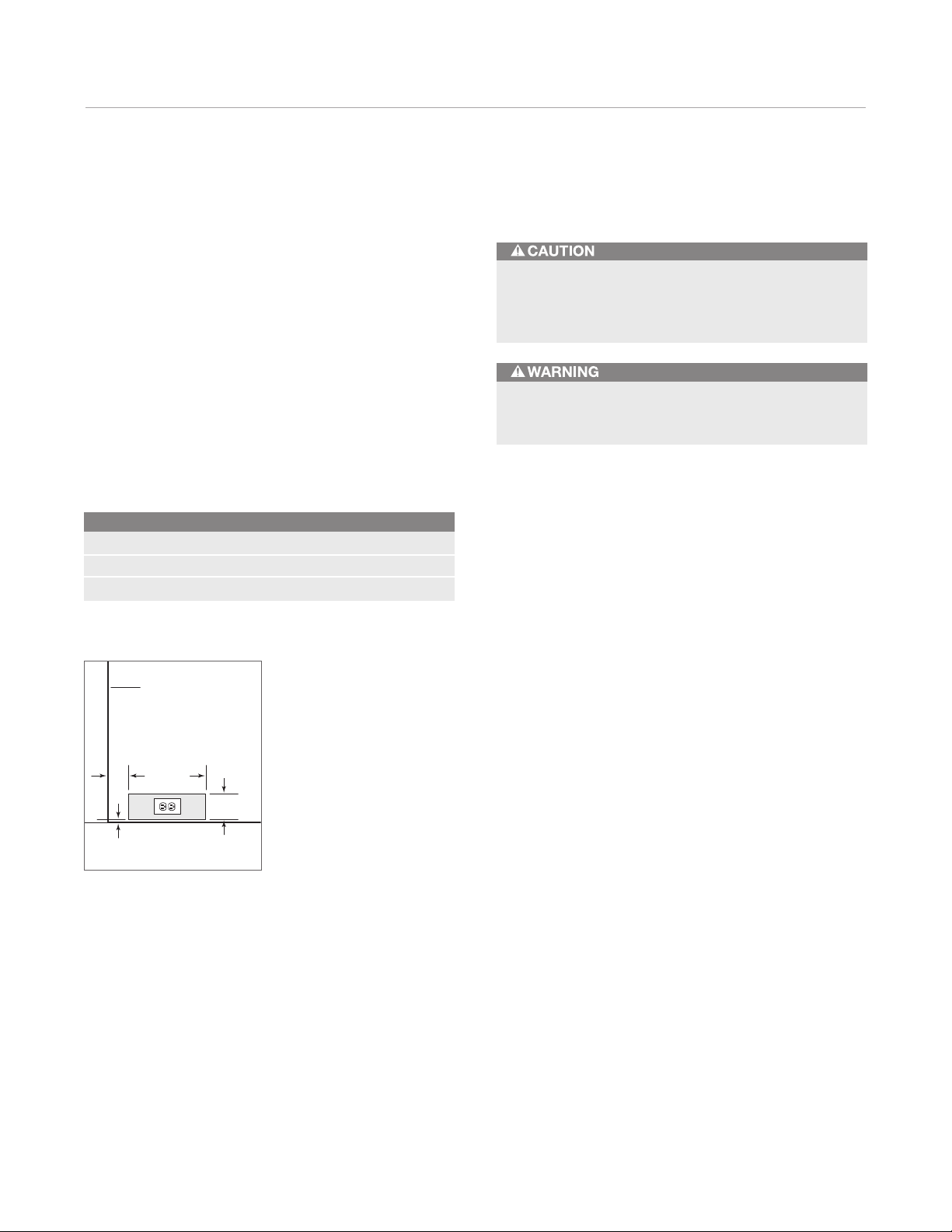

Electrical Requirements
or models 424G and 424FSG, the electrical supply
F
should be located within the shaded area shown in the
illustration. Follow the National Electrical Code and local
codes and ordinances when installing the receptacle. A
separate circuit, servicing only this appliance is required.
A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.
IMPORTANT NOTE: For model 424G, the electrical outlet
must be placed so the grounding prong is to the right of
the thinner blades. The outlet must be flush with the back
wall.
The outlet must be checked by a qualified electrician to
be sure that it is wired with the correct polarity and is
properly grounded.
Electrical Requirements
Power Supply 115 V AC, 60 Hz
Circuit Breaker 15 amp
Receptacle 3-prong grounding-type
Do not use an extension cord or two-prong adapter.
Electrical ground is required on this appliance. Do not
remove the power cord ground prong.
Location of electrical supply.
Page 7
Models 424G and 424FSG Installation 7
subzero.com
Electrical Requirements
HOME ALARM SYSTEM
If a home alarm system is to be used, refer to home alarm
connections on page 11. In addition to operating power,
the installer may also be required to supply a home
automation system lead to the unit. This is for a lowvoltage, low-current signal similar to door and window
sensor signals. Common, normally open and normally
closed contact configurations are provided.
1
Three
/4" female spade connectors are located in the
compressor compartment and are accessible behind the
kickplate on models 424G and 424FS. A minimum of 36"
(914) of lead wire should be provided for each contact,
exiting the back wall near the electrical outlet.
Moving the Unit
efore moving the wine storage unit into position, make
B
sure all opening dimensions and electrical requirements
are complete and accurate.
IMPORTANT NOTE: The floor under the undercounter unit
must be at the same level as the surrounding finished floor
to allow for removal of the unit for servicing.
Use an appliance dolly to move the wine storage unit near
the installation opening. Position the dolly at the side of
the unit to prevent damage to finished surfaces. Remove
and discard all packing materials and tape.
IMPORTANT NOTE: Do not discard the kickplate, anti-tip
bracket and hardware. These items will be needed for the
installation.
All roller-assembly wine shelves should be removed to
reduce weight and prevent them from rolling. To remove,
pull the shelf out to its full extension, gently and evenly lift
up on both sides of the front of the shelf and remove.
Reverse the procedure to reinstall the shelf.
Before moving the wine storage unit in to position,
protect any finished flooring with appropriate materials
and secure the door closed.
Page 8
Models 424G and 424FSG Installation 8
1
/4" (6)
ANTI-TIP
BRACKET
COUNTERTOP
BRACKET
ANTI-TIP BRACKET
Anti-Tip Bracket Installation
MODEL 424FSG
To prevent the unit from tipping forward and provide a
stable installation, the unit must be secured in place
with the anti-tip bracket.
An anti-tip bracket and hardware is provided with the wine
storage unit. The anti-tip bracket must be installed on a
solid base to prevent tipover in case several loaded wine
shelves are extended at the same time.
MODEL 424G
The anti-tip bracket should be attached to the wall behind
the unit with the bracket flange located immediately above
the top of the unit. Refer to the illustration below.
For installations that cannot accommodate the anti-tip
bracket, the optional countertop bracket (provided) can be
used to secure the model 424G. This bracket will secure
the front of the unit to the underside of the countertop,
above the unit. Refer to the illustration below. If it is not
possible to use the countertop bracket, wedge shims
along the sides and top of the unit to secure.
If you are installing the model 424FSG in a space deeper
than 24
more than 24
5
/8" (625), the anti-tip bracket must be installed no
5
/8" (625) deep, so it engages the unit
properly. It is important that this measurement be made
from the front surface of the door, to the back of the antitip bracket. Refer to the illustration below.
Anti-tip bracket (424FSG).
Anti-tip bracket (424G). Countertop bracket
Page 9
Models 424G and 424FSG Installation 9
123/16"
(310)
123/16"
(310)
24"
(610)
C
L
FINISHED FLOORING
UNDERLAYMENT
WALL PLATE
SUBFLOORING
WOOD FLOOR
24"
(610)
C
L
11/2"
min
(38)
123/16"
(310)
123/16"
(310)
FINISHED FLOORING
UNDERLAYMENT
WALL PLATE
SUBFLOORING
CONCRETE
FLOOR
subzero.com
Anti-Tip Bracket Installation
MODEL 424FSG—WOOD FLOORS
Use the four #12 x 21/2" wood screws and the four1/4"
flat washers provided. Drill pilot holes
3
/16" (5) diameter
maximum, and be sure that the screws penetrate through
the flooring material and into the wall plate a minimum of
3
/4" (19). Be sure that the screws hold tight. Refer to the
illustration below.
MODEL 424FSG—CONCRETE FLOORS
Use the two3/8" x 33/4" concrete wedge anchors, two
#12 x 2
1
/2" wood screws and two1/4" flat washers
provided. Be sure that the anchors and screws hold tight.
Refer to the illustration below.
IMPORTANT NOTE: In some installations the subflooring
or finished floor may require angling the wood screws
used to fasten the anti-tip bracket to the back wall.
Make sure that there are no electrical wires in the area
which the screws could penetrate.
INSTALL CONCRETE WEDGE ANCHORS:
1) Drill a3/8" (10) diameter hole any depth exceeding the
minimum embedment. Clean the hole or continue
drilling additional depth to accommodate drill fines.
Use a carbide drill bit manufactured within ANSI
B94.12-77.
2) Assemble the washer and nut flush with the end of
anchor to protect threads. Drive the anchor through the
material to be fastened until the washer is flush with
the surface material.
3) Expand the anchor by tightening the nut 3–5 turns past
hand-tight position or to 25 foot-pounds of torque.
Always wear safety glasses and use other necessary
protective devices or apparel when installing or
working with anchors.
Anchors are not recommended for use in lightweight
masonry material such as block or brick, or for use in
new concrete which has not had sufficient time to cure.
The use of core drills is not recommended to drill holes
for the anchors.
Wood floors. Concrete floors.
Page 10
Models 424G and 424FSG Installation 10
Position the Unit
or model 424FSG, adust the leveling legs so the top of
f you are adding an accessory lock kit to your wine
I
storage unit, it should be installed before you position the
unit. The accessory lock kit and additional instructions are
available through your authorized Sub-Zero dealer, or call
Sub-Zero at 800-222-7820. You can also visit our website
at subzero.com.
IMPORTANT NOTE: If for any reason the wine storage unit
has been laid on its back or side, you must allow the unit
to stand upright for a minimum of 24 hours before connecting power.
Plug the power cord into the grounded electrical outlet.
With power applied to the appliance, check for lighting
and cooling before going any further. Once you are satisfied that the unit is operating properly, shut off power to
the electrical outlet at the circuit breaker and proceed.
Pre-level the wine storage unit before sliding it into
position. Leveling cannot be completed with the unit
pushed back in the installation opening.
If a home alarm system is to be used with the wine
storage unit, the lead wires should be threaded into the
compressor compartment before you position the unit.
Refer to home alarm connections on the following page,
for the location of these lead wires. After the unit is in
position, the alarm wiring can be completed from the front.
F
the unit is no more than 34
5
/8" (879) above the floor. This is
to allow the unit to engage the anti-tip bracket properly.
Center the model 424FSG in front of the anti-tip bracket.
Slide the unit into position, making sure the anti-tip
bracket is engaged properly.
When the wine storage unit is installed, the anti-tip
bracket will be positioned just below the engaging bracket
on the unit. It is not necessary to raise the unit up so that
it locks into the anti-tip bracket, but the unit must be in
alignment with the anti-tip bracket.
The wine storage unit provides the best access to its
contents when the front surface of the door panel extends
out from surrounding cabinets approximately
1
/4" (6). For
model 424FSG, if there are no surrounding cabinet
surfaces to gauge depth, slide the unit back until it
engages the anti-tip bracket.
IMPORTANT NOTE: The floor under the wine storage unit
must be at the same level as the surrounding finished floor
to allow for removal of the unit for servicing.
Page 11
Models 424G and 424FSG Installation 11
LEVELING LEGS
HOME ALARM
CONNECTIONS
subzero.com
Level the Unit
sing an adjustable wrench or pliers, turn each of the four
U
leveling legs clockwise to raise the unit and counterclockwise to lower the unit. Refer to the illustration below for
location of the leveling legs.
For model 424G, the countertop bracket should be used
to make a solid installation. Refer to the illustration on
page 8. If this is not possible, wedge shims along the
sides and top.
To reduce the possibility of the unit tipping forward, the
front leveling legs must be in contact with the floor.
Home Alarm Connections
efore the kickplate is installed, all necessary wiring
B
connections in the compressor compartment should be
completed.
If a home alarm system is to be installed on the wine
storage unit, the connections should be made using the
logic supplied with the alarm specifications. Refer to the
illustration for the appliance lead locations, and refer to
the following for color codes:
• Normally open contacts – white with red stripe wire
• Normally closed contacts – white with blue stripe wire
• Common – gray with white stripe wire
Use the
make the proper wiring connections.
IMPORTANT NOTE: If you are not responsible for alarm
system connection, this information should be supplied to
the home security system contractor.
1
/4" spade terminals or wire nuts provided to
Leveling legs. Home alarm connections.
The alarm circuit in the unit is intended as a lowvoltage, low-current device only. It should not be used
to switch line power.
Any unused terminals should be completely insulated
and all wires should be secured away from conductive
or moving components.
Page 12
Models 424G and 424FSG Installation 12
KICKPLATE
Kickplate Installation
nce the unit is leveled and wiring connections made,
O
the kickplate can be installed. Use the two #10 x
stainless steel screws that are provided with the kickplate.
Refer to the illustration below.
IMPORTANT NOTE: The kickplate must be removed for
servicing. The floor cannot interfere with removal. The
louvered section of the kickplate must not be covered so
as to prevent air circulation.
Turn power back on to the electrical outlet.
Kickplate installation.
1
/2"
Door Panel
MODEL 424G
Model 424G is offered in two design applications; stainless steel (/S) and overlay (/O). Each of these designs have
a full-view glass door.
The stainless steel model 424G/S is shipped from the
factory with the decorative stainless steel door panel and
matching handle in place.
The overlay model 424G/O is designed to accept a decorative door panel to match surrounding cabinetry. The
door panel and the handle will be provided by the
customer.
Before beginning installation, check for the correct components for the fit and finish desired. All overlay doors
require a decorative panel 23
minimum
IMPORTANT NOTE: For installations at or above 5,000'
(1524 m) in altitude, a special high altitude glass door unit
5
/8" (16) thick.
(HAG) must be ordered.
If you have questions, contact your authorized Sub-Zero
dealer or cabinet supplier. Additional panel information
can be found in the Sub-Zero design guide.
3
/4" (603) x 301/16" (764), a
A solid panel cannot be installed over the glass door,
as this may cause moisture to form behind the panel.
Page 13
Models 424G and 424FSG Installation 13
GASKET
GLASS
13
/32" (11)
DIAMETER
1
/4" (6)
DIAMETER
OVERLAY
PANEL
DOOR
FRAME
TENON CENTER
subzero.com
Overlay Door Panel
he door panel is then lowered from the door frame, tenon
MODEL 424G
Inspect the door panel for the minimum5/8" (16) thickness,
the finished inside edge. The glass door has a 10 lbs
(5 kg)
weight limit. Refer to the wine storage section of the
Sub-Zero design guide for additional panel information.
Decide if the handle will be attached through the glass
door frame or just through the decorative door panel. If it
is just through the door panel, the handle must be
attached first.
Decorative panels are attached to the model 424G door
using #8 x
5
/8" square drive screws passing through the
door frame from the rear, behind the gasket into the panel.
The door panel is marked for screw locations by the use of
tenon centers, which are temporarily inserted into the
1
/4" (6) diameter holes in the front of the glass door frame.
Refer to the illustration below.
With the wine storage unit secured in position and the
door closed, the panel is held in the desired position on
the door and rapped by hand from the front, putting center
marks on the rear surface of the panel. If the door panel is
made of such a material that pre-drilling is needed, all of
the mounting holes should be marked. If not, only enough
holes to hold the panel in place temporarily, are necessary.
T
centers removed, the door opened and the screws driven
into the panel through the black tape on the door frame,
using the center marks to locate the screws.
The screw holes inside the door are hidden under a cover
flap on the door gasket. It is necessary to lift the flap to
insert the screws. Use as many screws as necessary to
hold the door panel in place properly.
IMPORTANT NOTE: After the first three or four mounting
screws are in place, but not completely tightened, close
the door and check your panel fit. This is the time to make
small adjustments. Once you are satisfied with the appearance, open the door and apply the remainder of the
screws. Check all screws for tightness.
The metal frame on the glass door has numerous
mounting holes on each side of the door. This is to
accommodate the Sub-Zero accessory handles and
provide for easy attachment of the handle through the
door frame.
If you choose not to use the pre-drilled handle mounting
holes, it will be necessary to fasten the handle from the
rear of the door panel only, or drill one or more additional
holes through the metal frame of the glass door.

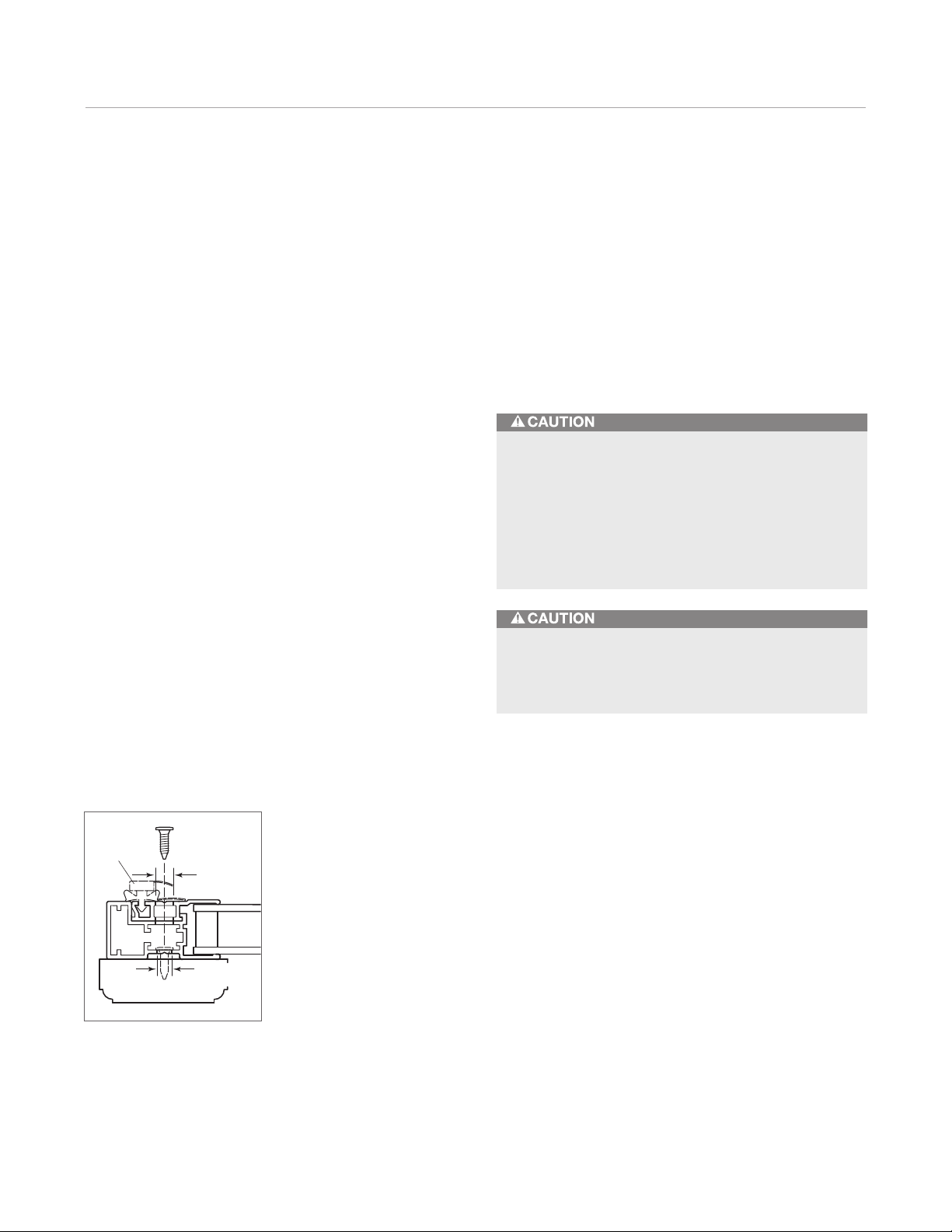

The cross section illustration shows how this hole passes
through the door frame. The hole center is on the small
locator groove in the front of the frame. A
hole is made in the front wall of the extrusion and a
(11) diameter hole through the rest of the frame.
1
/4" (6) diameter
13
/32"

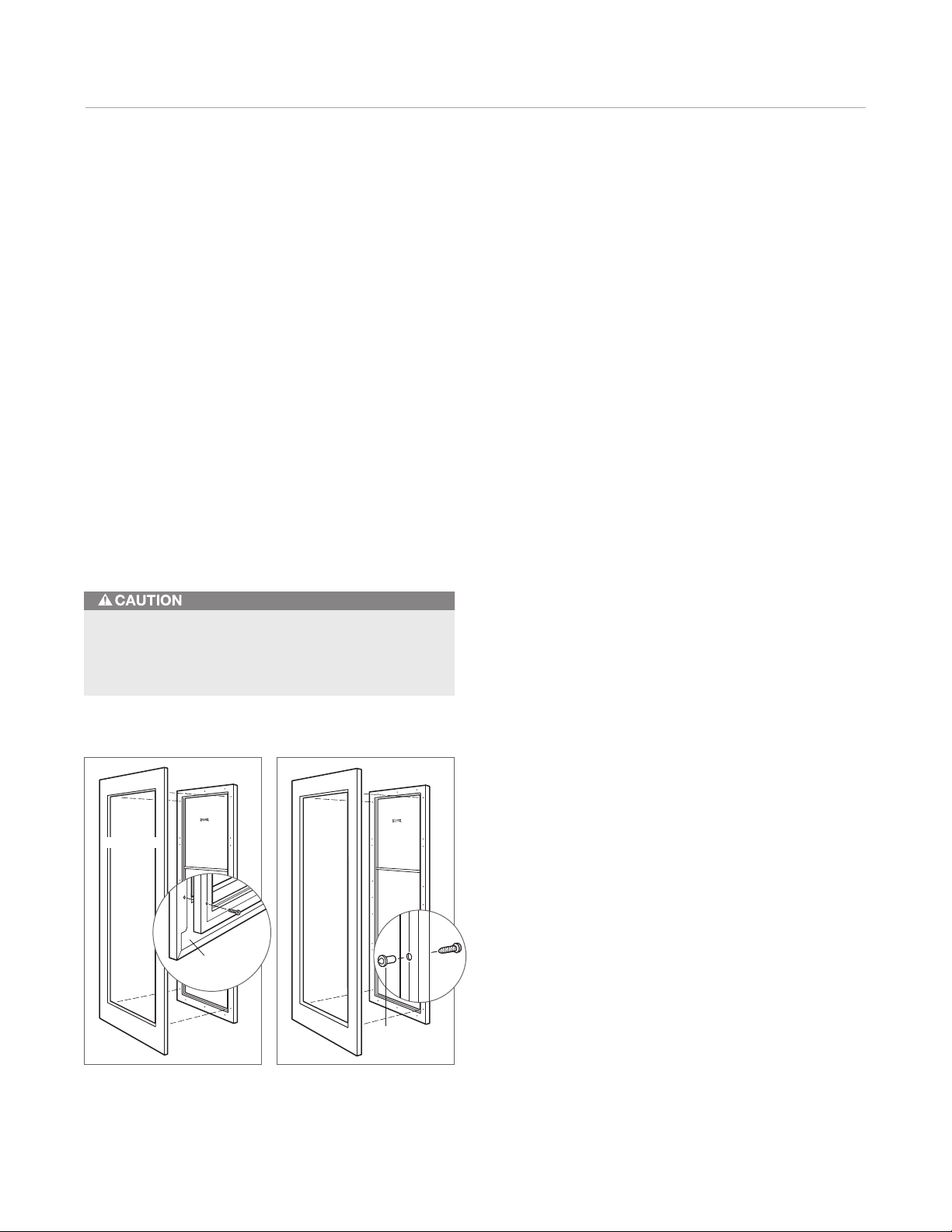

Overlay panel. Door frame cross section.
Page 14
Models 424G and 424FSG Installation 14
Overlay Door Panel
IMPORTANT NOTE: I
holes in the door frame. The nature of the door panel with
a narrow outer rim and no connecting center member
requires the support provided by the glass door.
After the door panel installation is complete, apply the
cover patches or plugs provided over the holes on the
inside surface of the door.
The cover patches or plugs are part of the insulation
system on the door of the wine storage unit. Be sure to
cover all the holes in the door that were used.
nstall screws in all the mounting
The wine storage unit door is made with a sealed
double wall tempered glass core. The drill must not
contact this core when drilling. Be sure the hole is
centered on the small groove in the front of the door
frame and the drill passes squarely through the frame.
If you are inexperienced with drilling, fasten the handle
from the rear of the door panel only.
Page 15
Models 424G and 424FSG Installation 15
TOP DOOR HINGE
SHIPPING
SCREWS
BOTTOM
DOOR HINGE
SHIPPING
SCREWS
subzero.com
Hinge Adjustment
IMPORTANT NOTE: T
installed and leveled before door hinge adjustments can
be made.
The top and bottom cabinet hinges on models 424G and
424FSG are held in place with three permanent adjustment screws and two shipping screws. Refer to the illustrations below. The shipping screws must be removed and
discarded to adjust the door alignment and fit. If no
adjustments are necessary, it is recommended that all five
screws remain in place.
On the model 424FSG, only the bottom door hinge can be
adjusted. Remove and discard the two shipping screws
and loosen the three hinge screws to adjust the door.
he wine storage unit must be
Complete the Installation
hen you have completed installation of the model 424G
W
or 424FSG wine storage unit, refer to page 54 for an
installation checklist and page 55 for service information.
Top hinge. Bottom hinge.
Page 16

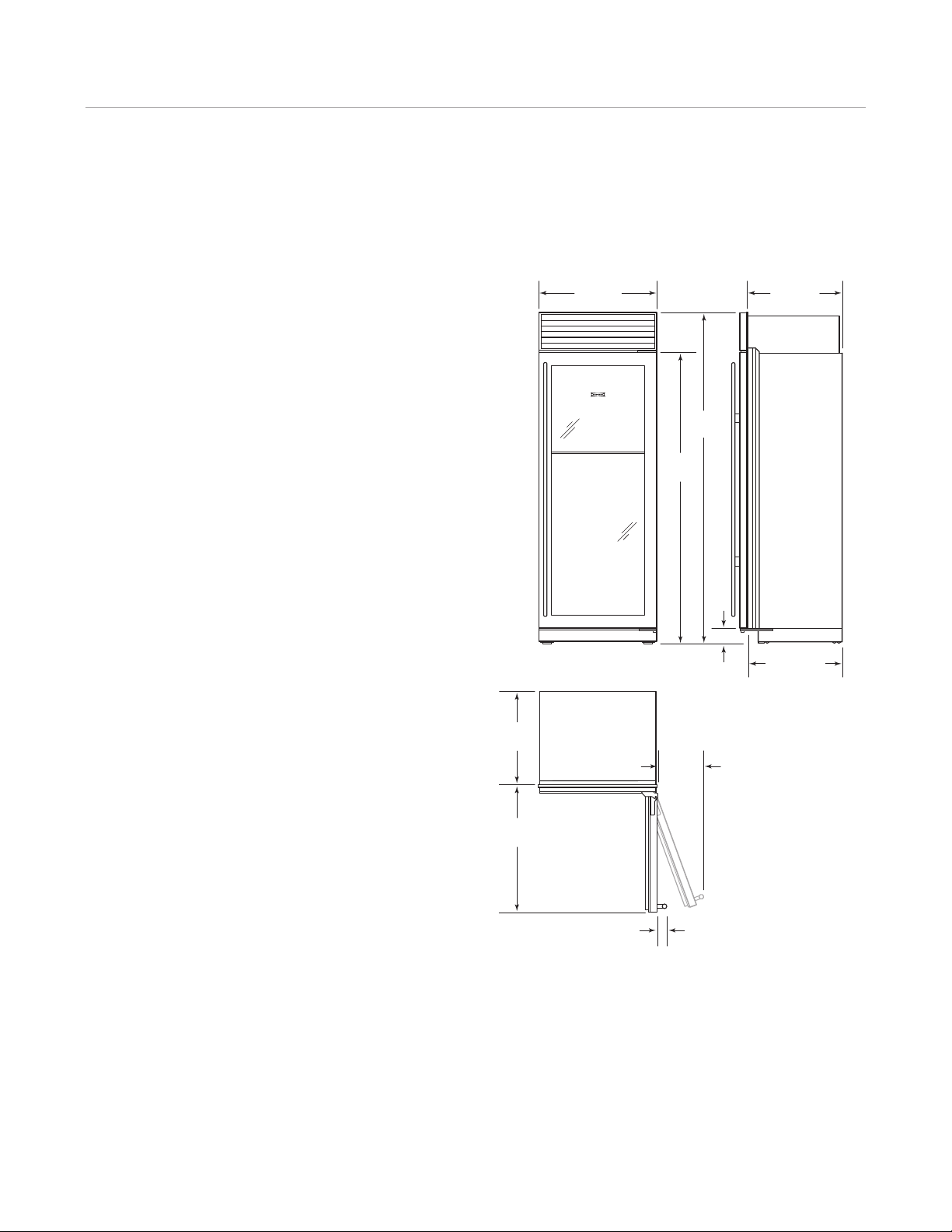

Models 427G and 427RG Installation 16
27" (686)
14"(356)
1
3
/16"
(21)
80"
(2032)
OPENING
HEIGHT
24" (610)
789/16"
(1995)
815/16"
(227)
4"
(102)
HEIGHT DIMENSIONS ±
1
/2" (13)
24"
(610)
DIMENSIONS WILL VARY WITH PANEL THICKNESS
251/2"
(648)
45/8"
(117)
27" (686)
14"(
356)
13
/16"
(21)
341/2"
(876)
203/8"
(518)
101/4"
(260)
131/4"
(337)
1
/2"
(13)
3
/8"
(10)
80"
(
2032)
OPENING
HEIGHT
24" (610)
789/16"
(1995)
93/4"
(248)
4"
(102)
HEIGHT DIMENSIONS ±
1
/2" (13)
24"
(610)
DIMENSIONS WILL VARY WITH PANEL THICKNESS
191/2"
(495)
251/2"
(648)
45/8"
(117)
Models 427G and 427R

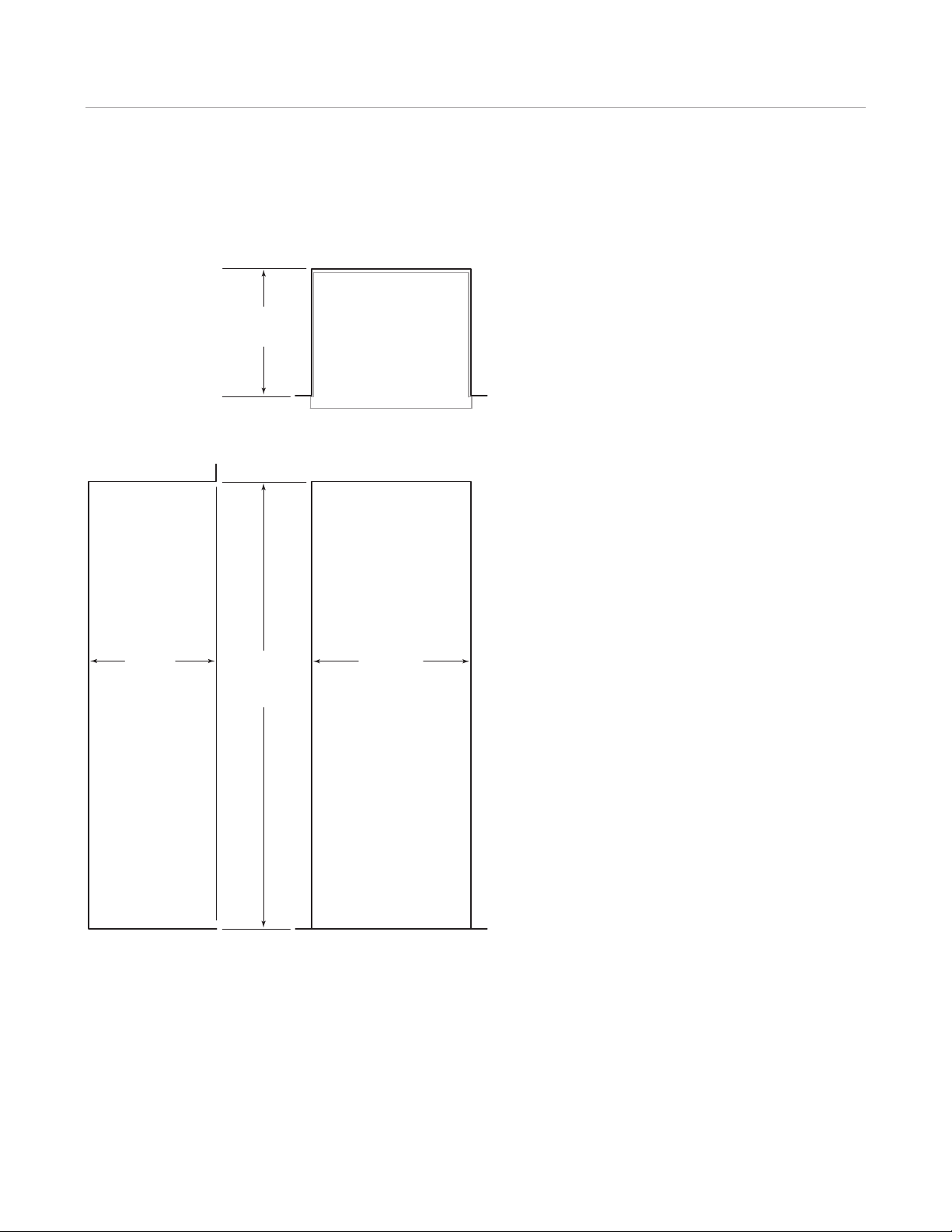

OVERALL DIMENSIONS
MODEL 427G MODEL 427RG
Overall dimensions do not include panels or handles.
WITH BULK STORAGE DRAWERS
Page 17
Models 427G and 427RG Installation 17
25" (
635)
OPENING
DEPTH
27" (686)
OPENING WIDTH

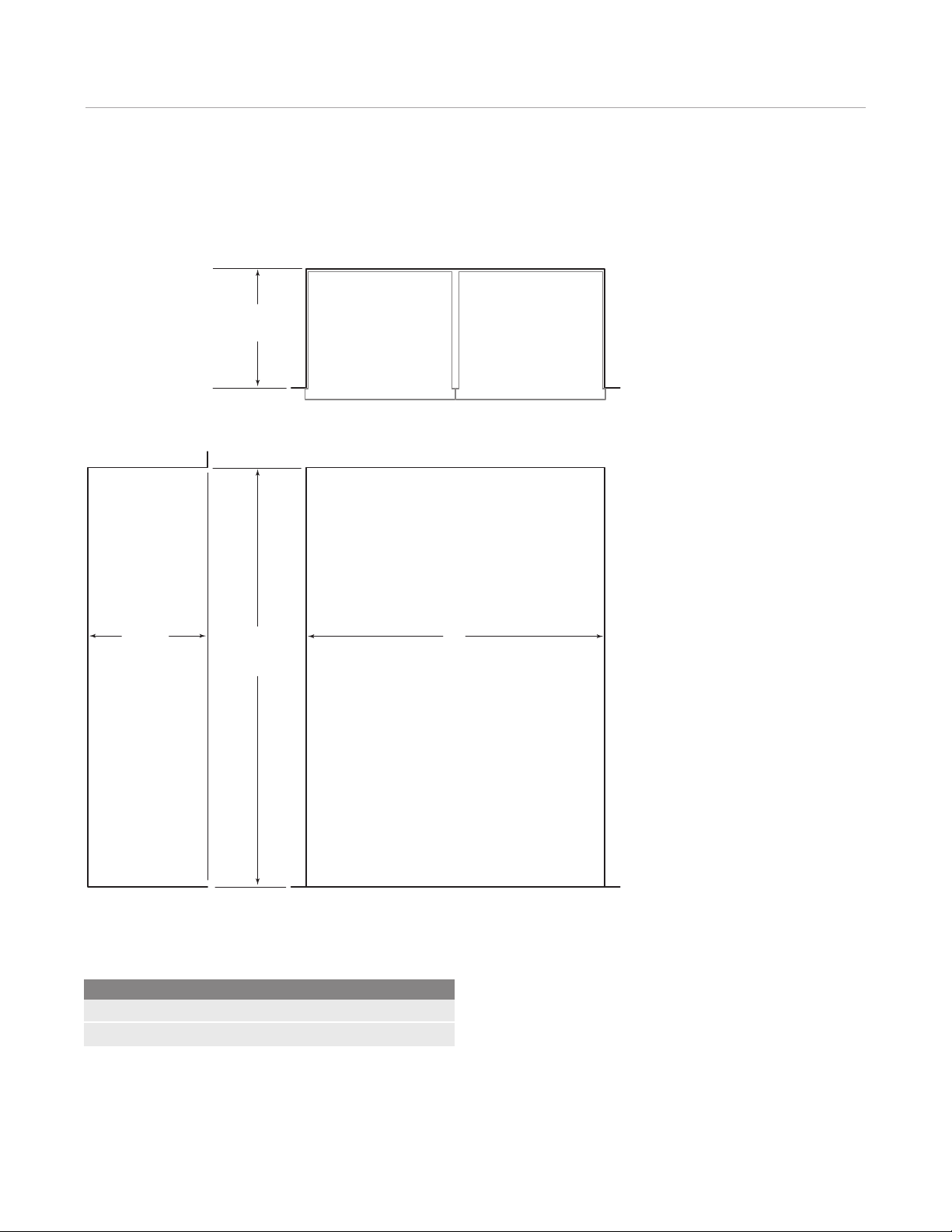

25" (635)
OPENING DEPTH
80" (2032)
O
PENING
HEIGHT
T
OP VIEW
FRONT VIEWSIDE VIEW
subzero.com
Models 427G and 427RG Installation
ake sure that the finished rough opening where the wine
M
storage unit is to be installed is properly prepared. Refer
to the opening dimensions illustrations for models 427G
and 427R on the previous page.
IMPORTANT NOTE: The floor under the wine storage unit
must be at the same level as the surrounding finished floor
to allow for removal of the unit for servicing.
IMPORTANT NOTE: To operate properly, the door must
open a minimum of 90°. Use a minimum 2"
(51) filler in
corner installations to assure a 90° door opening. Allow
enough clearance in front of the unit for full door swing.
IMPORTANT NOTE: The inside edges of the rough
opening, as well as the sides and a portion of the
backside of the decorative panels will need to be finished,
as they will be exposed when the doors are open.

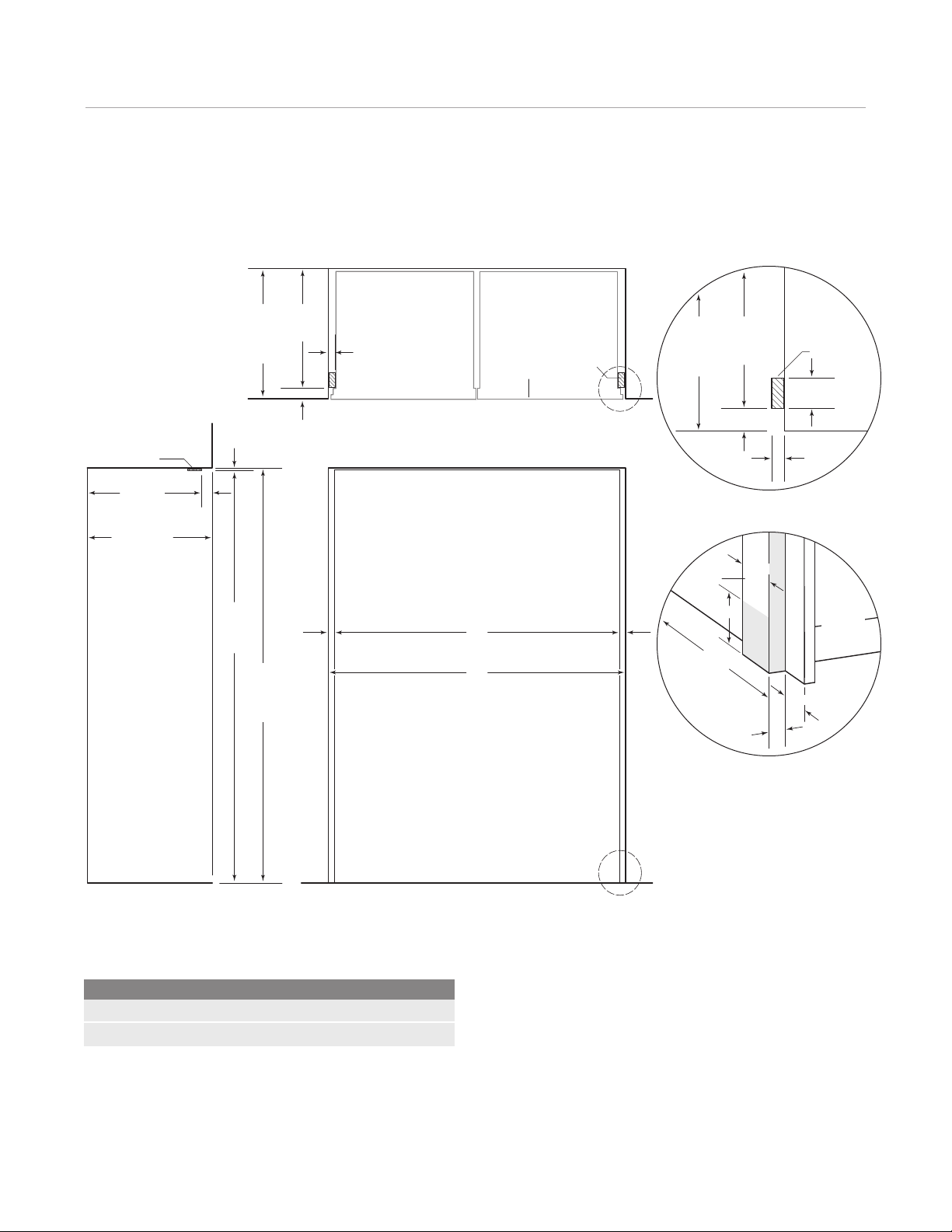

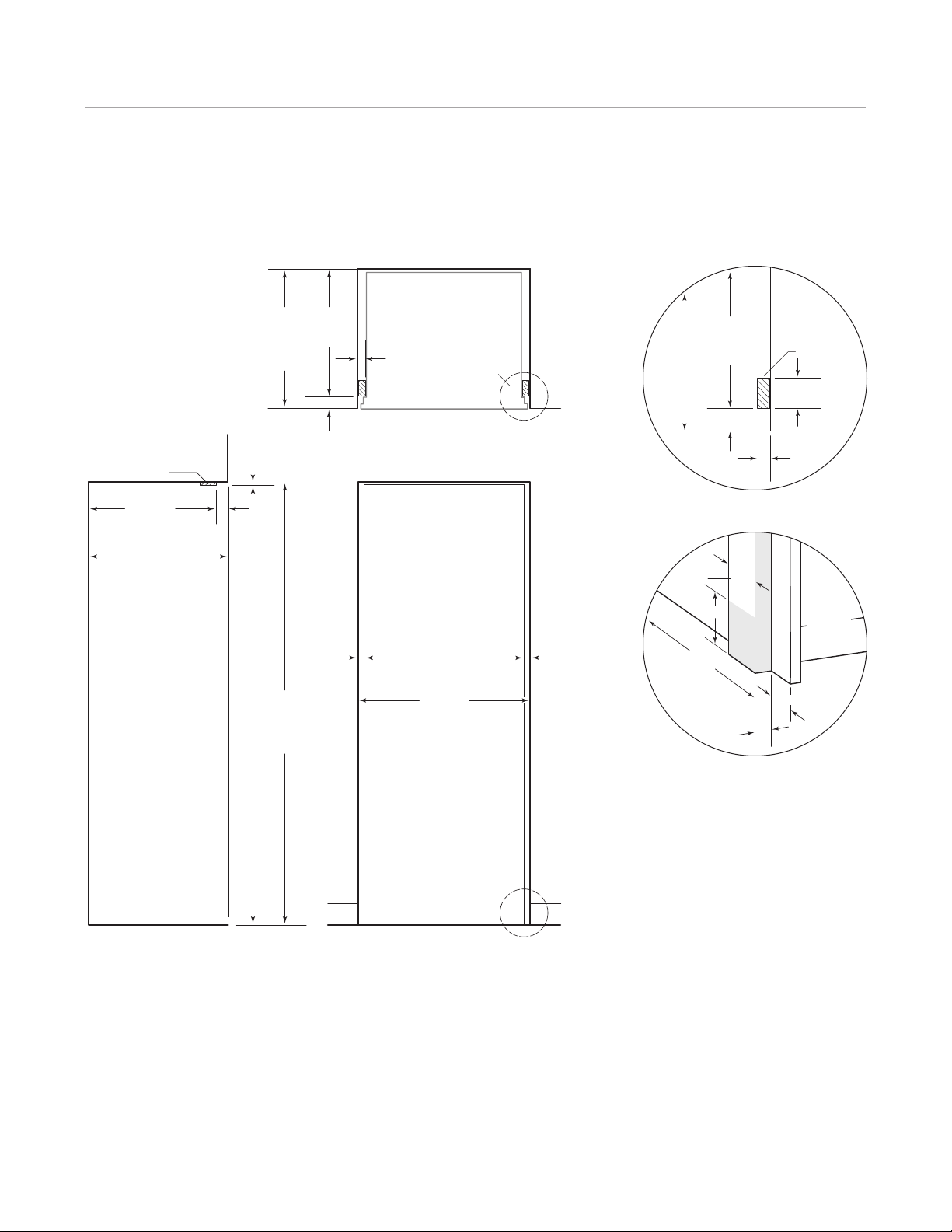

OPENING DIMENSIONS
TOOLS AND MATERIALS REQUIRED
• Appliance dolly able to support 500 lbs (227 kg) and
• Phillips and slotted screwdrivers.
• Allen, standard and crescent wrenches.
• Various sized pliers.
•
• Cordless drill and assorted drill bits.
• Level—2'
• Masonite, plywood, pressed fiberboard, cardboard or
• Appropriate materials to cover and protect the home
adequate manpower to handle the weight of the unit.
5
/16" hex bolt nut driver.
(.6 m) and 4' (1.2 m) recommended.
other suitable material to protect finished flooring.
and furnishings during installation.
Do not load wine into the wine storage unit until the
installation is complete.
IMPORTANT NOTE: The depth of each integrated model is
24"
(610) from the front of the unit to its back. Your design
may necessitate moving the unit back or cabinets forward to
achieve a flush fit. This will require a minimum rough opening
depth of 25"
(635).
Page 18
Models 427G and 427RG Installation 18
13" (330)
1
/4"
(6)
41/2"
(
114
)
LEFT SIDE
OF OPENING
FLOOR
21/2"
(64)
FRONT VIEW

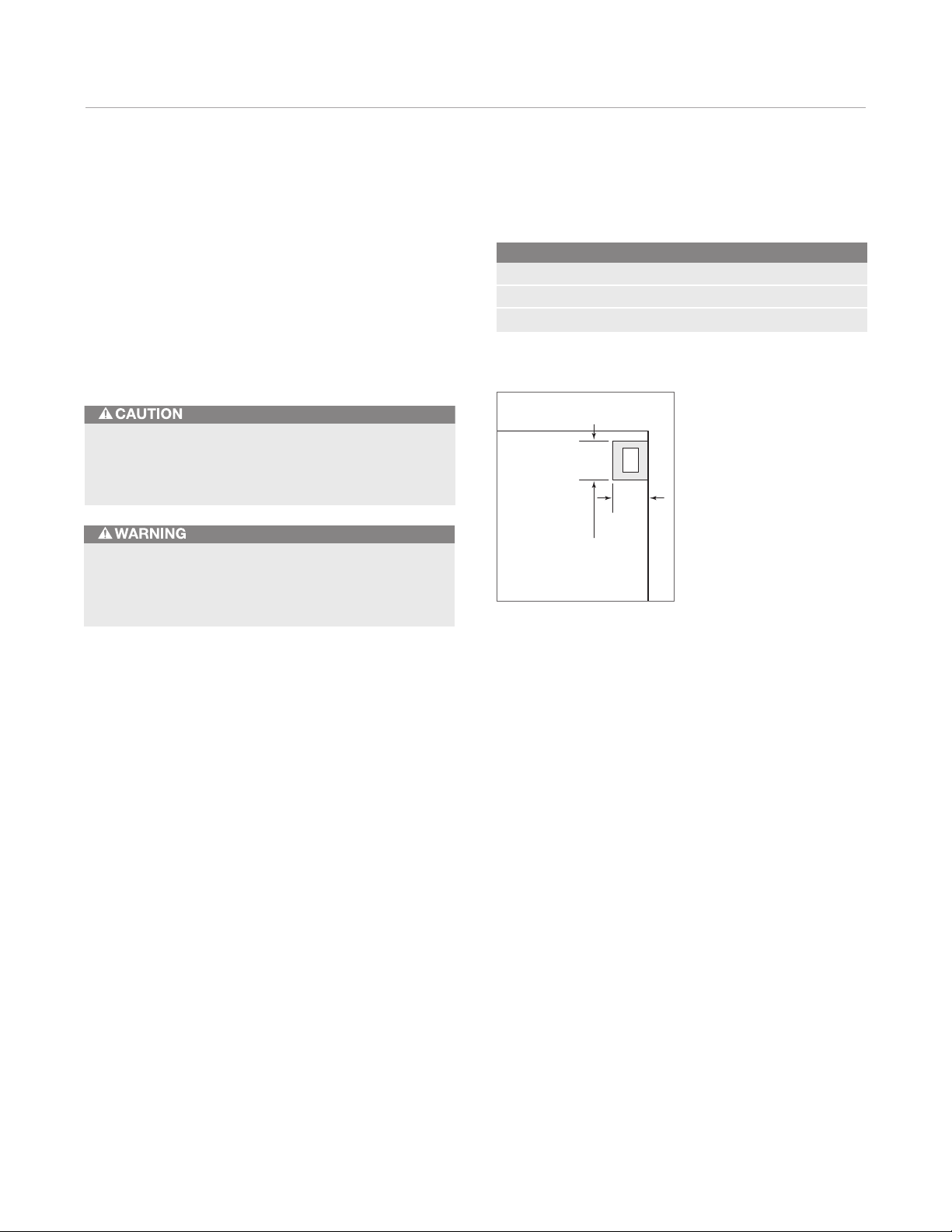

Electrical Requirements
or models 427G and 427RG, the electrical supply should
F
be located within the shaded area shown in the illustration
below. Follow the National Electrical Code and local codes
and ordinances when installing the receptacle. A separate
circuit, servicing only this appliance is required. A ground
fault circuit interrupter (GFCI) is not recommended and
may cause interruption of operation.
The outlet must be checked by a qualified electrician
to be sure that it is wired with the correct polarity. Verify
that the outlet is properly grounded.
IMPORTANT NOTE: For models 427G and 427RG, the
electrical outlet must be placed so the grounding prong is
to the right of the thinner blades. The outlet must be flush
with the back wall.
Electrical Requirements
Power Supply 115 V AC, 60 Hz
Circuit Breaker 15 amp
Receptacle 3-prong grounding-type
Do not use an extension cord or two-prong adapter.
Do not remove the power supply cord ground prong.
Location of electrical supply.
Page 19
Models 427G and 427RG Installation 19
subzero.com
Electrical Requirements
HOME ALARM SYSTEM
If a home alarm system is to be used, refer to wiring
connections on page 24. In addition to operating power,
the installer may also be required to supply a home
automation system lead to the unit. This is for a lowvoltage, low-current signal similar to door and window
sensor signals. Common, normally open and normally
closed contact configurations are provided.
1
Three
/4" female spade connectors are located in the
compressor compartment and are accessible behind the
kickplate/grille on models 427G and 427R. A minimum of
36"
(914) of lead wire should be provided for each contact,
exiting the back wall near the electrical outlet.
Anti-Tip Bracket Installation
To prevent the unit from tipping forward and provide
a stable installation, the unit must be secured in place
with the anti-tip bracket provided with the unit.
An anti-tip bracket and hardware is provided with the wine
storage unit. The anti-tip bracket must be installed on a
solid base to prevent tipover in case several loaded wine
shelves are extended at the same time.
If you are installing the model 427G or 427RG in a space
deeper than 24"
installed no more than 24"
unit properly. It is important that this measurement be
made from the front of the unit without panels, to the back
of the anti-tip bracket.
IMPORTANT NOTE: In some installations the subflooring
or finished floor may require angling the wood screws
used to fasten the anti-tip bracket to the back wall.
(610), the anti-tip bracket must be
(610) deep, so it engages the
Make sure there are no electrical wires or plumbing
in the area which the screws could penetrate.
Page 20
Models 427G and 427RG Installation 20
A
A
SUBFLOORING
WOOD FLOOR
WALL PLATE
FINISHED
FLOORING
A
A
SUBFLOORING
CONCRETE
FLOOR
WALL PLATE
FINISHED
FLOORING
11/2"(38)
min

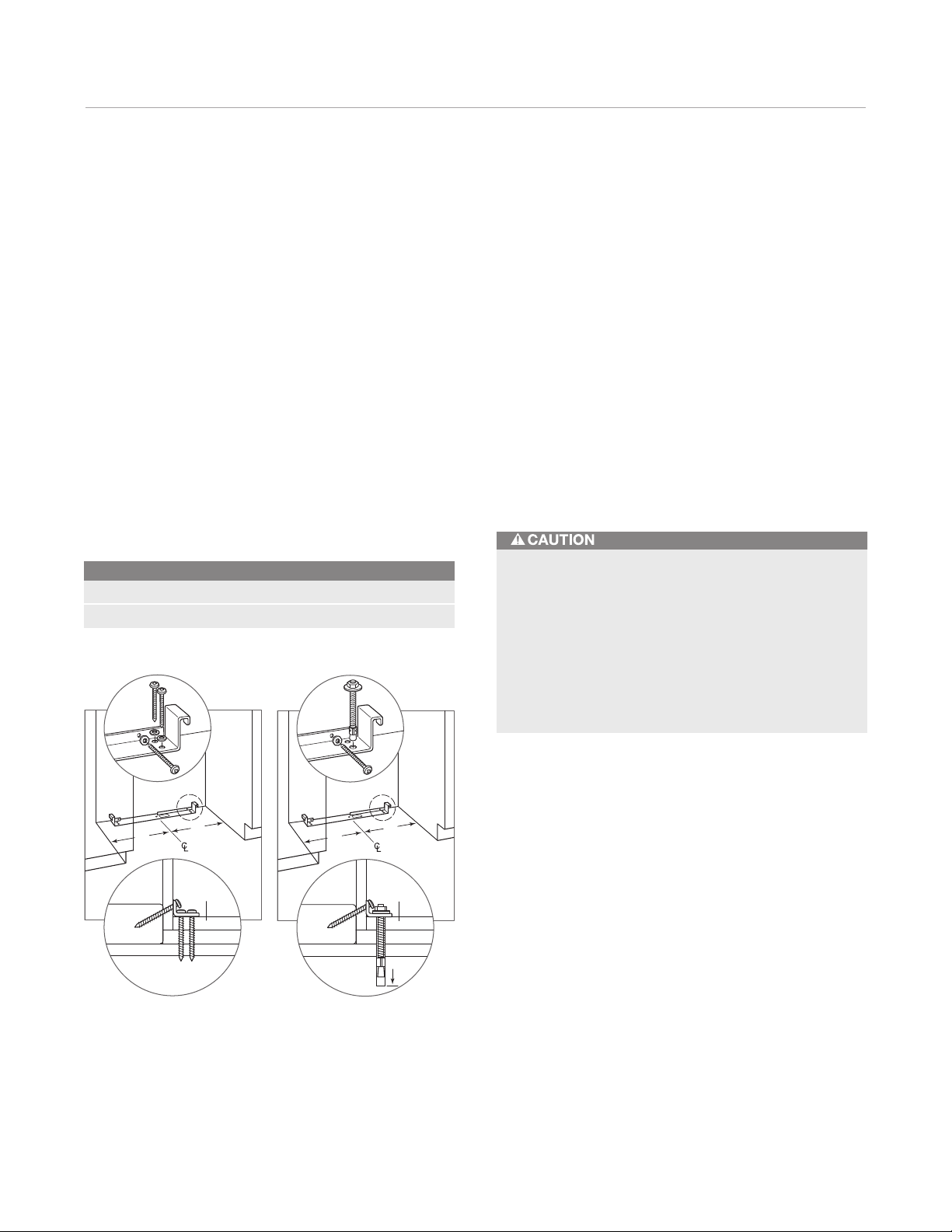

Anti-Tip Bracket Installation
WOOD FLOOR APPLICATIONS
Use the six #12 x 21/2" wood screws and the six1/4" flat
washers provided. Drill pilot holes
3
/16" (5) diameter
maximum, and make sure the screws penetrate through
the flooring material and into the wall plate a minimum of
3
/4" (19). Make sure the screws hold tight. Refer to the
illustration below.
CONCRETE FLOOR APPLICATIONS
Use the two3/8" x 33/4" concrete wedge anchors, two
#12 x 2
1
/2" wood screws and two1/4" flat washers
provided. Make sure the anchors and screws hold tight.
Refer to the illustration below.
Anti-Tip Bracket Placement A
Wood Floor 131/2" (343)
Concrete Floor 131/2" (343)
INSTALL CONCRETE WEDGE ANCHORS:
1) Drill a3/8" (10) diameter hole any depth exceeding the
minimum embedment. Clean the hole or continue
drilling additional depth to accommodate drill fines.
Use a carbide drill bit manufactured within ANSI
B94.12-77.
2) Assemble the washer and nut flush with the end of
anchor to protect threads. Drive the anchor through the
material to be fastened until the washer is flush with
the surface material.
3) Expand the anchor by tightening the nut 3–5 turns past
hand-tight position or to 25 foot-pounds of torque.
Always wear safety glasses and use other necessary
protective devices or apparel when installing or
working with anchors.
Anchors are not recommended for use in lightweight
masonry material such as block or brick, or for use in
new concrete which has not had sufficient time to cure.
The use of core drills is not recommended to drill holes
for the anchors.

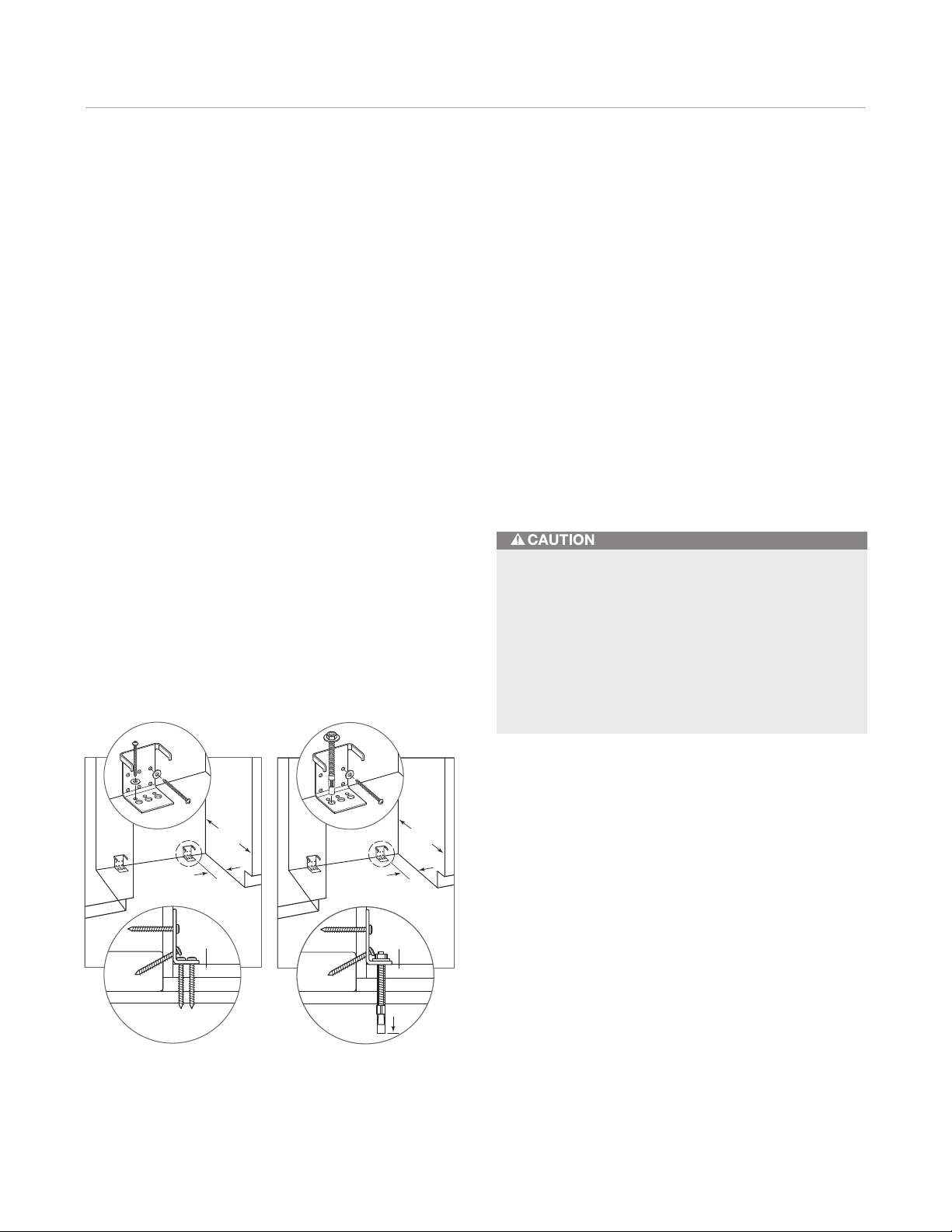

Wood floor. Concrete floor.
Page 21
Models 427G and 427RG Installation 21
subzero.com
Unpack the Unit
DUAL INSTALLATIONS
Before moving the wine storage unit into position,
secure the door closed, remove drawers (427RG) and
protect any finished flooring.
Uncrate the wine storage unit and inspect for any damage.
Remove the wood base and discard the shipping bolts
that hold the wood base to the bottom of the unit. Remove
all packing materials and tape.
All roller-assembly wine shelves should be removed to
reduce weight and prevent them from rolling. To remove,
pull the shelf out to its full extension, gently and evenly lift
up on both sides of the front of the shelf and remove.
Reverse the procedure to reinstall the shelf.
For model 427RG, the drawers should be removed and
placed aside until you are ready for installation of the
panels. Remove the decorative top and side moldings and
the kickplate/grille.

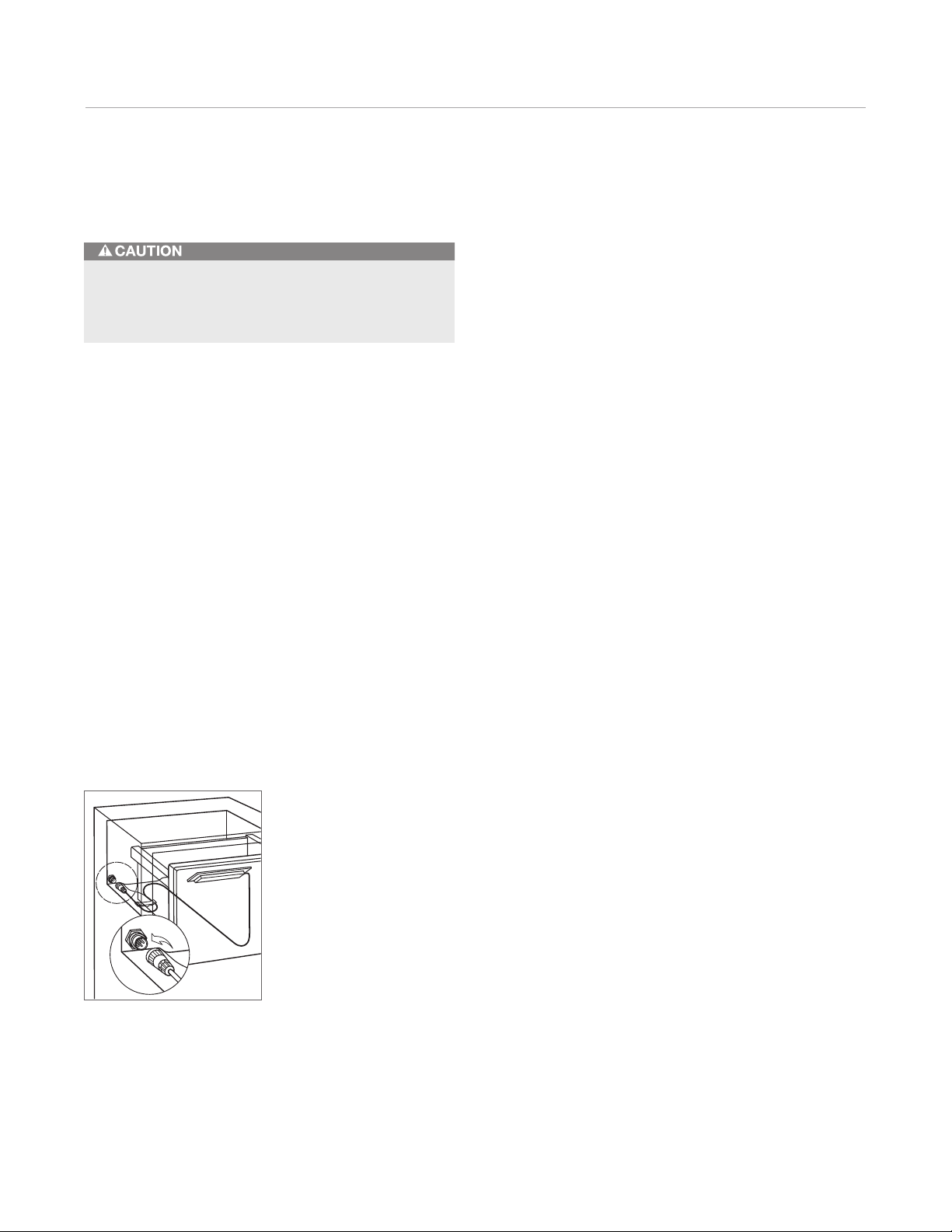

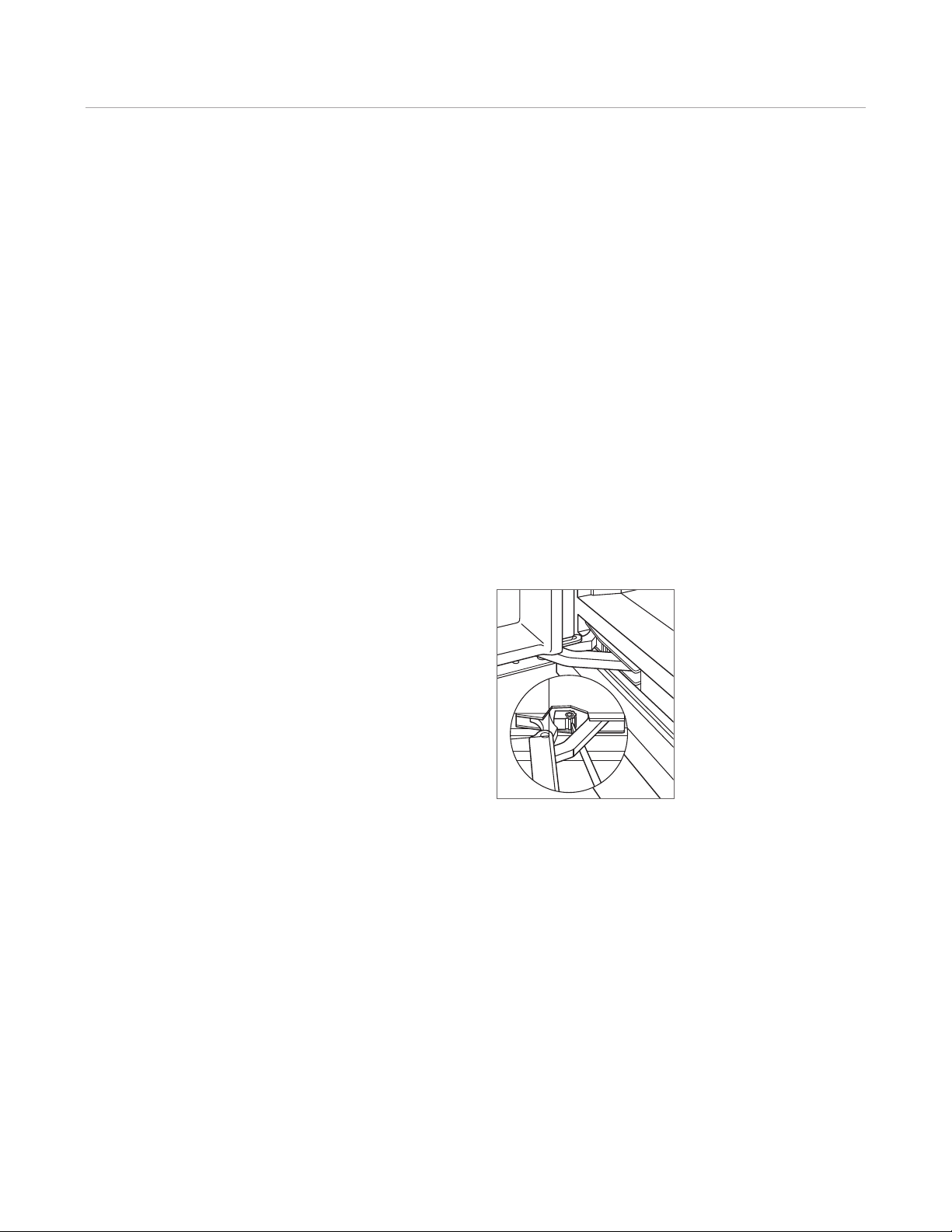

IMPORTANT NOTE: For model 427RG, the top drawer has
a control cable that needs to be disconnected before
removing this drawer. Refer to the illustration below for
placement and how to disconnect this fitting.
When two model 427G, 427RG or integrated units are
installed closer than 2"
to use the dual installation heater kit. The heater from this
kit must be attached to the left side exterior of the righthand unit before the unit is slid into position. The dual
installation heater kit and additional instructions is available through your authorized Sub-Zero dealer, or call
Sub-Zero customer care at 800-222-7820. You can also
visit our website at subzero.com.
LOCK INSTALLATION
For models 427G and 427RG, the optional lock is
attached to the decorative door panel through a fielddrilled hole in the panel. The catch should be installed on
the top of appliance cabinet before the unit is moved into
position. The accessory lock kit and additional instructions
are available through your authorized Sub-Zero dealer, or
call Sub-Zero customer care at 800-222-7820. You can
also visit our website at subzero.com.
IMPORTANT NOTE: For accessory stainless steel panels
requiring a lock, panels must be ordered with the lock
mounting hole pre-drilled.
(51) to one another, it is necessary
Control cable.
Page 22
Models 427G and 427RG Installation 22
Position the Unit
etract the front leveling legs all the way up to allow the
R
unit to be moved into position more easily. You will extend
the leveling legs when the unit is in its final position to
reduce the possibility of the unit tipping forward.
Use an appliance dolly to move the wine storage unit near
the rough opening. Position the dolly at the side of the unit
to prevent damage to finished surfaces.
IMPORTANT NOTE: If for any reason the wine storage unit
has been laid on its back or side, you must allow the unit
to stand upright for a minimum of 24 hours before connecting power.
Plug the power cord into the grounded electrical outlet.
With power applied to the appliance, check for lighting
and cooling before going any further. Once you are satisfied that the unit is operating properly, shut off power to
the electrical outlet at the circuit breaker and proceed.
Pre-level the wine storage unit before moving into
position. This is to allow the unit to engage the anti-tip
bracket properly.
If a home alarm system is to be used with the wine
storage unit, the lead wires should be threaded into the
compressor compartment before you position the unit.
Refer to wiring connections on page 24 for the location of
these lead wires. After the unit is in position, the alarm
wiring can be completed from the front.
lide the unit into position, making sure the anti-tip
S
bracket is engaged properly. Extend the front leveling legs
down approximately
ments easier.
When the wine storage unit is installed, the anti-tip
bracket will be positioned just below the engaging bracket
on the unit. It is not necessary to raise the unit up so that
it locks into the anti-tip bracket, but the unit must be in
alignment with the anti-tip bracket.
3
/16" (5) to make additional adjust-
Page 23
Models 427G and 427RG Installation 23
TOP
MOLDING
SIDE
MOLDING
subzero.com

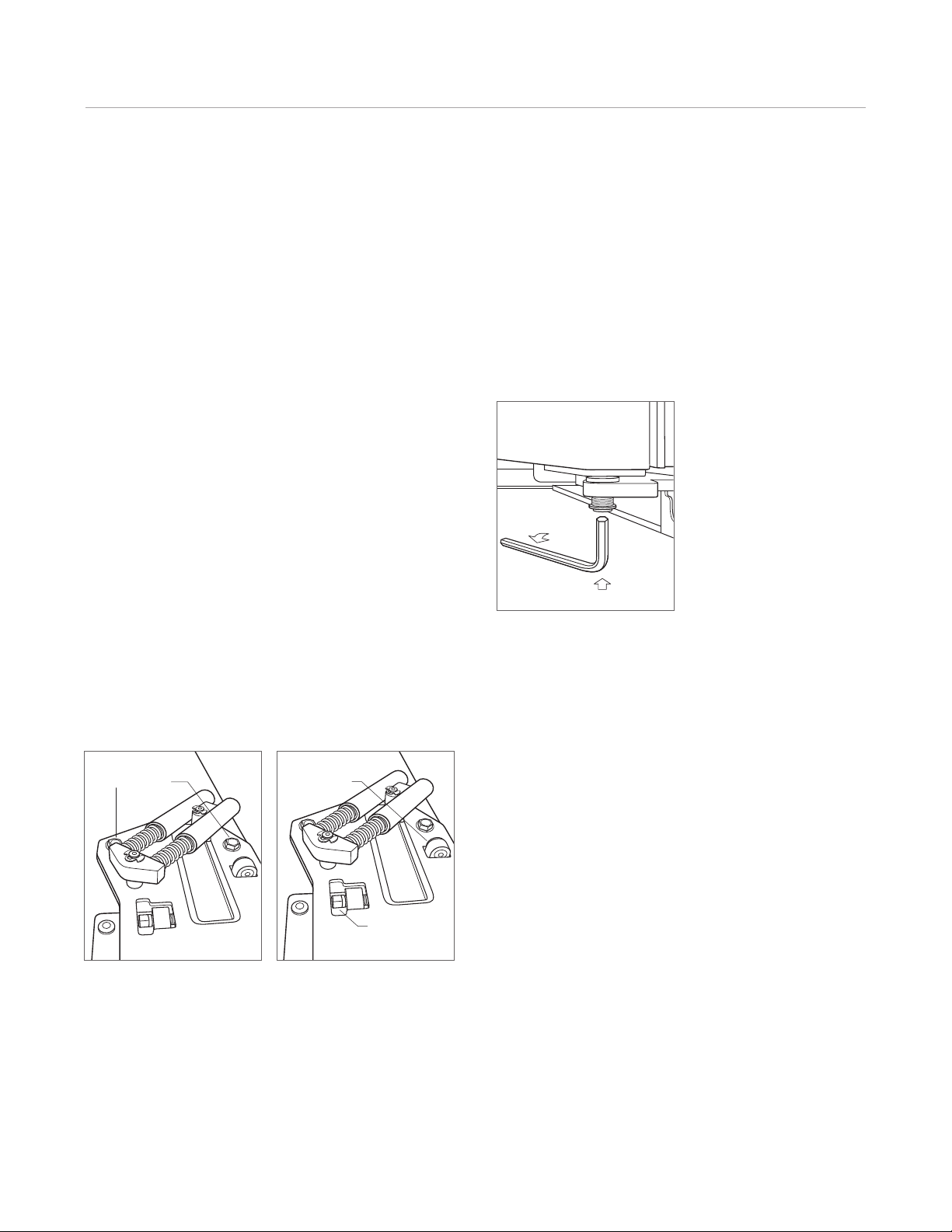

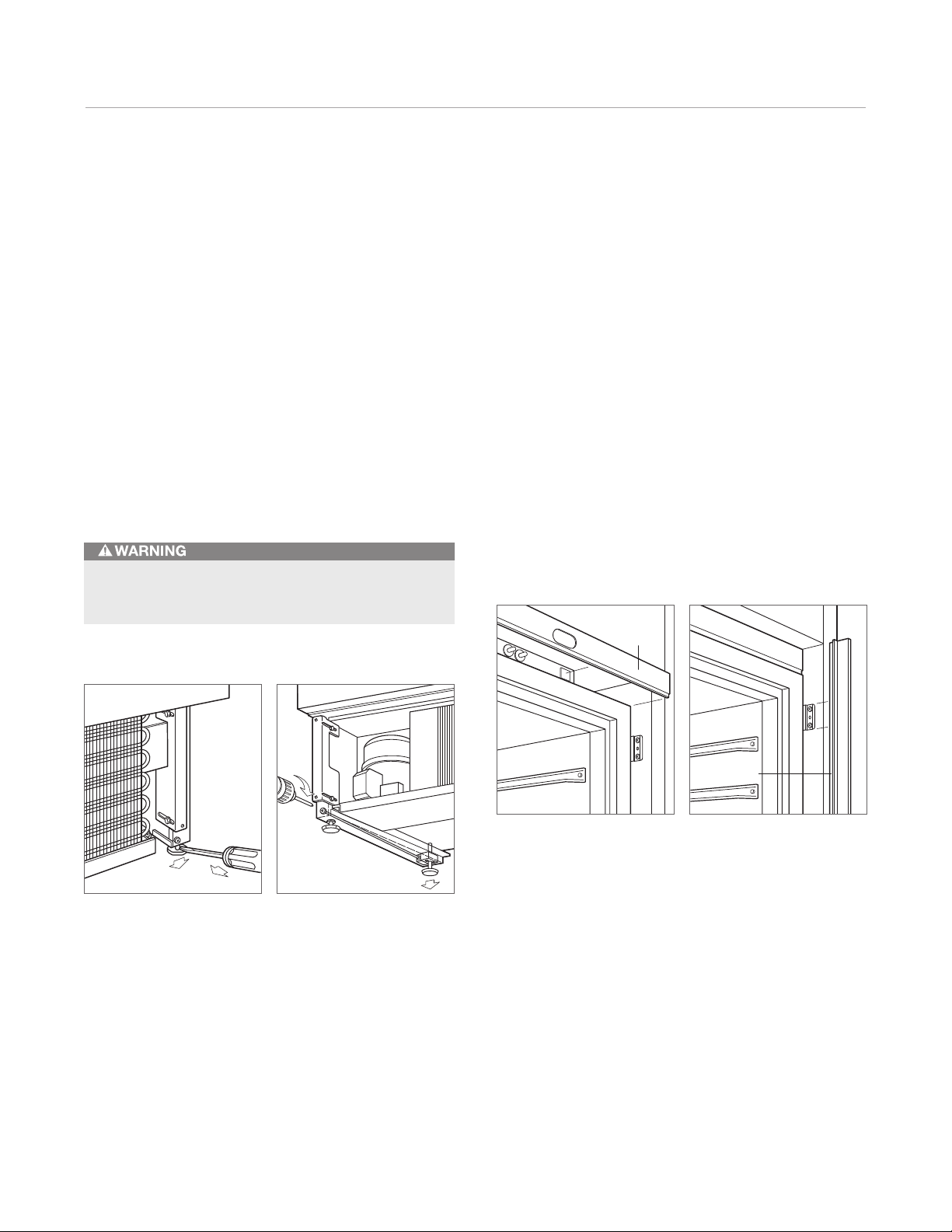

Level the Unit
evel the wine storage unit by turning the front leveling
L
legs clockwise to raise or counterclockwise to lower the
unit. To assist you in adjusting the front leveling legs up or
down, use a standard screwdriver blade and place it in the
front leveling leg as shown in the illustration below.
The rear leveling legs are adjusted from the front of the
base by turning the Phillips head screw as shown in the
illustration below.
IMPORTANT NOTE: The rear leveling legs will only move
1
/16" (2) for every 18 revolutions on the Phillips head screw.
Do not over torque. Use the lowest torque setting on any
power screwdriver. Do not turn the rear leveling legs by
hand.
To reduce the possibility of the unit tipping forward, the
front leveling legs must be in contact with the floor.
Molding Installation
nstall the decorative white molding strips to the top and
I
sides of models 427G and 427RG for a finished look. The
top molding strip must be installed before the side
molding can be attached. The top molding strip is held in
place by double-sided velcro. The side molding strips
snap into place over brackets attached to the side of the
unit. Refer to the illustrations below for positioning. For
installations where units are side by side, refer to dual
installations on page 21.
If you choose, the molding strips may be painted to match
surrounding cabinetry. Follow these steps: Rough up the
surface to be painted with fine grit sandpaper. Wipe with
alcohol to ensure that the surface is clean and dry. Use an
appliance or industrial grade, oil base, high gloss enamel
paint.
Front leveling legs. Rear leveling legs.
Top molding. Side molding.
Page 24
Models 427G and 427RG Installation 24
HOME ALARM
CONNECTIONS
Wiring Connections
efore the kickplate/grille is installed, all necessary wiring
B
connections in the compressor compartment should be
completed.
If the dual installation heater kit is used with model 427G
or 427RG, the power supply leads should be connected
according to instructions included with the kit.
If a home alarm system is to be installed on the wine
storage unit, the connections should be made using the
logic supplied with the alarm specifications. Refer to the
illustration below for the appliance lead locations, and
refer to the following for color codes:
• Normally open contacts: white with red stripe wire.
• Normally closed contacts: white with blue stripe wire.
The alarm circuit in the unit is intended as a lowvoltage, low-current device only. It should not be used
to switch line power.
Any unused terminals should be completely insulated
and all wires should be secured away from conductive
or moving components.
• Common: gray with white stripe wire.
Use the
1
/4" spade terminals or wire nuts provided to
make the proper wiring connections.
IMPORTANT NOTE: If you are not responsible for alarm
system connection, this information should be supplied to
the home security system contractor.

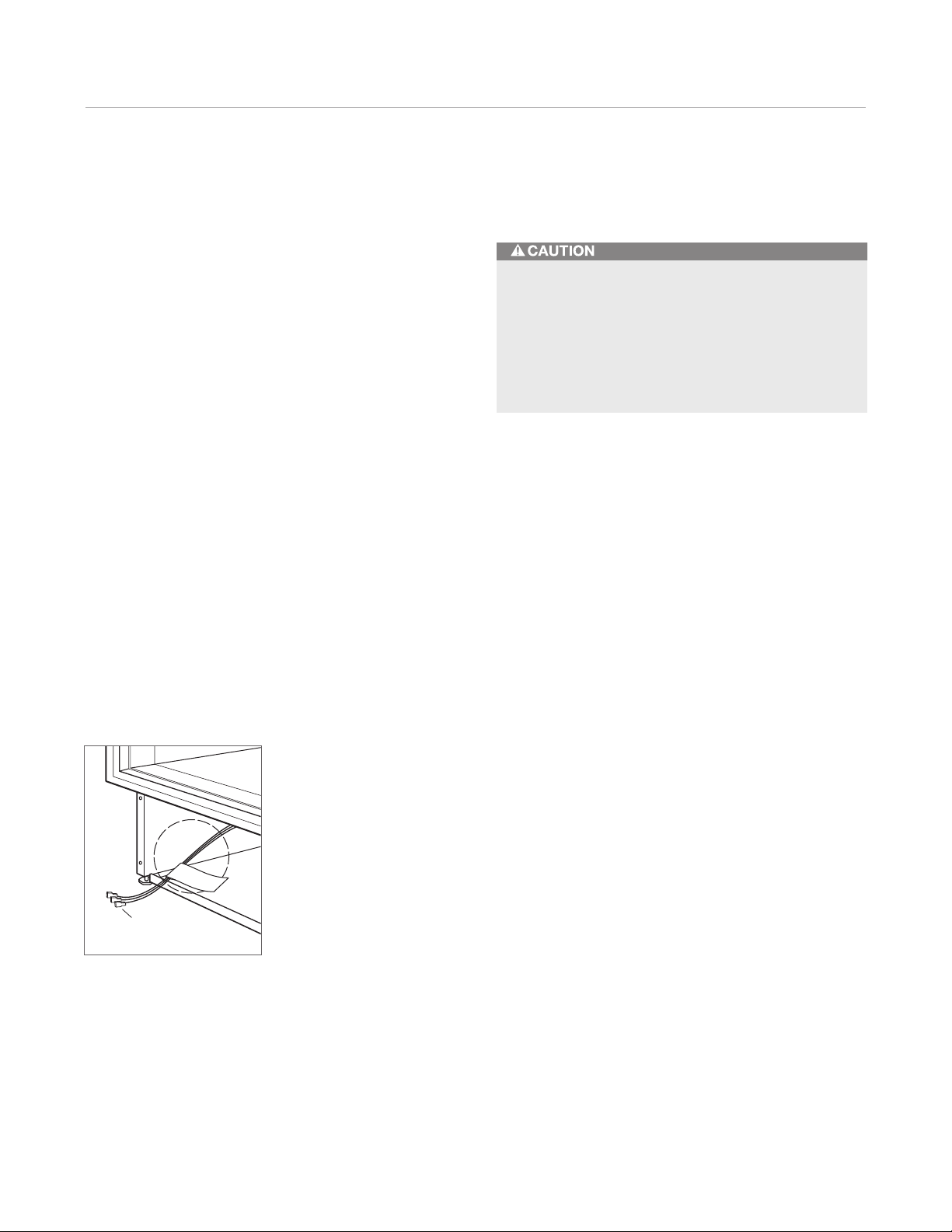

Home alarm connections.
Page 25
Models 427G and 427RG Installation 25
MOUNTING
BRACKET
subzero.com
Kickplate /Grille Installation
nce the wine storage unit is leveled and wiring connec-
O
tions made, the kickplate/grille can be installed. The
mounting bracket may be adjusted slightly forward or
back so the kickplate/grille will fit flush with the surrounding area. Refer to the illustration below.
The kickplate/grille must be removable for service. The
floor cannot interfere with removal.
Turn power back on to the electrical outlet.
IMPORTANT NOTE: The unit must be allowed to have
ventilation through the fins of the kickplate /grille. You may
cover the solid area, but do not block the fins. The door
panel or the lower drawer panel may hang in front of the
fins, but the baseboard molding must not cover them.
If you choose, the kickplate /grille may be painted another
color. Follow these steps: Rough up the surface to be
painted with fine grit sandpaper. Wipe with alcohol to
ensure that the surface is clean and dry. Use an appliance
or industrial grade, oil base, high gloss enamel paint.
Door Panels
odels 427G and 427RG have a full-view glass door.
M
Each of these wine storage units are set up at the job site
as either the stainless steel or integrated design.
Stainless steel panels are available as sales accessories
and are shipped separately. Stainless steel panels are
shipped with matching handles in place.
The integrated design uses custom wood or other decorative panels and handles provided by the customer.
Model 427RG requires solid panels on the drawers that
may match the door panel, or be complementary. The
model 427RG stainless steel drawer panel set and stainless steel door panel are ordered and shipped as two
items.
Before beginning installation, check for the correct
components for the fit and finish desired. The door and
drawers (model 427R) require a decorative panel that is a
minimum
IMPORTANT NOTE: For installations at or above 5,000'
(1524 m) in altitude, a special high altitude glass door unit
(HAG) must be ordered.
5
/8" (16) thick.

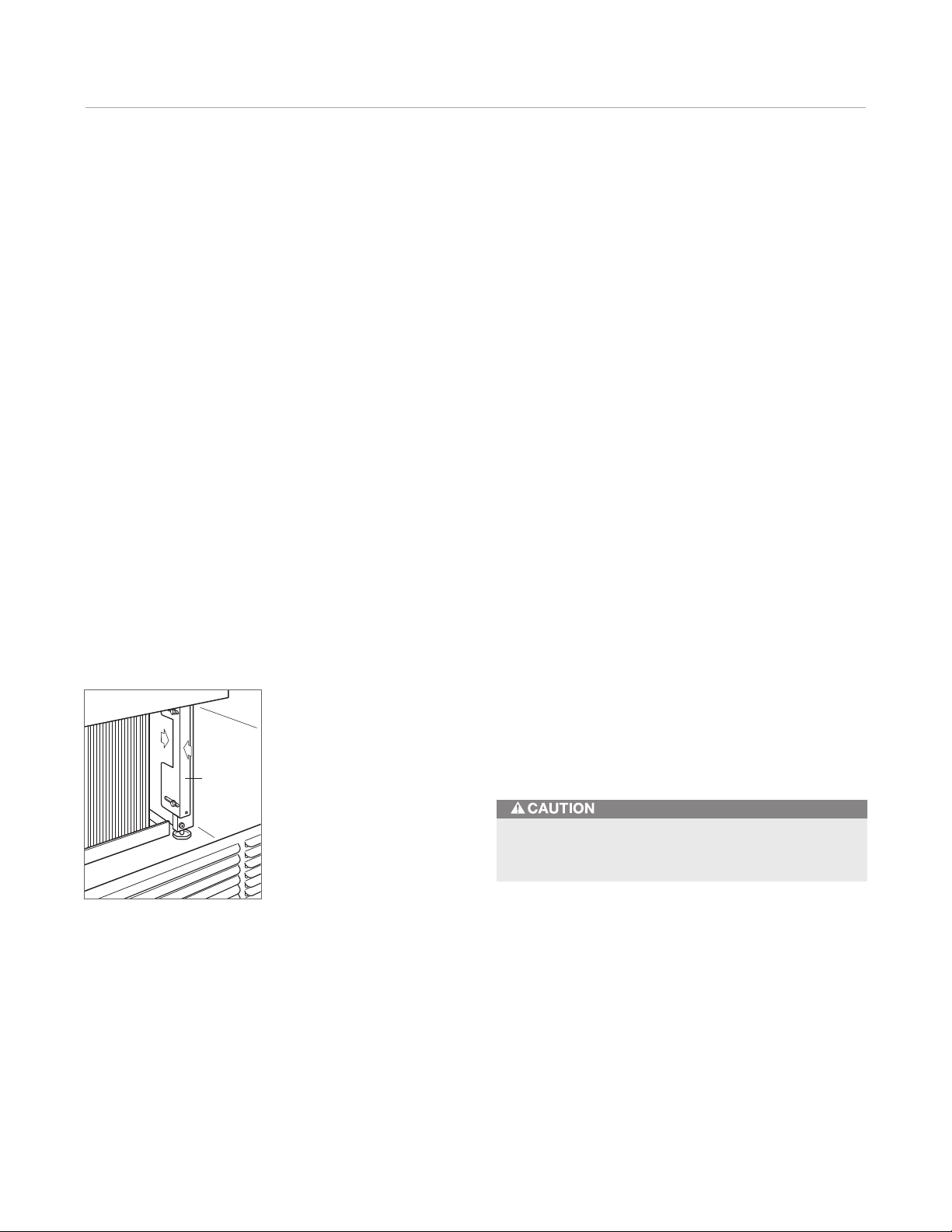

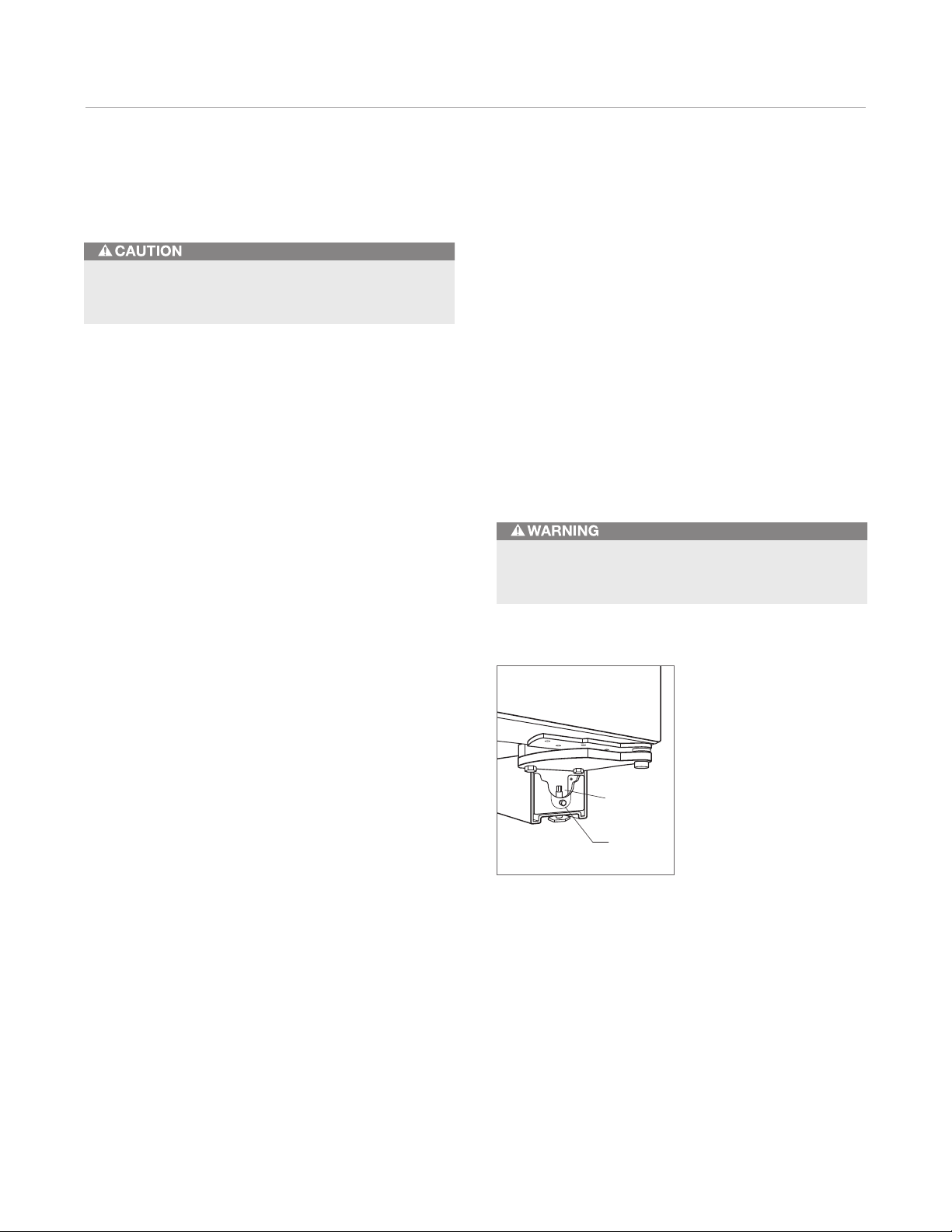

Kickplate /grille installation.
If you have questions, contact your authorized Sub-Zero
dealer or cabinet supplier. Additional panel information
can be found in the Sub-Zero design guide, or visit our
website at subzero.com.
A solid panel cannot be installed over the glass door,
as this may cause moisture to form behind the panel.
Page 26
Models 427G and 427RG Installation 26
DOOR
FRAME
BACK OF
PANEL
STAINLESS
STEEL
PANEL
OVERLAY
PANEL
DOOR
FRAME
TENON
CENTER
Stainless Steel Door Panel
efore installing the stainless steel door panel, check the
B
panel carefully. Options are available for kickplate/grille
height, overall height, door swing and door lock.
The stainless steel panel is mounted to the door by
passing the #8–32 x
in the door frame from the rear, and into the threaded
holes in the door panel. Refer to the illustration below. The
screw holes inside the door are hidden under a cover flap
on the door gasket. It is necessary to lift the flap to insert
the screws.
After the door panel installation is complete, apply the
cover patches or plugs provided over the holes on the
inside surface of the door.
For installation of stainless steel panels on model 427RG
drawers, refer to drawer panel installation on page 28.
The cover patches or plugs are part of the insulation
system on the door of the wine storage unit. Be sure to
cover all the holes in the door that were used.
5
/8" screws (provided), through holes
Overlay Door Panel
nspect the door panel for the minimum
I
the greater width requirements for the stiles (to cover the
door hinges), and the finished inside edge. The glass door
panel has a weight limit of 20 lbs
storage section of the Sub-Zero design guide for additional panel information.
Decide if the handle will be attached through the glass
door frame or just through the decorative door panel. If it
is just through the door panel, the handle must be
attached first.
If a lock is to be used, the body of the lock should be
installed on the door panel after the panel is mounted.
Decorative panels are attached to the model 427G and
427RG door using #8 x
5
/8" square drive screws passing
through the door frame from the rear, behind the gasket
into the panel. The door panel is marked for screw locations by the use of tenon centers, which are temporarily
inserted into the
1
/4" (6) diameter holes in the front of the
glass door frame. Refer to the illustration.
With the wine storage unit secured in position and the
door closed, the panel is held in the desired position on
the door and rapped by hand from the front, putting center
marks on the rear surface of the panel. If the door panel is
made of such a material that pre-drilling is needed, all of
the mounting holes should be marked. If not, only enough
holes to hold the panel in place temporarily, are necessary.
5
/8" (16) t
(9 kg). Refer to the wine
hickness,

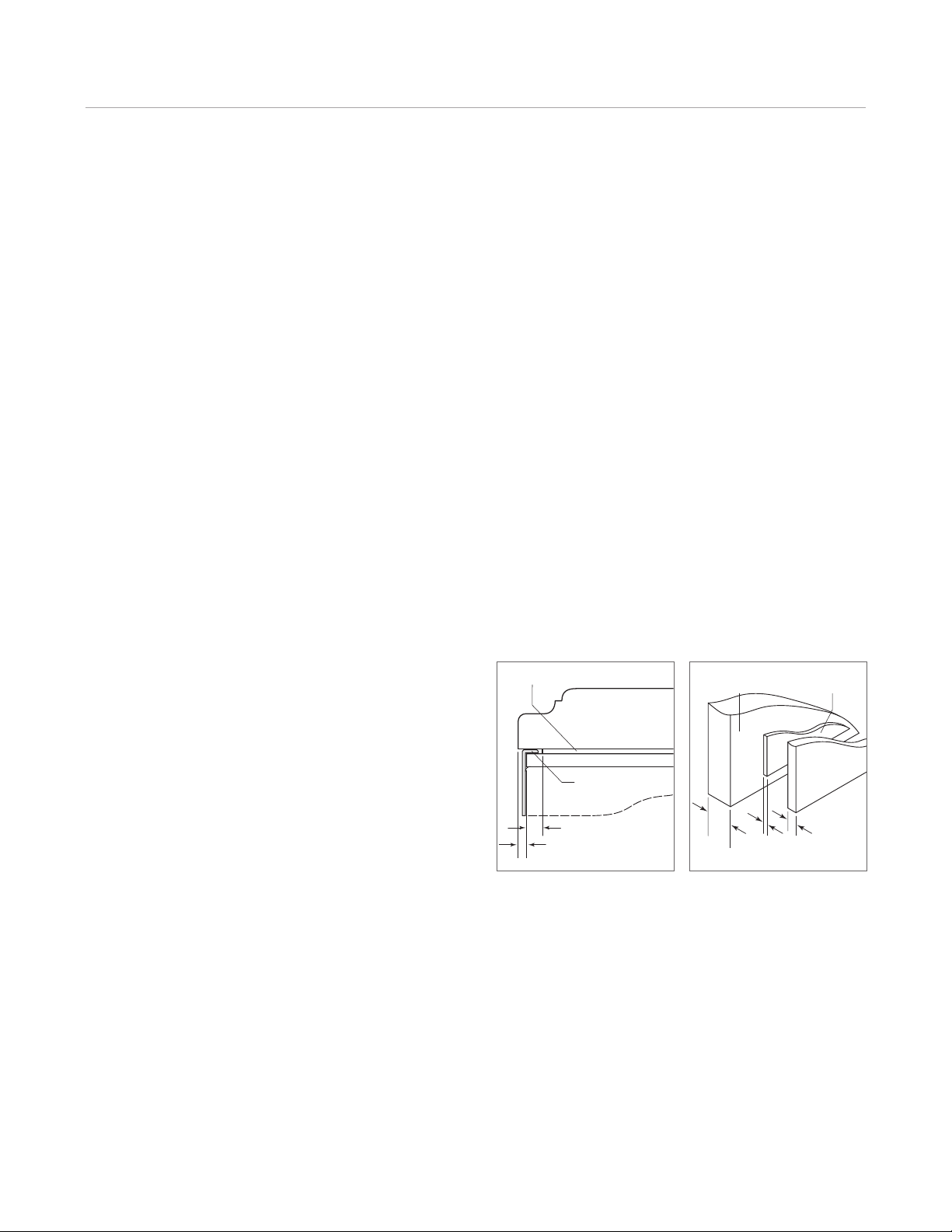

Stainless steel panel. Overlay panel.
The door panel is then lowered from the door frame, tenon
centers removed, the door opened and the screws driven
into the panel through the black tape on the door frame,
using the center marks to locate the screws.
Page 27
Models 427G and 427RG Installation 27
GASKET
GLASS
13
/32" (11)
DIAMETER
1
/4" (6)
DIAMETER
subzero.com
Overlay Door Panel
he screw holes inside the door are hidden under a cover
T
flap on the door gasket. It is necessary to lift the flap to
insert the screws. Use as many screws as necessary to
hold the door panel in place properly.
IMPORTANT NOTE: After the first three or four mounting
screws are in place, but not completely tightened, close
the door and check your panel fit. This is the time to make
small adjustments. Once you are satisfied with the appearance, open the door and apply the remainder of the
screws. Check all screws for tightness.
The metal frame on the glass door has numerous
mounting holes on each side of the door. This is to
accommodate the Sub-Zero accessory handles and
provide for easy attachment of the handle through the
door frame.
If you choose not to use the pre-drilled handle mounting
holes, it will be necessary to fasten the handle from the
rear of the door panel only, or drill one or more additional
holes through the metal frame of the glass door.
The cross section illustration below shows how this hole
passes through the door frame. The hole center is on the
small locator groove in the front of the frame. A
1
/4" (6)
diameter hole is made in the front wall of the extrusion and
13
a
/32" (11) diameter hole through the rest of the frame.
IMPORTANT NOTE: I
nstall screws in all the mounting
holes in the door frame. The nature of the door panel with
a narrow outer rim and no connecting center member
requires the support provided by the glass door.
After the door panel installation is complete, apply the
cover patches or plugs provided over the holes on the
inside surface of the door.
The wine storage unit door is made with a sealed
double wall tempered glass core. The drill must not
contact this core when drilling. Be sure the hole is
centered on the small groove in the front of the door
frame and the drill passes squarely through the frame.
If you are inexperienced with drilling, fasten the handle
from the rear of the door panel only.
The cover patches or plugs are part of the insulation
system on the door of the wine storage unit. Be sure to
cover all the holes in the door that were used.
Door frame cross section.
Page 28

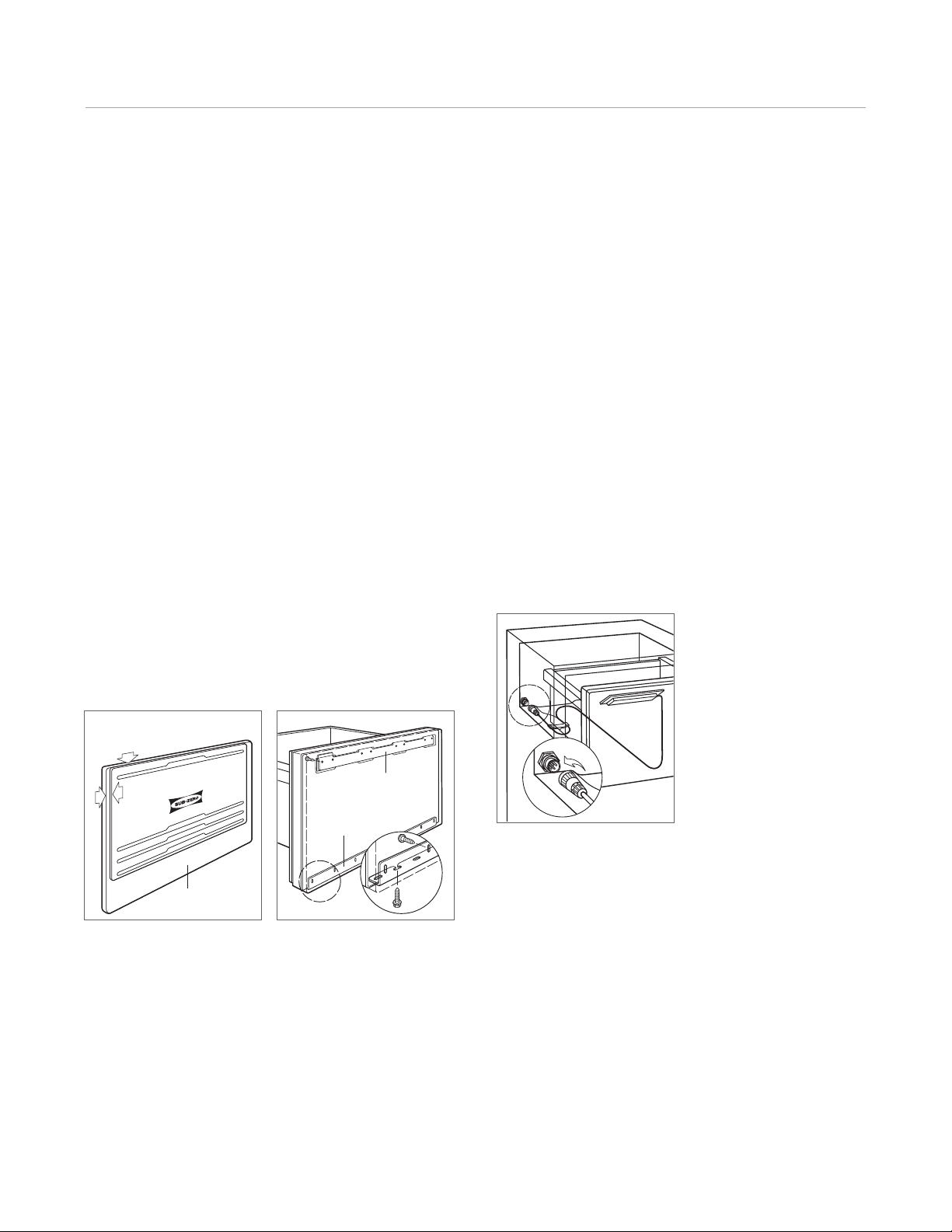

Models 427G and 427RG Installation 28
BACK OF PANEL
TEMPLATE FLUSH WITH
TOP OF PANEL
SIDE
EDGE GAP
WILL VARY
TABBED BRACKET
L BRACKET
Drawer Panel Installation
MODEL 427RG
IMPORTANT NOTE:
be a minimum of
(5 kg) for each panel.
Drawer panels for model 427RG must
5
/8" (16) thick and cannot exceed 12 lbs
Remove the mounting hardware provided and set aside.
As with the door panel, you should work on the back side
of each drawer panel to protect the front surface.
Position the top edge of the template flush with the top
edge of each drawer. For the top drawer, there is only one
location for the lower mounting bracket. The bottom
drawer allows a second option by inverting the lower
mounting bracket, depending on the height and thickness
of the panel. Refer to the illustration below.
Secure the template in place and mark the pilot holes.
Remove the template and drill pilot holes for mounting the
bracket. Place the mounting brackets in the proper
location with the tabbed bracket on top and L-bracket on
the bottom of the panel. Fasten brackets securely with the
1
#8 x
/2" screws provided. Refer to the illustration below.
o help with proper placement of drawer panels, examine
T
the lower panel mounting bracket and determine which
slotted holes to use. Position screws into the lower portion
of the drawer that correspond with these slotted holes.
Leave these screws out a small distance so they can help
when you mount the drawer panels to the drawer.
With the two mounting brackets in place, install the
drawer panel by engaging the top tabbed bracket first,
then slide the lower L-bracket onto the positioning screws.
Each drawer panel can be adjusted
1
/4" (6) up and down
and side to side. Fasten all screws to the lower L-bracket
to secure the drawer panel.
The drawers can be placed back in the unit. Reconnect
the control cable for the top drawer. Refer to the illustration below.
Template position. Drawer panel installation.
Control cable.
Page 29
Models 427G and 427RG Installation 29
subzero.com
Side Panels
ide panels for models 427G and 427RG are not attached
S
to the unit. You must securely fasten the panels to the
adjacent cabinets and floor.
Panels should be fastened to the floor and walls using
L-brackets (hardware not provided). To help you move
the unit into place, rout out an area in the floor so the
L-bracket will sit flush with the floor level.
Complete the Installation
ANCHORING
Brackets and screws are provided for mounting the unit to
adjoining cabinets and side panels. Each unit has four
side-mounting clips on each side.
For dual installations or installations where you are not
attaching to a side wall, you must remove the sidemounting clips before moving the unit into position. After
removing the clips, replace the screws into the appliance.
A dual installation heater kit is necessary for anchoring
two model 427G, 427RG or integrated units together. The
kit is available through your authorized Sub-Zero dealer, or
call Sub-Zero customer care at 800-222-7820. You can
also visit our website at subzero.com.
OPTIONAL 90° DOOR STOP
The door of models 427G and 427RG opens to 105°. A
90° door stop is built into the hinge system for installations where the door opening must be limited.
To engage the door stop, use the blade edge of a standard screwdriver and rotate the cam in the center portion of
the hinge. You must make this adjustment to both the
bottom and top hinge. Refer to the illustration below.
INSTALLATION CHECKLIST
When you have completed installation of the model 427G
or 427RG wine storage unit, refer to page 54 for an installation checklist and page 55 for service information.
90° door stop.
Page 30
Model WS-30 Installation 30
30" (762)
8
4"
(2134)
24" (610)
4" (102)
733/4"
(1873)
237/8"
(606)
311/4"
(796)
17"
(432)
237/8" (606)
23/8" (60)
HEIGHT DIMENSIONS ±
1
/2" (13)
Model WS-30
ake sure that the actual equipment that was shipped to
M
you matches the design you are expecting to install.
Before you begin the installation process, check the exact
model number you need against the model number on the
shipping carton. If the unit you receive does not match
your requirements, contact your authorized Sub-Zero
dealer.
The model WS-30 wine storage unit offers the following
design alternatives: framed, overlay, flush inset and stainless steel models. The overlay model has two design
applications, overlay and flush inset.
Each of these design options has specific installation
requirements, which means it is vital that the unit match
your planning and space needs. Refer to the overall
dimensions illustration for model WS-30 shown in the
stainless steel design. Dimensions will be the same for all
design applications.
OVERALL DIMENSIONS
The door of the model WS-30 opens to a maximum of
110°. A 90° door stop is shipped with the unit. The handle
depth reflects a tubular or pro handle. For additional information, refer to the full-scale templates in the Sub-Zero
design guide.
Overall dimensions are based on the stainless steel model.
For flush inset applications, add
1
/2" (13) to door clearance
dimensions.
Page 31
Model WS-30 Installation 31
subzero.com
Site Preparation
ake sure that the finished rough opening where the wine
M
storage unit is being installed is properly prepared. Refer
to installation specifications on the following pages. These
specifications are identical for the framed, overlay and
stainless steel applications. Installation specifications are
different for the flush inset application, whether you are
using custom panels or Sub-Zero accessory flush inset
panels.
If you are installing two models WS-30, or a model WS-30
and a built-in unit side by side in the framed, overlay, flush
inset or stainless steel application, a filler strip is recommended. Add the filler strip width to the finished rough
opening dimension. For installation of two units side by
side without a filler strip, a dual installation kit will be
necessary.
IMPORTANT NOTE: To operate properly, the door must
open a minimum of 90°. Use a minimum 3"
(76) filler in
corner installations to assure a 90° door opening. Allow
enough clearance in front of the unit for full door swing.
IMPORTANT NOTE: Make sure the floor under the unit is
level with the surrounding finished floor.
TOOLS AND MATERIALS REQUIRED:
• Appliance dolly able to support 700 lbs (317 kg) and
adequate manpower to handle the weight of the unit.
• Phillips and slotted screwdrivers.
• Torx drive screwdriver set.
• Allen, standard and crescent wrenches.
• Various sized pliers.
3
/8" hex bolt nut driver
•
• Cordless drill and assorted drill bits.
• Level—2'
(.6 m) and 4' (1.2 m) recommended.
• Masonite, plywood, pressed fiberboard, cardboard or
other suitable material to protect finished flooring.
• Appropriate materials to cover and protect the home
and furnishings during installation.
Do not load wine into the wine storage unit until the
installation is complete.
Page 32
Model WS-30 Installation 32
24" (610)
OPENING
DEPTH
FRONT VIEWSIDE VIEW
T
OP VIEW
291/2" (746)
OPENING WIDTH
24" (610)
OPENING DEPTH
833/4"
(2127)
OPENING
HEIGHT
Standard Installation Opening Dimensions
Framed, Overlay and Stainless Steel Models
IMPORTANT NOTE: If two units are installed side by side,
refer to page 34 for dual standard installations.
Stainless steel models are ready to install out of the box.
Page 33
Model WS-30 Installation 33
OUTLINE OF
UNIT WITH
3
/4" (
19)
PANEL
DETAIL A
DETAIL B
FRONT VIEW
291/2" (746)
WIDTH TO CLEAT
32" (813)
FLUSH INSET WIDTH
11/4"
(32)
11/4"
(32)
SIDE VIEW
84"
(2134)
FLUSH
INSET
HEIGHT
1
/4"
(6)
24" (610)
DEPTH TO CLEAT
263/16" (665)
FLUSH INSET DEPTH
23/16"
(56)
833/4"
(2127)
HEIGHT
TO CLEAT
83" min
(2108)
24" (610)
DEPTH
TO CLEAT
263/16"
(665)
FLUSH
INSET
DEPTH
TOP VIEW
23/16"
(56)
11/4"
(
32)
CLEAT
CLEAT
11/4"
(32)
24" (610)
O
PENING
DEPTH
T
O CLEAT
CLEAT
TOP VIEW
263/16"
(
665)
FLUSH
I
NSET
DEPTH
23/16" (
56)
3" (76)
typical
24" (610)
OPENING
DEPTH TO
CLEAT
11/4"
(32)
23/16"(56)
CLEAT
SHADED
AREA
M
UST BE
F
INISHED
3" typical
(76)
4" (102)
3
subzero.com
Flush Inset Installation Opening Dimensions
Detail A
IMPORTANT NOTE: Dimensions assume a3/4" (19) panel
thickness.
IMPORTANT NOTE: If two units are installed side by side,
refer to page 35 for dual flush inset installations.
Detail B
Page 34
Model WS-30 Installation 34
FRONT VIEWSIDE VIEW
TOP VIEW
833/4"
(2127)
OPENING
HEIGHT
A
O
PENING WIDTH
24" (
610)
OPENING DEPTH
24" (
610)
OPENING
DEPTH
Dual Standard Installation Opening Dimensions
Framed, Overlay and Stainless Steel Models
Opening Widths A
Two 30" (762) Models 593/4" (1518)
Model WS-30 and a 36" (914) Model 653/4" (1670)
IMPORTANT NOTE: A dual installation kit will be required for
this installation.
Stainless steel models are ready to install out of the box.
Page 35
Model WS-30 Installation 35
24" (610)
DEPTH
T
O CLEAT
263/16"
(665)
FLUSH
I
NSET
DEPTH
FRONT VIEW
TOP VIEW
23/16"
(56)
A
WIDTH TO CLEAT
B
FLUSH INSET WIDTH
11/4"
(32)
11/4"
(32)
SIDE VIEW
84"
(2134)
FLUSH
INSET
HEIGHT
1
/4"
(
6)
24" (610)
D
EPTH TO CLEAT
263/16" (
665)
FLUSH INSET DEPTH
23/16"
(56)
833/4"
(2127)
HEIGHT
T
O CLEAT
C
LEAT
T
WO UNITS WITH
3
/4" (19) PANEL
DETAIL A
DETAIL B
11/4"
(32)
CLEAT
11/4"
(32)
24" (610)
O
PENING
DEPTH
T
O CLEAT
CLEAT
TOP VIEW
263/16"
(
665)
FLUSH
I
NSET
DEPTH
23/16" (
56)
3" (76)
typical
24" (610)
OPENING
DEPTH TO
CLEAT
11/4"
(32)
23/16"(56)
CLEAT
SHADED
AREA
M
UST BE
F
INISHED
3" typical
(76)
4" (102)
3
subzero.com
Dual Flush Inset Installation Opening Dimensions
Detail A
Opening Widths AB
Two 30" (762) Models 593/4" (1518) 621/4" (1581)
Model WS-30 and a 36" (914) Model 653/4" (1670) 681/2" (1740)
Detail B
IMPORTANT NOTE: Dimensions assume a3/4" (19) panel
thickness. A dual installation kit will be required for this installation.
Page 36
Model WS-30 Installation 36
FRONT VIEW
751/2"
(1918)
FROM
FLOOR
7"
(178)
E
6"
(152)
Electrical Requirements
or model WS-30, the electrical supply should be located
F
within the shaded area shown in the illustration. Follow the
National Electrical Code and local codes and ordinances
when installing the receptacle. A separate circuit, servicing
only this appliance is required. A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.
The outlet must be checked by a qualified electrician to
be sure that it is wired with the correct polarity and is
properly grounded.
Electrical Requirements
Power Supply 115 V AC, 60 Hz
Circuit Breaker 15 amp
Receptacle 3-prong grounding-type
Do not use an extension cord or two-prong adapter.
Electrical ground is required on this appliance. Do not
remove the power cord ground prong.
Location of electrical supply.
Page 37
Model WS-30 Installation 37
subzero.com
Anti-Tip Bracket Installation
To prevent the unit from tipping forward and provide
a stable installation, the unit must be secured in place
with the anti-tip brackets provided.
IMPORTANT NOTE: Placement of the anti-tip brackets is
critical to a stable installation. Failure to properly position
the anti-tip brackets will prevent them from engaging the
unit.
The two anti-tip brackets must be installed exactly 24"
(610) from the front of the rough opening to the back of the
brackets and a minimum of 4"
rough opening. This depth will increase to 26
a flush inset installation based on
(102) from the sides of the
3
/16" (665) for
3
/4" (19) deep decorative
panels. Proper placement will ensure that the anti-tip
brackets engage the anti-tip bar at the back of the unit.
To properly secure the anti-tip brackets for a stable installation, use all anti-tip bracket hardware as instructed for
wood or concrete floors.
IMPORTANT NOTE: F
applications, if the #12 x 2
or either wood or concrete floor
1
/2" screws do not hit a wall
stud or the wall plate in any of the back holes of the
brackets, use the provided #8–18 x 1
1
/4" PH truss HD
screws and #12 flat washers with the nylon zip-it wall
anchors.
IMPORTANT NOTE: In some installations the subflooring
or finished floor may necessitate angling the screws used
to fasten the anti-tip brackets to the back wall.
Make sure there are no electrical wires or plumbing
in the area which the screws could penetrate.
Anti-Tip Bracket Hardware
2 Anti-tip brackets
12 #12 x 21/2" PH pan HD zinc screws
43/8"–16 x 33/4" wedge anchors
12 #12 flat washers
4 #8–18 x 11/4" PH truss HD screws
4 Nylon zip-it wall anchors
Page 38
Model WS-30 Installation 38
4" (102)
MIN
24"
(610)
SUBFLOORING
WOOD FLOOR
WALL PLATE
FINISHED
FLOORING
4" (102)
MIN
24"
(610)
SUBFLOORING
CONCRETE
FLOOR
WALL PLATE
FINISHED
FLOORING
11/2"(38)
min
SUBFLOORING
CONCRETE
FLOOR
WALL PLATE
FINISHED
FLOORING
11/2"(38)
MIN
Anti-Tip Bracket Installation
WOOD FLOOR APPLICATIONS
After properly locating the anti-tip brackets in the rough
opening, drill pilot holes
wall studs and/or wall plate. Use the #12 x 2
3
/16" (5) diameter maximum in the
1
/2" PH pan
HD zinc screws and #12 flat washers to secure the
brackets in place. Make sure the screws penetrate
through the flooring material and into wall studs or wall
plate a minimum of
3
/4" (19). Refer to the illustration below.
CONCRETE FLOOR APPLICATIONS
After properly locating the anti-tip brackets in the rough
opening, drill pilot holes
wall studs and/or wall plate. Then drill
holes into the concrete a minimum of 1
Use the #12 x 2
1
/2" PH pan HD zinc screws and #12 flat
3
/16" (5) diameter maximum in the
3
/8" (10) diameter
1
/2" (38) deep.
washers to secure the brackets to the wall and use the
3
/8"–16 x 33/4" wedge anchors to secure the brackets to
the floor. Make sure the screws penetrate the wall studs or
wall plate a minimum of
3
/4" (19). Refer to the illustration
below.
INSTALL CONCRETE WEDGE ANCHORS:
1) Drill a3/8" (10) diameter hole any depth exceeding the
minimum embedment. Clean the hole or continue
drilling additional depth to accommodate drill fines.
Use a carbide drill bit manufactured within ANSI
B94.12-77.
2) Assemble the washer and nut flush with the end of
anchor to protect threads. Drive the anchor through the
material to be fastened until the washer is flush with
the surface material.
3) Expand the anchor by tightening the nut 3–5 turns past
hand-tight position or to 25 foot-pounds of torque.
Always wear safety glasses and use other necessary
protective devices or apparel when installing or
working with anchors.
Anchors are not recommended for use in lightweight
masonry material such as block or brick, or for use in
new concrete which has not had sufficient time to cure.
The use of core drills is not recommended to drill holes
for the anchors.
Wood floor. Concrete floor.
Page 39

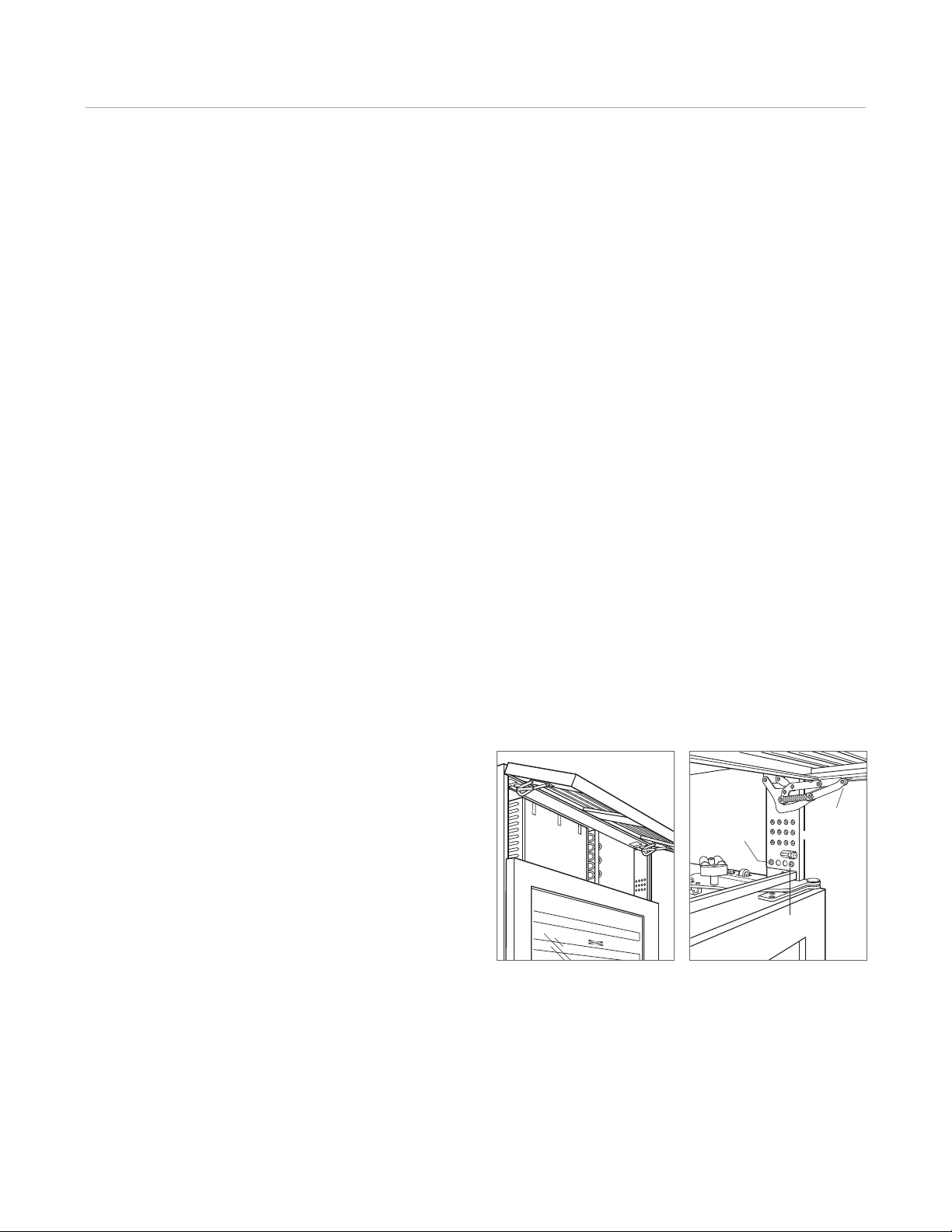

Model WS-30 Installation 39
FRONT
GRILLE SCREW
BACK GRILLE
SCREW
LOCATION
OF GRILLE
ADJUSTMENT
SCREWS
subzero.com
Unpack the Unit
ncrate the wine storage unit and inspect for any
U
damages. Remove the wood base and discard the
shipping bolts and brackets that hold the wood base to
the bottom of the unit. Remove and discard all packing
materials.
IMPORTANT NOTE: Do not discard the kickplate, anti-tip
brackets and hardware. These items will be needed for
installation.
Retract the front leveling legs all the way up to allow the
unit to be moved into position more easily. You will extend
the front leveling legs down and make adjustments once
the unit is in position.
Remove the drain pan from the base of the unit to avoid
damage to the drain pan, and allow for proper placement
of the appliance dolly.
Grille Removal
n order to prevent damage to the grille and to access the
I
power cord, the top grille assembly should be removed
prior to moving the unit.
To remove the grille assembly, pull out on the bottom edge
of the grille and tilt upward. Loosen the back two grille
mounting screws and remove the front two grille mounting
screws. Refer to the illustrations below. With the grille held
firmly, pull forward to remove.
To reinstall the grille, insert the grille into position and be
sure that the grille catch tabs are engaged. Reinstall the
front two grille screws, then retighten the back two grille
screws. Check for proper fit.
GRILLE HEIGHT ADJUSTMENT
The grille was designed to rest on the upper door hinge
to minimize the reveal between the top of the door and
bottom of the grille. To eliminate potential interference of
the grille and hinge, the grille height can be adjusted.
Loosen the four grille adjustment screws (two on each
side) and adjust the grille height as needed. For screw
location, refer to the illustration below.
Grille removal. Grille mounting screws.
Page 40
Model WS-30 Installation 40
FRONT
LEVELING LEG
REAR
ADJUSTMENT
Position the Unit
Before moving model WS-30 into position, secure the
door closed and protect any finished flooring.
Use an appliance dolly to move the unit near the rough
opening. Model WS-30 is equipped with rollers, so it can
be moved into position more easily. If possible, keep the
door closed until the unit is properly anchored.
IMPORTANT NOTE: If for any reason the unit has been
laid on its back or side, you must allow the unit to stand
upright for a minimum of 24 hours before connecting
power.
IMPORTANT NOTE: If used, side panels will need to be
installed before the unit is placed in its final position. Refer
to page 53.
The rear levelers must be in their lowest position in order
to roll the unit back into the rough opening. Leveling
cannot be completed until the unit is in position.
Level the Unit
nce the unit is in position, extend the front leveling legs
O
down by turning the legs clockwise to adjust the height.
The rear height adjustment can be made from the front of
the base. Use a
3
the
/8" hex bolt clockwise to raise the unit or counterclockwise to lower it. Refer to the illustration below for
location of the rear roller base adjustment.
When the unit is properly leveled, door adjustments are
less likely to be necessary.
IMPORTANT NOTE: Be sure to reference leveling of the
unit to the floor and not surrounding cabinetry. This could
affect the operation of the unit, such as door closing.
To reduce the possibility of the unit tipping forward,
the front leveling legs must be in contact with the floor.
3
/8" socket to adjust the rear rollers. Turn
Shut off power to the electrical outlet. Plug the power cord
into the grounded outlet and roll the unit into position.
Make sure the anti-tip brackets are properly engaged.
Rear roller base adjustment.
Page 41
Model WS-30 Installation 41
UPPER
HINGE BOLTS
SIDE TO SIDE
TILT ADJUSTMENT
IN AND OUT
ADJUSTMENT
subzero.com
Door Adjustment
he door of the model WS-30 can be adjusted in three
T
ways: In and out, side to side tilt, and up and down.
Regardless of the adjustment being made, start by slightly
loosening the two upper hinge bolts on the upper hinge
plate using a
1
/2" wrench. Refer to the illustration below.
IN AND OUT ADJUSTMENT
Refer to the illustration for location of the bolt for in and
out door adjustment. To adjust a left-hinge door; using a
5
/32" allen wrench, turn the bolt clockwise to bring the
handle side of the door inward, and counterclockwise to
move the handle side of the door outward. Reverse the
directions for a right-hinge door.
SIDE TO SIDE TILT ADJUSTMENT
Refer to the illustration for location of the bolt for side to
side tilt door adjustment. To adjust a left-hinge door; using
3
a
/8" wrench, turn the bolt clockwise to raise the handle
side of the door up and counterclockwise to tilt the handle
side of the door down. Reverse the directions for a righthinge door.
DOOR HEIGHT ADJUSTMENT
To adjust a left-hinge door; using a1/4" allen wrench, turn
the bolt clockwise to raise the door and counterclockwise
to lower the door. Refer to the illustration below. Reverse
the directions for a right-hinge door.
Door height adjustment.
Upper hinge bolts. Door adjustment bolts.
Page 42
Model WS-30 Installation 42
ANCHORING
SCREWS
ANCHORING
SCREW
Panel Installation
f your customer has ordered either a framed or overlay
I
model, you will be installing a door panel to give the unit
the custom Sub-Zero look. Before you begin installing the
panel, refer to the panel specifications for framed, overlay
or flush inset applications on pages 44–52, and make sure
you are working with the panel design called for in your
installation.
IMPORTANT NOTE: For overlay models, there are two
design applications, overlay and flush inset. Be sure to
use the correct panel sizes for your application.
If your customer has chosen the stainless steel design, the
unit has been shipped complete with a finished stainless
steel look. It will not be necessary to install a door panel or
handle hardware. In your final preparation for stainless
steel units, use a stainless steel cleaner to remove any
marks. Abrasive cleaners should not be used, as they may
scratch the surface.
IMPORTANT NOTE: Side panels, if used, will need to be
installed before the unit is placed in its final position. Refer
to page 53.
Complete the Installation

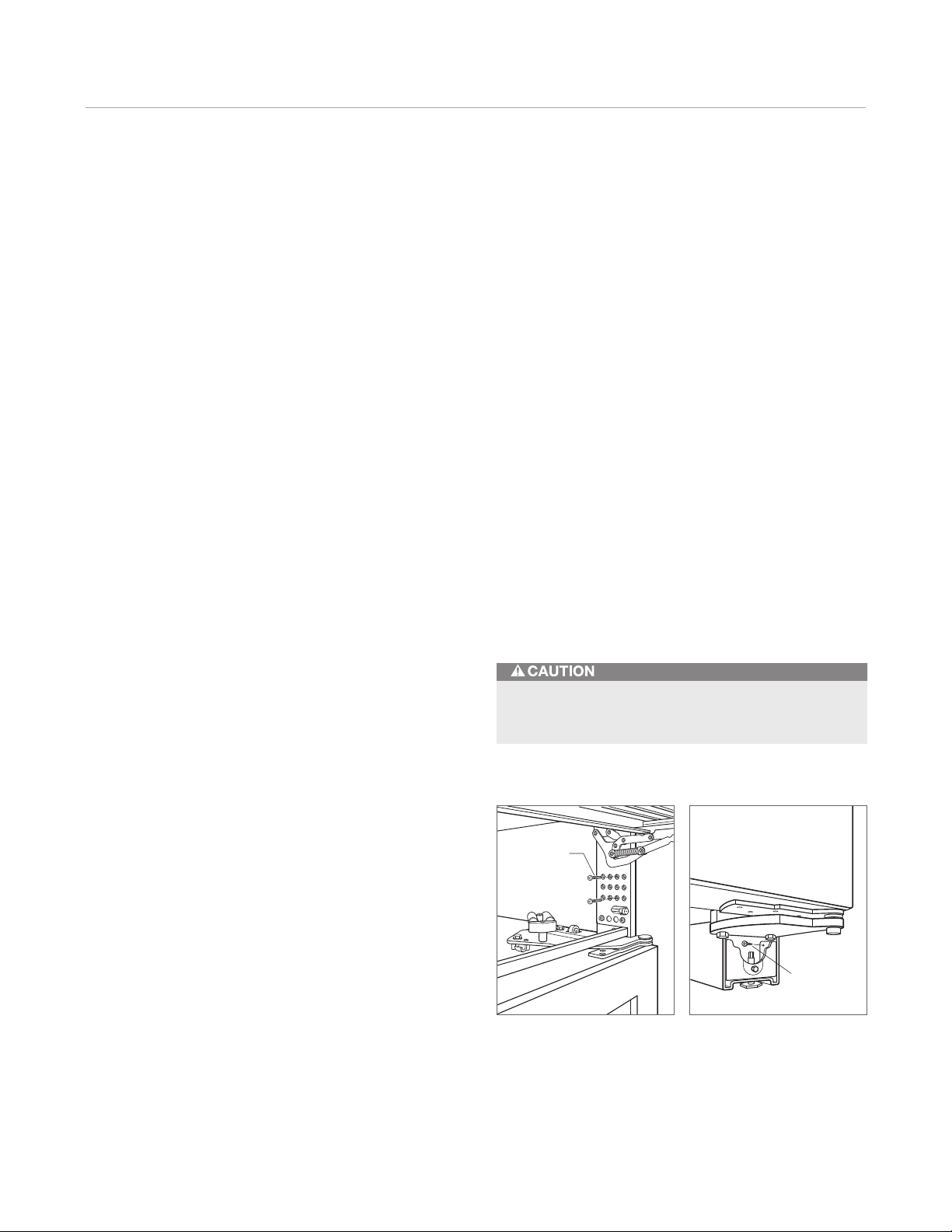

ANCHORING
After door and side panels have been installed, the unit
has been leveled and door adjustment completed, anchor
the wine storage unit to the opening. This will assure a
proper fit and a secure installation.
IMPORTANT NOTE: Be sure to level and square the unit
before anchoring it.
To anchor the top of the unit to cabinetry, open the grille,
and install the screws provided through the grille frame
into the cabinetry. There are several hole locations
provided. Check for proper door clearance by fully
opening the door. Refer to the illustration below.
To anchor the bottom of the unit, drive a screw through
the side hole inside the roller base assembly. There is one
on each side. The screw will need to go in at an angle in
order to attach properly. Refer to the illustration below.
Additional material may be needed behind the cleat to
ensure sufficient anchoring.
If the screws provided are not suitable for your
application, you must provide adequate screws.
Top anchoring. Bottom anchoring.
Page 43
Model WS-30 Installation 43
HOME ALARM
CONNECTIONS
subzero.com

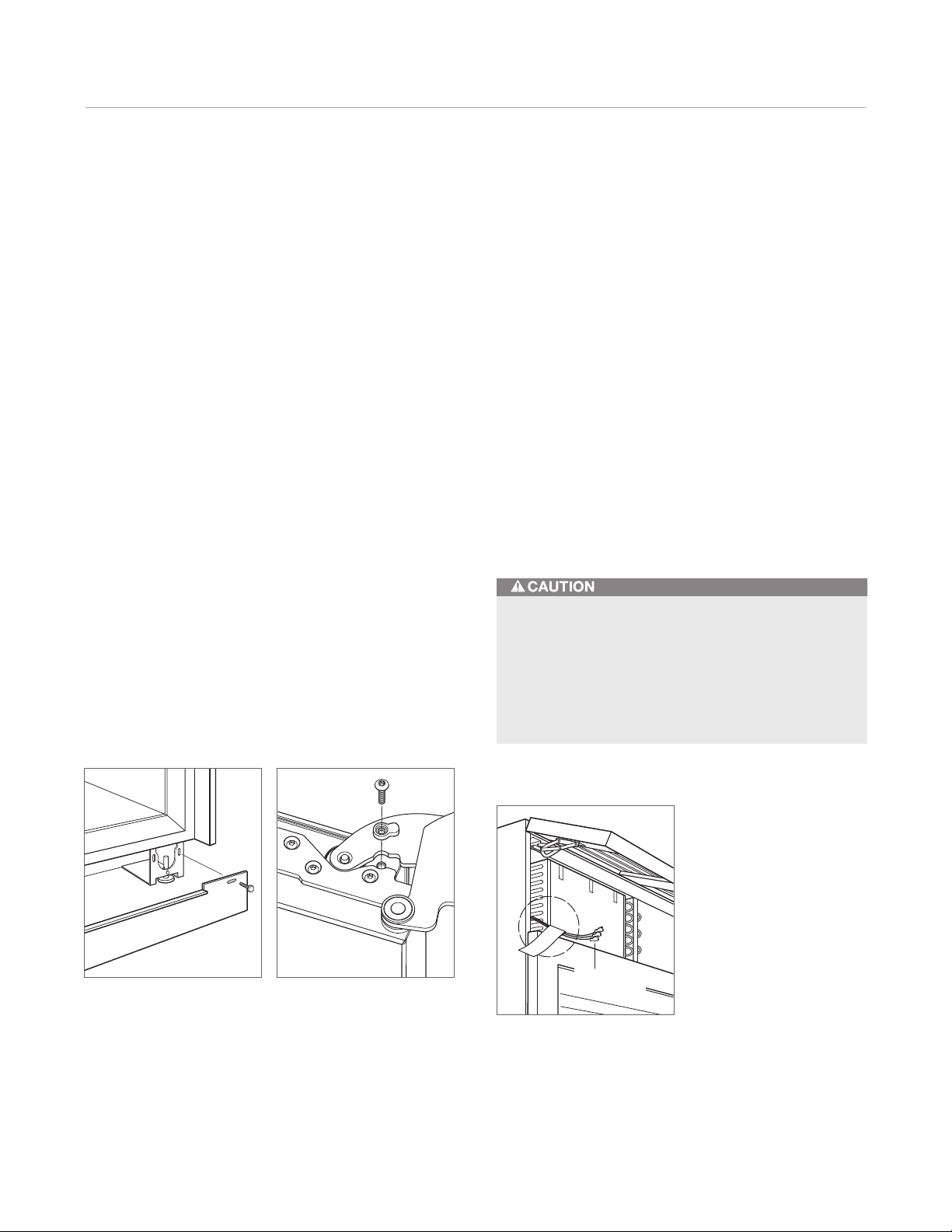

Complete the Installation
INSTALL KICKPLATE
Make sure the drain pan is in the proper position before
installing the kickplate. To install, screw the kickplate to
brackets attached to the inside surface of each roller
base. Refer to the illustration below.
IMPORTANT NOTE: The kickplate must be removable for
service. The floor cannot interfere with removal.
Reinstall the grille following the instructions on page 39.
Turn power back on to the electrical outlet.
OPTIONAL 90° DOOR STOP
The door of the model WS-30 opens to 110°. A 90° door
stop is provided with the unit (located behind the grille) for
installations where the door opening must be limited.
Additional 90° door stop kits are available through your
authorized Sub-Zero dealer.
The 90° door stop will be installed in the top hinge. To
install, open the door to approximately 90°. At the top of
the door, insert the door stop between the door hinge and
the door closer arm. Insert the screw through the door
stop and into the door as shown in the illustration below.
Home Alarm Connections
f a home alarm system is to be installed on the wine
I
storage unit, the connections should be made according
to the alarm specifications. Refer to the illustration for the
appliance lead locations, and refer to the following for
color codes:
• Normally open contacts – white with red stripe wire.
• Normally closed contacts – white with blue stripe wire.
• Common – gray with white stripe wire.
Use the
make the proper wiring connections.
IMPORTANT NOTE: If you are not responsible for alarm
system connection, this information should be supplied to
the home security system contractor.
1
/4" spade terminals or wire nuts provided to
The alarm circuit in the unit is intended as a lowvoltage, low-current device only. It should not be used
to switch line power.
Any unused terminals should be completely insulated
and all wires should be secured away from conductive
or moving components.
Kickplate installation. 90° door stop.
Home alarm connections.
Page 44
Model WS-30 Installation 44
1
/4" (6)
PANEL
TRIM
REVEAL
1
/4" (6) min
DOOR
MAIN FRAME
TRIM
REVEAL
1
/4" (6) min
ROUT TO
1
/4" (6)
DOOR
MAIN FRAME
Framed Panel
f your customer has chosen a framed design application,
I
make sure that the panel you are about to install matches
dimensions listed in the framed panel specifications on the
following page. Additional panel design information can be
found in the Sub-Zero design guide and on our website,
subzero.com.
If the thickness of the custom panel is less than a
1
/4" (6),
back it up with a sheet of shim material to build the total
thickness to a
1
/4" (6). If the panel is thicker than a1/4" (6),
rout an edge around the panel to achieve a proper fit.
Refer to the illustrations.
IMPORTANT NOTE: The weight of the framed panel must
not exceed 75 lbs
(34 kg).
IMPORTANT NOTE: For model WS-30, routing, recessing
or optional extended handles may be required on raised
panels for finger clearance under the handle.
FRAMED PANEL INSTALLATION
To install the framed panel, the door handle must be
removed. To install framed panels, first remove the door
trim molding. Insert a screwdriver tip into the top corner
slot on the handle side and pop out the trim molding.
Refer to the illustration below.
With a Phillips screwdriver, remove the door handle.
Slide the panel into the frame on the door. With the panel
in position, replace the handle. Be sure the panel is
inserted completely into the channel for proper fit and
alignment.
To reinstall the trim molding, insert the top of the trim
molding into the grooves at the top of the door and work
downward, snapping the trim molding into the clips on the
handle.

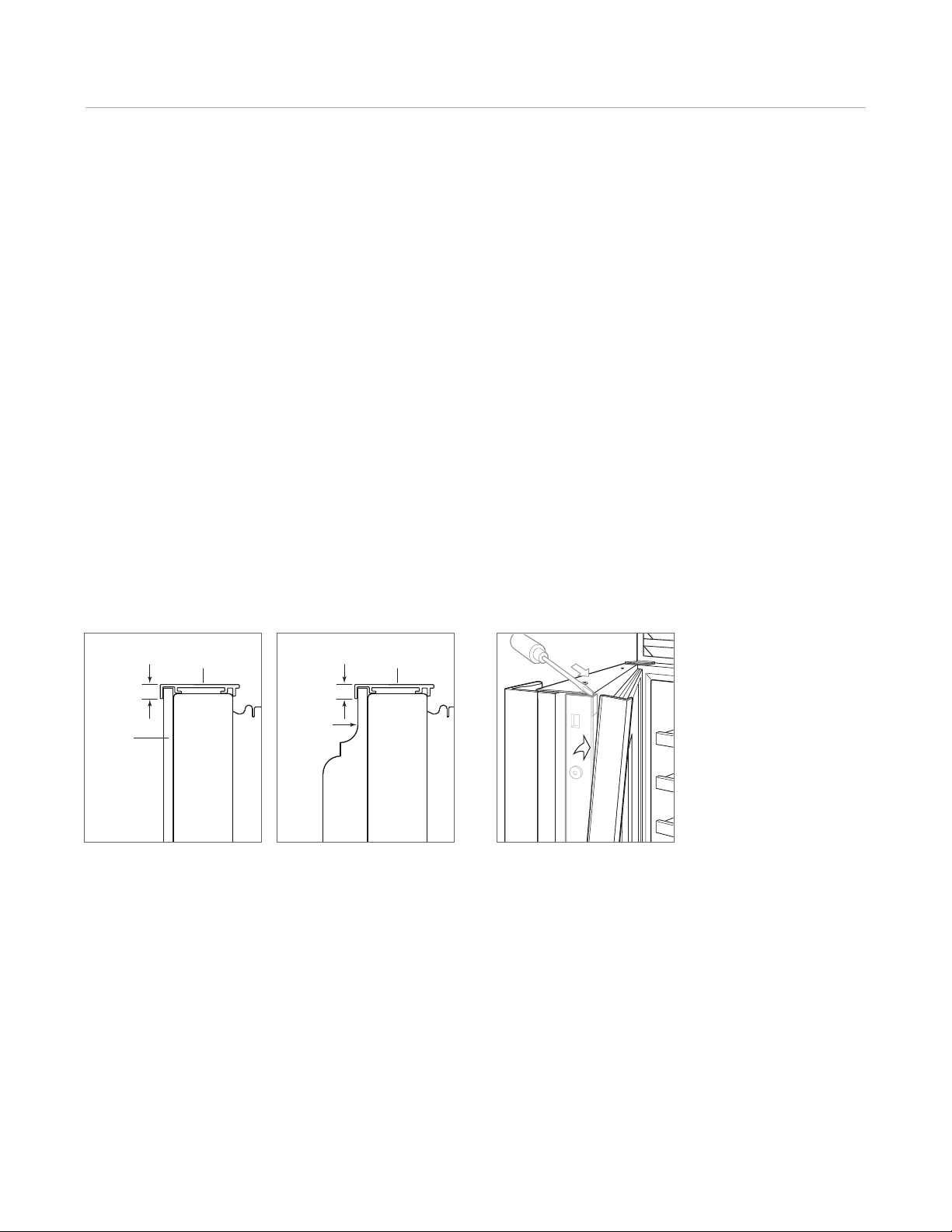

Panels1/4" (6) thick or less. Panels thicker than1/4" (6).
Door trim.
Page 45
Model WS-30 Installation 45
W
H
AA
A
A
subzero.com
Framed Panel
RAISED PANEL
With some door panel designs, you may have to rout,
recess or use optional extended handles to allow for finger
clearance. This is particularly true if your unit has raised
panels greater than
Check the location of offset when you’re using specific
routing for the grip area only. Refer to the Sub-Zero design
guide for a full-scale template of the standard full-length
handle and panel. Use this template to lay out your panel
design for finger clearance when a standard full-length
handle is used.
IMPORTANT NOTE: The weight of the framed panel must
not exceed 75 lbs
A solid panel cannot be installed over the glass door,
as this may cause moisture to form behind the panel.
1
/4" (6) total thickness.
(34 kg).

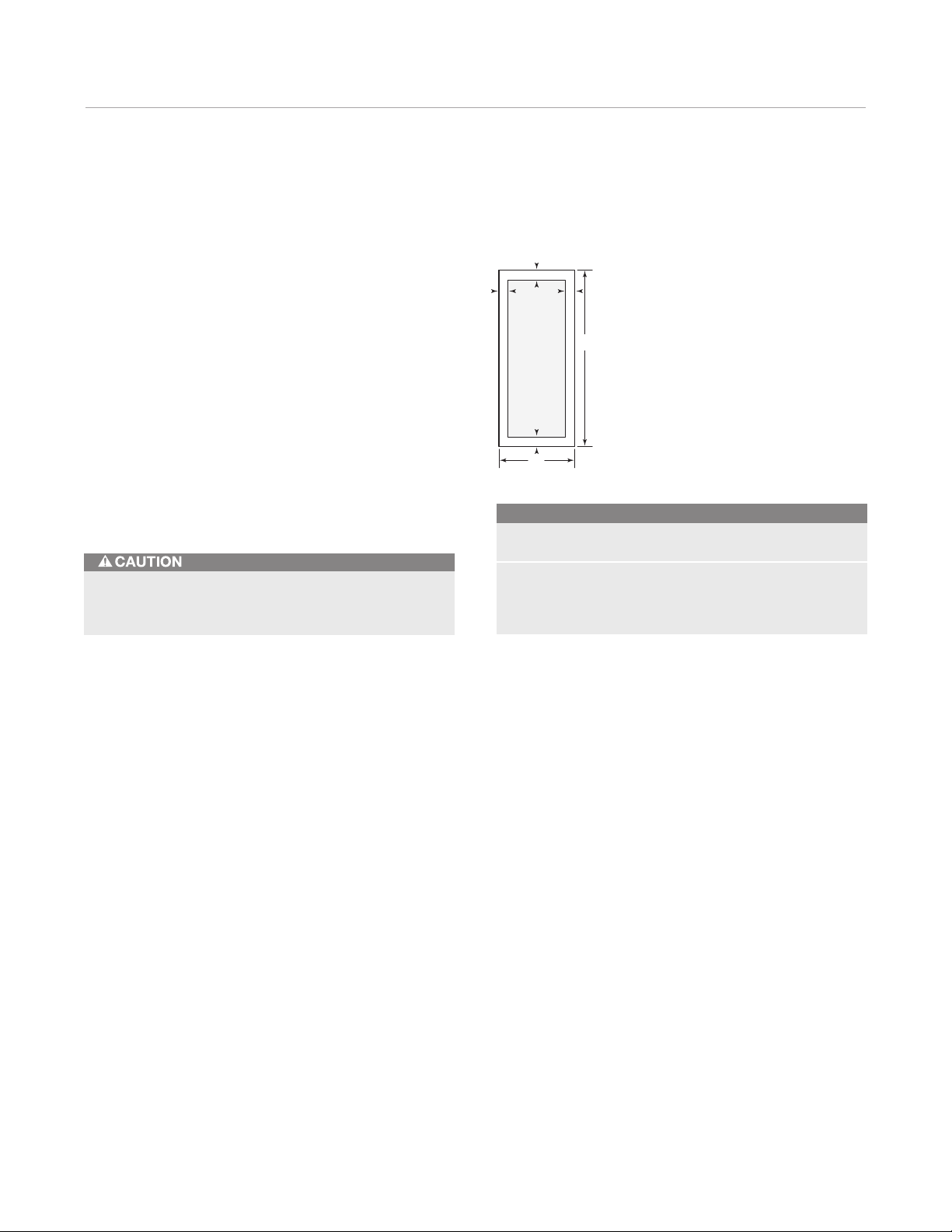

Framed Panel Specifications
Model WS-30
DOOR WH
Door Panel 293/4" (756) 699/16" (1767)
WIND OW WH
Cut-Out 231/2" (597) 635/16" (1608)
A
Location 31/8" (79)
Page 46
Model WS-30 Installation 46
1
/8"
(3)
OVERLAY PANEL
SPACER PANEL
BACKER PANEL
TRIM
5
/16" (8) min
1
/4" (6)
.10" (3)
OVERLAY
PANEL
SPACER
PANEL
BACKER
PANEL
3
/4"
(19)
typical
Overlay Panels
he illustrations below provide a cross section view of the
f your customer has chosen an overlay design applica-
I
tion, make sure that the panels you are about to install
match dimensions listed in the overlay panel specifications on the following page. Additional panel design information can be found in the Sub-Zero design guide and on
our website, subzero.com.
IMPORTANT NOTE: The size of the overlay panel is
critical. It must fit over the door frame. The weight of the
overlay panel must not exceed 75 lbs
must be a minimum of
5
/8" (16) thick.
(34 kg) and the panel
Overlay models are shipped without handle hardware. The
cabinet manufacturer or designer will need to provide
handle hardware to match the overall decorating scheme.
T
three panel assembly showing placement of the trim and a
rear view of the three panel assembly with critical dimensions, standard for all models.
Install the handle hardware before inserting the panel. We
recommend a larger D-style pull. The use of a small, onepiece knob is not recommended. If you use screws with
thick heads, you will need to countersink the screws into
the backer panel before sliding the assembly into place.
Slide the panel into the frame on the door. With the panel
in position, replace the frame end. Be sure the panel is
inserted completely into the channel for proper fit and
alignment.
To install overlay panels, first remove the door trim
molding. Insert a screwdriver tip into the top corner slot on
the handle side and pop out the trim molding. Refer to the
illustration on page 44. Remove the screws and frame.
Sub-Zero allows a
1
/4" (6) space to slide the backing
material into place in the frame. If your material is thicker
1
than a
/4" (6), either rout an edge around the panel to get
a proper fit or mount the decorative overlay panel on a
sheet of
1
/4" (6) thick material and insert the backing
material into the channel.
You must allow for .10"
(3) space between the backer
board and the decorative panel, so the panel will slide
easily into the door frame.
To reinstall the trim molding, insert the top of the trim
molding into the grooves at the top of the door and work
downward, snapping the trim molding into the clips on the
frame.
Panel assembly cross
section.
Panel assembly rear view.
Page 47
Model WS-30 Installation 47
H
W
H
AA
A
A
subzero.com
Overlay Panels
GRILLE PANEL ASSEMBLY
Remove the grille panel assembly as described on page
39. Remove the top two corner screws and pull away the
top frame. Slide the panel into position in the grille frame.
If you are using a grille panel
need to install a filler.
Reattach the top frame by reinstalling the two top corner
screws. Install the grille panel assembly onto the unit,
by reversing the grille removal procedure outlined on
page 39.
Refer to specifications for overlay grille panels and the
illustrations on the previous page for the exact sizing of all
three panels.
Do not exceed the panel dimensions listed for the
appropriate overlay grille panel you are specifying. The
overlay decorative panel cannot be any larger or it may
restrict the air flow to the compressor area and cause
problems with the operation of the Sub-Zero unit.
A solid panel cannot be installed over the glass door,
as this may cause moisture to form behind the panel.
1
/4" (6) or thinner, you will

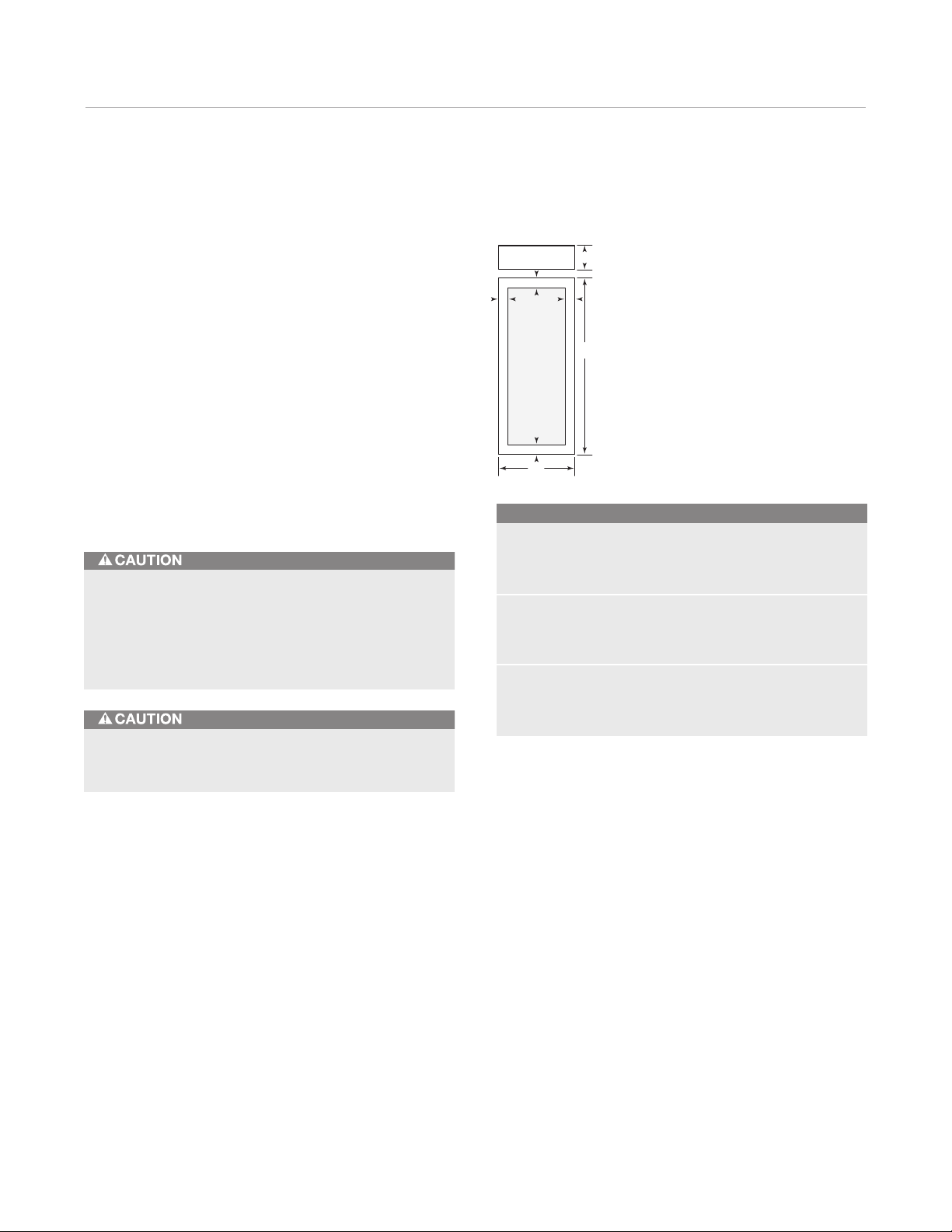

Overlay Panel Specifications
Model WS-30
DOOR WH
Overlay Panel 30" (762) 693/4" (1772)
Spacer Panel 291/8" (740) 68
Backer Panel 293/4" (756) 699/16" (1767)
GRIL LE WH
Overlay Panel 30" (762) 91/4" (235)
Spacer Panel 291/8" (740) 85/16" (211)
Backer Panel 293/4" (756) 815/16" (227)
WIND OW WH
Cut-Out 231/2" (597) 631/4" (1607)
Location 31/4" (83)
Grille panel dimensions listed are for a standard 84" (2134)
overall height of the unit. For an 83" (2108) overall height,
subtract 1"
(2235) overall height, add 4" (102) to height dimensions. Width
(25) from grille panel height dimensions. For an 88"
dimensions do not vary.
5
1
/16" (1751)
A
Page 48
Model WS-30 Installation 48
1
/4" (6)
.10" (3)
FLUSH INSET
PANEL
SPACER
PANEL
BACKER
PANEL
3
/4"
(19)
typical
Flush Inset Panels
f your customer has chosen the flush inset panel applica-
I
tion, make sure that the panels you are about to install
match dimensions listed in the flush inset panel specifications on the following page. Additional panel design
information can be found in the Sub-Zero design guide
and on our website, subzero.com.
IMPORTANT NOTE: The size of the flush inset panel is
critical. It must fit over the door frame. The weight of the
overlay panel must not exceed 75 lbs
must be a minimum of
5
/8" (16) thick.
(34 kg) and the panel
Overlay models are shipped without handle hardware.
The cabinet manufacturer or designer will provide handle
hardware at the job site to match the overall decorating
scheme.
To install flush inset panels, first remove the door trim
molding. Insert a screwdriver tip into the top corner slot on
the handle side and pop out the trim molding. Refer to the
illustration on page 44. Remove the screws and frame.
Sub-Zero allows a
1
/4" (6) space to slide the backing
material into place in the frame. If your material is thicker
1
than a
/4" (6), either rout an edge around the panel to get
a proper fit or mount the decorative flush inset panel on a
sheet of
1
/4" (6) thick material and insert the backing
material into the channel.
ou must allow for .10"
Y
pace between the backer
(3) s
board and the decorative panel, so the panel will slide
easily into the door frame.
The illustration below provides a rear view of the threepanel assembly with critical dimensions.
IMPORTANT NOTE: With the panels installed,
1
/2" (13)
minimum reveals must be kept on all sides to ensure
proper door opening and sufficient cooling of the unit.
Install the handle hardware before inserting the panel.
We recommend larger D-style pulls. The use of small, onepiece knobs is not recommended. If you use screws with
thick heads, you will need to countersink the screws into
the backer panel before sliding the assembly into place.
Slide the panel into the frame on the door. With the panel
in position, replace the frame end. Be sure the panel is
inserted completely into the channel for proper fit and
alignment.
To reinstall the trim molding on side-by-side models and
the upper door for over-and-under models, insert the top
of the trim molding into the grooves at the top of the door
and work downward, snapping the trim molding into the
clips on the frame.

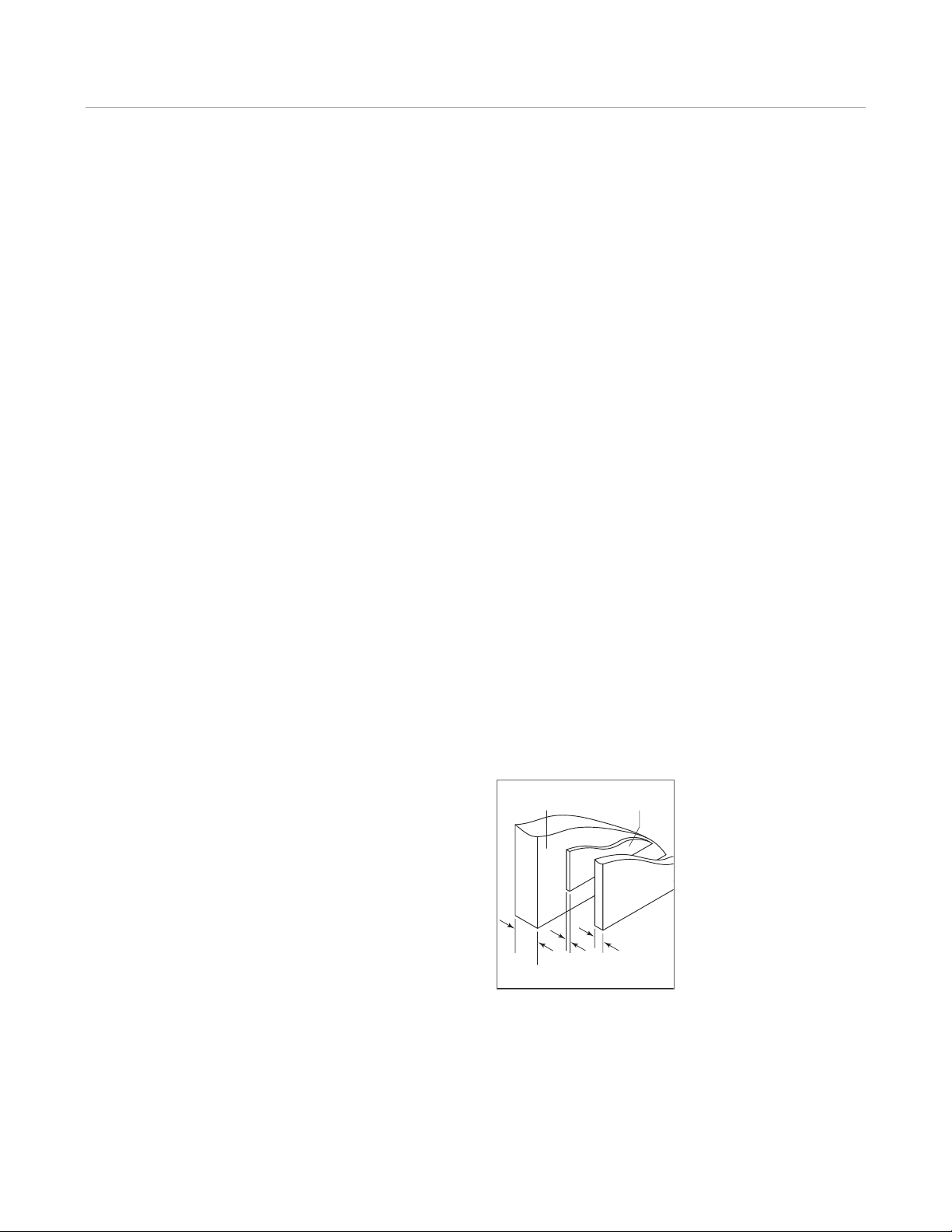

Three-panel assembly.
Page 49
Model WS-30 Installation 49
H
W
H
AA
A
A
subzero.com
Flush Inset Panels
emove the grille panel assembly as described on page
R
39. Remove the top two corner screws and pull away the
top frame. Slide the panel into position in the grille frame.
If you are using a grille panel
need to install a filler.
Reattach the top frame by reinstalling the two top corner
screws. Install the grille panel assembly onto the unit,
by reversing the grille removal procedure outlined on
page 39.
Refer to specifications for flush inset grille panels and the
illustrations on the previous page for the exact sizing of all
three panels.
Do not exceed the panel dimensions listed for the
appropriate flush inset grille panel you are specifying.
The flush inset decorative panel cannot be any larger
or it may restrict the air flow to the compressor area
and cause problems with the operation of the Sub-Zero
unit.
1
/4" (6) or thinner, you will

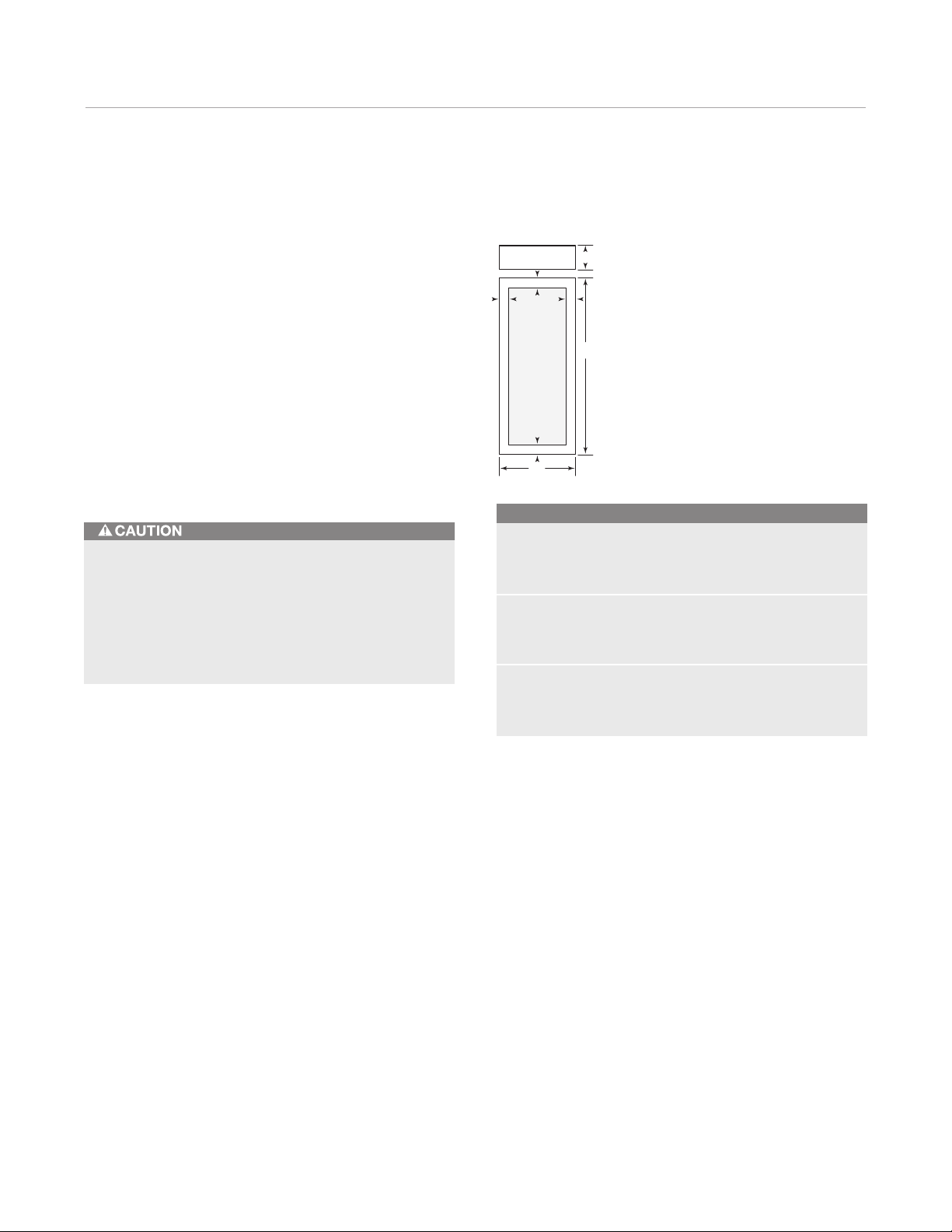

Flush Inset Panel Specifications
Model WS-30
DOOR WH
Flush Inset Panel 31" (787) 693/4" (1772)
Spacer Panel 291/8" (740) 68
Backer Panel 293/4" (756) 699/16" (1767)
GRIL LE WH
Flush Inset Panel 31" (787) 91/4" (235)
Spacer Panel 291/8" (740) 85/16" (211)
Backer Panel 293/4" (756) 815/16" (227)
WIND OW WH
Cut-Out 231/2" (597) 621/4" (1581)
Location 33/4" (95)
5
1
/16" (1751)
A
Grille panel dimensions listed are for a standard 84" (2134)
overall height of the unit. For an 83" (2108) overall height,
subtract 1"
(2235) overall height, add 4" (102) to height dimensions. Width
(25) from grille panel height dimensions. For an 88"
dimensions do not vary.
Page 50
Model WS-30 Installation 50
5
/8"
(16)
5
/16" (8)
1
/2"
(13)
FLUSH INSET PANEL
SPACER
BACKER
DOOR / DRAWER / GRILLE
TOP VIEW
CABINETRY
1
/2"(13)
5
/16"
(8)
1
/8"
(3)
CABINETRY
GRILLE
SIDE VIEW
1
/2"(13)
3
/32"
(2)
5
/16"
(8)
5
/16"
(8)
5
/32"
(4)
GRILLE
DOOR
SIDE VIEW
5
/16"
(8)
3
/32"
(2)
DOOR /
DRAWER
SIDE VIEW
WITHOUT FILLER STRIP
FILLER STRIP REQUIRED
FILLER STRIP REQUIRED

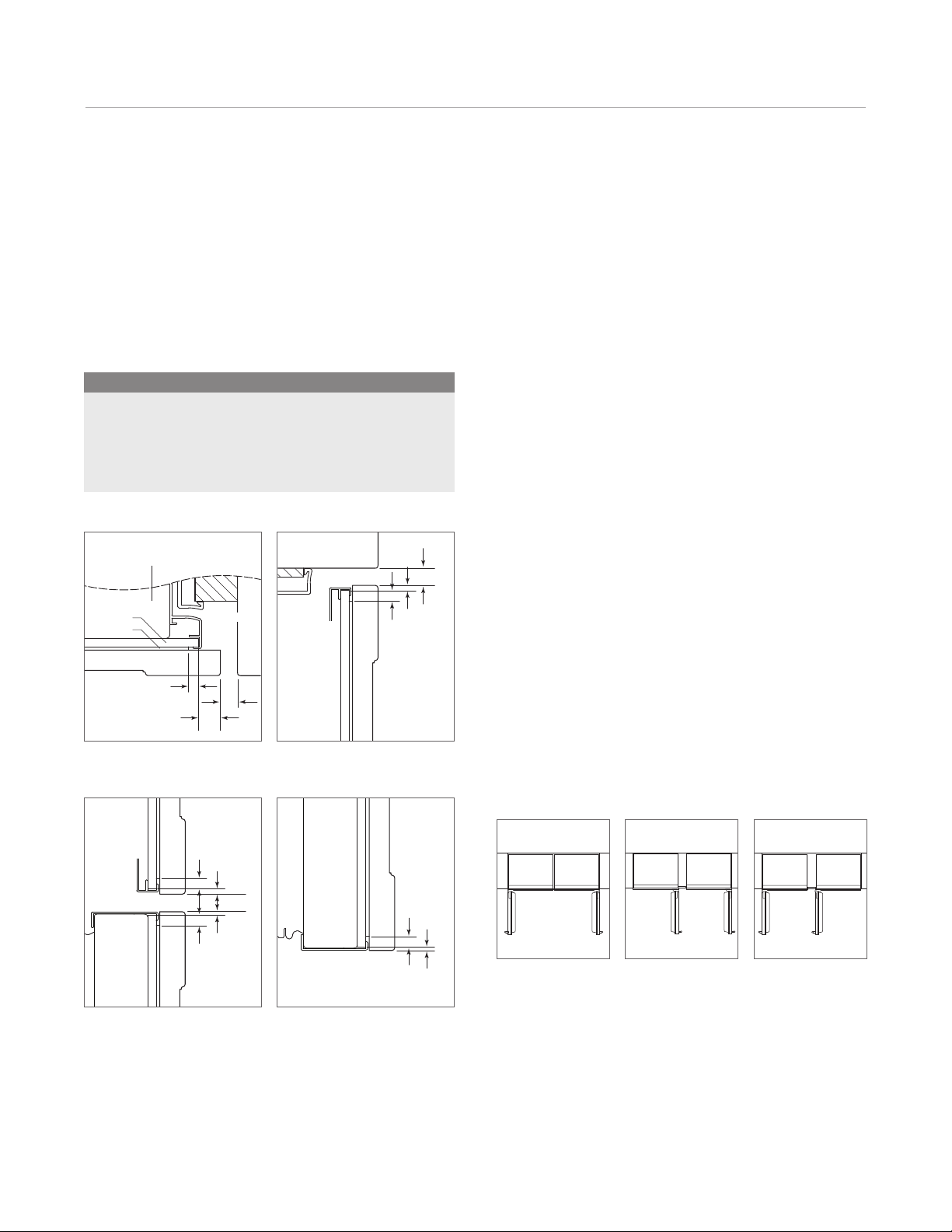

Flush Inset Panel
llustrations A–D provide panel offsets and reveals for
I
model WS-30 in a flush inset application. Refer to the
chart below for reference to the illustrations.
For additional information on panel reveals, visit the specification library section of our website, subzerotrade.com.
Panel Offsets Illus.
MODE L WS-30
Door / Grille Sides A
Grille Top B
Grille Bottom / Door Top C
Door Bottom D
Dual Installations
hen two models WS-30 or a model WS-30 and built-in
W
unit are installed side by side, a dual installation kit may
be required. Contact your authorized Sub-Zero dealer for
the proper components and installation instructions. For
questions relative to the installation, call Sub-Zero at
800-222-7820. For local dealer information, visit the find a
showroom section of our website, subzero.com.
DUAL STANDARD INSTALLATIONS
Two framed, overlay or stainless steel units may be placed
side by side in a dual installation. Some dual standard
installations will require a dual installation kit, available
through your authorized Sub-Zero dealer.
A custom filler strip can be used in between two units in a
framed, overlay or stainless steel design application. It is
recommended that the filler strip be at least 2"
to prevent condensation between the units. Be sure to add
the filler strip width to your rough opening width.
Dual installations without a filler strip can only be accomplished using two units with opposite hinges as shown in
illustration A below. The dual installations shown in illustrations B and C require a filler strip.
(51) wide,
Illus. A Illus. B
Illus. C Illus. D
IMPORTANT NOTE: For the application shown in illustra-
tion A, a dual installation accessory kit is required.
Illus. A
Illus. B Illus. C
Page 51
Model WS-30 Installation 51
H
W
H
AA
A
A
subzero.com
Dual Installations
DUAL FLUSH INSET INSTALLATIONS
Installing two models WS-30 or a model WS-30 and
built-in unit side by side in a flush inset application will
require adjustments to the dimensions of your finished
rough opening, panel sizes and panel offsets. It will also
require a dual installation kit, available through your
authorized Sub-Zero dealer.
Dual installations without a filler strip can only be accomplished using two units with opposite hinges as shown in
illustration A below. The dual installations shown in illustrations B and C require a filler strip. Illustration A is the
only application that will accommodate the dual wide
grille.
IMPORTANT NOTE: The application shown in illustration A
can only be achieved by installing dual flush inset panels.
Failure to install dual flush inset panels will cause the
handle side of the panels to collide when closing. In this
application a dual installation accessory kit is also
required.
Dual flush inset panels and dual installation kits are available through your authorized Sub-Zero dealer. Refer to the
illustration and chart for dual flush inset panel specifications.

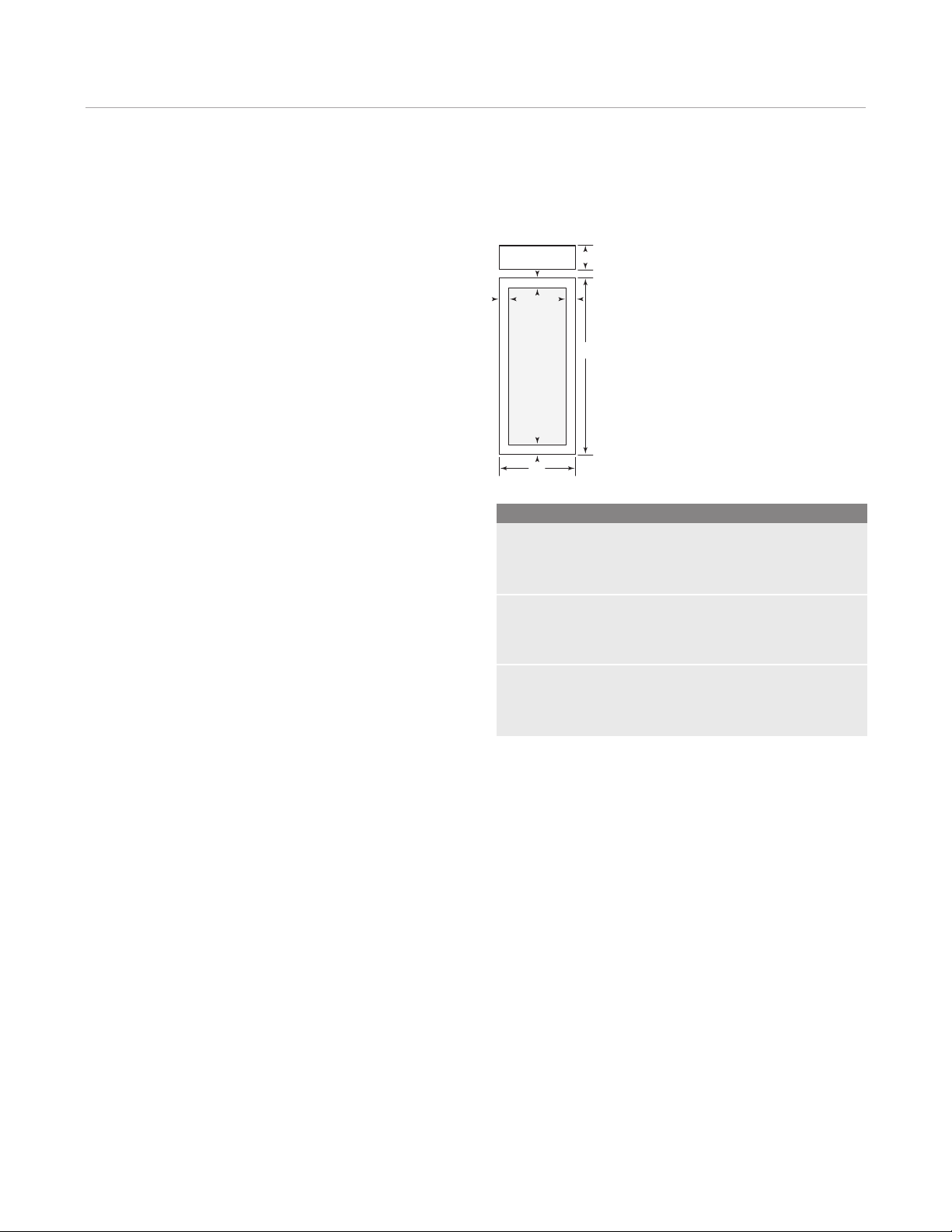

Flush Inset Panels—Dual Installation
Model WS-30
DOOR WH
Flush Inset Panel 301/2" (775) 693/4" (1772)
Spacer Panel 291/8" (740) 68
Backer Panel 293/4" (756) 699/16" (1767)
GRIL LE WH
Flush Inset Panel 301/2" (775) 91/4" (235)
Spacer Panel 291/8" (740) 85/16" (211)
Backer Panel 293/4" (756) 815/16" (227)
WIND OW WH
Cut-Out 23" (584) 621/4" (1581)
Location 33/4" (95)
5
1
/16" (1751)
A
Grille panel dimensions listed are for a standard 84" (2134)
overall height of the unit. For an 83" (2108) overall height,
subtract 1"
(2235) overall height, add 4" (102) to height dimensions. Width
(25) from grille panel height dimensions. For an 88"
dimensions do not vary.
Page 52
Model WS-30 Installation 52
5
/8"
(16)
5
/16" (8)
1
/2"
(13)
FLUSH INSET PANEL
SPACER
BACKER
D
OOR / DRAWER / GRILLE
TOP VIEW
CABINETRY
DUAL
TRIM
1
/4" (6)
REVEAL
5
/16" (8)
1
/8" (
3)
DOOR DOOR
TOP VIEW
1
/2"(
13)
5
/16"
(8)
1
/8"
(
3)
C
ABINETRY
GRILLE
SIDE VIEW S
1
/2"(13)
3
/32"
(2)
5
/16"
(8)
5
/16"
(8)
5
/32"
(4)
GRILLE
D
OOR
SIDE VIEW
5
/16"
(8)
3
/32"
(2)
DOOR /
DRAWER
SIDE VIEW

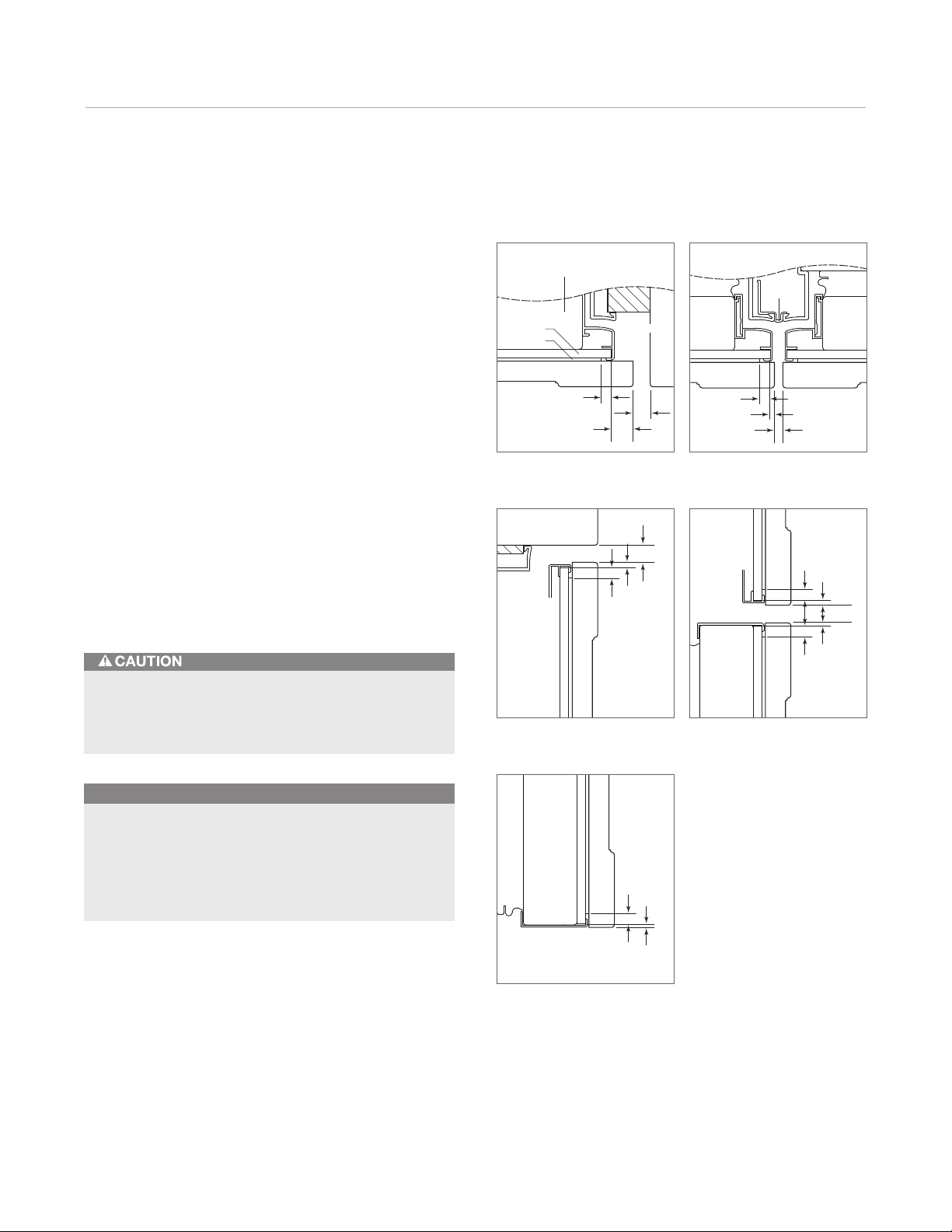

Flush Inset Panels—Dual Installation
hen installing two models WS-30 or a model WS-30 and
W
built-in unit side by side in a flush inset application, you
must decrease the width of the decorative flush inset
panels by
also need to be made. These adjustments are needed to
achieve a proper fit and to ensure the panels do not
collide when closing. Panel dimensions in the chart below
have been adjusted to reflect the decrease in panel
dimensions.
IMPORTANT NOTE: If a filler strip is not used, dual instal-
lations can only be accomplished using two units with
opposite hinges.
Illustrations A–E provide panel offsets and reveals for
model WS-30 in a flush inset application. Refer to the
chart below for reference to the illustrations. All reveals are
1
/2" (13) unless otherwise specified.
1
/2" (13). Adjustments to the panel offsets will
Illus. A Illus. B
For additional information on panel reveals, visit the specification library section of our website, subzerotrade.com.
Do not exceed the flush inset decorative panel dimensions. Exceeding dimensions could cause damage to
the panels and the Sub-Zero unit.
Panel Offsets Illus.
WS-3 0
Doors (hinge) / Grille Sides A
Doors (handle) Sides B
Grille Top C
Grille Bottom / Door Top D
Door Bottom E
Illus. C Illus. D
Illus. E
Page 53
Model WS-30 Installation 53
MAIN
FRAME
SIDE PANEL
ROUTING
1" (25)
17/8" (48)
1
/8" (3)
1
/2" (13)
84"
(2134)
24" (
610)
OPTIONAL
TOE KICK
CUT-OUT
4" (102)
17/8"(48)
1" (25)
ROUT TO
1
/8" (3)
FRONT
O
F SIDE
PANEL
25/8"
(67)
subzero.com
Side Panels
IMPORTANT NOTE: S
ide panels will need to be installed
before the unit is placed in its final position.
When installing a model WS-30 with a custom side panel,
an accessory kit is required. Stainless steel and white
enamel side panels are available through your authorized
Sub-Zero dealer. Refer to instructions included with the
side panel kit when installing these side panels. For local
dealer information, visit the find a showroom section of
our website, subzero.com.
IMPORTANT NOTE: The use of side panels may change
the width of your rough opening.
CUSTOM SIDE PANEL INSTALLATION
The custom side panel will need to be a minimum of 24"
(610) deep and
1
/2" (13) thick. Refer to the custom side
panel dimensions illustration for additional specifications.
Routing will be necessary for the side panel to fit flush
against the side of the unit. Refer also to the routing detail
illustration.
IMPORTANT NOTE: The overall height on the side panel
will vary with the height of the grille being used. Make sure
you know your finished height before cutting any panels.

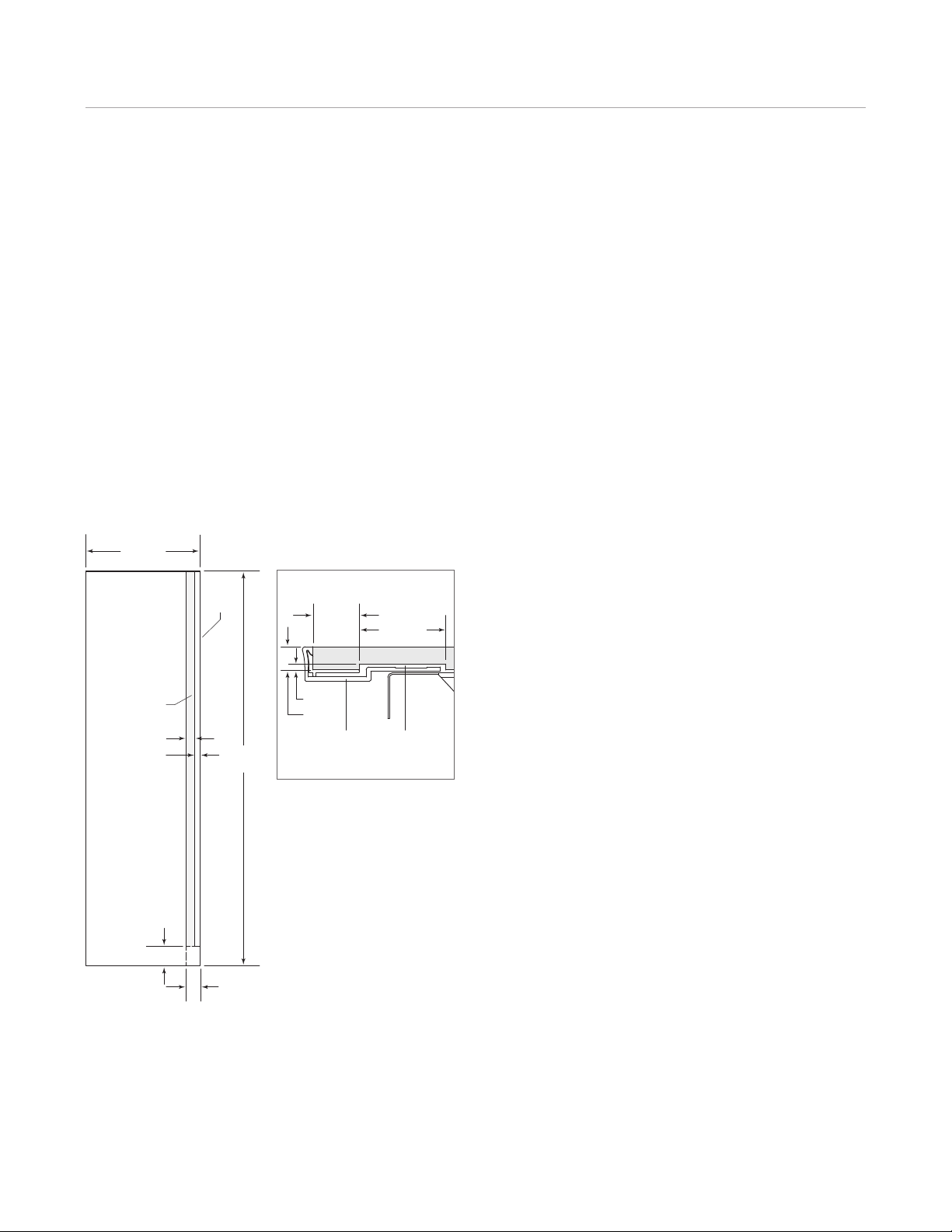

Custom side panel dimensions.
Routing detail.
Page 54
Installation Checklist 54
Installation Checklist
o ensure a safe and proper installation, the following
T
checklist should be completed by the installer to ensure
that no part of the installation has been overlooked.
Have all packing materials been removed?
Turn the unit on. Is it operating properly?
If not, is the unit plugged in? Is the control turned on?
Has the anti-tip bracket been installed securely and
properly engaging the unit?
Is the unit leveled properly with all leveling legs making
contact with the floor? Has the kickplate been
installed?
Has the drain pan been installed properly (model
WS-30)?
Are panels attached securely and properly aligned?
Has the door been aligned for proper appearance and
operation?
Has the unit been properly anchored to the opening?
Does the 90° door stop need to be installed?
Does the customer understand the unit's operation?
Does the customer have the warranty package?
Have any installation or service problems been noted
on the product registration card? Has the registration
card been mailed in?
Have stainless steel panels been inspected for any
imperfections? This is to be done by the authorized
Sub-Zero dealer or installer with the customer, upon
completion of installation. Stainless steel panels are
covered by a limited 60-day warranty for cosmetic
defects.
Page 55
Service Information 55
subzero.com

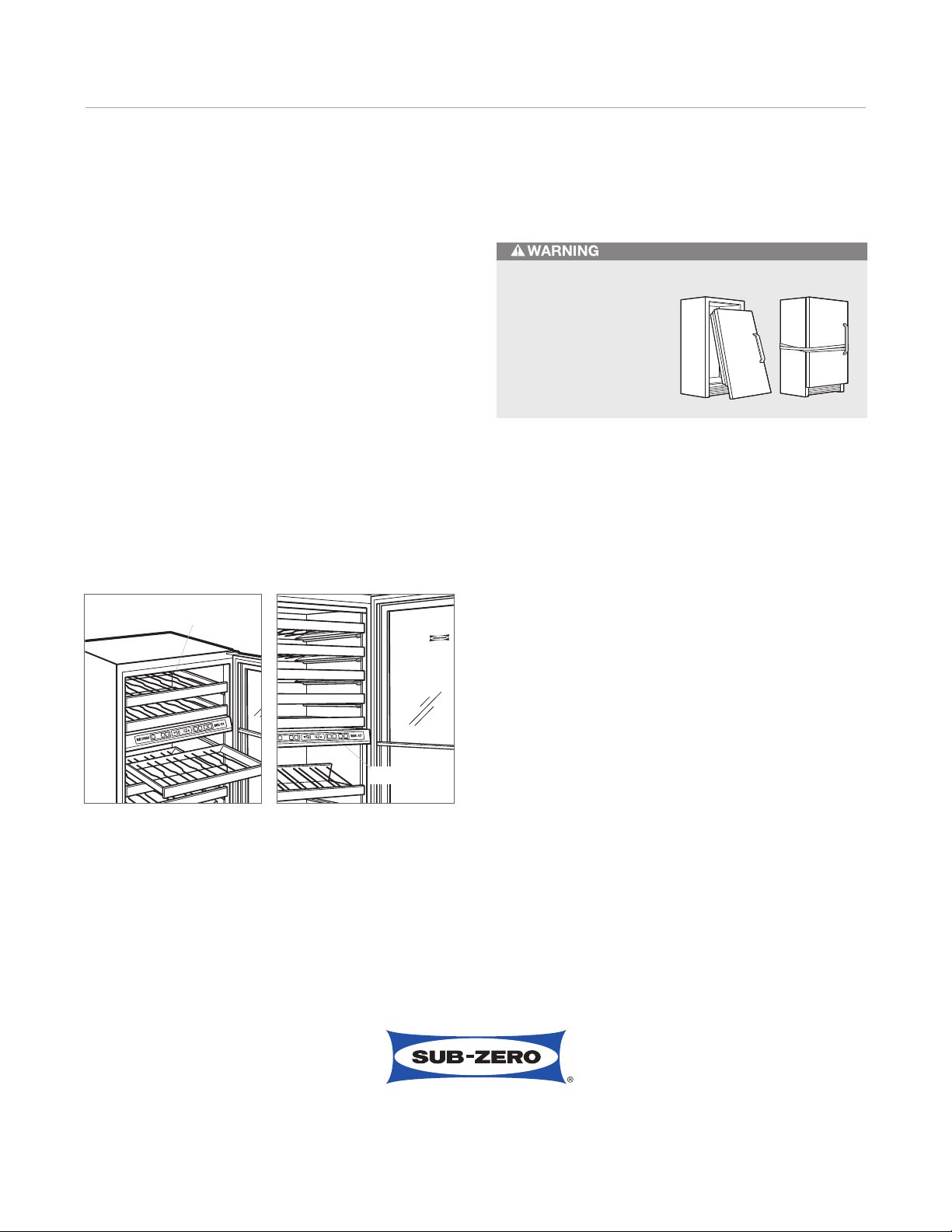

Service Information
f service is necessary, maintain the quality built into your
I
wine storage unit by calling Sub-Zero factory certified
service.
For the name and number of Sub-Zero factory certified
service nearest you, check the contact & support section
of our website, subzero.com or call Sub-Zero customer
care at 800-222-7820.
When calling for service, you will need the model and
serial numbers of your unit. Both numbers are listed on the
product rating plate. For models 424G and 424FSG, the
rating plate is located on the underside of the top wall.
For models 427G, 427RG and WS-30, it is attached to the
underside of the control panel. Refer to the illustrations
below.
If you are storing or disposing of your old refrigerator or
freezer, please do it
safely. Remove the
doors or tightly secure
the doors closed.
Child entrapment
accidents can be tragic.
RATING PLATE
Models 424G and 424FSG.
RATING PLATE
Models 427G, 427RG and
WS-30.
The information and images in this guide are the copyright property of Sub-Zero, Inc. Neither this guide nor any information or images contained herein may be
copied or used in whole or in part without the express written permission of Sub-Zero, Inc. ©Sub-Zero, Inc. all rights reserved.
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
Sub-Zero, Sub-Zero & Design, Dual Refrigeration, Constant Care and The Living Kitchen are registered trademarks and service marks of Sub-Zero, Inc.
(collectively,the“Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United Statesand other countries.
Page 56
SU B-ZER O, IN C. P. O. BOX 44848 MADIS ON, WI 53 744 SU BZERO .COM 800. 222.7 820
702 2655 REV-A 3/ 2011
Loading...
