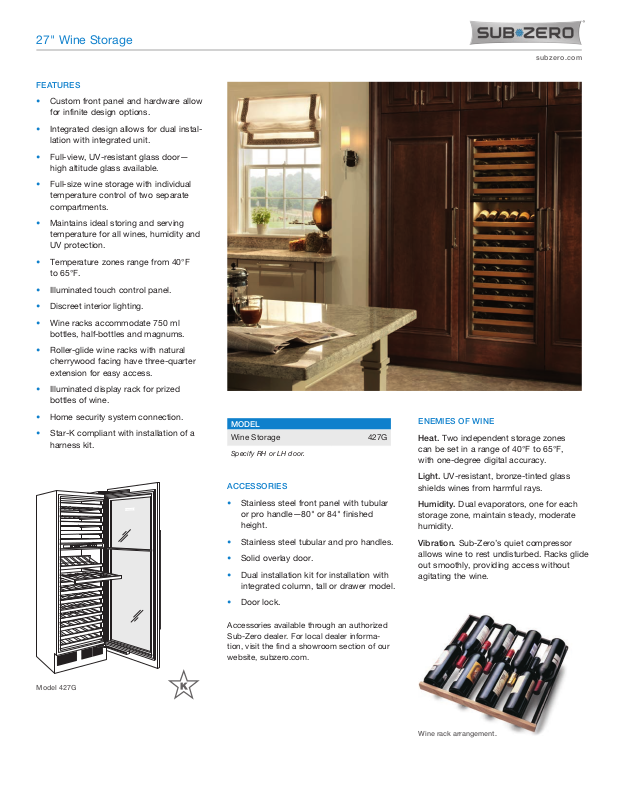

Sub-Zero 427GRH, 427GLH Quick Reference Guide

27" Wine Storage

FEATURES

• Custom front panel and hardware allow

for infinite design options.

• Integrated design allows for dual instal-

lation with integrated unit.

• Full-view, UV-resistant glass door—

high altitude glass available.

• Full-size wine storage with individual

temperature control of two separate compartments.

• Maintains ideal storing and serving

temperature for all wines, humidity and UV protection.

• Temperature zones range from 40°F

to 65°F.

• Illuminated touch control panel.

• Discreet interior lighting.

• Wine racks accommodate 750 ml

bottles, half-bottles and magnums.

• Roller-glide wine racks with natural

cherrywood facing have three-quarter extension for easy access.

• Illuminated display rack for prized

bottles of wine.

• Home security system connection.

• Star-K compliant with installation of a

harness kit.

MODEL

Wine Storage 427G

Specify RH or LH door.

ACCESSORIES

• Stainless steel front panel with tubular

or pro handle—80" or 84" finished height.

• Stainless steel tubular and pro handles.

• Solid overlay door.

• Dual installation kit for installation with

integrated column, tall or drawer model.

• Door lock.

subzero.com

ENEMIES OF WINE

Heat. Two independent storage zones

can be set in a range of 40°F to 65°F, with one-degree digital accuracy.

Light. UV-resistant, bronze-tinted glass shields wines from harmful rays.

Humidity. Dual evaporators, one for each storage zone, maintain steady, moderate humidity.

Vibration. Sub-Zero’s quiet compressor allows wine to rest undisturbed. Racks glide out smoothly, providing access without agitating the wine.

Model 427G

Accessories avail able through an authorized Sub-Zero dealer. For local dealer information, visit the find a showroom section of our website, subzero.com.

Wine rack arrangement.

27" Wine Storage

27" (686)

14" (356)

/16"

(21)

80"

(2032)

OPENING

HEIGHT

24" (610)

789/16"

(1995)

815/16"

(227)

(102)

HEIGHT DIMENSIONS ±

/2"

(13)

24"

(610)

DIMENSIONS WILL VARY WITH PANEL THICKNESS

251/2"

(648)

45/8"

(117)

SIDE

subzero.com

SPECIFICATIONS

PRODUCT

Dimensions 27"W x 80"H x 24"D Door Clearance 251/2" Weight 395 lb

CAPACITY

Wine Storage 132 bottles (750 ml)

ELECTRICAL

Supply 115 VAC, 60 Hz Service 15 amp circuit

Product dimensions do not include panel or handle and will vary with panel thickness. Allow for panel thickness when planning the finished opening depth.

Specifications are subject to change without notice. Visit subzero.com/specs for the most up-to-date information.

Dimensions may vary ±

/8" (3). Dimensions in parentheses are millimeters unless otherwise specified.

DIMENSIONS

ELECTRICAL

LEFT SIDE

OF OPENING

21/2"

(64)

13" (330)

FLOOR

/4"

(6)

41/2"

(

114

)

INSTALLATION

80" (2032)

OPENING

HEIGHT

25" (635)

OPENING

TOP VIEW

27" (686)

OPENING WIDTH

DEPTH

VIEW

FRONT VIEW
