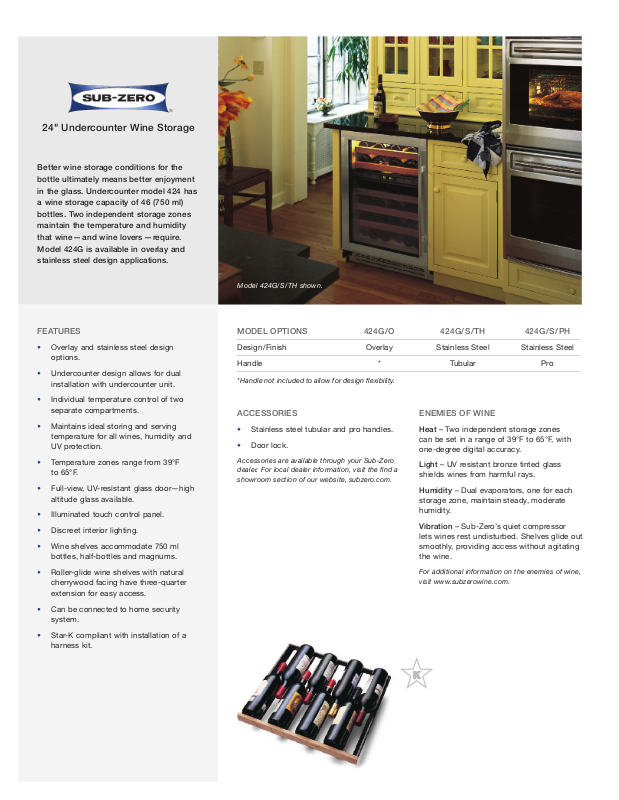

4" Undercounter Wine Storage
2
Better wine storage conditions for the
bottle ultimately means better enjoyment
in the glass. Undercounter model 424 has
a wine storage capacity of 46 (750 ml)
bottles. Two independent storage zones
maintain the temperature and humidity
that wine — and wine lovers — require.
Model 424G is available in overlay and
stainless steel design applications.
Model 424G/S/ TH shown.
FEATURES
• Overlay and stainless steel design
options.
• Undercounter design allows for dual
installation with undercounter unit.
• Individual temperature control of two
separate compartments.
• Maintains ideal storing and serving
temperature for all wines, humidity and
UV protection.
• Temperature zones range from 39°F
to 65°F.
• Full-view, UV-resistant glass door—high
altitude glass available.
• Illuminated touch control panel.
• Discreet interior lighting.
• Wine shelves accommodate 750 ml
bottles, half-bottles and magnums.
• Roller-glide wine shelves with natural
cherrywood facing have three-quarter
extension for easy access.
• Can be connected to home security
system.
• Star-K compliant with installation of a
harness kit.
MODEL OPTIONS 424G/O 424G/S /TH 424G/S /PH
Design /Finish Overlay Stainless Steel Stainless Steel
Handle * Tubular Pro
*Handle not included to allow for design flexibility.
ACCESSORIES
• Stainless steel tubular and pro handles.
• Door lock.
Accessories are available through your Sub-Zero
dealer. For local dealer information, visit the find a
showroom section of our website, subzero.com.
ENEMIES OF WINE
Heat – Two independent storage zones
can be set in a range of 39°F to 65°F, with
one-degree digital accuracy.
Light – UV resistant bronze tinted glass
shields wines from harmful rays.
Humidity – Dual evaporators, one for each
storage zone, maintain steady, moderate
humidity.
Vibration – Sub-Zero’s quiet compressor
lets wines rest undisturbed. Shelves glide out
smoothly, providing access without agitating
the wine.
For additional information on the enemies of wine,
visit www.subzerowine.com.
Page 2
24" Undercounter Wine Storage
237/8" (606) 24" (610)
3
4"
(864)
4
"
(10 2)
2
5
3
/8"
(645)
13/4" (44)
FRONT VIEW
151/2"
(394)
3" (76)
2" (51)
24" (610)
OPENING WIDTH
24" (610)
OPENING DEPTH
341/2" (876)
OPENING
HEIGHT
FRONT VIEWSIDE VIEW
24" (610)
OPENING
D
EPTH
TOP VIEW
OVERALL DIMENSIONS
verall dimensions are based on stainless steel panels and handles.
O
nit dimensions may vary by ±
U
1
.
/8"
SPECIFICATIONS
Overall Width 237/8"
Overall Height 34"
Overall Depth 24"
Door Clearance 253/8"
Wine Storage Capacity 46 bottles*
Opening Width 24"
Opening Height 341/2"
Opening Depth 24"
Electrical Requirements 115 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight 195 lbs
*750 ml bottles.
INSTALLATION NOTES
For overlay models, you will be adding a door
panel for a custom look. Overlay models also
allow you to match surrounding cabinetry
hardware.
Complete installation specifications, including
panel sizes, can be found on our website,
subzero.com/specs.
INSTALLATION SPECIFICATIONS
Opening Dimensions
Location of Electrical Supply
Dimensions in parentheses are in
millimeters unless otherwise specified.
