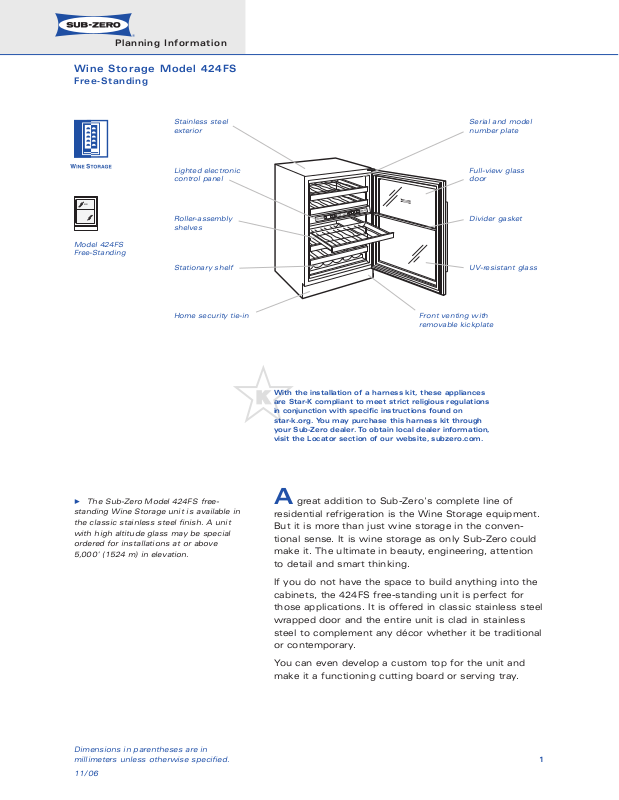

Sub-Zero 424FS-PS User Manual

Planning Information
Wine Storage Model 424FS
Free-Standing
odel 424FS
M
ree-Standing
F
tainless steel
S exterior
Lighted electronic
ontrol panel
c
oller-assembly
R shelves
Stationary shelf UV-resistant glass
Home security tie-in
With the installation of a harness kit, these appliances are Star-K compliant to meet strict religious regulations in conjunction with specific instructions found on star-k.org. You may purchase this harness kit through your Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzero.com.
F removable kickplate
erial and model
S number plate
Full-view glass
oor
d
ivider gasket
D
The Sub-Zero Model 424FS free­standing Wine Storage unit is available in the classic stainless steel finish. A unit with high altitude glass may be special ordered for installations at or above 5,000' (1524 m) in elevation.
Dimensions in parentheses are in millimeters unless otherwise specified.
11/06
A great addition to Sub-Zero's complete line of
residential refrigeration is the Wine Storage equipment. But it is more than just wine storage in the conven­tional sense. It is wine storage as only Sub-Zero could make it. The ultimate in beauty, engineering, attention to detail and smart thinking.
If you do not have the space to build anything into the ca
binets, the 424FS free-standing unit is perfect for those a wr steel to complement any décor whether it be traditional or contemporary.
You can even develop a custom top for the unit and make it a functioning cutting board or serving tray.
pplications. It is offered in classic stainless steel
pped door and the entire unit is clad in stainless
a
1
Planning Information
FRONT VIEW SIDE VIEW
(CABINET DIMENSION)
TOE KICK
24
1 4
(616)
4
(102)
(625)
5 8
24
M
*34
3
16
(868)
*
1
/2" (13)
+
_
ADJUSTMENT IN LEVELING LEGS
90˚
253/8"
(645)
TOP VIEW
Wine Storage Model 424FS
FEATURES
Free-standing Wine Storage unit does not require any panels or surrounding cabinetry
46 (750 ml) bottle capacity
Classic stainless steel exterior, door frame and tubular handle
Refrigeration system allows individual temperature control of the two wine compartments and ideal humidity
S
turdy, rustproof wire shelves accommodate standard 750 ml bottles, half-bottles, as well as magnums
Roller-glide shelves faced with natural cherry wood have a three-quarter extension for easy access
Full-view glass door with UV-resistant glass protection
High altitude glass door unit can be special o
rdered
Discreet low voltage interior lighting
Service light indicator, optional lock and tie-in to home security system
U
L approved for US and Canada
Two, five and twelve year residential warranty—exclusions apply; warranty information can be found on our website, subzero.com
OVERALL DIMENSIONS
Dimensions may vary by ±1/8" (3).
Dimensions in parentheses are in millimeters unless otherwise specified.
2
Planning Information
Wine Storage Model 424FS
SPECIFICATIONS
M
odel 424FS Free-Standing Wine Storage Unit
Overall Width 241/4" (616)
Overall Height 343/16" (868)
DOOR OPTIONS
Full-View Glass Door 424FSG
High Altitude Glass Door 424FSHAG
You must allow 90 days from order to delivery for high altitude glass door unit.
ACCESSORIES
UL approved door lock kit
Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzero.com.
Overall Depth 245/8" (625)
Wine Storage Capacity 46 Bottles (750 ml)
D
oor Swing Clearance 25
3
/8"
(645)
Electrical Requirements 115 V AC, 60 Hz, 15 amp circuit
Shipping Weight 220 lbs (100 kg)
Special Note High altitude glass door is available
for elev
Specifications are subject to change without notice
ations 5,000' (1524 m) or above
.
Dimensions in parentheses are in millimeters unless otherwise specified.
3
Planning Information
Wine Storage Model 424FS
A solid panel must not be installed on a glass door unit, as this may cause moisture to form b
ehind the panel.
MODEL 424FS – FREE-STANDING
The free-standing Model 424FS does not require any panels or surrounding cabinetry. It has a beautiful classic stainless steel exterior. For additional specifications and installation information specific to Model 424FS, refer to pages 2–3.
I
MPORTANT NOTE: The anti-tip bracket must be installed
to prevent the unit from tipping forward.
WOOD FACING – WINE SHELVES
Sub-Zero has provided a natural cherry wood facing to each of its wine shelves in each model. If, however, you would like to replace these strips with wood more comple­mentary to your design and surrounding cabinetry, you can.
The Wine Shelf Wood Facing Dimensions illustration on page 5, can be used as a full-scale template. You must follow the layout of this format to accommodate the shelves properly. To remove the cherry strips, take the shelves out and merely remove the screws. Reverse the procedure to affix the new wood.
If you choose to stain or seal the wood facing, be aware that some of these substances are hazardous and will damage stored wine.
Dimensions in parentheses are in millimeters unless otherwise specified.
4
Planning Information
191/2" (495)
WIDTH
Maximum Thickness
FRONT VIEW
SIDE VIEW
11/2" (
38)
5
/8"
(
16)
7
/64"
(3)
5
/64"
(
2)
2
3
/64"
(9)
9
/16" (
14)
27
/32"
(
21)
Wine Storage Model 424FS
WINE SHELF WOOD FACING
Dimensions in parentheses are in millimeters unless otherwise specified.
FULL-SCALE TEMPLATE
Use the full-scale illustration above as a template if you choose to replace the natural cherry wood facing with wood more complementary to your design and surround­ing cabinetry.
5
