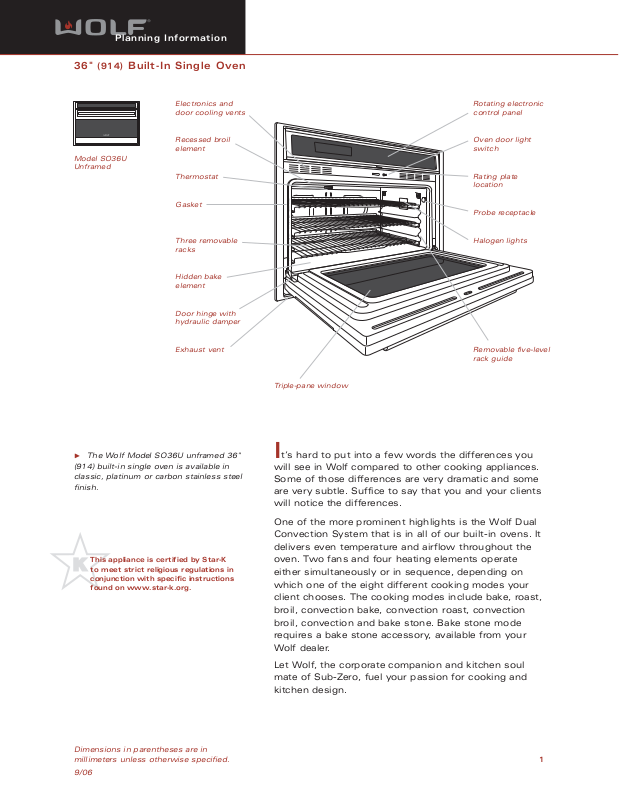

Page 1
Planning Information
36" (914) Built-In Single Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
1
Model SO36U
Unframed
Rotating electronic
control panel
Electronics and
door cooling vents
Recessed broil
element
Probe receptacle
Halogen lights
Removable five-level
rack guide
Three removable
racks
Hidden bake
element
Triple-pane window
Door hinge with
hydraulic damper
Exhaust vent
Rating plate
location
Oven door light
switch
Thermostat
Gasket
It’s hard to put into a few words the differences you
will see in Wolf compared to other cooking appliances.
Some of those differences are very dramatic and some
are very subtle. Suffice to say that you and your clients
will notice the differences.
One of the more prominent highlights is the Wolf Dual
Convection System that is in all of our built-in ovens. It
delivers even temperature and airflow throughout the
oven. Two fans and four heating elements operate
either simultaneously or in sequence, depending on
which one of the eight different cooking modes your
client chooses. The cooking modes include bake, roast,
broil, convection bake, convection roast, convection
broil, convection and bake stone. Bake stone mode
requires a bake stone accessory, available from your
Wolf dealer.
Let Wolf, the corporate companion and kitchen soul
mate of Sub-Zero, fuel your passion for cooking and
kitchen design.
The Wolf Model SO36U unframed 36"
(914) built-in single oven is available in
classic, platinum or carbon stainless steel
finish.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Page 2
Planning Information
36" (914) Built-In Single Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
FEATURES
Dual convection logic control system
Eight cooking modes— bake, roast, broil,
convection bake, convection roast, convec-
tion broil, convection and bake stone (with
bake stone accessory)
Rotating glass touch control panel
Cobalt blue porcelain oven interior
Three removable racks with full-extension
bottom rack and removable six-level rack
guide
Large viewing triple-pane window
Dual interior halogen lighting
Hidden bake element
Recessed broil element
Temperature probe and receptacle
Proof feature and dehydration feature
(accessory required)
Self-clean, delayed start and sabbath feature
Door hinge with hydraulic damper assures
smooth opening and closing of the door
Factory installed trim
Certified by Star-K to meet religious
regulations
CSA certified for US and Canada
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
OVERALL DIMENSIONS
243/8"
(619)
355/8"
(905)
3"
(76)
RIGHT SIDE VIEW
POWER CORD
CHANNEL
17/8"
(48)
24" (610)
BEHIND FRAME
23" (584)
INSIDE
SIDE TRIM
TOP VIEW
17/8"
(48)
341/8"
(867)
OPEN OVEN DOOR
3311/16"
(870)
24"
(610)
173/4"
(451)
11/4"
(32)
Page 3
Planning Information
36" (914) Built-In Single Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Oven Width 355/8" (905)
Overall Oven Height 243/8" (619)
Overall Oven Depth 24" (610)
Open Oven Door Clearance 173/4" (451)
Usable Oven Interior Capacity* 2.7 cu ft (96 L)
Oven Interior Dimensions 26
1
/2"W x 131/4"H x 163/8"D
(673 x 337 x 416)
Recommended Cabinet Width 39" (991)
Minimum Cabinet Width 36" (914)
Minimum Cabinet Depth 24" (610)
Minimum Base Support 250 lbs (113 kg)
Electrical Supply Requirements 240/ 208 V AC, 60 Hz
30 amp dedicated circuit
Conduit 3 ft (.9 m) flexible 4-wire
Electric Rating 5.1 kW at 240 V
3.8 kW at 208 V
Total Amps 21
Shipping Weight 288 lbs (131 kg)
*Oven capacity is calculated using new AHAM standards
(AHAM OV-1-2005).
Specifications are subject to change without notice.
MODEL OPTIONS
Unframed Door Style –
Classic Stainless Steel SO36U/S
Platinum Stainless Steel SO36U/P
Carbon Stainless Steel SO36U/B
ACCESSORIES
Bake stone accessory, includes
stone, rack and peel
Two-piece broiler pan and
temperature probe
Set of three 36" (914) oven racks
Dehydration racks with door stop
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
Model SO36U
Unframed
Page 4
Planning Information
36" (914) Built-In Single Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
33/4"min (95)
E
5"
(127)
39" (991)
RECOMMENDED CABINET WIDTH
36"min (914)
73/4" (197) rec
43/4" (121) min
241/16"
(611)
OPENING
HEIGHT
341/2" (876)
OPENING WIDTH
24"min (610)
OPENING DEPTH
4"
(102)
36" (914)
STANDARD
FLOOR TO
COUNTER
HEIGHT
ELECTRICAL LOCATION
WITHIN OPENING APPLIES
ONLY TO CABINETS
DEEPER THAN 24" (610)
E
WALL INSTALLATION
UNDERCOUNTER INSTALLATION
IMPORTANT NOTE: Unless you are using cabinets deeper than
24" (610), it is recommended that the electrical supply be placed
in an adjacent cabinet within reach of the conduit. Choose the
location shown in the illustrations that best suits your installation.
24"min (610)
OPENING DEPTH
241/16"
(611)
OPENING
HEIGHT
67"max
(1702)
RECOMMENDED CABINET WIDTH
ELECTRICAL LOCATION
WITHIN OPENING APPLIES
ONLY TO CABINETS
DEEPER THAN 24" (610)
39" (991)
36"min (914)
341/2" (876)
OPENING WIDTH
5"
(127)
E
4"
(102)
E
E
E
Page 5
Planning Information
36" (914) Built-In Single Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, finished rough opening
dimensions and installation specifics.
Wolf recommends using 39" (991) cabinets
with the 36" (914) built-in oven for ease of
installation. You will need a minimum 24" (610)
of usable cabinet depth. The cabinet must be
able to support 250 lbs (113 kg).
Wolf built-in ovens have a face trim on all
four sides and will overlap stiles and rails. The
trim overlaps
1
/8" (3) on the bottom, 3/16" (5) on
the top and
3
/4" (19) on each side.
The 36" (914) built-in oven requires a
separate, grounded 4-wire 240/208 V AC, 60 Hz,
30 amp service with its own circuit breaker. It is
provided with a 3' (.9 m) flexible 4-wire conduit
for connection at the electrical supply.
IMPORTANT NOTE: Unless you are using
cabinets deeper than 24" (610), it is recommended that the electrical supply be placed in
an adjacent cabinet within reach of the conduit.
A 2" (51) diameter hole to route the conduit
through cabinetry will be required. Refer to the
illustrations on page 4 for location of electrical
supply.
The Wolf 36" (914) single oven may be
installed below a Wolf 36" (914) electric or gas
cooktop or 30" (762) framed electric cooktop.
Unless you are using cabinets deeper than 24"
(610), it is recommended that the electrical
supply for the oven and the electrical and
gas supply for the cooktop be located in the
adjacent right side cabinet. For additional
specifications, refer to the Electric Cooktops
and Gas Cooktops sections of our website,
wolfappliance.com.
When a 36" (914) oven is installed below a
cooktop, it is recommended that the rough
opening for the oven be 7
3
/4" (197) from the
floor to ease the use of the oven door.
IMPORTANT NOTE: A built-in oven cannot be
installed below a Wolf rangetop.
The Wolf 36" (914) single oven may be
installed in combination with a Wolf microwave
and warming drawer with integrated drawer
front.
A Wolf 36" (914) single oven may be
installed next to another 36" (914) oven. You
must allow for a 2
1
/2" (64) space between the
oven rough openings. Also, a separate inner
wall is required for each oven between
openings.
A Wolf 36" (914) single oven may be
installed above another 36" (914) oven. You
must allow enough space between the oven
rough openings to accommodate a base
support for the top oven. Each base cabinet
support must be able to support 250 lbs
(113 kg).
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
DIMENSIONS
Rough Opening Width 341/2 (876)
Rough Opening Height 241/16" (611)
Recommended Cabinet Width 39" (991)
Minimum Cabinet Width 36" (914)
Minimum Cabinet Depth 24" (610)
See Installation Instructions shipped with unit for detailed specifications.
