Sub-Zero 36SEALEDRANGETOP User Manual
Planning Information
36" (914) Sealed Burner Rangetop
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
1

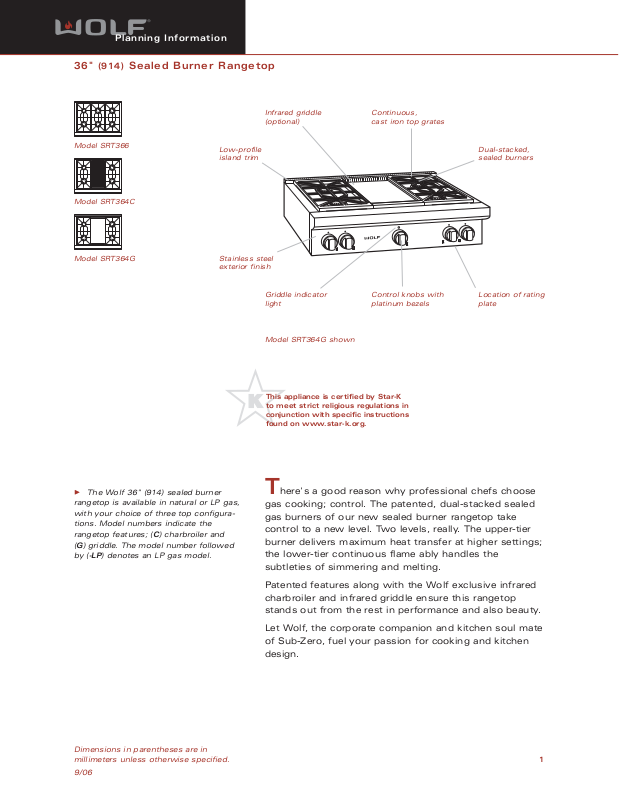

Model SRT364G shown
The Wolf 36" (914) sealed burner
rangetop is available in natural or LP gas,
with your choice of three top configurations. Model numbers indicate the
rangetop features; (C) charbroiler and
(G) griddle. The model number followed
by (-LP) denotes an LP gas model.
There's a good reason why professional chefs choose
gas cooking; control. The patented, dual-stacked sealed
gas burners of our new sealed burner rangetop take
control to a new level. Two levels, really. The upper-tier
burner delivers maximum heat transfer at higher settings;
the lower-tier continuous flame ably handles the
subtleties of simmering and melting.
Patented features along with the Wolf exclusive infrared
charbroiler and infrared griddle ensure this rangetop
stands out from the rest in performance and also beauty.
Let Wolf, the corporate companion and kitchen soul mate
of Sub-Zero, fuel your passion for cooking and kitchen
design.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Model SRT366
Model SRT364C
Model SRT364G
Dual-stacked,
sealed burners
Stainless steel
exterior finish
Infrared griddle
(optional)
Continuous,
cast iron top grates
Low-profile
island trim
Location of rating
plate
Griddle indicator
light
Control knobs with
platinum bezels
Planning Information
36" (914) Sealed Burner Rangetop
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
FEATURES
Natural or LP gas models
Classic stainless steel exterior finish with
island trim
Distinctive red control knobs—optional black
knobs available at no cost
Platinum bezels surround all knobs— chrome
or brass bezels optional
Porcelain-coated cast iron continuous top
grates
Optional infrared charbroiler and infrared
griddle configurations
Dual-stacked, sealed surface burners, all
with simmer capabilities and automatic
reignition at all settings
15,000 Btu/ hr (4.4 kW) burners with
950 Btu/ hr (.3 kW) delivered at simmer
9,200 Btu/ hr (2.7 kW) burner with
325 Btu/ hr (.1 kW) delivered at simmer
and melt feature
Certified by Star-K to meet religious
regulations
CSA certified for US and Canada
Two and five year residential warranty—
exclusions apply; warranty information can
be found on our website, wolfappliance.com
OVERALL DIMENSIONS
COOKING
SURFACE
81/2" (216)
OVERALL
HEIGHT
357/8" (911)
OVERALL WIDTH
71/2"
(191)
281/2" (724)
OVERALL DEPTH
241/4"
(616)
91/4"
(235)
121/2"
(318)
WITH 5"
RISER
WITH 20"
171/2"
(445)
WITH 10"
RISER
271/2"
(699)
RISER
