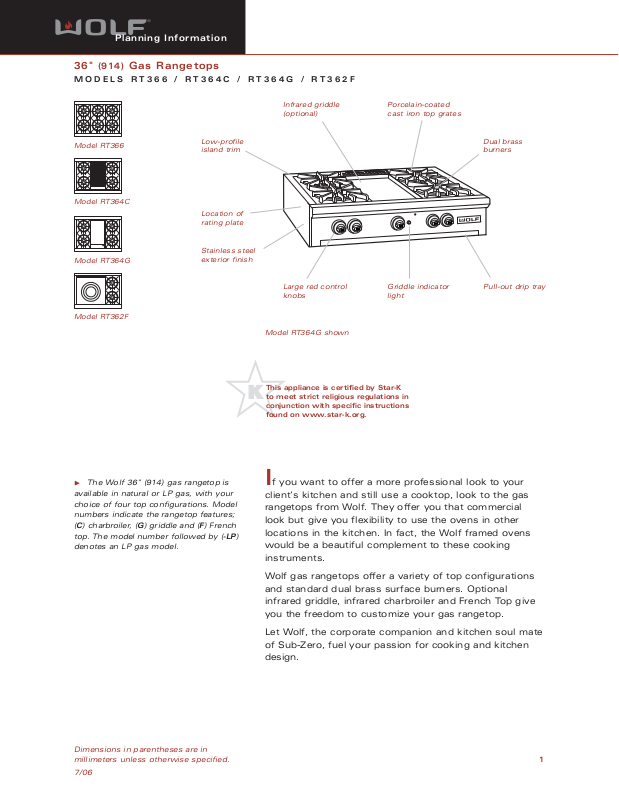

Page 1
Planning Information
36" (914) Gas Rangetops
MODELS RT366 / RT364C / RT364G / RT362F
Dimensions in parentheses are in
millimeters unless otherwise specified.
7/06
1
Model RT366
Model RT364C
Model RT364G
Model RT362F
The Wolf 36" (914) gas rangetop is
available in natural or LP gas, with your
choice of four top configurations. Model
numbers indicate the rangetop features;
(C) charbroiler, (G) griddle and (F) French
top. The model number followed by (-LP)
denotes an LP gas model.
If you want to offer a more professional look to your
client’s kitchen and still use a cooktop, look to the gas
rangetops from Wolf. They offer you that commercial
look but give you flexibility to use the ovens in other
locations in the kitchen. In fact, the Wolf framed ovens
would be a beautiful complement to these cooking
instruments.
Wolf gas rangetops offer a variety of top configurations
and standard dual brass surface burners. Optional
infrared griddle, infrared charbroiler and French Top give
you the freedom to customize your gas rangetop.
Let Wolf, the corporate companion and kitchen soul mate
of Sub-Zero, fuel your passion for cooking and kitchen
design.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Porcelain-coated
cast iron top grates
Dual brass
burners
Stainless steel
exterior finish
Infrared griddle
(optional)
Low-profile
island trim
Pull-out drip trayLarge red control
knobs
Griddle indicator
light
Model RT364G shown
Location of
rating plate
Page 2
Planning Information
36" (914) Gas Rangetops
MODELS RT366 / RT364C / RT364G / RT362F
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
FEATURES
Natural or LP gas models
Classic stainless steel exterior finish
Fits standard 24" (610) deep cabinets with
zero clearance for easy installation
Optional infrared charbroiler, infrared griddle
and French top configurations
Dual brass burners with automatic reignition
at all settings, 500 Btu/ hr (.1 kW) simmer to
16,000 Btu/ hr (4.7 kW) high
Porcelain-coated cast iron top grates
Large red control knobs with four position
settings and chrome bezels— optional black
knobs available at no cost
Stainless steel drip tray on ball bearing slides
Certified by Star-K to meet religious
regulations
CSA certified for US and Canada
Two and five year residential warranty—
exclusions apply; warranty information can
be found on our website, wolfappliance.com
OVERALL DIMENSIONS
COOKING
SURFACE
101/2" (267)
OVERALL
HEIGHT
36" (914)
OVERALL WIDTH
91/2"
(241)
271/4" (692)
OVERALL DEPTH
TO KNOBS
23/4" (70)
24" (610)
2"
(51)
20" (508)
WITH
1
/2"
10
RISER
Page 3
Planning Information
36" (914) Gas Rangetops
MODELS RT366 / RT364C / RT364G / RT362F
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Rangetop Width 36" (914)
Overall Rangetop Height
(to cooking surface) 101/2" (267)
Overall Rangetop Depth 271/4" (692)
Surface Burners
16,000 Btu/ hr (4.7 kW) burners with 500 Btu/ hr
(.1 kW) delivered at simmer
Infrared Charbroiler 16,000 Btu/ hr (4.7 kW)
Infrared Griddle 18,000 Btu/ hr (5.3 kW)
French Top 15,000 Btu/ hr (4.4 kW)
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Power Cord 6' (1.8 m) power cord with
3-prong grounded plug
Shipping Weight 190 lbs (86 kg) – 220 lbs (100 kg)
Specifications are subject to change without notice.
MODEL OPTIONS
Six Burners RT366
Four Burners /Charbroiler RT364C
Four Burners /Griddle RT364G
Two Burners/French Top RT362F
Natural gas model listed, for LP gas add
(-LP) to the model number.
VENTILATION OPTIONS
36" (914) Pro wall hood or liner
42" (1067) Pro wall or island hood
Refer to the Wolf Pro Ventilation section
for additional information.
ACCESSORIES
101/2" (267) classic stainless steel
riser
Classic stainless steel island trim
Black control knobs
Porcelain-coated cast iron wok
grate
Porcelain-coated cast iron two-
burner S-grate
Hardwood cutting board (griddle
model only)
High altitude conversion kits
Accessories are available through
your Wolf dealer. To obtain local dealer
information, visit the Locator section
of our website, wolfappliance.com.
IMPORTANT NOTE: In non-island applications, a riser is required
when installing a 36" (914) gas rangetop against a combustible
surface.
Page 4
Planning Information
36" (914) Gas Rangetops
MODELS RT366 / RT364C / RT364G / RT362F
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
INSTALLATION SPECIFICATIONS
DIMENSIONS
Overall Width of Rangetop 36" (914)
Finished Rough Opening Width 361/4" (921)
Location of Electrical and Gas Supply Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
Refer to the Wolf Design Guide for additional specifications.
VENTILATION HOOD
30"min (762)
COUNTERTOP
6"min (152)
TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
TO COMBUSTIBLE
MATERIALS
36"min (914)
FOR CHARBROILER
30"min (762)
36"max (914)
TO
COUNTERTOP
TO BOTTOM OF
VENTILATION HOOD
18"min (457)
TO COUNTERTOP
13" max
(330)
TOP VIEW
OF PLATFORM
BACK WALL
3"(76)
8"
FINISHED ROUGH OPENING WIDTH
3
/4" (19) PLATFORM
8" (203)
1
361/4" (921)
E
(203)
/2"
(13)
G
LOCATION OF
GAS AND ELECTRICAL
SUPPLY CUT-OUT
WITHIN SHADED AREA
THROUGH BOTTOM OF
PLATFORM
14"
(356)
91/2" (241)
OPENING
HEIGHT
36"
(914)
23/4"
(70)
ISLAND INSTALLATIONS: 12" (305) MINIMUM
CLEARANCE FROM BACK OF RANGETOP TO
COMBUSTIBLE REAR WALL ABOVE COUNTERTOP–
0" (0) TO NON-COMBUSTIBLE MATERIALS
3
/4" (19) PLATFORM
24" (610)
Page 5
Planning Information
36" (914) Gas Rangetops
MODELS RT366 / RT364C / RT364G / RT362F
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, finished rough opening
dimensions and installation specifics.
IMPORTANT NOTE: Caution must be used in
planning the proper installation of the Wolf gas
rangetop to avoid any fires or damage to
adjacent cabinetry or kitchen equipment. Please
follow the minimum clearances established in
the finished rough opening dimensions as
shown in the Installation illustration.
IMPORTANT NOTE: In non-island applications,
a riser is required when installing a 36" (914)
gas rangetop against a combustible surface.
It is recommended that you use a Wolf Pro
wall or island ventilation hood or hood liner
with the Wolf gas rangetop. Pro Ventilation
information can be found on our website,
wolfappliance.com. Also refer to the Wolf
Design Guide for Pro ventilation recommendations.
The Wolf gas rangetop requires a 110/120 V
AC, 60 Hz electrical supply to operate the electronic ignition system. The 6' (1.8 m) power
supply cord provided with the rangetop is
equipped with a 3-prong, grounded plug for
protection against shock hazard. The service
should have its own 15 amp circuit breaker.
Locate electrical and gas supply within the
shaded area shown in the Installation illustration.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
Wolf gas rangetops are designed to operate
on natural gas at 5" (12.5 mb) WC (water
column) pressure or LP (propane) gas at 10"
(25 mb) WC pressure. The minimum line
pressure for natural gas is 7" (17.5 mb) WC and
11" (27.4 mb) WC for LP gas. The maximum gas
supply pressure to the regulator should never
exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa).
Wolf recommends the use of a
1
/2" (13) I.D.
commercial type flex hose; this is the minimum
size that may be used. All plumbing to the flex
hose must be
3
/4" (19) minimum I.D. pipe.
IMPORTANT NOTE: A separate external gas
shut-off valve must be located near the
rangetop in an accessible location.
The Wolf gas rangetop functions up to
6,000' (1828 m) in altitude without any adjustment. Installations above 6,000' (1828 m) need
the high altitude kit. Contact your Wolf dealer
for details. To obtain local dealer information,
visit the Locator section of our website,
wolfappliance.com.
You must follow all National Electrical Code
and gas regulations. In addition, be aware of
local codes and ordinances when installing your
services.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
