Page 1
Planning Information
36" (914) Gas Ranges
MODELS R366 / R364C / R364G
Dimensions in parentheses are in
millimeters unless otherwise specified.
7/06
1
Model R366
Model R364C
Model R364G
If it looks as if it could be in a restaurant kitchen, well,
that’s natural. That’s precisely where Wolf has spent the
past seven decades, perfecting the form, function and
sheer durability of our stainless steel gas ranges.
Wolf gas ranges offer a variety of standard features such
as an infrared oven broiler, convection baking, dual brass
surface burners and our signature large red control
knobs. Optional infrared charbroiler and infrared griddle
give you the freedom to customize your gas range.
Let Wolf, the corporate companion and kitchen soul mate
of Sub-Zero, fuel your passion for cooking and kitchen
design.
The Wolf 36" (914) gas range is
available in natural or LP gas, with your
choice of three top configurations. Model
numbers indicate the features; (C) charbroiler and (G) griddle. The model number
followed by (-LP) denotes an LP gas
model.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Dual brass
burners
Pull-out drip tray
Oven indicator
light
Griddle indicator
light
Burner drip pan
Convection fan
switch
Full side panels
and skirt
5" (127) riser
(optional)
Porcelain-coated
cast iron top grates
Infrared griddle
(optional)
Location of
rating plate
Large red
control knobs
Oven light switch
Large-capacity
convection oven
Three adjustable
oven racks

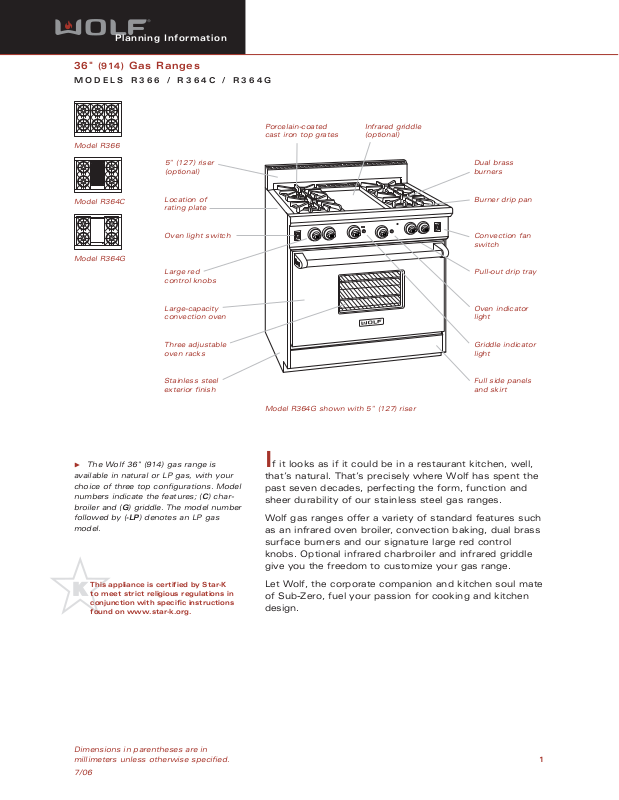

Model R364G shown with 5" (127) riser
Stainless steel
exterior finish
Page 2
Planning Information
36" (914) Gas Ranges
MODELS R366 / R364C / R364G
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
Refer to the Wolf Design Guide for
additional specifications.
2
FEATURES
Natural or LP gas models
Classic stainless steel exterior finish
Fits standard 24" (610) deep cabinets, with
zero clearance
Optional infrared charbroiler and infrared
griddle configurations
Dual brass burners with automatic reignition
at all settings, 500 Btu/ hr (.1 kW) simmer to
16,000 Btu/ hr (4.7 kW) high
Porcelain-coated cast iron top grates
Large red control knobs with four position
settings and chrome bezels— optional black
knobs available at no cost
Large-capacity convection oven with infrared
broiler, porcelain interior, three adjustable
racks, lights and door window
Stainless steel drip tray on ball bearing slides
Adjustable 3" (76) stainless steel legs in
front and rear casters
Full side panels and skirt
Certified by Star-K to meet religious
regulations
CSA certified for US and Canada
Two and five year residential warranty—
exclusions apply; warranty information can
be found on our website, wolfappliance.com
OVERALL DIMENSIONS
36" (914)
OVERALL WIDTH
37" (940)
OVERALL
HEIGHT TO
COOKING
SURFACE
36"
(914)
21/2"
(64)
283/8" (721)
OVERALL DEPTH
271/4" (692)
91/4"
(235)
241/2" (622)
251/4" (641)
433/8" (1102)
LEGS AND CASTERS ALLOW
1" (25) HEIGHT ADJUSTMENT
WITH 10"
413/4"
(1060)
WITH 5"
RISER
WITH 20"
463/4"
(1187)
RISER
563/4"
(1441)
RISER
Page 3
Planning Information
36" (914) Gas Ranges
MODELS R366 / R364C / R364G
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Range Width 36" (914)
Overall Range Height
(to cooking surface) 37" (940)
Overall Range Depth 283/8" (721)
Surface Burners
16,000 Btu/ hr (4.7 kW) burners with 500 Btu/ hr
(.1 kW) delivered at simmer
Infrared Charbroiler 16,000 Btu/ hr (4.7 kW)
Infrared Griddle 18,000 Btu/ hr (5.3 kW)
Oven Burner (Bake) 30,000 Btu/ hr (8.8 kW)
Infrared Oven Broiler 18,000 Btu/ hr (5.3 kW)
Usable Oven Interior Capacity* 3.5 cu ft (99 L)
Oven Interior Dimensions 30" W x 16
1
/2" H x 17" D
(762 x 419 x 432)
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Power Cord 6' (1.8 m) power cord with
3-prong grounded plug
Shipping Weight 445 (202 kg) – 470 lbs (213 kg)
*Oven capacity is calculated using new AHAM standards
(AHAM OV-1-2005).
Specifications are subject to change without notice.
IMPORTANT NOTE: A minimum 5" (127) riser is required when
installing a gas range against a combustible surface. A minimum
10" (254) riser is required when installing a gas range with a
charbroiler or griddle against a combustible surface.
MODEL OPTIONS
Six Burners R366
Four Burners /Charbroiler R364C
Four Burners /Griddle R364G
Natural gas model listed, for LP gas add
(-LP) to the model number.
VENTILATION OPTIONS
36" (914) Pro wall hood or liner
42" (1067) Pro wall or island hood
Refer to the Wolf Pro Ventilation section
for additional information.
ACCESSORIES
5" (127) and 10" (254) classic
stainless steel risers
20" (508) classic stainless steel
riser with shelf
Classic stainless steel island trim
Black control knobs
Porcelain-coated, cast iron wok
grate
Porcelain-coated, cast iron two-
burner S-grate
Hardwood cutting board (griddle
model only)
36" (914) oven rack
High altitude conversion kits
Accessories are available through
your Wolf dealer. To obtain local dealer
information, visit the Locator section
of our website, wolfappliance.com.
Page 4
Planning Information
36" (914) Gas Ranges
MODELS R366 / R364C / R364G
Dimensions in parentheses are in
millimeters unless otherwise specified.
4

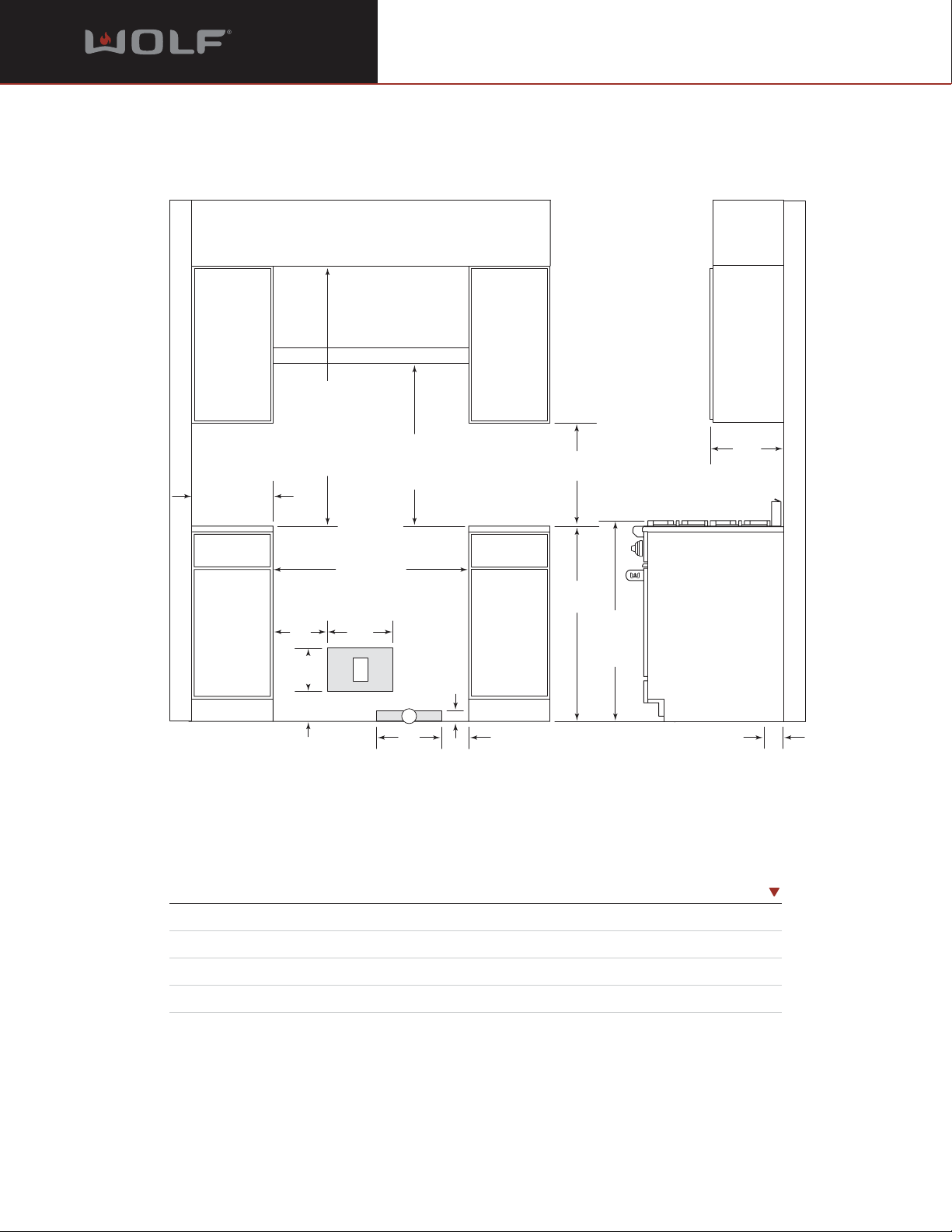

INSTALLATION SPECIFICATIONS
DIMENSIONS
Overall Width of Range 36" (914)
Finished Rough Opening Width 361/4" (921)
Location of Gas Supply Within shaded area
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
Refer to the Wolf Design Guide for additional specifications.
VENTILATION
HOOD
30"min (762)
COUNTERTOP
TO COMBUSTIBLE
MATERIALS
6"min (152)
TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
36"min (914)
FOR
CHARBROILER
30"(762) TO 36"(914)
COUNTERTOP
TO BOTTOM OF
VENTILATION HOOD
18"min (457)
TO COUNTERTOP
13" max
(330)
8"
(203)
51/2"
(140)
361/4" (921)
12"
(305)
E
G
12"
(305)
2"
(51)
5"
(127)
36"
(914)
37"
(940) TO
COOKING
SURFACE
LOCATION OF GAS SUPPLY EXTENDS
3" (76) ON FLOOR FROM BACK WALL
3"
(76)
FINISHED ROUGH OPENING WIDTH
10"
(254)
ISLAND INSTALLATIONS: 12" (305) MINIMUM CLEARANCE FROM BACK
OF RANGE TO COMBUSTIBLE REAR WALL ABOVE COUNTERTOP –
0" (0) TO NON-COMBUSTIBLE MATERIALS
Page 5
Planning Information
36" (914) Gas Ranges
MODELS R366 / R364C / R364G
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, finished rough opening
dimensions and installation specifics.
IMPORTANT NOTE: Caution must be used in
planning the proper installation of the Wolf gas
range to avoid any fires or damage to adjacent
cabinetry or kitchen equipment. Please follow
the minimum clearances established in the
finished rough opening dimensions as shown in
the Installation illustration.
IMPORTANT NOTE: A minimum 5" (127) riser is
required when installing a gas range against a
combustible surface. A minimum 10" (254) riser
is required when installing a gas range with a
charbroiler or griddle against a combustible
surface.
It is recommended that you use a Wolf Pro
wall or island ventilation hood or hood liner
with the Wolf gas range. Pro Ventilation information can be found on our website, wolfappliance.com. Also refer to the Wolf Design Guide
for Pro ventilation recommendations.
The Wolf gas range requires a 110/120 V
AC, 60 Hz electrical supply to operate the
electronic ignition system. The 6' (1.8 m) power
supply cord provided with the range is
equipped with a 3-prong, grounded plug for
protection against shock hazard. The service
should have its own 15 amp circuit breaker.
Locate electrical and gas supply within the
shaded area shown in the Installation illustration.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
Wolf gas ranges are designed to operate on
natural gas at 5" (12.5 mb) WC (water column)
pressure or LP (propane) gas at 10" (25 mb)
WC pressure. The minimum line pressure for
natural gas is 7" (17.5 mb) WC and 11"
(27.4 mb) WC for LP gas. The maximum gas
supply pressure to the regulator should never
exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa).
Wolf recommends the use of a
1
/2" (13) I.D.
commercial type flex hose; this is the minimum
size that may be used. All plumbing to the flex
hose must be
3
/4" (19) minimum I.D. pipe.
IMPORTANT NOTE: A separate external gas
shut-off valve must be located near the range in
an accessible location.
The Wolf gas range functions up to 6,000'
(1828 m) in altitude without any adjustment.
Installations above 6,000' (1828 m) need the
high altitude kit. Contact your Wolf dealer for
details. To obtain local dealer information,
visit the Locator section of our website,
wolfappliance.com.
You must follow all National Electrical Code
and gas regulations. In addition, be aware of
local codes and ordinances when installing your
services.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
