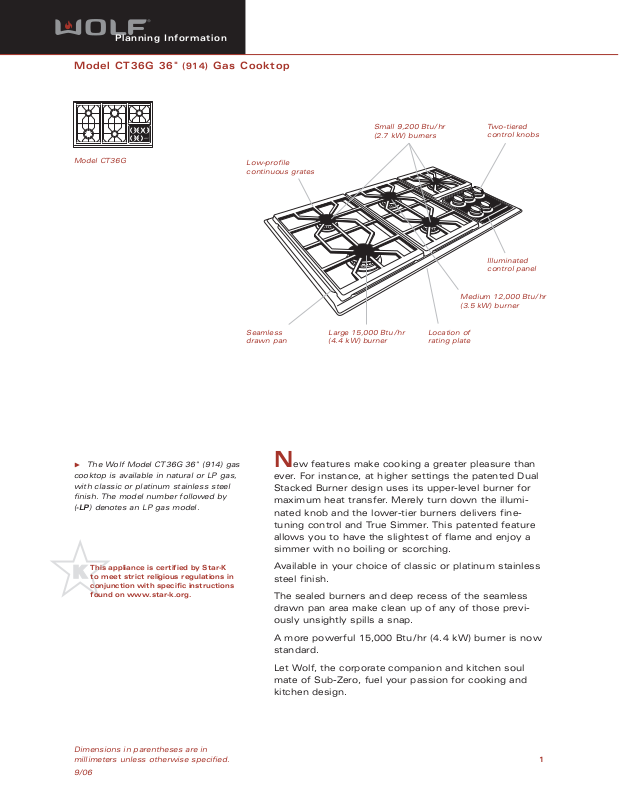

Page 1
Planning Information
Model CT36G 36" (914) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
1
Model CT36G
New features make cooking a greater pleasure than
ever. For instance, at higher settings the patented Dual
Stacked Burner design uses its upper-level burner for
maximum heat transfer. Merely turn down the illuminated knob and the lower-tier burners delivers finetuning control and True Simmer. This patented feature
allows you to have the slightest of flame and enjoy a
simmer with no boiling or scorching.
Available in your choice of classic or platinum stainless
steel finish.
The sealed burners and deep recess of the seamless
drawn pan area make clean up of any of those previously unsightly spills a snap.
A more powerful 15,000 Btu/hr (4.4 kW) burner is now
standard.
Let Wolf, the corporate companion and kitchen soul
mate of Sub-Zero, fuel your passion for cooking and
kitchen design.
The Wolf Model CT36G 36" (914) gas
cooktop is available in natural or LP gas,
with classic or platinum stainless steel
finish. The model number followed by
(-LP) denotes an LP gas model.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Small 9,200 Btu/ hr
(2.7 kW) burners
Low-profile
continuous grates
Large 15,000 Btu/ hr
(4.4 kW) burner
Illuminated
control panel
Two-tiered
control knobs
Seamless
drawn pan
Medium 12,000 Btu/ hr
(3.5 kW) burner
Location of
rating plate
Page 2
Planning Information
Model CT36G 36" (914) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
OVERALL DIMENSIONS
FEATURES
Available in natural and LP gas
Stainless steel top construction, available in
classic and platinum stainless steel finishes
Five dual-stacked, sealed burners with
automatic reignition on all settings
One large 15,000 Btu/ hr (4.4 kW) sealed
burner with 800 Btu/ hr (.2 kW) delivered at
simmer
One medium 12,000 Btu/ hr (3.5 kW) sealed
burner with 800 Btu/ hr (.2 kW) delivered at
simmer
Three small 9,200 Btu/ hr (2.7 kW) sealed
burners with 300 Btu/ hr (.1 kW) delivered at
simmer
Individual spark ignition system
True Simmer setting on all burners
Illuminated control panel with two-tiered
control knobs
Low-profile cast iron continuous burner
grates with matte porcelain finish
Seamless drawn burner pan
Certified by Star-K to meet religious
regulations
CSA certified for US and Canada
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
21"
(533)
OVERALL
DEPTH
36" (914)
OVERALL WIDTH
4" (102)
Page 3
Planning Information
Model CT36G 36" (914) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Cooktop Width 36" (914)
Overall Cooktop Height 4" (102)
Overall Cooktop Depth 21" (533)
Cooktop Cut-Out Width 35" (889)
Cooktop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Burner Rating
One 15,000 Btu/ hr (4.4 kW) burner with 800 Btu / hr
(.2 kW) delivered at simmer
One 12,000 Btu/ hr (3.5 kW) burner with 800 Btu / hr
(.2 kW) delivered at simmer
Three 9,200 Btu/ hr (2.7 kW) burners with 300 Btu / hr
(.1 kW) delivered at simmer
Gas Rating 54,600 Btu/ hr (16.0 kW)
Electrical Supply Requirements 120 V AC, 60 Hz
15 amp dedicated circuit
Power Cord 6' (1.8 m) power cord with
3-prong grounded plug
Shipping Weight 67 lbs (30 kg)
Specifications are subject to change without notice.
MODEL OPTIONS
Classic Stainless Steel CT36G/S
Platinum Stainless Steel CT36G/P
Natural gas models listed, for LP gas add
(-LP) to the model numbers.
VENTILATION OPTIONS
36" (914) Cooktop or Pro wall
hood or liner
36" (914) downdraft ventilation
system
42" (1067) Cooktop or Pro island
hood
For additional information, refer to the
Wolf Cooktop Ventilation or Pro
Ventilation sections of our website,
wolfappliance.com.
ACCESSORIES
One-piece wok grate and single
burner grate
Filler strip
High altitude conversion kit
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
Model CT36G
Page 4
Planning Information
Model CT36G 36" (914) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
INSTALLATION SPECIFICATIONS
DIMENSIONS
Cooktop Cut-Out Width 35" (889)
Recommended Cabinet Width 39" (991)
Cooktop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Location of Electrical and Gas Supply Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
39" (991)
36"min (914)
35" (889)
COOKTOP CUT-OUT WIDTH
21/2"**
(64)
13" max
(330)
191/4" (489)
COOKTOP CUT-OUT
DEPTH
21/2"min
(64)
18"
(457)
9"*min (229)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
RECOMMENDED CABINET WIDTH
4" (102)
31/2" (89)
33/4"min (95)
24"min
(610)
*Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18" (457) above countertop.
**Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
36-INCH OVEN OPENING
35" (889)
COOKTOP CUT-OUT WIDTH
E
10"
(254)
G
30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
21/2"min
(64)
FRONT OF COUNTERTOP
191/4" (489)
COOKTOP
CUT-OUT DEPTH
Page 5
Planning Information
Model CT36G 36" (914) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, cut-out dimensions and
installation specifics.
Wolf recommends using 39" (991) wide
cabinets with the 36" (914) cooktop.
A Wolf downdraft system, Cooktop or Pro
ventilation hood is recommended. When
installing a ventilation hood, refer to the specific
requirements of the hood for the minimum
dimension to the countertop. Also refer to
Ventilation Recommendations in the Cooktop
Ventilation or Pro Ventilation sections of our
website, wolfappliance.com.
The Wolf 36" (914) gas cooktop requires a
separate 120 V AC, 60 Hz power supply. The
service should have its own 15 amp circuit
breaker and a grounded 3-prong receptacle
should be located within the reach of the
6' (1.8 m) power cord. Locate electrical within
the shaded area shown in the Installation
Specifications illustration on page 4.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
When a gas cooktop is installed above
cabinets, placement of the electrical and gas
supply is not critical. A grounded outlet needs
to be placed within 4' (1.2 m) of the right rear
of the cooktop.
A Wolf 36" (914) or 30" (762) built-in single
oven may be installed below this cooktop. For
this installation, the electrical and gas supply
for the cooktop should be installed in the
adjacent cabinet. Refer to page 6 for additional
specifications. Be aware of the depth of the
cooktop when planning for this installation.
IMPORTANT NOTE: Wolf gas cooktops are
designed and agency approved for installation
with Wolf built-in ovens only.
IMPORTANT NOTE: When a oven is installed
below the cooktop, unless you are using
cabinets deeper than 24" (610), it is recommended that the electrical supply for the oven
be placed in an adjacent cabinet within reach of
the conduit. A 2" (51) diameter hole to route the
conduit through cabinetry will be required. Refer
to page 6 for location of electrical supply and
additional specifications.
When a 36" (914) oven is installed below a
cooktop, it is recommended that the rough
opening for the oven be 7
3
/4" (197) from the
floor to ease the use of the oven door. The
bottom cabinet support must be able to support
250 lbs (113 kg).
Wolf gas cooktops are designed to operate
on natural gas at 5" (12.5 mb) WC (water
column) pressure or LP (propane) gas at 10" (25
mb) WC pressure. The minimum line pressure
for natural gas is 7" (17.5 mb) WC and 11"
(27.4 mb) WC for LP gas. The maximum gas
supply pressure to the regulator should never
exceed 14" (34.9 mb) WC; .5 psi (3.5 kPa). The
cooktops are supplied with a
1
/2" NPT male gas
connection at the right rear bottom corner of
the cooktop. The male connector exits the unit
straight down and you are supplied with a
regulator with two female connectors.
Wolf gas cooktops using natural gas
function up to an altitude of 8,000' (2438 m)
without any adjustment. Natural gas installations from 8,000' (2438 m) to 10,000' (3048 m)
need the high altitude conversion kit. LP gas
installations will operate up to 10,000' (3048 m)
without adjustment.
You must follow all National Electrical Code
and gas regulations. In addition, be aware of
local codes and ordinances when installing your
services.
When multiple cooktop units are installed
side by side, refer to the countertop cut-out
dimensions on page 7.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
This cooktop is intended for indoor use only.
Page 6
Planning Information
Model CT36G 36" (914) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
6
9"*min (229)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
18"
(457)
191/4" (489)
COOKTOP CUT-OUT
DEPTH
21/2"min
(64)
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
13" max
(330)
30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
21/2"**
(64)
*Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18" (457) above countertop.
**Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.
Unless you are using cabinets deeper than 24" (610), the electrical supply for the oven and the gas and electrical supply for the cooktop should
be located in the adjacent right side cabinet as shown.
35" (889)
COOKTOP CUT-OUT WIDTH
39" (991)
RECOMMENDED CABINET WIDTH
36"min (914)
E
G
31/2" (89)
COOKTOP
GAS SUPPLY AND
ELECTRICAL LOCATION
IN ADJACENT RIGHT
SIDE CABINET
10" (254)
24" min (610)
33/4"min (95)
73/4" (197) rec
43/4" (121) min
E
5"
(127)
341/2" (876)
OVEN OPENING WIDTH
4"
(102)
OVEN ELECTRICAL
LOCATION WITHIN
OPENING APPLIES ONLY
TO CABINETS DEEPER
THAN 24" (610)
E
241/16"
(611)
4" (102)
Installation specifications for a 36" (914) gas cooktop installed above a 36" (914) built-in oven.
INSTALLATION OF 36" GAS
COOKTOP ABOVE A BUILT-IN OVEN
A Wolf 36" (914) gas cooktop may be installed
above the Wolf 36" (914) built-in single oven.
Refer to the illustration below for specifications.
The 36" (914) gas cooktop may also be installed
above a Wolf 30" (762) single oven.
IMPORTANT NOTE: When a oven is installed
below the cooktop, unless you are using
cabinets deeper than 24" (610), it is recommended that the electrical supply for the oven
and the gas and electrical supply for the cooktop
be located in the adjacent right side cabinet. A
2" (51) diameter hole to route the conduit
through cabinetry will be required.
IMPORTANT NOTE: Wolf gas cooktops are
designed and agency approved for installation
with Wolf built-in ovens only.
Wolf recommends using 39" (991) wide cabinets
for this installation. A minimum 24" (610) of
usable cabinet depth is required. The cabinet
base must be able to support 250 lbs (113 kg).
It is recommended that the rough opening for
the oven be 7
3
/4" (197) from the floor to ease
use of the oven door.
A Wolf 36" (914) gas cooktop may also be
installed above the Wolf 30" (762) single oven.
For electrical requirements and additional
specifications for the built-in oven, refer to the
Built-In Ovens section of our website,
wolfappliance.com.
Page 7
Planning Information
Model CT36G 36" (914) Gas Cooktop
Dimensions in parentheses are in
millimeters unless otherwise specified.
7
INTEGRATED MODULES—
MULTIPLE UNIT INSTALLATION
With Wolf's integrated modules, you have the
ultimate in customization. You can create your
own design by mixing and matching the various
components within this system. And when you
couple these modules with other cooktops
within the Wolf inventory you and your client will
truly understand freedom of choice.
Some Wolf integrated modules can be installed
together or with a 30" (762) or 36" (914)
cooktop. When multiple units are installed side
by side, the cut-out dimensions that are shown
in the illustration are derived by adding 1
1
/4" (32)
additional space for each additional unit, to give
you your total cut-out width. Refer to the illustration below for countertop cut-out dimensions
for installation of multiple cooktops.
IMPORTANT NOTE: Refer to the pages for each
specific integrated module for installation
limitations.
Countertop cut-out dimensions for installation of multiple cooktop units.
IMPORTANT NOTE: Where multiple cooktops
and/ or modules are installed side by side, each
unit must have its own separate recommended
electrical circuit. When multiple gas cooktops
and/ or modules are installed next to one
another, they can receive their gas supply from a
common line. However, each unit must have its
own regulator installed between the mainline
and the cooktop or module.
When two or more cooktops or modules are
installed together, an integrated module filler
strip is recommended. Contact your Wolf dealer
for information on this accessory component.
For gas and electrical requirements, additional
specifications and installation limitations, refer to
the Integrated Modules section of our website,
wolfappliance.com.
IMPORTANT NOTE: Review specific installation
instructions for product to product capabilities.
593/4"
591/2"
501/4"
441/2"
(1130) THREE MODULES WIDTH OR
441/4"
(1124) 30" COOKTOP AND ONE MODULE
291/4"
TWO MODULES WIDTH
14"
(356)
21/2"min
(64)
CUT-OUT
WIDTH
FRONT OF COUNTERTOP
(1518) FOUR MODULES WIDTH OR
(1511) 30" COOKTOP AND TWO MODULES OR
(1276) 36" COOKTOP AND ONE MODULE
(743)
191/4"
(489)
CUT-OUT
DEPTH
Loading...
