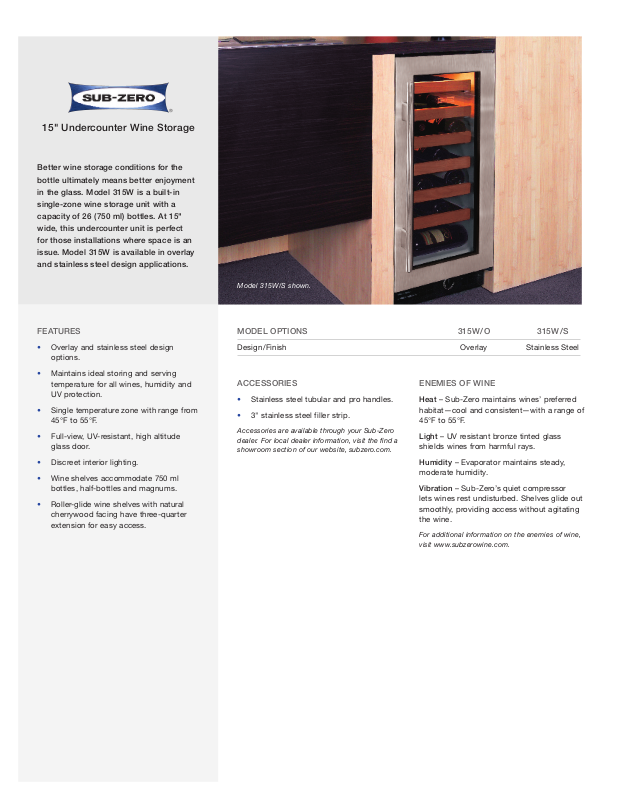

Sub-Zero 315W, 5152-S User Manual

5" Undercounter Wine Storage

Better wine storage conditions for the

bottle ultimately means better enjoyment

in the glass. Model 315W is a built-in

single-zone wine storage unit with a

capacity of 26 (750 ml) bottles. At 15"

wide, this undercounter unit is perfect

for those installations where space is an

issue. Model 315W is available in overlay

and stainless steel design applications.

Model 315W/S shown.

FEATURES

• Overlay and stainless steel design

options.

• Maintains ideal storing and serving

temperature for all wines, humidity and UV protection.

• Single temperature zone with range from

45°F to 55°F.

• Full-view, UV-resistant, high altitude

glass door.

• Discreet interior lighting.

• Wine shelves accommodate 750 ml

bottles, half-bottles and magnums.

• Roller-glide wine shelves with natural

cherrywood facing have three-quarter extension for easy access.

MODEL OPTIONS 315W/O 315W/S

Design /Finish Overlay Stainless Steel

ACCESSORIES

• Stainless steel tubular and pro handles.

• 3" stainless steel filler strip.

Accessories are available through your Sub-Zero dealer. For local dealer information, visit the find a showroom section of our website, subzero.com.

ENEMIES OF WINE

Heat – Sub-Zero maintains wines’ preferred

habitat—cool and consistent—with a range of 45°F to 55°F.

Light – UV resistant bronze tinted glass shields wines from harmful rays.

Humidity – Evaporator maintains steady, moderate humidity.

Vibration – Sub-Zero’s quiet compressor lets wines rest undisturbed. Shelves glide out smoothly, providing access without agitating the wine.

For additional information on the enemies of wine, visit www.subzerowine.com.

15" Undercounter Wine Storage

151/8" (

384)

24" (

610)

341/16"

(865)

4" (10 2)

165/8"

(422)

13/4" (

44)

151/4" (387)

OPENING WIDTH

24" (610)

OPENING DEPTH

341/2" (876)

OPENING

HEIGHT

FRONT VIEWSIDE VIEW

24" (610)

OPENING

EPTH

TOP VIEW

OVERALL DIMENSIONS

verall dimensions are based on stainless steel panels and handles.

nit dimensions may vary by ±

/8"

SPECIFICATIONS

Overall Width 151/8"

Overall Height 341/16"

Overall Depth 24"

Door Clearance 165/8"

Wine Storage Capacity 26 bottles*

Opening Width 151/4"

Opening Height 341/2"

Opening Depth 24"

Electrical Requirements 115 V AC, 60 Hz

15 amp dedicated circuit

IMPORTANT NOTE: Although it can be located anywhere on the back wall, it is recommended that the receptacle be placed in an adjacent cabinet or in the lower right of the opening. If it is placed within the opening, additional cabinet depth may be required.

Shipping Weight 118 lbs

*750 ml bottles.

INSTALLATION SPECIFICATIONS

Opening Dimensions

INSTALLATION NOTES

For overlay models, you will be adding a door panel for a custom look. Overlay models also allow you to match surrounding cabinetry hardware.

Complete installation specifications, including panel sizes, can be found on our website, subzero.com/specs.

Dimensions in parentheses are in millimeters unless otherwise specified.
