© SUB-ZERO PLANNING GUIDE 2006 (REV 2.0) 1

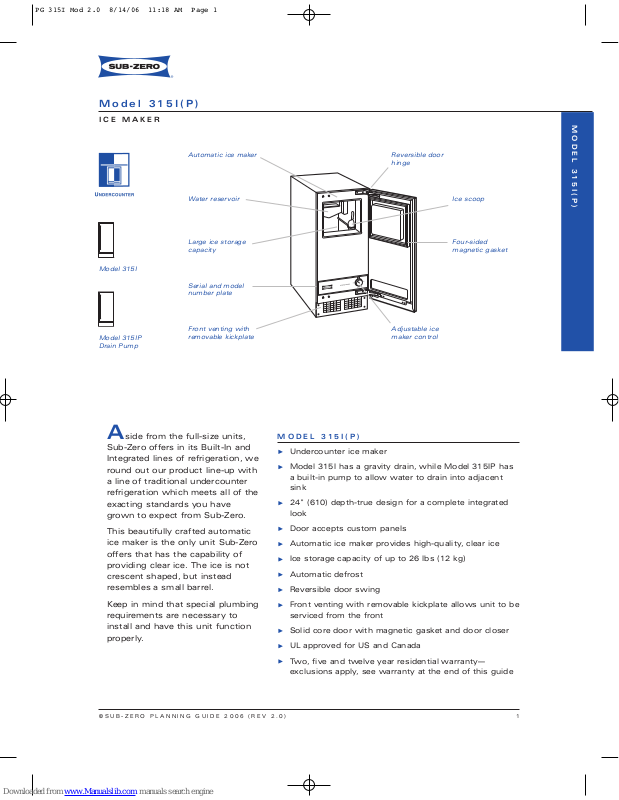

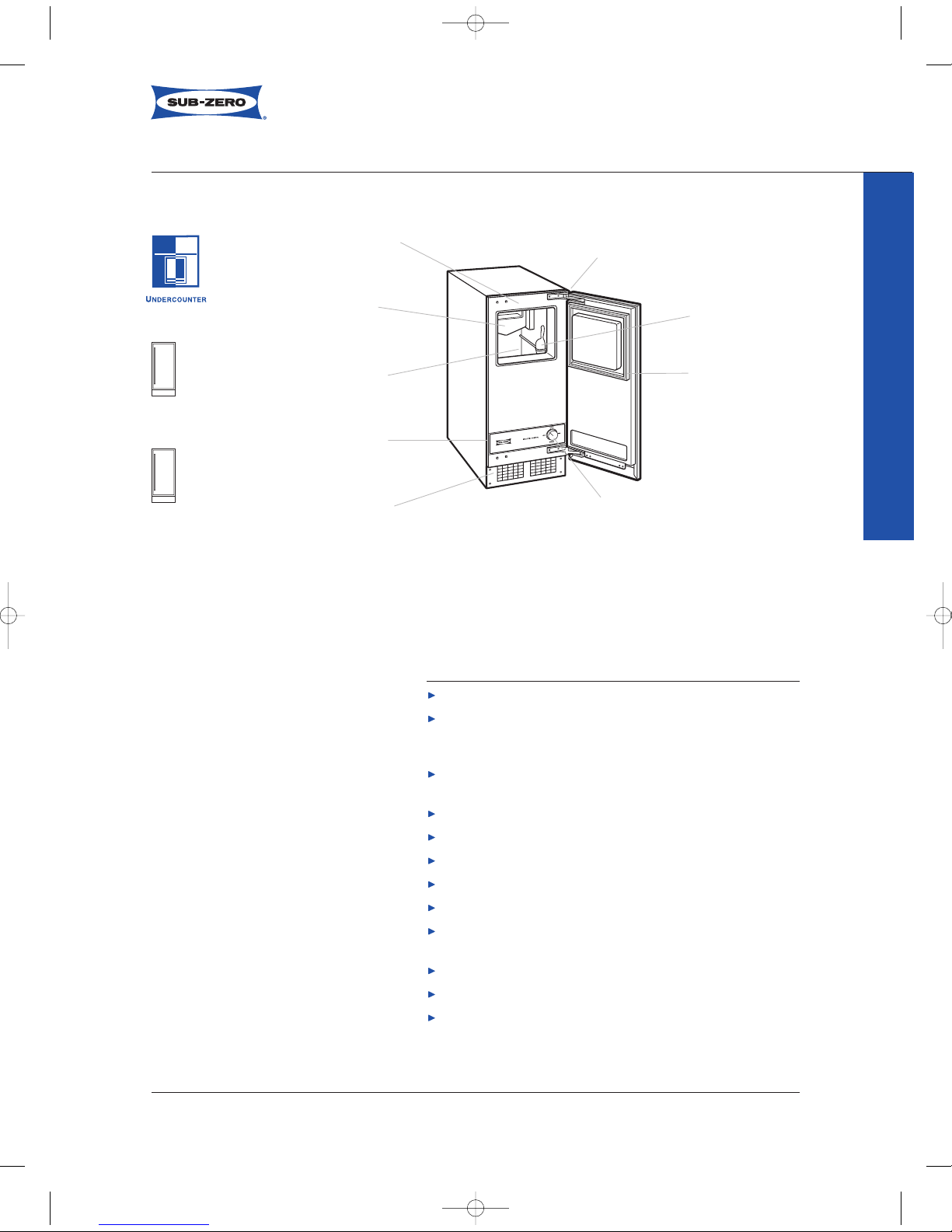

MODEL 315I(P)
Model 315I(P)
ICE MAKER
Large ice storage
capacity
Water reservoir
Automatic ice maker
Ice scoop
Reversible door
hinge
Front venting with
removable kickplate
Serial and model
number plate
Four-sided
magnetic gasket
MODEL 315I(P)
Undercounter ice maker
Model 315I has a gravity drain, while Model 315 IP has
a built-in pump to allow water to drain into adjacent
sink
24" (610) depth-true design for a complete integrated
look
Door accepts custom panels
Automatic ice maker provides high-quality, clear ice
Ice storage capacity of up to 26 lbs (12 kg)
Automatic defrost
Reversible door swing
Front venting with removable kickplate allows unit to be
serviced from the front
Solid core door with magnetic gasket and door closer
UL approved for US and Canada
Two, five and twelve year residential warranty—
exclusions apply, see warranty at the end of this guide
Model 315I
Adjustable ice
maker control
Model 315IP
Drain Pump
Aside from the full-size units,
Sub-Zero offers in its Built-In and
Integrated lines of refrigeration, we
round out our product line-up with
a line of traditional undercounter
refrigeration which meets all of the
exacting standards you have
grown to expect from Sub-Zero.
This beautifully crafted automatic
ice maker is the only unit Sub-Zero
offers that has the capability of
providing clear ice. The ice is not
crescent shaped, but instead
resembles a small barrel.
Keep in mind that special plumbing
requirements are necessary to
install and have this unit function
properly.
PG 315I Mod 2.0 8/14/06 11:18 AM Page 1
Page 2
MODEL OPTIONS
Ice Maker without Pump 315I
Ice Maker with Drain Pump 315IP
PANEL OPTIONS
Custom Integrated Wood Panel
Classic Stainless Steel Finish /S
Platinum Stainless Steel Finish /P
Carbon Stainless Steel Finish /B
Stainless steel door panels are ordered
and shipped as a sales accessory and
include a tubular handle.
ACCESSORIES
Filler strip for 18" (457) openings
Accessories are available through your
Sub-Zero dealer. To obtain local dealer
information, visit the Locator section of
our website, subzero.com.
© SUB-ZERO PLANNING GUIDE 2006 (REV 2.0) 2
Model 315I(P)

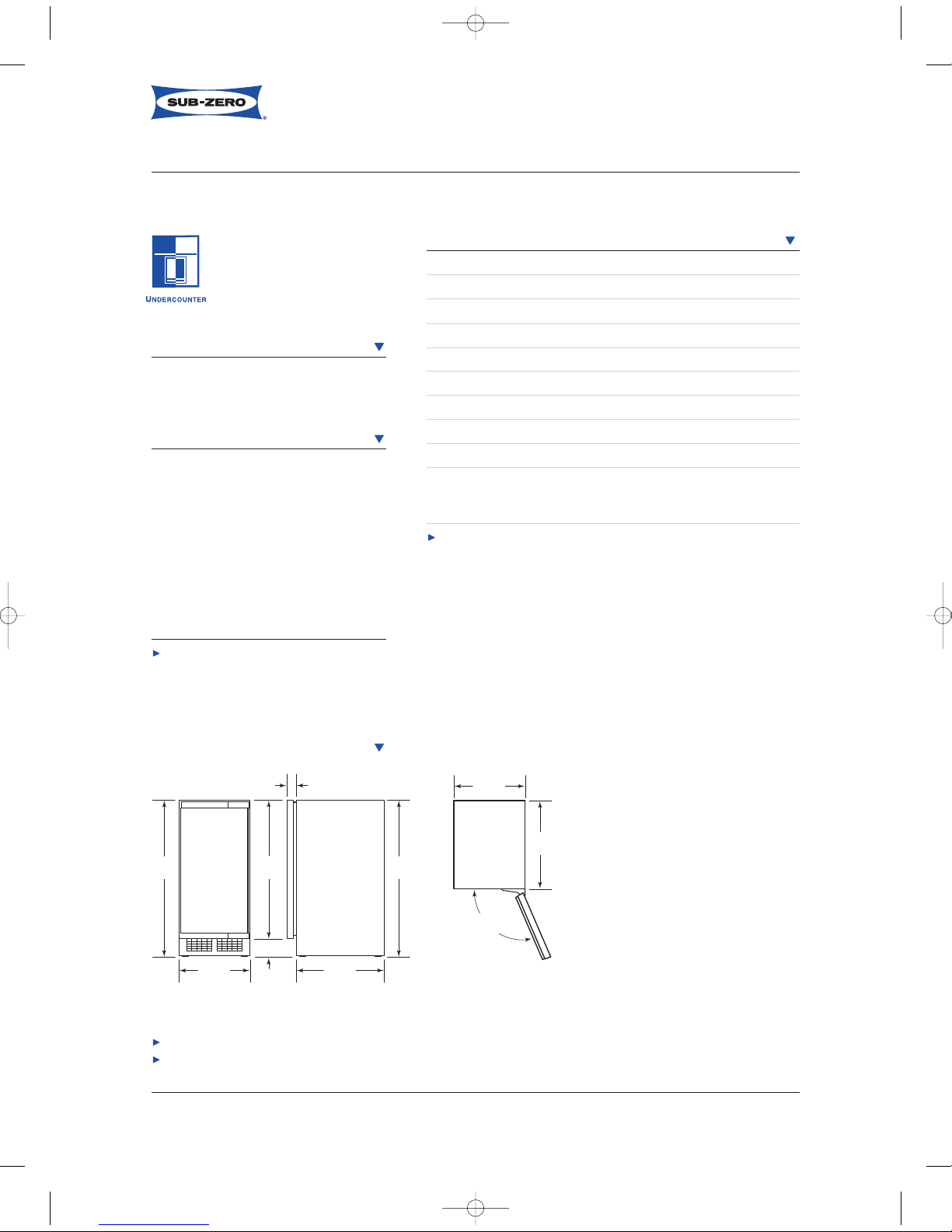

SPECIFICATIONS
335/8"
(854)
153/16"
(386)
293/8"
(746)
4"(102)
335/8"
(854)
19"
(483)
21/8"(54)
SIDE VIEWFRONT VIEW
SPECIFICATIONS
Model 315I(P) Undercounter Ice Maker
Overall Width 153/16" (386)
Overall Height 335/8" (854)
Overall Depth 24" (610)
Ice Storage Capacity 26 lbs (12 kg)
Minimum Height Required 333/4" (857)
Door Swing Clearance 151/4" (387)
Electrical Requirements 115 V AC, 60 Hz, 15 amp circuit
Shipping Weight 100 lbs (45 kg)
Special Note Optional stainless steel door panels
are available in 15" (381)
and 18" (457) widths
Specifications are subject to change without notice.
OVERALL DIMENSIONS
19"
(483)
TOP VIEW
153/16"
(386)
115˚
DOOR SWING
Dimensions may vary.
Dimensions in parentheses are in millimeters unless otherwise specified.
PG 315I Mod 2.0 8/14/06 11:18 AM Page 2
Page 3
© SUB-ZERO PLANNING GUIDE 2006 (REV 2.0) 3
Model 315I(P)

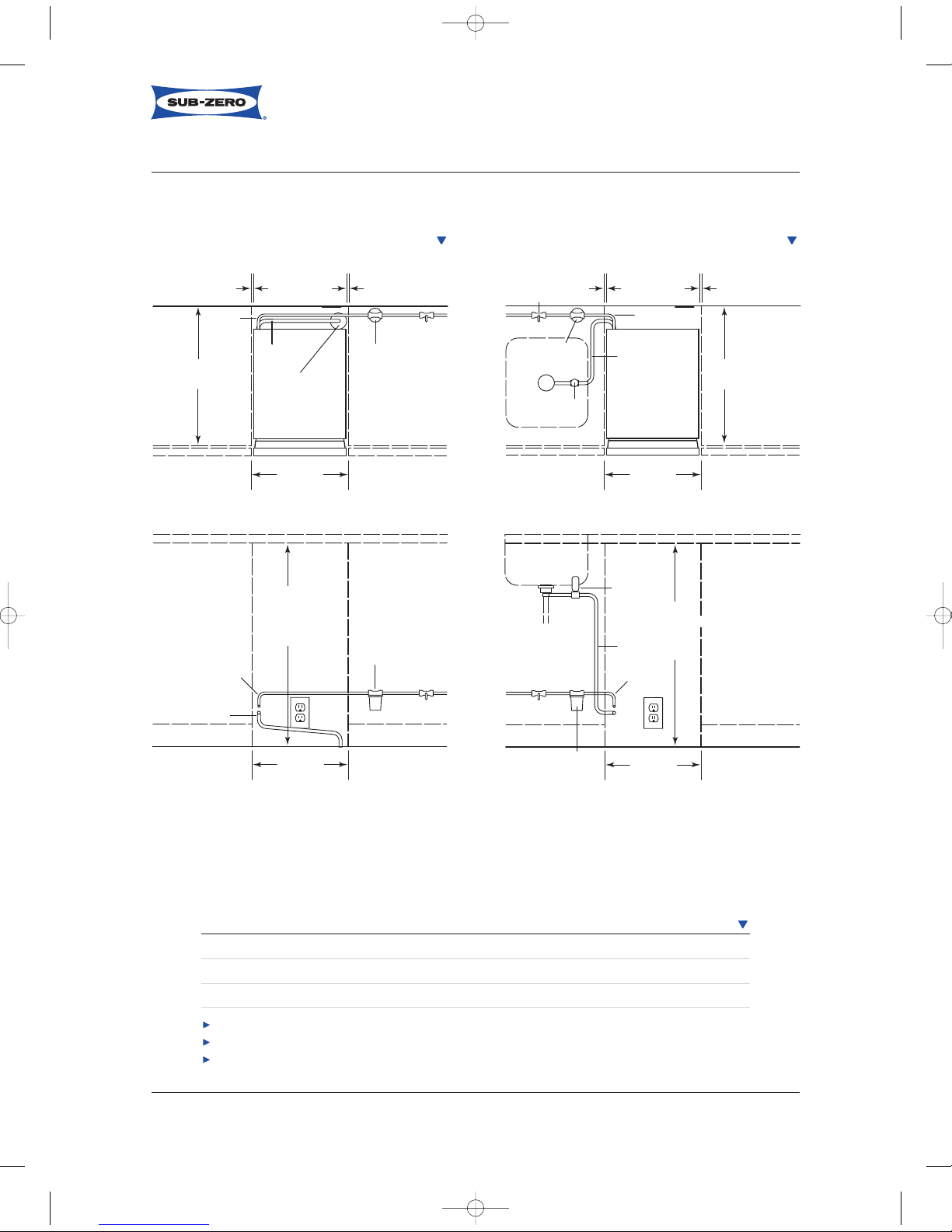

INSTALLATION
151/4"
(387) MIN.
FRONT VIEW
SHUT-OFF
VALVE
WATER
FILTER
WATER
INLET TUBE
DRAIN
TUBE
TOP VIEW
SHUT-OFF
VALVE
WATER
FILTER
341/2"
(876) NOMINAL
333/4"
(857) MIN.
151/4"
(387) MIN.
24"
(610)
1
/8"(3)
WATER
INLET
TUBE
DRAIN
TUBE
LOCATE DRAIN
WITHIN 2" DIA.
AREA 23" BACK
FROM FRONT
OF UNIT
FRONT VIEW
SHUT-OFF
VALV E
WATER
FILTER
WATER
INLET TUBE
AIR GAP
DEVICE
DRAIN
TUBE
TOP VIEW
SHUT-OFF
VALV E
WATER
FILTER
WATER
INLET TUBE
DRAIN
TUBE
AIR GAP
DEVICE
24"
(609)
1
/8"(3)
151/4"
(387) MIN.
151/4"
(387) MIN.
341/2"
(876) NOMINAL
333/4"
(857) MIN.
DIMENSIONS
Finished Rough Opening Width 151/4" (387)*
Finished Rough Opening Height 341/2" (876)*
Finished Rough Opening Depth 24" (610)
* Dimensions are based on a 1/8" (3) reveal and 4" (102) toe kick.
See Installation Instructions shipped with unit for detailed specifications.
Dimensions in parentheses are in millimeters unless otherwise specified.
MODEL 315I – GRAVITY DRAIN MODEL 315IP – DRAIN PUMP
PG 315I Mod 2.0 8/14/06 11:18 AM Page 3
Page 4
© SUB-ZERO PLANNING GUIDE 2006 (REV 2.0) 4
INSTALLATION NOTES
This ice maker unit can be ordered with a
pump (Model 315IP) or without a pump (Model
315I). Models without a drain pump, drain their
water by gravity. However, gravity drain models
may be converted to pump models through the
installation of a drain pump kit and drain pump.
Specific step-by-step instructions are
included with the drain pump kit. Contact your
Sub-Zero dealer for details. To obtain local
dealer information, visit the Locator section of
our website, subzero.com.
The drain and inlet water tubes must be
plumbed before connecting to the ice maker.
For the gravity drain, all horizontal runs of drain
lines must have a 1/4" (6) per 1' (305) fall. An
air gap will likely be required between the ice
maker drain tube and the drain/ waste receptacle. A stand pipe with a trap below it would be
acceptable for the drain / waste receptacle. Refer
to the installation illustrations for the Model
315I (gravity drain) and the Model 315 IP (drain
pump).
For Model 315I (gravity drain), the drain
must be located in a 2" (51) area centered in
the opening for the unit, 23" (651) back from
the front door.
Poor draining will cause a high rate of ice
melting in the bin.
Rough in the water supply line. Connect a
1
/4" OD copper line to the house supply, being
sure to use an easily accessible shut off valve
between the supply and the unit.
Do not use self-piercing valves. A saddle
valve kit (4200880) is available from your
Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website,
subzero.com.
A line filter is required when water conditions have a high sediment content. The ice
maker operates on water pressure of 20 psi
(1.4 bar) to 100 psi (6.9 bar). In some cases a
reverse osmosis water filter system may not be
able to maintain the minimum water pressure
consistently.
A 115 V AC, 60 Hz, 15 amp fused electrical
supply is required. It is recommended that a
separate circuit, serving only this appliance, be
provided.
All Undercounter models are equipped with a
power supply cord with a 3-prong grounding
plug which must be plugged into a mating
3-prong grounding type wall receptacle. Locate
electrical within the shaded area shown in the
illustration.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
Model 315I(P)
INSTALLATION
Dimensions in parentheses are in millimeters unless otherwise specified.
PG 315I Mod 2.0 8/14/06 11:18 AM Page 4
Page 5
Model 315I(P)
PANEL SPECIFICATIONS
DOOR PANEL
It is important to understand the differences in mounting
any wood panel to Model 315I(P). The panel must be
5
/8"
(16) minimum thickness. Refer to the installation instructions packaged with the unit to understand how the panel
is installed. It does not require a
1
/4" (6) backer. No handle
recess is required.
Refer to the following chart for door panel dimensions for
the Model 315I(P).
DOOR PANEL DIMENSIONS
Door Panel Width 15" (381)
Door Panel Height 303/8" (772)
Door Panel Thickness
5
/8" (16) min
Maximum Panel Weight 15 lbs (7 kg)
W
H
Door Panel Dimensions
© SUB-ZERO PLANNING GUIDE 2006 (REV 2.0) 5
Dimensions in parentheses are in millimeters unless otherwise specified.
PG 315I Mod 2.0 8/14/06 11:18 AM Page 5
