Planning Information
30" (762) Sealed Burner Rangetop
MODEL SRT304
Dimensions in parentheses are in
millimeters unless otherwise specified.
5/06
1
Model SRT304 shown
The Wolf 30" (762) sealed burner
rangetop is available in natural or LP gas
with a top configuration which includes
four surface burners. The model number
followed by (-LP) denotes an LP gas
model.
There's a good reason why professional chefs choose
gas cooking; control. The patented, dual-stacked sealed
gas burners of our new sealed burner rangetop take
control to a new level. Two levels, really. The upper-tier
burner delivers maximum heat transfer at higher settings;
the lower-tier continuous flame ably handles the
subtleties of simmering and melting.
Let Wolf, the corporate companion and kitchen soul mate
of Sub-Zero, fuel your passion for cooking and kitchen
design.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Model SRT304
Dual-stacked,
sealed burners
Stainless steel
exterior finish
Continuous,
cast iron top grates
Low-profile
island trim
Location of rating
plate
Control knobs with
platinum bezels
Planning Information
30" (762) Sealed Burner Rangetop
MODEL SRT304
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
FEATURES
Natural or LP gas models
Classic stainless steel exterior finish with
island trim
Distinctive red or black control knobs
Platinum bezels surround all knobs— chrome
or brass bezels optional
Porcelain-coated cast iron continuous top
grates
Dual-stacked, sealed surface burners, all
with simmer capabilities and automatic
reignition at all settings
15,000 Btu/ hr (4.4 kW) burners with
950 Btu/ hr (.3 kW) delivered at simmer
9,200 Btu/ hr (2.7 kW) burner with
325 Btu/ hr (.1 kW) delivered at simmer
and melt feature
Certified by Star-K to meet religious
regulations
CSA certified for US and Canada
Two and five year residential warranty—
exclusions apply; warranty information can
be found on our website, wolfappliance.com
OVERALL DIMENSIONS
COOKING
SURFACE
81/2" (216)
OVERALL
HEIGHT
297/8" (759)
OVERALL WIDTH
71/2"
(191)
281/2" (724)
OVERALL DEPTH
241/4"
(616)
91/4"
(235)
121/2"
(318)
WITH 5"
RISER
WITH 20"
171/2"
(445)
WITH 10"
RISER
271/2"
(699)
RISER
Planning Information
30" (762) Sealed Burner Rangetop
MODEL SRT304
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Rangetop Width 297/8" (759)
Overall Rangetop Height
(to cooking surface) 81/2" (216)
Overall Rangetop Depth 281/2" (724)
Dual-Stacked Sealed Surface Burners
15,000 Btu/ hr (4.4 kW) burners with 950 Btu/ hr
(.3 kW) delivered at simmer
Single 9,200 Btu/ hr (2.7 kW) burner with 325 Btu/hr
(.1 kW) delivered at simmer
Electrical Supply Requirements 110/ 120 V AC, 50/60 Hz
15 amp dedicated circuit
Power Cord 6' (1.8 m) power cord with
3-prong grounded plug
Shipping Weight 160 lbs (73 kg)
Specifications are subject to change without notice.
MODEL OPTIONS
Four Burners SRT304
Natural gas model listed, for LP gas add
(-LP) to the model number.
VENTILATION OPTIONS
30" (762) Pro wall hood or liner
36" (914) Pro wall or island hood
Refer to the Wolf Pro Ventilation section
of our website, wolfappliance.com for
additional information.
ACCESSORIES
5" (127) or 10" (254) classic
stainless steel riser
20" (508) classic stainless steel
riser with shelf
Black control knobs
Chrome or brass bezels
One-piece wok grate and single
burner grate
Porcelain-coated cast iron two-
burner S-grate
High altitude conversion kits
Accessories are available through
your Wolf dealer. To obtain local dealer
information, visit the Locator section
of our website, wolfappliance.com.
Planning Information
30" (762) Sealed Burner Rangetop
INSTALLATION
Dimensions in parentheses are in
millimeters unless otherwise specified.
4

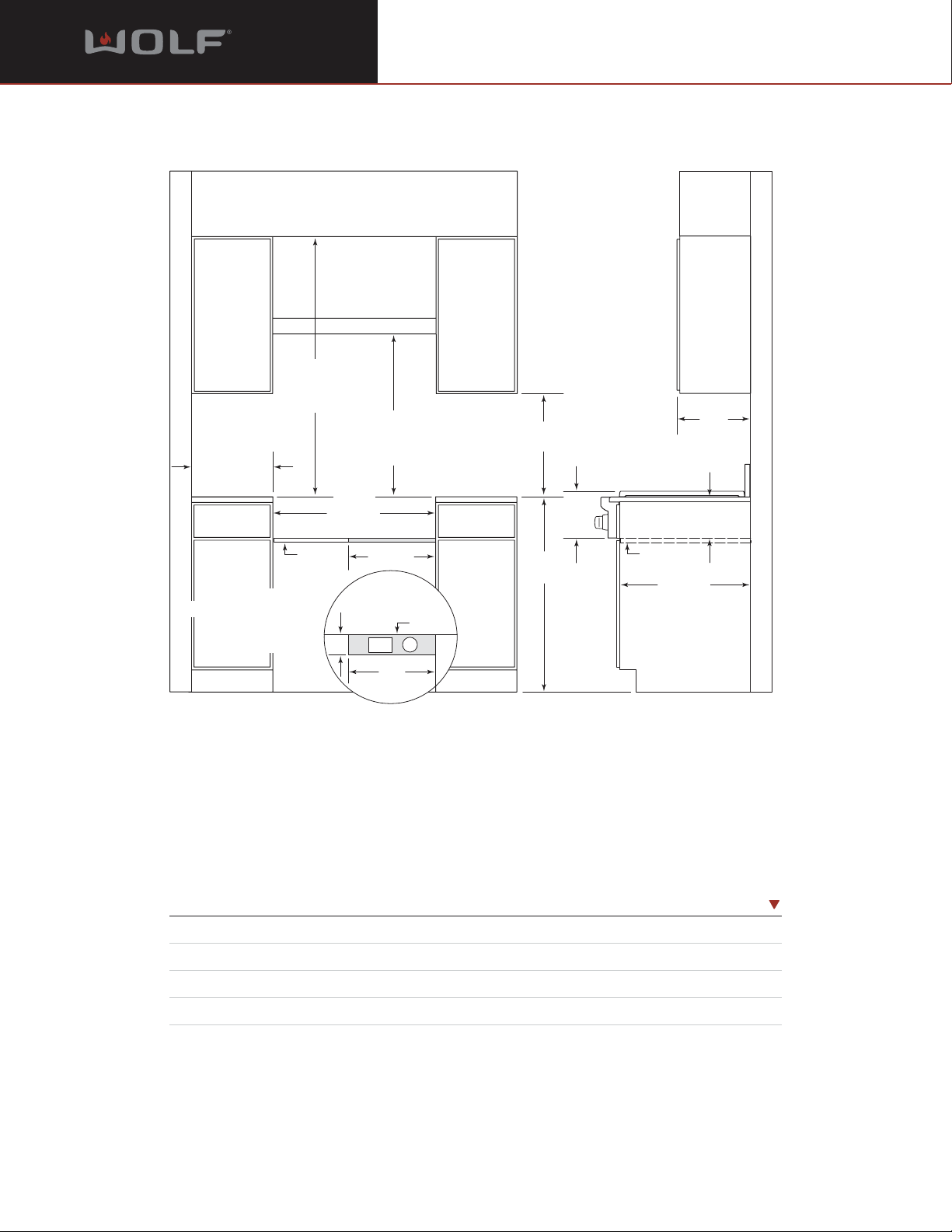

DIMENSIONS
Rough Opening Width 30" (762)
Rough Opening Height 71/2" (191)
Rough Opening Depth 24" (610)
Location of Electrical and Gas Supply Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
VENTILATION
HOOD
30"min (762)
COUNTERTOP
TO COMBUSTIBLE
6"min (152)
TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
MATERIALS
30"min (762)
36"max (914)
TO
TO BOTTOM OF
VENTILATION HOOD
18"min (457)
TO COUNTERTOP
COOKING
SURFACE
13" max
(330)
81/2"
(216)
36"
(914)
ISLAND INSTALLATIONS: 12" (305) MINIMUM
CLEARANCE FROM BACK OF RANGETOP TO
COMBUSTIBLE REAR WALL ABOVE COUNTERTOP–
0" (0) TO NON-COMBUSTIBLE MATERIALS
3
PLATFORM
/4" (19)
24" (610)
71/2"
(191)
OPENING WIDTH
3
/4" (19)
PLATFORM
LOCATION OF GAS AND
ELECTRICAL SUPPLY CUT-OUT
WITHIN SHADED AREA
THROUGH BOTTOM OF
PLATFORM
30" (762)
OF PLATFORM
4" (102)
16" (406)
TOP VIEW
E
16"
(406)
BACK
WALL
G
Planning Information
30" (762) Sealed Burner Rangetop
INSTALLATION
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, finished rough opening
dimensions and installation specifics.
IMPORTANT NOTE: Caution must be used in
planning the proper installation of the Wolf
sealed burner rangetop to avoid any fires or
damage to adjacent cabinetry or kitchen equipment. Follow the minimum clearances established in the finished rough opening dimensions
as shown in the Installation illustration.
The platform for the rangetop must be
3
/4"
(19) thick and include a cut-out at the right rear
for gas supply and electrical connections. The
platform must be level to ensure that the
cooking surface is level.
It is recommended that you use a Wolf Pro
wall or island ventilation hood or hood liner
with the Wolf sealed burner rangetop. Refer to
the Pro Ventilation section of our website,
wolfappliance.com.
The Wolf sealed burner rangetop requires a
110/ 120 V AC, 50/60 Hz electrical supply to
operate the electronic ignition system. The
power supply cord is equipped with a 3-prong,
grounded plug for protection against shock
hazard. The service should have its own 15
amp circuit breaker. Locate electrical and gas
supply within the shaded area shown in the
Installation illustration.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
Wolf sealed burner rangetops are designed
to operate on natural gas at 5" (12.5 mb) WC
(water column) pressure or LP (propane) gas at
10" (25 mb) WC pressure. The minimum line
pressure for natural gas is 7" (17.5 mb) WC and
11" (27.4 mb) WC for LP gas. The maximum
gas supply pressure to the regulator should
never exceed 14" (34.9 mb) WC; .5 psi (3.5
kPa).
If local codes permit, a certified, 3' (.9 m)
long,
1
/2" or 3/4" ID flexible metal appliance
connector is recommended for connecting the
rangetop to the gas supply line.
IMPORTANT NOTE: A separate external gas
shut-off valve must be located near the
rangetop in an accessible location.
Wolf sealed burner rangetops using natural
gas will operate up to an altitude of 8,000'
(2438 m) without any adjustment. Natural gas
and LP gas installations from 8,000' (2438 m)
to 11,000' (3353 m) need the high altitude
conversion kit. Contact your Wolf dealer for
details. To obtain local dealer information, visit
the Locator section of our website, wolfappliance.com.
You must follow all National Electrical Code
and gas regulations. In addition, be aware of
local codes and ordinances when installing your
services.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
